1. RESTful Web
from RESTful style to RESTful code work
!
!
!
@PengEdy

2. 2
Table of Contents
• Web & Web Service
!
• Details of REST Style
!
• Some Examples

3. 3
Web & Web Service

4. 4
Web Service
• Normally: a method of communications over the WWW
!
• W3C Definition: a software system
• Designed to support interoperable machine-to-machine interaction
• Over network
• An interface with a certain format: WSDL
• Other systems interact with the Web Service

5. 5

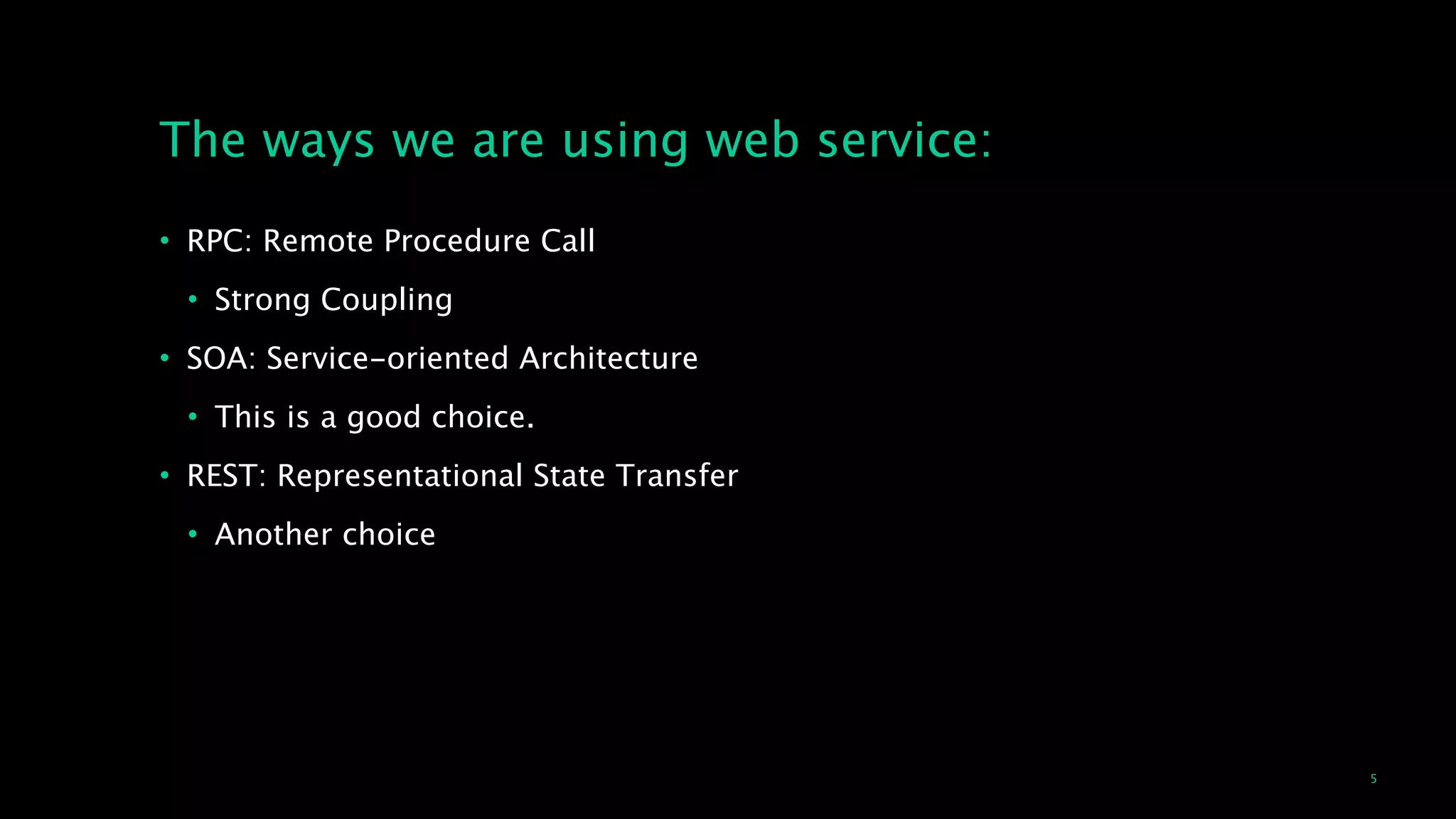

The ways we are using web service:
• RPC: Remote Procedure Call
• Strong Coupling
• SOA: Service-oriented Architecture
• This is a good choice.
• REST: Representational State Transfer
• Another choice

6. 6
Demo of RPC
• Server
getUser()
addUser()
removeUser()
updateUser()
getLocation()
addLocation()
removeLocation()
updateLocation()
• Client
exampleAppObject = new
ExampleApp(“example.com:
1234”)
exampleAppObject.getUser()

7. 7
Demo of REST
• Server
http://example.com/users/
http://example.com/users/
{user}
http://example.com/
findUserForm
http://example.com/locations
http://example.con/locations/
{location}
http://example.com/
findLocationForm
• Client
userResource = new
Resource(http://
example.com/users/001)
userResource.get()

8. 8

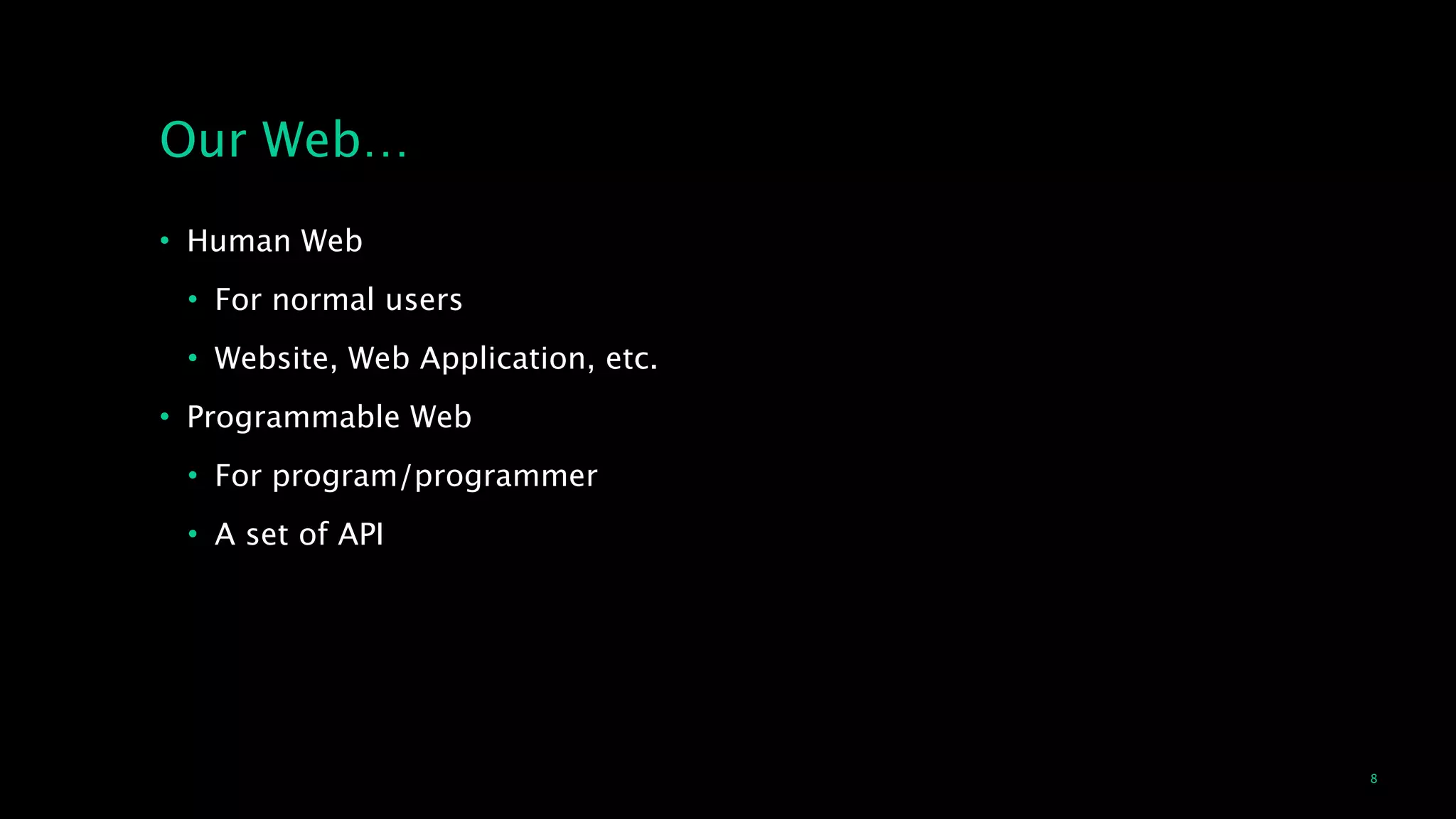

Our Web…
• Human Web
• For normal users
• Website, Web Application, etc.
• Programmable Web
• For program/programmer
• A set of API

9. 9

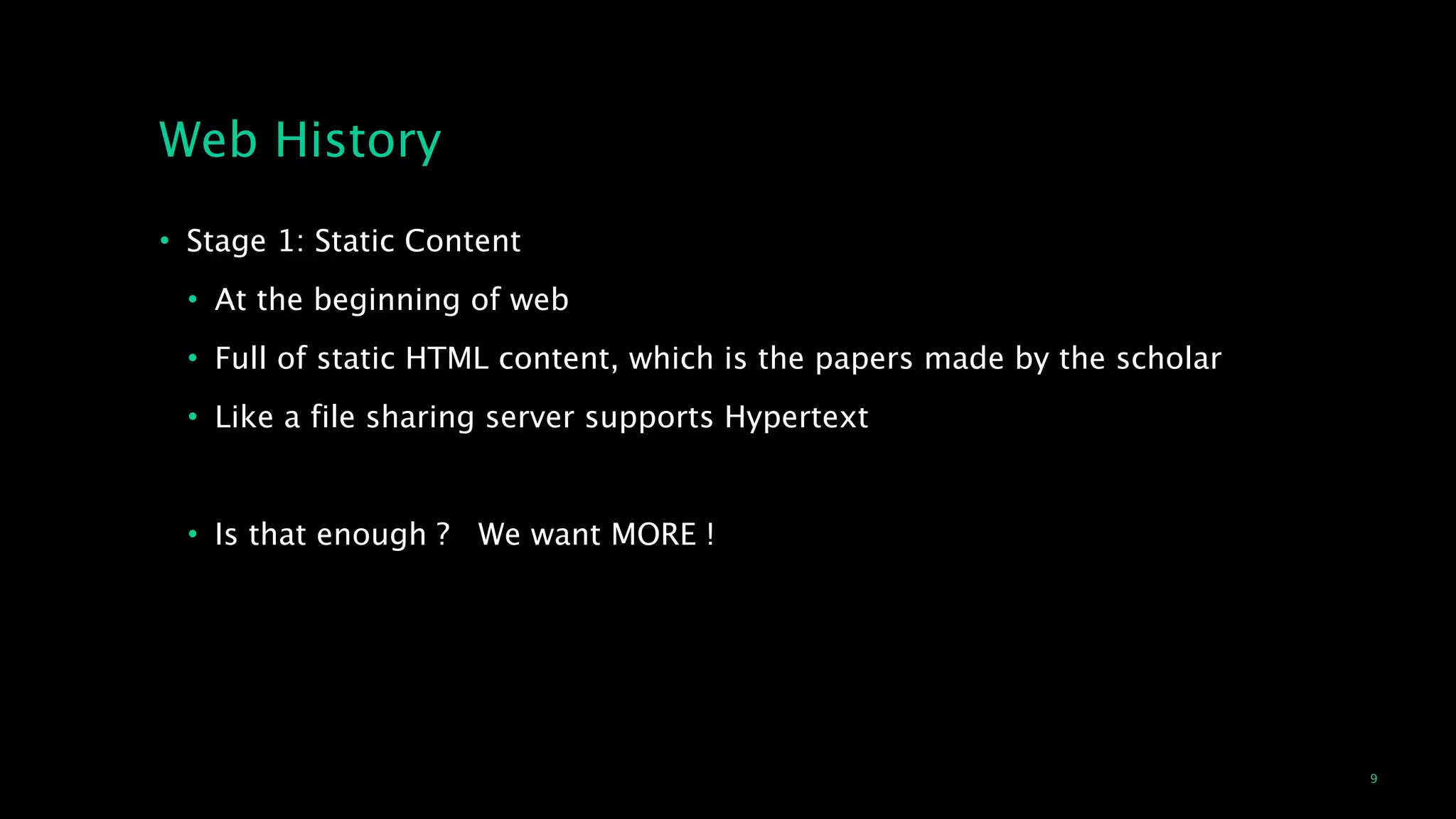

Web History
• Stage 1: Static Content
• At the beginning of web
• Full of static HTML content, which is the papers made by the scholar
• Like a file sharing server supports Hypertext
!
• Is that enough ? We want MORE !

10. 10
Web History
• Stage 2: CGI Program
• People wanted to have more function on the web.
• API appeared.
• CGI is made by C/C++, Perl, and some other language, which is
powerful but a little tricky.
!
• But, we want it better…

11. 11

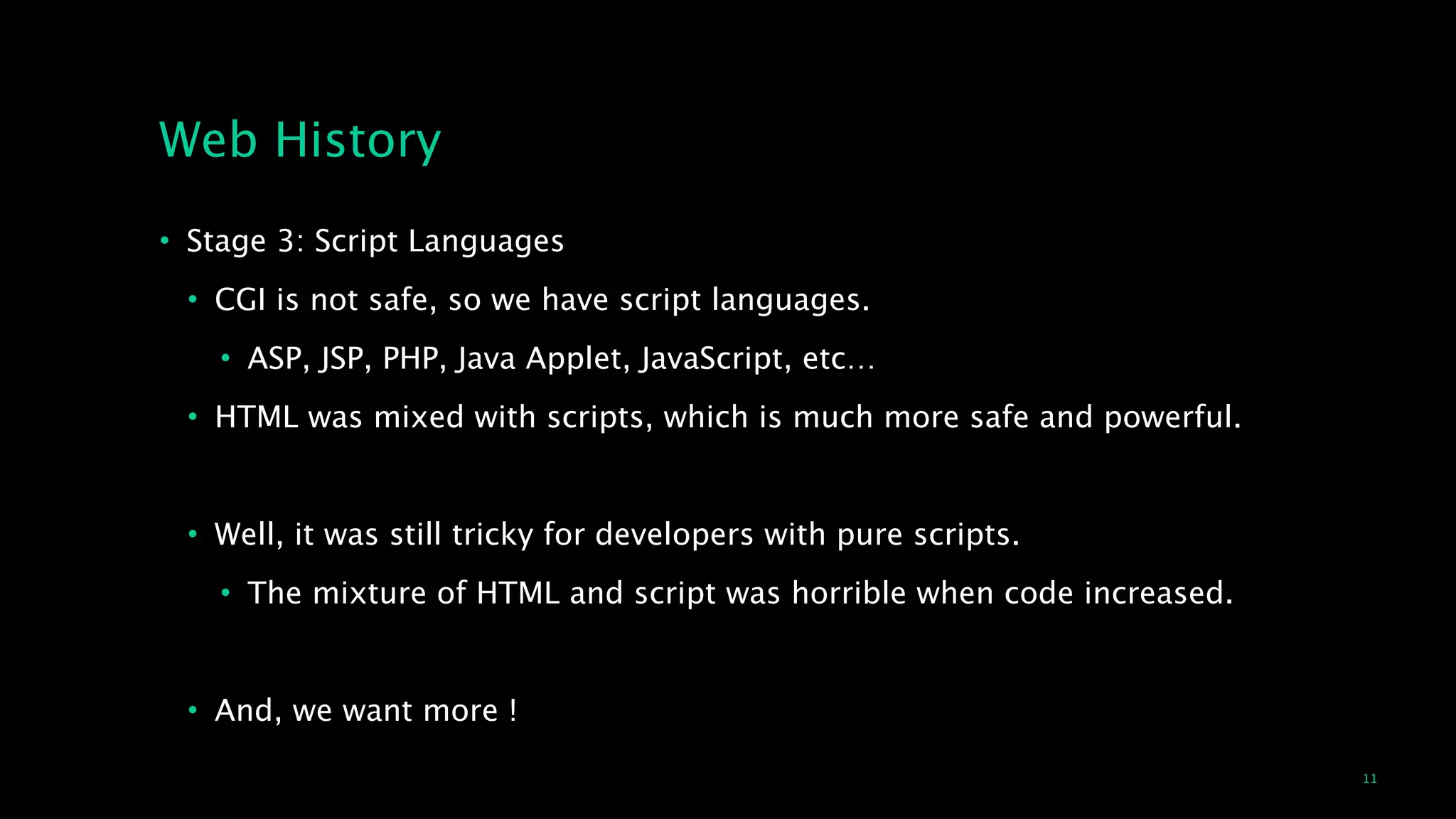

Web History
• Stage 3: Script Languages
• CGI is not safe, so we have script languages.
• ASP, JSP, PHP, Java Applet, JavaScript, etc…
• HTML was mixed with scripts, which is much more safe and powerful.
!
• Well, it was still tricky for developers with pure scripts.
• The mixture of HTML and script was horrible when code increased.
!
• And, we want more !

12. 12
Web History
• Stage 4: Thin Client
• All the content was produced on the server.
• And we had MVC !
• Back-end technology runs fast in this stage.
!
• Still, we want more !

13. 13

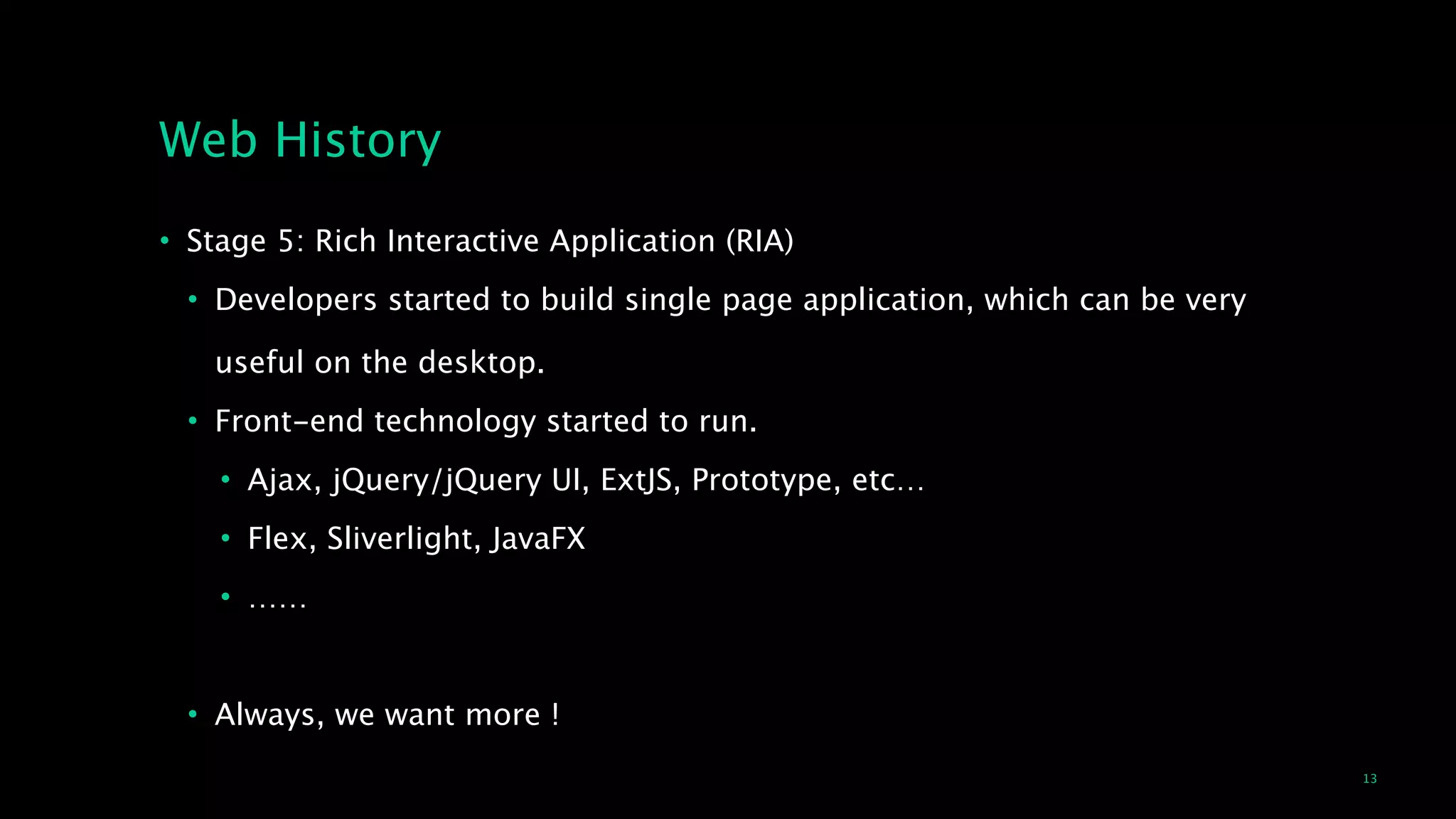

Web History
• Stage 5: Rich Interactive Application (RIA)
• Developers started to build single page application, which can be very
useful on the desktop.
• Front-end technology started to run.
• Ajax, jQuery/jQuery UI, ExtJS, Prototype, etc…
• Flex, Sliverlight, JavaFX
• ……
!
• Always, we want more !

14. 14

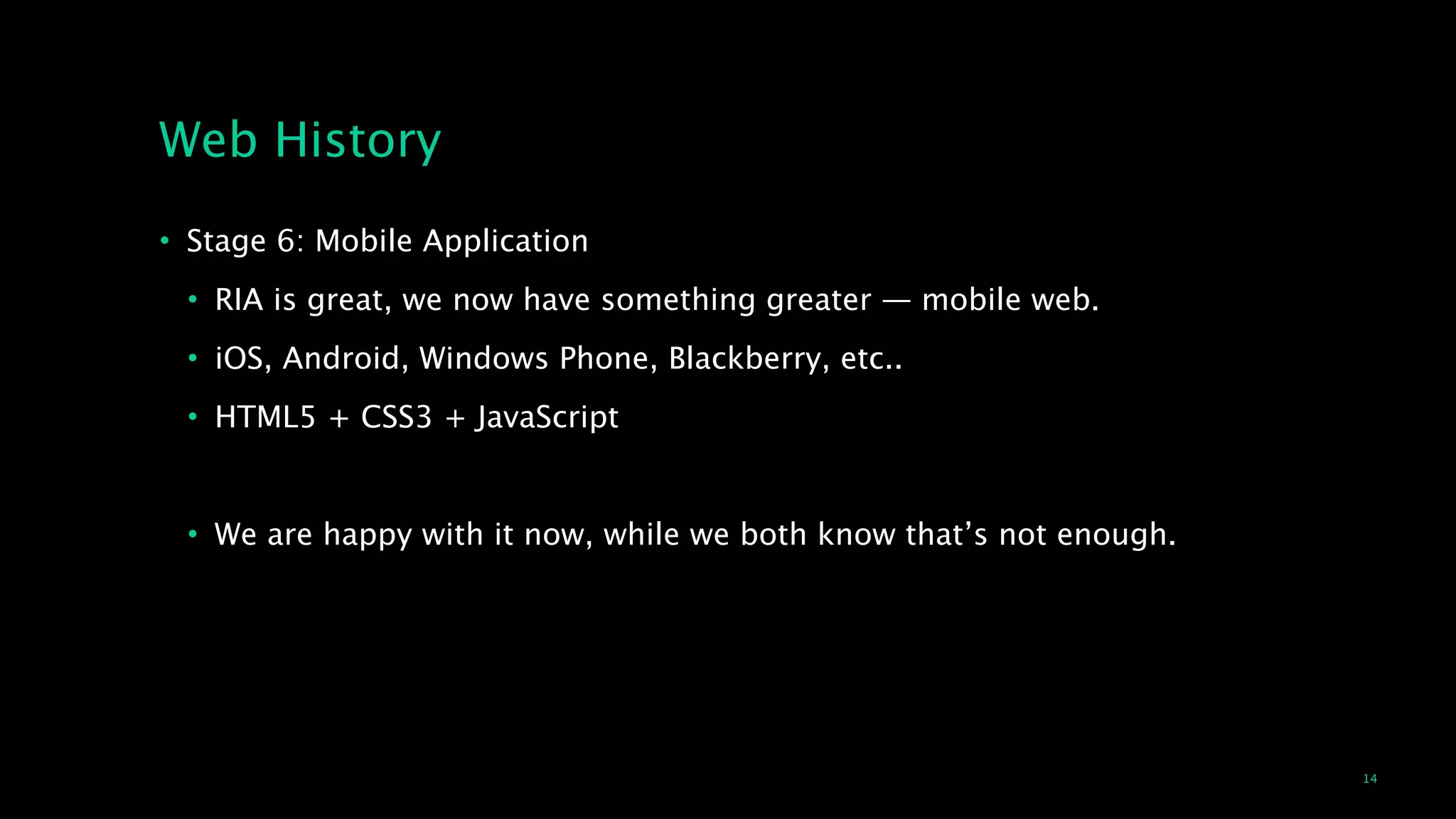

Web History
• Stage 6: Mobile Application
• RIA is great, we now have something greater — mobile web.
• iOS, Android, Windows Phone, Blackberry, etc..
• HTML5 + CSS3 + JavaScript
!
• We are happy with it now, while we both know that’s not enough.

15. 15

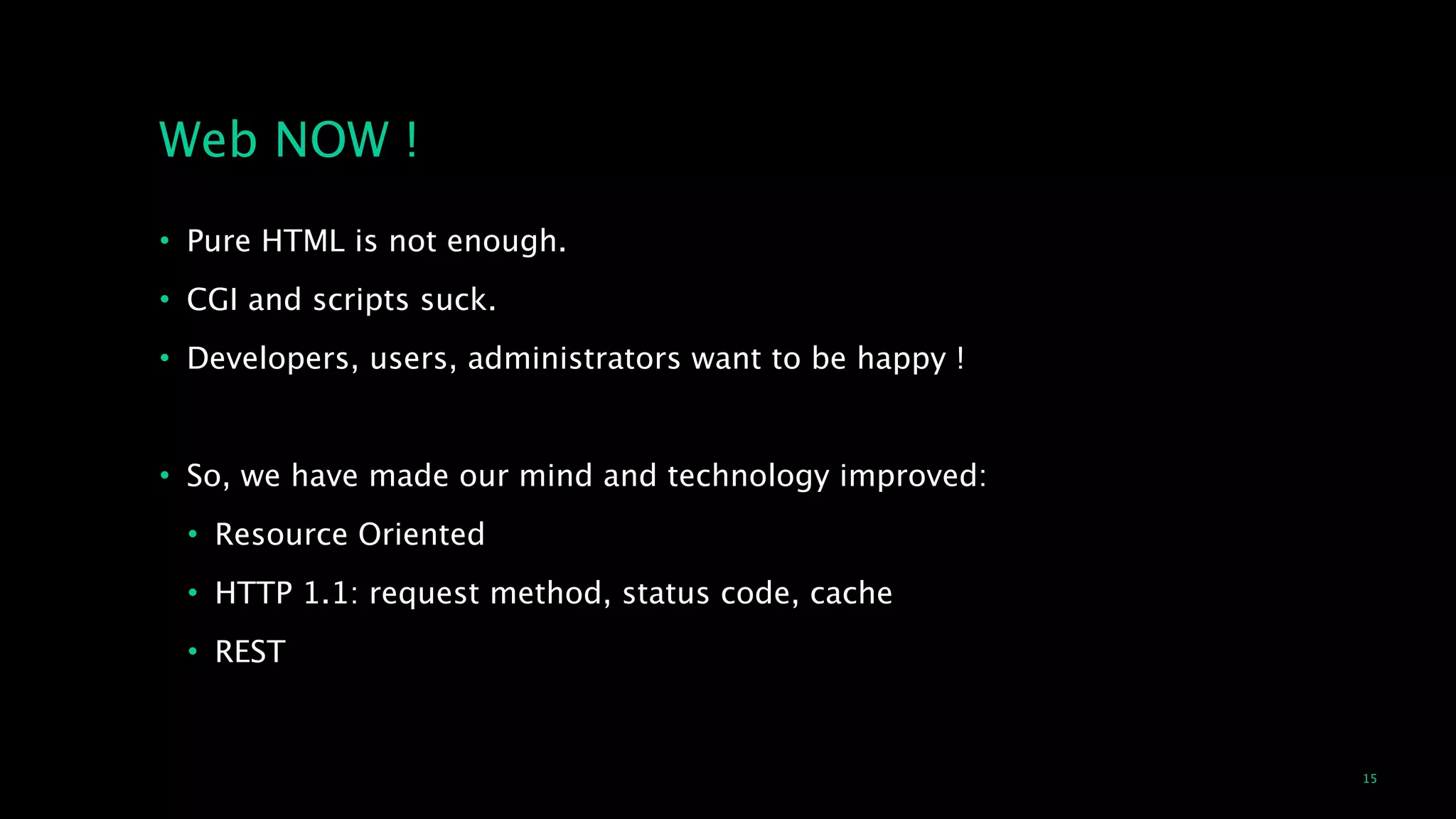

Web NOW !
• Pure HTML is not enough.
• CGI and scripts suck.
• Developers, users, administrators want to be happy !
!
• So, we have made our mind and technology improved:
• Resource Oriented
• HTTP 1.1: request method, status code, cache
• REST

16. 16
RESTful and Resource Oriented Architecture
• REST: Representational State Transfer
• a style, not a standerd
• ROA
• What is resource: anything useful
• Resources must have URIs.
• Use HTTP verbs to implement CRUD
• Provide 2 kind of web service
• Human Web
• Programmable Web

17. 17
HTTP Request Methods
• Verbs:
• OPTIONS
• HEAD
• GET
• POST
• PUT
• DELETE
• TRACE
• CONNECT
• PATCH

18. 18

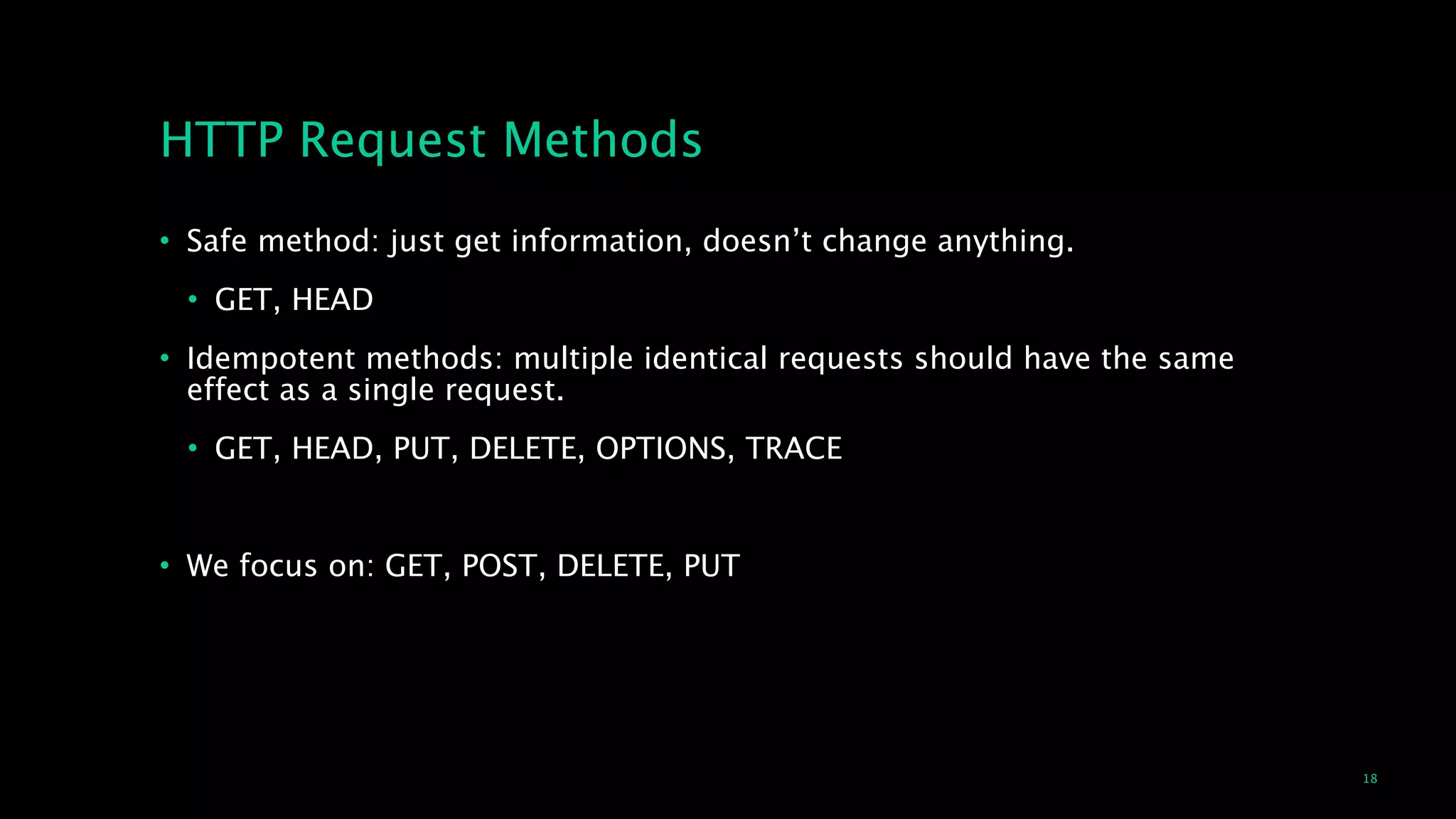

HTTP Request Methods
• Safe method: just get information, doesn’t change anything.
• GET, HEAD
• Idempotent methods: multiple identical requests should have the same
effect as a single request.
• GET, HEAD, PUT, DELETE, OPTIONS, TRACE
!
• We focus on: GET, POST, DELETE, PUT

19. 19

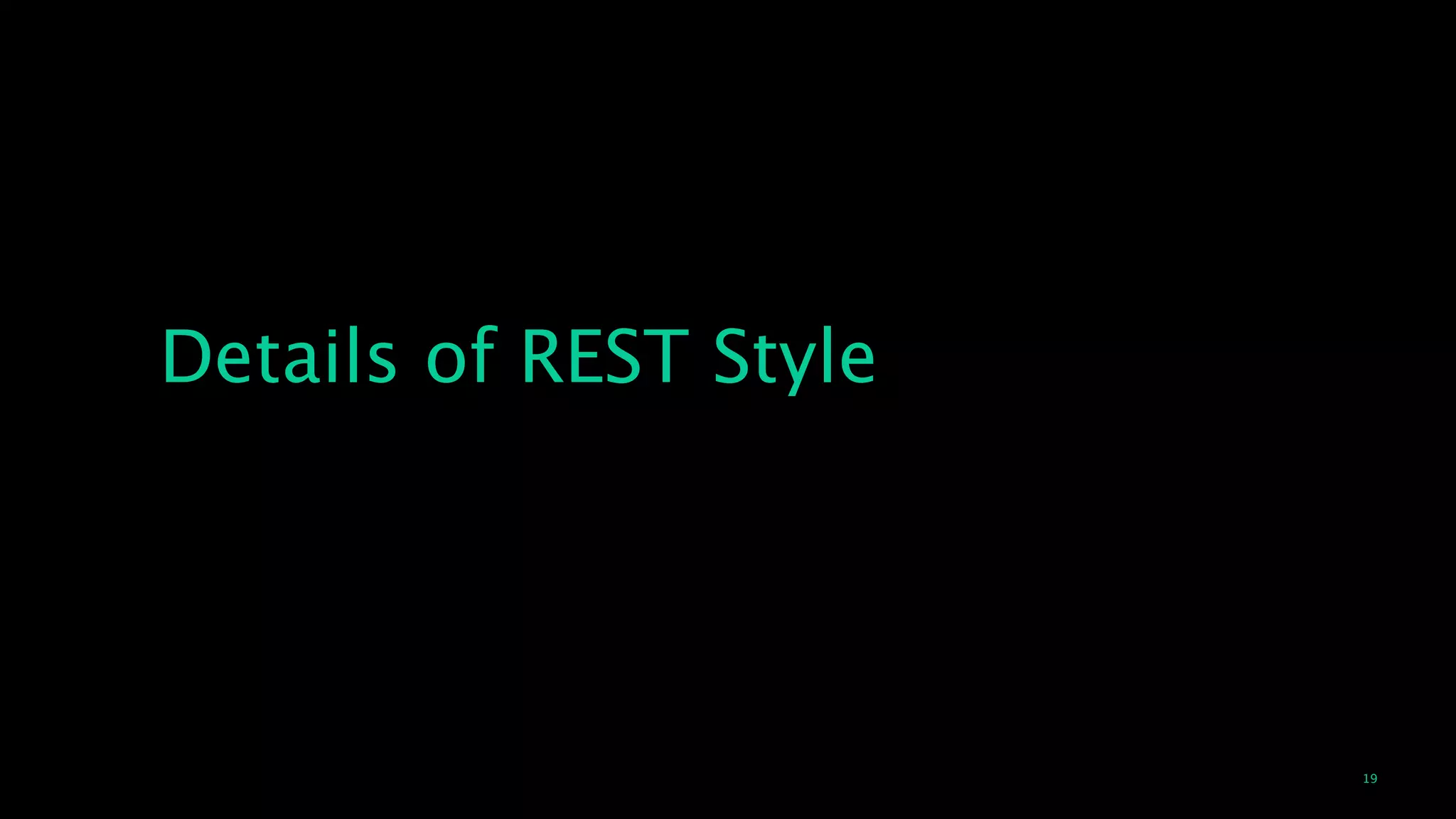

Details of REST Style

20. 20

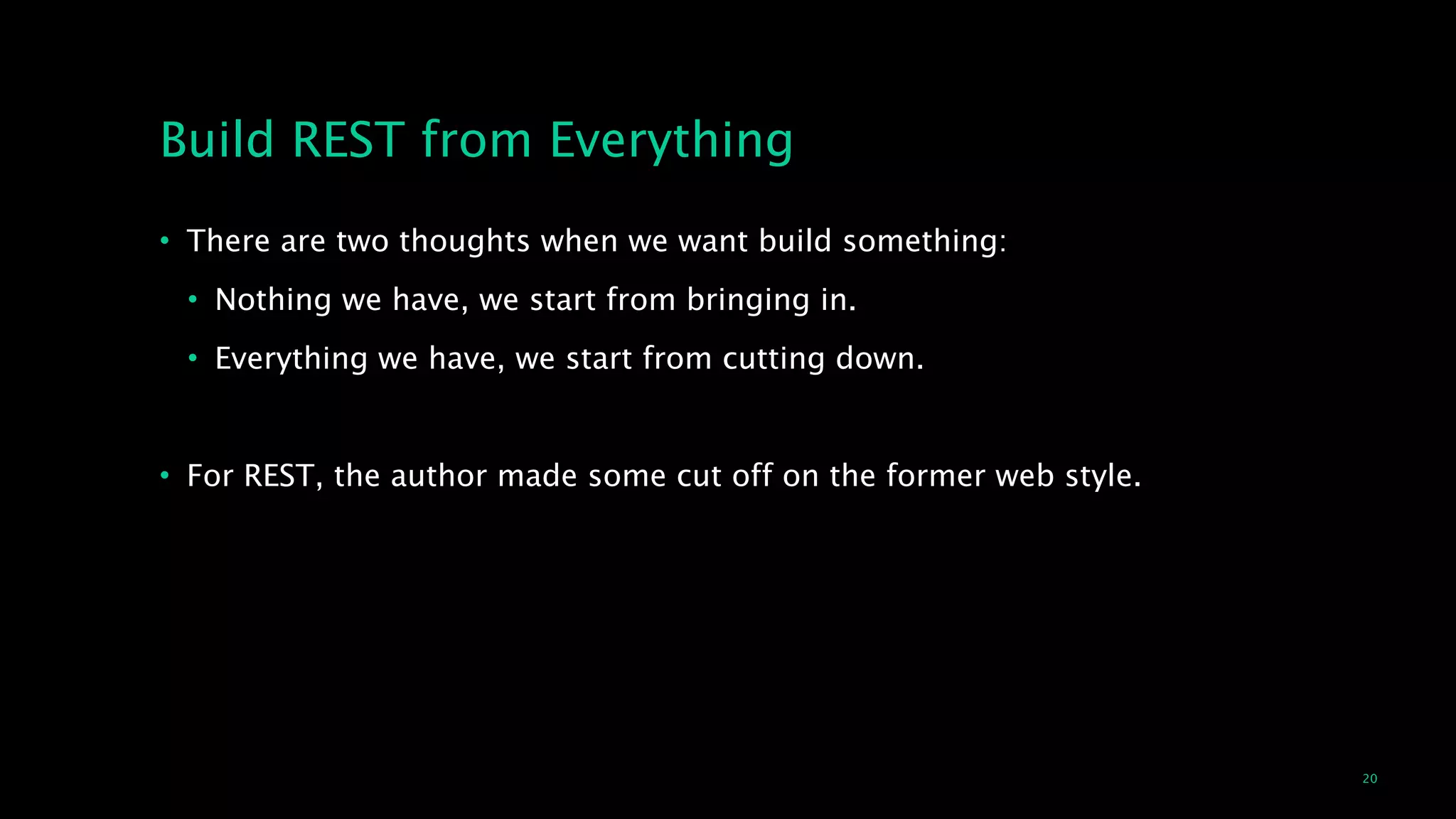

Build REST from Everything
• There are two thoughts when we want build something:
• Nothing we have, we start from bringing in.
• Everything we have, we start from cutting down.
!
• For REST, the author made some cut off on the former web style.

21. 21

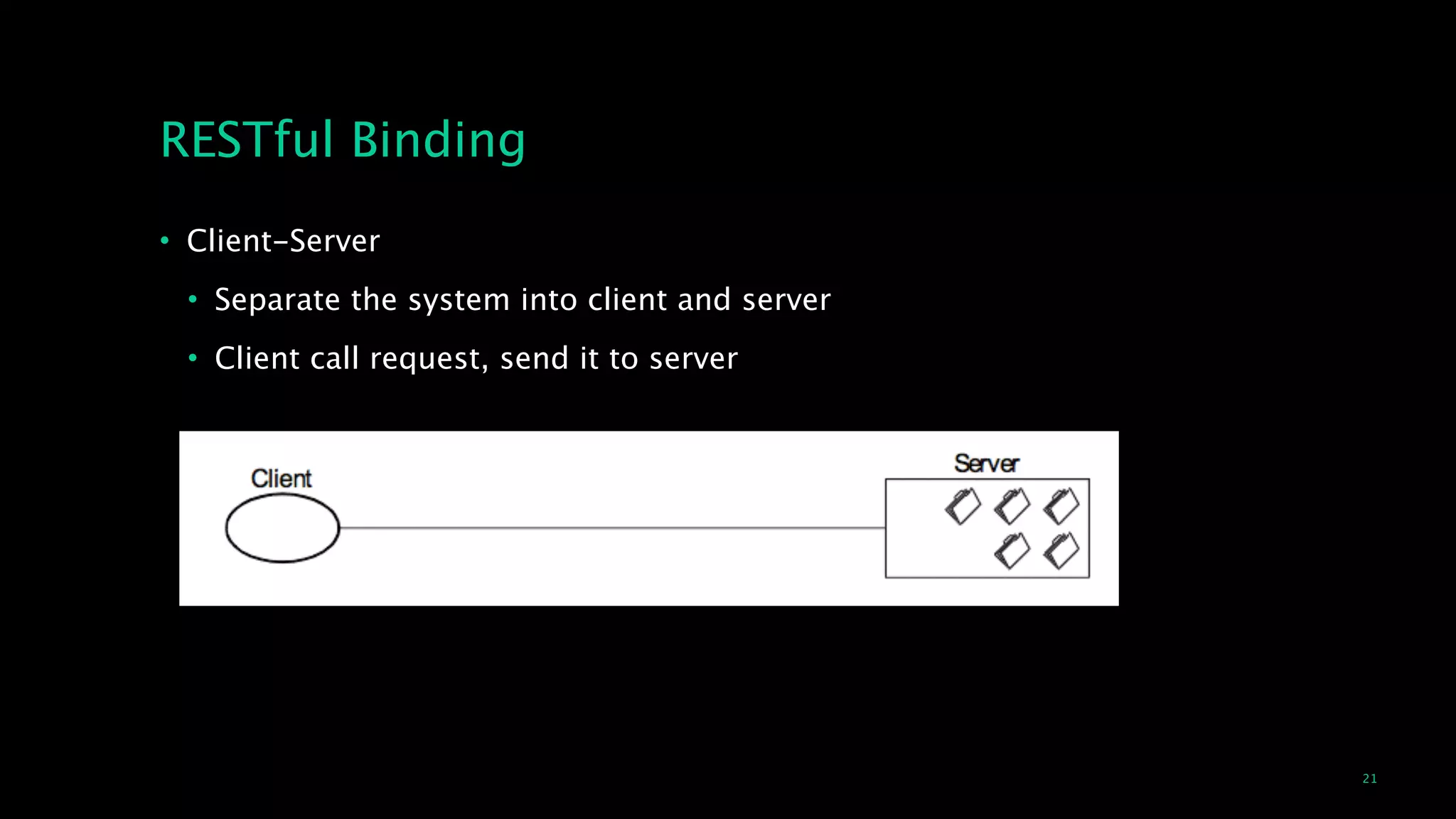

RESTful Binding
• Client-Server
• Separate the system into client and server
• Client call request, send it to server

22. 22
RESTful Binding
• Stateless
• Request shall contain all the information it needs.
• Server identify requests by the info it stored in, not some info on the
server.

23. 23

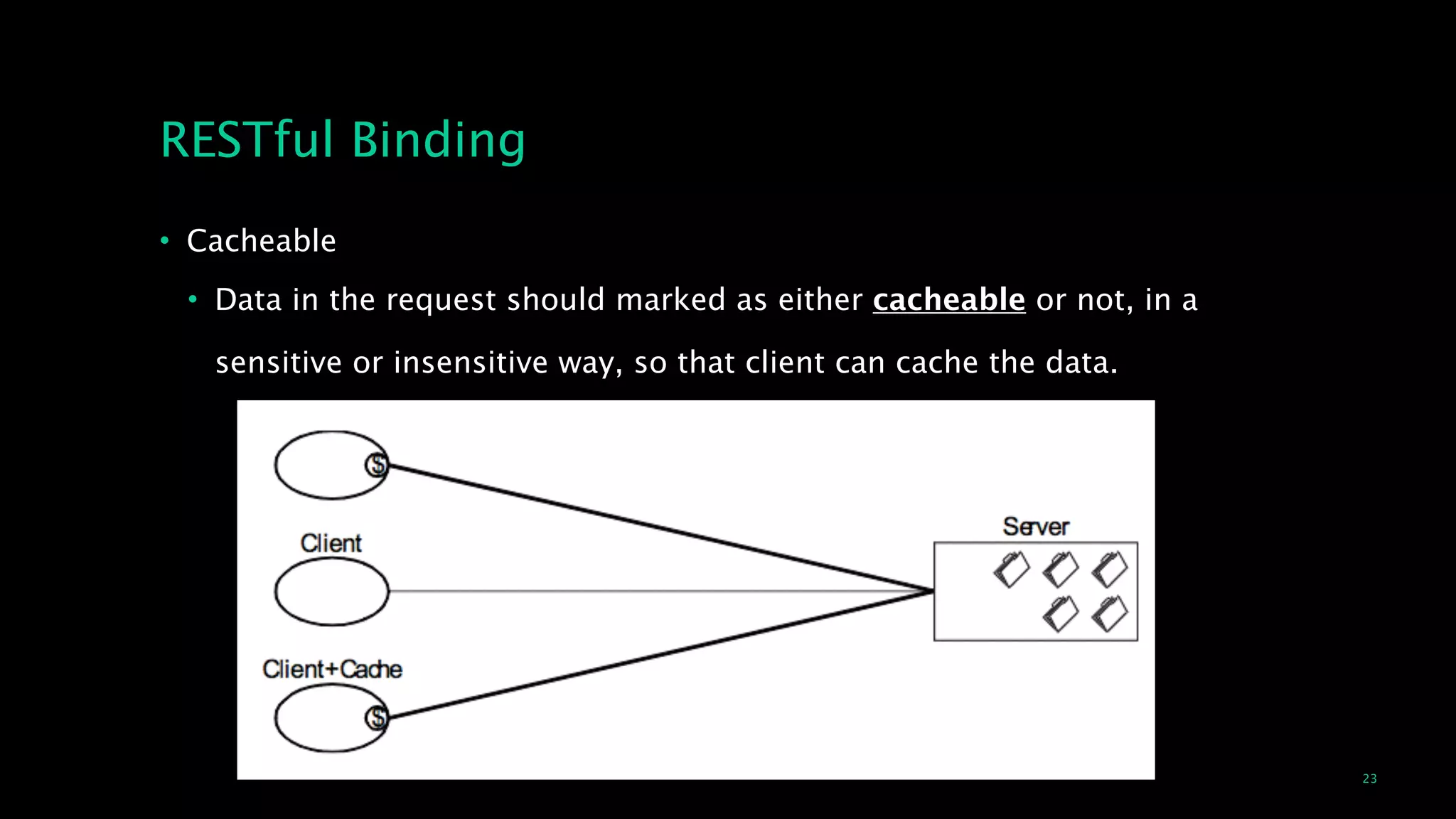

RESTful Binding
• Cacheable
• Data in the request should marked as either cacheable or not, in a
sensitive or insensitive way, so that client can cache the data.

24. 24

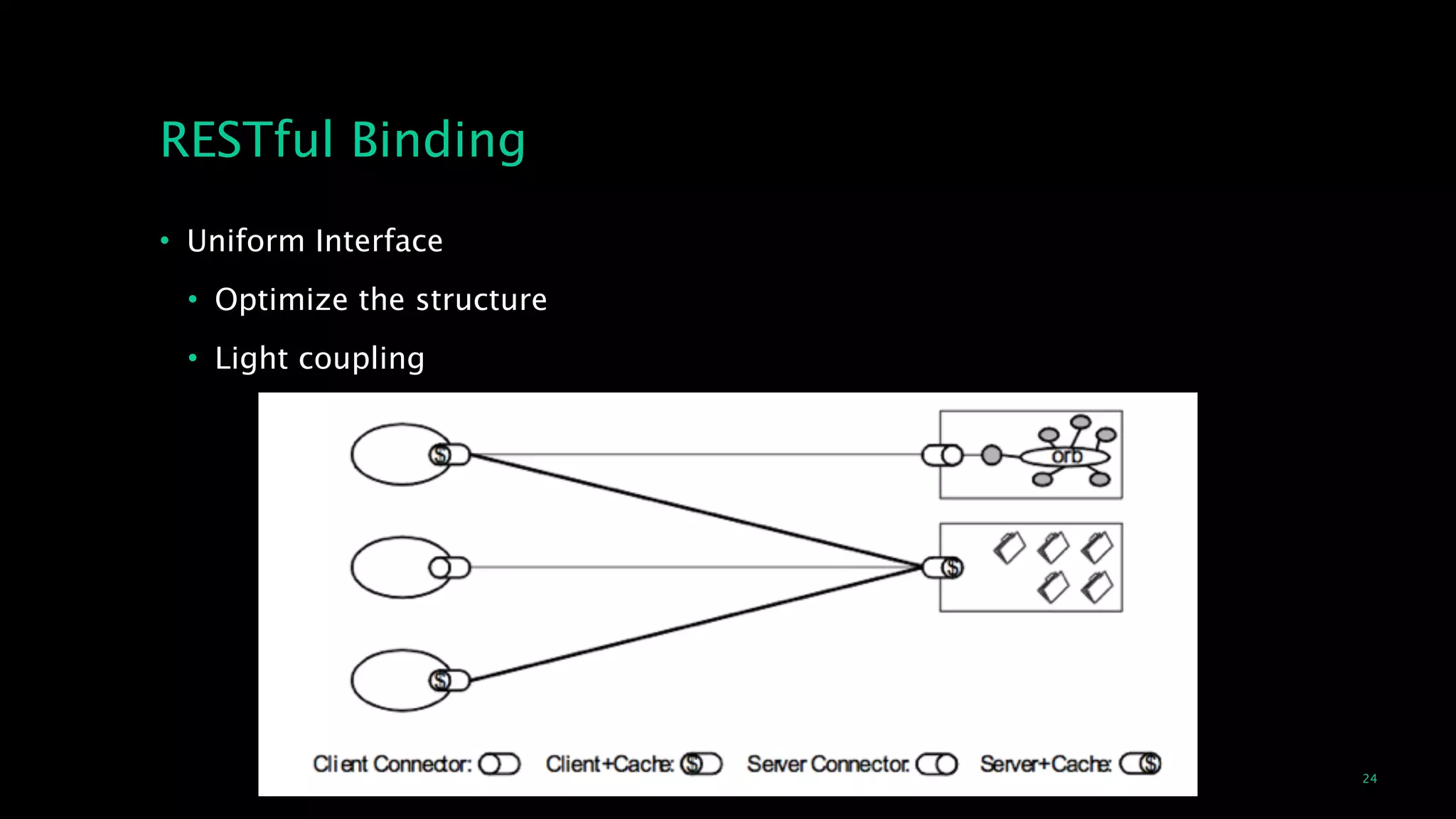

RESTful Binding
• Uniform Interface
• Optimize the structure
• Light coupling

25. 25
RESTful Binding
• Layered System
• Simplify the system
• Make high performance possible

26. 26

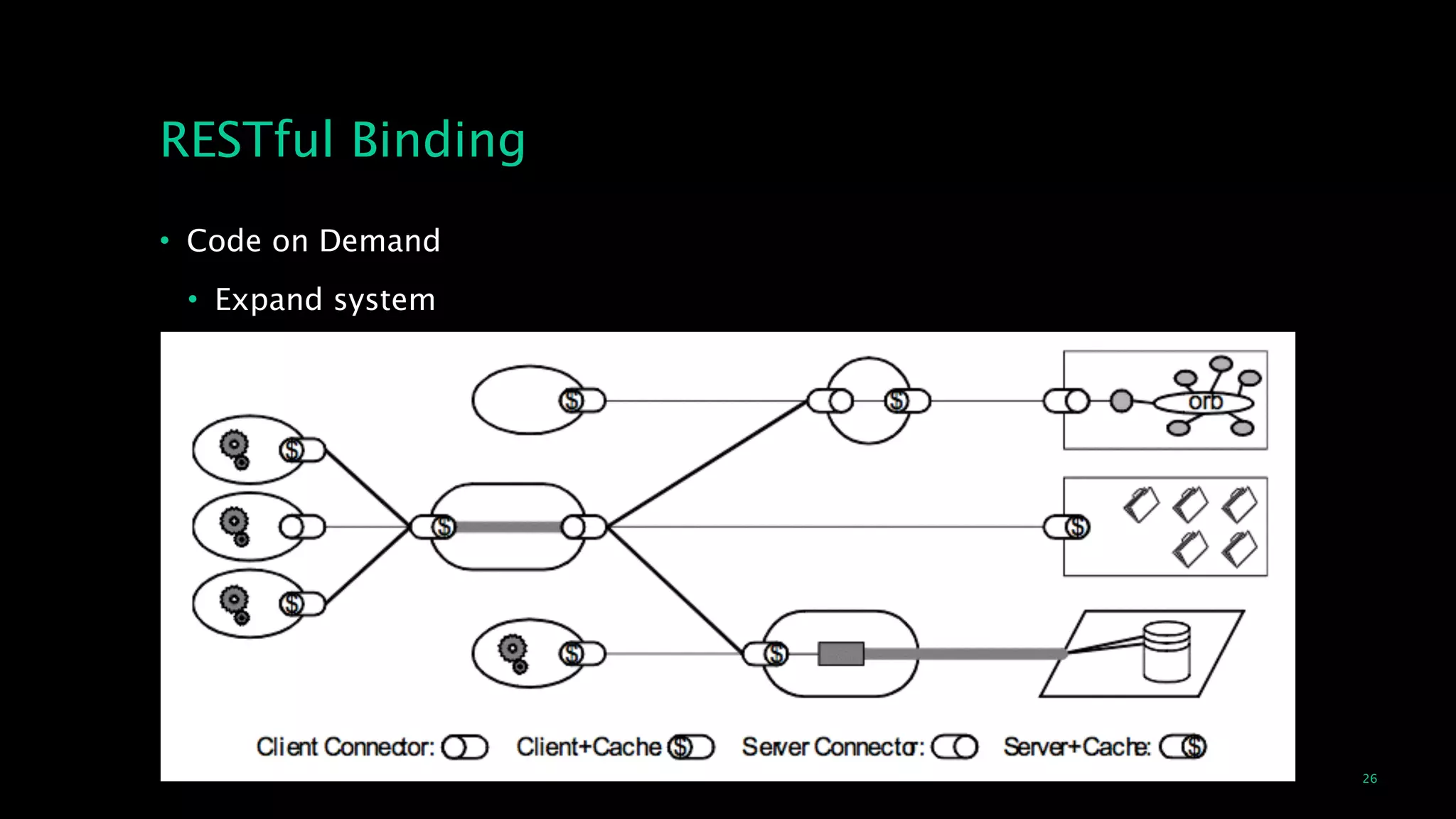

RESTful Binding
• Code on Demand
• Expand system

27. 27
REST Quick Tips
• Use HTTP Verbs to mean something: GET, PUT, DELETE, POST
• Provide sensible resource names
• Use HTTP response code to indicate status
• Offer JSON and XML

28. 28

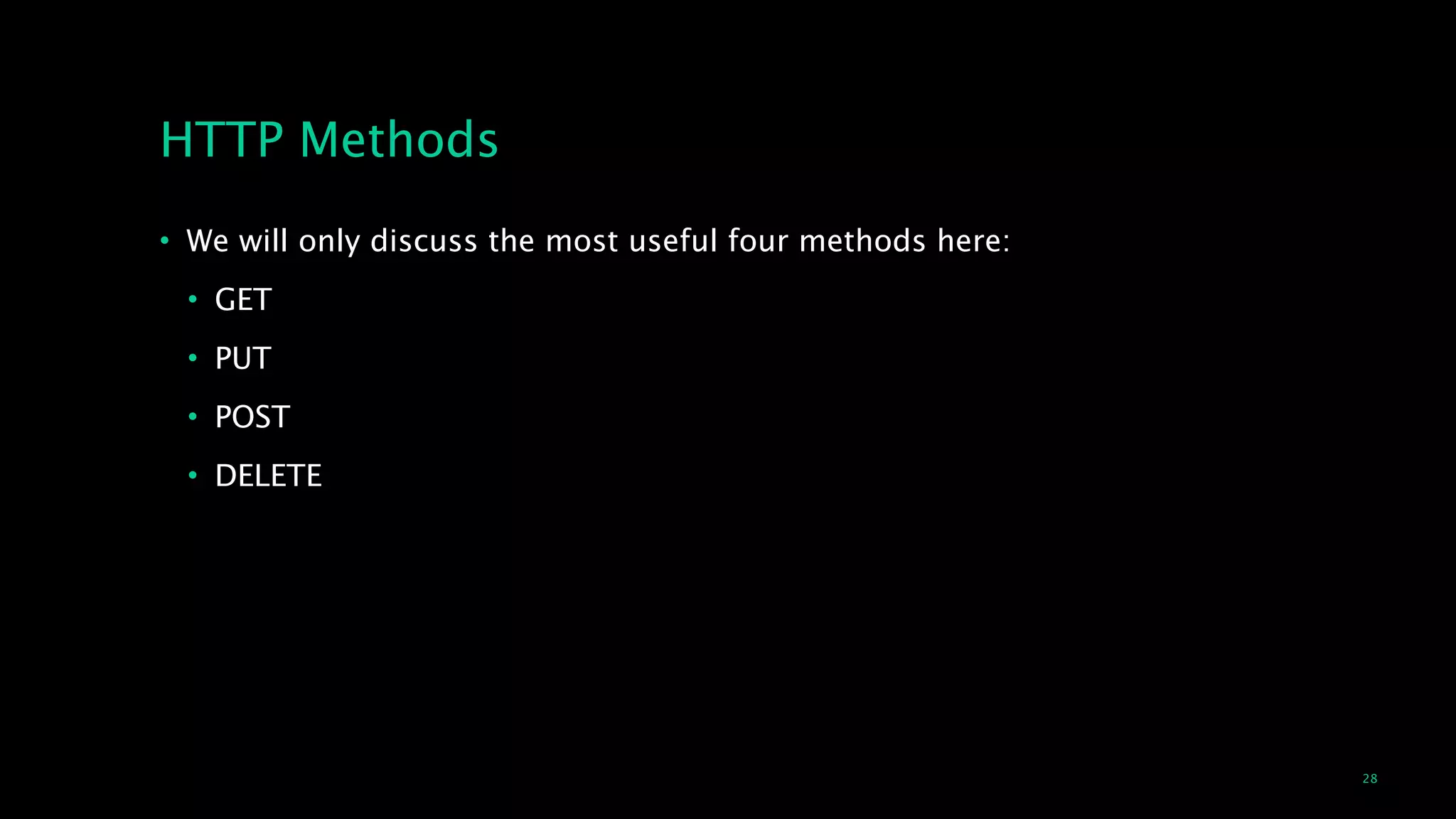

HTTP Methods
• We will only discuss the most useful four methods here:
• GET
• PUT
• POST
• DELETE

29. 29
HTTP Methods: GET
# Add bookmark
GET /bookmarks/add_bookmark?href=http%3A%2F%2F
www.example.org%2F2009%2F10%2F10%2Fontes.html HTTP/1.1
Host: www.example.org
# Add cart
GET /add_cart?pid=1234 HTTP/1.1
Host: www.example.org
# Delete note
GET /notes/delete?id=1234 HTTP/1.1
Host: www.example.org

30. 30

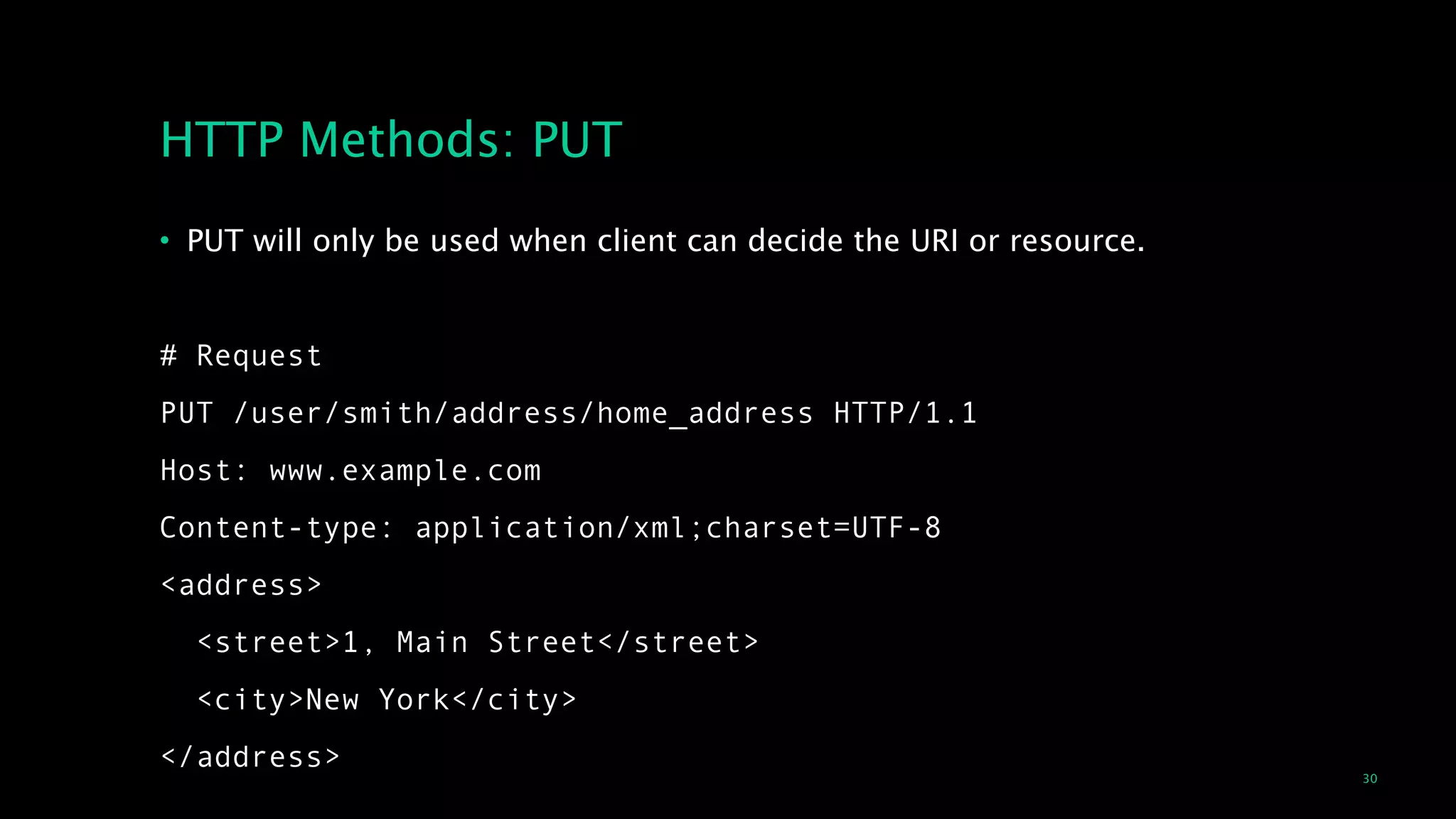

HTTP Methods: PUT
• PUT will only be used when client can decide the URI or resource.
!
# Request
PUT /user/smith/address/home_address HTTP/1.1
Host: www.example.com
Content-type: application/xml;charset=UTF-8
<address>
<street>1, Main Street</street>
<city>New York</city>
</address>

31. 31
HTTP Methods: PUT
# Response
HTTP/1.1 201 Created
Location: http://www.example.org/user/smith/address/home_address
Content-Location: http://www.example.org/user/smith/address/home_address
Content-Type: application/xml;charset=UTF-8
<address>
<id>urn:example:user:smith:address:1</id>
<atom>link rel=“self” href=“http://www.example.org/user/smith/address/
home_address”/>
<street>1, Main Street</street>
<city>New York</city>
</address>

32. 32
HTTP Methods: POST
• Create new resource if we don’t
know the URI
• Update resource(s) using controller
• Run research which has too many
parameters
• Other actions which are not safe
# Request
POST /user/smith HTTP/1.1
Host: www.example.com
Content-type: application/xml;charset=UTF-8
Slug: Home Address
<address>
<street>1, Main Street</street>
<city>New York</city>
</address>

33. 33
HTTP Methods: POST
# Response
HTTP/1.1 201 Created
Location: http://www.example.org/user/smith/address/home_address
Content-Location: http://www.example.org/user/smith/address/home_address
Content-Type: application/xml;charset=UTF-8
<address>
<id>urn:example:user:smith:address:1</id>
<atom>link rel=“self” href=“http://www.example.org/user/smith/address/
home_address”/>
<street>1, Main Street</street>
<city>New York</city>
</address>

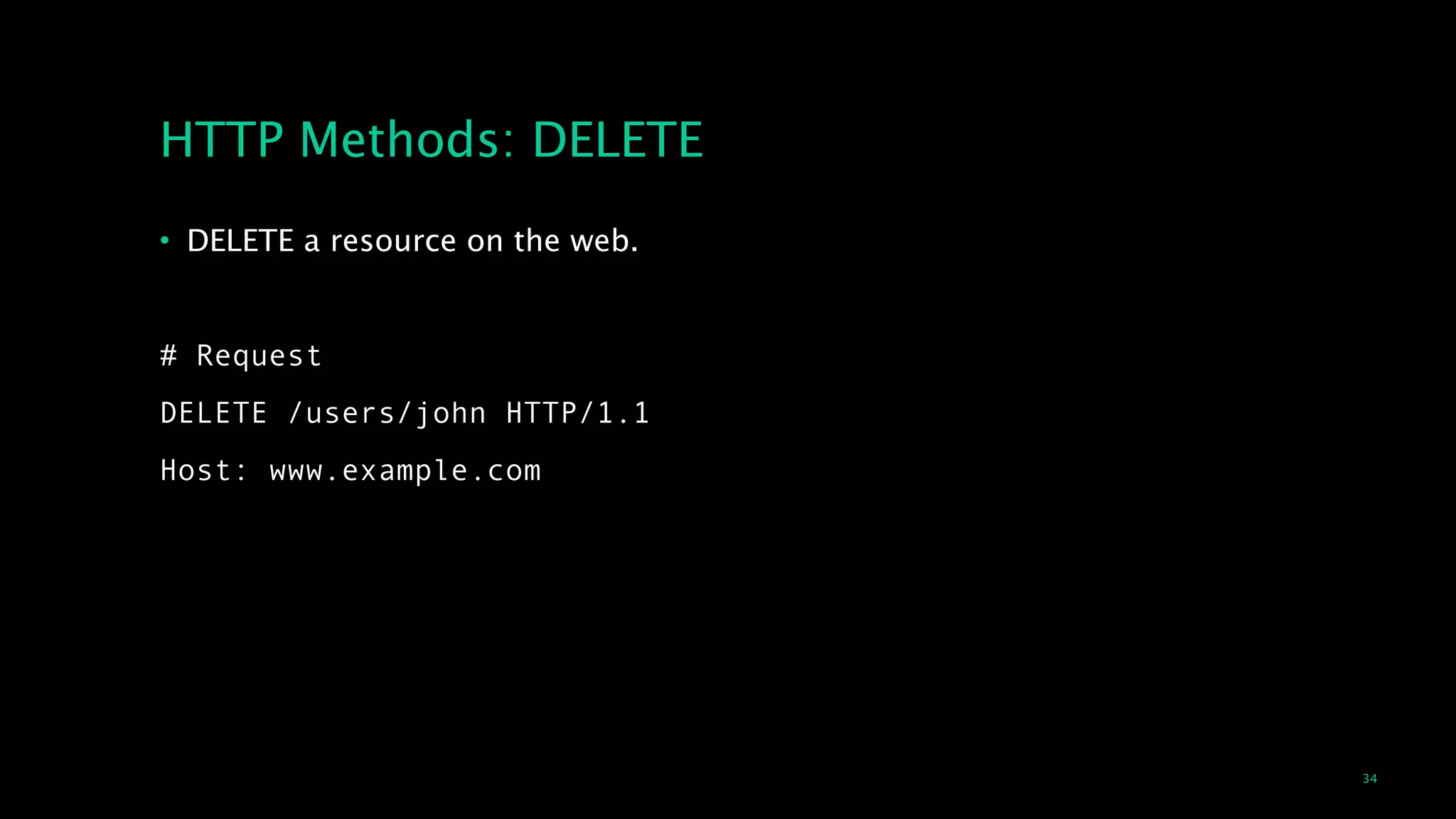

34. 34
HTTP Methods: DELETE
• DELETE a resource on the web.
!
# Request
DELETE /users/john HTTP/1.1
Host: www.example.com

35. 35

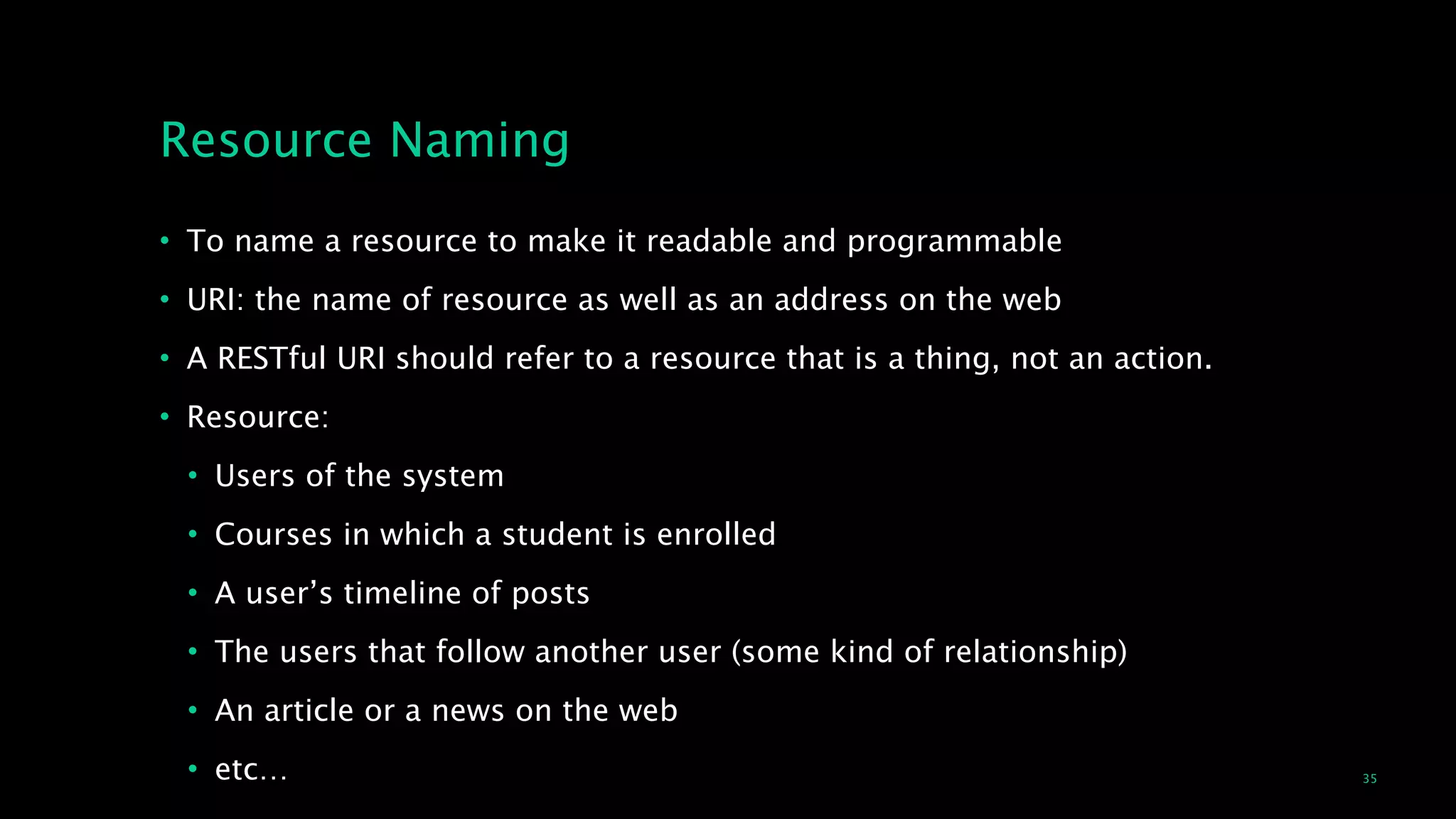

Resource Naming
• To name a resource to make it readable and programmable
• URI: the name of resource as well as an address on the web
• A RESTful URI should refer to a resource that is a thing, not an action.
• Resource:
• Users of the system
• Courses in which a student is enrolled
• A user’s timeline of posts
• The users that follow another user (some kind of relationship)
• An article or a news on the web
• etc…

36. 36
Resource Naming
• Some examples:
• To insert/create a new customer in the system:
• POST http://example.com/customers
• To read a customer with Customer ID #12345
• GET http://example.com/customers/12345
• the same URI would be used for PUT & DELETE, to update and delete
• For reading , updating, deleting, product #12345:
• GET/PUT/DELETE http://example.com/pruducts/12345

37. 37

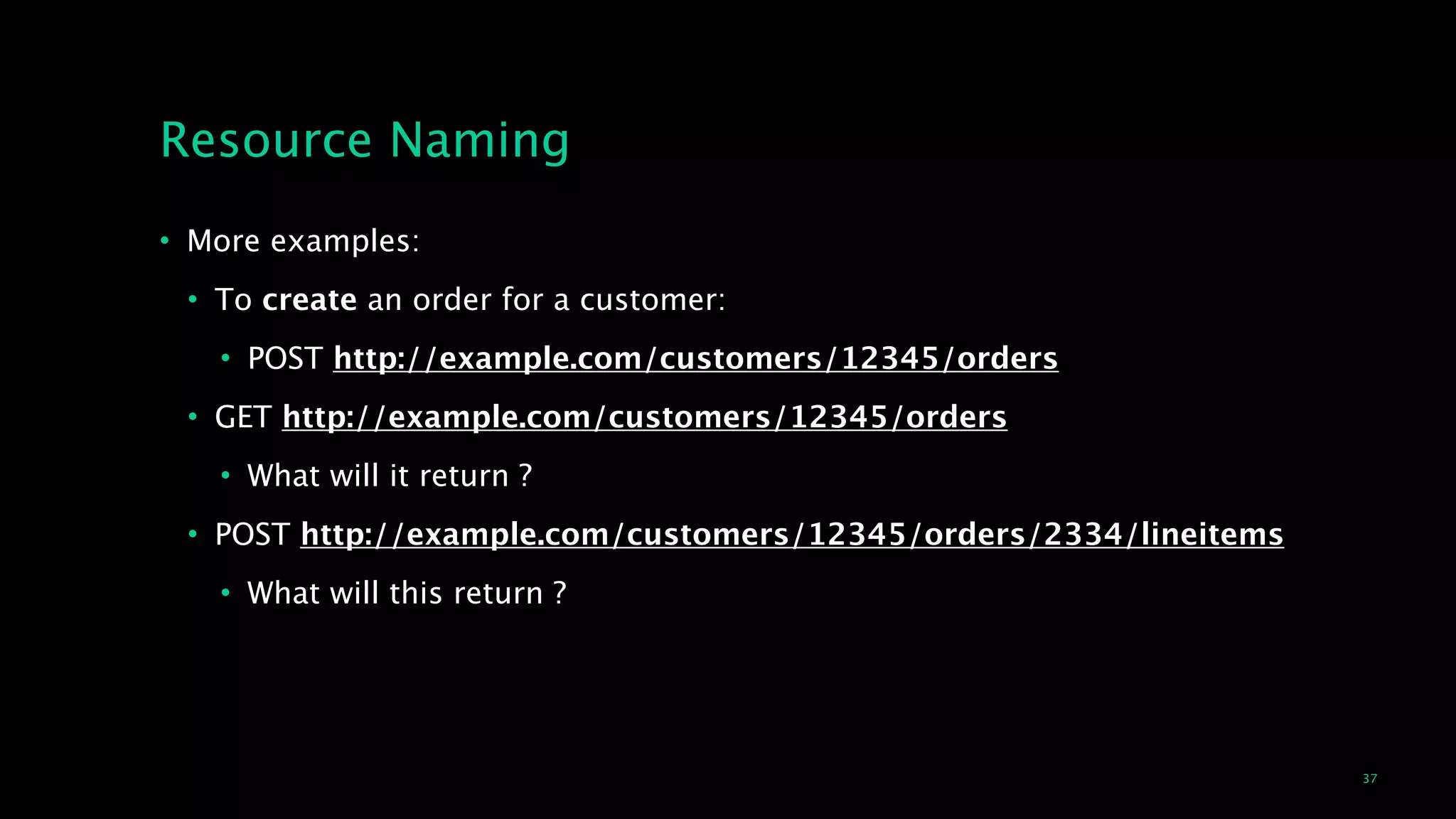

Resource Naming
• More examples:
• To create an order for a customer:
• POST http://example.com/customers/12345/orders
• GET http://example.com/customers/12345/orders
• What will it return ?
• POST http://example.com/customers/12345/orders/2334/lineitems
• What will this return ?

38. 38

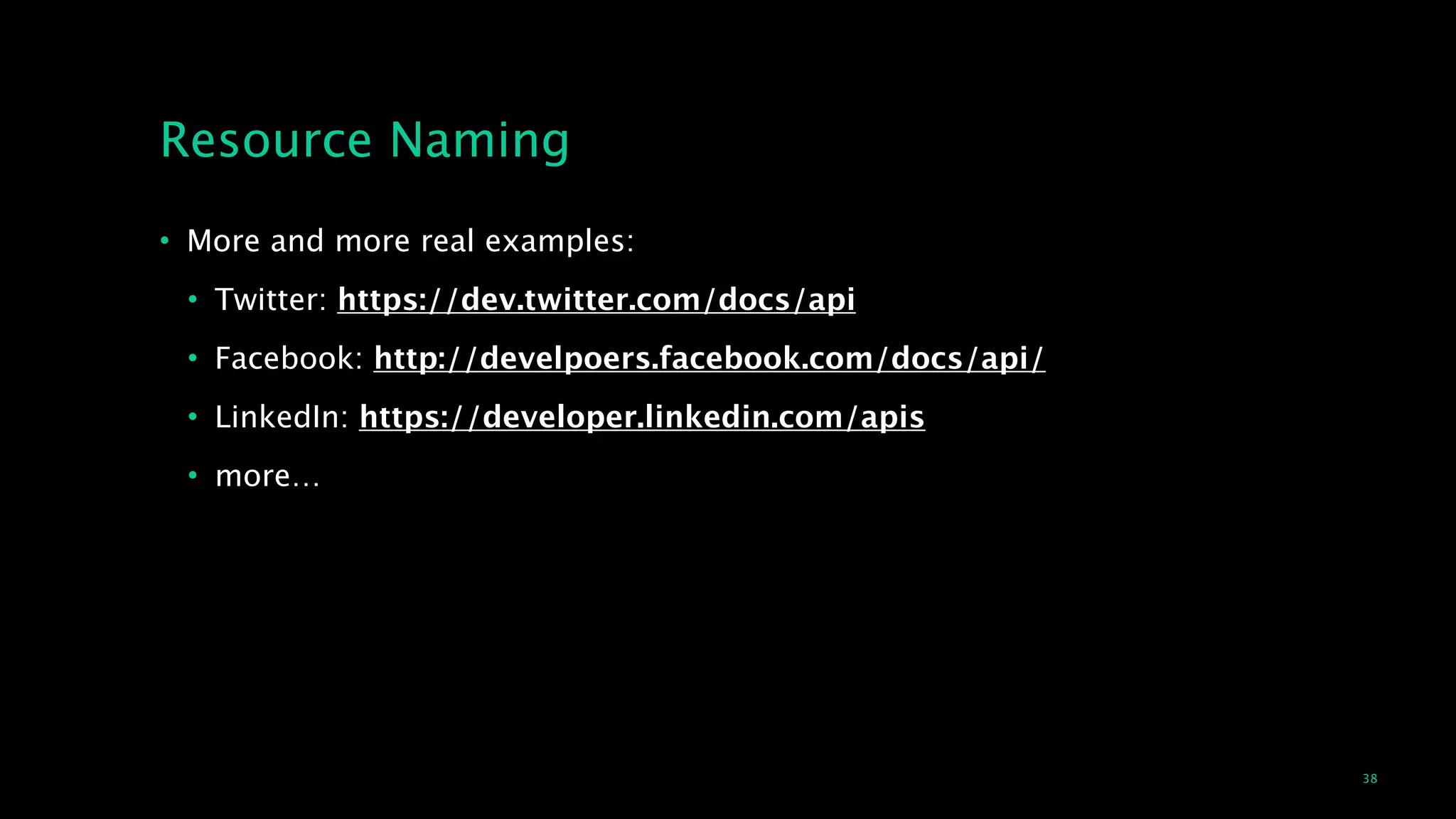

Resource Naming
• More and more real examples:
• Twitter: https://dev.twitter.com/docs/api
• Facebook: http://develpoers.facebook.com/docs/api/
• LinkedIn: https://developer.linkedin.com/apis
• more…

39. 39

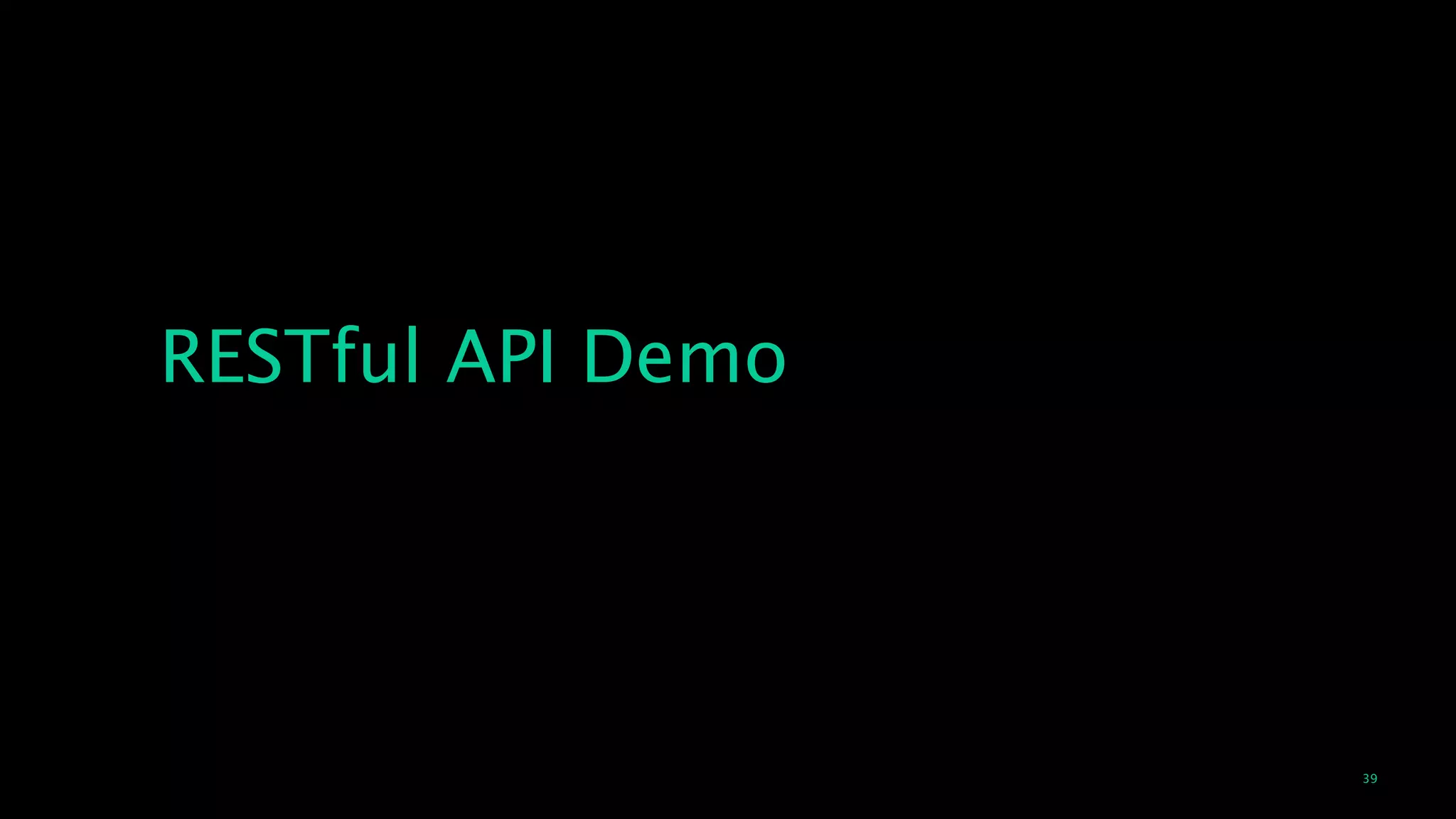

RESTful API Demo

40. 40
Build a website

41. 41

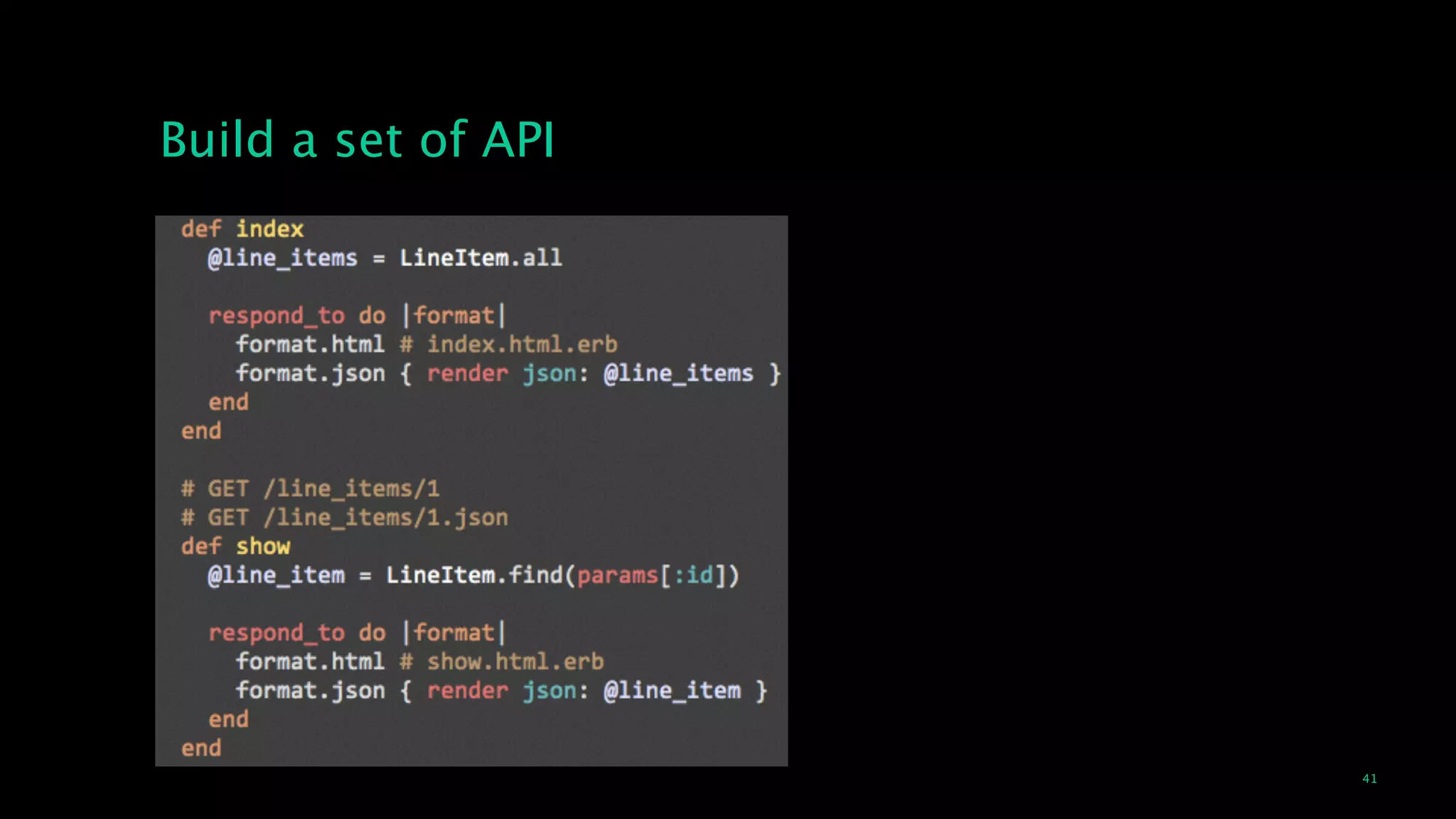

Build a set of API

42. 42

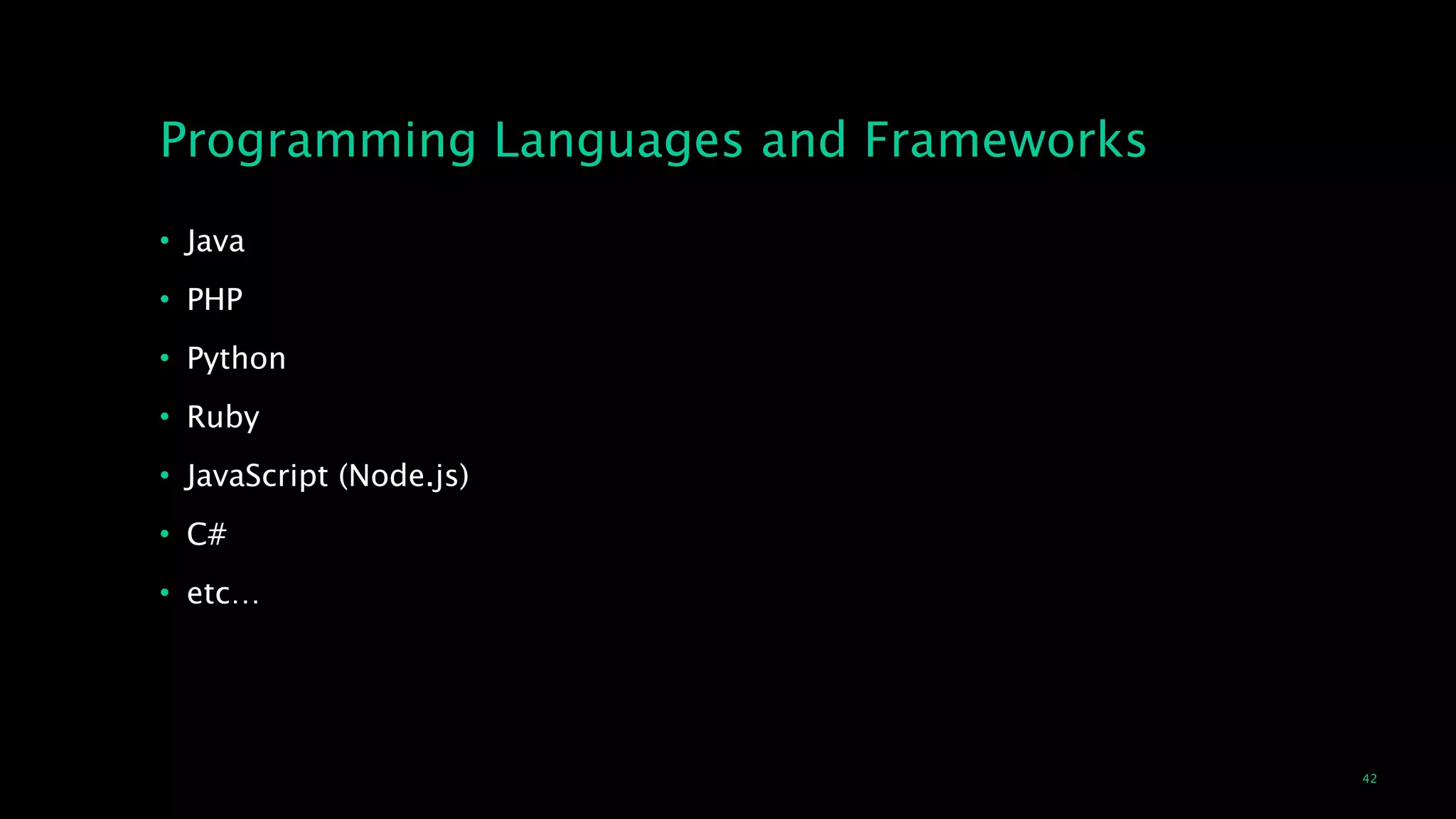

Programming Languages and Frameworks
• Java
• PHP
• Python
• Ruby
• JavaScript (Node.js)
• C#
• etc…

43. 43
Thanks for your listening !
