Achieving Scalability in Software Testing with Machine Learning and Metaheuristic Search

This document discusses challenges in testing advanced driver assistance systems (ADAS) and approaches to address scalability. It describes using physics-based simulation and search-based testing to generate test cases for an automated emergency braking system. The testing faces challenges due to the large, complex input space and computational expense of simulations. Decision trees are proposed to better guide the search by partitioning the input space into homogeneous regions based on criticality.

Embed presentation

Download as PDF, PPTX
.lusoftware verification & validation VVS Achieving Scalability in Software Testing with Machine Learning and Metaheuristic Search Lionel Briand RAISE @ ICSE 2018

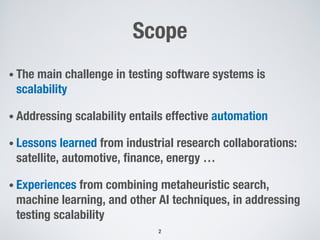

Scope • The main challenge in testing software systems is scalability • Addressing scalability entails effective automation • Lessons learned from industrial research collaborations: satellite, automotive, finance, energy … • Experiences from combining metaheuristic search, machine learning, and other AI techniques, in addressing testing scalability 2

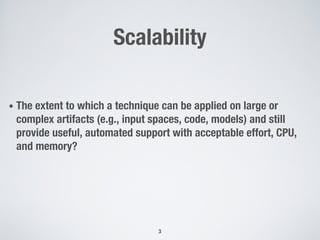

Scalability • The extent to which a technique can be applied on large or complex artifacts (e.g., input spaces, code, models) and still provide useful, automated support with acceptable effort, CPU, and memory? 3

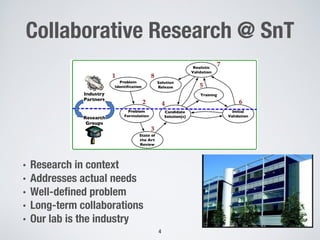

Collaborative Research @ SnT 4 • Research in context • Addresses actual needs • Well-defined problem • Long-term collaborations • Our lab is the industry
SVV Dept. 5 • Established in 2012, part of the SnT centre • Requirements Engineering, Security Analysis, Design Verification, Automated Testing, Runtime Monitoring • ~ 25 lab members • Partnerships • ERC Advanced grant

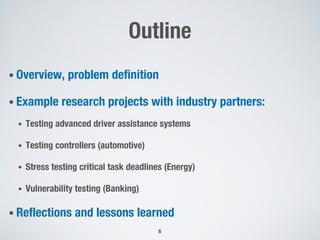

Outline • Overview, problem definition • Example research projects with industry partners: • Testing advanced driver assistance systems • Testing controllers (automotive) • Stress testing critical task deadlines (Energy) • Vulnerability testing (Banking) • Reflections and lessons learned 6
Introduction 7

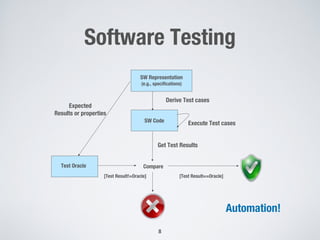

Software Testing 8 SW Representation (e.g., specifications) SW Code Derive Test cases Execute Test cases Compare Expected Results or properties Get Test Results Test Oracle [Test Result==Oracle][Test Result!=Oracle] Automation!

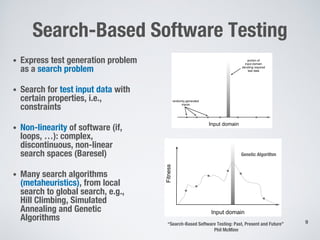

Search-Based Software Testing • Express test generation problem as a search problem • Search for test input data with certain properties, i.e., constraints • Non-linearity of software (if, loops, …): complex, discontinuous, non-linear search spaces (Baresel) • Many search algorithms (metaheuristics), from local search to global search, e.g., Hill Climbing, Simulated Annealing and Genetic Algorithms e search space neighbouring the for fitness. If a better candidate mbing moves to that new point, rhood of that candidate solution. the neighbourhood of the current fers no better candidate solutions; If the local optimum is not the gure 3a), the search may benefit performing a climb from a new cape (Figure 3b). le Hill Climbing is Simulated Simulated Annealing is similar to ement around the search space is be made to points of lower fitness he aim of escaping local optima. bability value that is dependent ‘temperature’, which decreases ogresses (Figure 4). The lower kely the chances of moving to a ch space, until ‘freezing point’ is the algorithm behaves identically d Annealing is named so because hysical process of annealing in curve of the fitness landscape until a local optimum is found. The fina position may not represent the global optimum (part (a)), and restarts ma be required (part (b)) Fitness Input domain Figure 4. Simulated Annealing may temporarily move to points of poore fitness in the search space Fitness Input domain Figure 5. Genetic Algorithms are global searches, sampling many poin in the fitness landscape at once “Search-Based Software Testing: Past, Present and Future” Phil McMinn Genetic Algorithm 9 cusses future directions for Search-Based g, comprising issues involving execution estability, automated oracles, reduction of st and multi-objective optimisation. Finally, udes with closing remarks. -BASED OPTIMIZATION ALGORITHMS form of an optimization algorithm, and mplement, is random search. In test data s are generated at random until the goal of mple, the coverage of a particular program nch) is fulfilled. Random search is very poor ns when those solutions occupy a very small ll search space. Such a situation is depicted re the number of inputs covering a particular are very few in number compared to the ut domain. Test data may be found faster ly if the search is given some guidance. c searches, this guidance can be provided a problem-specific fitness function, which points in the search space with respect to or their suitability for solving the problem Input domain portion of input domain denoting required test data randomly-generated inputs Figure 2. Random search may fail to fulfil low-probability test goals Fitness Input domain (a) Climbing to a local optimum
Testing Advanced Driving Assistance Systems 10

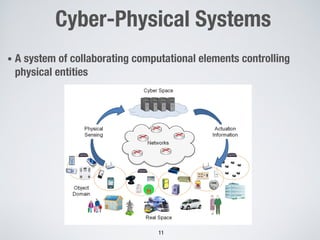

Cyber-Physical Systems • A system of collaborating computational elements controlling physical entities 11
Advanced Driver Assistance Systems (ADAS) 12 Automated Emergency Braking (AEB) Pedestrian Protection (PP) Lane Departure Warning (LDW) Traffic Sign Recognition (TSR)

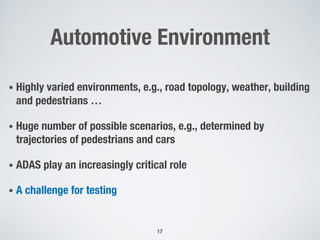

Automotive Environment • Highly varied environments, e.g., road topology, weather, building and pedestrians … • Huge number of possible scenarios, e.g., determined by trajectories of pedestrians and cars • ADAS play an increasingly critical role • A challenge for testing 13

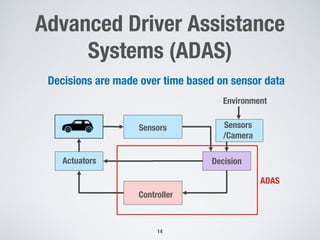

Advanced Driver Assistance Systems (ADAS) Decisions are made over time based on sensor data 14 Sensors Controller Actuators Decision Sensors /Camera Environment ADAS
A General and Fundamental Shift • Increasingly so, it is easier to learn behavior from data using machine learning, rather than specify and code • Deep learning, reinforcement learning … • Example: Neural networks (deep learning) • Millions of weights learned • No explicit code, no specifications • Verification, testing? 15

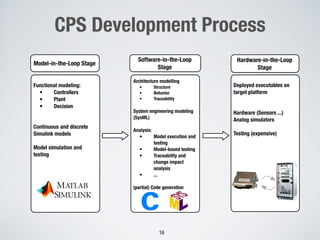

CPS Development Process 16 Functional modeling: • Controllers • Plant • Decision Continuous and discrete Simulink models Model simulation and testing Architecture modelling • Structure • Behavior • Traceability System engineering modeling (SysML) Analysis: • Model execution and testing • Model-based testing • Traceability and change impact analysis • ... (partial) Code generation Deployed executables on target platform Hardware (Sensors ...) Analog simulators Testing (expensive) Hardware-in-the-Loop Stage Software-in-the-Loop Stage Model-in-the-Loop Stage
Automotive Environment • Highly varied environments, e.g., road topology, weather, building and pedestrians … • Huge number of possible scenarios, e.g., determined by trajectories of pedestrians and cars • ADAS play an increasingly critical role • A challenge for testing 17
Our Goal • Developing an automated testing technique for ADAS 18 • To help engineers efficiently and effectively explore the complex test input space of ADAS • To identify critical (failure-revealing) test scenarios • Characterization of input conditions that lead to most critical situations, e.g., safety violations

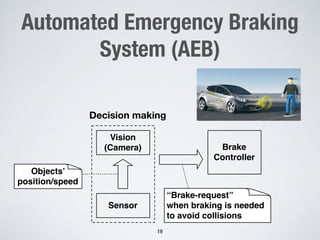

19 Automated Emergency Braking System (AEB) 19 “Brake-request” when braking is needed to avoid collisions Decision making Vision (Camera) Sensor Brake Controller Objects’ position/speed
Example Critical Situation • “AEB properly detects a pedestrian in front of the car with a high degree of certainty and applies braking, but an accident still happens where the car hits the pedestrian with a relatively high speed” 20

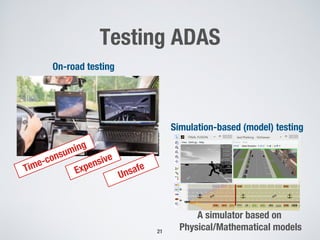

Testing ADAS 21 A simulator based on Physical/Mathematical models On-road testing Simulation-based (model) testing
Testing via Physics-based Simulation 22 ADAS (SUT) Simulator (Matlab/Simulink) Model (Matlab/Simulink) ▪ Physical plant (vehicle / sensors / actuators) ▪ Other cars ▪ Pedestrians ▪ Environment (weather / roads / traffic signs) Test input Test output time-stamped output

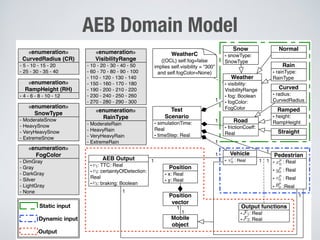

AEB Domain Model - visibility: VisibilityRange - fog: Boolean - fogColor: FogColor Weather - frictionCoeff: Real Road1 - v0 : Real Vehicle - : Real - : Real - : Real - :Real Pedestrian - simulationTime: Real - timeStep: Real Test Scenario 1 1 - ModerateRain - HeavyRain - VeryHeavyRain - ExtremeRain «enumeration» RainType- ModerateSnow - HeavySnow - VeryHeavySnow - ExtremeSnow «enumeration» SnowType - DimGray - Gray - DarkGray - Silver - LightGray - None «enumeration» FogColor 1 WeatherC {{OCL} self.fog=false implies self.visibility = “300” and self.fogColor=None} Straight - height: RampHeight Ramped - radius: CurvedRadius Curved - snowType: SnowType Snow - rainType: RainType Rain Normal - 5 - 10 - 15 - 20 - 25 - 30 - 35 - 40 «enumeration» CurvedRadius (CR) - 4 - 6 - 8 - 10 - 12 «enumeration» RampHeight (RH) - 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90 - 100 - 110 - 120 - 130 - 140 - 150 - 160 - 170 - 180 - 190 - 200 - 210 - 220 - 230 - 240 - 250 - 260 - 270 - 280 - 290 - 300 «enumeration» VisibilityRange - : TTC: Real - : certaintyOfDetection: Real - : braking: Boolean AEB Output - : Real - : Real Output functions Mobile object Position vector - x: Real - y: Real Position 1 11 1 1 Static input 1 Output 1 1 Dynamic input xp 0 yp 0 vp 0 ✓p 0 vc 0 v3 v2 v1 F1 F2

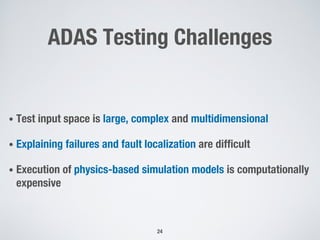

ADAS Testing Challenges • Test input space is large, complex and multidimensional • Explaining failures and fault localization are difficult • Execution of physics-based simulation models is computationally expensive 24

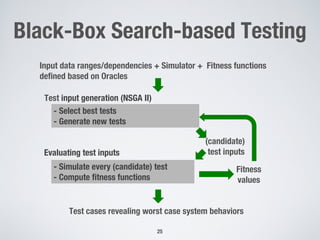

Black-Box Search-based Testing 25 Test input generation (NSGA II) Evaluating test inputs - Select best tests - Generate new tests (candidate) test inputs - Simulate every (candidate) test - Compute fitness functions Fitness values Test cases revealing worst case system behaviors Input data ranges/dependencies + Simulator + Fitness functions defined based on Oracles

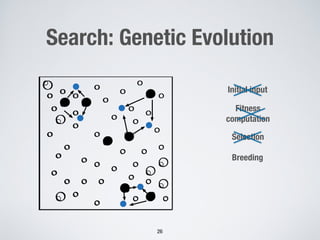

Search: Genetic Evolution 26 Initial input Fitness computation Selection Breeding

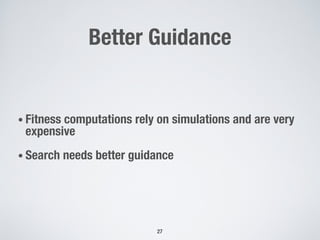

Better Guidance • Fitness computations rely on simulations and are very expensive • Search needs better guidance 27

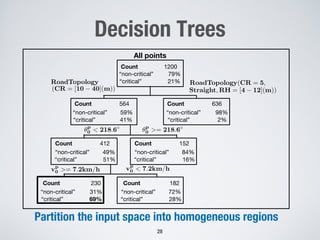

Decision Trees 28 Partition the input space into homogeneous regions All points Count 1200 “non-critical” 79% “critical” 21% “non-critical” 59% “critical” 41% Count 564 Count 636 “non-critical” 98% “critical” 2% Count 412 “non-critical” 49% “critical” 51% Count 152 “non-critical” 84% “critical” 16% Count 230 Count 182 vp 0 >= 7.2km/h vp 0 < 7.2km/h ✓p 0 < 218.6 ✓p 0 >= 218.6 RoadTopology(CR = 5, Straight, RH = [4 12](m)) RoadTopology (CR = [10 40](m)) “non-critical” 31% “critical” 69% “non-critical” 72% “critical” 28%

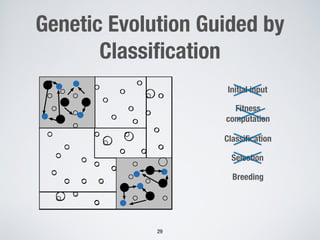

Genetic Evolution Guided by Classification 29 Initial input Fitness computation Classification Selection Breeding

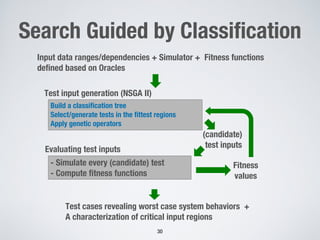

Search Guided by Classification 30 Test input generation (NSGA II) Evaluating test inputs Build a classification tree Select/generate tests in the fittest regions Apply genetic operators Input data ranges/dependencies + Simulator + Fitness functions defined based on Oracles (candidate) test inputs - Simulate every (candidate) test - Compute fitness functions Fitness values Test cases revealing worst case system behaviors + A characterization of critical input regions
NSGAII-DT vs. NSGAII 31 NSGAII-DT outperforms NSGAII HV 0.0 0.4 0.8 GD 0.05 0.15 0.25 SP 2 0.6 1.0 1.4 6 10 14 18 22 24 Time (h) NSGAII-DT NSGAII
Testing Controllers 32

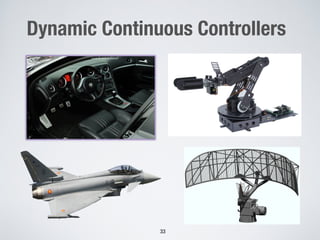

Dynamic Continuous Controllers 33

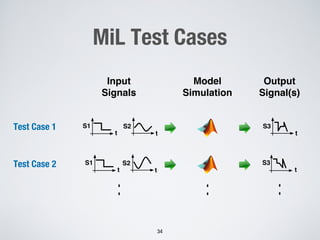

MiL Test Cases 34 Model Simulation Input Signals Output Signal(s) S3 t S2 t S1 t S3 t S2 t S1 t Test Case 1 Test Case 2

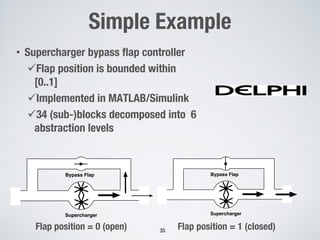

• Supercharger bypass flap controller üFlap position is bounded within [0..1] üImplemented in MATLAB/Simulink ü34 (sub-)blocks decomposed into 6 abstraction levels Supercharger Bypass Flap Supercharger Bypass Flap Flap position = 0 (open) Flap position = 1 (closed) Simple Example 35
Initial Desired Value Final Desired Value time time Desired Value Actual Value T/2 T T/2 T Test Input Test Output Plant Model Controller (SUT) Desired value Error Actual value System output+ - MiL Testing of Controllers 36

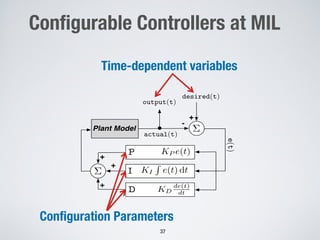

Configurable Controllers at MIL Plant Model + + + ⌃ + - e(t) actual(t) desired(t) ⌃ KP e(t) KD de(t) dt KI R e(t) dt P I D output(t) Time-dependent variables Configuration Parameters 37
Requirements and Test Objectives InitialDesired (ID) Desired ValueI (input) Actual Value (output) FinalDesired (FD) time T/2 T Smoothness Responsiveness Stability 38
A Search-Based Test Approach Initial Desired (ID) FinalDesired(FD) Worst Case(s)? • Search directed by model execution feedback • Controller’s dynamic behavior can be complex • Meta-heuristic search in (large) input space: Finding worst case inputs • Possible because of automated oracle (feedback loop) • Different worst cases for different requirements 39

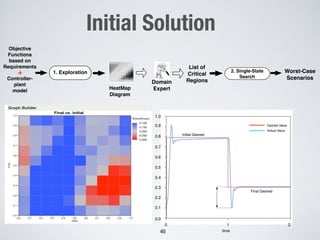

Initial Solution HeatMap Diagram 1. Exploration List of Critical RegionsDomain Expert Worst-Case Scenarios + Controller- plant model Objective Functions based on Requirements 2. Single-State Search time Desired Value Actual Value 0 1 2 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 Initial Desired Final Desired 40

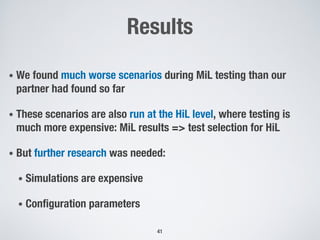

Results • We found much worse scenarios during MiL testing than our partner had found so far • These scenarios are also run at the HiL level, where testing is much more expensive: MiL results => test selection for HiL • But further research was needed: • Simulations are expensive • Configuration parameters 41

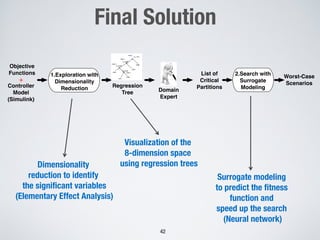

Final Solution + Controller Model (Simulink) Worst-Case Scenarios List of Critical PartitionsRegression Tree 1.Exploration with Dimensionality Reduction 2.Search with Surrogate Modeling Objective Functions Domain Expert Visualization of the 8-dimension space using regression treesDimensionality reduction to identify the significant variables (Elementary Effect Analysis) Surrogate modeling to predict the fitness function and speed up the search (Neural network) 42

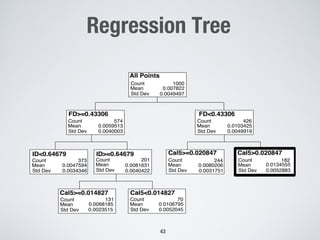

Regression Tree All Points FD>=0.43306 Count Mean Std Dev Count Mean Std Dev FD<0.43306 Count Mean Std Dev ID>=0.64679 Count Mean Std Dev Count Mean Std Dev Cal5>=0.020847 Cal5>0.020847 Count Mean Std Dev Count Mean Std Dev Cal5>=0.014827 Cal5<0.014827 Count Mean Std Dev Count Mean Std Dev 1000 0.007822 0.0049497 ID<0.64679 574 0.0059513 0.0040003 426 0.0103425 0.0049919 373 0.0047594 0.0034346 201 0.0081631 0.0040422 182 0.0134555 0.0052883 244 0.0080206 0.0031751 70 0.0106795 0.0052045 131 0.0068185 0.0023515 43

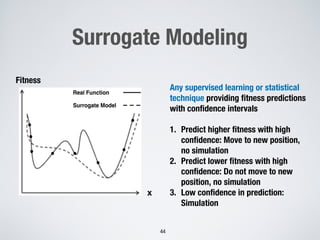

Surrogate Modeling Any supervised learning or statistical technique providing fitness predictions with confidence intervals 1. Predict higher fitness with high confidence: Move to new position, no simulation 2. Predict lower fitness with high confidence: Do not move to new position, no simulation 3. Low confidence in prediction: Simulation Surrogate Model Real Function x Fitness 44

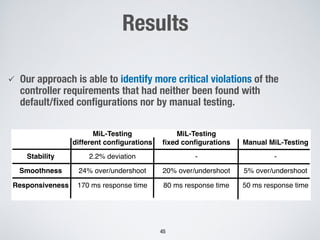

ü Our approach is able to identify more critical violations of the controller requirements that had neither been found with default/fixed configurations nor by manual testing. MiL-Testing different configurations Stability Smoothness Responsiveness MiL-Testing fixed configurations Manual MiL-Testing - -2.2% deviation 24% over/undershoot 20% over/undershoot 5% over/undershoot 170 ms response time 80 ms response time 50 ms response time Results 45
Schedulability Analysis and Testing 46
Problem and Context • Schedulability analysis encompasses techniques that try to predict whether (critical) tasks are schedulable, i.e., meet their deadlines • Stress testing runs carefully selected test cases that have a high probability of leading to deadline misses • Stress testing is complementary to schedulability analysis • Testing is typically expensive, e.g., hardware in the loop • Finding stress test cases is difficult 47

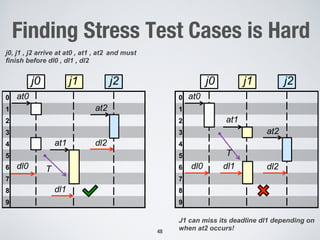

Finding Stress Test Cases is Hard 48 0 1 2 3 4 5 6 7 8 9 j0, j1 , j2 arrive at at0 , at1 , at2 and must finish before dl0 , dl1 , dl2 J1 can miss its deadline dl1 depending on when at2 occurs! 0 1 2 3 4 5 6 7 8 9 j0 j1 j2 j0 j1 j2 at0 dl0 dl1 at1 dl2 at2 T T at0 dl0 dl1 at1 at2 dl2

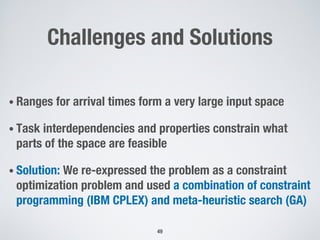

Challenges and Solutions • Ranges for arrival times form a very large input space • Task interdependencies and properties constrain what parts of the space are feasible • Solution: We re-expressed the problem as a constraint optimization problem and used a combination of constraint programming (IBM CPLEX) and meta-heuristic search (GA) 49

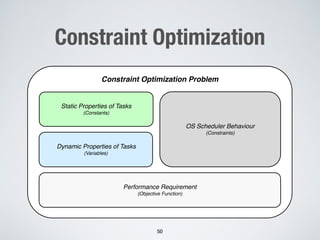

Constraint Optimization 50 Constraint Optimization Problem Static Properties of Tasks (Constants) Dynamic Properties of Tasks (Variables) Performance Requirement (Objective Function) OS Scheduler Behaviour (Constraints)

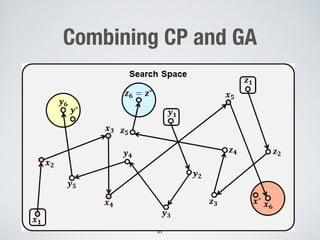

Combining CP and GA 51 A:12 S. Di Alesio et al. Fig. 3: Overview of GA+CP: the solutions x , y and z in the initial population of GA evolve into

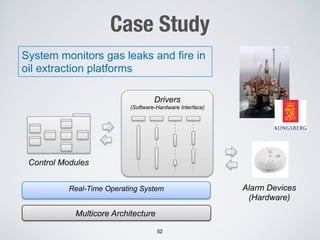

Case Study 52 Drivers (Software-Hardware Interface) Control Modules Alarm Devices (Hardware) Multicore Architecture Real-Time Operating System System monitors gas leaks and fire in oil extraction platforms

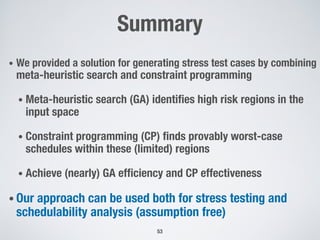

Summary • We provided a solution for generating stress test cases by combining meta-heuristic search and constraint programming • Meta-heuristic search (GA) identifies high risk regions in the input space • Constraint programming (CP) finds provably worst-case schedules within these (limited) regions • Achieve (nearly) GA efficiency and CP effectiveness • Our approach can be used both for stress testing and schedulability analysis (assumption free) 53
Vulnerability Testing 54

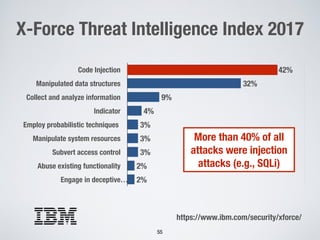

42% 32% 9% 4% 3% 3% 3% 2% 2% Code Injection Manipulated data structures Collect and analyze information Indicator Employ probabilistic techniques Manipulate system resources Subvert access control Abuse existing functionality Engage in deceptive… X-Force Threat Intelligence Index 2017 55 https://www.ibm.com/security/xforce/ More than 40% of all attacks were injection attacks (e.g., SQLi)

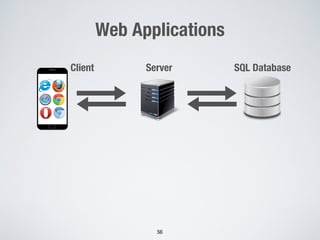

Web Applications 56 Server SQL DatabaseClient

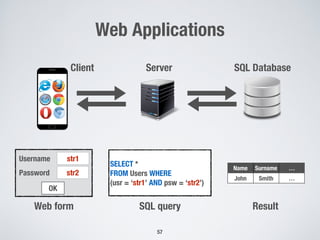

Web Applications 57 Web form str1 str2 Username Password OK SQL query SELECT * FROM Users WHERE (usr = ‘str1’ AND psw = ‘str2’) Name Surname … John Smith … Result Server SQL DatabaseClient

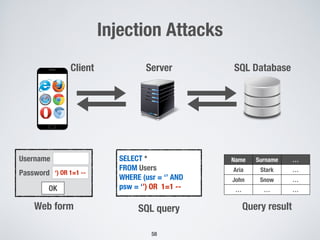

Injection Attacks 58 SQL query Name Surname … Aria Stark … John Snow … … … … Query result SELECT * FROM Users WHERE (usr = ‘’ AND psw = ‘’) OR 1=1 -- Server SQL DatabaseClient Web form ‘) OR 1=1 -- Username Password OK
Protection Layers Server SQL Database Client Data input Validation and Sanitization Database Firewall Web Application Firewall 59
Web Application Firewalls (WAFs) 60 Servermalicious malicious malicious legitimate WAF

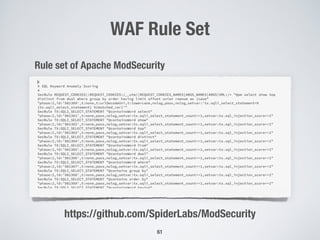

WAF Rule Set 61 Rule set of Apache ModSecurity https://github.com/SpiderLabs/ModSecurity
Misconfigured WAFs 62 BLOCKED False Positive ALLOWED False Negative
Grammar-based Attack Generation • BNF grammar for SQLi attacks • Random strategy: randomly selected production rules are applied recursively until only terminals are left • Random strategy not efficient for bypassing attacks that are difficult to find • Machine learning? Search? • How to guide the search? How can ML help?

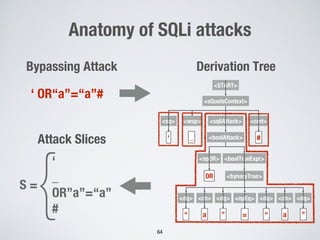

Anatomy of SQLi attacks 64 ‘ OR“a”=“a”# Bypassing Attack <START> <sq> <wsp> <sqliAttack> <cmt> <boolAttack> <opOR> <boolTrueExpr> OR <bynaryTrue> <dq> <ch> <dq> <opEq> <dq> <ch> <dq> “ a ” = “ a ” <sQuoteContext> ‘ #_ Derivation Tree ‘ _ OR”a”=“a” # S = { Attack Slices

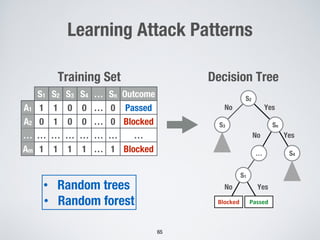

Learning Attack Patterns 65 S1 S2 S3 S4 … Sn Outcome A1 1 1 0 0 … 0 Passed A2 0 1 0 0 … 0 Blocked … … … … … … … … Am 1 1 1 1 … 1 Blocked Training Set PassedBlocked S4 YesNo YesNo YesNo S3 S2 Decision Tree Sn S1 … • Random trees • Random forest

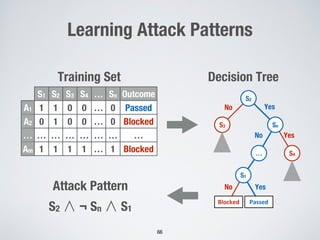

Learning Attack Patterns 66 S1 S2 S3 S4 … Sn Outcome A1 1 1 0 0 … 0 Passed A2 0 1 0 0 … 0 Blocked … … … … … … … … Am 1 1 1 1 … 1 Blocked PassedBlocked S4 YesNo YesNo YesNo S3 S2 Sn S1 … Training Set Decision Tree Attack Pattern S2 ∧ ¬ Sn ∧ S1

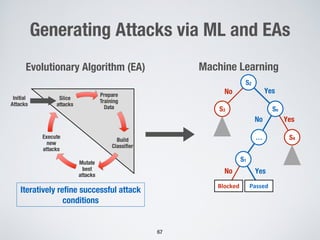

Machine Learning PassedBlocked S4 YesNo YesNo YesNo S3 S2 Sn S1 … Generating Attacks via ML and EAs 67 Evolutionary Algorithm (EA) Iteratively refine successful attack conditions

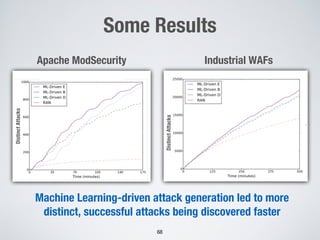

Some Results Apache ModSecurity 68 DistinctAttacks Industrial WAFs DistinctAttacks Machine Learning-driven attack generation led to more distinct, successful attacks being discovered faster

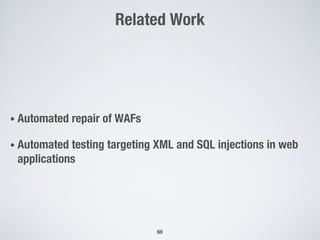

Related Work • Automated repair of WAFs • Automated testing targeting XML and SQL injections in web applications 69

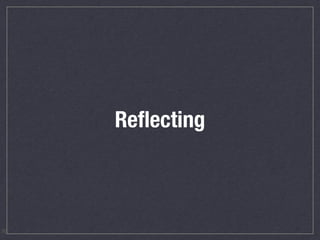

Reflecting 70

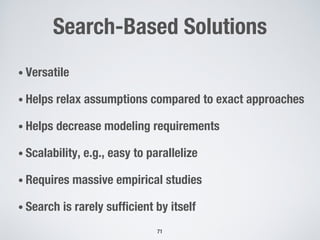

Search-Based Solutions • Versatile • Helps relax assumptions compared to exact approaches • Helps decrease modeling requirements • Scalability, e.g., easy to parallelize • Requires massive empirical studies • Search is rarely sufficient by itself 71
Multidisciplinary Approach • Single-technology approaches rarely work in practice • Combined search with: • Machine learning • Solvers, e.g., CP, SMT • Statistical approaches, e.g., sensitivity analysis • System and environment modeling and simulation 72
Objectives • Reduce search space • Better guide and focus search • Compute fitness and provide guidance • Avoid expensive and useless fitness computations • Explain failures (e.g., decision trees) • Get more guarantees (e.g., constraint programming) 73
Acknowledgements • Shiva Nejati • Reza Matinnejad • Raja Ben Abdessalem • Stefano Di Alesio • Dennis Appelt • Annibale Panichella 74
Selected References • L. Briand et al. “Testing the untestable: Model testing of complex software-intensive systems”, IEEE/ACM ICSE 2016, V2025 • R. Matinnejad et al., “MiL Testing of Highly Configurable Continuous Controllers: Scalable Search Using Surrogate Models”, IEEE/ACM ASE 2014 (Distinguished paper award) • S. Di Alesio et al. “Combining genetic algorithms and constraint programming to support stress testing of task deadlines”, ACM Transactions on Software Engineering and Methodology (TOSEM), 25(1):4, 2015 • R. Ben Abdessalem et al., "Testing Vision-Based Control Systems Using Learnable Evolutionary Algorithms”, IEEE/ACM ICSE 2018 • D. Appelt et al., “A Machine Learning-Driven Evolutionary Approach for Testing Web Application Firewalls”, To appear in IEEE Transaction on Reliability • More on: https://wwwen.uni.lu/snt/people/lionel_briand?page=Publications 75
.lusoftware verification & validation VVS Achieving Scalability in Software Testing with Machine Learning and Metaheuristic Search Lionel Briand RAISE @ ICSE 2018
