Gene Pang presents on accelerating Spark workloads in a Mesos environment using Alluxio. Alluxio provides a unified memory-speed storage layer across multiple storage systems and compute frameworks like Spark. Using Alluxio with Spark on Mesos allows sharing data in memory between processes for faster performance compared to keeping data on disk. Alluxio also provides data resilience during process crashes by keeping data blocks cached in memory. The presentation demonstrates setting up Alluxio with Spark on Mesos and shows an 8x performance improvement.

1. 1
Accelerating Spark Workloads in a Mesos
Environment with Alluxio
Gene Pang, Software Engineer, Alluxio, Inc.
* ©2017 Alluxio, Inc. All Rights Reserved

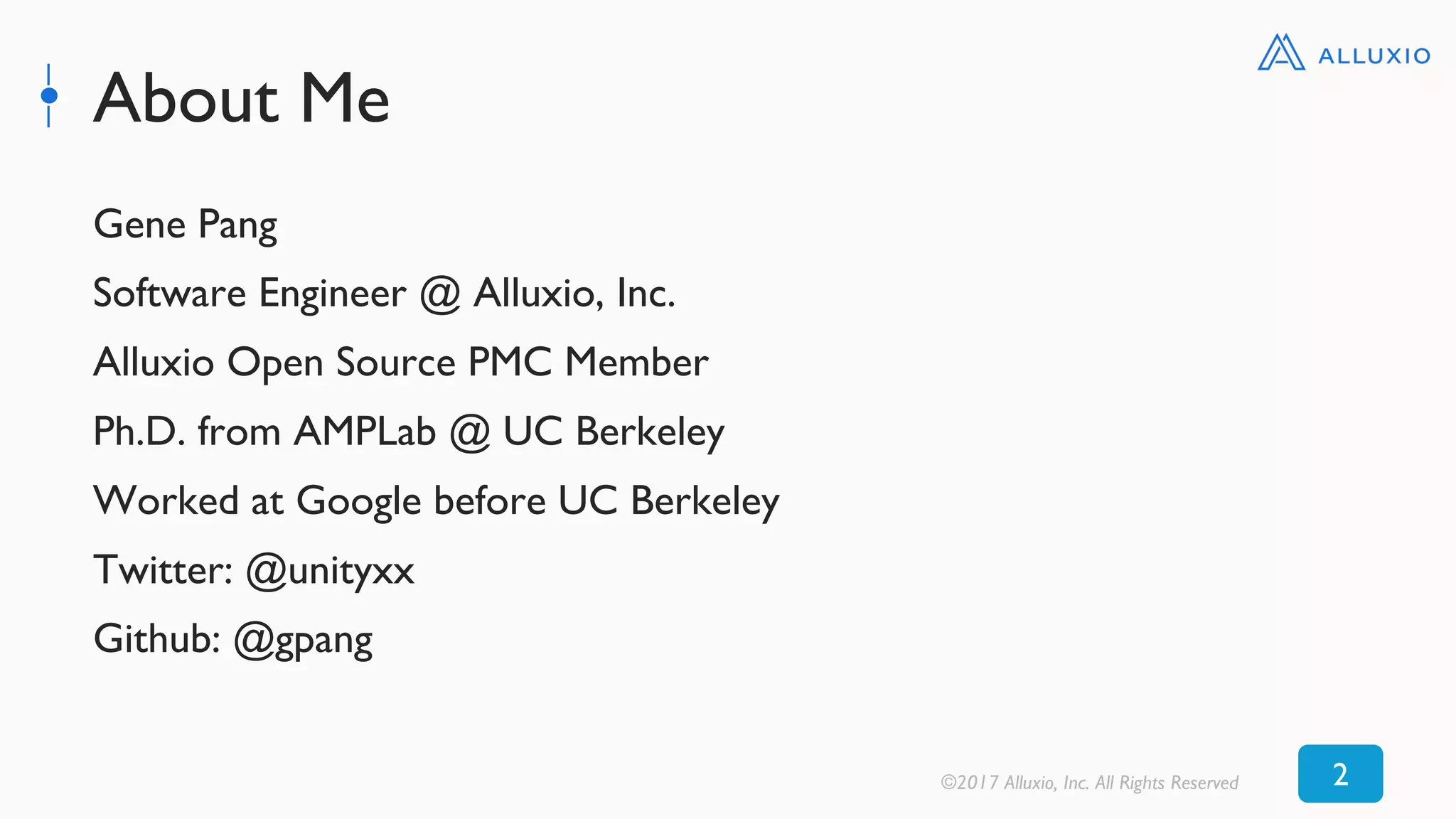

2. About Me
Gene Pang
Software Engineer @ Alluxio, Inc.
Alluxio Open Source PMC Member
Ph.D. from AMPLab @ UC Berkeley
Worked at Google before UC Berkeley
Twitter: @unityxx
Github: @gpang
©2017 Alluxio, Inc. All Rights Reserved 2

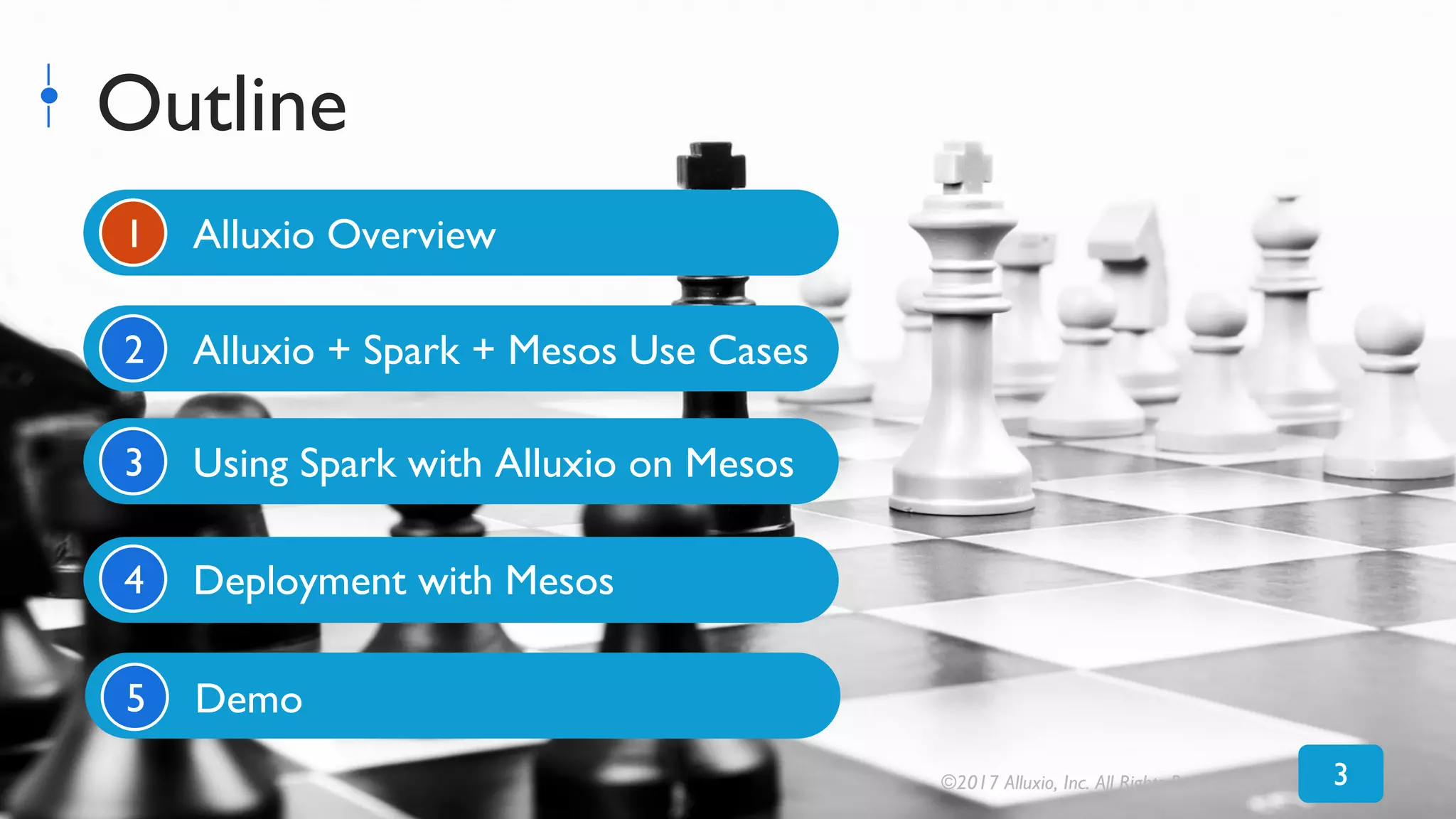

3. Outline
Alluxio Overview
Alluxio + Spark + Mesos Use Cases
Using Spark with Alluxio on Mesos
Deployment with Mesos
Demo
1
2
3
4
5
©2017 Alluxio, Inc. All Rights Reserved 3

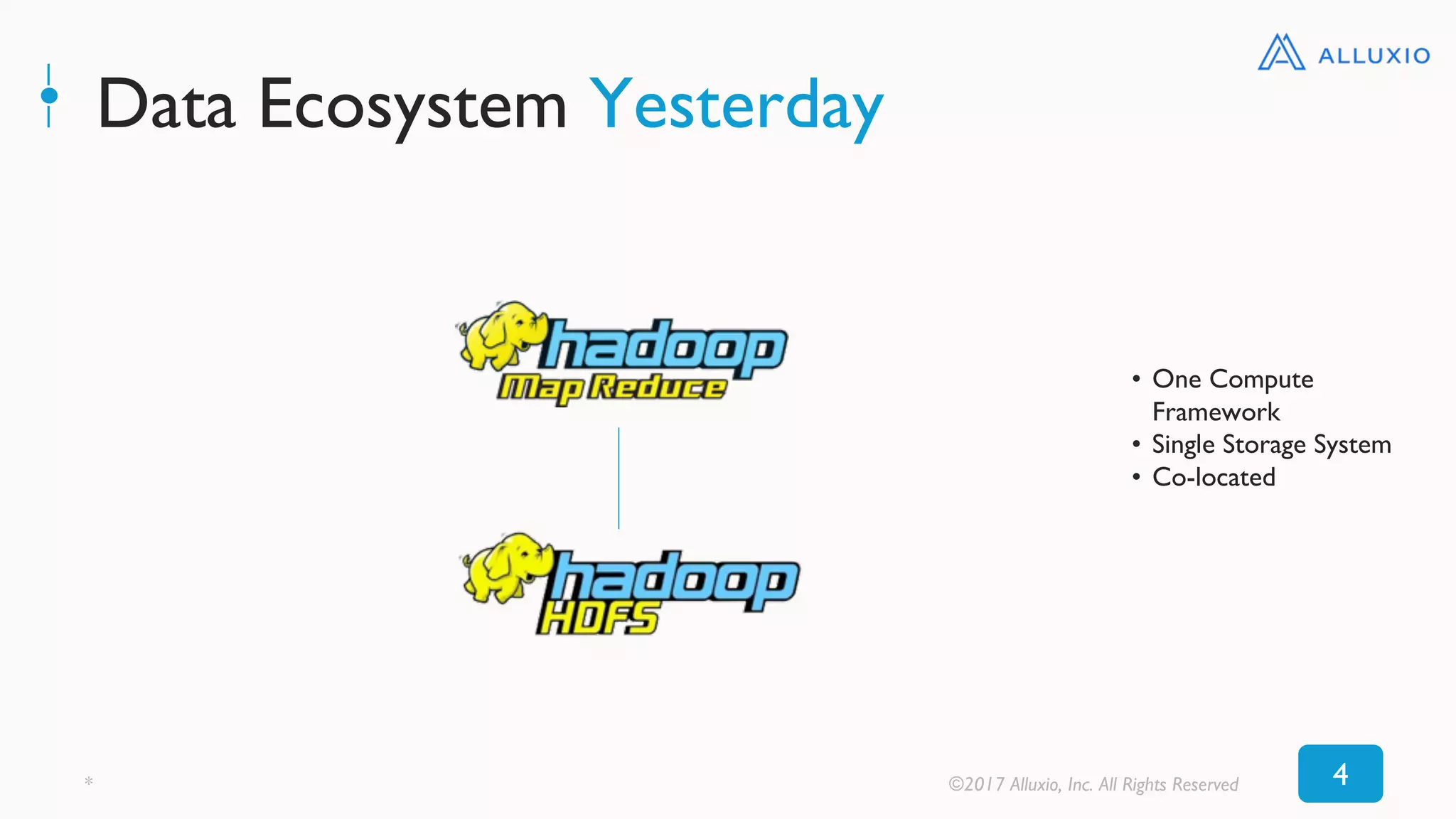

4. Data Ecosystem Yesterday
4* ©2017 Alluxio, Inc. All Rights Reserved
• One Compute
Framework
• Single Storage System
• Co-located

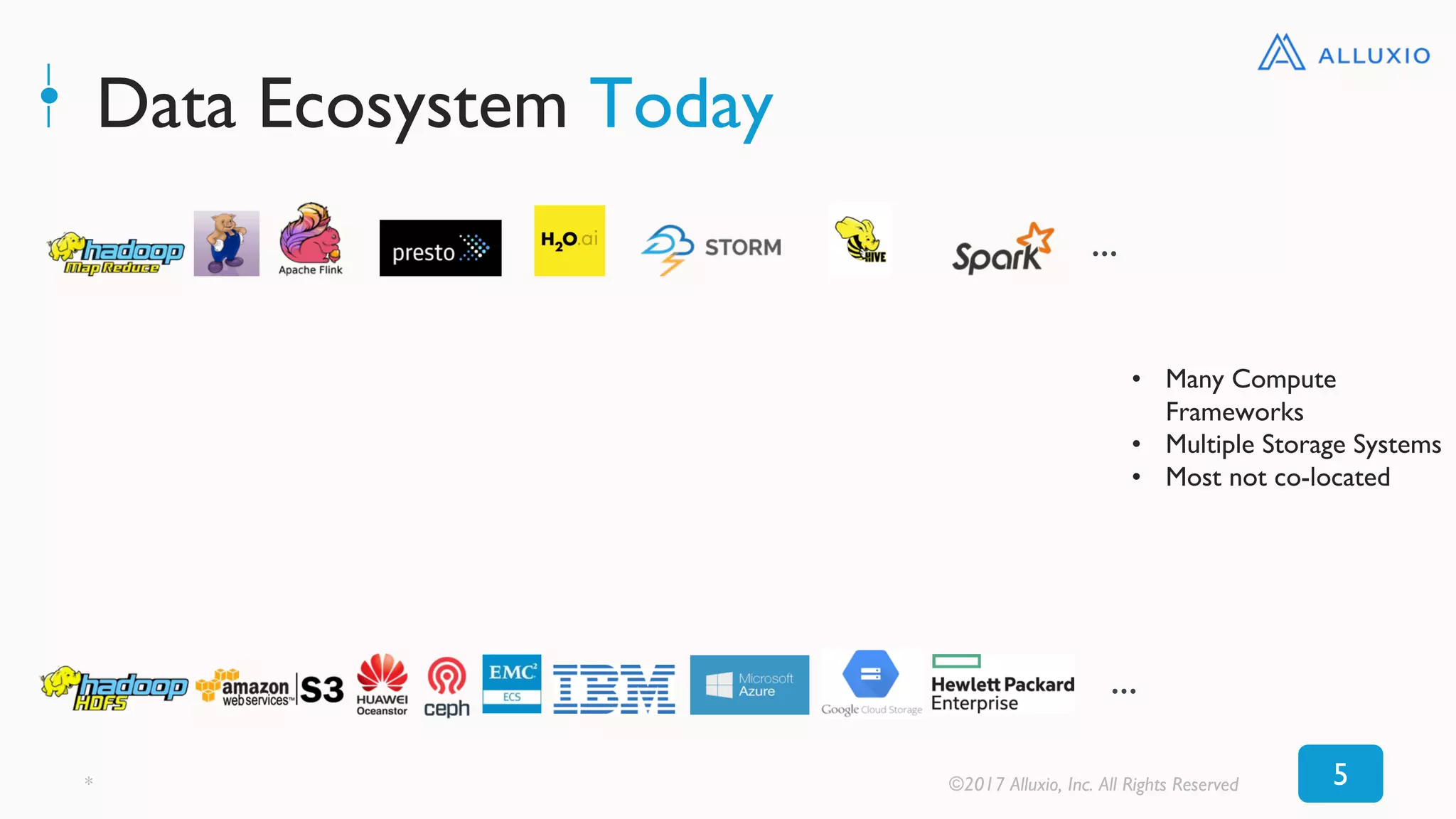

5. Data Ecosystem Today
5* ©2017 Alluxio, Inc. All Rights Reserved
…
• Many Compute
Frameworks
• Multiple Storage Systems
• Most not co-located
…

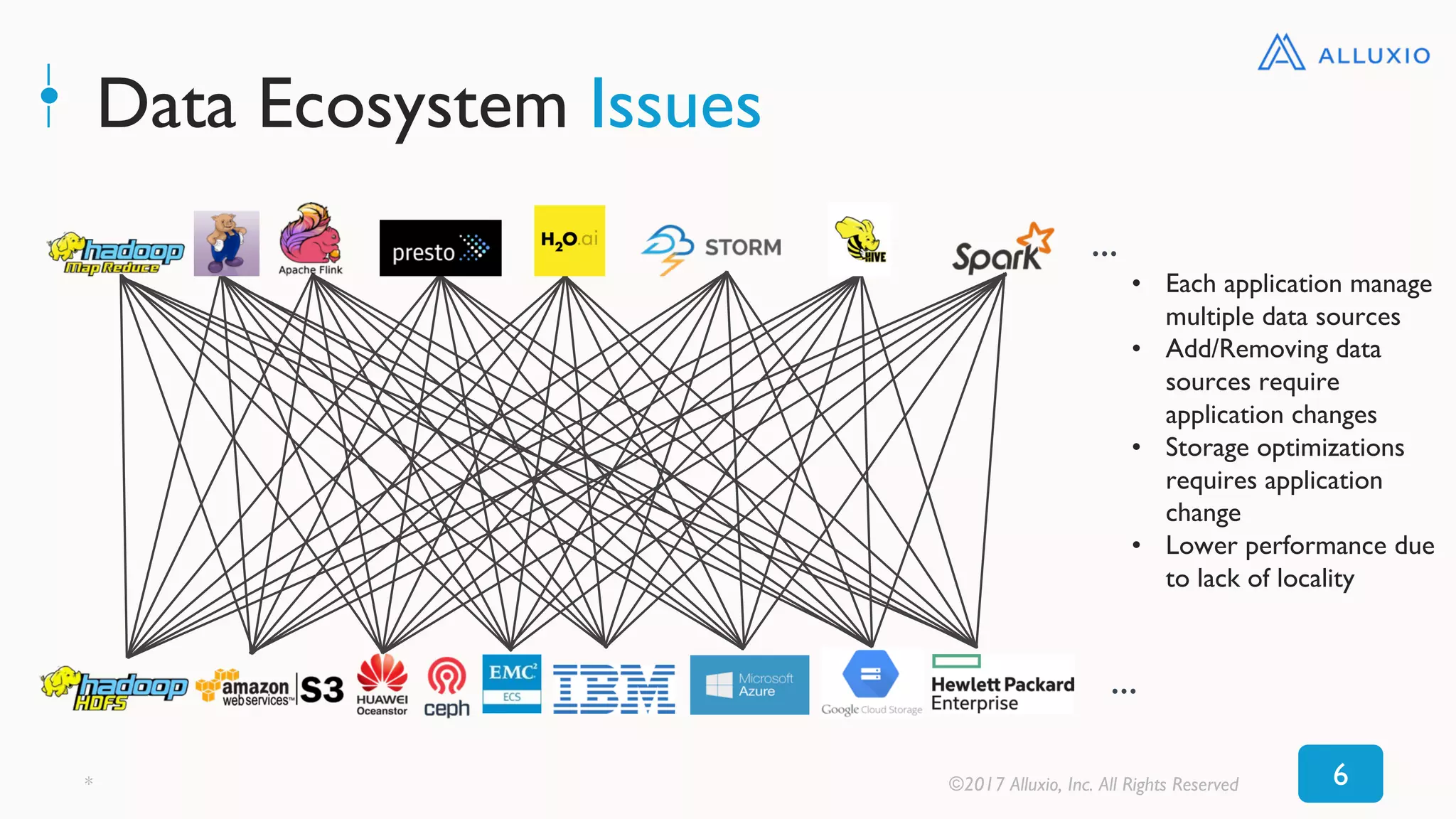

6. Data Ecosystem Issues
6* ©2017 Alluxio, Inc. All Rights Reserved
• Each application manage
multiple data sources
• Add/Removing data
sources require
application changes
• Storage optimizations
requires application
change
• Lower performance due
to lack of locality
…
…

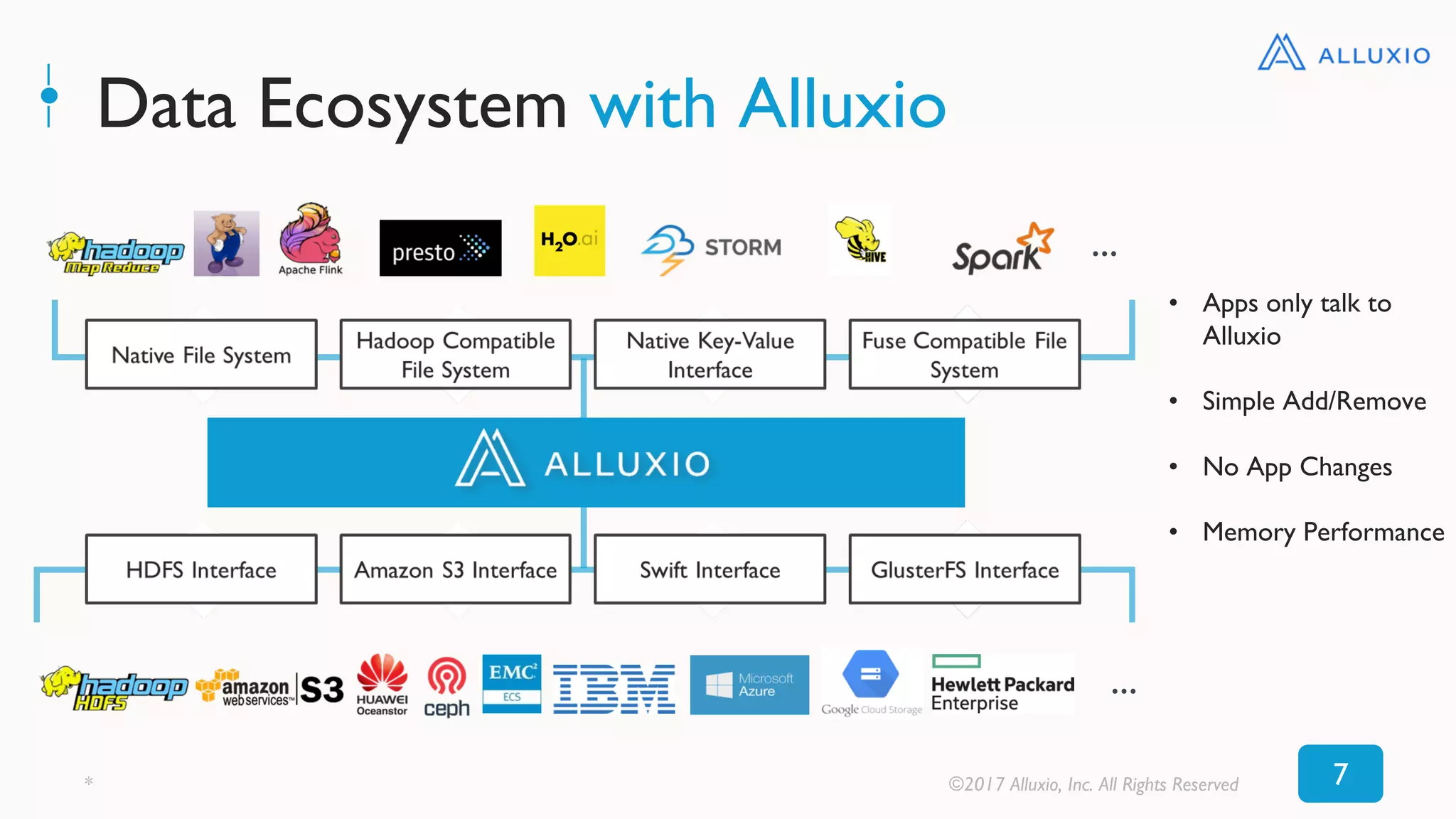

7. Data Ecosystem with Alluxio
7* ©2017 Alluxio, Inc. All Rights Reserved
• Apps only talk to
Alluxio
• Simple Add/Remove
• No App Changes
• Memory Performance
…
…

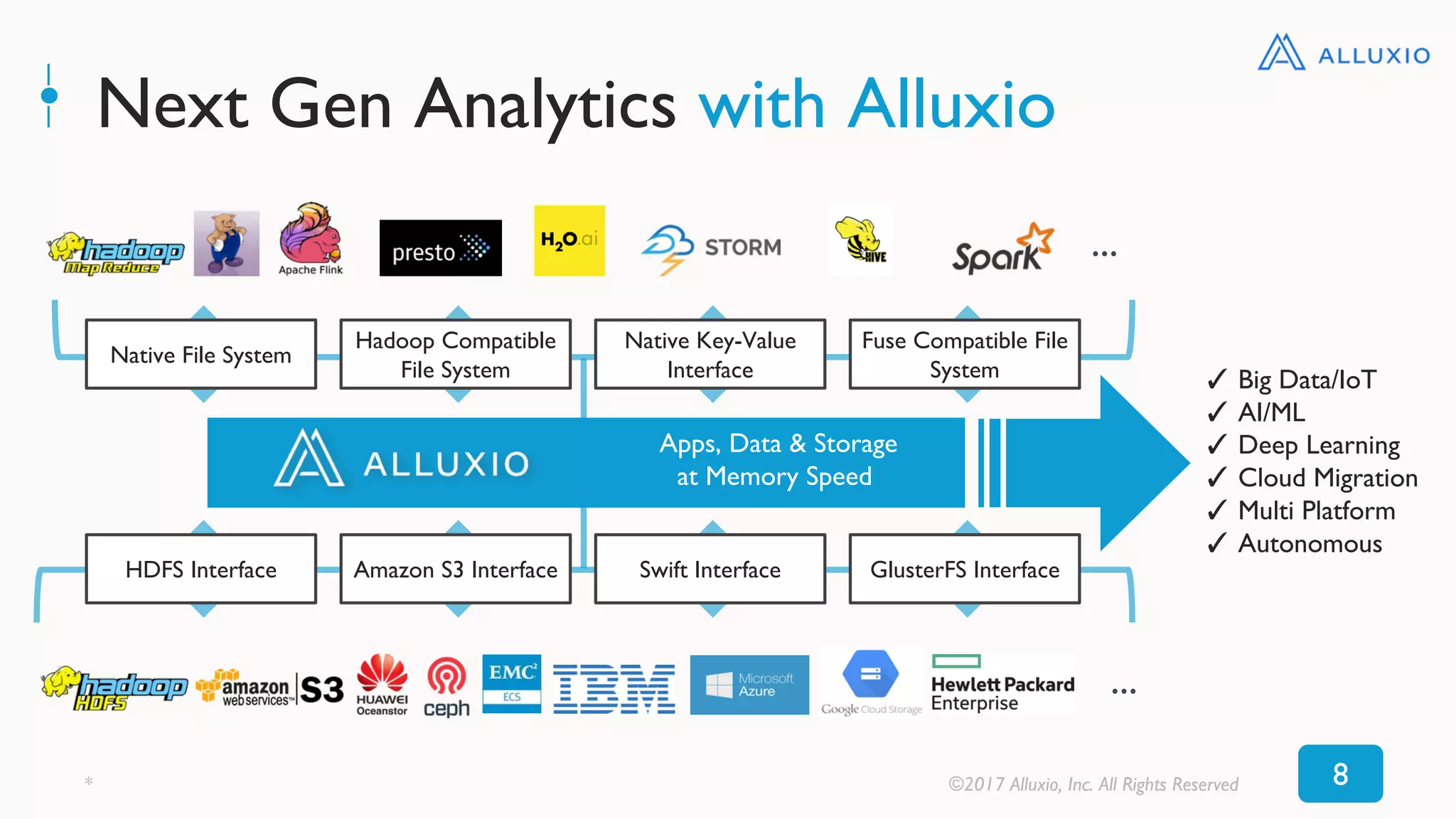

8. Next Gen Analytics with Alluxio
8* ©2017 Alluxio, Inc. All Rights Reserved
✓ Big Data/IoT
✓ AI/ML
✓ Deep Learning
✓ Cloud Migration
✓ Multi Platform
✓ Autonomous
…
…
Native File System
Hadoop Compatible
File System
Native Key-Value
Interface
Fuse Compatible File
System
HDFS Interface Amazon S3 Interface Swift Interface GlusterFS Interface
Apps, Data & Storage
at Memory Speed

9. Enabling Next Gen Analytics
Unify your Data
9
1
Architecture Flexibility2
Improved I/O Performance3
* ©2017 Alluxio, Inc. All Rights Reserved

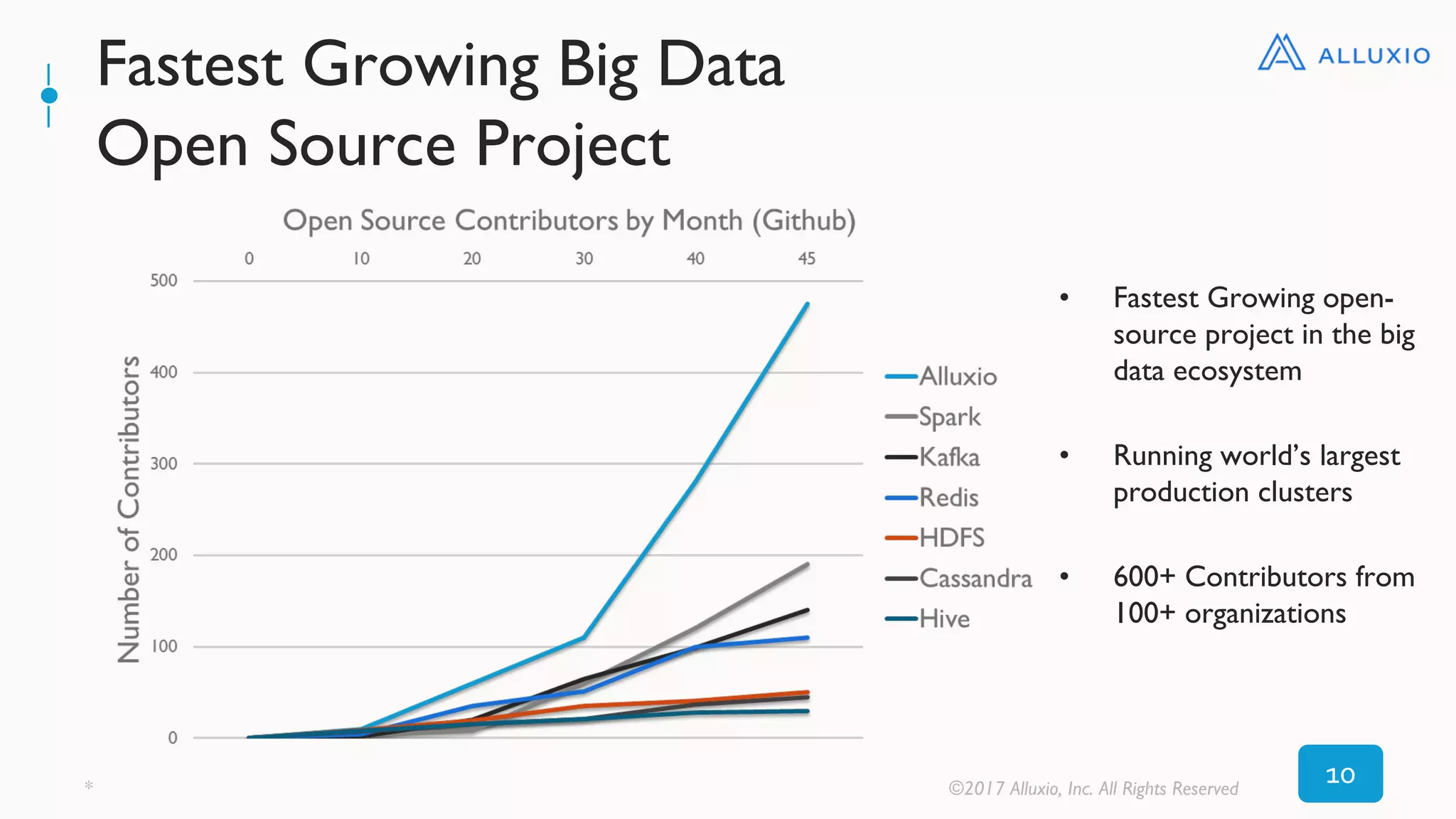

10. Fastest Growing Big Data
Open Source Project
10* ©2017 Alluxio, Inc. All Rights Reserved
• Fastest Growing open-
source project in the big
data ecosystem
• Running world’s largest
production clusters
• 600+ Contributors from
100+ organizations

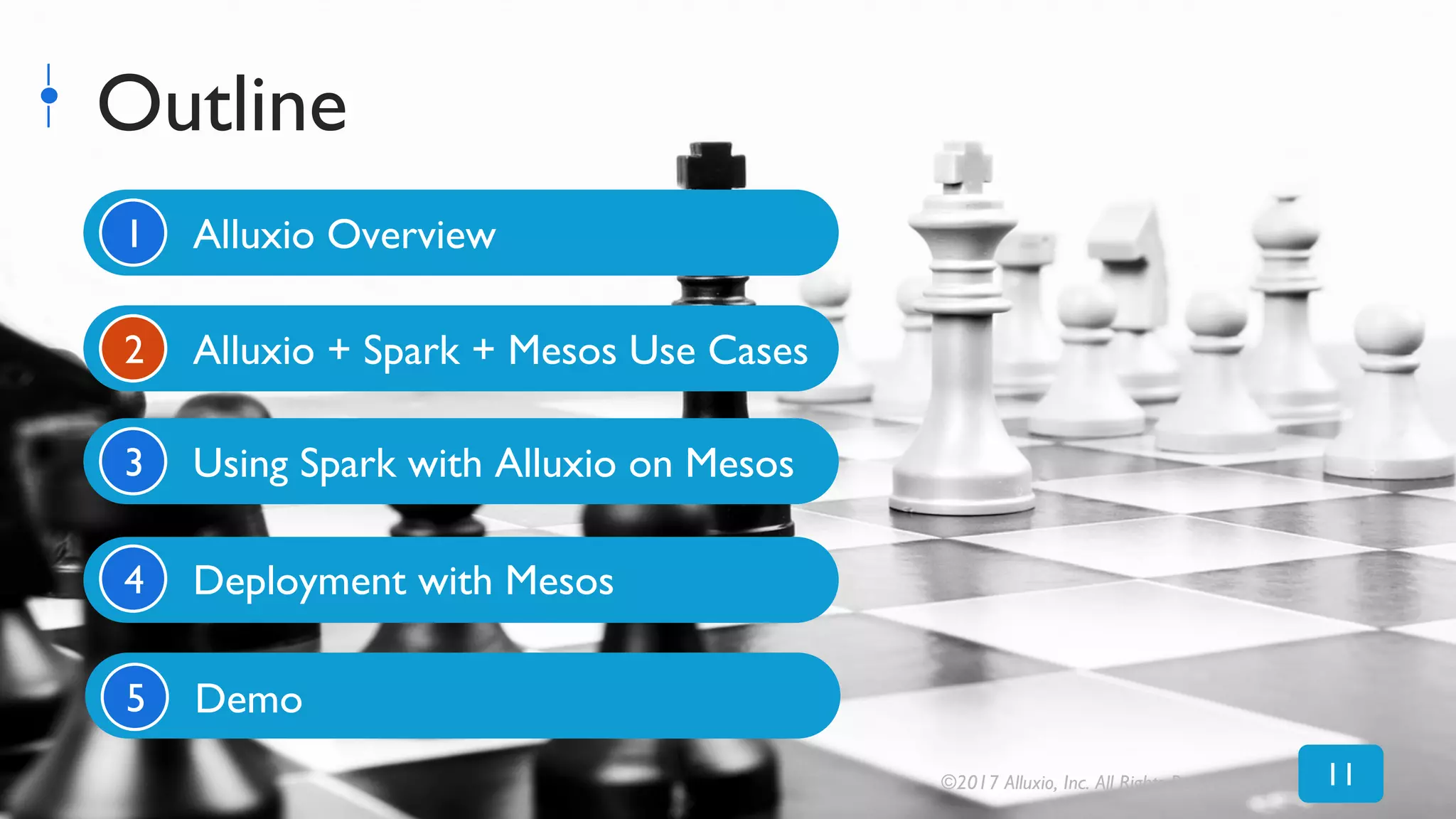

11. Outline
Alluxio Overview
Alluxio + Spark + Mesos Use Cases
Using Spark with Alluxio on Mesos
Deployment with Mesos
Demo
1
2
3
4
5
©2017 Alluxio, Inc. All Rights Reserved 11

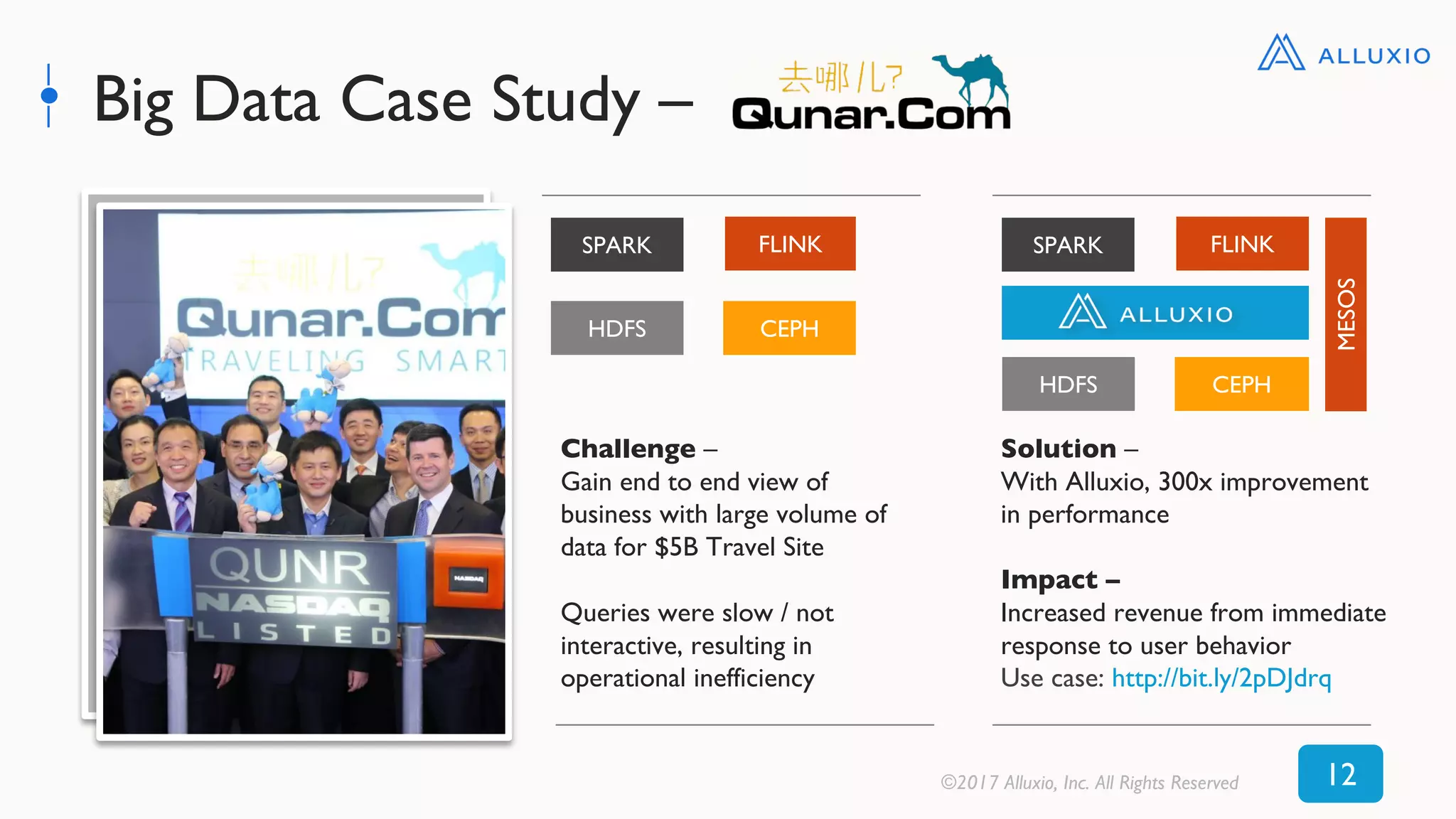

12. Big Data Case Study –
Challenge –
Gain end to end view of
business with large volume of
data for $5B Travel Site
Queries were slow / not
interactive, resulting in
operational inefficiency
SPARK
HDFS
Solution –
With Alluxio, 300x improvement
in performance
Impact –
Increased revenue from immediate
response to user behavior
Use case: http://bit.ly/2pDJdrq
CEPH
HDFS CEPH
FLINK SPARK FLINK
©2017 Alluxio, Inc. All Rights Reserved 12
MESOS

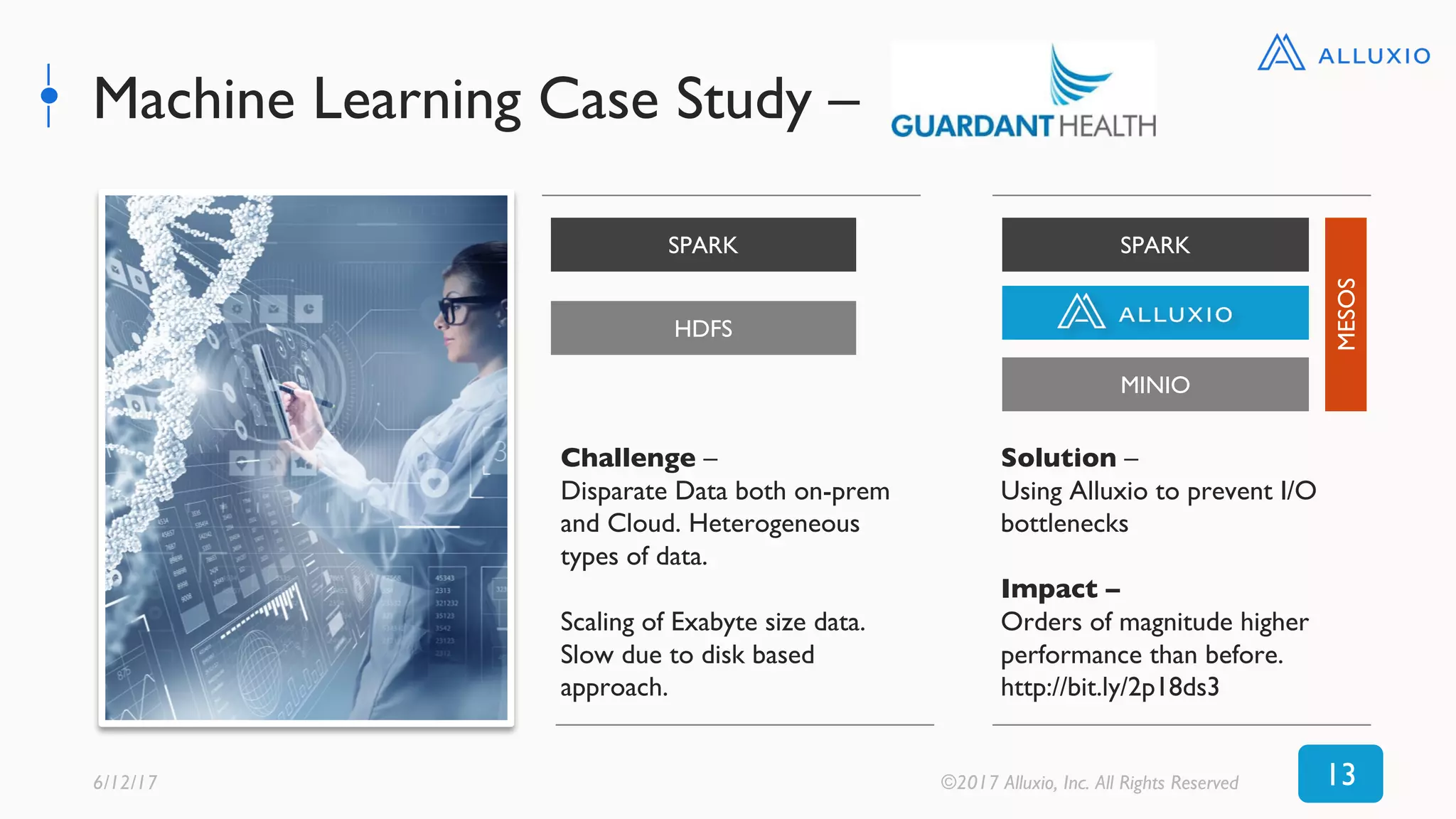

13. Machine Learning Case Study –
136/12/17 ©2017 Alluxio, Inc. All Rights Reserved
Challenge –
Disparate Data both on-prem
and Cloud. Heterogeneous
types of data.
Scaling of Exabyte size data.
Slow due to disk based
approach.
SPARK
HDFS
SPARK
MINIO
Solution –
Using Alluxio to prevent I/O
bottlenecks
Impact –
Orders of magnitude higher
performance than before.
http://bit.ly/2p18ds3
MESOS

14. Outline
Alluxio Overview
Alluxio + Spark + Mesos Use Cases
Using Spark with Alluxio on Mesos
Deployment with Mesos
Demo
1
2
3
4
5
©2017 Alluxio, Inc. All Rights Reserved 14

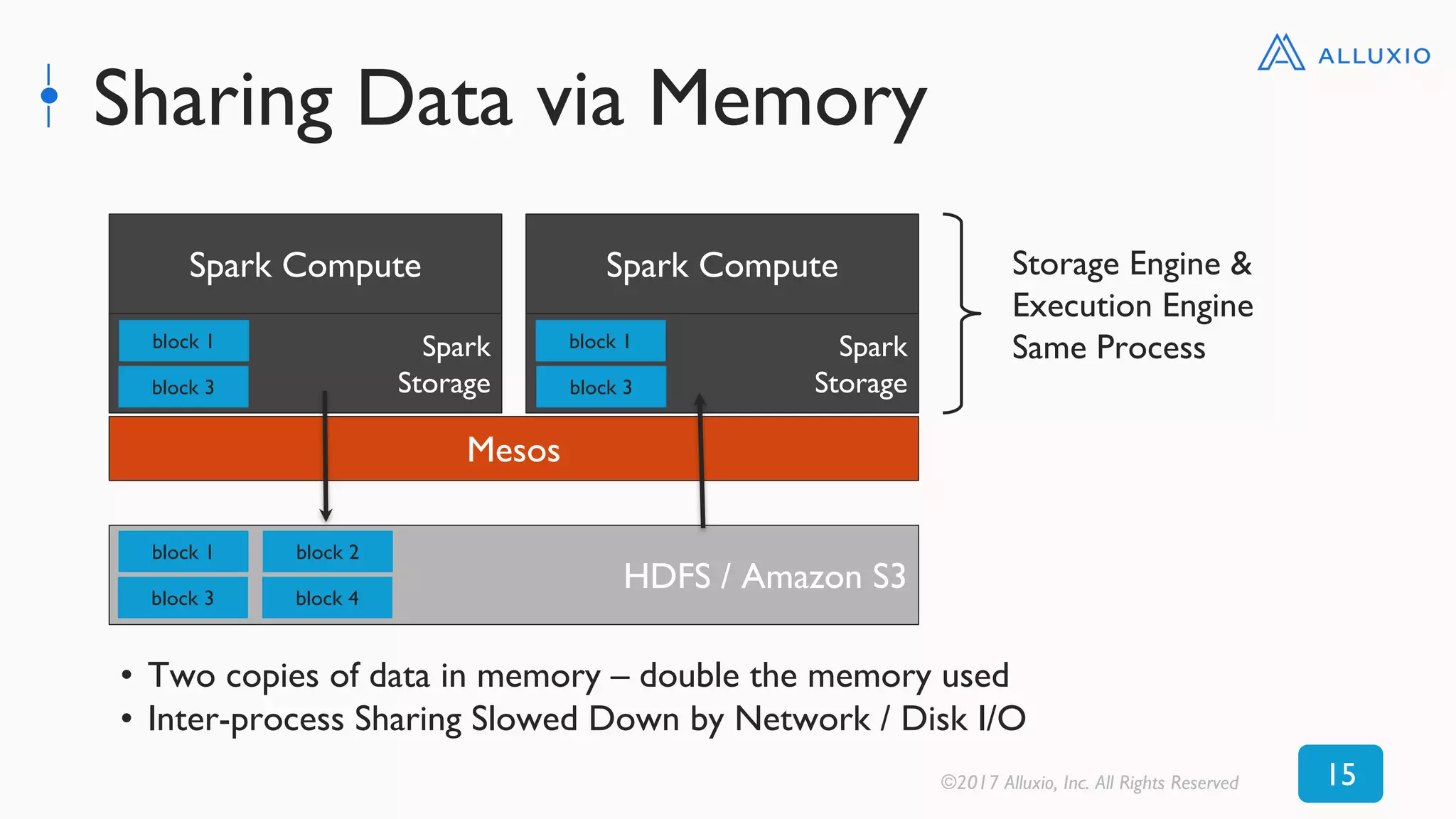

15. Sharing Data via Memory
Storage Engine &
Execution Engine
Same Process
• Two copies of data in memory – double the memory used
• Inter-process Sharing Slowed Down by Network / Disk I/O
©2017 Alluxio, Inc. All Rights Reserved 15
Mesos
Spark Compute
Spark
Storage
block 1
block 3
HDFS / Amazon S3
block 1
block 3
block 2
block 4
Spark Compute
Spark
Storage
block 1
block 3

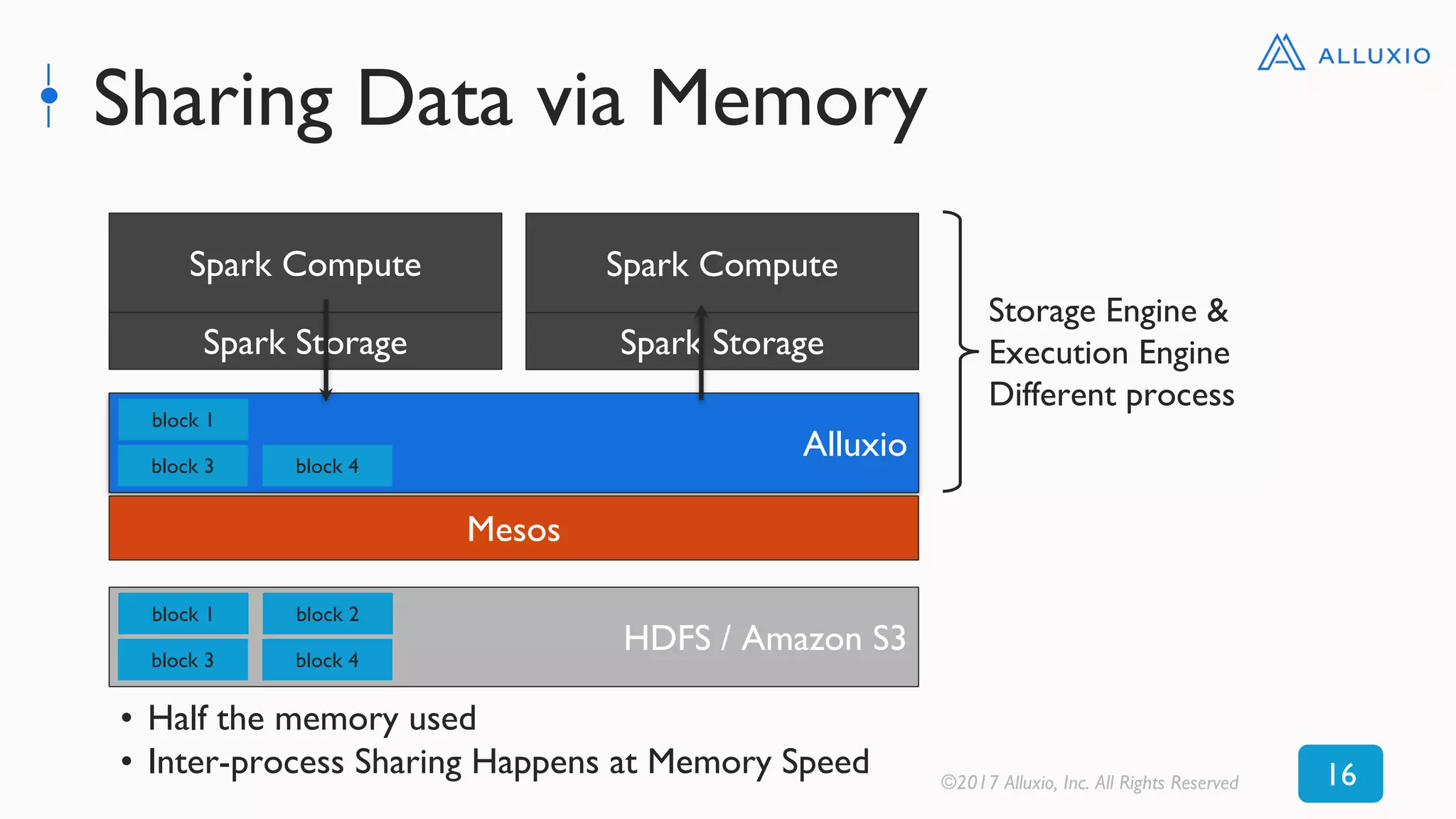

16. Sharing Data via Memory
Storage Engine &
Execution Engine
Different process
• Half the memory used
• Inter-process Sharing Happens at Memory Speed
Spark Compute
Spark Storage
HDFS / Amazon S3
block 1
block 3
block 2
block 4
HDFS
disk
block 1
block 3
block 2
block 4
Alluxio
block 1
block 3 block 4
Spark Compute
Spark Storage
©2017 Alluxio, Inc. All Rights Reserved 16
Mesos

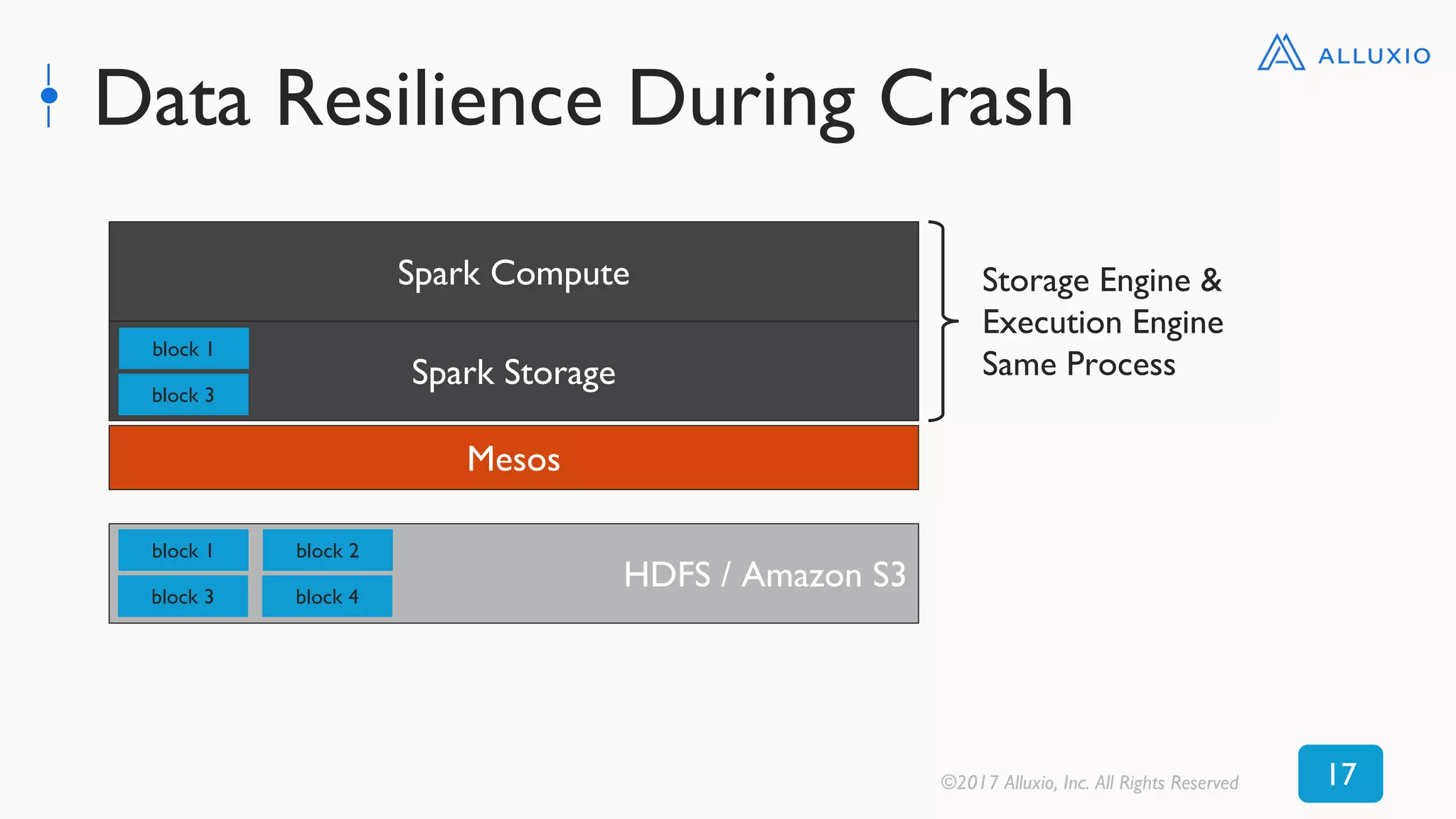

17. Data Resilience During Crash
Spark Compute
Spark Storage
block 1
block 3
HDFS / Amazon S3
block 1
block 3
block 2
block 4
Storage Engine &
Execution Engine
Same Process
©2017 Alluxio, Inc. All Rights Reserved 17
Mesos

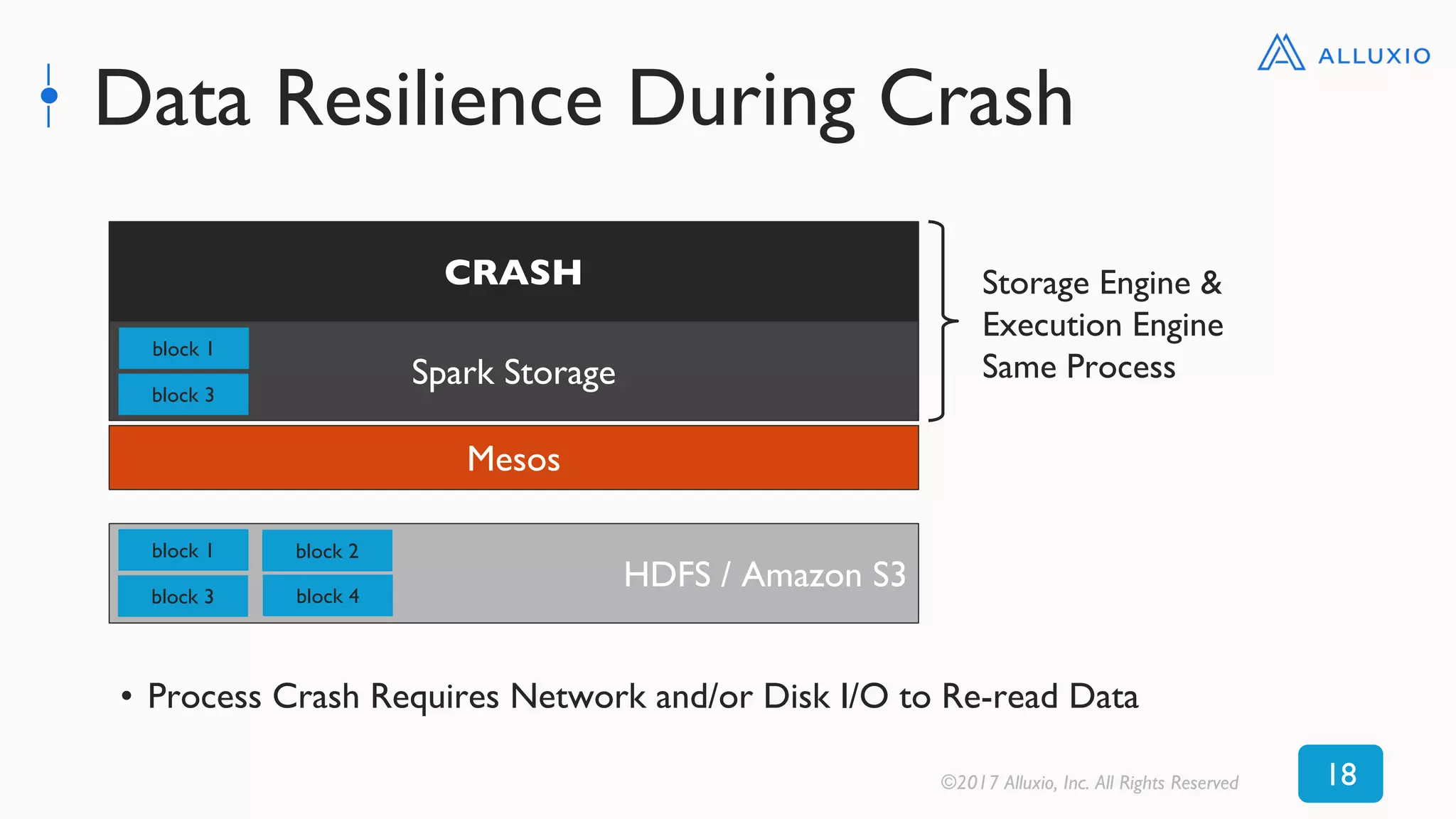

18. Data Resilience During Crash
CRASH
Spark Storage
block 1
block 3
HDFS / Amazon S3
block 1
block 3 block 4
block 2
• Process Crash Requires Network and/or Disk I/O to Re-read Data
Storage Engine &
Execution Engine
Same Process
©2017 Alluxio, Inc. All Rights Reserved 18
Mesos

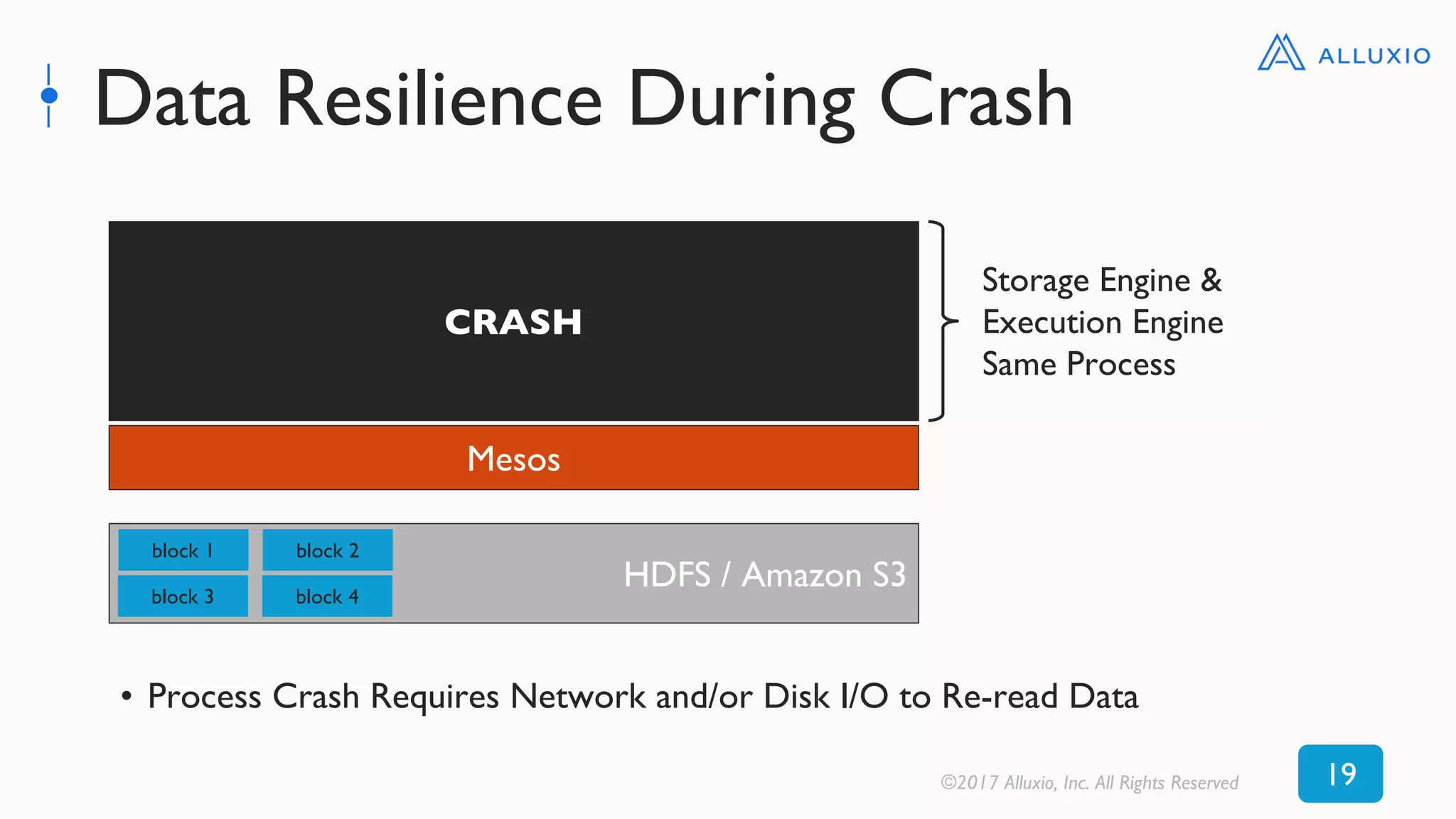

19. Data Resilience During Crash
CRASH
HDFS / Amazon S3
block 1
block 3
block 2
block 4
Storage Engine &
Execution Engine
Same Process
• Process Crash Requires Network and/or Disk I/O to Re-read Data
©2017 Alluxio, Inc. All Rights Reserved 19
Mesos

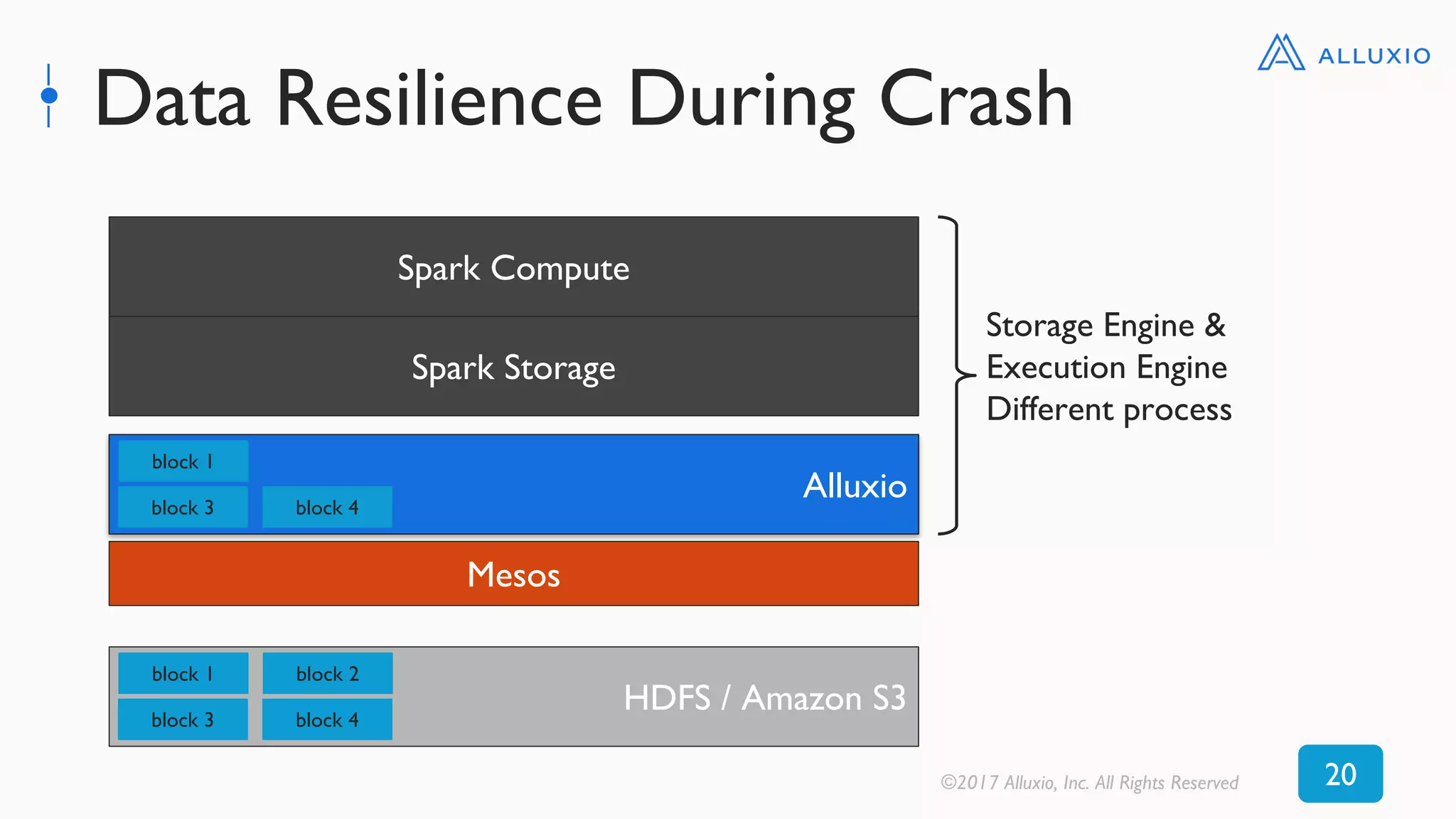

20. Data Resilience During Crash
Spark Compute
Spark Storage
HDFS / Amazon S3
block 1
block 3
block 2
block 4
HDFS
disk
block 1
block 3
block 2
block 4
Alluxio
block 1
block 3 block 4
Storage Engine &
Execution Engine
Different process
©2017 Alluxio, Inc. All Rights Reserved 20
Mesos

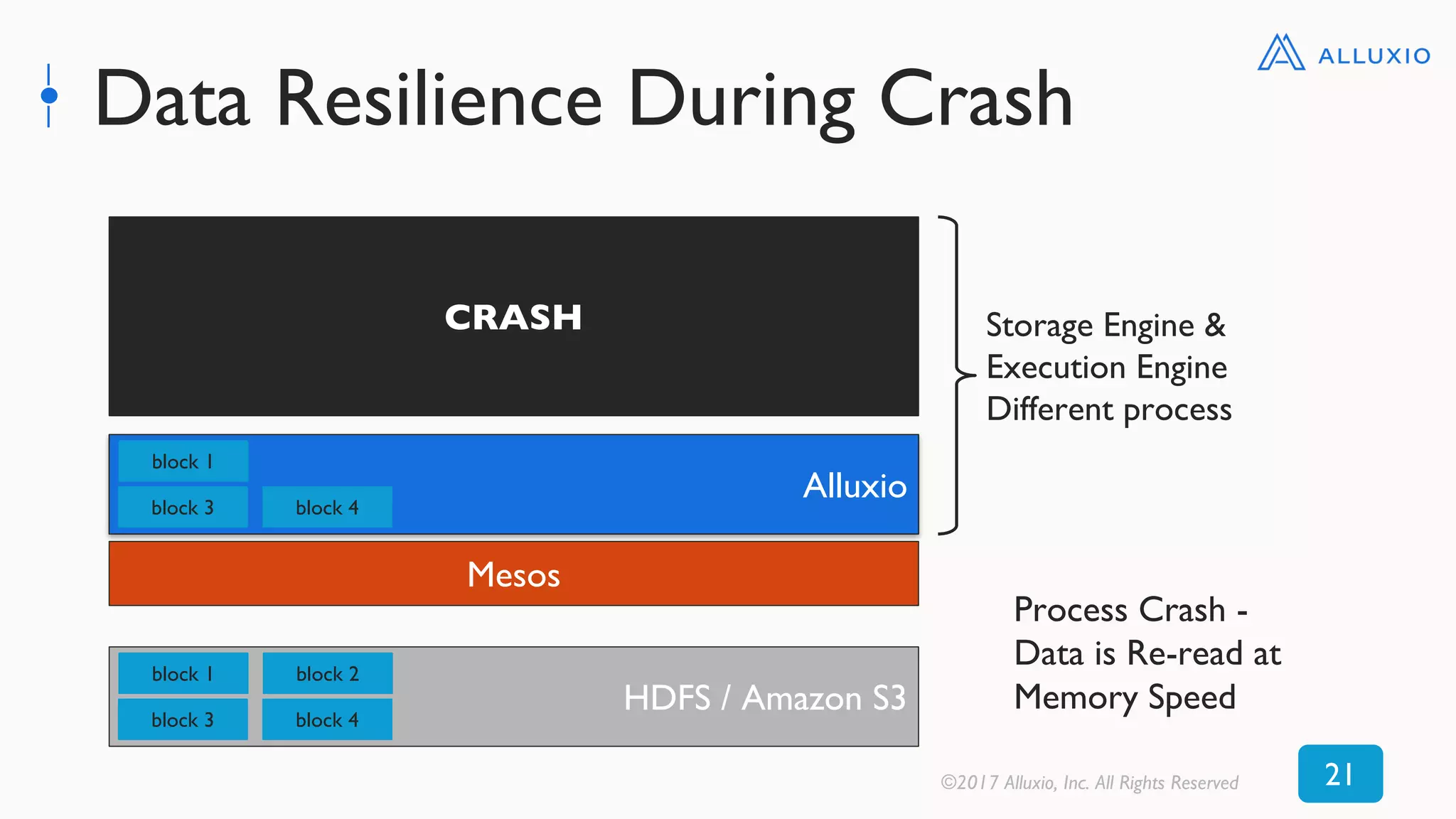

21. Data Resilience During Crash
Process Crash -
Data is Re-read at
Memory SpeedHDFS / Amazon S3
block 1
block 3
block 2
block 4
HDFS
disk
block 1
block 3
block 2
block 4
Alluxio
block 1
block 3 block 4
CRASH Storage Engine &
Execution Engine
Different process
©2017 Alluxio, Inc. All Rights Reserved 21
Mesos

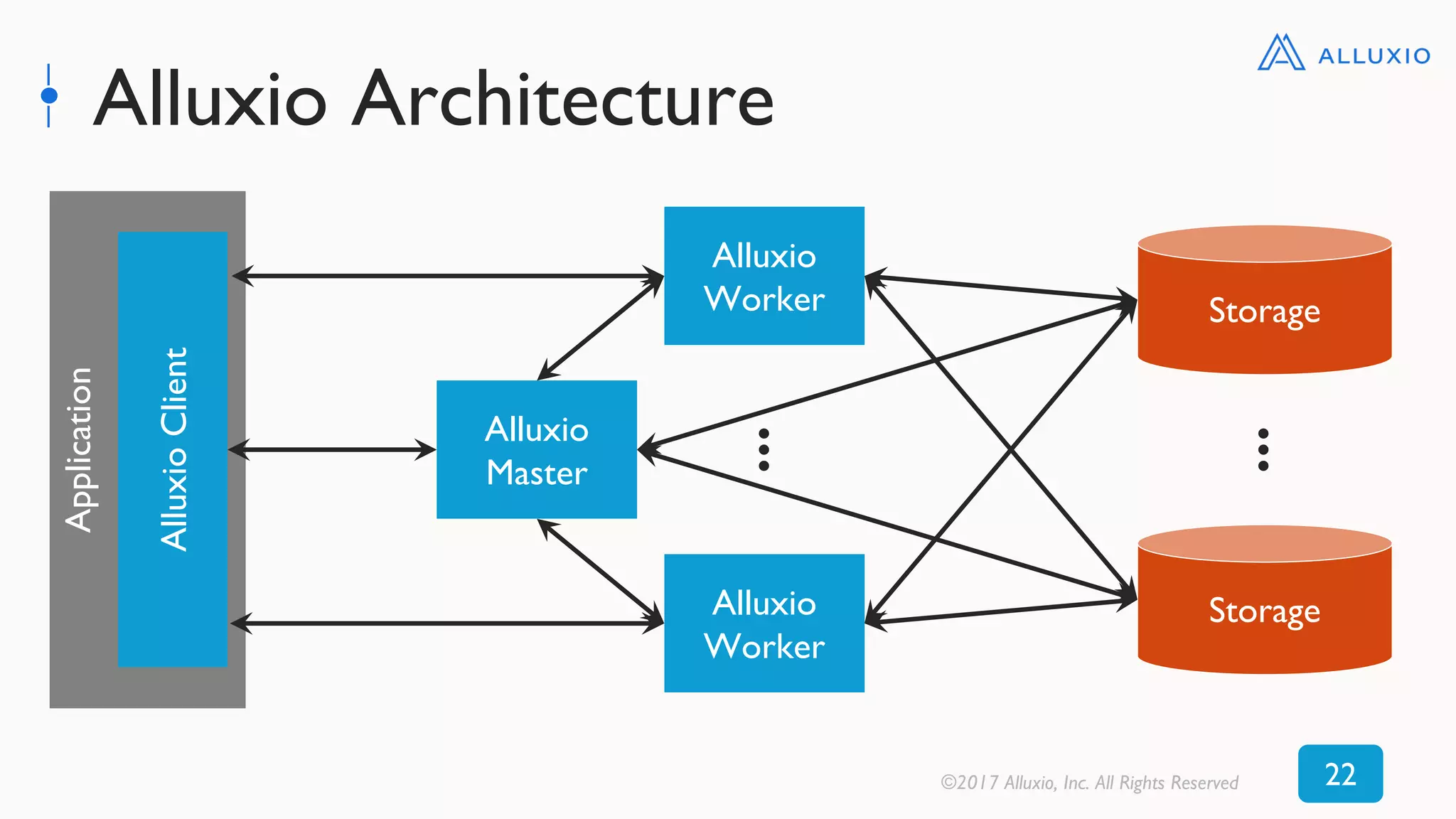

22. Alluxio Architecture
©2017 Alluxio, Inc. All Rights Reserved 22
Application
AlluxioClient
Alluxio
Master
Alluxio
Worker
Alluxio
Worker
…
Storage
Storage
…

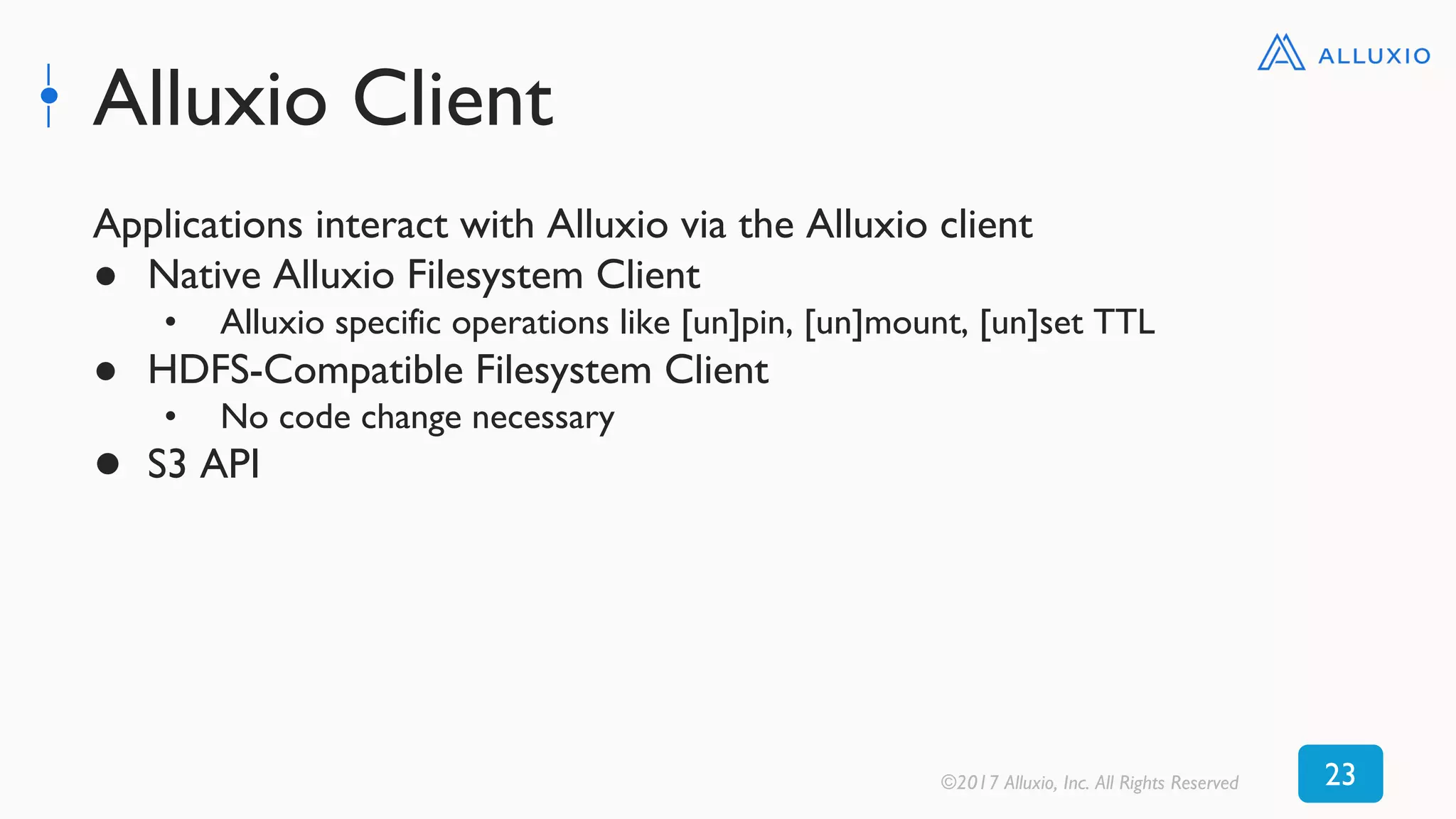

23. Alluxio Client
©2017 Alluxio, Inc. All Rights Reserved 23
Applications interact with Alluxio via the Alluxio client
● Native Alluxio Filesystem Client
• Alluxio specific operations like [un]pin, [un]mount, [un]set TTL
● HDFS-Compatible Filesystem Client
• No code change necessary
● S3 API

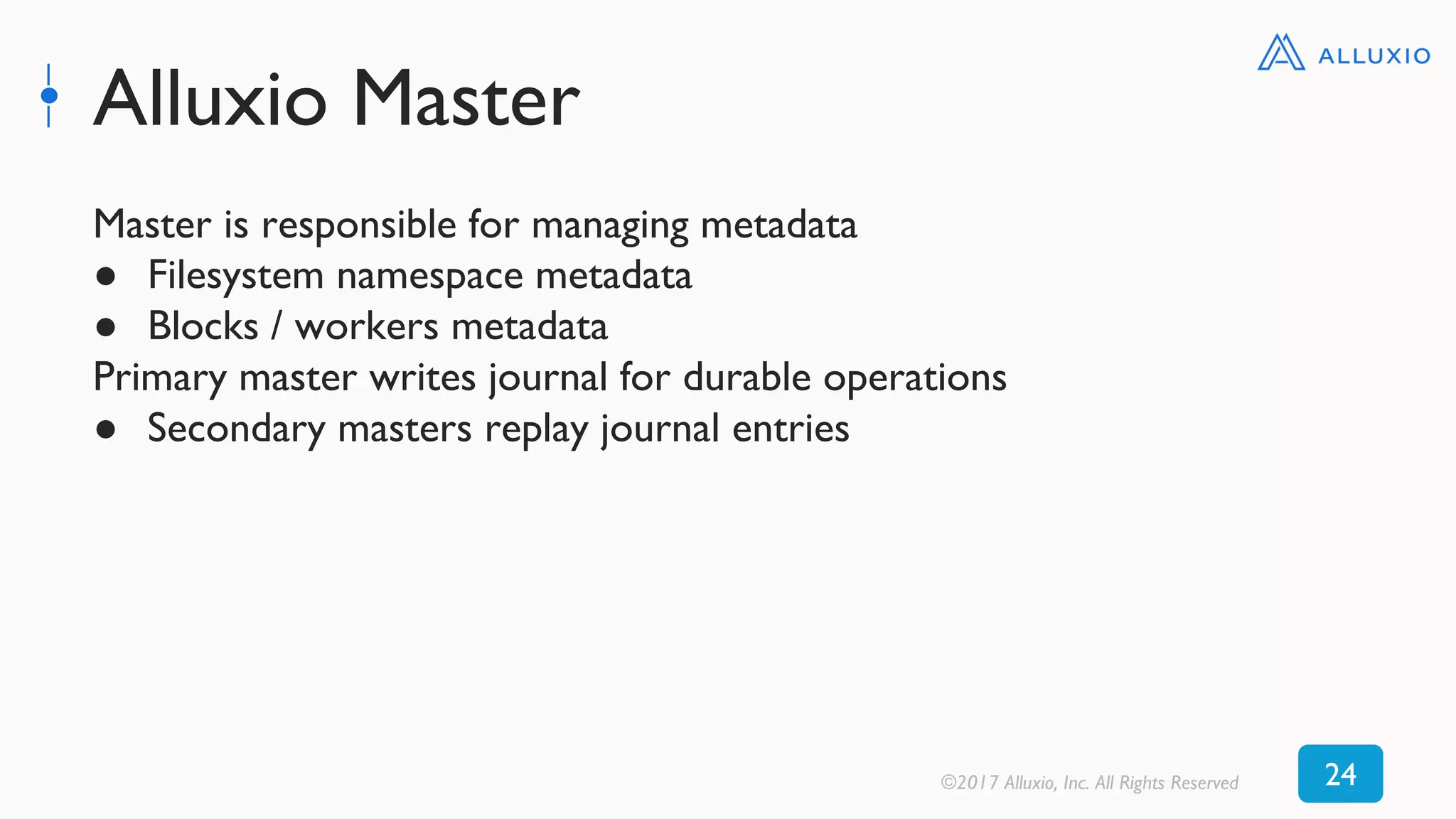

24. Alluxio Master
©2017 Alluxio, Inc. All Rights Reserved 24
Master is responsible for managing metadata
● Filesystem namespace metadata
● Blocks / workers metadata
Primary master writes journal for durable operations
● Secondary masters replay journal entries

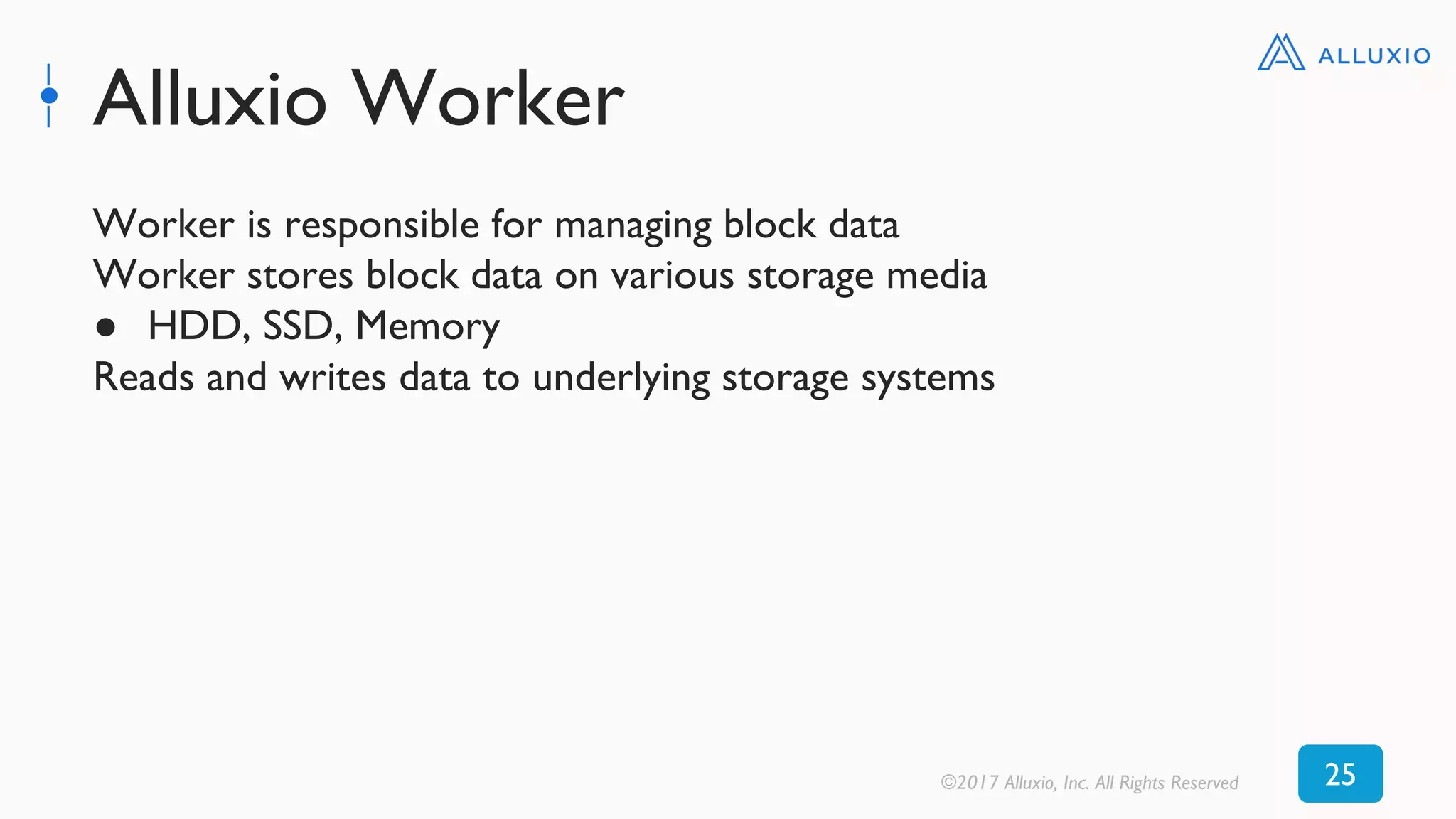

25. Alluxio Worker
©2017 Alluxio, Inc. All Rights Reserved 25
Worker is responsible for managing block data
Worker stores block data on various storage media
● HDD, SSD, Memory
Reads and writes data to underlying storage systems

26. Outline
Alluxio Overview
Alluxio + Spark + Mesos Use Cases
Using Spark with Alluxio on Mesos
Deployment with Mesos
Demo
1
2
3
4
5
©2017 Alluxio, Inc. All Rights Reserved 26

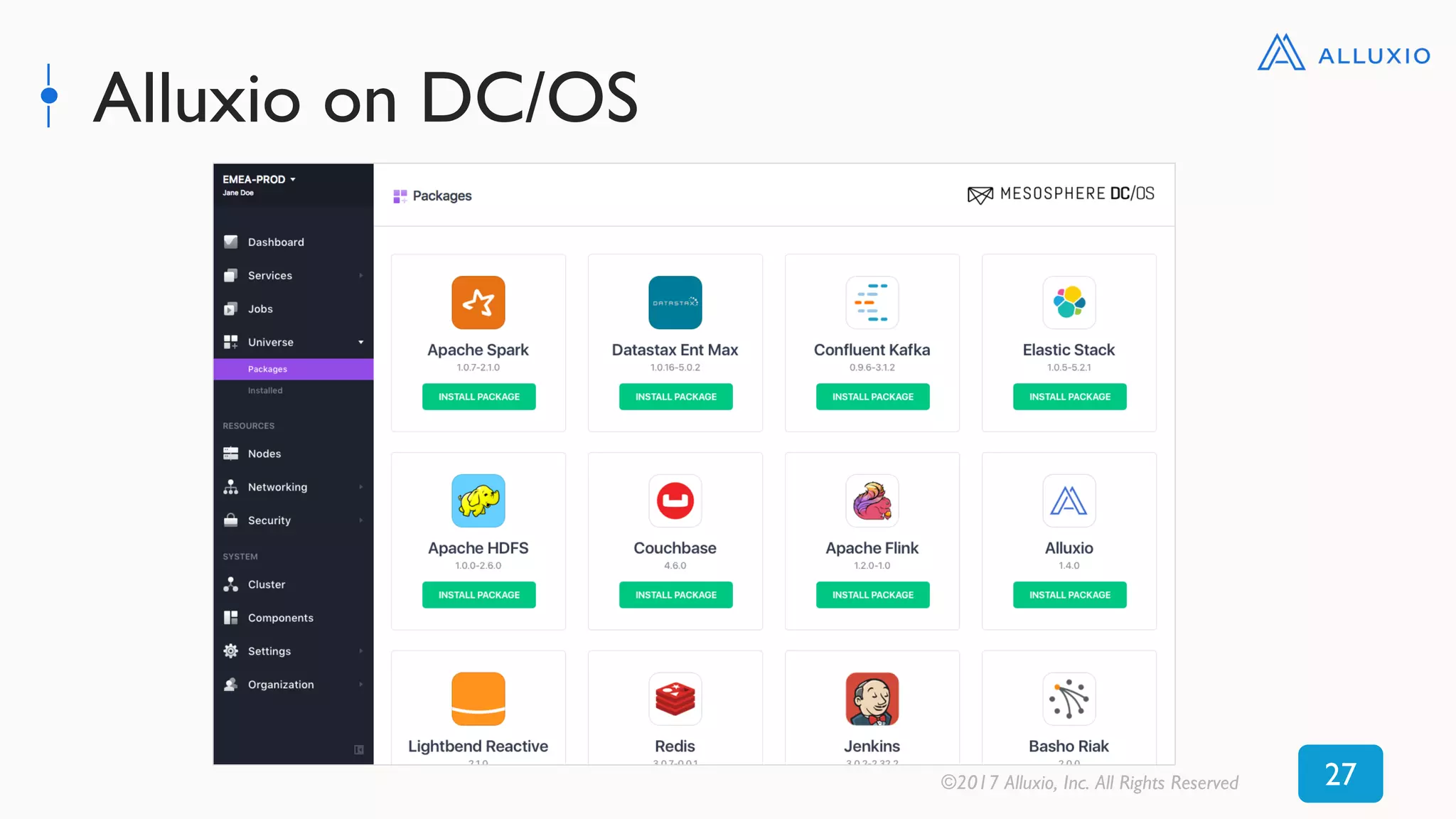

27. Alluxio on DC/OS
©2017 Alluxio, Inc. All Rights Reserved 27

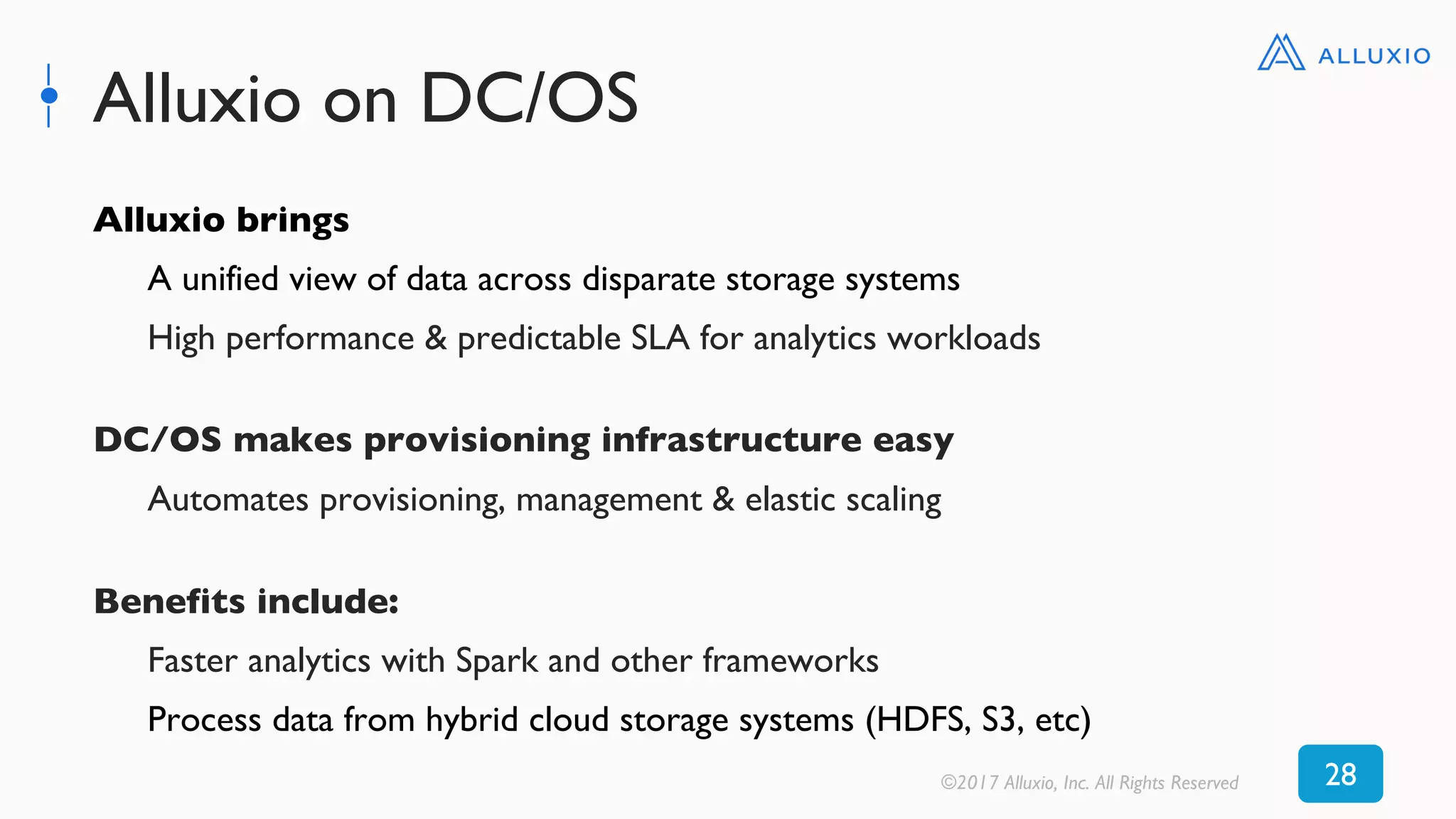

28. Alluxio on DC/OS
©2017 Alluxio, Inc. All Rights Reserved 28
Alluxio brings
A unified view of data across disparate storage systems
High performance & predictable SLA for analytics workloads
DC/OS makes provisioning infrastructure easy
Automates provisioning, management & elastic scaling
Benefits include:
Faster analytics with Spark and other frameworks
Process data from hybrid cloud storage systems (HDFS, S3, etc)

29. Outline
Alluxio Overview
Alluxio + Spark + Mesos Use Cases
Using Spark with Alluxio on Mesos
Deployment with Mesos
Demo
1
2
3
4
5
©2017 Alluxio, Inc. All Rights Reserved 29

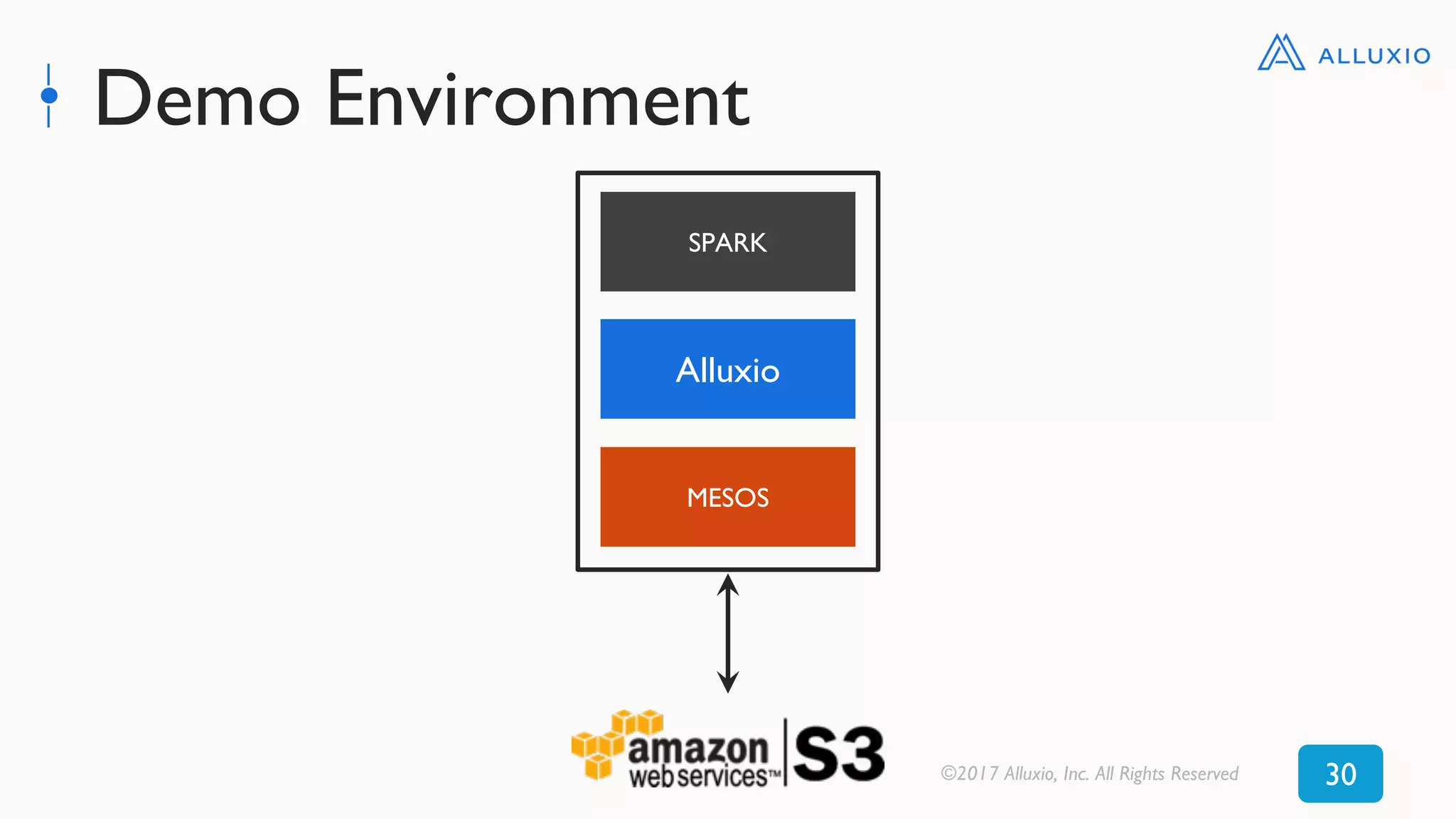

30. Demo Environment
Spark
Alluxio
©2017 Alluxio, Inc. All Rights Reserved 30
SPARK
MESOS

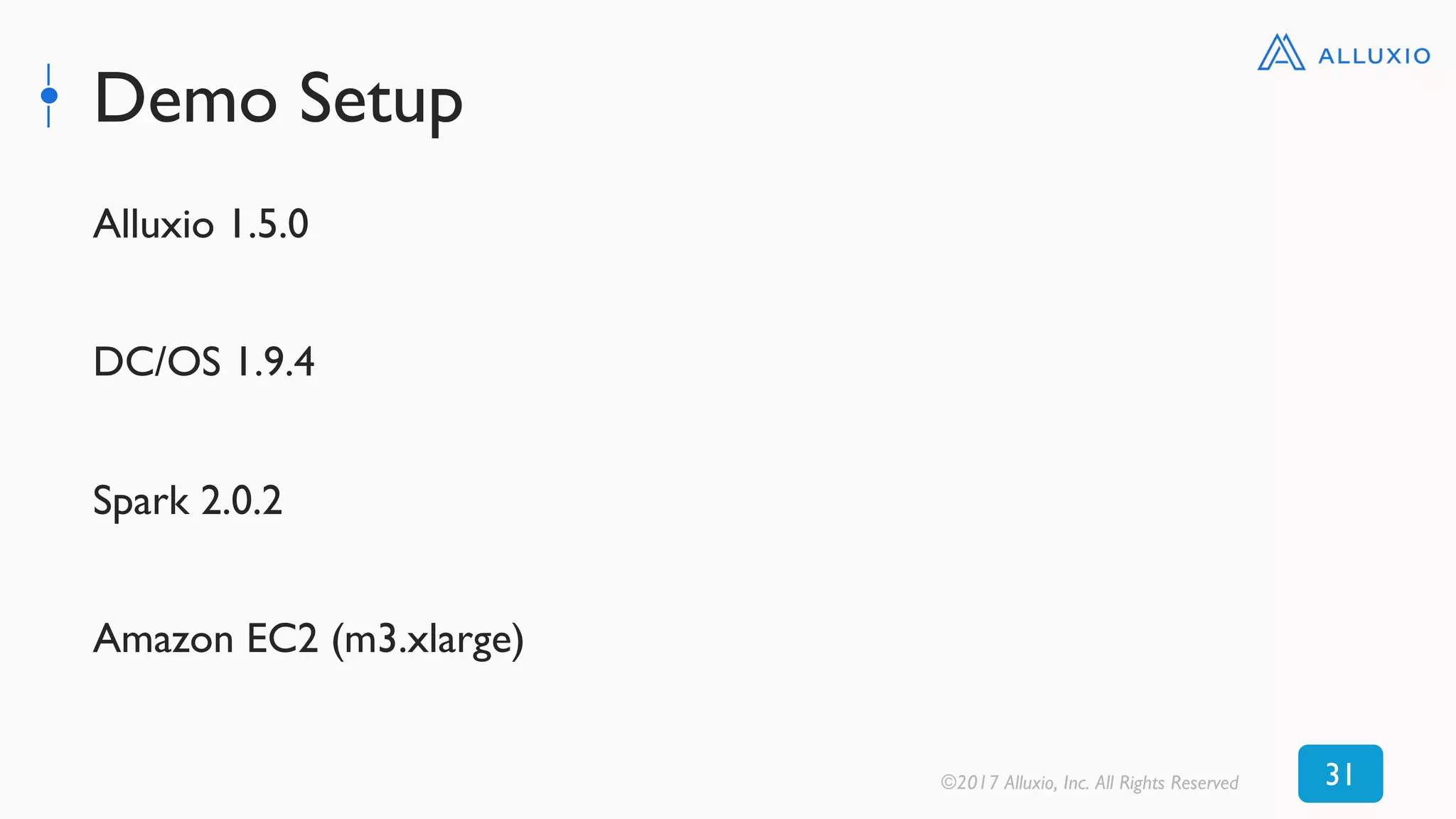

31. Demo Setup
Alluxio 1.5.0
DC/OS 1.9.4
Spark 2.0.2
Amazon EC2 (m3.xlarge)
©2017 Alluxio, Inc. All Rights Reserved 31

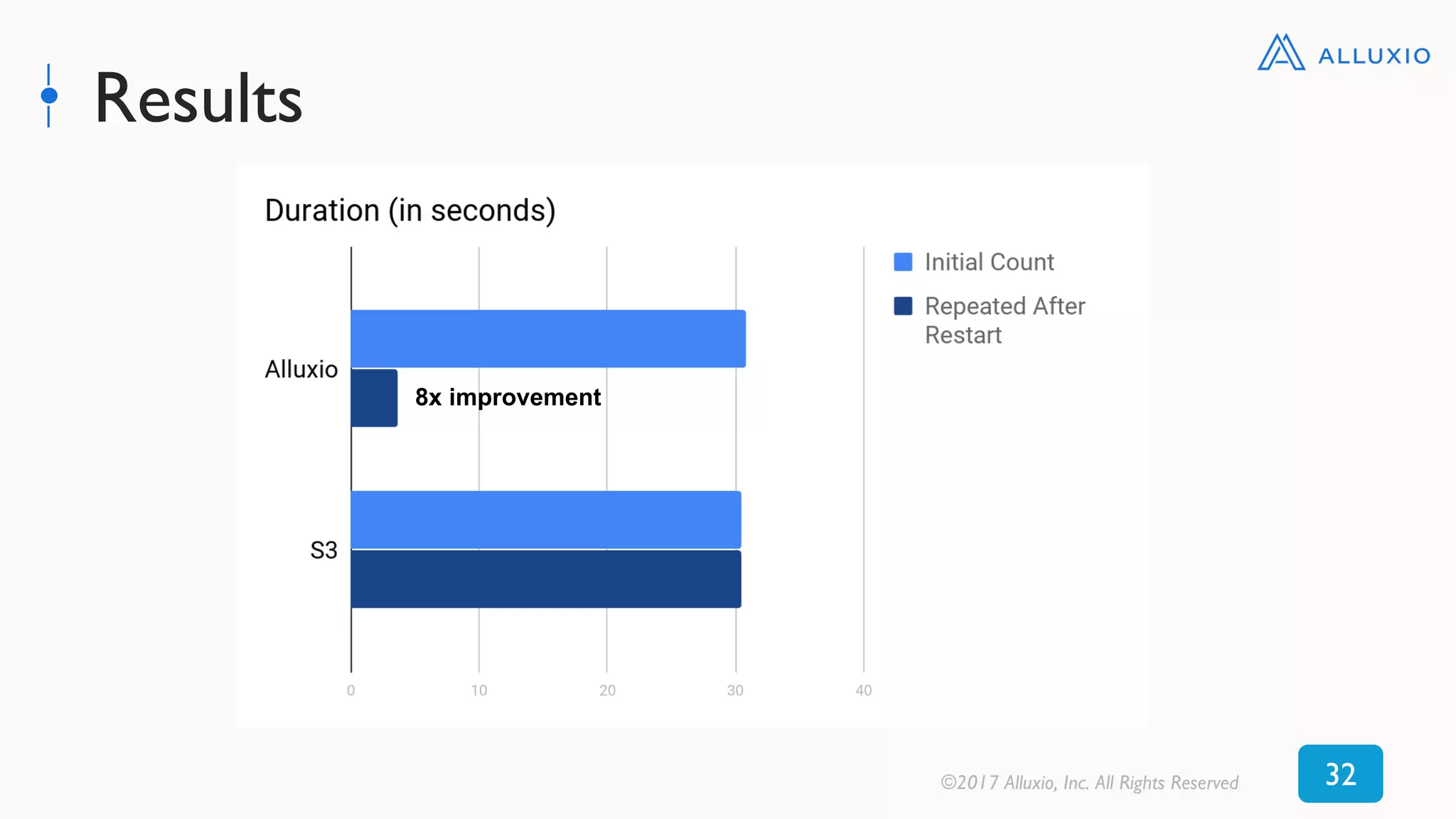

32. Results
©2017 Alluxio, Inc. All Rights Reserved 32
8x improvement

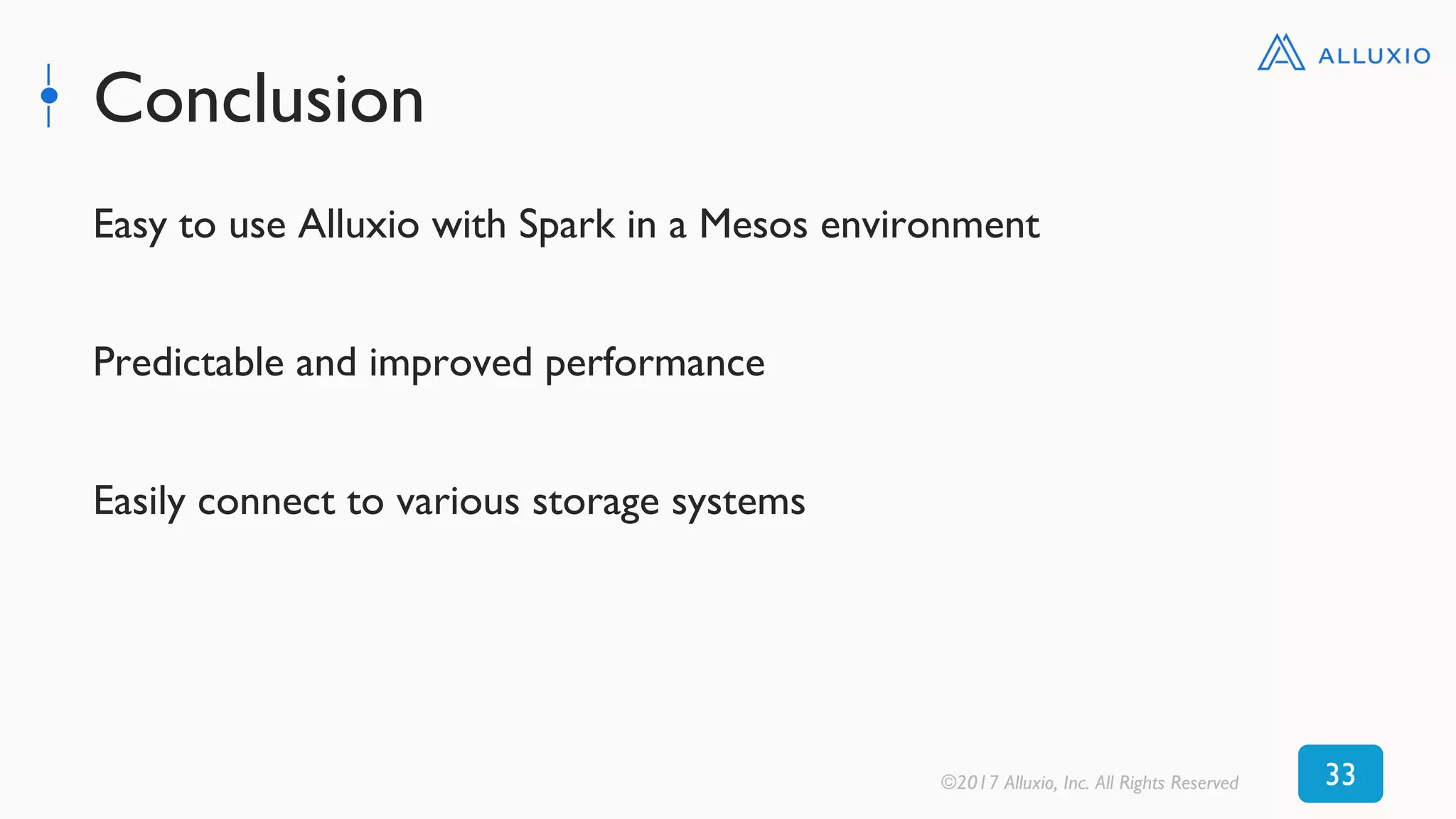

33. Conclusion
Easy to use Alluxio with Spark in a Mesos environment
Predictable and improved performance
Easily connect to various storage systems
©2017 Alluxio, Inc. All Rights Reserved 33
