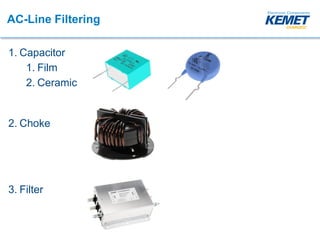

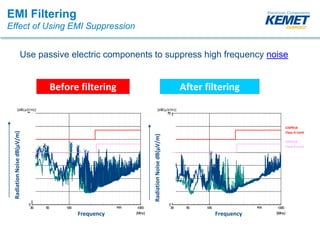

6. Working principle
• Capacitor short the noise/surges to ground
• Choke block noise with high Impedance
• Filter is a combination of both
• Choke doesn’t create a leakage current
( important for medical applications!)

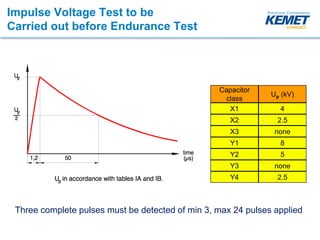

9. Capacitor
class
Up (kV)
X1 4
X2 2.5
X3 none
Y1 8
Y2 5
Y3 none
Y4 2.5

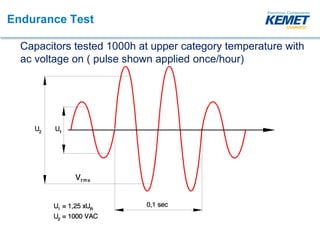

Impulse Voltage Test to be
Carried out before Endurance Test
Three complete pulses must be detected of min 3, max 24 pulses applied

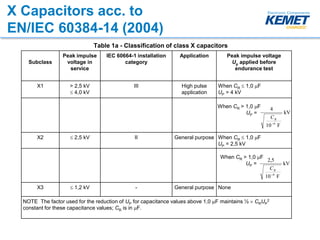

10. Subclass
Peak impulse
voltage in
service
IEC 60664-1 installation
category
Application Peak impulse voltage
Up applied before
endurance test
X1 > 2,5 kV
4,0 kV
III High pulse
application
When CR 1,0 mF
UP = 4 kV
X2 2,5 kV II General purpose When CR 1,0 mF
UP = 2,5 kV
X3 1,2 kV - General purpose None
NOTE The factor used for the reduction of UP for capacitance values above 1,0 mF maintains ½ CRUP
2
constant for these capacitance values; CR is in mF.
X Capacitors acc. to
EN/IEC 60384-14 (2004)
Table 1a - Classification of class X capacitors
When CR > 1,0 mF
UP =
When CR > 1,0 mF
UP =

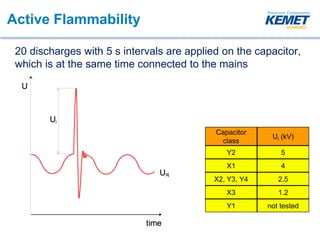

11. Capacitor
class
Ui (kV)
Y2 5
X1 4
X2, Y3, Y4 2.5
X3 1.2
Y1 not tested
Active Flammability
20 discharges with 5 s intervals are applied on the capacitor,
which is at the same time connected to the mains

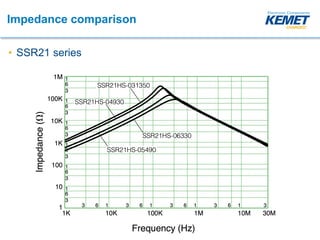

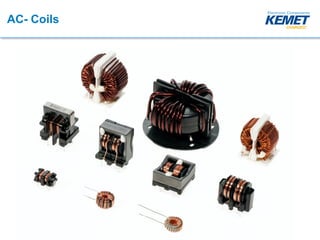

20. Improved Material
SCRL series SSRL series SCR series SSR series Large SCR series
Low
profile
Small
size
Low
Loss
Product Design
progress of miniaturization
• Smaller core / less material
• Less turns of winding
• Thinner wire with same
RDC
• Smaller size / less weight
• Better performance
Why ? Material development

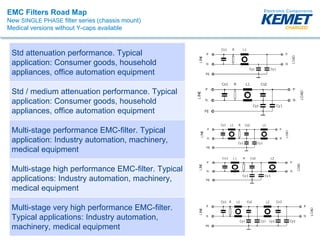

22. EMC Filters Road Map
New SINGLE PHASE filter series (chassis mount)
Medical versions without Y-caps available
Std attenuation performance. Typical
application: Consumer goods, household
appliances, office automation equipment
Std / medium attenuation performance. Typical
application: Consumer goods, household
appliances, office automation equipment
Multi-stage performance EMC-filter. Typical
application: Industry automation, machinery,
medical equipment
Multi-stage high performance EMC-filter. Typical
applications: Industry automation, machinery,
medical equipment
Multi-stage very high performance EMC-filter.
Typical applications: Industry automation,
machinery, medical equipment
23. DC Filter for Automotive Application
• EMC noise generated in high power frequency converters
• protect the batteries
• reduce the EMC problems,
• cost. optimized solution for performance
Specifications
Rated Voltage 500 - 1000 VDC
Rated Current 60 - 600 ADC
High insertion loss
symmetric and asymmetric modes from 10kHz to 300MHz
Temperature range -40°C .. +110°C
Dimensional example 146 x 88 x 64 mm
Customized solutions on request

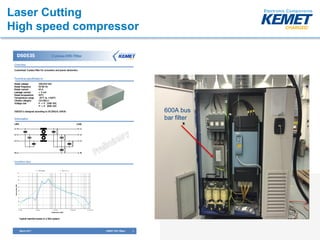

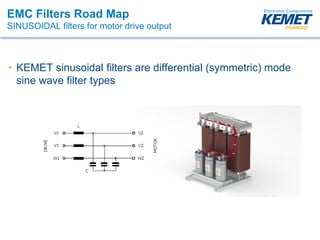

25. EMC Filters Road Map
SINUSOIDAL filters for motor drive output
• KEMET sinusoidal filters are differential (symmetric) mode
sine wave filter types

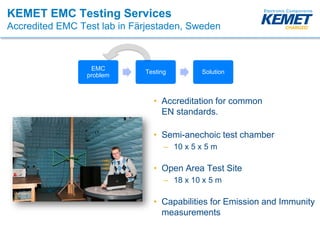

26. KEMET EMC Testing Services
Accredited EMC Test lab in Färjestaden, Sweden
• Accreditation for common
EN standards.
• Semi-anechoic test chamber
– 10 x 5 x 5 m
• Open Area Test Site
– 18 x 10 x 5 m
• Capabilities for Emission and Immunity
measurements
EMC
problem
Testing Solution
27. Build or Buy Filter ?
• Power (PCB or discrete)
• Development time
• Manufacturing capability
• Quantity
• Test/Measurement equipment

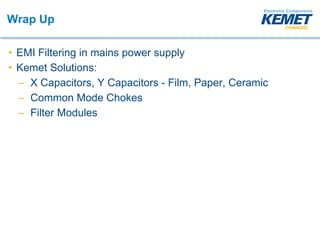

28. Wrap Up
• EMI Filtering in mains power supply
• Kemet Solutions:
– X Capacitors, Y Capacitors - Film, Paper, Ceramic
– Common Mode Chokes
– Filter Modules
29. Thank You
• Alexander Nebel Dipl.-Ing. (FH)
• Field Application Engineer
• (+49) 162 - 13 54 276
• alexandernebel@kemet.com
