1. Spatial Data Editing
Chapter 5

2. Introduction
 All digitizing involves errors
 In the real world, revisions are required
 Keeping data up-to-date is part of the job
 Types of errors
• location
• mechanical
 In order to edit, must know the structure
 Accuracy and metadata

3. Type of Digitizing Errors
 Location errors – by source, by human hand,
or machine: not at correct location
 Check plot at same scale to visually note
errors
 Standard for accuracy by Natural Resources
Conservation Service says 0.01 inch line width
of map.
 At 1:24,000 represents 20 feet on ground (6-7
meters)

4. Type of Digitizing Errors
 Human errors
 Scanning, tracing, follow wrong line
 Conversion or transformation errors
(generally show in a pattern)
 Duplicate lines
 Slivers (tiny polygons) created

5. Topological Errors
 Arcs not meeting
• undershoot and overshoot
 Result is dangling arc/node
 Same if a polygon is not closed.
 Symbol is □ square.
 Dangling nodes can be acceptable
(small streams, dead end streets)
 Pseudo node, symbol is ◊ diamond

6. Topological Errors
 Pseudo node when not at line end or
intersection
 Symbol is ◊ diamond
 May be acceptable to show changes in
attribute date, or start of isolated polygon.
 Direction of arc by from-node and to-node.
 Can be reversed by ARC/INFO

7. Topological Errors
 Polygon is linked to attribute data by
label point.
 Symbol is + plus sign
 Multiple label points are not acceptable
and indicate an error

8. Topological and
Non-topological Editing
 Each vendor has system
 Topological have means for visualizing
and correcting errors
 Some non-topological vendors provide
assistance in spatial relationships
 Non-topological can digitize and edit, but
cannot build topology

9. Topological Editing
 Steps
• Construct topology
• Note errors visually
• Correct errors
• Rebuild topology
 Normally an iterative process

10. Correcting Digitizing Errors
 Global or local
 Global uses tolerances for CLEAN
• dangle length
• fuzzy tolerance
 CLEAN removes overshoot and undershoots if
less then the dangle length
 CLEAN inserts nodes and enforces arc-node
relationship

11. Correcting Digitizing Errors
 CLEAN removes vertices less than fuzzy
tolerance
 CLEAN can remove undershoots if the
dangle length is too large
 CLEAN can snap node if too large
 Any action by CLEAN (or BUILD) can
reduce the accuracy of the map

12. Correcting Digitizing Errors
 Local tolerances
• nodesnap
• editdistance
 Must be “just right”
 Snapping moves and distorts arc
 Set by value or by interactive
 Zoom in

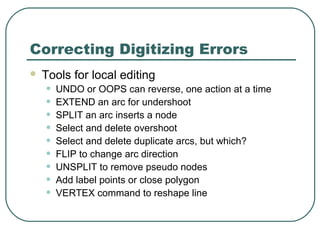

13. Correcting Digitizing Errors
 Tools for local editing
• UNDO or OOPS can reverse, one action at a time
• EXTEND an arc for undershoot
• SPLIT an arc inserts a node
• Select and delete overshoot
• Select and delete duplicate arcs, but which?
• FLIP to change arc direction
• UNSPLIT to remove pseudo nodes
• Add label points or close polygon
• VERTEX command to reshape line

14. Edgematching
 Quad to quad transition
 Edgematch to join together
 Usually requires zoom
 Interactive process to “connect”
components
 Use DISSOLVE to remove the boundry

15. Non-topological editing
 Can be “heads-up”
 Easier to use because can
• delete
• move
• cut
• paste
 Reshape lines and polygons by drag and
drop of vertices

16. Non-topological editing
 Vertex edit can add new vertices
 Split and merge
 Can create variations not possible in
topological data
• overlapping
• doughnut

17. Other types of map feature
manipulation
 Line simplification
• Douglas-Peucker algorithm
 Line Densification
• why?
 Line smoothing
• mathematical
• SPLINE
 Transfer (and copy) of features
• GET and PUT
