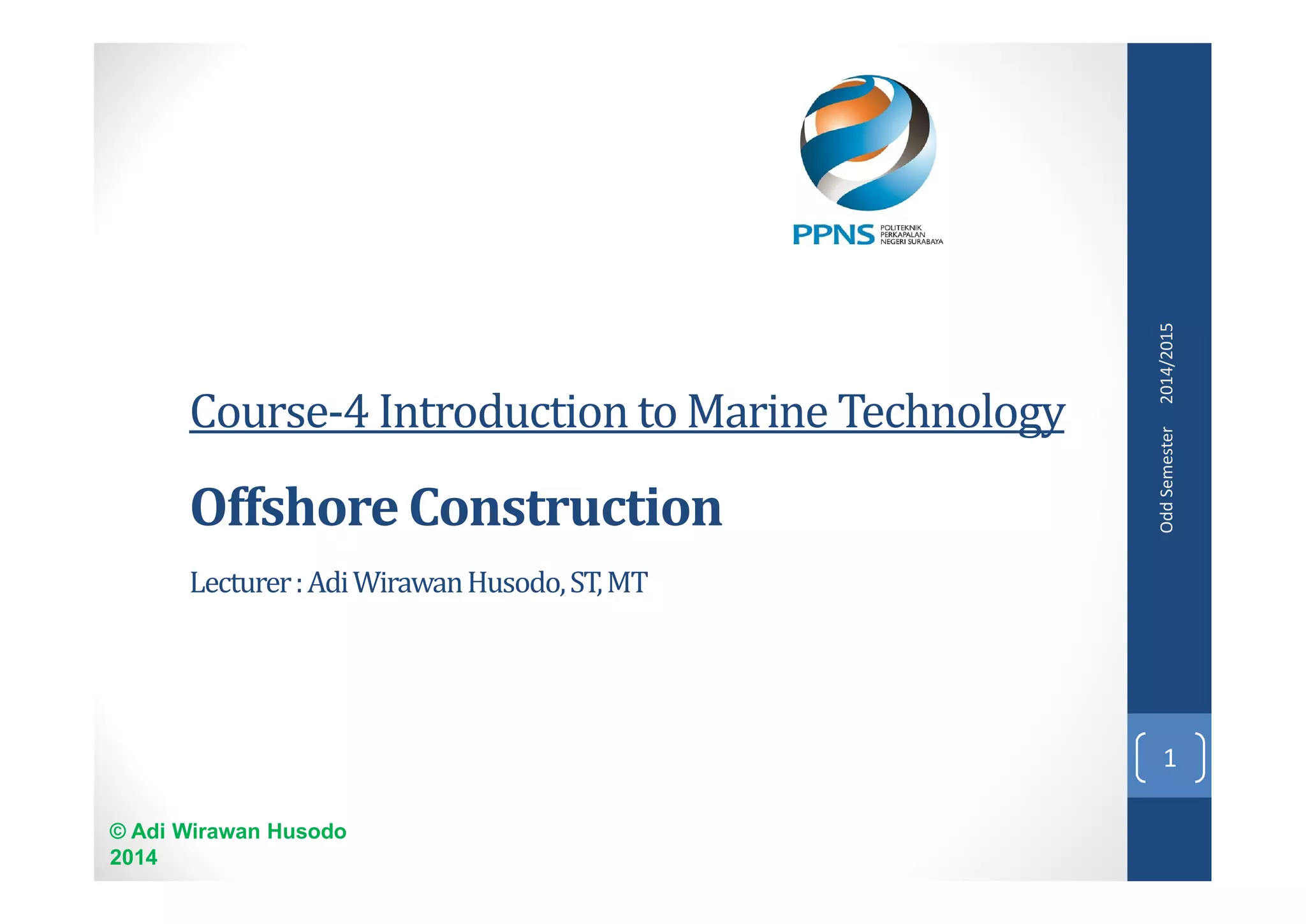

1. Course-4 Introduction to Marine Technology
Offshore Construction
Lecturer : Adi Wirawan Husodo, ST, MT
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
1

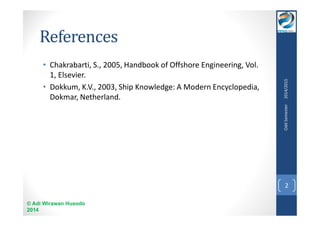

2. References
• Chakrabarti, S., 2005, Handbook of Offshore Engineering, Vol.
1, Elsevier.
• Dokkum, K.V., 2003, Ship Knowledge: A Modern Encyclopedia,
Dokmar, Netherland.
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
2

3. Offshore?
• Offshore in the Oil and Gas Industry refers to:
industrial activities in open sea, starting from the
search of oil and gas (exploration) to production
(exploitation) and transporting them to shore
• Offshore is part of an industry that actually designs, builds
and operates the offshore structures to allow the execution of
offshore activities.
• Furthermore, the functions of offshore structure are:
• Exploratory drilling;
• Production;
• Storage; and
• Export (transport).
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
3

4. Stages of Offshore Activities
Item Activity Vessel / unit in operation
Searching for oil Seismic surveying Seismic survey vessels
Finding it Exploration • Jack-up drilling rig
© Adi Wirawan Husodo
2014
• Drilling vessels
• Semi-submersible drilling
unit
Building the
production facilities
Construction and
installation of the
production
platform/unit
• Crane vessel
• Offshore barges
• Heavy lift carrier
Odd Semester 2014/2015
4
Search Oil and Gas Export or
transport

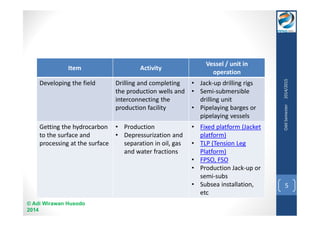

5. Item Activity Vessel / unit in
© Adi Wirawan Husodo
2014
operation
Developing the field Drilling and completing
the production wells and
interconnecting the
production facility
• Jack-up drilling rigs
• Semi-submersible
drilling unit
• Pipelaying barges or
pipelaying vessels
Getting the hydrocarbon
to the surface and
processing at the surface
• Production
• Depressurization and
separation in oil, gas
and water fractions
• Fixed platform (Jacket
platform)
• TLP (Tension Leg
Platform)
• FPSO, FSO
• Production Jack-up or
semi-subs
• Subsea installation,
etc
Odd Semester 2014/2015
5

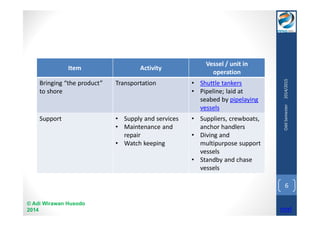

6. Item Activity Vessel / unit in
© Adi Wirawan Husodo
2014
operation
Bringing “the product”
to shore
Transportation • Shuttle tankers
• Pipeline; laid at
seabed by pipelaying
vessels
Support • Supply and services
• Maintenance and
repair
• Watch keeping
• Suppliers, crewboats,
anchor handlers
• Diving and
multipurpose support
vessels
• Standby and chase
vessels
Odd Semester 2014/2015
6
next

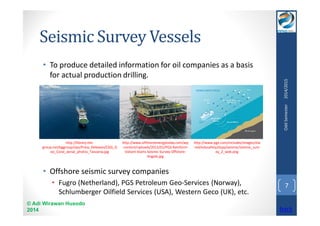

7. Seismic Survey Vessels
• To produce detailed information for oil companies as a basis
for actual production drilling.
• Offshore seismic survey companies
• Fugro (Netherland), PGS Petroleum Geo-Services (Norway),
Schlumberger Oilfield Services (USA), Western Geco (UK), etc.
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
7
http://library.the-group.
net/bggroup/zips/Press_Releases/CGG_G
http://www.offshoreenergytoday.com/wp
-content/uploads/2012/01/PGS-Ramform-
Valiant-Starts-Seismic-Survey-Offshore-
http://www.pge.com/includes/images/sha
red/edusafety/dcpp/seismic/seismic_surv
back

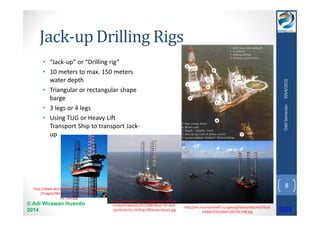

8. Jack-up Drilling Rigs
• “Jack-up” or “Drilling rig”
• 10 meters to max. 150 meters
water depth
• Triangular or rectangular shape
barge
• 3 legs or 4 legs
• Using TUG or Heavy Lift
Transport Ship to transport Jack-up
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
8
http://en.murmanshelf.ru/upload/iblock/eb2/eb2f31ef
http://www.offshoreenergytoday.com/wp-content/
uploads/2013/08/Aban-VII-Jack-
http://www.akersolutions.com/Global/Media
/images/AkerSolutions_drilling_jack-up_
back

9. Drilling Vessels
• A ship-shaped drilling unit;
• Used for drilling exploration
and production;
• Medium to deep water depth
(150 to 3000 meters depth);
• 14 knots average speeds;
• High storage capacity;
• Position maintaining: anchor
moored or rely on dynamic
positioning (DP); depending
on the water depth.
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
9
http://maritime-connector.
com/ships_uploads/west_vela-
back

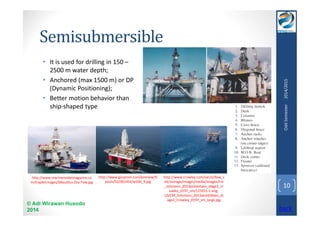

10. Semisubmersible
• It is used for drilling in 150 –
2500 m water depth;
• Anchored (max 1500 m) or DP
(Dynamic Positioning);
• Better motion behavior than
ship-shaped type
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
10
http://www.marinemodelmagazine.co
m/trapletimages/6Nautilus-Dry-Tow.jpg
http://www.gazprom.com/preview/f/
posts/52/001454/w500_9.jpg
http://www.crowley.com/var/ezflow_s
ite/storage/images/media/images/cm
_solutions_2013jackstmalo_stage2_cr
owley_0197_sm/115931-1-eng-
US/CM_Solutions_2013JackStMalo_St
back

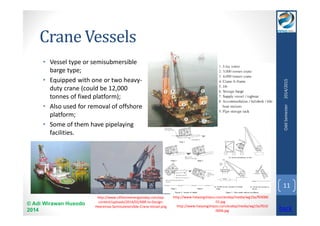

11. Crane Vessels
• Vessel type or semisubmersible
barge type;
• Equipped with one or two heavy-duty
crane (could be 12,000
tonnes of fixed platform);
• Also used for removal of offshore
platform;
• Some of them have pipelaying
facilities.
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
11
http://www.offshoreenergytoday.com/wp-content/
uploads/2014/02/KBR-to-Design-
http://www.haiyangshiyou.com/esdep/media/wg15a/f03000
http://www.haiyangshiyou.com/esdep/media/wg15a/f010
0006.jpg back

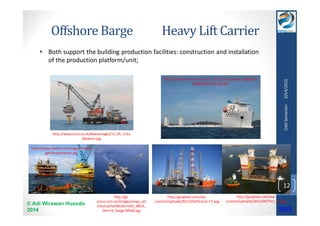

12. Offshore Barge Heavy Lift Carrier
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
12
• Both support the building production facilities: construction and installation
of the production platform/unit;
http://www.scira.co.uk/NewsImages/13_05_11Su
http://www.rodmar.eu/images/im/bar
http://gs-press.
com.au/images/news_art
icles/cache/McDermott_DB16_
http://csschps.cssc.net.cn/cms_zchp_en2/upload_img/2011
http://gcaptain.com/wp-content/
uploads/2012/04/Picture-17.png
http://gcaptain.com/wp-content/
uploads/2012/09/Tern_1.jpeg
back

13. Fixed (Jacket) Platform
• Working platform for drilling
and production;
• Be transported with lying on
barge, the launched from the
barge into a vertical position
on sea bed, with the help of
offshore crane vessel;
• The module are afterward
lifted onto the platform and
interconnected;
• Most platform stand in 20
meters to 150 meters water
depth;
• The highest jacket built so far
was for a 412 meters water
depth.
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
13
back

14. TLP (Tension Leg Platform)
• It used for drilling and
production purposes;
• The unit resembles a
semi-submersible drilling
unit and is attached to
the sea bed with
vertically tensioned steel
cables;
• Advantages:
• economical aspect in
comparison with the jacket
platform (deeper water);
• Can be moved to other
location.
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
14
http://indomigas.files.wordpress.com/2008/11/tlp.jpg
http://www.offshore-technology.
com/projects/glider/i
mages/image1.jpg
http://www.offshore-technology.
com/projects/rampowell/images/r
amp1.jpg back

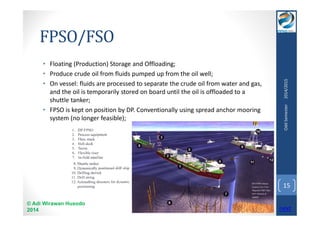

15. FPSO/FSO
• Floating (Production) Storage and Offloading;
• Produce crude oil from fluids pumped up from the oil well;
• On vessel: fluids are processed to separate the crude oil from water and gas,
and the oil is temporarily stored on board until the oil is offloaded to a
shuttle tanker;
• FPSO is kept on position by DP. Conventionally using spread anchor mooring
system (no longer feasible);
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
15
next

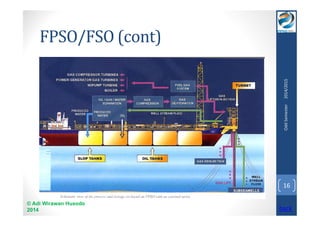

16. FPSO/FSO (cont)
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
16
back

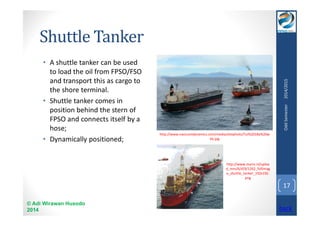

17. Shuttle Tanker
• A shuttle tanker can be used
to load the oil from FPSO/FSO
and transport this as cargo to
the shore terminal.
• Shuttle tanker comes in
position behind the stern of
FPSO and connects itself by a
hose;
• Dynamically positioned;
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
17
http://www.navicomdynamics.com/media/sitephoto/Tui%2018a%20w
http://www.marin.nl/uploa
d_mm/6/d/9/1262_fullimag
e_shuttle_tanker_192x192.
png
back

18. Pipelaying Vessels/Barge
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
18

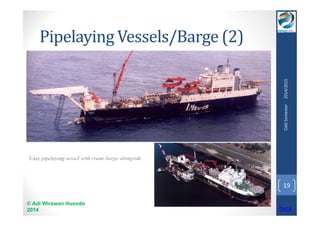

19. Pipelaying Vessels/Barge (2)
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
19
back

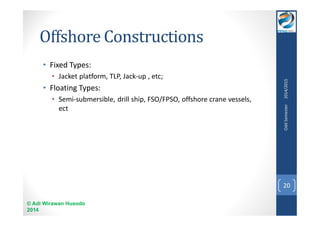

20. Offshore Constructions
• Fixed Types:
• Jacket platform, TLP, Jack-up , etc;
• Floating Types:
• Semi-submersible, drill ship, FSO/FPSO, offshore crane vessels,
ect
© Adi Wirawan Husodo
2014
Odd Semester 2014/2015
20

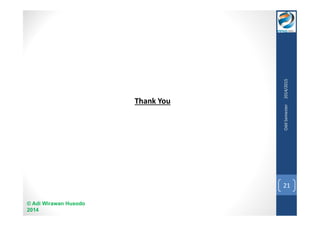

21. © Adi Wirawan Husodo
