1. Basic Motility Examination
Alvina Pauline D. Santiago, MD
Pediatric Ophthalmology & Strabismus
Basic Course Lectures in Ophthalmology
Sentro Oftalmologico Jose Rizal
Philippine General Hospital 2017

2. Basic Strabismus Evaluation
• Chief complaint and History
• Vision assessment (with vision screening)
• Gross evaluation and slit lamp examination
• Refraction and need for cycloplegia
• Sensory & Motor examination (Motility
Examination)
• Dilated posterior pole evaluation
#BasicMotilityExam (c) APSantiago 20172

3. Sensory Testing
• Perform before any type of monocular occlusion
• e.g., visual acuity testing, cover tests
• Must wear correct prescription
• May need to correct deviation
• Prefer to do on a second visit
#BasicMotilityExam (c) APSantiago 20173

4. Sensory Testing
• Near stereoacuity
• Fly vectograph/ Titmus Fly Test
• Lang stereotest
• Random dot stereograms
• Distance stereoacuity
• Mentor BVAT
• AO vectograph
• Amblyoscope
#BasicMotilityExam (c) APSantiago 20174

5. Stereoacuity tests
• Horizontal disparity
• Stimulate non-corresponding points
• Image disparity measured in sec of arc
• 40-50 sec = central or bifoveal fixation
• 80-3000 sec = peripheral fusion
#BasicMotilityExam (c) APSantiago 20175

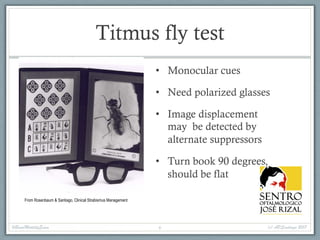

6. Titmus fly test
• Monocular cues
• Need polarized glasses
• Image displacement
may be detected by
alternate suppressors
• Turn book 90 degrees,
should be flat
From Rosenbaum & Santiago, Clinical Strabismus Management
#BasicMotilityExam (c) APSantiago 20176

7. Lang Stereoacuity test
• Random dot stereogram
• No need for Polaroid
lenses
• Only for gross and low
grade stereopsis
From Rosenbaum & Santiago, Clinical Strabismus Management
#BasicMotilityExam (c) APSantiago 20177

8. Random Dot Stereogram
• 2 plates of randomly
displayed dots, one plate
to each eye
• Shape of figure
displaced horizontally
relative to other plate
• No monocular cues
• Normal may fail
From Rosenbaum & Santiago, Clinical Strabismus Management
#BasicMotilityExam (c) APSantiago 20178

9. Distance Stereotest
• Mentor BVAT
System
• Very good test
for assessing
control in X(T)
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
From Rosenbaum & Santiago,
Clinical Strabismus Management
#BasicMotilityExam (c) APSantiago 20179

10. Red-Green
Distance Stereotest

11. Sensory Testing
• Worth 4 dot
• near: tests peripheral fusion
• distance: tests central fusion
• Retinal correspondence
• amblyoscope, Bagolini lenses
• 4 pd BO test: foveal suppression
• Normal response
• conjugate saccades OU,
• slow recovery in eye without the prism
#BasicMotilityExam (c) APSantiago 201711

12. Worth Dot Test
• 2 green lights
• 1 red light
• 1 white light
• Red-green glasses
• Usually red over right eye
• At 1/3 m:
• W4D separated by 6 degrees
• Tests peripheral fusion
• At 6 m:
• 1.25 degrees
• Tests central fusion
#BasicMotilityExam (c) APSantiago 201712

13. Worth Dot Test Results
http://image.slidesharecdn.com
#BasicMotilityExam (c) APSantiago 201713

14. Amblyoscope or Haploscope
• Measures fusional vergence
amplitudes
• Angle of deviation
• Area of suppression
• Retinal correspondence
• Torsion
• Instrument convergence
#BasicMotilityExam (c) APSantiago 201714
From Rosenbaum & Santiago, Clinical Strabismus Management 1999

15. Motor Testing
Ocular rotations
Measuring the deviation
Anomalous head posture
#BasicMotilityExam (c) APSantiago 201715

16. Ocular Rotations
• Duction: monocular
• Version: binocular
• Hering’s law
• Sherrington’s law
• Alert to pattern deviations: e.g., A, V
• Grading scheme:
• e.g., inferior oblique & superior oblique
#BasicMotilityExam (c) APSantiago 201716

17. Ocular Rotations
Cardinal gaze positions
RLR
LMR
RMR
LLR
RSR
LIO
RIR
LSO
RIO
LSR
RSO
LIR
#BasicMotilityExam (c) APSantiago 201717

18. Ocular Motility Evaluation
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201718

19. Ocular Motility Evaluation
RLR
LMR
RMR
LLR
RSR
LIO
RIR
LSO
RIO
LSR
RSO
LIR
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201719

20. (L) Inferior oblique dysfunction
+4 +1
-4 -1
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201720

21. (R) Superior oblique dysfunction
+4 +1
-4 -1
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201721

22. Motor Testing
• Light reflex tests
• Cover tests
• Other tests
• wear correction
• no prisms
#BasicMotilityExam (c) APSantiago 201722

23. Motor Testing: Light Reflex Tests
• Bruckner test
• Hirschberg light reflex
• Krimsky/modified Krimsky
#BasicMotilityExam (c) APSantiago 201723

24. Bruckner Test ®Ametropia
®Strabismus
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201724

25. Hirschberg’s Corneal Light Reflex
• 3.5 mm pupil:
• 15 deg at pupil edge
• 30 deg between limbus
and edge of pupil
• 45 degrees at limbus
• Not a true linear relationship:
21 pd/mm decentration
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201725

26. Krimsky vs Modified Krimsky
• in front of deviating
eye (modified
Krimsky)
• underestimates true
angle
• better at near
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201726

27. LIGHT REFLEX, COVER TESTS
(Courtesy of R. Pena, MD)
MODIFIED KRIMSKY
#BasicMotilityExam (c) APSantiago 201727

28. Motor Testing: Cover Tests
• Primary gaze
• Right and left gaze
• Up and down gaze
• Right and left head tilt
• Oblique gazes, occasionally
• Near: primary and down gaze
#BasicMotilityExam (c) APSantiago 201728

29. Cover Tests
• Requirements:
• Appropriate correction
• Know if correction with or without prisms
• Accommodative target (above threshold)
• Distance:
• 6 m: 1/6 D of accommodation
• (approximates infinity)
• > 6 m: X(T)
#BasicMotilityExam (c) APSantiago 201729

30. The Ideal Target
• Above threshold
• e.g. Snellen acuity 20/20
• present 20/50 to 20/70
#BasicMotilityExam (c) APSantiago 201730

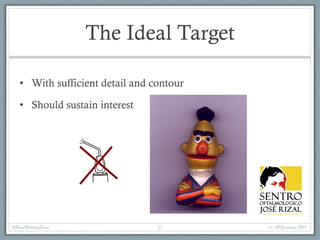

31. The Ideal Target
• With sufficient detail and contour
• Should sustain interest
#BasicMotilityExam (c) APSantiago 201731

32. Toys as Targets
• One toy one look
• With detail
• May be coupled with a
light
• Sounds for tracking but
not vision testing
#BasicMotilityExam (c) APSantiago 201732

33. The Ideal Target
• Maximum plus, least minus correction
• Allows minimal accommodation at 6 m
• Accommodation exerted only 1/6 Diopter,
considered zero for strabismus measurement
purposes
#BasicMotilityExam (c) APSantiago 201733

34. Factors Affecting Measurement
• Prism placement:
• plastic prisms: frontal
• glass prisms: prentice
• Stacking prisms
• Splitting prisms From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201734

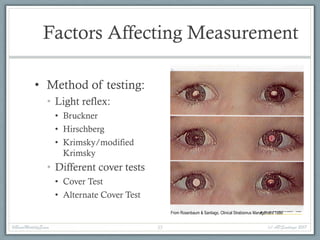

35. Factors Affecting Measurement
• Method of testing:
• Light reflex:
• Bruckner
• Hirschberg
• Krimsky/modified
Krimsky
• Different cover tests
• Cover Test
• Alternate Cover Test
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201735

36. Factors Affecting Measurement
• Patient factors:
• Accommodation and AC/A ratio
• Axial length and globe size
• Amblyopia and eccentric fixation
• Refractive error and induced prisms
#BasicMotilityExam (c) APSantiago 201736

37. Cover Tests

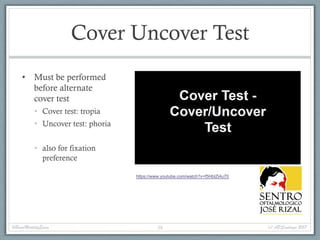

38. Cover Uncover Test
• Must be performed
before alternate
cover test
• Cover test: tropia
• Uncover test: phoria
• also for fixation
preference
#BasicMotilityExam (c) APSantiago 201738
https://www.youtube.com/watch?v=f5HbIZi4u70

39. Alternate Prism Cover Test
• Prisms before deviated eye
• primary vs. secondary deviation
• Unless strabismic eye is preferred for fixation
• Evaluates total deviation: manifest (tropic) and
latent (phoric)
#BasicMotilityExam (c) APSantiago 201739

40. ALTERNATE PRISM & COVER TEST
Gold standard for
measuring deviation
LIGHT REFLEX, COVER TESTS
(Courtesy of R. Pena, MD)
#BasicMotilityExam (c) APSantiago 201740

41. Simultaneous Prism Cover Test
• Tropia under binocular conditions
• Monofixation syndrome
• Estimate angle of deviation
• Present prism and cover simultaneously
• Absence of movement in tropic eye means correcting
prisms are accurate
#BasicMotilityExam (c) APSantiago 201741

42. SIMULTANEOUS PRISM & COVER TEST
Used for monofixation
LIGHT REFLEX, COVER TESTS
(Courtesy of R. Pena, MD)
#BasicMotilityExam (c) APSantiago 201742

43. Prism Under Cover Test
• For Dissociated Vertical Deviation
• Evaluate one eye at a time
• Prism and cover presented to the same eye
• Separate true hypertropia by using BU prism
neutralization in other eye
#BasicMotilityExam (c) APSantiago 201743

44. PRISM UNDER COVER TEST
Used for DISSOCIATED
VERTICAL DEVIATION (DVD)
LIGHT REFLEX, COVER TESTS
(Courtesy of R. Pena, MD)
#BasicMotilityExam (c) APSantiago 201744

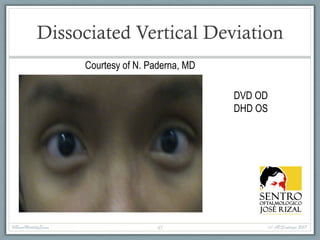

45. Dissociated Vertical Deviation
Courtesy of N. Paderna, MD
#BasicMotilityExam (c) APSantiago 201745
DVD OD
DHD OS

46. Techniques in Finding Strabismus
• Bruckner test
• Spielmann
translucent occluder
From Rosenbaum & Santiago, Clinical Strabismus Management
#BasicMotilityExam (c) APSantiago 201746

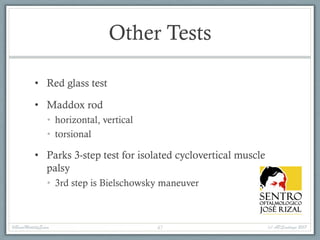

47. Other Tests
• Red glass test
• Maddox rod
• horizontal, vertical
• torsional
• Parks 3-step test for isolated cyclovertical muscle
palsy
• 3rd step is Bielschowsky maneuver
#BasicMotilityExam (c) APSantiago 201747

48. (L) Superior oblique palsy
#BasicMotilityExam (c) APSantiago 201748

49. Parks 3-step Test
Left Hypertropia
1. Of 8 cyclovertical
muscles: 4
LSO, LIR, RSR, RIO
2. Of 4 cyclovertical
muscles: 2
increase on R gaze: LSO,
RSR
3. Of 2 cyclovertical
muscles: 1
increase of L tilt: LSO
#BasicMotilityExam (c) APSantiago 201749

50. (Masked) Bilateral
superior oblique palsy
• V pattern
• Reversal of hypertropia
• Frame 1 and 3
#BasicMotilityExam (c) APSantiago 201750

51. Torsion Evaluation
• Funduscopy
• Fundus photography
• Blind spot mapping
• Red-Green Hess/Lee Screen

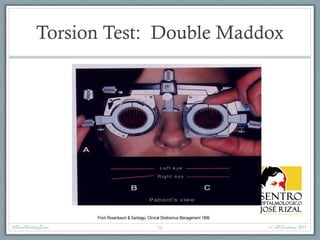

• Double Maddox Rods
• Oblique (& Vertical) muscle dysfunction
#BasicMotilityExam (c) APSantiago 201751

52. Normal Optic Nerve Head-
Fovea Angle Relationship
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201752

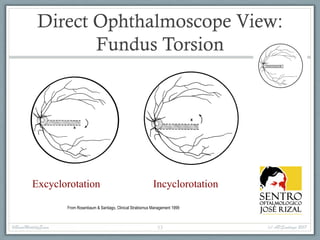

53. Direct Ophthalmoscope View:
Fundus Torsion
Excyclorotation Incyclorotation
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201753

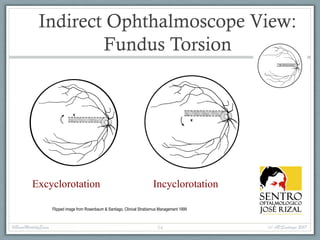

54. Indirect Ophthalmoscope View:
Fundus Torsion
Excyclorotation Incyclorotation
#BasicMotilityExam (c) APSantiago 201754
Flipped image from Rosenbaum & Santiago, Clinical Strabismus Management 1999

55. Inferior Oblique Overaction
PREOP POSTOP
From Rosenbaum & Santiago, Clinical Strabismus
Management 1999
#BasicMotilityExam (c) APSantiago 201755

56. Torsion Test: Double Maddox
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201756

57. Tests of Muscle Function
• Forced duction test
• Force generation test
• Saccadic velocity analysis
• EMG
• Dynamic MRI
#BasicMotilityExam (c) APSantiago 201757

58. Indications
• Incomitant deviation
• Limited ocular rotation
• Distinguish between restriction and paresis/palsy
• Distinguish between paresis and palsy
#BasicMotilityExam (c) APSantiago 201758

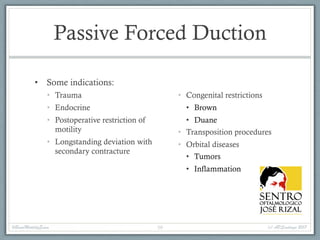

59. Passive Forced Duction
• Some indications:
• Trauma
• Endocrine
• Postoperative restriction of
motility
• Longstanding deviation with
secondary contracture
• Congenital restrictions
• Brown
• Duane
• Transposition procedures
• Orbital diseases
• Tumors
• Inflammation
#BasicMotilityExam (c) APSantiago 201759

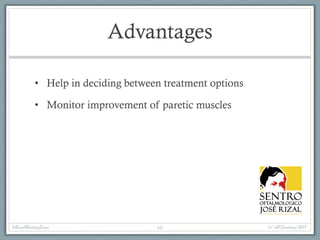

60. Advantages
• Help in deciding between treatment options
• Monitor improvement of paretic muscles
#BasicMotilityExam (c) APSantiago 201760

61. Tests of Muscle Function
• Paresis vs. restriction
• Forced duction test
• Force generation test
• Saccadic velocity analysis
• Differential intraocular pressure
#BasicMotilityExam (c) APSantiago 201761

62. EMG: Electromyography
• Limitations:
• may record activity even if muscle still paretic
• response suppressed by GA
• still used in some cases of Duane syndrome and
Botulinum injection
#BasicMotilityExam (c) APSantiago 201762

63. Passive Forced Duction
• Children > 7 yrs, adults
• Topical anesthetic
• Cover one eye: ensures
fixation
• Look as far as possible in
the direction of limited
ocular rotation
• Provide fixation target
• Watch out for “falling
off” of eye
#BasicMotilityExam
(c) APSantiago 2017
63
From Rosenbaum & Santiago, Clinical Strabismus Management 1999

64. Passive Forced Duction
“Can the forceps rotate the eye further
than the patient can using maximal
innervation in that gaze field?”
• Grasp limbus opposite the side of limited gaze
• Tenon’s and conjunctiva fused in one layer
• limits stretching/tearing of conjunctiva
• provides firm grasp
#BasicMotilityExam (c) APSantiago 201764

65. Passive Forced Duction
• Follow natural arc of globe
• For rectus muscles
• Slight proptosis
• No retroplacement
• Vertical rectus: 23 deg abduction
• Results:
• cannot move globe further: restriction
• can move globe further: paresis
#BasicMotilityExam (c) APSantiago 201765

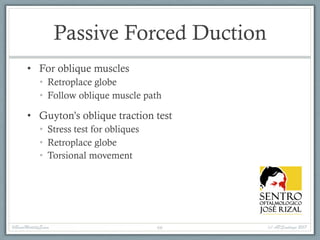

66. Passive Forced Duction
• For oblique muscles
• Retroplace globe
• Follow oblique muscle path
• Guyton’s oblique traction test
• Stress test for obliques
• Retroplace globe
• Torsional movement
#BasicMotilityExam (c) APSantiago 201766

67. Oblique traction testing
From Rosenbaum & Santiago, Clinical Strabismus Management 1999#BasicMotilityExam (c) APSantiago 201767

68. Oblique traction testing
#BasicMotilityExam (c) APSantiago 201768From Rosenbaum & Santiago, Clinical Strabismus Management 1999

69. Oblique traction testing
#BasicMotilityExam (c) APSantiago 201769From Rosenbaum & Santiago, Clinical Strabismus Management 1999

70. Intraoperative Forced Duction Testing
• Perform routinely to feel “normal”
• Perform esp after resections
• may be ortho in primary
• overcorrection in certain gazes
• Perform after transpositions
• Intraoperative adjustable suture
• Perform after removing suspected restrictions
#BasicMotilityExam (c) APSantiago 201770

71. Forced Duction Results
• Absolute restriction
• Graves, Brown
• Uniform restriction
• Scar tissue, muscle contracture
• Leash phenomenon
• Scar tissue, long standing contracture
• Duane syndrome
#BasicMotilityExam (c) APSantiago 201771

72. Pitfalls: Forced Duction
• Patient apprehension
• Errors in technique
• “Falling off”
• Failure to proptose for rectus or retropulse globe for obliques
• Succinylcholine (Anectine)
• Posterior restrictions
• Co-contractions
• Co-existing paresis and restriction
#BasicMotilityExam (c) APSantiago 201772

73. Active Force Generation
• Apply a counteracting force
• Using the same grasp on
limbus
• Counter-traction to feel
resistance
• WOF: corneal abrasion,
conjunctival hemorrhage
#BasicMotilityExam (c) APSantiago 201773From Rosenbaum & Santiago, Clinical Strabismus Management 1999

74. Active Force Generation
• Differential IOP
• Paresis vs. palsy
• Combined paresis and restriction
#BasicMotilityExam (c) APSantiago 201774

75. FDT, FGT, Diagnosis
Diagnosis Forced Duction Force
Generation
Mechanical
restriction
Restricted Normal
Muscle palsy Free Absent
Paresis &
restriction
Free Weak
#BasicMotilityExam (c) APSantiago 201775
Common pitfall: mild paresis
Correlate with saccadic velocity analysis

76. Saccadic Velocity Analysis
• Study eye movement velocity
• muscle activity
• return of muscle function
• EOG : problem when testing vertical saccades
• Infrared
• Scleral search coil
#BasicMotilityExam (c) APSantiago 201776

77. Office Saccadic Velocity
• Look at 2 separate targets
• At least 20 deg movement sufficient
• Compare
• briskness of agonist and antagonist
• with fellow eye
• Bring the eye where muscle has
• maximum function
• full unrestricted motion From Rosenbaum & Santiago, Clinical
Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201777

78. Pitfalls: Saccadic Velocity
• Errors in technique
• failure to bring eye
where muscle is still
functioning
• Pharmacologic
• Fatigue
• Time of day
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201778

79. Clinical Applications:
Saccadic Velocity Analysis
• Paralytic Strabismus
• Restrictive Strabismus
• Lost or slipped muscles
• Neurologic Disorders
• Myasthenia Gravis (MG)
• normal then weakens; use
with Tensilon
• Progressive External
Ophthalmoplegia (PEO)
• general slowing
• Inter-nuclear
ophthalmoplegia (INO)
• slowed adduction
• normal abduction
#BasicMotilityExam (c) APSantiago 201779

80. Slowed Saccadic Velocities
• LR palsy abduction
• SO palsy downgaze
• Moebius horizontal
• Myasthenia normal then slows
• Slipped/Lost reduced 20-50%
#BasicMotilityExam (c) APSantiago 201780

81. Magnetic Resonance Imaging
• Cross-sectional area
• Applications:
• EOM palsy
• EOM heterotopy
• Severed/extirpated muscles
• Entrapment
• Mass
#BasicMotilityExam (c) APSantiago 201781

82. Normal coronal section
From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201782

83. From Rosenbaum & Santiago, Clinical Strabismus Management 1999
#BasicMotilityExam (c) APSantiago 201783

84. Laser vision ;-)
No more than a pinhole effect!
#BasicMotilityExam (c) APSantiago 201784
