Cloud Architect Alliance #15: Openstack
Openstack is an open source cloud computing platform that consists of several independent components that work together to provide infrastructure as a service capabilities. It allows users to provision compute, storage, and networking resources on demand in a self-service manner similar to public cloud providers like AWS. Some key components include Nova for compute, Glance for images, Swift for object storage, Cinder for block storage, Neutron for networking, and Keystone for identity services. Openstack can be used to build public, private, or hybrid clouds and supports a variety of use cases and workloads.
More Related Content
Similar to Cloud Architect Alliance #15: Openstack
Cloud Architect Alliance #15: Openstack
- 1.
- 2. • What isOpenstack • Why is this relevant • What Openstack can do for you • What you can do for Openstack • Little demo time (fingers crossed) Agenda
- 3. Disclaimer(s) • I don’trepresent the Foundation • I don’t represent my Employer (today) • I’ll do my best to not make you miss Iko Saadhoff • I hate the word “Architect”
- 4.
- 7. What is thisreally about

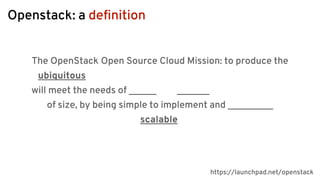

- 8. Openstack: a definition TheOpenStack Open Source Cloud Mission: to produce the ubiquitous will meet the needs of of size, by being simple to implement and scalable https://launchpad.net/openstack
- 9.
- 10. Openstack: in realworld
- 11. Public cloud: whatyou need
- 12. Private cloud: whatyou really need
- 13. Why the worldneed Openstack today

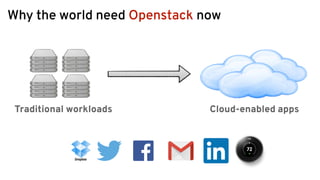

- 14. Why the worldneed Openstack now Traditional workloads Cloud-enabled apps
- 15. Cloud: a revolutionin the making + + 1991: 2011:

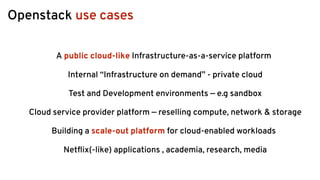

- 16. Openstack use cases Apublic cloud-like Infrastructure-as-a-service platform Internal “Infrastructure on demand” - private cloud Test and Development environments — e.g sandbox Cloud service provider platform — reselling compute, network & storage Building a scale-out platform for cloud-enabled workloads Netflix(-like) applications , academia, research, media
- 17.

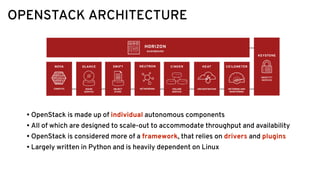

- 18. OPENSTACK ARCHITECTURE • OpenStackis made up of individual autonomous components • All of which are designed to scale-out to accommodate throughput and availability • OpenStack is considered more of a framework, that relies on drivers and plugins • Largely written in Python and is heavily dependent on Linux

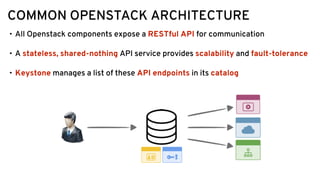

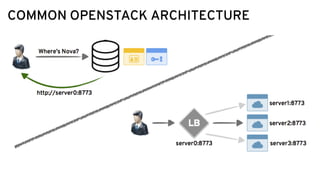

- 19. COMMON OPENSTACK ARCHITECTURE •All Openstack components expose a RESTful API for communication • A stateless, shared-nothing API service provides scalability and fault-tolerance • Keystone manages a list of these API endpoints in its catalog
- 20.

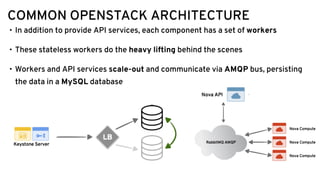

- 21. • In additionto provide API services, each component has a set of workers • These stateless workers do the heavy lifting behind the scenes • Workers and API services scale-out and communicate via AMQP bus, persisting the data in a MySQL database COMMON OPENSTACK ARCHITECTURE

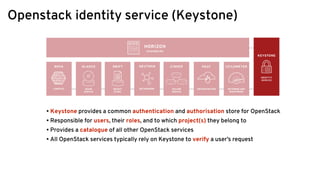

- 22. Openstack identity service(Keystone) • Keystone provides a common authentication and authorisation store for OpenStack • Responsible for users, their roles, and to which project(s) they belong to • Provides a catalogue of all other OpenStack services • All OpenStack services typically rely on Keystone to verify a user’s request
- 23. Keystone: Openstack IdentityService • Keystone issues tokens to authenticated users who cache them locally • These tokens are used along with requests to perform a specific action Keystone Server Authenticate Token Issued Nova API Token + Request

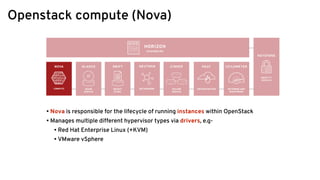

- 24. Openstack compute (Nova) •Nova is responsible for the lifecycle of running instances within OpenStack • Manages multiple different hypervisor types via drivers, e.g- • Red Hat Enterprise Linux (+KVM) • VMware vSphere

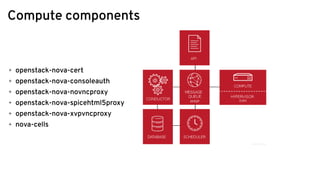

- 25. Compute components + openstack-nova-cert +openstack-nova-consoleauth + openstack-nova-novncproxy + openstack-nova-spicehtml5proxy + openstack-nova-xvpvncproxy + nova-cells

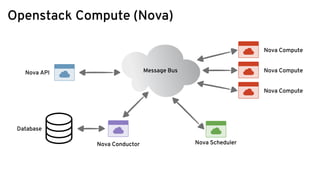

- 26. Openstack Compute (Nova) NovaAPI Nova Compute Nova Compute Nova Compute Message Bus Nova Conductor Database Nova Scheduler

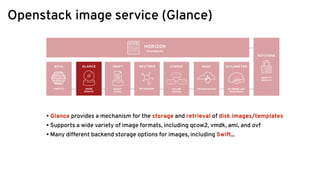

- 27. Openstack image service(Glance) • Glance provides a mechanism for the storage and retrieval of disk images/templates • Supports a wide variety of image formats, including qcow2, vmdk, ami, and ovf • Many different backend storage options for images, including Swift...
- 28. Openstack Image Service(Glance) Nova ComputeGlance API Glance Backend HTTP GET Instance A Instance B /var/lib/nova/instances/_base Launch RHEL 7 /var/lib/nova/instances/<uuid>/disk Nova API

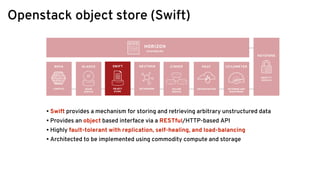

- 29. Openstack object store(Swift) • Swift provides a mechanism for storing and retrieving arbitrary unstructured data • Provides an object based interface via a RESTful/HTTP-based API • Highly fault-tolerant with replication, self-healing, and load-balancing • Architected to be implemented using commodity compute and storage

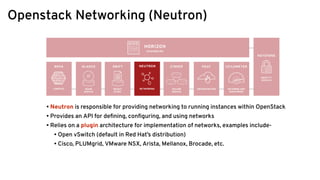

- 30. Openstack Networking (Neutron) •Neutron is responsible for providing networking to running instances within OpenStack • Provides an API for defining, configuring, and using networks • Relies on a plugin architecture for implementation of networks, examples include- • Open vSwitch (default in Red Hat’s distribution) • Cisco, PLUMgrid, VMware NSX, Arista, Mellanox, Brocade, etc.

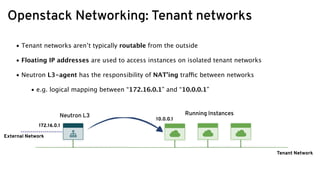

- 31. Openstack Networking: Tenantnetworks • Tenant networks aren’t typically routable from the outside • Floating IP addresses are used to access instances on isolated tenant networks • Neutron L3-agent has the responsibility of NAT’ing traffic between networks • e.g. logical mapping between “172.16.0.1” and “10.0.0.1” Tenant Network Running InstancesNeutron L3 External Network 172.16.0.1 10.0.0.1
- 32. Openstack Networking: providernetworks • Administrators configure the networks and who has permission to use them • Users don’t have the same level of control as they would in tenant networks • External networks can be flat, or VLAN tagged. • DHCP is optional, but external services for routing and DNS are common. External Network Instances from multiple tenantsNeutron DHCPExternal Services

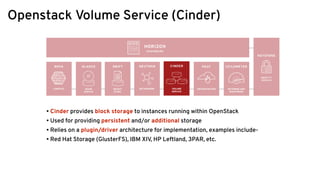

- 33. Openstack Volume Service(Cinder) • Cinder provides block storage to instances running within OpenStack • Used for providing persistent and/or additional storage • Relies on a plugin/driver architecture for implementation, examples include- • Red Hat Storage (GlusterFS), IBM XIV, HP Leftland, 3PAR, etc.
- 34. Openstack Orchestration (Heat) •Heat facilitates the creation of ‘application stacks’ made from multiple resources • Stacks are imported as a descriptive template language • Heat manages the automated orchestration of resources and their dependencies • Allows for dynamic scaling of applications based on configurable metrics

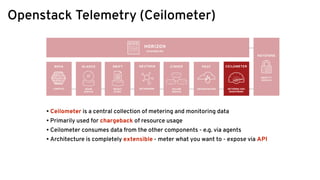

- 35. Openstack Telemetry (Ceilometer) •Ceilometer is a central collection of metering and monitoring data • Primarily used for chargeback of resource usage • Ceilometer consumes data from the other components - e.g. via agents • Architecture is completely extensible - meter what you want to - expose via API

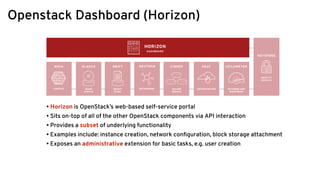

- 36. Openstack Dashboard (Horizon) •Horizon is OpenStack’s web-based self-service portal • Sits on-top of all of the other OpenStack components via API interaction • Provides a subset of underlying functionality • Examples include: instance creation, network configuration, block storage attachment • Exposes an administrative extension for basic tasks, e.g. user creation

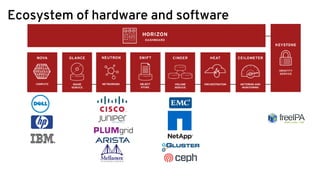

- 37. Ecosystem of hardwareand software

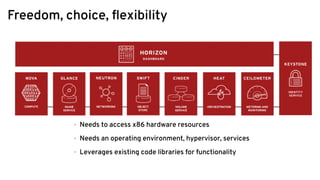

- 38. ● Needs toaccess x86 hardware resources ● Needs an operating environment, hypervisor, services ● Leverages existing code libraries for functionality Freedom, choice, flexibility
- 39. TL;DR • Openstack isa cloud application in itself • Stateless services with central state and messaging • RESTful API all over the place • It runs on commodity hardware, on premise • It’s expandable and pluggable, no one-size-fits-all

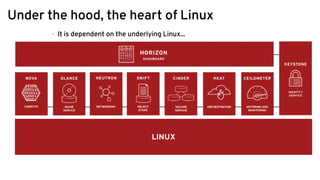

- 40. ● It isdependent on the underlying Linux... LINUX Under the hood, the heart of Linux
- 41. An ever-expanding universeof components

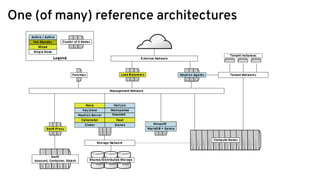

- 42. One (of many)reference architectures MongoDB RabbitMQ

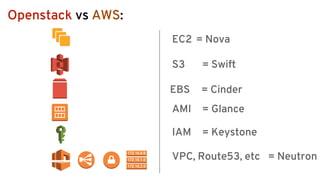

- 43. Openstack vs AWS: S3= Swift EC2 = Nova EBS = Cinder AMI = Glance IAM = Keystone VPC, Route53, etc = Neutron
- 44. Openstack vs AWS: AWS(on demand) AWS (reserved) Private 12x High-MEM Double Extra Large 32GB 4vCores 13 ECUs 850GB 12x High-MEM Double Extra Large 32GB 4vCores 13 ECUs 850GB 4x IBM x3650M4 6x Xeon E5-2620 RAID/SAS, 10Gbit 384GB RAM ~ 10TB Disk 48 Cores 384GB RAM ~ 10TB Disk 48 Cores 384GB RAM ~ 20TB Disk 72 Cores 9.600$/mo 345.600$/3years 31.200$ one time 83.700$/3years ~40.000€ (including support) • Training costs are similar • TCO tends to be better for private clouds (for large deployments)

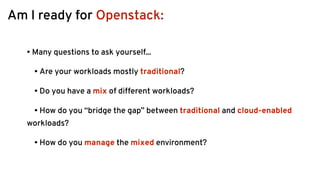

- 45. Am I readyfor Openstack: • Many questions to ask yourself... • Are your workloads mostly traditional? • Do you have a mix of different workloads? • How do you “bridge the gap” between traditional and cloud-enabled workloads? • How do you manage the mixed environment?

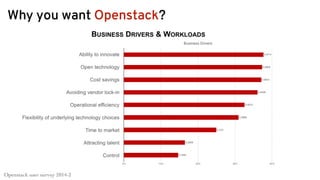

- 46. Why you wantOpenstack? Openstack user survey 2014-2

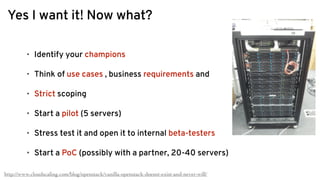

- 47. Yes I wantit! Now what? http://www.cloudscaling.com/blog/openstack/vanilla-openstack-doesnt-exist-and-never-will/ • Identify your champions • Think of use cases , business requirements and • Strict scoping • Start a pilot (5 servers) • Stress test it and open it to internal beta-testers • Start a PoC (possibly with a partner, 20-40 servers)

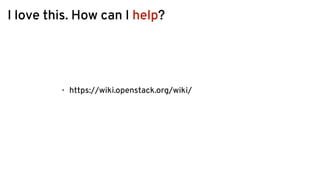

- 48. I love this.How can I help? • https://wiki.openstack.org/wiki/
- 49.
- 50. A user story(Red Hat) http://www.redhat.com/en/resources/telefónica-global-solutions-chooses-red-hat-plan-its-cloud-future
- 51.
- 52. Recap • Openstack ishard and not for everyone • But there’s light at the end of the tunnel! • Opensource is the game-changer • Try it, demo it, use it. Ask help, be open “Stay - sort of Steve Jobs

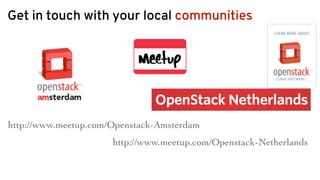

- 53. Get in touchwith your local communities http://www.meetup.com/Openstack-Amsterdam http://www.meetup.com/Openstack-Netherlands
- 54. QA I f youdon’t have any questions, I failed my job!
