Arthur Berezin, a senior technical product manager at Red Hat, presented on OpenStack and its functionalities, highlighting its modular architecture for cloud-enabled workloads and seamless scaling. The presentation discussed various OpenStack core projects, including compute, image, object, networking, and storage services, all aimed at improving cloud infrastructure management through a community-driven approach. Furthermore, the Red Hat OpenStack platform is designed for enterprise use, facilitating long-term deployments with support and certification through Red Hat's partner network.

1. Seminar:
OpenStack
Presenter:
Arthur Berezin
Sr. Technical Product Manager
OpenStack Platform, RHEV

2. Arthur Berezin RHCE
Sr. Technical Product Manager OpenStack, RHEV
Red Hat
Cloud Systems Engineer
LivePerson
Red Hat Linux Instructor
John Bryce
Red Hat Enterprise Virtualization Lead
Red Hat Group, Matrix
Customer Support Engineer
Red Hat Group, Matrix
IDF Intelligence Alumni
I believe in “Free As in Speech”
vs. “Free As In Beer”

3. But “Free As in Beer” is also OK

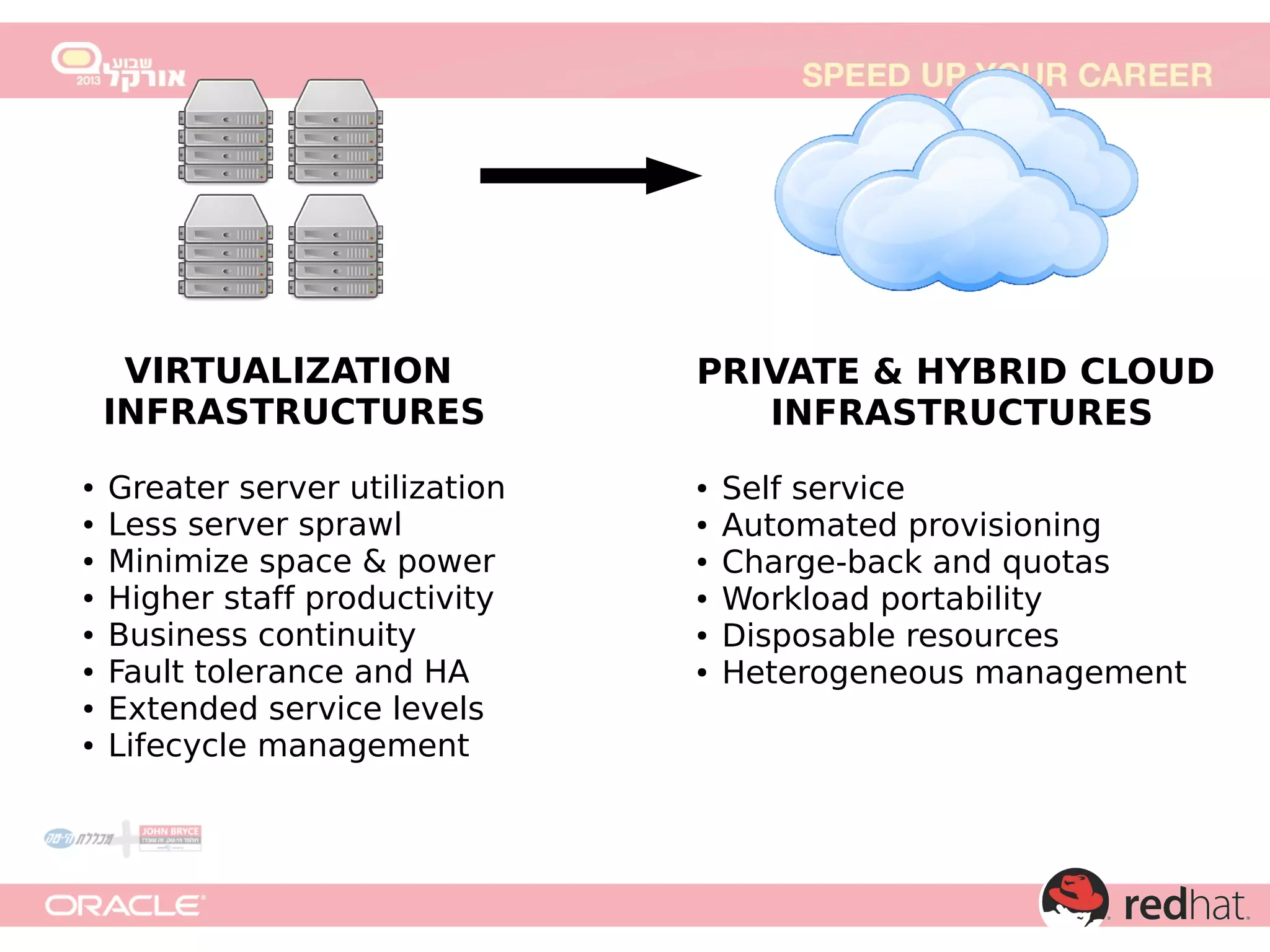

4. VIRTUALIZATION
INFRASTRUCTURES
●
●
●
●
●
●
●
●
Greater server utilization
Less server sprawl
Minimize space & power
Higher staff productivity
Business continuity
Fault tolerance and HA
Extended service levels
Lifecycle management
PRIVATE & HYBRID CLOUD
INFRASTRUCTURES
●
●
●
●
●
●
Self service
Automated provisioning
Charge-back and quotas
Workload portability
Disposable resources
Heterogeneous management

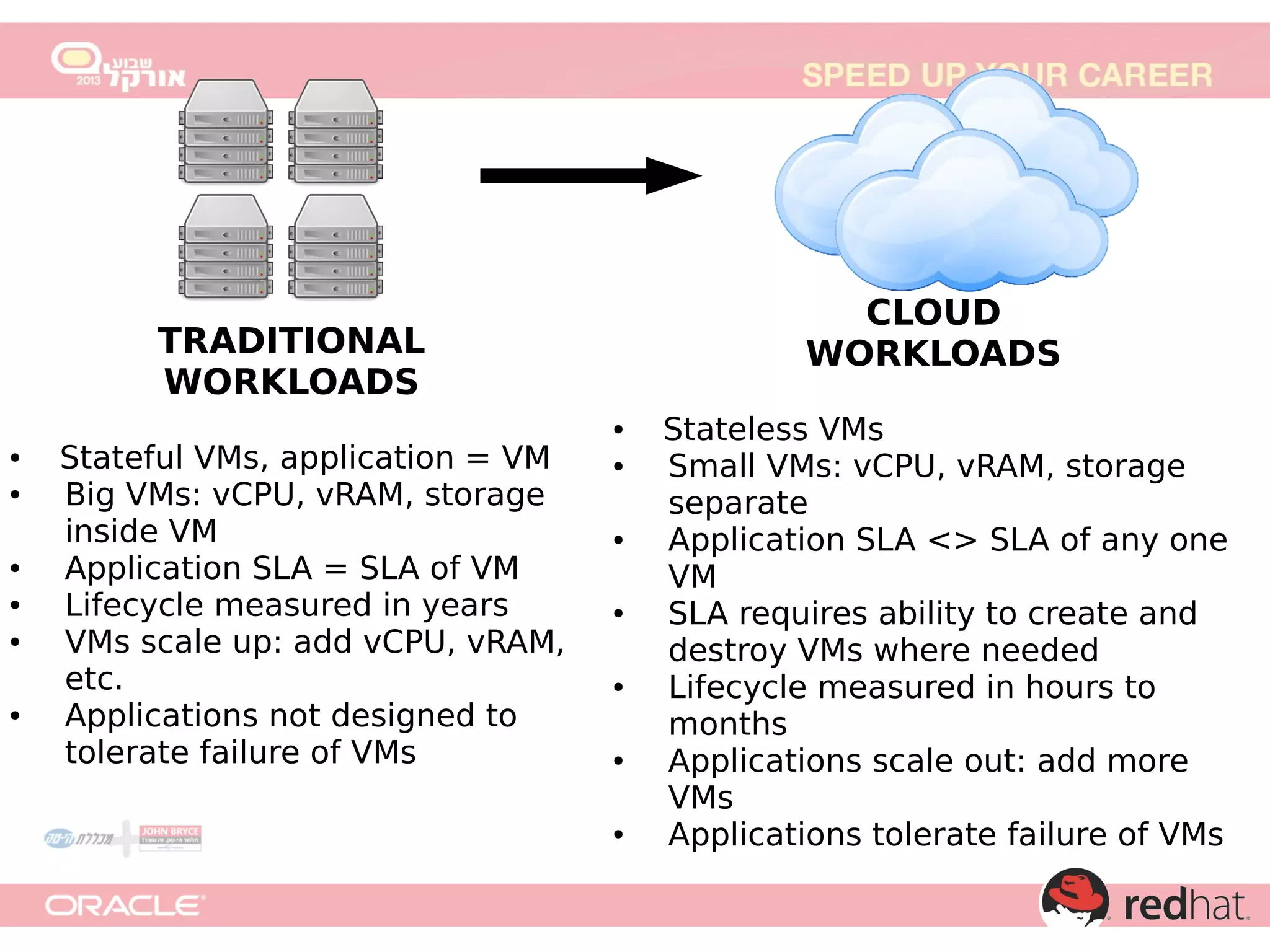

5. CLOUD
WORKLOADS
TRADITIONAL
WORKLOADS
●
●
●
●
●
●
●
Stateful VMs, application = VM
Big VMs: vCPU, vRAM, storage
inside VM
Application SLA = SLA of VM
Lifecycle measured in years
VMs scale up: add vCPU, vRAM,
etc.
Applications not designed to
tolerate failure of VMs
●
●
●
●
●
●
Stateless VMs
Small VMs: vCPU, vRAM, storage
separate
Application SLA <> SLA of any one
VM
SLA requires ability to create and
destroy VMs where needed
Lifecycle measured in hours to
months
Applications scale out: add more
VMs
Applications tolerate failure of VMs

6. PETS =
TRADITIONAL WORKLOADS
●
Pets are given names like
●
FARM ANIMALS =
CLOUD WORKLOADS
rover.internal.redhat.com
●
●
●
They are unique, lovingly
hand raised and cared for
●
When they get ill you nurse
them back to health
●
Farm animals have tag
numbers like
piggie242.redhat.com
They are almost identical
to each other
When they get ill you get
another one

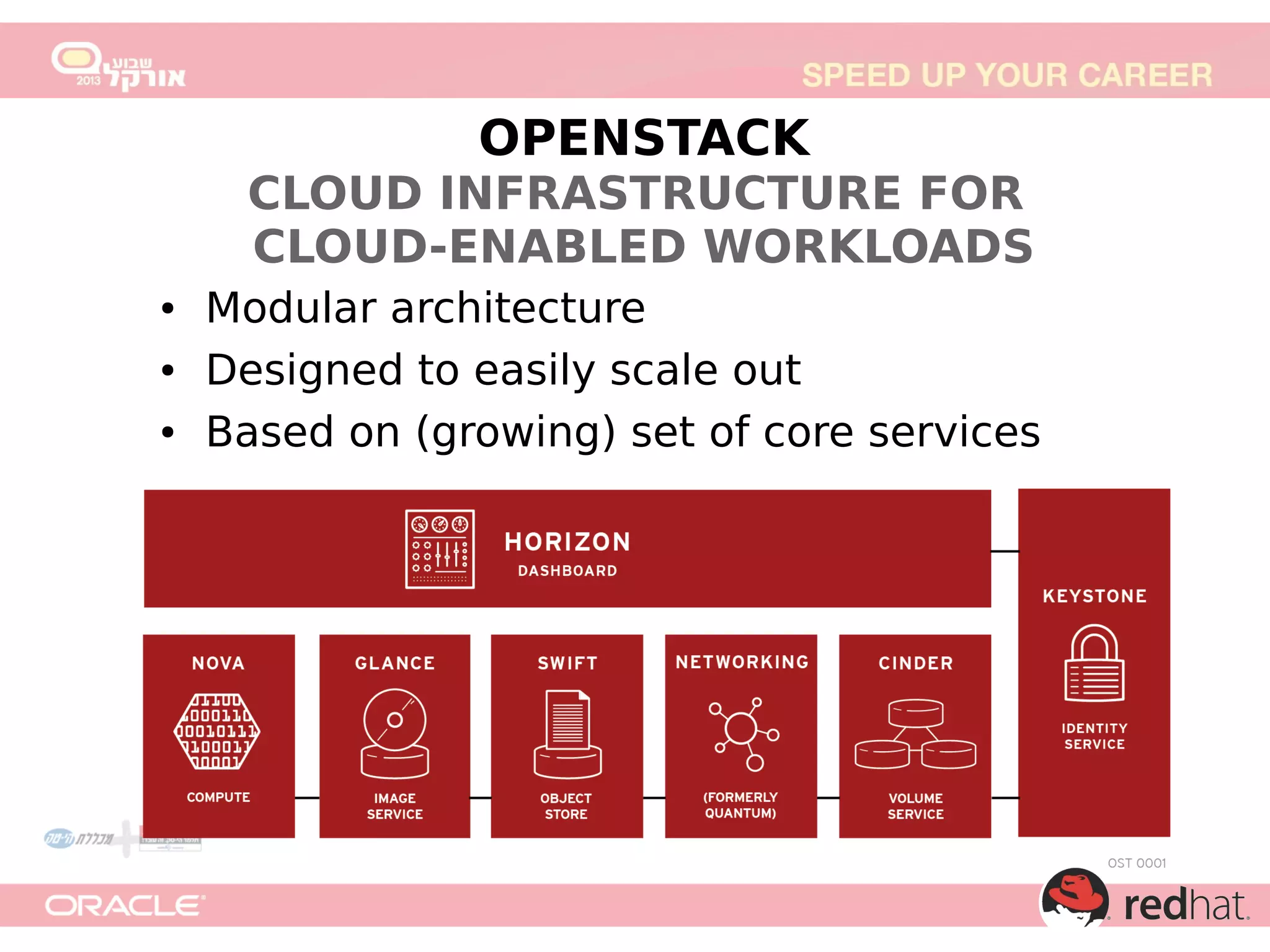

8. OPENSTACK
CLOUD INFRASTRUCTURE FOR
CLOUD-ENABLED WORKLOADS
●
●
●
Modular architecture
Designed to easily scale out
Based on (growing) set of core services

9. IS OPENSTACK A
“CLOUD OPERATING
SYSTEM”?

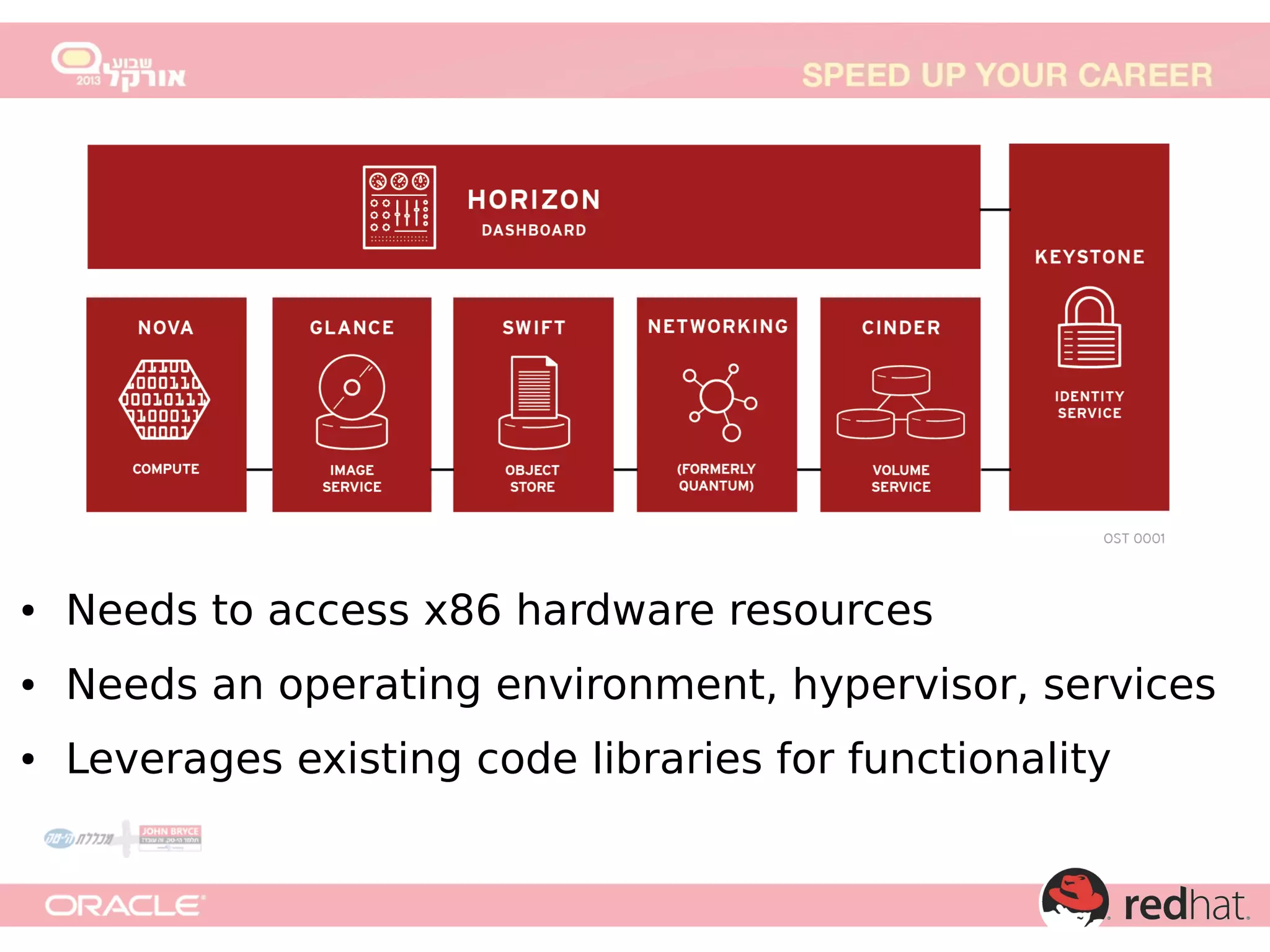

10. ●
Needs to access x86 hardware resources
●
Needs an operating environment, hypervisor, services
●
Leverages existing code libraries for functionality

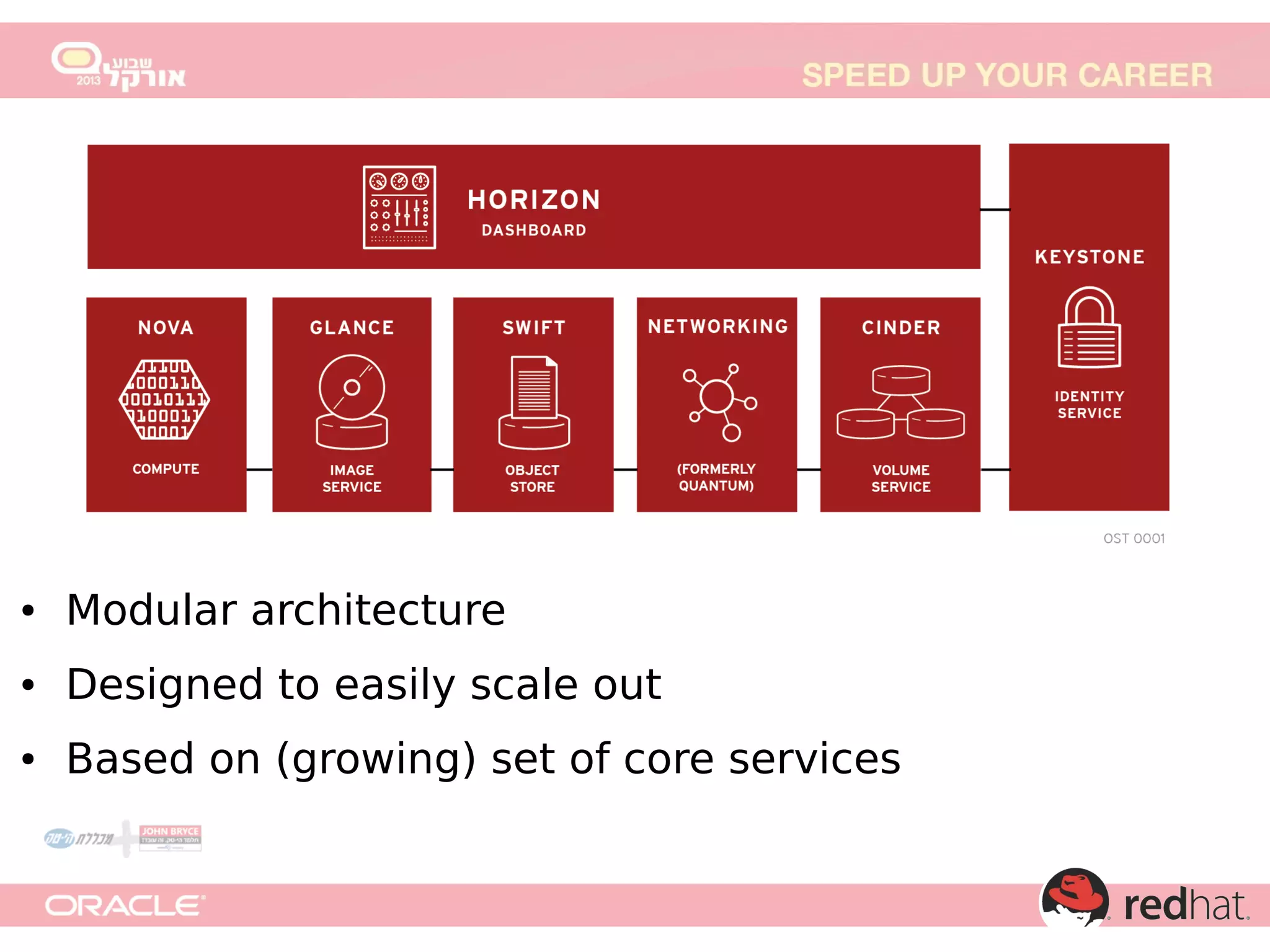

11. ●
Modular architecture
●
Designed to easily scale out
●
Based on (growing) set of core services

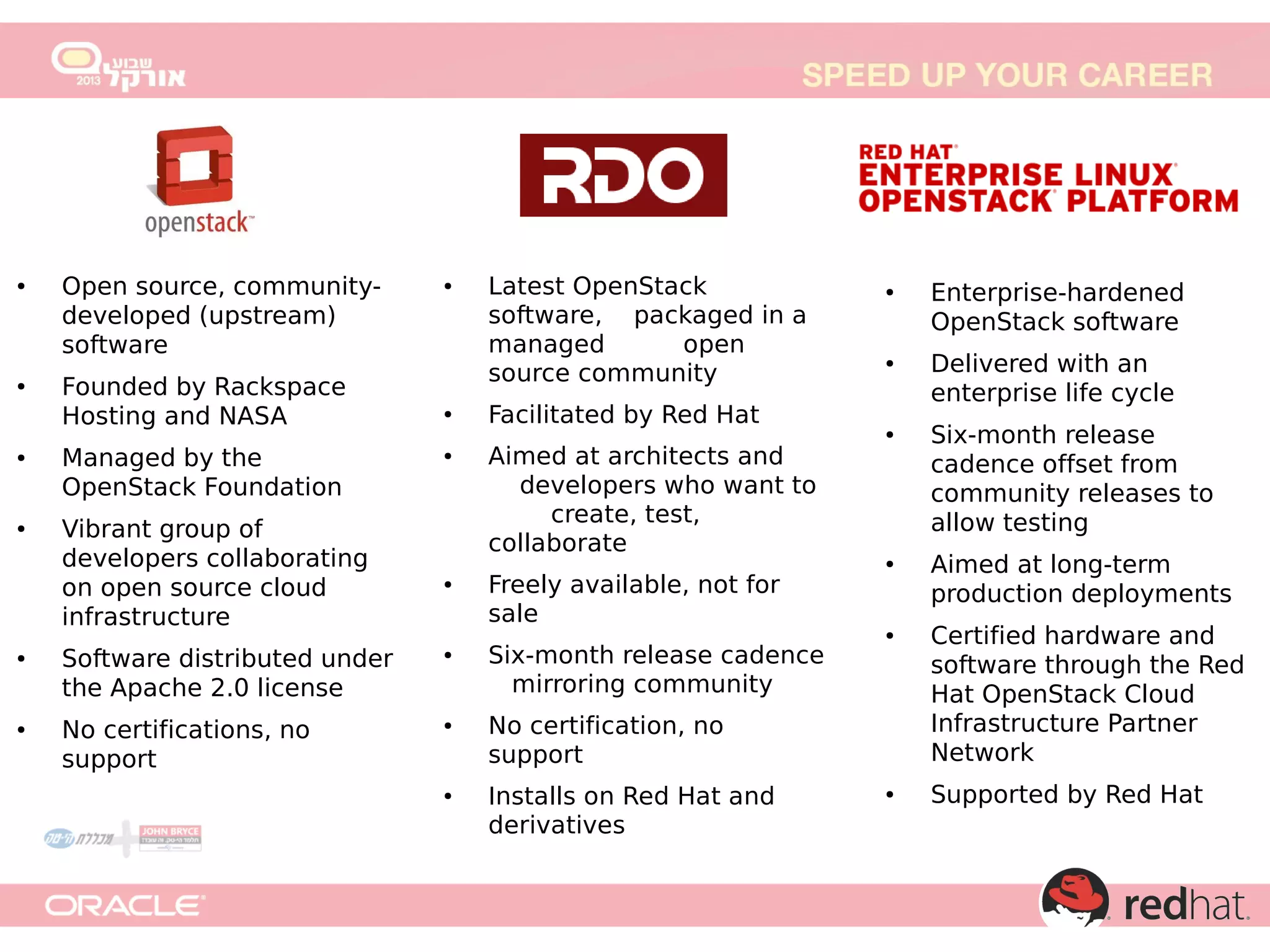

13. ●
●
●
●
●
●
Open source, communitydeveloped (upstream)
software
Founded by Rackspace
Hosting and NASA
Managed by the
OpenStack Foundation
Vibrant group of
developers collaborating
on open source cloud
infrastructure
●
●
Latest OpenStack
software, packaged in a
managed
open
source community
●
●
Facilitated by Red Hat
●
●
Aimed at architects and
developers who want to
create, test,
collaborate
●
●
Software distributed under
the Apache 2.0 license
●
No certifications, no
support
●
●
Freely available, not for
sale
Six-month release cadence
mirroring community
●
No certification, no
support
Installs on Red Hat and
derivatives
●
Enterprise-hardened
OpenStack software
Delivered with an
enterprise life cycle
Six-month release
cadence offset from
community releases to
allow testing
Aimed at long-term
production deployments
Certified hardware and
software through the Red
Hat OpenStack Cloud
Infrastructure Partner
Network
Supported by Red Hat

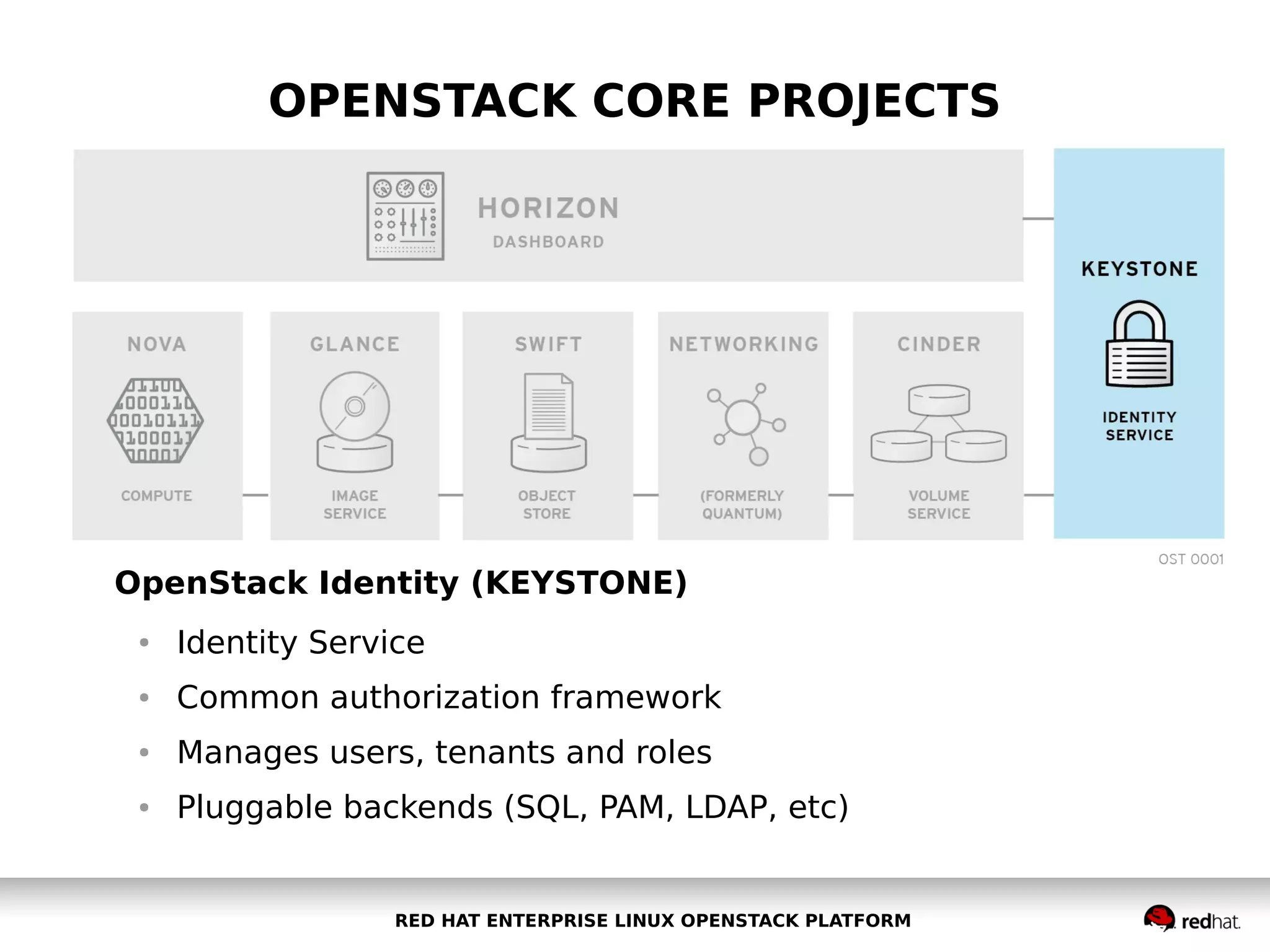

14. OPENSTACK CORE PROJECTS
OpenStack Identity (KEYSTONE)
●
Identity Service
●
Common authorization framework
●
Manages users, tenants and roles
●
Pluggable backends (SQL, PAM, LDAP, etc)
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

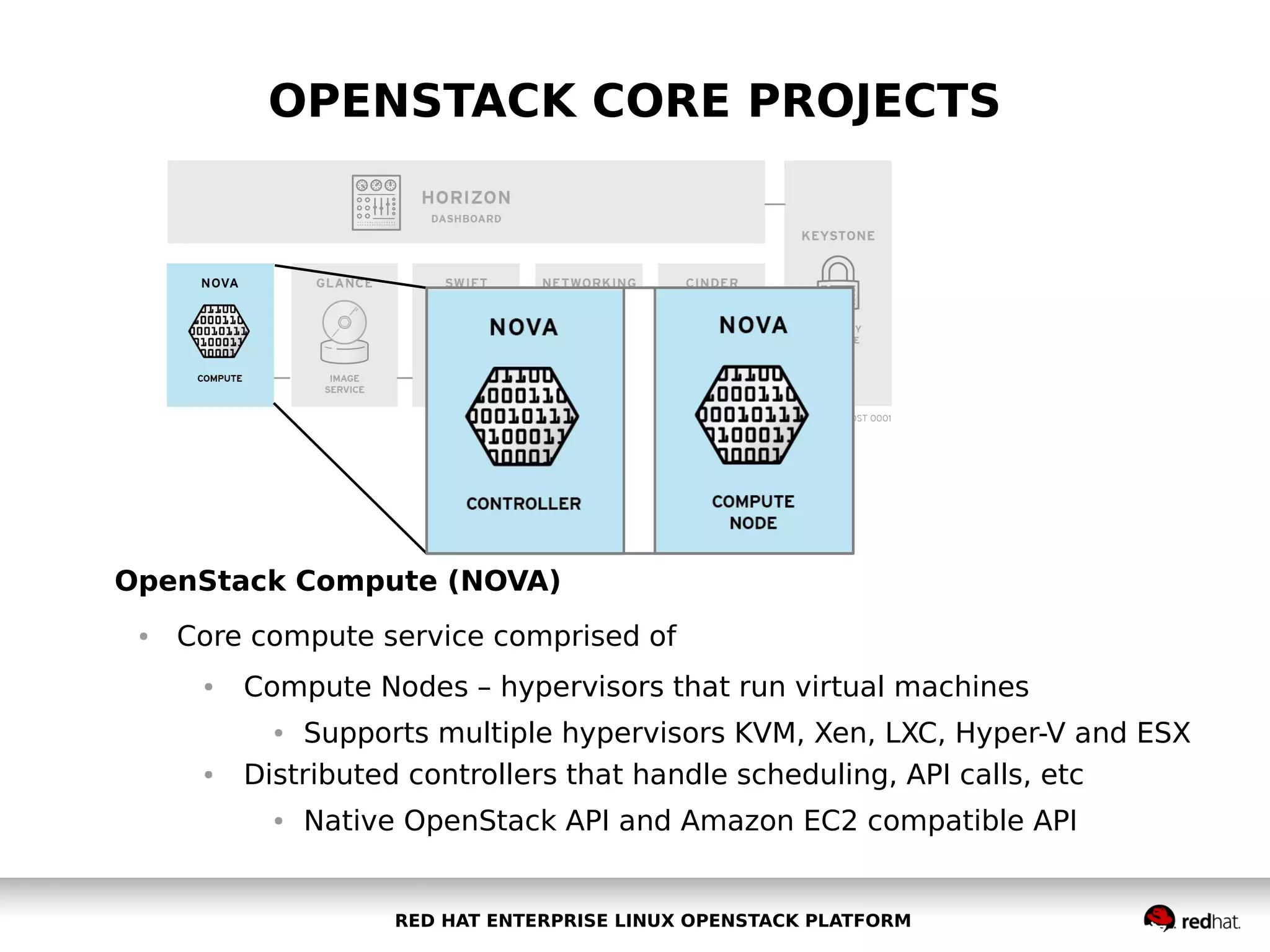

15. OPENSTACK CORE PROJECTS
OpenStack Compute (NOVA)
●
Core compute service comprised of
●
Compute Nodes – hypervisors that run virtual machines
Supports multiple hypervisors KVM, Xen, LXC, Hyper-V and ESX
Distributed controllers that handle scheduling, API calls, etc
●
●
●
Native OpenStack API and Amazon EC2 compatible API
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

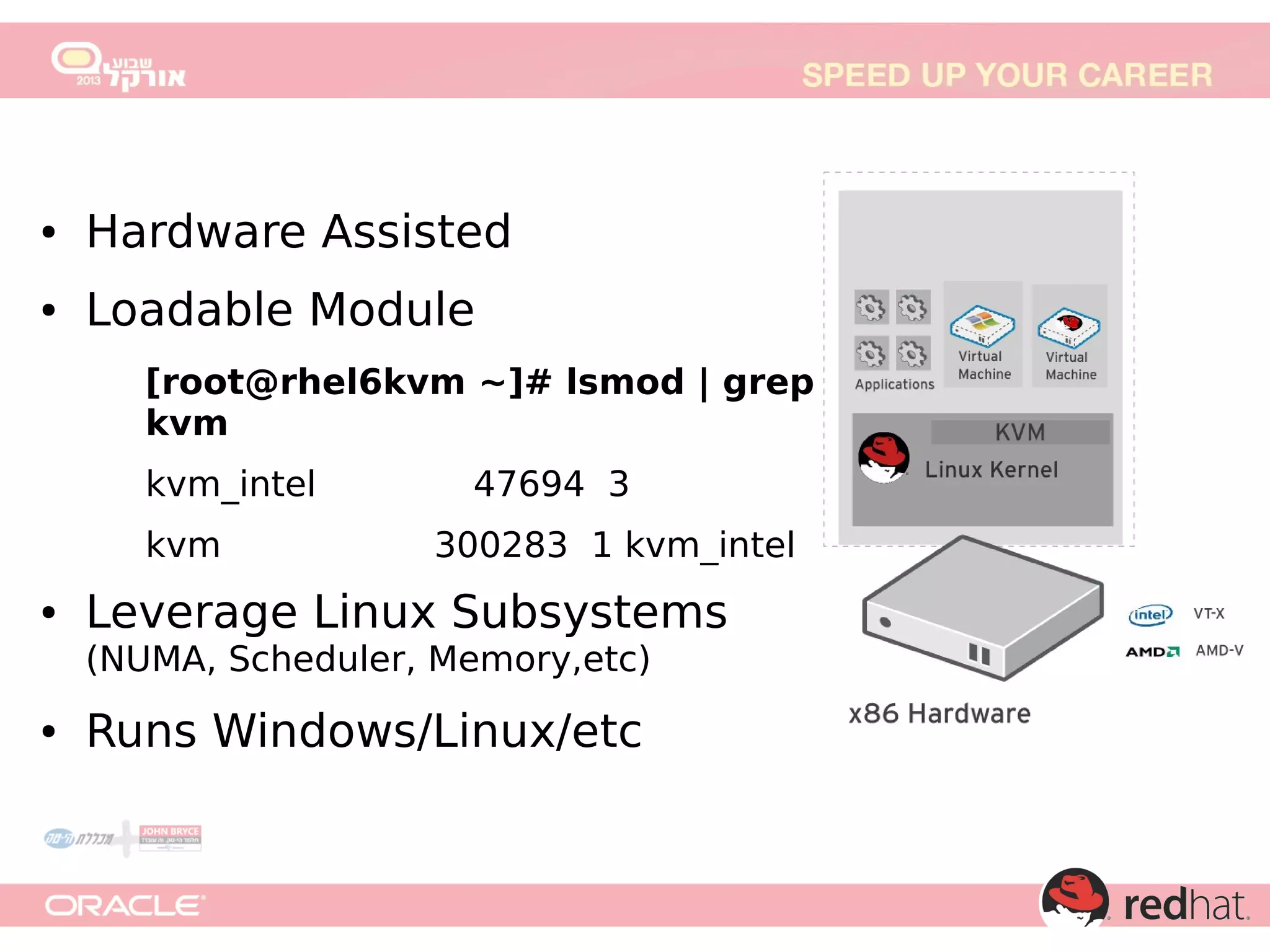

17. ●
Hardware Assisted
●
Loadable Module
[root@rhel6kvm ~]# lsmod | grep
kvm
kvm_intel
kvm
●
47694 3
300283 1 kvm_intel
Leverage Linux Subsystems
(NUMA, Scheduler, Memory,etc)
●
Runs Windows/Linux/etc

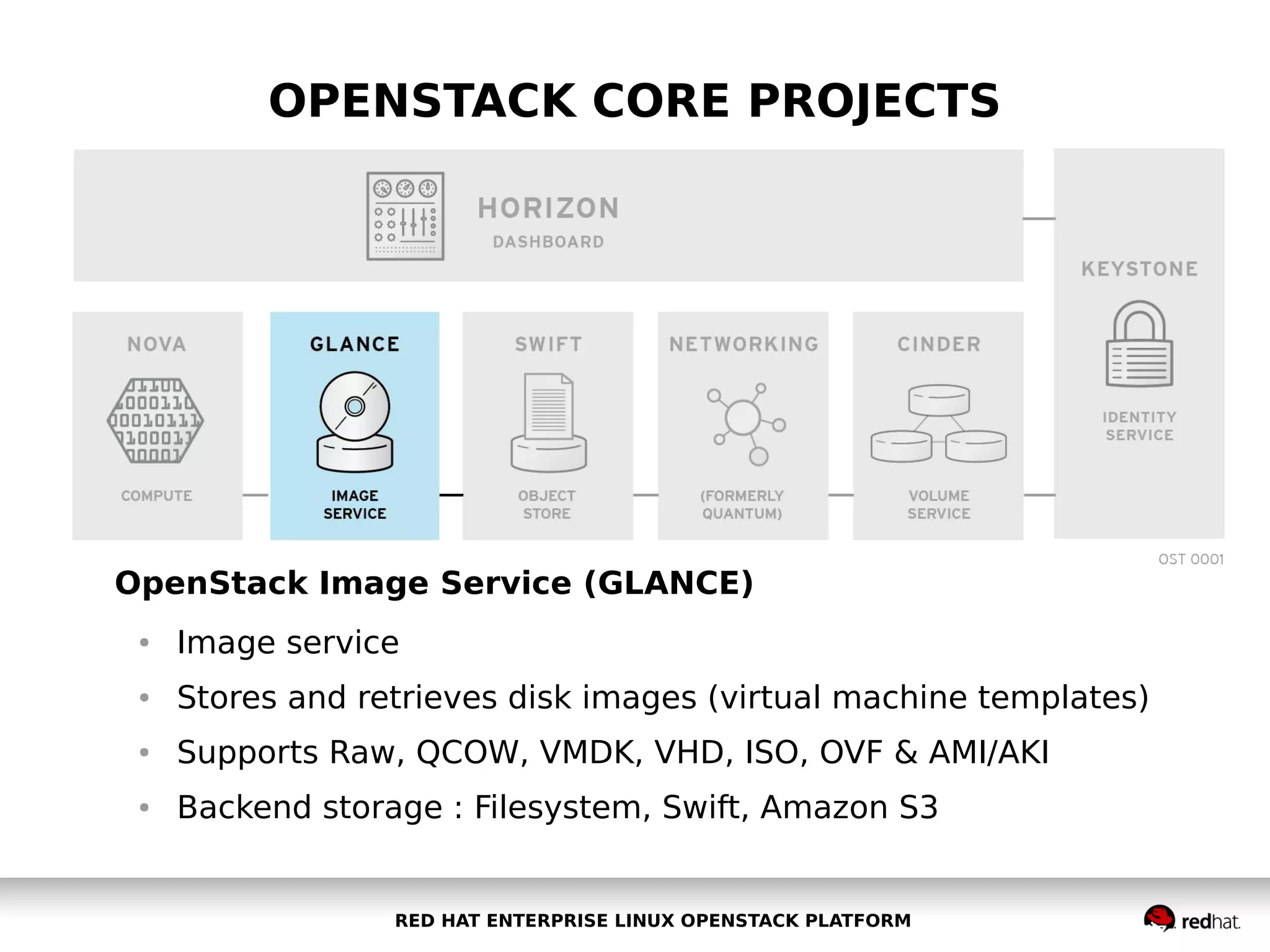

18. OPENSTACK CORE PROJECTS
OpenStack Image Service (GLANCE)
●
Image service
●
Stores and retrieves disk images (virtual machine templates)
●
Supports Raw, QCOW, VMDK, VHD, ISO, OVF & AMI/AKI
●
Backend storage : Filesystem, Swift, Amazon S3
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

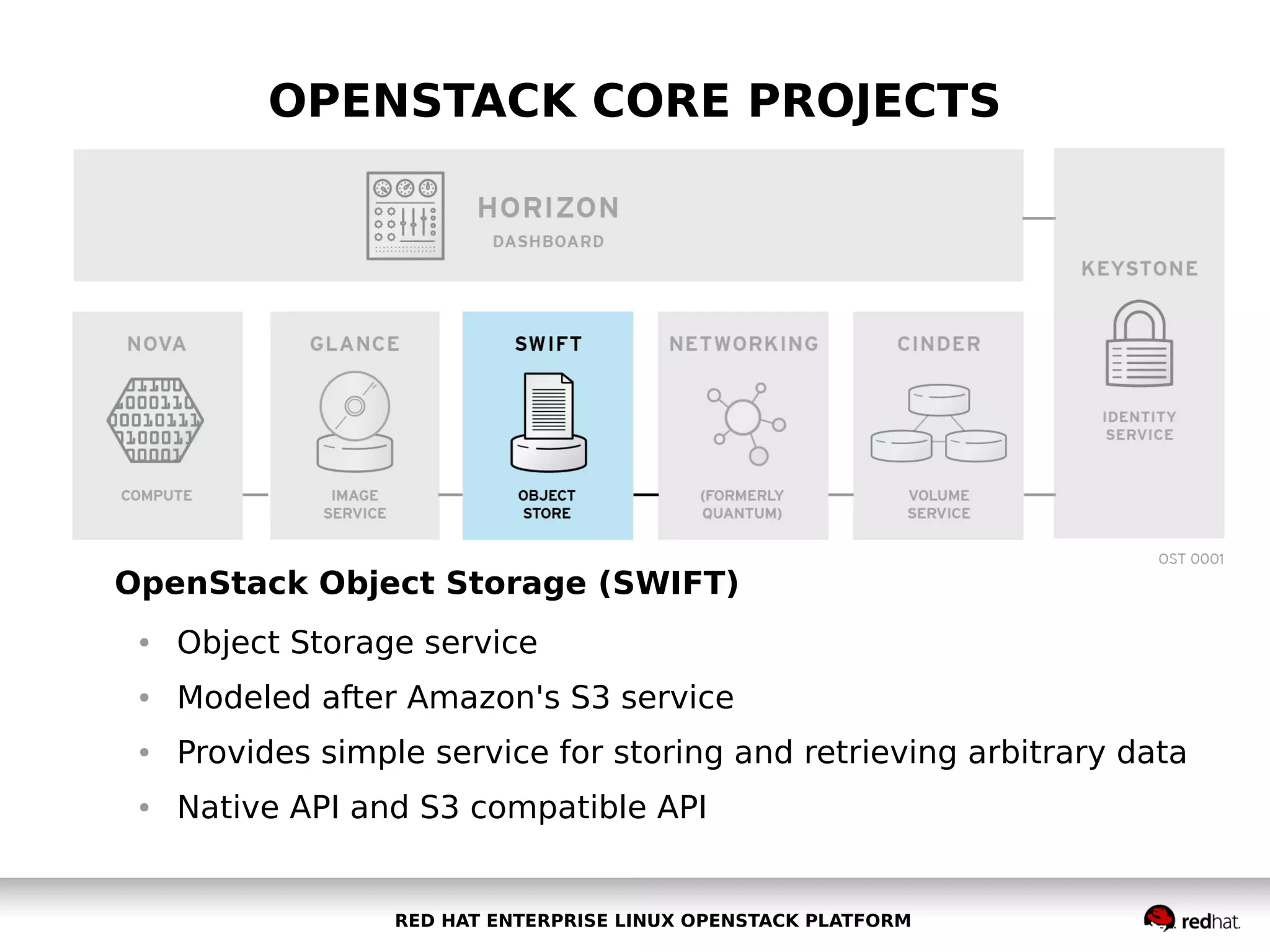

19. OPENSTACK CORE PROJECTS
OpenStack Object Storage (SWIFT)
●
Object Storage service
●
Modeled after Amazon's S3 service
●
Provides simple service for storing and retrieving arbitrary data
●
Native API and S3 compatible API
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

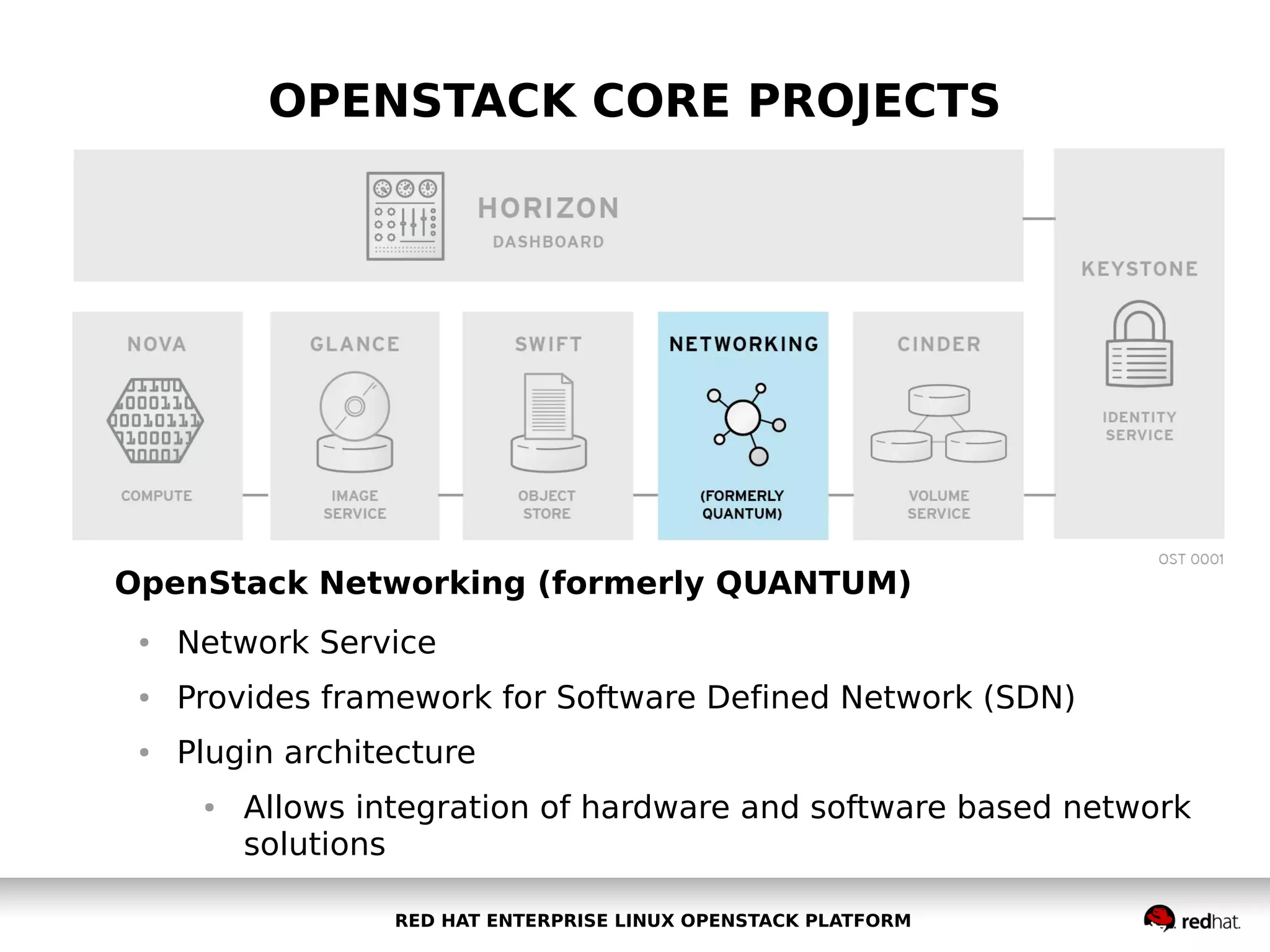

20. OPENSTACK CORE PROJECTS
OpenStack Networking (formerly QUANTUM)
●
Network Service
●
Provides framework for Software Defined Network (SDN)
●
Plugin architecture
●
Allows integration of hardware and software based network
solutions
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

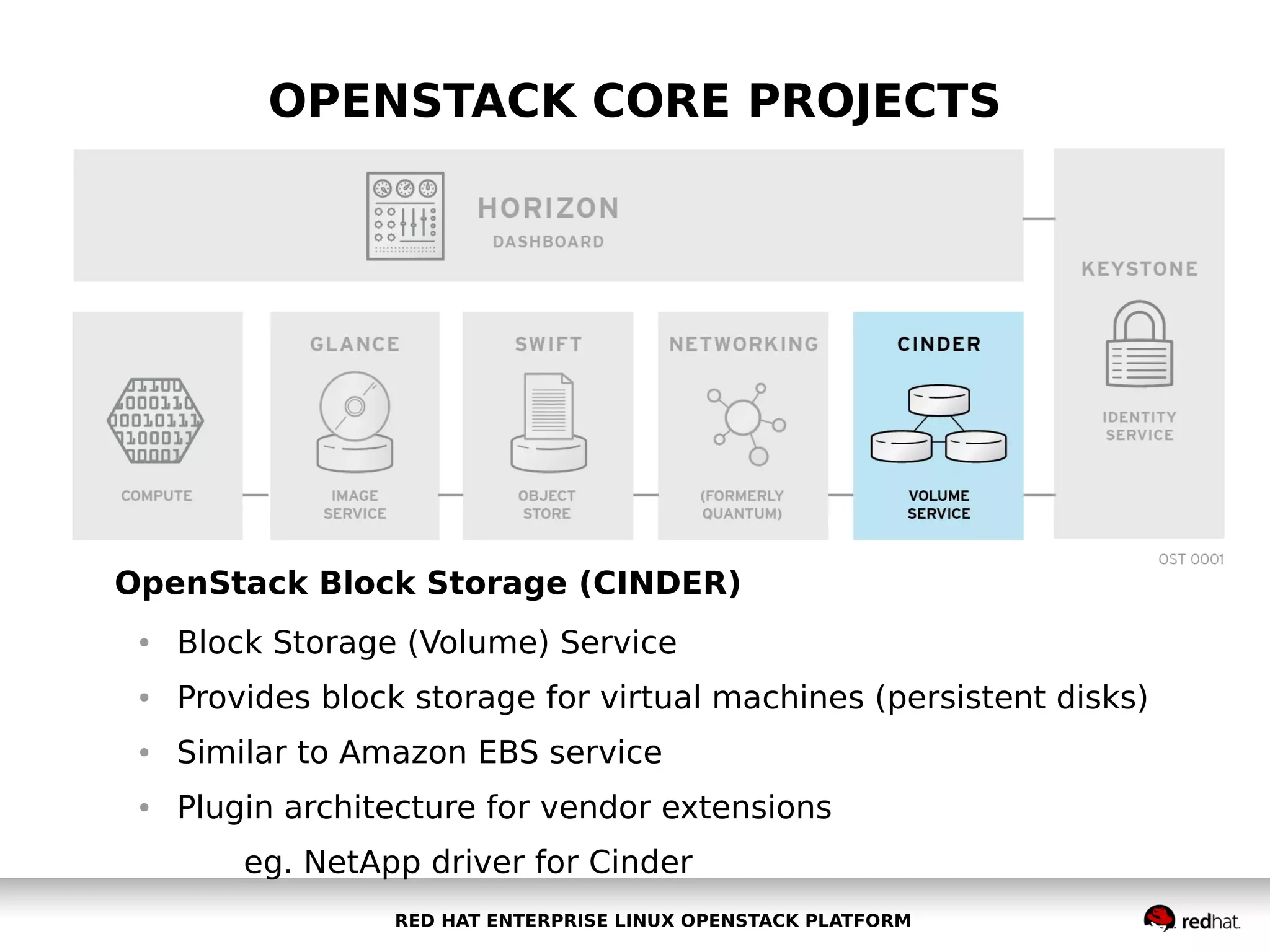

21. OPENSTACK CORE PROJECTS
OpenStack Block Storage (CINDER)
●
Block Storage (Volume) Service
●
Provides block storage for virtual machines (persistent disks)
●
Similar to Amazon EBS service
●
Plugin architecture for vendor extensions
eg. NetApp driver for Cinder
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

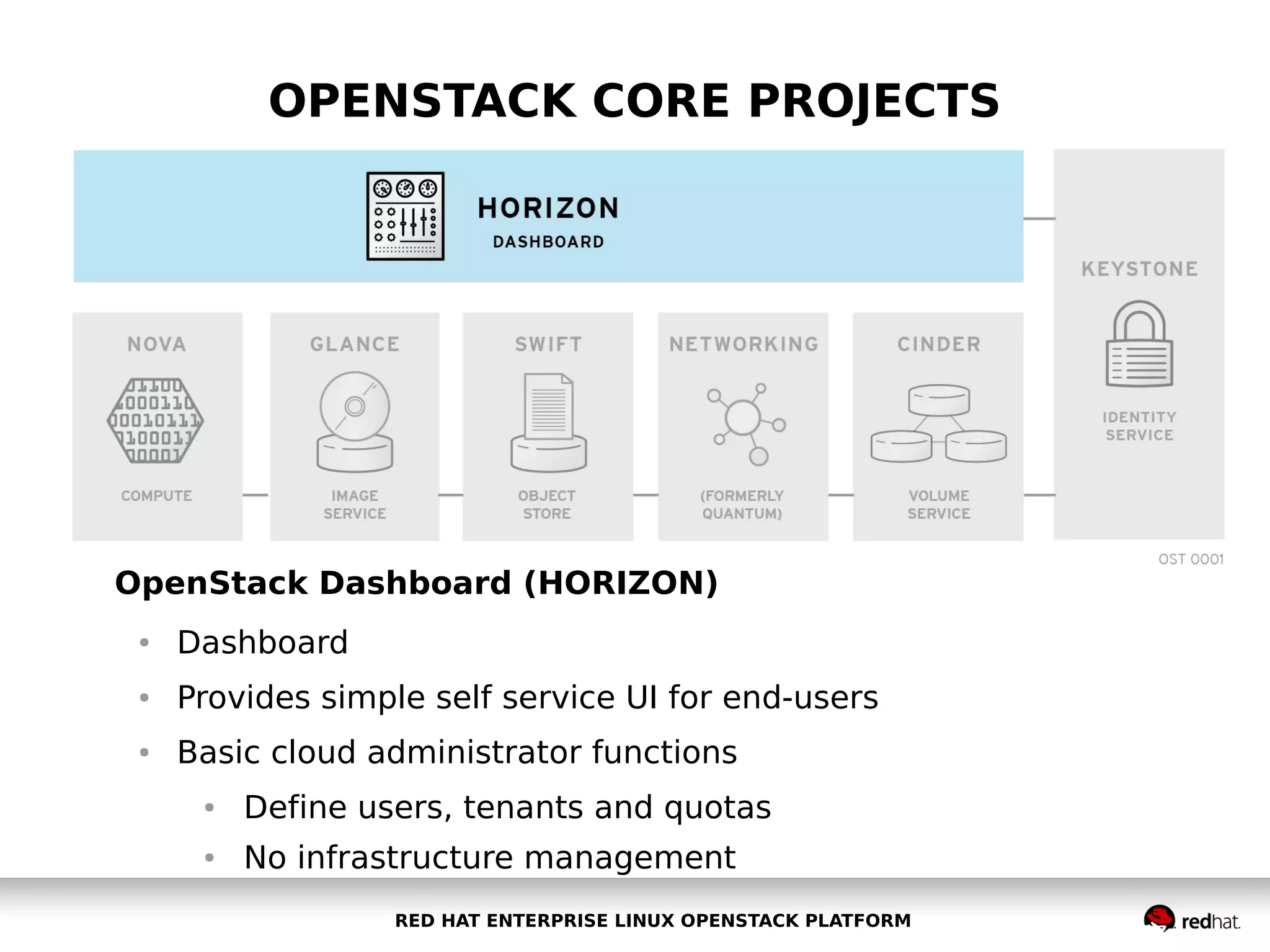

22. OPENSTACK CORE PROJECTS
OpenStack Dashboard (HORIZON)
●
Dashboard
●
Provides simple self service UI for end-users
●
Basic cloud administrator functions
●
Define users, tenants and quotas
●
No infrastructure management
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

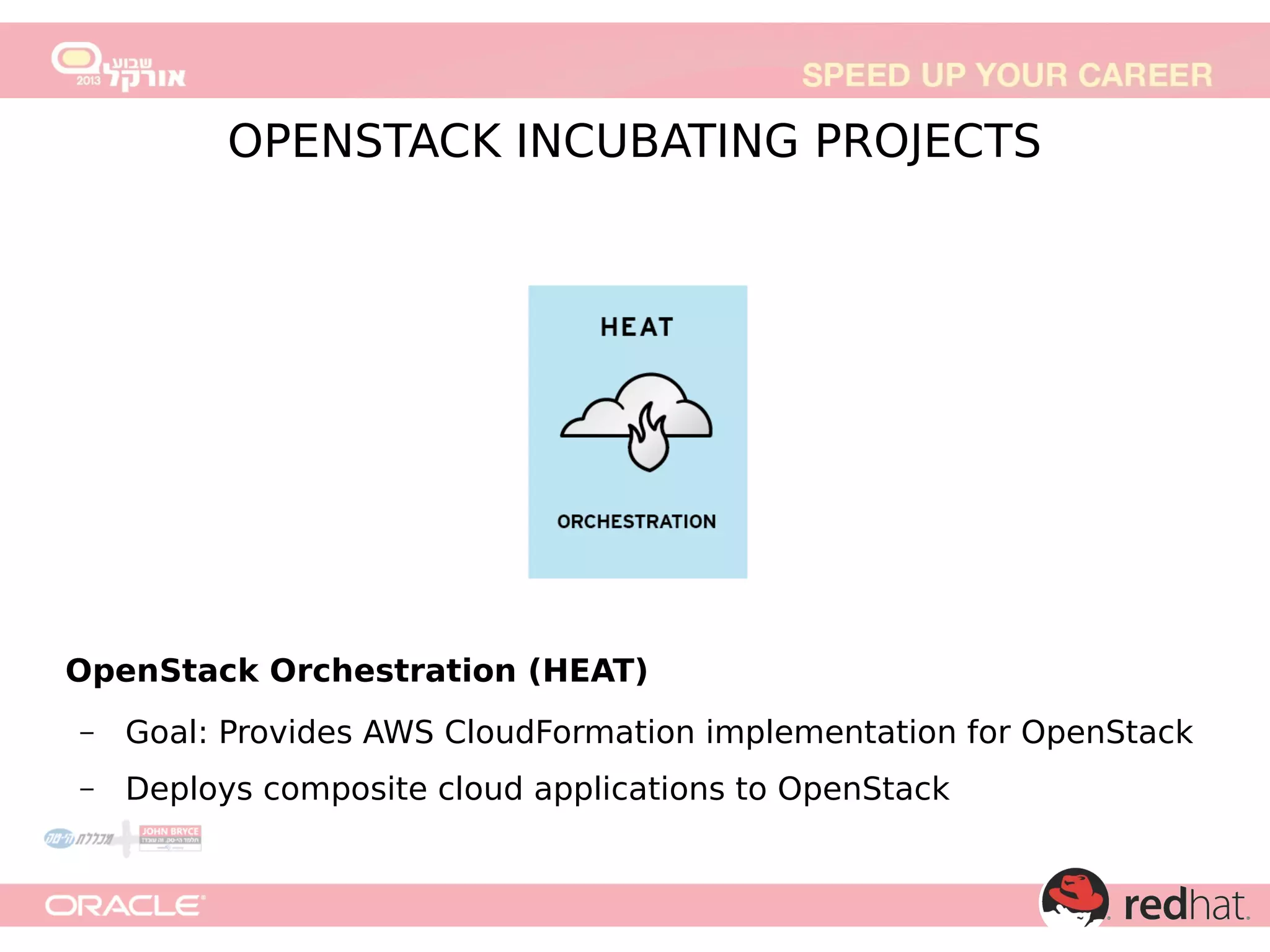

23. OpenStack Orchestration (HEAT)
–
Goal: Provides AWS CloudFormation implementation for OpenStack
–
Deploys composite cloud applications to OpenStack

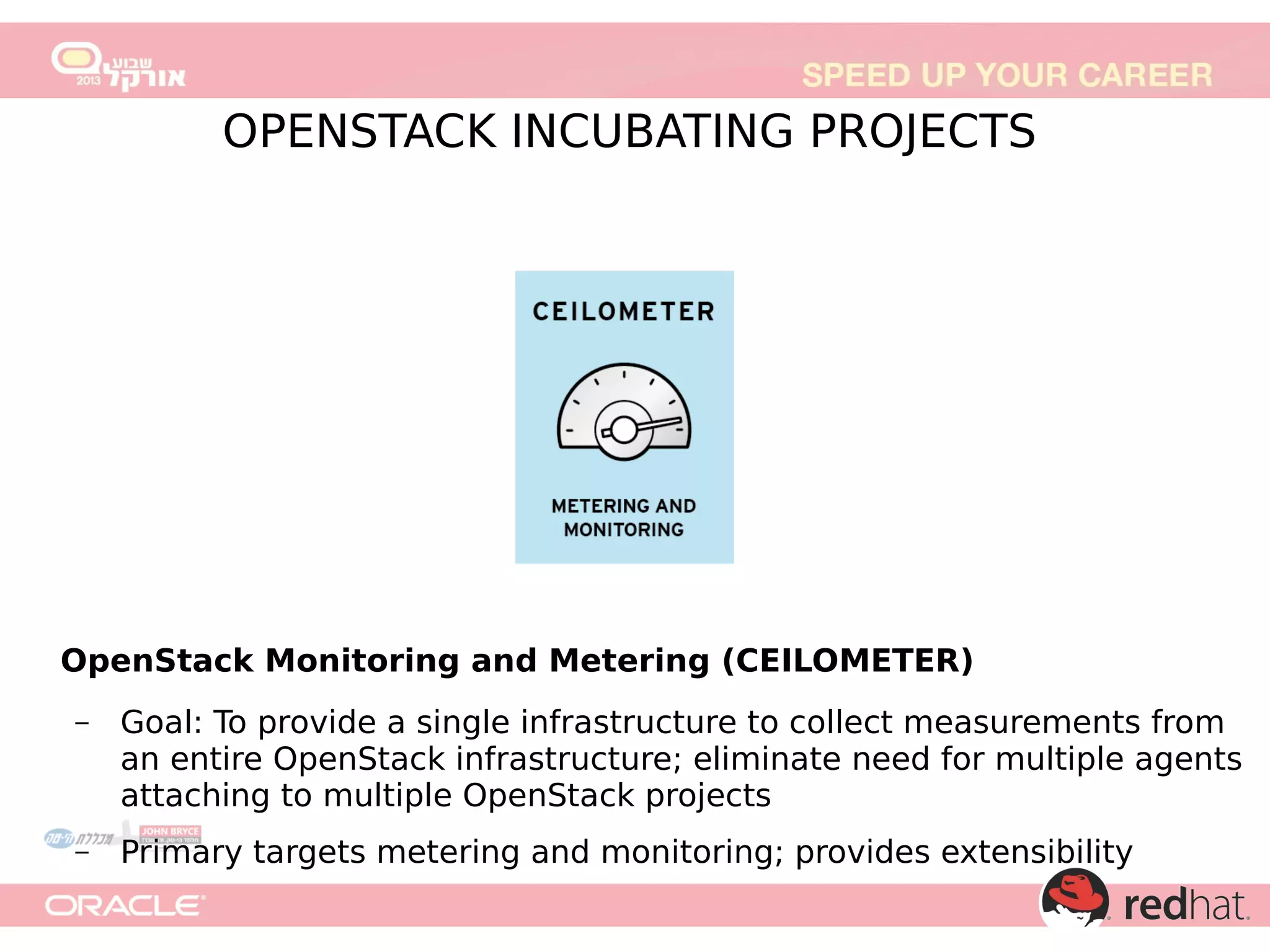

24. OpenStack Monitoring and Metering (CEILOMETER)
–
Goal: To provide a single infrastructure to collect measurements from
an entire OpenStack infrastructure; eliminate need for multiple agents
attaching to multiple OpenStack projects
–
Primary targets metering and monitoring; provides extensibility

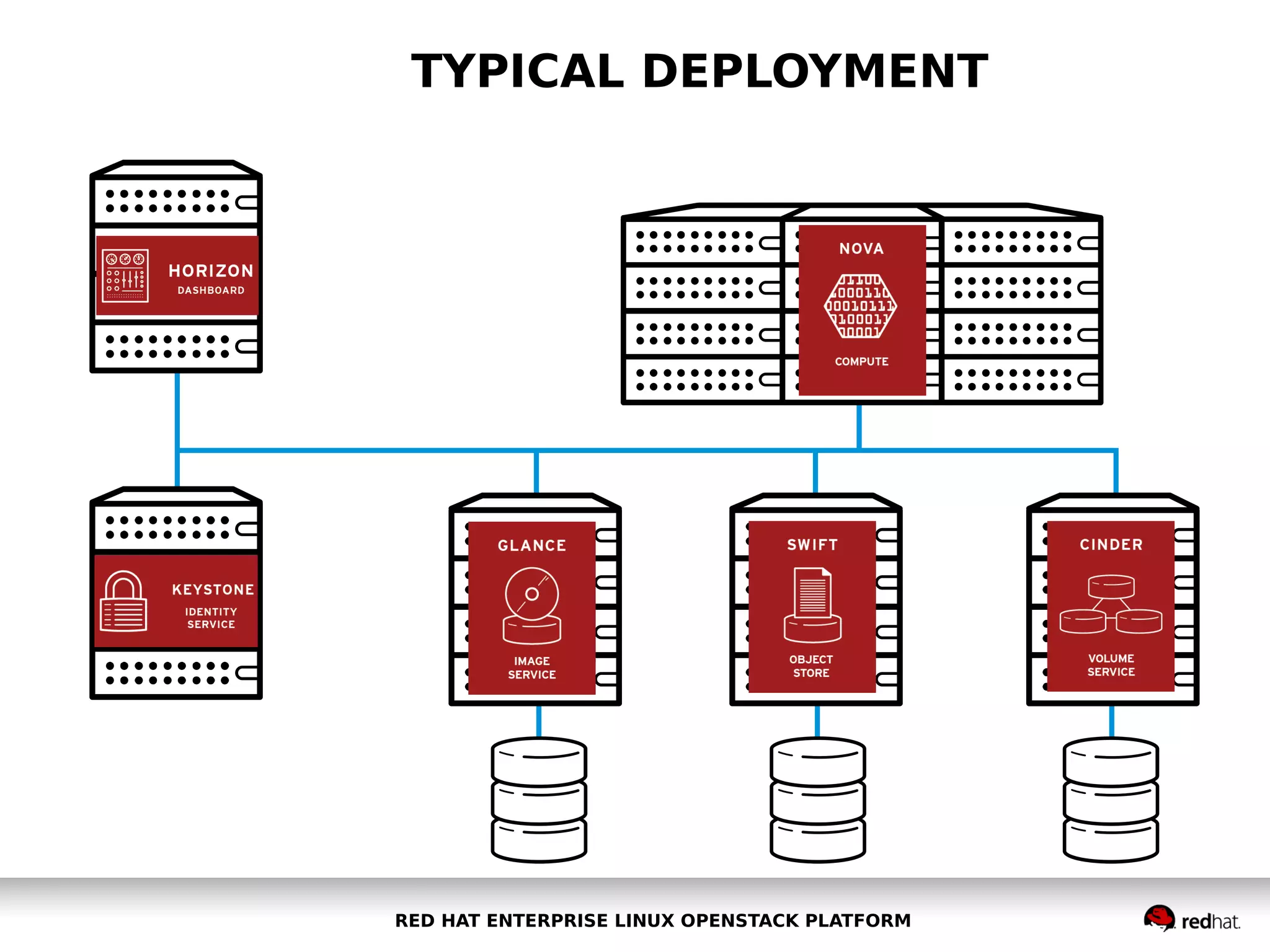

25. TYPICAL DEPLOYMENT
RED HAT ENTERPRISE LINUX OPENSTACK PLATFORM

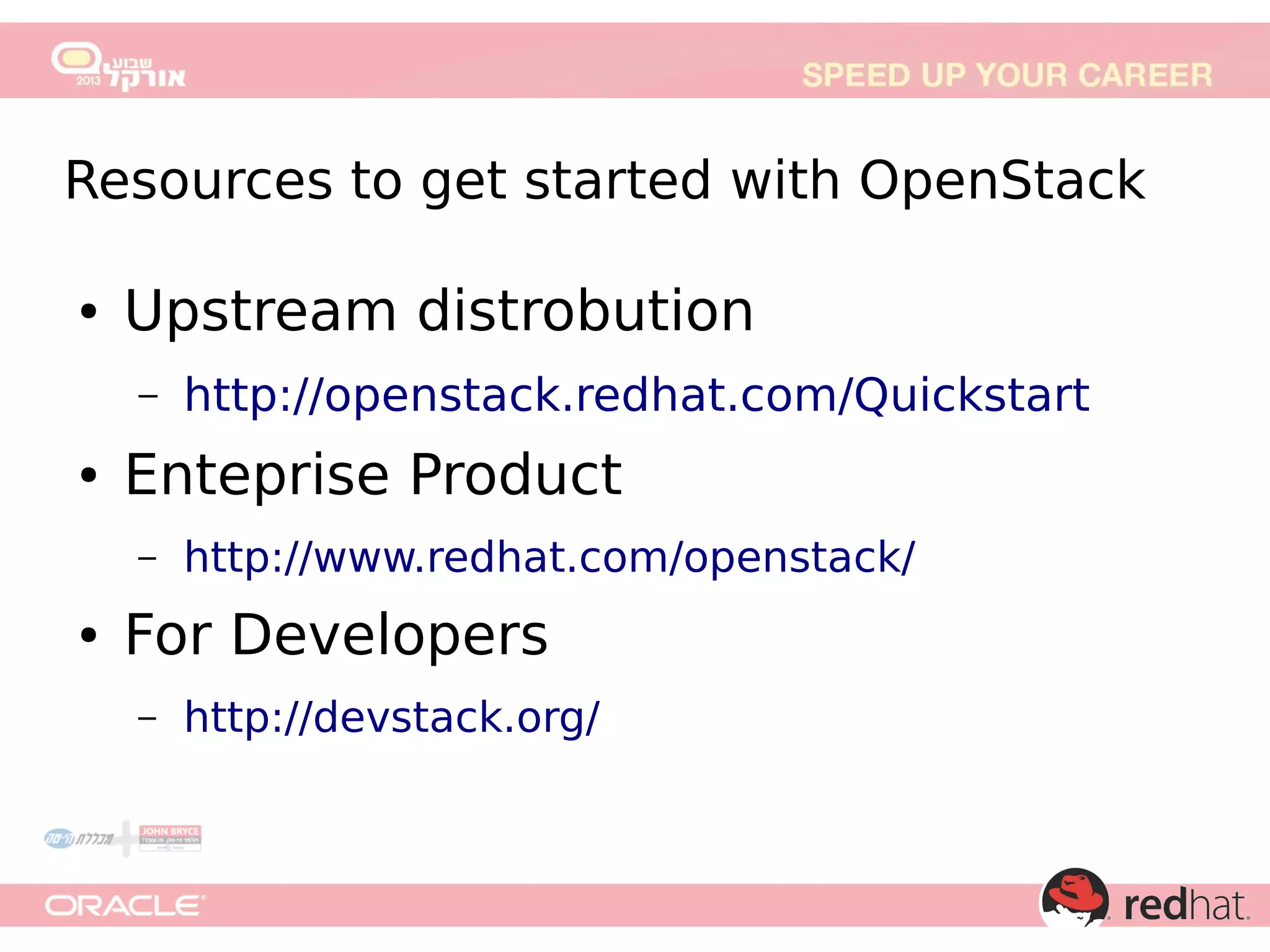

26. Resources to get started with OpenStack
●
Upstream distrobution
–
●
Enteprise Product
–
●
http://openstack.redhat.com/Quickstart
http://www.redhat.com/openstack/
For Developers
–
http://devstack.org/

28. Thank
You
Oh, and we are hiring...
Arthur Berezin
054-2266463
art@redhat.com
