The network layer performs three main functions: 1) Path determination to route packets from source to destination. 2) Switching to move packets through routers. 3) Call setup for some architectures that require establishing a path before data transmission.

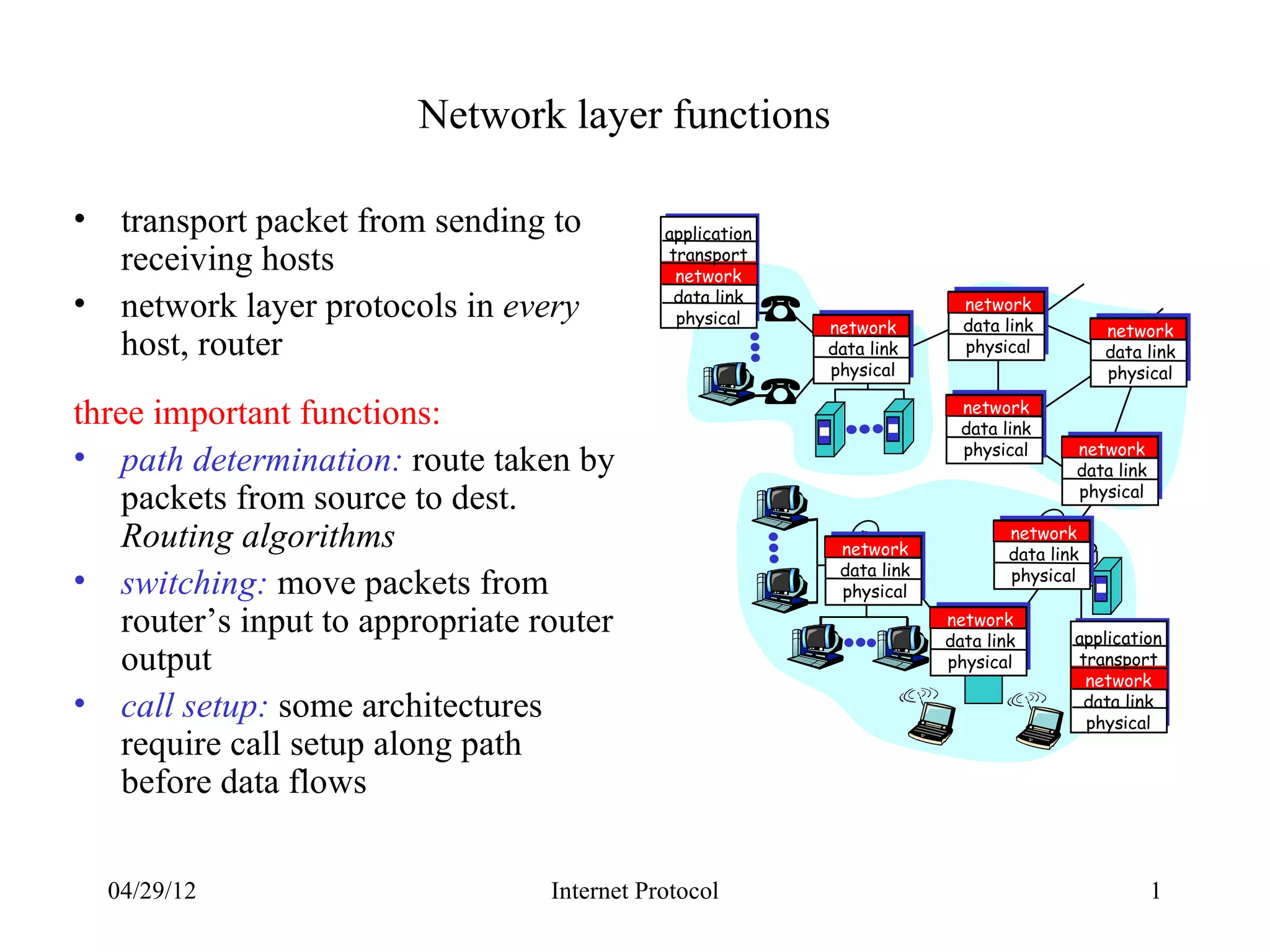

1. Network layer functions
• transport packet from sending to application
receiving hosts transport
network
• network layer protocols in every data link
physical
network
data link
network network
host, router data link physical data link
physical physical
three important functions: network
data link
physical network
• path determination: route taken by data link
packets from source to dest. physical
Routing algorithms network
network
data link
data link
• switching: move packets from physical
physical
router’s input to appropriate router network
data link application
output physical transport
network
• call setup: some architectures data link
physical
require call setup along path
before data flows
04/29/12 Internet Protocol 1

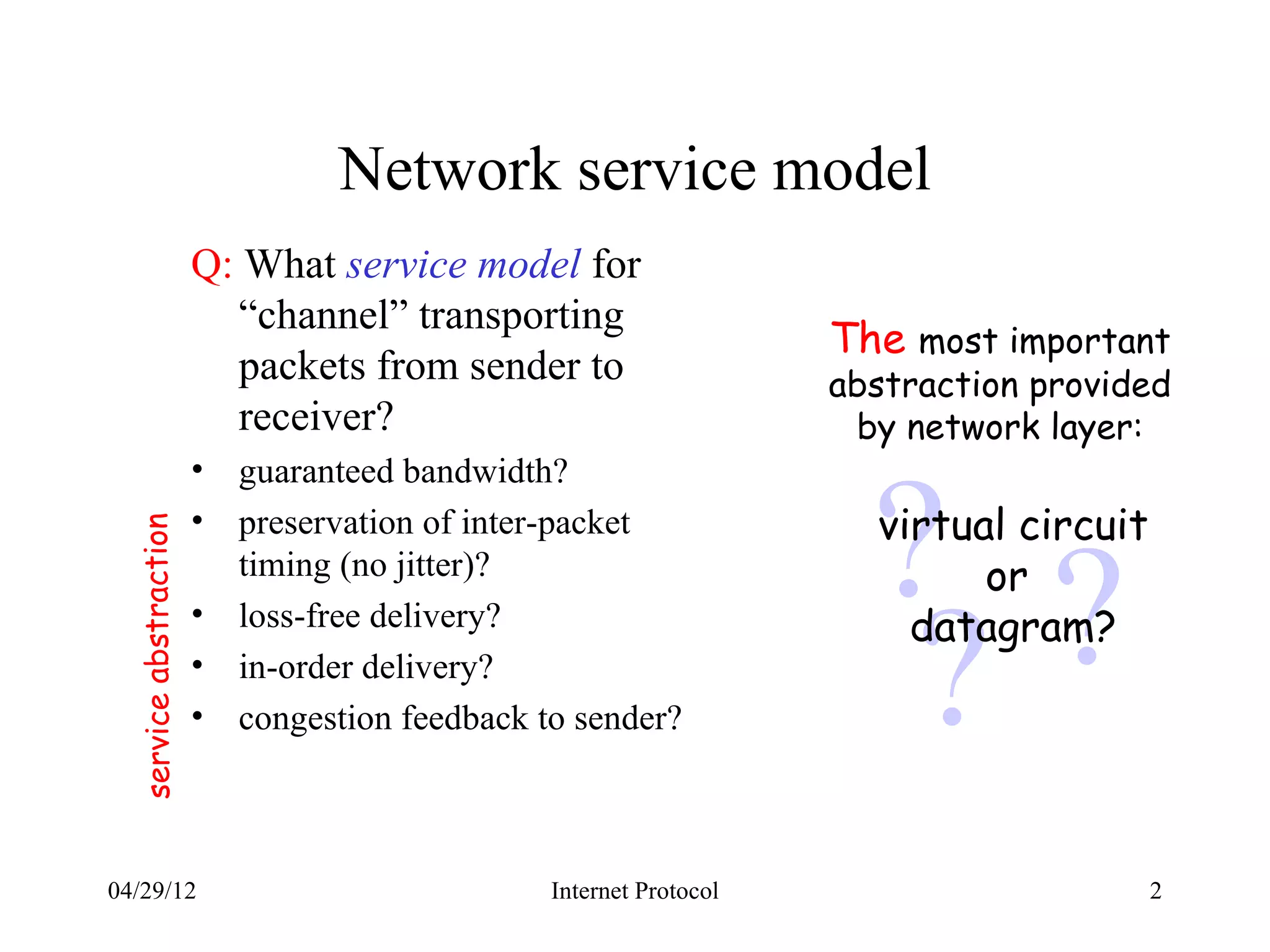

2. Network service model
Q: What service model for
“channel” transporting
The most important
packets from sender to abstraction provided
receiver? by network layer:
? ?
• guaranteed bandwidth?
• preservation of inter-packet virtual circuit
service abstraction
timing (no jitter)? or
?
• loss-free delivery? datagram?
• in-order delivery?
• congestion feedback to sender?
04/29/12 Internet Protocol 2

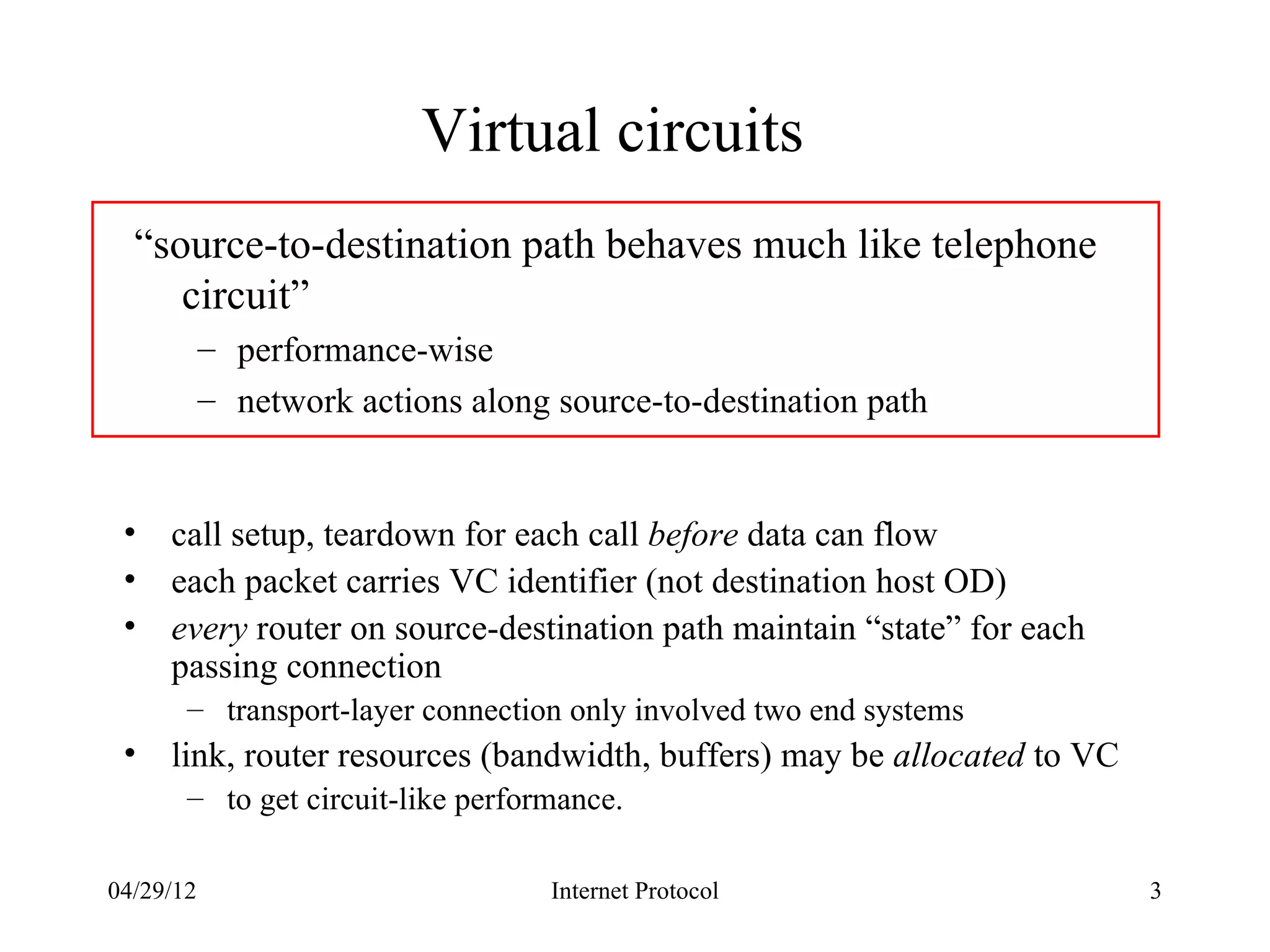

3. Virtual circuits
“source-to-destination path behaves much like telephone
circuit”
– performance-wise
– network actions along source-to-destination path
• call setup, teardown for each call before data can flow
• each packet carries VC identifier (not destination host OD)
• every router on source-destination path maintain “state” for each
passing connection
– transport-layer connection only involved two end systems
• link, router resources (bandwidth, buffers) may be allocated to VC
– to get circuit-like performance.
04/29/12 Internet Protocol 3

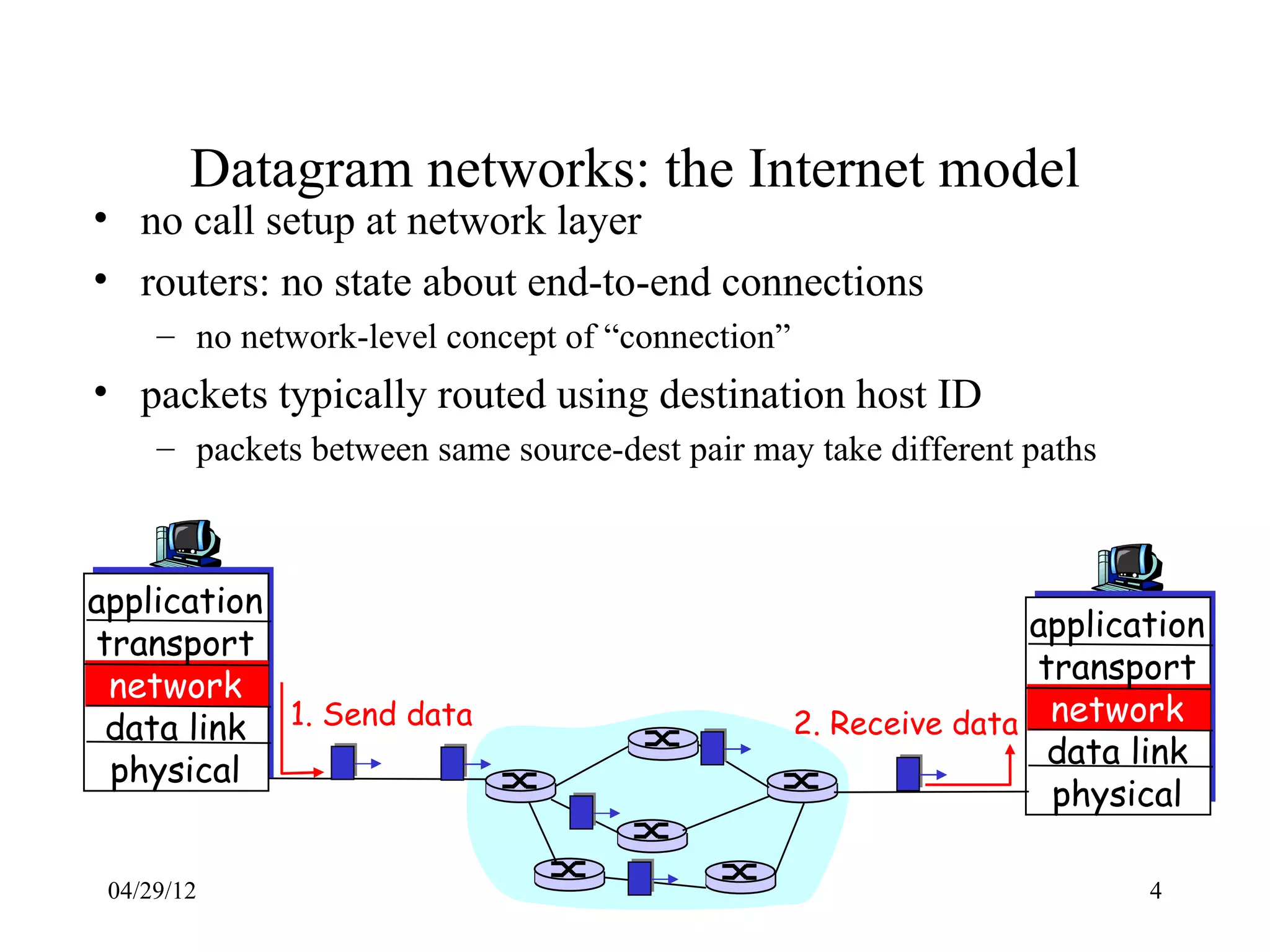

4. Datagram networks: the Internet model
• no call setup at network layer
• routers: no state about end-to-end connections
– no network-level concept of “connection”
• packets typically routed using destination host ID
– packets between same source-dest pair may take different paths
application
application
transport
transport
network
data link 1. Send data 2. Receive data network
data link
physical
physical
04/29/12 Internet Protocol 4

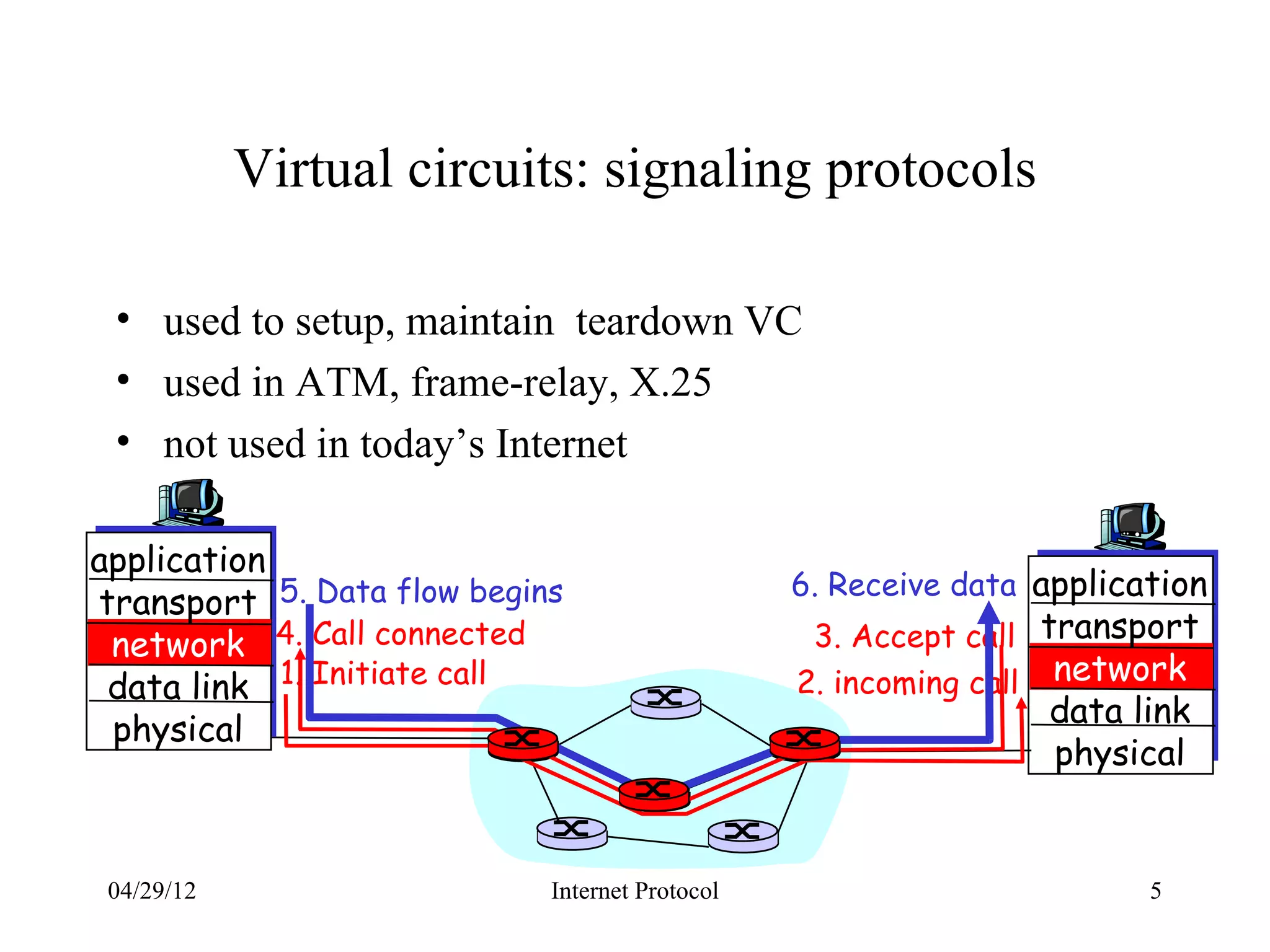

5. Virtual circuits: signaling protocols
• used to setup, maintain teardown VC
• used in ATM, frame-relay, X.25
• not used in today’s Internet
application
6. Receive data application
transport 5. Data flow begins
network 4. Call connected 3. Accept call transport
data link 1. Initiate call 2. incoming call network
data link
physical
physical
04/29/12 Internet Protocol 5

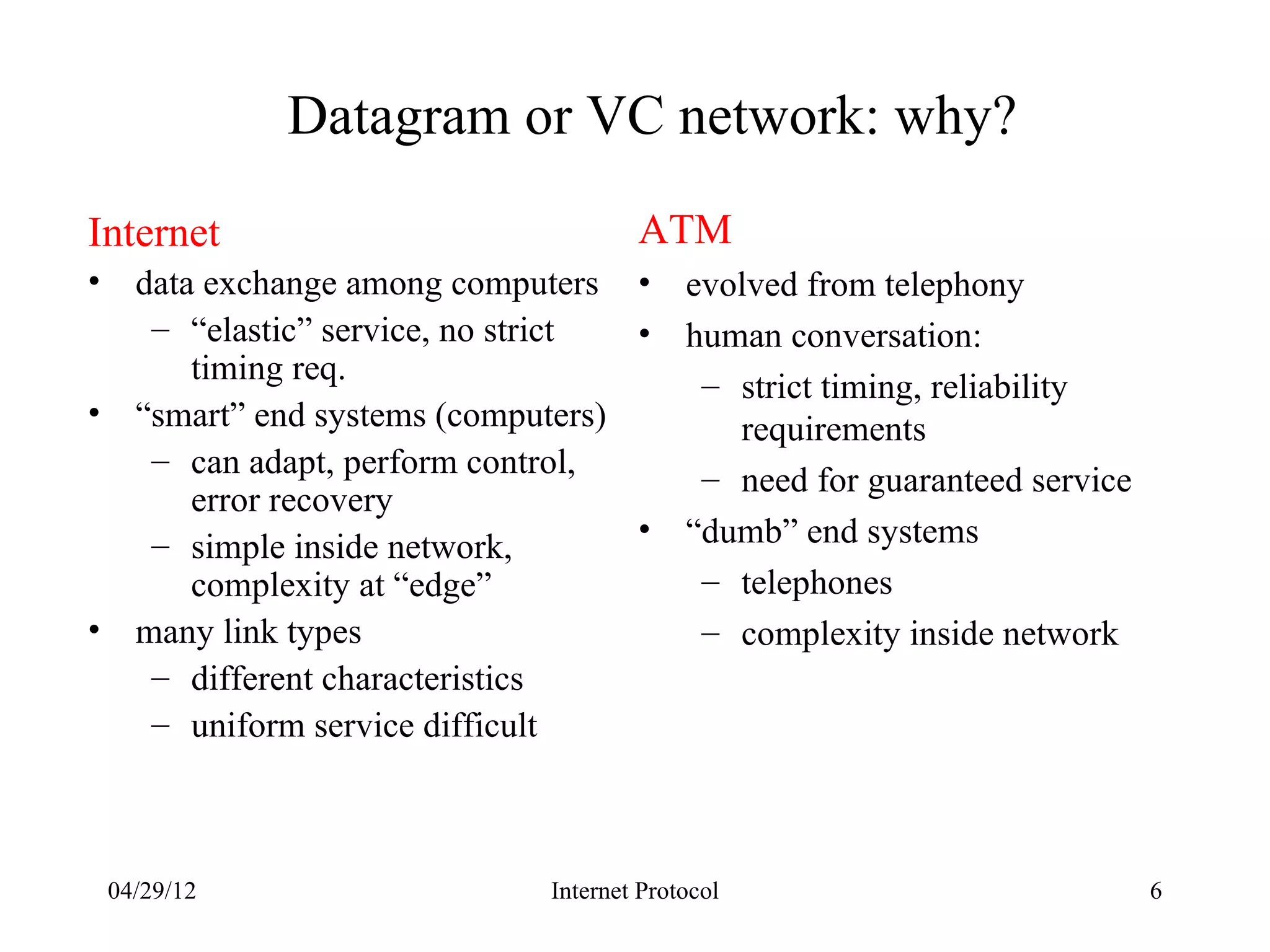

6. Datagram or VC network: why?
Internet ATM
• data exchange among computers • evolved from telephony
– “elastic” service, no strict • human conversation:
timing req. – strict timing, reliability
• “smart” end systems (computers) requirements
– can adapt, perform control,
– need for guaranteed service
error recovery
– simple inside network, • “dumb” end systems
complexity at “edge” – telephones
• many link types – complexity inside network
– different characteristics
– uniform service difficult
04/29/12 Internet Protocol 6

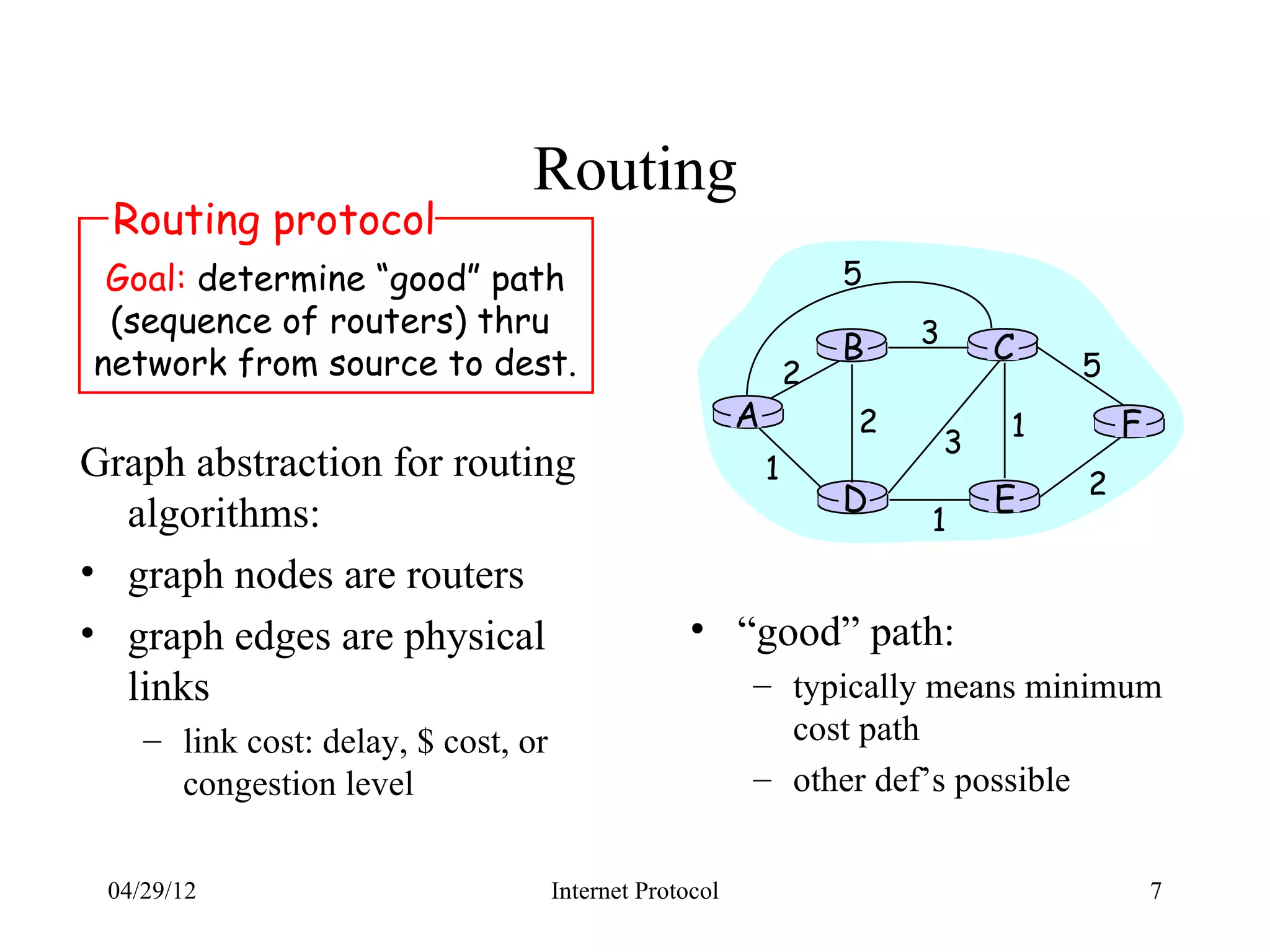

7. Routing
Routing protocol
Goal: determine “good” path 5
(sequence of routers) thru 3
network from source to dest. B C 5
2
A 2 1 F
3
Graph abstraction for routing 1 2
algorithms: D E
1
• graph nodes are routers
• graph edges are physical • “good” path:
links – typically means minimum
– link cost: delay, $ cost, or cost path
congestion level – other def’s possible
04/29/12 Internet Protocol 7

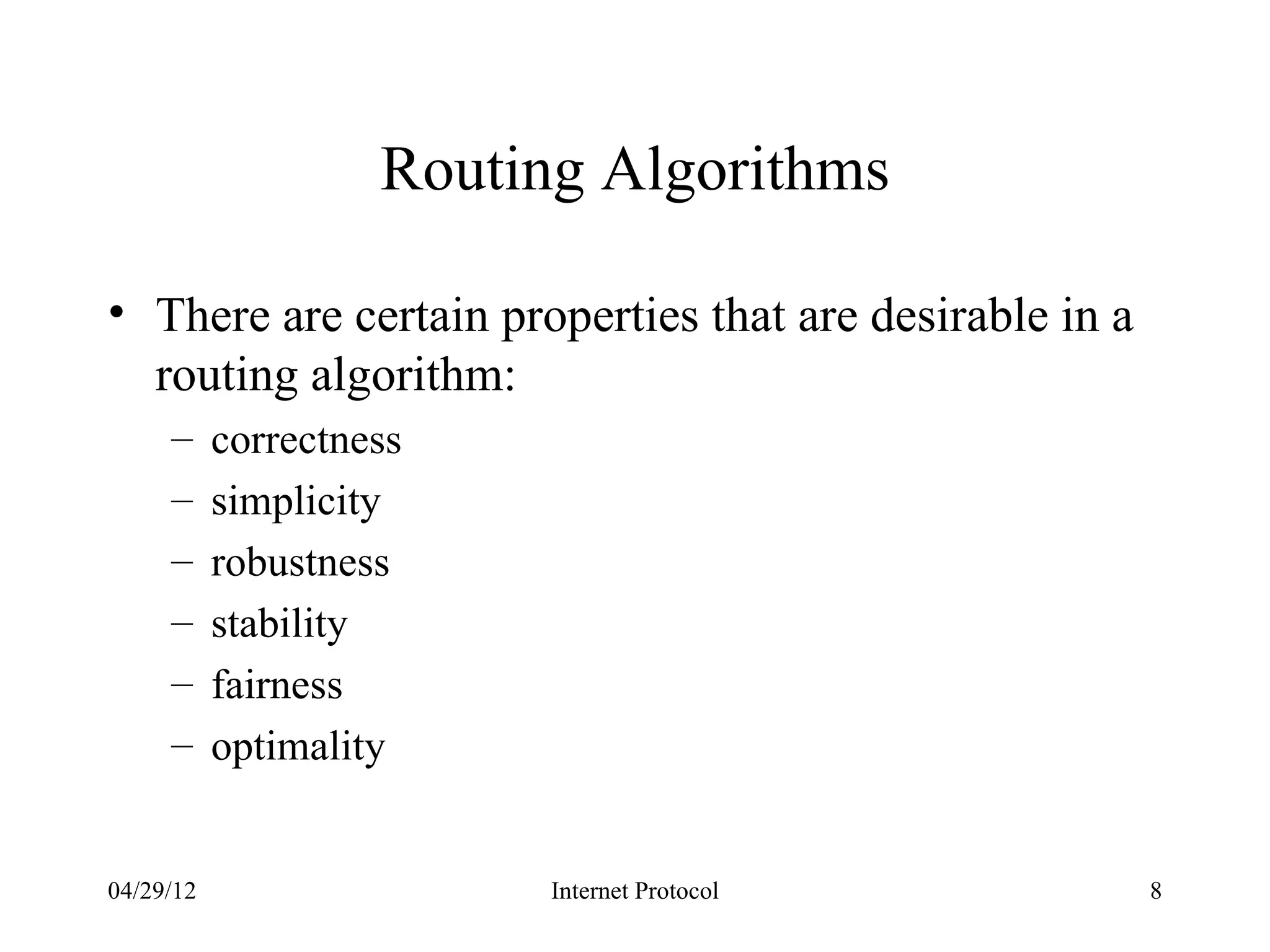

8. Routing Algorithms
• There are certain properties that are desirable in a
routing algorithm:
– correctness
– simplicity
– robustness
– stability
– fairness
– optimality
04/29/12 Internet Protocol 8

9. Routing Algorithm classification
Global or decentralized Static or dynamic?
information? Static:
Global: • routes change slowly over time
• all routers have complete Dynamic:
topology, link cost info • routes change more quickly
• “link state” algorithms – periodic update
Decentralized: – in response to link cost
• router knows physically- changes
connected neighbors, link costs
to neighbors
• iterative process of computation,
exchange of info with neighbors
• “distance vector” algorithms
04/29/12 Internet Protocol 9

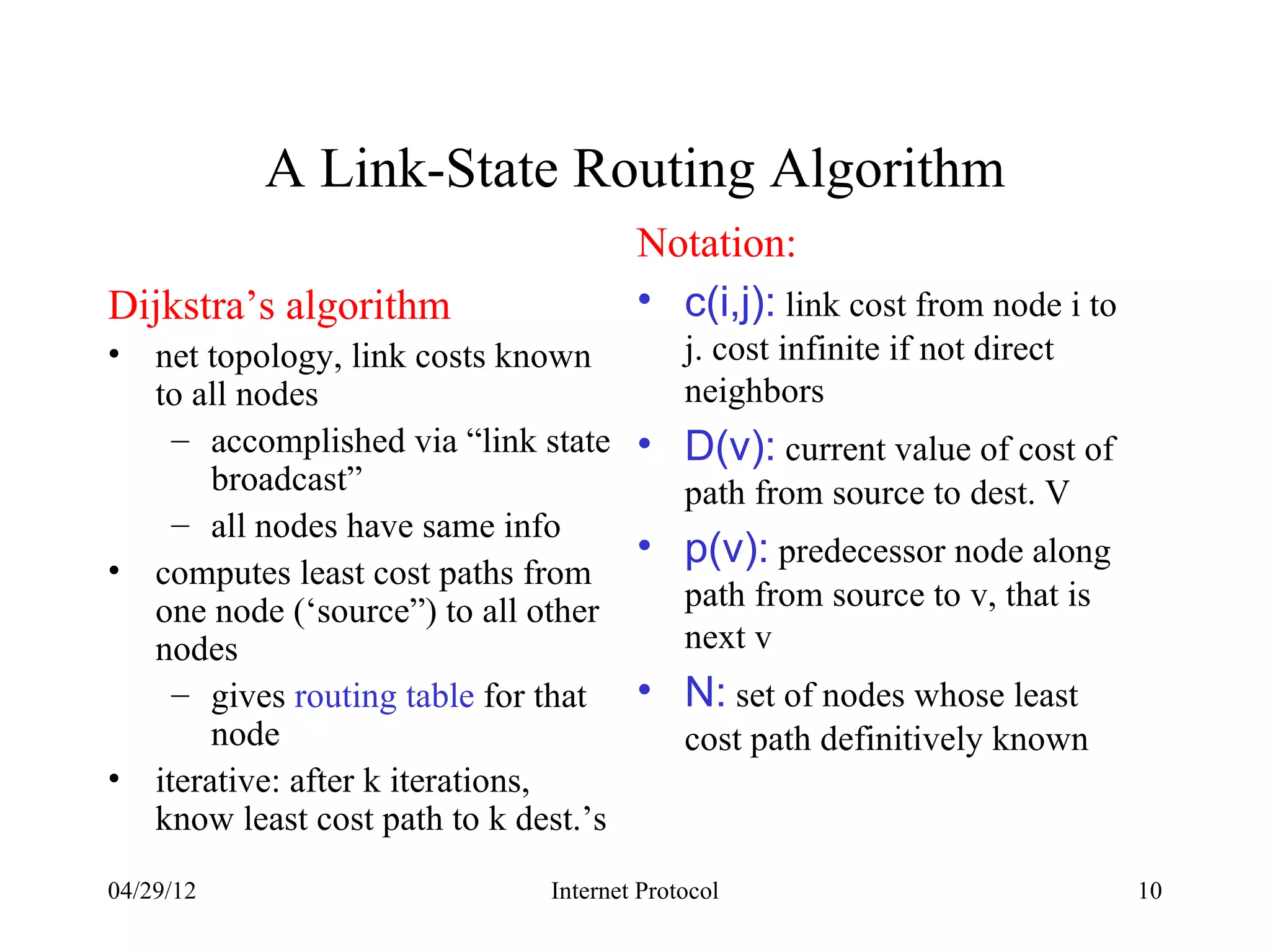

10. A Link-State Routing Algorithm
Notation:
Dijkstra’s algorithm • c(i,j): link cost from node i to
• net topology, link costs known j. cost infinite if not direct
to all nodes neighbors
– accomplished via “link state • D(v): current value of cost of
broadcast” path from source to dest. V
– all nodes have same info
• p(v): predecessor node along
• computes least cost paths from
one node (‘source”) to all other path from source to v, that is
nodes next v
– gives routing table for that • N: set of nodes whose least
node cost path definitively known
• iterative: after k iterations,
know least cost path to k dest.’s
04/29/12 Internet Protocol 10

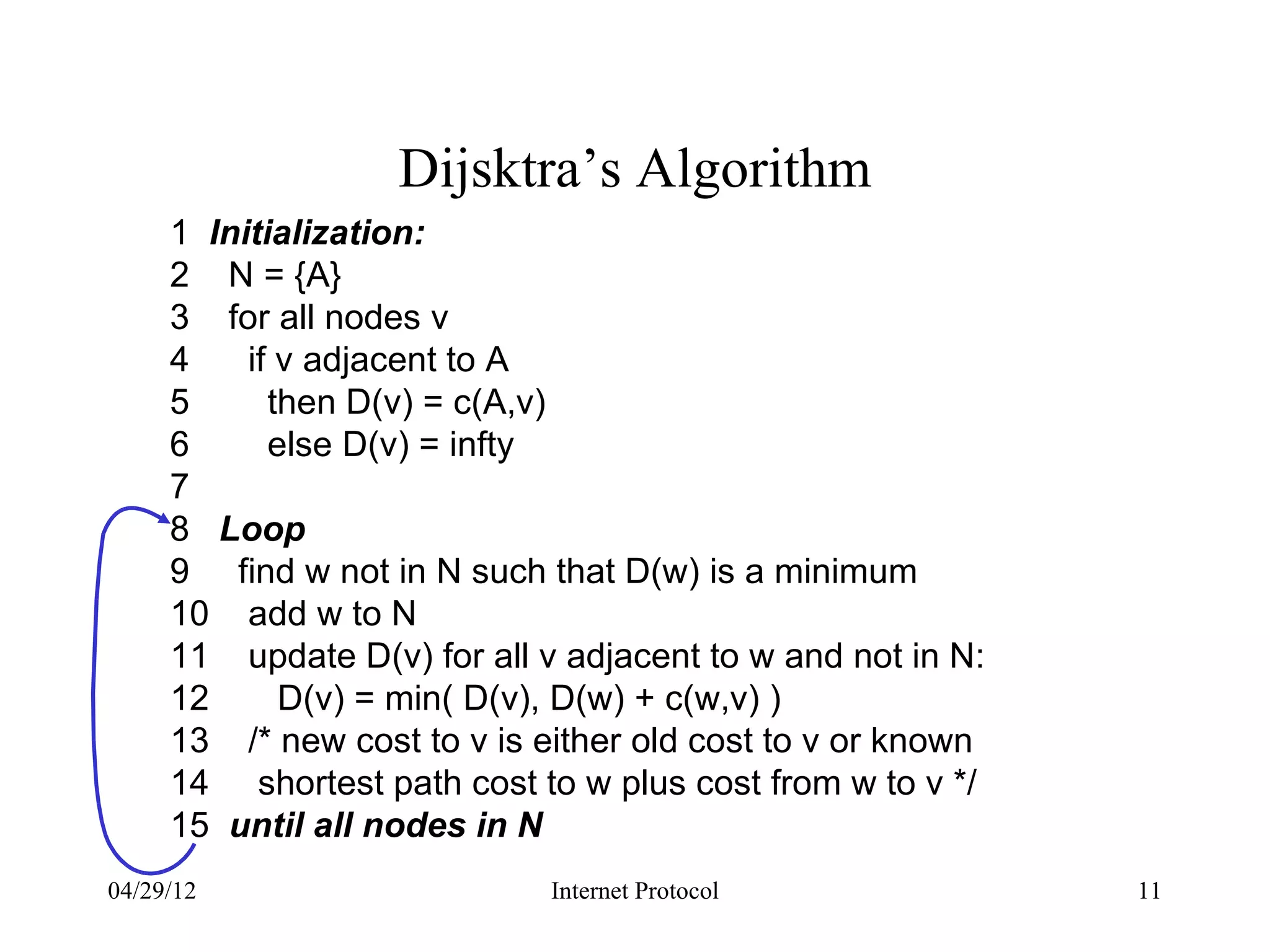

11. Dijsktra’s Algorithm
1 Initialization:
2 N = {A}
3 for all nodes v
4 if v adjacent to A
5 then D(v) = c(A,v)
6 else D(v) = infty
7
8 Loop
9 find w not in N such that D(w) is a minimum
10 add w to N
11 update D(v) for all v adjacent to w and not in N:
12 D(v) = min( D(v), D(w) + c(w,v) )
13 /* new cost to v is either old cost to v or known
14 shortest path cost to w plus cost from w to v */
15 until all nodes in N
04/29/12 Internet Protocol 11

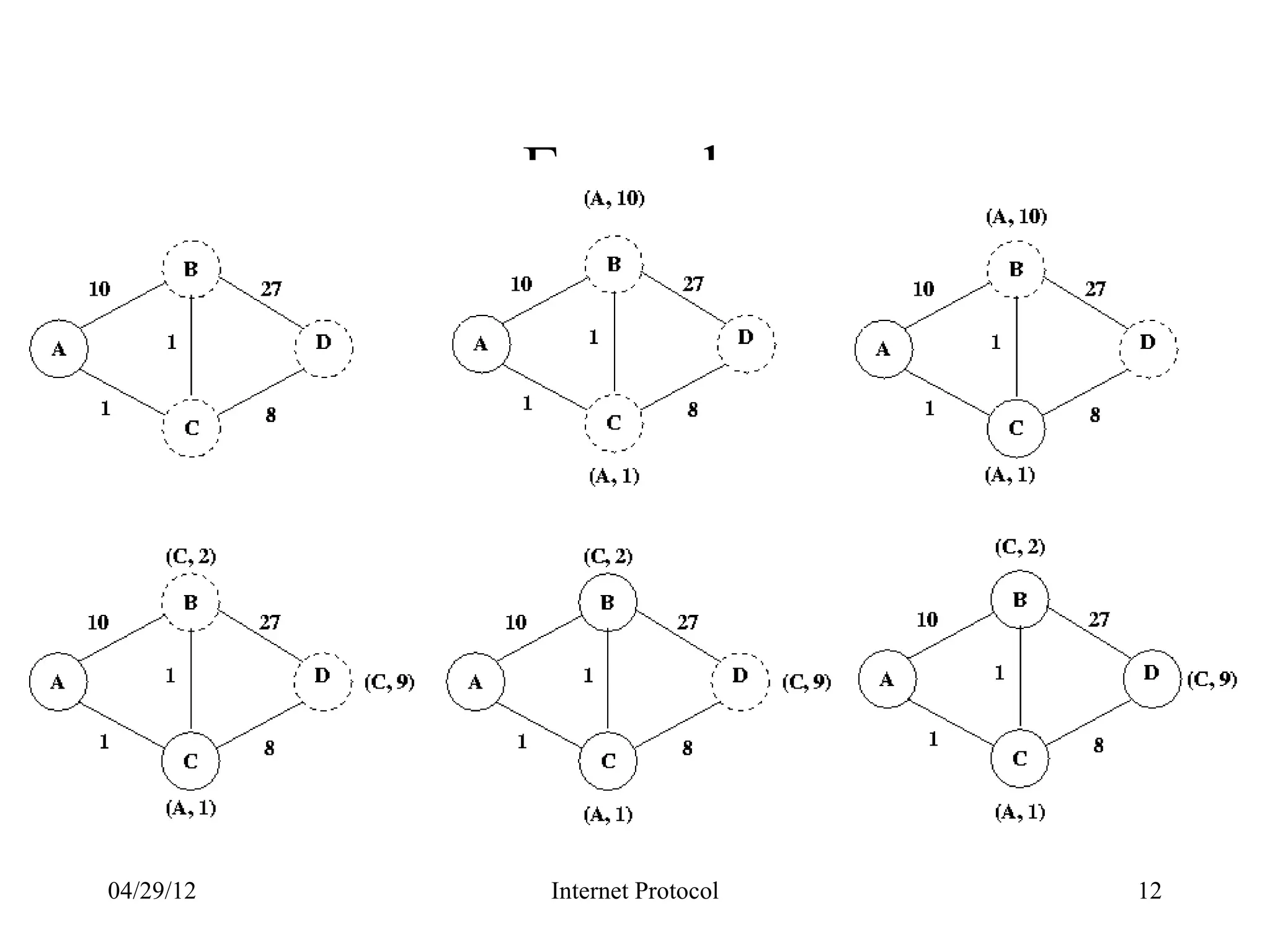

12. Example
04/29/12 Internet Protocol 12

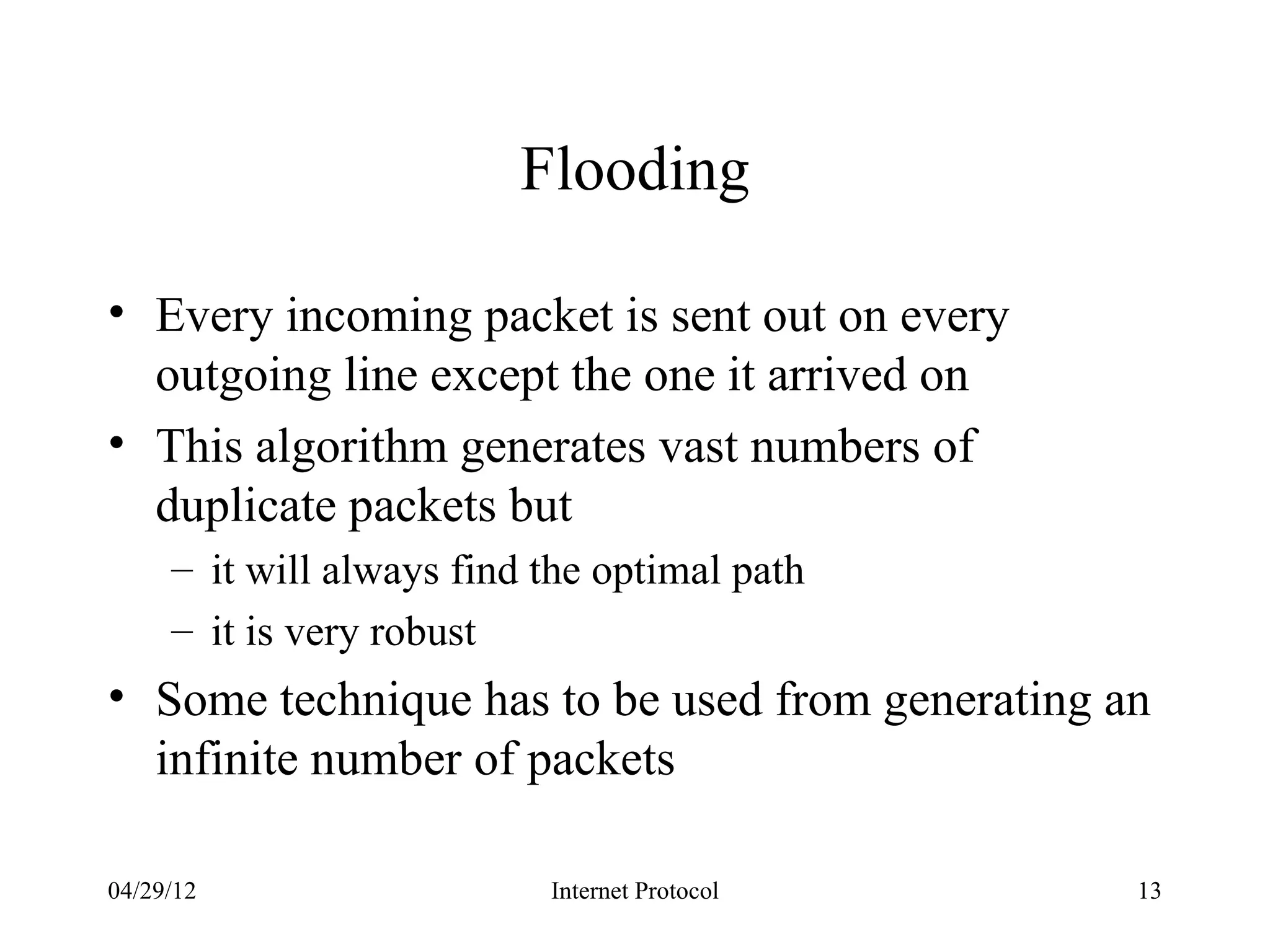

13. Flooding
• Every incoming packet is sent out on every
outgoing line except the one it arrived on
• This algorithm generates vast numbers of
duplicate packets but
– it will always find the optimal path
– it is very robust
• Some technique has to be used from generating an
infinite number of packets
04/29/12 Internet Protocol 13

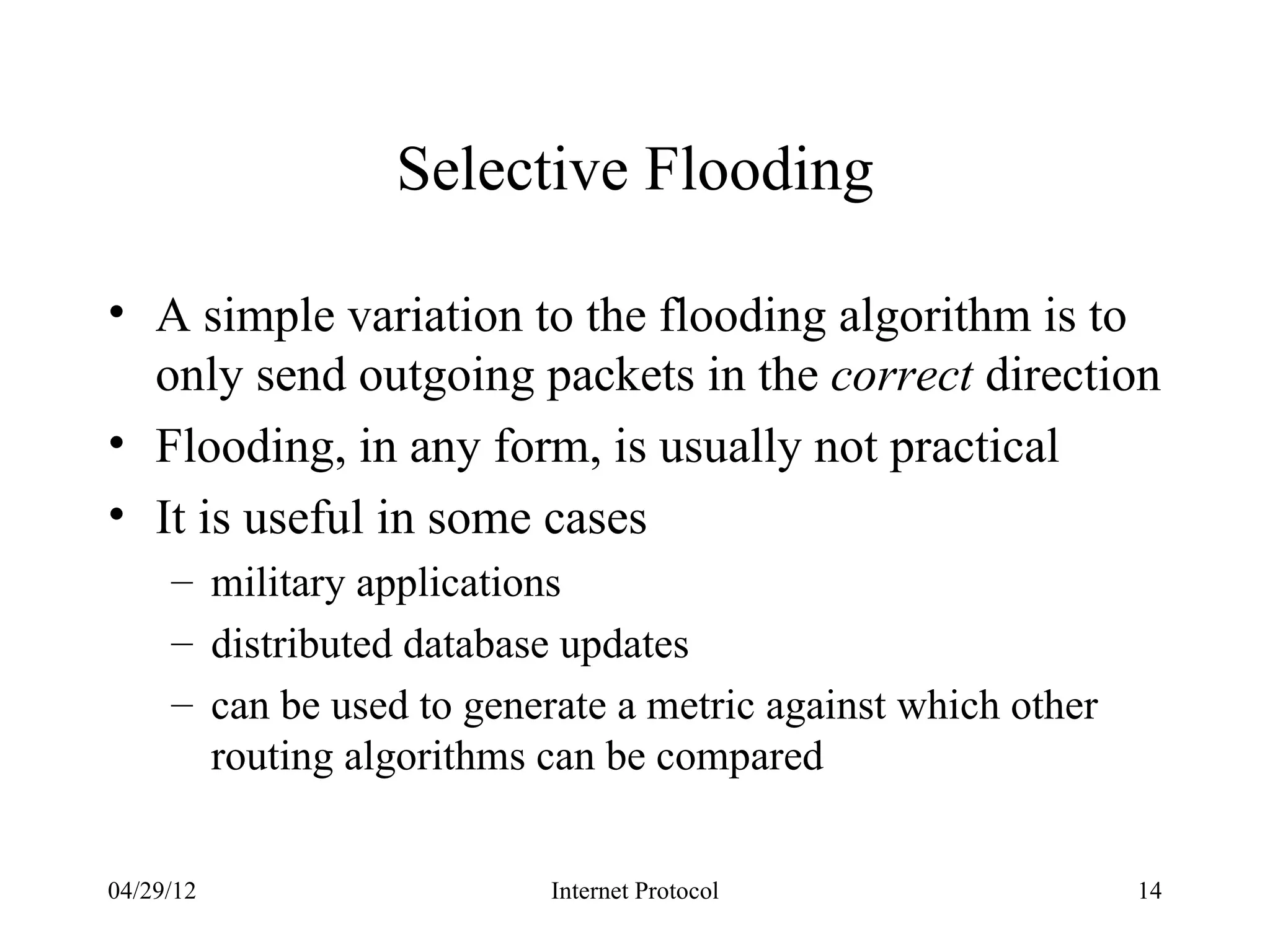

14. Selective Flooding
• A simple variation to the flooding algorithm is to
only send outgoing packets in the correct direction
• Flooding, in any form, is usually not practical
• It is useful in some cases
– military applications
– distributed database updates
– can be used to generate a metric against which other
routing algorithms can be compared
04/29/12 Internet Protocol 14

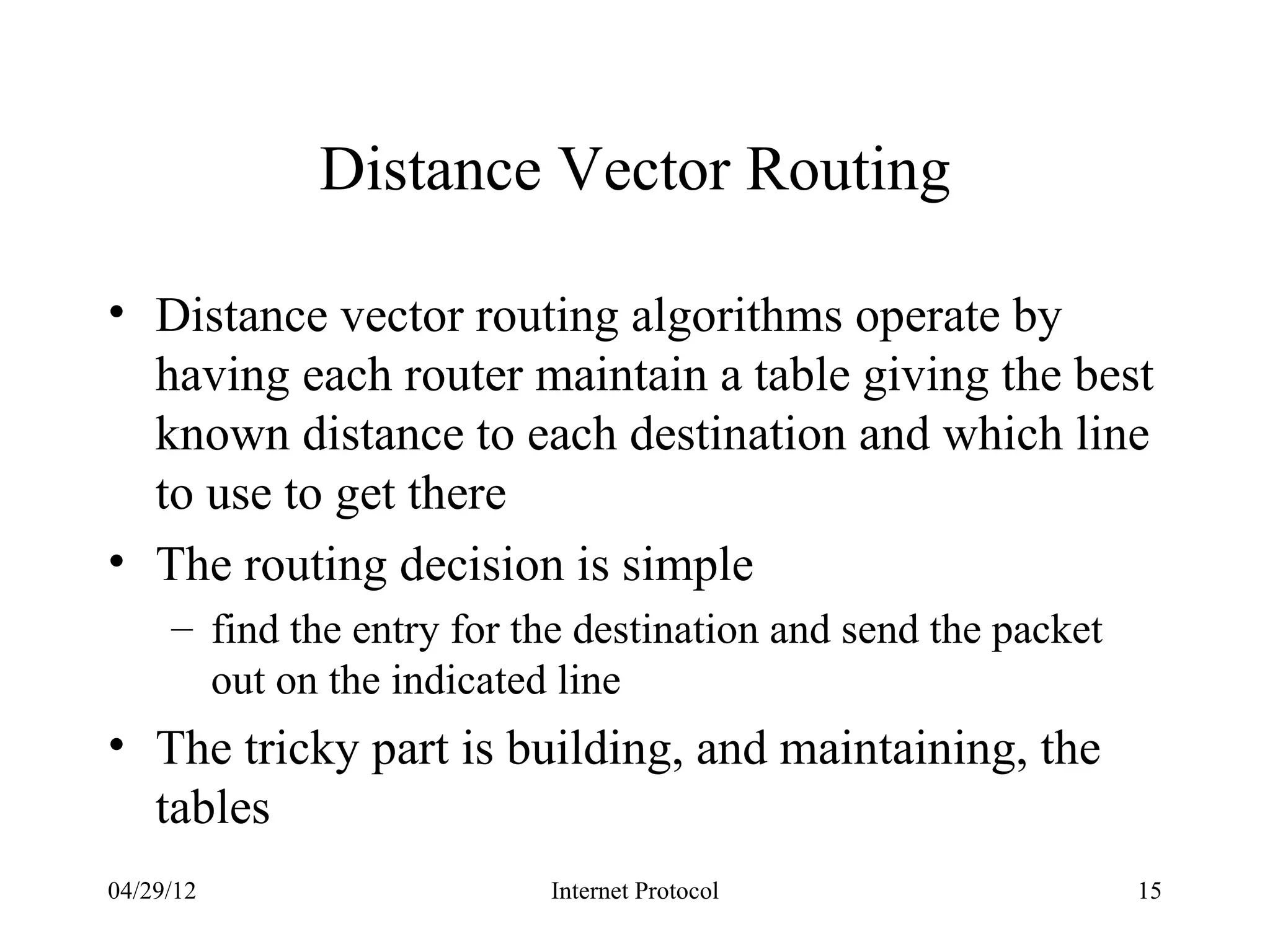

15. Distance Vector Routing
• Distance vector routing algorithms operate by
having each router maintain a table giving the best
known distance to each destination and which line
to use to get there
• The routing decision is simple
– find the entry for the destination and send the packet
out on the indicated line
• The tricky part is building, and maintaining, the
tables
04/29/12 Internet Protocol 15

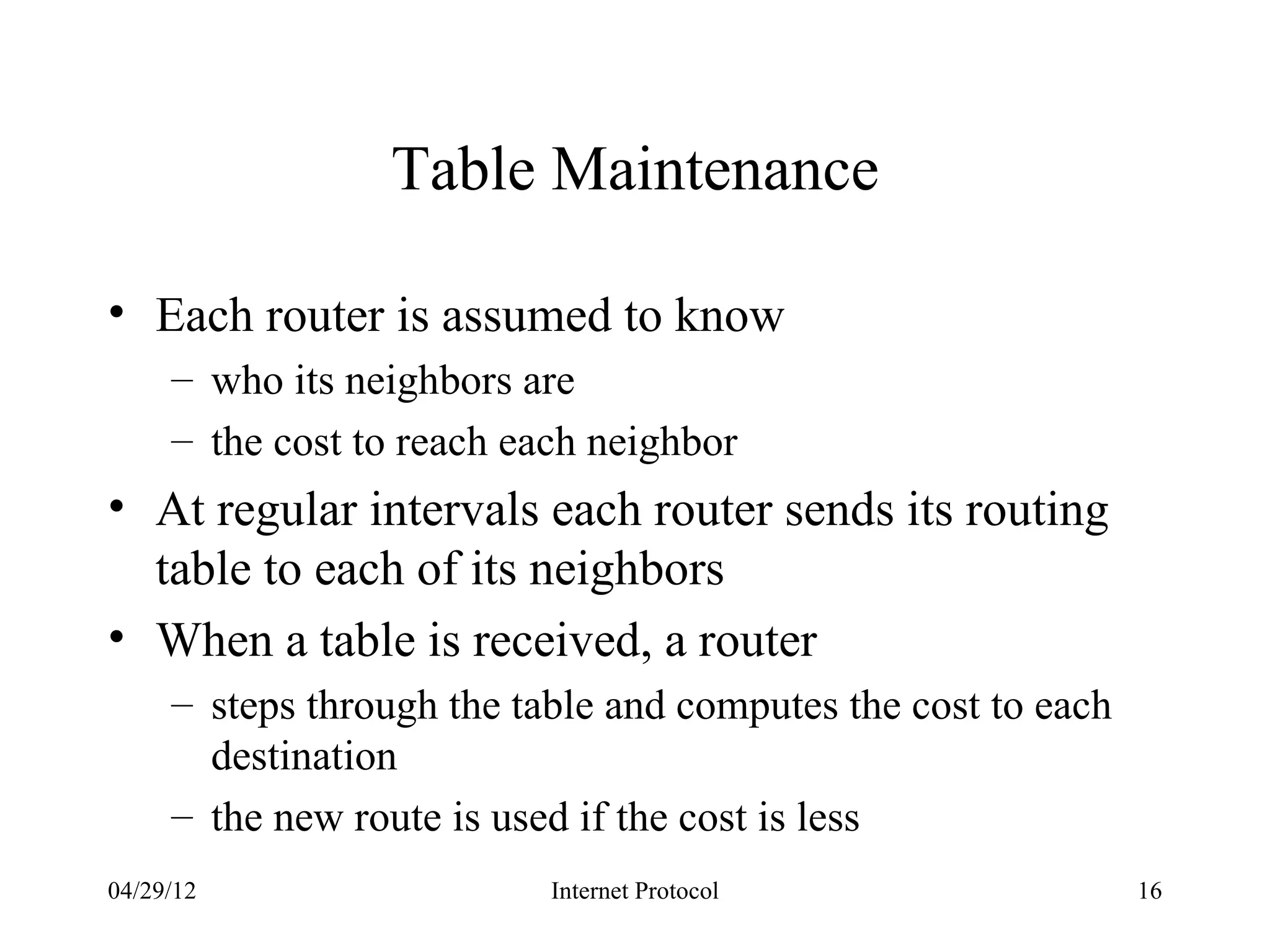

16. Table Maintenance
• Each router is assumed to know
– who its neighbors are
– the cost to reach each neighbor
• At regular intervals each router sends its routing
table to each of its neighbors
• When a table is received, a router
– steps through the table and computes the cost to each
destination
– the new route is used if the cost is less
04/29/12 Internet Protocol 16

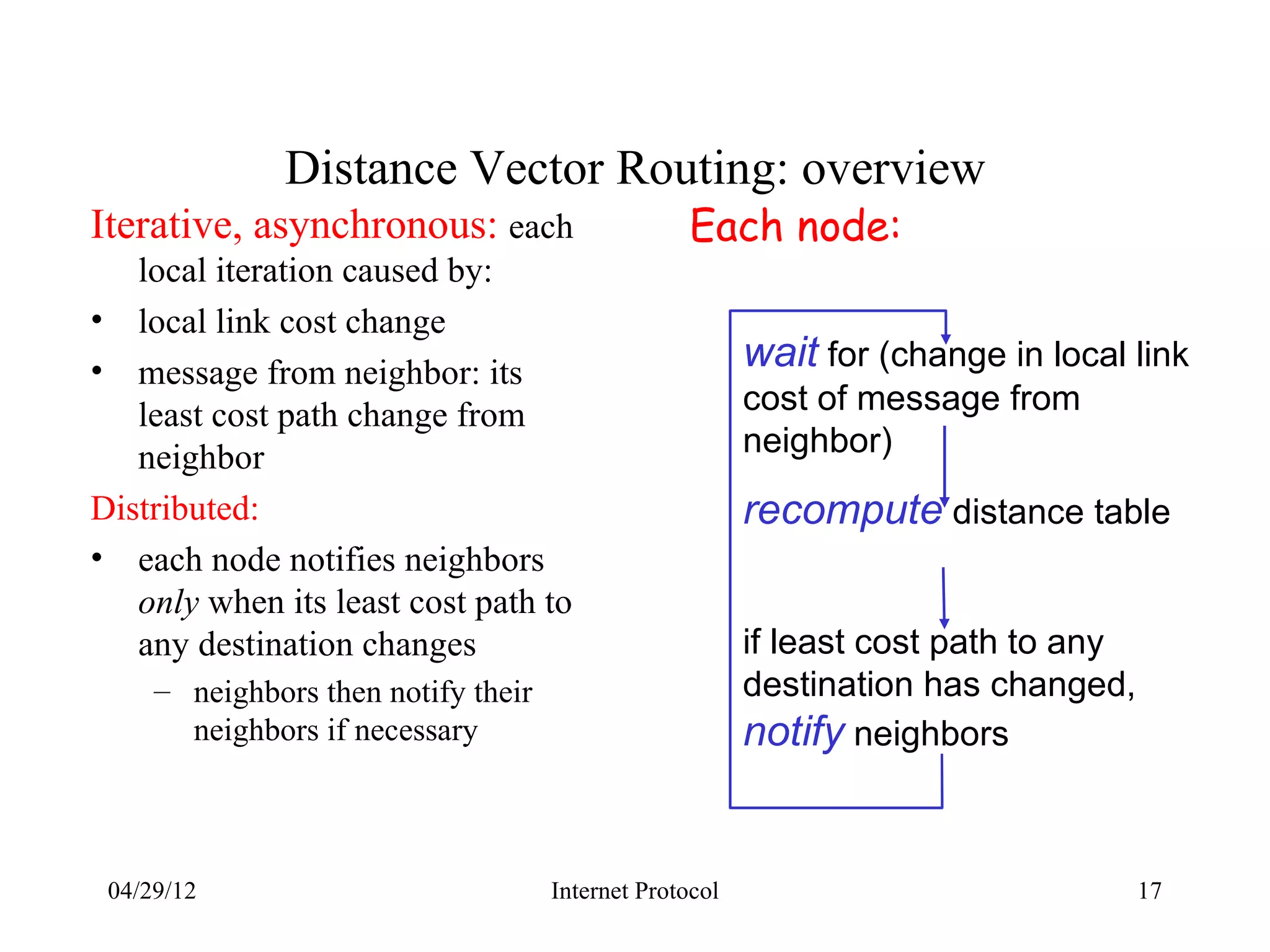

17. Distance Vector Routing: overview
Iterative, asynchronous: each Each node:
local iteration caused by:
• local link cost change
• message from neighbor: its wait for (change in local link
least cost path change from cost of message from
neighbor neighbor)
Distributed: recompute distance table
• each node notifies neighbors
only when its least cost path to
any destination changes if least cost path to any
– neighbors then notify their destination has changed,
neighbors if necessary notify neighbors
04/29/12 Internet Protocol 17

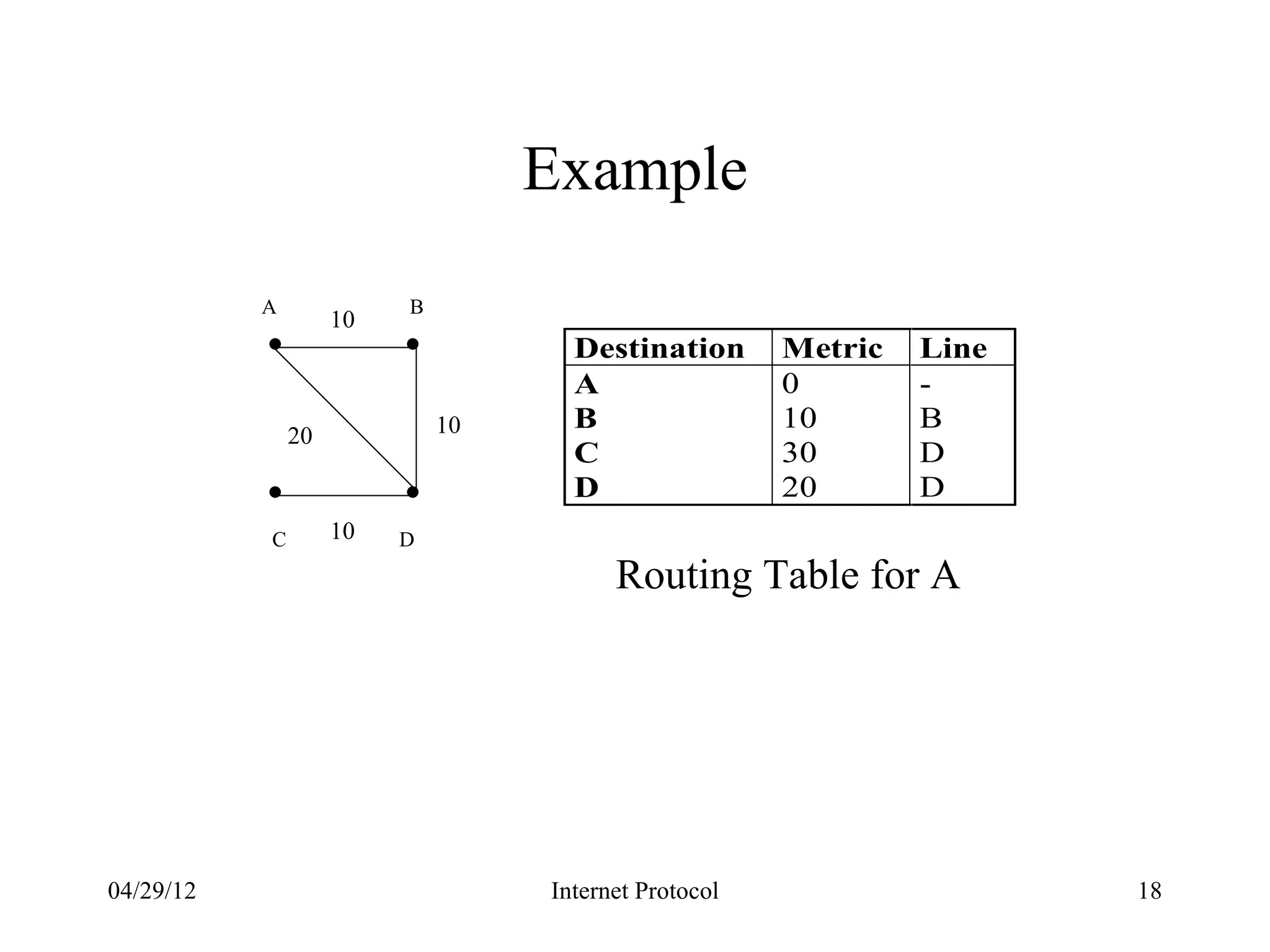

18. Example
A B
10
Destination Metric Line
A 0 -
10 B 10 B
20
C 30 D
D 20 D
C 10 D
Routing Table for A
04/29/12 Internet Protocol 18

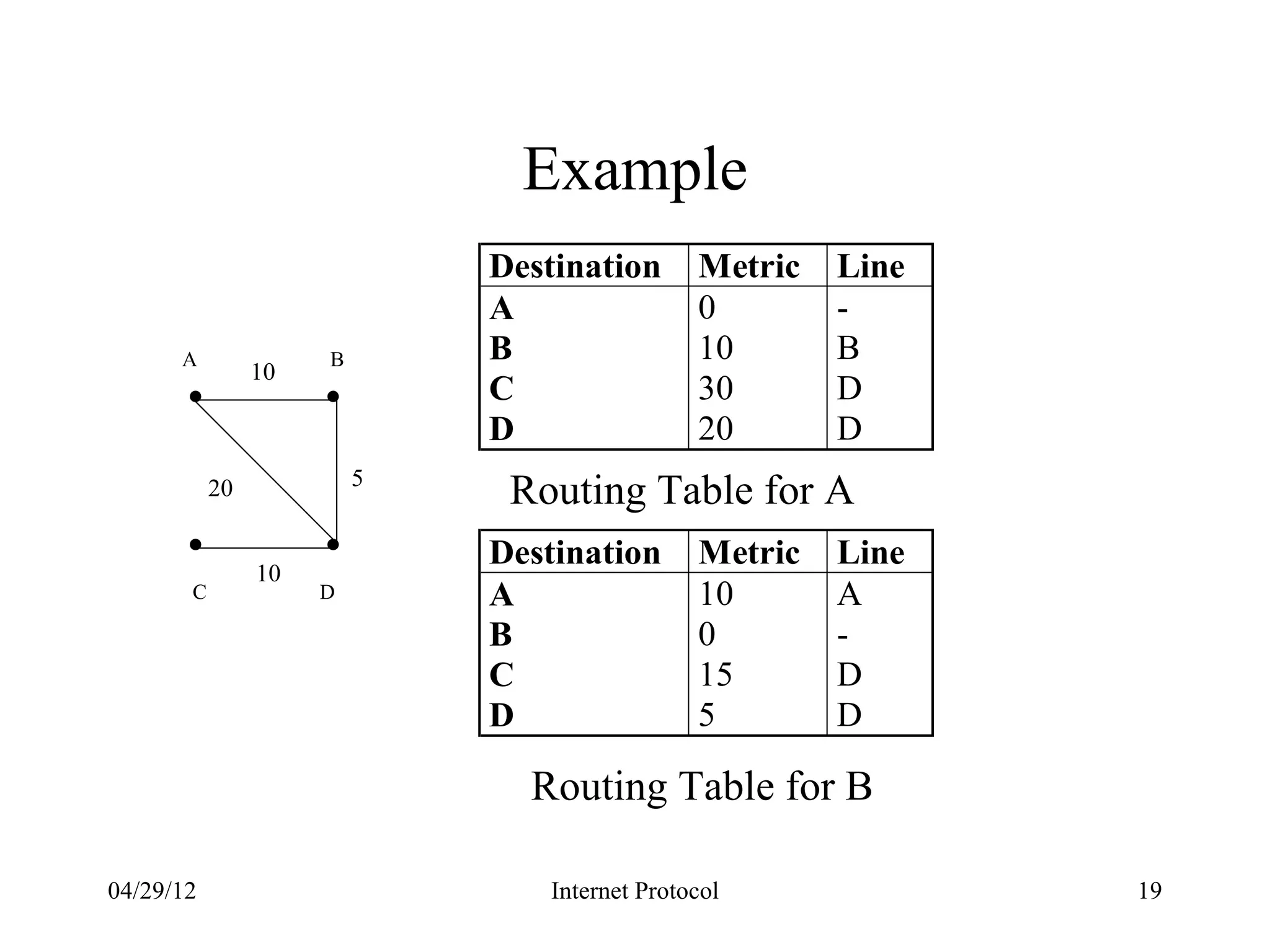

19. Example
Destination Metric Line
A 0 -
A B B 10 B
10
C 30 D
D 20 D
5
20 Routing Table for A
Destination Metric Line
10
C D A 10 A
B 0 -
C 15 D
D 5 D
Routing Table for B
04/29/12 Internet Protocol 19

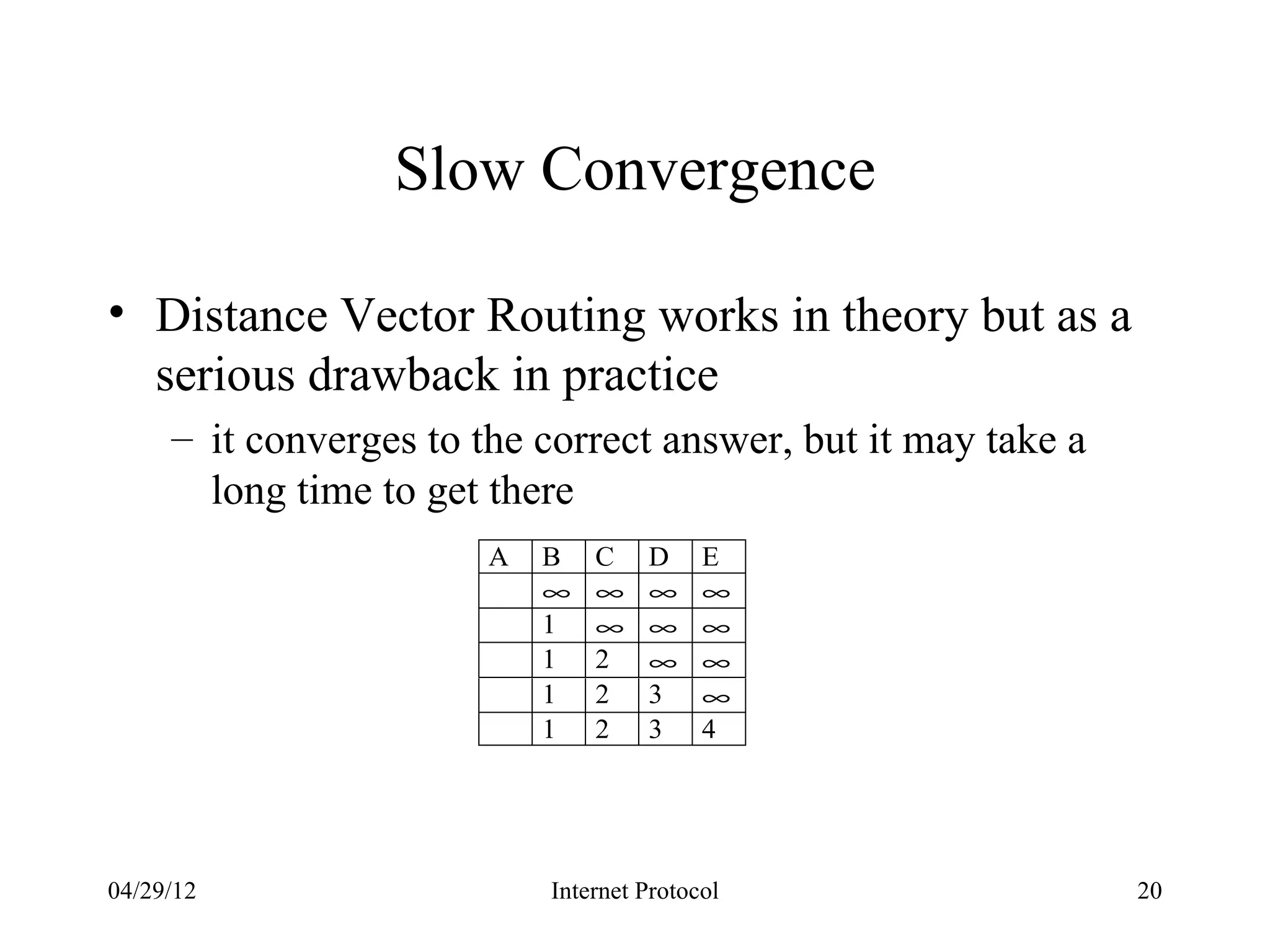

20. Slow Convergence
• Distance Vector Routing works in theory but as a
serious drawback in practice
– it converges to the correct answer, but it may take a
long time to get there
A B C D E
∞ ∞ ∞ ∞
1 ∞ ∞ ∞
1 2 ∞ ∞
1 2 3 ∞
1 2 3 4
04/29/12 Internet Protocol 20

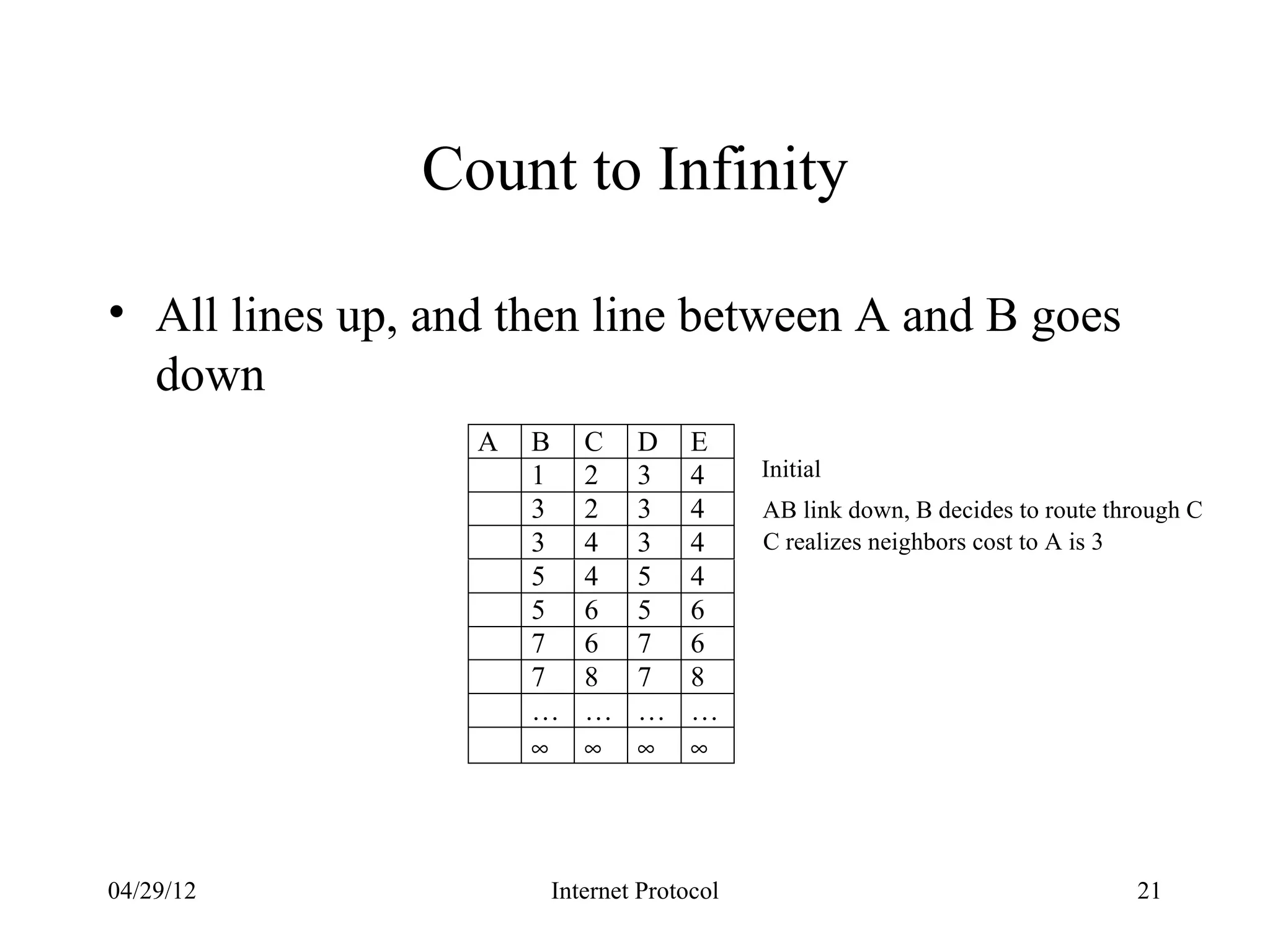

21. Count to Infinity
• All lines up, and then line between A and B goes
down
A B C D E
1 2 3 4 Initial
3 2 3 4 AB link down, B decides to route through C
3 4 3 4 C realizes neighbors cost to A is 3
5 4 5 4
5 6 5 6
7 6 7 6
7 8 7 8
… … … …
∞ ∞ ∞ ∞
04/29/12 Internet Protocol 21

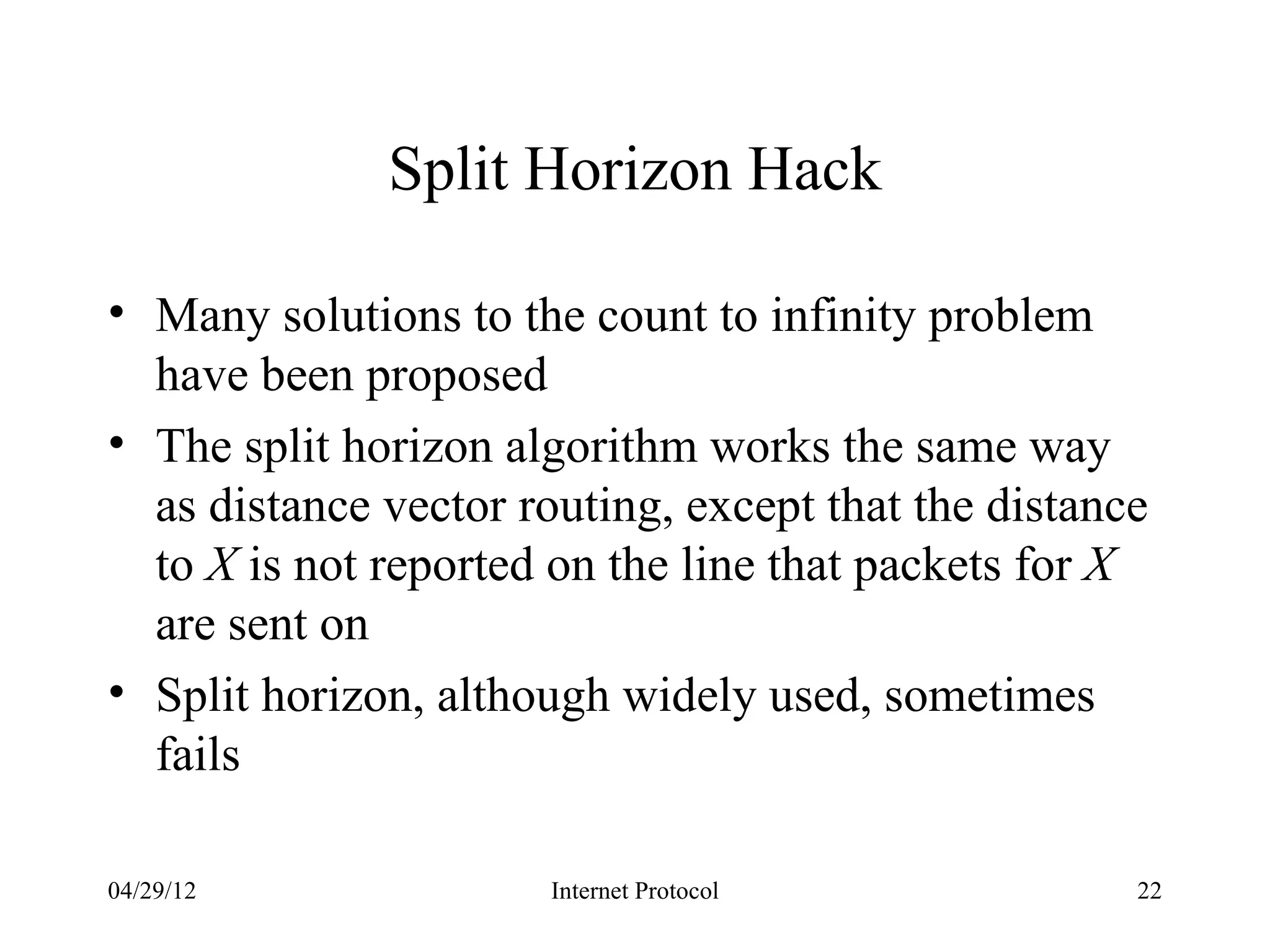

22. Split Horizon Hack
• Many solutions to the count to infinity problem
have been proposed
• The split horizon algorithm works the same way
as distance vector routing, except that the distance
to X is not reported on the line that packets for X
are sent on
• Split horizon, although widely used, sometimes
fails
04/29/12 Internet Protocol 22

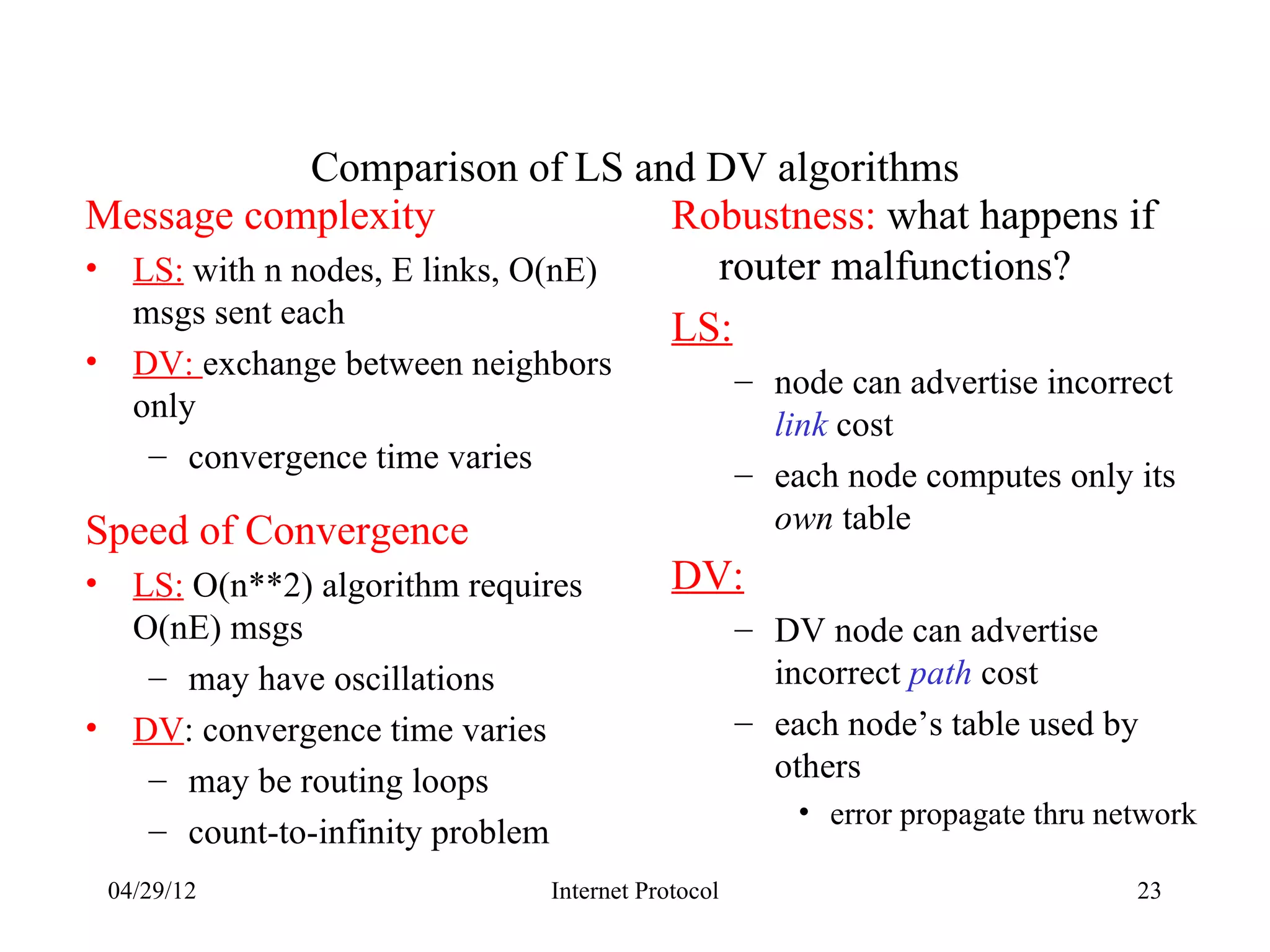

23. Comparison of LS and DV algorithms
Message complexity Robustness: what happens if
• LS: with n nodes, E links, O(nE) router malfunctions?
msgs sent each LS:
• DV: exchange between neighbors – node can advertise incorrect
only
link cost
– convergence time varies
– each node computes only its
Speed of Convergence own table
• LS: O(n**2) algorithm requires DV:
O(nE) msgs – DV node can advertise
– may have oscillations incorrect path cost
• DV: convergence time varies – each node’s table used by
– may be routing loops others
• error propagate thru network
– count-to-infinity problem
04/29/12 Internet Protocol 23

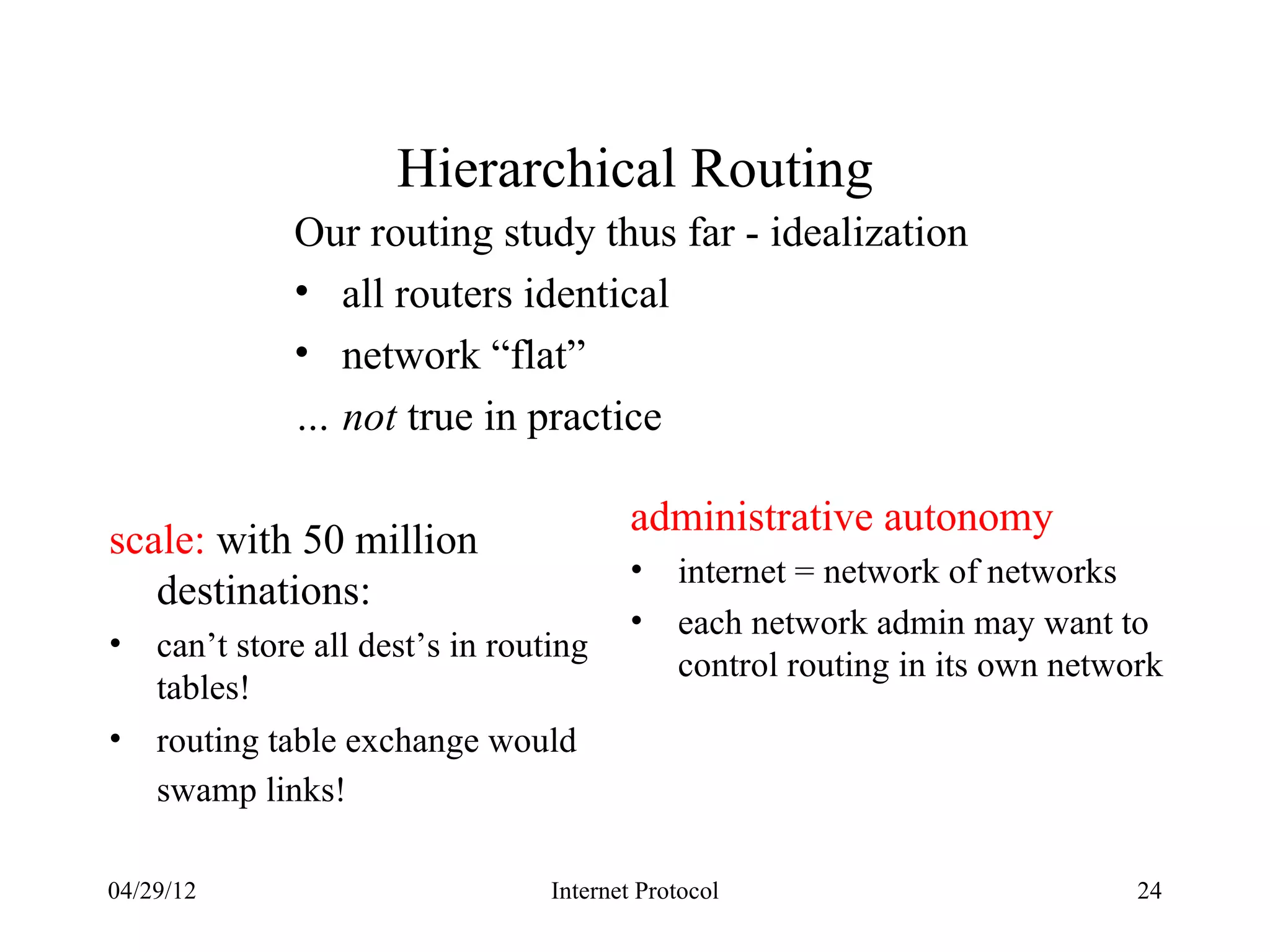

24. Hierarchical Routing
Our routing study thus far - idealization
• all routers identical
• network “flat”
… not true in practice
administrative autonomy
scale: with 50 million
• internet = network of networks
destinations:
• each network admin may want to
• can’t store all dest’s in routing
control routing in its own network
tables!
• routing table exchange would
swamp links!
04/29/12 Internet Protocol 24

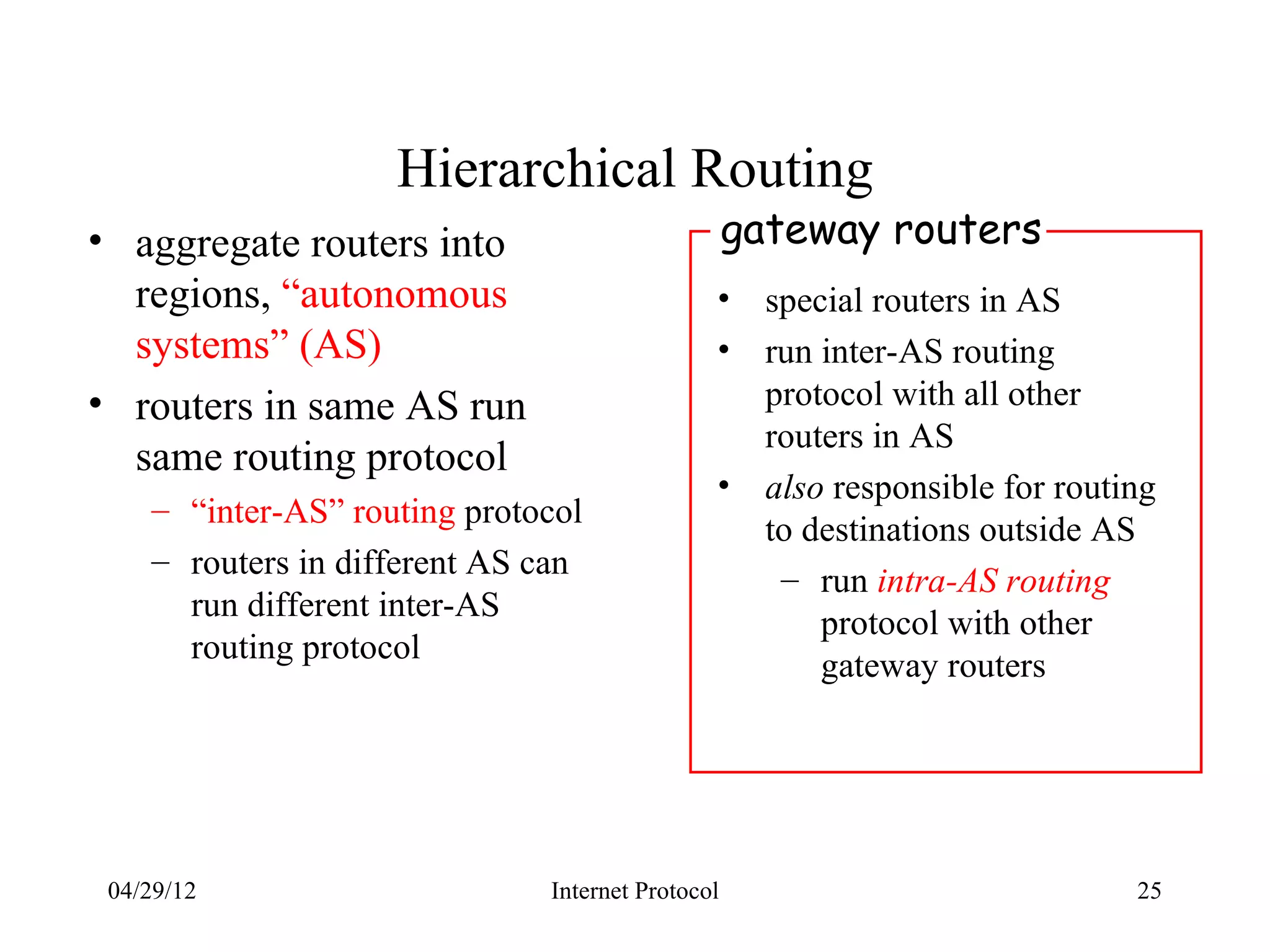

25. Hierarchical Routing
• aggregate routers into gateway routers
regions, “autonomous • special routers in AS
systems” (AS) • run inter-AS routing
• routers in same AS run protocol with all other
routers in AS
same routing protocol
• also responsible for routing
– “inter-AS” routing protocol
to destinations outside AS
– routers in different AS can
– run intra-AS routing
run different inter-AS
protocol with other
routing protocol
gateway routers
04/29/12 Internet Protocol 25

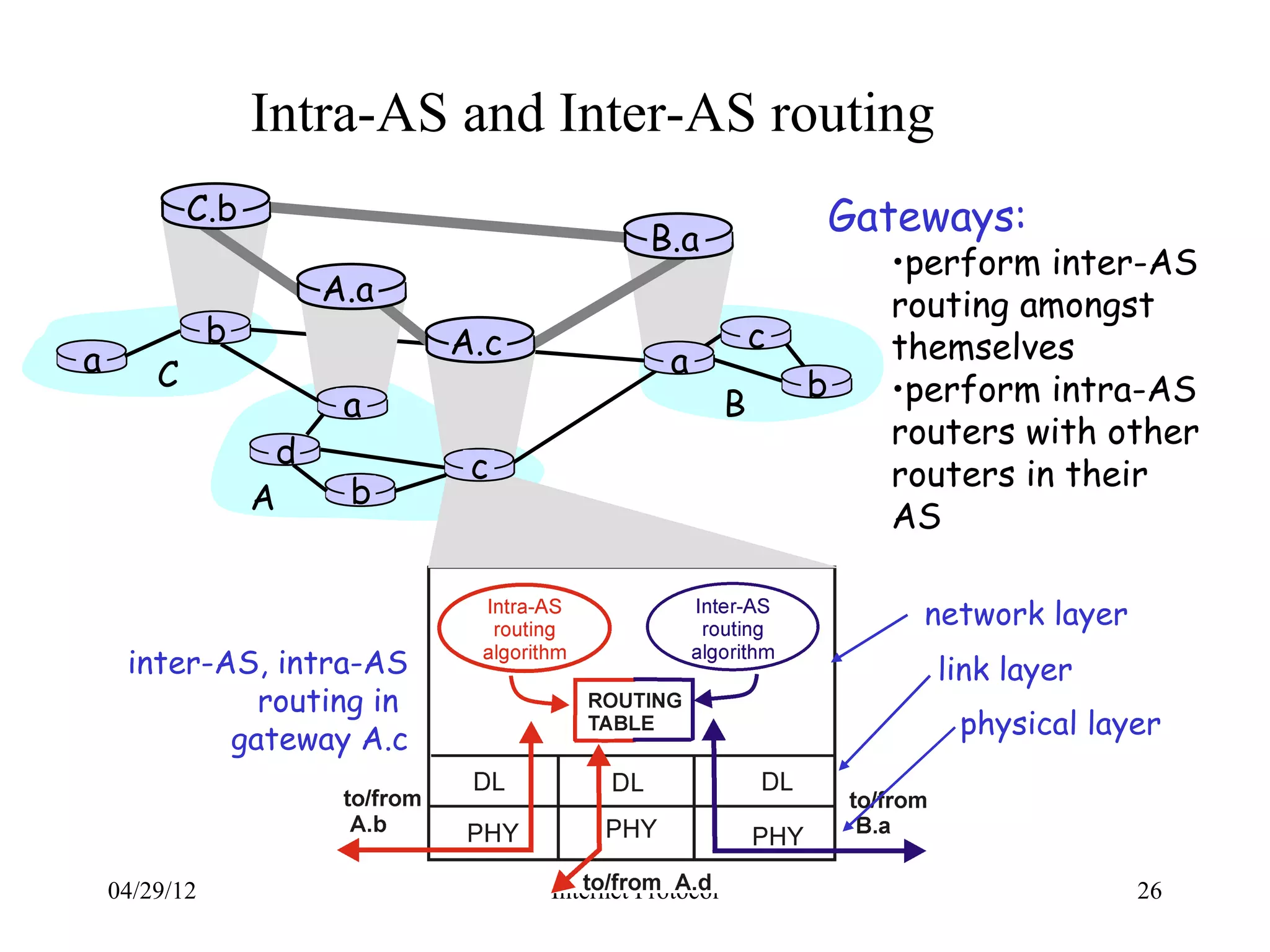

26. Intra-AS and Inter-AS routing
C.b Gateways:
B.a
•perform inter-AS
A.a routing amongst
b A.c c themselves
a C a
b •perform intra-AS
a B
routers with other
d c routers in their
A b
AS
network layer
inter-AS, intra-AS link layer
routing in
gateway A.c physical layer
04/29/12 Internet Protocol 26

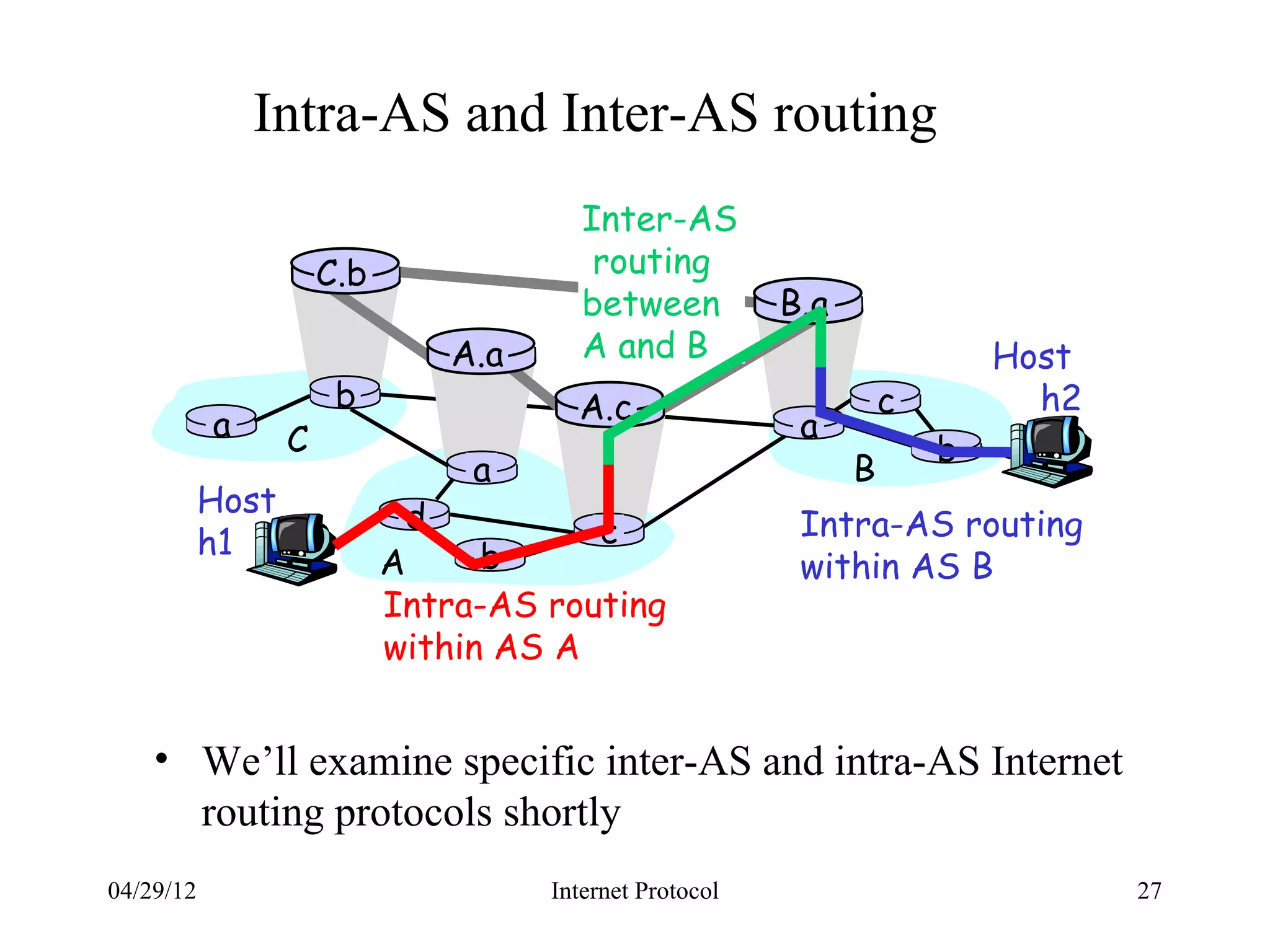

27. Intra-AS and Inter-AS routing
Inter-AS
C.b routing
between B.a
A.a A and B Host
b A.c c h2
a C a
b
a B
Host d c Intra-AS routing
h1 b
A within AS B
Intra-AS routing
within AS A
• We’ll examine specific inter-AS and intra-AS Internet
routing protocols shortly
04/29/12 Internet Protocol 27

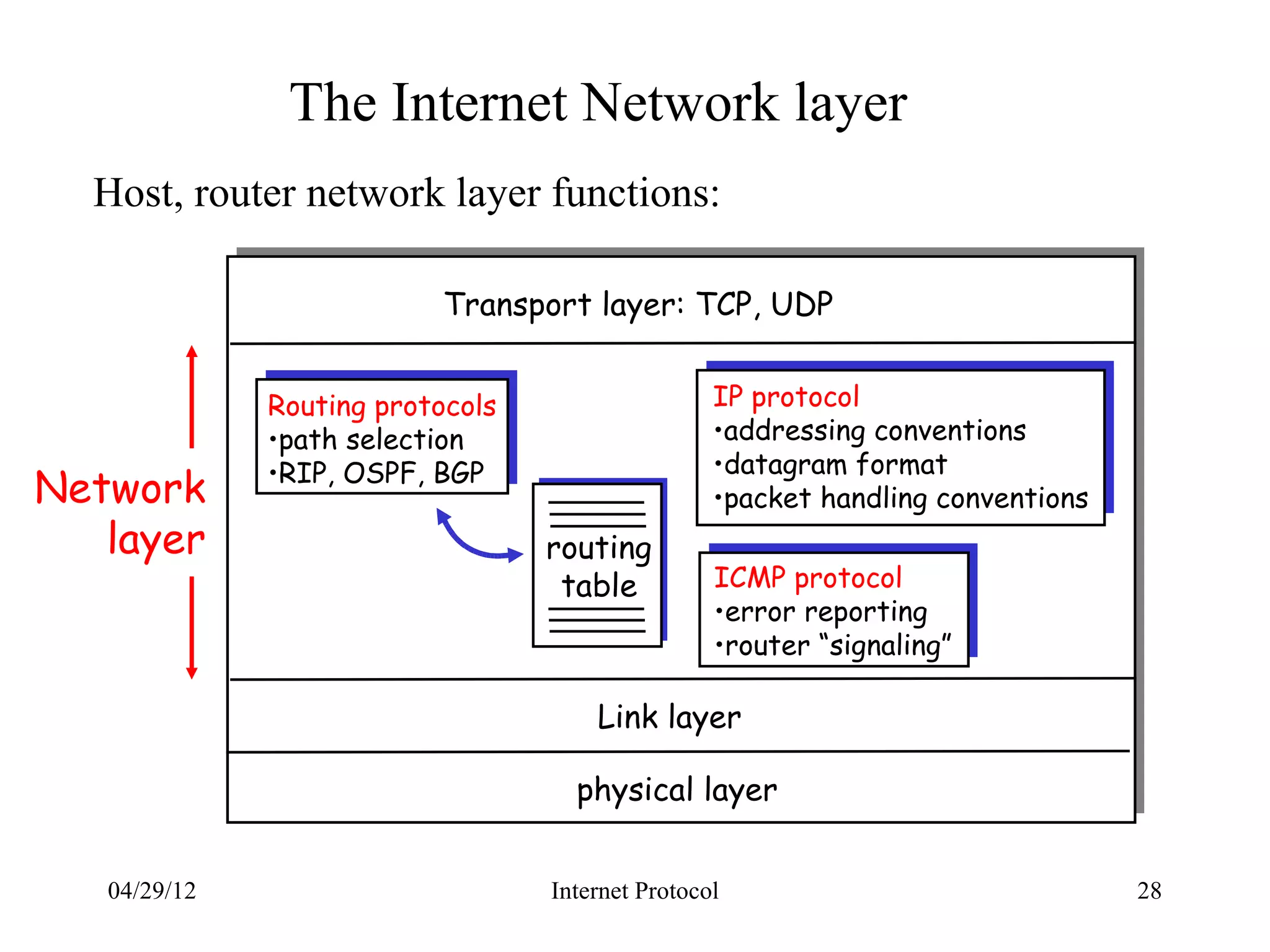

28. The Internet Network layer
Host, router network layer functions:
Transport layer: TCP, UDP
Routing protocols IP protocol
•path selection •addressing conventions
•RIP, OSPF, BGP •datagram format
Network •packet handling conventions
layer routing
table ICMP protocol
•error reporting
•router “signaling”
Link layer
physical layer
04/29/12 Internet Protocol 28

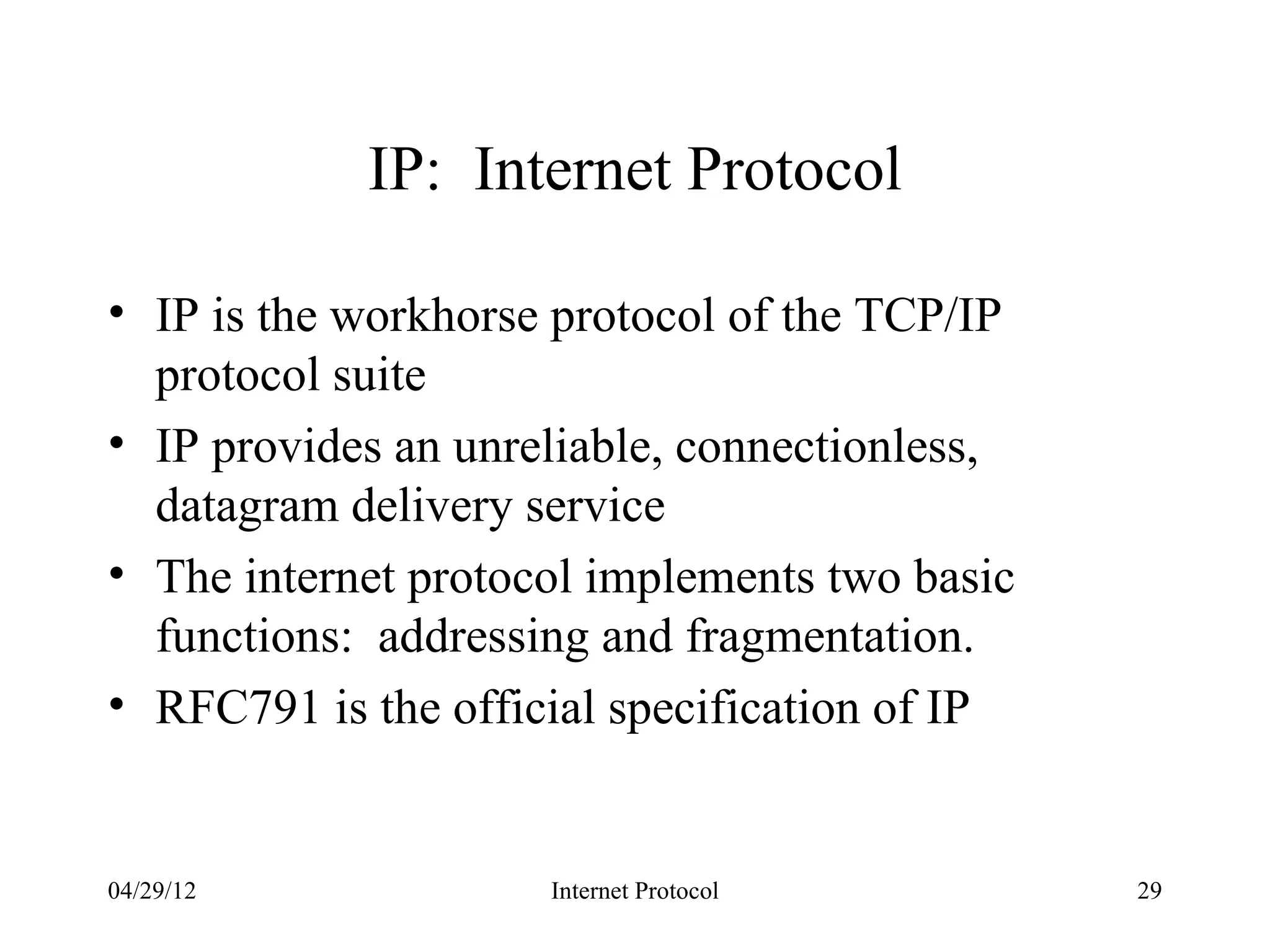

29. IP: Internet Protocol
• IP is the workhorse protocol of the TCP/IP
protocol suite
• IP provides an unreliable, connectionless,
datagram delivery service
• The internet protocol implements two basic
functions: addressing and fragmentation.
• RFC791 is the official specification of IP
04/29/12 Internet Protocol 29

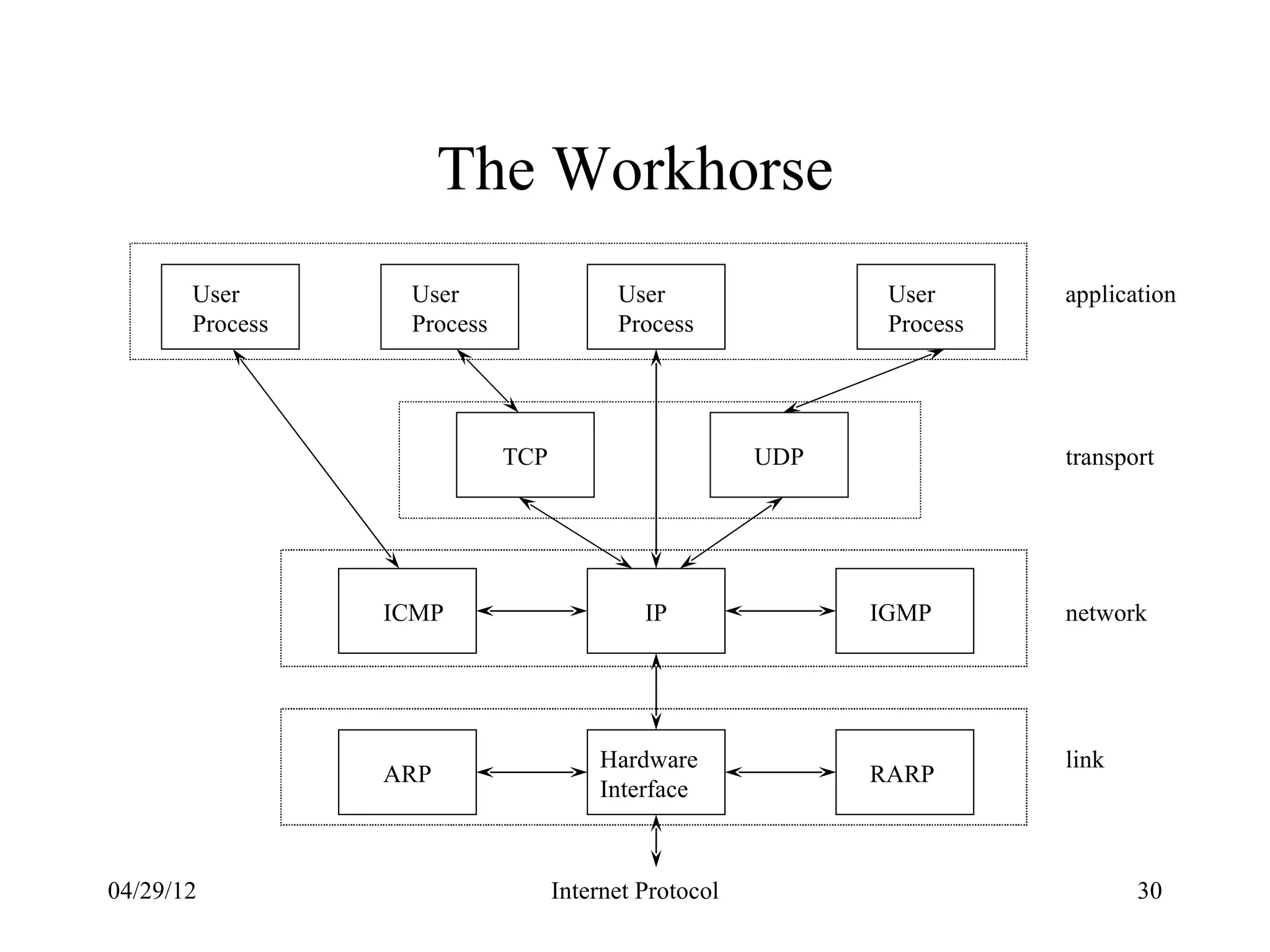

30. The Workhorse
User User User User application
Process Process Process Process
TCP UDP transport
ICMP IP IGMP network
Hardware link
ARP RARP
Interface
04/29/12 Internet Protocol 30

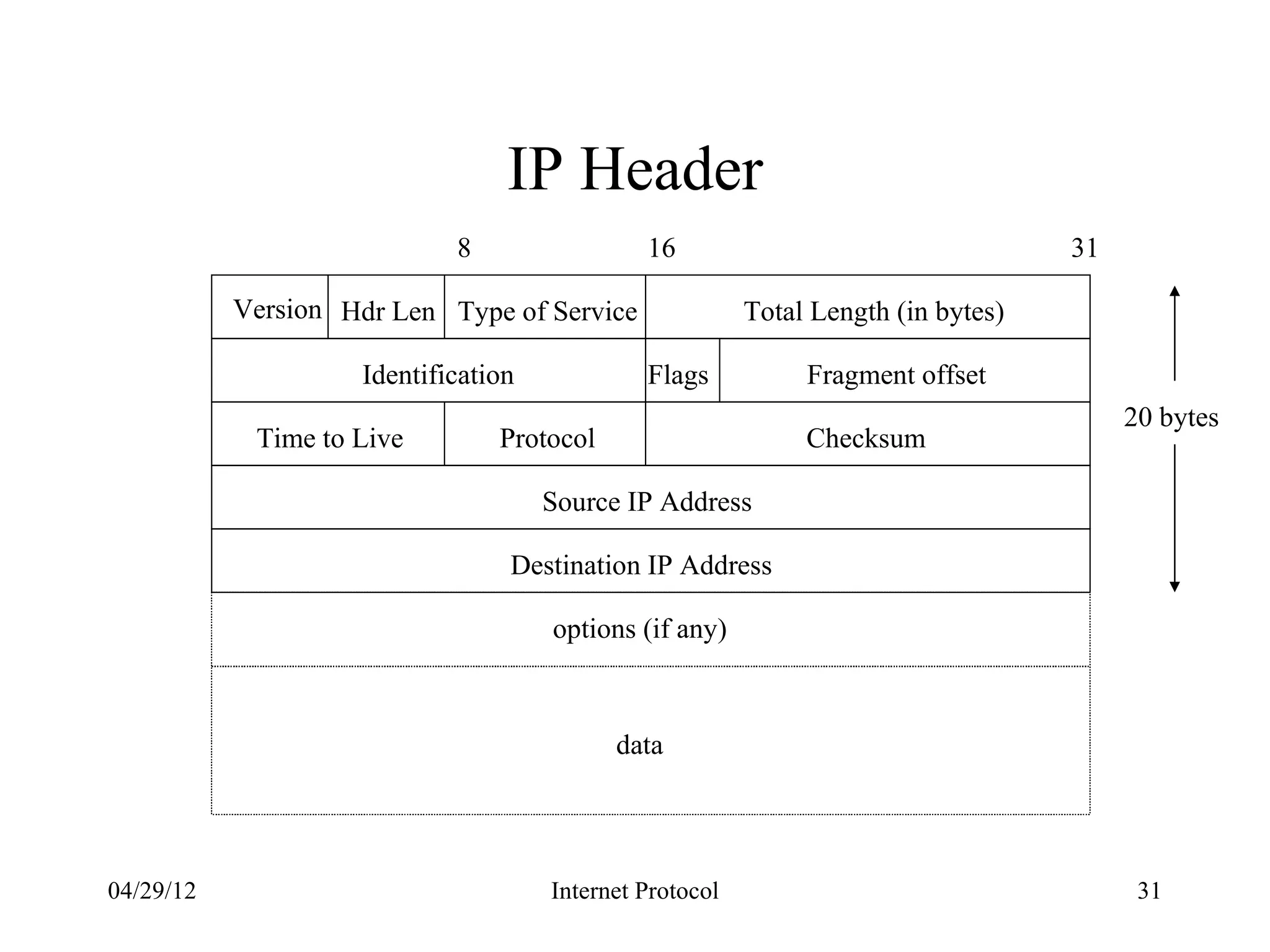

31. IP Header
8 16 31
Version Hdr Len Type of Service Total Length (in bytes)
Identification Flags Fragment offset
20 bytes
Time to Live Protocol Checksum
Source IP Address
Destination IP Address
options (if any)
data
04/29/12 Internet Protocol 31

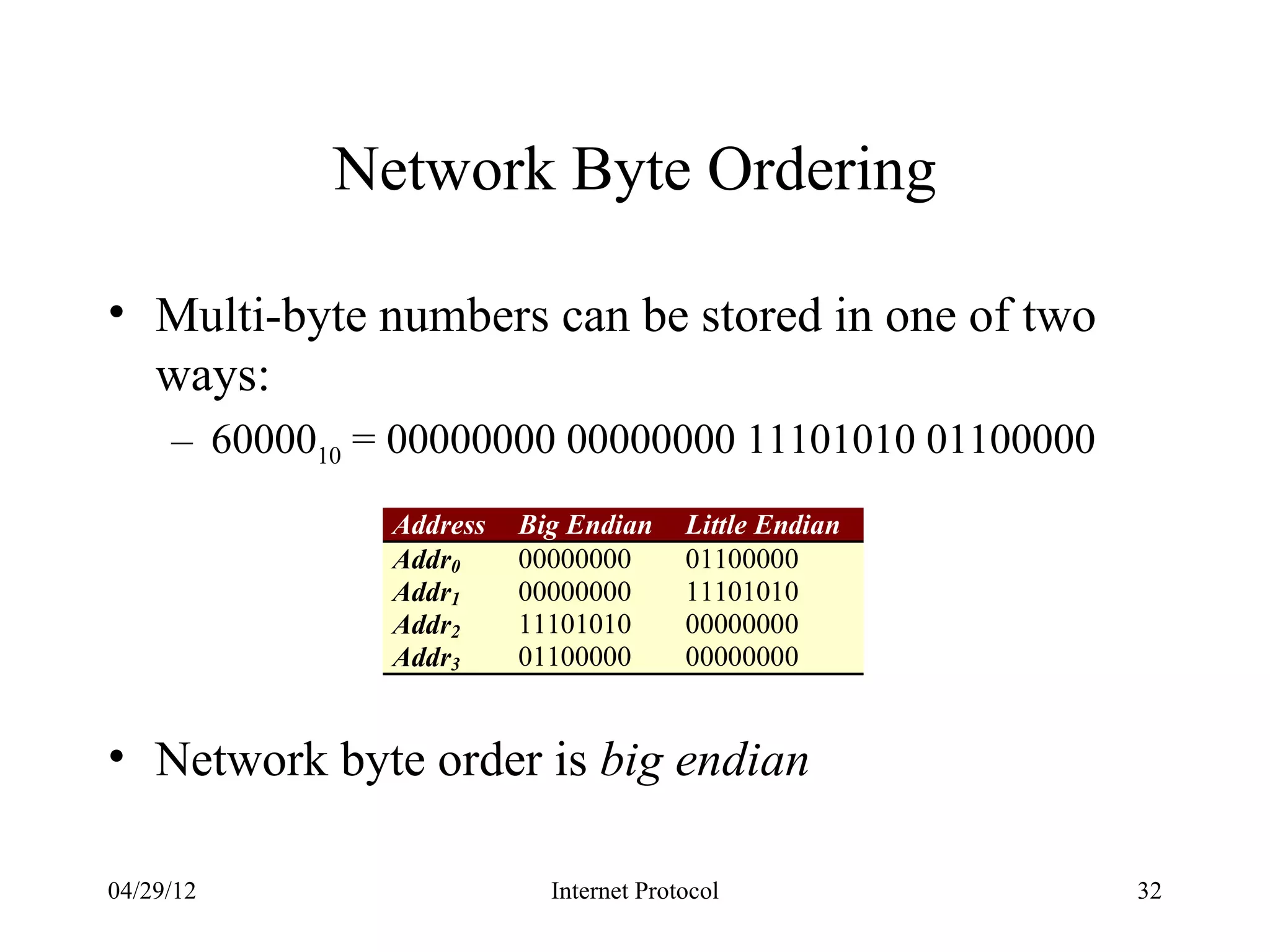

32. Network Byte Ordering
• Multi-byte numbers can be stored in one of two
ways:
– 6000010 = 00000000 00000000 11101010 01100000
Address Big Endian Little Endian
Addr0 00000000 01100000
Addr1 00000000 11101010
Addr2 11101010 00000000
Addr3 01100000 00000000
• Network byte order is big endian
04/29/12 Internet Protocol 32

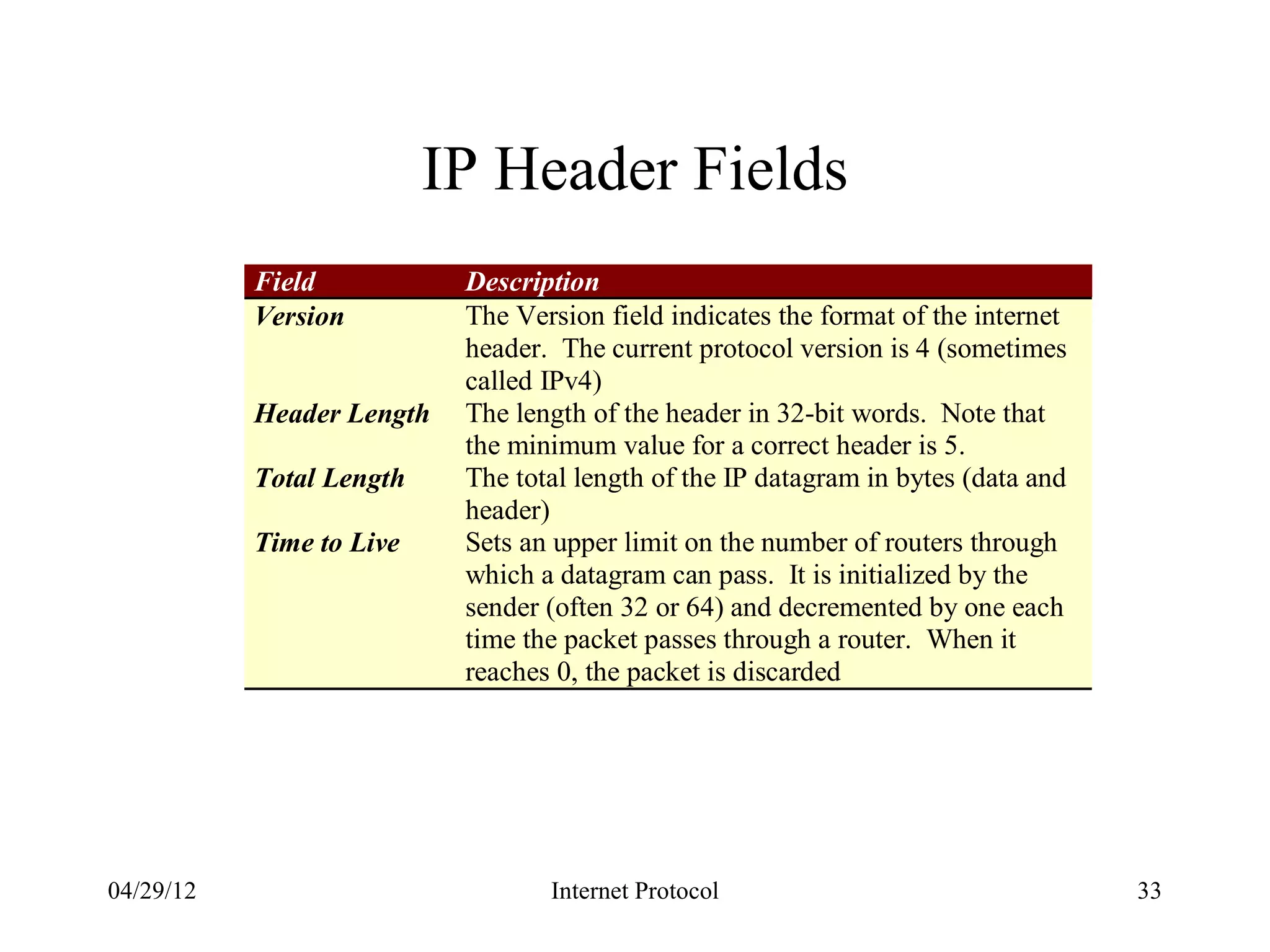

33. IP Header Fields
Field Description
Version The Version field indicates the format of the internet
header. The current protocol version is 4 (sometimes
called IPv4)
Header Length The length of the header in 32-bit words. Note that
the minimum value for a correct header is 5.
Total Length The total length of the IP datagram in bytes (data and
header)
Time to Live Sets an upper limit on the number of routers through
which a datagram can pass. It is initialized by the
sender (often 32 or 64) and decremented by one each
time the packet passes through a router. When it
reaches 0, the packet is discarded
04/29/12 Internet Protocol 33

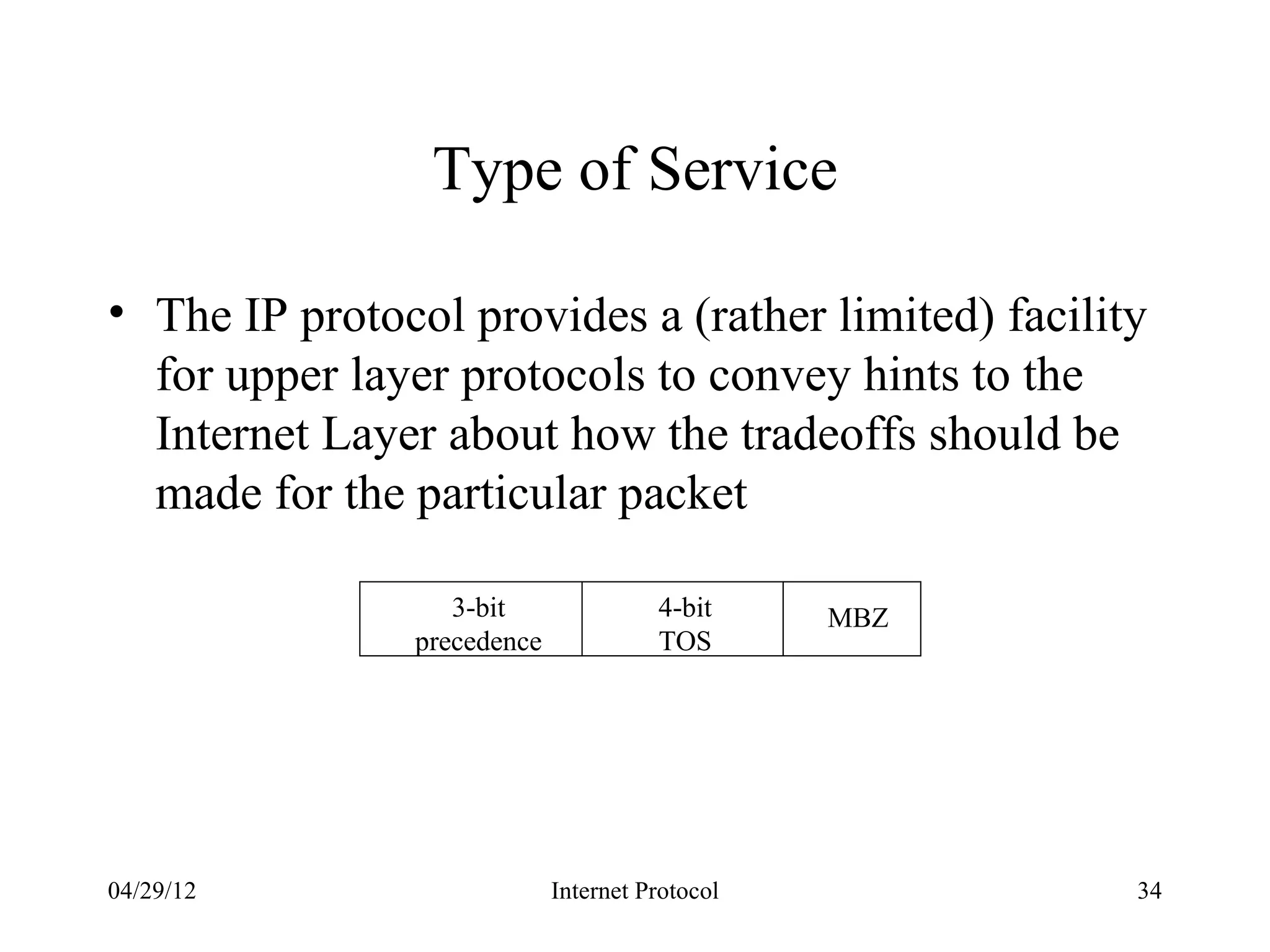

34. Type of Service
• The IP protocol provides a (rather limited) facility
for upper layer protocols to convey hints to the
Internet Layer about how the tradeoffs should be
made for the particular packet
3-bit 4-bit MBZ
precedence TOS
04/29/12 Internet Protocol 34

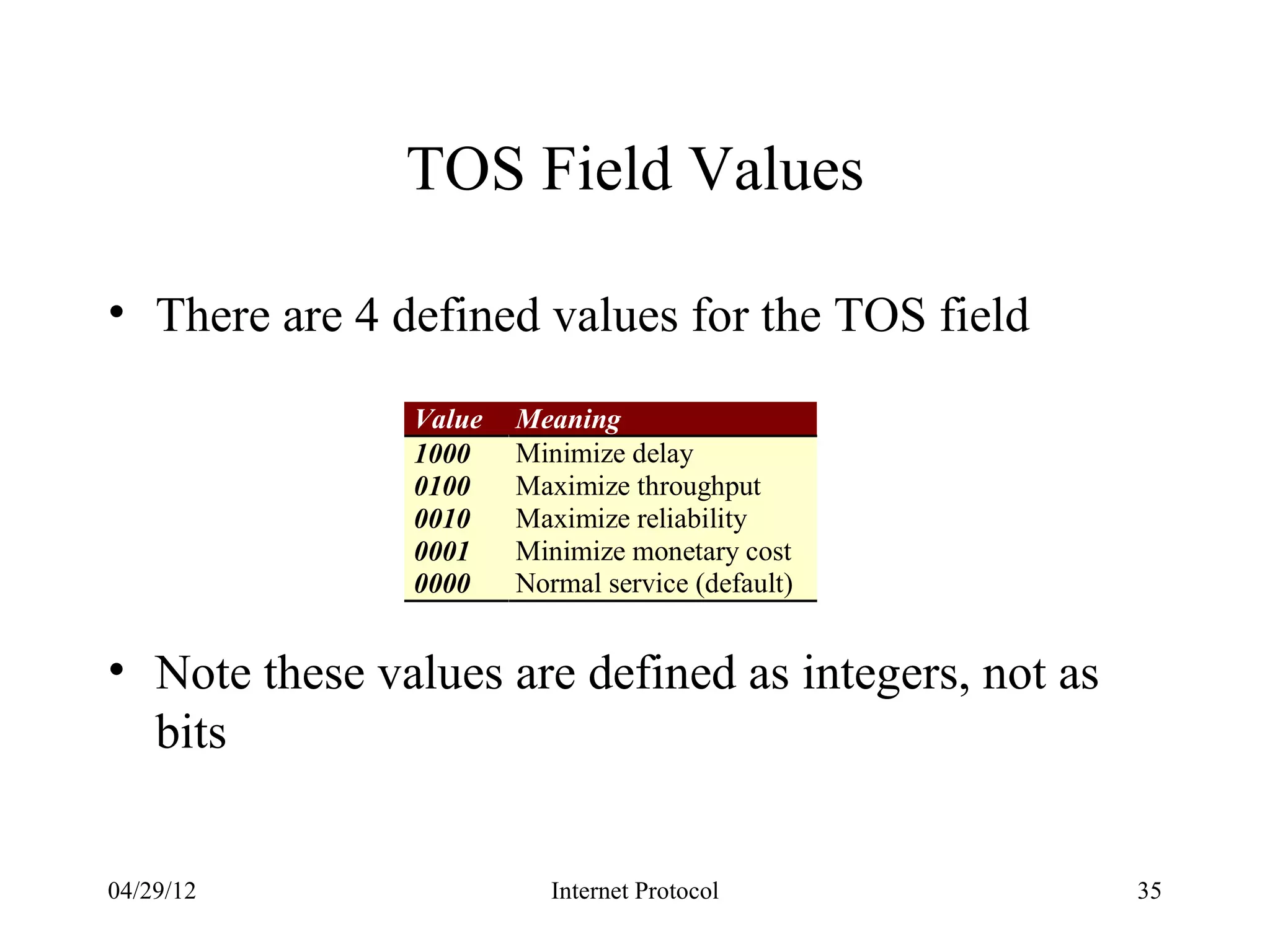

35. TOS Field Values
• There are 4 defined values for the TOS field
Value Meaning
1000 Minimize delay
0100 Maximize throughput
0010 Maximize reliability
0001 Minimize monetary cost
0000 Normal service (default)
• Note these values are defined as integers, not as
bits
04/29/12 Internet Protocol 35

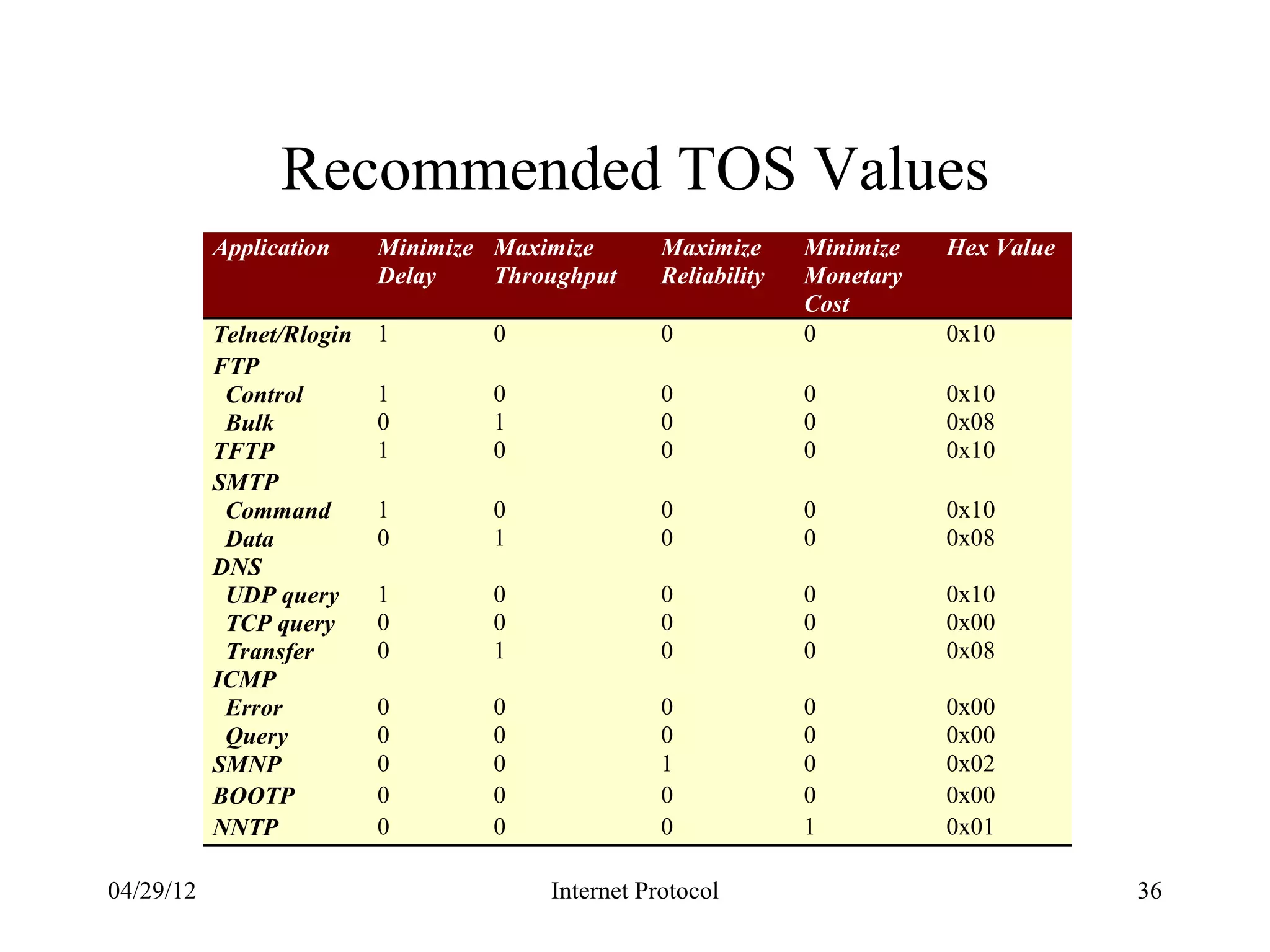

36. Recommended TOS Values
Application Minimize Maximize Maximize Minimize Hex Value
Delay Throughput Reliability Monetary
Cost
Telnet/Rlogin 1 0 0 0 0x10
FTP
Control 1 0 0 0 0x10
Bulk 0 1 0 0 0x08
TFTP 1 0 0 0 0x10
SMTP
Command 1 0 0 0 0x10
Data 0 1 0 0 0x08
DNS
UDP query 1 0 0 0 0x10
TCP query 0 0 0 0 0x00
Transfer 0 1 0 0 0x08
ICMP
Error 0 0 0 0 0x00
Query 0 0 0 0 0x00
SMNP 0 0 1 0 0x02
BOOTP 0 0 0 0 0x00
NNTP 0 0 0 1 0x01
04/29/12 Internet Protocol 36

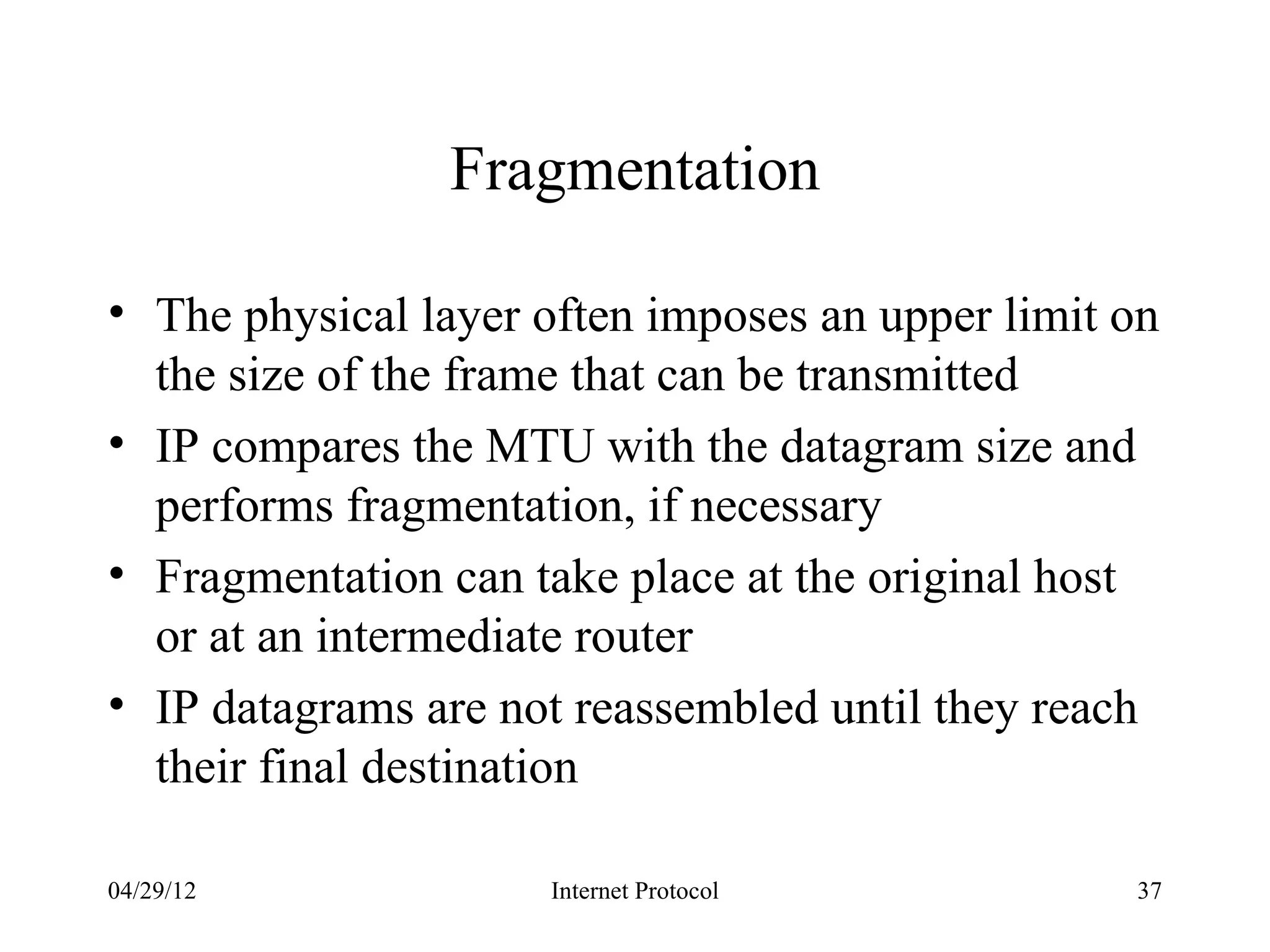

37. Fragmentation
• The physical layer often imposes an upper limit on
the size of the frame that can be transmitted
• IP compares the MTU with the datagram size and
performs fragmentation, if necessary
• Fragmentation can take place at the original host
or at an intermediate router
• IP datagrams are not reassembled until they reach
their final destination
04/29/12 Internet Protocol 37

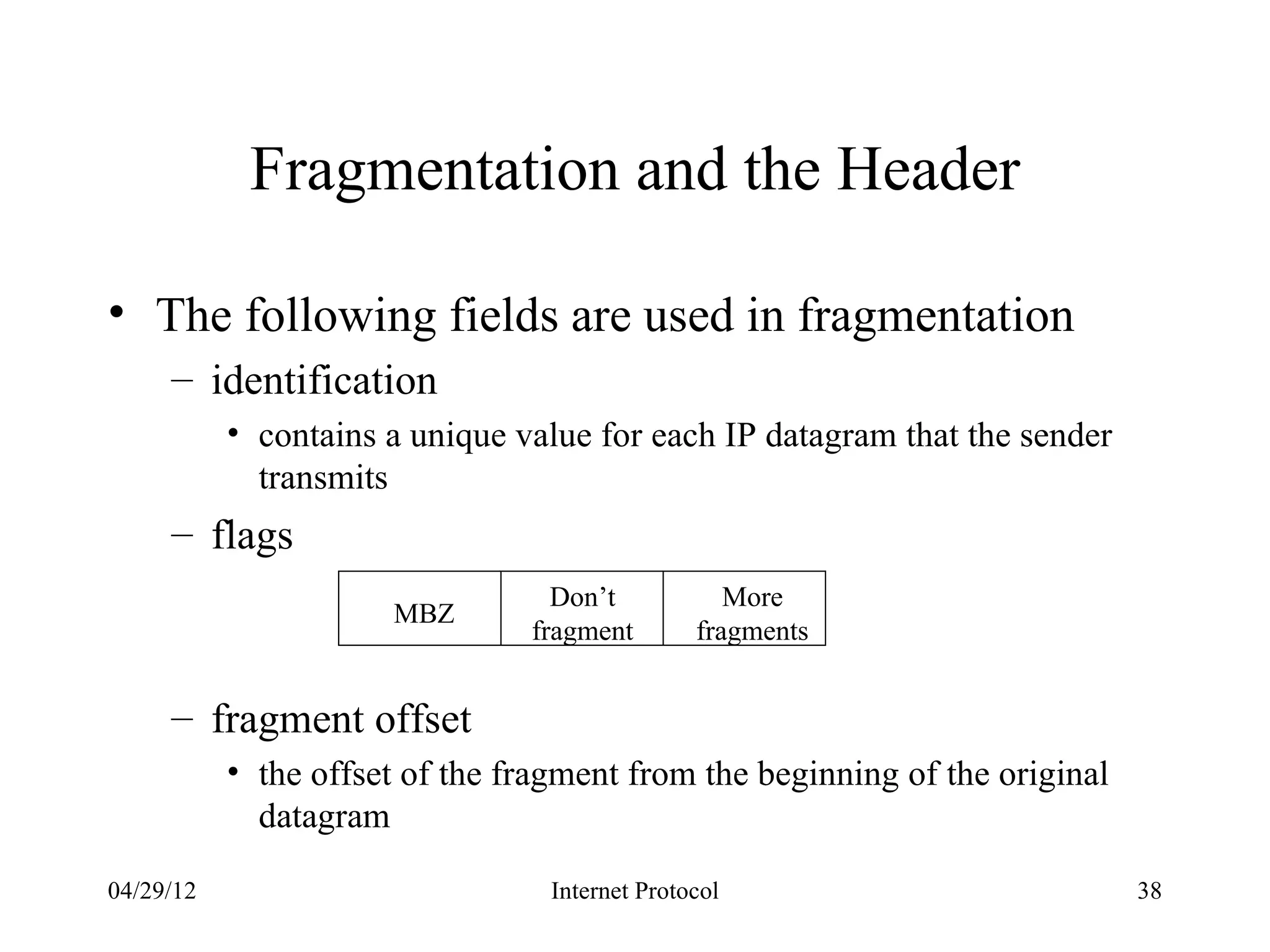

38. Fragmentation and the Header
• The following fields are used in fragmentation
– identification
• contains a unique value for each IP datagram that the sender
transmits
– flags
Don’t More
MBZ
fragment fragments
– fragment offset
• the offset of the fragment from the beginning of the original
datagram
04/29/12 Internet Protocol 38

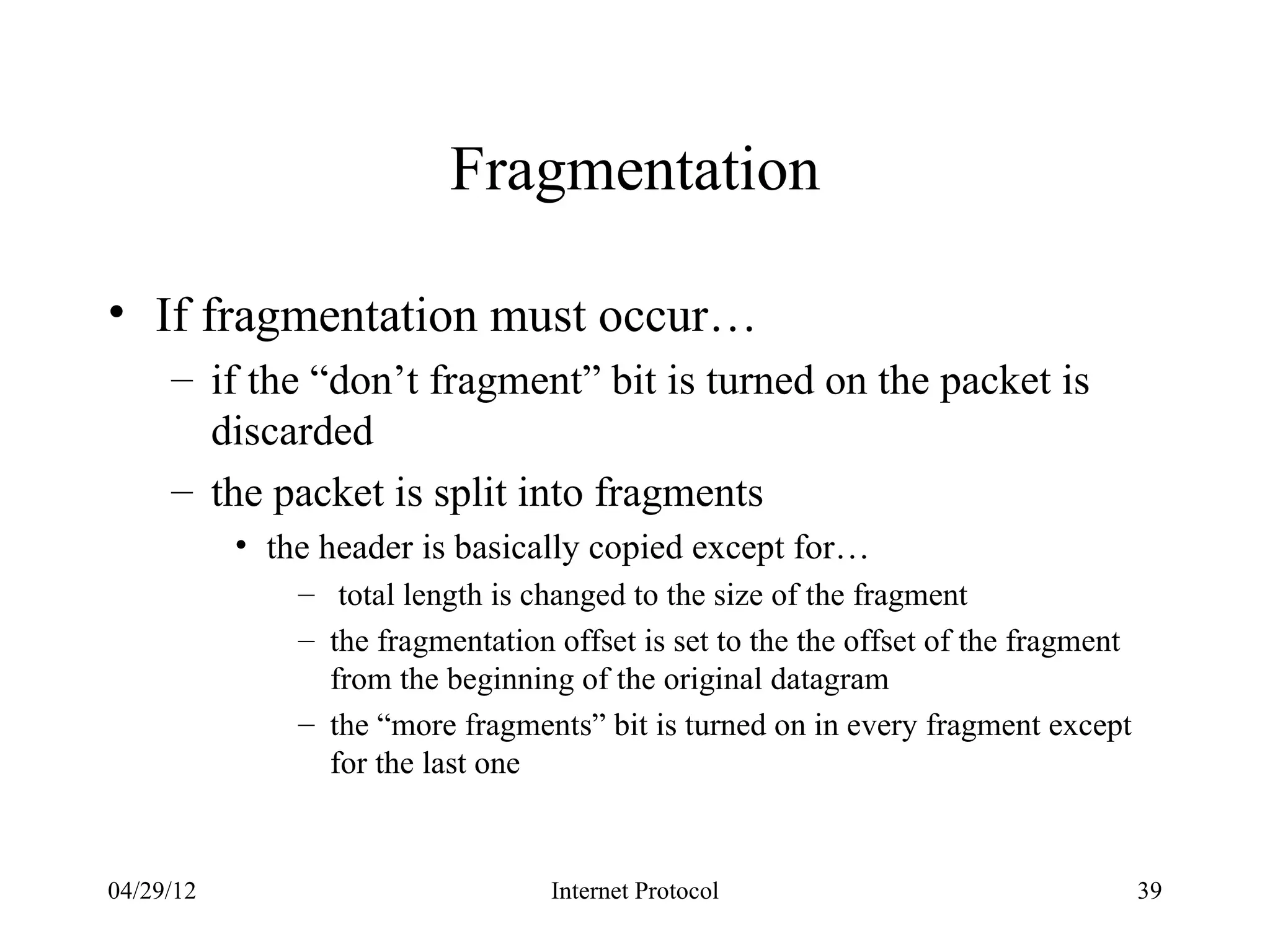

39. Fragmentation
• If fragmentation must occur…
– if the “don’t fragment” bit is turned on the packet is
discarded
– the packet is split into fragments
• the header is basically copied except for…
– total length is changed to the size of the fragment
– the fragmentation offset is set to the the offset of the fragment
from the beginning of the original datagram
– the “more fragments” bit is turned on in every fragment except
for the last one
04/29/12 Internet Protocol 39

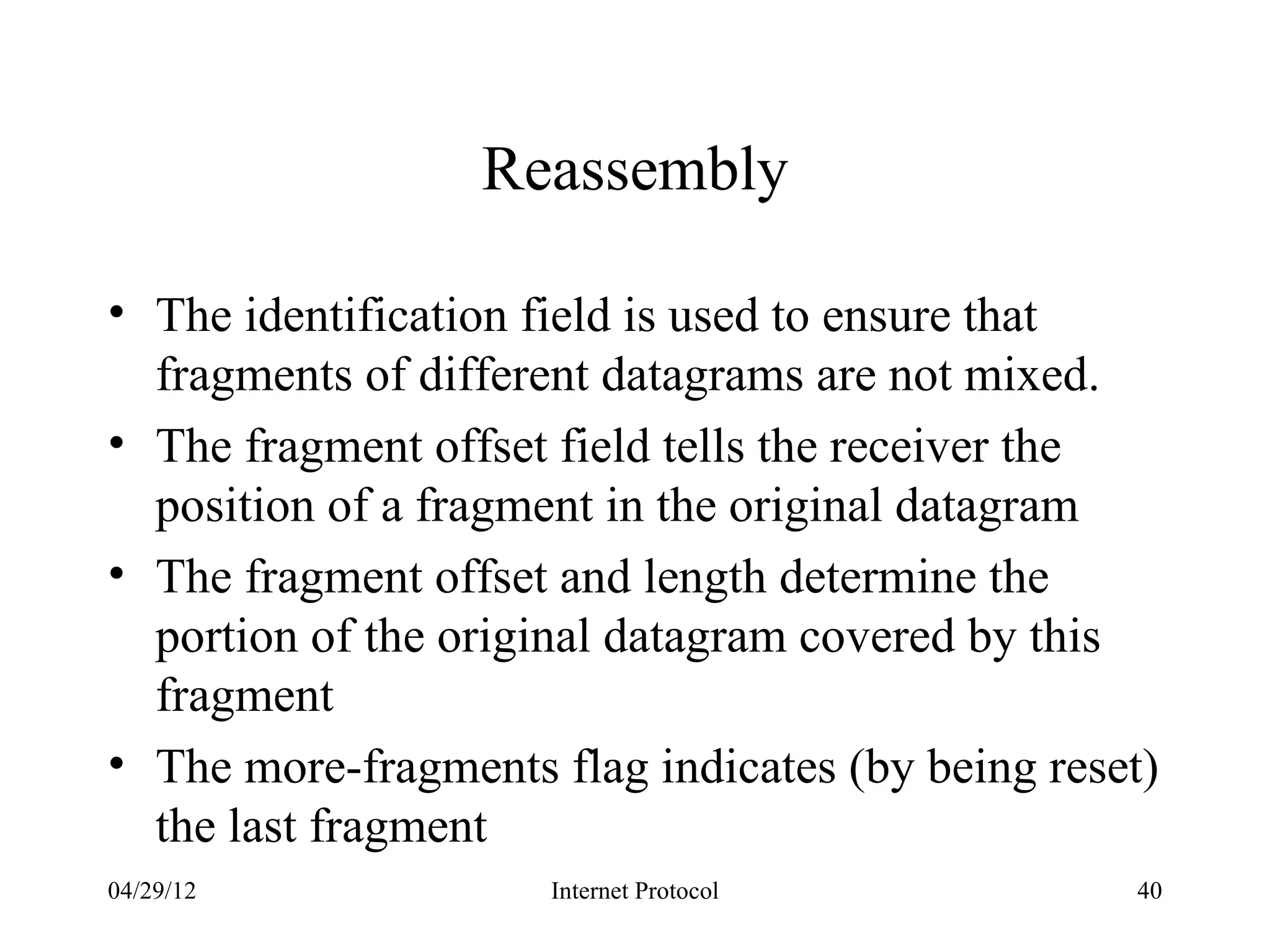

40. Reassembly
• The identification field is used to ensure that
fragments of different datagrams are not mixed.
• The fragment offset field tells the receiver the
position of a fragment in the original datagram
• The fragment offset and length determine the
portion of the original datagram covered by this
fragment
• The more-fragments flag indicates (by being reset)
the last fragment
04/29/12 Internet Protocol 40

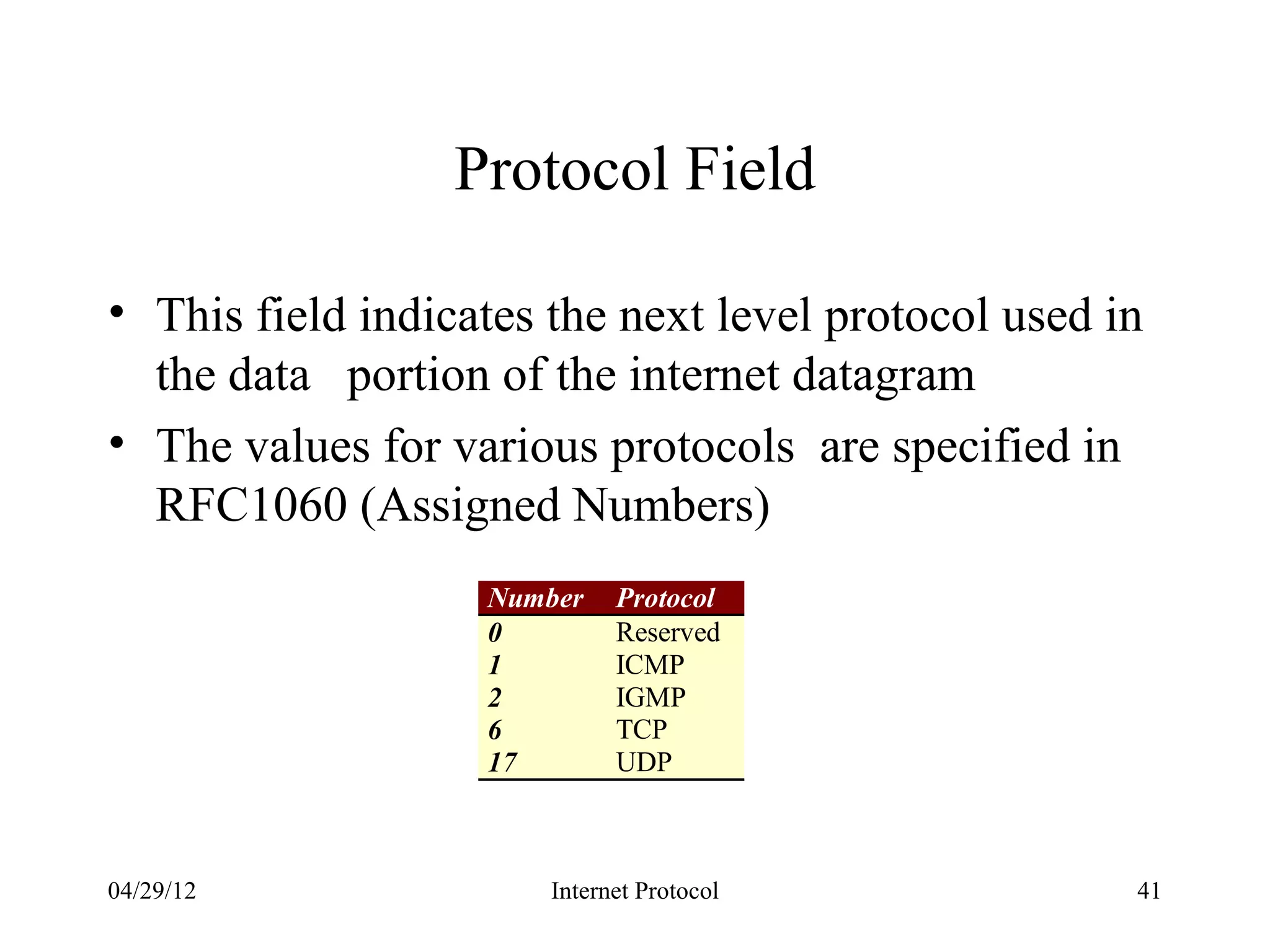

41. Protocol Field
• This field indicates the next level protocol used in
the data portion of the internet datagram
• The values for various protocols are specified in
RFC1060 (Assigned Numbers)
Number Protocol
0 Reserved
1 ICMP
2 IGMP
6 TCP
17 UDP
04/29/12 Internet Protocol 41

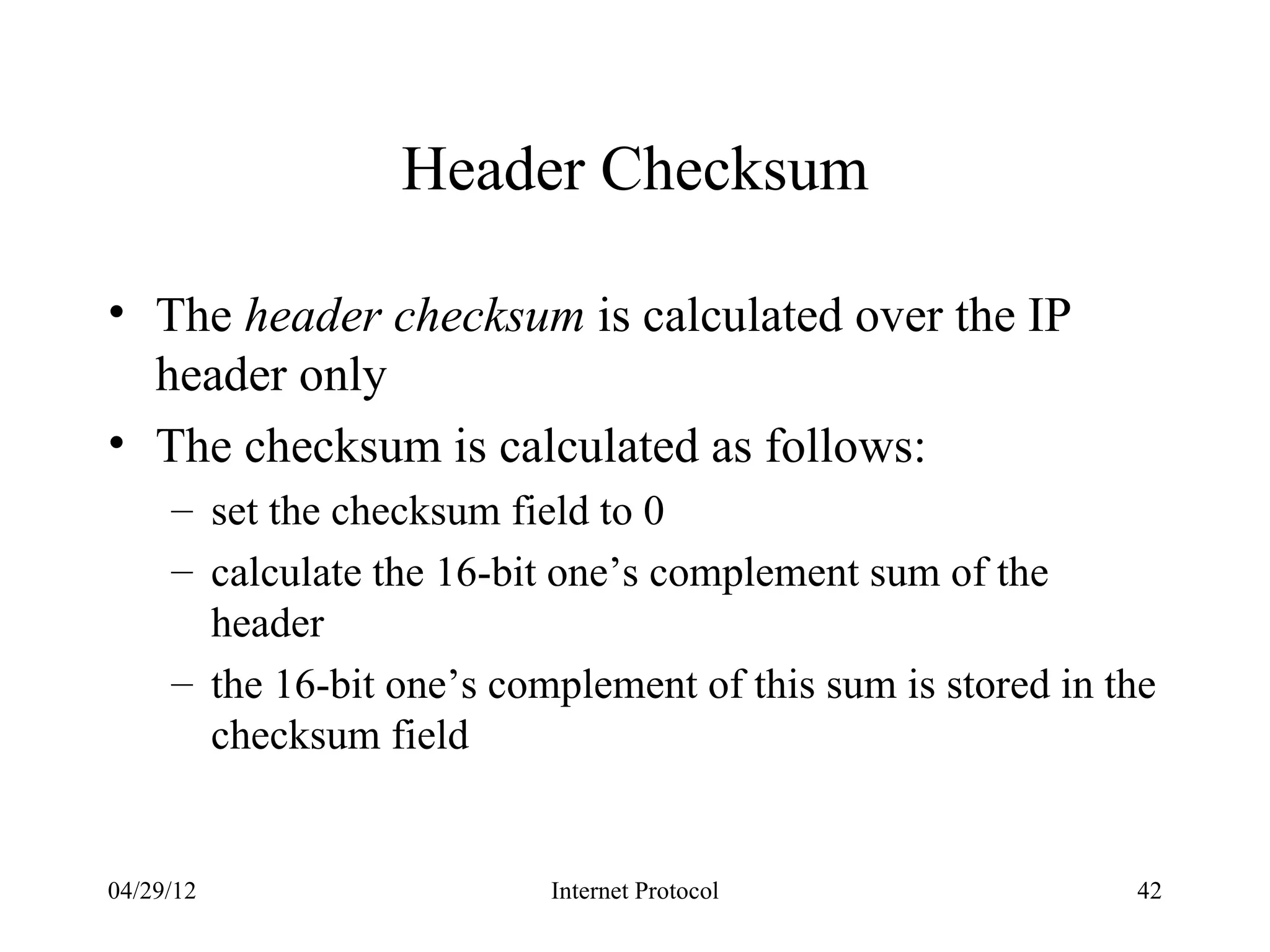

42. Header Checksum
• The header checksum is calculated over the IP
header only
• The checksum is calculated as follows:
– set the checksum field to 0
– calculate the 16-bit one’s complement sum of the
header
– the 16-bit one’s complement of this sum is stored in the
checksum field
04/29/12 Internet Protocol 42

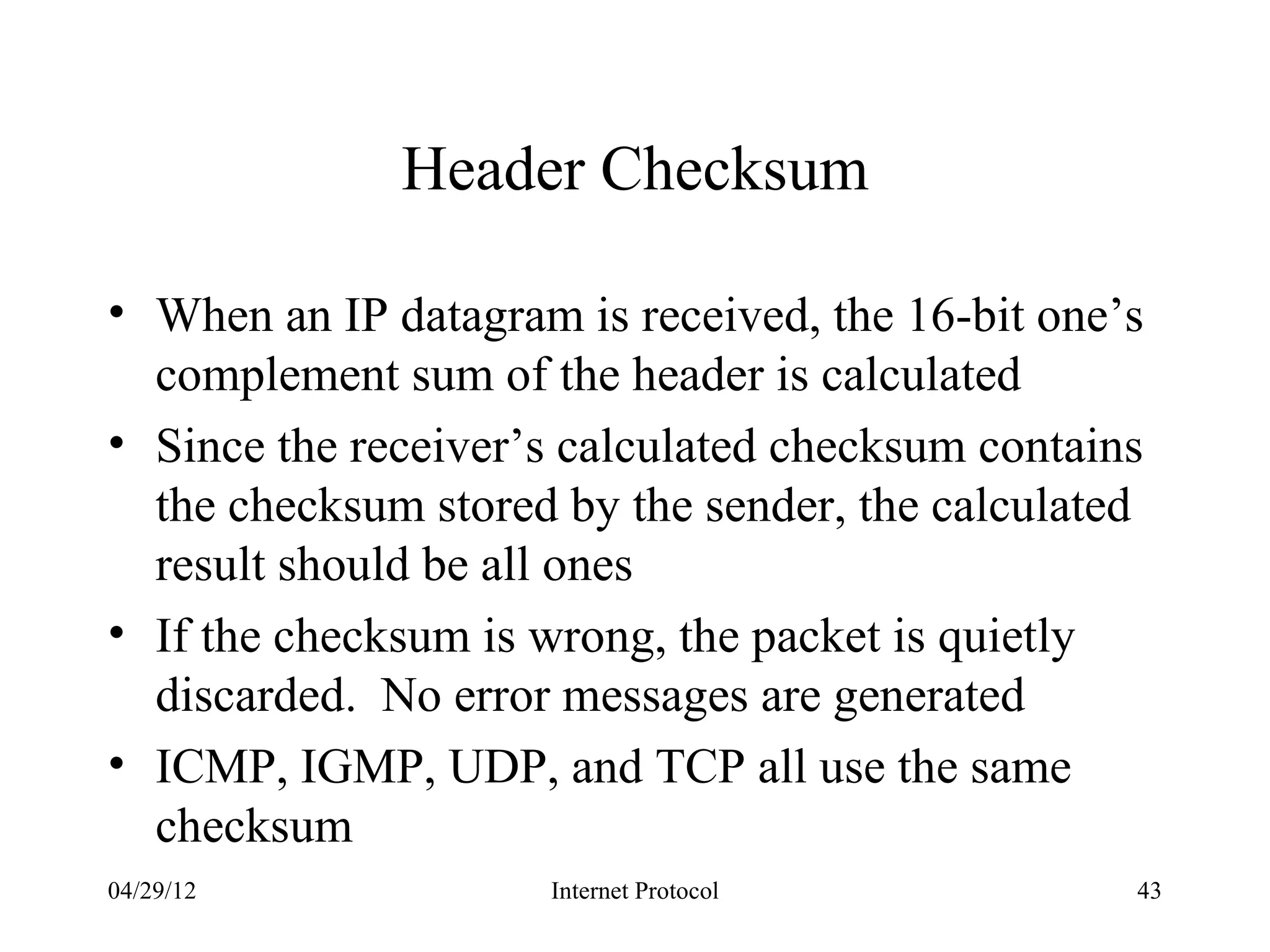

43. Header Checksum
• When an IP datagram is received, the 16-bit one’s
complement sum of the header is calculated
• Since the receiver’s calculated checksum contains
the checksum stored by the sender, the calculated
result should be all ones
• If the checksum is wrong, the packet is quietly
discarded. No error messages are generated
• ICMP, IGMP, UDP, and TCP all use the same
checksum
04/29/12 Internet Protocol 43

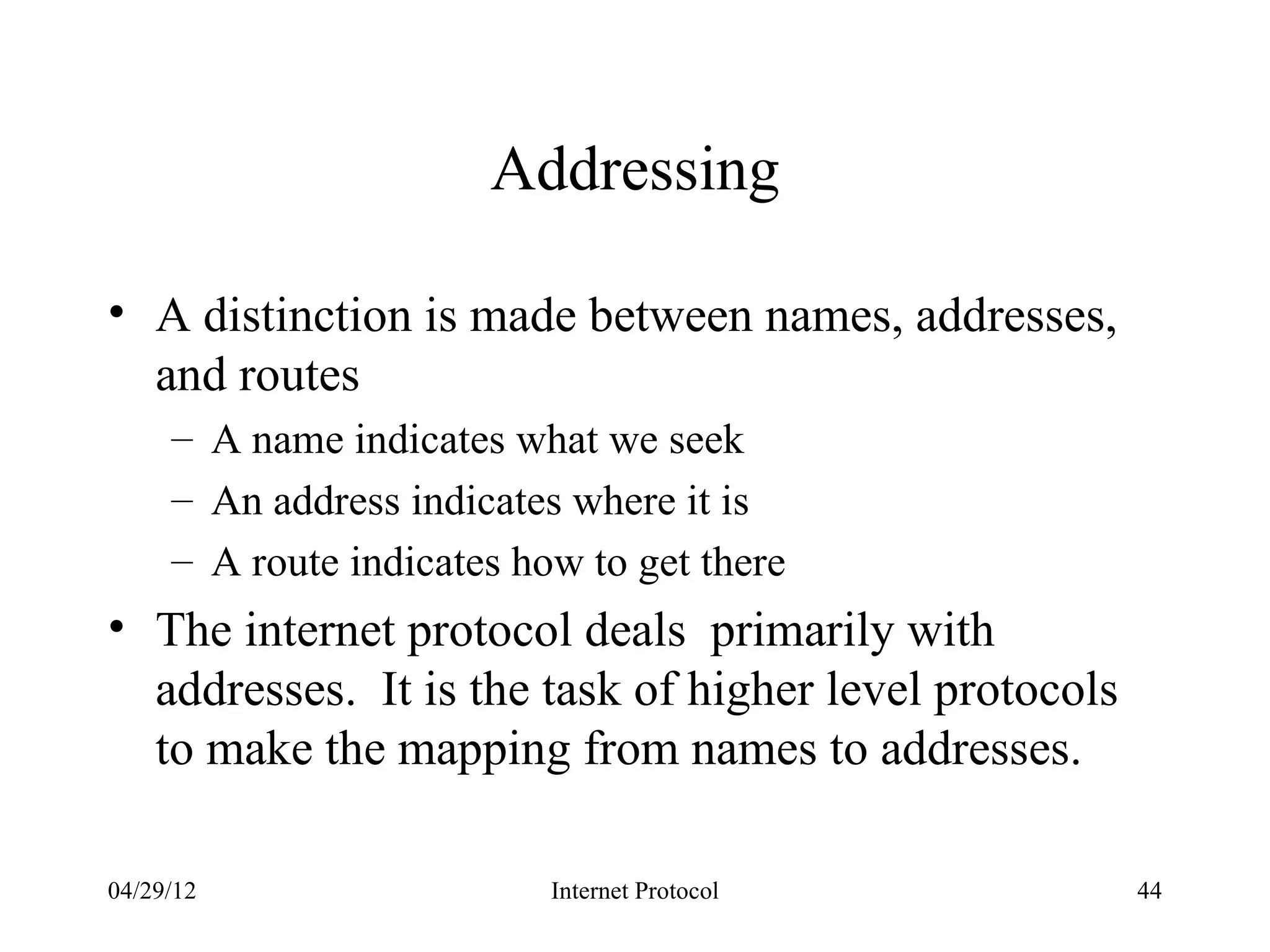

44. Addressing
• A distinction is made between names, addresses,
and routes
– A name indicates what we seek
– An address indicates where it is
– A route indicates how to get there
• The internet protocol deals primarily with
addresses. It is the task of higher level protocols
to make the mapping from names to addresses.
04/29/12 Internet Protocol 44

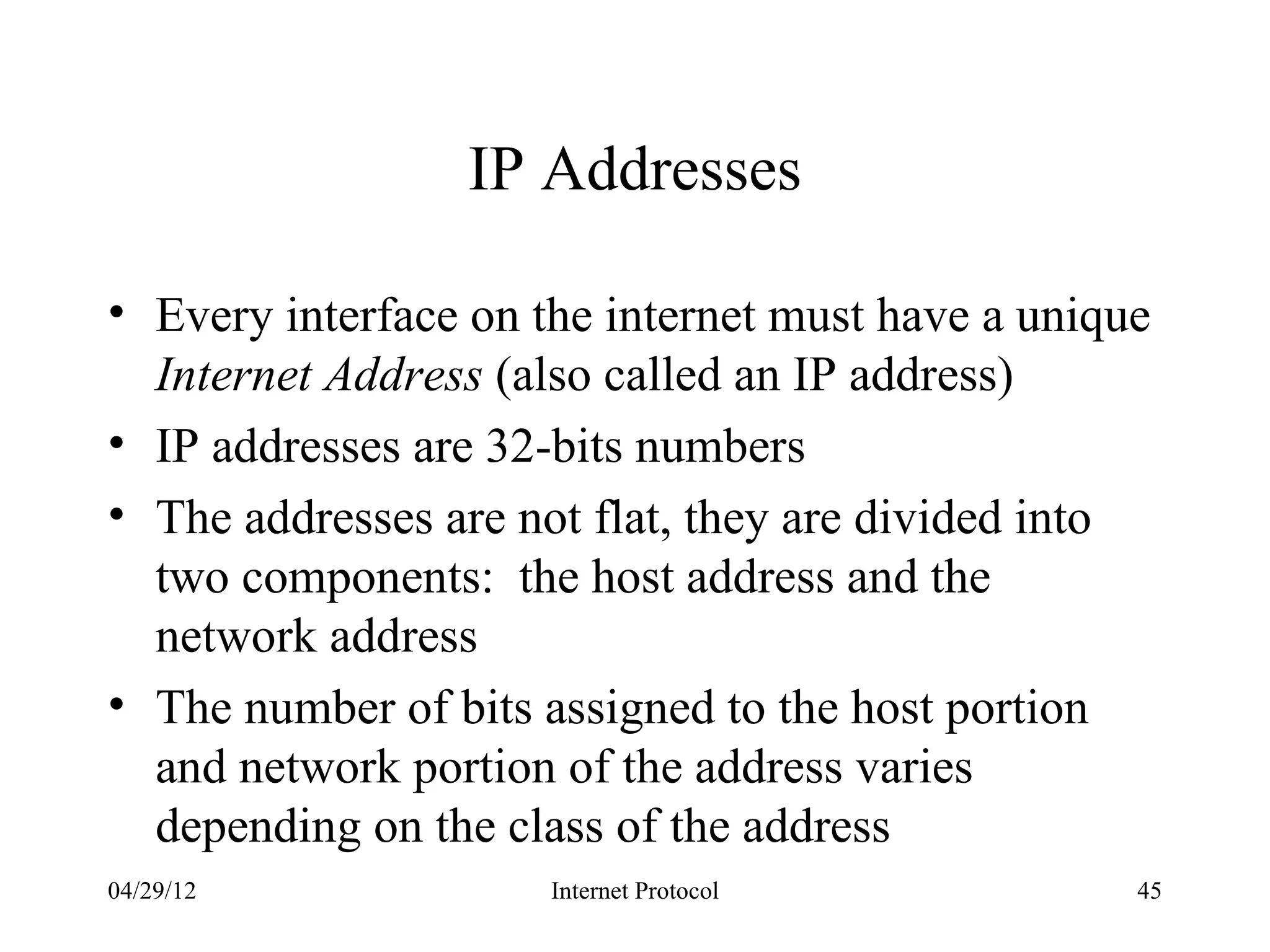

45. IP Addresses
• Every interface on the internet must have a unique
Internet Address (also called an IP address)
• IP addresses are 32-bits numbers
• The addresses are not flat, they are divided into
two components: the host address and the
network address
• The number of bits assigned to the host portion
and network portion of the address varies
depending on the class of the address
04/29/12 Internet Protocol 45

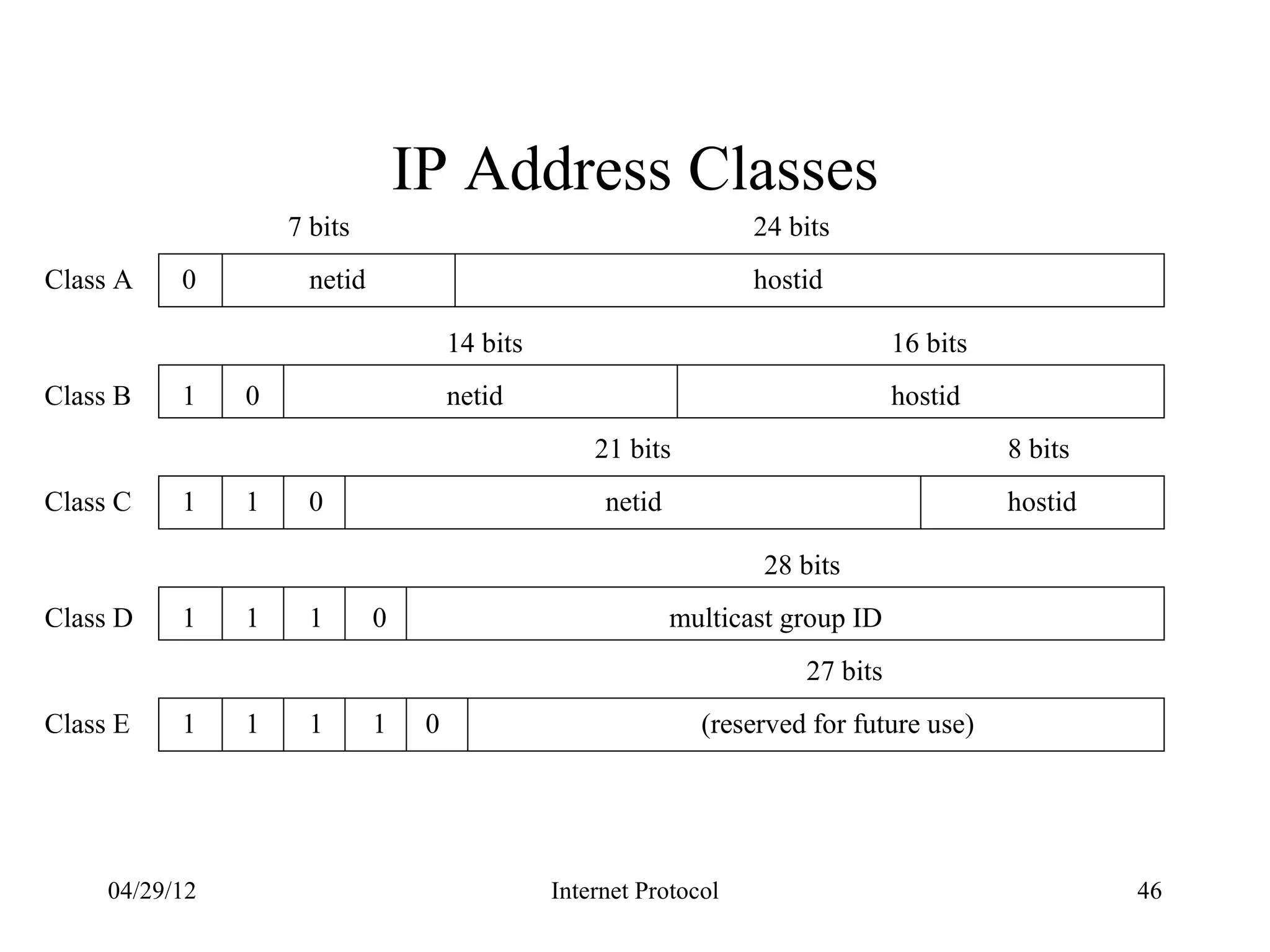

46. IP Address Classes
7 bits 24 bits
Class A 0 netid hostid
14 bits 16 bits
Class B 1 0 netid hostid
21 bits 8 bits
Class C 1 1 0 netid hostid
28 bits
Class D 1 1 1 0 multicast group ID
27 bits
Class E 1 1 1 1 0 (reserved for future use)
04/29/12 Internet Protocol 46

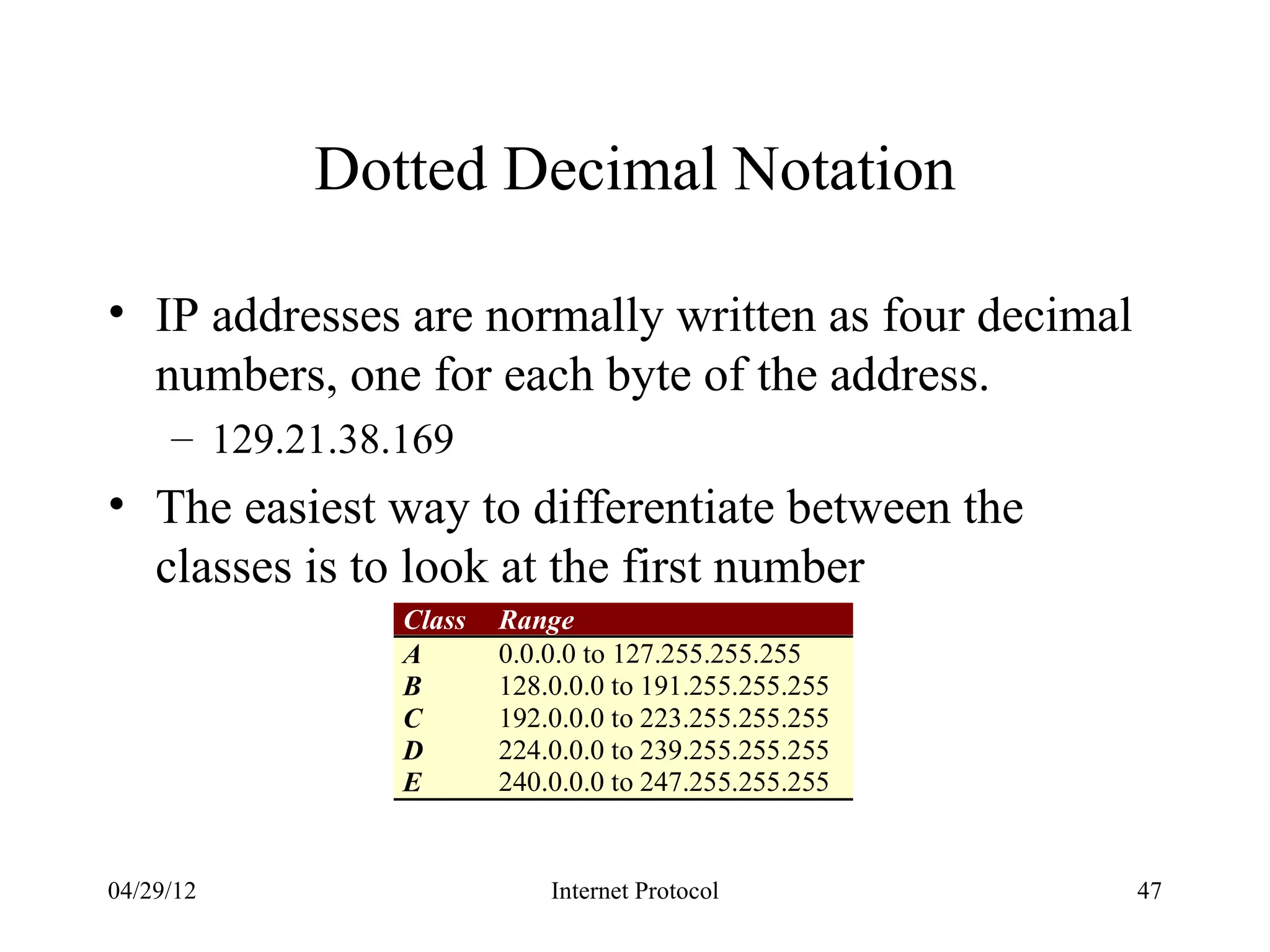

47. Dotted Decimal Notation
• IP addresses are normally written as four decimal
numbers, one for each byte of the address.
– 129.21.38.169
• The easiest way to differentiate between the
classes is to look at the first number
Class Range
A 0.0.0.0 to 127.255.255.255
B 128.0.0.0 to 191.255.255.255
C 192.0.0.0 to 223.255.255.255
D 224.0.0.0 to 239.255.255.255
E 240.0.0.0 to 247.255.255.255
04/29/12 Internet Protocol 47

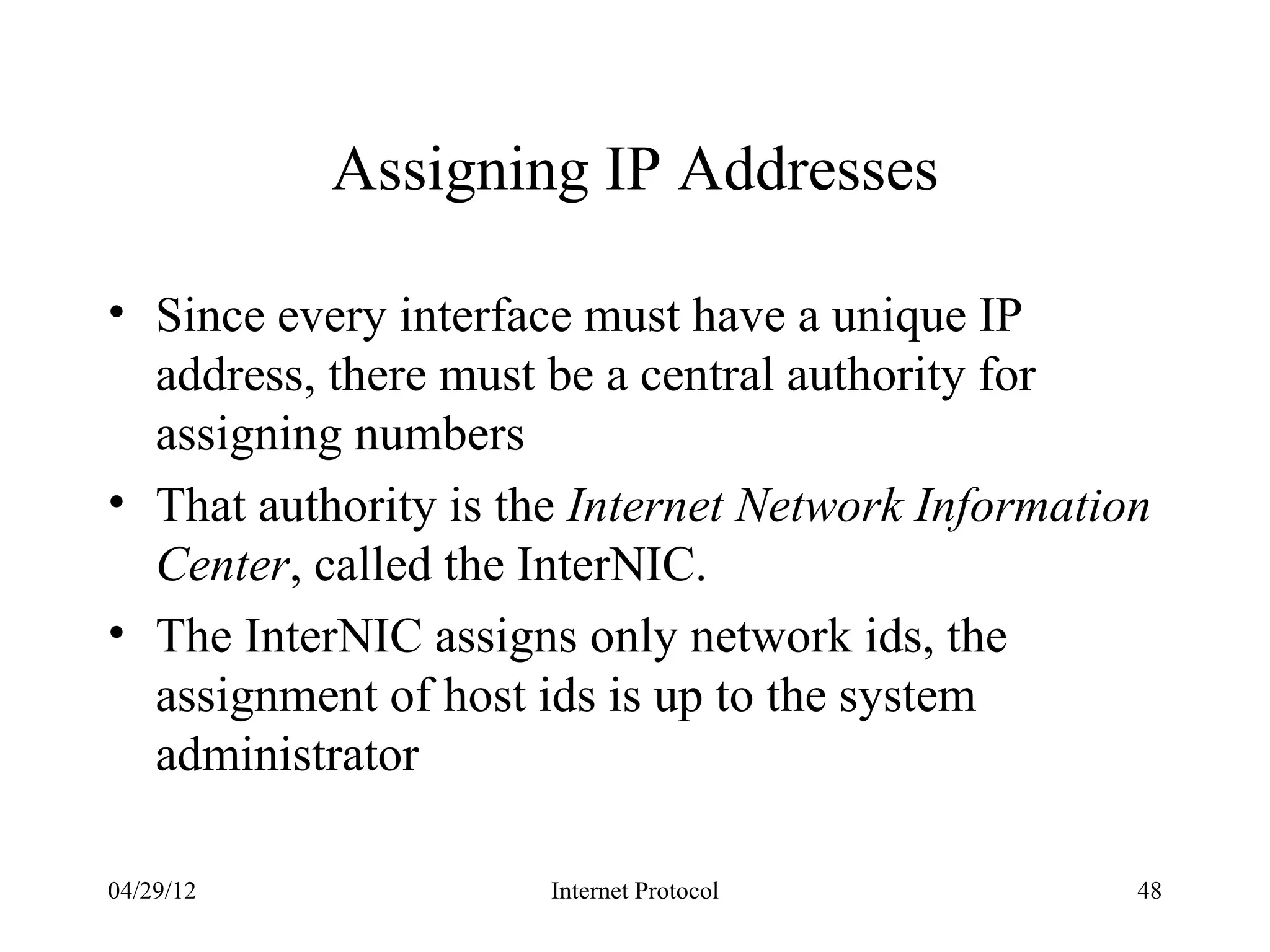

48. Assigning IP Addresses
• Since every interface must have a unique IP
address, there must be a central authority for
assigning numbers
• That authority is the Internet Network Information
Center, called the InterNIC.
• The InterNIC assigns only network ids, the
assignment of host ids is up to the system
administrator
04/29/12 Internet Protocol 48

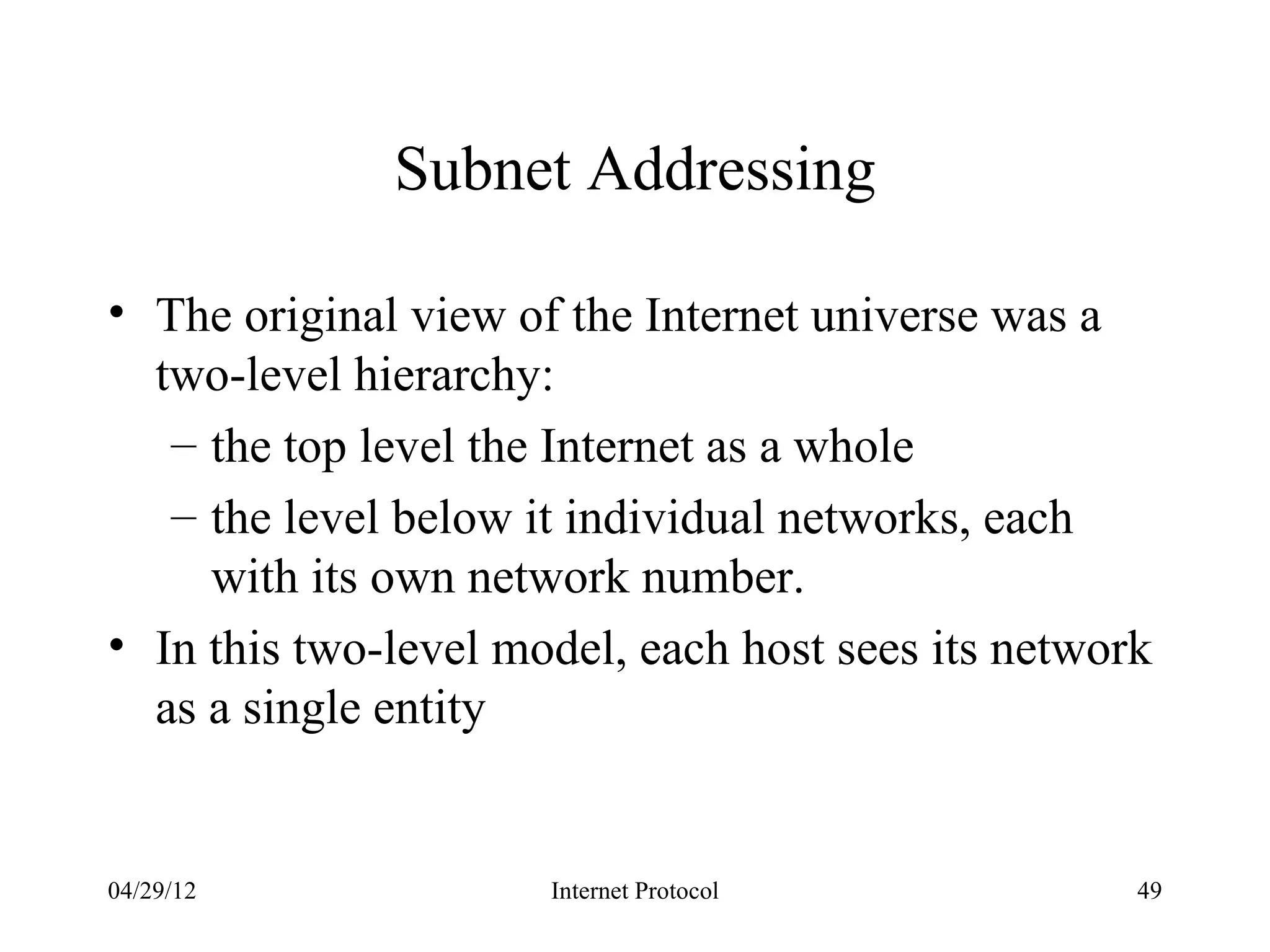

49. Subnet Addressing
• The original view of the Internet universe was a
two-level hierarchy:
– the top level the Internet as a whole
– the level below it individual networks, each
with its own network number.
• In this two-level model, each host sees its network
as a single entity
04/29/12 Internet Protocol 49

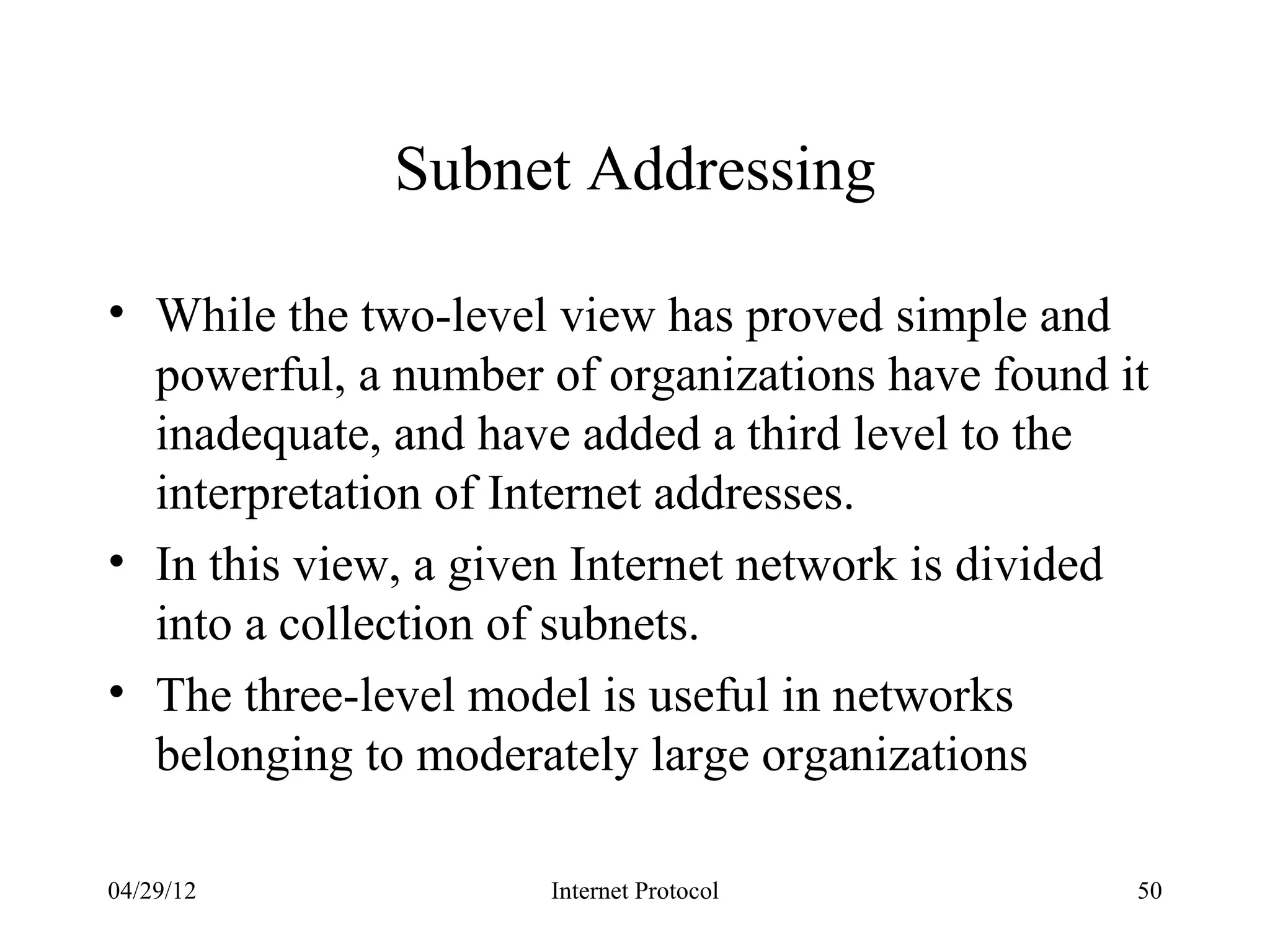

50. Subnet Addressing
• While the two-level view has proved simple and
powerful, a number of organizations have found it
inadequate, and have added a third level to the
interpretation of Internet addresses.
• In this view, a given Internet network is divided
into a collection of subnets.
• The three-level model is useful in networks
belonging to moderately large organizations
04/29/12 Internet Protocol 50

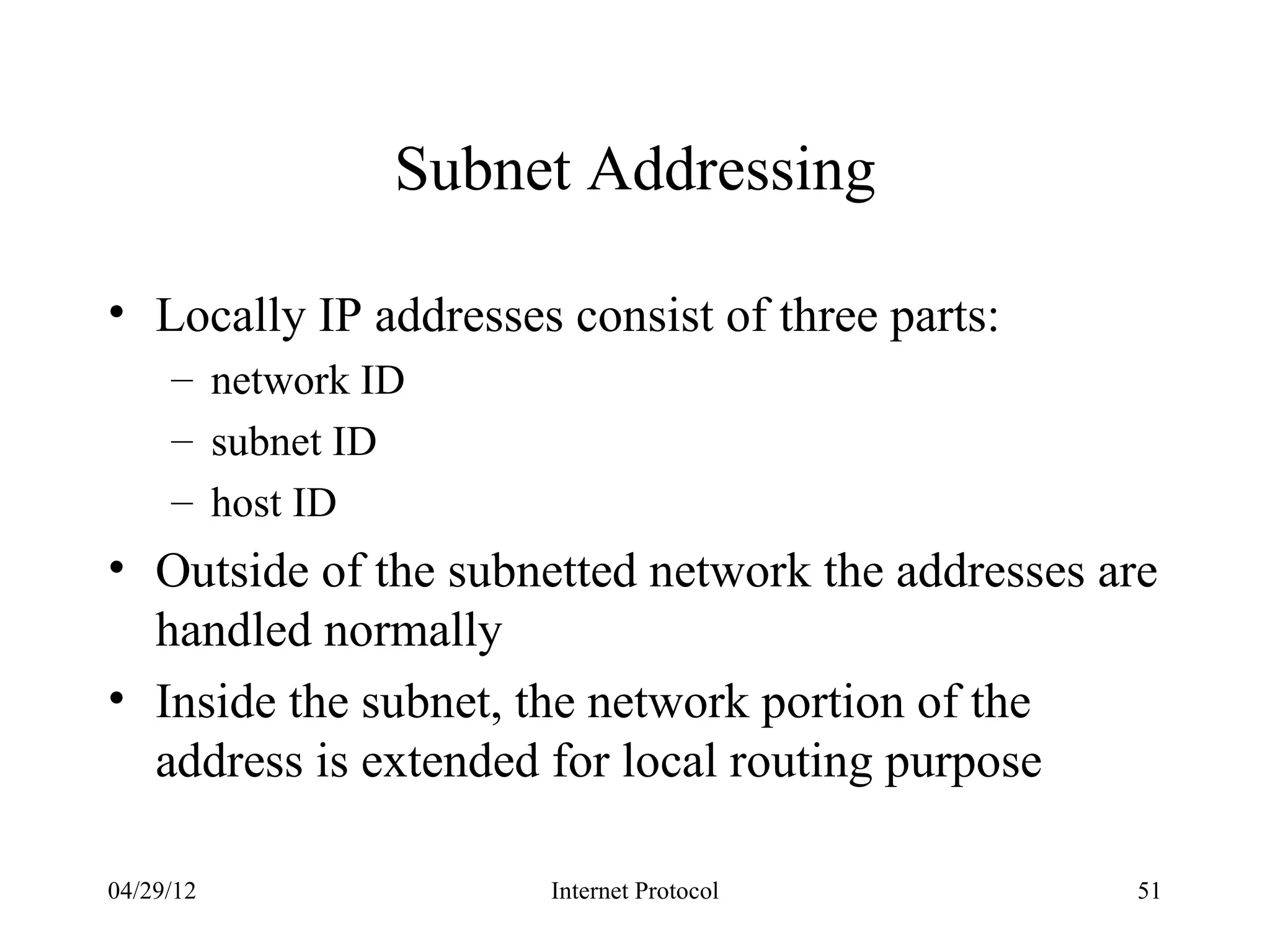

51. Subnet Addressing
• Locally IP addresses consist of three parts:
– network ID
– subnet ID
– host ID
• Outside of the subnetted network the addresses are
handled normally
• Inside the subnet, the network portion of the
address is extended for local routing purpose
04/29/12 Internet Protocol 51

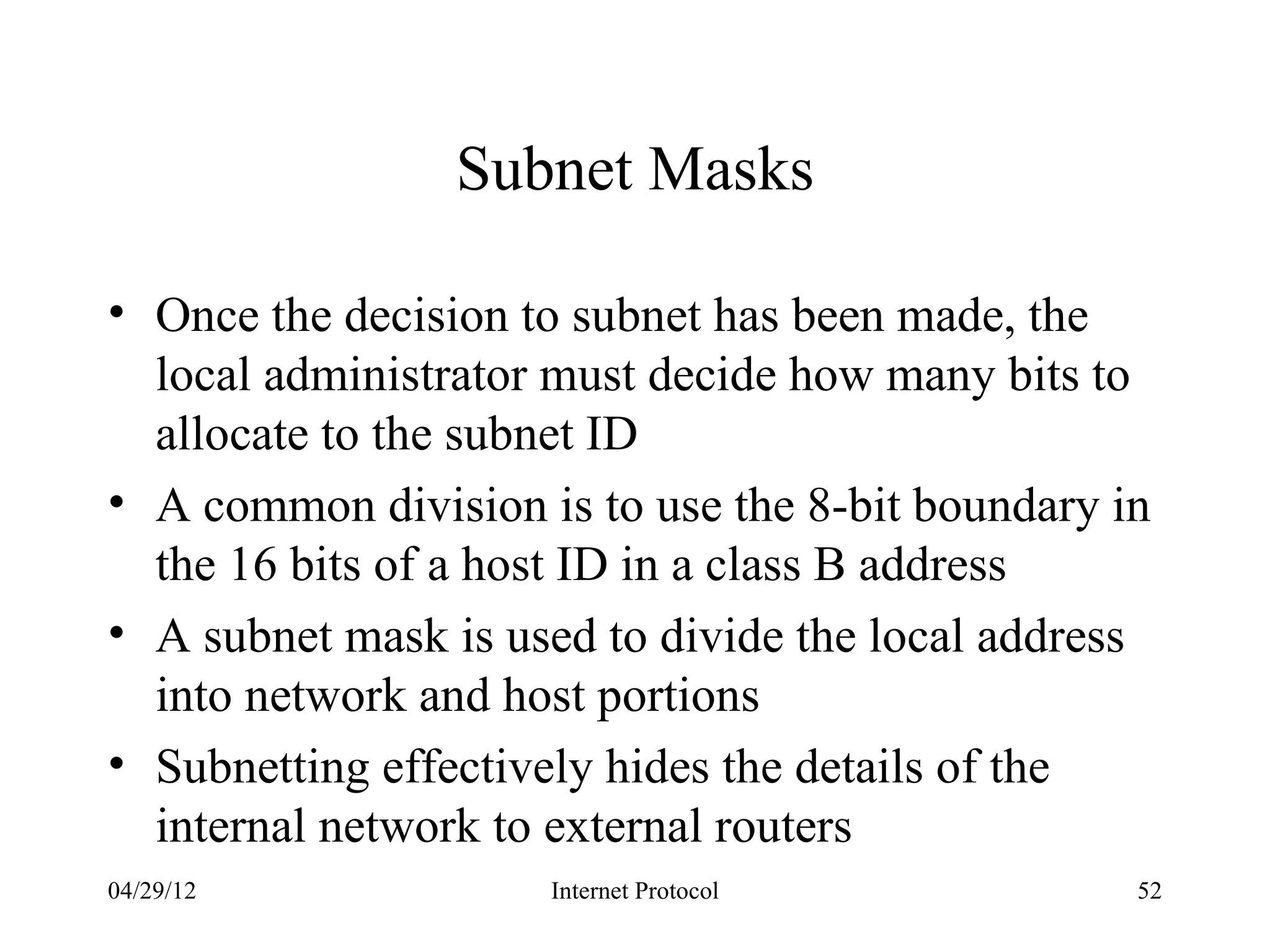

52. Subnet Masks
• Once the decision to subnet has been made, the
local administrator must decide how many bits to
allocate to the subnet ID
• A common division is to use the 8-bit boundary in
the 16 bits of a host ID in a class B address
• A subnet mask is used to divide the local address
into network and host portions
• Subnetting effectively hides the details of the
internal network to external routers
04/29/12 Internet Protocol 52

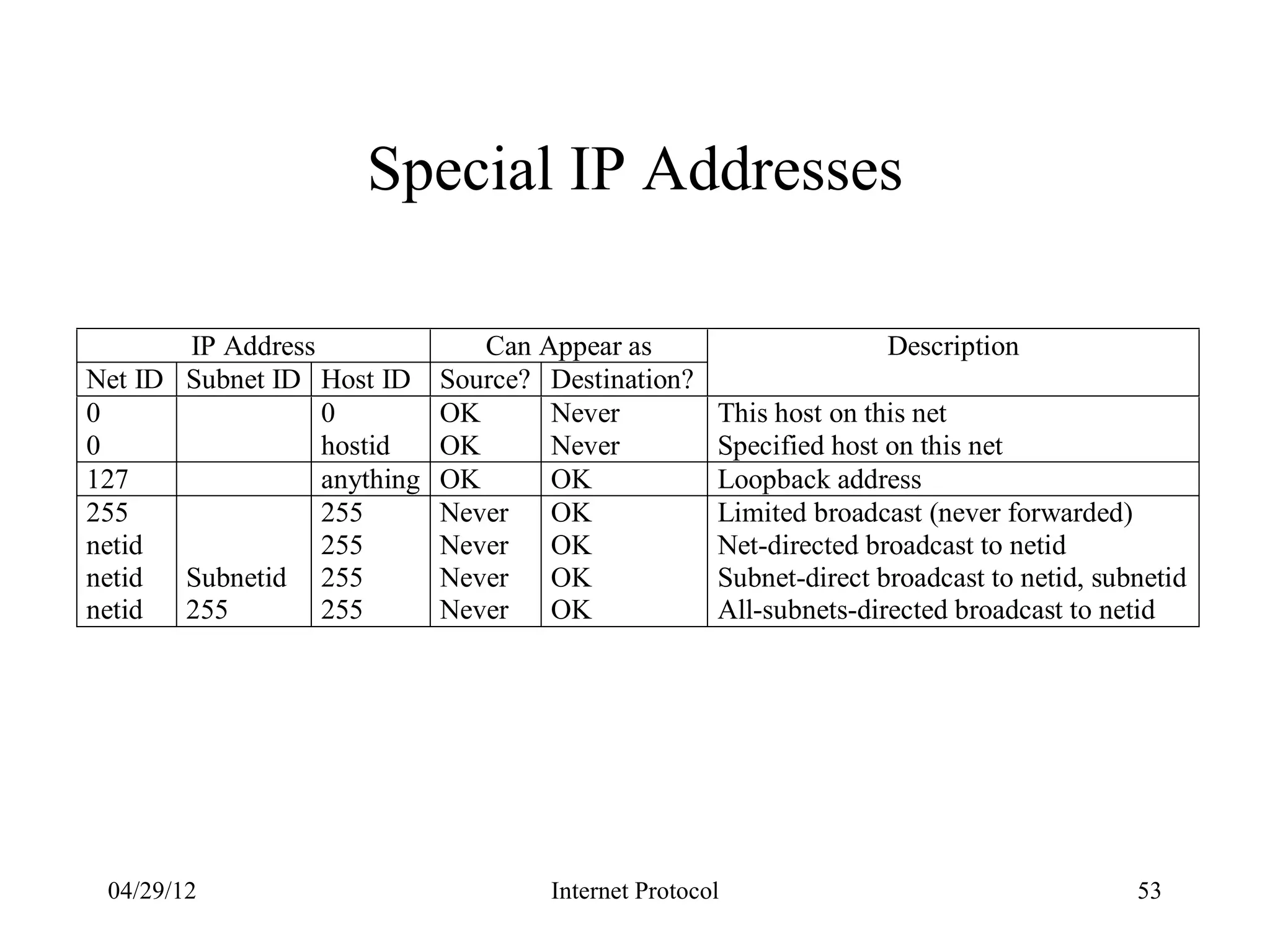

53. Special IP Addresses
IP Address Can Appear as Description
Net ID Subnet ID Host ID Source? Destination?
0 0 OK Never This host on this net
0 hostid OK Never Specified host on this net
127 anything OK OK Loopback address
255 255 Never OK Limited broadcast (never forwarded)
netid 255 Never OK Net-directed broadcast to netid
netid Subnetid 255 Never OK Subnet-direct broadcast to netid, subnetid
netid 255 255 Never OK All-subnets-directed broadcast to netid
04/29/12 Internet Protocol 53

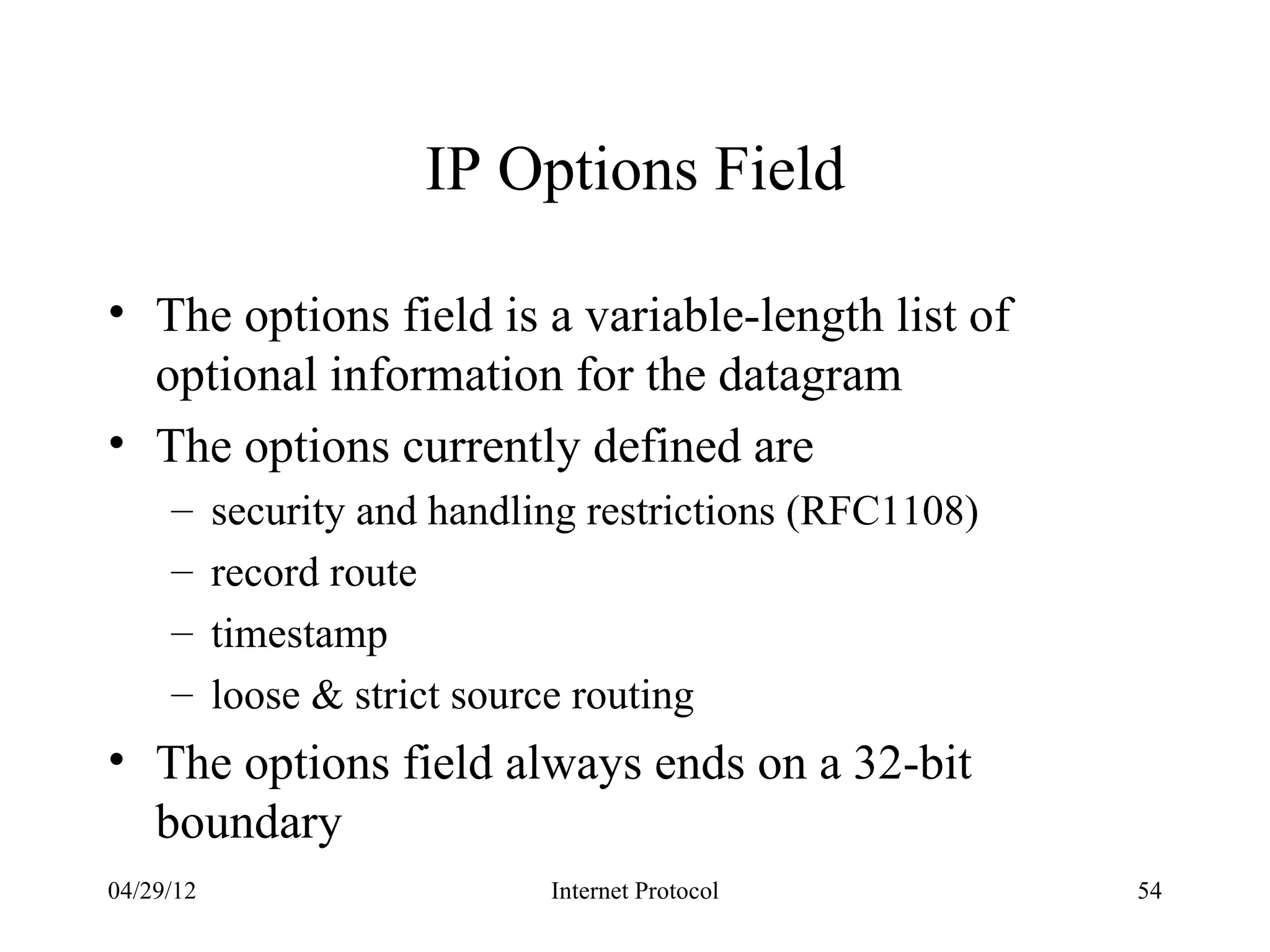

54. IP Options Field
• The options field is a variable-length list of
optional information for the datagram
• The options currently defined are
– security and handling restrictions (RFC1108)
– record route
– timestamp
– loose & strict source routing
• The options field always ends on a 32-bit
boundary
04/29/12 Internet Protocol 54

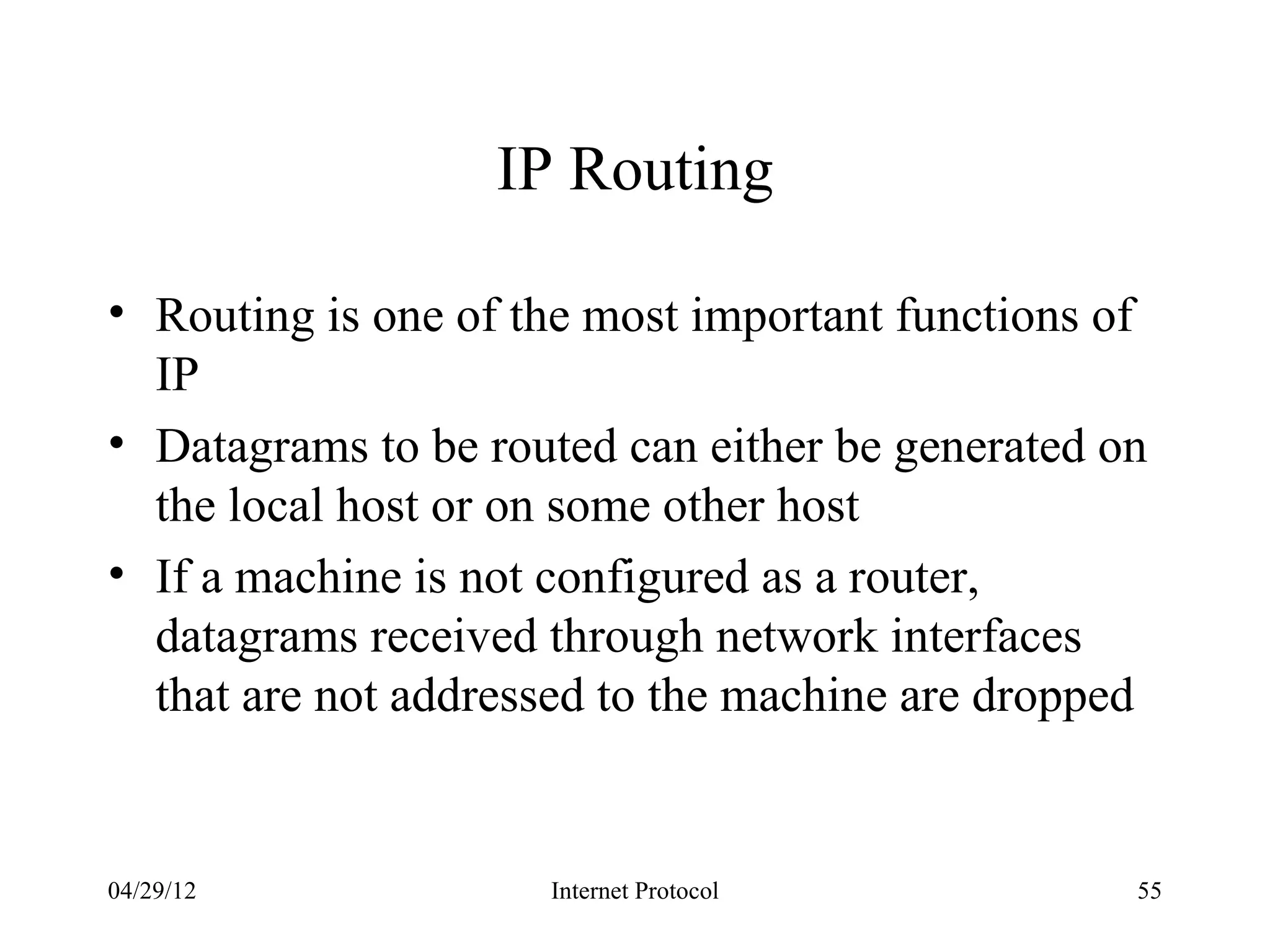

55. IP Routing
• Routing is one of the most important functions of
IP
• Datagrams to be routed can either be generated on
the local host or on some other host
• If a machine is not configured as a router,
datagrams received through network interfaces
that are not addressed to the machine are dropped
04/29/12 Internet Protocol 55

56. Host Routing
• Conceptually IP routing is easy, especially for a
host
– Remember the structure of an internet address
• If the destination is directly connected to the host,
or on a shared network, then the datagram is sent
directly
• Otherwise the host sends the datagram to a default
router, and lets the router do all of the work
04/29/12 Internet Protocol 56

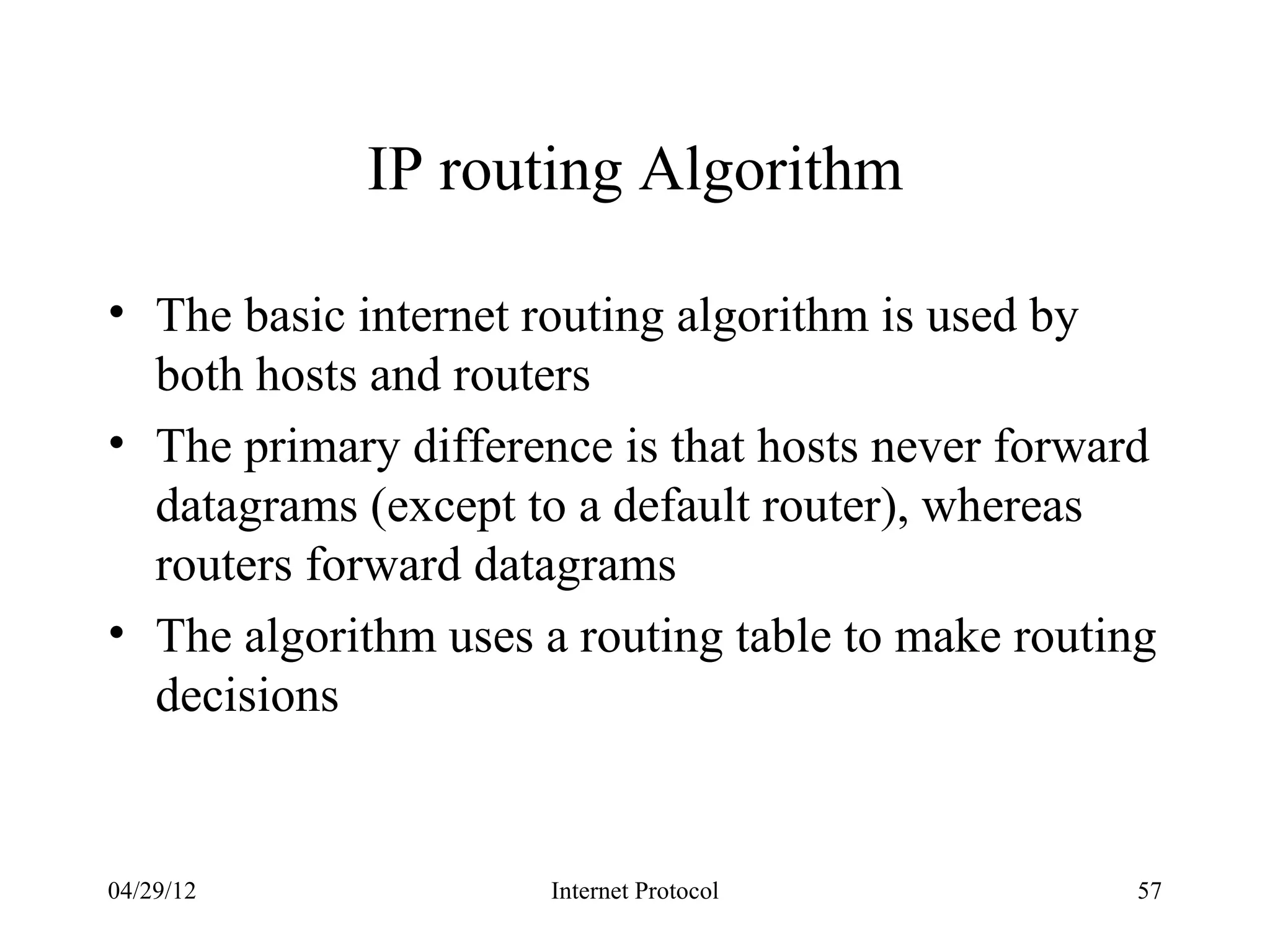

57. IP routing Algorithm
• The basic internet routing algorithm is used by
both hosts and routers
• The primary difference is that hosts never forward
datagrams (except to a default router), whereas
routers forward datagrams
• The algorithm uses a routing table to make routing
decisions
04/29/12 Internet Protocol 57

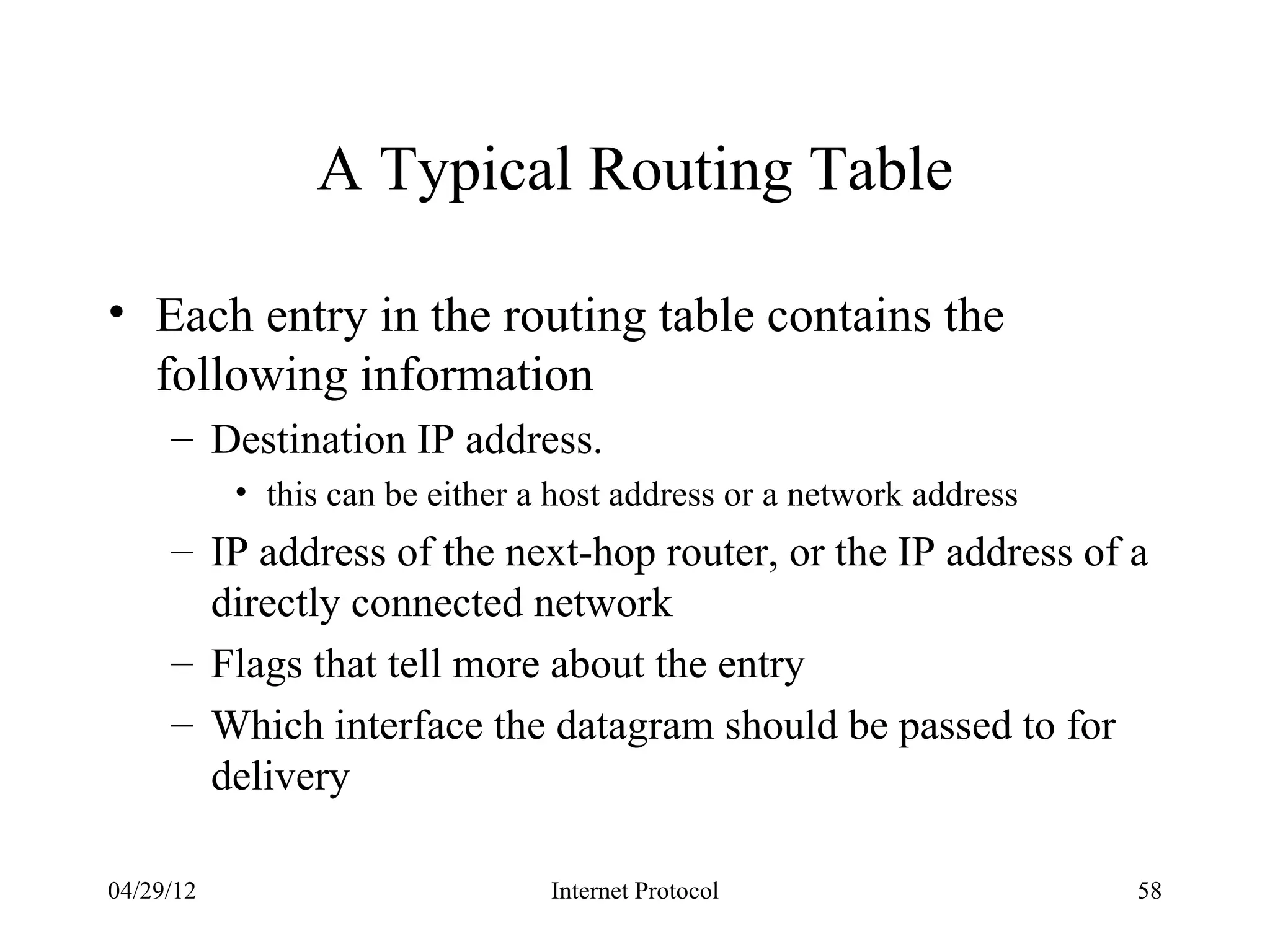

58. A Typical Routing Table
• Each entry in the routing table contains the
following information
– Destination IP address.
• this can be either a host address or a network address
– IP address of the next-hop router, or the IP address of a
directly connected network
– Flags that tell more about the entry
– Which interface the datagram should be passed to for
delivery
04/29/12 Internet Protocol 58

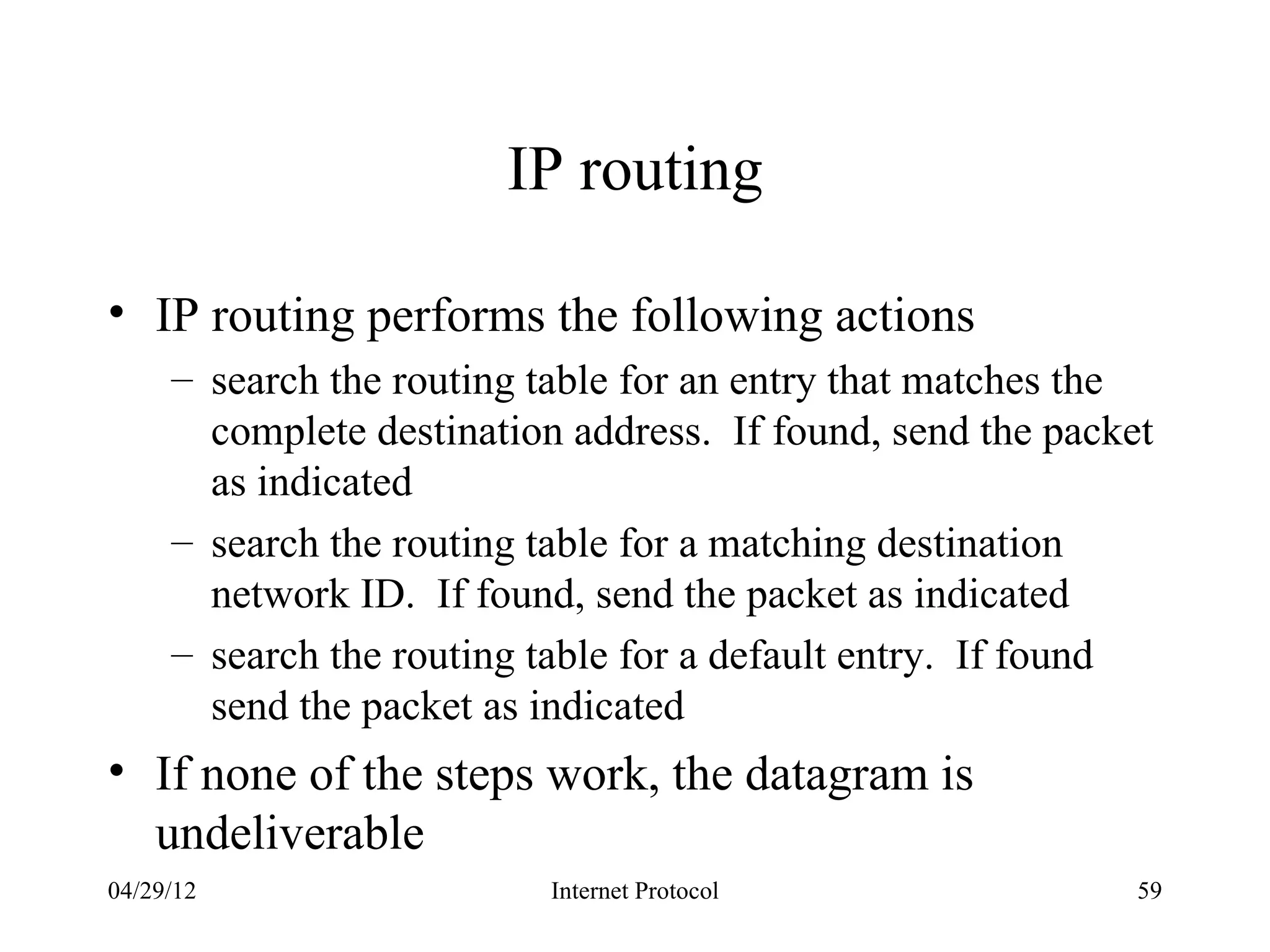

59. IP routing
• IP routing performs the following actions
– search the routing table for an entry that matches the
complete destination address. If found, send the packet
as indicated
– search the routing table for a matching destination
network ID. If found, send the packet as indicated
– search the routing table for a default entry. If found
send the packet as indicated
• If none of the steps work, the datagram is
undeliverable
04/29/12 Internet Protocol 59

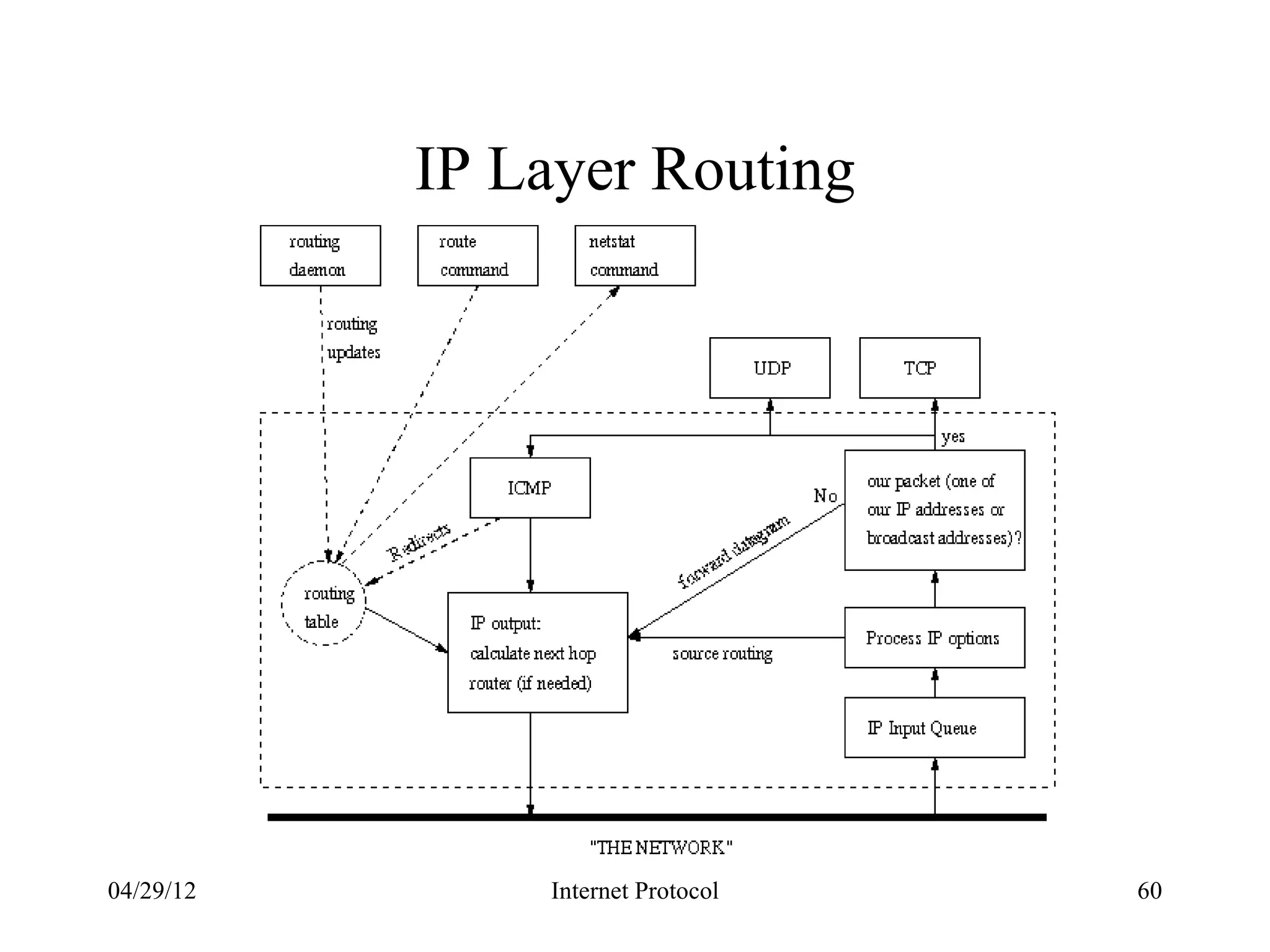

60. IP Layer Routing
04/29/12 Internet Protocol 60

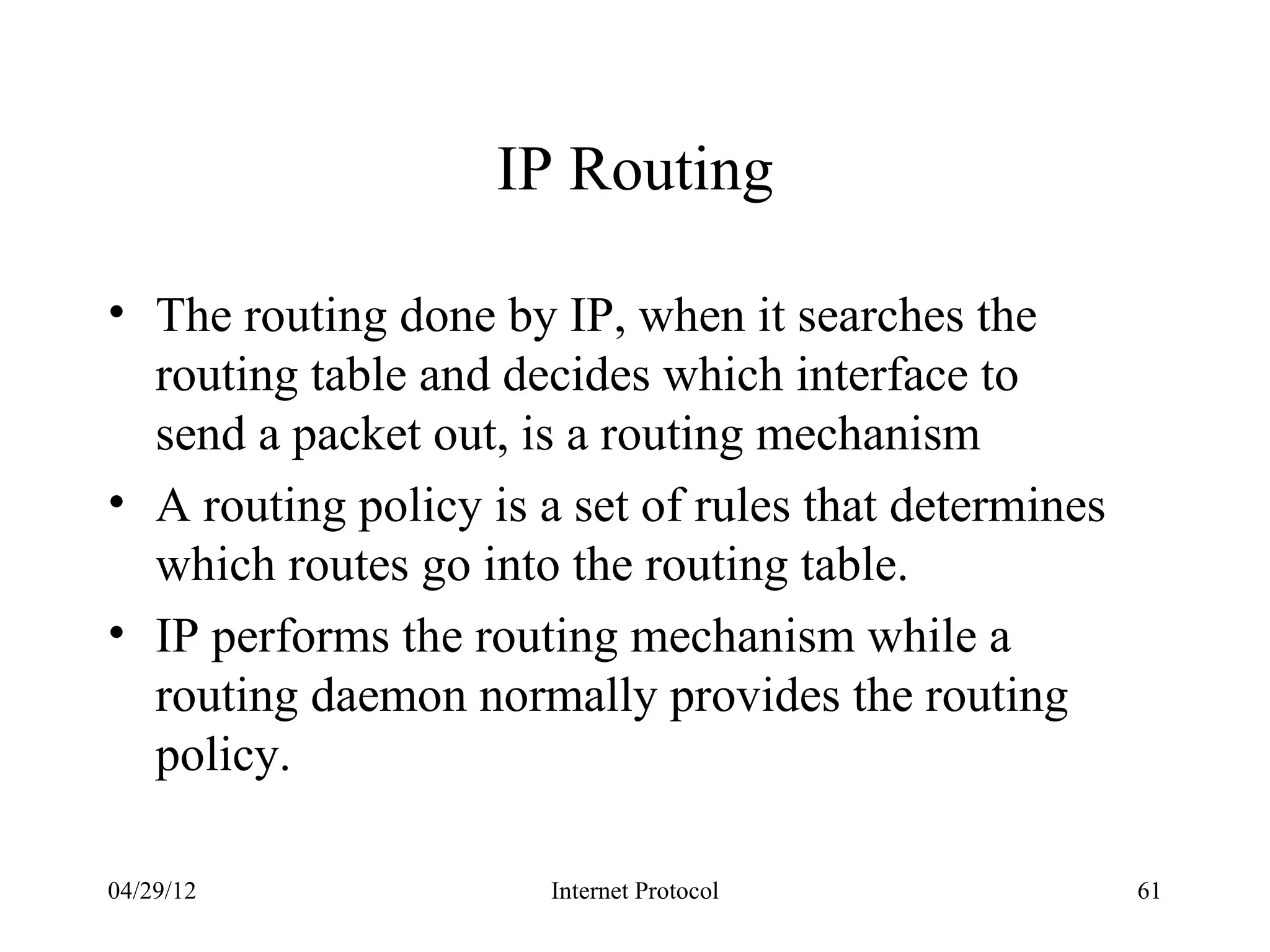

61. IP Routing
• The routing done by IP, when it searches the
routing table and decides which interface to
send a packet out, is a routing mechanism
• A routing policy is a set of rules that determines
which routes go into the routing table.
• IP performs the routing mechanism while a
routing daemon normally provides the routing
policy.
04/29/12 Internet Protocol 61

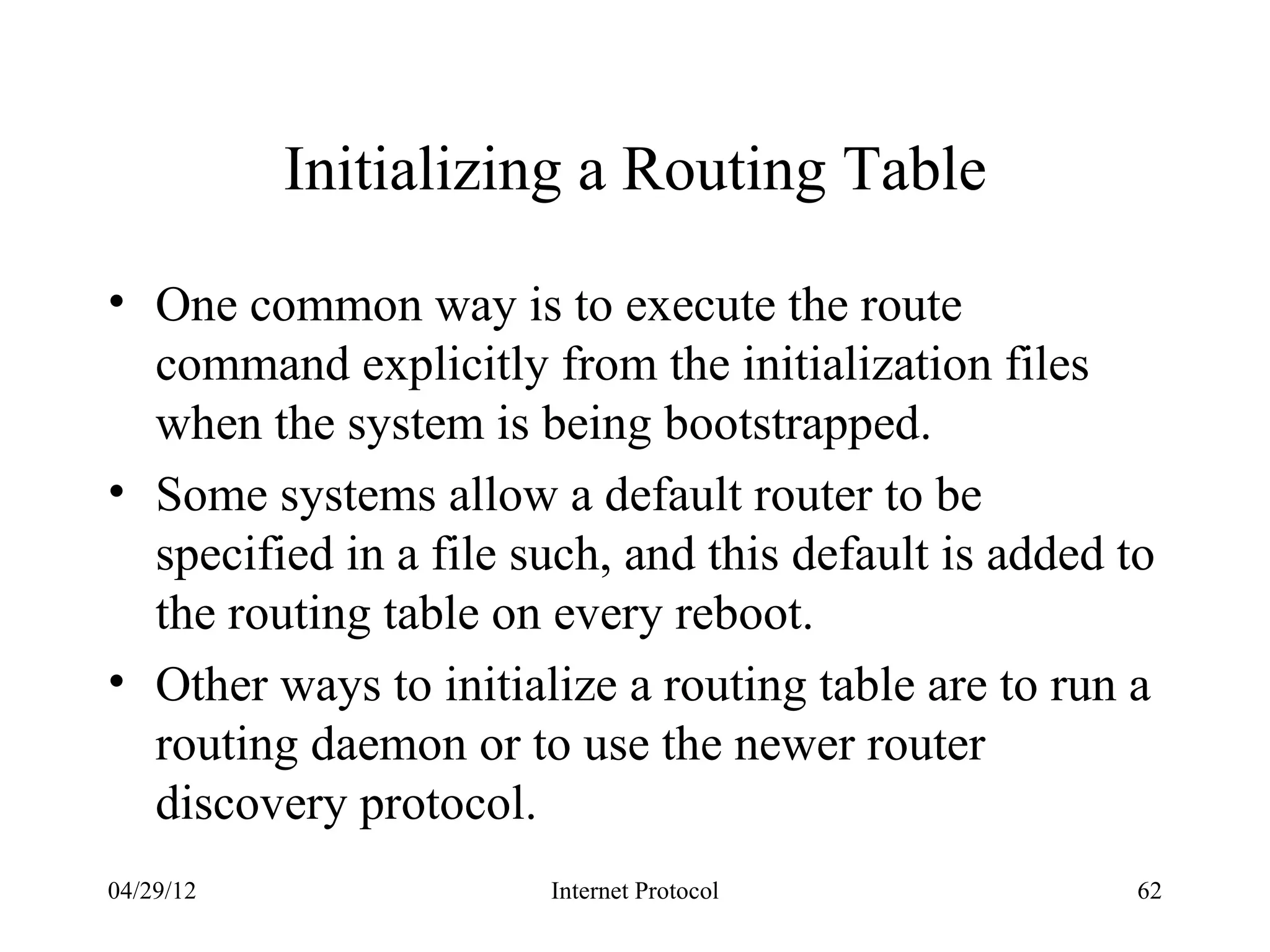

62. Initializing a Routing Table
• One common way is to execute the route
command explicitly from the initialization files
when the system is being bootstrapped.
• Some systems allow a default router to be
specified in a file such, and this default is added to
the routing table on every reboot.
• Other ways to initialize a routing table are to run a
routing daemon or to use the newer router
discovery protocol.
04/29/12 Internet Protocol 62

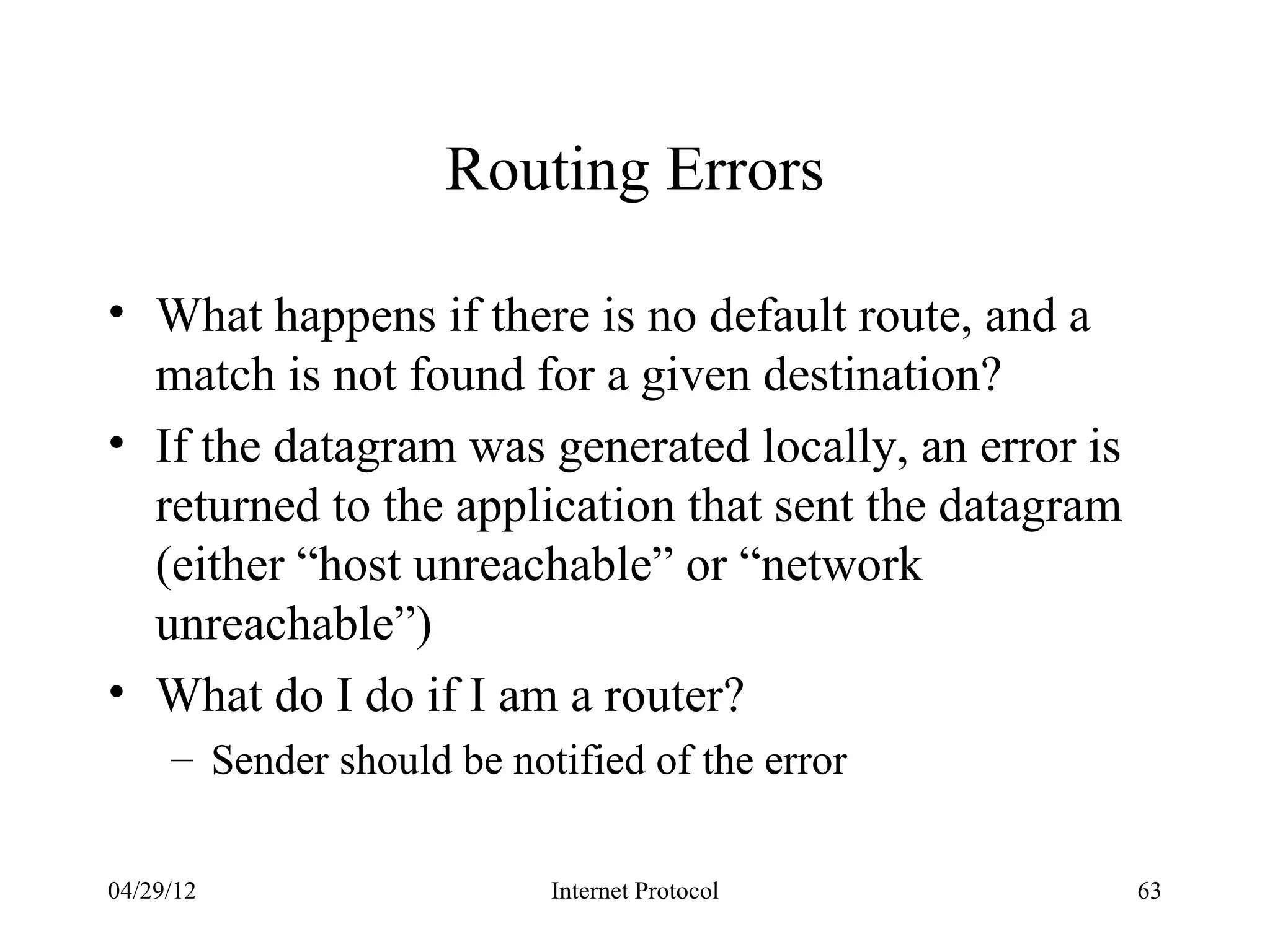

63. Routing Errors
• What happens if there is no default route, and a
match is not found for a given destination?
• If the datagram was generated locally, an error is
returned to the application that sent the datagram
(either “host unreachable” or “network
unreachable”)
• What do I do if I am a router?
– Sender should be notified of the error
04/29/12 Internet Protocol 63

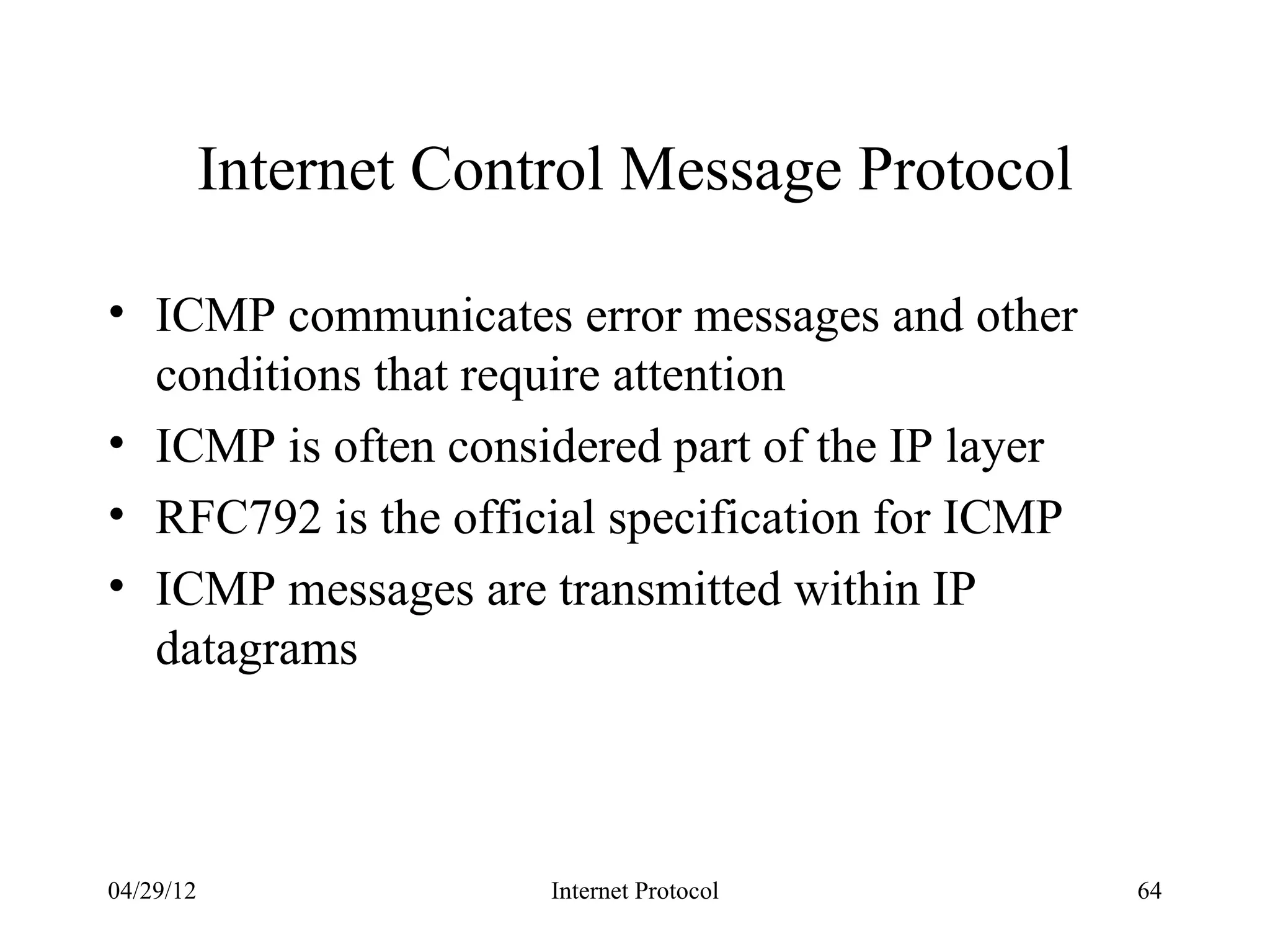

64. Internet Control Message Protocol
• ICMP communicates error messages and other
conditions that require attention
• ICMP is often considered part of the IP layer
• RFC792 is the official specification for ICMP
• ICMP messages are transmitted within IP
datagrams
04/29/12 Internet Protocol 64

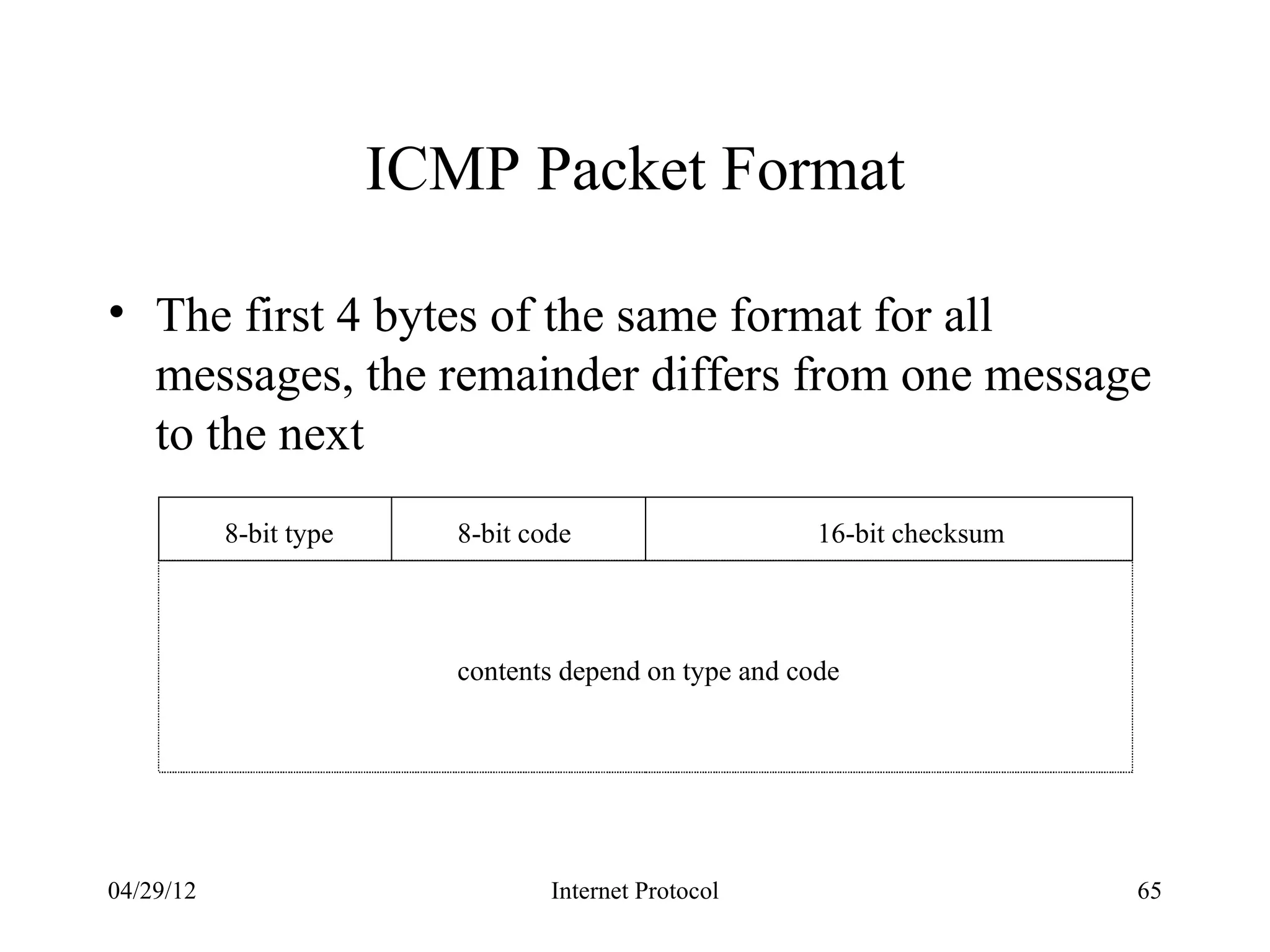

65. ICMP Packet Format
• The first 4 bytes of the same format for all
messages, the remainder differs from one message
to the next
8-bit type 8-bit code 16-bit checksum
contents depend on type and code
04/29/12 Internet Protocol 65

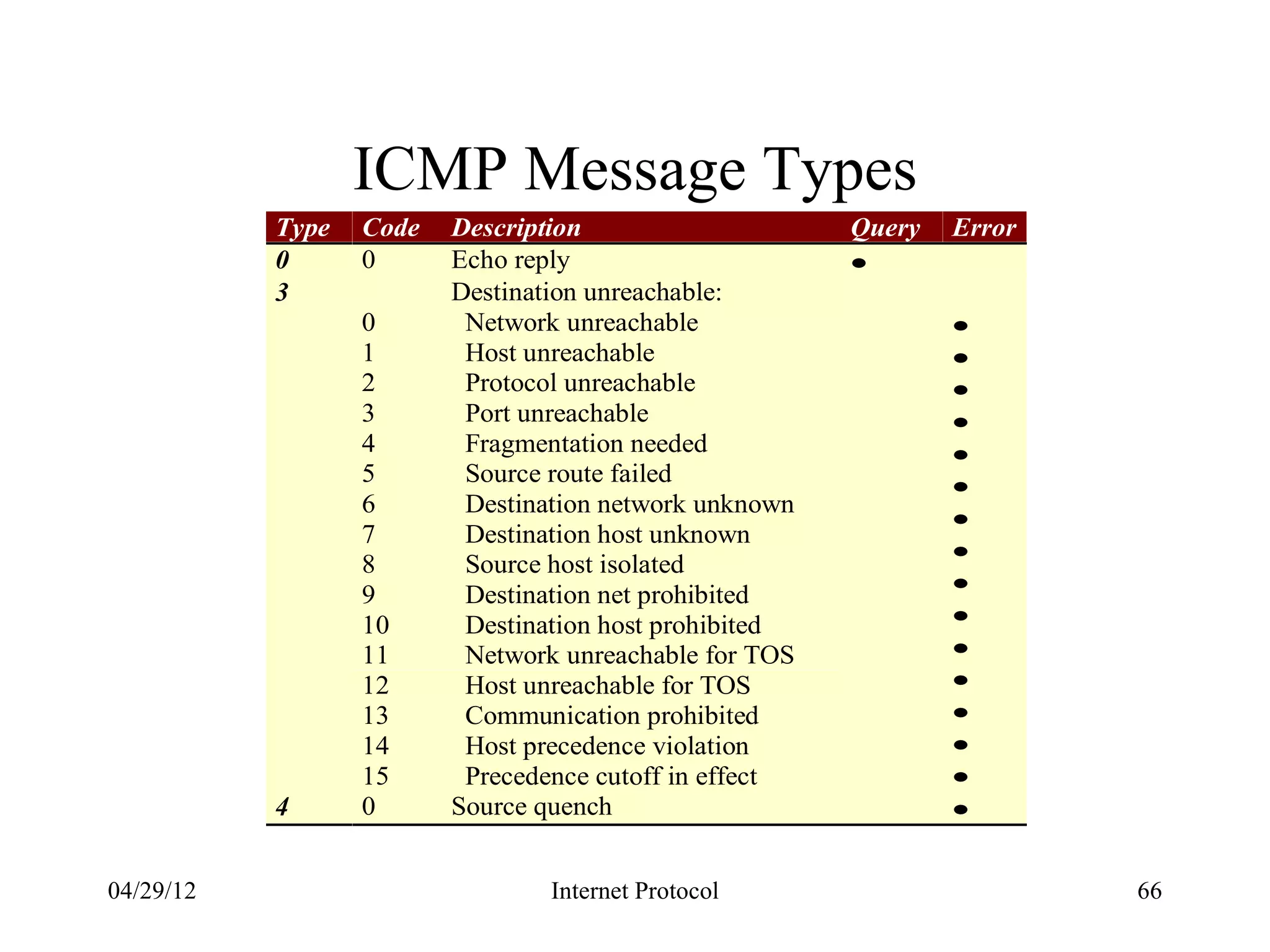

66. ICMP Message Types
Type Code Description Query Error
0 0 Echo reply •
3 Destination unreachable:
0 Network unreachable •
1 Host unreachable •
2 Protocol unreachable •
3 Port unreachable •
4 Fragmentation needed •
5 Source route failed •
6 Destination network unknown
•
7 Destination host unknown
•
8 Source host isolated
9 Destination net prohibited •
10 Destination host prohibited •
11 Network unreachable for TOS •
12 Host unreachable for TOS •
13 Communication prohibited •
14 Host precedence violation •
15 Precedence cutoff in effect •
4 0 Source quench •
04/29/12 Internet Protocol 66

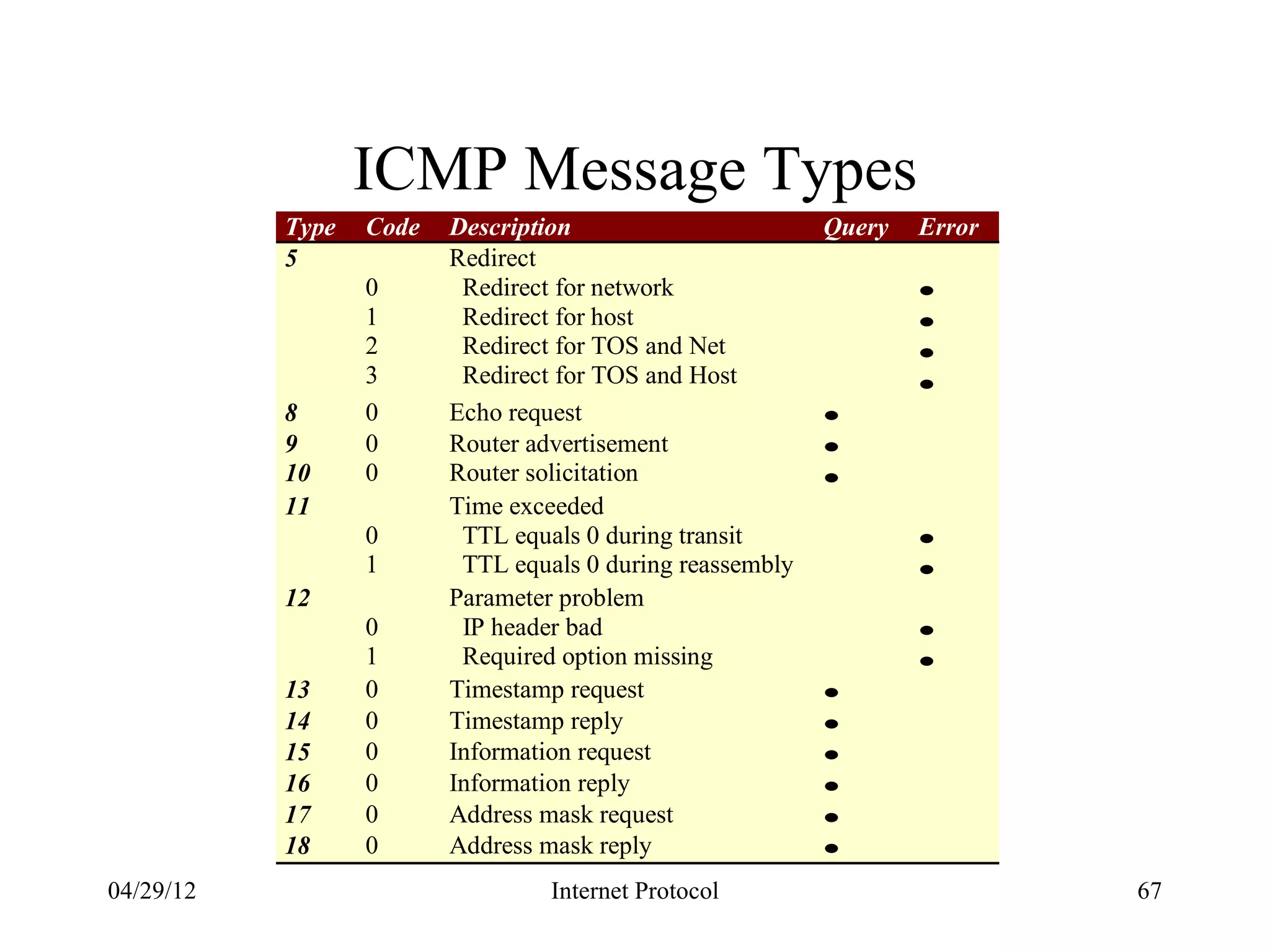

67. ICMP Message Types
Type Code Description Query Error
5 Redirect
0 Redirect for network •
1 Redirect for host •
2 Redirect for TOS and Net •
3 Redirect for TOS and Host •
8 0 Echo request •
9 0 Router advertisement •
10 0 Router solicitation •
11 Time exceeded
0 TTL equals 0 during transit •
1 TTL equals 0 during reassembly •
12 Parameter problem
0 IP header bad •
1 Required option missing •
13 0 Timestamp request •
14 0 Timestamp reply •
15 0 Information request •
16 0 Information reply •
17 0 Address mask request •
18 0 Address mask reply •
04/29/12 Internet Protocol 67

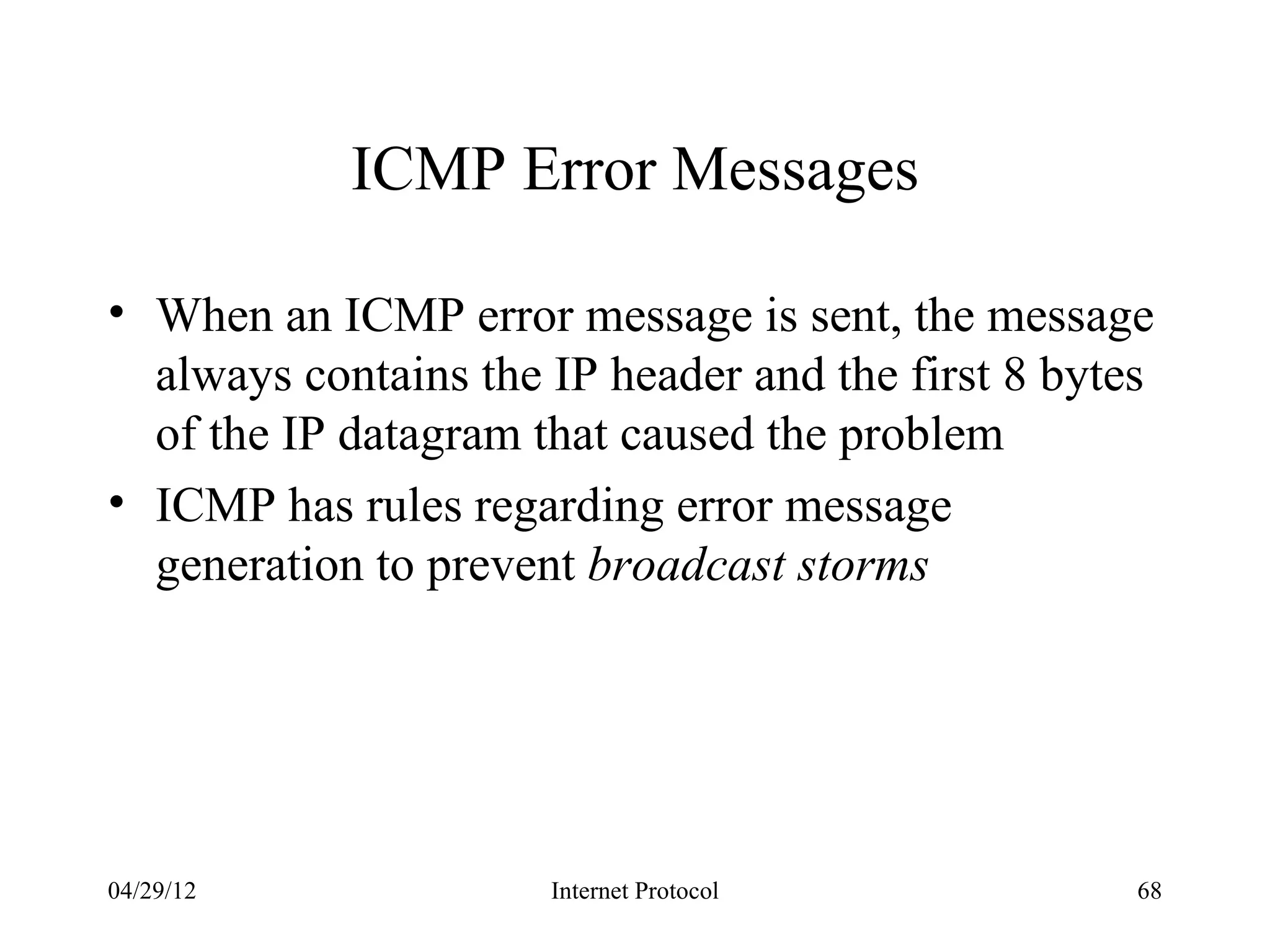

68. ICMP Error Messages
• When an ICMP error message is sent, the message
always contains the IP header and the first 8 bytes
of the IP datagram that caused the problem
• ICMP has rules regarding error message
generation to prevent broadcast storms
04/29/12 Internet Protocol 68

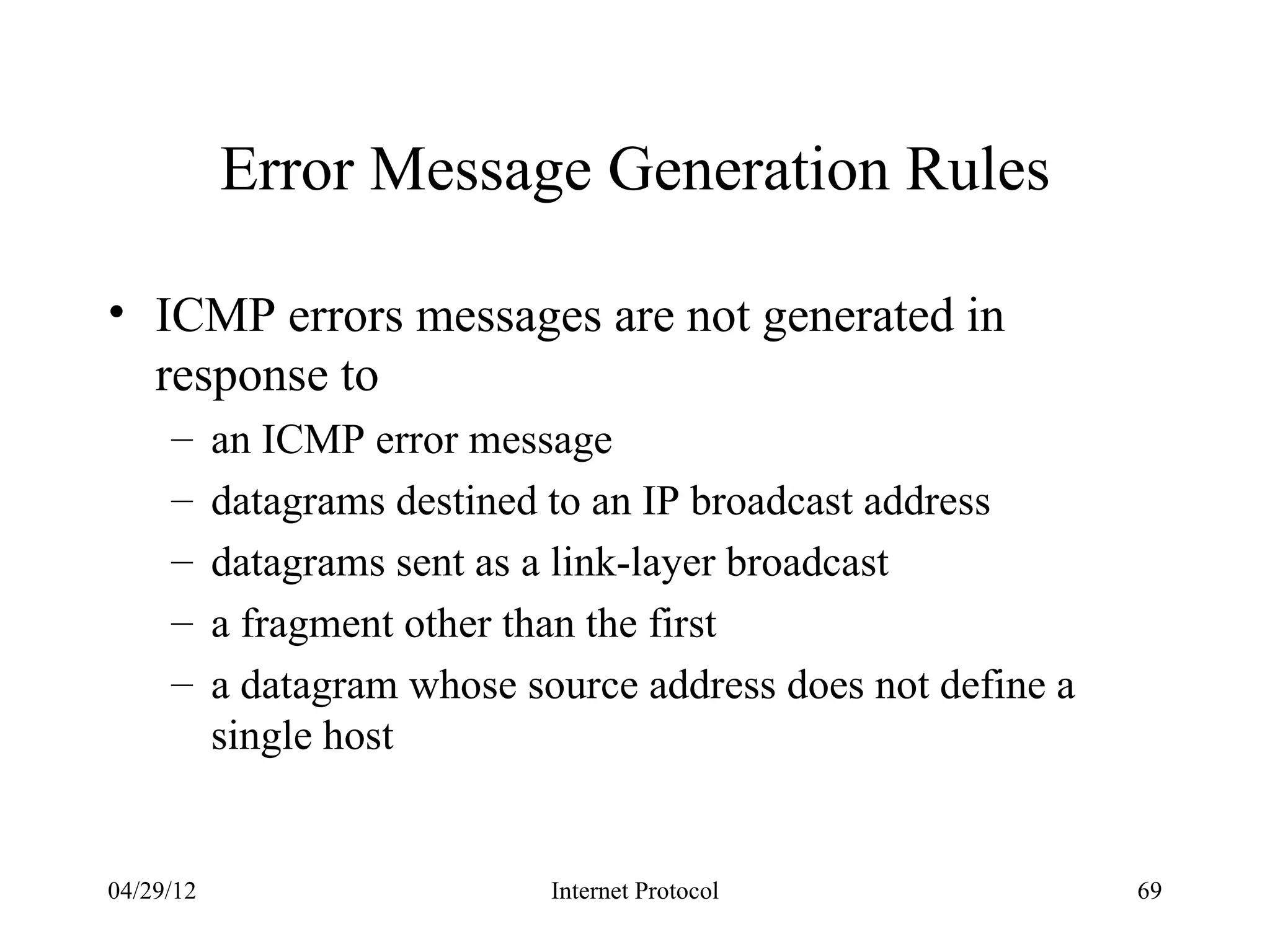

69. Error Message Generation Rules
• ICMP errors messages are not generated in
response to
– an ICMP error message
– datagrams destined to an IP broadcast address
– datagrams sent as a link-layer broadcast
– a fragment other than the first
– a datagram whose source address does not define a
single host
04/29/12 Internet Protocol 69

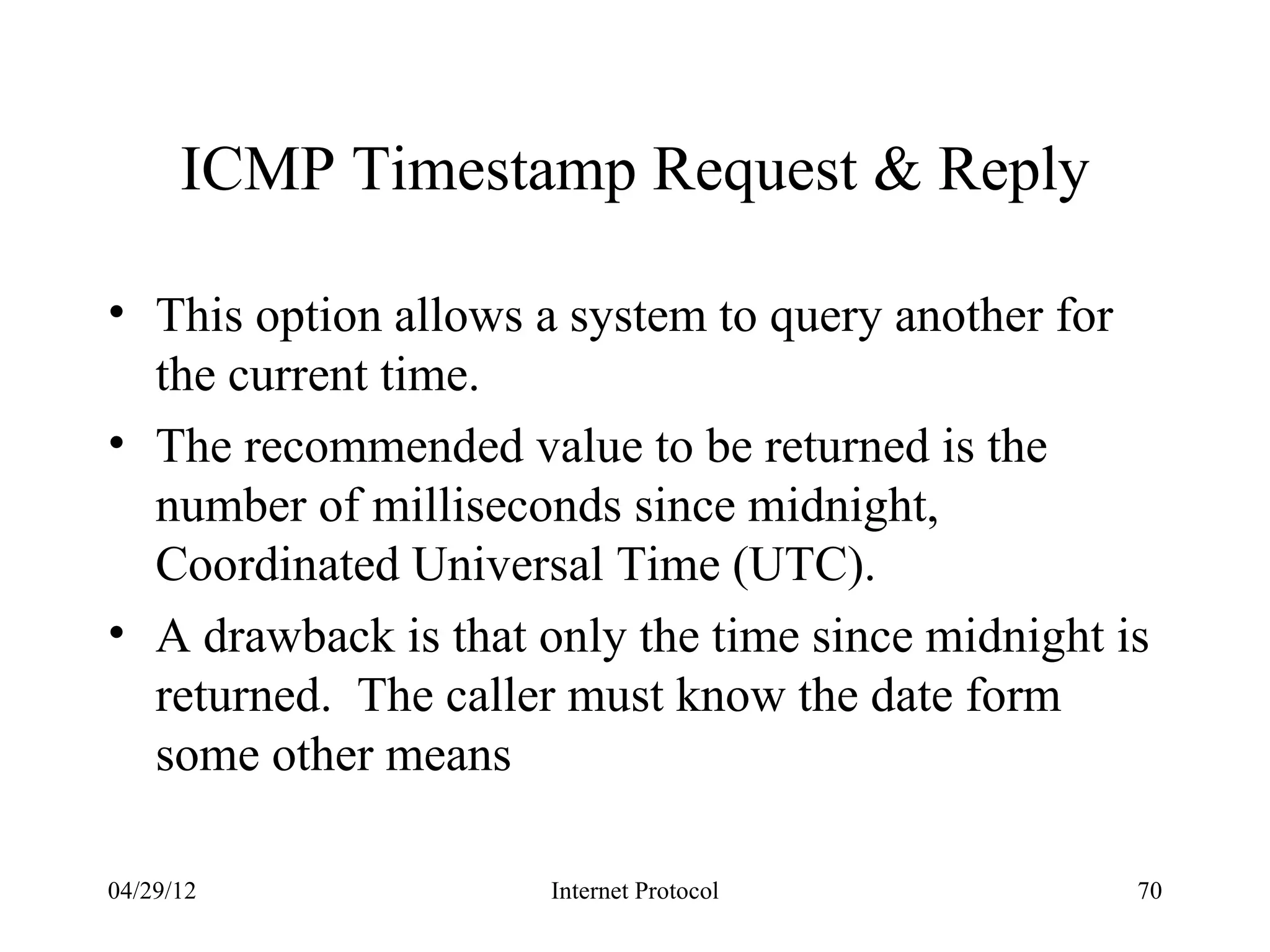

70. ICMP Timestamp Request & Reply
• This option allows a system to query another for
the current time.
• The recommended value to be returned is the
number of milliseconds since midnight,
Coordinated Universal Time (UTC).
• A drawback is that only the time since midnight is
returned. The caller must know the date form
some other means
04/29/12 Internet Protocol 70

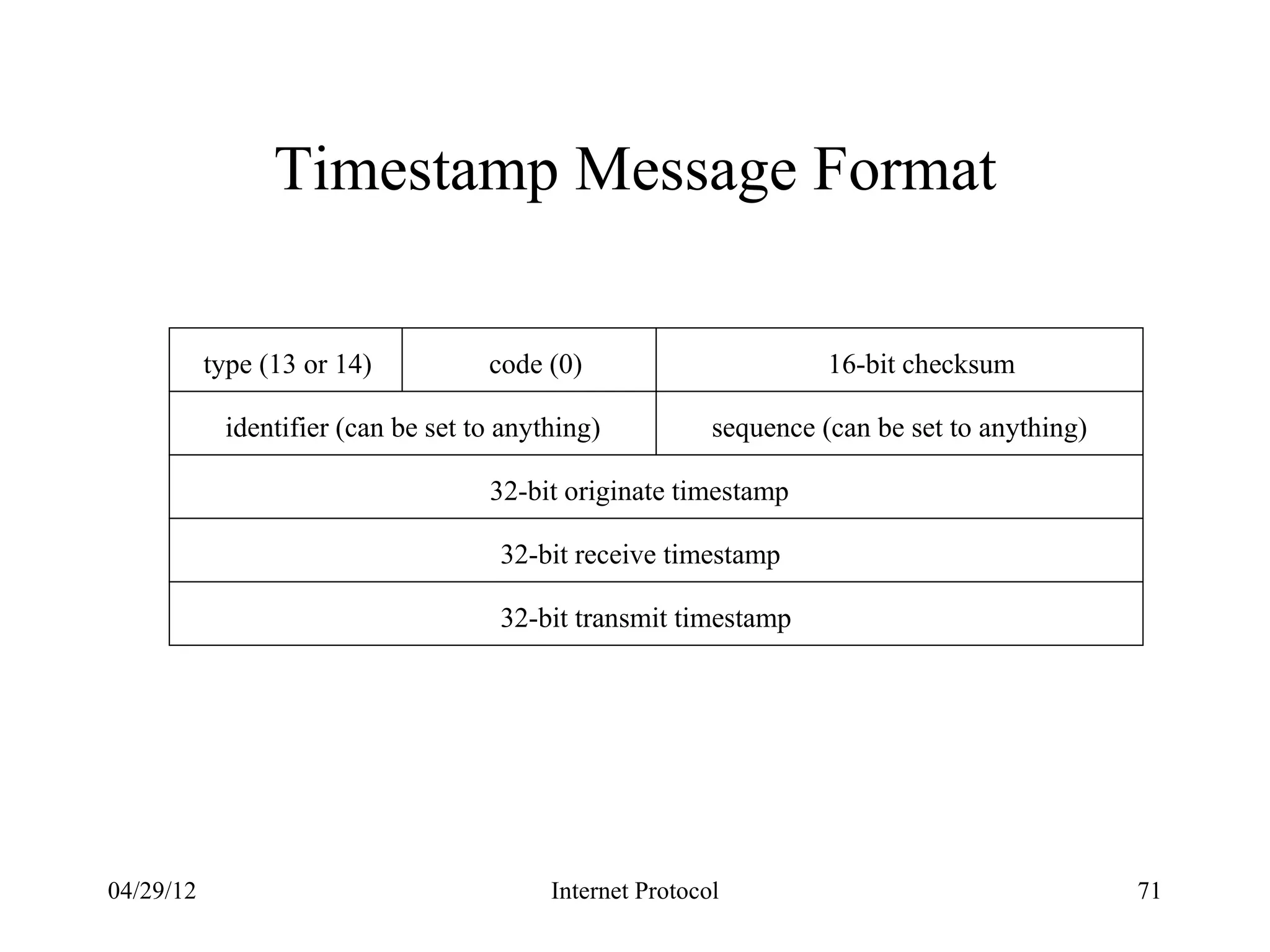

71. Timestamp Message Format
type (13 or 14) code (0) 16-bit checksum
identifier (can be set to anything) sequence (can be set to anything)
32-bit originate timestamp
32-bit receive timestamp
32-bit transmit timestamp
04/29/12 Internet Protocol 71

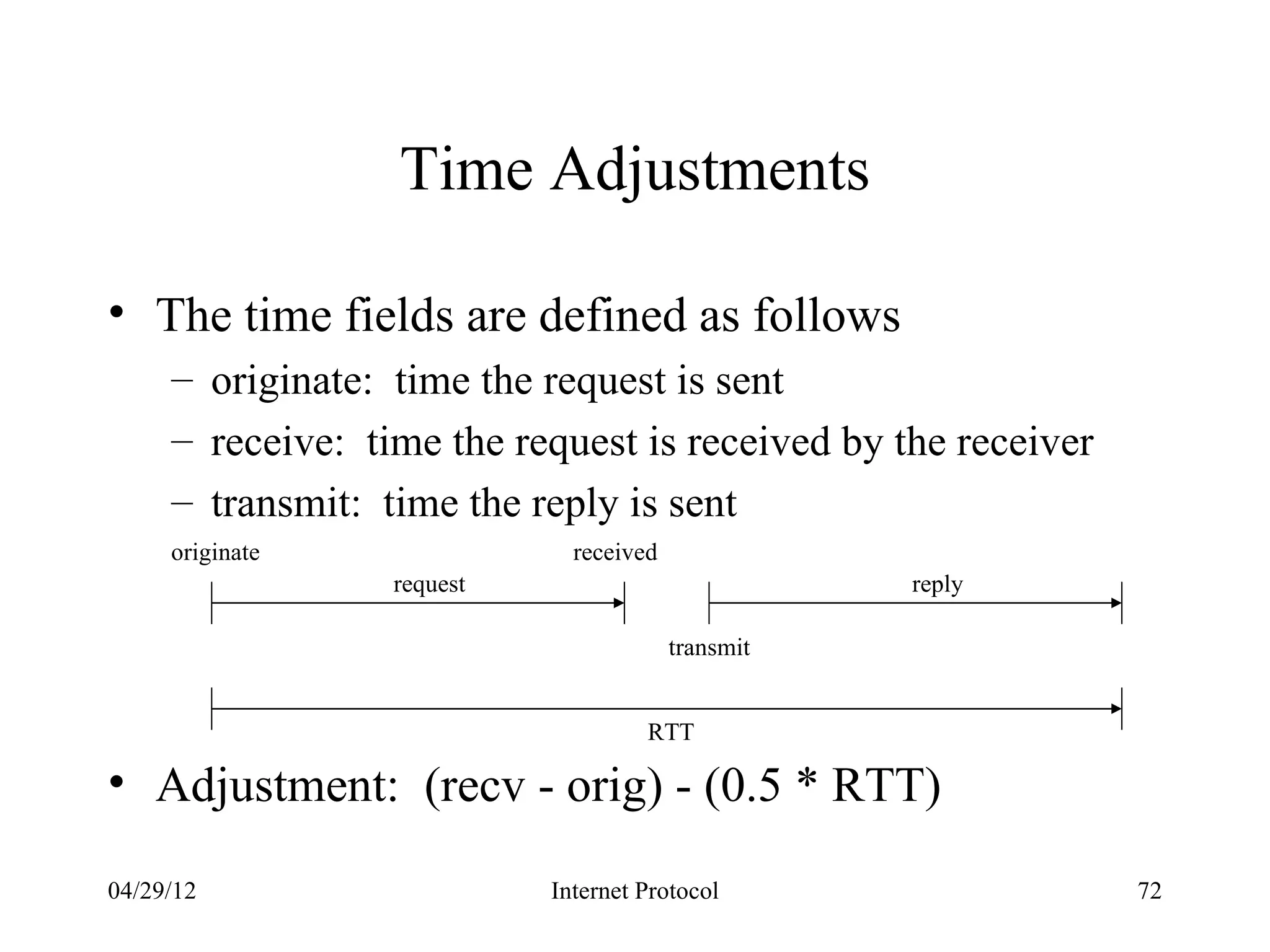

72. Time Adjustments
• The time fields are defined as follows
– originate: time the request is sent
– receive: time the request is received by the receiver
– transmit: time the reply is sent
originate received
request reply
transmit
RTT
• Adjustment: (recv - orig) - (0.5 * RTT)
04/29/12 Internet Protocol 72

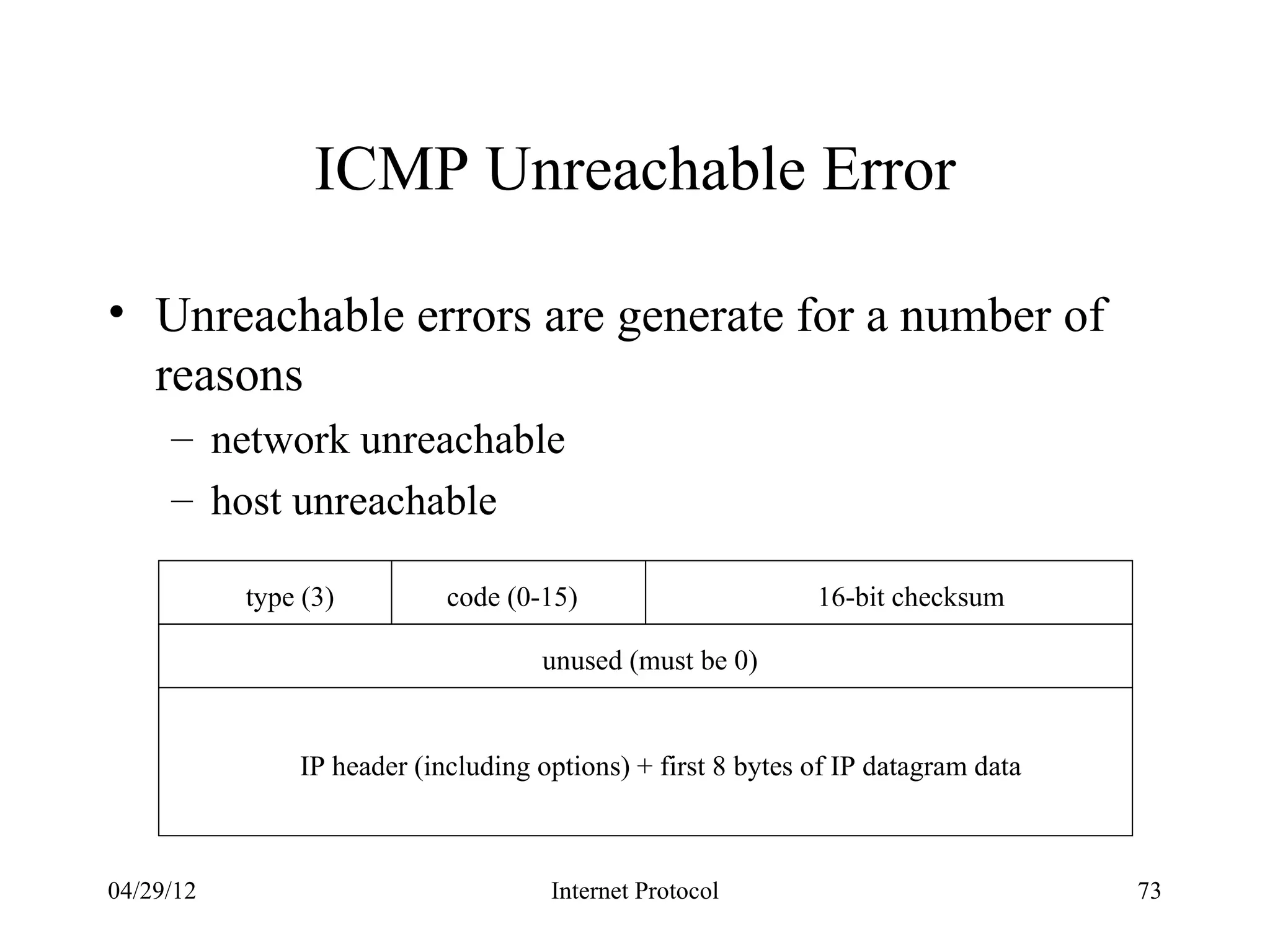

73. ICMP Unreachable Error
• Unreachable errors are generate for a number of
reasons
– network unreachable
– host unreachable
type (3) code (0-15) 16-bit checksum
unused (must be 0)
IP header (including options) + first 8 bytes of IP datagram data
04/29/12 Internet Protocol 73

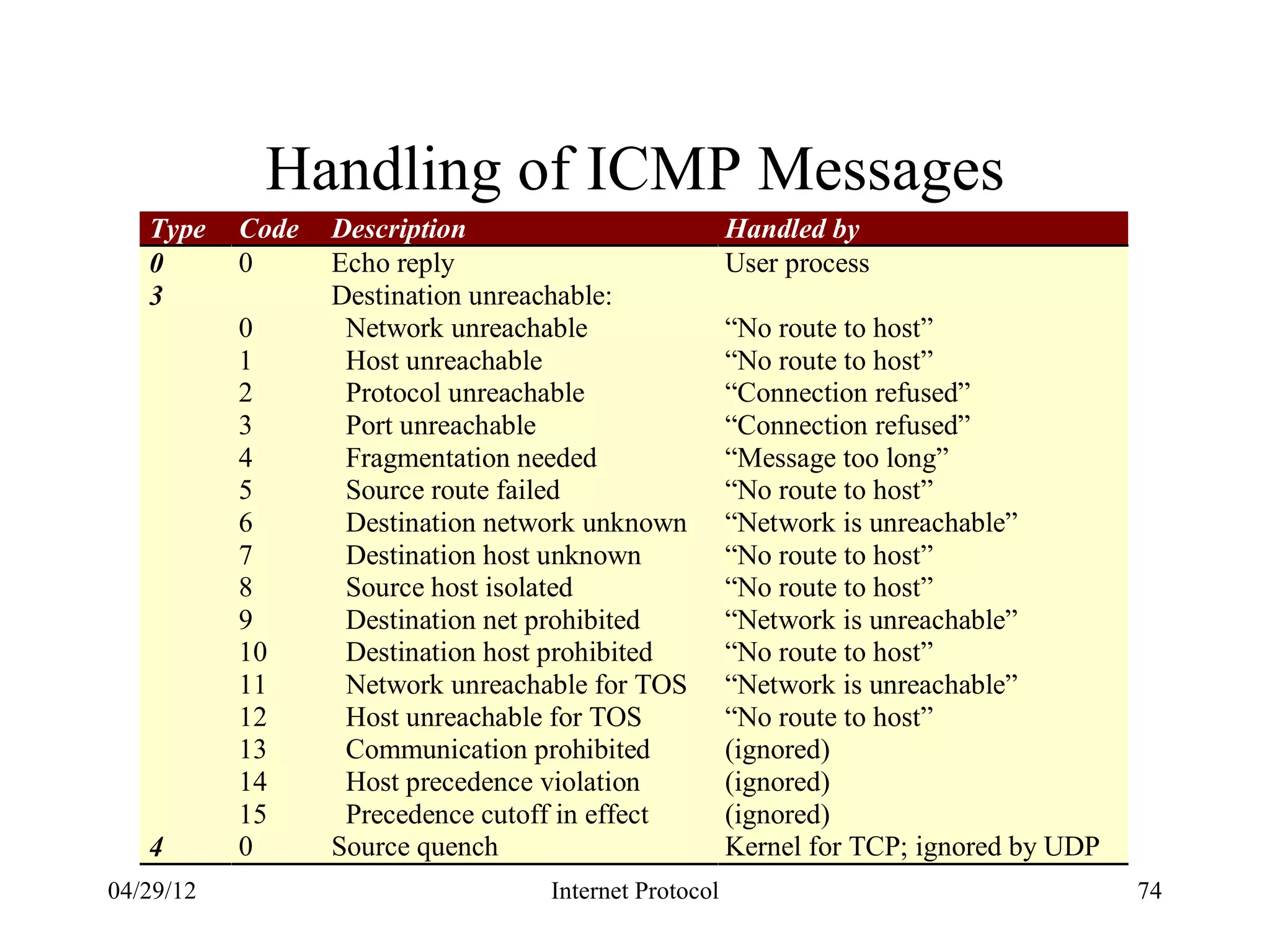

74. Handling of ICMP Messages
Type Code Description Handled by
0 0 Echo reply User process
3 Destination unreachable:
0 Network unreachable “No route to host”
1 Host unreachable “No route to host”
2 Protocol unreachable “Connection refused”
3 Port unreachable “Connection refused”
4 Fragmentation needed “Message too long”
5 Source route failed “No route to host”
6 Destination network unknown “Network is unreachable”
7 Destination host unknown “No route to host”
8 Source host isolated “No route to host”
9 Destination net prohibited “Network is unreachable”
10 Destination host prohibited “No route to host”
11 Network unreachable for TOS “Network is unreachable”
12 Host unreachable for TOS “No route to host”
13 Communication prohibited (ignored)
14 Host precedence violation (ignored)
15 Precedence cutoff in effect (ignored)
4 0 Source quench Kernel for TCP; ignored by UDP
04/29/12 Internet Protocol 74

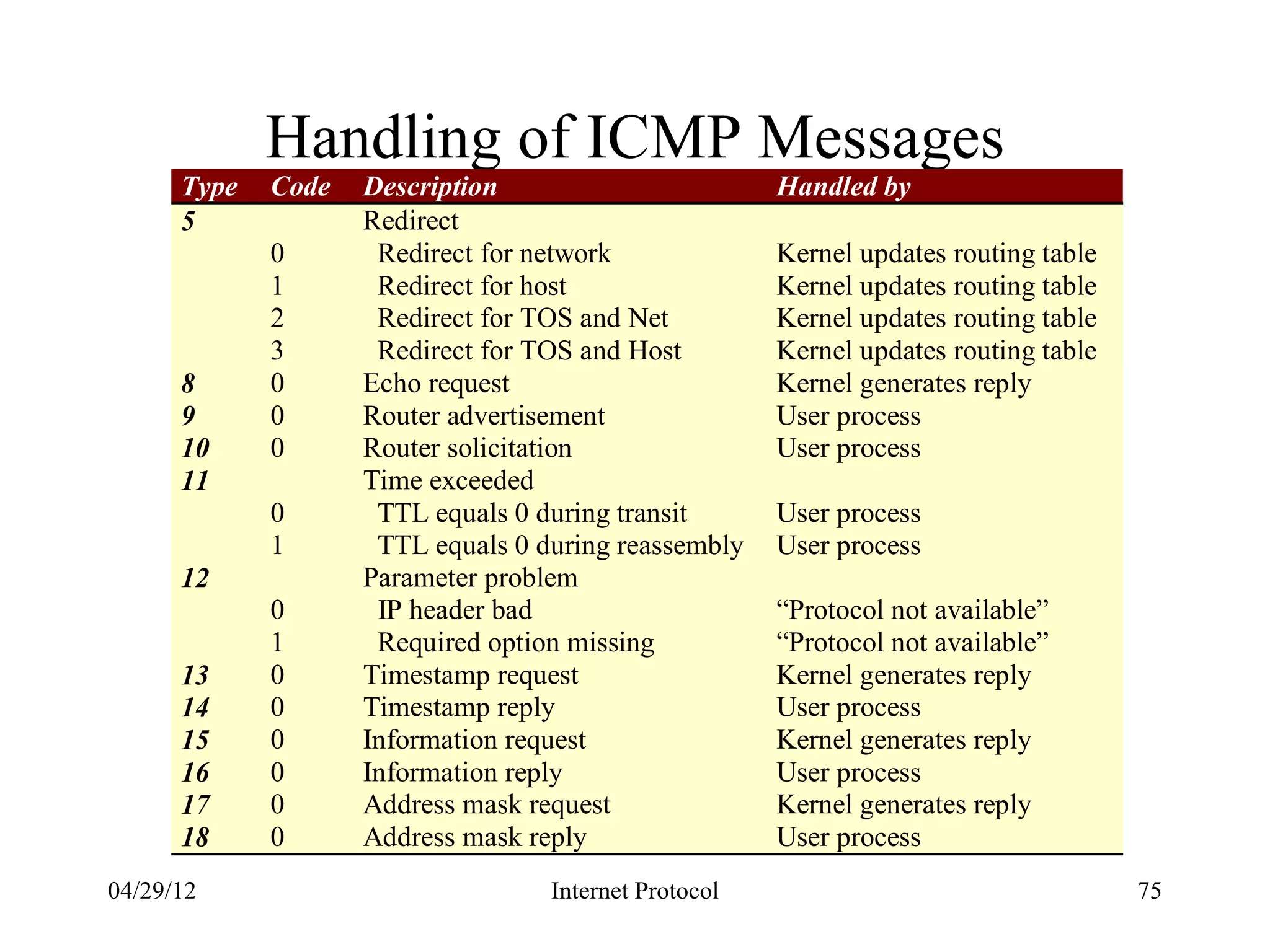

75. Handling of ICMP Messages
Type Code Description Handled by
5 Redirect
0 Redirect for network Kernel updates routing table
1 Redirect for host Kernel updates routing table
2 Redirect for TOS and Net Kernel updates routing table
3 Redirect for TOS and Host Kernel updates routing table
8 0 Echo request Kernel generates reply
9 0 Router advertisement User process
10 0 Router solicitation User process
11 Time exceeded
0 TTL equals 0 during transit User process
1 TTL equals 0 during reassembly User process
12 Parameter problem
0 IP header bad “Protocol not available”
1 Required option missing “Protocol not available”
13 0 Timestamp request Kernel generates reply
14 0 Timestamp reply User process
15 0 Information request Kernel generates reply
16 0 Information reply User process
17 0 Address mask request Kernel generates reply
18 0 Address mask reply User process
04/29/12 Internet Protocol 75

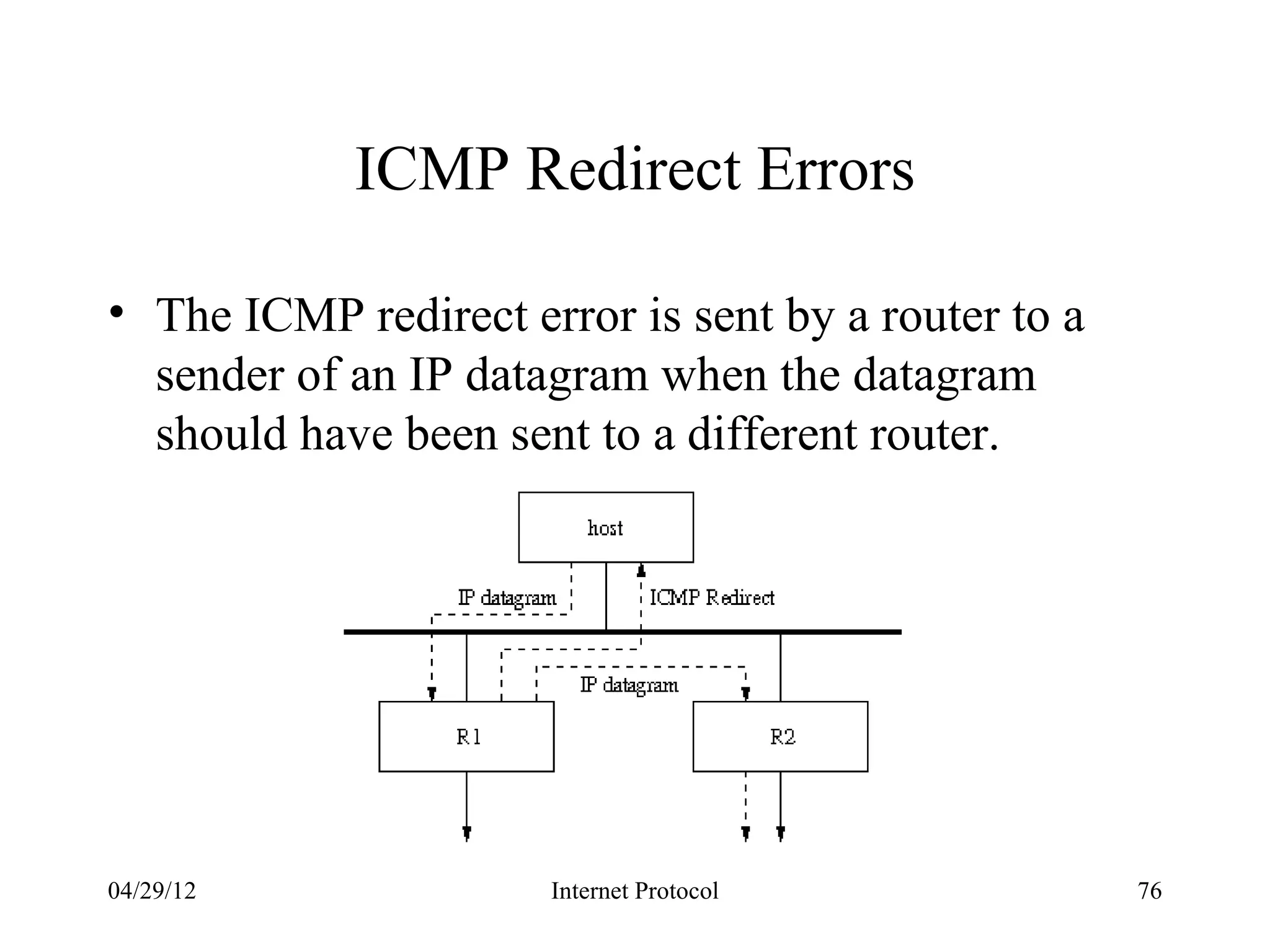

76. ICMP Redirect Errors
• The ICMP redirect error is sent by a router to a
sender of an IP datagram when the datagram
should have been sent to a different router.
04/29/12 Internet Protocol 76

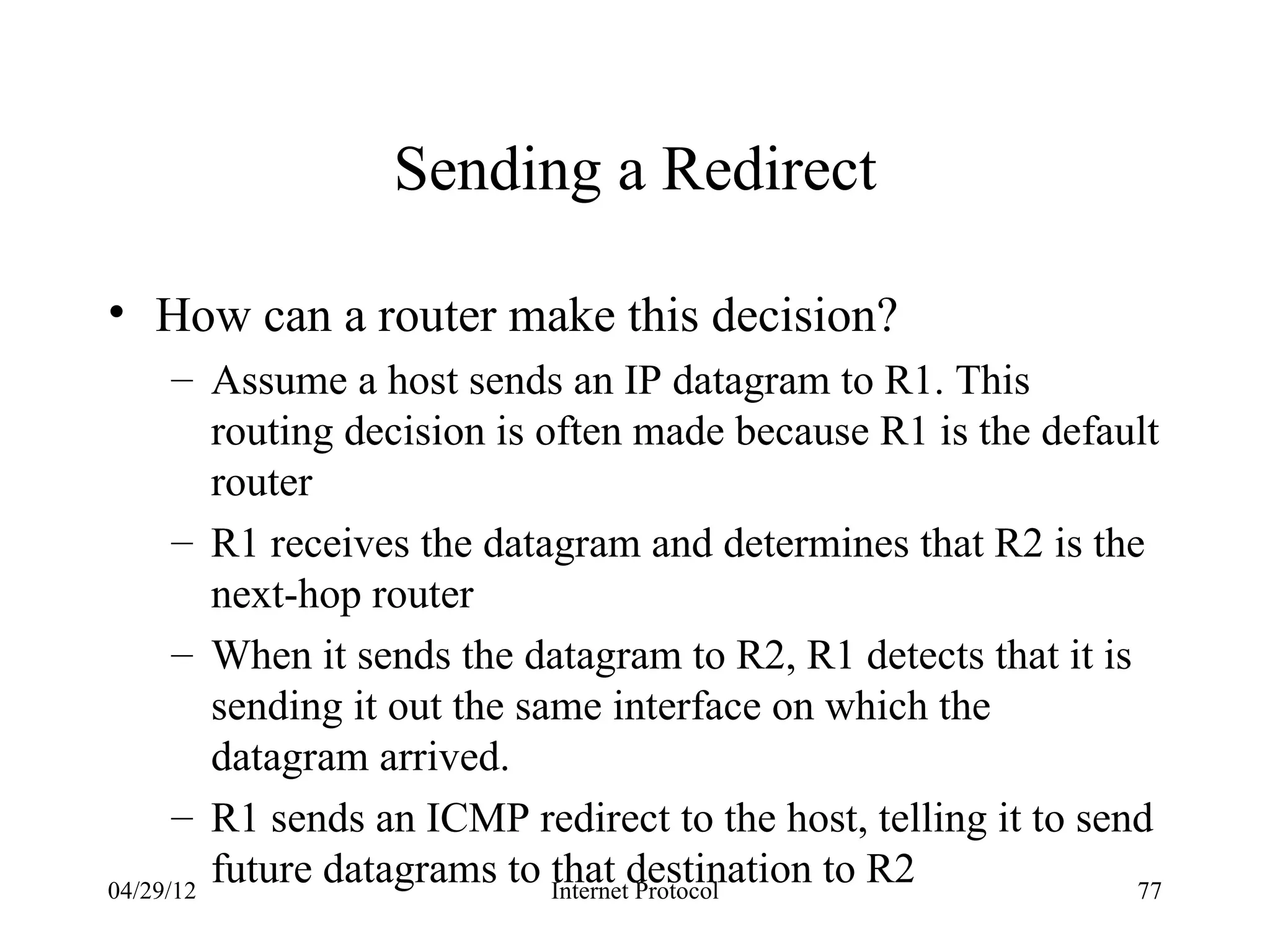

77. Sending a Redirect
• How can a router make this decision?
– Assume a host sends an IP datagram to R1. This
routing decision is often made because R1 is the default
router
– R1 receives the datagram and determines that R2 is the
next-hop router
– When it sends the datagram to R2, R1 detects that it is
sending it out the same interface on which the
datagram arrived.
– R1 sends an ICMP redirect to the host, telling it to send
04/29/12
future datagrams to Internetdestination to R2
that Protocol 77

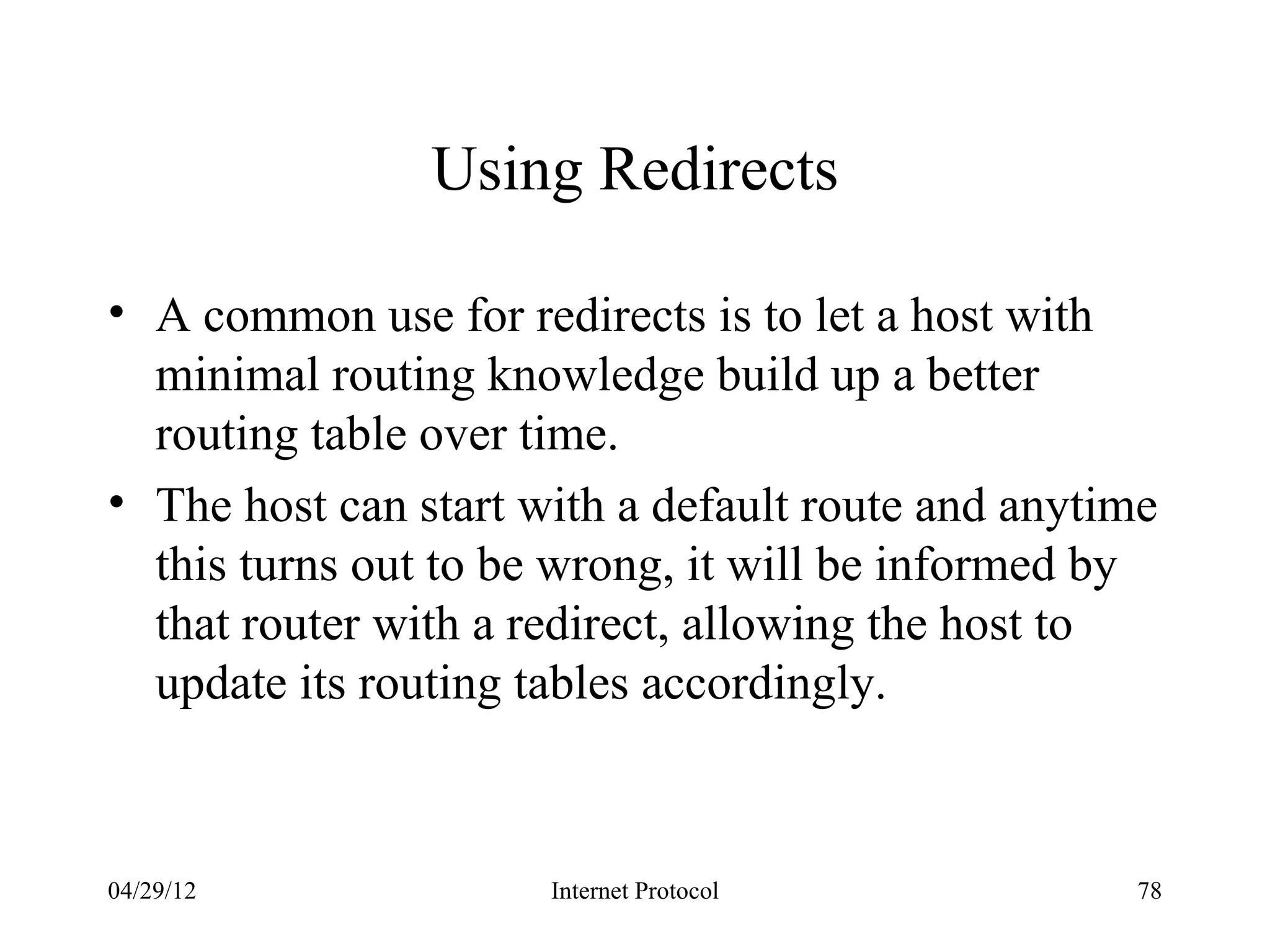

78. Using Redirects
• A common use for redirects is to let a host with
minimal routing knowledge build up a better
routing table over time.
• The host can start with a default route and anytime
this turns out to be wrong, it will be informed by
that router with a redirect, allowing the host to
update its routing tables accordingly.
04/29/12 Internet Protocol 78

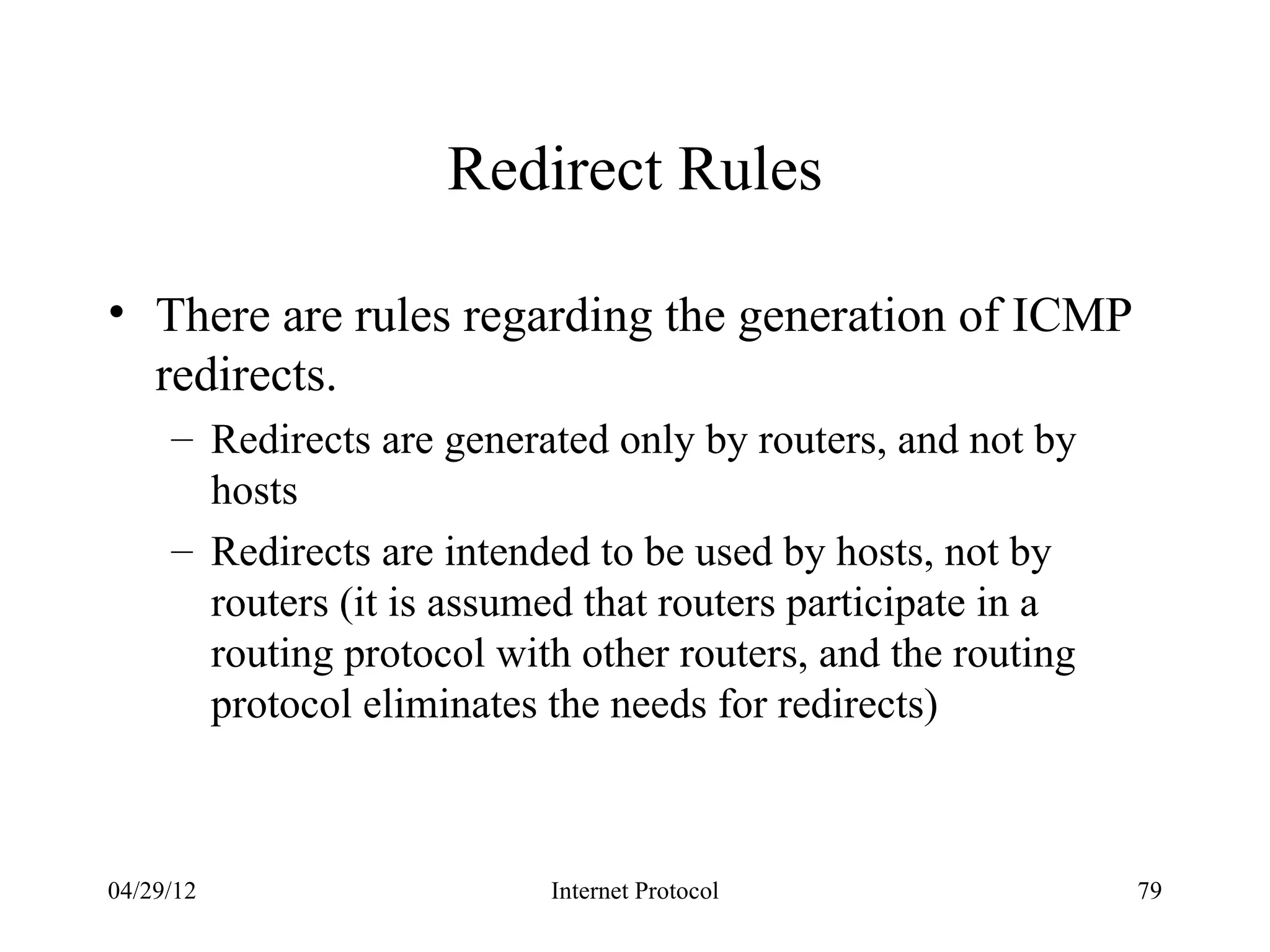

79. Redirect Rules
• There are rules regarding the generation of ICMP
redirects.
– Redirects are generated only by routers, and not by
hosts
– Redirects are intended to be used by hosts, not by
routers (it is assumed that routers participate in a
routing protocol with other routers, and the routing
protocol eliminates the needs for redirects)
04/29/12 Internet Protocol 79

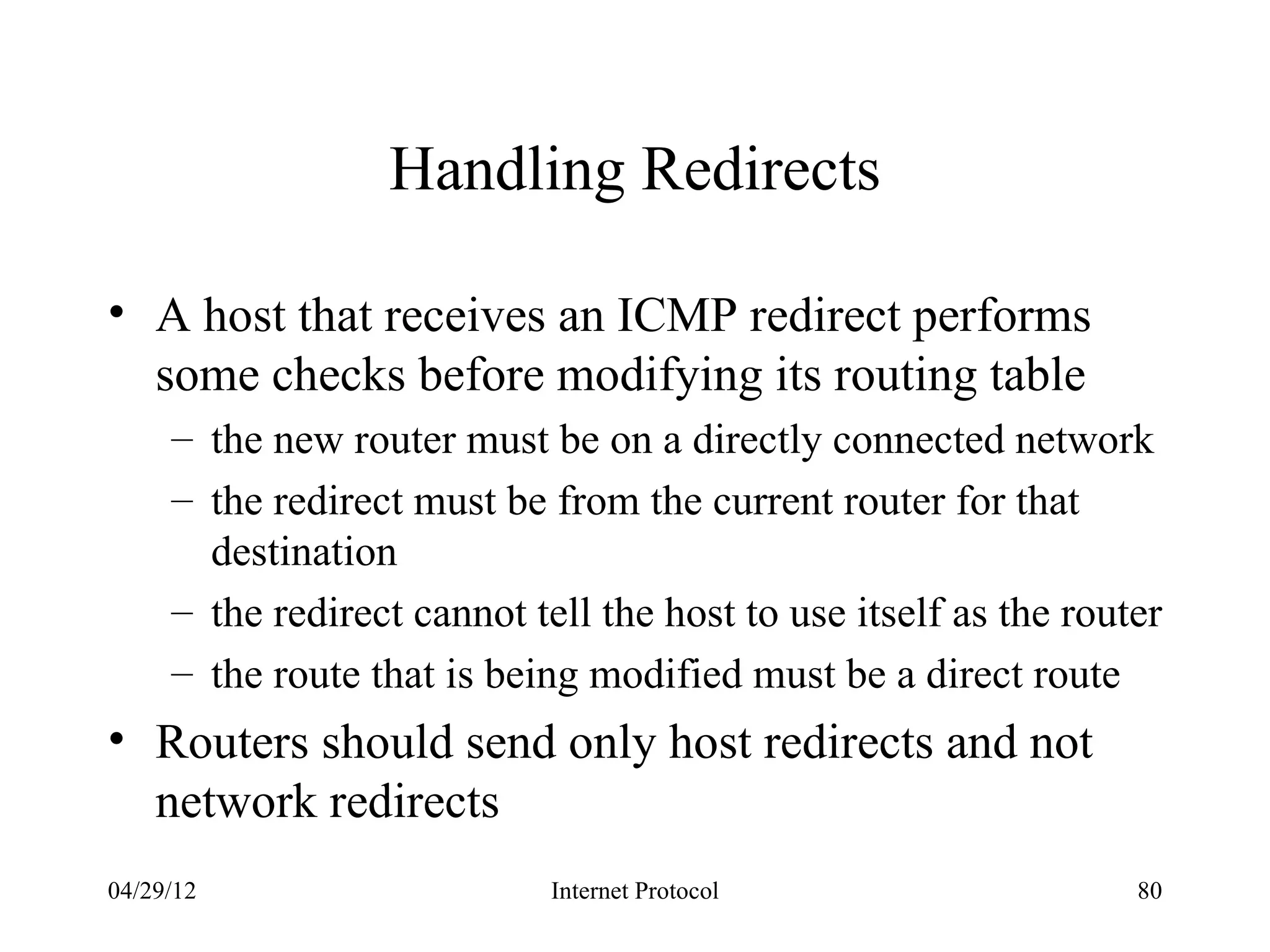

80. Handling Redirects
• A host that receives an ICMP redirect performs
some checks before modifying its routing table
– the new router must be on a directly connected network
– the redirect must be from the current router for that
destination
– the redirect cannot tell the host to use itself as the router
– the route that is being modified must be a direct route
• Routers should send only host redirects and not
network redirects
04/29/12 Internet Protocol 80

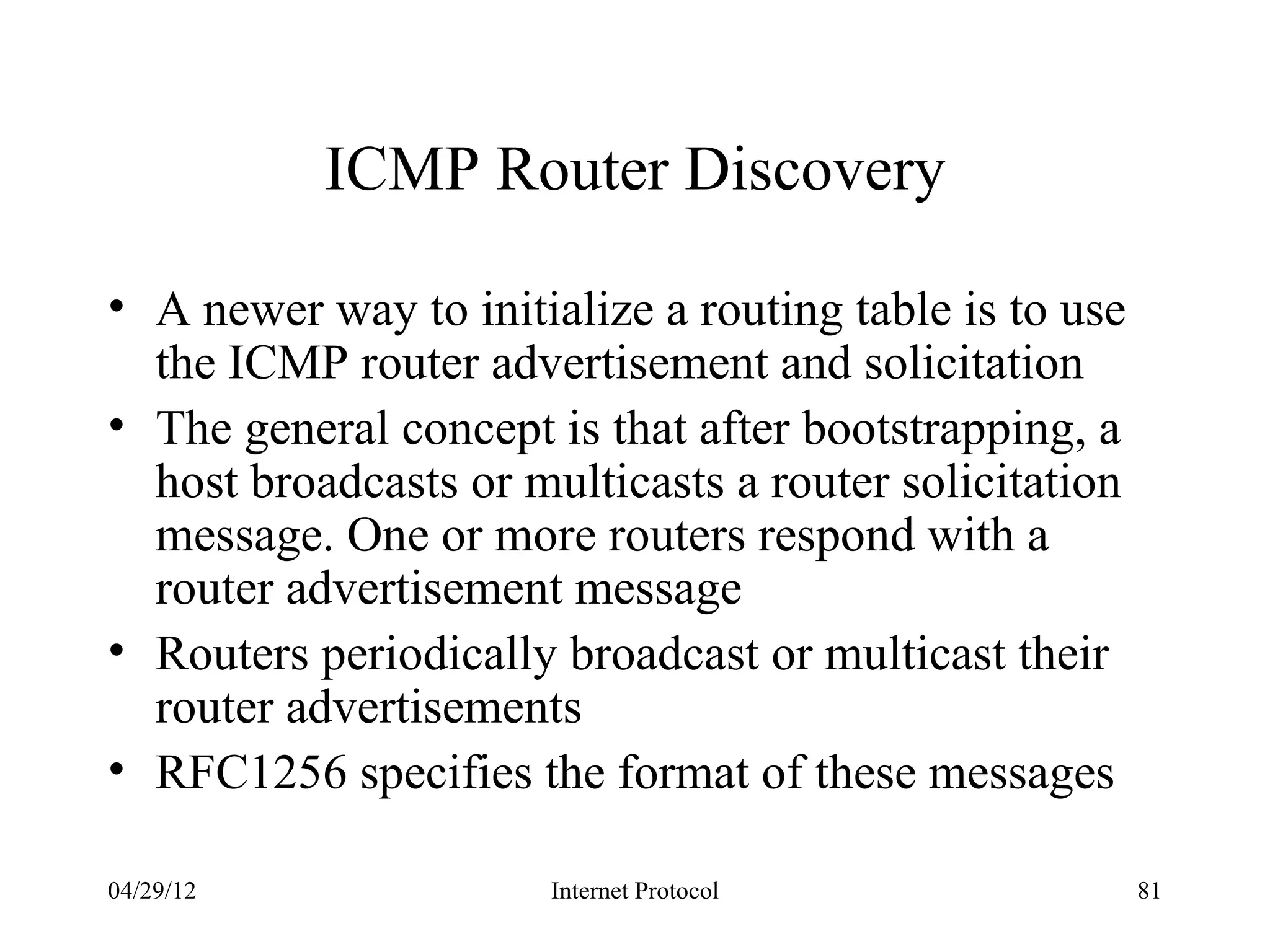

81. ICMP Router Discovery
• A newer way to initialize a routing table is to use
the ICMP router advertisement and solicitation
• The general concept is that after bootstrapping, a
host broadcasts or multicasts a router solicitation
message. One or more routers respond with a
router advertisement message
• Routers periodically broadcast or multicast their
router advertisements
• RFC1256 specifies the format of these messages
04/29/12 Internet Protocol 81

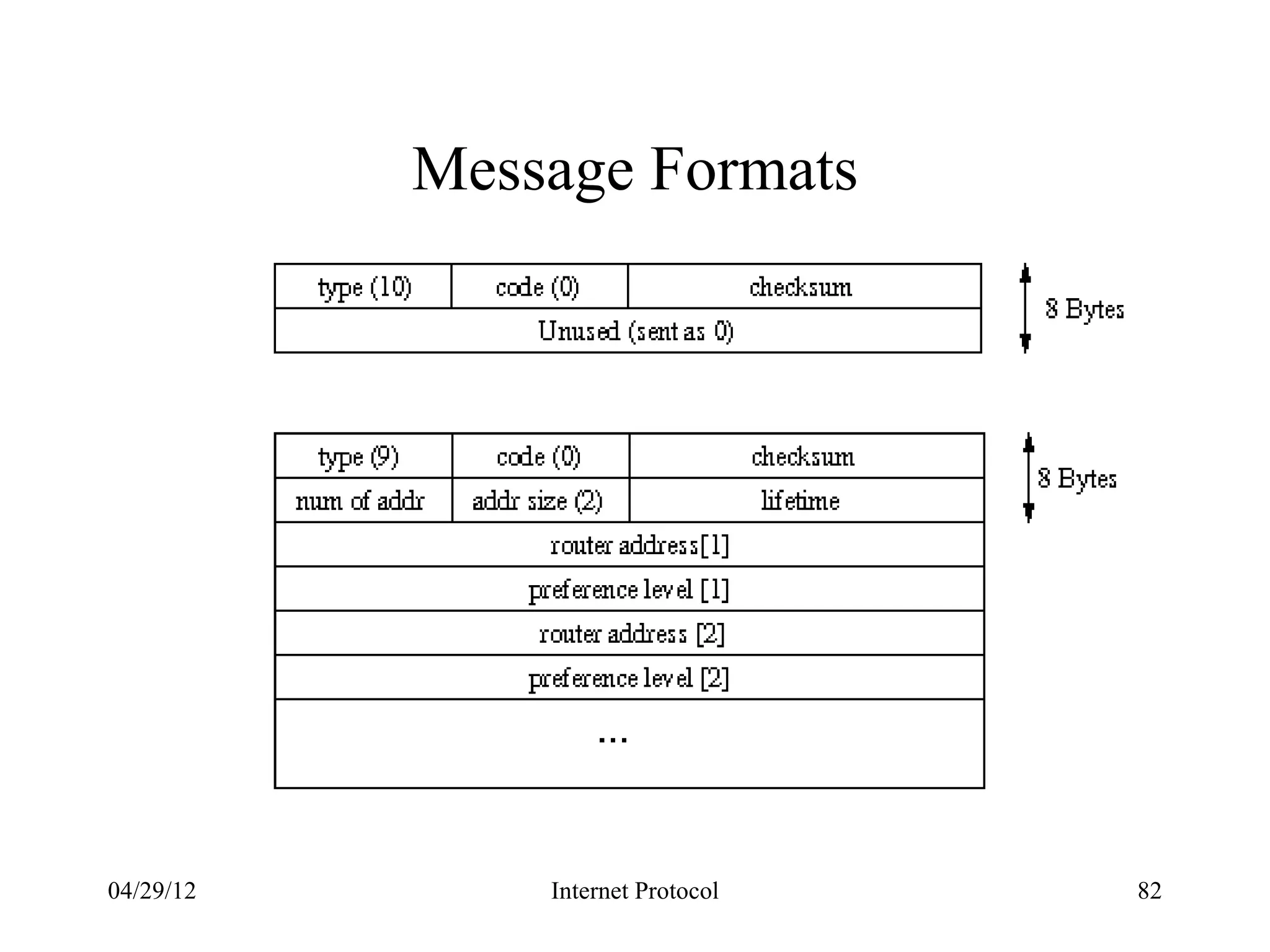

82. Message Formats
04/29/12 Internet Protocol 82

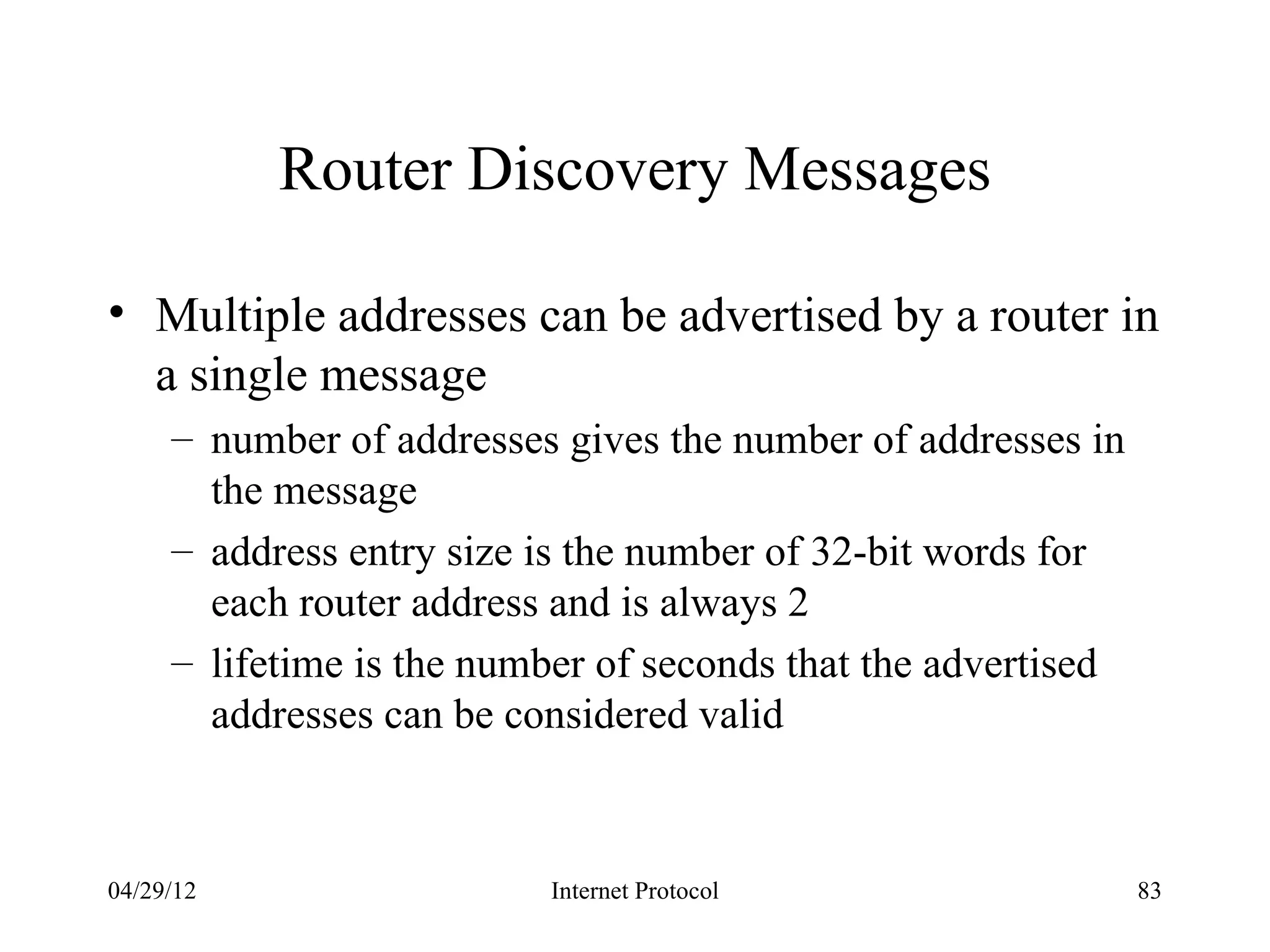

83. Router Discovery Messages
• Multiple addresses can be advertised by a router in
a single message
– number of addresses gives the number of addresses in
the message
– address entry size is the number of 32-bit words for
each router address and is always 2
– lifetime is the number of seconds that the advertised
addresses can be considered valid
04/29/12 Internet Protocol 83

84. Router Discovery Messages
• Pair(s) of IP addresses and a preference then
follow (the address must be router's IP address)
• The preference level indicates the preference of
this address as a default router
– Larger values imply more preferable addresses.
– The preference level 0x80000000 indicates that the
corresponding address, although advertised, should not
be used by the receiver as a default router address
– The default value is normally 0.
04/29/12 Internet Protocol 84

85. Router Discovery Operation
• When a router starts up it transmits periodic
advertisements on all interfaces capable of
broadcasting or multicasting
• The default lifetime for a given advertisement is
30 minutes.
• The lifetime field is is also used when an interface
on a router is disabled. In this case the router
transmits an advertisement with lifetime set to 0.
04/29/12 Internet Protocol 85

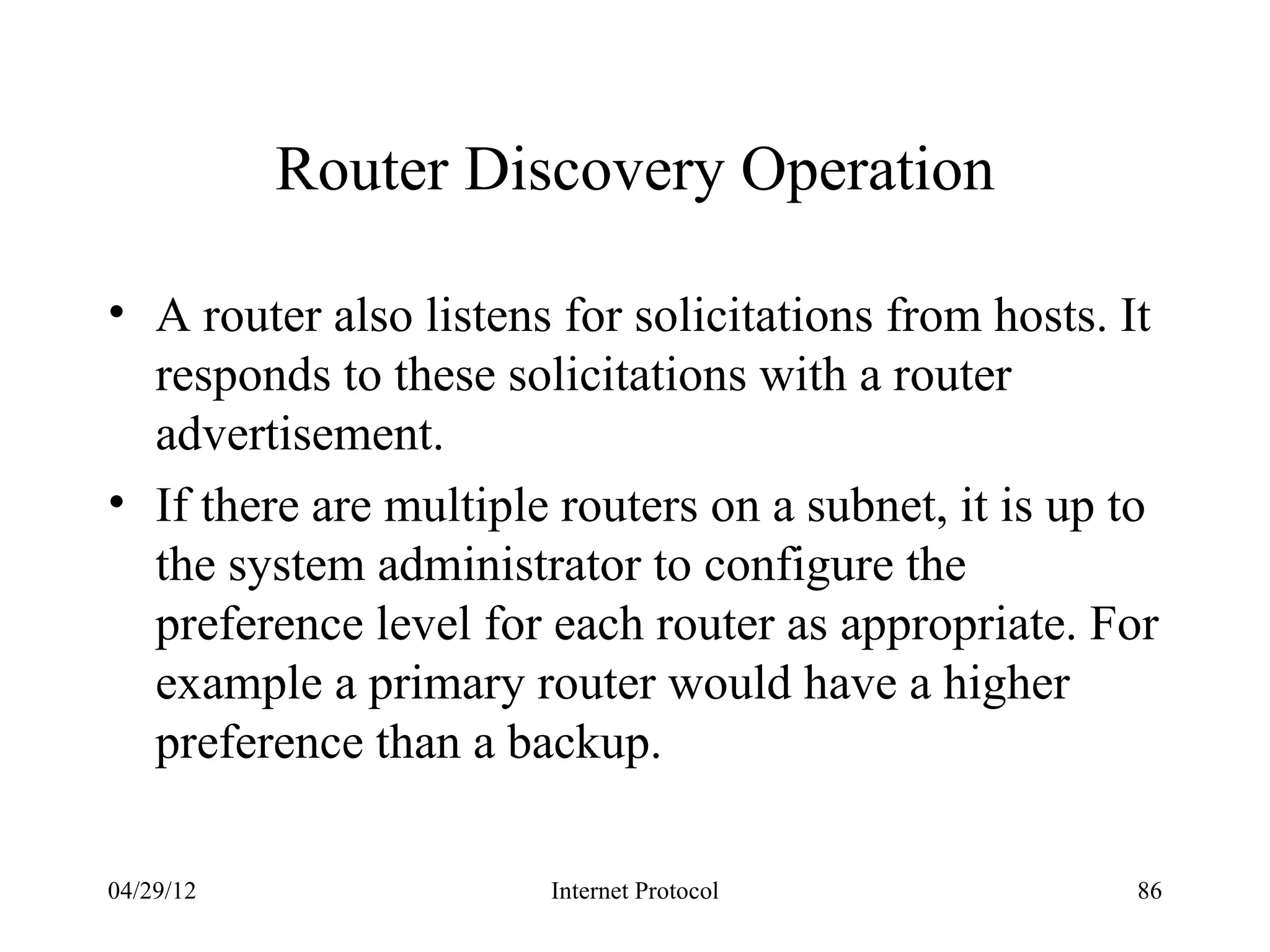

86. Router Discovery Operation
• A router also listens for solicitations from hosts. It
responds to these solicitations with a router
advertisement.
• If there are multiple routers on a subnet, it is up to
the system administrator to configure the
preference level for each router as appropriate. For
example a primary router would have a higher
preference than a backup.
04/29/12 Internet Protocol 86

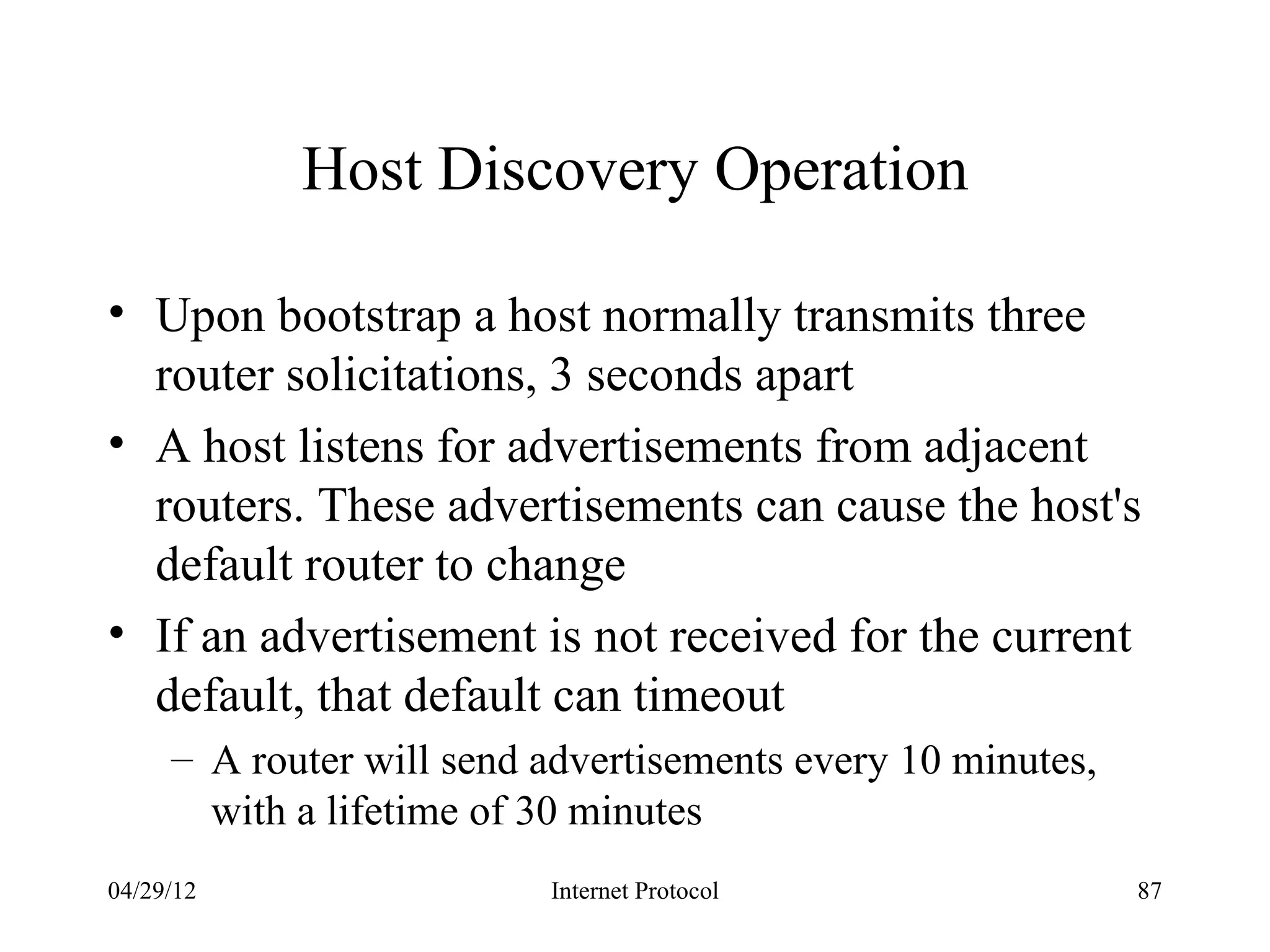

87. Host Discovery Operation
• Upon bootstrap a host normally transmits three
router solicitations, 3 seconds apart
• A host listens for advertisements from adjacent
routers. These advertisements can cause the host's
default router to change
• If an advertisement is not received for the current
default, that default can timeout
– A router will send advertisements every 10 minutes,
with a lifetime of 30 minutes
04/29/12 Internet Protocol 87

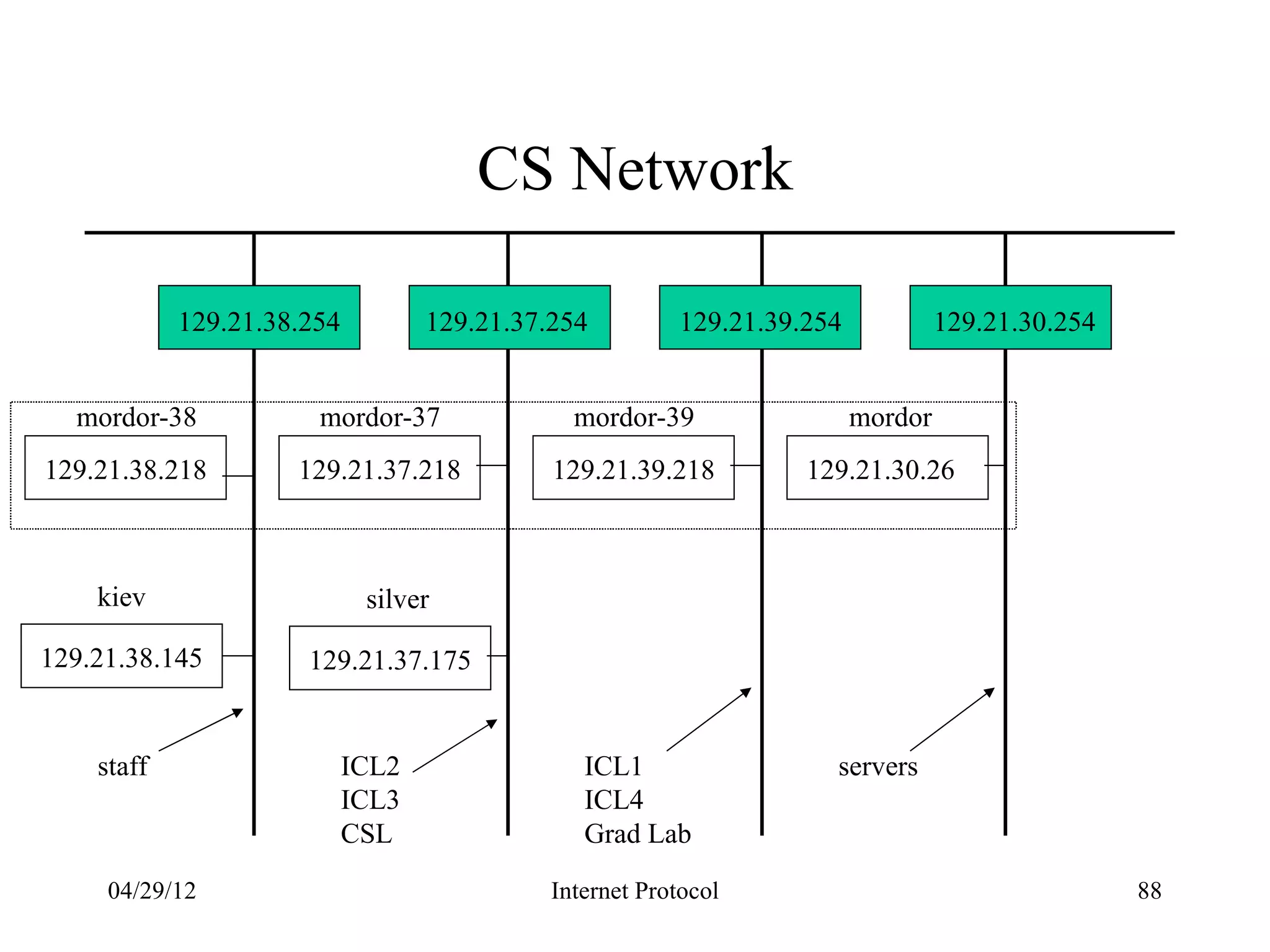

88. CS Network
129.21.38.254 129.21.37.254 129.21.39.254 129.21.30.254
mordor-38 mordor-37 mordor-39 mordor
129.21.38.218 129.21.37.218 129.21.39.218 129.21.30.26
kiev silver
129.21.38.145 129.21.37.175
staff ICL2 ICL1 servers
ICL3 ICL4
CSL Grad Lab
04/29/12 Internet Protocol 88

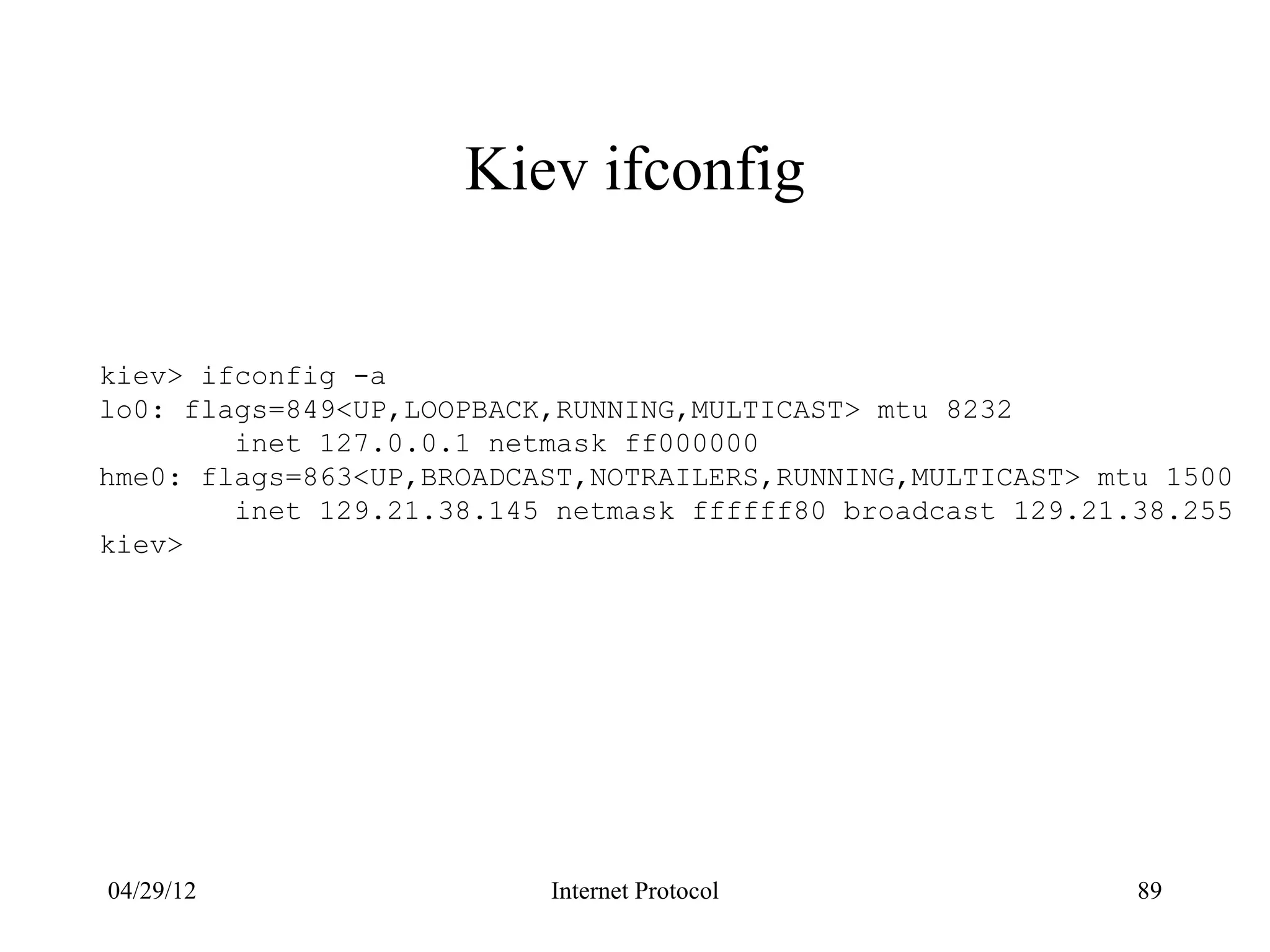

89. Kiev ifconfig
kiev> ifconfig -a
lo0: flags=849<UP,LOOPBACK,RUNNING,MULTICAST> mtu 8232
inet 127.0.0.1 netmask ff000000
hme0: flags=863<UP,BROADCAST,NOTRAILERS,RUNNING,MULTICAST> mtu 1500
inet 129.21.38.145 netmask ffffff80 broadcast 129.21.38.255
kiev>
04/29/12 Internet Protocol 89

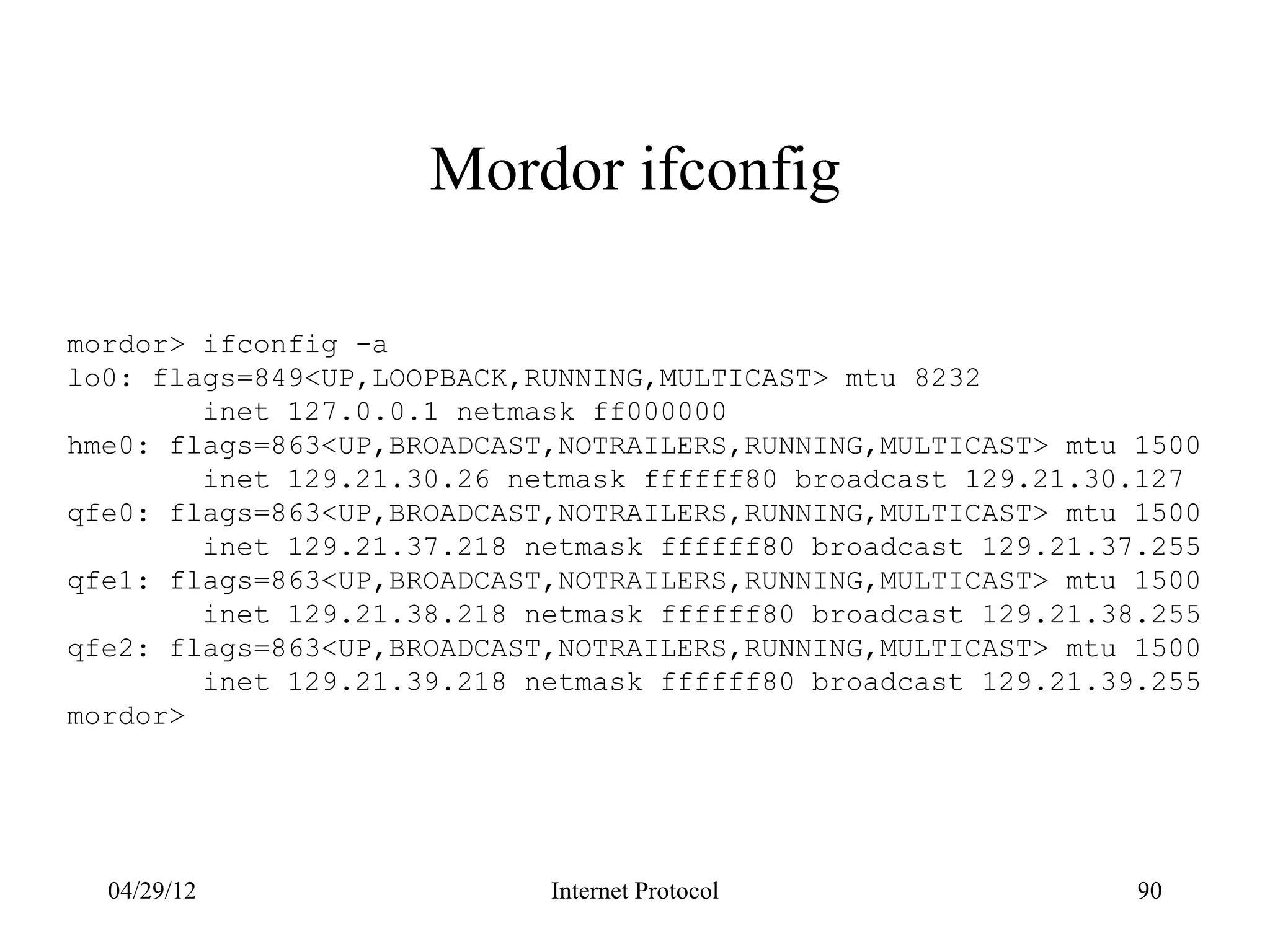

90. Mordor ifconfig
mordor> ifconfig -a
lo0: flags=849<UP,LOOPBACK,RUNNING,MULTICAST> mtu 8232
inet 127.0.0.1 netmask ff000000
hme0: flags=863<UP,BROADCAST,NOTRAILERS,RUNNING,MULTICAST> mtu 1500
inet 129.21.30.26 netmask ffffff80 broadcast 129.21.30.127
qfe0: flags=863<UP,BROADCAST,NOTRAILERS,RUNNING,MULTICAST> mtu 1500
inet 129.21.37.218 netmask ffffff80 broadcast 129.21.37.255
qfe1: flags=863<UP,BROADCAST,NOTRAILERS,RUNNING,MULTICAST> mtu 1500
inet 129.21.38.218 netmask ffffff80 broadcast 129.21.38.255
qfe2: flags=863<UP,BROADCAST,NOTRAILERS,RUNNING,MULTICAST> mtu 1500
inet 129.21.39.218 netmask ffffff80 broadcast 129.21.39.255
mordor>
04/29/12 Internet Protocol 90

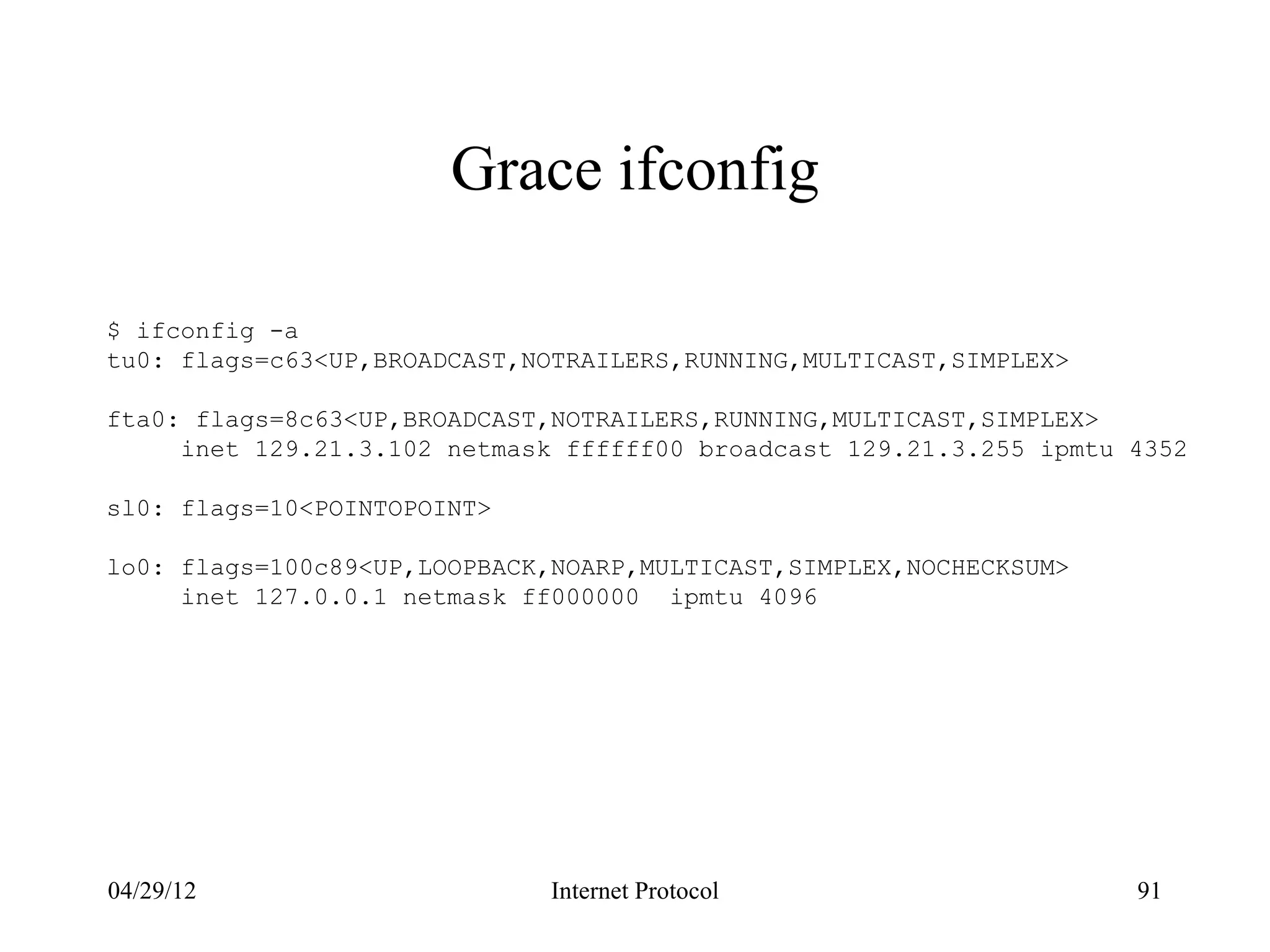

91. Grace ifconfig
$ ifconfig -a
tu0: flags=c63<UP,BROADCAST,NOTRAILERS,RUNNING,MULTICAST,SIMPLEX>
fta0: flags=8c63<UP,BROADCAST,NOTRAILERS,RUNNING,MULTICAST,SIMPLEX>
inet 129.21.3.102 netmask ffffff00 broadcast 129.21.3.255 ipmtu 4352
sl0: flags=10<POINTOPOINT>
lo0: flags=100c89<UP,LOOPBACK,NOARP,MULTICAST,SIMPLEX,NOCHECKSUM>
inet 127.0.0.1 netmask ff000000 ipmtu 4096
04/29/12 Internet Protocol 91

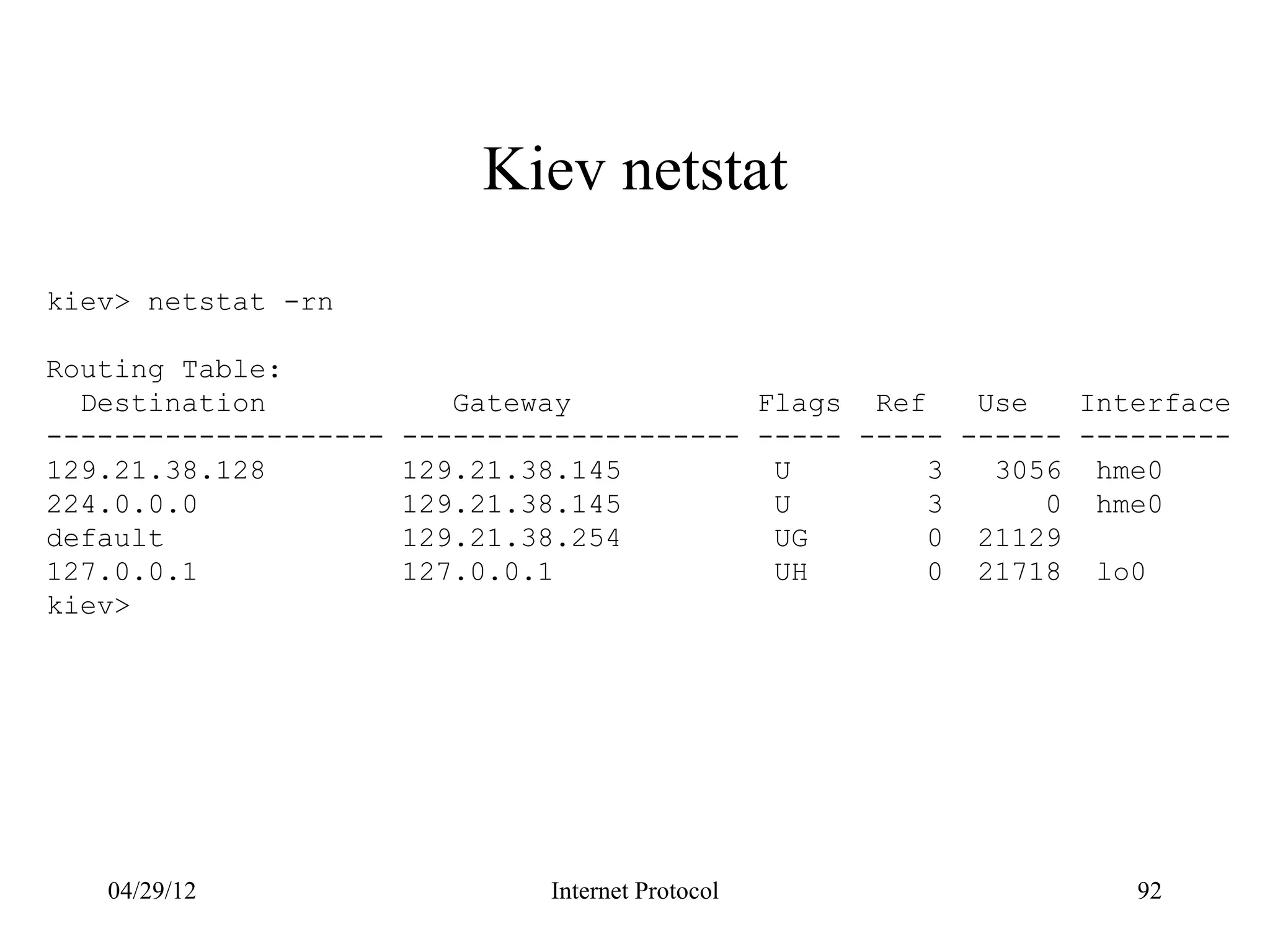

92. Kiev netstat
kiev> netstat -rn
Routing Table:
Destination Gateway Flags Ref Use Interface
-------------------- -------------------- ----- ----- ------ ---------
129.21.38.128 129.21.38.145 U 3 3056 hme0
224.0.0.0 129.21.38.145 U 3 0 hme0
default 129.21.38.254 UG 0 21129
127.0.0.1 127.0.0.1 UH 0 21718 lo0
kiev>
04/29/12 Internet Protocol 92

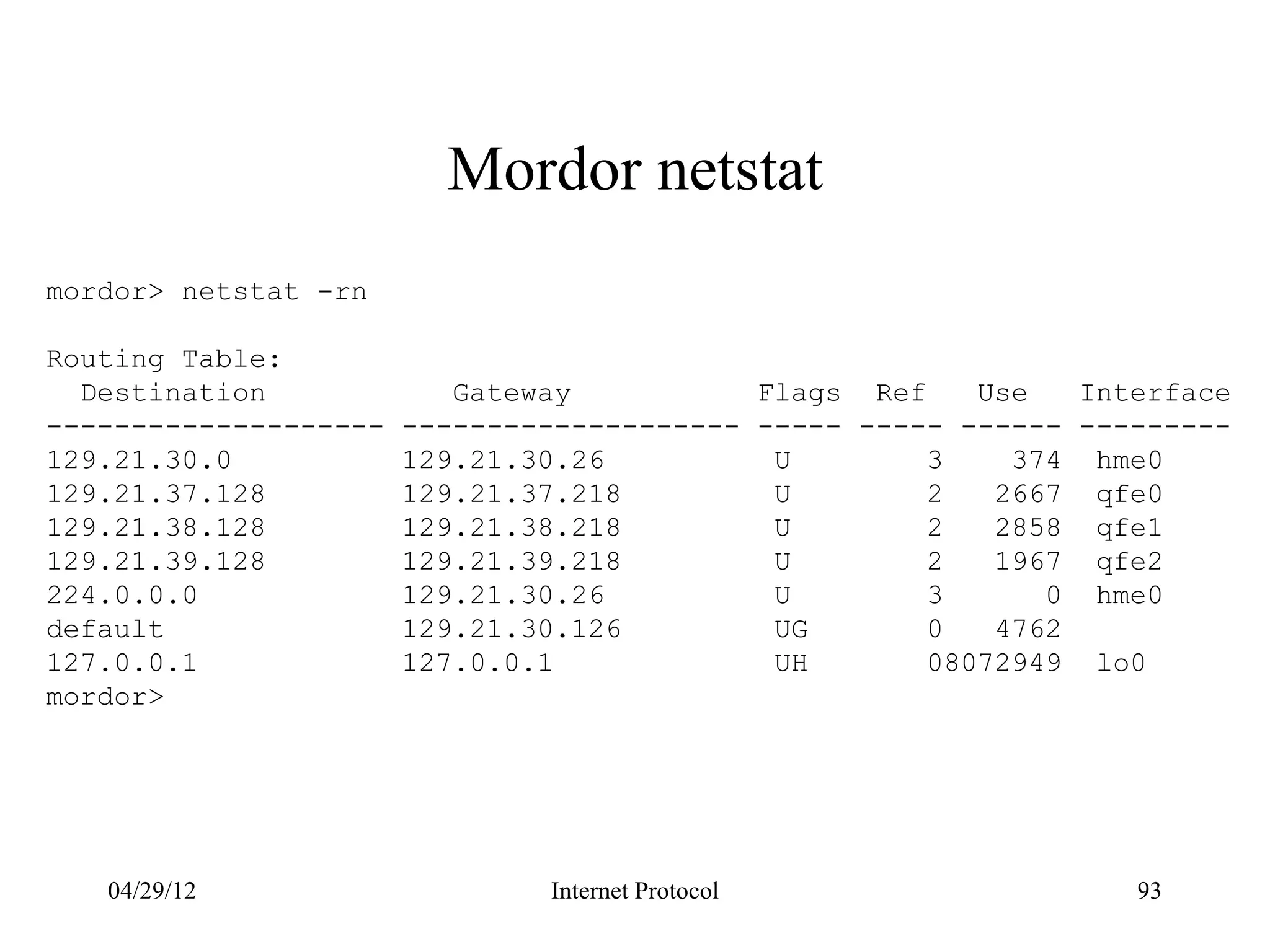

93. Mordor netstat
mordor> netstat -rn
Routing Table:
Destination Gateway Flags Ref Use Interface
-------------------- -------------------- ----- ----- ------ ---------
129.21.30.0 129.21.30.26 U 3 374 hme0
129.21.37.128 129.21.37.218 U 2 2667 qfe0
129.21.38.128 129.21.38.218 U 2 2858 qfe1
129.21.39.128 129.21.39.218 U 2 1967 qfe2
224.0.0.0 129.21.30.26 U 3 0 hme0
default 129.21.30.126 UG 0 4762
127.0.0.1 127.0.0.1 UH 08072949 lo0
mordor>
04/29/12 Internet Protocol 93

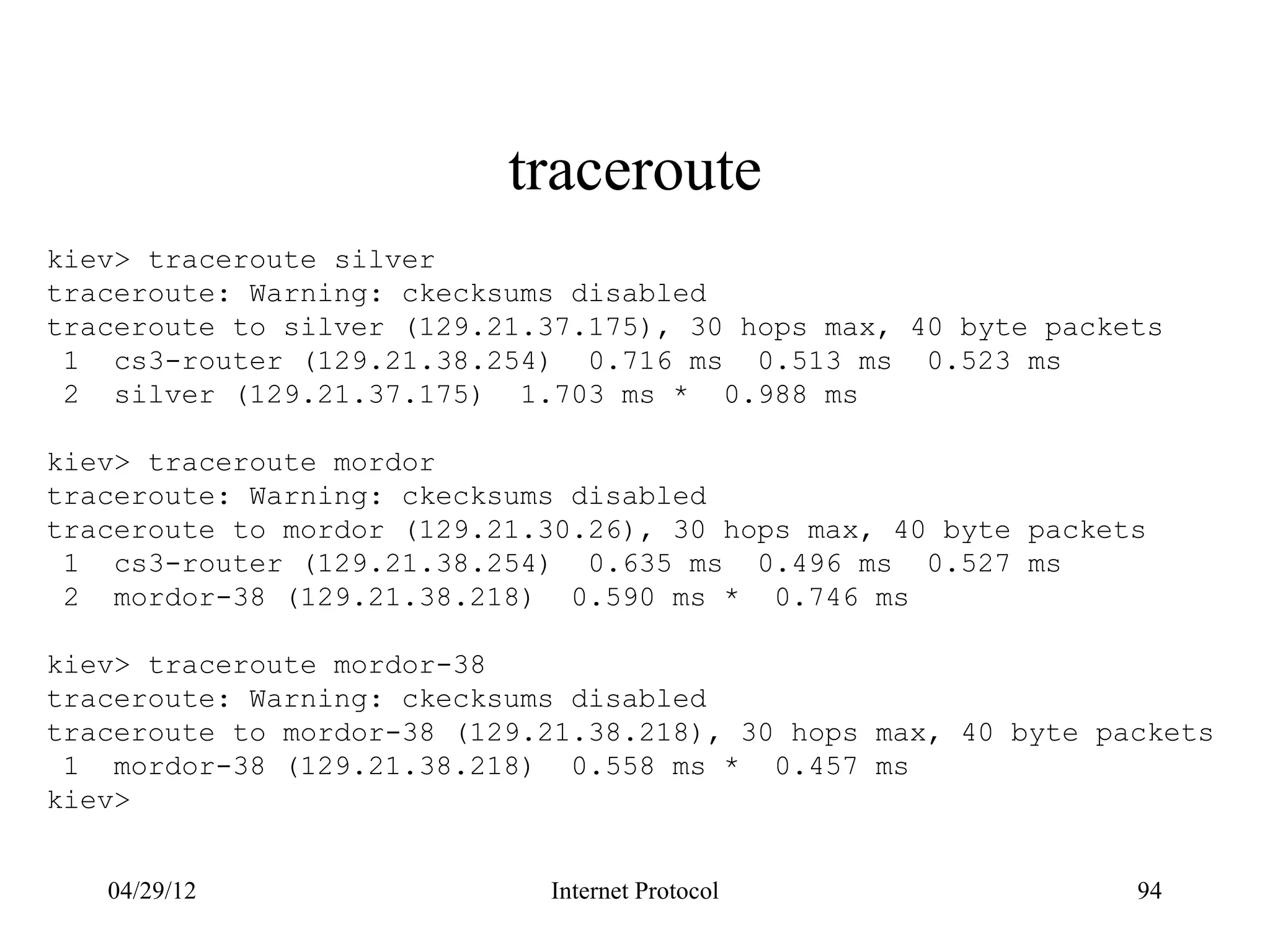

94. traceroute
kiev> traceroute silver
traceroute: Warning: ckecksums disabled
traceroute to silver (129.21.37.175), 30 hops max, 40 byte packets
1 cs3-router (129.21.38.254) 0.716 ms 0.513 ms 0.523 ms
2 silver (129.21.37.175) 1.703 ms * 0.988 ms
kiev> traceroute mordor
traceroute: Warning: ckecksums disabled
traceroute to mordor (129.21.30.26), 30 hops max, 40 byte packets
1 cs3-router (129.21.38.254) 0.635 ms 0.496 ms 0.527 ms
2 mordor-38 (129.21.38.218) 0.590 ms * 0.746 ms
kiev> traceroute mordor-38
traceroute: Warning: ckecksums disabled
traceroute to mordor-38 (129.21.38.218), 30 hops max, 40 byte packets
1 mordor-38 (129.21.38.218) 0.558 ms * 0.457 ms
kiev>
04/29/12 Internet Protocol 94

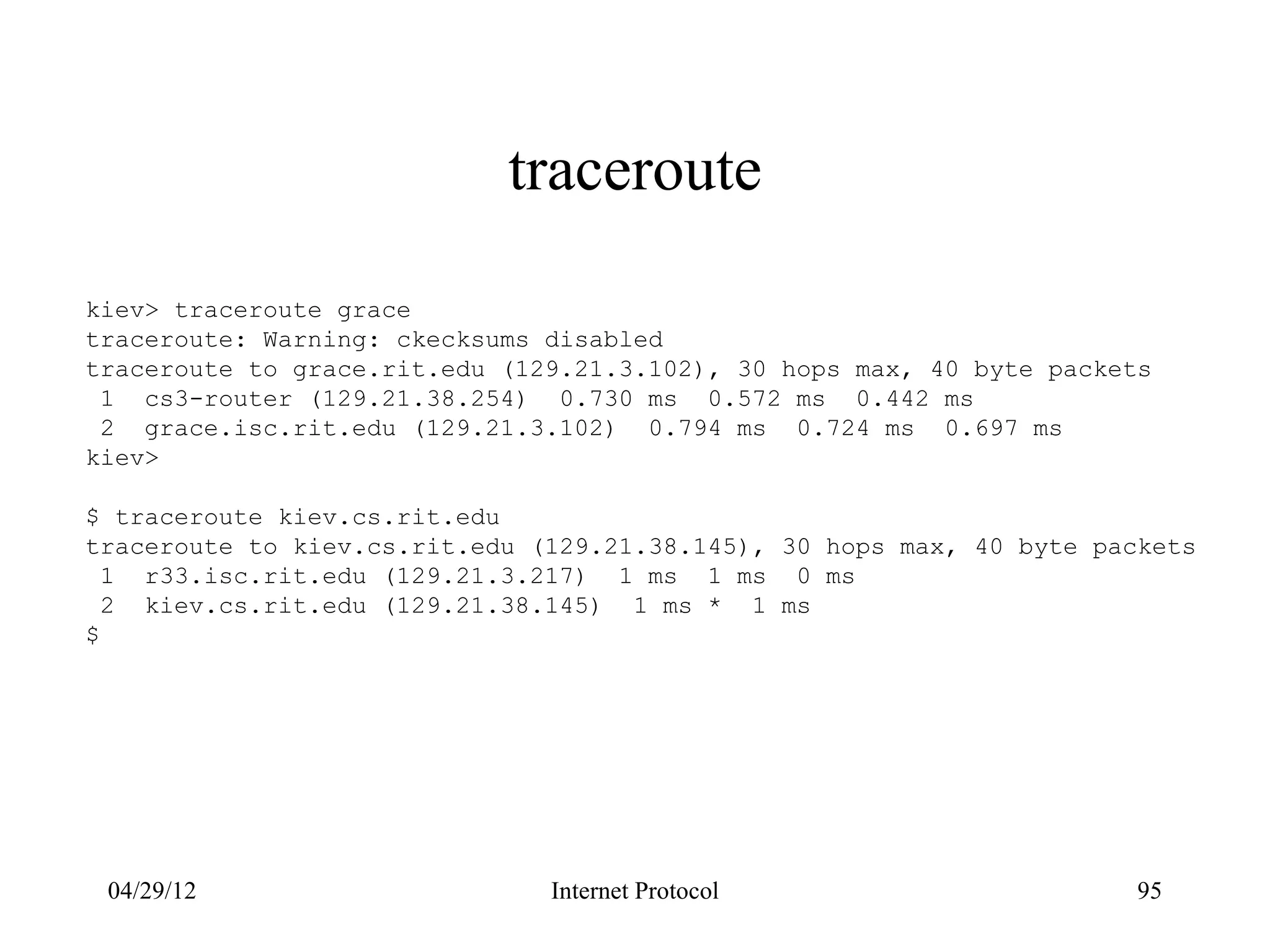

95. traceroute
kiev> traceroute grace
traceroute: Warning: ckecksums disabled
traceroute to grace.rit.edu (129.21.3.102), 30 hops max, 40 byte packets
1 cs3-router (129.21.38.254) 0.730 ms 0.572 ms 0.442 ms
2 grace.isc.rit.edu (129.21.3.102) 0.794 ms 0.724 ms 0.697 ms
kiev>
$ traceroute kiev.cs.rit.edu
traceroute to kiev.cs.rit.edu (129.21.38.145), 30 hops max, 40 byte packets
1 r33.isc.rit.edu (129.21.3.217) 1 ms 1 ms 0 ms
2 kiev.cs.rit.edu (129.21.38.145) 1 ms * 1 ms
$
04/29/12 Internet Protocol 95

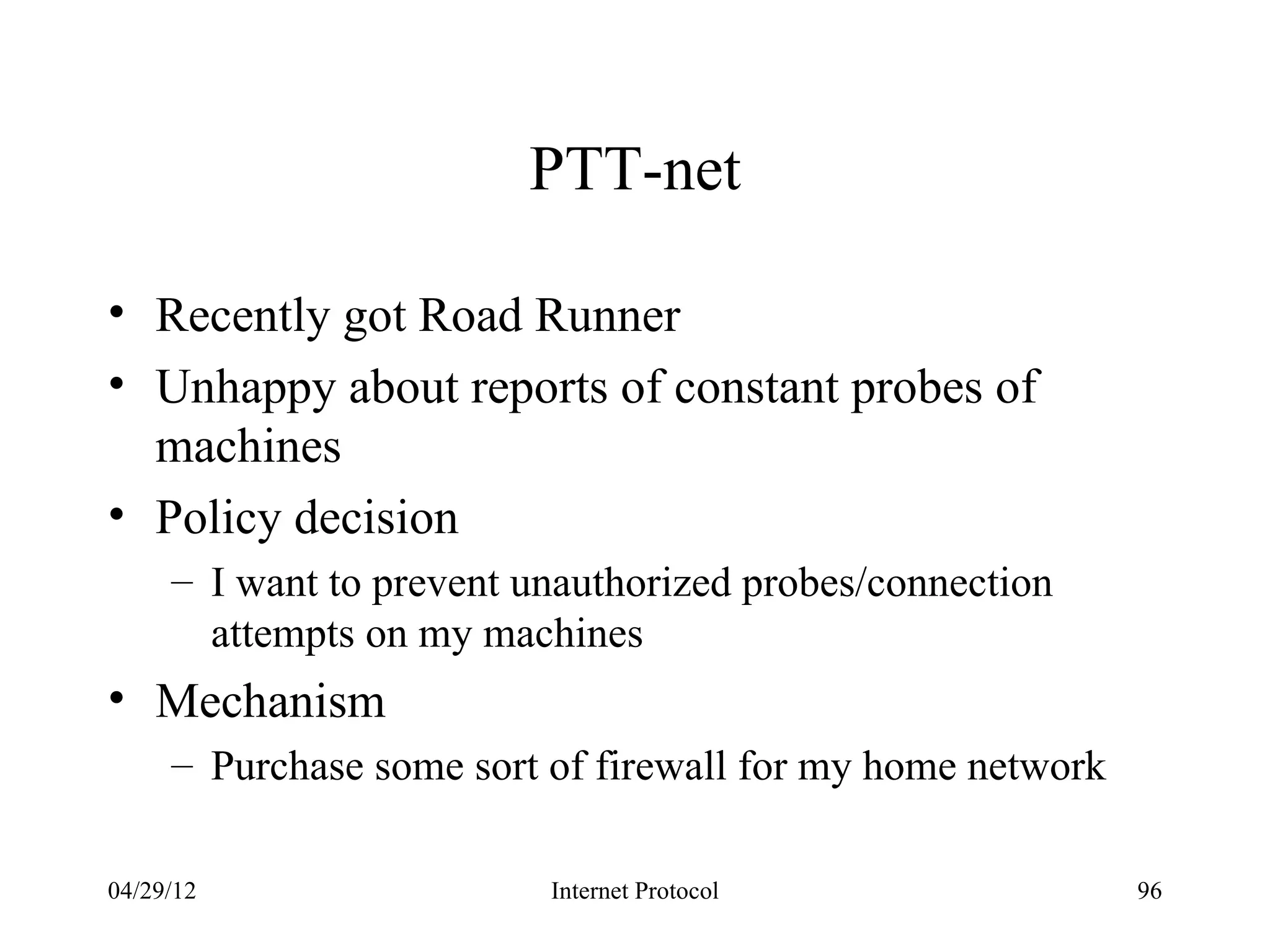

96. PTT-net
• Recently got Road Runner
• Unhappy about reports of constant probes of
machines
• Policy decision
– I want to prevent unauthorized probes/connection
attempts on my machines
• Mechanism
– Purchase some sort of firewall for my home network
04/29/12 Internet Protocol 96

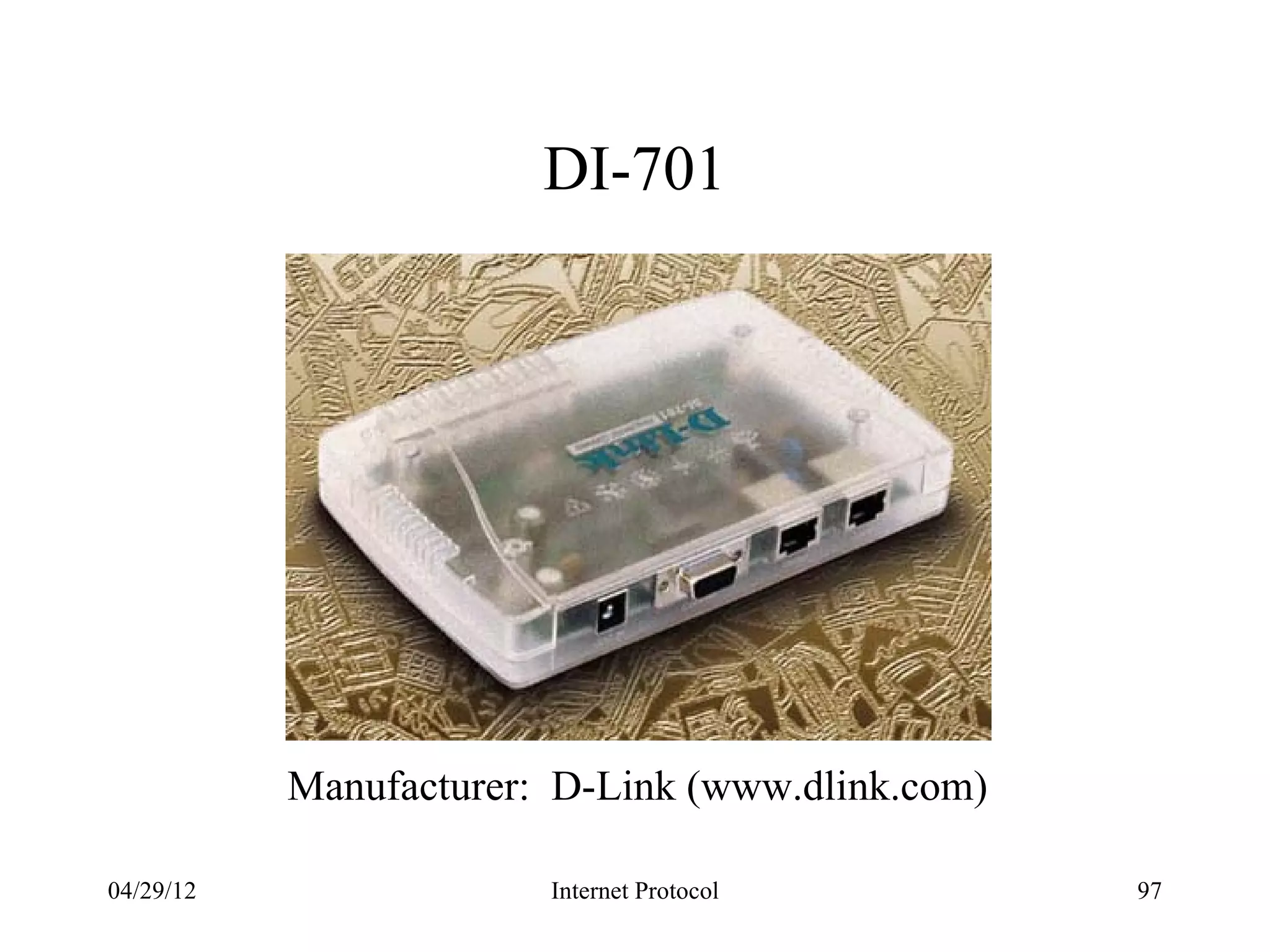

97. DI-701
Manufacturer: D-Link (www.dlink.com)
04/29/12 Internet Protocol 97

98. Configuration
Desktop
Internet Cable Modem DI-701 Hub Laptop
Printer
04/29/12 Internet Protocol 98

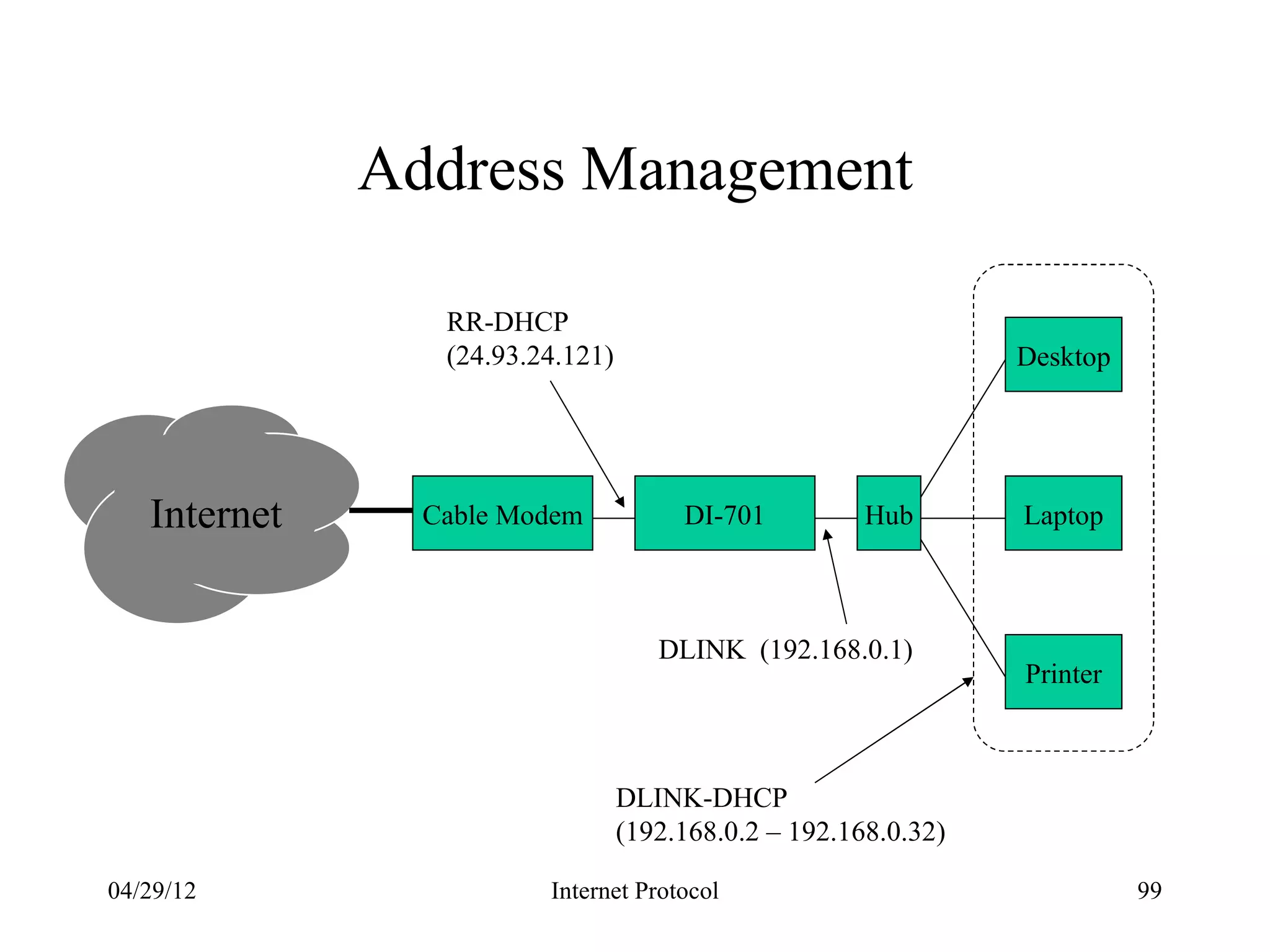

99. Address Management
RR-DHCP
(24.93.24.121) Desktop
Internet Cable Modem DI-701 Hub Laptop
DLINK (192.168.0.1)
Printer
DLINK-DHCP
(192.168.0.2 – 192.168.0.32)
04/29/12 Internet Protocol 99

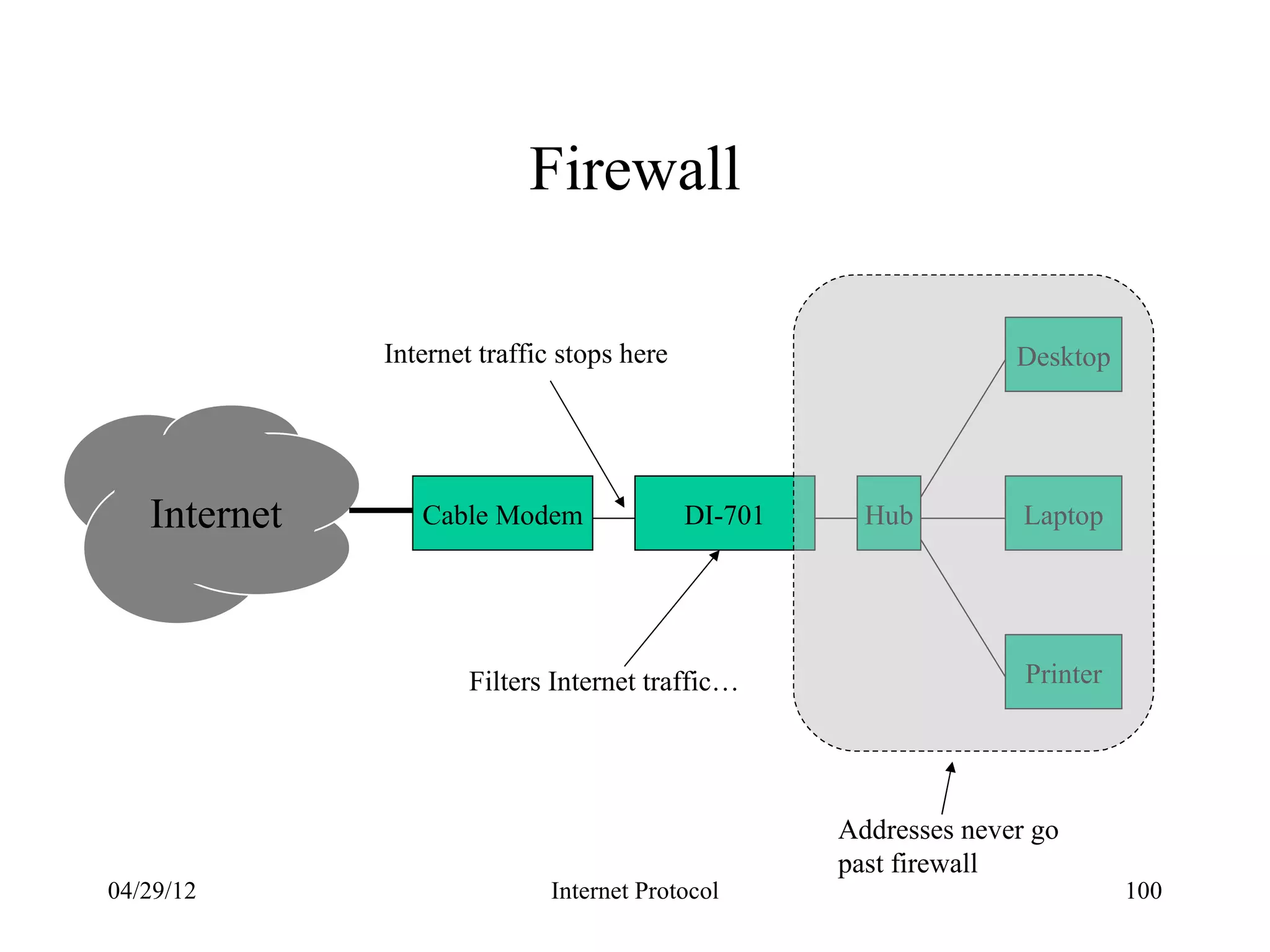

100. Firewall
Internet traffic stops here Desktop
Internet Cable Modem DI-701 Hub Laptop
Filters Internet traffic… Printer
Addresses never go
past firewall
04/29/12 Internet Protocol 100

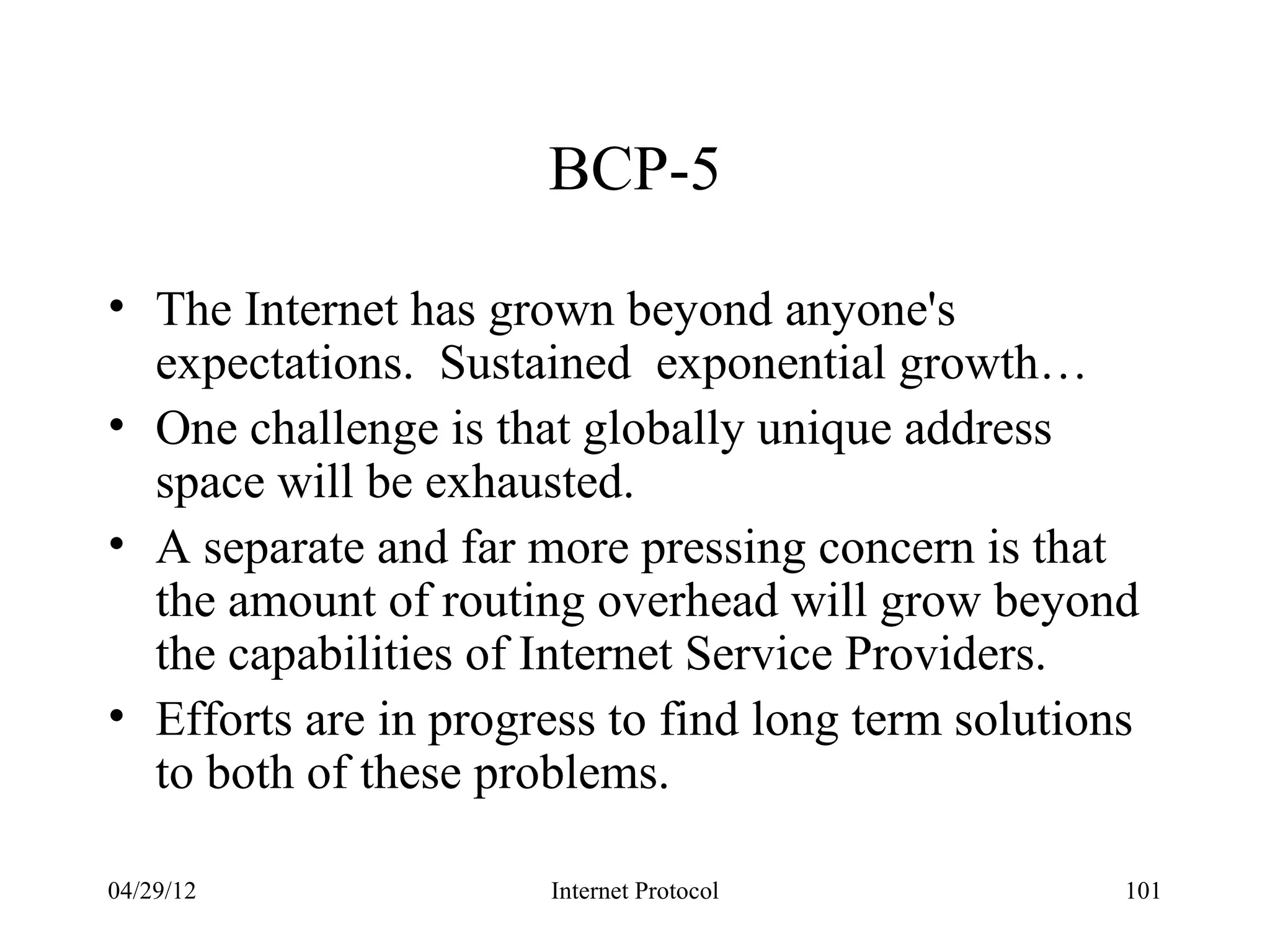

101. BCP-5
• The Internet has grown beyond anyone's
expectations. Sustained exponential growth…
• One challenge is that globally unique address
space will be exhausted.
• A separate and far more pressing concern is that
the amount of routing overhead will grow beyond
the capabilities of Internet Service Providers.
• Efforts are in progress to find long term solutions
to both of these problems.
04/29/12 Internet Protocol 101

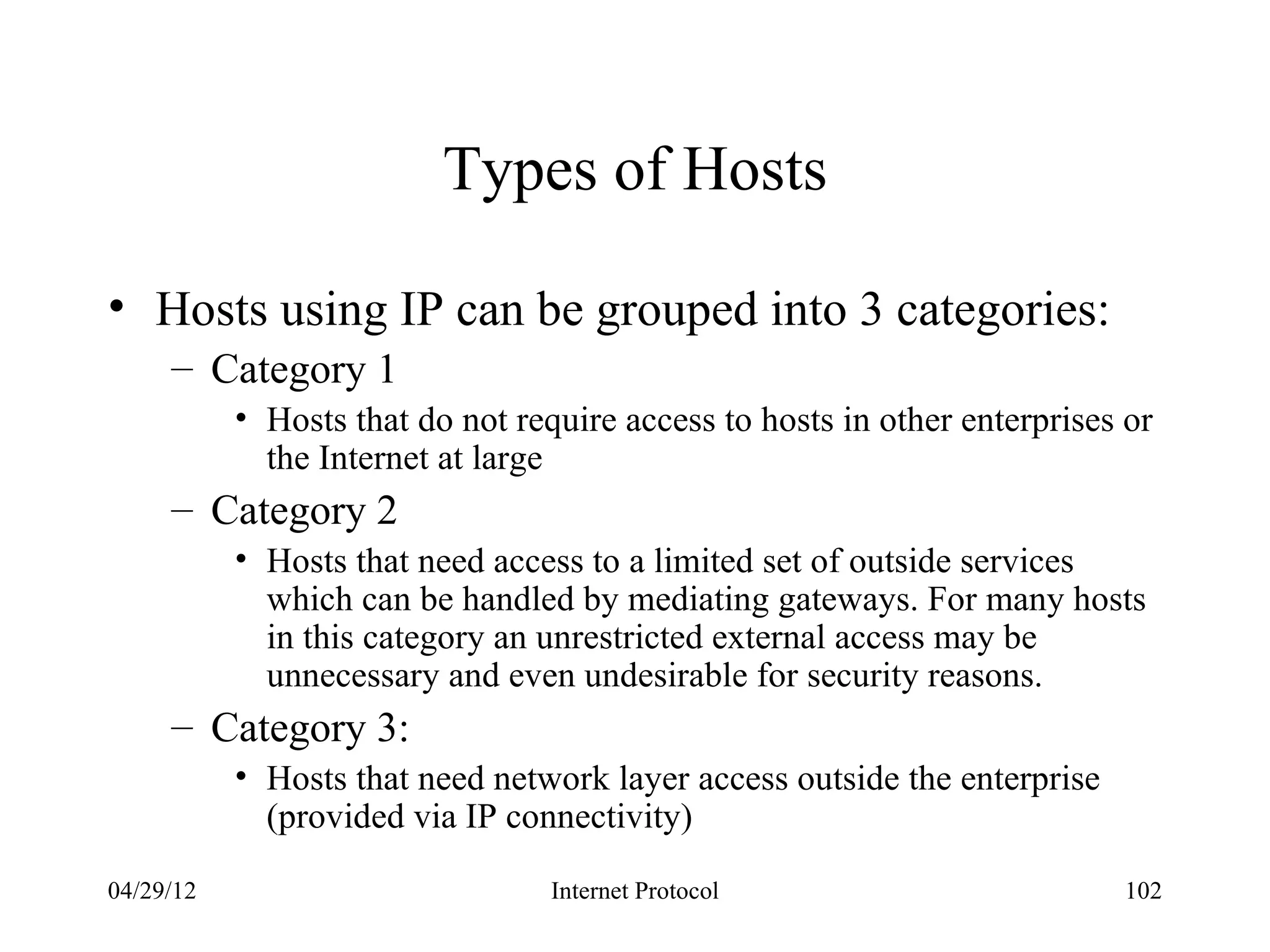

102. Types of Hosts
• Hosts using IP can be grouped into 3 categories:
– Category 1
• Hosts that do not require access to hosts in other enterprises or
the Internet at large
– Category 2
• Hosts that need access to a limited set of outside services
which can be handled by mediating gateways. For many hosts
in this category an unrestricted external access may be
unnecessary and even undesirable for security reasons.
– Category 3:
• Hosts that need network layer access outside the enterprise
(provided via IP connectivity)
04/29/12 Internet Protocol 102

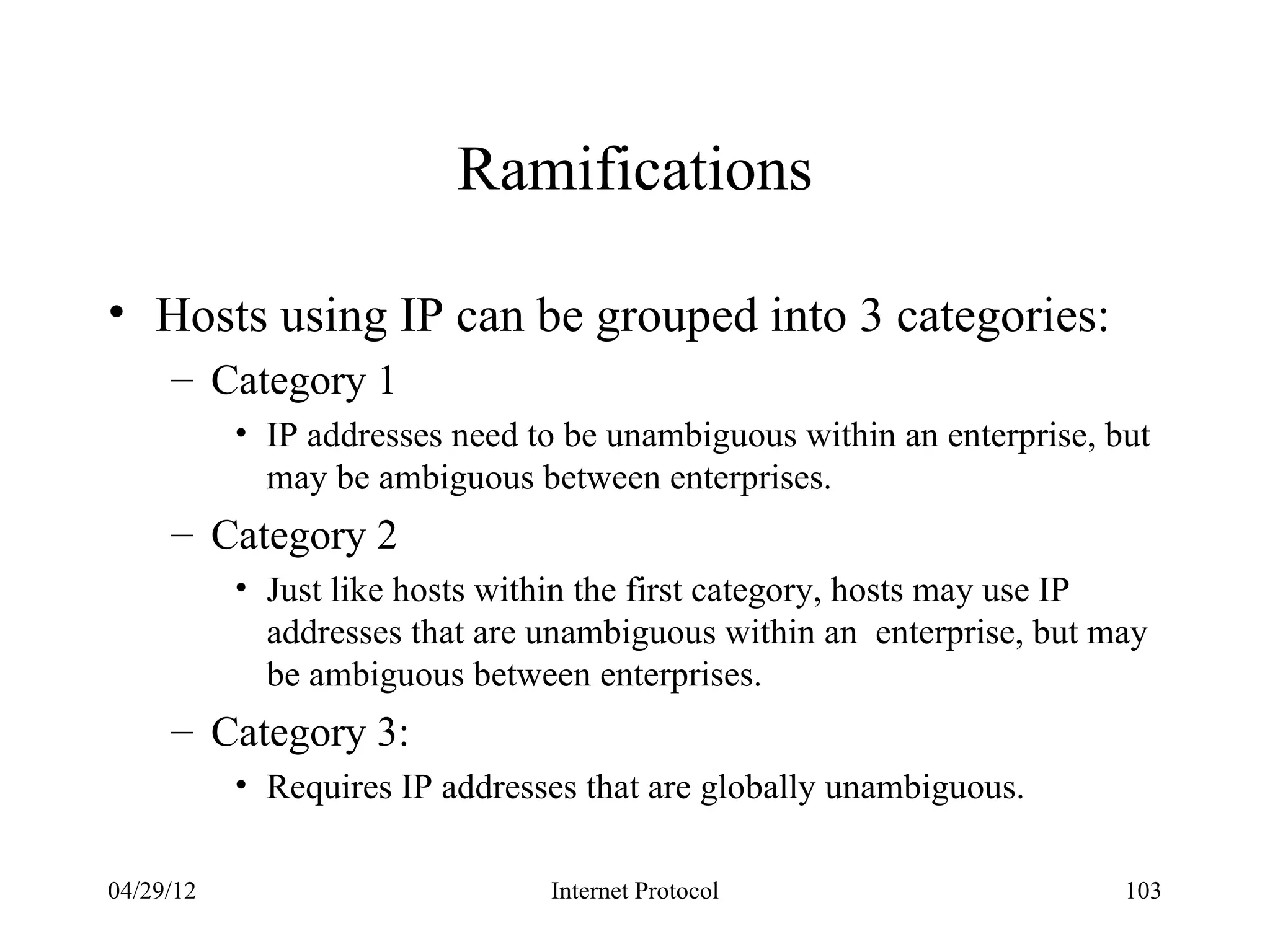

103. Ramifications
• Hosts using IP can be grouped into 3 categories:
– Category 1
• IP addresses need to be unambiguous within an enterprise, but
may be ambiguous between enterprises.
– Category 2
• Just like hosts within the first category, hosts may use IP
addresses that are unambiguous within an enterprise, but may
be ambiguous between enterprises.
– Category 3:
• Requires IP addresses that are globally unambiguous.
04/29/12 Internet Protocol 103

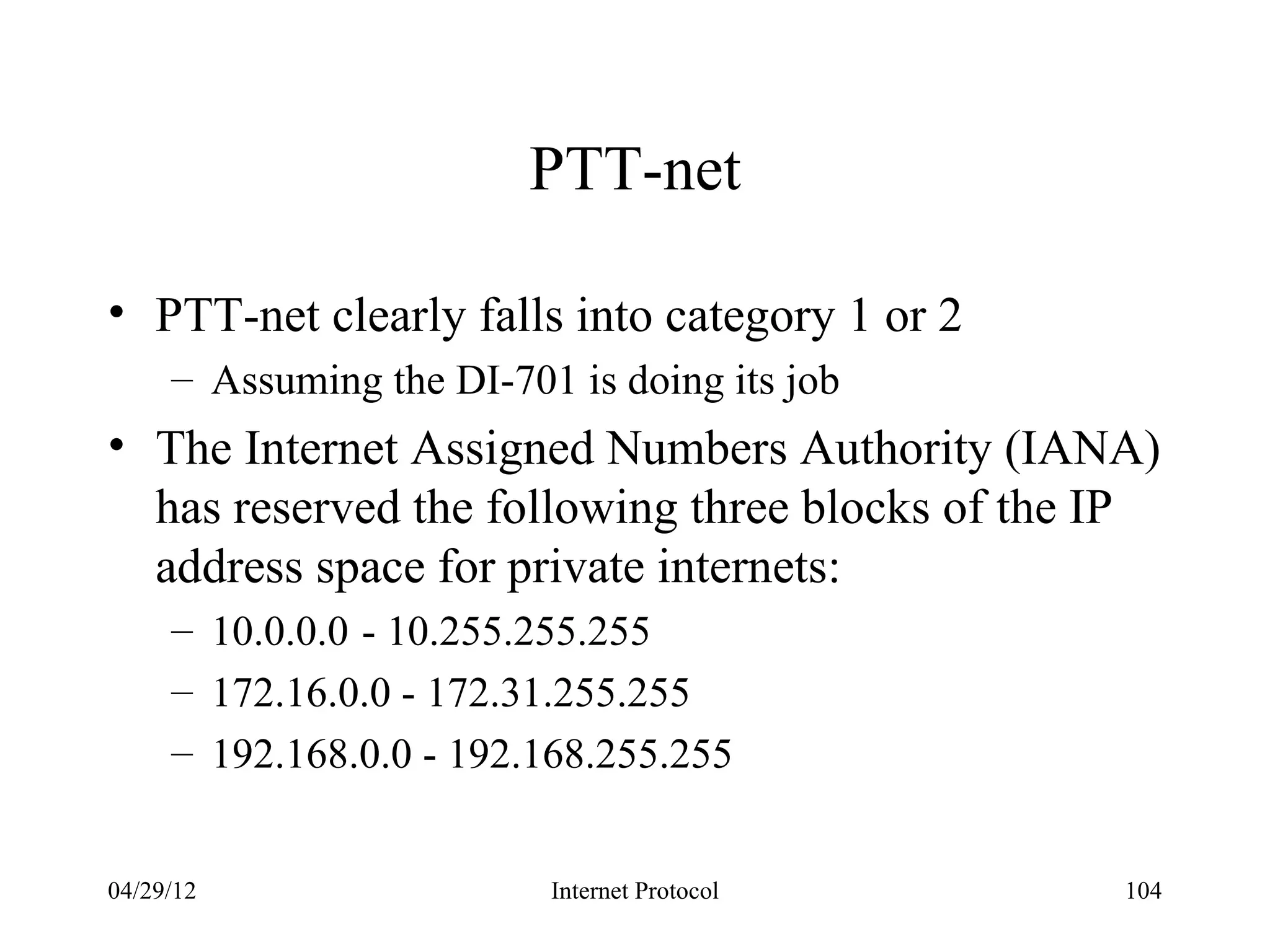

104. PTT-net
• PTT-net clearly falls into category 1 or 2
– Assuming the DI-701 is doing its job
• The Internet Assigned Numbers Authority (IANA)
has reserved the following three blocks of the IP
address space for private internets:
– 10.0.0.0 - 10.255.255.255
– 172.16.0.0 - 172.31.255.255
– 192.168.0.0 - 192.168.255.255
04/29/12 Internet Protocol 104

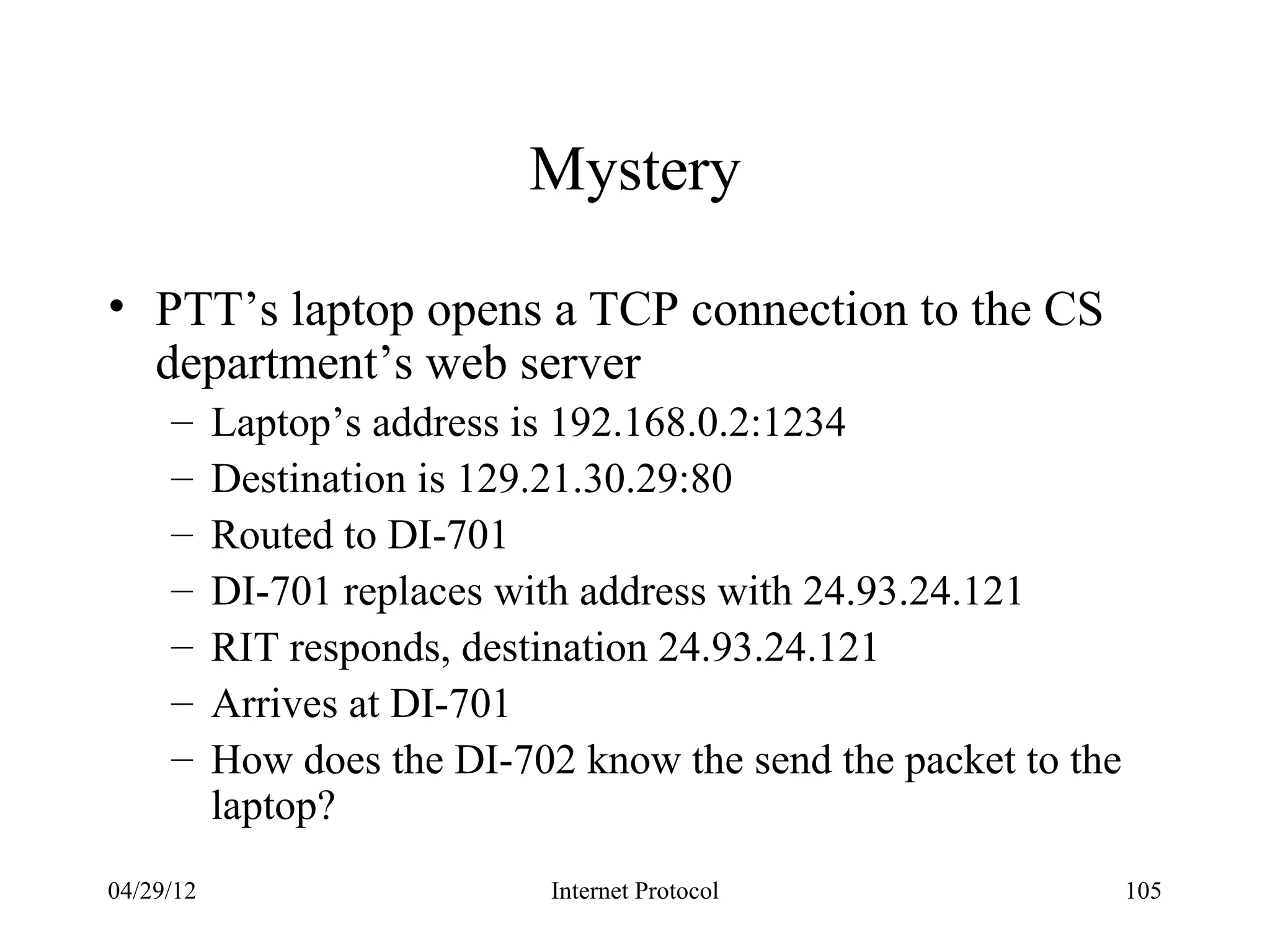

105. Mystery
• PTT’s laptop opens a TCP connection to the CS
department’s web server
– Laptop’s address is 192.168.0.2:1234
– Destination is 129.21.30.29:80
– Routed to DI-701
– DI-701 replaces with address with 24.93.24.121
– RIT responds, destination 24.93.24.121
– Arrives at DI-701
– How does the DI-702 know the send the packet to the
laptop?
04/29/12 Internet Protocol 105

106. Mystery Solved

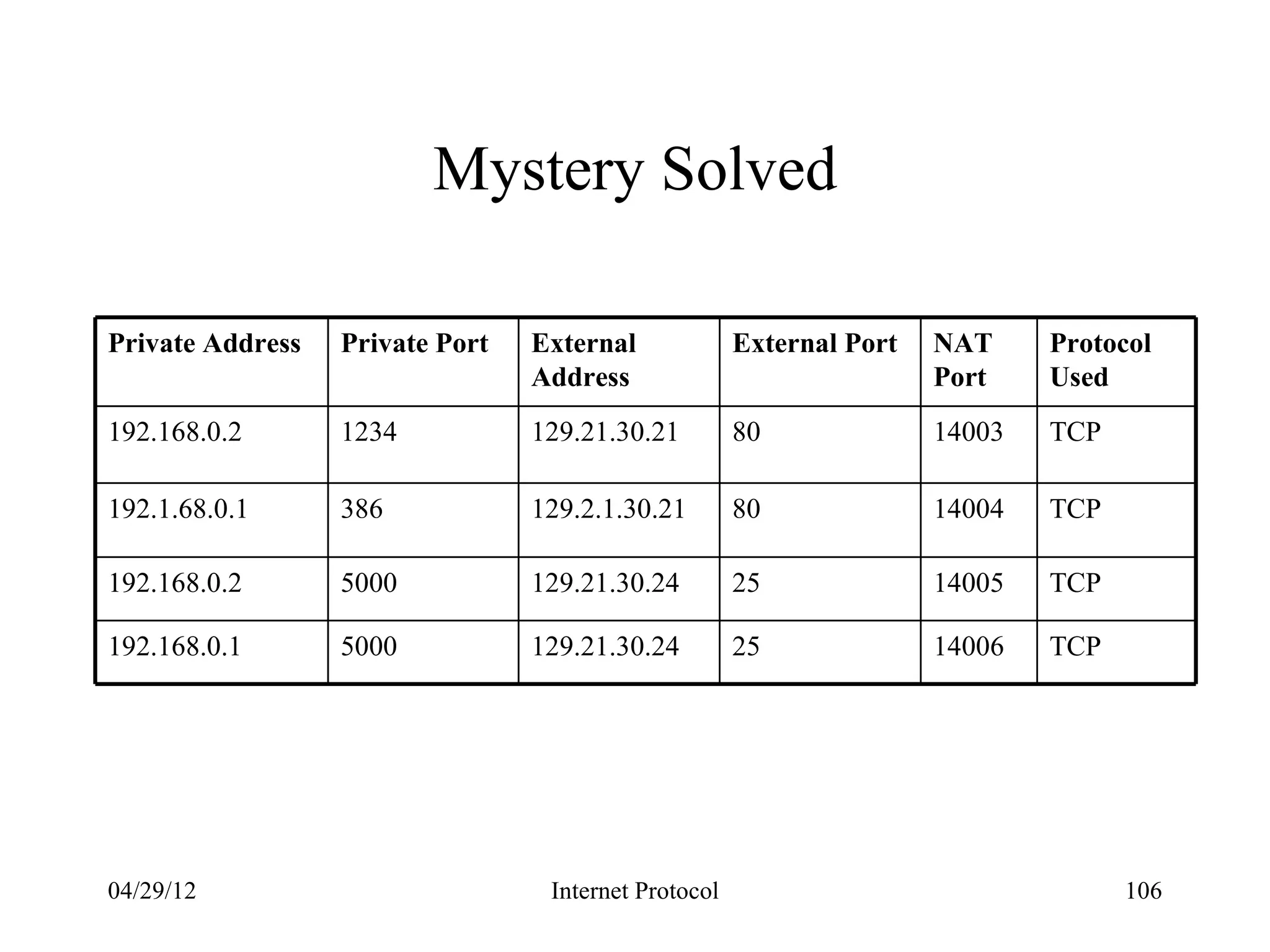

Private Address Private Port External External Port NAT Protocol
Address Port Used
192.168.0.2 1234 129.21.30.21 80 14003 TCP
192.1.68.0.1 386 129.2.1.30.21 80 14004 TCP
192.168.0.2 5000 129.21.30.24 25 14005 TCP
192.168.0.1 5000 129.21.30.24 25 14006 TCP
04/29/12 Internet Protocol 106

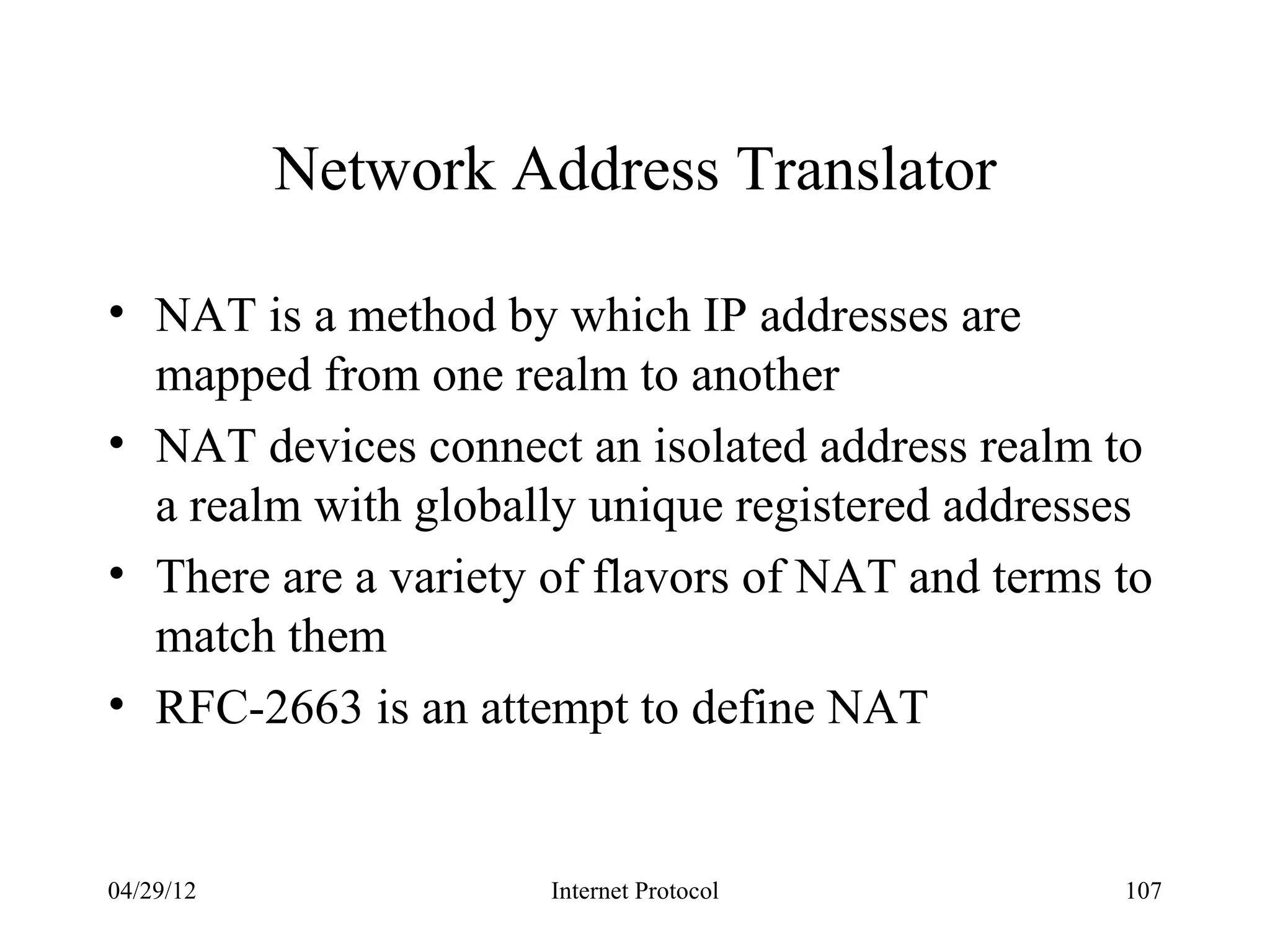

107. Network Address Translator
• NAT is a method by which IP addresses are
mapped from one realm to another
• NAT devices connect an isolated address realm to
a realm with globally unique registered addresses
• There are a variety of flavors of NAT and terms to
match them
• RFC-2663 is an attempt to define NAT
04/29/12 Internet Protocol 107

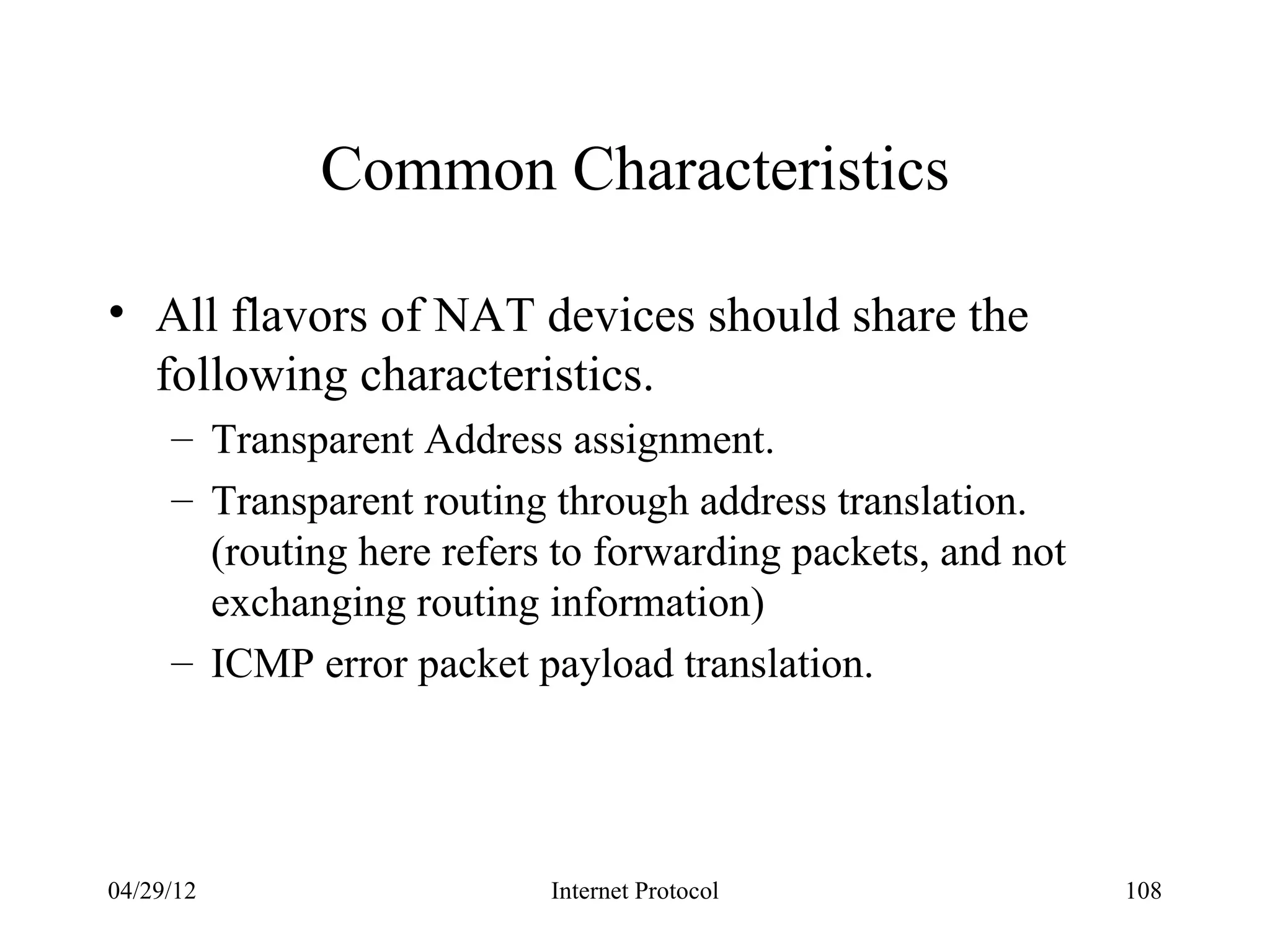

108. Common Characteristics
• All flavors of NAT devices should share the
following characteristics.
– Transparent Address assignment.
– Transparent routing through address translation.
(routing here refers to forwarding packets, and not
exchanging routing information)
– ICMP error packet payload translation.
04/29/12 Internet Protocol 108

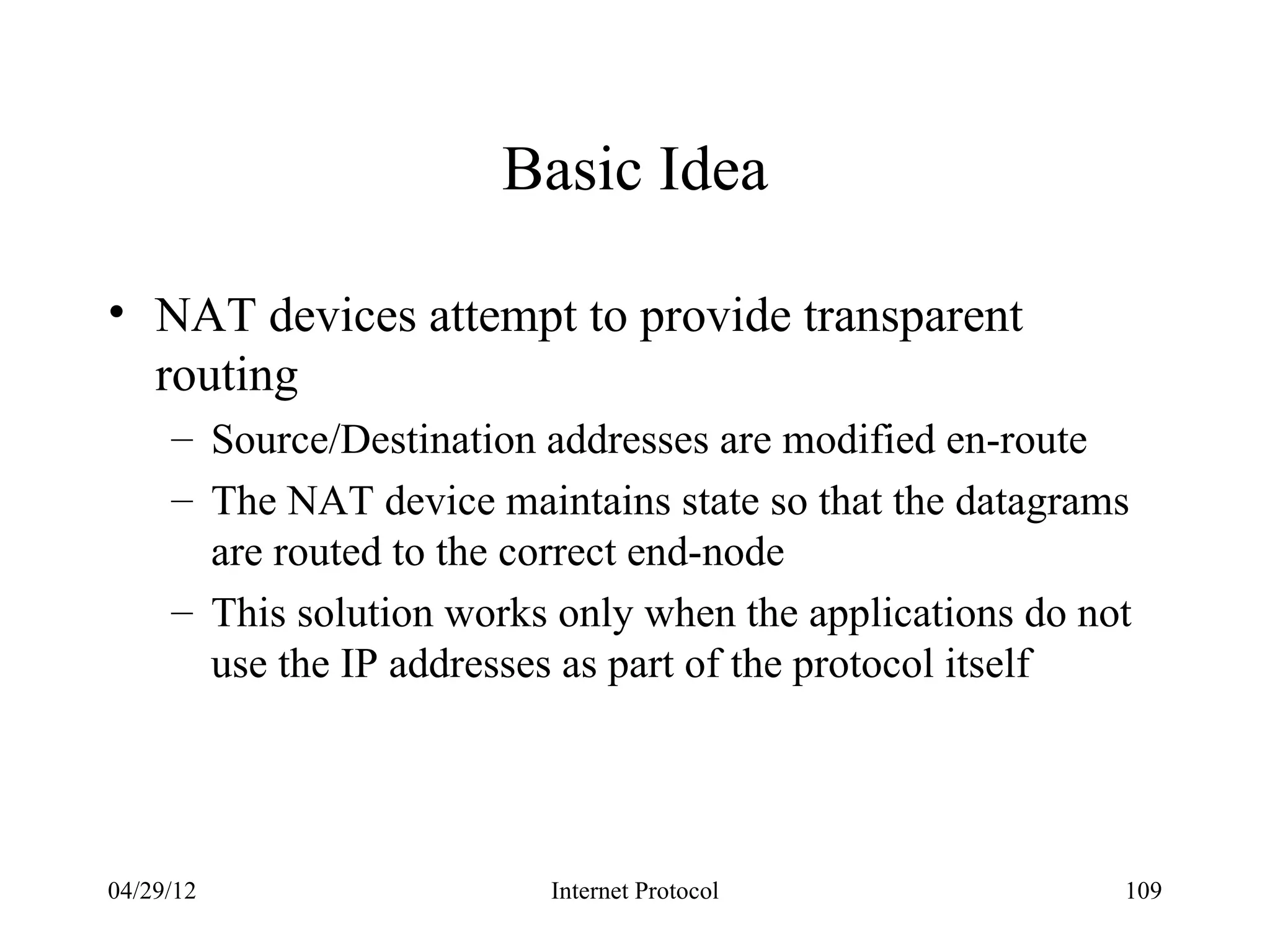

109. Basic Idea
• NAT devices attempt to provide transparent
routing
– Source/Destination addresses are modified en-route
– The NAT device maintains state so that the datagrams
are routed to the correct end-node
– This solution works only when the applications do not
use the IP addresses as part of the protocol itself
04/29/12 Internet Protocol 109

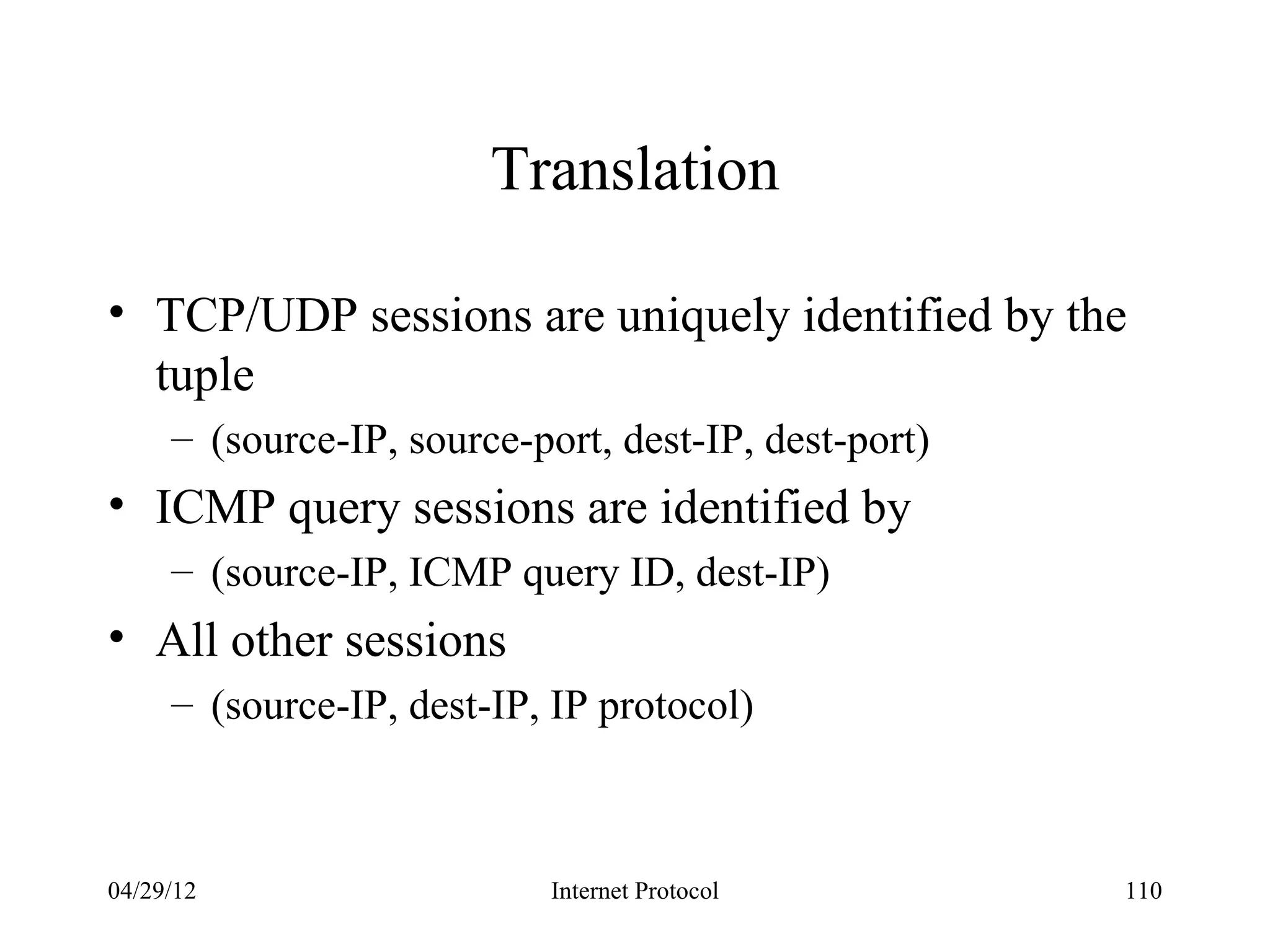

110. Translation
• TCP/UDP sessions are uniquely identified by the
tuple
– (source-IP, source-port, dest-IP, dest-port)
• ICMP query sessions are identified by
– (source-IP, ICMP query ID, dest-IP)
• All other sessions
– (source-IP, dest-IP, IP protocol)
04/29/12 Internet Protocol 110

111. Start of Session
• TCP
– The first packet of every sessions contains a SYN bit
and no ACK bit
– All other TCP packets will have the ACK bit set
• UDP
– No deterministic way to determine the start of a session
– Assume the first packet with never before seen
parameters marks the start of a session
04/29/12 Internet Protocol 111

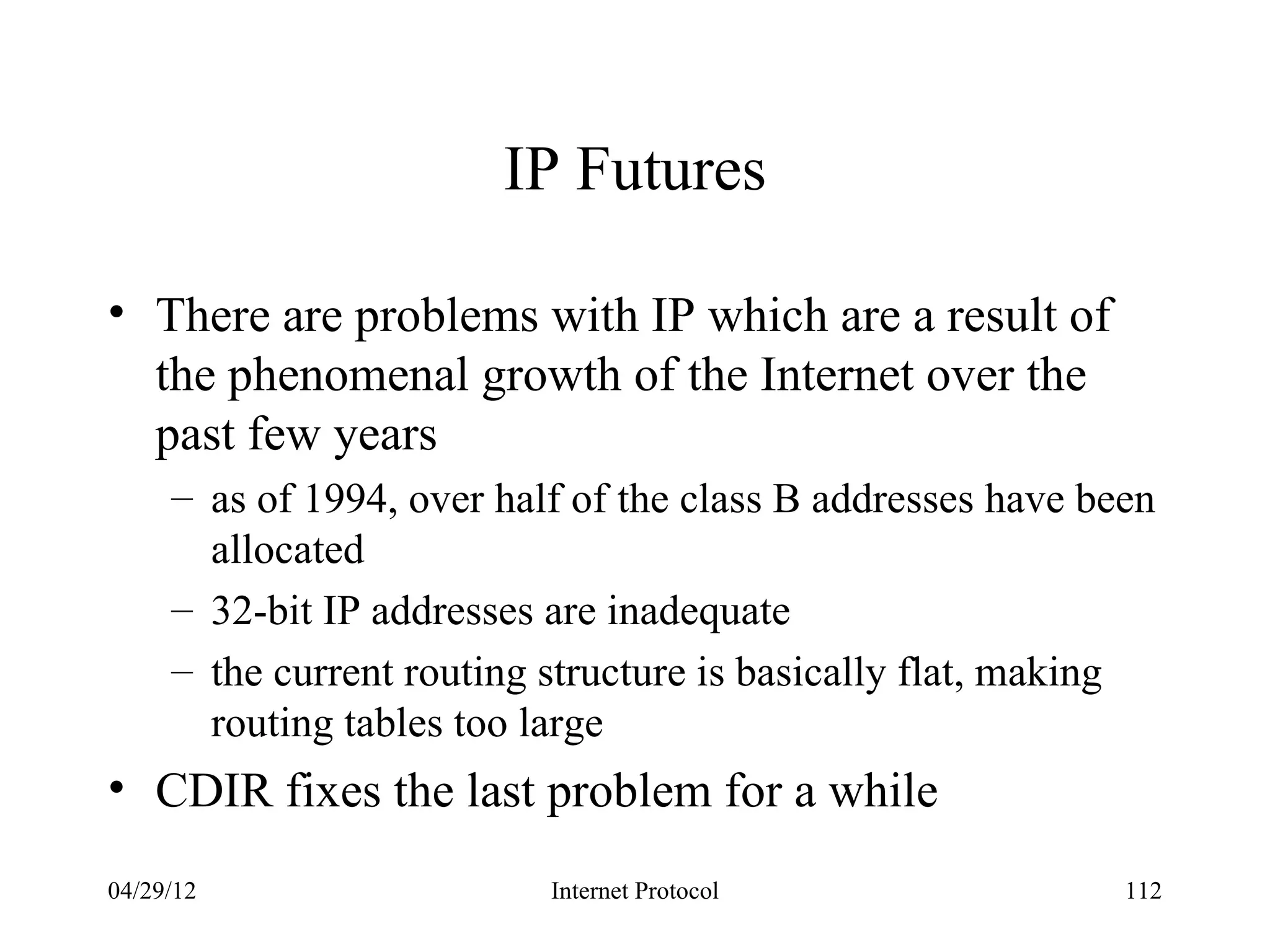

112. IP Futures
• There are problems with IP which are a result of
the phenomenal growth of the Internet over the
past few years
– as of 1994, over half of the class B addresses have been
allocated
– 32-bit IP addresses are inadequate
– the current routing structure is basically flat, making
routing tables too large
• CDIR fixes the last problem for a while
04/29/12 Internet Protocol 112

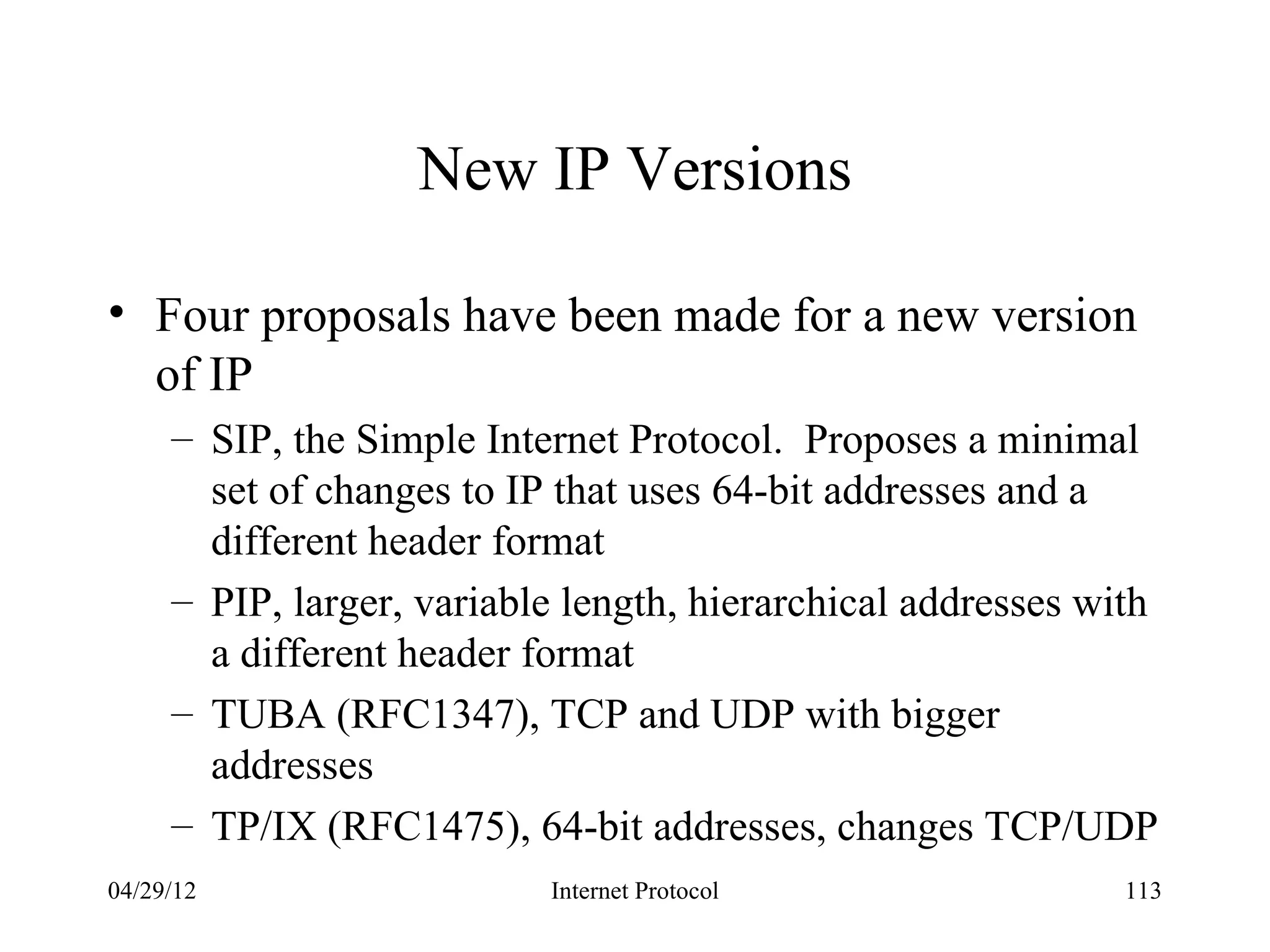

113. New IP Versions
• Four proposals have been made for a new version
of IP
– SIP, the Simple Internet Protocol. Proposes a minimal
set of changes to IP that uses 64-bit addresses and a
different header format
– PIP, larger, variable length, hierarchical addresses with
a different header format
– TUBA (RFC1347), TCP and UDP with bigger
addresses
– TP/IX (RFC1475), 64-bit addresses, changes TCP/UDP
04/29/12 Internet Protocol 113

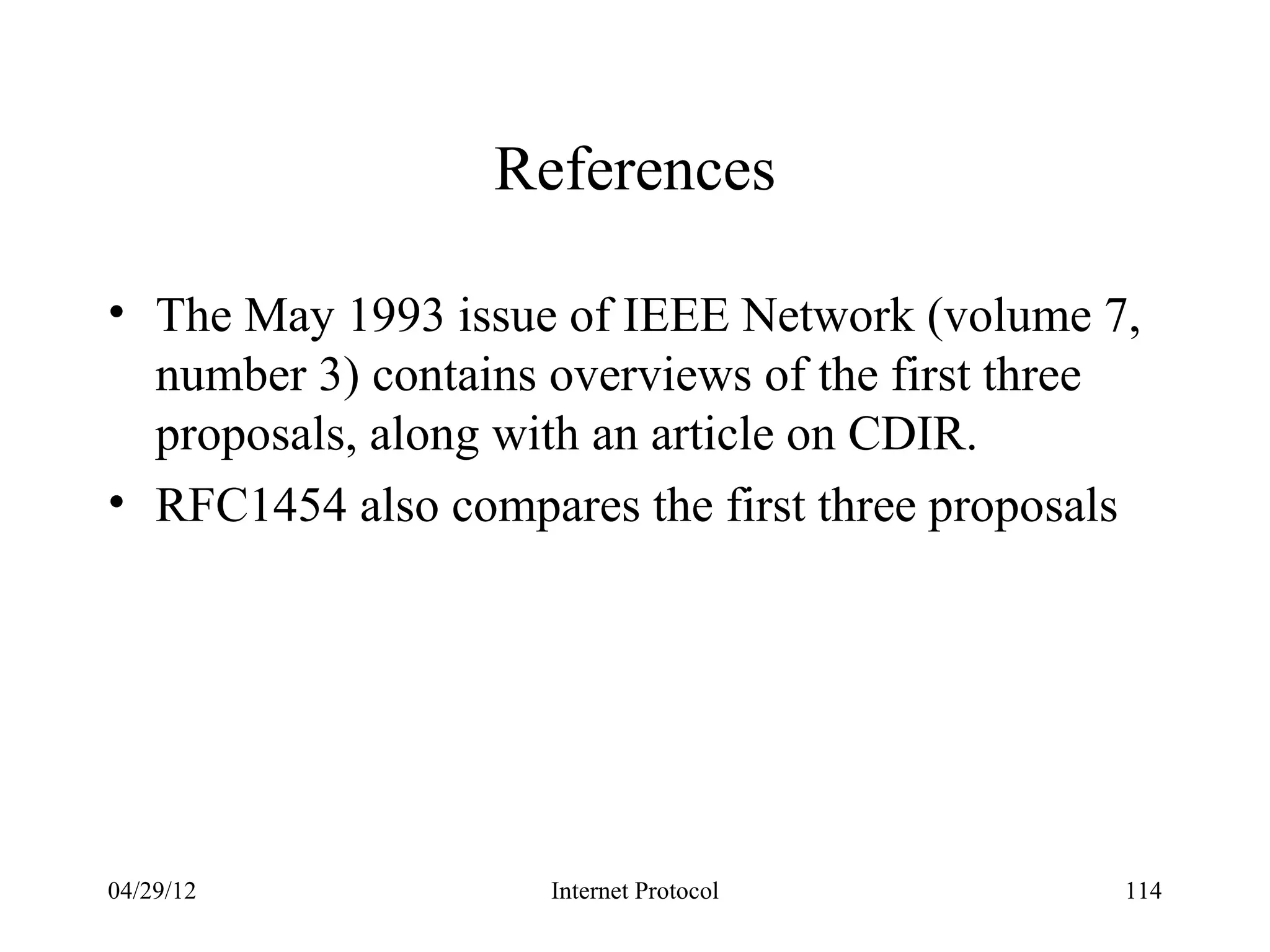

114. References
• The May 1993 issue of IEEE Network (volume 7,
number 3) contains overviews of the first three
proposals, along with an article on CDIR.
• RFC1454 also compares the first three proposals
04/29/12 Internet Protocol 114
