Exchange Server 2013 Architecture Deep Dive, Part 1
Exchange Server 2013 introduced new server roles that simplified the architecture. The Client Access server role became a thin, stateless proxy server that routes client protocol requests. The Mailbox server role consolidated functionality into a single server that processes, renders, and stores Exchange data. This evolution improved hardware efficiency, simplified deployments, and enabled cross-version interoperability. The Front End Transport service acts as a load-balanced ingress/egress point that determines the optimal Mailbox server for delivering messages to avoid unnecessary hops.
More Related Content
Similar to Exchange Server 2013 Architecture Deep Dive, Part 1
Exchange Server 2013 Architecture Deep Dive, Part 1
- 1. Exchange Server 2013 ArchitectureDeep Dive, Part 1 Scott Schnoll Principal Technical Writer Microsoft Corporation

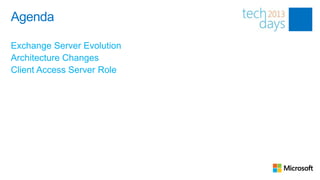

- 2. Agenda Exchange Server Evolution ArchitectureChanges Client Access Server Role
- 3. Exchange: Past, Presentand Future L7 LB CA Ex Ex S HT C C C H H H MBX MBX Ex Ex SAN • Role differentiation • Separate roles for • Separate HA solution per through manual deployment & role configuration segmentation • Introduction of the DAG • Backups and hardware • Support cheaper • Support for Hybrid solutions for storage deployments “reliability” 2000/2003 2007 2010
- 4. Previous Server RoleArchitecture 5 server roles Forefront Online Protection for Exchange Internal Network Phone system (PBX or VOIP) Tightly-coupled E in terms of versioning External SMTP functionality servers user partitioning Mobile phone geo-affinity Web Layer 7 browser LB Outlook (remote user) Outlook (local user) Line of business application
- 5. Challenges with LegacyModel Exchange deployments can be complicated Load balancing is difficult and can require expensive solutions When dedicated server roles are deployed, hardware can go unutilized or under-utilized Too many namespaces required
- 7. Evolution of ServerRoles E C C H U M

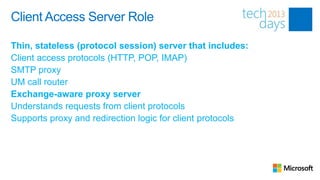

- 8. Client Access ServerRole Thin, stateless (protocol session) server that includes: Client access protocols (HTTP, POP, IMAP) SMTP proxy UM call router Exchange-aware proxy server Understands requests from client protocols Supports proxy and redirection logic for client protocols
- 9. Mailbox Server Role Serverthat processes, renders and stores Exchange data Includes components previously found in separate roles (CAS, Hub, UM) Connectivity to user’s mailbox is always provided by the protocol stack on the Mailbox server hosting the active database copy

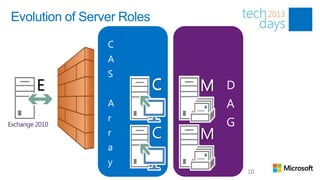

- 10. Evolution of ServerRoles E C M C M
- 12. Exchange 2013 ArchitecturalTheme Use Building Blocks to facilitate deployments at all scales – from self- hosted, small organizations to Office 365 • Server role evolution • Network layer improvements • Versioning and inter-op principles

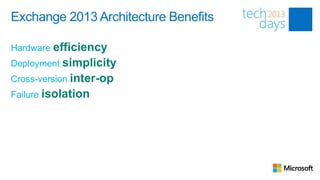

- 13. Exchange 2013 ArchitectureBenefits Hardware efficiency Deployment simplicity Cross-version inter-op Failure isolation

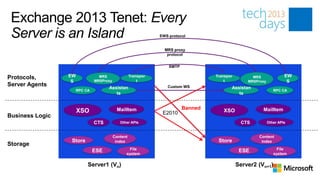

- 14. Exchange 2013 Tenet:Every Server is an Island EWS protocol MRS proxy protocol SMTP Protocols, EW MRS Transpor Transpor MRS EW S MRSProxy t t MRSProxy S Server Agents Custom WS Assistan Assistan RPC CA RPC CA ts ts MailItem Banned MailItem XSO E2010 XSO Business Logic CTS Other APIs CTS Other APIs Content Content Store index Store index Storage ESE File ESE File system system Server1 (Vn) Server2 (Vn+1)
- 15. Functional Differences Exchange 2010 Exchange 2013 Architecture Architecture L4 LB L7 LB AuthN, Proxy, Client Access Re-direct AuthN, Proxy, Client Access Re-direct Hub Transport, Protocols, API, Unified Messaging Biz-logic Protocols, Assista nts, API, Biz-logic Mailbox Assistants, Store, Mailbox Store, CI CI

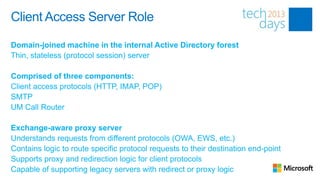

- 17. Client Access ServerRole Domain-joined machine in the internal Active Directory forest Thin, stateless (protocol session) server Comprised of three components: Client access protocols (HTTP, IMAP, POP) SMTP UM Call Router Exchange-aware proxy server Understands requests from different protocols (OWA, EWS, etc.) Contains logic to route specific protocol requests to their destination end-point Supports proxy and redirection logic for client protocols Capable of supporting legacy servers with redirect or proxy logic
- 18. Client Access Array Agroup of CAS organized in a load-balanced configuration Designed to work with TCP affinity (aka, layer 4 LB) Does not require application-level session affinity (aka, layer 7 LB) Provides a unified namespace and authentication Similar to Exchange 2010 in terms of providing a unified endpoint for client connectivity and authentication

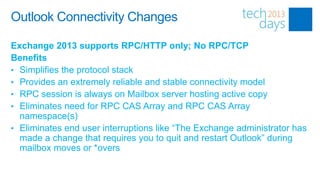

- 19. Outlook Connectivity Changes Exchange2013 supports RPC/HTTP only; No RPC/TCP Benefits • Simplifies the protocol stack • Provides an extremely reliable and stable connectivity model • RPC session is always on Mailbox server hosting active copy • Eliminates need for RPC CAS Array and RPC CAS Array namespace(s) • Eliminates end user interruptions like “The Exchange administrator has made a change that requires you to quit and restart Outlook” during mailbox moves or *overs

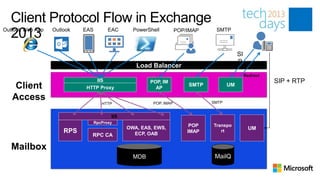

- 20. Client Protocol Flowin Exchange 2013 Outlook Web App Outlook EAS EAC PowerShell POP/IMAP SMTP SI P Load Balancer Redirect IIS POP, IM SIP + RTP Client HTTP Proxy AP SMTP UM Access POP, IMAP SMTP HTTP IIS RpcProxy OWA, EAS, EWS, POP Transpo UM RPS ECP, OAB IMAP rt RPC CA Mailbox MDB MailQ
- 21. Namespace Simplification No longerrequires multiple namespaces for site resilient solutions or site-specific scenarios Easy to setup a single, worldwide client access namespace Can be used in coexistence with Exchange 2010
- 22. Single Common Namespace Sue Sue (somewhere in NA) mail.contoso.co (traveling in APAC) DNS Resolution m DNS Resolution via Geo-DNS Round-Robin between # of VIPs Round-Robin between # of VIPs VIP #1 VIP #2 VIP #3 VIP #4 DAG DAG
- 23. Split DNS Outlook supportsonly a single RPC Proxy endpoint If Outlook Anywhere is allowed on the Internet, this may have internal Outlook clients connect to the external firewall for connectivity Use split DNS to ensure that internal Outlook clients follow internal pathway Forces internal clients to use internal IP Forces external clients to use external IP

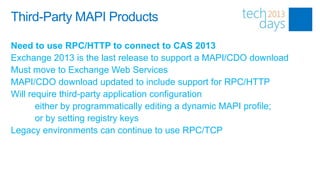

- 24. Third-Party MAPI Products Needto use RPC/HTTP to connect to CAS 2013 Exchange 2013 is the last release to support a MAPI/CDO download Must move to Exchange Web Services MAPI/CDO download updated to include support for RPC/HTTP Will require third-party application configuration either by programmatically editing a dynamic MAPI profile; or by setting registry keys Legacy environments can continue to use RPC/TCP

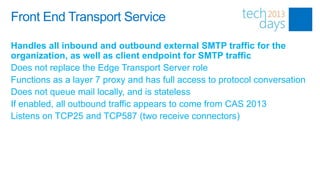

- 26. Front End TransportService Handles all inbound and outbound external SMTP traffic for the organization, as well as client endpoint for SMTP traffic Does not replace the Edge Transport Server role Functions as a layer 7 proxy and has full access to protocol conversation Does not queue mail locally, and is stateless If enabled, all outbound traffic appears to come from CAS 2013 Listens on TCP25 and TCP587 (two receive connectors)
- 27. Front End TransportService Network protection – centralized, load-balanced egress/ingress point for the organization Mailbox locator – avoids unnecessary hops by determining the best MBX 2013 to deliver the message

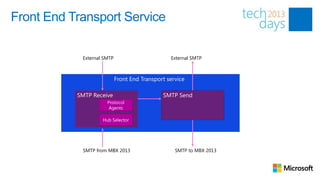

- 28. Front End TransportService External SMTP External SMTP Front End Transport service SMTP Receive SMTP Send Protocol Agents Hub Selector SMTP from MBX 2013 SMTP to MBX 2013

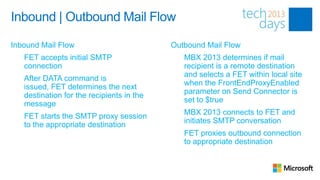

- 29. Inbound | OutboundMail Flow Inbound Mail Flow Outbound Mail Flow 1. FET accepts initial SMTP 1. MBX 2013 determines if mail connection recipient is a remote destination and selects a FET within local site 2. After DATA command is when the FrontEndProxyEnabled issued, FET determines the next parameter on Send Connector is destination for the recipients in the set to $true message 2. MBX 2013 connects to FET and 3. FET starts the SMTP proxy session initiates SMTP conversation to the appropriate destination 3. FET proxies outbound connection to appropriate destination
- 30. Entry Point Routing FETuses delivery groups: DAG, mailbox, AD site Bifurcation does not occur on FET, so only one DAG or Mailbox server is selected, regardless of the number of recipients in a message Server selection within the delivery group is based on recipient type • If message only has a single mailbox recipient, select MBX server within delivery group based on proximity of AD site • If multiple mailbox recipients, select MBX server in closest delivery group, factoring in site proximity • If there are no mailbox recipients (DG, MEUs, etc.), select a random MBX 2013, giving preference to local AD site
- 31. Summary New CAS architecture •Simplifies the network layer • Removes need for RPC CAS Array and RPC CAS Array Namespace • Provides deployment flexibility New Front End Transport Service • Provides centralized, load-balanced egress/ingress point for the organization and for client/application SMTP submissions • Avoids unnecessary hops by determining the best place to deliver the message
- 32. Questions? Scott Schnoll Principal TechnicalWriter scott.schnoll@microsoft.com http://aka.ms/schnoll schnoll
