Skype for business and lync troubleshooting guide (Version 1.0 )

SKYPE for BUSINESS and LYNC
Troubleshooting Guide
Version 1.0
Author: Thomas Poett, Microsoft MVP Lync © 2015

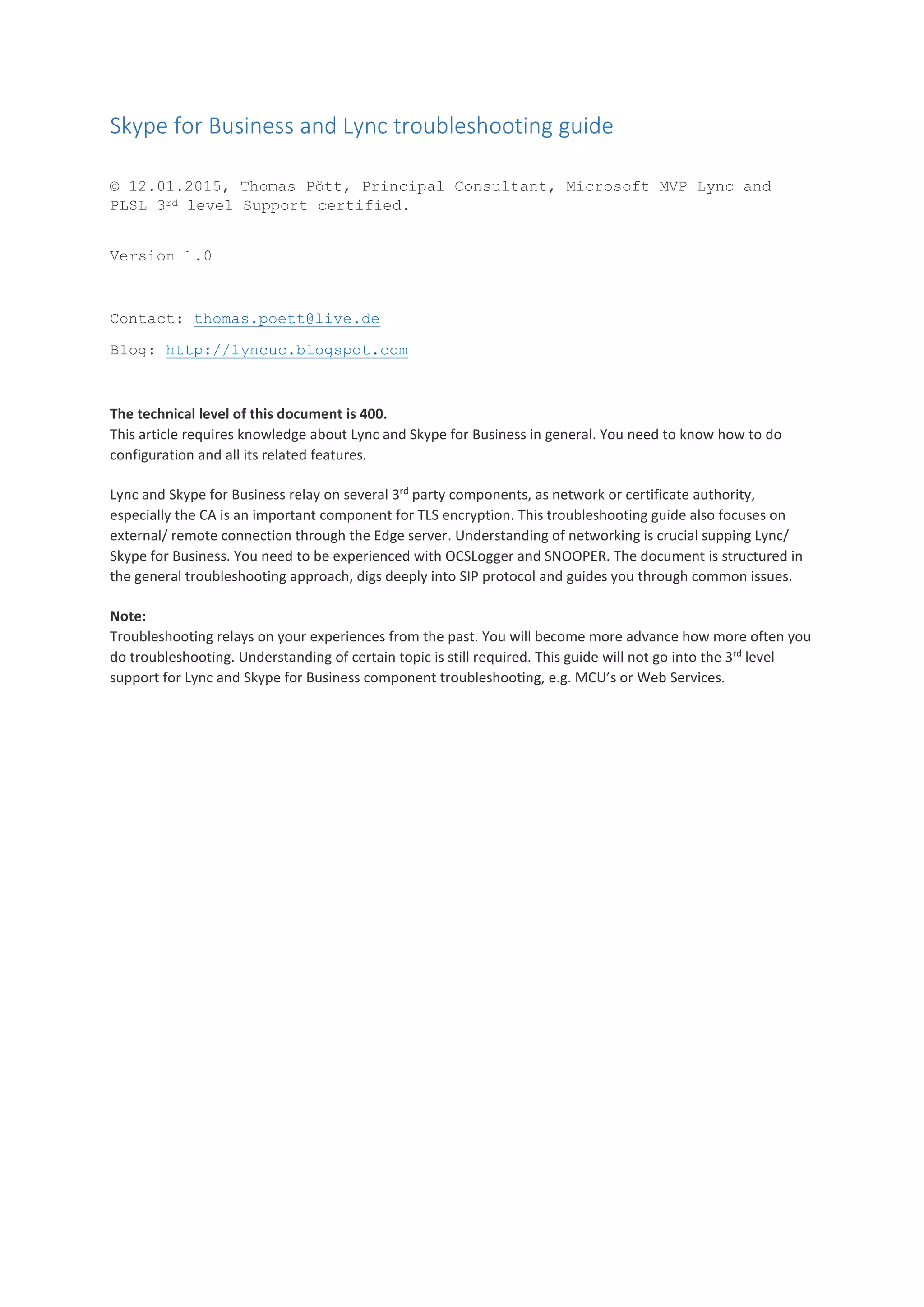

Skype for Business and Lync troubleshooting guide
© 12.01.2015, Thomas Pött, Principal Consultant, Microsoft MVP Lync and
PLSL 3rd level Support certified.
Version 1.0
Contact: thomas.poett@live.de
Blog: http://lyncuc.blogspot.com
The technical level of this document is 400.
This article requires knowledge about Lync and Skype for Business in general. You need to know how to do
configuration and all its related features.
Lync and Skype for Business relay on several 3rd
party components, as network or certificate authority,
especially the CA is an important component for TLS encryption. This troubleshooting guide also focuses on
external/ remote connection through the Edge server. Understanding of networking is crucial supping Lync/
Skype for Business. You need to be experienced with OCSLogger and SNOOPER. The document is structured in
the general troubleshooting approach, digs deeply into SIP protocol and guides you through common issues.
Note:
Troubleshooting relays on your experiences from the past. You will become more advance how more often you
do troubleshooting. Understanding of certain topic is still required. This guide will not go into the 3rd
level
support for Lync and Skype for Business component troubleshooting, e.g. MCU’s or Web Services.

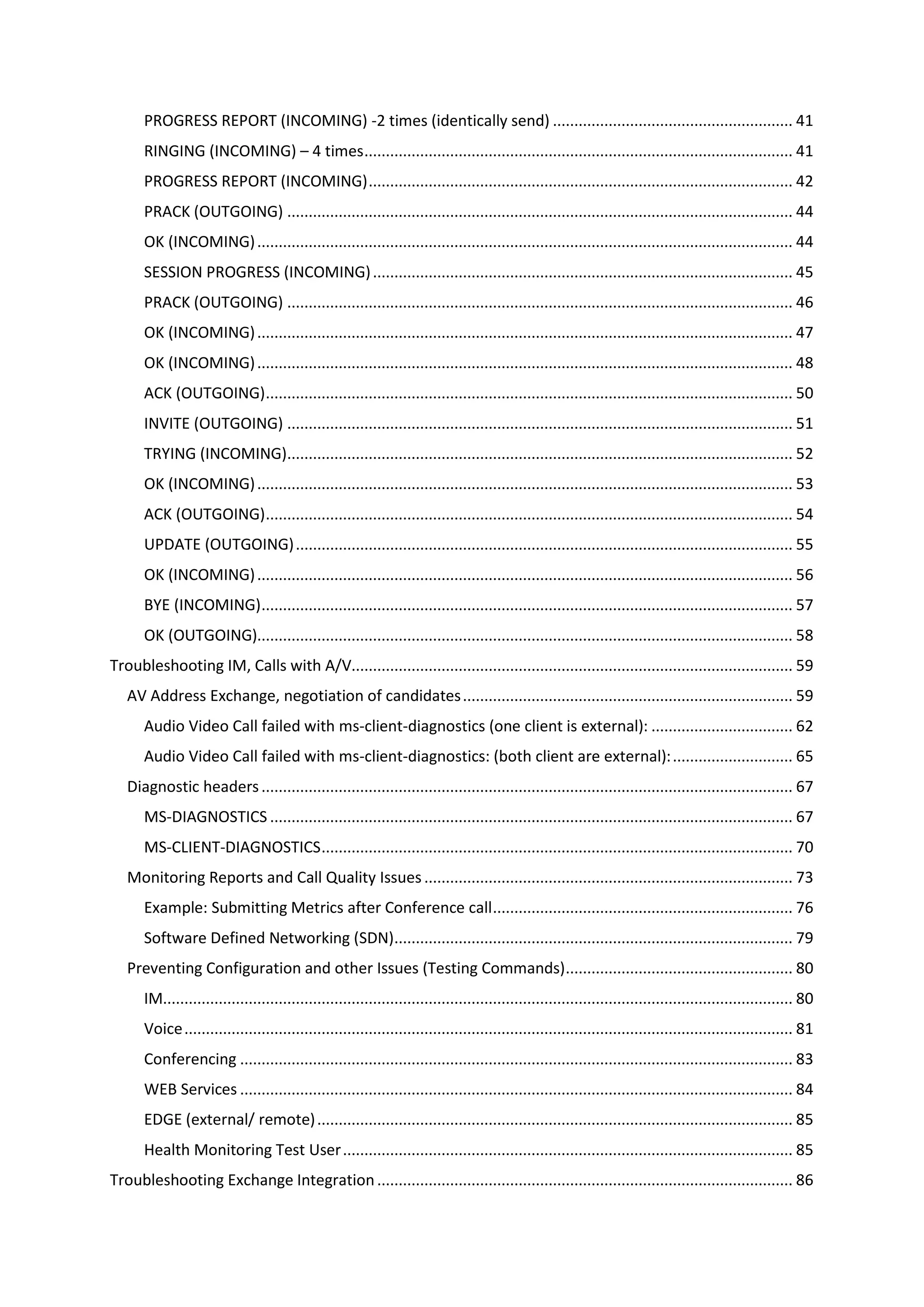

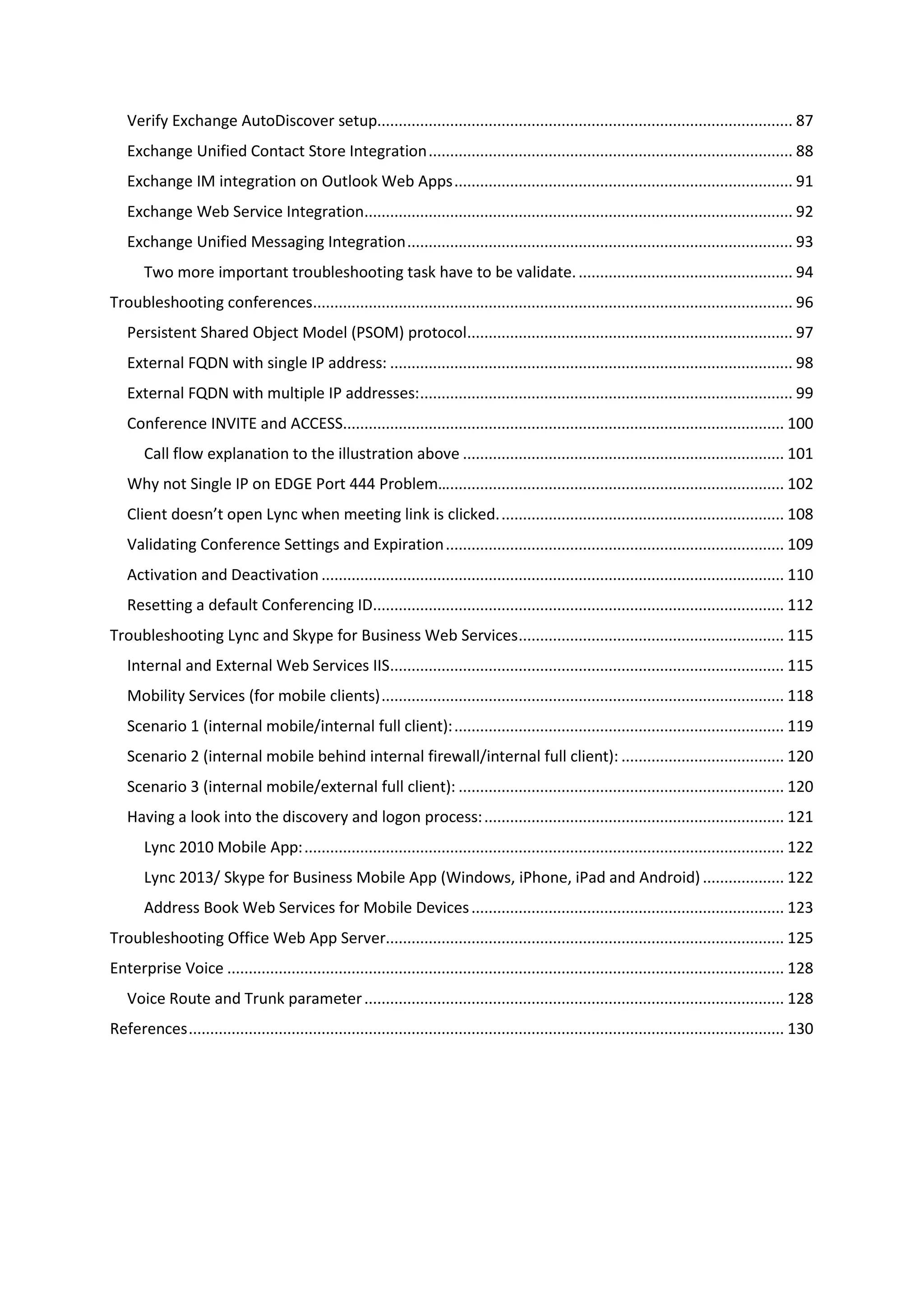

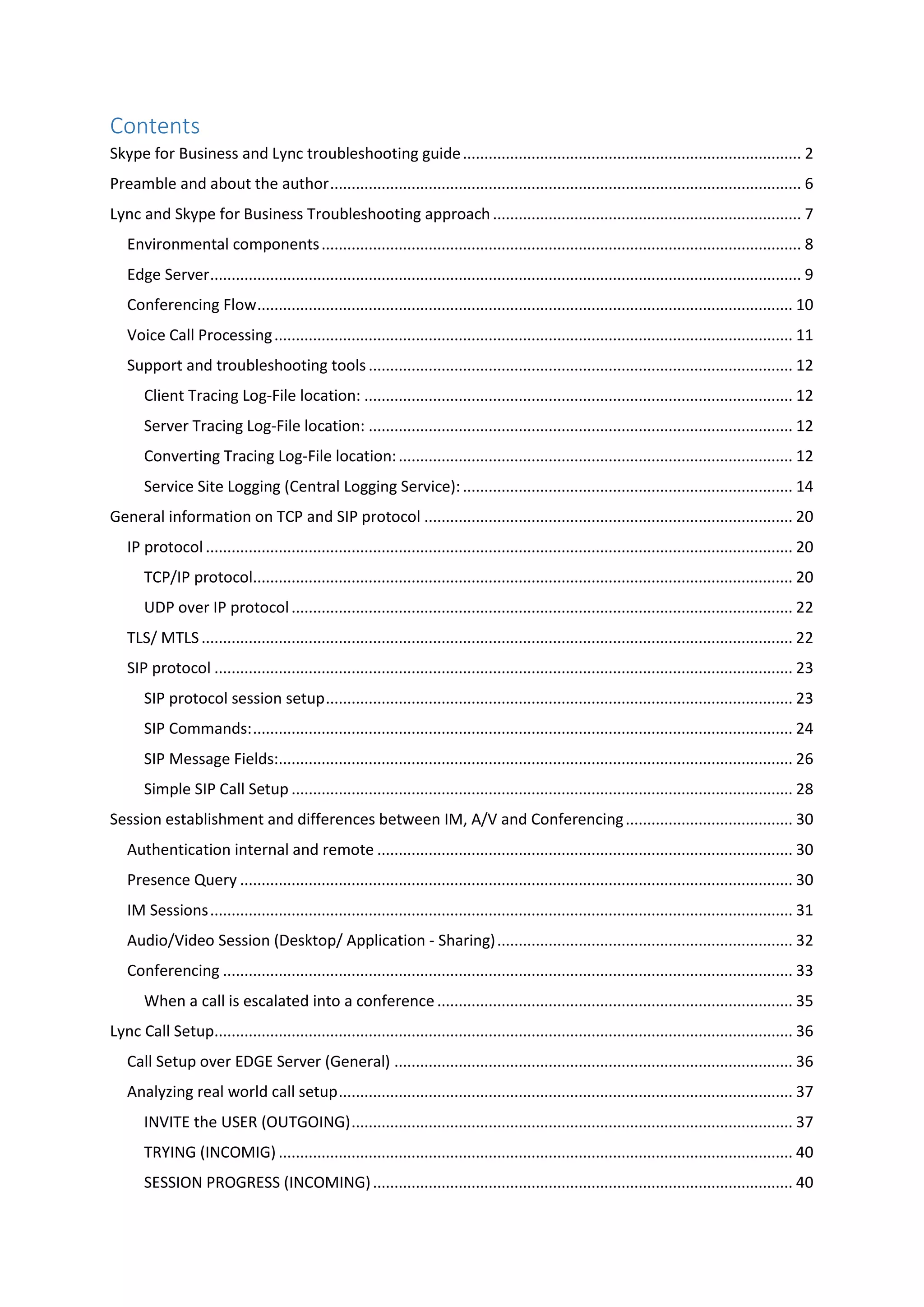

Contents
Skype for Business and Lync troubleshooting guide............................................................................... 2
Preamble and about the author.............................................................................................................. 6
Lync and Skype for Business Troubleshooting approach........................................................................ 7
Environmental components................................................................................................................ 8

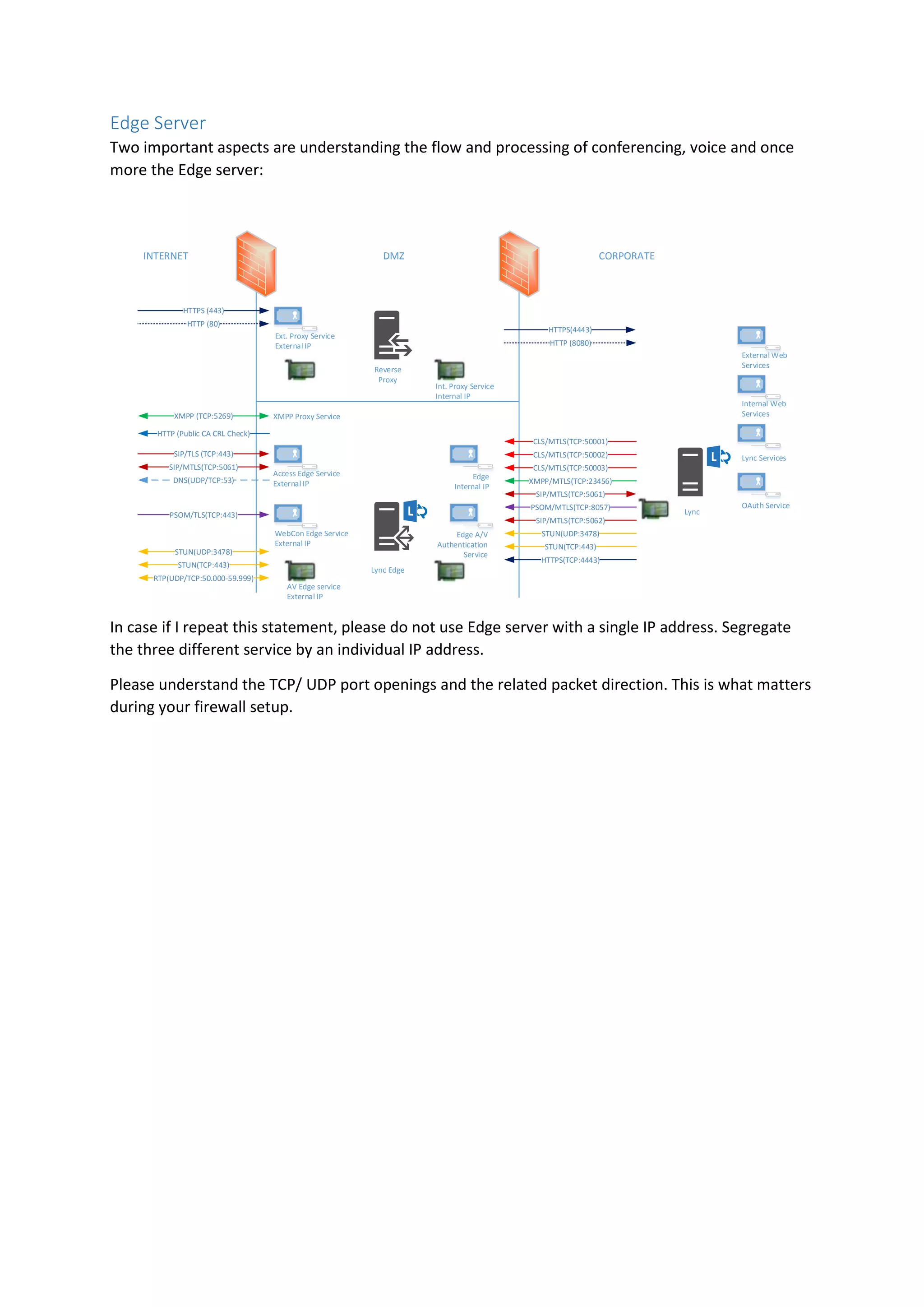

Edge Server.......................................................................................................................................... 9

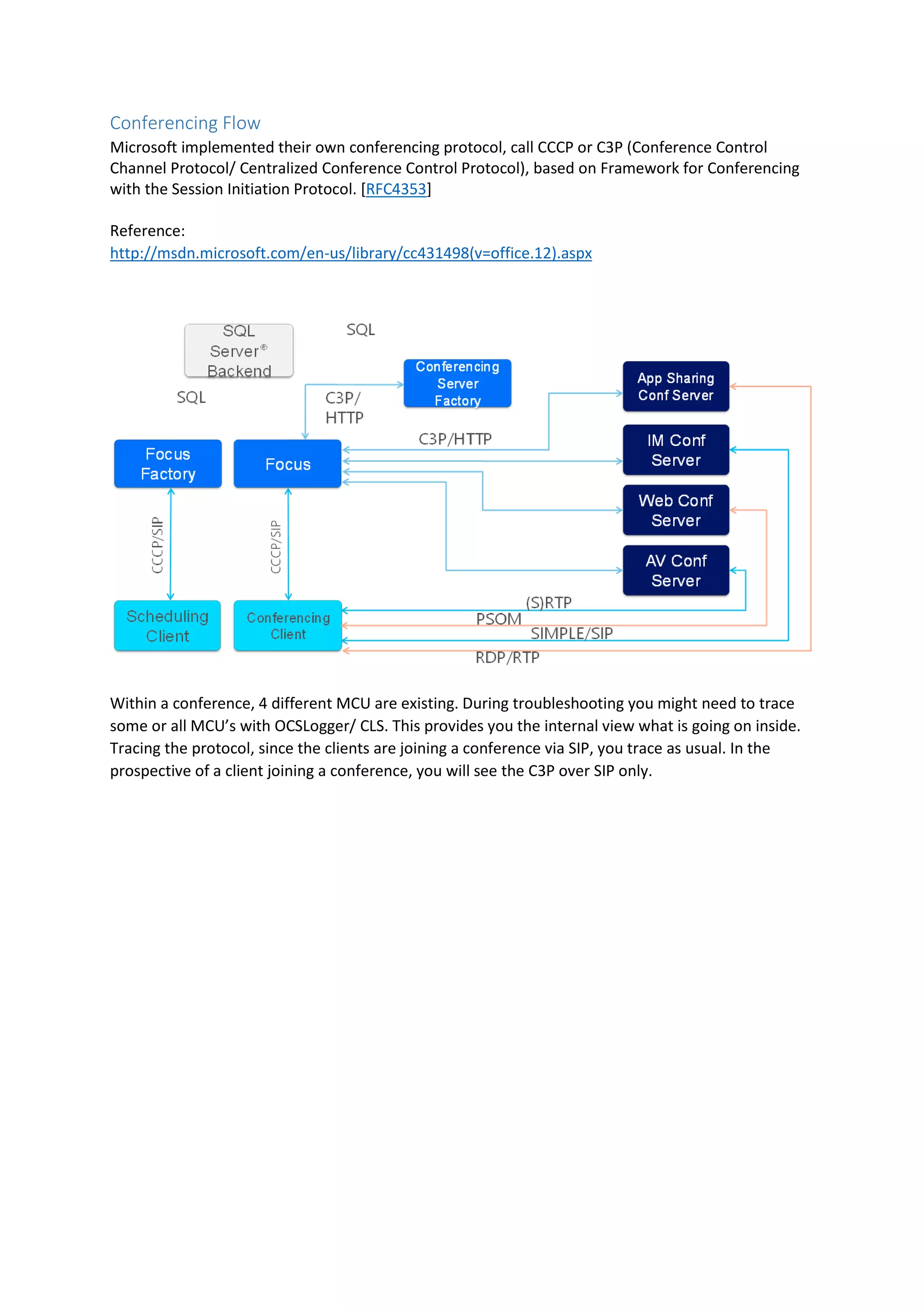

Conferencing Flow............................................................................................................................. 10

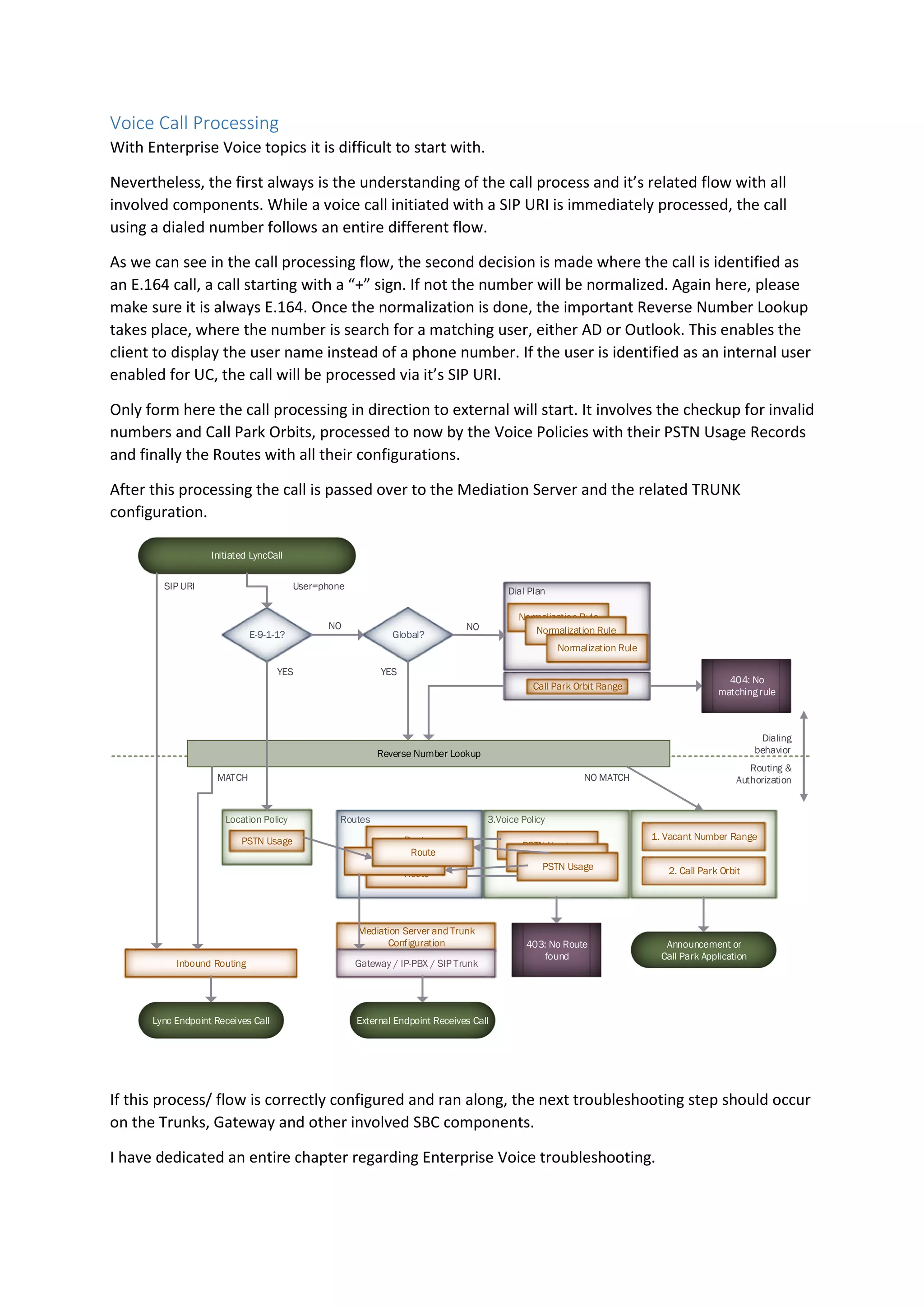

Voice Call Processing......................................................................................................................... 11

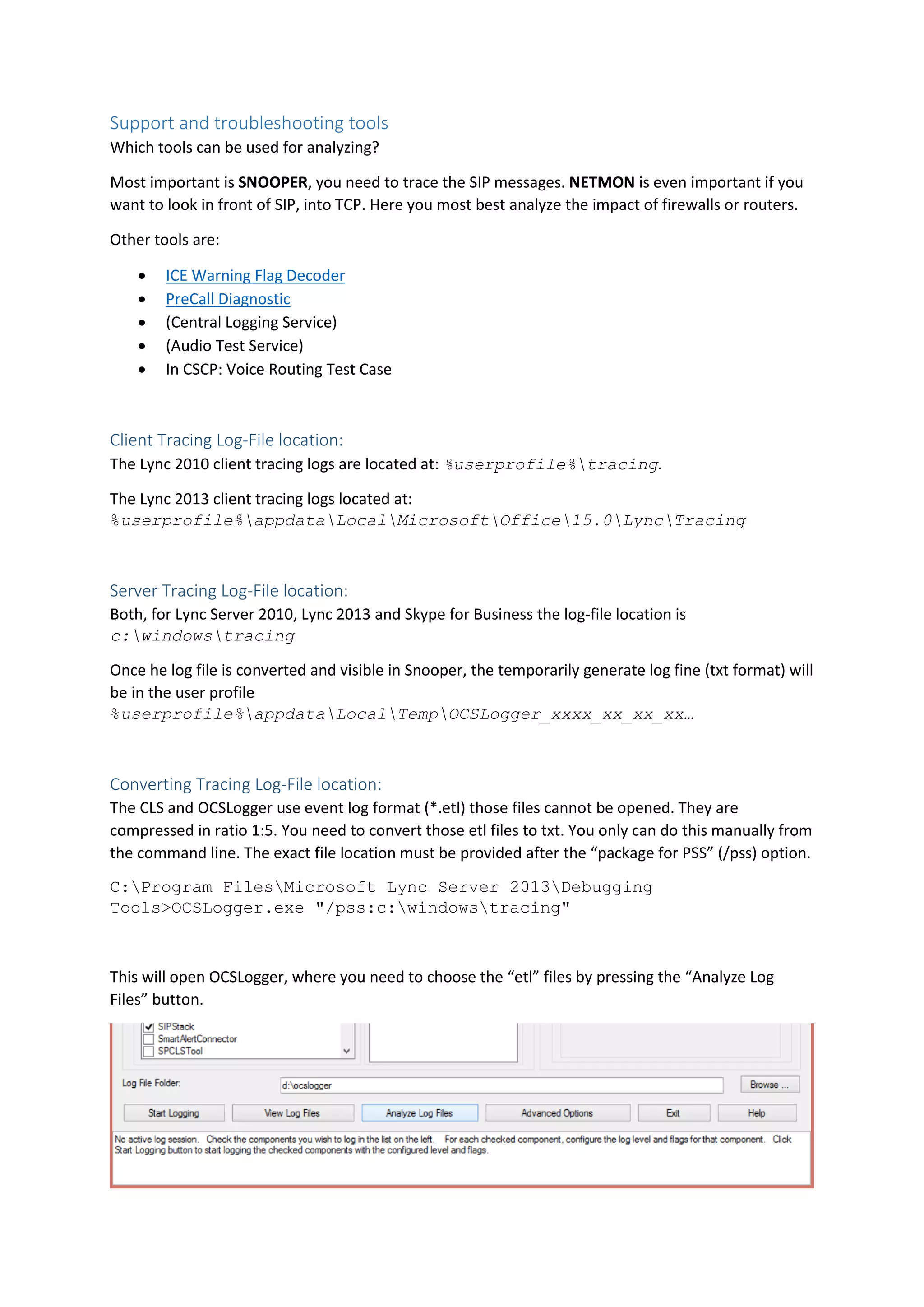

Support and troubleshooting tools................................................................................................... 12
Client Tracing Log-File location: .................................................................................................... 12
Server Tracing Log-File location: ................................................................................................... 12
Converting Tracing Log-File location:............................................................................................ 12

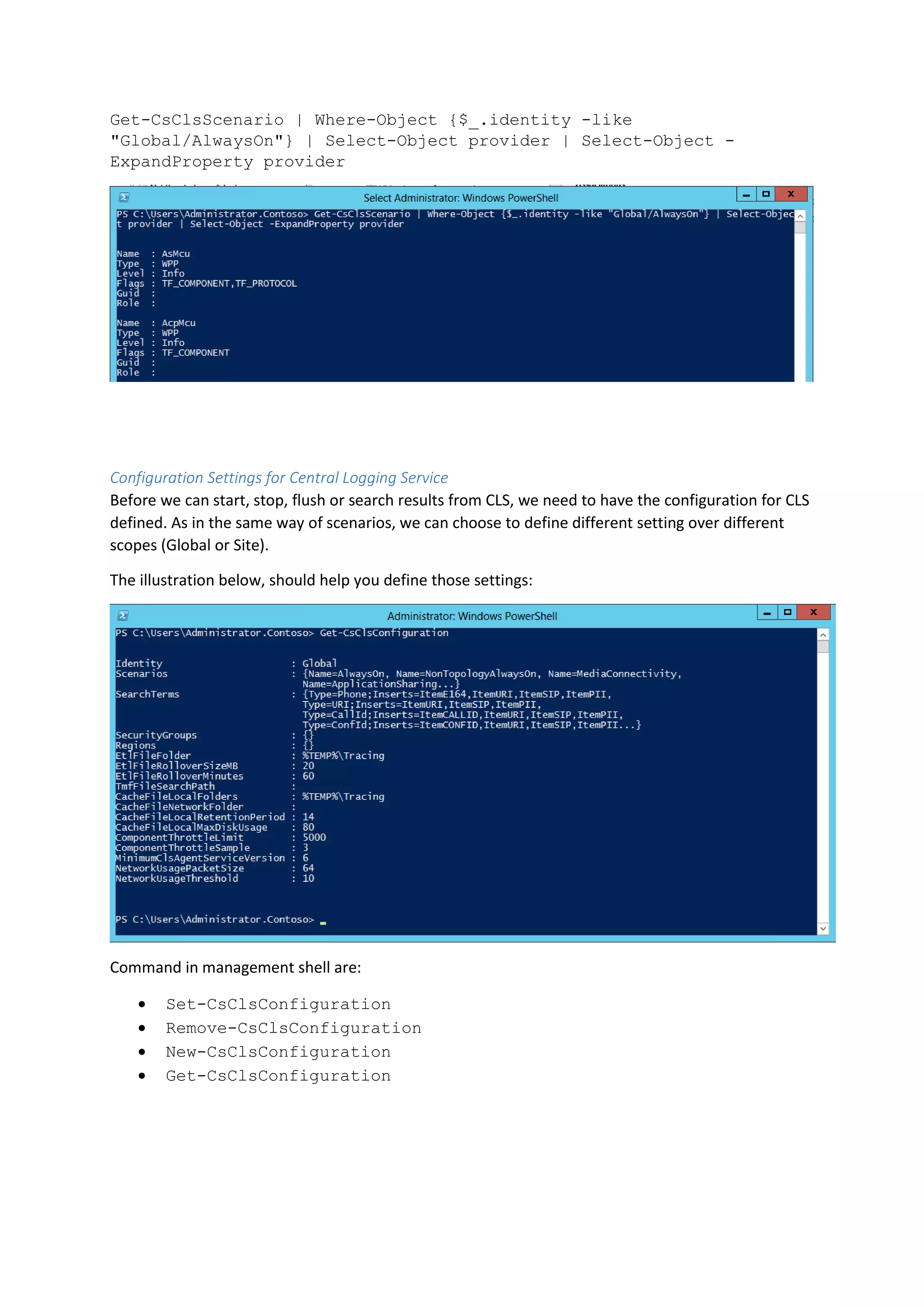

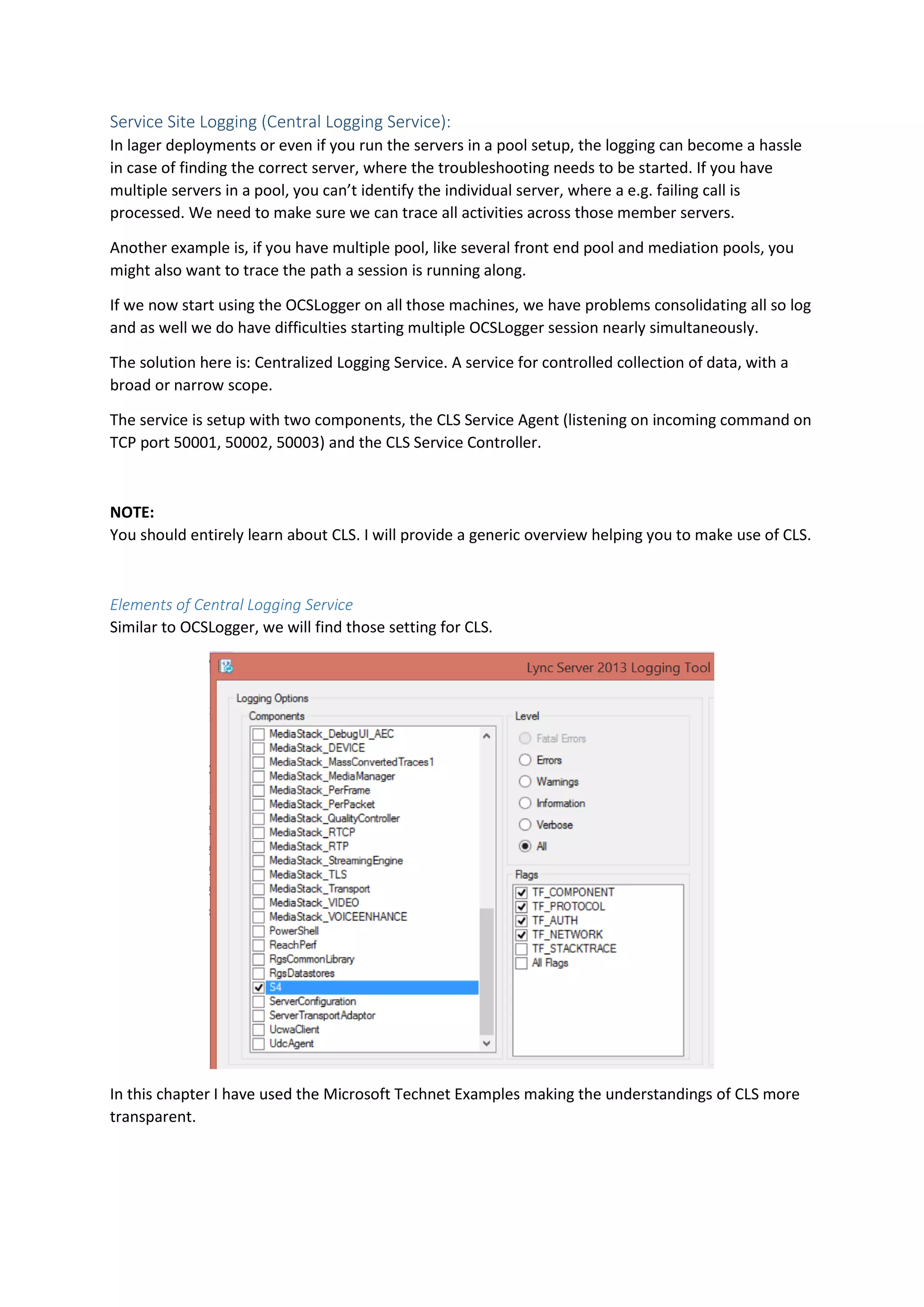

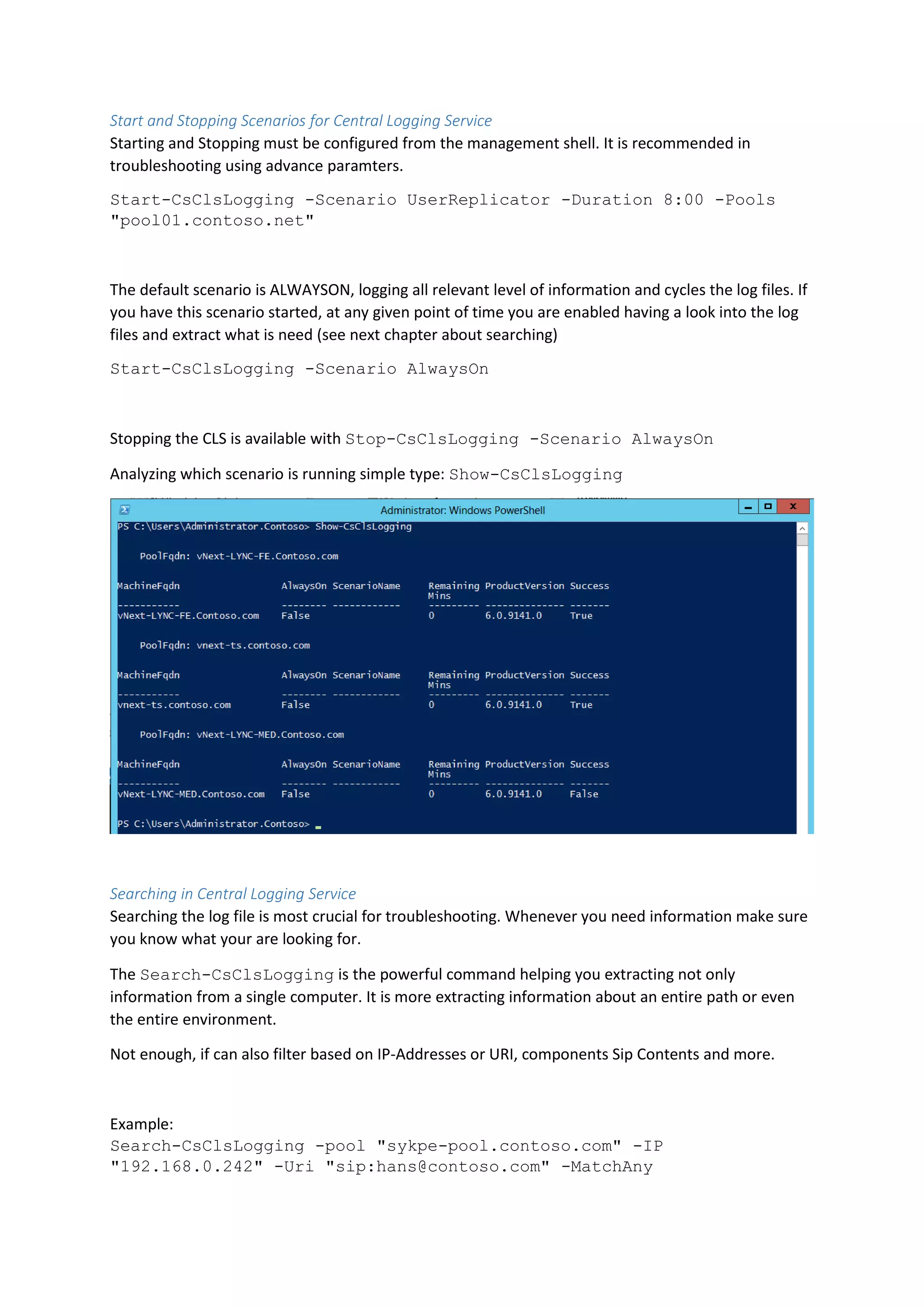

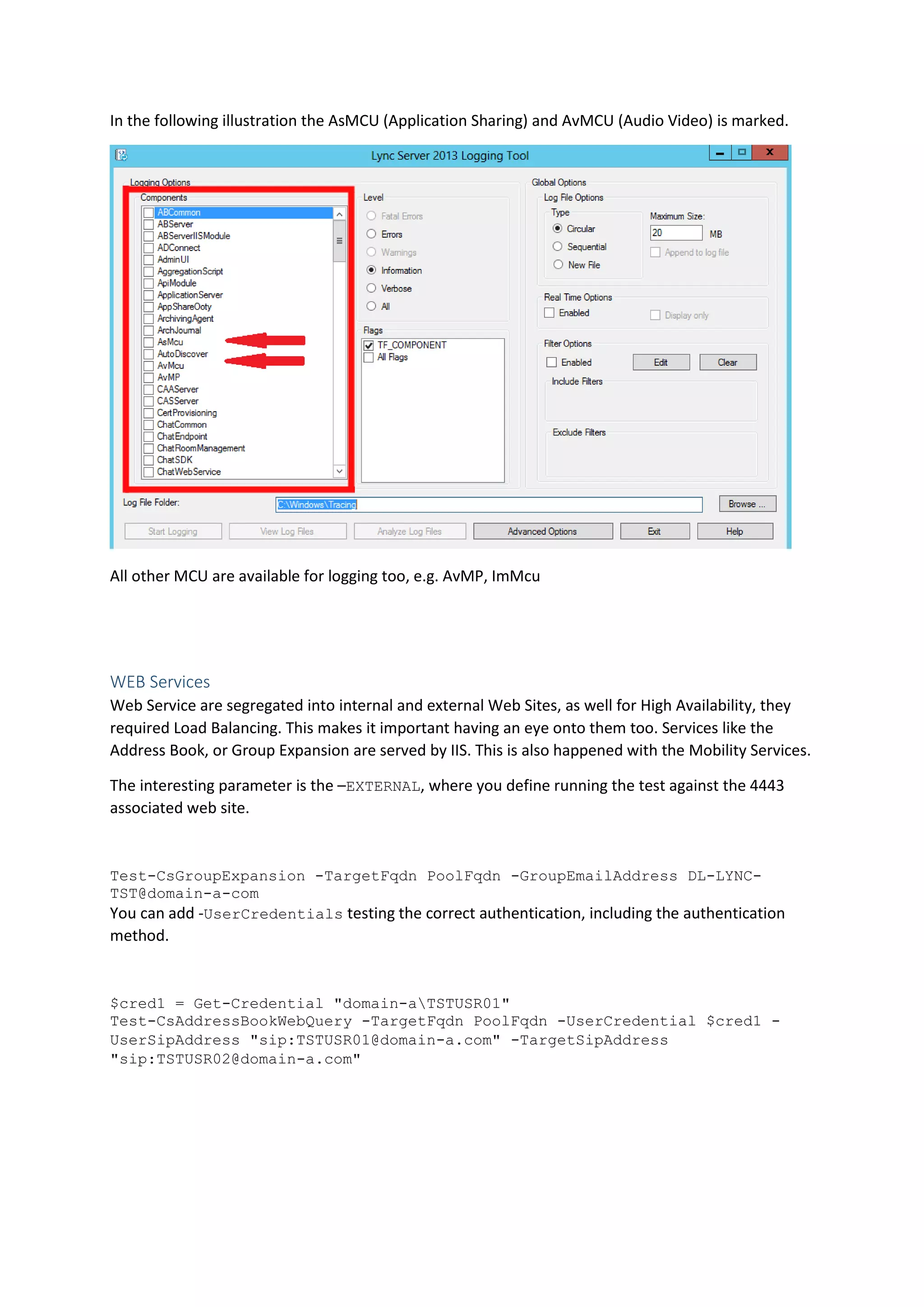

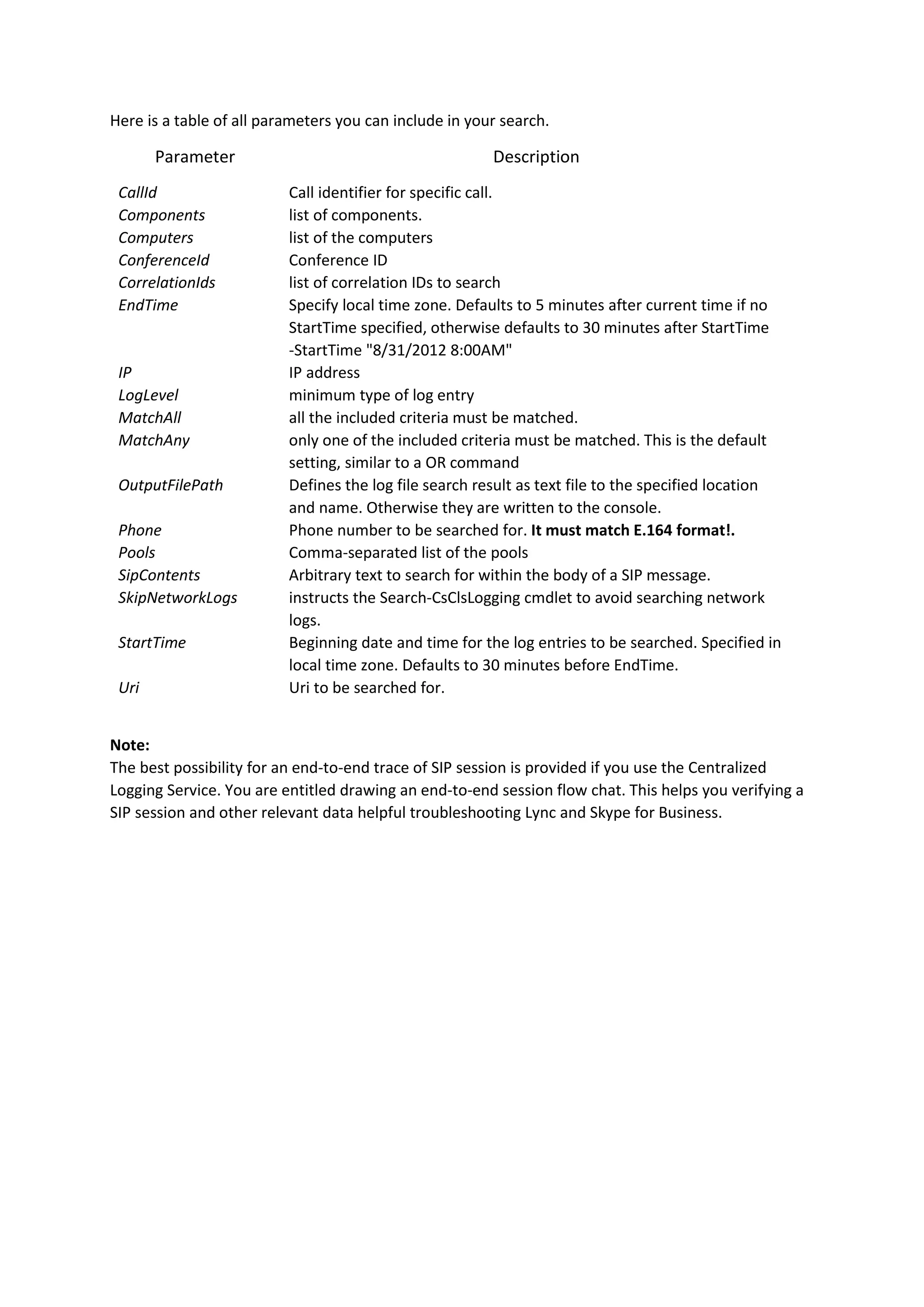

Service Site Logging (Central Logging Service):............................................................................. 14

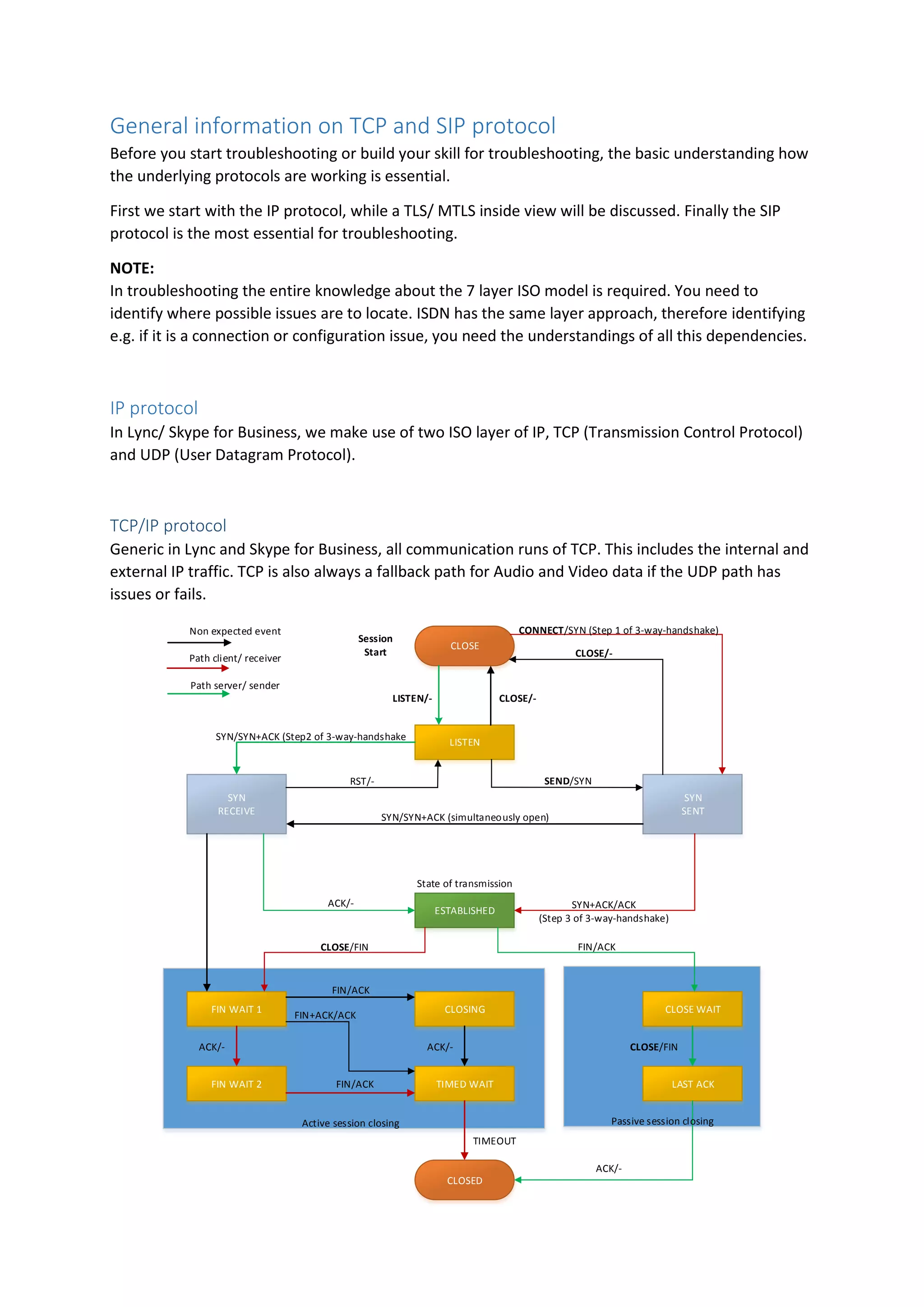

General information on TCP and SIP protocol ...................................................................................... 20
IP protocol ......................................................................................................................................... 20

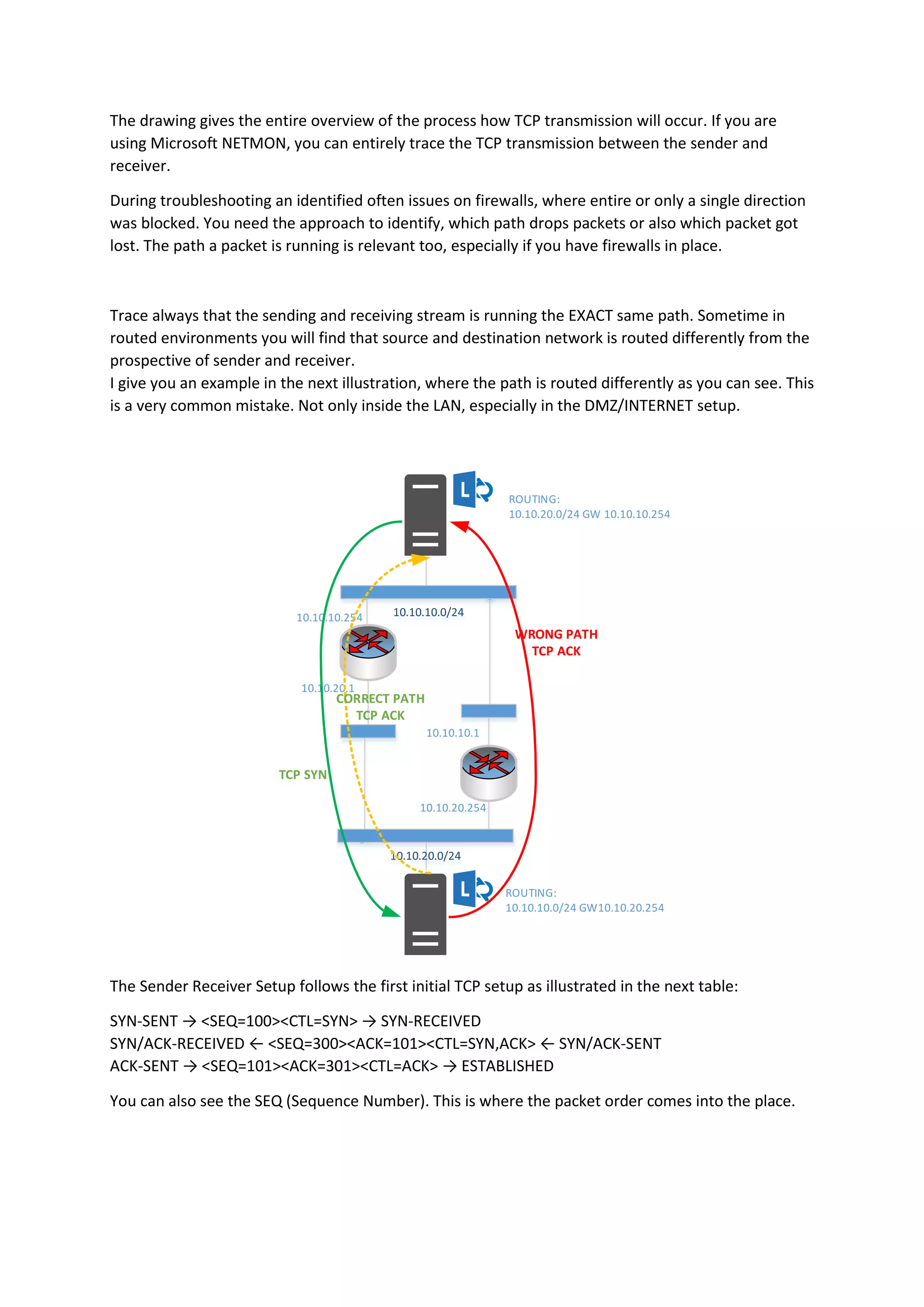

TCP/IP protocol.............................................................................................................................. 20

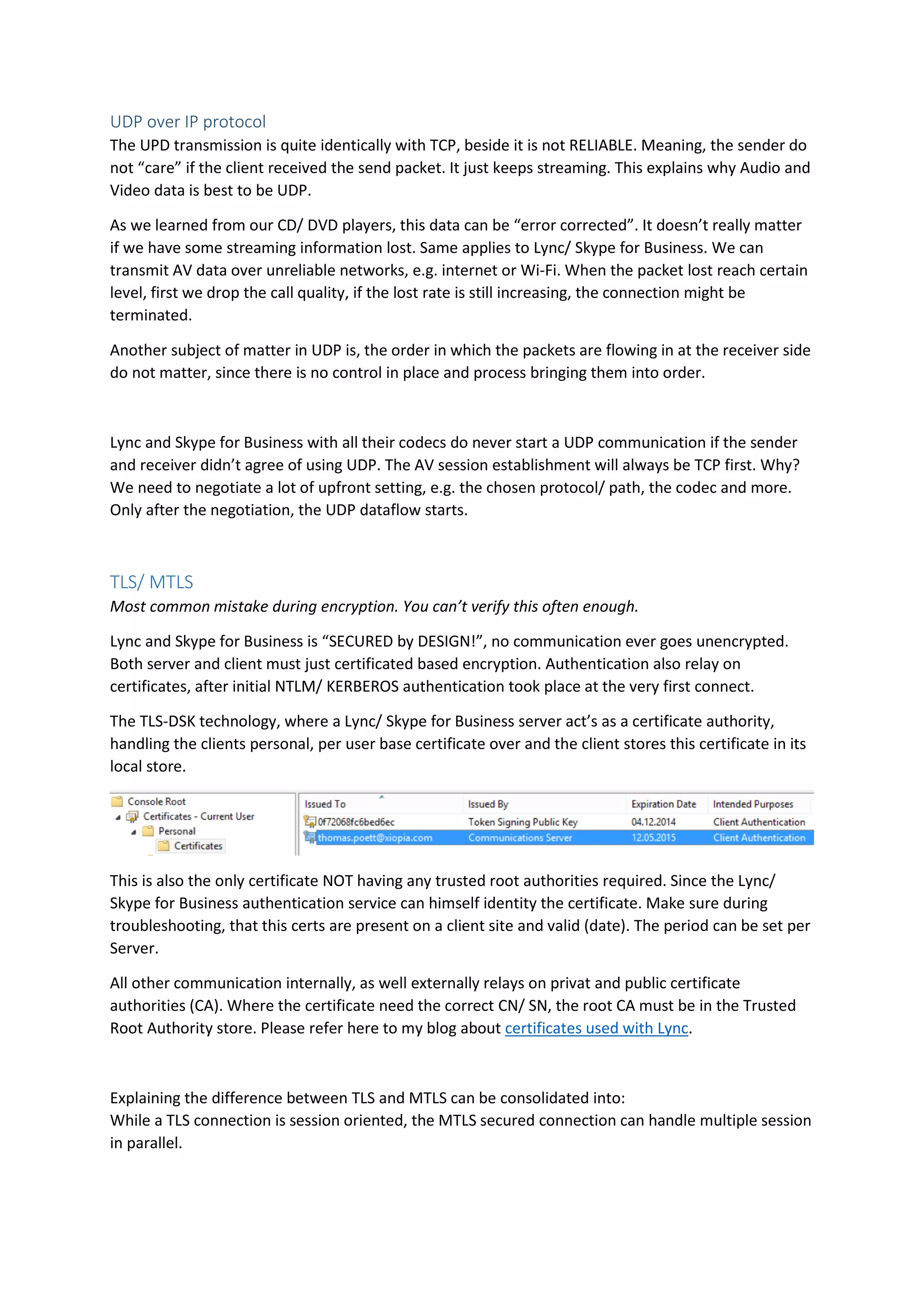

UDP over IP protocol..................................................................................................................... 22
TLS/ MTLS.......................................................................................................................................... 22

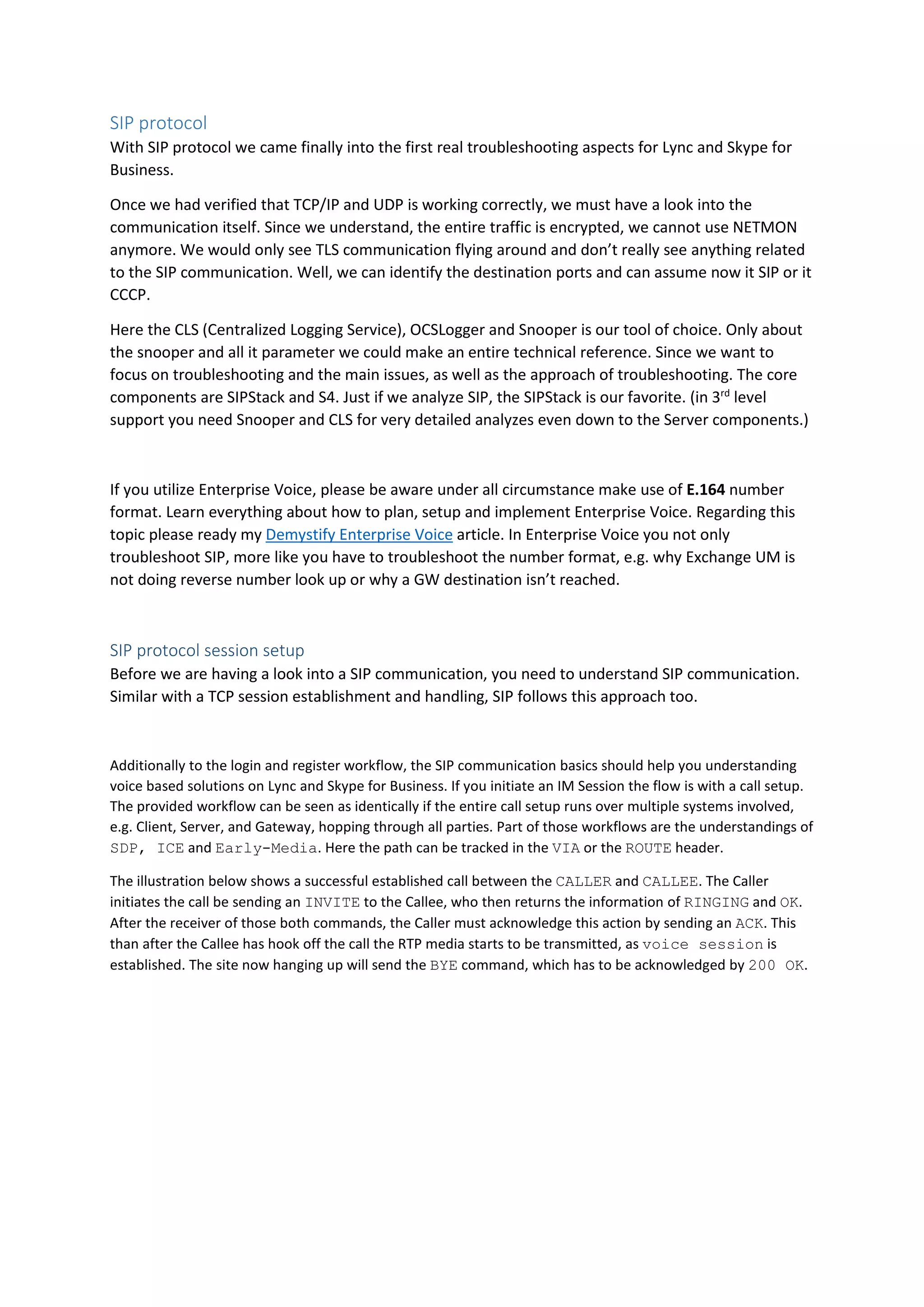

SIP protocol ....................................................................................................................................... 23
SIP protocol session setup............................................................................................................. 23

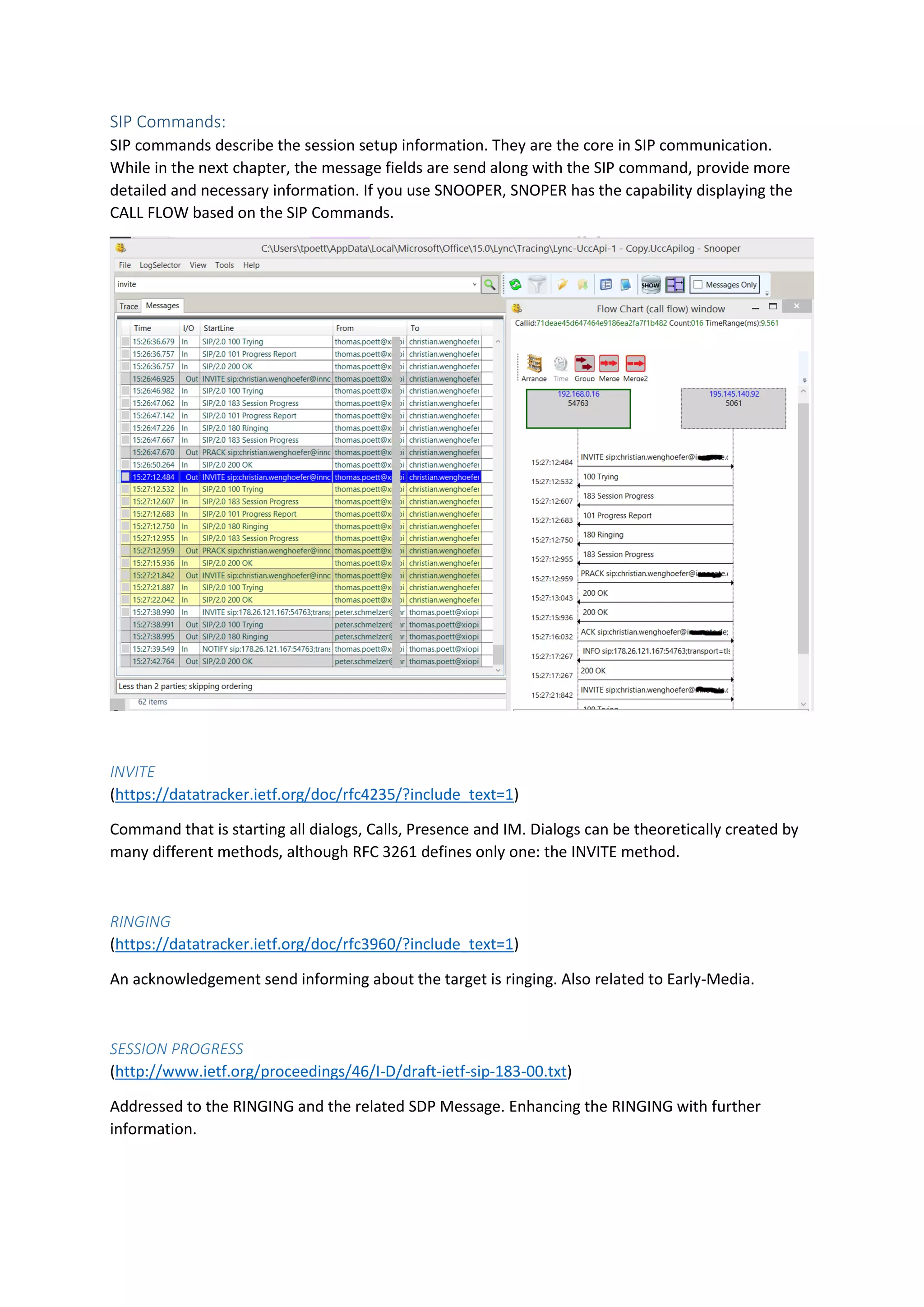

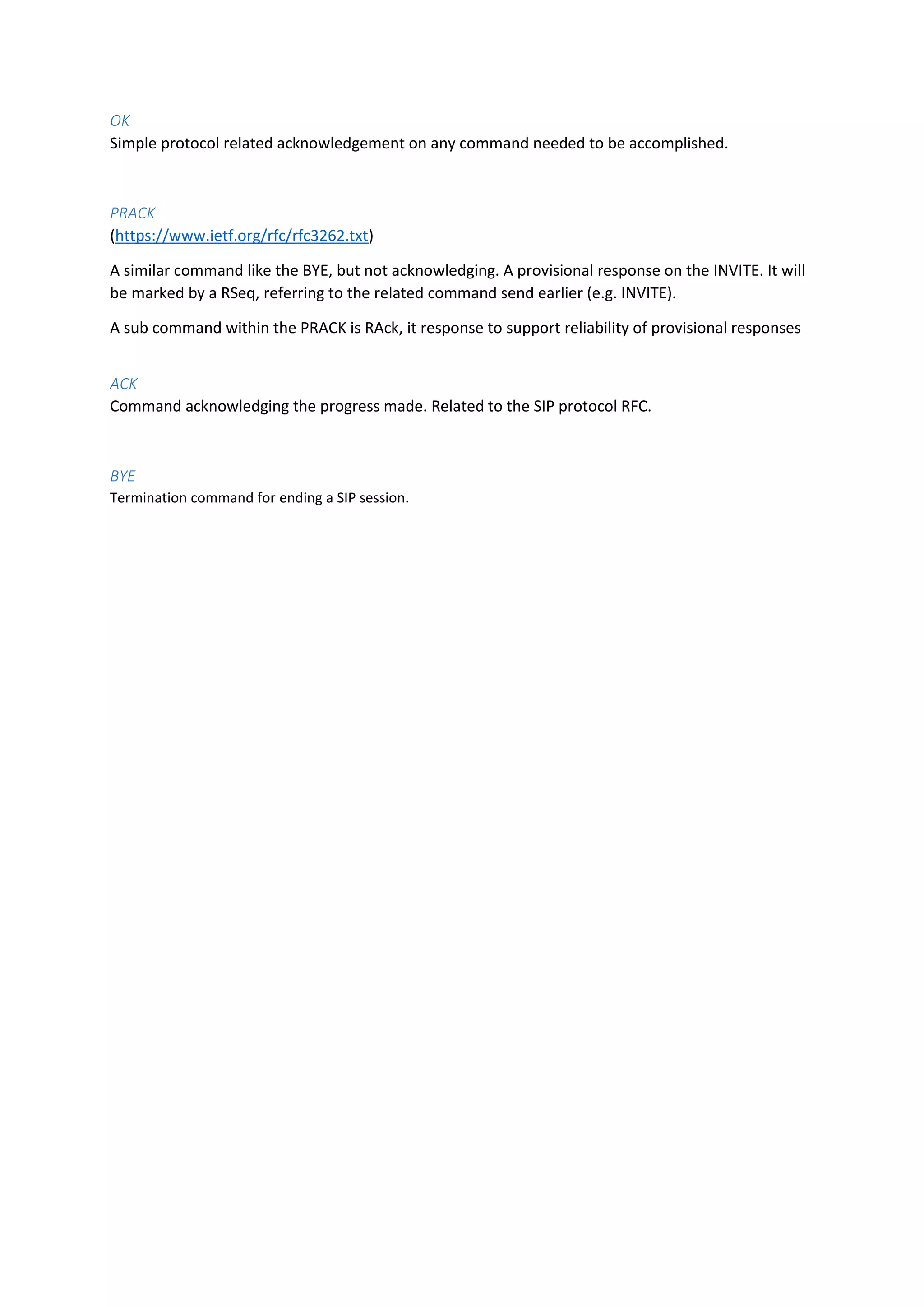

SIP Commands:.............................................................................................................................. 24

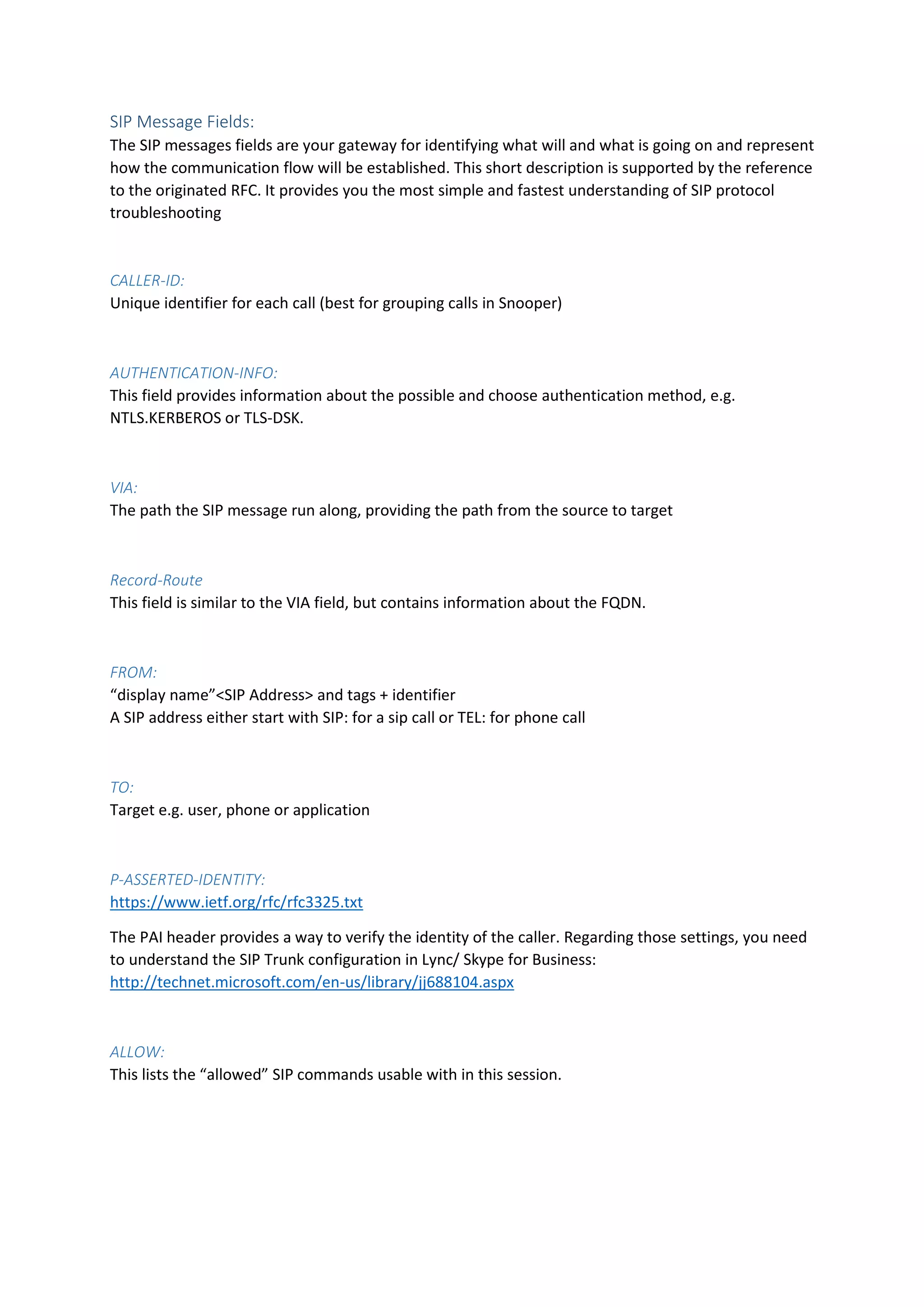

SIP Message Fields:........................................................................................................................ 26

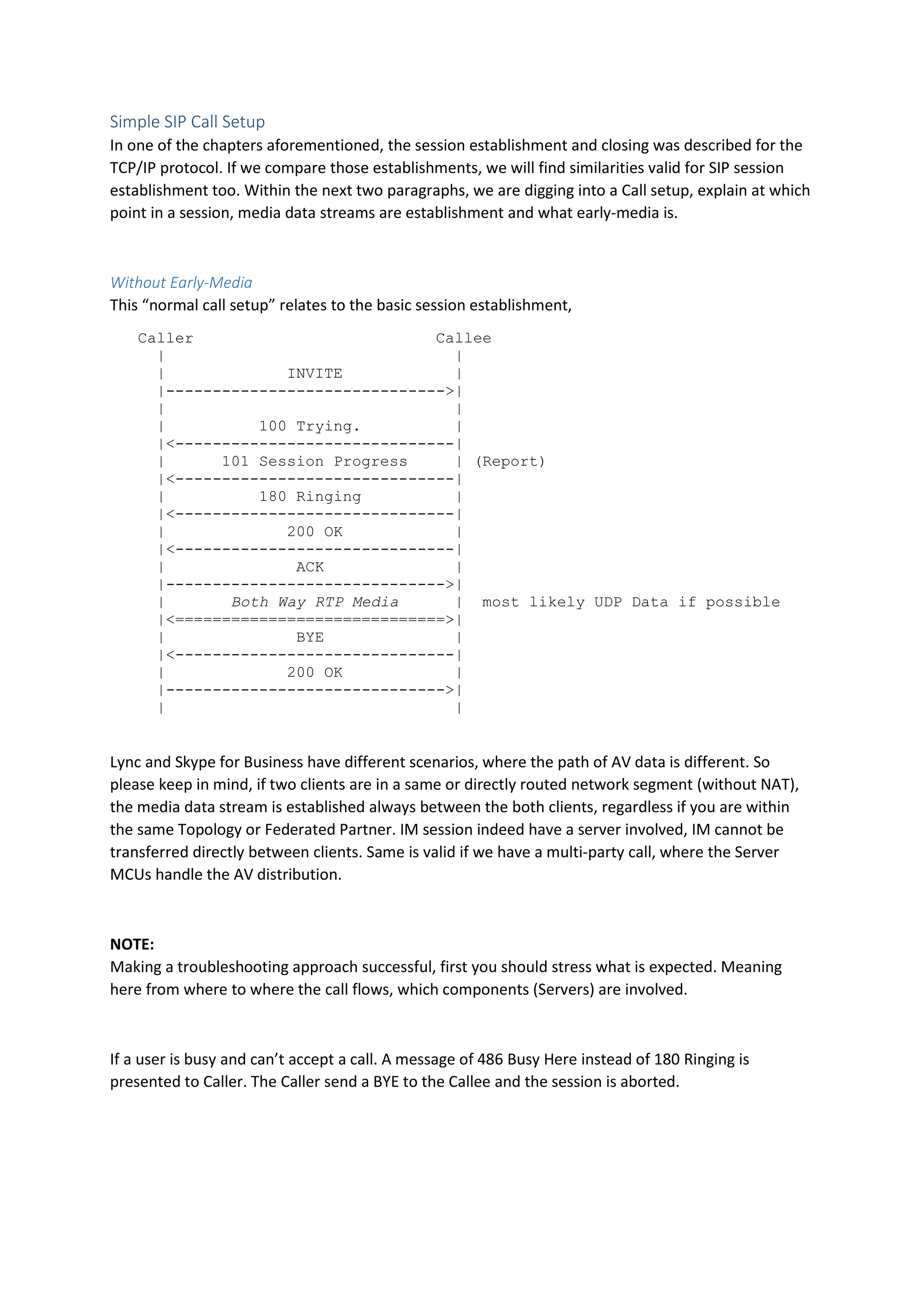

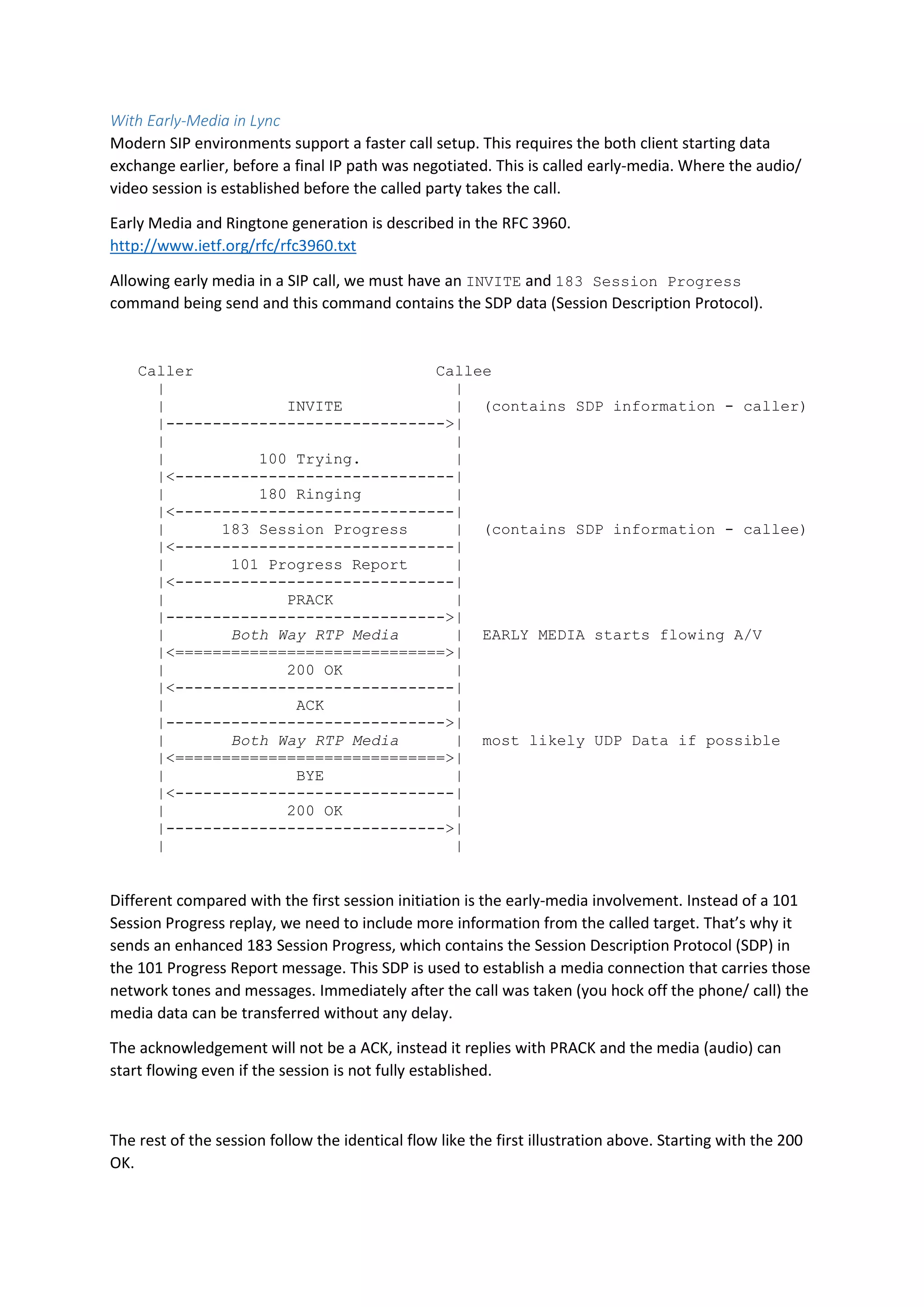

Simple SIP Call Setup ..................................................................................................................... 28

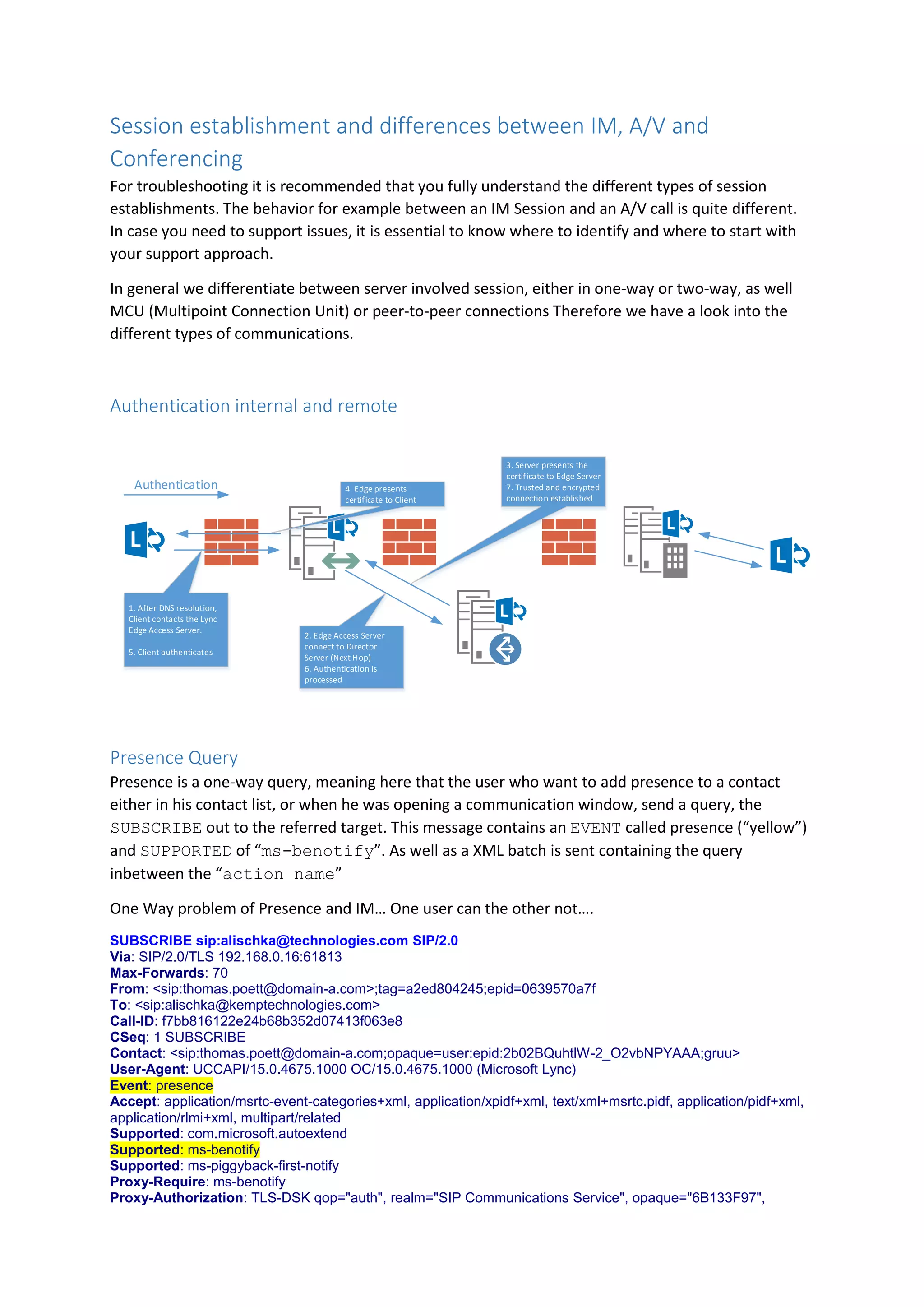

Session establishment and differences between IM, A/V and Conferencing....................................... 30
Authentication internal and remote ................................................................................................. 30
Presence Query ................................................................................................................................. 30
IM Sessions........................................................................................................................................ 31

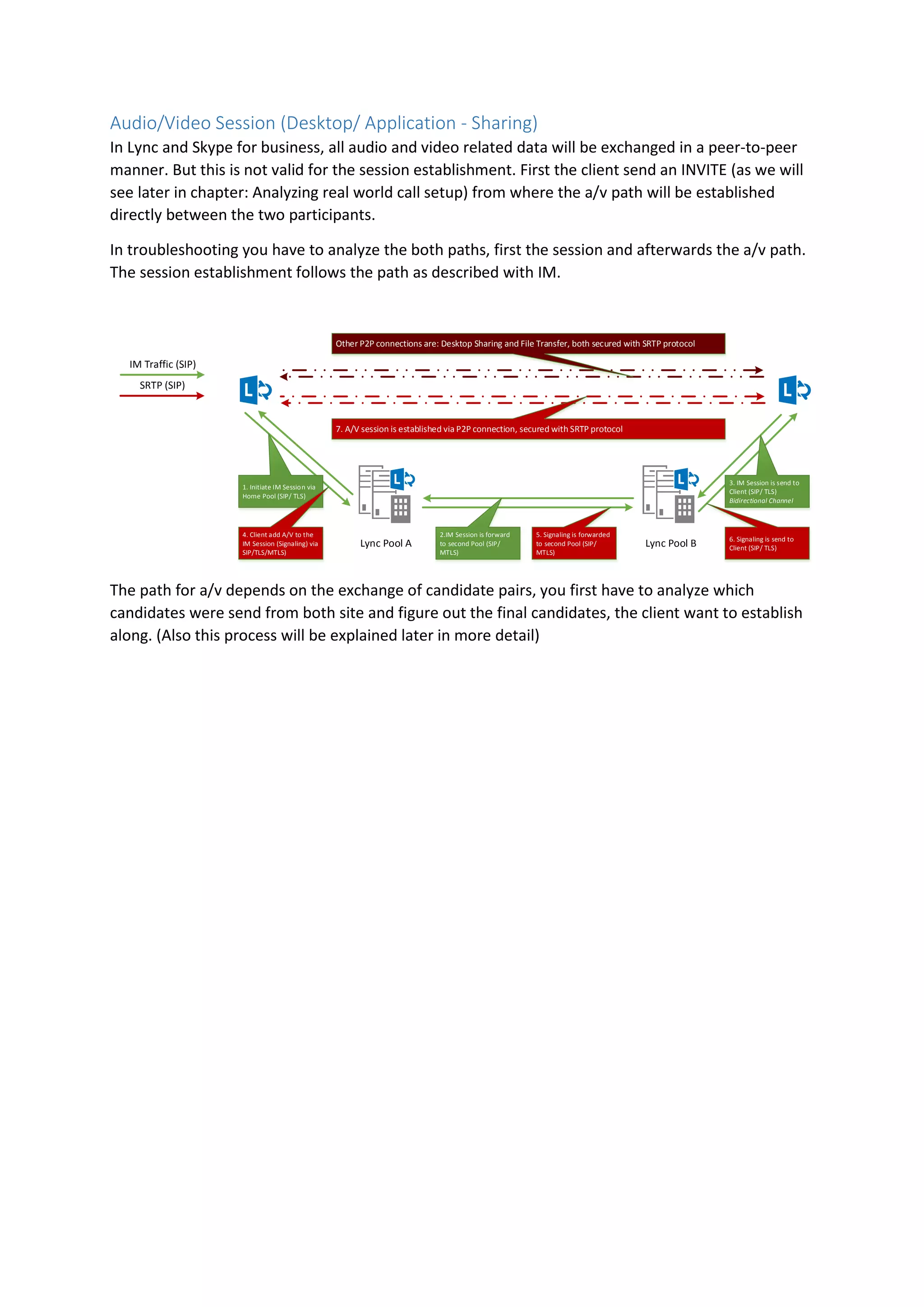

Audio/Video Session (Desktop/ Application - Sharing)..................................................................... 32
Conferencing ..................................................................................................................................... 33

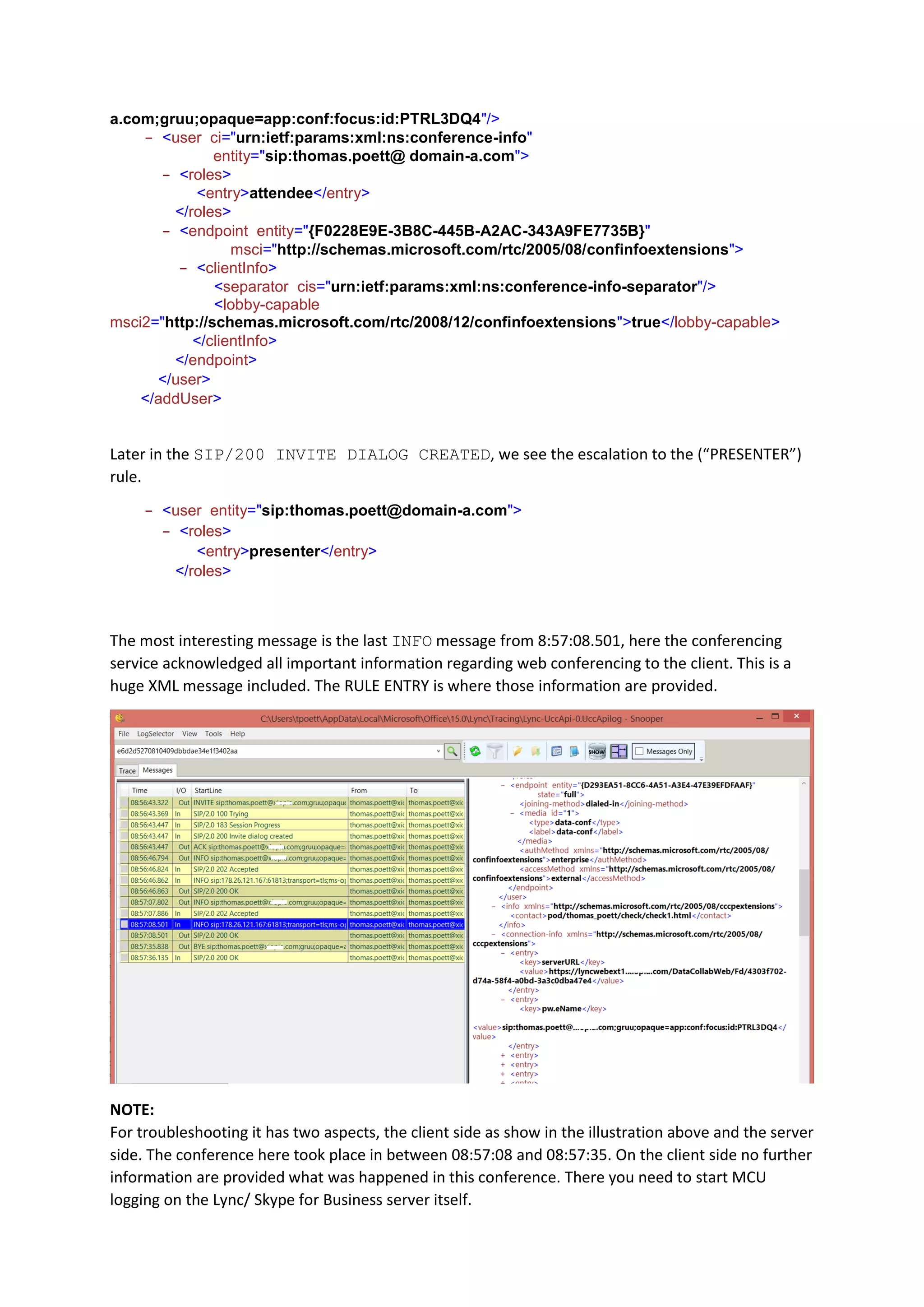

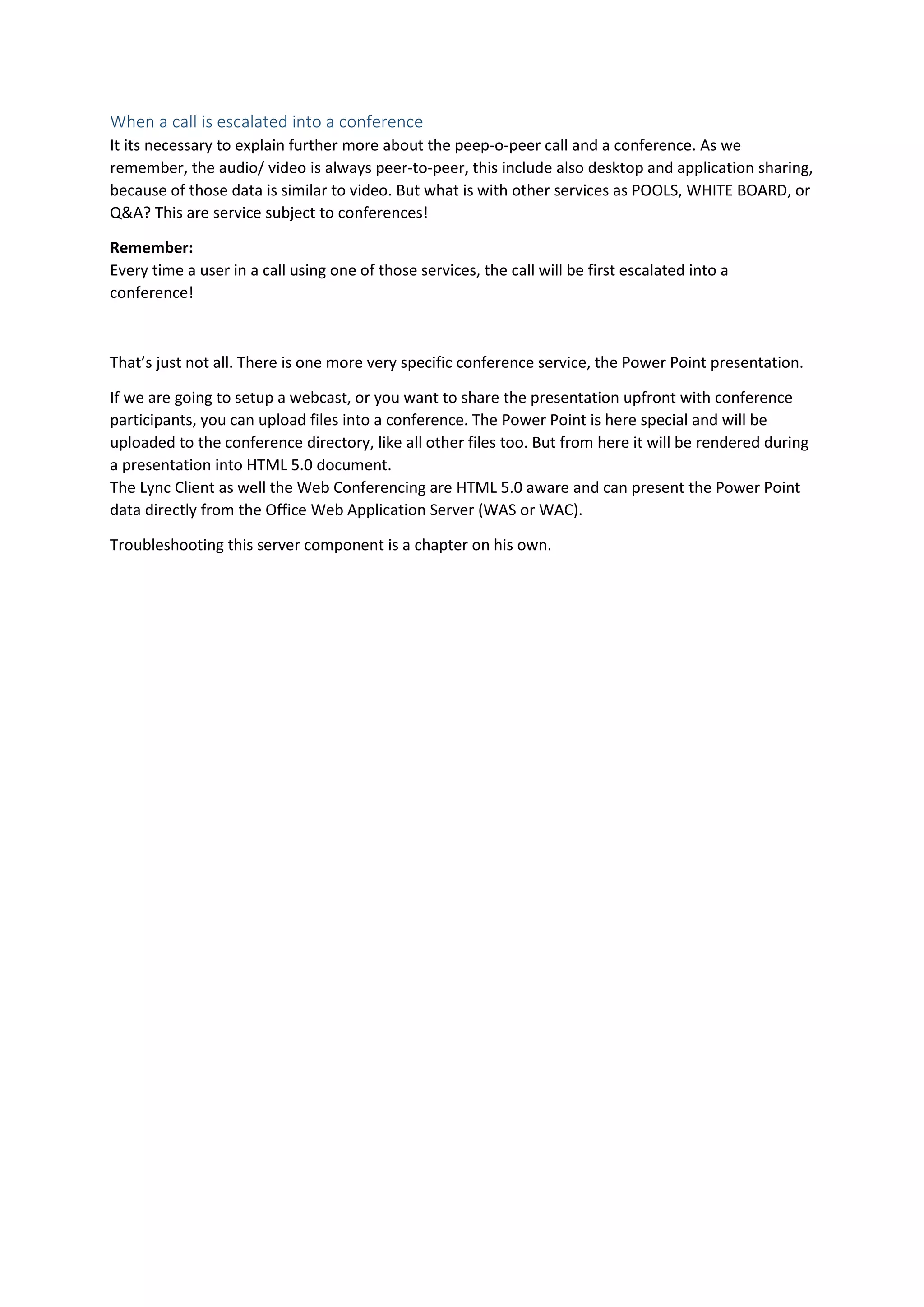

When a call is escalated into a conference................................................................................... 35
Lync Call Setup....................................................................................................................................... 36

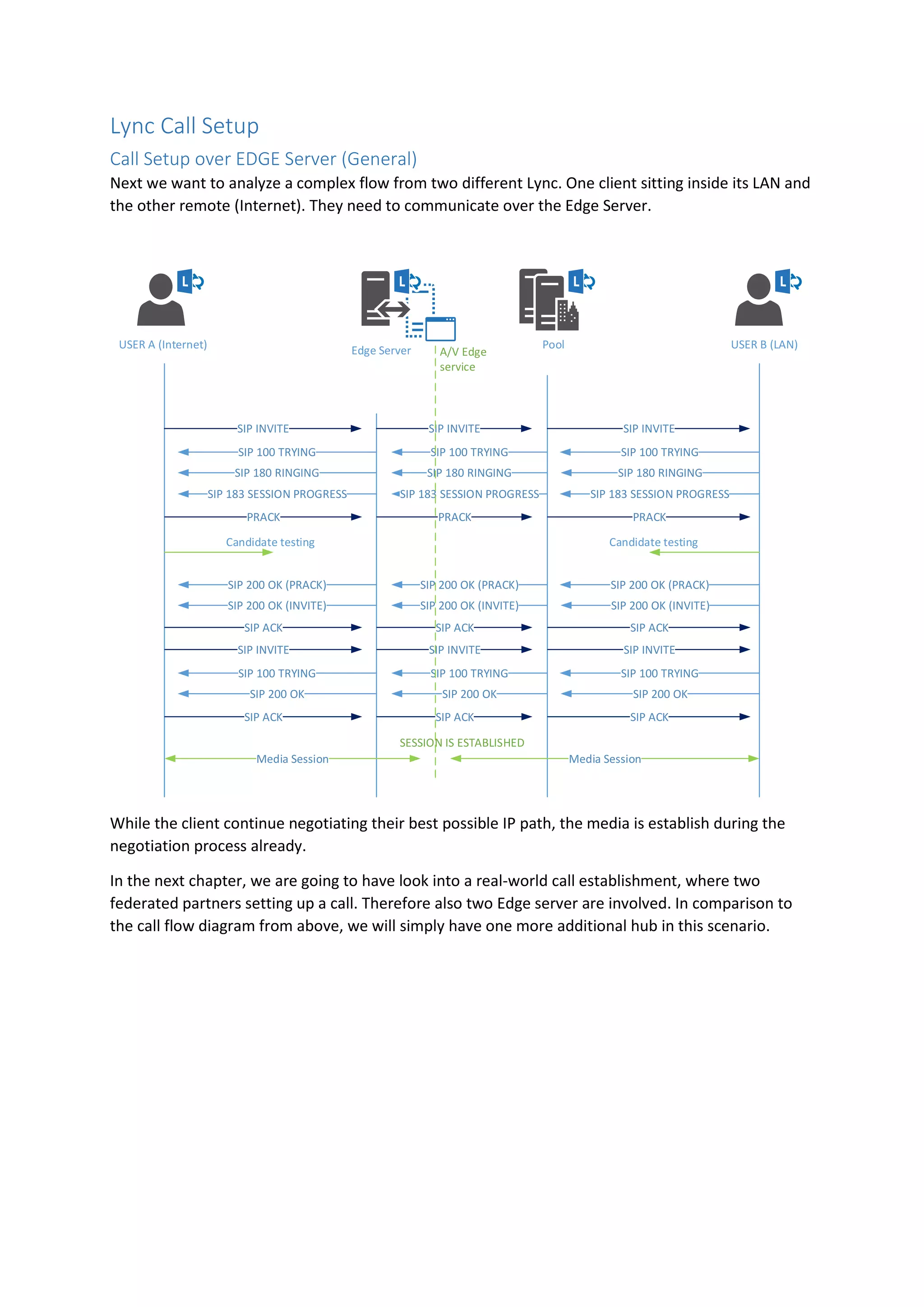

Call Setup over EDGE Server (General) ............................................................................................. 36

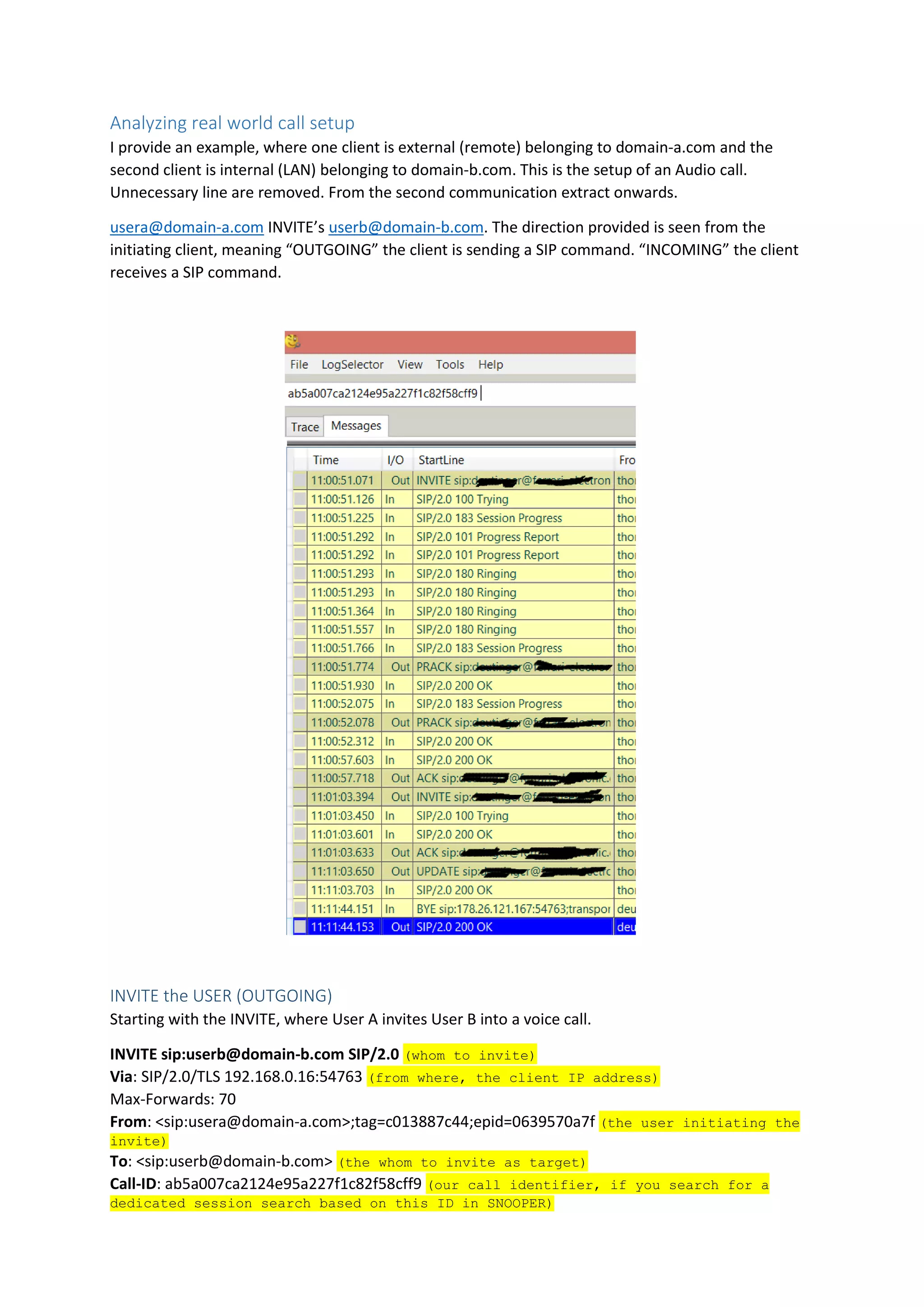

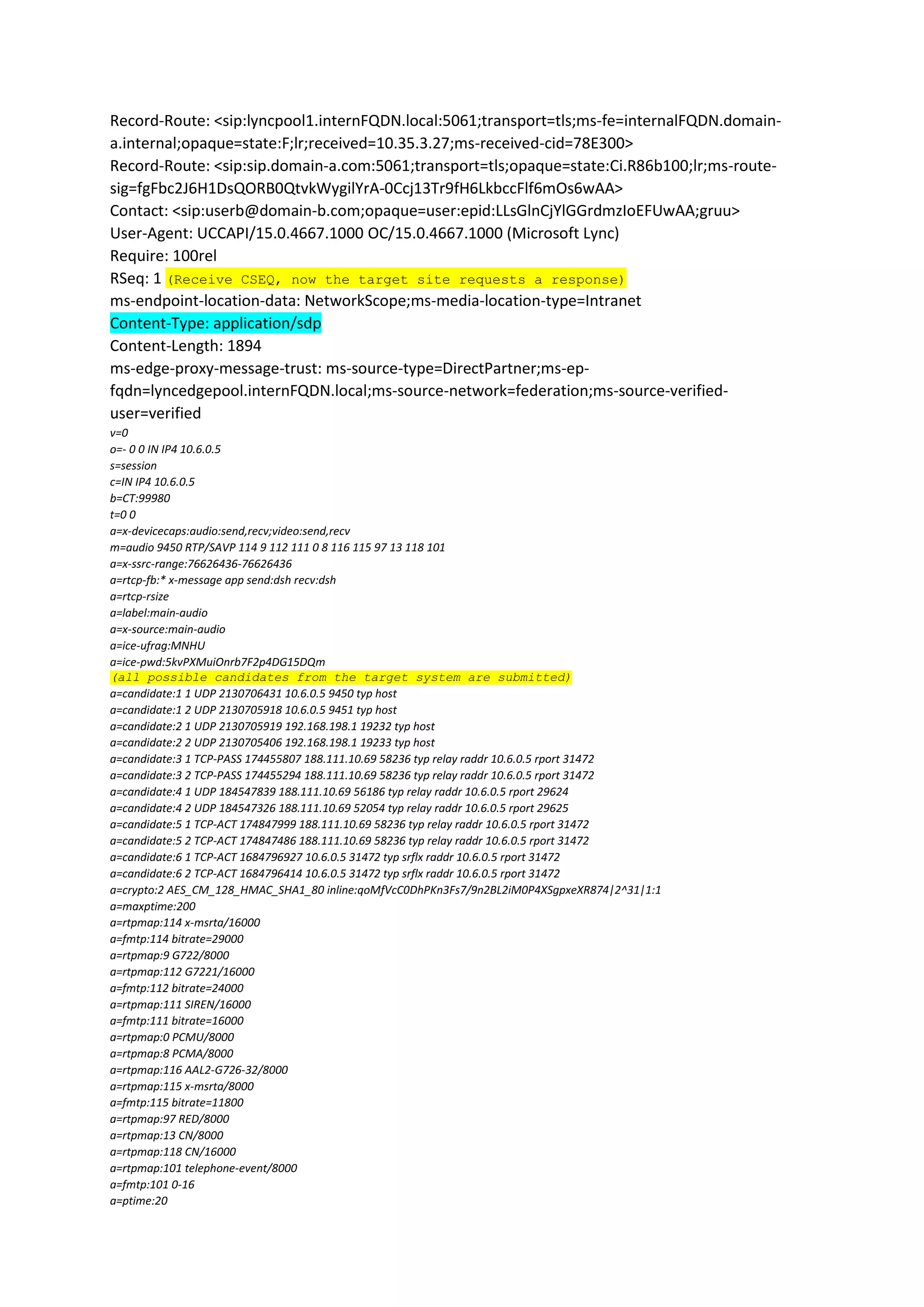

Analyzing real world call setup.......................................................................................................... 37
INVITE the USER (OUTGOING)....................................................................................................... 37

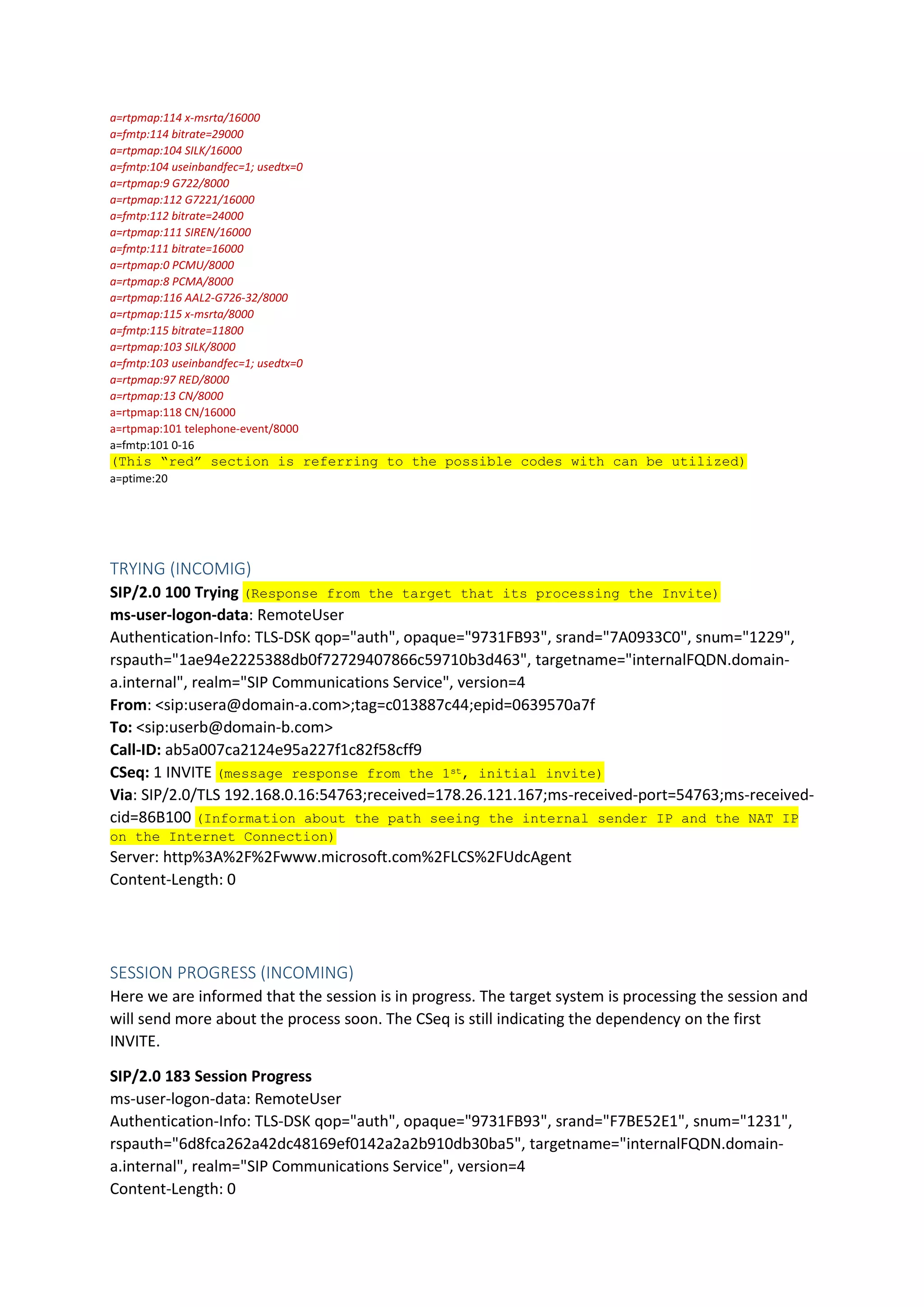

TRYING (INCOMIG) ........................................................................................................................ 40

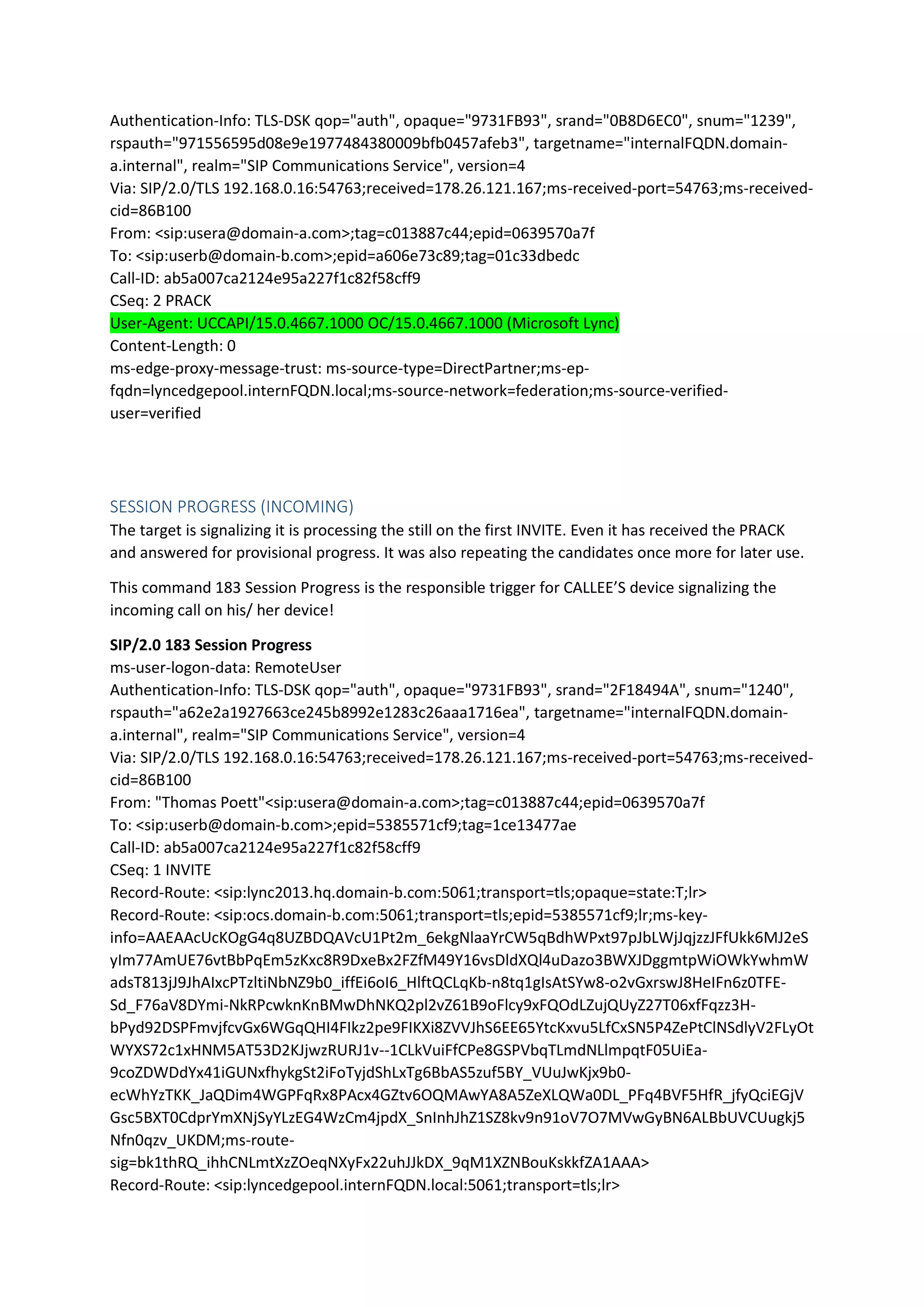

SESSION PROGRESS (INCOMING).................................................................................................. 40

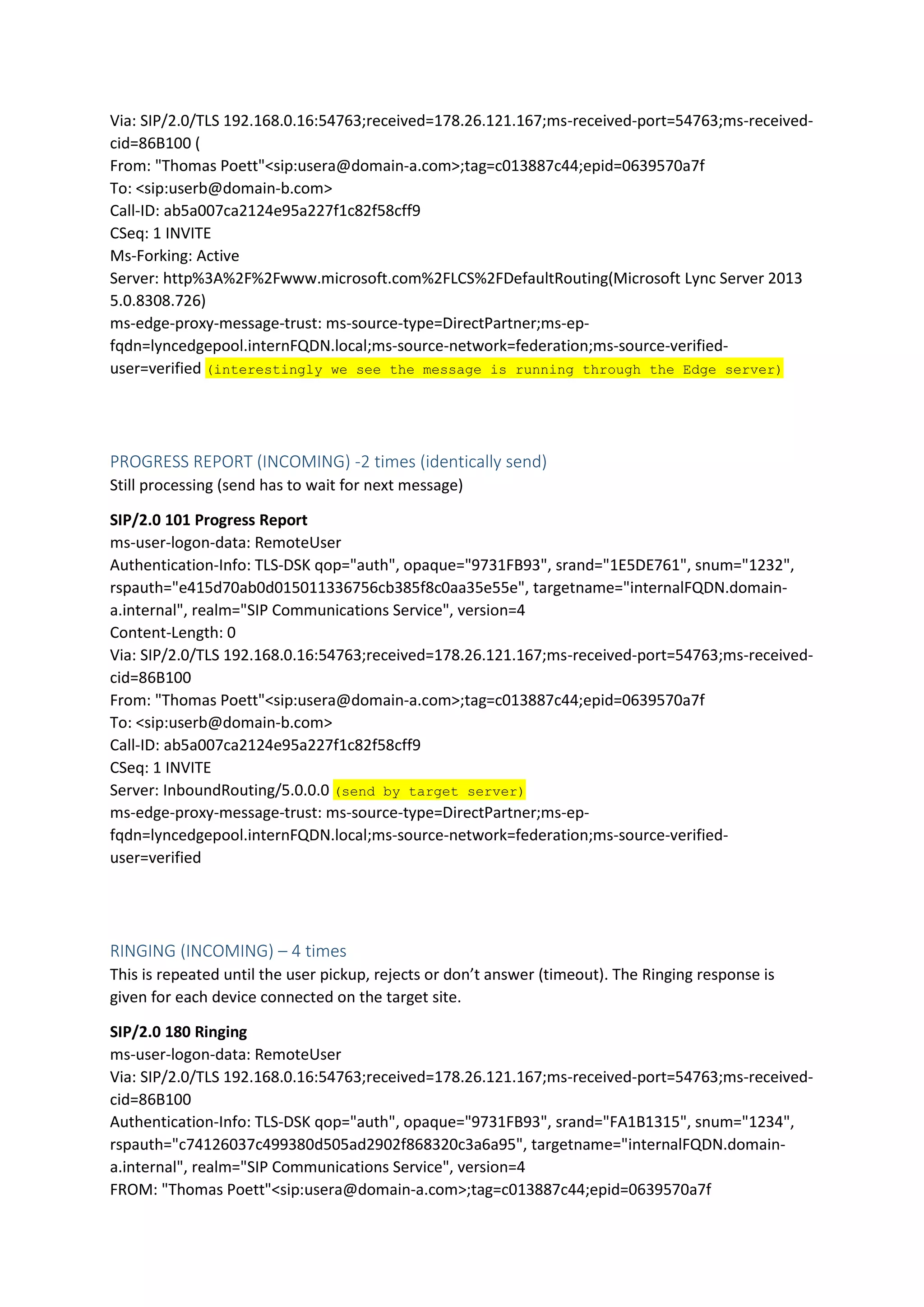

PROGRESS REPORT (INCOMING) -2 times (identically send) ........................................................ 41
RINGING (INCOMING) – 4 times.................................................................................................... 41

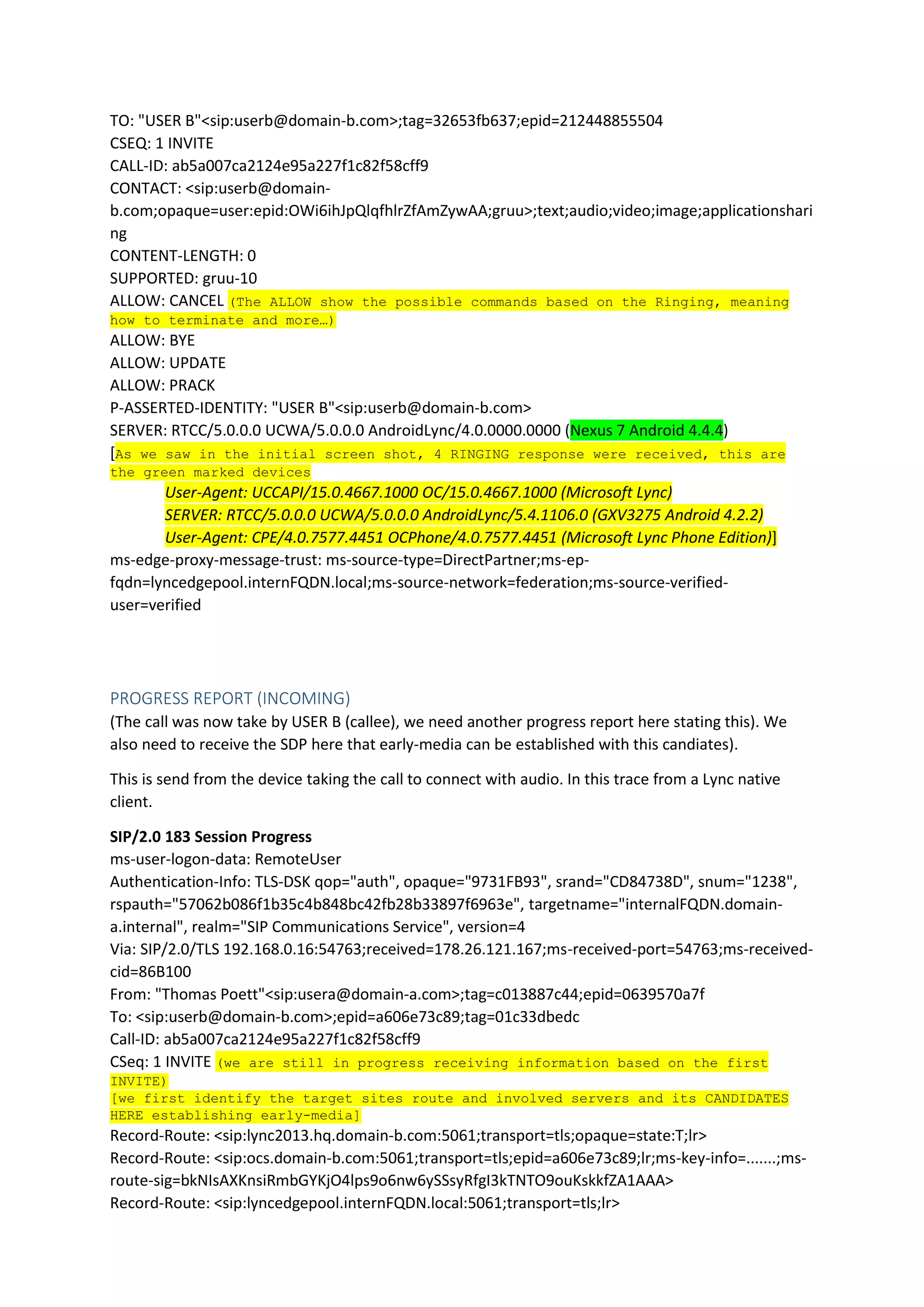

PROGRESS REPORT (INCOMING)................................................................................................... 42

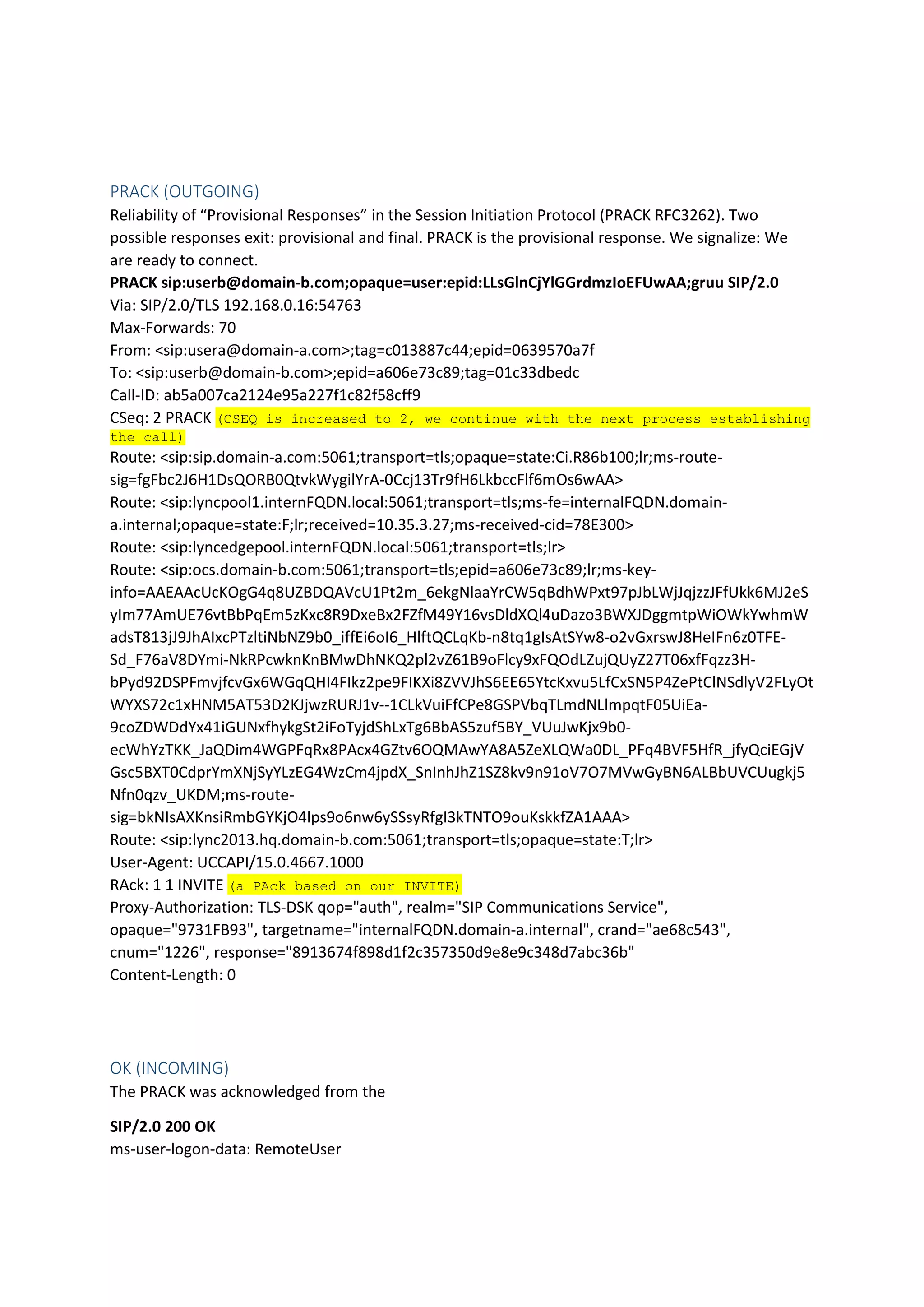

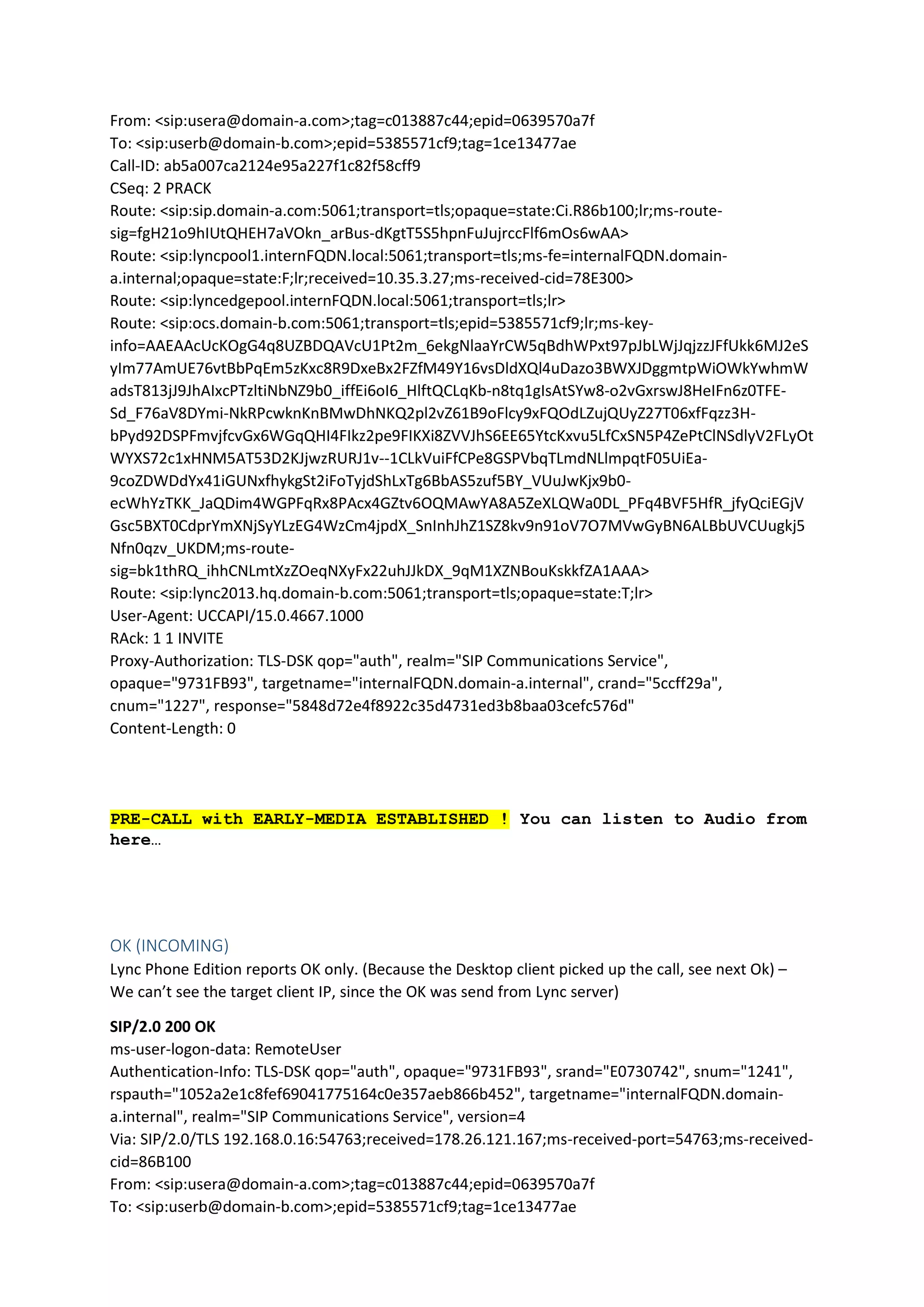

PRACK (OUTGOING) ...................................................................................................................... 44

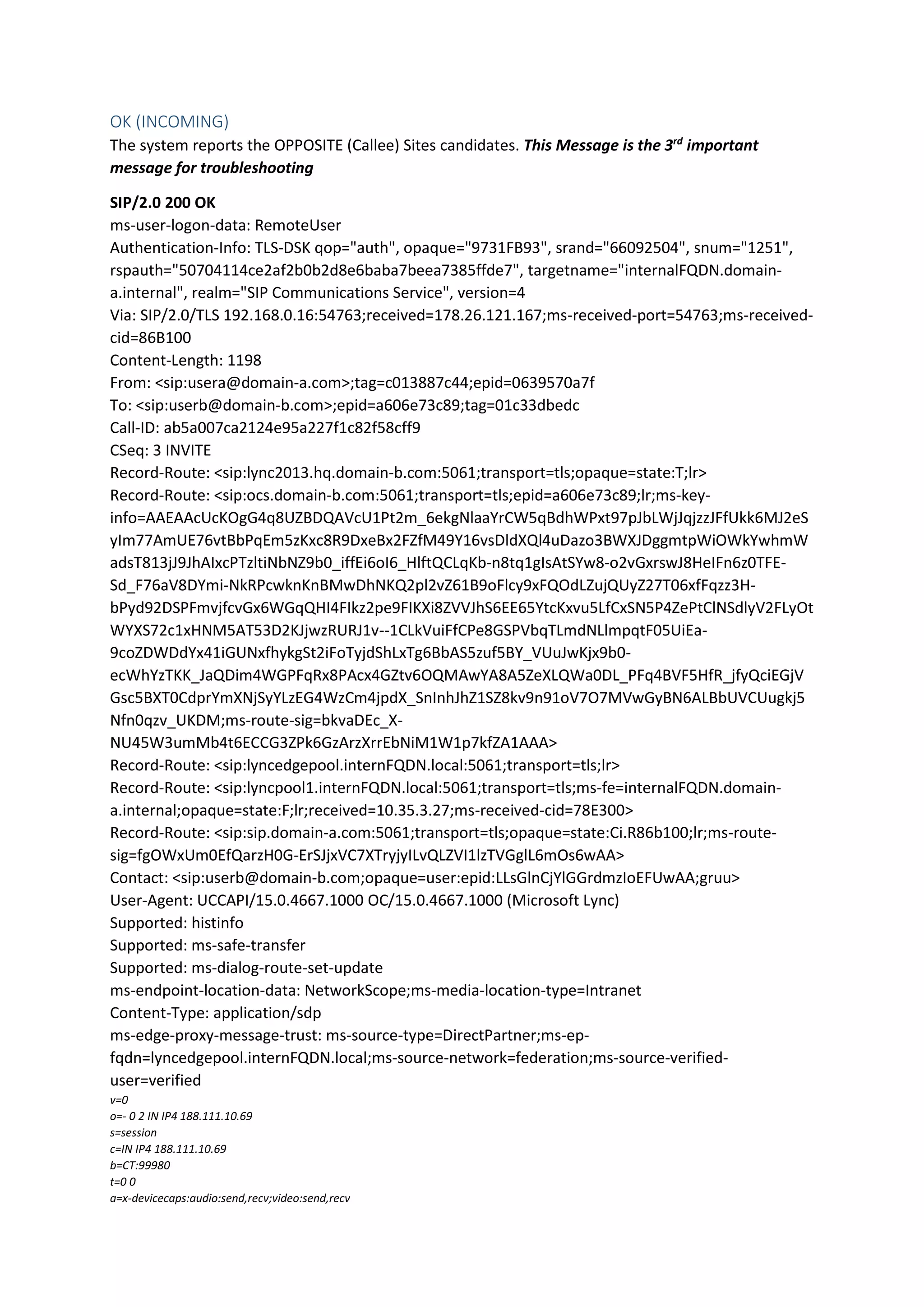

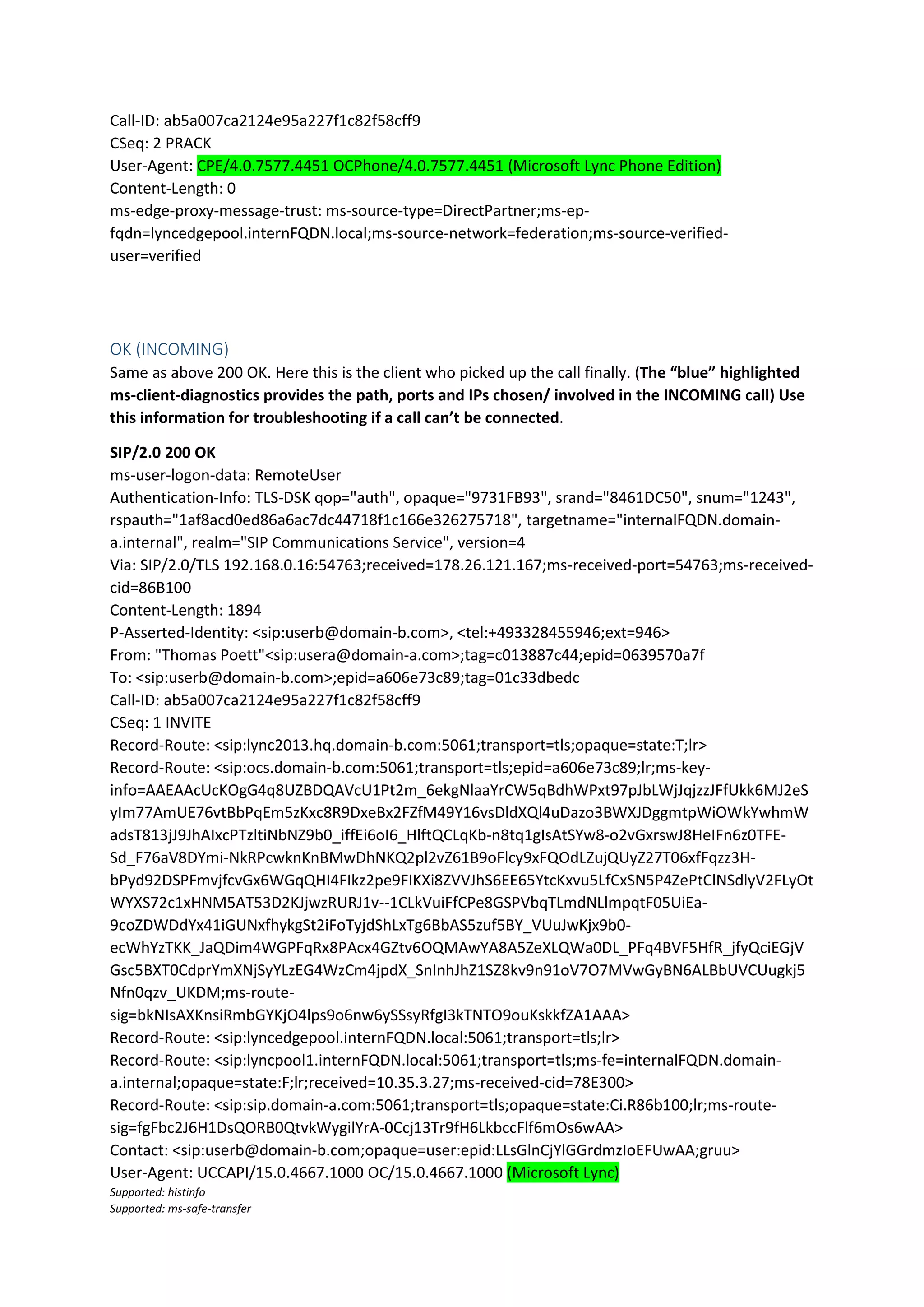

OK (INCOMING)............................................................................................................................. 44
SESSION PROGRESS (INCOMING).................................................................................................. 45
PRACK (OUTGOING) ...................................................................................................................... 46
OK (INCOMING)............................................................................................................................. 47
OK (INCOMING)............................................................................................................................. 48

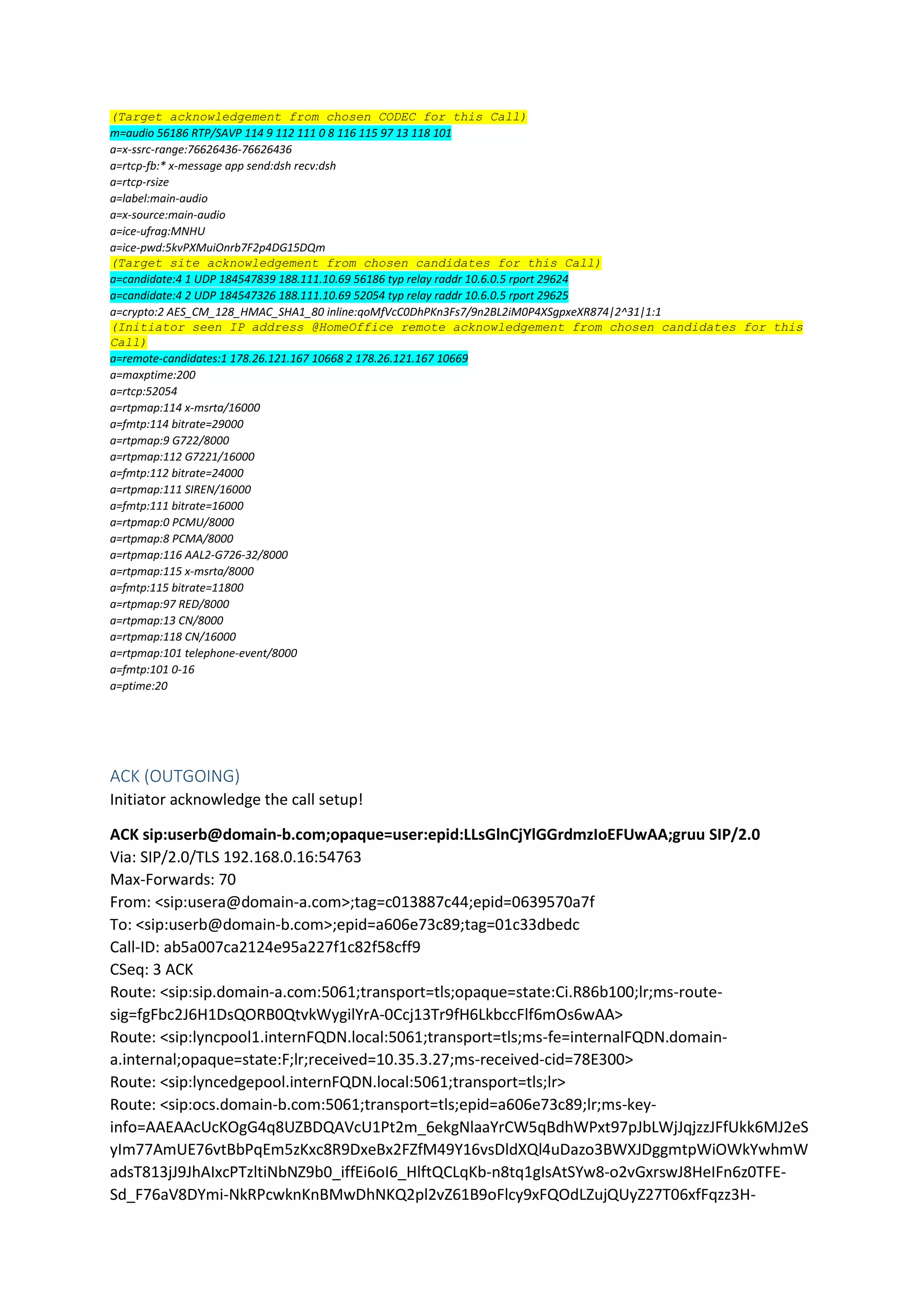

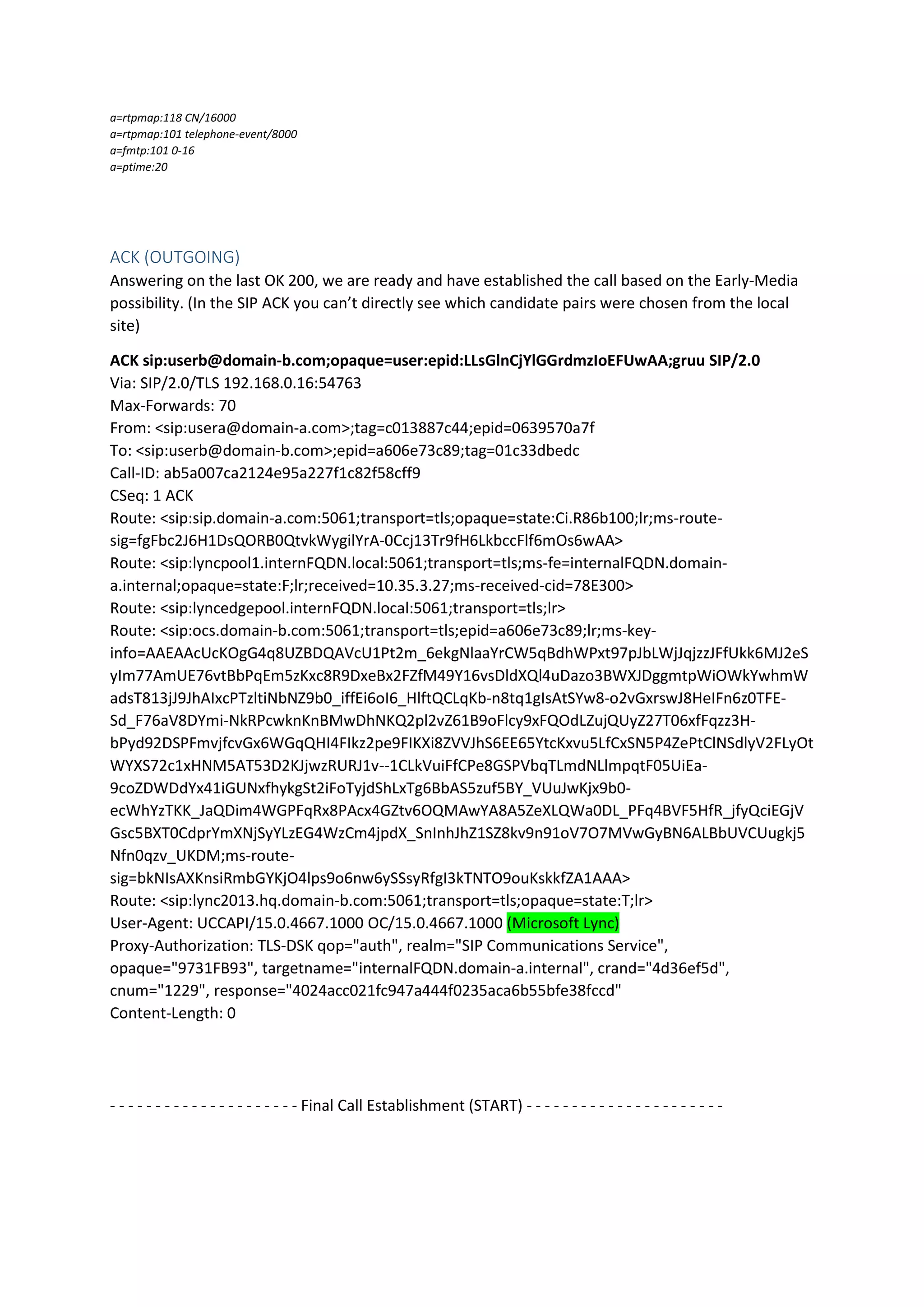

ACK (OUTGOING)........................................................................................................................... 50

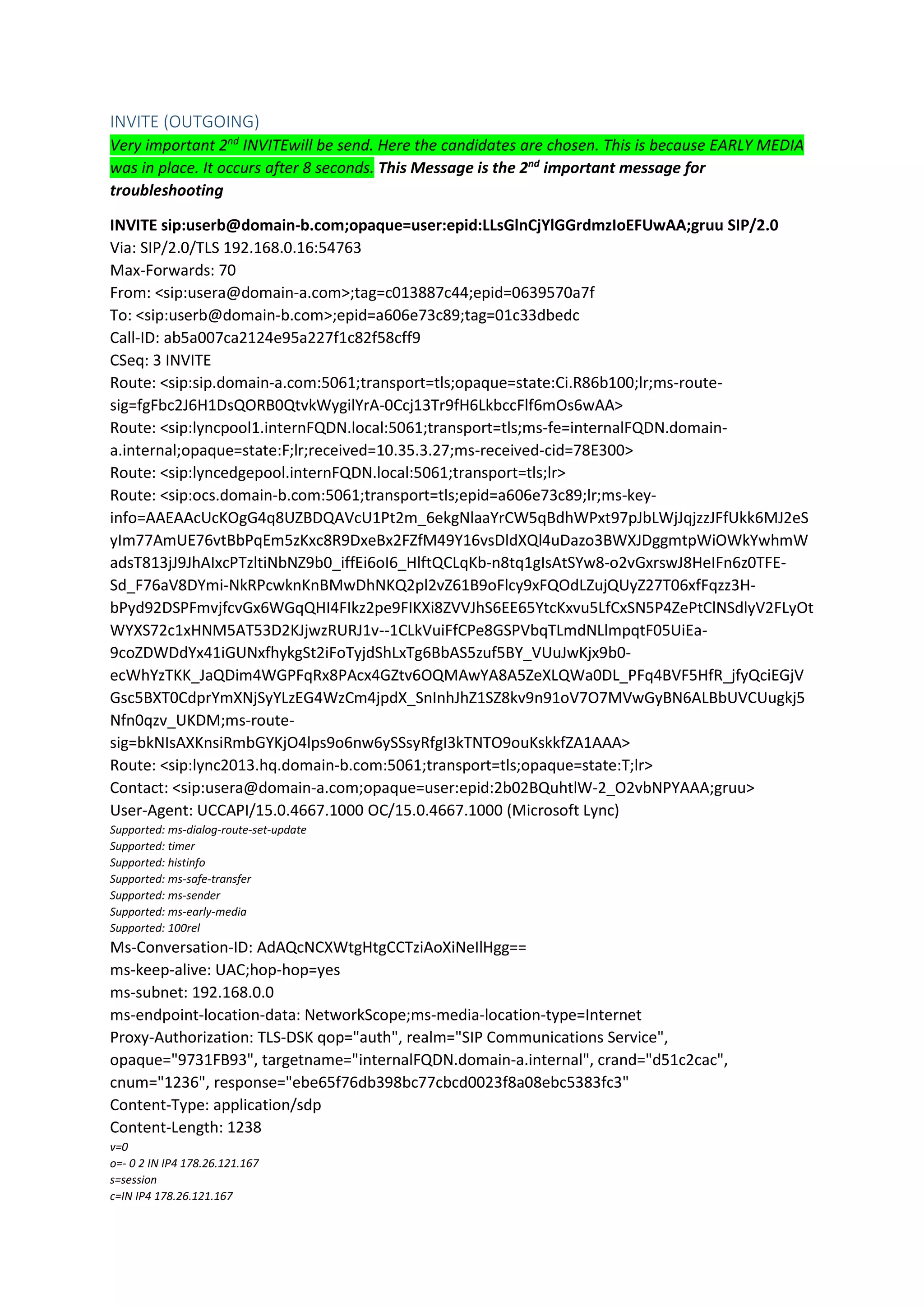

INVITE (OUTGOING) ...................................................................................................................... 51

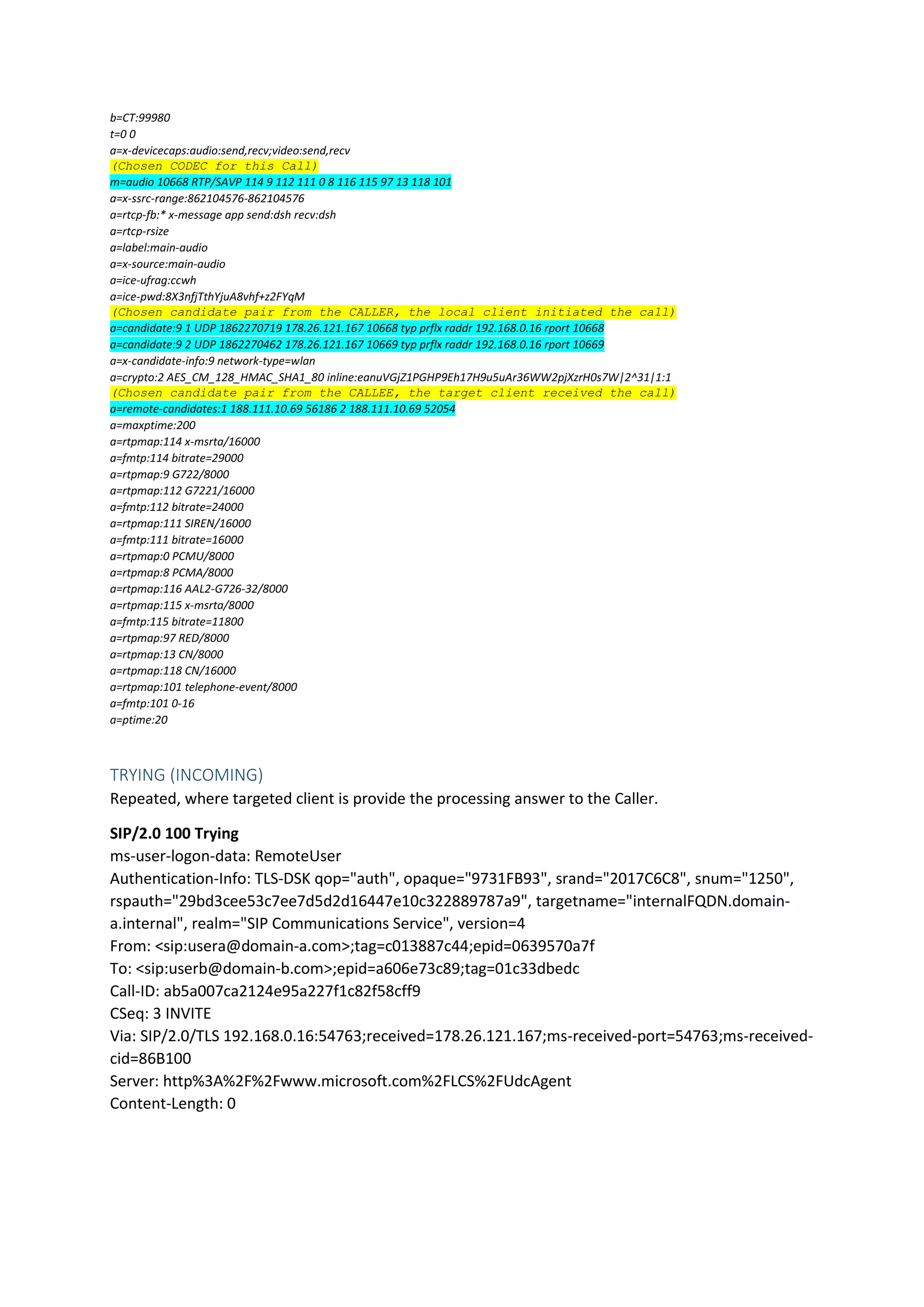

TRYING (INCOMING)...................................................................................................................... 52
OK (INCOMING)............................................................................................................................. 53
ACK (OUTGOING)........................................................................................................................... 54
UPDATE (OUTGOING).................................................................................................................... 55

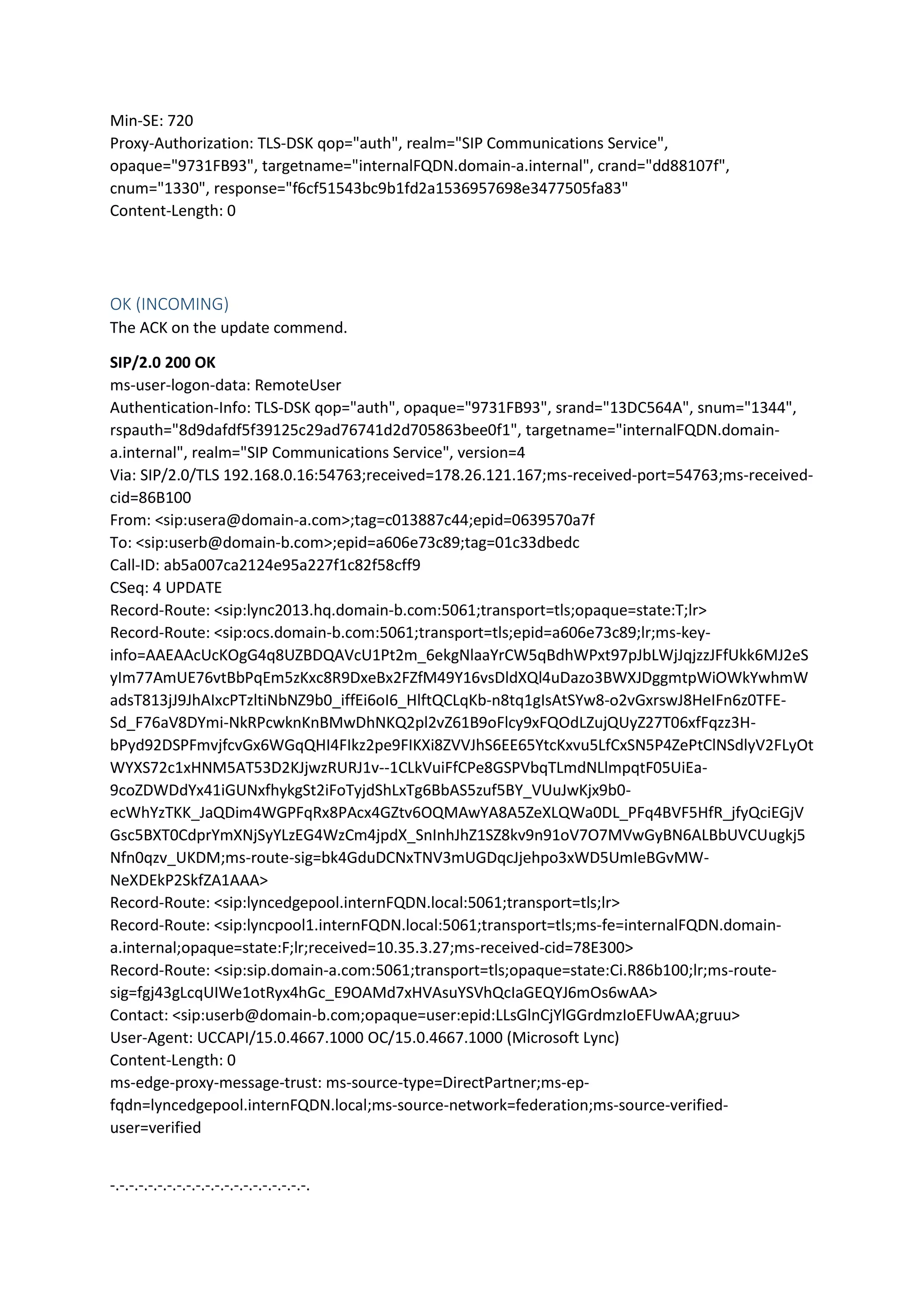

OK (INCOMING)............................................................................................................................. 56

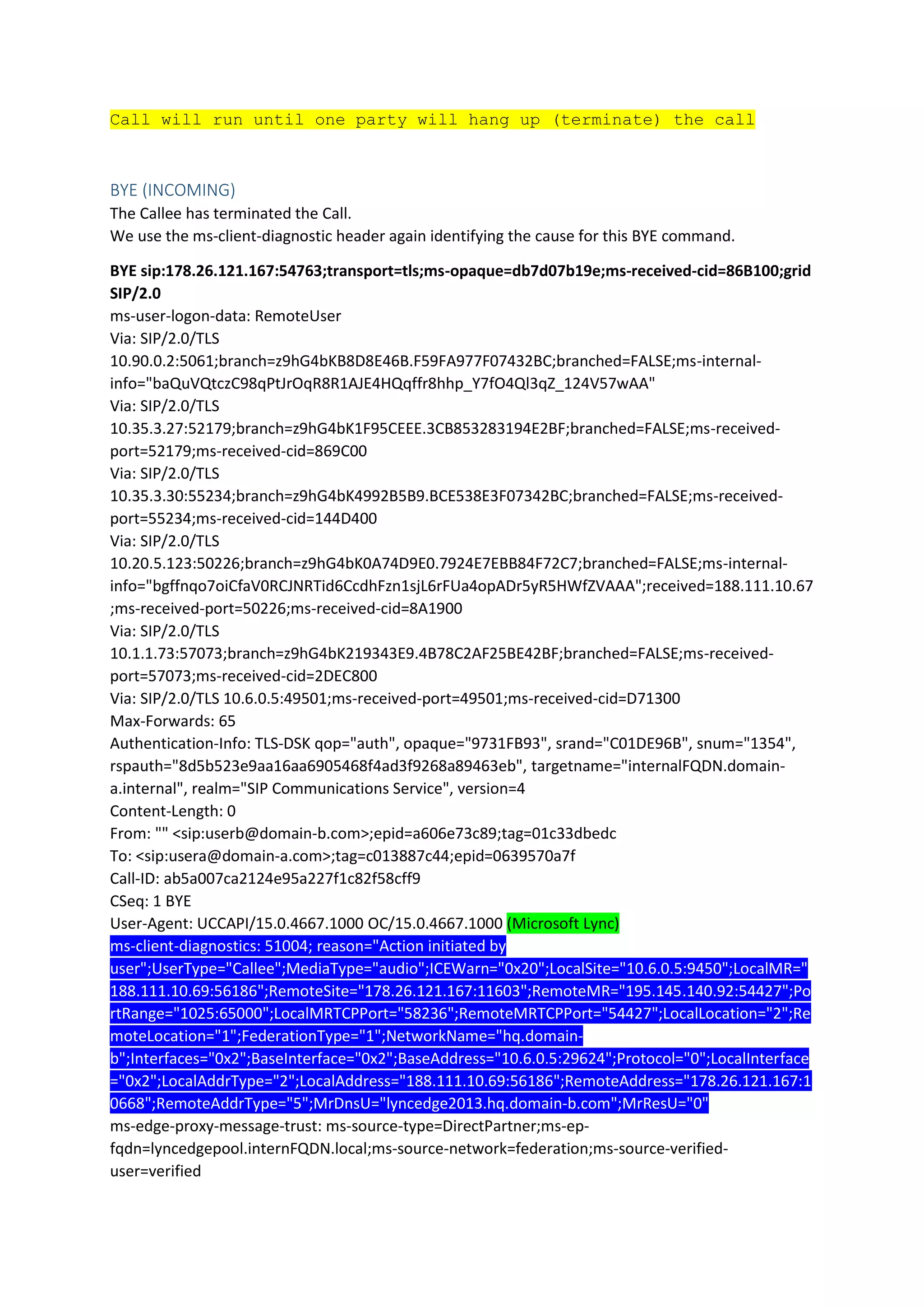

BYE (INCOMING)............................................................................................................................ 57

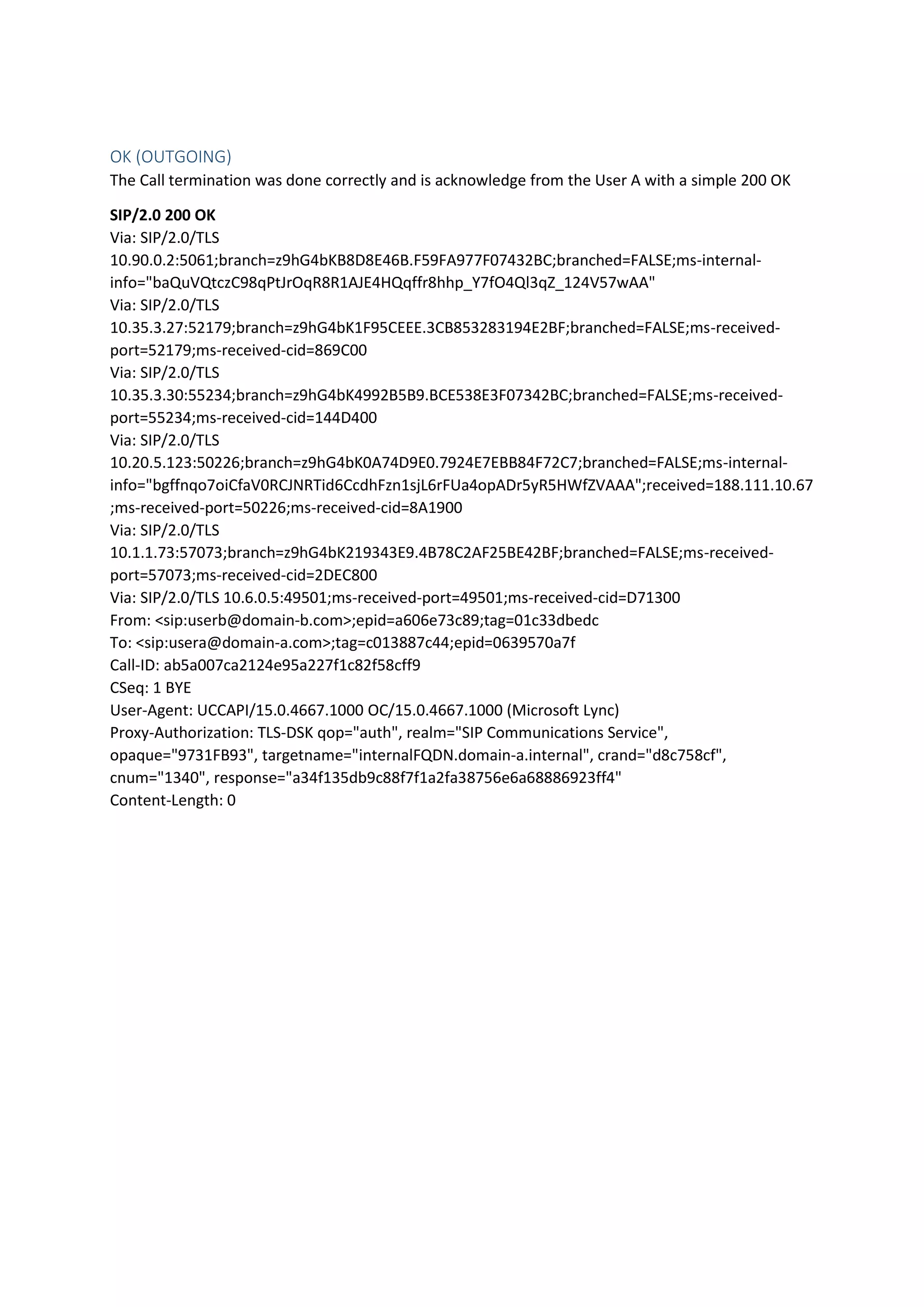

OK (OUTGOING)............................................................................................................................. 58

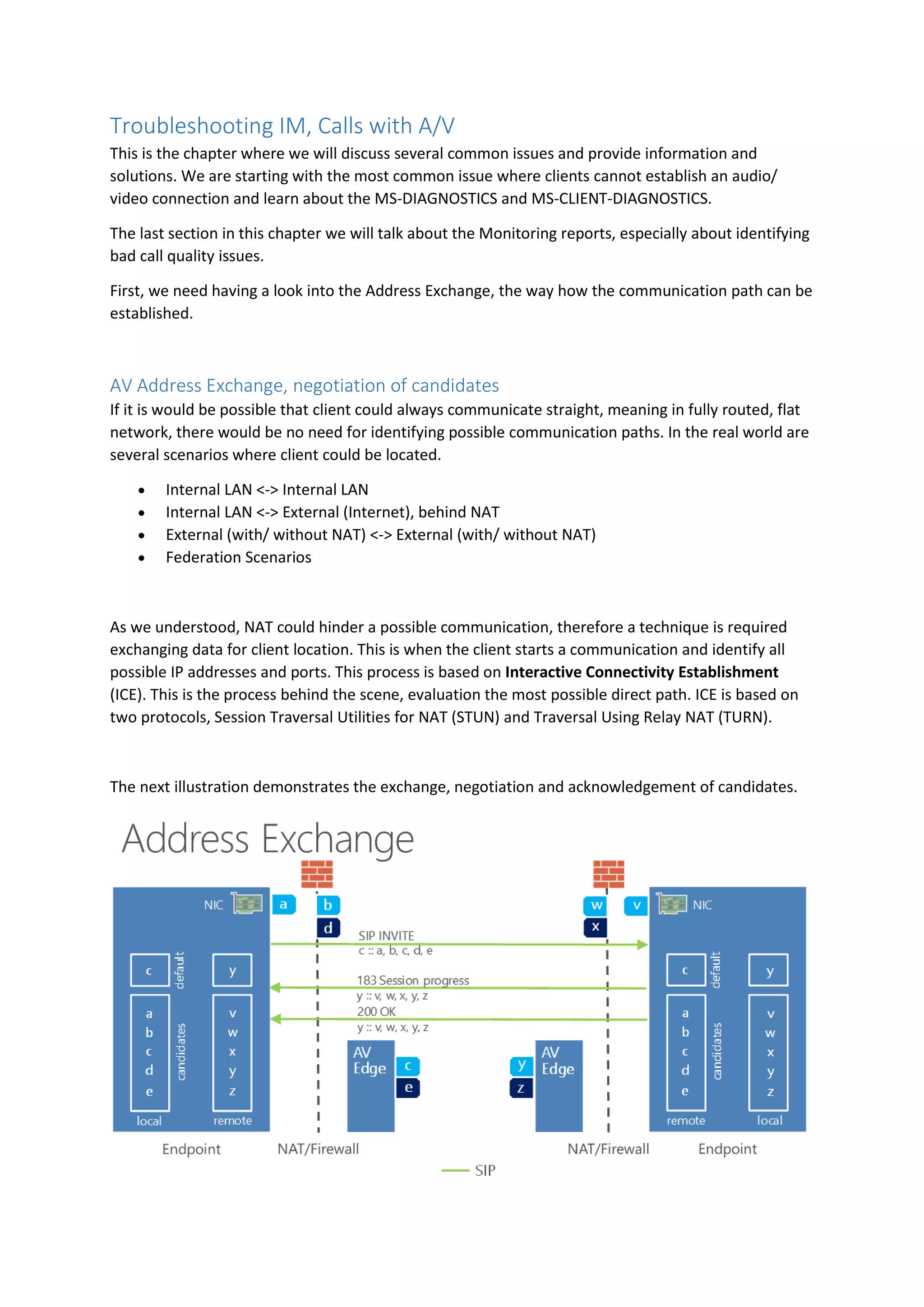

Troubleshooting IM, Calls with A/V....................................................................................................... 59

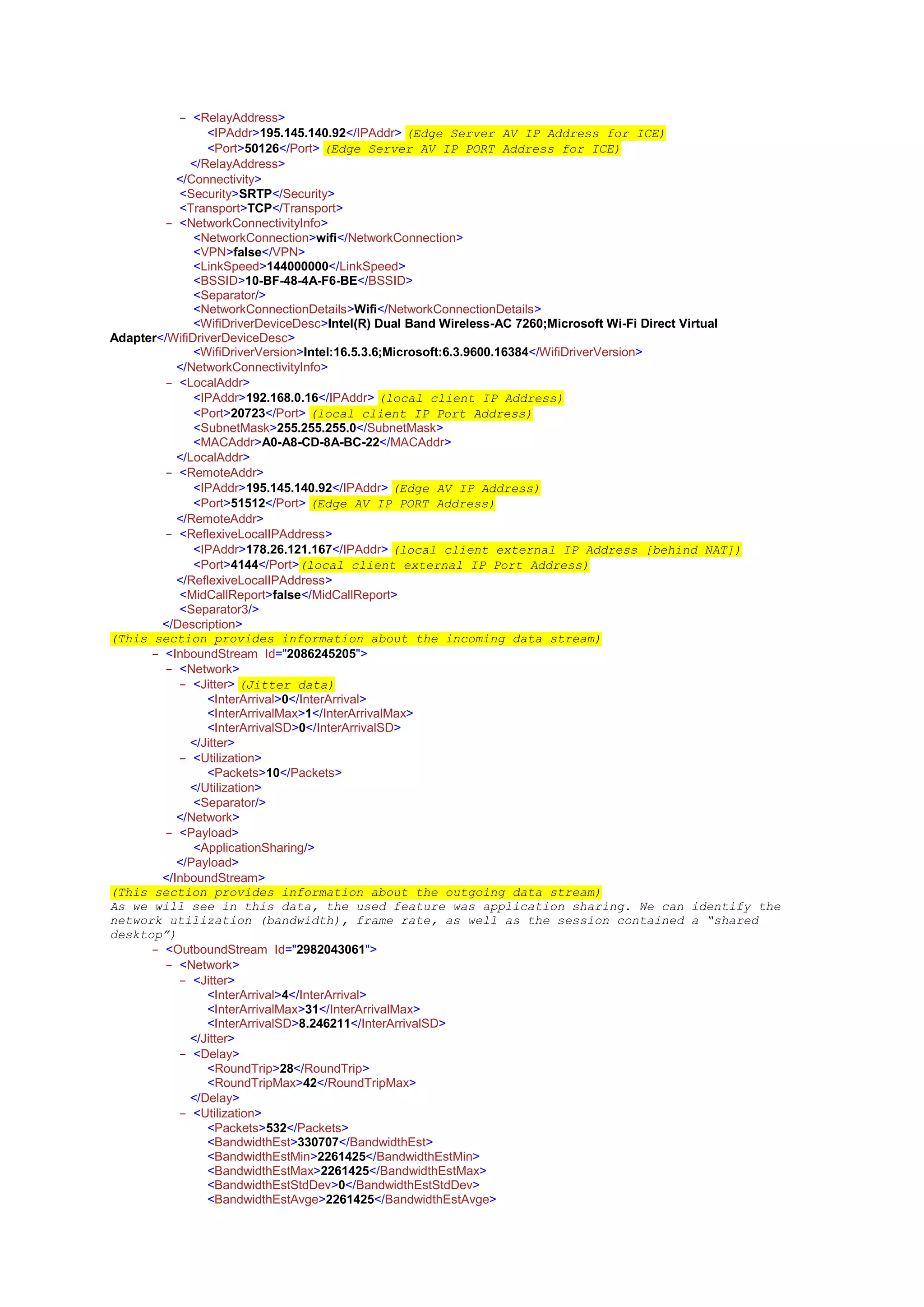

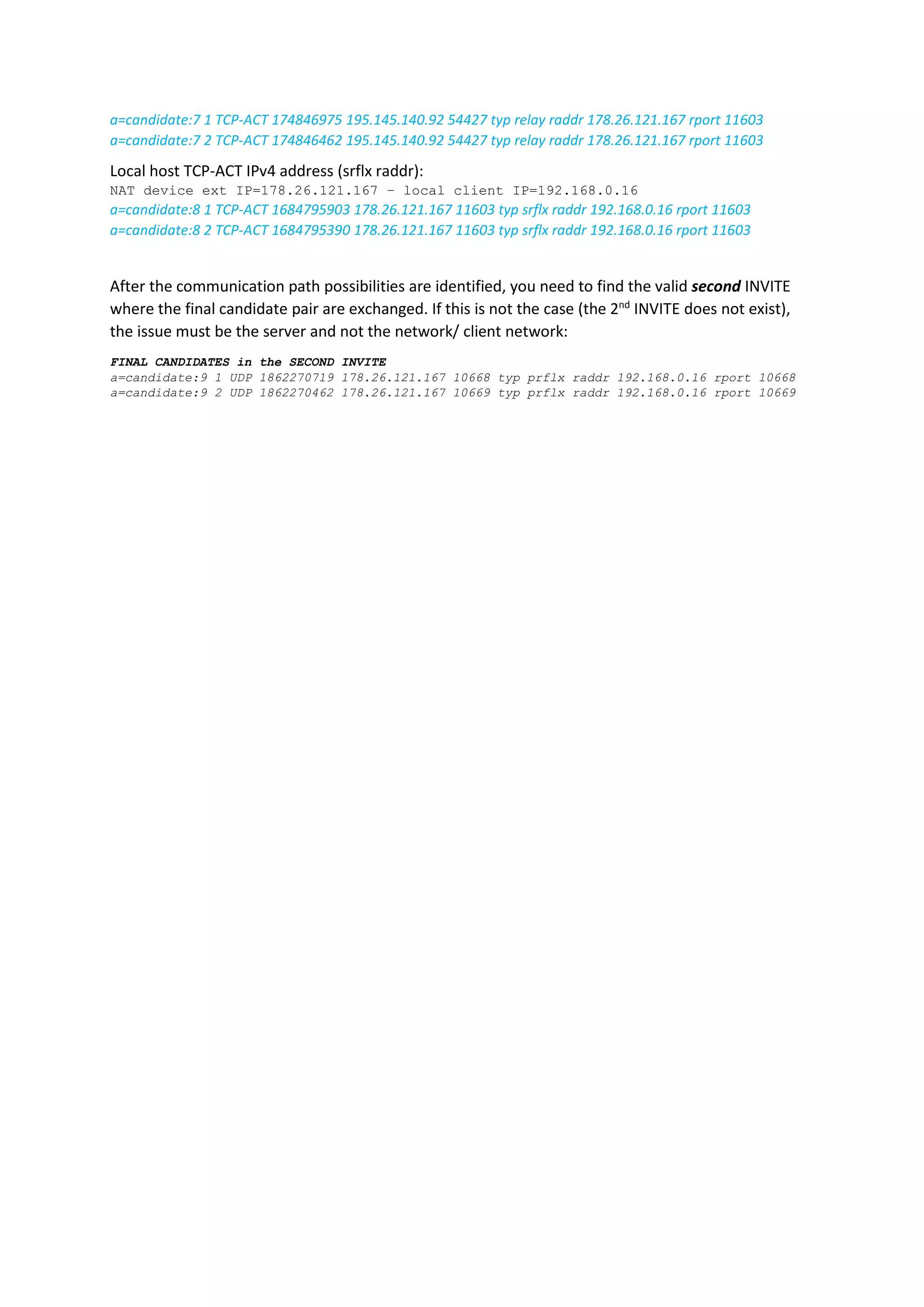

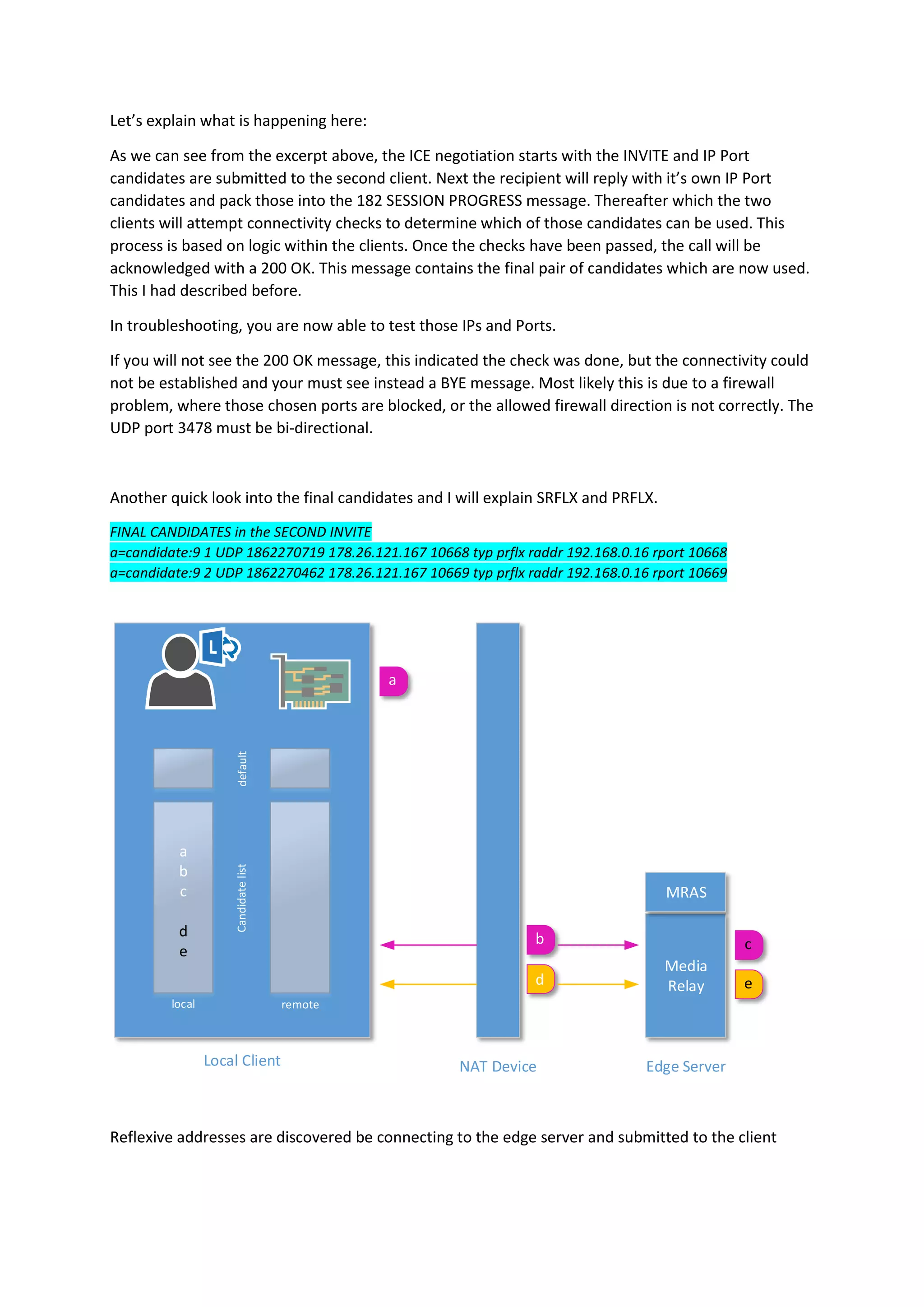

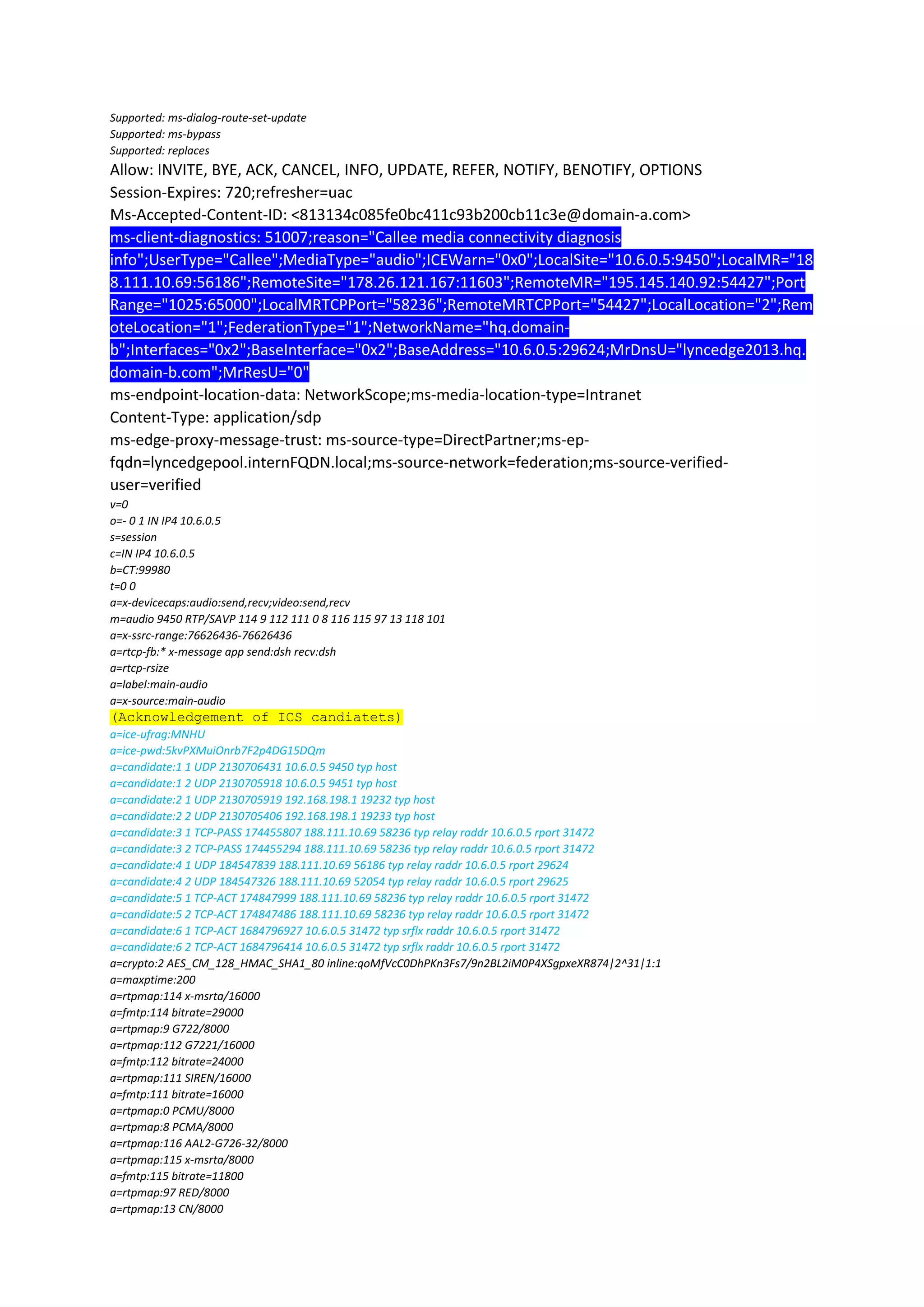

AV Address Exchange, negotiation of candidates............................................................................. 59

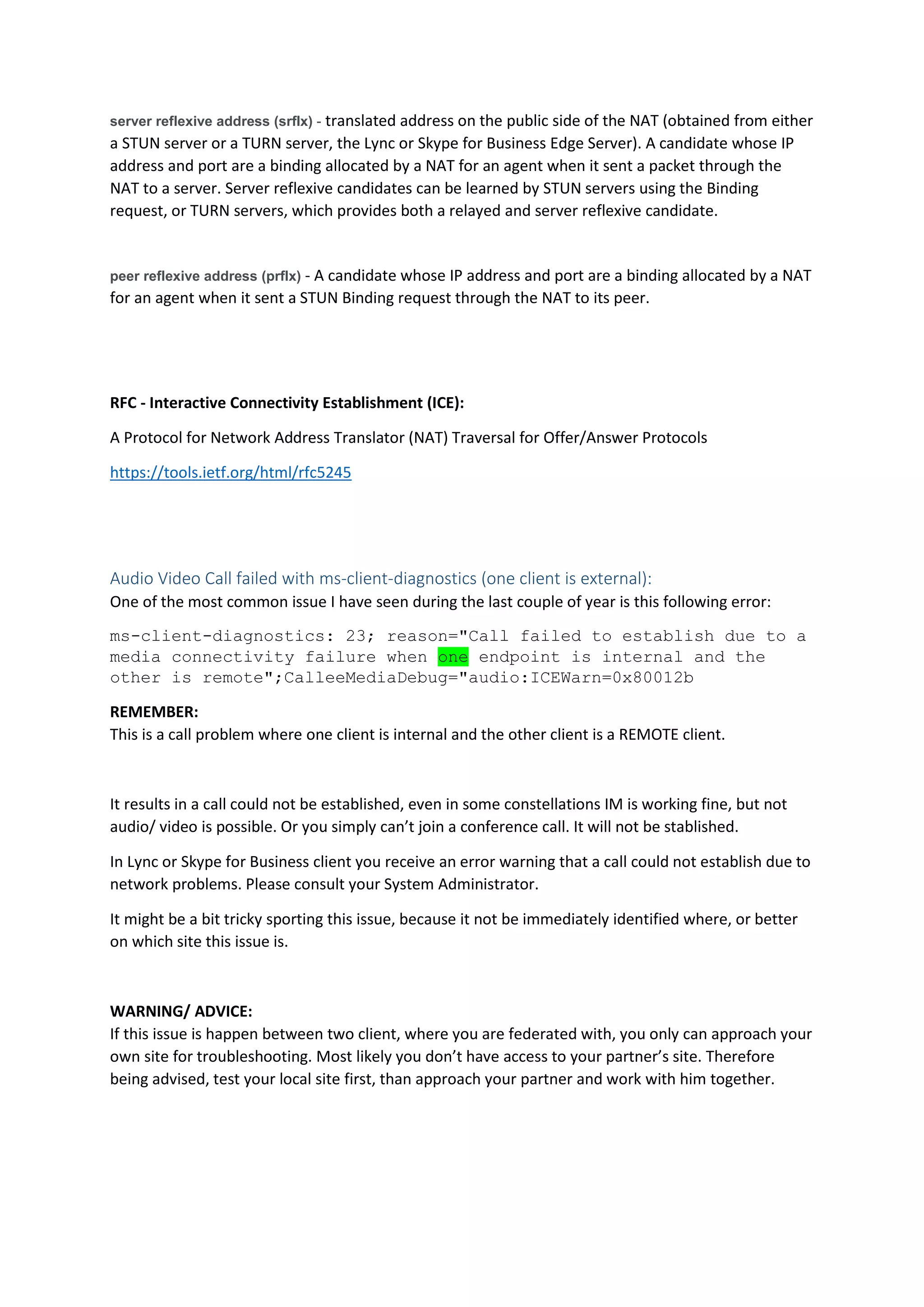

Audio Video Call failed with ms-client-diagnostics (one client is external): ................................. 62

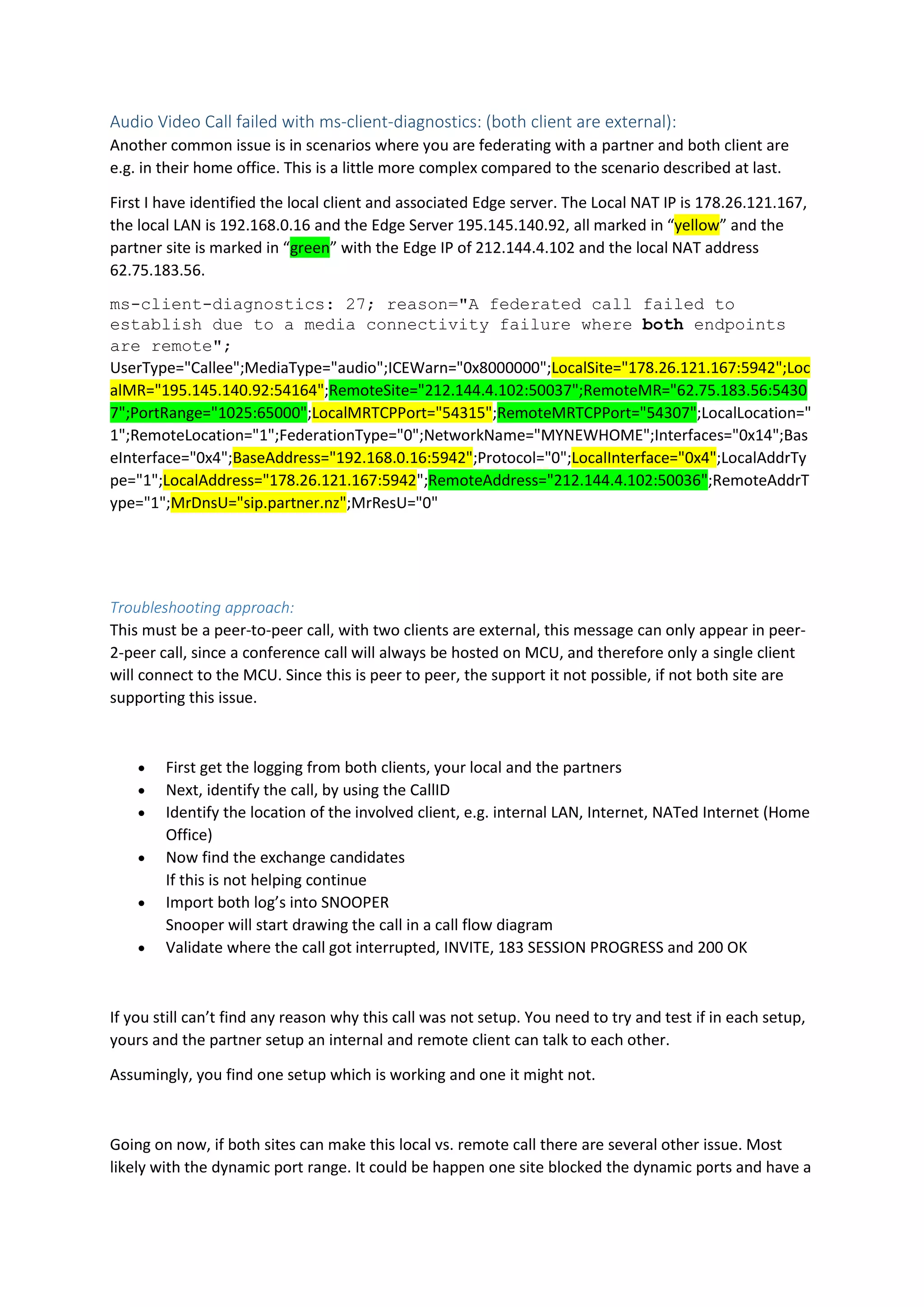

Audio Video Call failed with ms-client-diagnostics: (both client are external):............................ 65

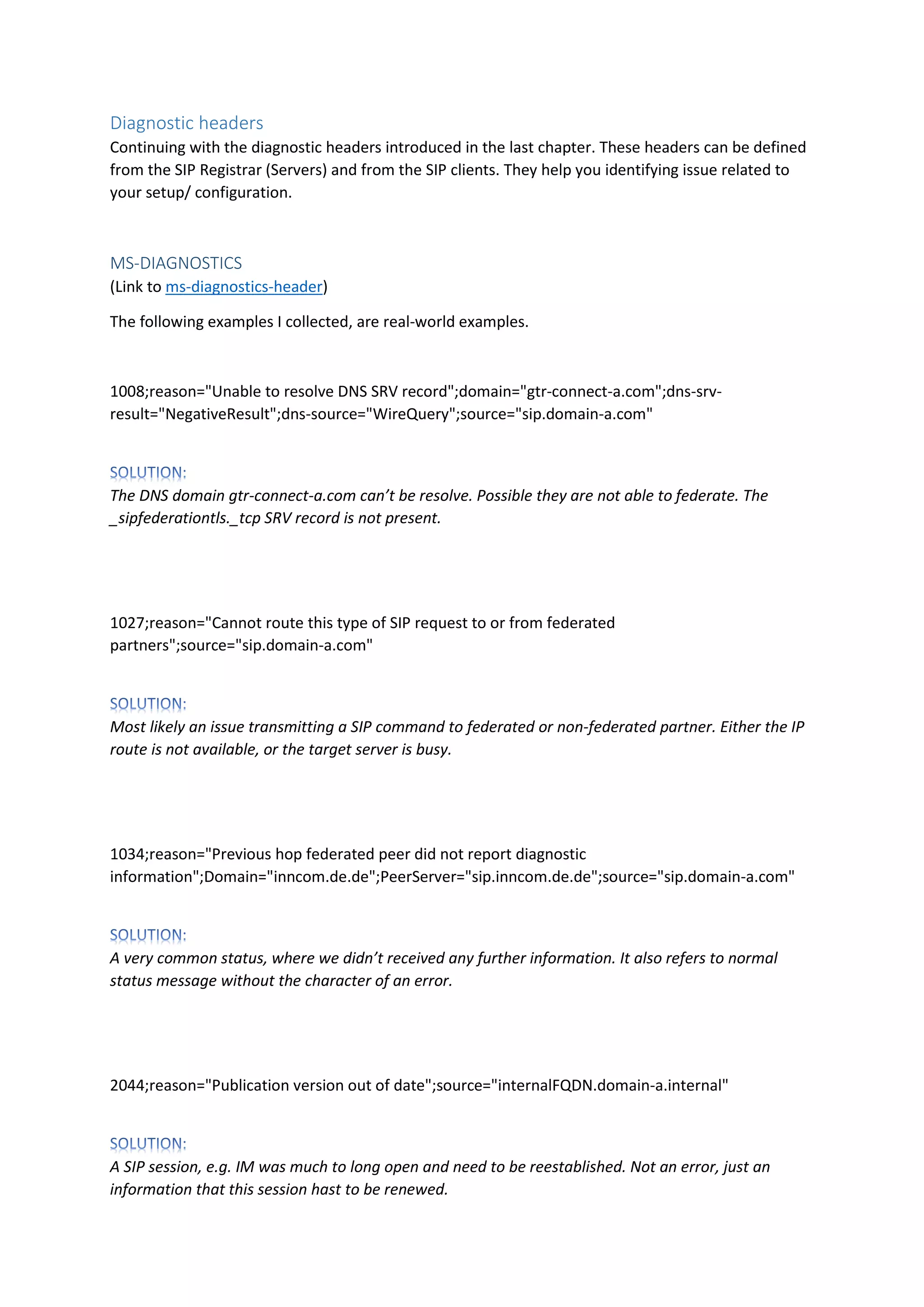

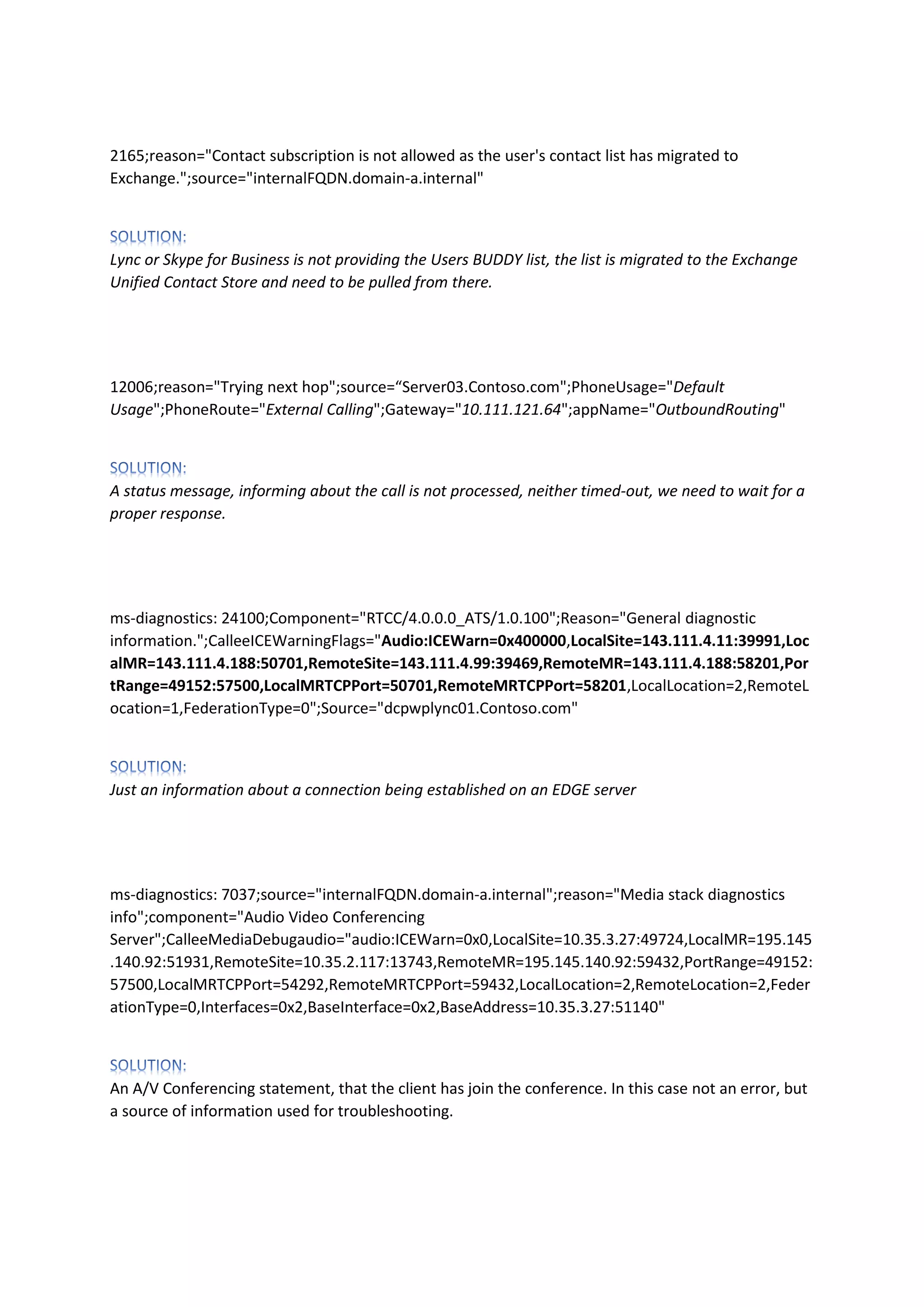

Diagnostic headers............................................................................................................................ 67
MS-DIAGNOSTICS .......................................................................................................................... 67

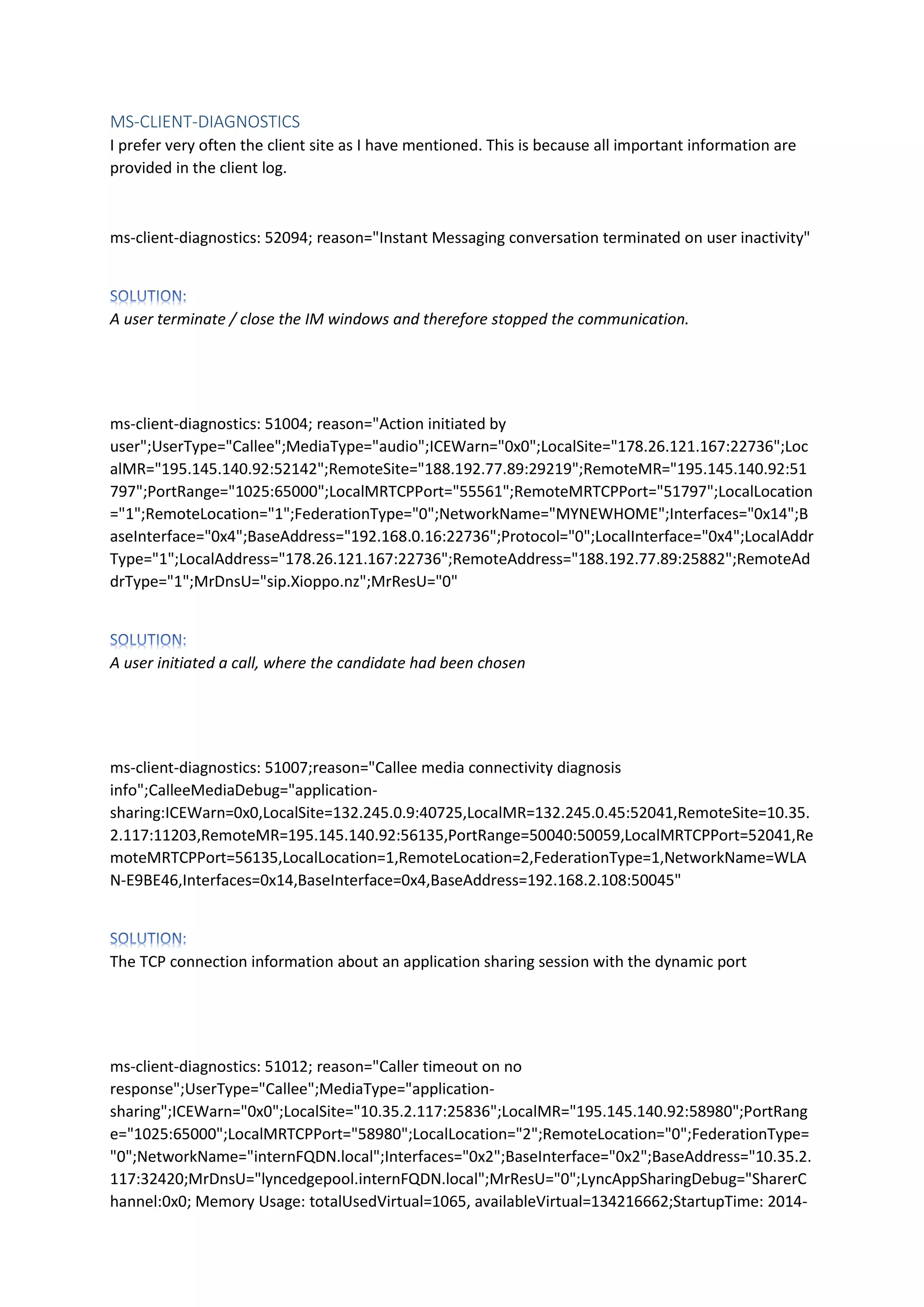

MS-CLIENT-DIAGNOSTICS.............................................................................................................. 70

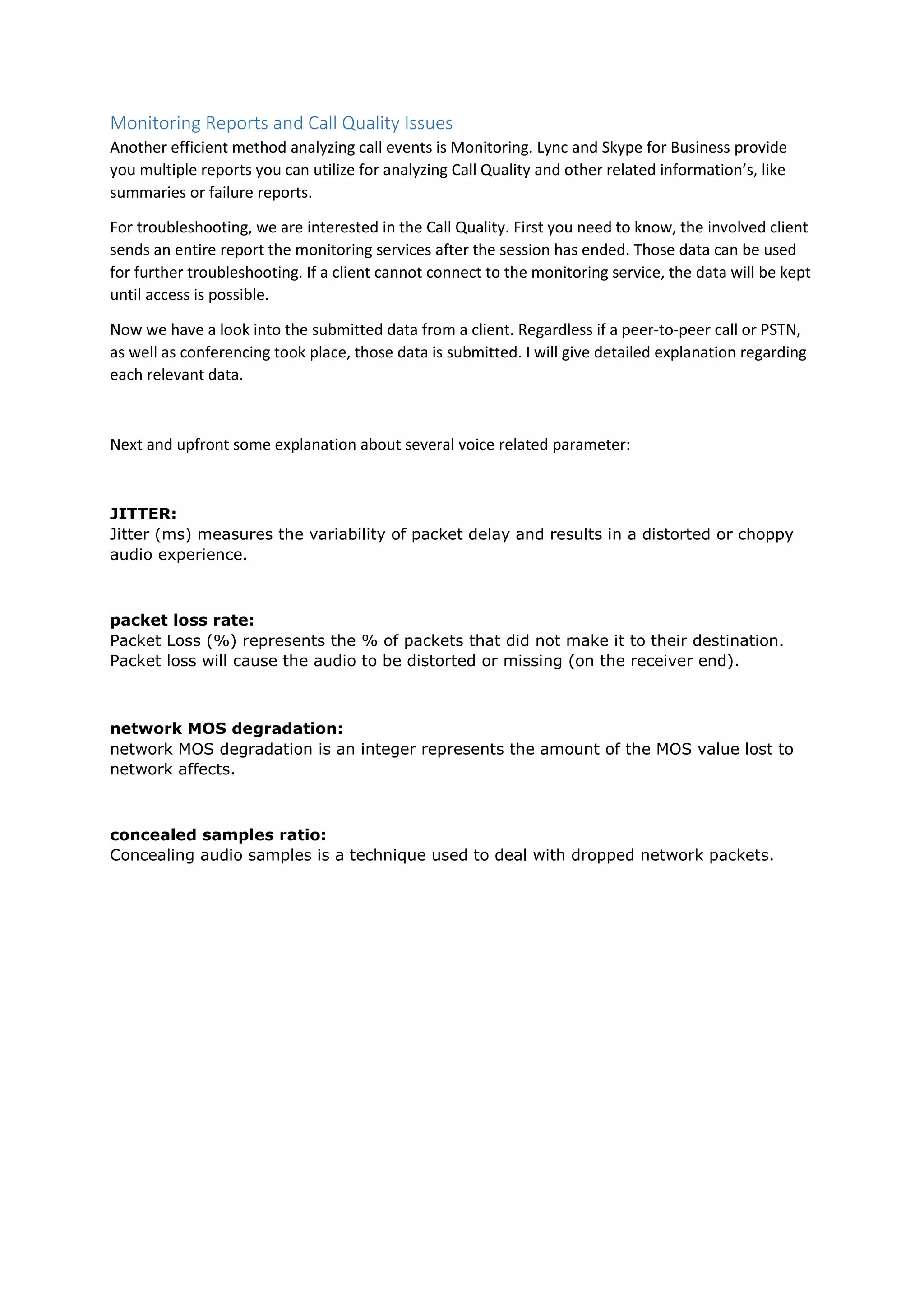

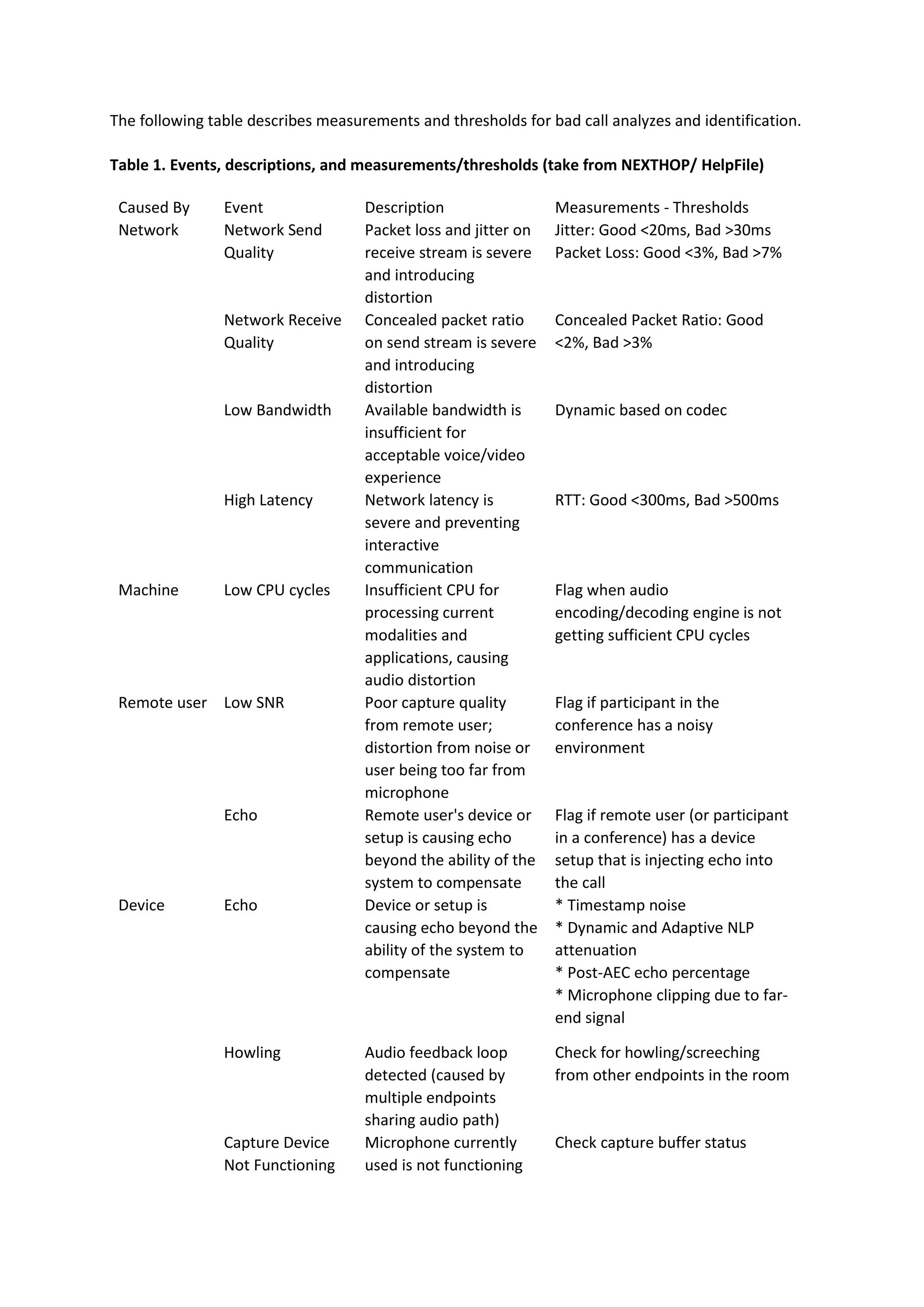

Monitoring Reports and Call Quality Issues...................................................................................... 73

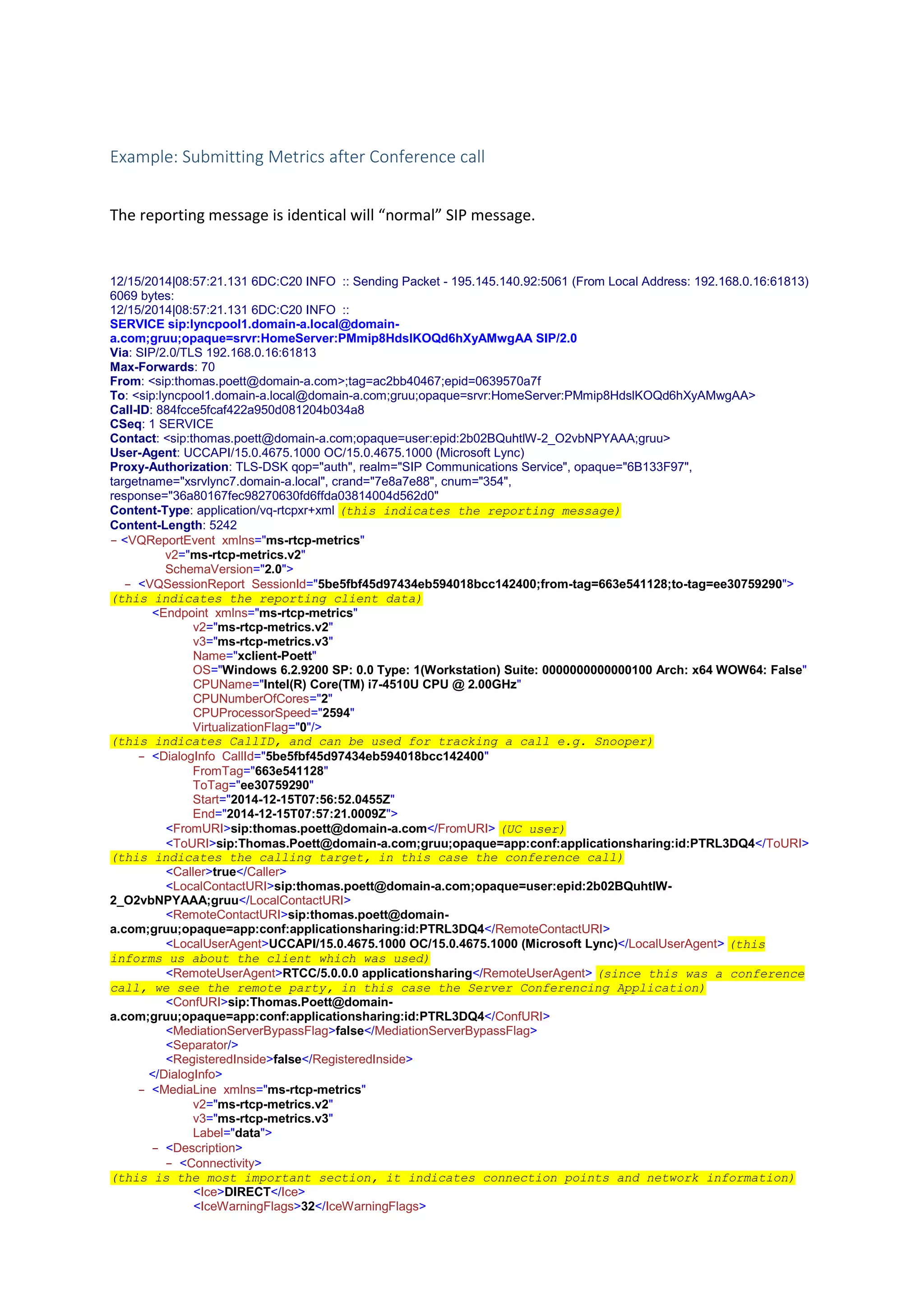

Example: Submitting Metrics after Conference call...................................................................... 76

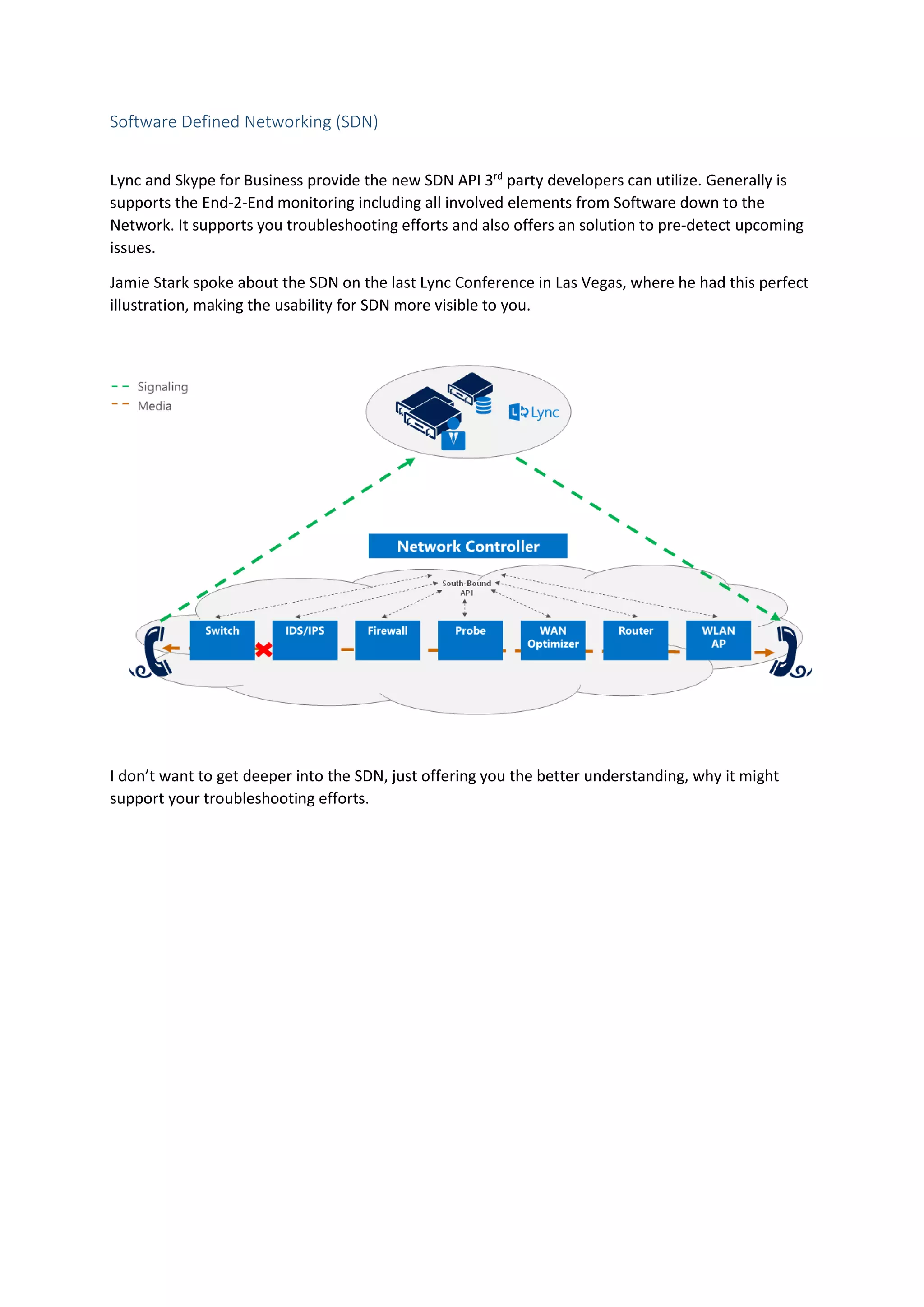

Software Defined Networking (SDN)............................................................................................. 79

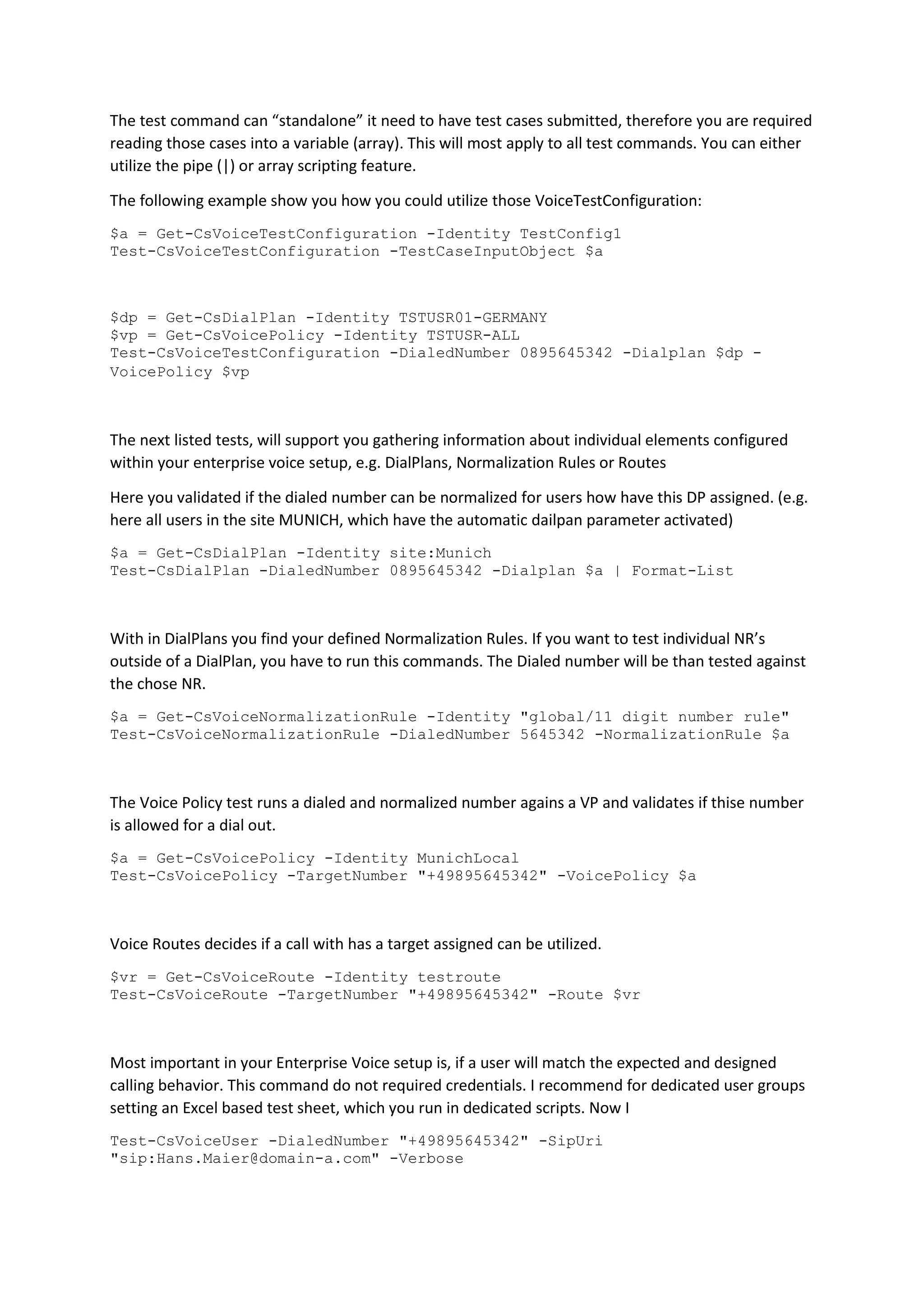

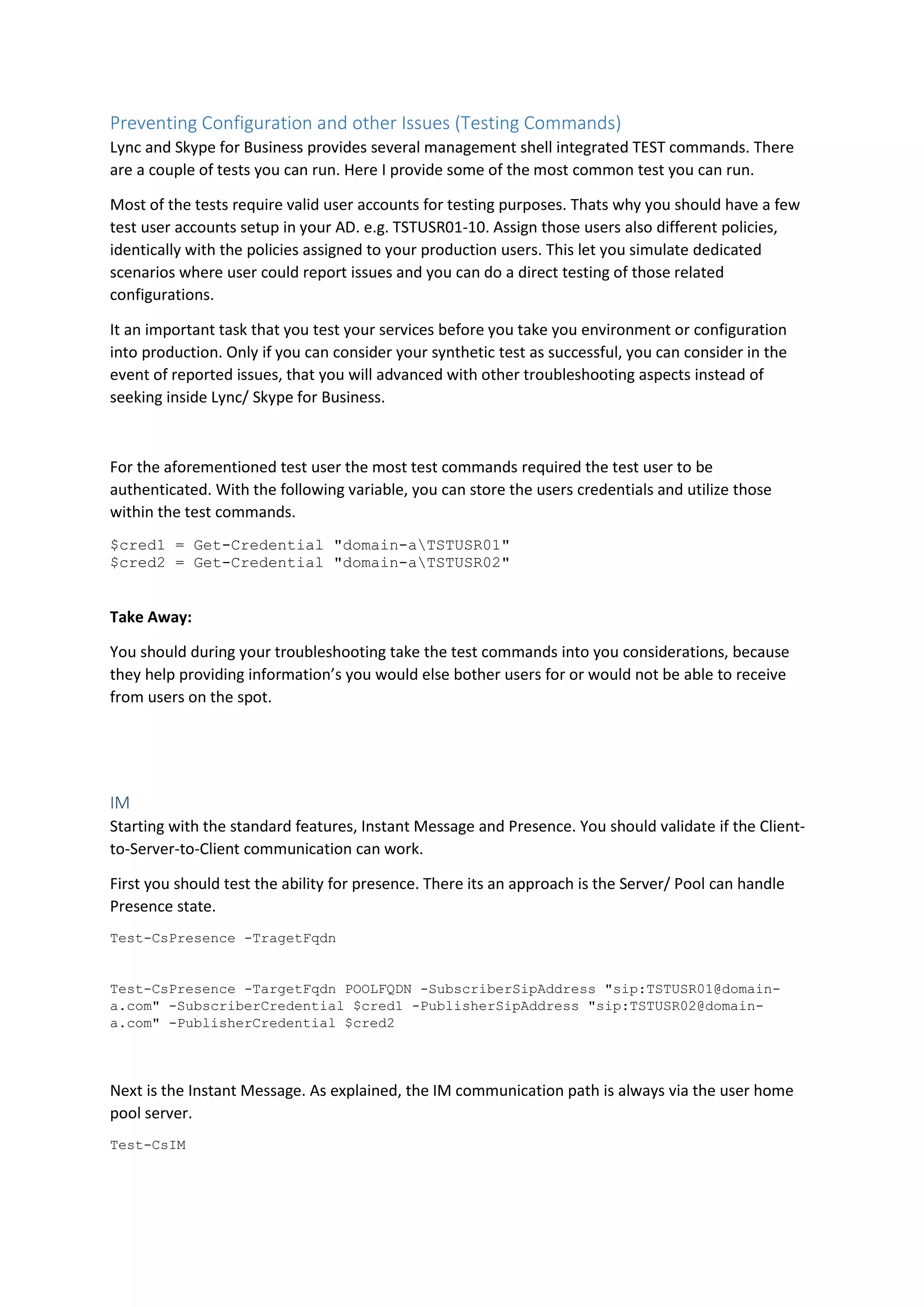

Preventing Configuration and other Issues (Testing Commands)..................................................... 80
IM................................................................................................................................................... 80

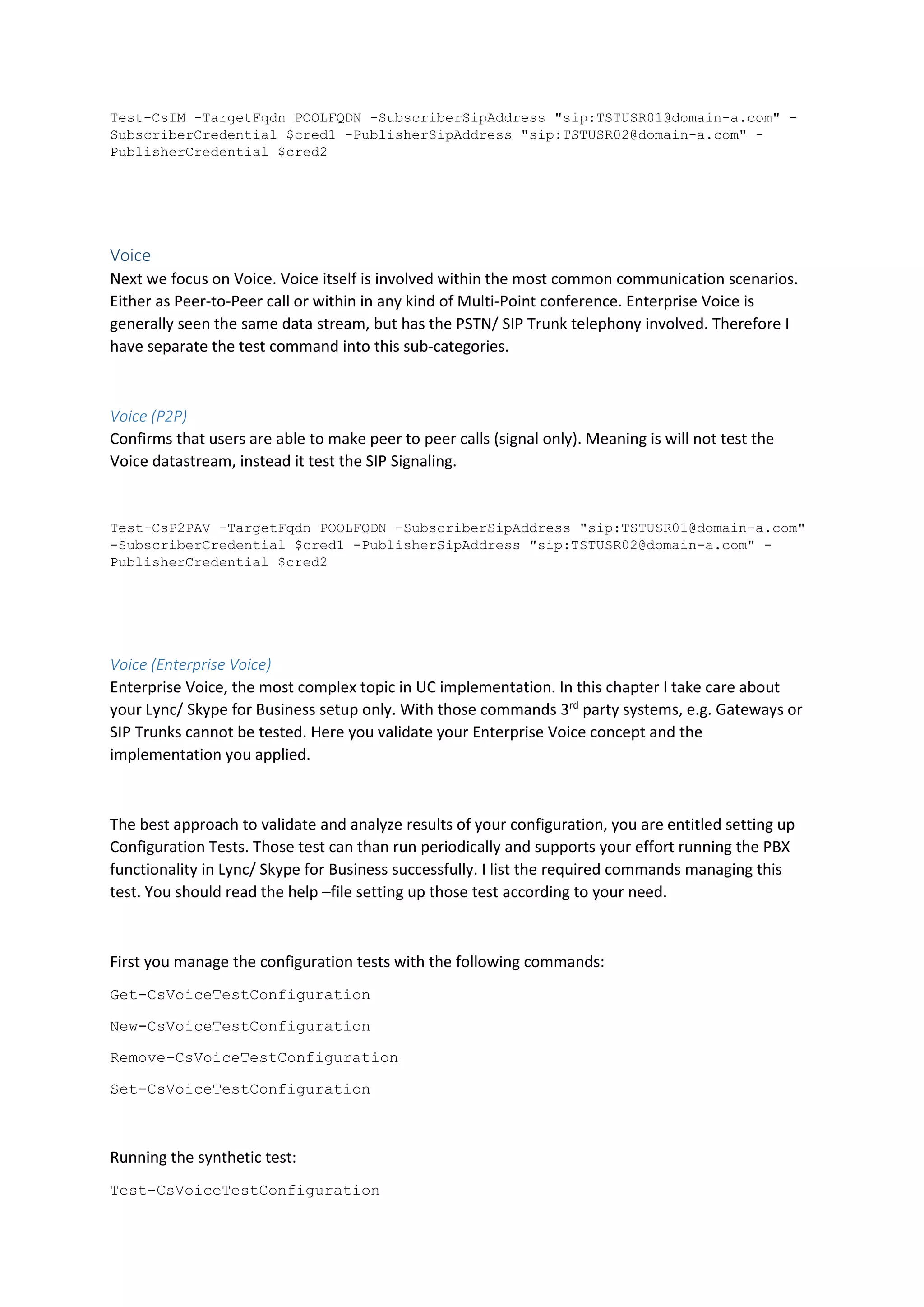

Voice.............................................................................................................................................. 81

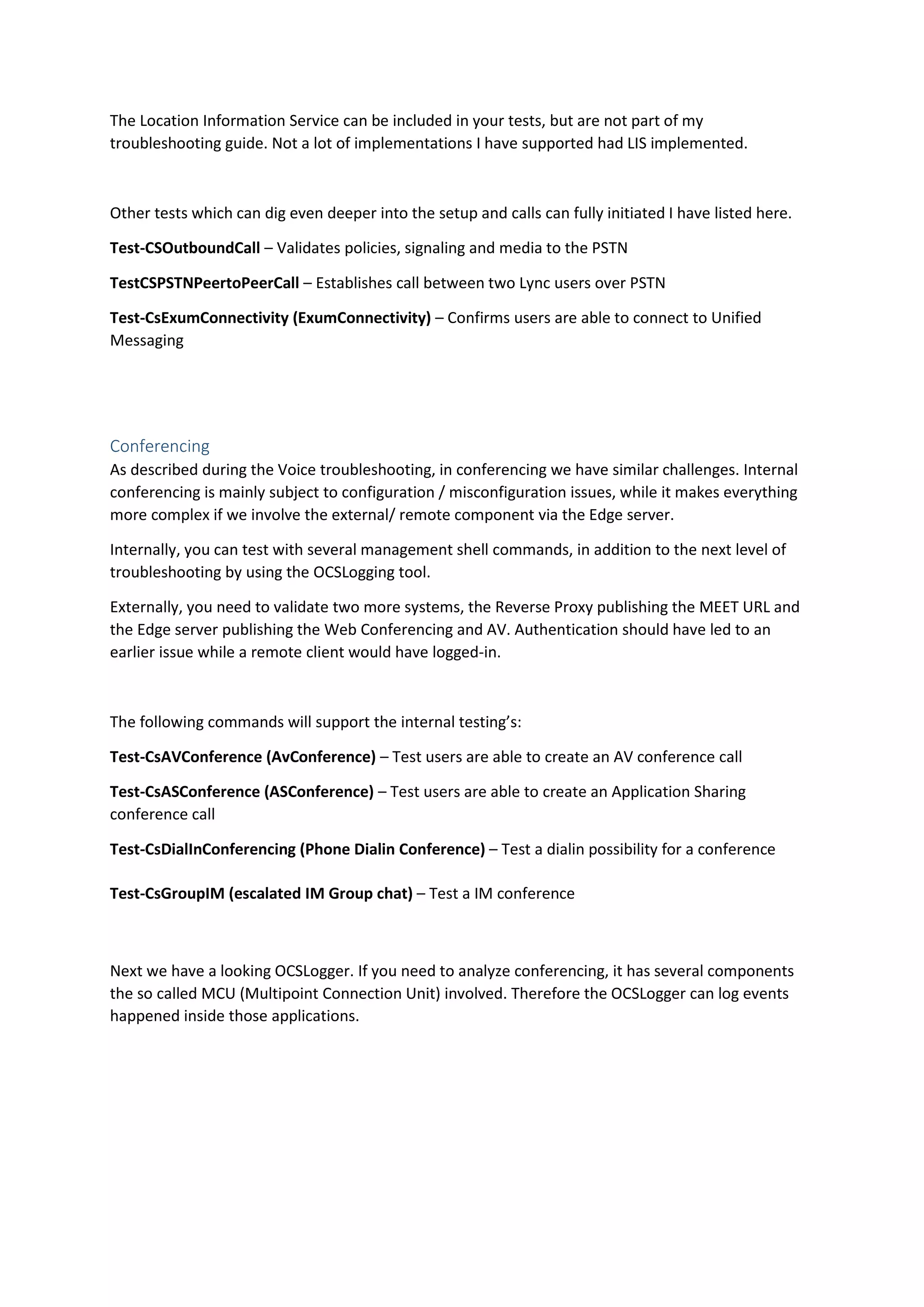

Conferencing ................................................................................................................................. 83
WEB Services ................................................................................................................................. 84

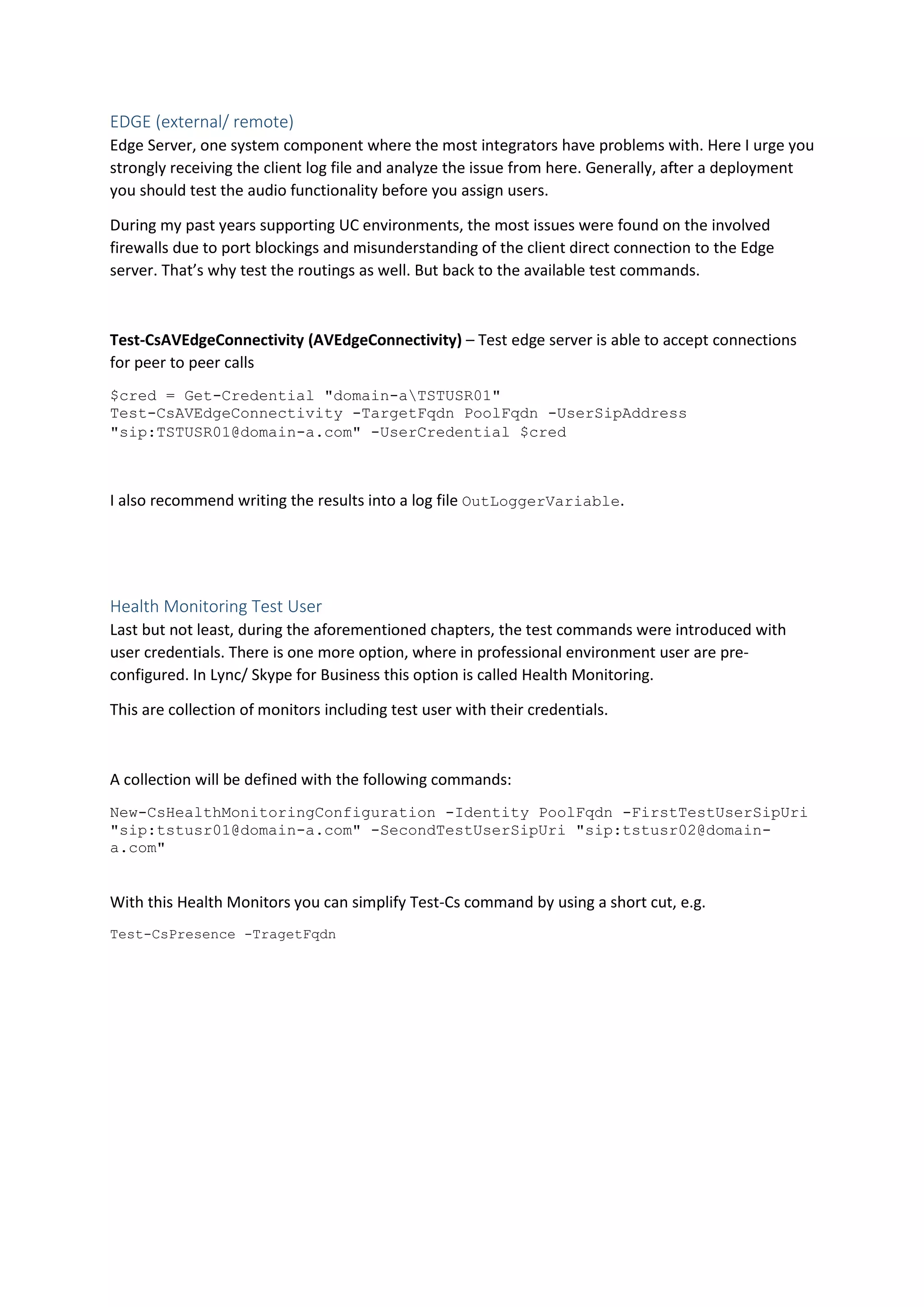

EDGE (external/ remote)............................................................................................................... 85
Health Monitoring Test User......................................................................................................... 85

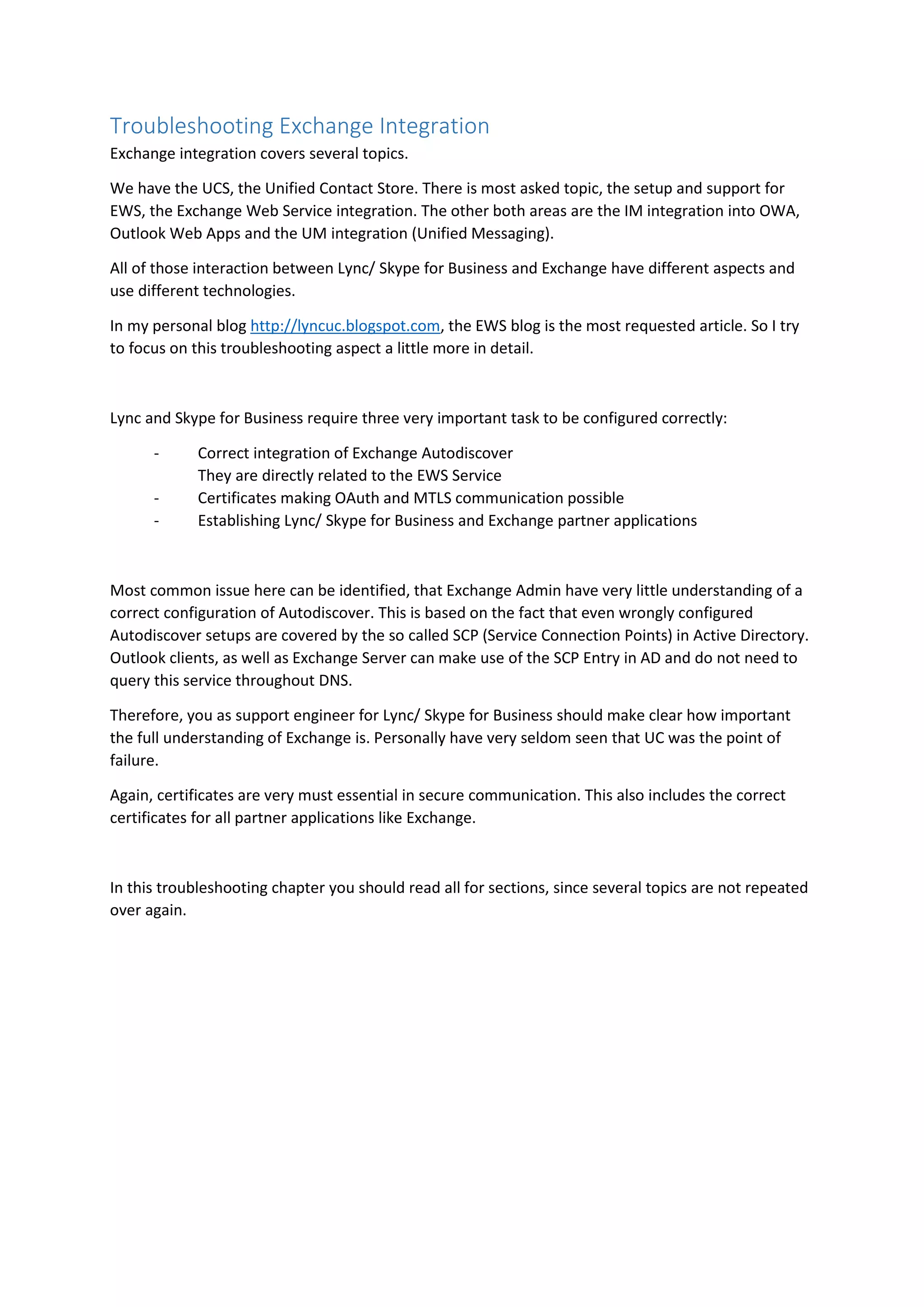

Troubleshooting Exchange Integration................................................................................................. 86

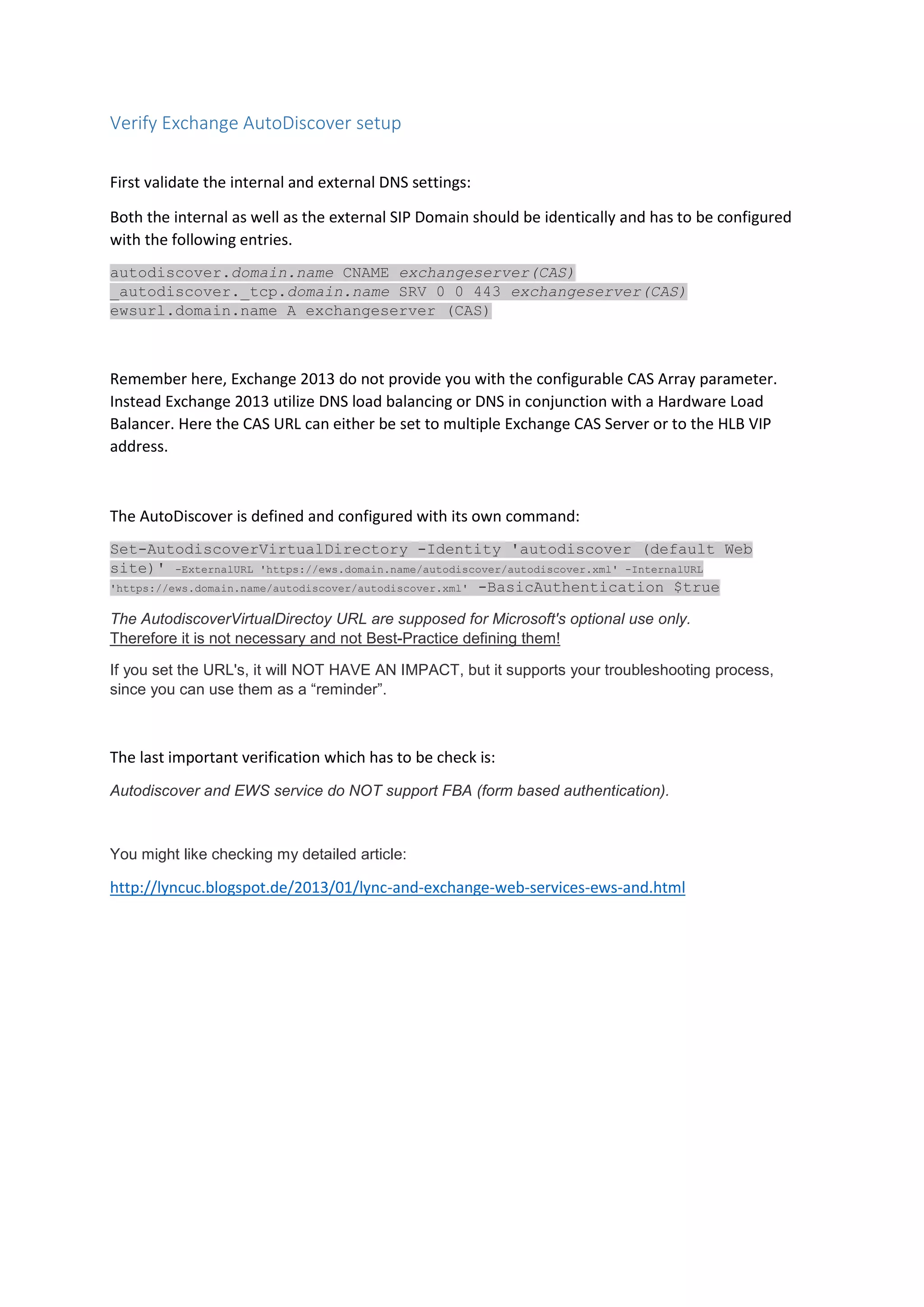

Verify Exchange AutoDiscover setup................................................................................................. 87

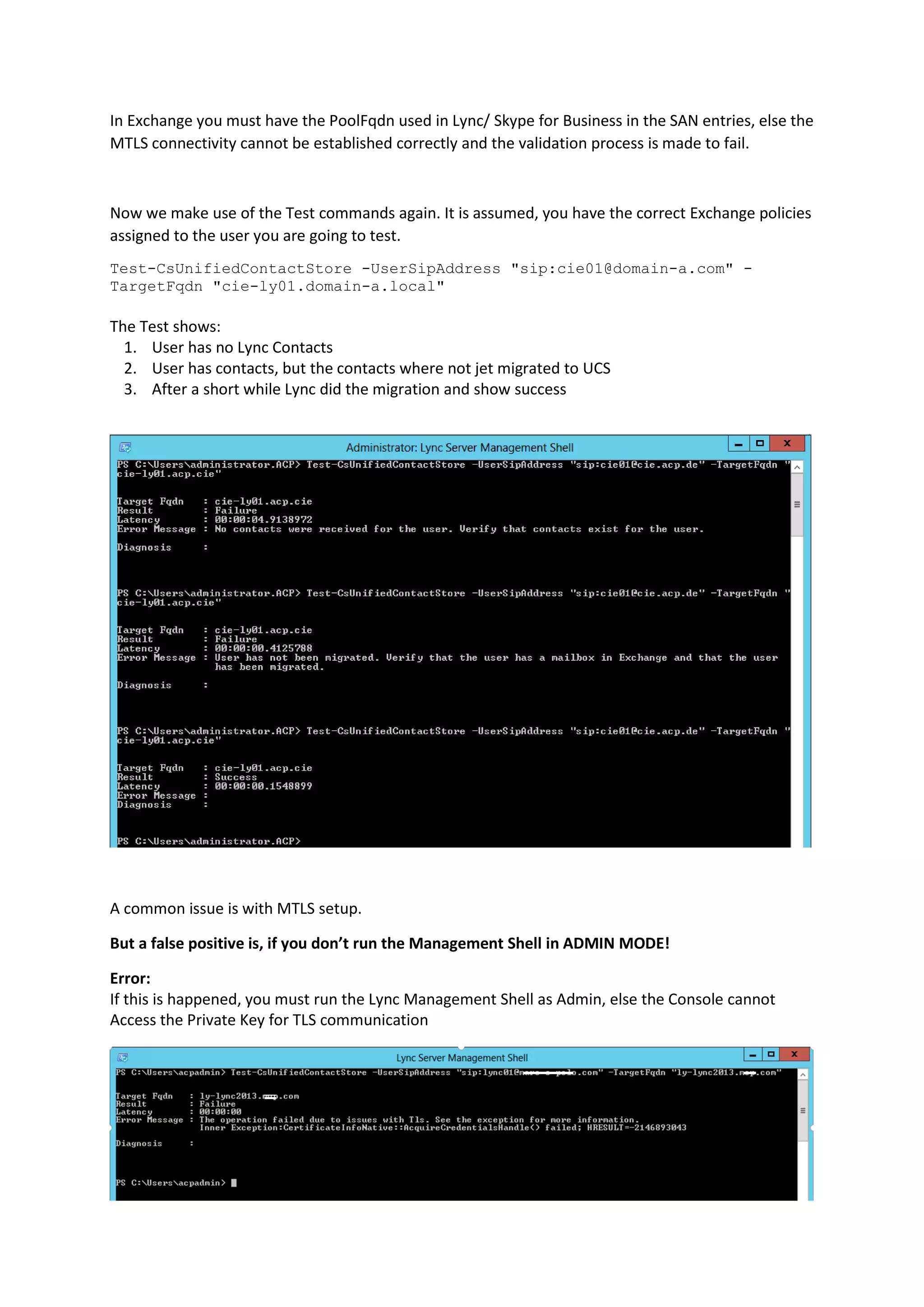

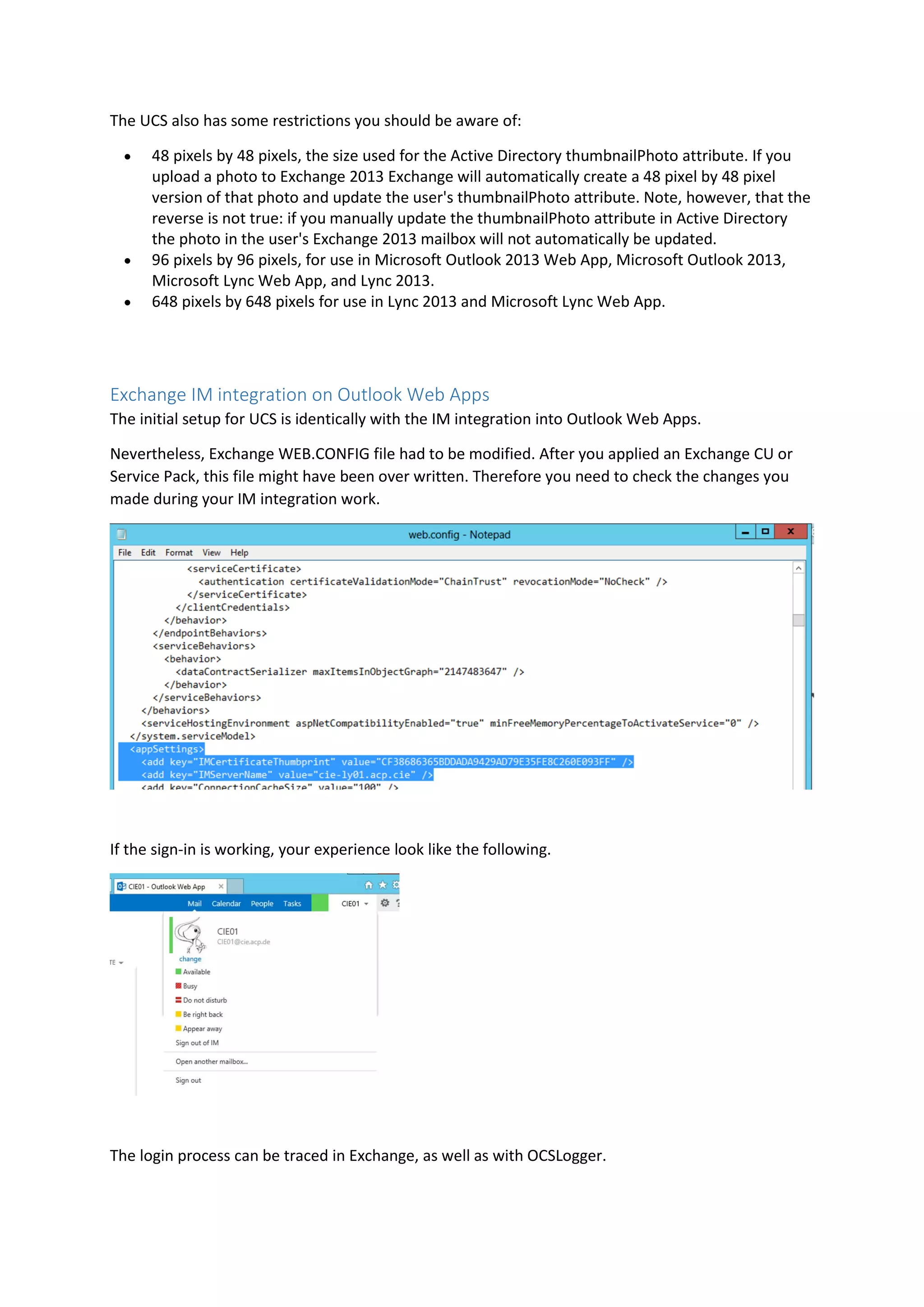

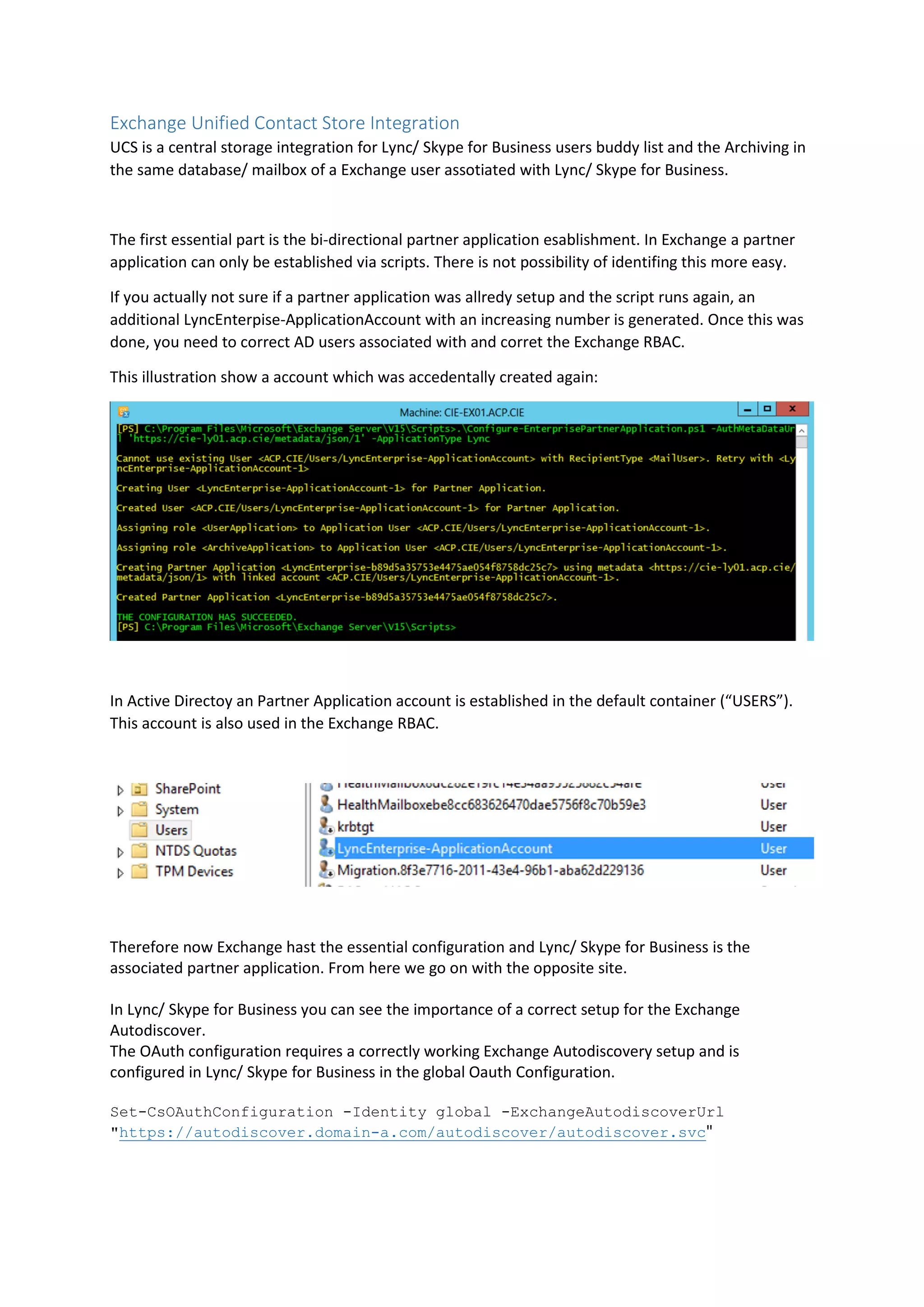

Exchange Unified Contact Store Integration..................................................................................... 88
Exchange IM integration on Outlook Web Apps............................................................................... 91

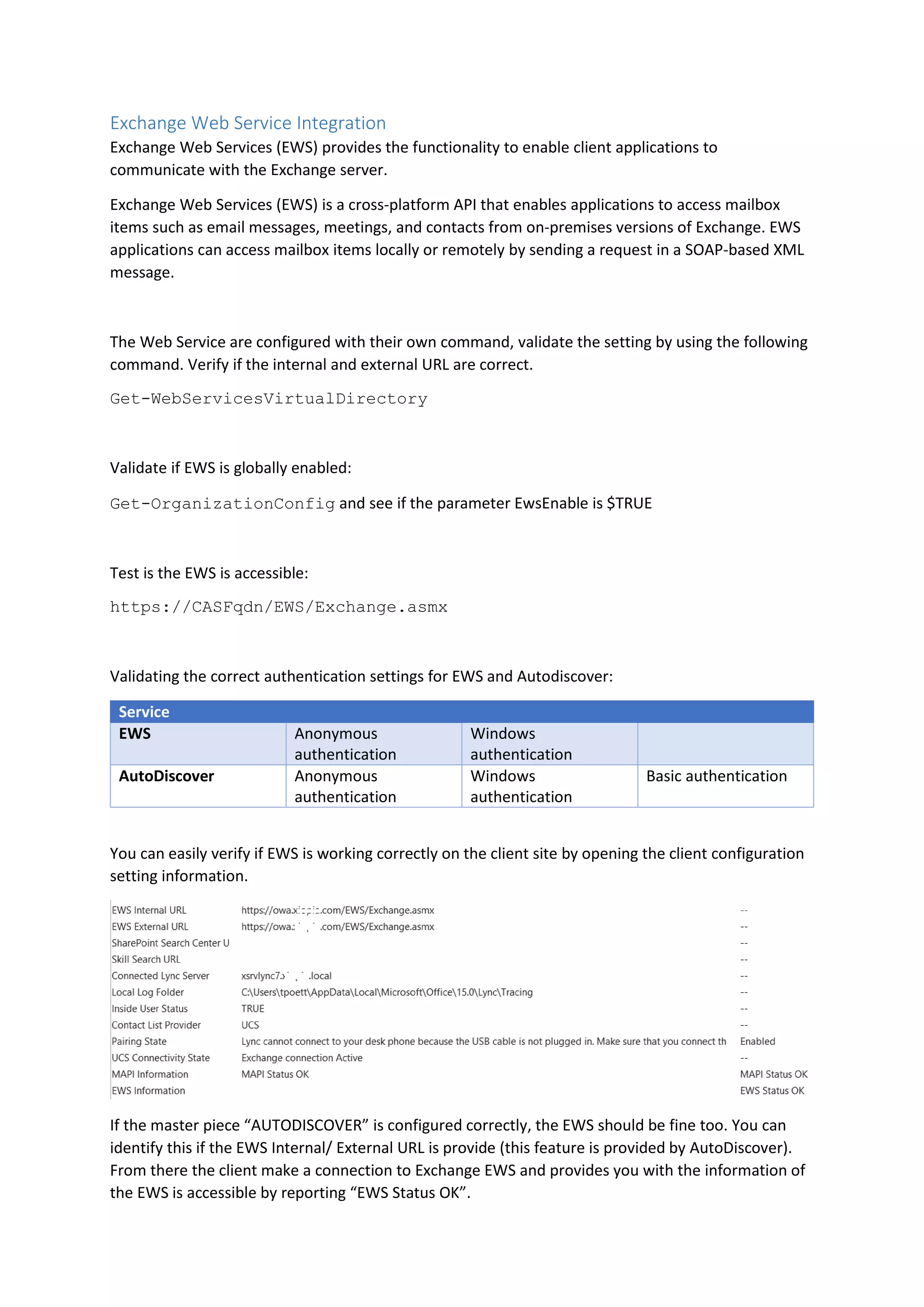

Exchange Web Service Integration.................................................................................................... 92

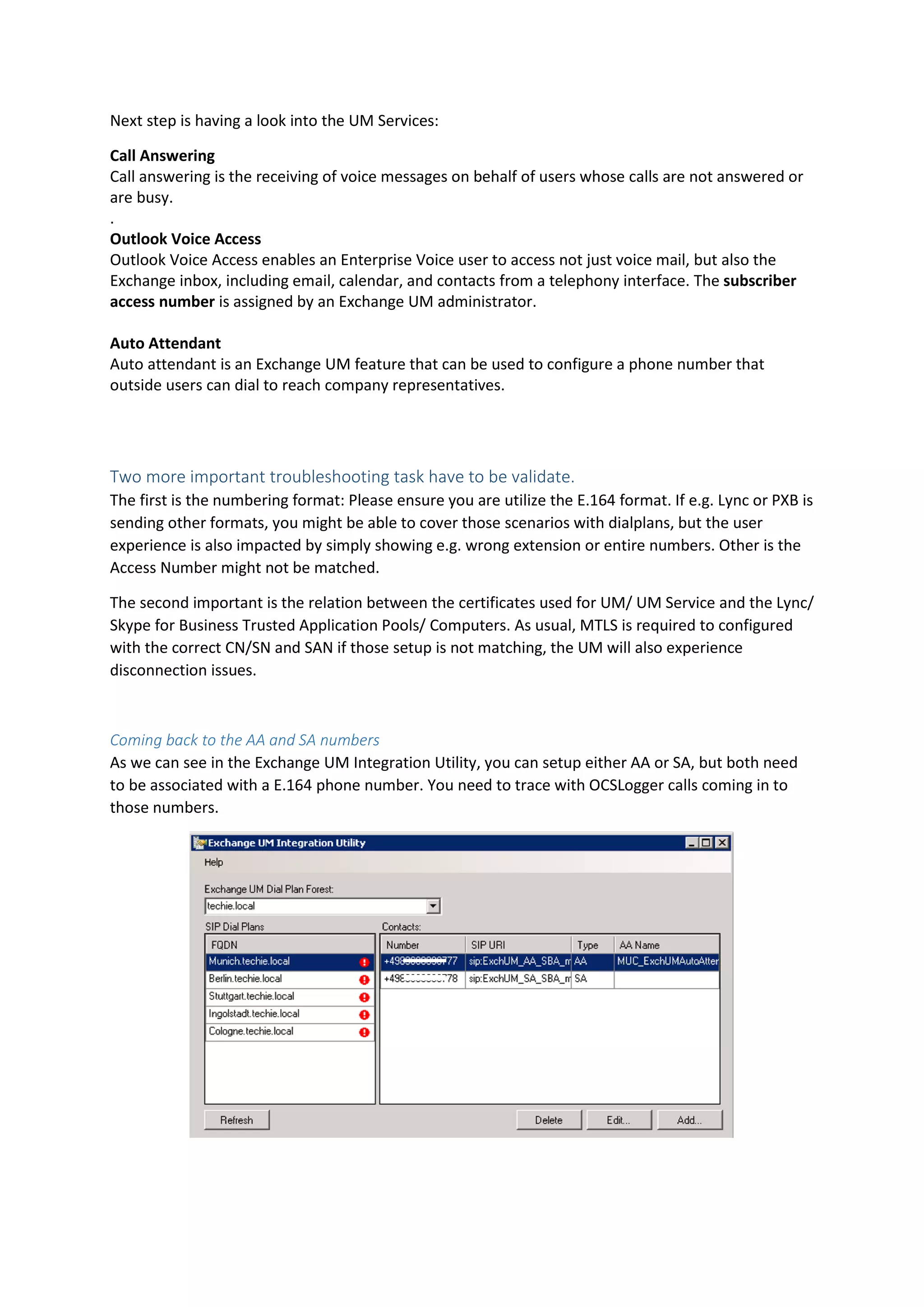

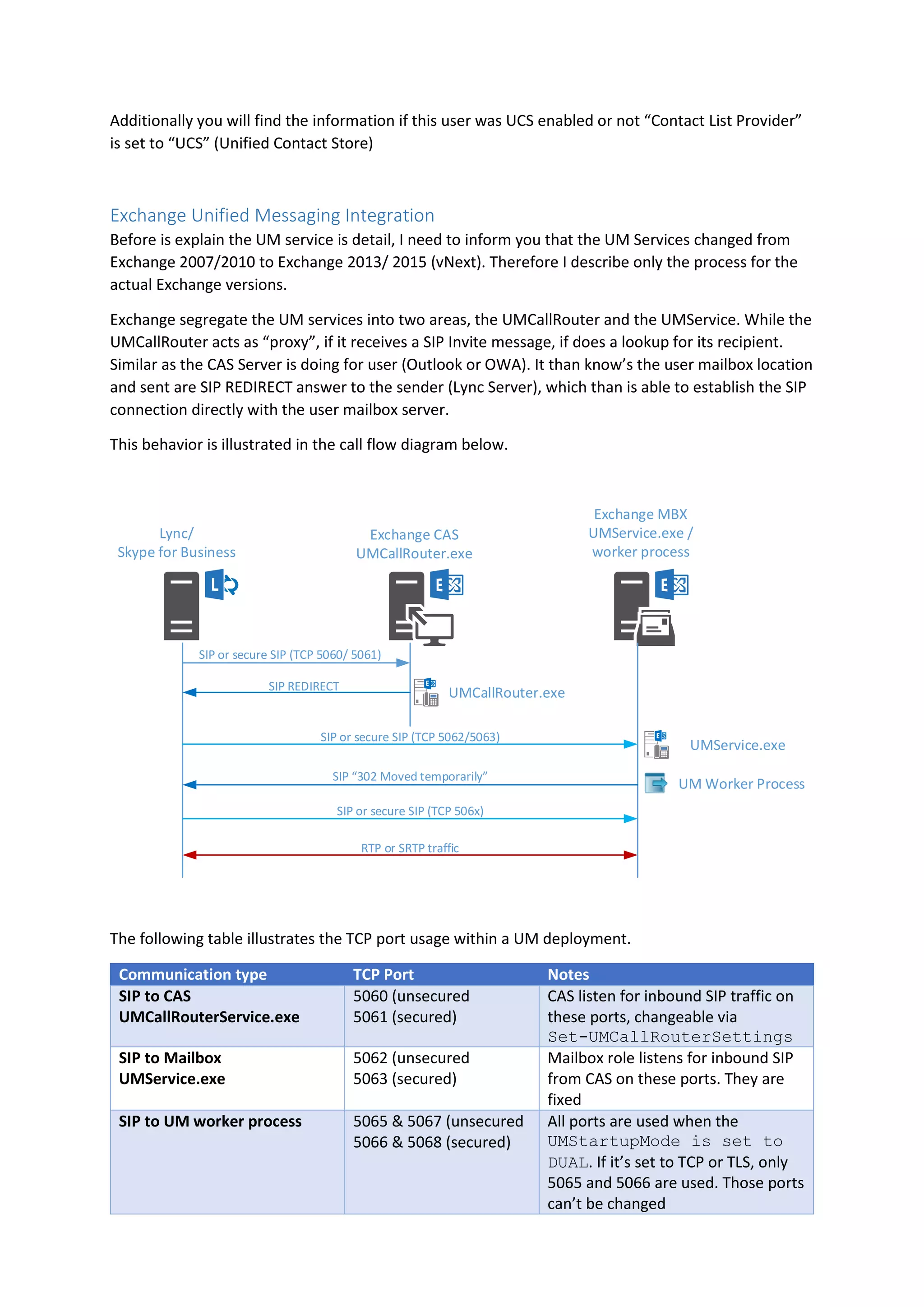

Exchange Unified Messaging Integration.......................................................................................... 93
Two more important troubleshooting task have to be validate................................................... 94

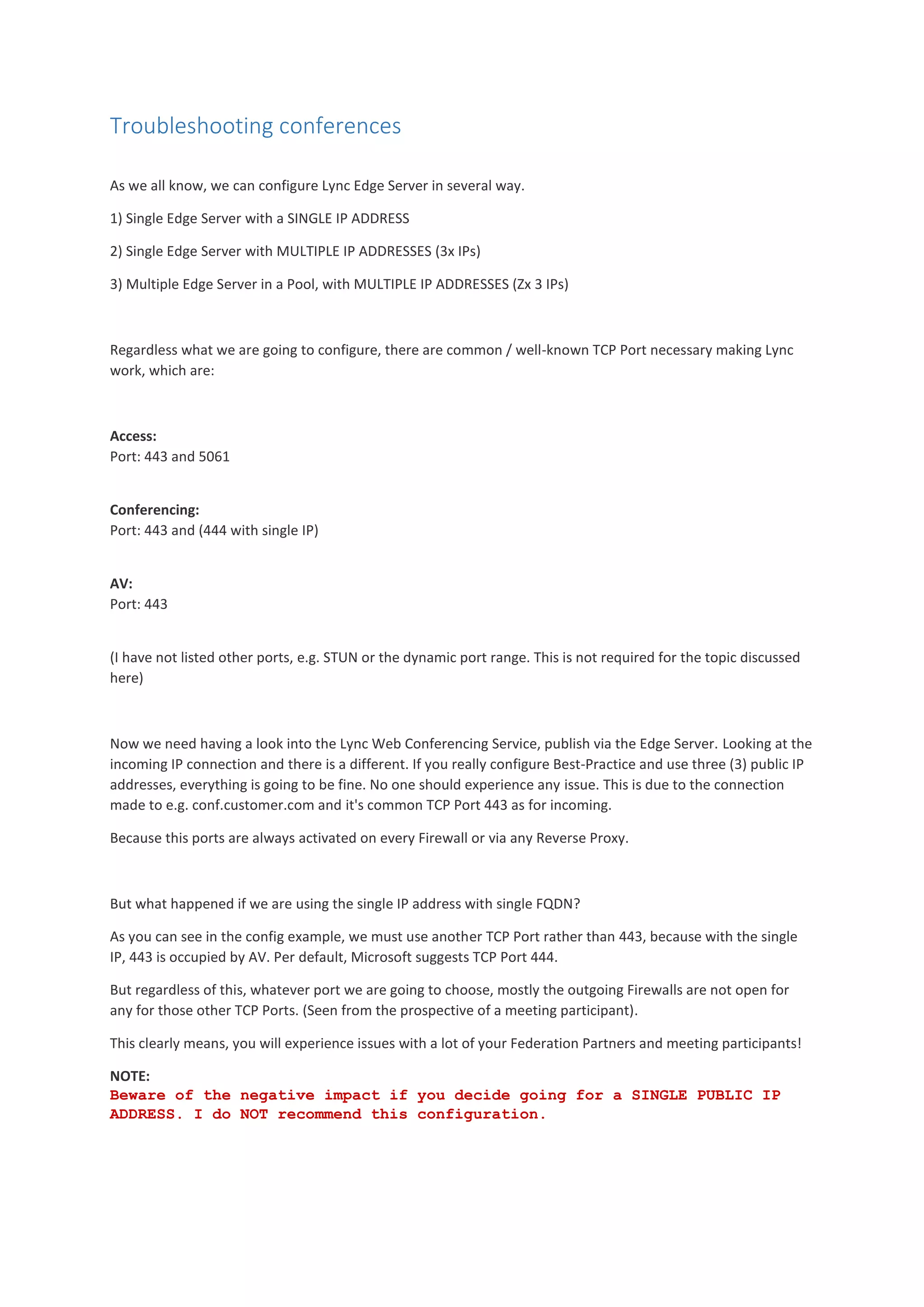

Troubleshooting conferences................................................................................................................ 96

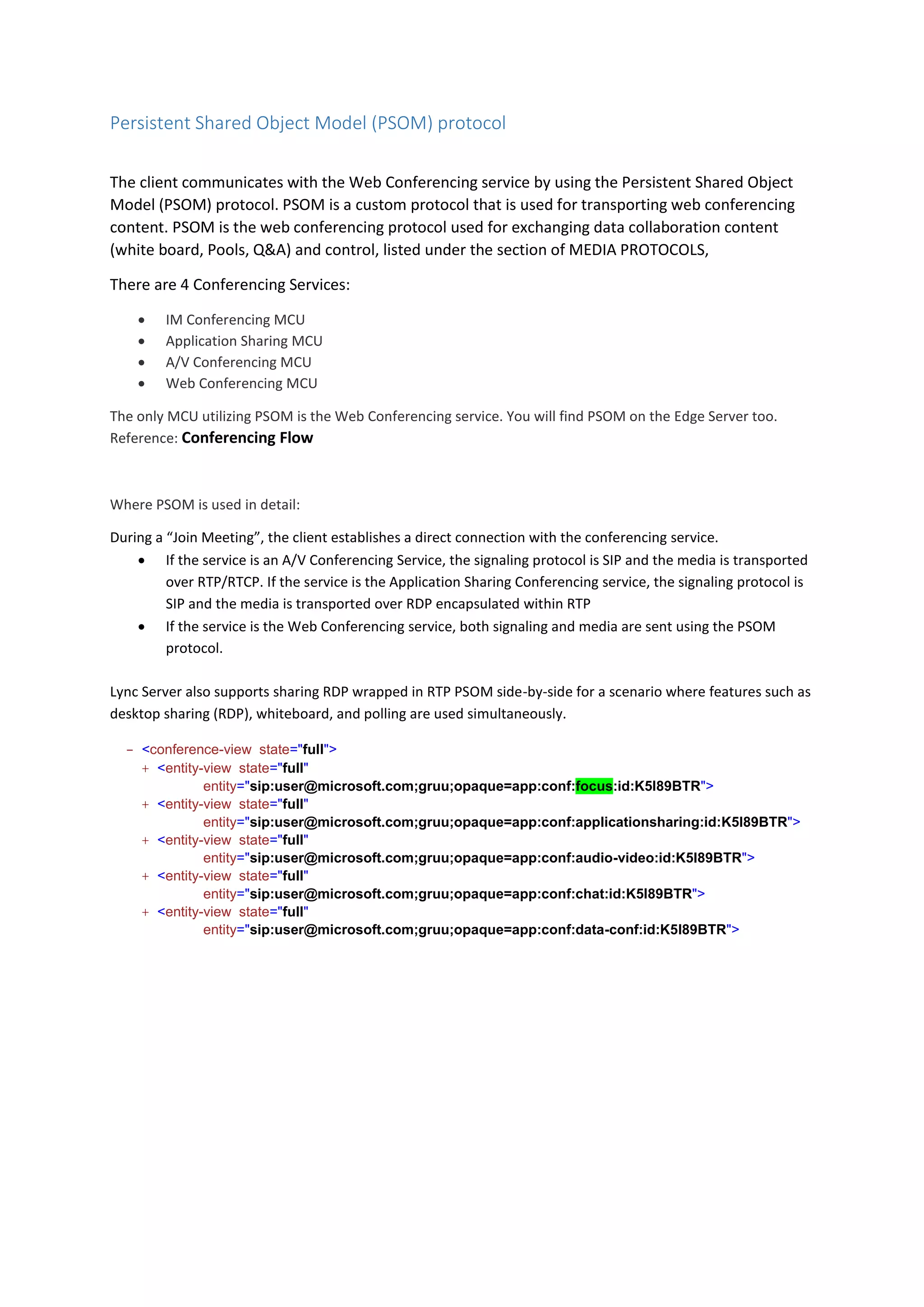

Persistent Shared Object Model (PSOM) protocol............................................................................ 97

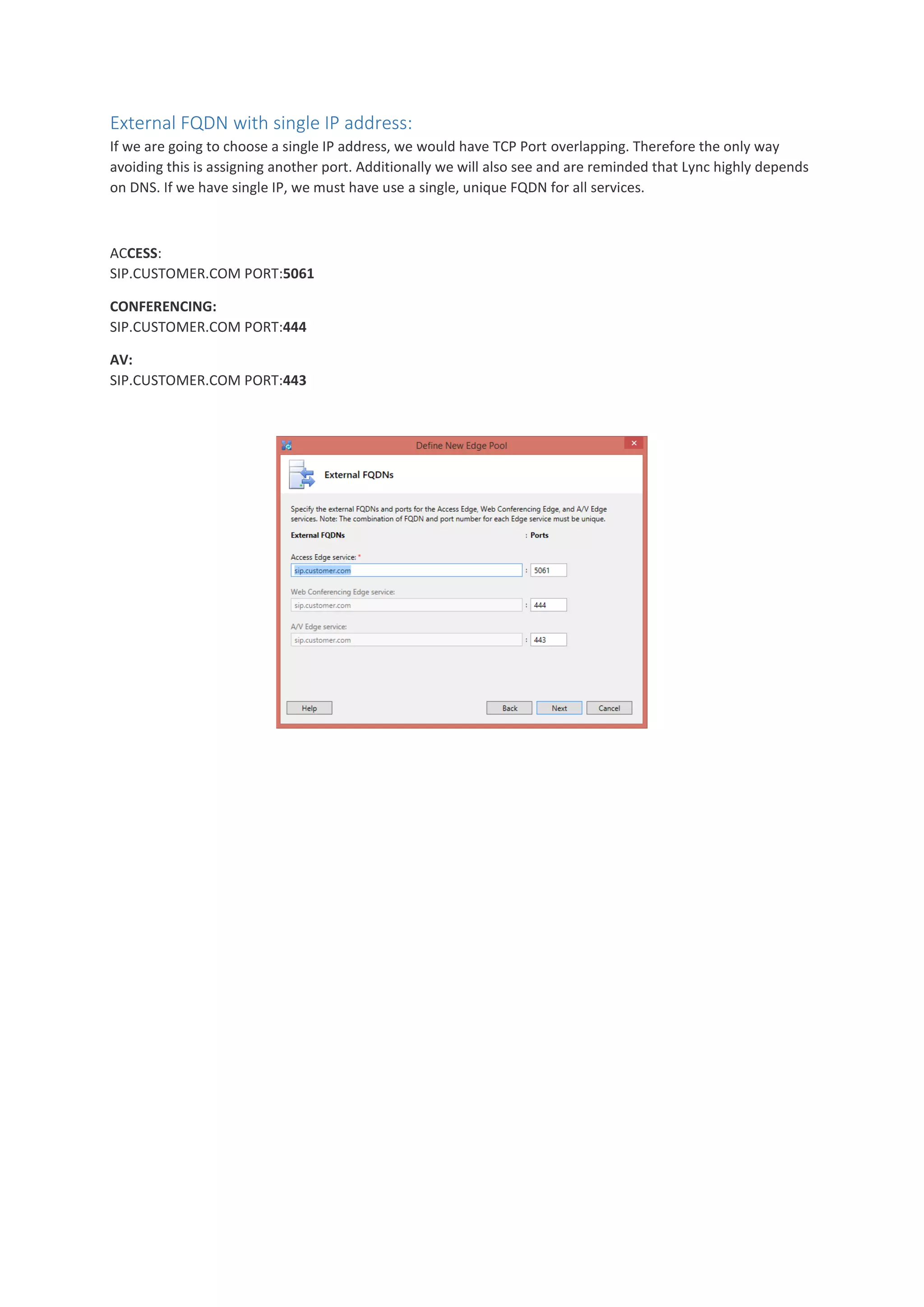

External FQDN with single IP address: .............................................................................................. 98

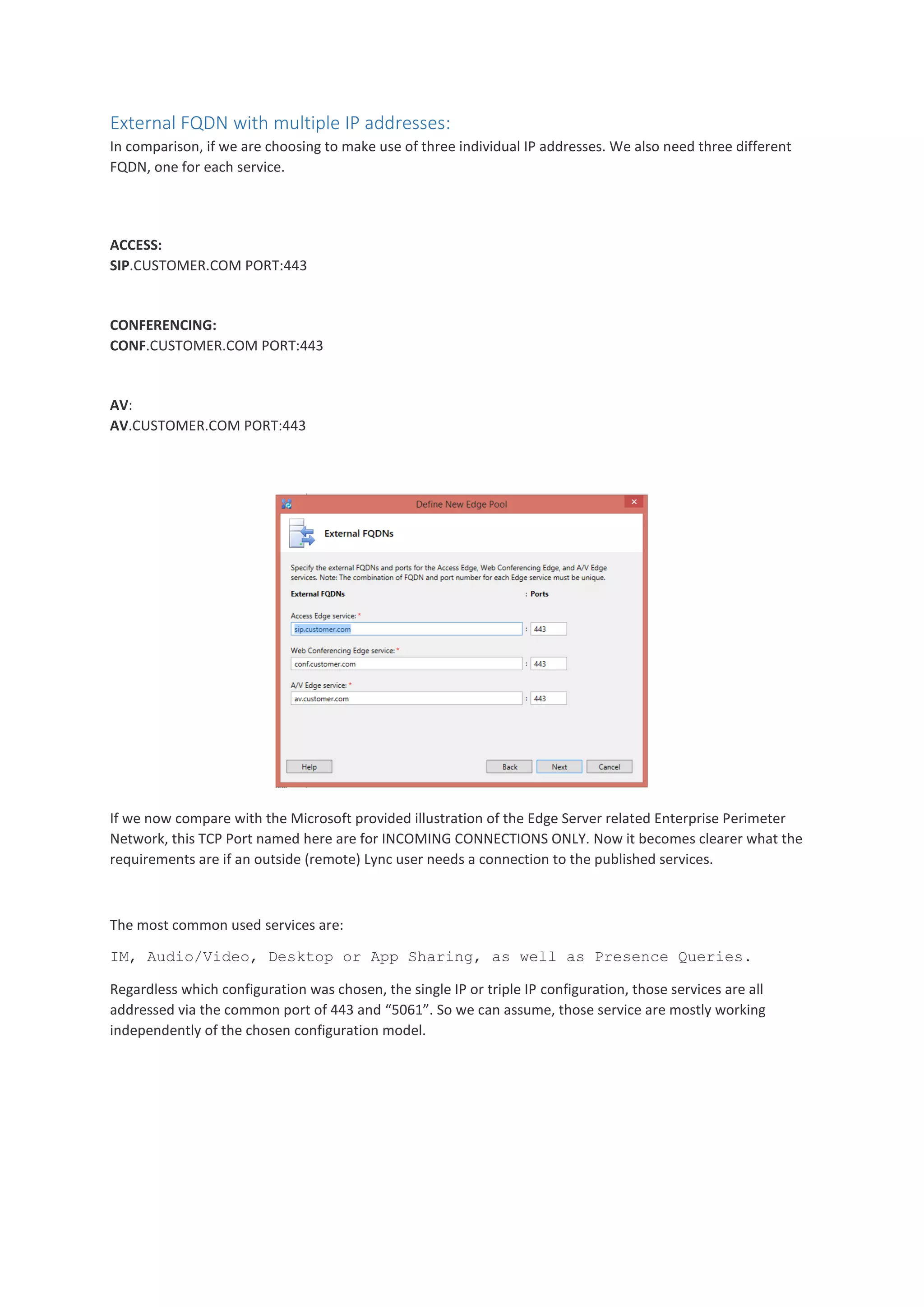

External FQDN with multiple IP addresses:....................................................................................... 99

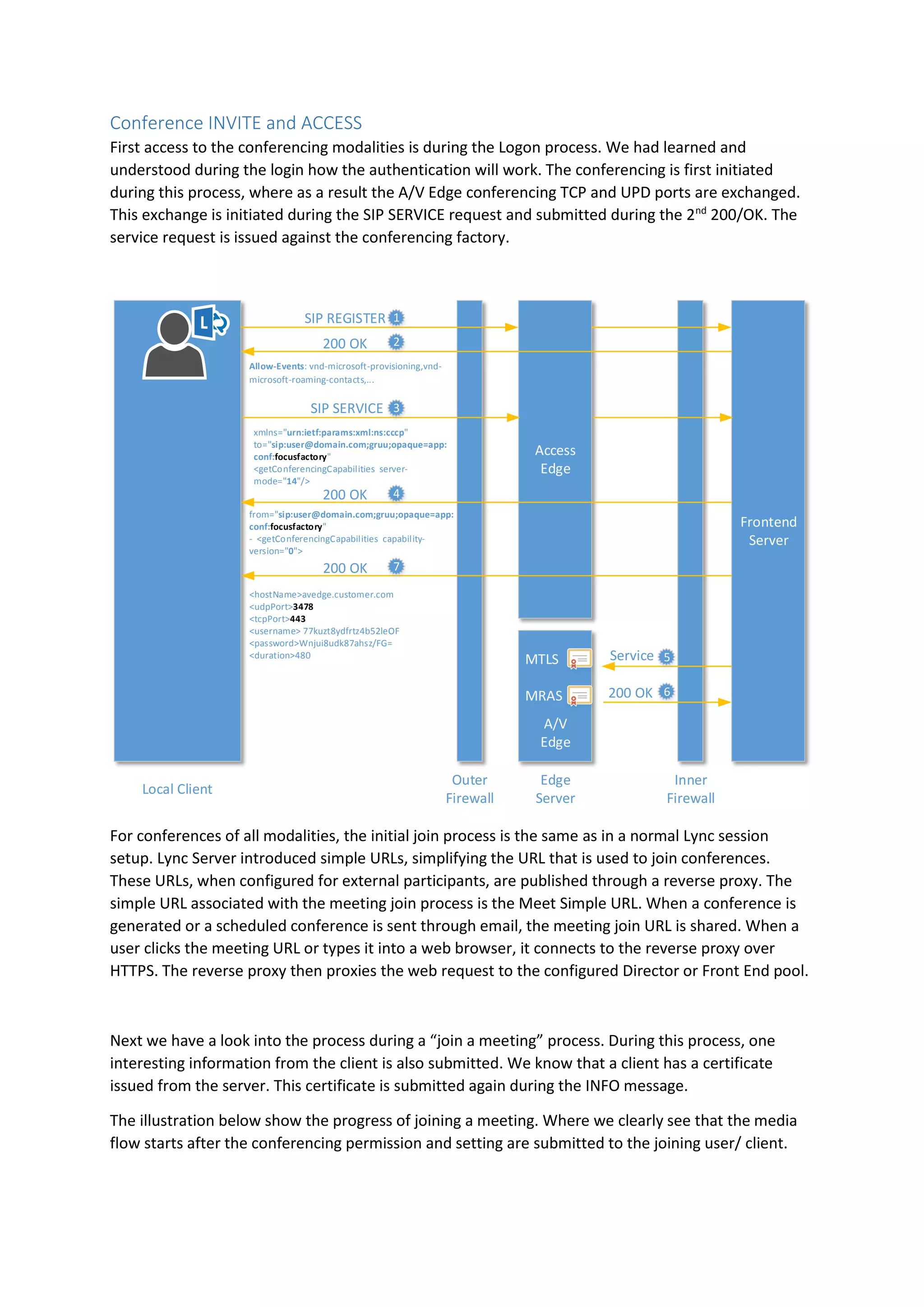

Conference INVITE and ACCESS....................................................................................................... 100

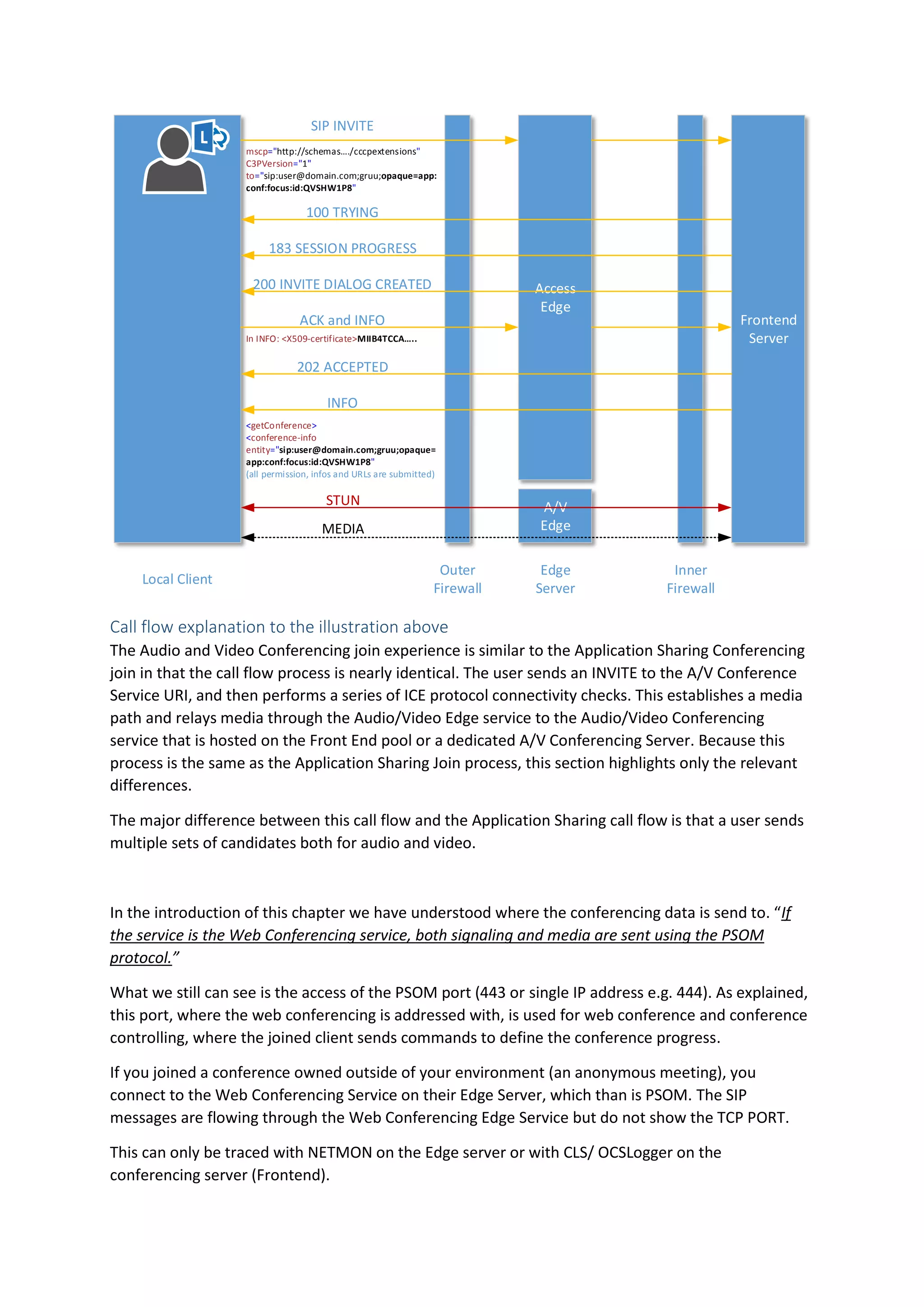

Call flow explanation to the illustration above ........................................................................... 101

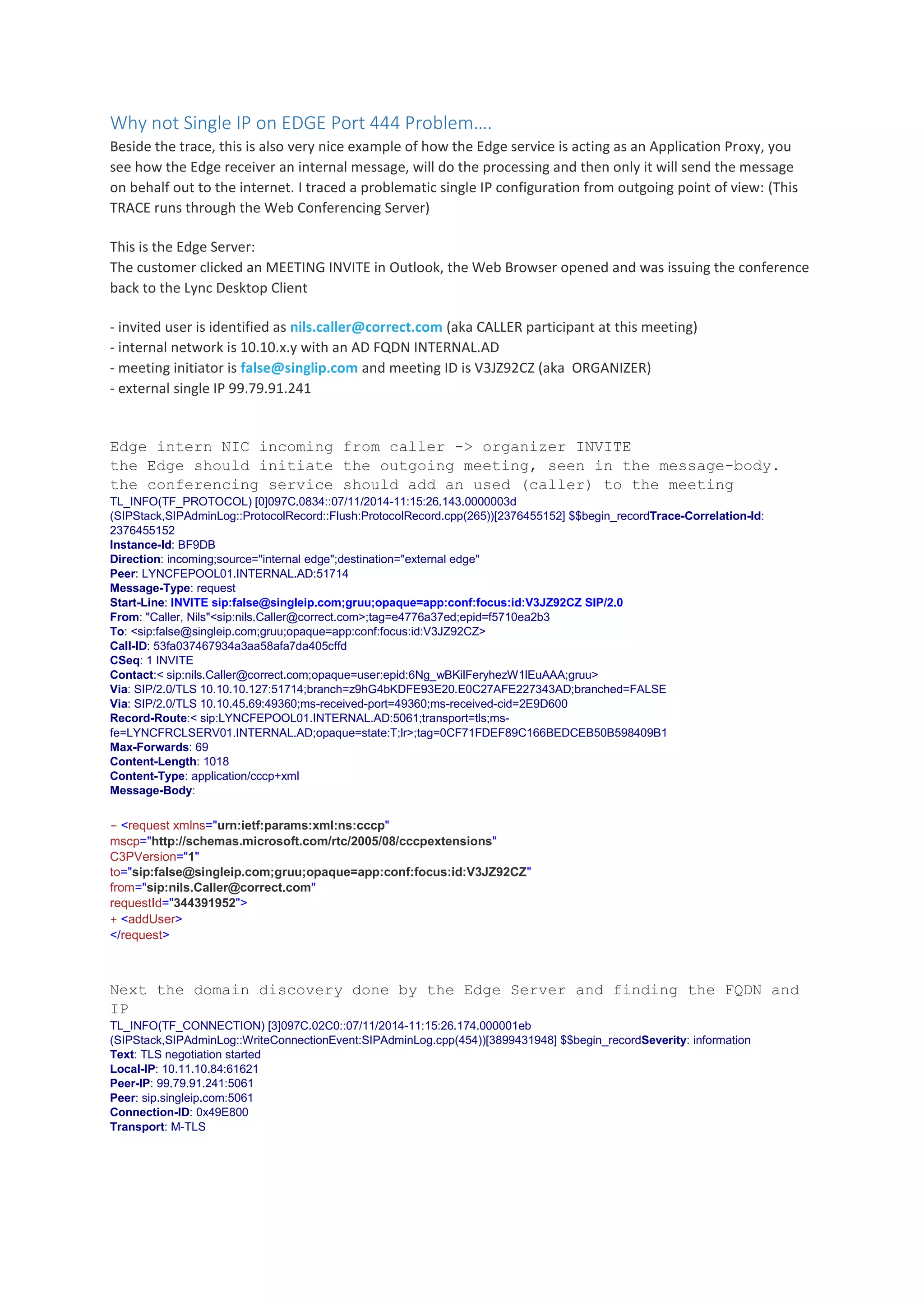

Why not Single IP on EDGE Port 444 Problem….............................................................................. 102

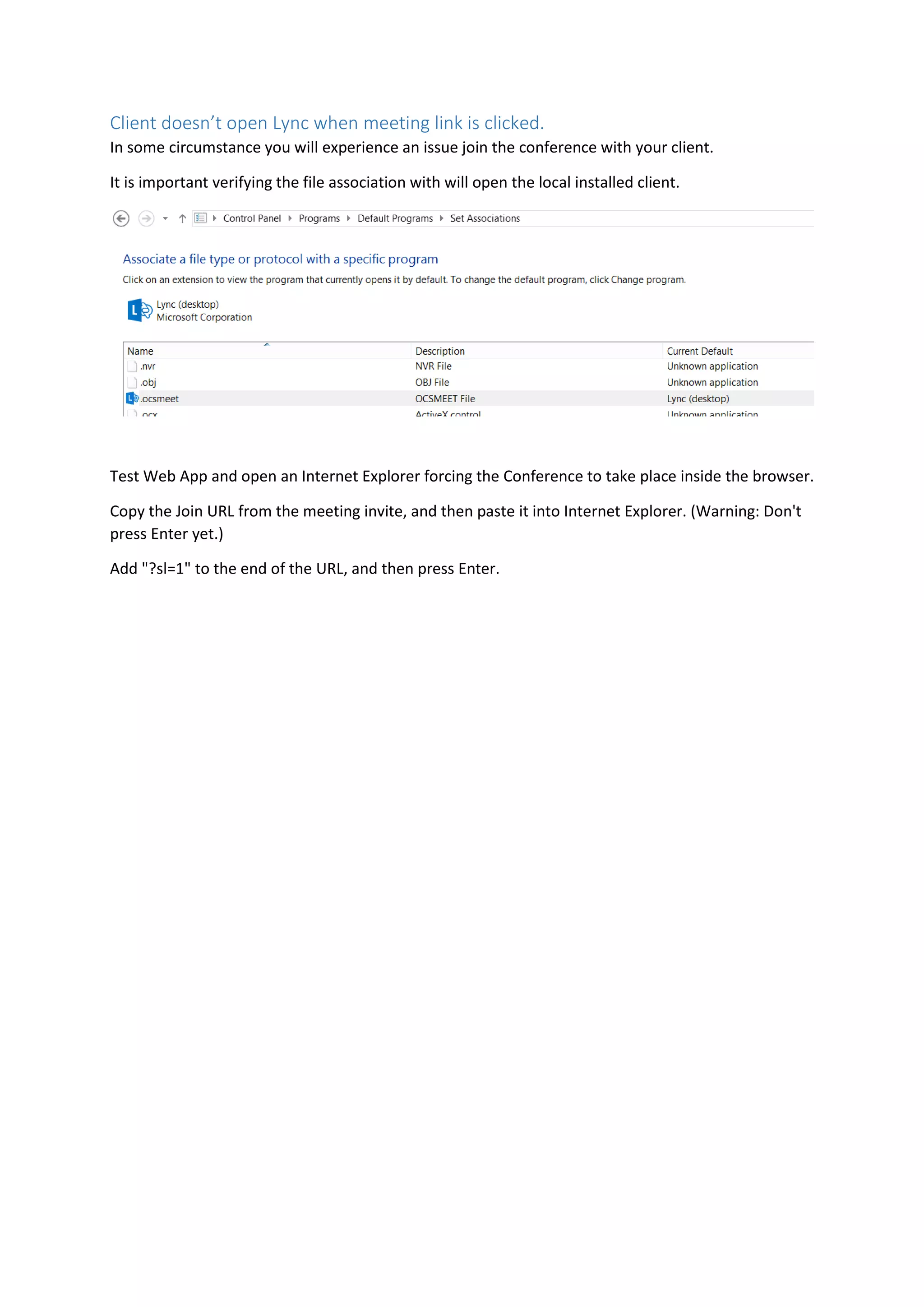

Client doesn’t open Lync when meeting link is clicked................................................................... 108

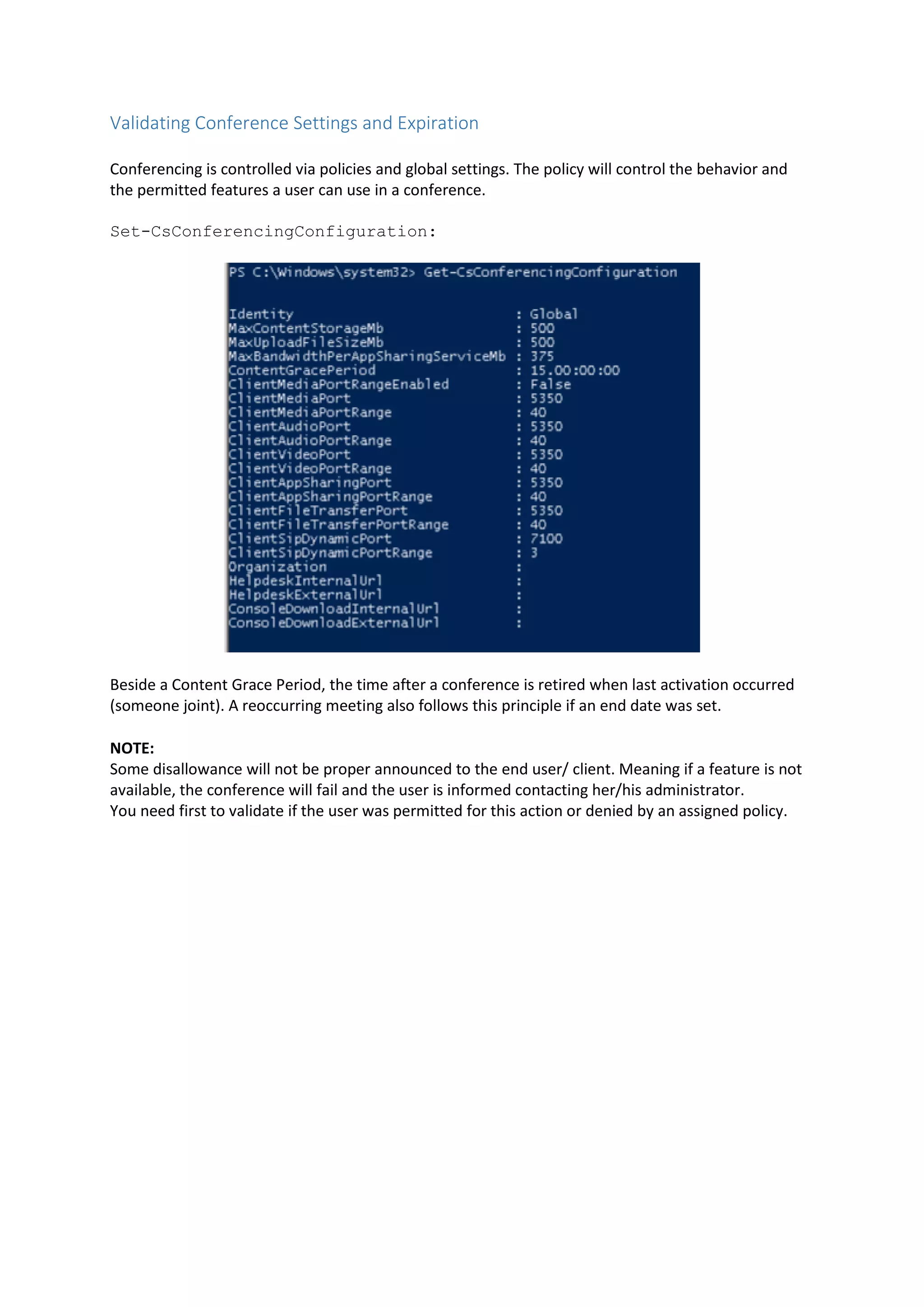

Validating Conference Settings and Expiration............................................................................... 109

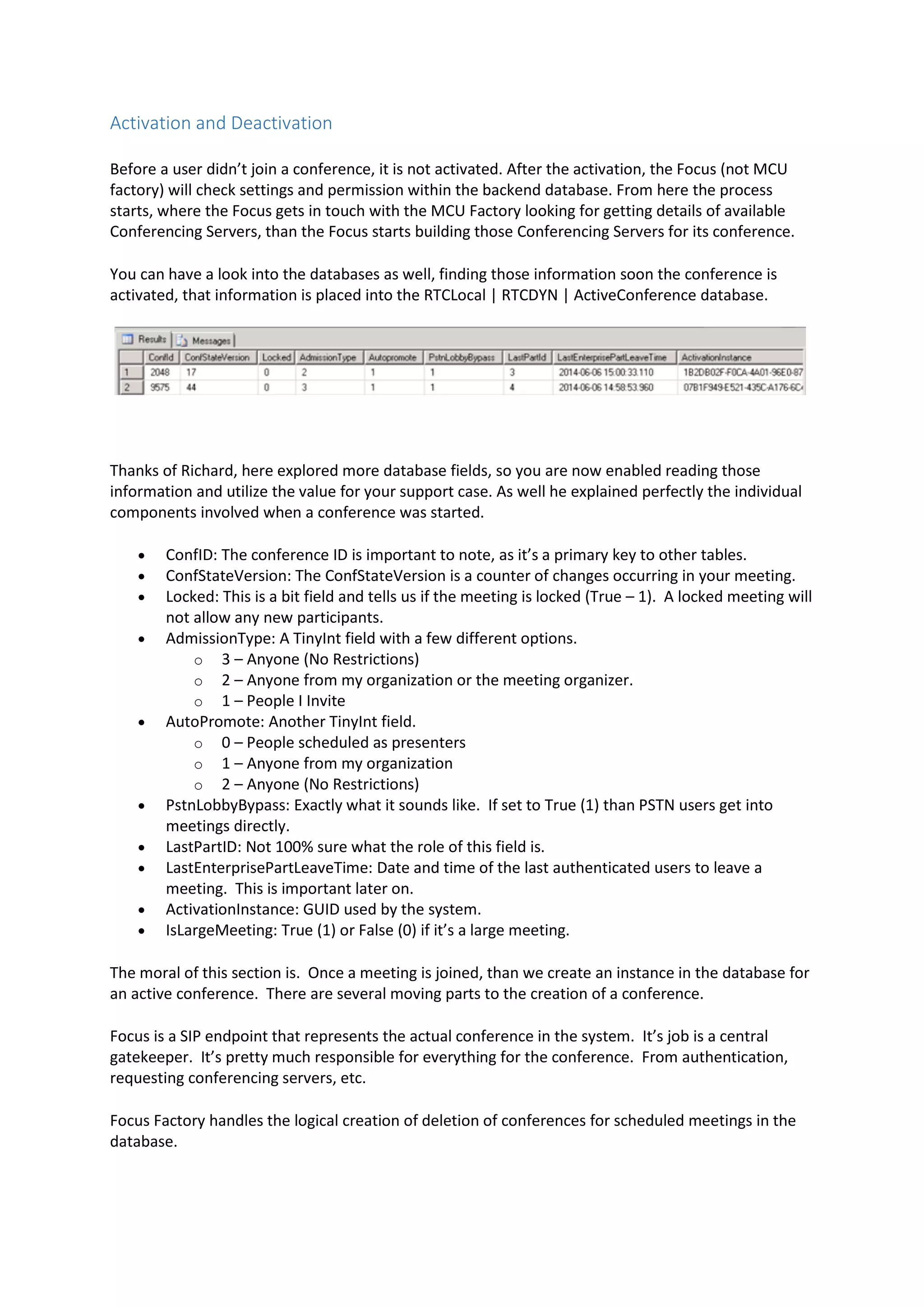

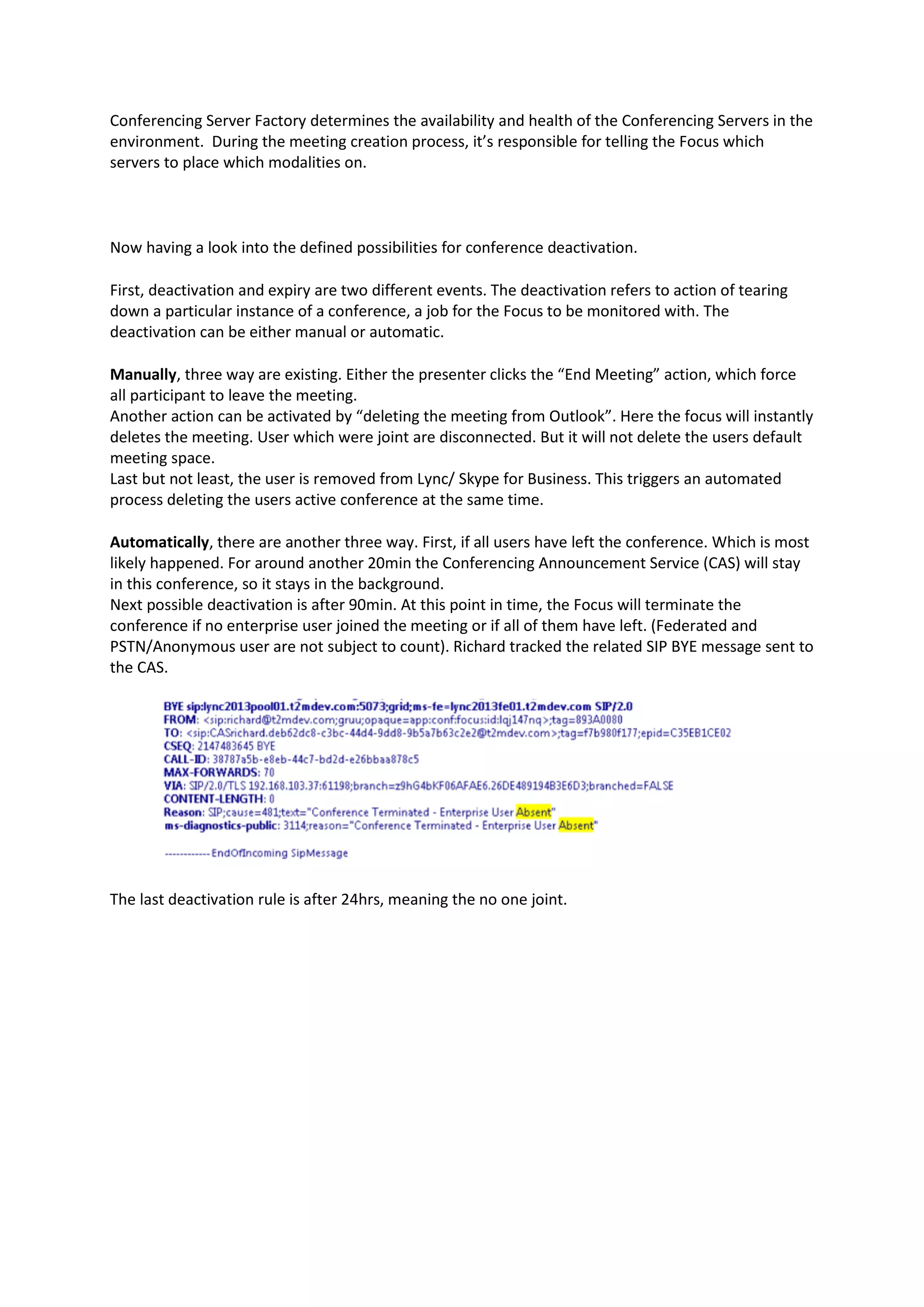

Activation and Deactivation ............................................................................................................ 110

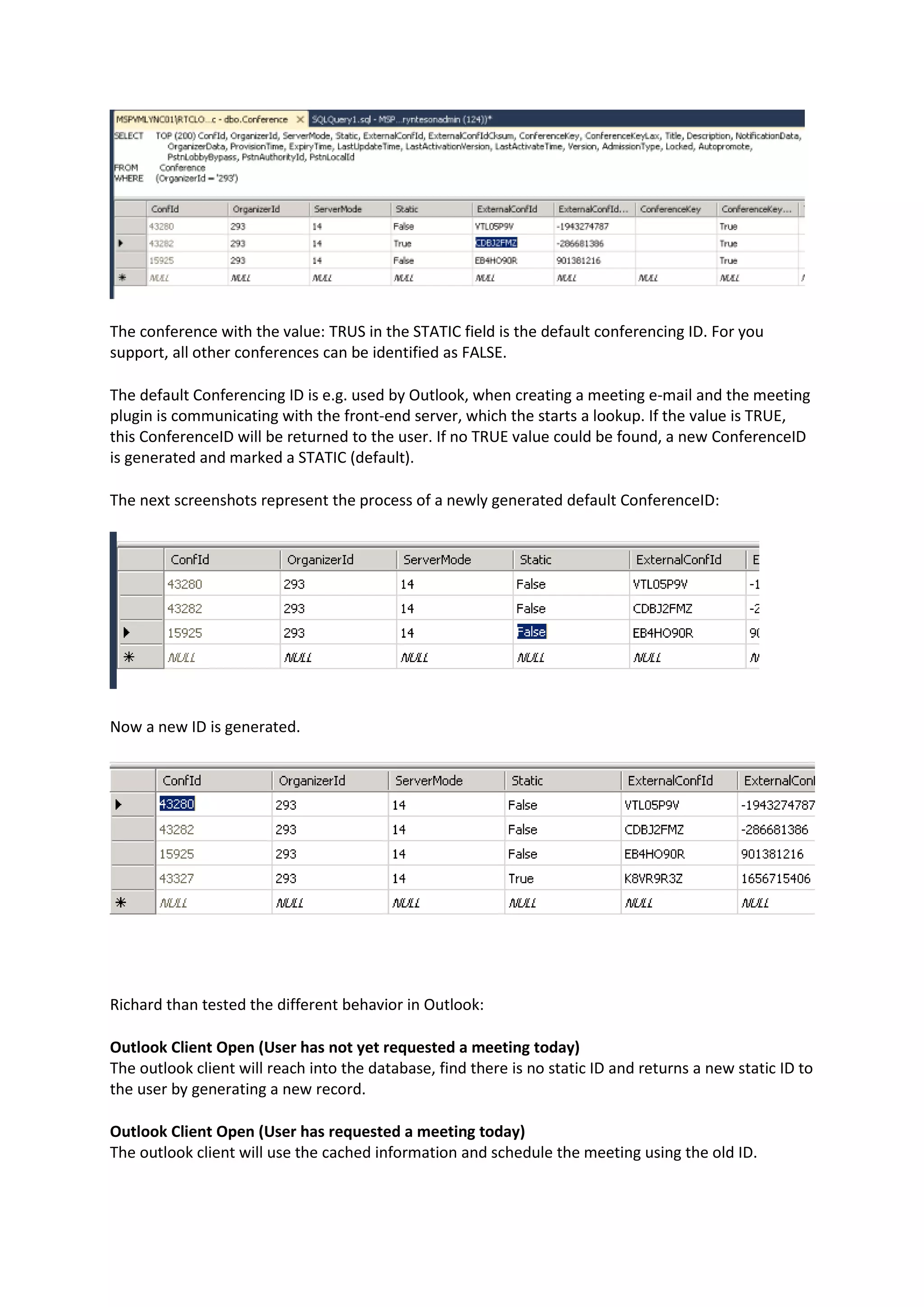

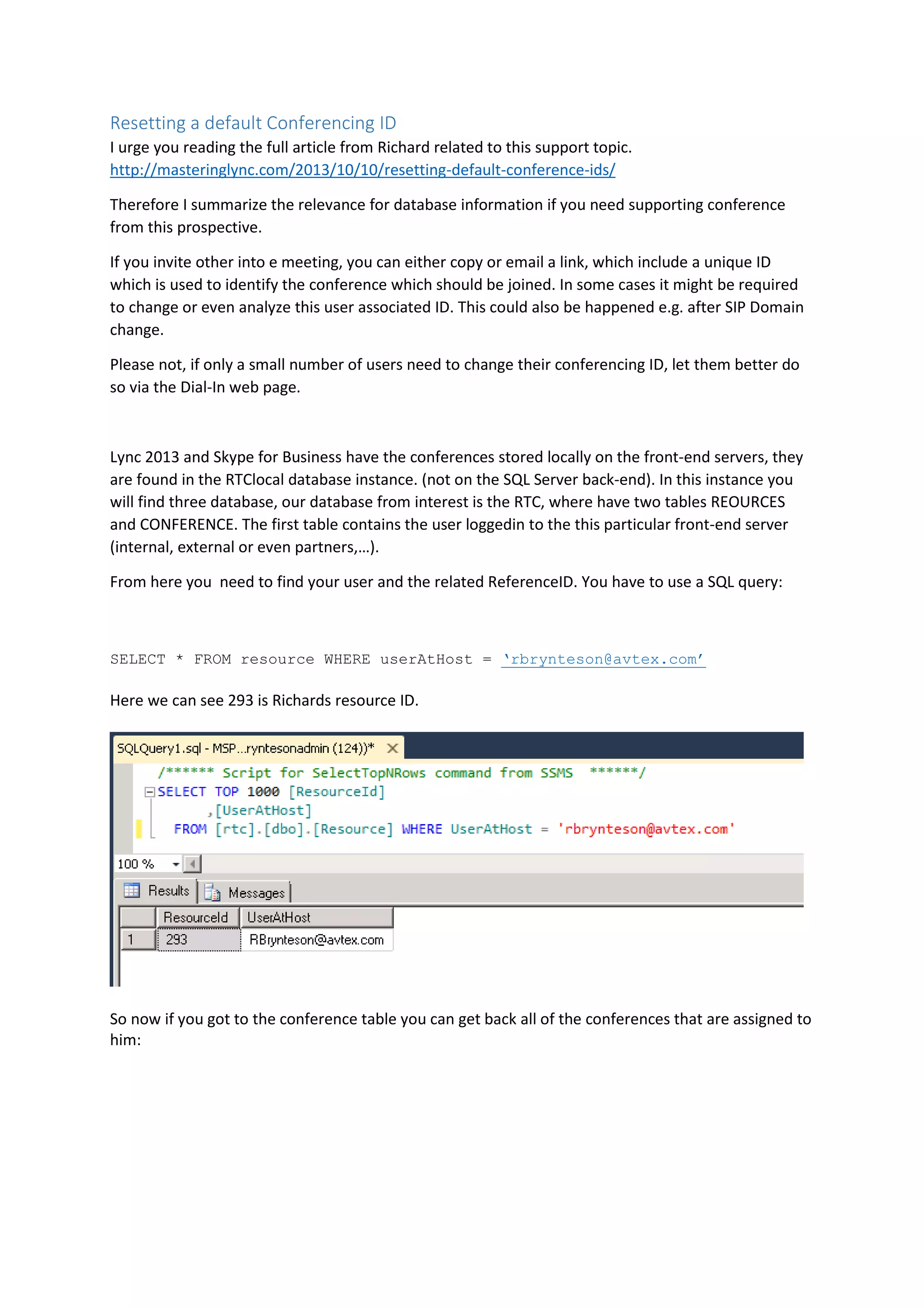

Resetting a default Conferencing ID................................................................................................ 112

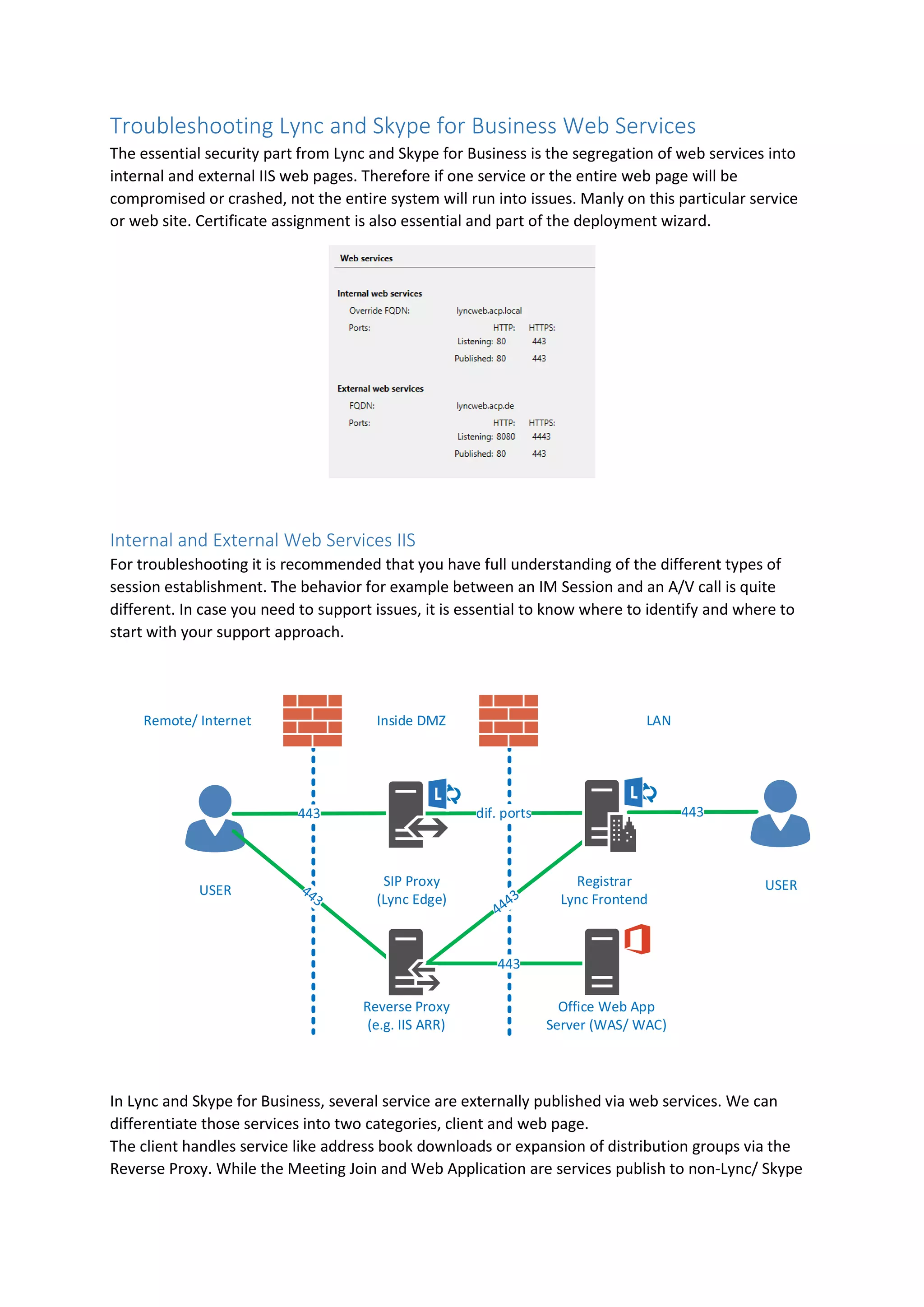

Troubleshooting Lync and Skype for Business Web Services.............................................................. 115

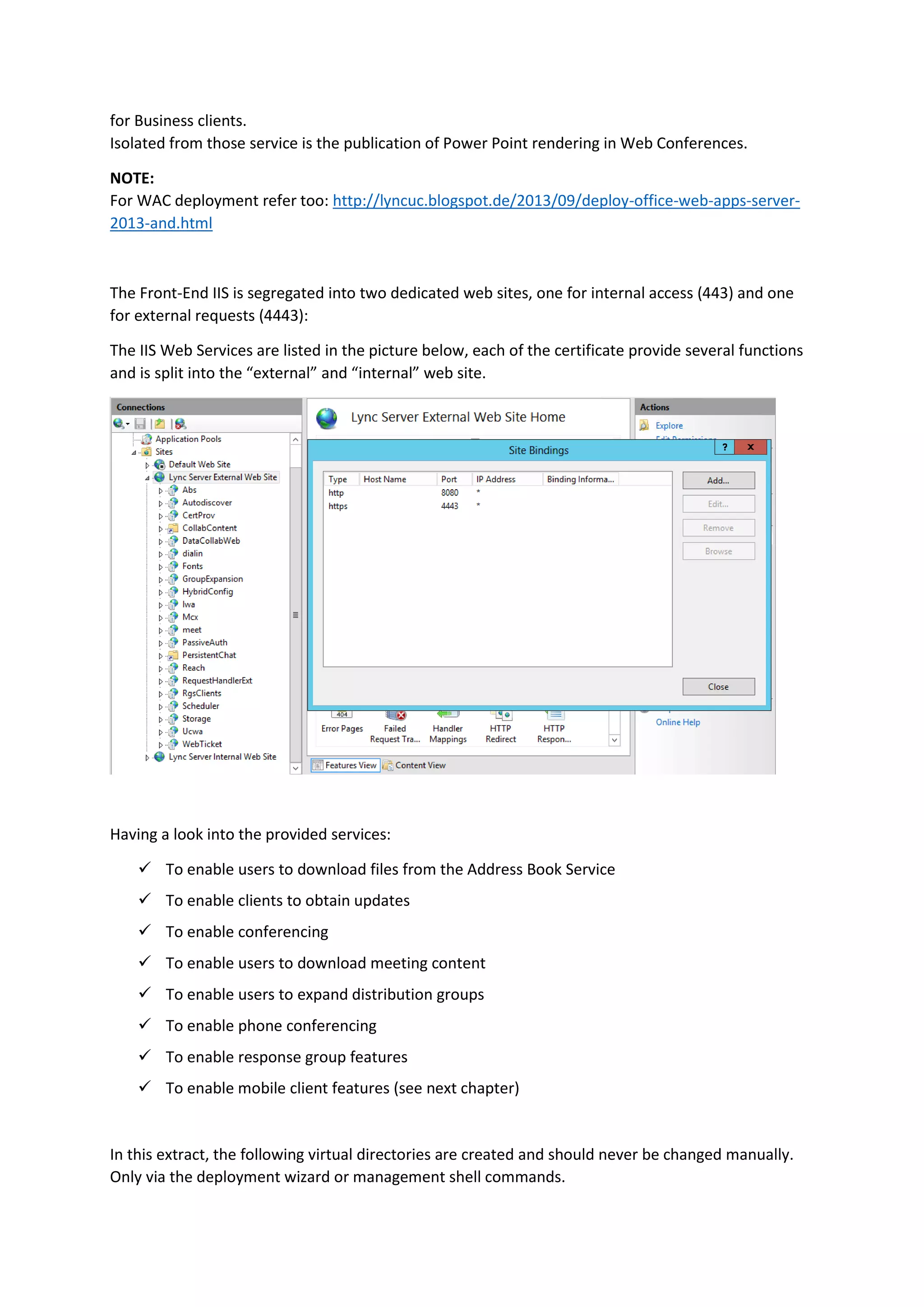

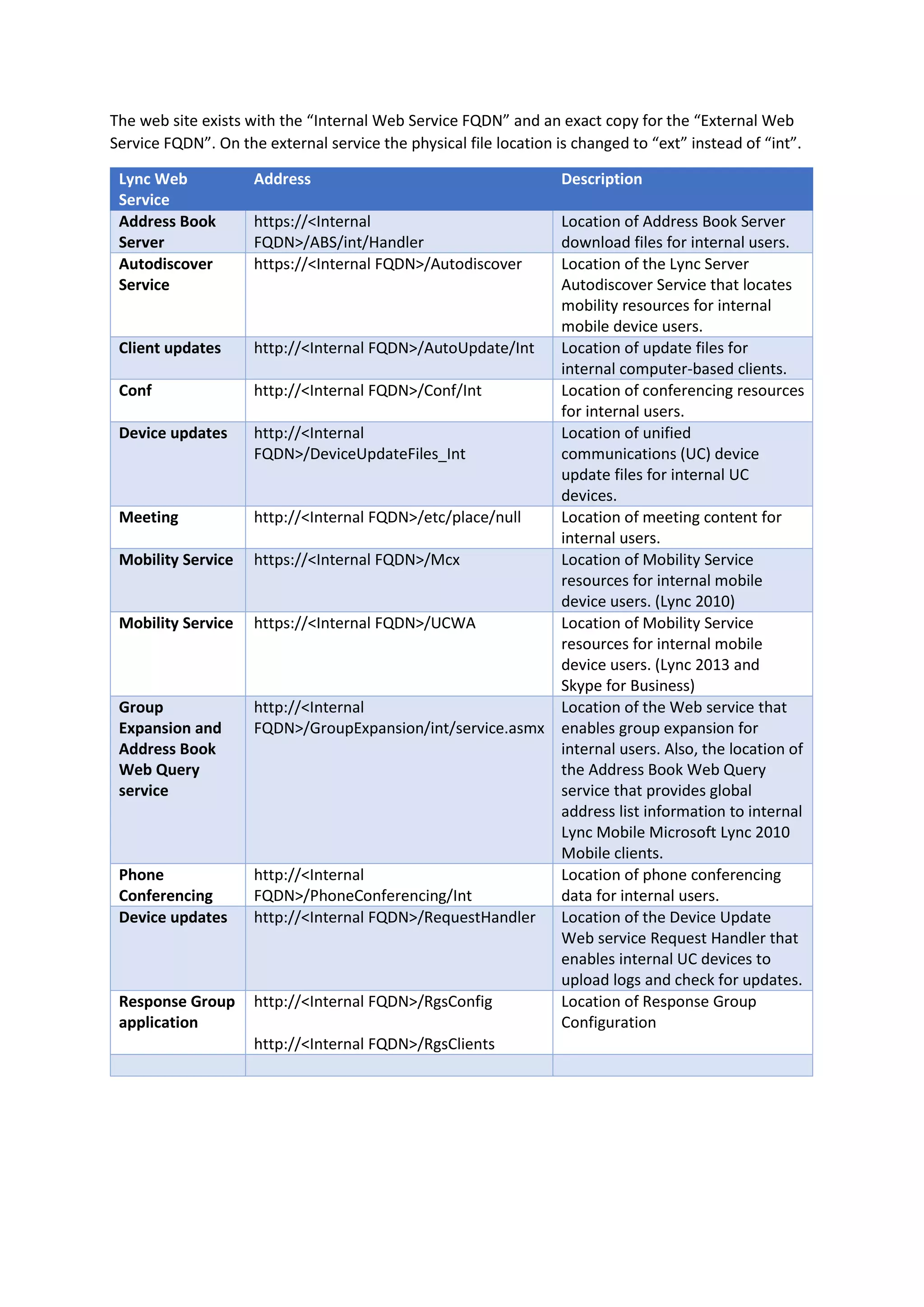

Internal and External Web Services IIS............................................................................................ 115

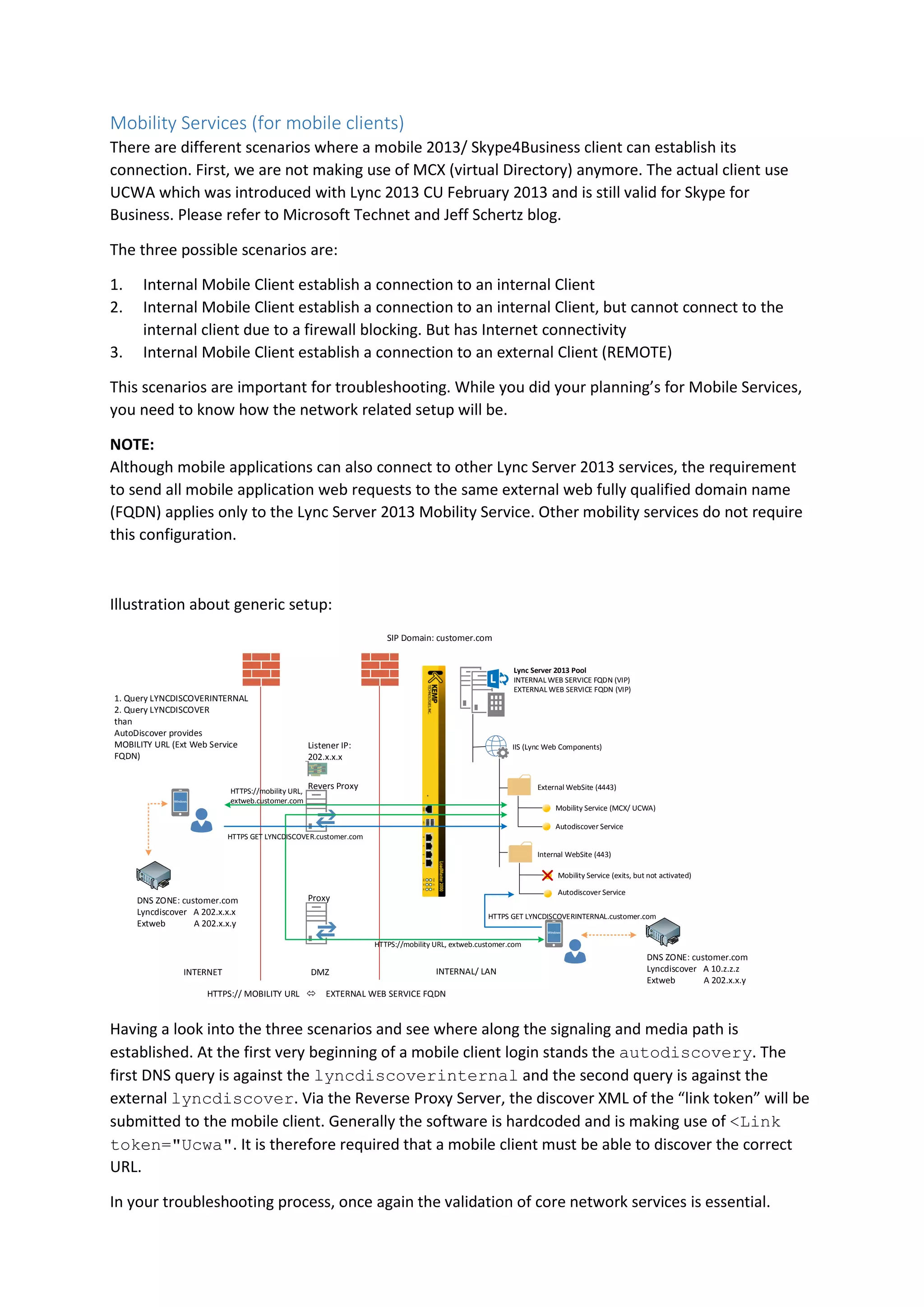

Mobility Services (for mobile clients).............................................................................................. 118

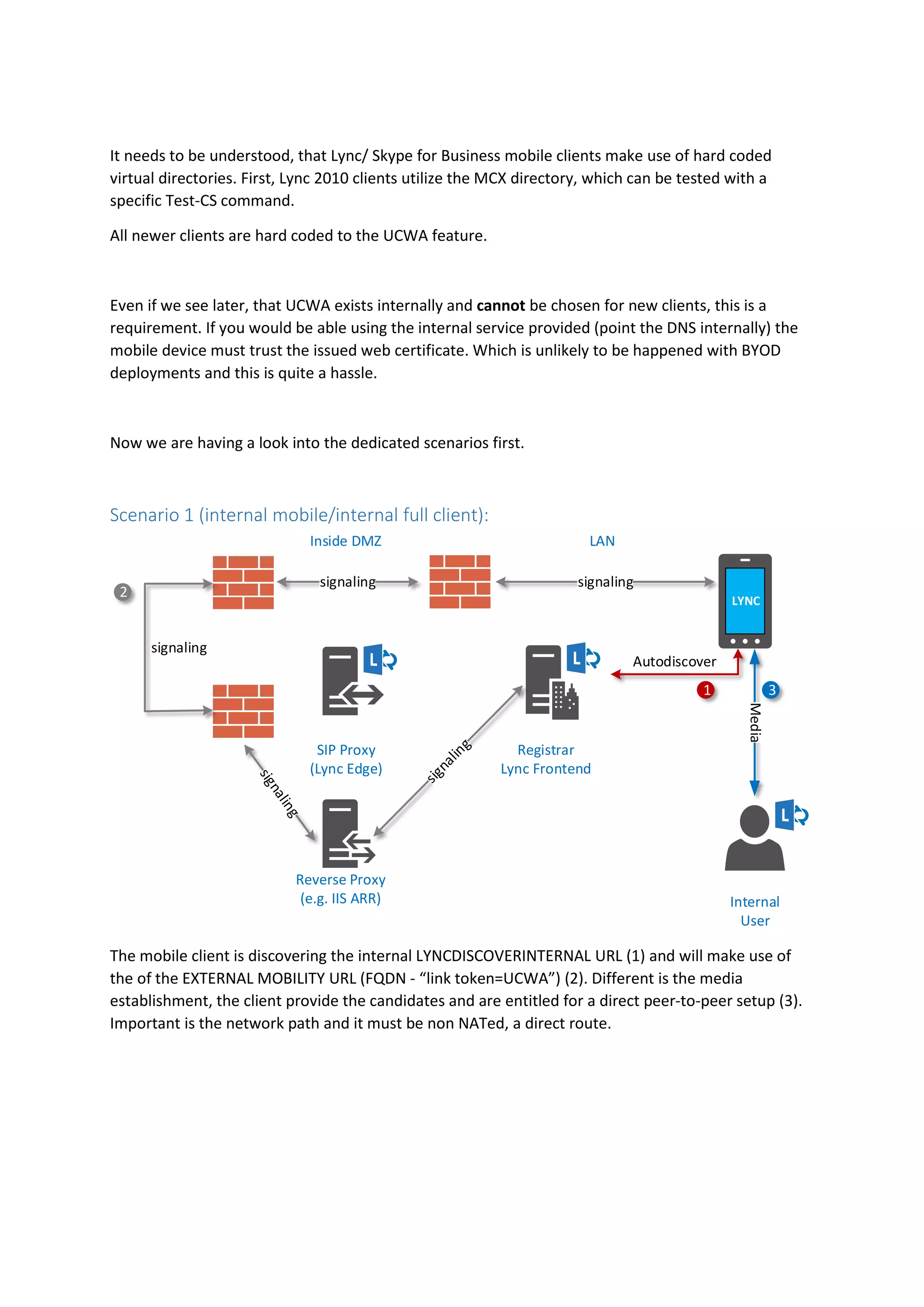

Scenario 1 (internal mobile/internal full client):............................................................................. 119

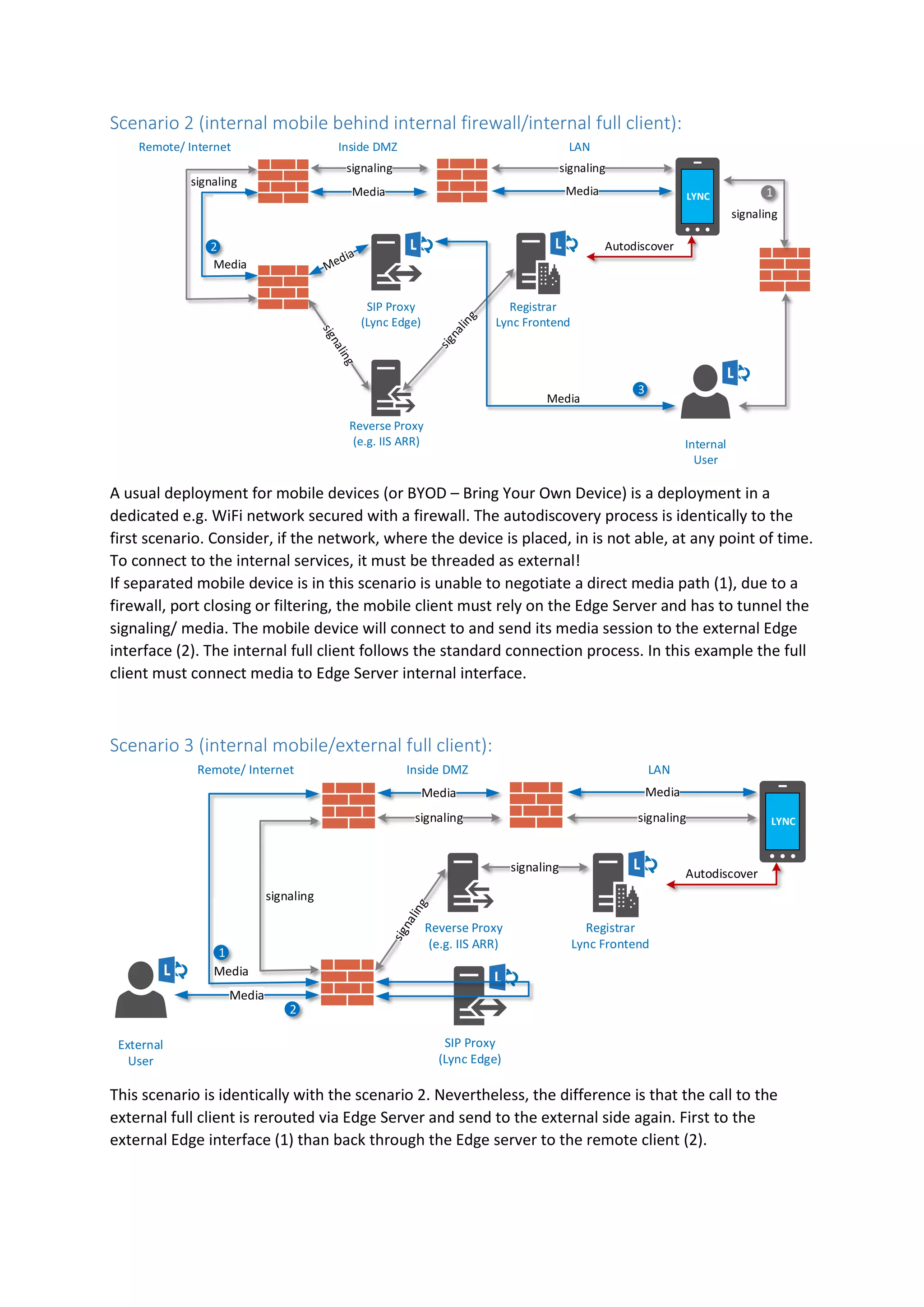

Scenario 2 (internal mobile behind internal firewall/internal full client): ...................................... 120
Scenario 3 (internal mobile/external full client): ............................................................................ 120

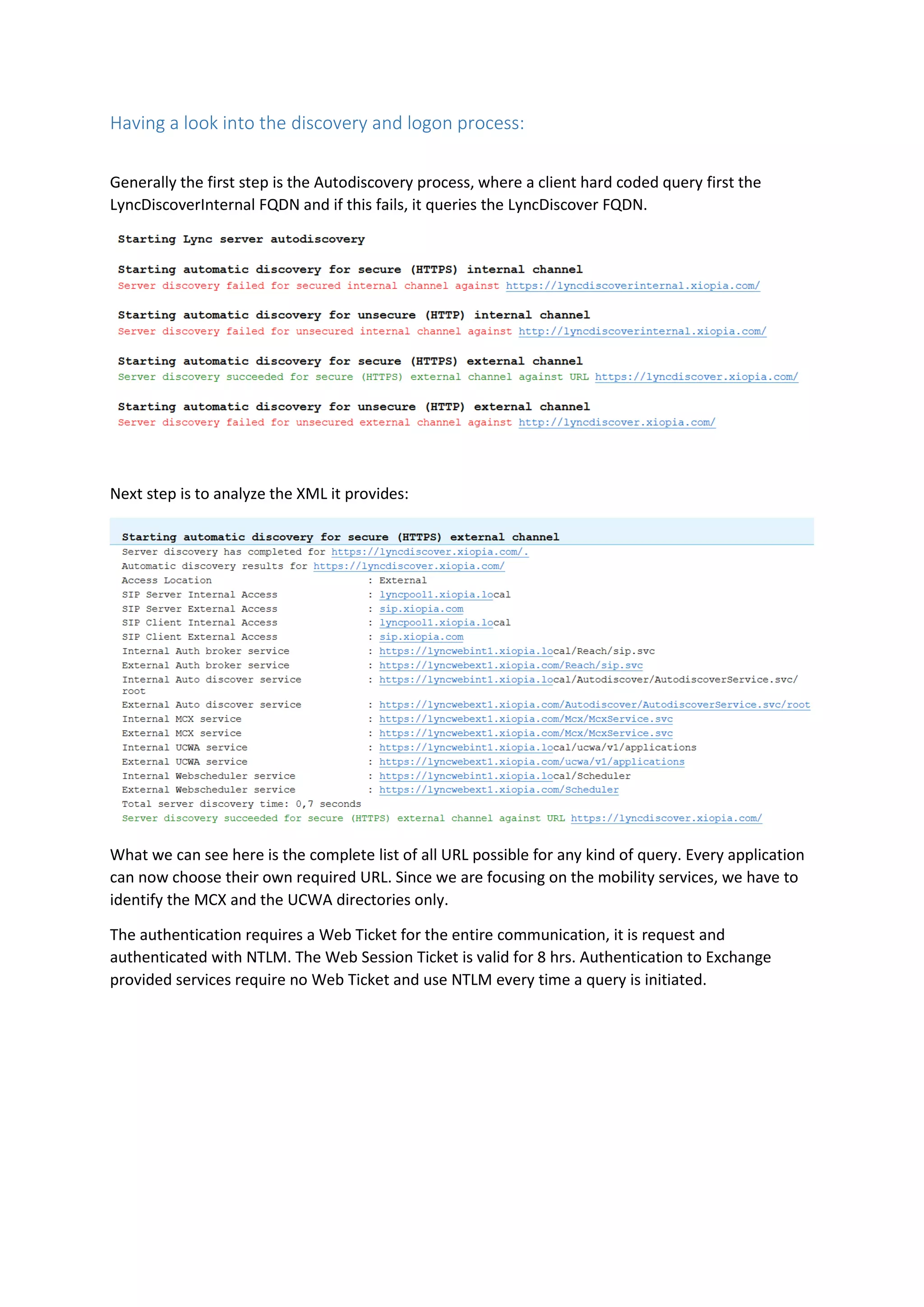

Having a look into the discovery and logon process:...................................................................... 121

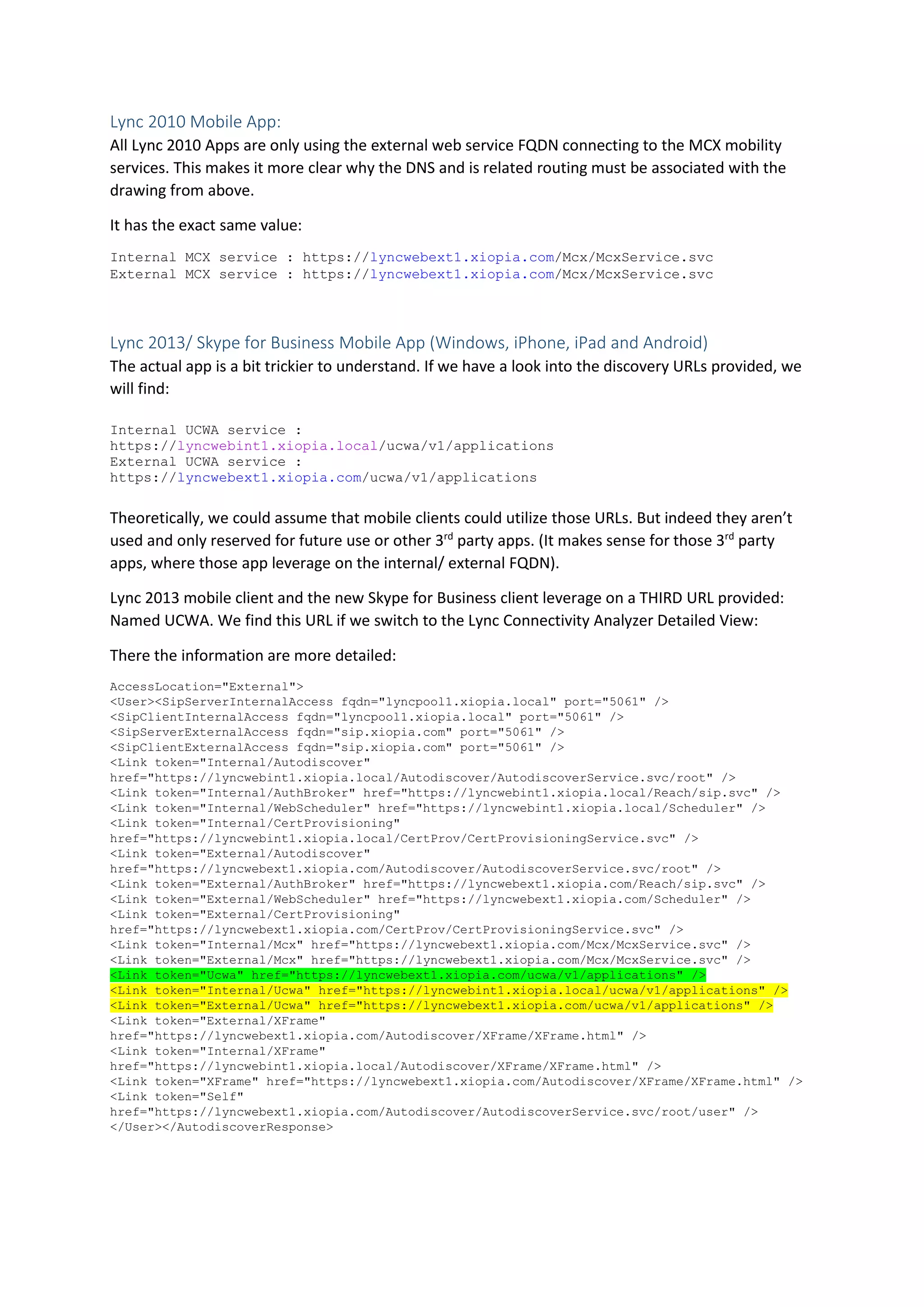

Lync 2010 Mobile App:................................................................................................................ 122
Lync 2013/ Skype for Business Mobile App (Windows, iPhone, iPad and Android)................... 122

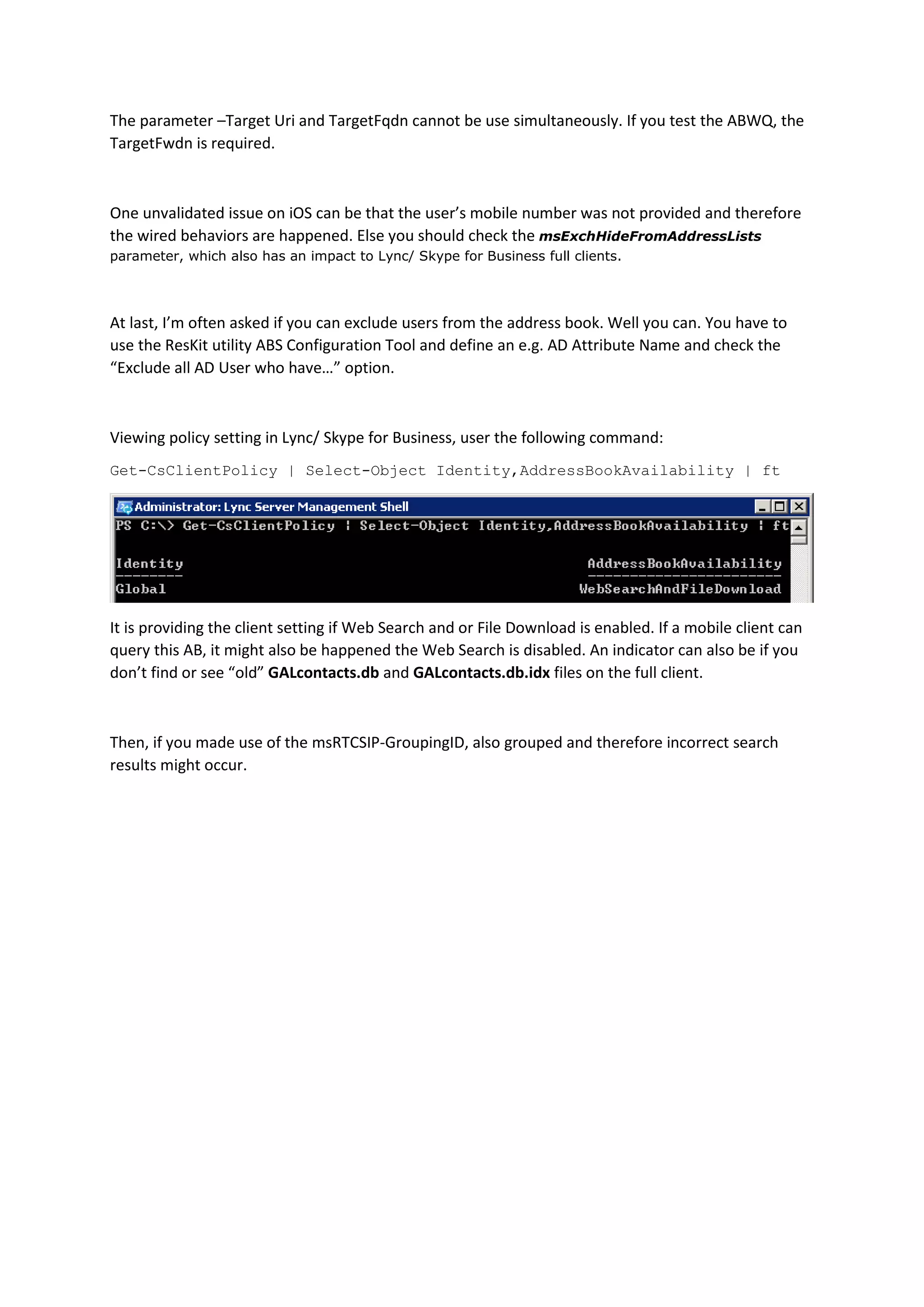

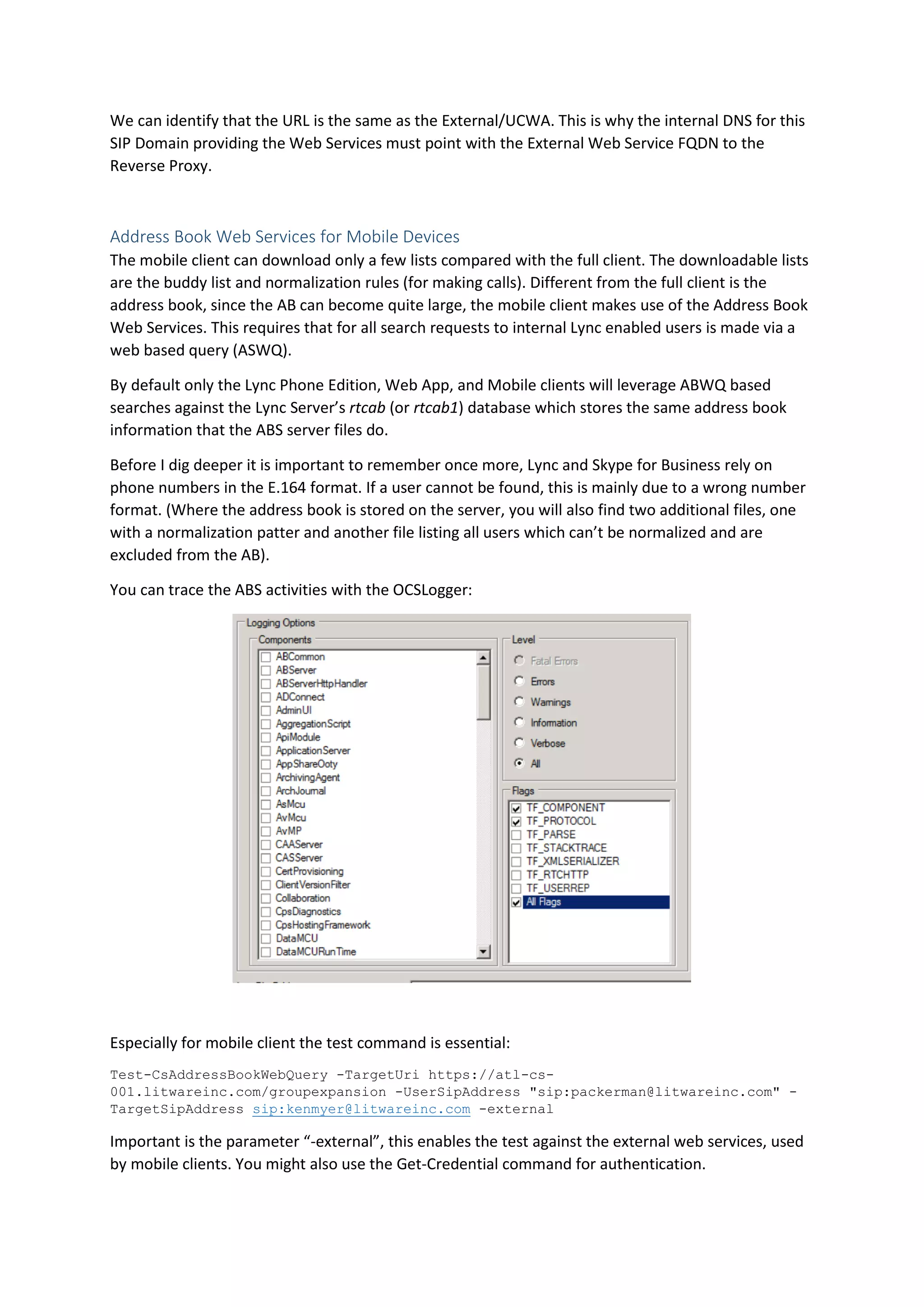

Address Book Web Services for Mobile Devices......................................................................... 123

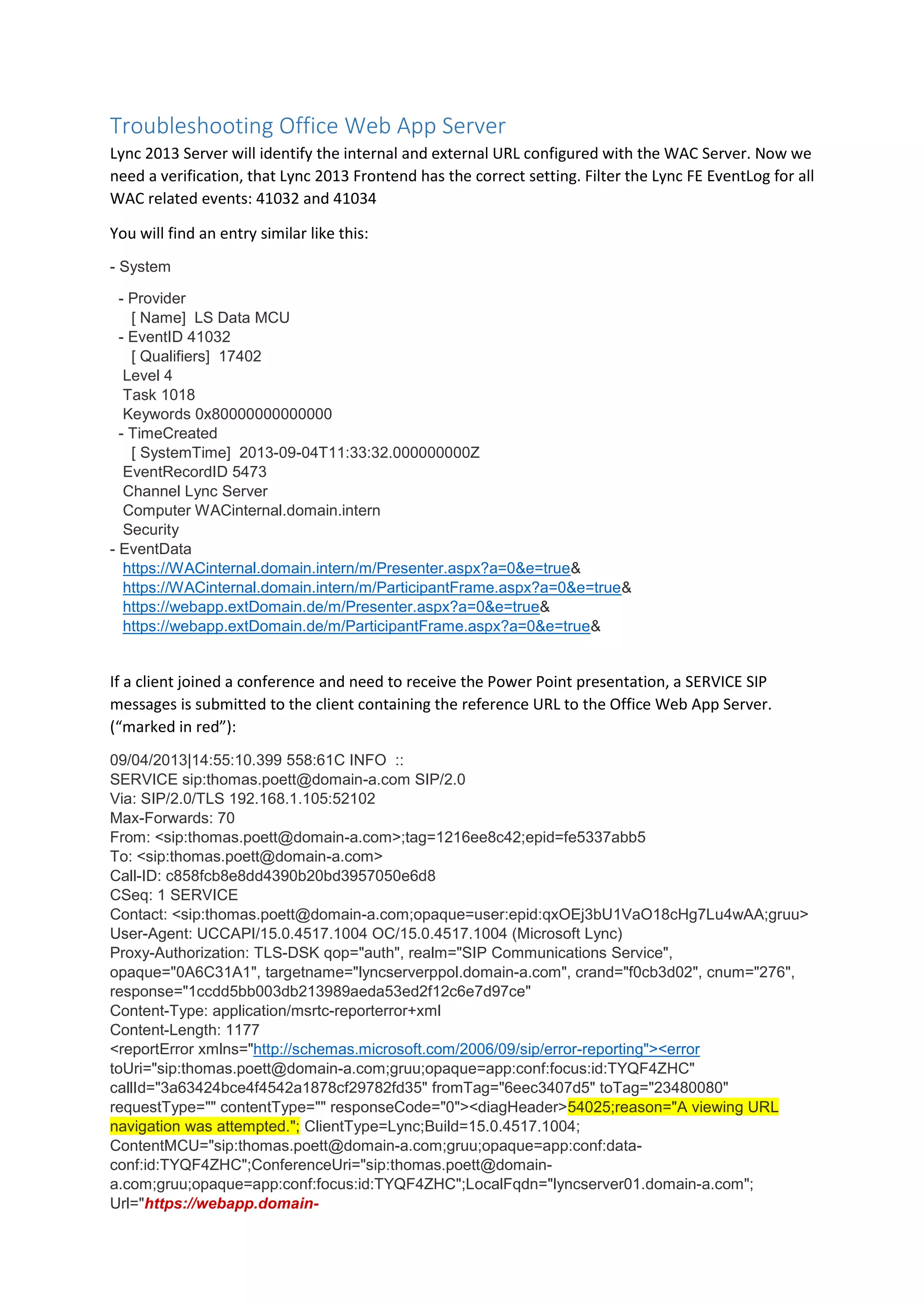

Troubleshooting Office Web App Server............................................................................................. 125

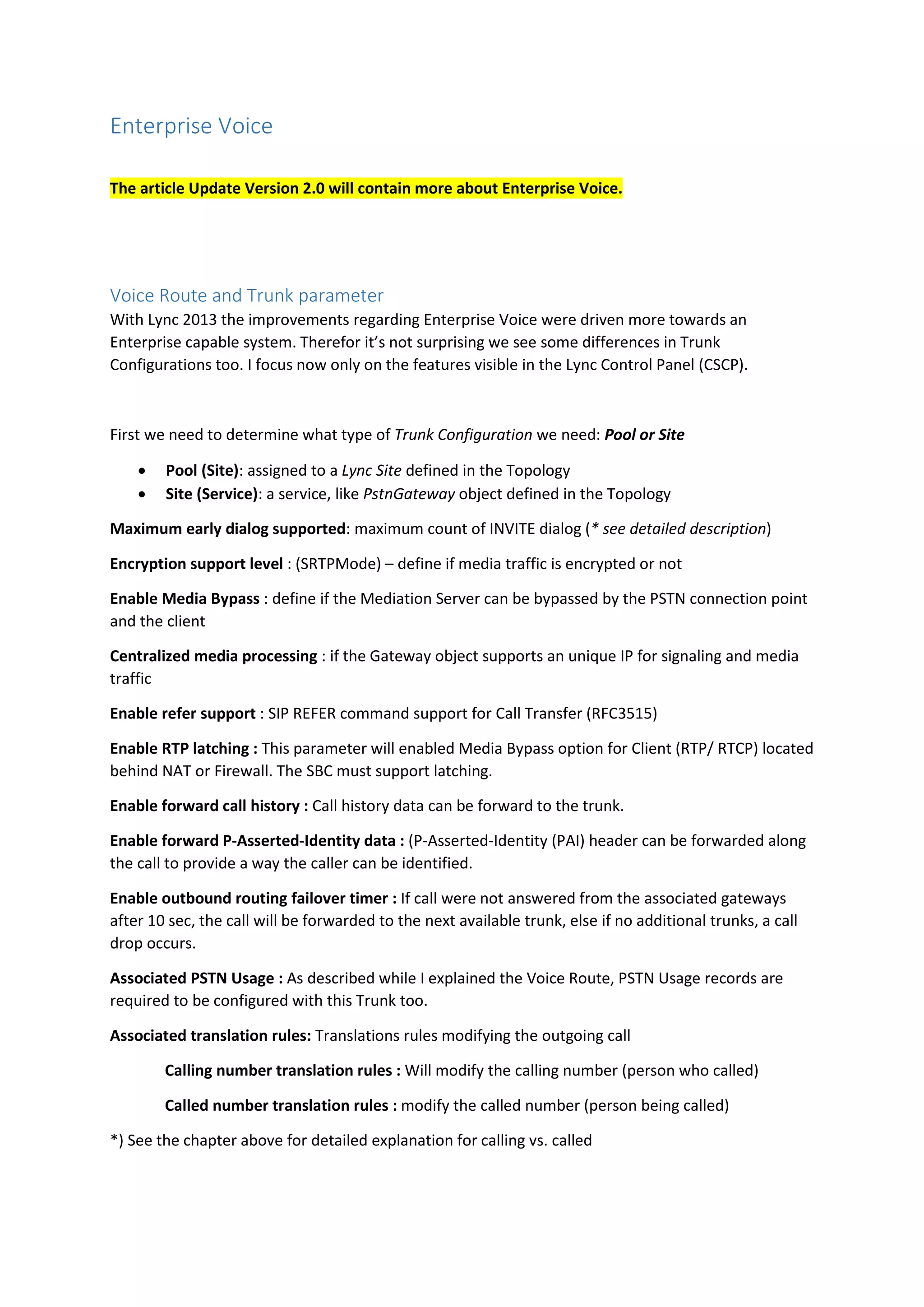

Enterprise Voice .................................................................................................................................. 128
Voice Route and Trunk parameter.................................................................................................. 128

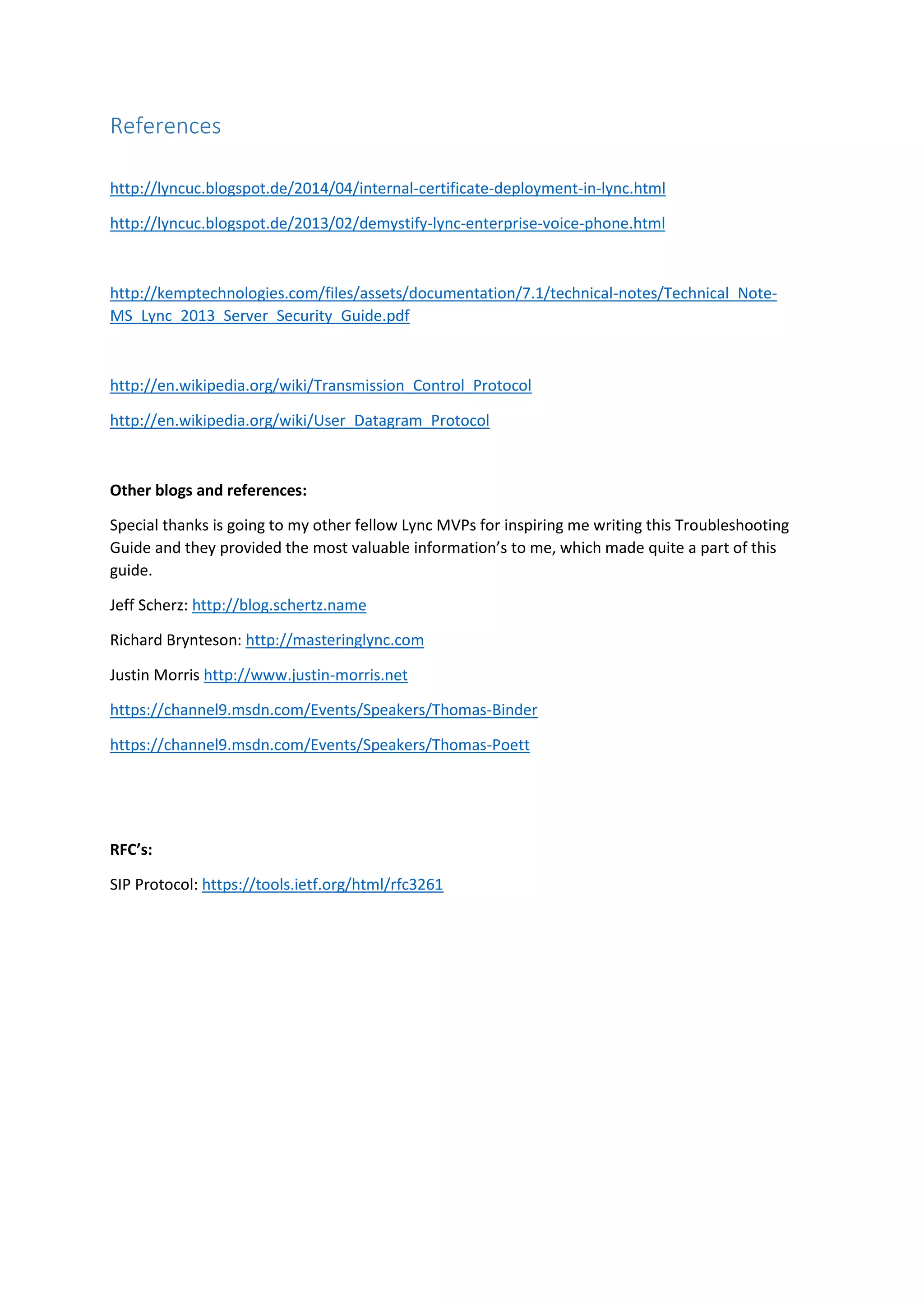

References........................................................................................................................................... 130

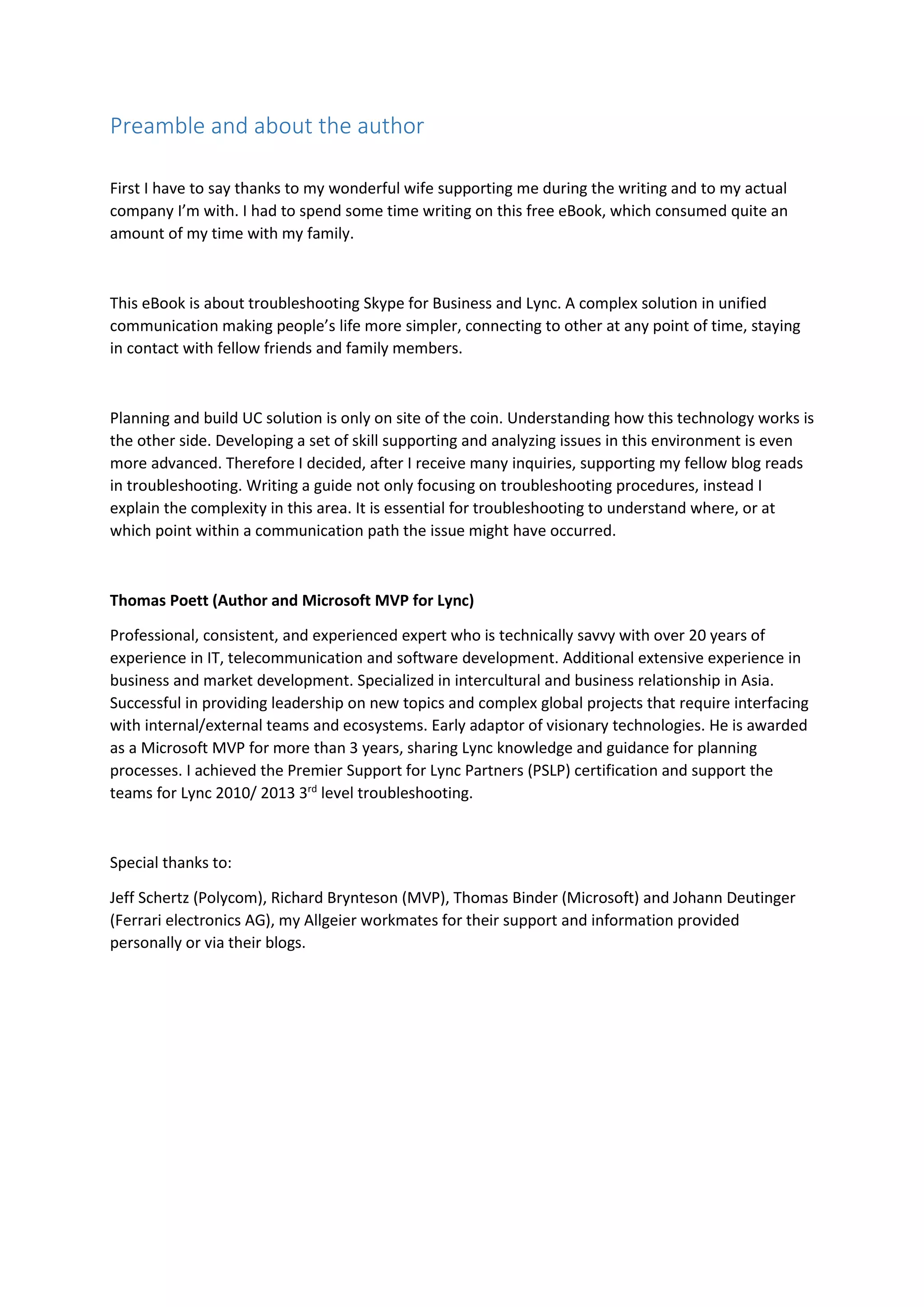

Preamble and about the author
First I have to say thanks to my wonderful wife supporting me during the writing and to my actual
company I’m with. I had to spend some time writing on this free eBook, which consumed quite an
amount of my time with my family.
This eBook is about troubleshooting Skype for Business and Lync. A complex solution in unified
communication making people’s life more simpler, connecting to other at any point of time, staying
in contact with fellow friends and family members.
Planning and build UC solution is only on site of the coin. Understanding how this technology works is
the other side. Developing a set of skill supporting and analyzing issues in this environment is even
more advanced. Therefore I decided, after I receive many inquiries, supporting my fellow blog reads
in troubleshooting. Writing a guide not only focusing on troubleshooting procedures, instead I
explain the complexity in this area. It is essential for troubleshooting to understand where, or at
which point within a communication path the issue might have occurred.
Thomas Poett (Author and Microsoft MVP for Lync)
Professional, consistent, and experienced expert who is technically savvy with over 20 years of
experience in IT, telecommunication and software development. Additional extensive experience in
business and market development. Specialized in intercultural and business relationship in Asia.
Successful in providing leadership on new topics and complex global projects that require interfacing
with internal/external teams and ecosystems. Early adaptor of visionary technologies. He is awarded
as a Microsoft MVP for more than 3 years, sharing Lync knowledge and guidance for planning
processes. I achieved the Premier Support for Lync Partners (PSLP) certification and support the
teams for Lync 2010/ 2013 3rd
level troubleshooting.
Special thanks to:
Jeff Schertz (Polycom), Richard Brynteson (MVP), Thomas Binder (Microsoft) and Johann Deutinger
(Ferrari electronics AG), my Allgeier workmates for their support and information provided
personally or via their blogs.

Lync and Skype for Business Troubleshooting approach
Seeing troubleshooting from all perspectives, we need a matrix where we are enabled analyzing the
area which possibly can causes any issues.
As identified, we see 4 major and a common configuration area.
The areas are (Quality issues):
 Network
 Core Performance
 Gateway
 Devices
The area of configuration (environment setup):
 Voice Setup (from Dial Plans until Normalization and Routes)
 Gateway configuration
 Exchange Unified Messaging integration
Making your troubleshooting approach faster. Here is a short approach of the most common issues.
NOTE:
If you are facing an issue with AV not working externally check the following
1- PORTS (This is normally the issue)
2- DNS Records
3- Certificates and trusts

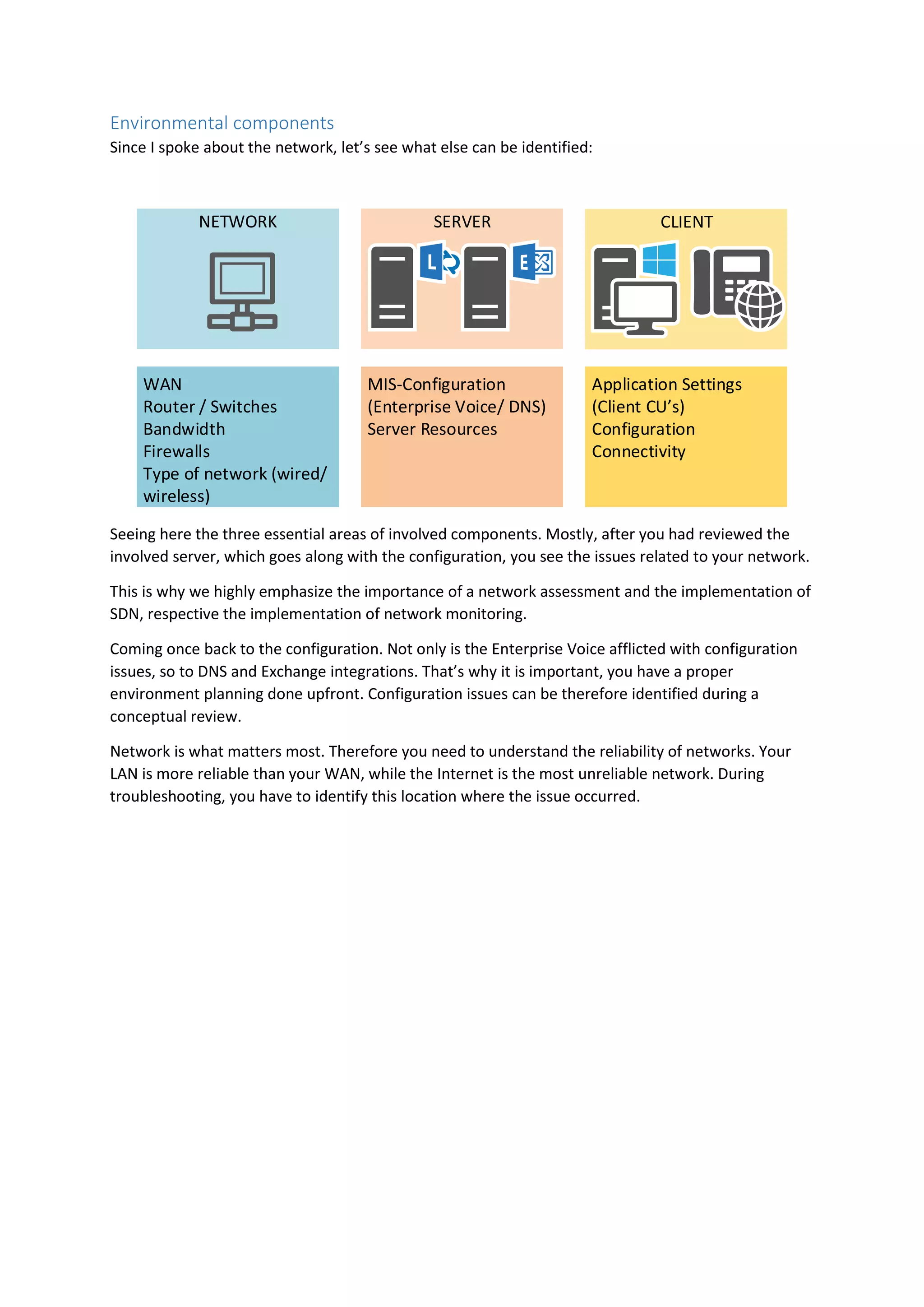

Environmental components
Since I spoke about the network, let’s see what else can be identified:
NETWORK SERVER CLIENT
WAN
Router / Switches
Bandwidth
Firewalls
Type of network (wired/
wireless)
MIS-Configuration
(Enterprise Voice/ DNS)
Server Resources
Application Settings
(Client CU s)
Configuration
Connectivity
Seeing here the three essential areas of involved components. Mostly, after you had reviewed the
involved server, which goes along with the configuration, you see the issues related to your network.
This is why we highly emphasize the importance of a network assessment and the implementation of
SDN, respective the implementation of network monitoring.
Coming once back to the configuration. Not only is the Enterprise Voice afflicted with configuration
issues, so to DNS and Exchange integrations. That’s why it is important, you have a proper
environment planning done upfront. Configuration issues can be therefore identified during a
conceptual review.
Network is what matters most. Therefore you need to understand the reliability of networks. Your
LAN is more reliable than your WAN, while the Internet is the most unreliable network. During
troubleshooting, you have to identify this location where the issue occurred.

Edge Server
Two important aspects are understanding the flow and processing of conferencing, voice and once
more the Edge server:
INTERNET DMZ CORPORATE
HTTPS (443)
HTTP (80)
XMPP (TCP:5269)
SIP/TLS (TCP:443)
SIP/MTLS(TCP:5061)
DNS(UDP/TCP:53)
PSOM/TLS(TCP:443)
STUN(UDP:3478)
STUN(TCP:443)
RTP(UDP/TCP:50.000-59.999)
HTTPS(4443)
HTTP (8080)
CLS/MTLS(TCP:50001)
CLS/MTLS(TCP:50002)
CLS/MTLS(TCP:50003)
XMPP/MTLS(TCP:23456)
SIP/MTLS(TCP:5061)
PSOM/MTLS(TCP:8057)
SIP/MTLS(TCP:5062)
STUN(UDP:3478)
STUN(TCP:443)
HTTPS(TCP:4443)
HTTP (Public CA CRL Check)
Reverse
Proxy
Lync Edge
Ext. Proxy Service
External IP
Access Edge Service
External IP
XMPP Proxy Service
WebCon Edge Service
External IP
AV Edge service
External IP
Edge A/V
Authentication
Service
Edge
Internal IP
Int. Proxy Service
Internal IP
Lync
External Web
Services
Internal Web
Services
Lync Services
OAuth Service
In case if I repeat this statement, please do not use Edge server with a single IP address. Segregate
the three different service by an individual IP address.
Please understand the TCP/ UDP port openings and the related packet direction. This is what matters
during your firewall setup.

Conferencing Flow
Microsoft implemented their own conferencing protocol, call CCCP or C3P (Conference Control
Channel Protocol/ Centralized Conference Control Protocol), based on Framework for Conferencing
with the Session Initiation Protocol. [RFC4353]
Reference:
http://msdn.microsoft.com/en-us/library/cc431498(v=office.12).aspx
Within a conference, 4 different MCU are existing. During troubleshooting you might need to trace
some or all MCU’s with OCSLogger/ CLS. This provides you the internal view what is going on inside.
Tracing the protocol, since the clients are joining a conference via SIP, you trace as usual. In the
prospective of a client joining a conference, you will see the C3P over SIP only.

Voice Call Processing
With Enterprise Voice topics it is difficult to start with.
Nevertheless, the first always is the understanding of the call process and it’s related flow with all
involved components. While a voice call initiated with a SIP URI is immediately processed, the call
using a dialed number follows an entire different flow.
As we can see in the call processing flow, the second decision is made where the call is identified as
an E.164 call, a call starting with a “+” sign. If not the number will be normalized. Again here, please
make sure it is always E.164. Once the normalization is done, the important Reverse Number Lookup
takes place, where the number is search for a matching user, either AD or Outlook. This enables the
client to display the user name instead of a phone number. If the user is identified as an internal user
enabled for UC, the call will be processed via it’s SIP URI.
Only form here the call processing in direction to external will start. It involves the checkup for invalid
numbers and Call Park Orbits, processed to now by the Voice Policies with their PSTN Usage Records
and finally the Routes with all their configurations.
After this processing the call is passed over to the Mediation Server and the related TRUNK
configuration.
Initiated LyncCall
E-9-1-1? Global?
Dial Plan
Normalization Rule
Normalization Rule
Normalization Rule
Call Park Orbit Range
404: No
matchingrule
Reverse Number Lookup
Location Policy Routes 3.Voice Policy
403: No Route
found
Mediation Server and Trunk
Configuration
Route
Route
Route
Route
PSTN Usage
PSTN Usage
PSTN Usage
1. Vacant Number Range
2. Call Park Orbit
Announcement or
Call Park Application
Gateway / IP-PBX / SIP Trunk
External Endpoint Receives CallLync Endpoint Receives Call
Inbound Routing
NO NO
YESYES
MATCH
SIP URI User=phone
PSTN Usage
NO MATCH
Dialing
behavior
Routing &
Authorization
If this process/ flow is correctly configured and ran along, the next troubleshooting step should occur
on the Trunks, Gateway and other involved SBC components.
I have dedicated an entire chapter regarding Enterprise Voice troubleshooting.

Support and troubleshooting tools
Which tools can be used for analyzing?
Most important is SNOOPER, you need to trace the SIP messages. NETMON is even important if you
want to look in front of SIP, into TCP. Here you most best analyze the impact of firewalls or routers.
Other tools are:
 ICE Warning Flag Decoder
 PreCall Diagnostic
 (Central Logging Service)
 (Audio Test Service)
 In CSCP: Voice Routing Test Case
Client Tracing Log-File location:
The Lync 2010 client tracing logs are located at: %userprofile%tracing.
The Lync 2013 client tracing logs located at:
%userprofile%appdataLocalMicrosoftOffice15.0LyncTracing
Server Tracing Log-File location:
Both, for Lync Server 2010, Lync 2013 and Skype for Business the log-file location is
c:windowstracing
Once he log file is converted and visible in Snooper, the temporarily generate log fine (txt format) will
be in the user profile
%userprofile%appdataLocalTempOCSLogger_xxxx_xx_xx_xx…
Converting Tracing Log-File location:
The CLS and OCSLogger use event log format (*.etl) those files cannot be opened. They are
compressed in ratio 1:5. You need to convert those etl files to txt. You only can do this manually from
the command line. The exact file location must be provided after the “package for PSS” (/pss) option.
C:Program FilesMicrosoft Lync Server 2013Debugging
Tools>OCSLogger.exe "/pss:c:windowstracing"
This will open OCSLogger, where you need to choose the “etl” files by pressing the “Analyze Log
Files” button.

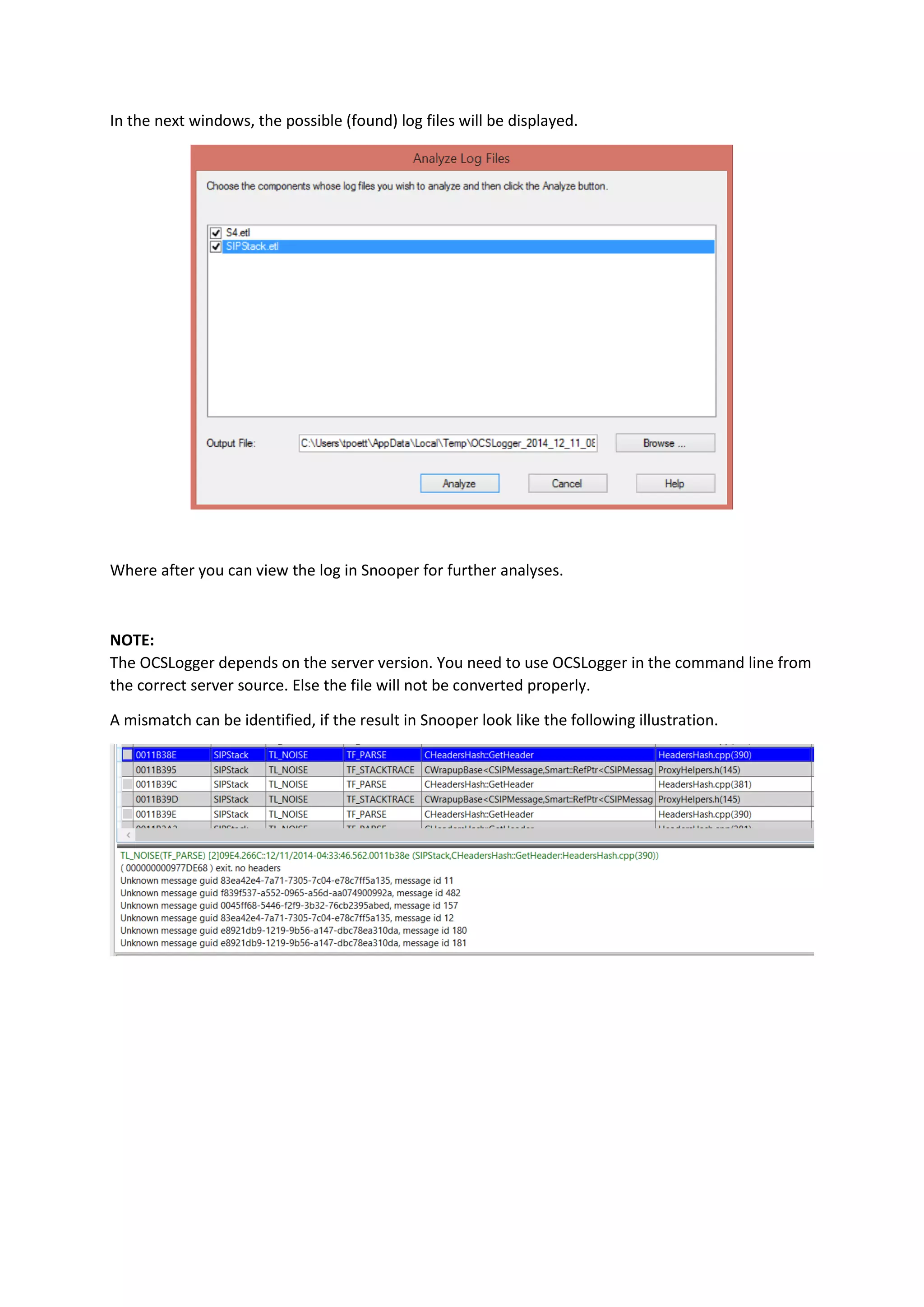

In the next windows, the possible (found) log files will be displayed.
Where after you can view the log in Snooper for further analyses.
NOTE:
The OCSLogger depends on the server version. You need to use OCSLogger in the command line from
the correct server source. Else the file will not be converted properly.
A mismatch can be identified, if the result in Snooper look like the following illustration.

Service Site Logging (Central Logging Service):
In lager deployments or even if you run the servers in a pool setup, the logging can become a hassle
in case of finding the correct server, where the troubleshooting needs to be started. If you have
multiple servers in a pool, you can’t identify the individual server, where a e.g. failing call is
processed. We need to make sure we can trace all activities across those member servers.
Another example is, if you have multiple pool, like several front end pool and mediation pools, you
might also want to trace the path a session is running along.
If we now start using the OCSLogger on all those machines, we have problems consolidating all so log
and as well we do have difficulties starting multiple OCSLogger session nearly simultaneously.
The solution here is: Centralized Logging Service. A service for controlled collection of data, with a
broad or narrow scope.
The service is setup with two components, the CLS Service Agent (listening on incoming command on
TCP port 50001, 50002, 50003) and the CLS Service Controller.
NOTE:
You should entirely learn about CLS. I will provide a generic overview helping you to make use of CLS.
Elements of Central Logging Service
Similar to OCSLogger, we will find those setting for CLS.
In this chapter I have used the Microsoft Technet Examples making the understandings of CLS more
transparent.

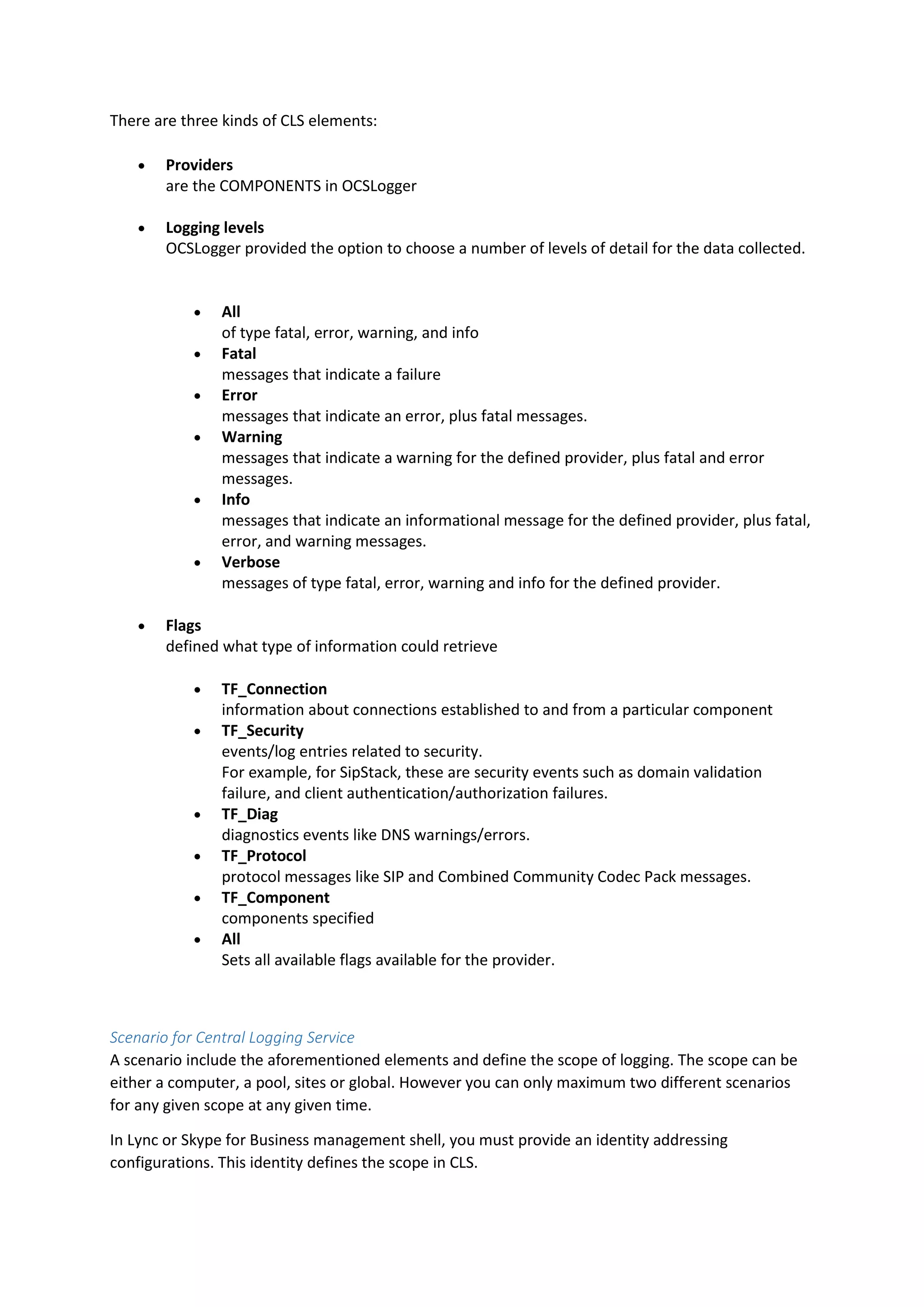

There are three kinds of CLS elements:
 Providers
are the COMPONENTS in OCSLogger
 Logging levels
OCSLogger provided the option to choose a number of levels of detail for the data collected.
 All
of type fatal, error, warning, and info
 Fatal
messages that indicate a failure
 Error
messages that indicate an error, plus fatal messages.
 Warning
messages that indicate a warning for the defined provider, plus fatal and error
messages.
 Info
messages that indicate an informational message for the defined provider, plus fatal,
error, and warning messages.
 Verbose
messages of type fatal, error, warning and info for the defined provider.
 Flags
defined what type of information could retrieve
 TF_Connection
information about connections established to and from a particular component
 TF_Security
events/log entries related to security.
For example, for SipStack, these are security events such as domain validation
failure, and client authentication/authorization failures.
 TF_Diag
diagnostics events like DNS warnings/errors.
 TF_Protocol
protocol messages like SIP and Combined Community Codec Pack messages.
 TF_Component
components specified
 All
Sets all available flags available for the provider.
Scenario for Central Logging Service
A scenario include the aforementioned elements and define the scope of logging. The scope can be
either a computer, a pool, sites or global. However you can only maximum two different scenarios
for any given scope at any given time.
In Lync or Skype for Business management shell, you must provide an identity addressing
configurations. This identity defines the scope in CLS.

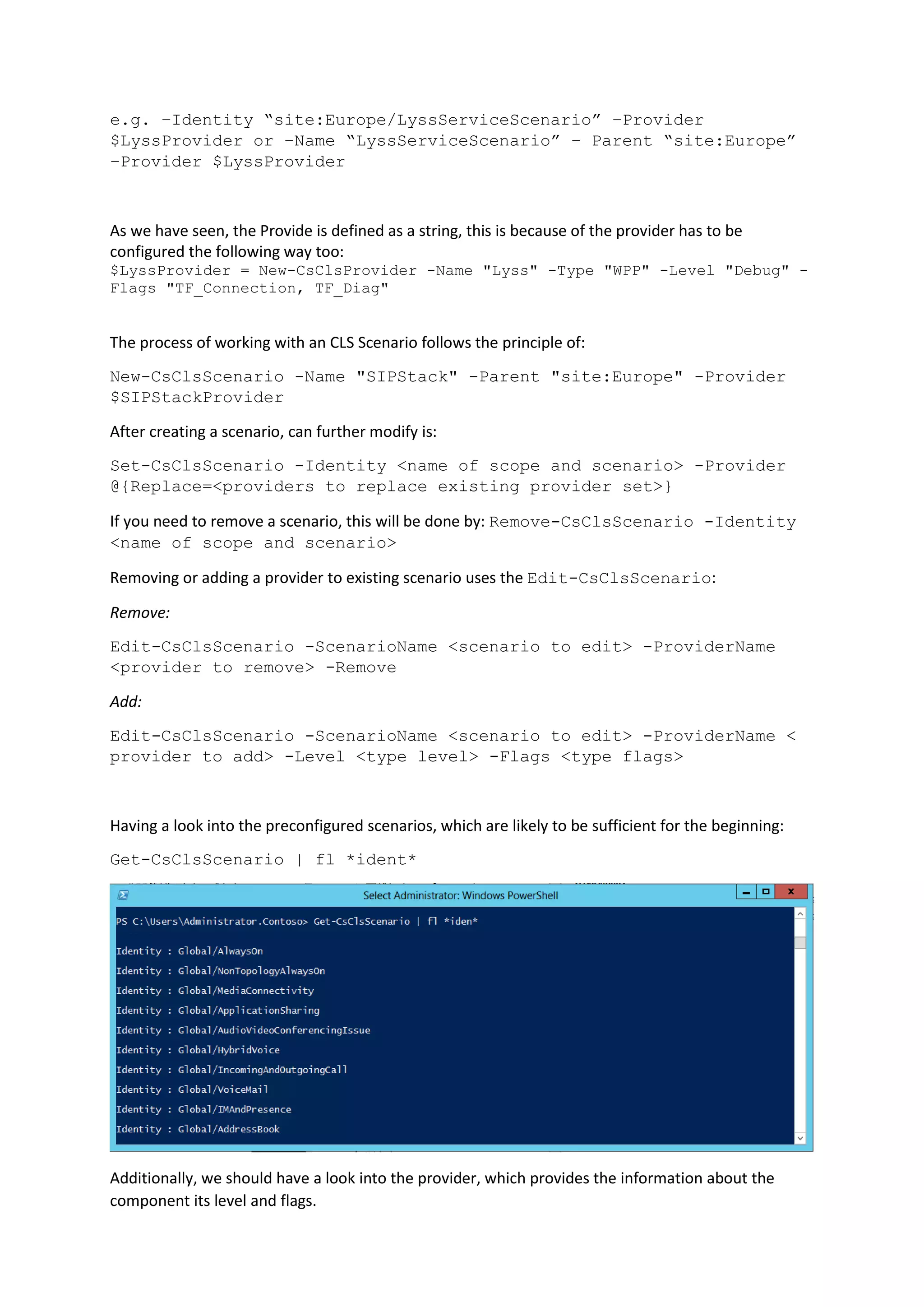

e.g. –Identity “site:Europe/LyssServiceScenario” –Provider
$LyssProvider or –Name “LyssServiceScenario” – Parent “site:Europe”
–Provider $LyssProvider
As we have seen, the Provide is defined as a string, this is because of the provider has to be
configured the following way too:
$LyssProvider = New-CsClsProvider -Name "Lyss" -Type "WPP" -Level "Debug" -
Flags "TF_Connection, TF_Diag"
The process of working with an CLS Scenario follows the principle of:
New-CsClsScenario -Name "SIPStack" -Parent "site:Europe" -Provider
$SIPStackProvider
After creating a scenario, can further modify is:
Set-CsClsScenario -Identity <name of scope and scenario> -Provider
@{Replace=<providers to replace existing provider set>}
If you need to remove a scenario, this will be done by: Remove-CsClsScenario -Identity
<name of scope and scenario>
Removing or adding a provider to existing scenario uses the Edit-CsClsScenario:
Remove:
Edit-CsClsScenario -ScenarioName <scenario to edit> -ProviderName
<provider to remove> -Remove
Add:
Edit-CsClsScenario -ScenarioName <scenario to edit> -ProviderName <
provider to add> -Level <type level> -Flags <type flags>
Having a look into the preconfigured scenarios, which are likely to be sufficient for the beginning:
Get-CsClsScenario | fl *ident*
Additionally, we should have a look into the provider, which provides the information about the
component its level and flags.

Get-CsClsScenario | Where-Object {$_.identity -like
"Global/AlwaysOn"} | Select-Object provider | Select-Object -
ExpandProperty provider
Configuration Settings for Central Logging Service
Before we can start, stop, flush or search results from CLS, we need to have the configuration for CLS
defined. As in the same way of scenarios, we can choose to define different setting over different
scopes (Global or Site).
The illustration below, should help you define those settings:
Command in management shell are:
 Set-CsClsConfiguration
 Remove-CsClsConfiguration
 New-CsClsConfiguration
 Get-CsClsConfiguration

Start and Stopping Scenarios for Central Logging Service
Starting and Stopping must be configured from the management shell. It is recommended in
troubleshooting using advance paramters.
Start-CsClsLogging -Scenario UserReplicator -Duration 8:00 -Pools
"pool01.contoso.net"
The default scenario is ALWAYSON, logging all relevant level of information and cycles the log files. If
you have this scenario started, at any given point of time you are enabled having a look into the log
files and extract what is need (see next chapter about searching)
Start-CsClsLogging -Scenario AlwaysOn
Stopping the CLS is available with Stop-CsClsLogging -Scenario AlwaysOn
Analyzing which scenario is running simple type: Show-CsClsLogging
Searching in Central Logging Service
Searching the log file is most crucial for troubleshooting. Whenever you need information make sure
you know what your are looking for.
The Search-CsClsLogging is the powerful command helping you extracting not only
information from a single computer. It is more extracting information about an entire path or even
the entire environment.
Not enough, if can also filter based on IP-Addresses or URI, components Sip Contents and more.
Example:
Search-CsClsLogging -pool "sykpe-pool.contoso.com" -IP
"192.168.0.242" -Uri "sip:hans@contoso.com" -MatchAny

Here is a table of all parameters you can include in your search.
Parameter Description
CallId Call identifier for specific call.
Components list of components.
Computers list of the computers
ConferenceId Conference ID
CorrelationIds list of correlation IDs to search
EndTime Specify local time zone. Defaults to 5 minutes after current time if no
StartTime specified, otherwise defaults to 30 minutes after StartTime
-StartTime "8/31/2012 8:00AM"
IP IP address
LogLevel minimum type of log entry
MatchAll all the included criteria must be matched.
MatchAny only one of the included criteria must be matched. This is the default
setting, similar to a OR command
OutputFilePath Defines the log file search result as text file to the specified location
and name. Otherwise they are written to the console.
Phone Phone number to be searched for. It must match E.164 format!.
Pools Comma-separated list of the pools
SipContents Arbitrary text to search for within the body of a SIP message.
SkipNetworkLogs instructs the Search-CsClsLogging cmdlet to avoid searching network
logs.
StartTime Beginning date and time for the log entries to be searched. Specified in
local time zone. Defaults to 30 minutes before EndTime.
Uri Uri to be searched for.
Note:
The best possibility for an end-to-end trace of SIP session is provided if you use the Centralized
Logging Service. You are entitled drawing an end-to-end session flow chat. This helps you verifying a
SIP session and other relevant data helpful troubleshooting Lync and Skype for Business.

General information on TCP and SIP protocol
Before you start troubleshooting or build your skill for troubleshooting, the basic understanding how
the underlying protocols are working is essential.
First we start with the IP protocol, while a TLS/ MTLS inside view will be discussed. Finally the SIP
protocol is the most essential for troubleshooting.
NOTE:
In troubleshooting the entire knowledge about the 7 layer ISO model is required. You need to
identify where possible issues are to locate. ISDN has the same layer approach, therefore identifying
e.g. if it is a connection or configuration issue, you need the understandings of all this dependencies.
IP protocol
In Lync/ Skype for Business, we make use of two ISO layer of IP, TCP (Transmission Control Protocol)
and UDP (User Datagram Protocol).
TCP/IP protocol
Generic in Lync and Skype for Business, all communication runs of TCP. This includes the internal and
external IP traffic. TCP is also always a fallback path for Audio and Video data if the UDP path has
issues or fails.
FIN WAIT 1
SYN
RECEIVE
SYN
SENT
ESTABLISHED
CLOSING CLOSE WAIT
FIN WAIT 2 TIMED WAIT LAST ACK
CLOSED
CLOSE
LISTEN
Non expected event
Path client/ receiver
Path server/ sender
Session
Start
LISTEN/- CLOSE/-
CONNECT/SYN (Step 1 of 3-way-handshake)
CLOSE/-
SYN/SYN+ACK (Step2 of 3-way-handshake
RST/- SEND/SYN
ACK/- SYN+ACK/ACK
(Step 3 of 3-way-handshake)
State of transmission
CLOSE/FIN FIN/ACK
Active session closing Passive session closing
ACK/-
FIN+ACK/ACK
FIN/ACK
FIN/ACK
ACK/-
TIMEOUT
CLOSE/FIN
ACK/-
SYN/SYN+ACK (simultaneously open)

The drawing gives the entire overview of the process how TCP transmission will occur. If you are
using Microsoft NETMON, you can entirely trace the TCP transmission between the sender and
receiver.
During troubleshooting an identified often issues on firewalls, where entire or only a single direction
was blocked. You need the approach to identify, which path drops packets or also which packet got
lost. The path a packet is running is relevant too, especially if you have firewalls in place.
Trace always that the sending and receiving stream is running the EXACT same path. Sometime in
routed environments you will find that source and destination network is routed differently from the
prospective of sender and receiver.
I give you an example in the next illustration, where the path is routed differently as you can see. This
is a very common mistake. Not only inside the LAN, especially in the DMZ/INTERNET setup.
10.10.10.254
10.10.20.1
10.10.20.254
10.10.10.1
ROUTING:
10.10.20.0/24 GW 10.10.10.254
ROUTING:
10.10.10.0/24 GW10.10.20.254
TCP SYN
WRONG PATH
TCP ACK
CORRECT PATH
TCP ACK
The Sender Receiver Setup follows the first initial TCP setup as illustrated in the next table:
SYN-SENT → <SEQ=100><CTL=SYN> → SYN-RECEIVED
SYN/ACK-RECEIVED ← <SEQ=300><ACK=101><CTL=SYN,ACK> ← SYN/ACK-SENT
ACK-SENT → <SEQ=101><ACK=301><CTL=ACK> → ESTABLISHED
You can also see the SEQ (Sequence Number). This is where the packet order comes into the place.

UDP over IP protocol
The UPD transmission is quite identically with TCP, beside it is not RELIABLE. Meaning, the sender do
not “care” if the client received the send packet. It just keeps streaming. This explains why Audio and
Video data is best to be UDP.
As we learned from our CD/ DVD players, this data can be “error corrected”. It doesn’t really matter
if we have some streaming information lost. Same applies to Lync/ Skype for Business. We can
transmit AV data over unreliable networks, e.g. internet or Wi-Fi. When the packet lost reach certain
level, first we drop the call quality, if the lost rate is still increasing, the connection might be
terminated.
Another subject of matter in UDP is, the order in which the packets are flowing in at the receiver side
do not matter, since there is no control in place and process bringing them into order.
Lync and Skype for Business with all their codecs do never start a UDP communication if the sender
and receiver didn’t agree of using UDP. The AV session establishment will always be TCP first. Why?
We need to negotiate a lot of upfront setting, e.g. the chosen protocol/ path, the codec and more.
Only after the negotiation, the UDP dataflow starts.
TLS/ MTLS
Most common mistake during encryption. You can’t verify this often enough.
Lync and Skype for Business is “SECURED by DESIGN!”, no communication ever goes unencrypted.
Both server and client must just certificated based encryption. Authentication also relay on
certificates, after initial NTLM/ KERBEROS authentication took place at the very first connect.
The TLS-DSK technology, where a Lync/ Skype for Business server act’s as a certificate authority,
handling the clients personal, per user base certificate over and the client stores this certificate in its
local store.
This is also the only certificate NOT having any trusted root authorities required. Since the Lync/
Skype for Business authentication service can himself identity the certificate. Make sure during
troubleshooting, that this certs are present on a client site and valid (date). The period can be set per
Server.
All other communication internally, as well externally relays on privat and public certificate
authorities (CA). Where the certificate need the correct CN/ SN, the root CA must be in the Trusted
Root Authority store. Please refer here to my blog about certificates used with Lync.
Explaining the difference between TLS and MTLS can be consolidated into:
While a TLS connection is session oriented, the MTLS secured connection can handle multiple session
in parallel.

SIP protocol
With SIP protocol we came finally into the first real troubleshooting aspects for Lync and Skype for
Business.
Once we had verified that TCP/IP and UDP is working correctly, we must have a look into the
communication itself. Since we understand, the entire traffic is encrypted, we cannot use NETMON
anymore. We would only see TLS communication flying around and don’t really see anything related
to the SIP communication. Well, we can identify the destination ports and can assume now it SIP or it
CCCP.
Here the CLS (Centralized Logging Service), OCSLogger and Snooper is our tool of choice. Only about
the snooper and all it parameter we could make an entire technical reference. Since we want to
focus on troubleshooting and the main issues, as well as the approach of troubleshooting. The core
components are SIPStack and S4. Just if we analyze SIP, the SIPStack is our favorite. (in 3rd
level
support you need Snooper and CLS for very detailed analyzes even down to the Server components.)
If you utilize Enterprise Voice, please be aware under all circumstance make use of E.164 number
format. Learn everything about how to plan, setup and implement Enterprise Voice. Regarding this
topic please ready my Demystify Enterprise Voice article. In Enterprise Voice you not only
troubleshoot SIP, more like you have to troubleshoot the number format, e.g. why Exchange UM is
not doing reverse number look up or why a GW destination isn’t reached.
SIP protocol session setup
Before we are having a look into a SIP communication, you need to understand SIP communication.
Similar with a TCP session establishment and handling, SIP follows this approach too.
Additionally to the login and register workflow, the SIP communication basics should help you understanding
voice based solutions on Lync and Skype for Business. If you initiate an IM Session the flow is with a call setup.
The provided workflow can be seen as identically if the entire call setup runs over multiple systems involved,
e.g. Client, Server, and Gateway, hopping through all parties. Part of those workflows are the understandings of
SDP, ICE and Early-Media. Here the path can be tracked in the VIA or the ROUTE header.
The illustration below shows a successful established call between the CALLER and CALLEE. The Caller
initiates the call be sending an INVITE to the Callee, who then returns the information of RINGING and OK.
After the receiver of those both commands, the Caller must acknowledge this action by sending an ACK. This
than after the Callee has hook off the call the RTP media starts to be transmitted, as voice session is
established. The site now hanging up will send the BYE command, which has to be acknowledged by 200 OK.

SIP Commands:
SIP commands describe the session setup information. They are the core in SIP communication.
While in the next chapter, the message fields are send along with the SIP command, provide more
detailed and necessary information. If you use SNOOPER, SNOPER has the capability displaying the
CALL FLOW based on the SIP Commands.
INVITE
(https://datatracker.ietf.org/doc/rfc4235/?include_text=1)
Command that is starting all dialogs, Calls, Presence and IM. Dialogs can be theoretically created by
many different methods, although RFC 3261 defines only one: the INVITE method.
RINGING
(https://datatracker.ietf.org/doc/rfc3960/?include_text=1)
An acknowledgement send informing about the target is ringing. Also related to Early-Media.
SESSION PROGRESS
(http://www.ietf.org/proceedings/46/I-D/draft-ietf-sip-183-00.txt)
Addressed to the RINGING and the related SDP Message. Enhancing the RINGING with further
information.

OK
Simple protocol related acknowledgement on any command needed to be accomplished.
PRACK
(https://www.ietf.org/rfc/rfc3262.txt)
A similar command like the BYE, but not acknowledging. A provisional response on the INVITE. It will
be marked by a RSeq, referring to the related command send earlier (e.g. INVITE).
A sub command within the PRACK is RAck, it response to support reliability of provisional responses
ACK
Command acknowledging the progress made. Related to the SIP protocol RFC.
BYE
Termination command for ending a SIP session.

SIP Message Fields:
The SIP messages fields are your gateway for identifying what will and what is going on and represent
how the communication flow will be established. This short description is supported by the reference
to the originated RFC. It provides you the most simple and fastest understanding of SIP protocol
troubleshooting
CALLER-ID:
Unique identifier for each call (best for grouping calls in Snooper)
AUTHENTICATION-INFO:
This field provides information about the possible and choose authentication method, e.g.
NTLS.KERBEROS or TLS-DSK.
VIA:
The path the SIP message run along, providing the path from the source to target
Record-Route
This field is similar to the VIA field, but contains information about the FQDN.
FROM:
“display name”<SIP Address> and tags + identifier
A SIP address either start with SIP: for a sip call or TEL: for phone call
TO:
Target e.g. user, phone or application
P-ASSERTED-IDENTITY:
https://www.ietf.org/rfc/rfc3325.txt
The PAI header provides a way to verify the identity of the caller. Regarding those settings, you need
to understand the SIP Trunk configuration in Lync/ Skype for Business:
http://technet.microsoft.com/en-us/library/jj688104.aspx
ALLOW:
This lists the “allowed” SIP commands usable with in this session.

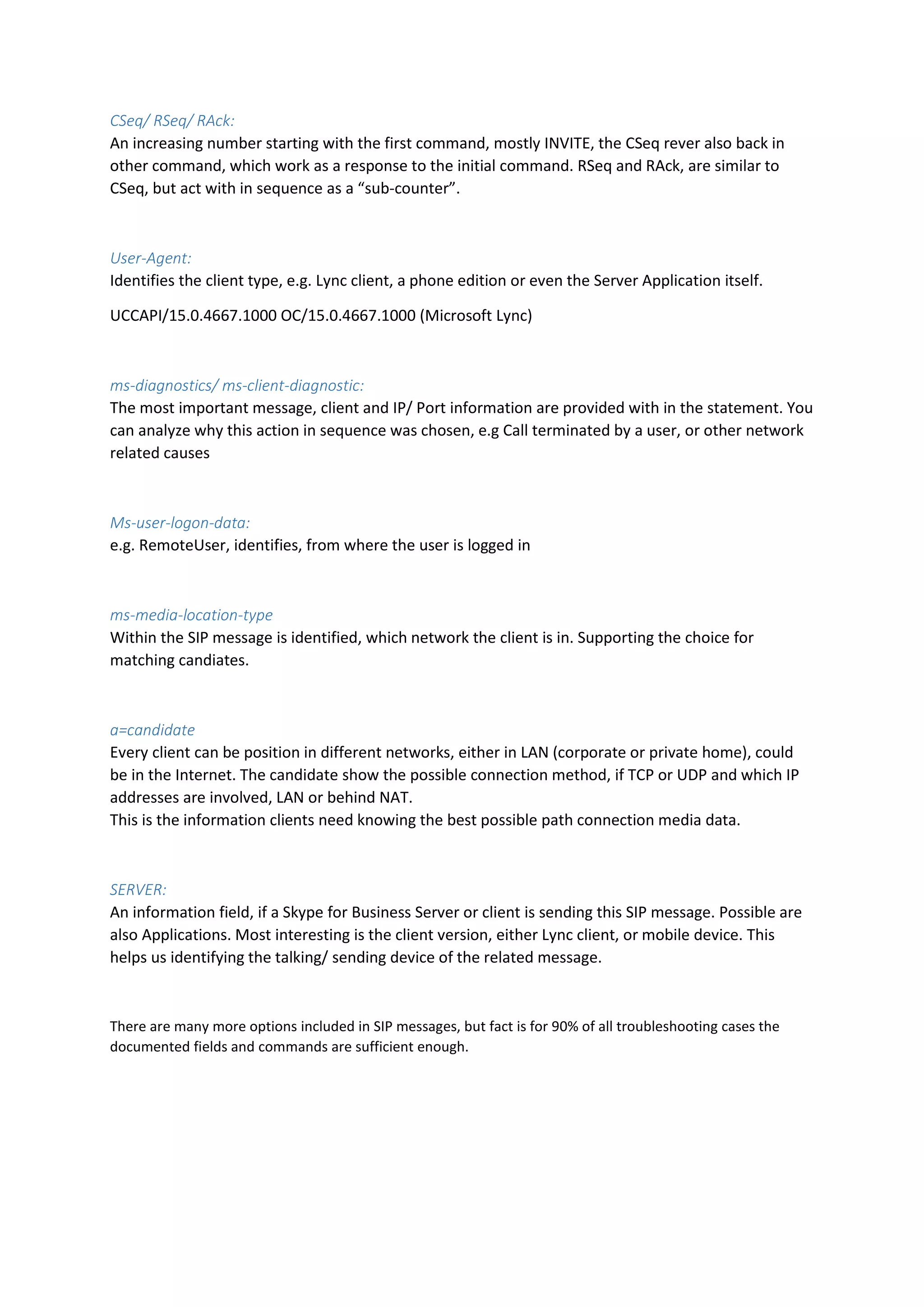

CSeq/ RSeq/ RAck:
An increasing number starting with the first command, mostly INVITE, the CSeq rever also back in
other command, which work as a response to the initial command. RSeq and RAck, are similar to
CSeq, but act with in sequence as a “sub-counter”.
User-Agent:
Identifies the client type, e.g. Lync client, a phone edition or even the Server Application itself.
UCCAPI/15.0.4667.1000 OC/15.0.4667.1000 (Microsoft Lync)
ms-diagnostics/ ms-client-diagnostic:
The most important message, client and IP/ Port information are provided with in the statement. You
can analyze why this action in sequence was chosen, e.g Call terminated by a user, or other network
related causes
Ms-user-logon-data:
e.g. RemoteUser, identifies, from where the user is logged in
ms-media-location-type
Within the SIP message is identified, which network the client is in. Supporting the choice for
matching candiates.
a=candidate
Every client can be position in different networks, either in LAN (corporate or private home), could
be in the Internet. The candidate show the possible connection method, if TCP or UDP and which IP
addresses are involved, LAN or behind NAT.
This is the information clients need knowing the best possible path connection media data.
SERVER:
An information field, if a Skype for Business Server or client is sending this SIP message. Possible are
also Applications. Most interesting is the client version, either Lync client, or mobile device. This
helps us identifying the talking/ sending device of the related message.
There are many more options included in SIP messages, but fact is for 90% of all troubleshooting cases the
documented fields and commands are sufficient enough.

Simple SIP Call Setup
In one of the chapters aforementioned, the session establishment and closing was described for the
TCP/IP protocol. If we compare those establishments, we will find similarities valid for SIP session
establishment too. Within the next two paragraphs, we are digging into a Call setup, explain at which
point in a session, media data streams are establishment and what early-media is.
Without Early-Media
This “normal call setup” relates to the basic session establishment,
Caller Callee
| |
| INVITE |
|------------------------------>|
| |
| 100 Trying. |
|<------------------------------|
| 101 Session Progress | (Report)
|<------------------------------|
| 180 Ringing |
|<------------------------------|
| 200 OK |
|<------------------------------|
| ACK |
|------------------------------>|
| Both Way RTP Media | most likely UDP Data if possible
|<=============================>|
| BYE |
|<------------------------------|
| 200 OK |
|------------------------------>|
| |
Lync and Skype for Business have different scenarios, where the path of AV data is different. So
please keep in mind, if two clients are in a same or directly routed network segment (without NAT),
the media data stream is established always between the both clients, regardless if you are within
the same Topology or Federated Partner. IM session indeed have a server involved, IM cannot be
transferred directly between clients. Same is valid if we have a multi-party call, where the Server
MCUs handle the AV distribution.
NOTE:
Making a troubleshooting approach successful, first you should stress what is expected. Meaning
here from where to where the call flows, which components (Servers) are involved.
If a user is busy and can’t accept a call. A message of 486 Busy Here instead of 180 Ringing is
presented to Caller. The Caller send a BYE to the Callee and the session is aborted.

With Early-Media in Lync
Modern SIP environments support a faster call setup. This requires the both client starting data
exchange earlier, before a final IP path was negotiated. This is called early-media. Where the audio/
video session is established before the called party takes the call.
Early Media and Ringtone generation is described in the RFC 3960.
http://www.ietf.org/rfc/rfc3960.txt
Allowing early media in a SIP call, we must have an INVITE and 183 Session Progress
command being send and this command contains the SDP data (Session Description Protocol).
Caller Callee
| |
| INVITE | (contains SDP information - caller)
|------------------------------>|
| |
| 100 Trying. |
|<------------------------------|
| 180 Ringing |
|<------------------------------|
| 183 Session Progress | (contains SDP information - callee)
|<------------------------------|
| 101 Progress Report |
|<------------------------------|
| PRACK |
|------------------------------>|
| Both Way RTP Media | EARLY MEDIA starts flowing A/V
|<=============================>|
| 200 OK |
|<------------------------------|
| ACK |
|------------------------------>|
| Both Way RTP Media | most likely UDP Data if possible
|<=============================>|
| BYE |
|<------------------------------|
| 200 OK |
|------------------------------>|
| |
Different compared with the first session initiation is the early-media involvement. Instead of a 101
Session Progress replay, we need to include more information from the called target. That’s why it
sends an enhanced 183 Session Progress, which contains the Session Description Protocol (SDP) in
the 101 Progress Report message. This SDP is used to establish a media connection that carries those
network tones and messages. Immediately after the call was taken (you hock off the phone/ call) the
media data can be transferred without any delay.
The acknowledgement will not be a ACK, instead it replies with PRACK and the media (audio) can
start flowing even if the session is not fully established.
The rest of the session follow the identical flow like the first illustration above. Starting with the 200
OK.

Session establishment and differences between IM, A/V and
Conferencing
For troubleshooting it is recommended that you fully understand the different types of session
establishments. The behavior for example between an IM Session and an A/V call is quite different.
In case you need to support issues, it is essential to know where to identify and where to start with
your support approach.
In general we differentiate between server involved session, either in one-way or two-way, as well
MCU (Multipoint Connection Unit) or peer-to-peer connections Therefore we have a look into the
different types of communications.
Authentication internal and remote
Authentication
1. After DNS resolution,
Client contacts the Lync
Edge Access Server.
5. Client authenticates
4. Edge presents
certificate to Client
3. Server presents the
certificate to Edge Server
7. Trusted and encrypted
connection established
2. Edge Access Server
connect to Director
Server (Next Hop)
6. Authentication is
processed
Presence Query
Presence is a one-way query, meaning here that the user who want to add presence to a contact
either in his contact list, or when he was opening a communication window, send a query, the
SUBSCRIBE out to the referred target. This message contains an EVENT called presence (“yellow”)
and SUPPORTED of “ms-benotify”. As well as a XML batch is sent containing the query
inbetween the “action name”
One Way problem of Presence and IM… One user can the other not….
SUBSCRIBE sip:alischka@technologies.com SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:61813
Max-Forwards: 70
From: <sip:thomas.poett@domain-a.com>;tag=a2ed804245;epid=0639570a7f
To: <sip:alischka@kemptechnologies.com>
Call-ID: f7bb816122e24b68b352d07413f063e8
CSeq: 1 SUBSCRIBE
Contact: <sip:thomas.poett@domain-a.com;opaque=user:epid:2b02BQuhtlW-2_O2vbNPYAAA;gruu>
User-Agent: UCCAPI/15.0.4675.1000 OC/15.0.4675.1000 (Microsoft Lync)
Event: presence
Accept: application/msrtc-event-categories+xml, application/xpidf+xml, text/xml+msrtc.pidf, application/pidf+xml,
application/rlmi+xml, multipart/related
Supported: com.microsoft.autoextend
Supported: ms-benotify
Supported: ms-piggyback-first-notify
Proxy-Require: ms-benotify
Proxy-Authorization: TLS-DSK qop="auth", realm="SIP Communications Service", opaque="6B133F97",

targetname="xsrvlync7.domain-a.local", crand="ae97593f", cnum="17",
response="43890d90c8fb20d9d4776370dd874f34f71c845c"
Content-Type: application/msrtc-adrl-categorylist+xml
Content-Length: 478
- <batchSub xmlns="http://schemas.microsoft.com/2006/01/sip/batch-subscribe"
uri="sip:thomas.poett@domain-a.com"
name="">
- <action name="subscribe"
id="1784768368">
- <adhocList>
<resource uri="sip:alischka@technologies.com"/>
- </adhocList>
- <categoryList xmlns="http://schemas.microsoft.com/2006/09/sip/categorylist">
<category name="state"/>
<category name="services"/>
<category name="note"/>
<category name="contactCard"/>
<category name="calendarData"/>
- </categoryList>
- </action>

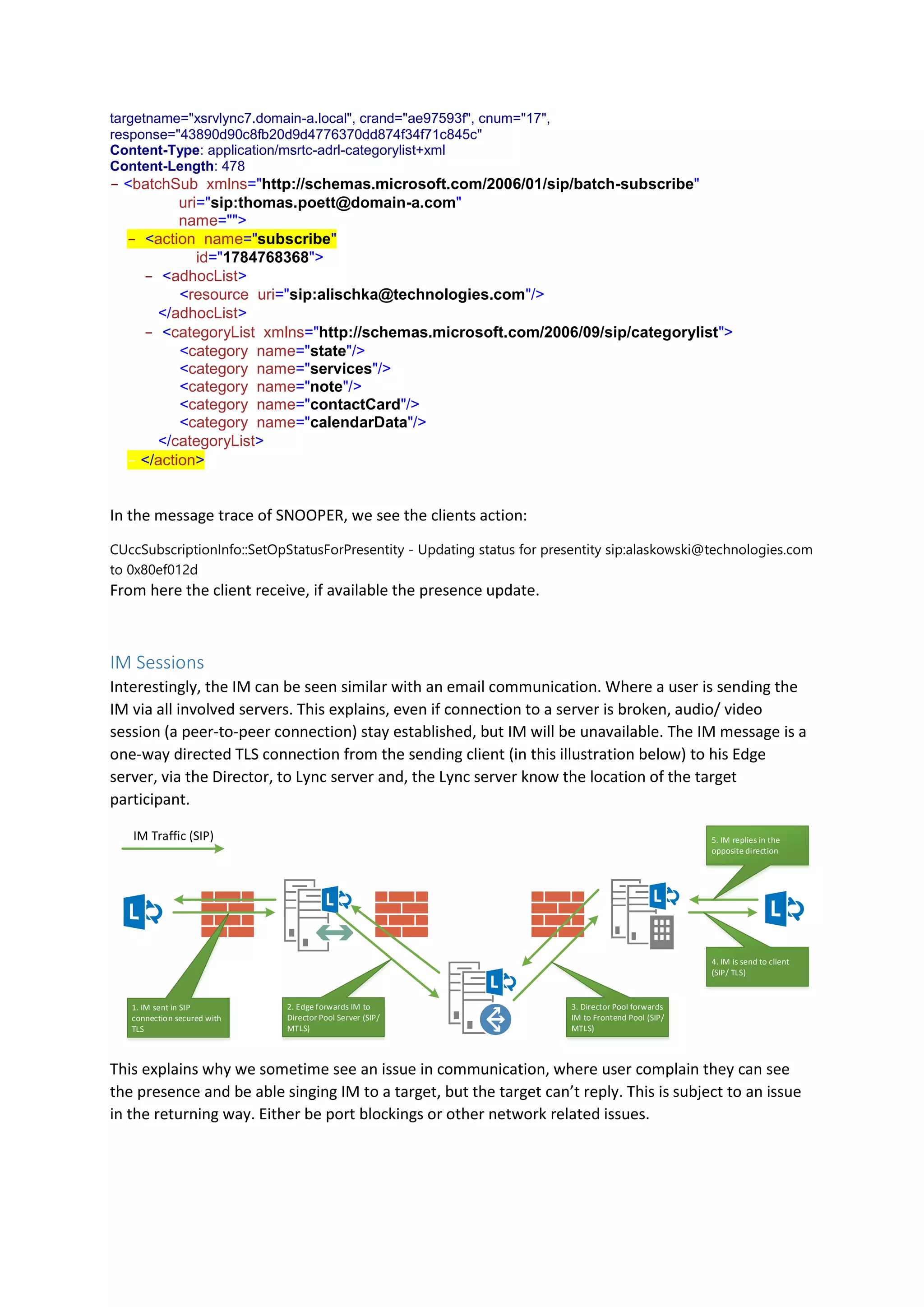

In the message trace of SNOOPER, we see the clients action:
CUccSubscriptionInfo::SetOpStatusForPresentity - Updating status for presentity sip:alaskowski@technologies.com
to 0x80ef012d
From here the client receive, if available the presence update.
IM Sessions
Interestingly, the IM can be seen similar with an email communication. Where a user is sending the
IM via all involved servers. This explains, even if connection to a server is broken, audio/ video
session (a peer-to-peer connection) stay established, but IM will be unavailable. The IM message is a
one-way directed TLS connection from the sending client (in this illustration below) to his Edge
server, via the Director, to Lync server and, the Lync server know the location of the target
participant.
1. IM sent in SIP
connection secured with
TLS
IM Traffic (SIP)
2. Edge forwards IM to
Director Pool Server (SIP/
MTLS)
3. Director Pool forwards
IM to Frontend Pool (SIP/
MTLS)
4. IM is send to client
(SIP/ TLS)
5. IM replies in the
opposite direction
This explains why we sometime see an issue in communication, where user complain they can see
the presence and be able singing IM to a target, but the target can’t reply. This is subject to an issue
in the returning way. Either be port blockings or other network related issues.

Audio/Video Session (Desktop/ Application - Sharing)
In Lync and Skype for business, all audio and video related data will be exchanged in a peer-to-peer
manner. But this is not valid for the session establishment. First the client send an INVITE (as we will
see later in chapter: Analyzing real world call setup) from where the a/v path will be established
directly between the two participants.
In troubleshooting you have to analyze the both paths, first the session and afterwards the a/v path.
The session establishment follows the path as described with IM.
IM Traffic (SIP)
1. Initiate IM Session via
Home Pool (SIP/ TLS)
SRTP (SIP)
2.IM Session is forward
to second Pool (SIP/
MTLS)
Lync Pool A Lync Pool B
3. IM Session is send to
Client (SIP/ TLS)
Bidirectional Channel
4. Client add A/V to the
IM Session (Signaling) via
SIP/TLS/MTLS)
5. Signaling is forwarded
to second Pool (SIP/
MTLS)
6. Signaling is send to
Client (SIP/ TLS)
7. A/V session is established via P2P connection, secured with SRTP protocol
Other P2P connections are: Desktop Sharing and File Transfer, both secured with SRTP protocol
The path for a/v depends on the exchange of candidate pairs, you first have to analyze which
candidates were send from both site and figure out the final candidates, the client want to establish
along. (Also this process will be explained later in more detail)

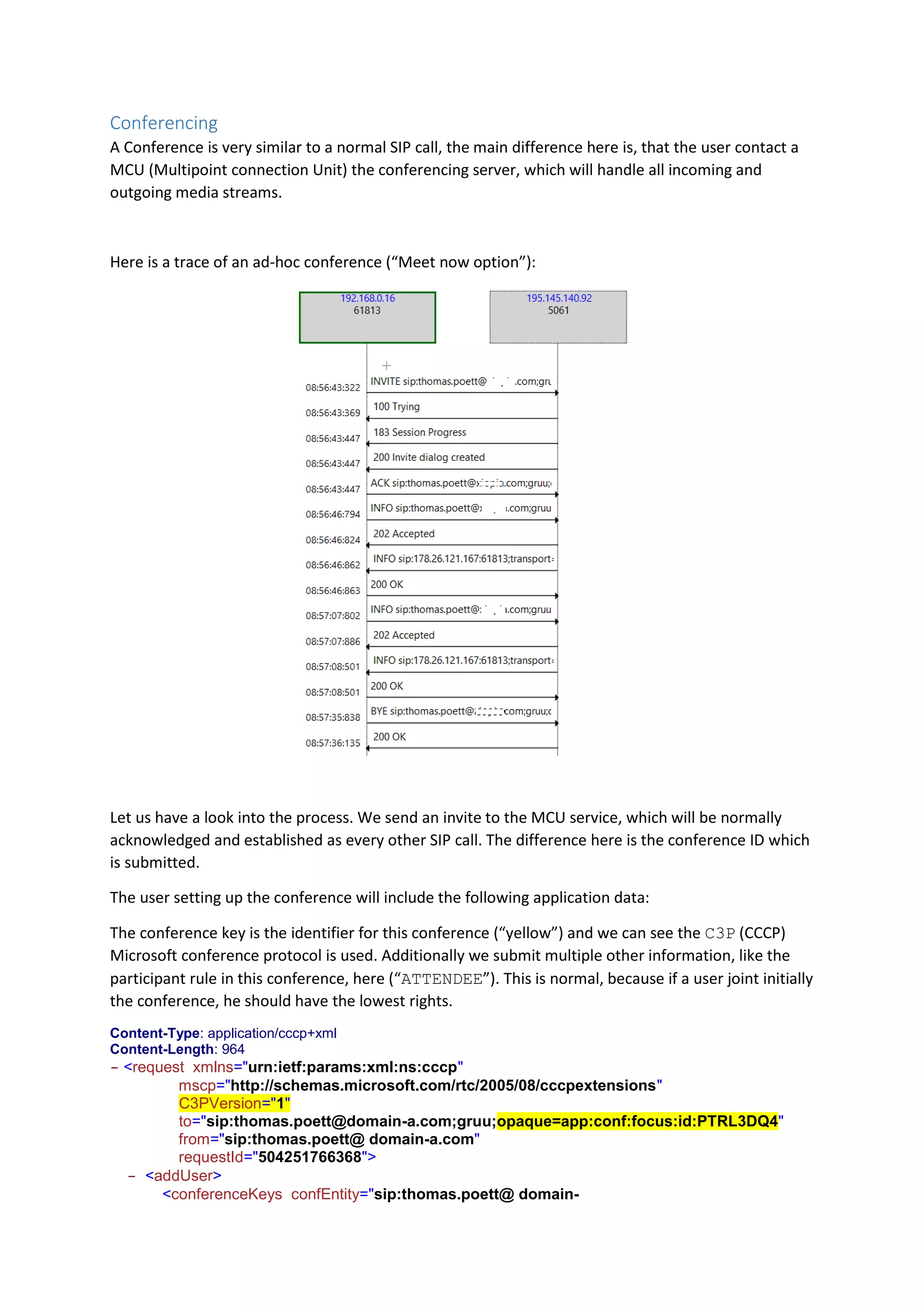

Conferencing
A Conference is very similar to a normal SIP call, the main difference here is, that the user contact a
MCU (Multipoint connection Unit) the conferencing server, which will handle all incoming and
outgoing media streams.
Here is a trace of an ad-hoc conference (“Meet now option”):
Let us have a look into the process. We send an invite to the MCU service, which will be normally
acknowledged and established as every other SIP call. The difference here is the conference ID which
is submitted.
The user setting up the conference will include the following application data:
The conference key is the identifier for this conference (“yellow”) and we can see the C3P (CCCP)
Microsoft conference protocol is used. Additionally we submit multiple other information, like the
participant rule in this conference, here (“ATTENDEE”). This is normal, because if a user joint initially
the conference, he should have the lowest rights.
Content-Type: application/cccp+xml
Content-Length: 964
- <request xmlns="urn:ietf:params:xml:ns:cccp"
mscp="http://schemas.microsoft.com/rtc/2005/08/cccpextensions"
C3PVersion="1"
to="sip:thomas.poett@domain-a.com;gruu;opaque=app:conf:focus:id:PTRL3DQ4"
from="sip:thomas.poett@ domain-a.com"
requestId="504251766368">
- <addUser>
<conferenceKeys confEntity="sip:thomas.poett@ domain-

a.com;gruu;opaque=app:conf:focus:id:PTRL3DQ4"/>
- <user ci="urn:ietf:params:xml:ns:conference-info"
entity="sip:thomas.poett@ domain-a.com">
- <roles>
<entry>attendee</entry>
- </roles>
- <endpoint entity="{F0228E9E-3B8C-445B-A2AC-343A9FE7735B}"
msci="http://schemas.microsoft.com/rtc/2005/08/confinfoextensions">
- <clientInfo>
<separator cis="urn:ietf:params:xml:ns:conference-info-separator"/>
<lobby-capable
msci2="http://schemas.microsoft.com/rtc/2008/12/confinfoextensions">true</lobby-capable>
- </clientInfo>
- </endpoint>
- </user>
- </addUser>
Later in the SIP/200 INVITE DIALOG CREATED, we see the escalation to the (“PRESENTER”)
rule.
- <user entity="sip:thomas.poett@domain-a.com">
- <roles>
<entry>presenter</entry>
- </roles>
The most interesting message is the last INFO message from 8:57:08.501, here the conferencing
service acknowledged all important information regarding web conferencing to the client. This is a
huge XML message included. The RULE ENTRY is where those information are provided.
NOTE:
For troubleshooting it has two aspects, the client side as show in the illustration above and the server
side. The conference here took place in between 08:57:08 and 08:57:35. On the client side no further
information are provided what was happened in this conference. There you need to start MCU
logging on the Lync/ Skype for Business server itself.

When a call is escalated into a conference
It its necessary to explain further more about the peep-o-peer call and a conference. As we
remember, the audio/ video is always peer-to-peer, this include also desktop and application sharing,
because of those data is similar to video. But what is with other services as POOLS, WHITE BOARD, or
Q&A? This are service subject to conferences!
Remember:
Every time a user in a call using one of those services, the call will be first escalated into a
conference!
That’s just not all. There is one more very specific conference service, the Power Point presentation.
If we are going to setup a webcast, or you want to share the presentation upfront with conference
participants, you can upload files into a conference. The Power Point is here special and will be
uploaded to the conference directory, like all other files too. But from here it will be rendered during
a presentation into HTML 5.0 document.
The Lync Client as well the Web Conferencing are HTML 5.0 aware and can present the Power Point
data directly from the Office Web Application Server (WAS or WAC).
Troubleshooting this server component is a chapter on his own.

Lync Call Setup
Call Setup over EDGE Server (General)
Next we want to analyze a complex flow from two different Lync. One client sitting inside its LAN and
the other remote (Internet). They need to communicate over the Edge Server.
USER A (Internet) Edge Server Pool USER B (LAN)
SIP INVITE SIP INVITE SIP INVITE
SIP 100 TRYINGSIP 100 TRYINGSIP 100 TRYING
SIP 180 RINGINGSIP 180 RINGINGSIP 180 RINGING
PRACK PRACK PRACK
SIP 183 SESSION PROGRESSSIP 183 SESSION PROGRESSSIP 183 SESSION PROGRESS
SIP 200 OK (PRACK)SIP 200 OK (PRACK)SIP 200 OK (PRACK)
SIP 200 OK (INVITE)SIP 200 OK (INVITE)SIP 200 OK (INVITE)
SIP ACK SIP ACK SIP ACK
SIP INVITE SIP INVITE SIP INVITE
SIP 100 TRYINGSIP 100 TRYINGSIP 100 TRYING
SIP 200 OKSIP 200 OKSIP 200 OK
SIP ACK SIP ACK SIP ACK
Media Session Media Session
Candidate testing Candidate testing
SESSION IS ESTABLISHED
A/V Edge
service
While the client continue negotiating their best possible IP path, the media is establish during the
negotiation process already.
In the next chapter, we are going to have look into a real-world call establishment, where two
federated partners setting up a call. Therefore also two Edge server are involved. In comparison to
the call flow diagram from above, we will simply have one more additional hub in this scenario.

Analyzing real world call setup
I provide an example, where one client is external (remote) belonging to domain-a.com and the
second client is internal (LAN) belonging to domain-b.com. This is the setup of an Audio call.
Unnecessary line are removed. From the second communication extract onwards.
usera@domain-a.com INVITE’s userb@domain-b.com. The direction provided is seen from the
initiating client, meaning “OUTGOING” the client is sending a SIP command. “INCOMING” the client
receives a SIP command.
INVITE the USER (OUTGOING)
Starting with the INVITE, where User A invites User B into a voice call.
INVITE sip:userb@domain-b.com SIP/2.0 (whom to invite)
Via: SIP/2.0/TLS 192.168.0.16:54763 (from where, the client IP address)
Max-Forwards: 70
From: <sip:usera@domain-a.com>;tag=c013887c44;epid=0639570a7f (the user initiating the
invite)
To: <sip:userb@domain-b.com> (the whom to invite as target)
Call-ID: ab5a007ca2124e95a227f1c82f58cff9 (our call identifier, if you search for a
dedicated session search based on this ID in SNOOPER)

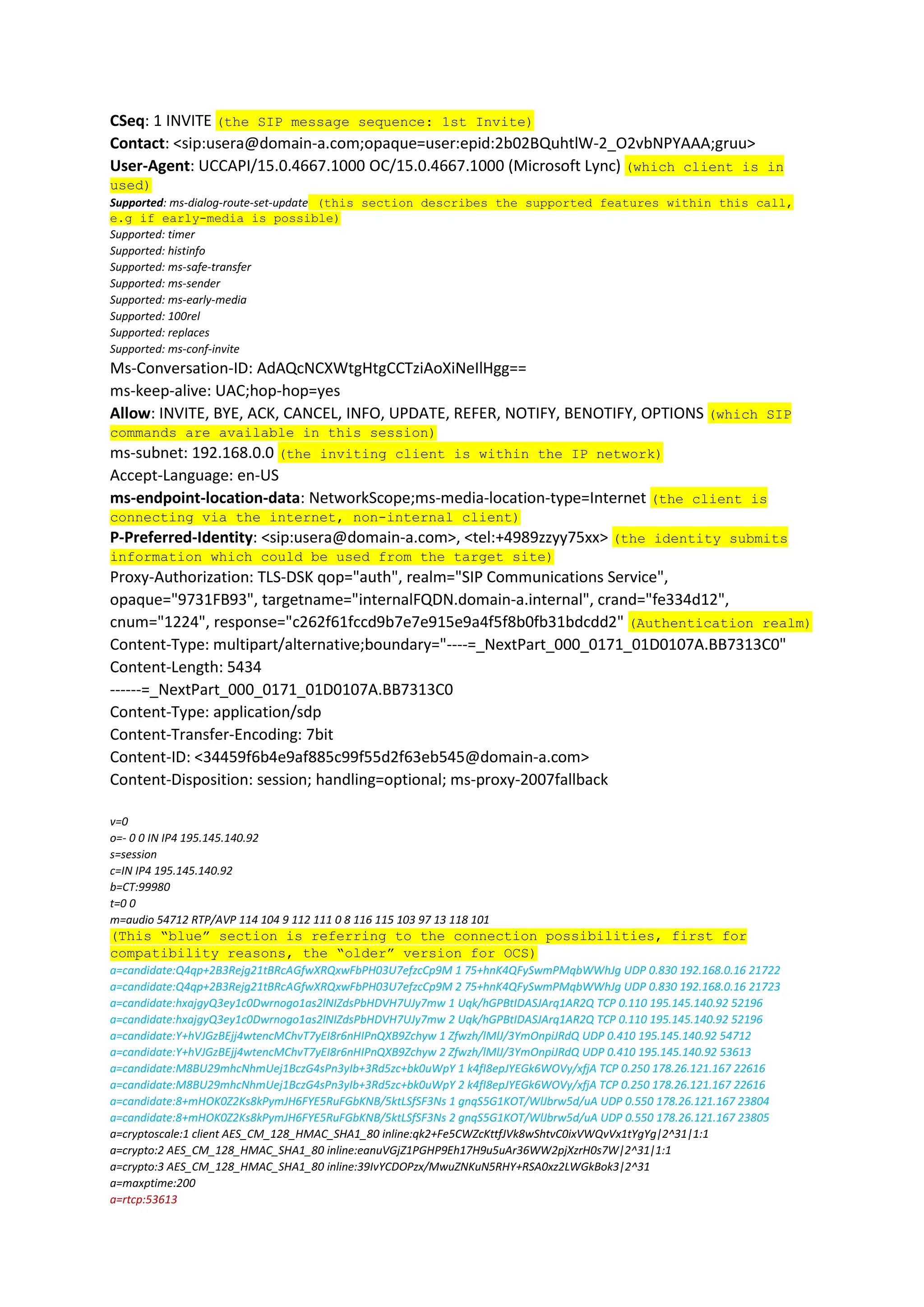

CSeq: 1 INVITE (the SIP message sequence: 1st Invite)
Contact: <sip:usera@domain-a.com;opaque=user:epid:2b02BQuhtlW-2_O2vbNPYAAA;gruu>
User-Agent: UCCAPI/15.0.4667.1000 OC/15.0.4667.1000 (Microsoft Lync) (which client is in
used)
Supported: ms-dialog-route-set-update (this section describes the supported features within this call,
e.g if early-media is possible)
Supported: timer
Supported: histinfo
Supported: ms-safe-transfer
Supported: ms-sender
Supported: ms-early-media
Supported: 100rel
Supported: replaces
Supported: ms-conf-invite
Ms-Conversation-ID: AdAQcNCXWtgHtgCCTziAoXiNeIlHgg==
ms-keep-alive: UAC;hop-hop=yes
Allow: INVITE, BYE, ACK, CANCEL, INFO, UPDATE, REFER, NOTIFY, BENOTIFY, OPTIONS (which SIP
commands are available in this session)
ms-subnet: 192.168.0.0 (the inviting client is within the IP network)
Accept-Language: en-US
ms-endpoint-location-data: NetworkScope;ms-media-location-type=Internet (the client is
connecting via the internet, non-internal client)
P-Preferred-Identity: <sip:usera@domain-a.com>, <tel:+4989zzyy75xx> (the identity submits
information which could be used from the target site)
Proxy-Authorization: TLS-DSK qop="auth", realm="SIP Communications Service",
opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="fe334d12",
cnum="1224", response="c262f61fccd9b7e7e915e9a4f5f8b0fb31bdcdd2" (Authentication realm)
Content-Type: multipart/alternative;boundary="----=_NextPart_000_0171_01D0107A.BB7313C0"
Content-Length: 5434
------=_NextPart_000_0171_01D0107A.BB7313C0
Content-Type: application/sdp
Content-Transfer-Encoding: 7bit
Content-ID: <34459f6b4e9af885c99f55d2f63eb545@domain-a.com>
Content-Disposition: session; handling=optional; ms-proxy-2007fallback
v=0
o=- 0 0 IN IP4 195.145.140.92
s=session
c=IN IP4 195.145.140.92
b=CT:99980
t=0 0
m=audio 54712 RTP/AVP 114 104 9 112 111 0 8 116 115 103 97 13 118 101
(This “blue” section is referring to the connection possibilities, first for
compatibility reasons, the “older” version for OCS)
a=candidate:Q4qp+2B3Rejg21tBRcAGfwXRQxwFbPH03U7efzcCp9M 1 75+hnK4QFySwmPMqbWWhJg UDP 0.830 192.168.0.16 21722
a=candidate:Q4qp+2B3Rejg21tBRcAGfwXRQxwFbPH03U7efzcCp9M 2 75+hnK4QFySwmPMqbWWhJg UDP 0.830 192.168.0.16 21723
a=candidate:hxajgyQ3ey1c0Dwrnogo1as2lNIZdsPbHDVH7UJy7mw 1 Uqk/hGPBtIDASJArq1AR2Q TCP 0.110 195.145.140.92 52196
a=candidate:hxajgyQ3ey1c0Dwrnogo1as2lNIZdsPbHDVH7UJy7mw 2 Uqk/hGPBtIDASJArq1AR2Q TCP 0.110 195.145.140.92 52196
a=candidate:Y+hVJGzBEjj4wtencMChvT7yEI8r6nHIPnQXB9Zchyw 1 Zfwzh/lMlJ/3YmOnpiJRdQ UDP 0.410 195.145.140.92 54712
a=candidate:Y+hVJGzBEjj4wtencMChvT7yEI8r6nHIPnQXB9Zchyw 2 Zfwzh/lMlJ/3YmOnpiJRdQ UDP 0.410 195.145.140.92 53613
a=candidate:M8BU29mhcNhmUej1BczG4sPn3yIb+3Rd5zc+bk0uWpY 1 k4fI8epJYEGk6WOVy/xfjA TCP 0.250 178.26.121.167 22616
a=candidate:M8BU29mhcNhmUej1BczG4sPn3yIb+3Rd5zc+bk0uWpY 2 k4fI8epJYEGk6WOVy/xfjA TCP 0.250 178.26.121.167 22616
a=candidate:8+mHOK0Z2Ks8kPymJH6FYE5RuFGbKNB/5ktLSfSF3Ns 1 gnqS5G1KOT/WlJbrw5d/uA UDP 0.550 178.26.121.167 23804
a=candidate:8+mHOK0Z2Ks8kPymJH6FYE5RuFGbKNB/5ktLSfSF3Ns 2 gnqS5G1KOT/WlJbrw5d/uA UDP 0.550 178.26.121.167 23805
a=cryptoscale:1 client AES_CM_128_HMAC_SHA1_80 inline:qk2+Fe5CWZcKttfJVk8wShtvC0ixVWQvVx1tYgYg|2^31|1:1
a=crypto:2 AES_CM_128_HMAC_SHA1_80 inline:eanuVGjZ1PGHP9Eh17H9u5uAr36WW2pjXzrH0s7W|2^31|1:1
a=crypto:3 AES_CM_128_HMAC_SHA1_80 inline:39IvYCDOPzx/MwuZNKuN5RHY+RSA0xz2LWGkBok3|2^31
a=maxptime:200
a=rtcp:53613

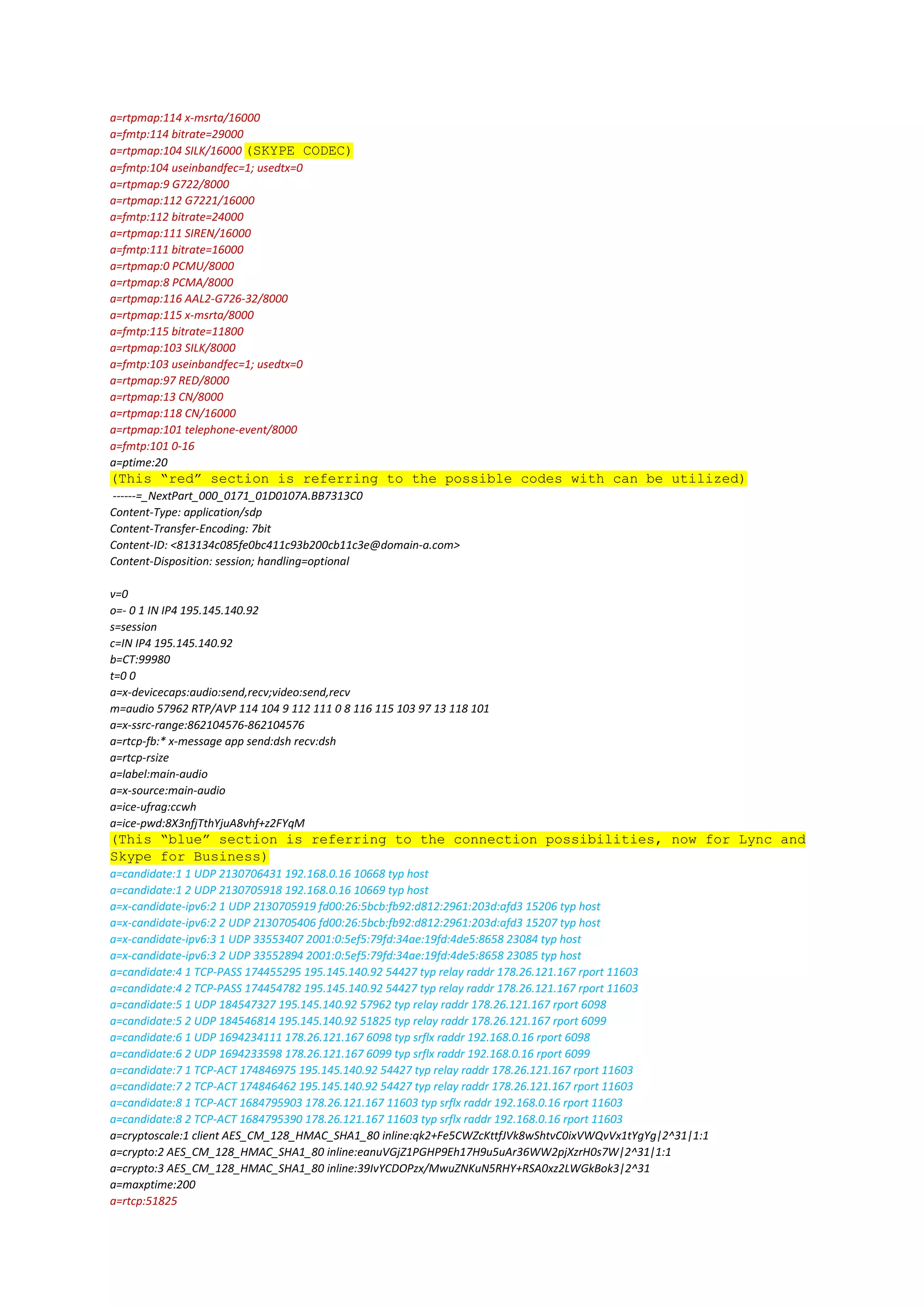

a=rtpmap:114 x-msrta/16000
a=fmtp:114 bitrate=29000
a=rtpmap:104 SILK/16000 (SKYPE CODEC)
a=fmtp:104 useinbandfec=1; usedtx=0
a=rtpmap:9 G722/8000
a=rtpmap:112 G7221/16000
a=rtpmap:111 SIREN/16000
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:116 AAL2-G726-32/8000
a=rtpmap:103 SILK/8000
a=rtpmap:97 RED/8000
a=rtpmap:13 CN/8000
a=rtpmap:118 CN/16000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=ptime:20
(This “red” section is referring to the possible codes with can be utilized)
------=_NextPart_000_0171_01D0107A.BB7313C0
Content-Transfer-Encoding: 7bit
Content-ID: <813134c085fe0bc411c93b200cb11c3e@domain-a.com>
Content-Disposition: session; handling=optional
v=0
o=- 0 1 IN IP4 195.145.140.92
s=session
c=IN IP4 195.145.140.92
b=CT:99980
t=0 0
a=x-devicecaps:audio:send,recv;video:send,recv
m=audio 57962 RTP/AVP 114 104 9 112 111 0 8 116 115 103 97 13 118 101
a=x-ssrc-range:862104576-862104576
a=rtcp-fb:* x-message app send:dsh recv:dsh
a=rtcp-rsize
a=label:main-audio
a=x-source:main-audio
a=ice-ufrag:ccwh
a=ice-pwd:8X3nfjTthYjuA8vhf+z2FYqM
(This “blue” section is referring to the connection possibilities, now for Lync and
Skype for Business)
a=candidate:1 1 UDP 2130706431 192.168.0.16 10668 typ host
a=x-candidate-ipv6:2 1 UDP 2130705919 fd00:26:5bcb:fb92:d812:2961:203d:afd3 15206 typ host
a=x-candidate-ipv6:3 1 UDP 33553407 2001:0:5ef5:79fd:34ae:19fd:4de5:8658 23084 typ host
a=candidate:4 1 TCP-PASS 174455295 195.145.140.92 54427 typ relay raddr 178.26.121.167 rport 11603
a=candidate:5 1 UDP 184547327 195.145.140.92 57962 typ relay raddr 178.26.121.167 rport 6098
a=candidate:6 1 UDP 1694234111 178.26.121.167 6098 typ srflx raddr 192.168.0.16 rport 6098
a=candidate:7 1 TCP-ACT 174846975 195.145.140.92 54427 typ relay raddr 178.26.121.167 rport 11603
a=candidate:8 1 TCP-ACT 1684795903 178.26.121.167 11603 typ srflx raddr 192.168.0.16 rport 11603
a=cryptoscale:1 client AES_CM_128_HMAC_SHA1_80 inline:qk2+Fe5CWZcKttfJVk8wShtvC0ixVWQvVx1tYgYg|2^31|1:1
a=crypto:3 AES_CM_128_HMAC_SHA1_80 inline:39IvYCDOPzx/MwuZNKuN5RHY+RSA0xz2LWGkBok3|2^31
a=maxptime:200
a=rtcp:51825

a=rtpmap:112 G7221/16000
a=rtpmap:116 AAL2-G726-32/8000
a=rtpmap:13 CN/8000
a=fmtp:101 0-16
(This “red” section is referring to the possible codes with can be utilized)
a=ptime:20
TRYING (INCOMIG)
SIP/2.0 100 Trying (Response from the target that its processing the Invite)
ms-user-logon-data: RemoteUser
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="7A0933C0", snum="1229",
rspauth="1ae94e2225388db0f72729407866c59710b3d463", targetname="internalFQDN.domain-
a.internal", realm="SIP Communications Service", version=4
From: <sip:usera@domain-a.com>;tag=c013887c44;epid=0639570a7f
To: <sip:userb@domain-b.com>
Call-ID: ab5a007ca2124e95a227f1c82f58cff9
CSeq: 1 INVITE (message response from the 1st, initial invite)
Via: SIP/2.0/TLS 192.168.0.16:54763;received=178.26.121.167;ms-received-port=54763;ms-received-
cid=86B100 (Information about the path seeing the internal sender IP and the NAT IP
on the Internet Connection)
Server: http%3A%2F%2Fwww.microsoft.com%2FLCS%2FUdcAgent
Content-Length: 0
SESSION PROGRESS (INCOMING)
Here we are informed that the session is in progress. The target system is processing the session and
will send more about the process soon. The CSeq is still indicating the dependency on the first
INVITE.
SIP/2.0 183 Session Progress
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="F7BE52E1", snum="1231",
rspauth="6d8fca262a42dc48169ef0142a2a2b910db30ba5", targetname="internalFQDN.domain-
Content-Length: 0

cid=86B100 (
From: "Thomas Poett"<sip:usera@domain-a.com>;tag=c013887c44;epid=0639570a7f
CSeq: 1 INVITE
Ms-Forking: Active
Server: http%3A%2F%2Fwww.microsoft.com%2FLCS%2FDefaultRouting(Microsoft Lync Server 2013
5.0.8308.726)
ms-edge-proxy-message-trust: ms-source-type=DirectPartner;ms-ep-
fqdn=lyncedgepool.internFQDN.local;ms-source-network=federation;ms-source-verified-
user=verified (interestingly we see the message is running through the Edge server)
PROGRESS REPORT (INCOMING) -2 times (identically send)
Still processing (send has to wait for next message)
SIP/2.0 101 Progress Report
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="1E5DE761", snum="1232",
rspauth="e415d70ab0d015011336756cb385f8c0aa35e55e", targetname="internalFQDN.domain-
Content-Length: 0
cid=86B100
CSeq: 1 INVITE
Server: InboundRouting/5.0.0.0 (send by target server)
user=verified
RINGING (INCOMING) – 4 times
This is repeated until the user pickup, rejects or don’t answer (timeout). The Ringing response is
given for each device connected on the target site.
SIP/2.0 180 Ringing
cid=86B100
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="FA1B1315", snum="1234",
rspauth="c74126037c499380d505ad2902f868320c3a6a95", targetname="internalFQDN.domain-
FROM: "Thomas Poett"<sip:usera@domain-a.com>;tag=c013887c44;epid=0639570a7f

TO: "USER B"<sip:userb@domain-b.com>;tag=32653fb637;epid=212448855504
CSEQ: 1 INVITE
CALL-ID: ab5a007ca2124e95a227f1c82f58cff9
CONTACT: <sip:userb@domain-
b.com;opaque=user:epid:OWi6ihJpQlqfhlrZfAmZywAA;gruu>;text;audio;video;image;applicationshari
ng
CONTENT-LENGTH: 0
SUPPORTED: gruu-10
ALLOW: CANCEL (The ALLOW show the possible commands based on the Ringing, meaning
how to terminate and more…)
ALLOW: BYE
ALLOW: UPDATE
ALLOW: PRACK
P-ASSERTED-IDENTITY: "USER B"<sip:userb@domain-b.com>
SERVER: RTCC/5.0.0.0 UCWA/5.0.0.0 AndroidLync/4.0.0000.0000 (Nexus 7 Android 4.4.4)
[As we saw in the initial screen shot, 4 RINGING response were received, this are
the green marked devices
SERVER: RTCC/5.0.0.0 UCWA/5.0.0.0 AndroidLync/5.4.1106.0 (GXV3275 Android 4.2.2)
User-Agent: CPE/4.0.7577.4451 OCPhone/4.0.7577.4451 (Microsoft Lync Phone Edition)]
user=verified
PROGRESS REPORT (INCOMING)
(The call was now take by USER B (callee), we need another progress report here stating this). We
also need to receive the SDP here that early-media can be established with this candiates).
This is send from the device taking the call to connect with audio. In this trace from a Lync native
client.
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="CD84738D", snum="1238",
rspauth="57062b086f1b35c4b848bc42fb28b33897f6963e", targetname="internalFQDN.domain-
cid=86B100
To: <sip:userb@domain-b.com>;epid=a606e73c89;tag=01c33dbedc
CSeq: 1 INVITE (we are still in progress receiving information based on the first
INVITE)
[we first identify the target sites route and involved servers and its CANDIDATES
HERE establishing early-media]
Record-Route: <sip:lync2013.hq.domain-b.com:5061;transport=tls;opaque=state:T;lr>
Record-Route: <sip:ocs.domain-b.com:5061;transport=tls;epid=a606e73c89;lr;ms-key-info=.......;ms-
route-sig=bkNIsAXKnsiRmbGYKjO4lps9o6nw6ySSsyRfgI3kTNTO9ouKskkfZA1AAA>
Record-Route: <sip:lyncedgepool.internFQDN.local:5061;transport=tls;lr>

Record-Route: <sip:lyncpool1.internFQDN.local:5061;transport=tls;ms-fe=internalFQDN.domain-
a.internal;opaque=state:F;lr;received=10.35.3.27;ms-received-cid=78E300>
Record-Route: <sip:sip.domain-a.com:5061;transport=tls;opaque=state:Ci.R86b100;lr;ms-route-
sig=fgFbc2J6H1DsQORB0QtvkWygilYrA-0Ccj13Tr9fH6LkbccFlf6mOs6wAA>
Contact: <sip:userb@domain-b.com;opaque=user:epid:LLsGlnCjYlGGrdmzIoEFUwAA;gruu>
Require: 100rel
RSeq: 1 (Receive CSEQ, now the target site requests a response)
ms-endpoint-location-data: NetworkScope;ms-media-location-type=Intranet
user=verified
v=0
o=- 0 0 IN IP4 10.6.0.5
s=session
c=IN IP4 10.6.0.5
b=CT:99980
t=0 0
m=audio 9450 RTP/SAVP 114 9 112 111 0 8 116 115 97 13 118 101
a=x-ssrc-range:76626436-76626436
a=rtcp-rsize
a=label:main-audio
a=ice-ufrag:MNHU
a=ice-pwd:5kvPXMuiOnrb7F2p4DG15DQm
(all possible candidates from the target system are submitted)
a=crypto:2 AES_CM_128_HMAC_SHA1_80 inline:qoMfVcC0DhPKn3Fs7/9n2BL2iM0P4XSgpxeXR874|2^31|1:1
a=maxptime:200
a=rtpmap:112 G7221/16000
a=rtpmap:116 AAL2-G726-32/8000
a=rtpmap:13 CN/8000
a=fmtp:101 0-16
a=ptime:20

PRACK (OUTGOING)
Reliability of “Provisional Responses” in the Session Initiation Protocol (PRACK RFC3262). Two
possible responses exit: provisional and final. PRACK is the provisional response. We signalize: We
are ready to connect.
PRACK sip:userb@domain-b.com;opaque=user:epid:LLsGlnCjYlGGrdmzIoEFUwAA;gruu SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:54763
Max-Forwards: 70
CSeq: 2 PRACK (CSEQ is increased to 2, we continue with the next process establishing
the call)
Route: <sip:sip.domain-a.com:5061;transport=tls;opaque=state:Ci.R86b100;lr;ms-route-
Route: <sip:lyncpool1.internFQDN.local:5061;transport=tls;ms-fe=internalFQDN.domain-
Route: <sip:lyncedgepool.internFQDN.local:5061;transport=tls;lr>
Route: <sip:ocs.domain-b.com:5061;transport=tls;epid=a606e73c89;lr;ms-key-
info=AAEAAcUcKOgG4q8UZBDQAVcU1Pt2m_6ekgNlaaYrCW5qBdhWPxt97pJbLWjJqjzzJFfUkk6MJ2eS
yIm77AmUE76vtBbPqEm5zKxc8R9DxeBx2FZfM49Y16vsDldXQl4uDazo3BWXJDggmtpWiOWkYwhmW
adsT813jJ9JhAIxcPTzltiNbNZ9b0_iffEi6oI6_HlftQCLqKb-n8tq1gIsAtSYw8-o2vGxrswJ8HeIFn6z0TFE-
Sd_F76aV8DYmi-NkRPcwknKnBMwDhNKQ2pl2vZ61B9oFlcy9xFQOdLZujQUyZ27T06xfFqzz3H-
bPyd92DSPFmvjfcvGx6WGqQHI4FIkz2pe9FIKXi8ZVVJhS6EE65YtcKxvu5LfCxSN5P4ZePtClNSdlyV2FLyOt
WYXS72c1xHNM5AT53D2KJjwzRURJ1v--1CLkVuiFfCPe8GSPVbqTLmdNLlmpqtF05UiEa-
9coZDWDdYx41iGUNxfhykgSt2iFoTyjdShLxTg6BbAS5zuf5BY_VUuJwKjx9b0-
ecWhYzTKK_JaQDim4WGPFqRx8PAcx4GZtv6OQMAwYA8A5ZeXLQWa0DL_PFq4BVF5HfR_jfyQciEGjV
Gsc5BXT0CdprYmXNjSyYLzEG4WzCm4jpdX_SnInhJhZ1SZ8kv9n91oV7O7MVwGyBN6ALBbUVCUugkj5
Nfn0qzv_UKDM;ms-route-
sig=bkNIsAXKnsiRmbGYKjO4lps9o6nw6ySSsyRfgI3kTNTO9ouKskkfZA1AAA>
Route: <sip:lync2013.hq.domain-b.com:5061;transport=tls;opaque=state:T;lr>
User-Agent: UCCAPI/15.0.4667.1000
RAck: 1 1 INVITE (a PAck based on our INVITE)
opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="ae68c543",
cnum="1226", response="8913674f898d1f2c357350d9e8e9c348d7abc36b"
Content-Length: 0

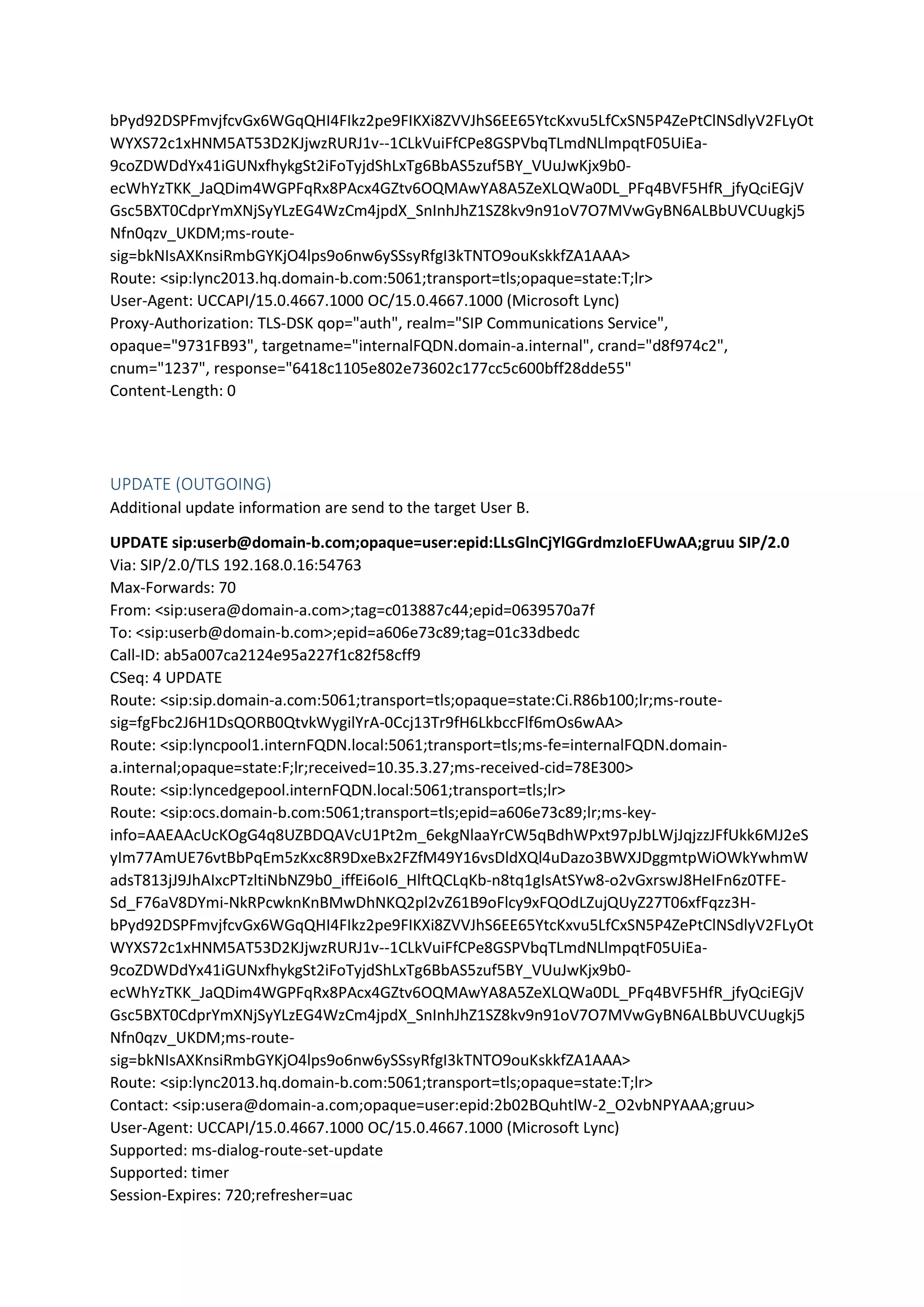

OK (INCOMING)
The PRACK was acknowledged from the
SIP/2.0 200 OK

Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="0B8D6EC0", snum="1239",
rspauth="971556595d08e9e1977484380009bfb0457afeb3", targetname="internalFQDN.domain-
cid=86B100
CSeq: 2 PRACK
Content-Length: 0
user=verified
SESSION PROGRESS (INCOMING)
The target is signalizing it is processing the still on the first INVITE. Even it has received the PRACK
and answered for provisional progress. It was also repeating the candidates once more for later use.
This command 183 Session Progress is the responsible trigger for CALLEE’S device signalizing the
incoming call on his/ her device!
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="2F18494A", snum="1240",
rspauth="a62e2a1927663ce245b8992e1283c26aaa1716ea", targetname="internalFQDN.domain-
cid=86B100
To: <sip:userb@domain-b.com>;epid=5385571cf9;tag=1ce13477ae
CSeq: 1 INVITE

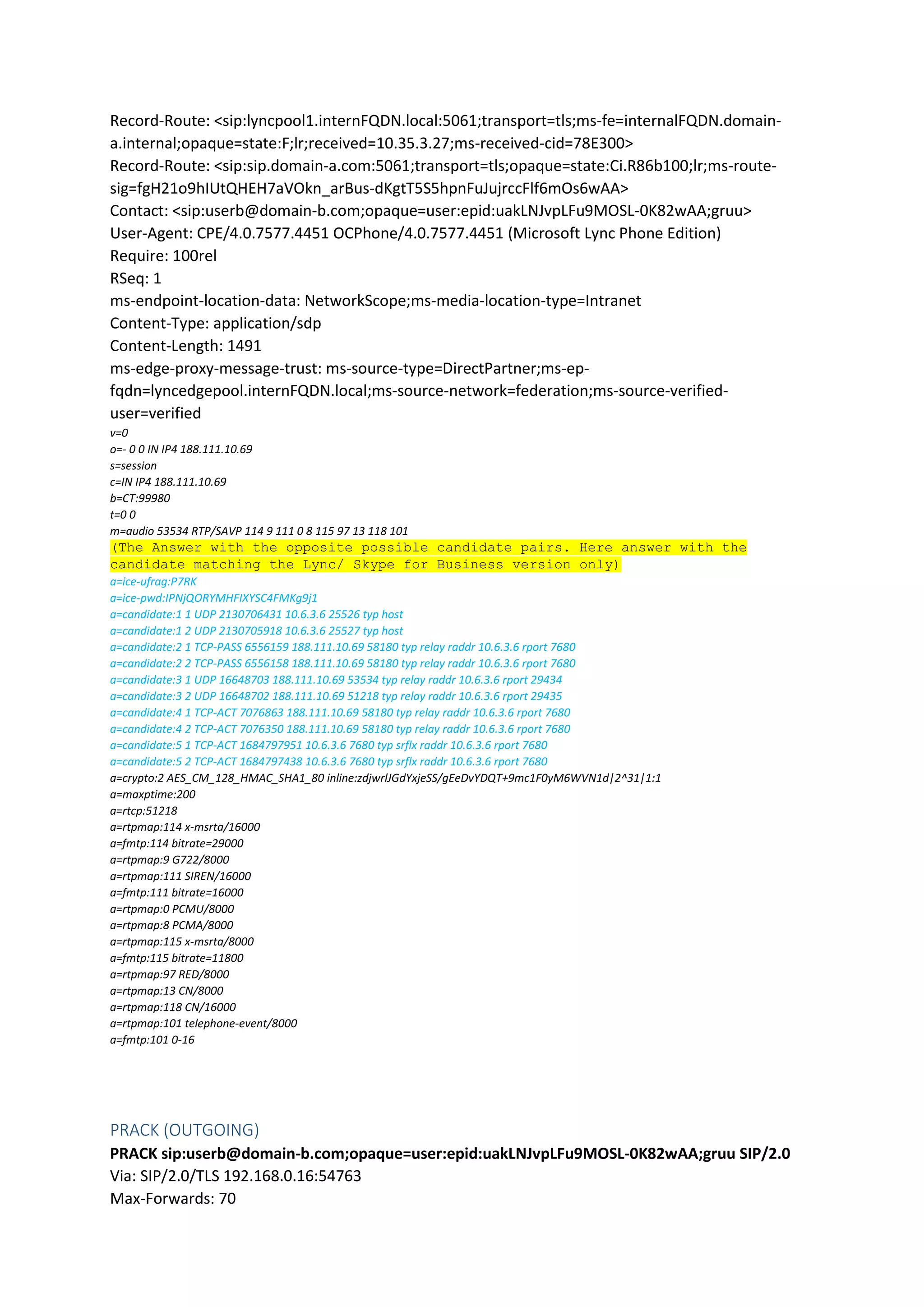

Record-Route: <sip:ocs.domain-b.com:5061;transport=tls;epid=5385571cf9;lr;ms-key-
sig=bk1thRQ_ihhCNLmtXzZOeqNXyFx22uhJJkDX_9qM1XZNBouKskkfZA1AAA>

sig=fgH21o9hIUtQHEH7aVOkn_arBus-dKgtT5S5hpnFuJujrccFlf6mOs6wAA>
Contact: <sip:userb@domain-b.com;opaque=user:epid:uakLNJvpLFu9MOSL-0K82wAA;gruu>
User-Agent: CPE/4.0.7577.4451 OCPhone/4.0.7577.4451 (Microsoft Lync Phone Edition)
Require: 100rel
RSeq: 1
user=verified
v=0
o=- 0 0 IN IP4 188.111.10.69
s=session
c=IN IP4 188.111.10.69
b=CT:99980
t=0 0
m=audio 53534 RTP/SAVP 114 9 111 0 8 115 97 13 118 101
(The Answer with the opposite possible candidate pairs. Here answer with the
candidate matching the Lync/ Skype for Business version only)
a=ice-ufrag:P7RK
a=ice-pwd:IPNjQORYMHFIXYSC4FMKg9j1
a=crypto:2 AES_CM_128_HMAC_SHA1_80 inline:zdjwrlJGdYxjeSS/gEeDvYDQT+9mc1F0yM6WVN1d|2^31|1:1
a=maxptime:200
a=rtcp:51218
a=rtpmap:13 CN/8000
a=fmtp:101 0-16
PRACK (OUTGOING)
PRACK sip:userb@domain-b.com;opaque=user:epid:uakLNJvpLFu9MOSL-0K82wAA;gruu SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:54763
Max-Forwards: 70

CSeq: 2 PRACK
sig=fgH21o9hIUtQHEH7aVOkn_arBus-dKgtT5S5hpnFuJujrccFlf6mOs6wAA>
Route: <sip:ocs.domain-b.com:5061;transport=tls;epid=5385571cf9;lr;ms-key-
sig=bk1thRQ_ihhCNLmtXzZOeqNXyFx22uhJJkDX_9qM1XZNBouKskkfZA1AAA>
User-Agent: UCCAPI/15.0.4667.1000
RAck: 1 1 INVITE
opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="5ccff29a",
cnum="1227", response="5848d72e4f8922c35d4731ed3b8baa03cefc576d"
Content-Length: 0
PRE-CALL with EARLY-MEDIA ESTABLISHED ! You can listen to Audio from
here…
OK (INCOMING)
Lync Phone Edition reports OK only. (Because the Desktop client picked up the call, see next Ok) –
We can’t see the target client IP, since the OK was send from Lync server)
SIP/2.0 200 OK
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="E0730742", snum="1241",
rspauth="1052a2e1c8fef69041775164c0e357aeb866b452", targetname="internalFQDN.domain-
cid=86B100

CSeq: 2 PRACK
User-Agent: CPE/4.0.7577.4451 OCPhone/4.0.7577.4451 (Microsoft Lync Phone Edition)
Content-Length: 0
user=verified
OK (INCOMING)
Same as above 200 OK. Here this is the client who picked up the call finally. (The “blue” highlighted
ms-client-diagnostics provides the path, ports and IPs chosen/ involved in the INCOMING call) Use
this information for troubleshooting if a call can’t be connected.
SIP/2.0 200 OK
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="8461DC50", snum="1243",
rspauth="1af8acd0ed86a6ac7dc44718f1c166e326275718", targetname="internalFQDN.domain-
cid=86B100
P-Asserted-Identity: <sip:userb@domain-b.com>, <tel:+493328455946;ext=946>
CSeq: 1 INVITE
Record-Route: <sip:ocs.domain-b.com:5061;transport=tls;epid=a606e73c89;lr;ms-key-
Supported: histinfo

Supported: ms-dialog-route-set-update
Supported: ms-bypass
Supported: replaces
Allow: INVITE, BYE, ACK, CANCEL, INFO, UPDATE, REFER, NOTIFY, BENOTIFY, OPTIONS
Session-Expires: 720;refresher=uac
Ms-Accepted-Content-ID: <813134c085fe0bc411c93b200cb11c3e@domain-a.com>
ms-client-diagnostics: 51007;reason="Callee media connectivity diagnosis
info";UserType="Callee";MediaType="audio";ICEWarn="0x0";LocalSite="10.6.0.5:9450";LocalMR="18
8.111.10.69:56186";RemoteSite="178.26.121.167:11603";RemoteMR="195.145.140.92:54427";Port
Range="1025:65000";LocalMRTCPPort="58236";RemoteMRTCPPort="54427";LocalLocation="2";Rem
oteLocation="1";FederationType="1";NetworkName="hq.domain-
b";Interfaces="0x2";BaseInterface="0x2";BaseAddress="10.6.0.5:29624;MrDnsU="lyncedge2013.hq.
domain-b.com";MrResU="0"
user=verified
v=0
o=- 0 1 IN IP4 10.6.0.5
s=session
c=IN IP4 10.6.0.5
b=CT:99980
t=0 0
m=audio 9450 RTP/SAVP 114 9 112 111 0 8 116 115 97 13 118 101
a=x-ssrc-range:76626436-76626436
a=rtcp-rsize
a=label:main-audio
(Acknowledgement of ICS candiatets)
a=ice-ufrag:MNHU
a=maxptime:200
a=rtpmap:112 G7221/16000
a=rtpmap:116 AAL2-G726-32/8000
a=rtpmap:13 CN/8000

a=fmtp:101 0-16
a=ptime:20
ACK (OUTGOING)
Answering on the last OK 200, we are ready and have established the call based on the Early-Media
possibility. (In the SIP ACK you can’t directly see which candidate pairs were chosen from the local
site)
ACK sip:userb@domain-b.com;opaque=user:epid:LLsGlnCjYlGGrdmzIoEFUwAA;gruu SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:54763
Max-Forwards: 70
CSeq: 1 ACK
opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="4d36ef5d",
cnum="1229", response="4024acc021fc947a444f0235aca6b55bfe38fccd"
Content-Length: 0
- - - - - - - - - - - - - - - - - - - - - Final Call Establishment (START) - - - - - - - - - - - - - - - - - - - - - -

INVITE (OUTGOING)
Very important 2nd
INVITEwill be send. Here the candidates are chosen. This is because EARLY MEDIA
was in place. It occurs after 8 seconds. This Message is the 2nd
important message for
troubleshooting
INVITE sip:userb@domain-b.com;opaque=user:epid:LLsGlnCjYlGGrdmzIoEFUwAA;gruu SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:54763
Max-Forwards: 70
CSeq: 3 INVITE
Supported: timer
Supported: histinfo
Supported: ms-sender
Supported: ms-early-media
Supported: 100rel
Ms-Conversation-ID: AdAQcNCXWtgHtgCCTziAoXiNeIlHgg==
ms-keep-alive: UAC;hop-hop=yes
ms-subnet: 192.168.0.0
ms-endpoint-location-data: NetworkScope;ms-media-location-type=Internet
opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="d51c2cac",
cnum="1236", response="ebe65f76db398bc77cbcd0023f8a08ebc5383fc3"
v=0
o=- 0 2 IN IP4 178.26.121.167
s=session
c=IN IP4 178.26.121.167

b=CT:99980
t=0 0
(Chosen CODEC for this Call)
m=audio 10668 RTP/SAVP 114 9 112 111 0 8 116 115 97 13 118 101
a=x-ssrc-range:862104576-862104576
a=rtcp-rsize
a=label:main-audio
a=ice-ufrag:ccwh
a=ice-pwd:8X3nfjTthYjuA8vhf+z2FYqM
(Chosen candidate pair from the CALLER, the local client initiated the call)
a=candidate:9 1 UDP 1862270719 178.26.121.167 10668 typ prflx raddr 192.168.0.16 rport 10668
a=x-candidate-info:9 network-type=wlan
(Chosen candidate pair from the CALLEE, the target client received the call)
a=remote-candidates:1 188.111.10.69 56186 2 188.111.10.69 52054
a=maxptime:200
a=rtpmap:112 G7221/16000
a=rtpmap:116 AAL2-G726-32/8000
a=rtpmap:13 CN/8000
a=fmtp:101 0-16
a=ptime:20
TRYING (INCOMING)
Repeated, where targeted client is provide the processing answer to the Caller.
SIP/2.0 100 Trying
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="2017C6C8", snum="1250",
rspauth="29bd3cee53c7ee7d5d2d16447e10c322889787a9", targetname="internalFQDN.domain-
CSeq: 3 INVITE
cid=86B100
Server: http%3A%2F%2Fwww.microsoft.com%2FLCS%2FUdcAgent
Content-Length: 0

OK (INCOMING)
The system reports the OPPOSITE (Callee) Sites candidates. This Message is the 3rd
important
message for troubleshooting
SIP/2.0 200 OK
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="66092504", snum="1251",
rspauth="50704114ce2af2b0b2d8e6baba7beea7385ffde7", targetname="internalFQDN.domain-
cid=86B100
CSeq: 3 INVITE
Nfn0qzv_UKDM;ms-route-sig=bkvaDEc_X-
NU45W3umMb4t6ECCG3ZPk6GzArzXrrEbNiM1W1p7kfZA1AAA>
sig=fgOWxUm0EfQarzH0G-ErSJjxVC7XTryjyILvQLZVI1lzTVGglL6mOs6wAA>
Supported: histinfo
user=verified
v=0
o=- 0 2 IN IP4 188.111.10.69
s=session
c=IN IP4 188.111.10.69
b=CT:99980
t=0 0

(Target acknowledgement from chosen CODEC for this Call)
m=audio 56186 RTP/SAVP 114 9 112 111 0 8 116 115 97 13 118 101
a=x-ssrc-range:76626436-76626436
a=rtcp-rsize
a=label:main-audio
a=ice-ufrag:MNHU
(Target site acknowledgement from chosen candidates for this Call)
(Initiator seen IP address @HomeOffice remote acknowledgement from chosen candidates for this
Call)
a=remote-candidates:1 178.26.121.167 10668 2 178.26.121.167 10669
a=maxptime:200
a=rtcp:52054
a=rtpmap:112 G7221/16000
a=rtpmap:116 AAL2-G726-32/8000
a=rtpmap:13 CN/8000
a=fmtp:101 0-16
a=ptime:20
ACK (OUTGOING)
Initiator acknowledge the call setup!
ACK sip:userb@domain-b.com;opaque=user:epid:LLsGlnCjYlGGrdmzIoEFUwAA;gruu SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:54763
Max-Forwards: 70
CSeq: 3 ACK

opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="d8f974c2",
cnum="1237", response="6418c1105e802e73602c177cc5c600bff28dde55"
Content-Length: 0
UPDATE (OUTGOING)
Additional update information are send to the target User B.
UPDATE sip:userb@domain-b.com;opaque=user:epid:LLsGlnCjYlGGrdmzIoEFUwAA;gruu SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:54763
Max-Forwards: 70
CSeq: 4 UPDATE
Supported: timer
Session-Expires: 720;refresher=uac

Min-SE: 720
opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="dd88107f",
cnum="1330", response="f6cf51543bc9b1fd2a1536957698e3477505fa83"
Content-Length: 0
OK (INCOMING)
The ACK on the update commend.
SIP/2.0 200 OK
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="13DC564A", snum="1344",
rspauth="8d9dafdf5f39125c29ad76741d2d705863bee0f1", targetname="internalFQDN.domain-
cid=86B100
CSeq: 4 UPDATE
Nfn0qzv_UKDM;ms-route-sig=bk4GduDCNxTNV3mUGDqcJjehpo3xWD5UmIeBGvMW-
NeXDEkP2SkfZA1AAA>
sig=fgj43gLcqUIWe1otRyx4hGc_E9OAMd7xHVAsuYSVhQcIaGEQYJ6mOs6wAA>
Content-Length: 0
user=verified
-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.

Call will run until one party will hang up (terminate) the call
BYE (INCOMING)
The Callee has terminated the Call.
We use the ms-client-diagnostic header again identifying the cause for this BYE command.
BYE sip:178.26.121.167:54763;transport=tls;ms-opaque=db7d07b19e;ms-received-cid=86B100;grid
SIP/2.0
Via: SIP/2.0/TLS
10.90.0.2:5061;branch=z9hG4bKB8D8E46B.F59FA977F07432BC;branched=FALSE;ms-internal-
info="baQuVQtczC98qPtJrOqR8R1AJE4HQqffr8hhp_Y7fO4Ql3qZ_124V57wAA"
Via: SIP/2.0/TLS
10.35.3.27:52179;branch=z9hG4bK1F95CEEE.3CB853283194E2BF;branched=FALSE;ms-received-
port=52179;ms-received-cid=869C00
Via: SIP/2.0/TLS
10.35.3.30:55234;branch=z9hG4bK4992B5B9.BCE538E3F07342BC;branched=FALSE;ms-received-
port=55234;ms-received-cid=144D400
Via: SIP/2.0/TLS
10.20.5.123:50226;branch=z9hG4bK0A74D9E0.7924E7EBB84F72C7;branched=FALSE;ms-internal-
info="bgffnqo7oiCfaV0RCJNRTid6CcdhFzn1sjL6rFUa4opADr5yR5HWfZVAAA";received=188.111.10.67
;ms-received-port=50226;ms-received-cid=8A1900
Via: SIP/2.0/TLS
10.1.1.73:57073;branch=z9hG4bK219343E9.4B78C2AF25BE42BF;branched=FALSE;ms-received-
port=57073;ms-received-cid=2DEC800
Via: SIP/2.0/TLS 10.6.0.5:49501;ms-received-port=49501;ms-received-cid=D71300
Max-Forwards: 65
Authentication-Info: TLS-DSK qop="auth", opaque="9731FB93", srand="C01DE96B", snum="1354",
rspauth="8d5b523e9aa16aa6905468f4ad3f9268a89463eb", targetname="internalFQDN.domain-
Content-Length: 0
From: "" <sip:userb@domain-b.com>;epid=a606e73c89;tag=01c33dbedc
To: <sip:usera@domain-a.com>;tag=c013887c44;epid=0639570a7f
CSeq: 1 BYE
ms-client-diagnostics: 51004; reason="Action initiated by
user";UserType="Callee";MediaType="audio";ICEWarn="0x20";LocalSite="10.6.0.5:9450";LocalMR="
188.111.10.69:56186";RemoteSite="178.26.121.167:11603";RemoteMR="195.145.140.92:54427";Po
rtRange="1025:65000";LocalMRTCPPort="58236";RemoteMRTCPPort="54427";LocalLocation="2";Re
moteLocation="1";FederationType="1";NetworkName="hq.domain-
b";Interfaces="0x2";BaseInterface="0x2";BaseAddress="10.6.0.5:29624";Protocol="0";LocalInterface
="0x2";LocalAddrType="2";LocalAddress="188.111.10.69:56186";RemoteAddress="178.26.121.167:1
0668";RemoteAddrType="5";MrDnsU="lyncedge2013.hq.domain-b.com";MrResU="0"
user=verified

OK (OUTGOING)
The Call termination was done correctly and is acknowledge from the User A with a simple 200 OK
SIP/2.0 200 OK
Via: SIP/2.0/TLS
10.90.0.2:5061;branch=z9hG4bKB8D8E46B.F59FA977F07432BC;branched=FALSE;ms-internal-
info="baQuVQtczC98qPtJrOqR8R1AJE4HQqffr8hhp_Y7fO4Ql3qZ_124V57wAA"
Via: SIP/2.0/TLS
10.35.3.27:52179;branch=z9hG4bK1F95CEEE.3CB853283194E2BF;branched=FALSE;ms-received-
port=52179;ms-received-cid=869C00
Via: SIP/2.0/TLS
10.35.3.30:55234;branch=z9hG4bK4992B5B9.BCE538E3F07342BC;branched=FALSE;ms-received-
port=55234;ms-received-cid=144D400
Via: SIP/2.0/TLS
10.20.5.123:50226;branch=z9hG4bK0A74D9E0.7924E7EBB84F72C7;branched=FALSE;ms-internal-
info="bgffnqo7oiCfaV0RCJNRTid6CcdhFzn1sjL6rFUa4opADr5yR5HWfZVAAA";received=188.111.10.67
;ms-received-port=50226;ms-received-cid=8A1900
Via: SIP/2.0/TLS
10.1.1.73:57073;branch=z9hG4bK219343E9.4B78C2AF25BE42BF;branched=FALSE;ms-received-
port=57073;ms-received-cid=2DEC800
Via: SIP/2.0/TLS 10.6.0.5:49501;ms-received-port=49501;ms-received-cid=D71300
From: <sip:userb@domain-b.com>;epid=a606e73c89;tag=01c33dbedc
To: <sip:usera@domain-a.com>;tag=c013887c44;epid=0639570a7f
CSeq: 1 BYE
opaque="9731FB93", targetname="internalFQDN.domain-a.internal", crand="d8c758cf",
cnum="1340", response="a34f135db9c88f7f1a2fa38756e6a68886923ff4"
Content-Length: 0

Troubleshooting IM, Calls with A/V
This is the chapter where we will discuss several common issues and provide information and
solutions. We are starting with the most common issue where clients cannot establish an audio/
video connection and learn about the MS-DIAGNOSTICS and MS-CLIENT-DIAGNOSTICS.
The last section in this chapter we will talk about the Monitoring reports, especially about identifying
bad call quality issues.
First, we need having a look into the Address Exchange, the way how the communication path can be
established.
AV Address Exchange, negotiation of candidates
If it is would be possible that client could always communicate straight, meaning in fully routed, flat
network, there would be no need for identifying possible communication paths. In the real world are
several scenarios where client could be located.
 Internal LAN <-> Internal LAN
 Internal LAN <-> External (Internet), behind NAT
 External (with/ without NAT) <-> External (with/ without NAT)
 Federation Scenarios
As we understood, NAT could hinder a possible communication, therefore a technique is required
exchanging data for client location. This is when the client starts a communication and identify all
possible IP addresses and ports. This process is based on Interactive Connectivity Establishment
(ICE). This is the process behind the scene, evaluation the most possible direct path. ICE is based on
two protocols, Session Traversal Utilities for NAT (STUN) and Traversal Using Relay NAT (TURN).
The next illustration demonstrates the exchange, negotiation and acknowledgement of candidates.

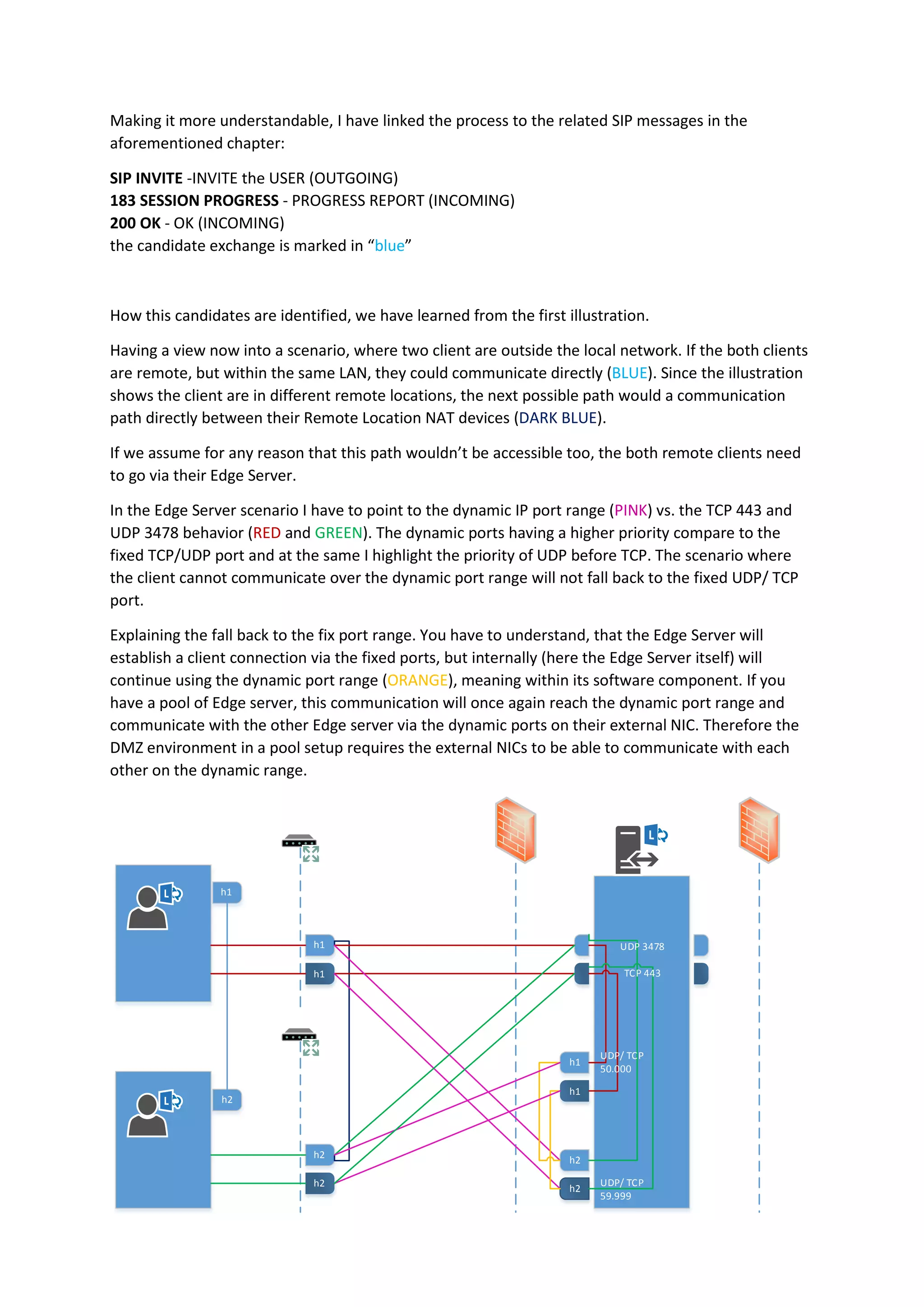

Making it more understandable, I have linked the process to the related SIP messages in the
aforementioned chapter:
SIP INVITE -INVITE the USER (OUTGOING)
183 SESSION PROGRESS - PROGRESS REPORT (INCOMING)
200 OK - OK (INCOMING)
the candidate exchange is marked in “blue”
How this candidates are identified, we have learned from the first illustration.
Having a view now into a scenario, where two client are outside the local network. If the both clients
are remote, but within the same LAN, they could communicate directly (BLUE). Since the illustration
shows the client are in different remote locations, the next possible path would a communication
path directly between their Remote Location NAT devices (DARK BLUE).
If we assume for any reason that this path wouldn’t be accessible too, the both remote clients need
to go via their Edge Server.
In the Edge Server scenario I have to point to the dynamic IP port range (PINK) vs. the TCP 443 and
UDP 3478 behavior (RED and GREEN). The dynamic ports having a higher priority compare to the
fixed TCP/UDP port and at the same I highlight the priority of UDP before TCP. The scenario where
the client cannot communicate over the dynamic port range will not fall back to the fixed UDP/ TCP
port.
Explaining the fall back to the fix port range. You have to understand, that the Edge Server will
establish a client connection via the fixed ports, but internally (here the Edge Server itself) will
continue using the dynamic port range (ORANGE), meaning within its software component. If you
have a pool of Edge server, this communication will once again reach the dynamic port range and
communicate with the other Edge server via the dynamic ports on their external NIC. Therefore the
DMZ environment in a pool setup requires the external NICs to be able to communicate with each
other on the dynamic range.
h1
h2
h2
h1
h1
h2
h2
h2
h1
h1
UDP 3478
TCP 443
UDP/ TCP
50.000
UDP/ TCP
59.999

Let’s explain what is happening here:
As we can see from the excerpt above, the ICE negotiation starts with the INVITE and IP Port
candidates are submitted to the second client. Next the recipient will reply with it’s own IP Port
candidates and pack those into the 182 SESSION PROGRESS message. Thereafter which the two
clients will attempt connectivity checks to determine which of those candidates can be used. This
process is based on logic within the clients. Once the checks have been passed, the call will be
acknowledged with a 200 OK. This message contains the final pair of candidates which are now used.
This I had described before.
In troubleshooting, you are now able to test those IPs and Ports.
If you will not see the 200 OK message, this indicated the check was done, but the connectivity could
not be established and your must see instead a BYE message. Most likely this is due to a firewall
problem, where those chosen ports are blocked, or the allowed firewall direction is not correctly. The
UDP port 3478 must be bi-directional.
Another quick look into the final candidates and I will explain SRFLX and PRFLX.
FINAL CANDIDATES in the SECOND INVITE
defaultCandidatelist
local remote
a
b
c
d
e
Media
Relay
MRAS
Local Client NAT Device Edge Server
a
b
d
c
e
Reflexive addresses are discovered be connecting to the edge server and submitted to the client

server reflexive address (srflx) - translated address on the public side of the NAT (obtained from either
a STUN server or a TURN server, the Lync or Skype for Business Edge Server). A candidate whose IP
address and port are a binding allocated by a NAT for an agent when it sent a packet through the
NAT to a server. Server reflexive candidates can be learned by STUN servers using the Binding
request, or TURN servers, which provides both a relayed and server reflexive candidate.
peer reflexive address (prflx) - A candidate whose IP address and port are a binding allocated by a NAT
for an agent when it sent a STUN Binding request through the NAT to its peer.
RFC - Interactive Connectivity Establishment (ICE):
A Protocol for Network Address Translator (NAT) Traversal for Offer/Answer Protocols
https://tools.ietf.org/html/rfc5245
Audio Video Call failed with ms-client-diagnostics (one client is external):
One of the most common issue I have seen during the last couple of year is this following error:
ms-client-diagnostics: 23; reason="Call failed to establish due to a
media connectivity failure when one endpoint is internal and the
other is remote";CalleeMediaDebug="audio:ICEWarn=0x80012b
REMEMBER:
This is a call problem where one client is internal and the other client is a REMOTE client.
It results in a call could not be established, even in some constellations IM is working fine, but not
audio/ video is possible. Or you simply can’t join a conference call. It will not be stablished.
In Lync or Skype for Business client you receive an error warning that a call could not establish due to
network problems. Please consult your System Administrator.
It might be a bit tricky sporting this issue, because it not be immediately identified where, or better
on which site this issue is.
WARNING/ ADVICE:
If this issue is happen between two client, where you are federated with, you only can approach your
own site for troubleshooting. Most likely you don’t have access to your partner’s site. Therefore
being advised, test your local site first, than approach your partner and work with him together.

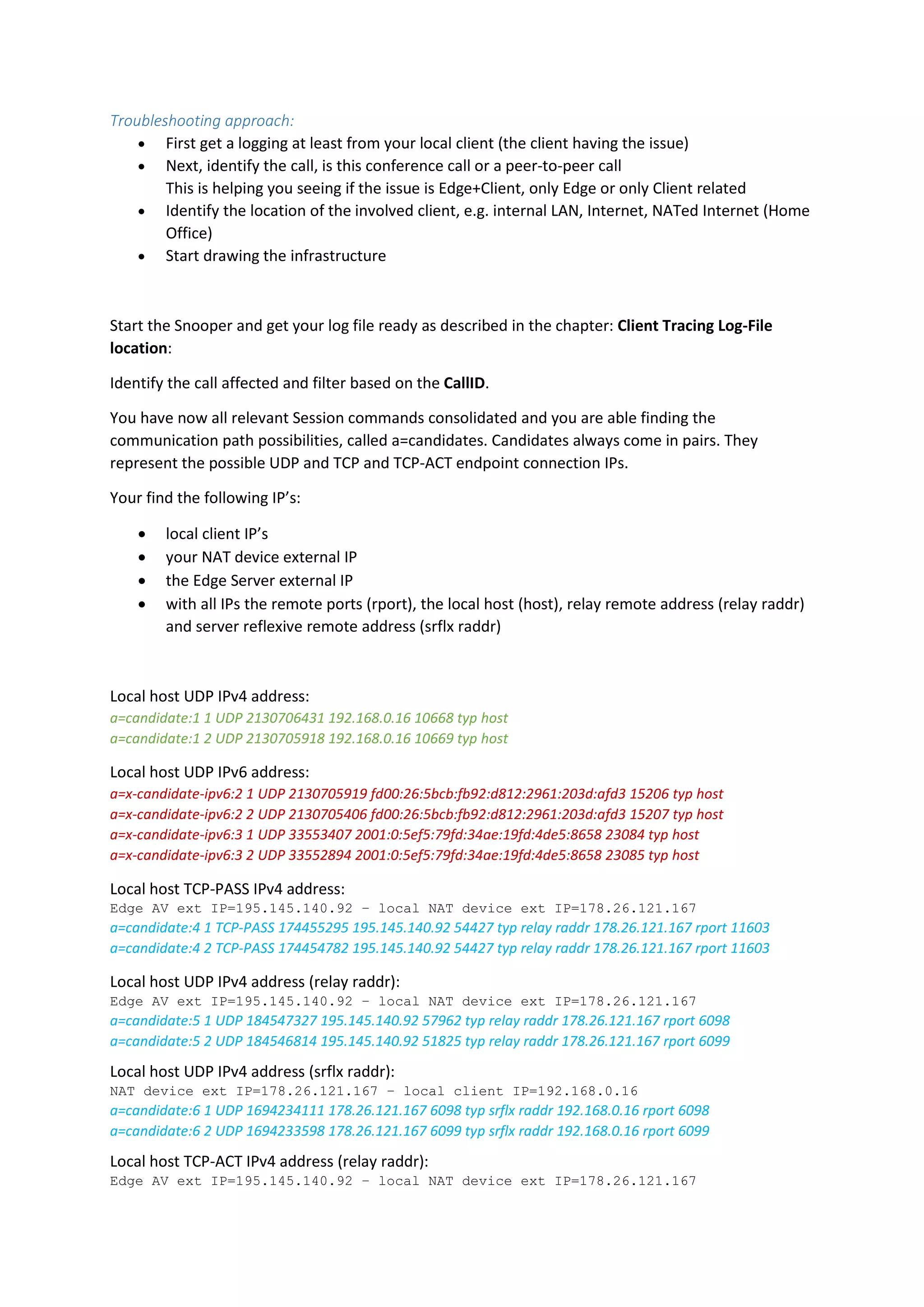

Troubleshooting approach:
 First get a logging at least from your local client (the client having the issue)
 Next, identify the call, is this conference call or a peer-to-peer call
This is helping you seeing if the issue is Edge+Client, only Edge or only Client related
 Identify the location of the involved client, e.g. internal LAN, Internet, NATed Internet (Home
Office)
 Start drawing the infrastructure
Start the Snooper and get your log file ready as described in the chapter: Client Tracing Log-File
location:
Identify the call affected and filter based on the CallID.
You have now all relevant Session commands consolidated and you are able finding the
communication path possibilities, called a=candidates. Candidates always come in pairs. They
represent the possible UDP and TCP and TCP-ACT endpoint connection IPs.
Your find the following IP’s:
 local client IP’s
 your NAT device external IP
 the Edge Server external IP
 with all IPs the remote ports (rport), the local host (host), relay remote address (relay raddr)
and server reflexive remote address (srflx raddr)
Local host UDP IPv4 address:
Local host UDP IPv6 address:
Local host TCP-PASS IPv4 address:
Edge AV ext IP=195.145.140.92 – local NAT device ext IP=178.26.121.167
Local host UDP IPv4 address (relay raddr):
Local host UDP IPv4 address (srflx raddr):
NAT device ext IP=178.26.121.167 – local client IP=192.168.0.16
Local host TCP-ACT IPv4 address (relay raddr):

Local host TCP-ACT IPv4 address (srflx raddr):
NAT device ext IP=178.26.121.167 – local client IP=192.168.0.16
After the communication path possibilities are identified, you need to find the valid second INVITE
where the final candidate pair are exchanged. If this is not the case (the 2nd
INVITE does not exist),
the issue must be the server and not the network/ client network:
FINAL CANDIDATES in the SECOND INVITE

Audio Video Call failed with ms-client-diagnostics: (both client are external):
Another common issue is in scenarios where you are federating with a partner and both client are
e.g. in their home office. This is a little more complex compared to the scenario described at last.
First I have identified the local client and associated Edge server. The Local NAT IP is 178.26.121.167,
the local LAN is 192.168.0.16 and the Edge Server 195.145.140.92, all marked in “yellow” and the
partner site is marked in “green” with the Edge IP of 212.144.4.102 and the local NAT address
62.75.183.56.
ms-client-diagnostics: 27; reason="A federated call failed to
establish due to a media connectivity failure where both endpoints
are remote";
UserType="Callee";MediaType="audio";ICEWarn="0x8000000";LocalSite="178.26.121.167:5942";Loc
alMR="195.145.140.92:54164";RemoteSite="212.144.4.102:50037";RemoteMR="62.75.183.56:5430
7";PortRange="1025:65000";LocalMRTCPPort="54315";RemoteMRTCPPort="54307";LocalLocation="
1";RemoteLocation="1";FederationType="0";NetworkName="MYNEWHOME";Interfaces="0x14";Bas
eInterface="0x4";BaseAddress="192.168.0.16:5942";Protocol="0";LocalInterface="0x4";LocalAddrTy
pe="1";LocalAddress="178.26.121.167:5942";RemoteAddress="212.144.4.102:50036";RemoteAddrT
ype="1";MrDnsU="sip.partner.nz";MrResU="0"
Troubleshooting approach:
This must be a peer-to-peer call, with two clients are external, this message can only appear in peer-
2-peer call, since a conference call will always be hosted on MCU, and therefore only a single client
will connect to the MCU. Since this is peer to peer, the support it not possible, if not both site are
supporting this issue.
 First get the logging from both clients, your local and the partners
 Next, identify the call, by using the CallID
 Identify the location of the involved client, e.g. internal LAN, Internet, NATed Internet (Home
Office)
 Now find the exchange candidates
If this is not helping continue
 Import both log’s into SNOOPER
Snooper will start drawing the call in a call flow diagram
 Validate where the call got interrupted, INVITE, 183 SESSION PROGRESS and 200 OK
If you still can’t find any reason why this call was not setup. You need to try and test if in each setup,
yours and the partner setup an internal and remote client can talk to each other.
Assumingly, you find one setup which is working and one it might not.
Going on now, if both sites can make this local vs. remote call there are several other issue. Most
likely with the dynamic port range. It could be happen one site blocked the dynamic ports and have a

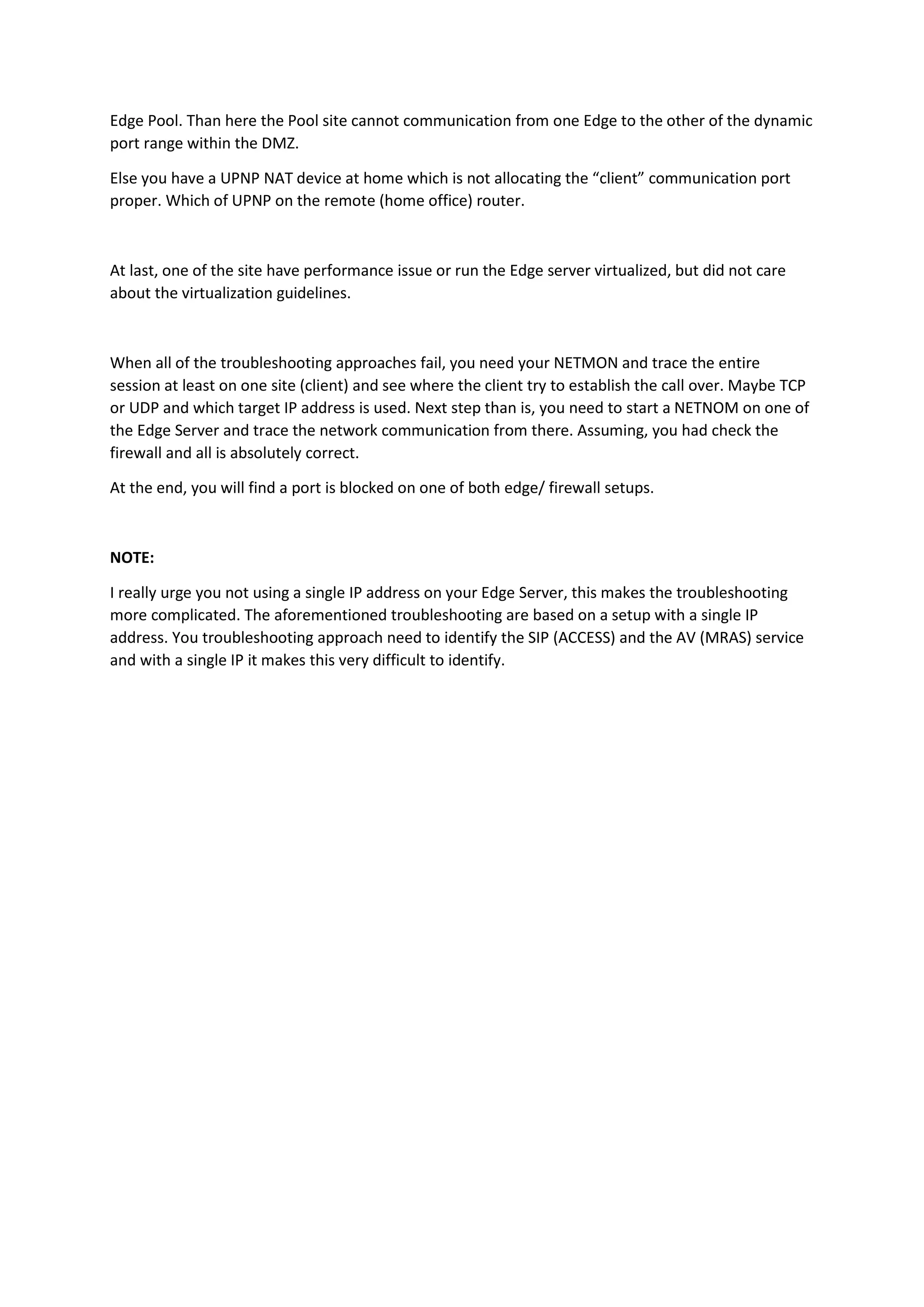

Edge Pool. Than here the Pool site cannot communication from one Edge to the other of the dynamic
port range within the DMZ.
Else you have a UPNP NAT device at home which is not allocating the “client” communication port
proper. Which of UPNP on the remote (home office) router.
At last, one of the site have performance issue or run the Edge server virtualized, but did not care
about the virtualization guidelines.
When all of the troubleshooting approaches fail, you need your NETMON and trace the entire
session at least on one site (client) and see where the client try to establish the call over. Maybe TCP
or UDP and which target IP address is used. Next step than is, you need to start a NETNOM on one of
the Edge Server and trace the network communication from there. Assuming, you had check the
firewall and all is absolutely correct.
At the end, you will find a port is blocked on one of both edge/ firewall setups.
NOTE:
I really urge you not using a single IP address on your Edge Server, this makes the troubleshooting
more complicated. The aforementioned troubleshooting are based on a setup with a single IP
address. You troubleshooting approach need to identify the SIP (ACCESS) and the AV (MRAS) service
and with a single IP it makes this very difficult to identify.

Diagnostic headers
Continuing with the diagnostic headers introduced in the last chapter. These headers can be defined
from the SIP Registrar (Servers) and from the SIP clients. They help you identifying issue related to
your setup/ configuration.
MS-DIAGNOSTICS
(Link to ms-diagnostics-header)
The following examples I collected, are real-world examples.
1008;reason="Unable to resolve DNS SRV record";domain="gtr-connect-a.com";dns-srv-
result="NegativeResult";dns-source="WireQuery";source="sip.domain-a.com"
The DNS domain gtr-connect-a.com can’t be resolve. Possible they are not able to federate. The
_sipfederationtls._tcp SRV record is not present.
1027;reason="Cannot route this type of SIP request to or from federated
partners";source="sip.domain-a.com"
Most likely an issue transmitting a SIP command to federated or non-federated partner. Either the IP
route is not available, or the target server is busy.
1034;reason="Previous hop federated peer did not report diagnostic
information";Domain="inncom.de.de";PeerServer="sip.inncom.de.de";source="sip.domain-a.com"
A very common status, where we didn’t received any further information. It also refers to normal
status message without the character of an error.
2044;reason="Publication version out of date";source="internalFQDN.domain-a.internal"
A SIP session, e.g. IM was much to long open and need to be reestablished. Not an error, just an
information that this session hast to be renewed.

2165;reason="Contact subscription is not allowed as the user's contact list has migrated to
Exchange.";source="internalFQDN.domain-a.internal"
Lync or Skype for Business is not providing the Users BUDDY list, the list is migrated to the Exchange
Unified Contact Store and need to be pulled from there.
12006;reason="Trying next hop";source=“Server03.Contoso.com";PhoneUsage="Default
Usage";PhoneRoute="External Calling";Gateway="10.111.121.64";appName="OutboundRouting"
A status message, informing about the call is not processed, neither timed-out, we need to wait for a
proper response.
ms-diagnostics: 24100;Component="RTCC/4.0.0.0_ATS/1.0.100";Reason="General diagnostic
information.";CalleeICEWarningFlags="Audio:ICEWarn=0x400000,LocalSite=143.111.4.11:39991,Loc
alMR=143.111.4.188:50701,RemoteSite=143.111.4.99:39469,RemoteMR=143.111.4.188:58201,Por
tRange=49152:57500,LocalMRTCPPort=50701,RemoteMRTCPPort=58201,LocalLocation=2,RemoteL
ocation=1,FederationType=0";Source="dcpwplync01.Contoso.com"
Just an information about a connection being established on an EDGE server
ms-diagnostics: 7037;source="internalFQDN.domain-a.internal";reason="Media stack diagnostics
info";component="Audio Video Conferencing
Server";CalleeMediaDebugaudio="audio:ICEWarn=0x0,LocalSite=10.35.3.27:49724,LocalMR=195.145
.140.92:51931,RemoteSite=10.35.2.117:13743,RemoteMR=195.145.140.92:59432,PortRange=49152:
57500,LocalMRTCPPort=54292,RemoteMRTCPPort=59432,LocalLocation=2,RemoteLocation=2,Feder
ationType=0,Interfaces=0x2,BaseInterface=0x2,BaseAddress=10.35.3.27:51140"
An A/V Conferencing statement, that the client has join the conference. In this case not an error, but
a source of information used for troubleshooting.

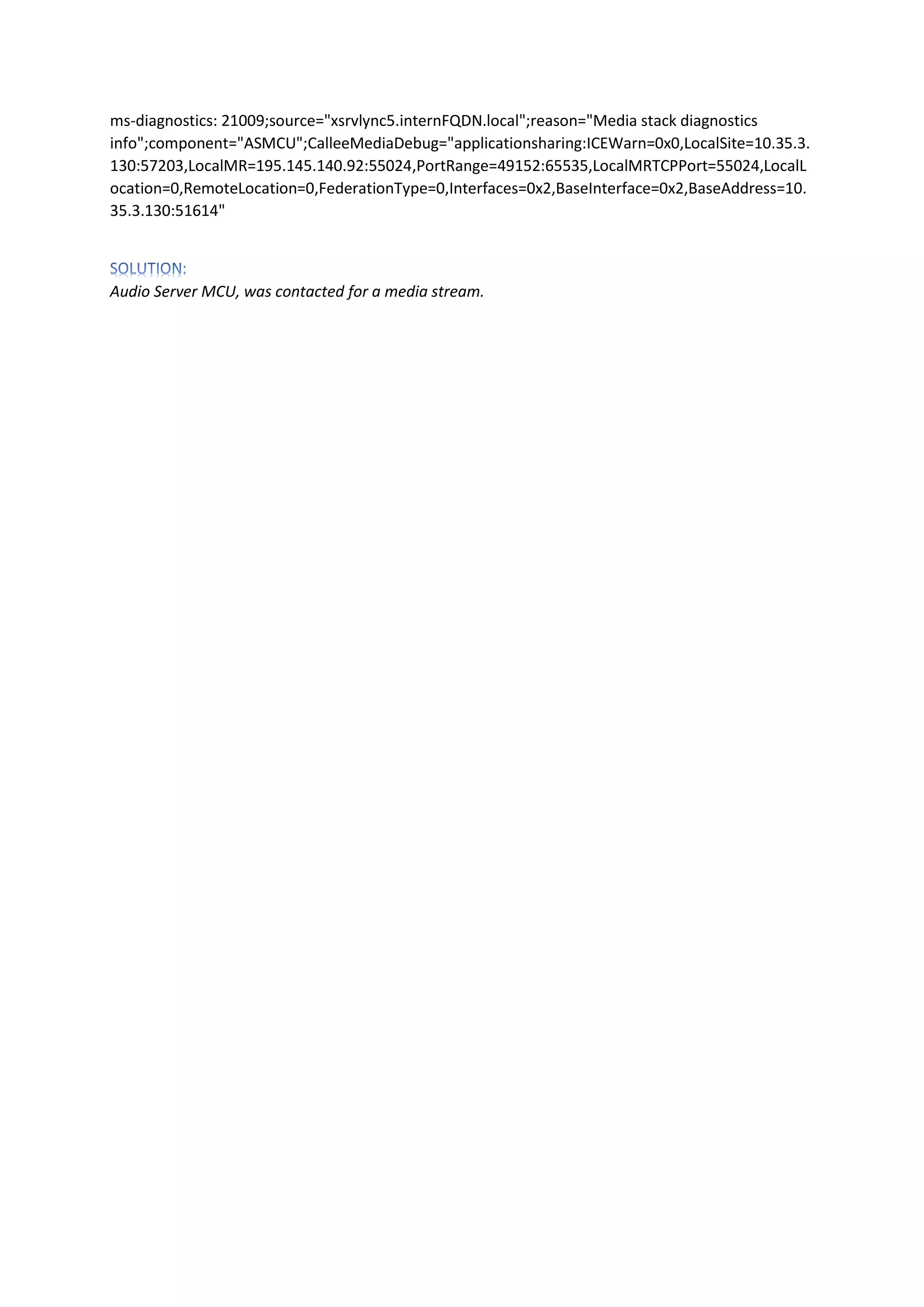

ms-diagnostics: 21009;source="xsrvlync5.internFQDN.local";reason="Media stack diagnostics
info";component="ASMCU";CalleeMediaDebug="applicationsharing:ICEWarn=0x0,LocalSite=10.35.3.
130:57203,LocalMR=195.145.140.92:55024,PortRange=49152:65535,LocalMRTCPPort=55024,LocalL
ocation=0,RemoteLocation=0,FederationType=0,Interfaces=0x2,BaseInterface=0x2,BaseAddress=10.
35.3.130:51614"
Audio Server MCU, was contacted for a media stream.

MS-CLIENT-DIAGNOSTICS
I prefer very often the client site as I have mentioned. This is because all important information are
provided in the client log.
ms-client-diagnostics: 52094; reason="Instant Messaging conversation terminated on user inactivity"
A user terminate / close the IM windows and therefore stopped the communication.
ms-client-diagnostics: 51004; reason="Action initiated by
user";UserType="Callee";MediaType="audio";ICEWarn="0x0";LocalSite="178.26.121.167:22736";Loc
alMR="195.145.140.92:52142";RemoteSite="188.192.77.89:29219";RemoteMR="195.145.140.92:51
797";PortRange="1025:65000";LocalMRTCPPort="55561";RemoteMRTCPPort="51797";LocalLocation
="1";RemoteLocation="1";FederationType="0";NetworkName="MYNEWHOME";Interfaces="0x14";B
aseInterface="0x4";BaseAddress="192.168.0.16:22736";Protocol="0";LocalInterface="0x4";LocalAddr
Type="1";LocalAddress="178.26.121.167:22736";RemoteAddress="188.192.77.89:25882";RemoteAd
drType="1";MrDnsU="sip.Xioppo.nz";MrResU="0"
A user initiated a call, where the candidate had been chosen
ms-client-diagnostics: 51007;reason="Callee media connectivity diagnosis
info";CalleeMediaDebug="application-
sharing:ICEWarn=0x0,LocalSite=132.245.0.9:40725,LocalMR=132.245.0.45:52041,RemoteSite=10.35.
2.117:11203,RemoteMR=195.145.140.92:56135,PortRange=50040:50059,LocalMRTCPPort=52041,Re
moteMRTCPPort=56135,LocalLocation=1,RemoteLocation=2,FederationType=1,NetworkName=WLA
N-E9BE46,Interfaces=0x14,BaseInterface=0x4,BaseAddress=192.168.2.108:50045"
The TCP connection information about an application sharing session with the dynamic port
ms-client-diagnostics: 51012; reason="Caller timeout on no
response";UserType="Callee";MediaType="application-
sharing";ICEWarn="0x0";LocalSite="10.35.2.117:25836";LocalMR="195.145.140.92:58980";PortRang
e="1025:65000";LocalMRTCPPort="58980";LocalLocation="2";RemoteLocation="0";FederationType=
"0";NetworkName="internFQDN.local";Interfaces="0x2";BaseInterface="0x2";BaseAddress="10.35.2.
117:32420;MrDnsU="lyncedgepool.internFQDN.local";MrResU="0";LyncAppSharingDebug="SharerC
hannel:0x0; Memory Usage: totalUsedVirtual=1065, availableVirtual=134216662;StartupTime: 2014-

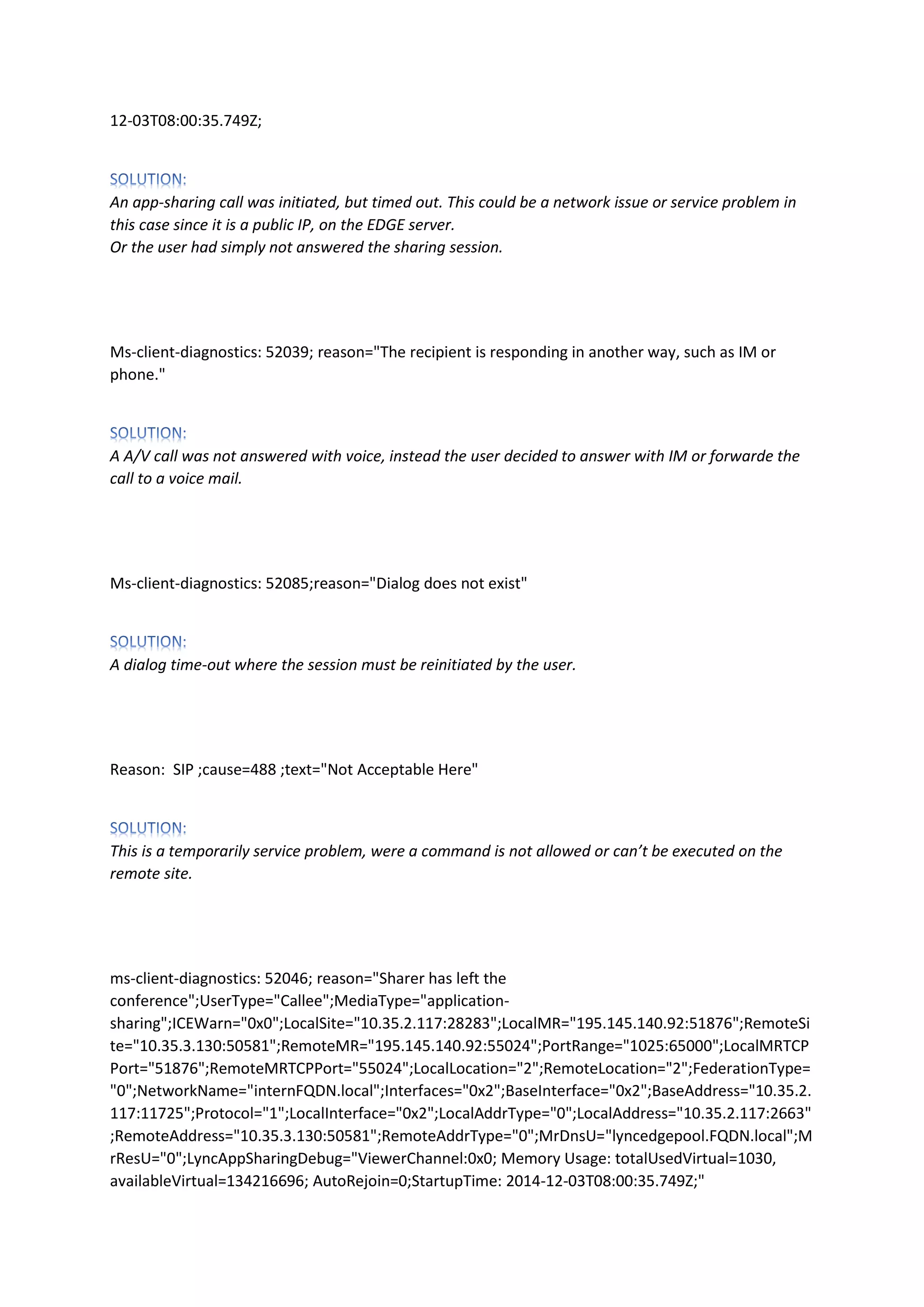

12-03T08:00:35.749Z;
An app-sharing call was initiated, but timed out. This could be a network issue or service problem in
this case since it is a public IP, on the EDGE server.
Or the user had simply not answered the sharing session.
Ms-client-diagnostics: 52039; reason="The recipient is responding in another way, such as IM or
phone."
A A/V call was not answered with voice, instead the user decided to answer with IM or forwarde the
call to a voice mail.
Ms-client-diagnostics: 52085;reason="Dialog does not exist"
A dialog time-out where the session must be reinitiated by the user.
Reason: SIP ;cause=488 ;text="Not Acceptable Here"
This is a temporarily service problem, were a command is not allowed or can’t be executed on the
remote site.
ms-client-diagnostics: 52046; reason="Sharer has left the
conference";UserType="Callee";MediaType="application-
sharing";ICEWarn="0x0";LocalSite="10.35.2.117:28283";LocalMR="195.145.140.92:51876";RemoteSi
te="10.35.3.130:50581";RemoteMR="195.145.140.92:55024";PortRange="1025:65000";LocalMRTCP
Port="51876";RemoteMRTCPPort="55024";LocalLocation="2";RemoteLocation="2";FederationType=
"0";NetworkName="internFQDN.local";Interfaces="0x2";BaseInterface="0x2";BaseAddress="10.35.2.
117:11725";Protocol="1";LocalInterface="0x2";LocalAddrType="0";LocalAddress="10.35.2.117:2663"
;RemoteAddress="10.35.3.130:50581";RemoteAddrType="0";MrDnsU="lyncedgepool.FQDN.local";M
rResU="0";LyncAppSharingDebug="ViewerChannel:0x0; Memory Usage: totalUsedVirtual=1030,
availableVirtual=134216696; AutoRejoin=0;StartupTime: 2014-12-03T08:00:35.749Z;"

Information the user dropped out of the conference, either he left or he had network issue and the
TCP session was closed.

Monitoring Reports and Call Quality Issues
Another efficient method analyzing call events is Monitoring. Lync and Skype for Business provide
you multiple reports you can utilize for analyzing Call Quality and other related information’s, like
summaries or failure reports.
For troubleshooting, we are interested in the Call Quality. First you need to know, the involved client
sends an entire report the monitoring services after the session has ended. Those data can be used
for further troubleshooting. If a client cannot connect to the monitoring service, the data will be kept
until access is possible.
Now we have a look into the submitted data from a client. Regardless if a peer-to-peer call or PSTN,
as well as conferencing took place, those data is submitted. I will give detailed explanation regarding
each relevant data.
Next and upfront some explanation about several voice related parameter:
JITTER:
Jitter (ms) measures the variability of packet delay and results in a distorted or choppy
audio experience.
packet loss rate:
Packet Loss (%) represents the % of packets that did not make it to their destination.
Packet loss will cause the audio to be distorted or missing (on the receiver end).
network MOS degradation:
network MOS degradation is an integer represents the amount of the MOS value lost to
network affects.
concealed samples ratio:
Concealing audio samples is a technique used to deal with dropped network packets.

The following table describes measurements and thresholds for bad call analyzes and identification.
Table 1. Events, descriptions, and measurements/thresholds (take from NEXTHOP/ HelpFile)
Caused By Event Description Measurements - Thresholds
Network Network Send
Quality
Packet loss and jitter on
receive stream is severe
and introducing
distortion
Jitter: Good <20ms, Bad >30ms
Packet Loss: Good <3%, Bad >7%
Network Receive
Quality
Concealed packet ratio
on send stream is severe
and introducing
distortion
Concealed Packet Ratio: Good
<2%, Bad >3%
Low Bandwidth Available bandwidth is
insufficient for
acceptable voice/video
experience
Dynamic based on codec
High Latency Network latency is
severe and preventing
interactive
communication
RTT: Good <300ms, Bad >500ms
Machine Low CPU cycles Insufficient CPU for
processing current
modalities and
applications, causing
audio distortion
Flag when audio
encoding/decoding engine is not
getting sufficient CPU cycles
Remote user Low SNR Poor capture quality
from remote user;
distortion from noise or
user being too far from
microphone
Flag if participant in the
conference has a noisy
environment
Echo Remote user's device or
setup is causing echo
beyond the ability of the
system to compensate
Flag if remote user (or participant
in a conference) has a device
setup that is injecting echo into
the call
Device Echo Device or setup is
causing echo beyond the
ability of the system to
compensate
* Timestamp noise
* Dynamic and Adaptive NLP
attenuation
* Post-AEC echo percentage
* Microphone clipping due to far-
end signal
Howling Audio feedback loop
detected (caused by
multiple endpoints
sharing audio path)
Check for howling/screeching
from other endpoints in the room
Capture Device
Not Functioning
Microphone currently
used is not functioning
Check capture buffer status

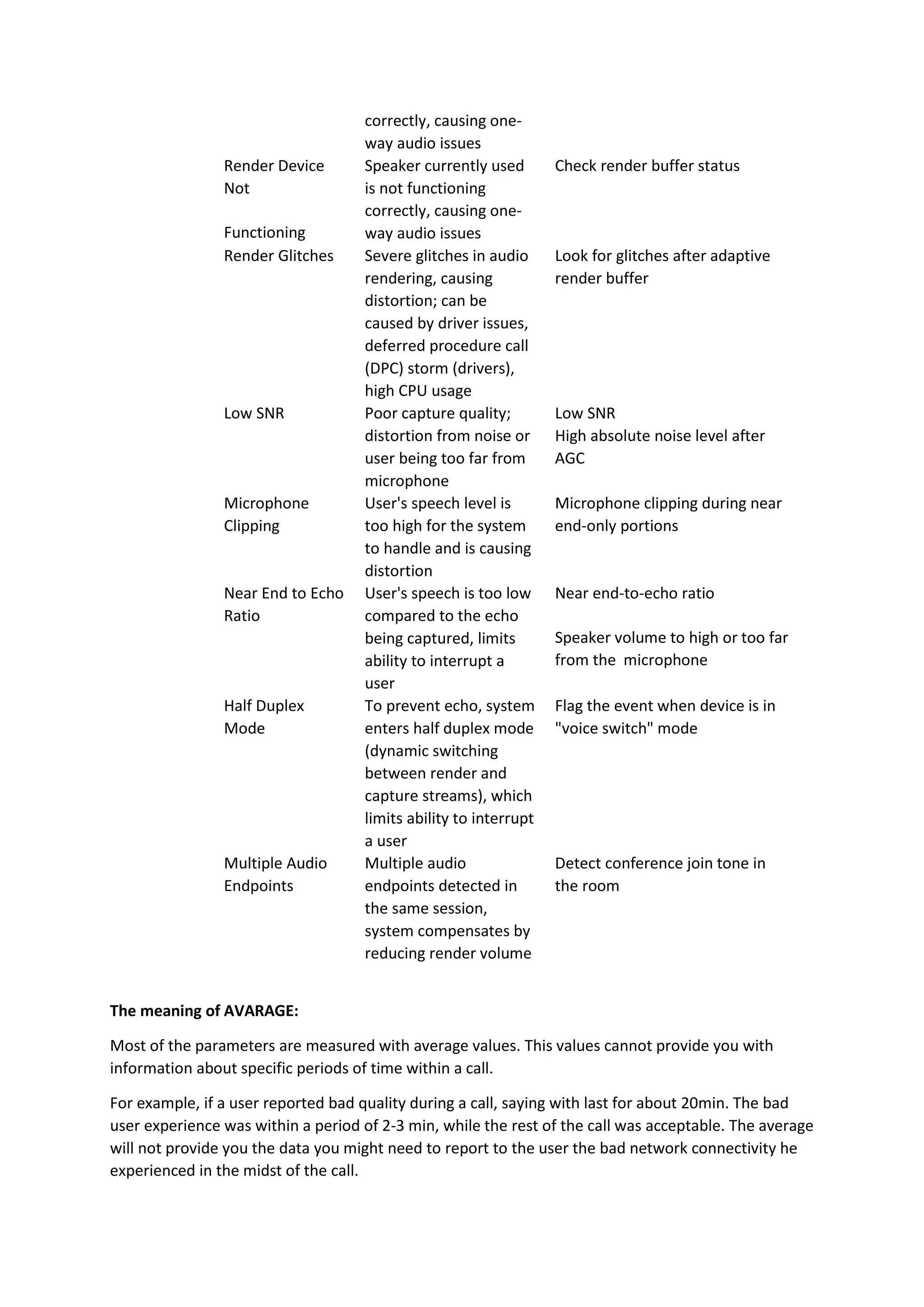

The meaning of AVARAGE:
Most of the parameters are measured with average values. This values cannot provide you with
information about specific periods of time within a call.
For example, if a user reported bad quality during a call, saying with last for about 20min. The bad
user experience was within a period of 2-3 min, while the rest of the call was acceptable. The average
will not provide you the data you might need to report to the user the bad network connectivity he
experienced in the midst of the call.
correctly, causing one-
way audio issues
Render Device
Not
Functioning
Speaker currently used
is not functioning
correctly, causing one-
way audio issues
Check render buffer status
Render Glitches Severe glitches in audio
rendering, causing
distortion; can be
caused by driver issues,
deferred procedure call
(DPC) storm (drivers),
high CPU usage
Look for glitches after adaptive
render buffer
Low SNR Poor capture quality;
distortion from noise or
user being too far from
microphone
Low SNR
High absolute noise level after
AGC
Microphone
Clipping
User's speech level is
too high for the system
to handle and is causing
distortion
Microphone clipping during near
end-only portions
Near End to Echo
Ratio
User's speech is too low
compared to the echo
being captured, limits
ability to interrupt a
user
Near end-to-echo ratio
Speaker volume to high or too far
from the microphone
Half Duplex
Mode
To prevent echo, system
enters half duplex mode
(dynamic switching
between render and
capture streams), which
limits ability to interrupt
a user
Flag the event when device is in
"voice switch" mode
Multiple Audio
Endpoints
Multiple audio
endpoints detected in
the same session,
system compensates by
reducing render volume
Detect conference join tone in
the room

Example: Submitting Metrics after Conference call
The reporting message is identical will “normal” SIP message.
12/15/2014|08:57:21.131 6DC:C20 INFO :: Sending Packet - 195.145.140.92:5061 (From Local Address: 192.168.0.16:61813)
6069 bytes:
12/15/2014|08:57:21.131 6DC:C20 INFO ::
SERVICE sip:lyncpool1.domain-a.local@domain-
a.com;gruu;opaque=srvr:HomeServer:PMmip8HdslKOQd6hXyAMwgAA SIP/2.0
Via: SIP/2.0/TLS 192.168.0.16:61813
Max-Forwards: 70
From: <sip:thomas.poett@domain-a.com>;tag=ac2bb40467;epid=0639570a7f
To: <sip:lyncpool1.domain-a.local@domain-a.com;gruu;opaque=srvr:HomeServer:PMmip8HdslKOQd6hXyAMwgAA>
Call-ID: 884fcce5fcaf422a950d081204b034a8
CSeq: 1 SERVICE
Contact: <sip:thomas.poett@domain-a.com;opaque=user:epid:2b02BQuhtlW-2_O2vbNPYAAA;gruu>
Proxy-Authorization: TLS-DSK qop="auth", realm="SIP Communications Service", opaque="6B133F97",
targetname="xsrvlync7.domain-a.local", crand="7e8a7e88", cnum="354",
response="36a80167fec98270630fd6ffda03814004d562d0"
Content-Type: application/vq-rtcpxr+xml (this indicates the reporting message)
- <VQReportEvent xmlns="ms-rtcp-metrics"
v2="ms-rtcp-metrics.v2"
SchemaVersion="2.0">
- <VQSessionReport SessionId="5be5fbf45d97434eb594018bcc142400;from-tag=663e541128;to-tag=ee30759290">
(this indicates the reporting client data)
<Endpoint xmlns="ms-rtcp-metrics"
Name="xclient-Poett"
OS="Windows 6.2.9200 SP: 0.0 Type: 1(Workstation) Suite: 0000000000000100 Arch: x64 WOW64: False"
CPUName="Intel(R) Core(TM) i7-4510U CPU @ 2.00GHz"
CPUNumberOfCores="2"
CPUProcessorSpeed="2594"
VirtualizationFlag="0"/>
(this indicates CallID, and can be used for tracking a call e.g. Snooper)
- <DialogInfo CallId="5be5fbf45d97434eb594018bcc142400"
FromTag="663e541128"
ToTag="ee30759290"
Start="2014-12-15T07:56:52.0455Z"
End="2014-12-15T07:57:21.0009Z">
<FromURI>sip:thomas.poett@domain-a.com</FromURI> (UC user)
<ToURI>sip:Thomas.Poett@domain-a.com;gruu;opaque=app:conf:applicationsharing:id:PTRL3DQ4</ToURI>
(this indicates the calling target, in this case the conference call)
<Caller>true</Caller>
<LocalContactURI>sip:thomas.poett@domain-a.com;opaque=user:epid:2b02BQuhtlW-
2_O2vbNPYAAA;gruu</LocalContactURI>
<RemoteContactURI>sip:thomas.poett@domain-
a.com;gruu;opaque=app:conf:applicationsharing:id:PTRL3DQ4</RemoteContactURI>
<LocalUserAgent>UCCAPI/15.0.4675.1000 OC/15.0.4675.1000 (Microsoft Lync)</LocalUserAgent> (this
informs us about the client which was used)
<RemoteUserAgent>RTCC/5.0.0.0 applicationsharing</RemoteUserAgent> (since this was a conference
call, we see the remote party, in this case the Server Conferencing Application)
<ConfURI>sip:Thomas.Poett@domain-
a.com;gruu;opaque=app:conf:applicationsharing:id:PTRL3DQ4</ConfURI>
<MediationServerBypassFlag>false</MediationServerBypassFlag>
<Separator/>
<RegisteredInside>false</RegisteredInside>
- </DialogInfo>
- <MediaLine xmlns="ms-rtcp-metrics"
Label="data">
- <Description>
- <Connectivity>
(this is the most important section, it indicates connection points and network information)
<Ice>DIRECT</Ice>
<IceWarningFlags>32</IceWarningFlags>

- <RelayAddress>
<IPAddr>195.145.140.92</IPAddr> (Edge Server AV IP Address for ICE)
<Port>50126</Port> (Edge Server AV IP PORT Address for ICE)
- </RelayAddress>
- </Connectivity>
<Security>SRTP</Security>
<Transport>TCP</Transport>
- <NetworkConnectivityInfo>
<NetworkConnection>wifi</NetworkConnection>
<VPN>false</VPN>
<LinkSpeed>144000000</LinkSpeed>
<BSSID>10-BF-48-4A-F6-BE</BSSID>
<Separator/>
<NetworkConnectionDetails>Wifi</NetworkConnectionDetails>
<WifiDriverDeviceDesc>Intel(R) Dual Band Wireless-AC 7260;Microsoft Wi-Fi Direct Virtual
Adapter</WifiDriverDeviceDesc>
<WifiDriverVersion>Intel:16.5.3.6;Microsoft:6.3.9600.16384</WifiDriverVersion>
- </NetworkConnectivityInfo>
- <LocalAddr>
<IPAddr>192.168.0.16</IPAddr> (local client IP Address)
<Port>20723</Port> (local client IP Port Address)
<SubnetMask>255.255.255.0</SubnetMask>
<MACAddr>A0-A8-CD-8A-BC-22</MACAddr>
- </LocalAddr>
- <RemoteAddr>
<IPAddr>195.145.140.92</IPAddr> (Edge AV IP Address)
<Port>51512</Port> (Edge AV IP PORT Address)
- </RemoteAddr>
- <ReflexiveLocalIPAddress>
<IPAddr>178.26.121.167</IPAddr> (local client external IP Address [behind NAT])
<Port>4144</Port>(local client external IP Port Address)
- </ReflexiveLocalIPAddress>
<MidCallReport>false</MidCallReport>
<Separator3/>
- </Description>
(This section provides information about the incoming data stream)
- <InboundStream Id="2086245205">
- <Network>
- <Jitter> (Jitter data)
<InterArrival>0</InterArrival>
<InterArrivalMax>1</InterArrivalMax>
<InterArrivalSD>0</InterArrivalSD>
- </Jitter>
- <Utilization>
<Packets>10</Packets>
- </Utilization>
<Separator/>
- </Network>
- <Payload>
<ApplicationSharing/>
- </Payload>
- </InboundStream>
(This section provides information about the outgoing data stream)
As we will see in this data, the used feature was application sharing. We can identify the
network utilization (bandwidth), frame rate, as well as the session contained a “shared
desktop”)
- <OutboundStream Id="2982043061">
- <Network>
- <Jitter>
<InterArrival>4</InterArrival>
<InterArrivalMax>31</InterArrivalMax>
<InterArrivalSD>8.246211</InterArrivalSD>
- </Jitter>
- <Delay>
<RoundTrip>28</RoundTrip>
<RoundTripMax>42</RoundTripMax>
- </Delay>

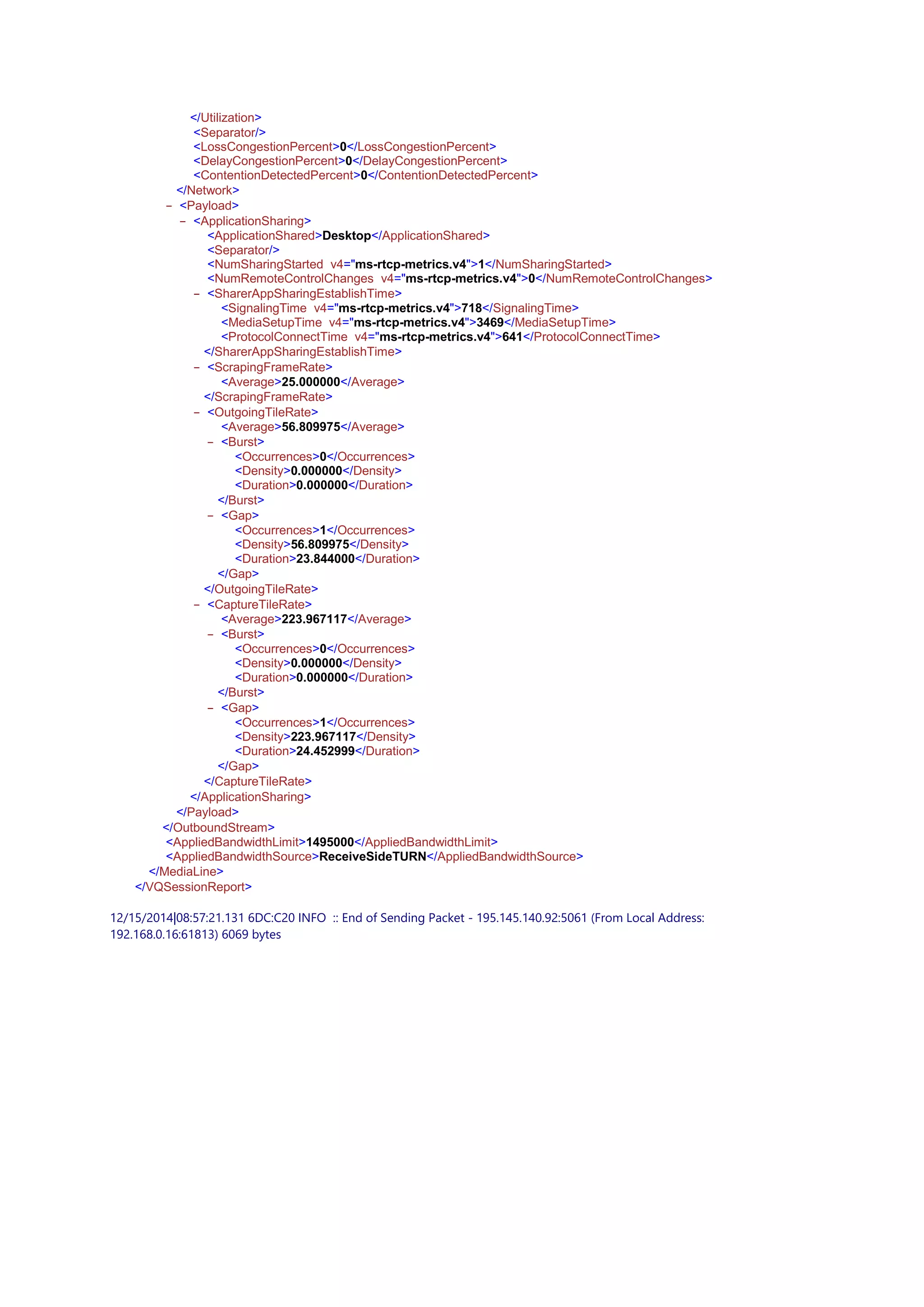

- <Utilization>
<Packets>532</Packets>
<BandwidthEst>330707</BandwidthEst>
<BandwidthEstMin>2261425</BandwidthEstMin>
<BandwidthEstMax>2261425</BandwidthEstMax>
<BandwidthEstStdDev>0</BandwidthEstStdDev>
<BandwidthEstAvge>2261425</BandwidthEstAvge>

- </Utilization>
<Separator/>
<LossCongestionPercent>0</LossCongestionPercent>
<DelayCongestionPercent>0</DelayCongestionPercent>
<ContentionDetectedPercent>0</ContentionDetectedPercent>
- </Network>
- <Payload>
- <ApplicationSharing>
<ApplicationShared>Desktop</ApplicationShared>
<Separator/>
<NumSharingStarted v4="ms-rtcp-metrics.v4">1</NumSharingStarted>
<NumRemoteControlChanges v4="ms-rtcp-metrics.v4">0</NumRemoteControlChanges>
- <SharerAppSharingEstablishTime>
<SignalingTime v4="ms-rtcp-metrics.v4">718</SignalingTime>
<MediaSetupTime v4="ms-rtcp-metrics.v4">3469</MediaSetupTime>
<ProtocolConnectTime v4="ms-rtcp-metrics.v4">641</ProtocolConnectTime>
- </SharerAppSharingEstablishTime>
- <ScrapingFrameRate>
<Average>25.000000</Average>
- </ScrapingFrameRate>
- <OutgoingTileRate>
- <Burst>
<Occurrences>0</Occurrences>
<Density>0.000000</Density>
<Duration>0.000000</Duration>
- </Burst>
- <Gap>
- </Gap>
- </OutgoingTileRate>
- <CaptureTileRate>
- <Burst>
- </Burst>
- <Gap>
- </Gap>
- </CaptureTileRate>
- </ApplicationSharing>
- </Payload>
- </OutboundStream>
<AppliedBandwidthLimit>1495000</AppliedBandwidthLimit>
<AppliedBandwidthSource>ReceiveSideTURN</AppliedBandwidthSource>
- </MediaLine>
- </VQSessionReport>
12/15/2014|08:57:21.131 6DC:C20 INFO :: End of Sending Packet - 195.145.140.92:5061 (From Local Address:
192.168.0.16:61813) 6069 bytes

Software Defined Networking (SDN)
Lync and Skype for Business provide the new SDN API 3rd
party developers can utilize. Generally is
supports the End-2-End monitoring including all involved elements from Software down to the
Network. It supports you troubleshooting efforts and also offers an solution to pre-detect upcoming
issues.
Jamie Stark spoke about the SDN on the last Lync Conference in Las Vegas, where he had this perfect
illustration, making the usability for SDN more visible to you.
I don’t want to get deeper into the SDN, just offering you the better understanding, why it might
support your troubleshooting efforts.

Preventing Configuration and other Issues (Testing Commands)
Lync and Skype for Business provides several management shell integrated TEST commands. There
are a couple of tests you can run. Here I provide some of the most common test you can run.
Most of the tests require valid user accounts for testing purposes. Thats why you should have a few
test user accounts setup in your AD. e.g. TSTUSR01-10. Assign those users also different policies,
identically with the policies assigned to your production users. This let you simulate dedicated
scenarios where user could report issues and you can do a direct testing of those related
configurations.
It an important task that you test your services before you take you environment or configuration
into production. Only if you can consider your synthetic test as successful, you can consider in the
event of reported issues, that you will advanced with other troubleshooting aspects instead of
seeking inside Lync/ Skype for Business.
For the aforementioned test user the most test commands required the test user to be
authenticated. With the following variable, you can store the users credentials and utilize those
within the test commands.
$cred1 = Get-Credential "domain-aTSTUSR01"
Take Away:
You should during your troubleshooting take the test commands into you considerations, because
they help providing information’s you would else bother users for or would not be able to receive
from users on the spot.
IM
Starting with the standard features, Instant Message and Presence. You should validate if the Client-
to-Server-to-Client communication can work.
First you should test the ability for presence. There its an approach is the Server/ Pool can handle
Presence state.
Test-CsPresence -TragetFqdn
Test-CsPresence -TargetFqdn POOLFQDN -SubscriberSipAddress "sip:TSTUSR01@domain-
a.com" -SubscriberCredential $cred1 -PublisherSipAddress "sip:TSTUSR02@domain-
a.com" -PublisherCredential $cred2
Next is the Instant Message. As explained, the IM communication path is always via the user home
pool server.
Test-CsIM

Test-CsIM -TargetFqdn POOLFQDN -SubscriberSipAddress "sip:TSTUSR01@domain-a.com" -
SubscriberCredential $cred1 -PublisherSipAddress "sip:TSTUSR02@domain-a.com" -
PublisherCredential $cred2
Voice
Next we focus on Voice. Voice itself is involved within the most common communication scenarios.
Either as Peer-to-Peer call or within in any kind of Multi-Point conference. Enterprise Voice is
generally seen the same data stream, but has the PSTN/ SIP Trunk telephony involved. Therefore I
have separate the test command into this sub-categories.
Voice (P2P)
Confirms that users are able to make peer to peer calls (signal only). Meaning is will not test the
Voice datastream, instead it test the SIP Signaling.
Test-CsP2PAV -TargetFqdn POOLFQDN -SubscriberSipAddress "sip:TSTUSR01@domain-a.com"
-SubscriberCredential $cred1 -PublisherSipAddress "sip:TSTUSR02@domain-a.com" -
PublisherCredential $cred2
Voice (Enterprise Voice)
Enterprise Voice, the most complex topic in UC implementation. In this chapter I take care about
your Lync/ Skype for Business setup only. With those commands 3rd
party systems, e.g. Gateways or
SIP Trunks cannot be tested. Here you validate your Enterprise Voice concept and the
implementation you applied.
The best approach to validate and analyze results of your configuration, you are entitled setting up
Configuration Tests. Those test can than run periodically and supports your effort running the PBX
functionality in Lync/ Skype for Business successfully. I list the required commands managing this
test. You should read the help –file setting up those test according to your need.
First you manage the configuration tests with the following commands:
Get-CsVoiceTestConfiguration
New-CsVoiceTestConfiguration
Remove-CsVoiceTestConfiguration
Set-CsVoiceTestConfiguration
Running the synthetic test:
Test-CsVoiceTestConfiguration

The test command can “standalone” it need to have test cases submitted, therefore you are required
reading those cases into a variable (array). This will most apply to all test commands. You can either
utilize the pipe (|) or array scripting feature.
The following example show you how you could utilize those VoiceTestConfiguration:
$a = Get-CsVoiceTestConfiguration -Identity TestConfig1
Test-CsVoiceTestConfiguration -TestCaseInputObject $a
$dp = Get-CsDialPlan -Identity TSTUSR01-GERMANY
$vp = Get-CsVoicePolicy -Identity TSTUSR-ALL
Test-CsVoiceTestConfiguration -DialedNumber 0895645342 -Dialplan $dp -
VoicePolicy $vp
The next listed tests, will support you gathering information about individual elements configured
within your enterprise voice setup, e.g. DialPlans, Normalization Rules or Routes
Here you validated if the dialed number can be normalized for users how have this DP assigned. (e.g.
here all users in the site MUNICH, which have the automatic dailpan parameter activated)
$a = Get-CsDialPlan -Identity site:Munich
Test-CsDialPlan -DialedNumber 0895645342 -Dialplan $a | Format-List
With in DialPlans you find your defined Normalization Rules. If you want to test individual NR’s
outside of a DialPlan, you have to run this commands. The Dialed number will be than tested against
the chose NR.
$a = Get-CsVoiceNormalizationRule -Identity "global/11 digit number rule"
Test-CsVoiceNormalizationRule -DialedNumber 5645342 -NormalizationRule $a
The Voice Policy test runs a dialed and normalized number agains a VP and validates if thise number
is allowed for a dial out.
$a = Get-CsVoicePolicy -Identity MunichLocal
Test-CsVoicePolicy -TargetNumber "+49895645342" -VoicePolicy $a
Voice Routes decides if a call with has a target assigned can be utilized.
$vr = Get-CsVoiceRoute -Identity testroute
Test-CsVoiceRoute -TargetNumber "+49895645342" -Route $vr
Most important in your Enterprise Voice setup is, if a user will match the expected and designed
calling behavior. This command do not required credentials. I recommend for dedicated user groups
setting an Excel based test sheet, which you run in dedicated scripts. Now I
Test-CsVoiceUser -DialedNumber "+49895645342" -SipUri
"sip:Hans.Maier@domain-a.com" -Verbose

The Location Information Service can be included in your tests, but are not part of my
troubleshooting guide. Not a lot of implementations I have supported had LIS implemented.
Other tests which can dig even deeper into the setup and calls can fully initiated I have listed here.
Test-CSOutboundCall – Validates policies, signaling and media to the PSTN
TestCSPSTNPeertoPeerCall – Establishes call between two Lync users over PSTN
Test-CsExumConnectivity (ExumConnectivity) – Confirms users are able to connect to Unified
Messaging
Conferencing
As described during the Voice troubleshooting, in conferencing we have similar challenges. Internal
conferencing is mainly subject to configuration / misconfiguration issues, while it makes everything
more complex if we involve the external/ remote component via the Edge server.
Internally, you can test with several management shell commands, in addition to the next level of
troubleshooting by using the OCSLogging tool.
Externally, you need to validate two more systems, the Reverse Proxy publishing the MEET URL and
the Edge server publishing the Web Conferencing and AV. Authentication should have led to an
earlier issue while a remote client would have logged-in.
The following commands will support the internal testing’s:
Test-CsAVConference (AvConference) – Test users are able to create an AV conference call
Test-CsASConference (ASConference) – Test users are able to create an Application Sharing
conference call
Test-CsDialInConferencing (Phone Dialin Conference) – Test a dialin possibility for a conference
Test-CsGroupIM (escalated IM Group chat) – Test a IM conference
Next we have a looking OCSLogger. If you need to analyze conferencing, it has several components
the so called MCU (Multipoint Connection Unit) involved. Therefore the OCSLogger can log events
happened inside those applications.

In the following illustration the AsMCU (Application Sharing) and AvMCU (Audio Video) is marked.
All other MCU are available for logging too, e.g. AvMP, ImMcu
WEB Services
Web Service are segregated into internal and external Web Sites, as well for High Availability, they
required Load Balancing. This makes it important having an eye onto them too. Services like the
Address Book, or Group Expansion are served by IIS. This is also happened with the Mobility Services.
The interesting parameter is the –EXTERNAL, where you define running the test against the 4443
associated web site.
Test-CsGroupExpansion -TargetFqdn PoolFqdn -GroupEmailAddress DL-LYNC-
TST@domain-a-com
You can add -UserCredentials testing the correct authentication, including the authentication
method.
Test-CsAddressBookWebQuery -TargetFqdn PoolFqdn -UserCredential $cred1 -
UserSipAddress "sip:TSTUSR01@domain-a.com" -TargetSipAddress
"sip:TSTUSR02@domain-a.com"

EDGE (external/ remote)
Edge Server, one system component where the most integrators have problems with. Here I urge you
strongly receiving the client log file and analyze the issue from here. Generally, after a deployment
you should test the audio functionality before you assign users.
During my past years supporting UC environments, the most issues were found on the involved
firewalls due to port blockings and misunderstanding of the client direct connection to the Edge
server. That’s why test the routings as well. But back to the available test commands.
Test-CsAVEdgeConnectivity (AVEdgeConnectivity) – Test edge server is able to accept connections
for peer to peer calls
$cred = Get-Credential "domain-aTSTUSR01"
Test-CsAVEdgeConnectivity -TargetFqdn PoolFqdn -UserSipAddress
"sip:TSTUSR01@domain-a.com" -UserCredential $cred
I also recommend writing the results into a log file OutLoggerVariable.
Health Monitoring Test User
Last but not least, during the aforementioned chapters, the test commands were introduced with
user credentials. There is one more option, where in professional environment user are pre-
configured. In Lync/ Skype for Business this option is called Health Monitoring.
This are collection of monitors including test user with their credentials.
A collection will be defined with the following commands:
New-CsHealthMonitoringConfiguration -Identity PoolFqdn -FirstTestUserSipUri
"sip:tstusr01@domain-a.com" -SecondTestUserSipUri "sip:tstusr02@domain-
a.com"
With this Health Monitors you can simplify Test-Cs command by using a short cut, e.g.
Test-CsPresence -TragetFqdn

Troubleshooting Exchange Integration
Exchange integration covers several topics.
We have the UCS, the Unified Contact Store. There is most asked topic, the setup and support for
EWS, the Exchange Web Service integration. The other both areas are the IM integration into OWA,
Outlook Web Apps and the UM integration (Unified Messaging).
All of those interaction between Lync/ Skype for Business and Exchange have different aspects and
use different technologies.
In my personal blog http://lyncuc.blogspot.com, the EWS blog is the most requested article. So I try
to focus on this troubleshooting aspect a little more in detail.
Lync and Skype for Business require three very important task to be configured correctly:
- Correct integration of Exchange Autodiscover
They are directly related to the EWS Service
- Certificates making OAuth and MTLS communication possible
- Establishing Lync/ Skype for Business and Exchange partner applications
Most common issue here can be identified, that Exchange Admin have very little understanding of a
correct configuration of Autodiscover. This is based on the fact that even wrongly configured
Autodiscover setups are covered by the so called SCP (Service Connection Points) in Active Directory.
Outlook clients, as well as Exchange Server can make use of the SCP Entry in AD and do not need to
query this service throughout DNS.
Therefore, you as support engineer for Lync/ Skype for Business should make clear how important
the full understanding of Exchange is. Personally have very seldom seen that UC was the point of
failure.
Again, certificates are very must essential in secure communication. This also includes the correct
certificates for all partner applications like Exchange.
In this troubleshooting chapter you should read all for sections, since several topics are not repeated
over again.

Verify Exchange AutoDiscover setup
First validate the internal and external DNS settings:
Both the internal as well as the external SIP Domain should be identically and has to be configured
with the following entries.
autodiscover.domain.name CNAME exchangeserver(CAS)
_autodiscover._tcp.domain.name SRV 0 0 443 exchangeserver(CAS)
ewsurl.domain.name A exchangeserver (CAS)
Remember here, Exchange 2013 do not provide you with the configurable CAS Array parameter.
Instead Exchange 2013 utilize DNS load balancing or DNS in conjunction with a Hardware Load
Balancer. Here the CAS URL can either be set to multiple Exchange CAS Server or to the HLB VIP
address.
The AutoDiscover is defined and configured with its own command:
Set-AutodiscoverVirtualDirectory -Identity 'autodiscover (default Web
site)' -ExternalURL 'https://ews.domain.name/autodiscover/autodiscover.xml' -InternalURL
'https://ews.domain.name/autodiscover/autodiscover.xml' -BasicAuthentication $true
The AutodiscoverVirtualDirectoy URL are supposed for Microsoft's optional use only.
Therefore it is not necessary and not Best-Practice defining them!
If you set the URL's, it will NOT HAVE AN IMPACT, but it supports your troubleshooting process,
since you can use them as a “reminder”.
The last important verification which has to be check is:
Autodiscover and EWS service do NOT support FBA (form based authentication).
You might like checking my detailed article:
http://lyncuc.blogspot.de/2013/01/lync-and-exchange-web-services-ews-and.html

Exchange Unified Contact Store Integration
UCS is a central storage integration for Lync/ Skype for Business users buddy list and the Archiving in
the same database/ mailbox of a Exchange user assotiated with Lync/ Skype for Business.
The first essential part is the bi-directional partner application esablishment. In Exchange a partner
application can only be established via scripts. There is not possibility of identifing this more easy.
If you actually not sure if a partner application was allredy setup and the script runs again, an
additional LyncEnterpise-ApplicationAccount with an increasing number is generated. Once this was
done, you need to correct AD users associated with and corret the Exchange RBAC.
This illustration show a account which was accedentally created again:
In Active Directoy an Partner Application account is established in the default container (“USERS”).
This account is also used in the Exchange RBAC.
Therefore now Exchange hast the essential configuration and Lync/ Skype for Business is the
associated partner application. From here we go on with the opposite site.
In Lync/ Skype for Business you can see the importance of a correct setup for the Exchange
Autodiscover.
The OAuth configuration requires a correctly working Exchange Autodiscovery setup and is
configured in Lync/ Skype for Business in the global Oauth Configuration.
Set-CsOAuthConfiguration -Identity global -ExchangeAutodiscoverUrl
"https://autodiscover.domain-a.com/autodiscover/autodiscover.svc"

Now since authentication is possible we have to establish Exchange as a partner application in Lync/
Skype for Business.
This is the second time Exchange Autodiscover comes in to the game. As we see makes sure
Exchange is correctly configured and DNS is proper established. DNS SMTP/ SIP Domain split setup is
required. Routing is another issue. If DNS returns the external Reverse Proxy IP, make sure this can
be a valid path for autodiscover.
Validate the REALM, the realm is the DNS name of your AD Domain, not the SMTP or SIP Domain. It is
used for authentications.
Analyzing the Exchange related Application Pool is quite a hassle and needs to be discussed with the
Exchange administrators. Not in all circumstances we can use an Application Pool. In Exchange UM
for example it might be required to have trusted computers instead. Generally, the pool would be
you Exchange CAS servers, or each individual Exchange CAS server. For each Lync/ Skype for Business
central Pool/ Standard server it hast to be setup, if they are in different Side IDs.
Therefore check the PoolFqdn for Exchange CAS.

In Exchange you must have the PoolFqdn used in Lync/ Skype for Business in the SAN entries, else the
MTLS connectivity cannot be established correctly and the validation process is made to fail.
Now we make use of the Test commands again. It is assumed, you have the correct Exchange policies
assigned to the user you are going to test.
Test-CsUnifiedContactStore -UserSipAddress "sip:cie01@domain-a.com" -
TargetFqdn "cie-ly01.domain-a.local"
The Test shows:
1. User has no Lync Contacts
2. User has contacts, but the contacts where not jet migrated to UCS
3. After a short while Lync did the migration and show success
A common issue is with MTLS setup.
But a false positive is, if you don’t run the Management Shell in ADMIN MODE!
Error:
If this is happened, you must run the Lync Management Shell as Admin, else the Console cannot
Access the Private Key for TLS communication

The UCS also has some restrictions you should be aware of:
 48 pixels by 48 pixels, the size used for the Active Directory thumbnailPhoto attribute. If you
upload a photo to Exchange 2013 Exchange will automatically create a 48 pixel by 48 pixel
version of that photo and update the user's thumbnailPhoto attribute. Note, however, that the
reverse is not true: if you manually update the thumbnailPhoto attribute in Active Directory
the photo in the user's Exchange 2013 mailbox will not automatically be updated.
 96 pixels by 96 pixels, for use in Microsoft Outlook 2013 Web App, Microsoft Outlook 2013,
Microsoft Lync Web App, and Lync 2013.
 648 pixels by 648 pixels for use in Lync 2013 and Microsoft Lync Web App.
Exchange IM integration on Outlook Web Apps
The initial setup for UCS is identically with the IM integration into Outlook Web Apps.
Nevertheless, Exchange WEB.CONFIG file had to be modified. After you applied an Exchange CU or
Service Pack, this file might have been over written. Therefore you need to check the changes you
made during your IM integration work.
If the sign-in is working, your experience look like the following.
The login process can be traced in Exchange, as well as with OCSLogger.

Exchange Web Service Integration
Exchange Web Services (EWS) provides the functionality to enable client applications to
communicate with the Exchange server.
Exchange Web Services (EWS) is a cross-platform API that enables applications to access mailbox
items such as email messages, meetings, and contacts from on-premises versions of Exchange. EWS
applications can access mailbox items locally or remotely by sending a request in a SOAP-based XML
message.
The Web Service are configured with their own command, validate the setting by using the following
command. Verify if the internal and external URL are correct.
Get-WebServicesVirtualDirectory
Validate if EWS is globally enabled:
Get-OrganizationConfig and see if the parameter EwsEnable is $TRUE
Test is the EWS is accessible:
https://CASFqdn/EWS/Exchange.asmx
Validating the correct authentication settings for EWS and Autodiscover:
Service
EWS Anonymous
authentication
Windows
authentication
AutoDiscover Anonymous
authentication
Windows
authentication
Basic authentication
You can easily verify if EWS is working correctly on the client site by opening the client configuration
setting information.
If the master piece “AUTODISCOVER” is configured correctly, the EWS should be fine too. You can
identify this if the EWS Internal/ External URL is provide (this feature is provided by AutoDiscover).
From there the client make a connection to Exchange EWS and provides you with the information of
the EWS is accessible by reporting “EWS Status OK”.

Additionally you will find the information if this user was UCS enabled or not “Contact List Provider”
is set to “UCS” (Unified Contact Store)
Exchange Unified Messaging Integration
Before is explain the UM service is detail, I need to inform you that the UM Services changed from
Exchange 2007/2010 to Exchange 2013/ 2015 (vNext). Therefore I describe only the process for the
actual Exchange versions.
Exchange segregate the UM services into two areas, the UMCallRouter and the UMService. While the
UMCallRouter acts as “proxy”, if it receives a SIP Invite message, if does a lookup for its recipient.
Similar as the CAS Server is doing for user (Outlook or OWA). It than know’s the user mailbox location
and sent are SIP REDIRECT answer to the sender (Lync Server), which than is able to establish the SIP
connection directly with the user mailbox server.
This behavior is illustrated in the call flow diagram below.
Lync/
Skype for Business
Exchange CAS
UMCallRouter.exe
Exchange MBX
UMService.exe /
worker process
UMCallRouter.exe
SIP or secure SIP (TCP 5060/ 5061)
SIP REDIRECT
UMService.exe
UM Worker Process
SIP or secure SIP (TCP 5062/5063)
SIP 302 Moved temporarily
SIP or secure SIP (TCP 506x)
RTP or SRTP traffic
The following table illustrates the TCP port usage within a UM deployment.
Communication type TCP Port Notes
SIP to CAS
UMCallRouterService.exe
5060 (unsecured
5061 (secured)
CAS listen for inbound SIP traffic on
these ports, changeable via
Set-UMCallRouterSettings
SIP to Mailbox
UMService.exe
5062 (unsecured
5063 (secured)
Mailbox role listens for inbound SIP
from CAS on these ports. They are
fixed
SIP to UM worker process 5065 & 5067 (unsecured
5066 & 5068 (secured)
All ports are used when the
UMStartupMode is set to
DUAL. If it’s set to TCP or TLS, only
5065 and 5066 are used. Those ports
can’t be changed

Next step is having a look into the UM Services:
Call Answering
Call answering is the receiving of voice messages on behalf of users whose calls are not answered or
are busy.
.
Outlook Voice Access
Outlook Voice Access enables an Enterprise Voice user to access not just voice mail, but also the
Exchange inbox, including email, calendar, and contacts from a telephony interface. The subscriber
access number is assigned by an Exchange UM administrator.
Auto Attendant
Auto attendant is an Exchange UM feature that can be used to configure a phone number that
outside users can dial to reach company representatives.
Two more important troubleshooting task have to be validate.
The first is the numbering format: Please ensure you are utilize the E.164 format. If e.g. Lync or PXB is
sending other formats, you might be able to cover those scenarios with dialplans, but the user
experience is also impacted by simply showing e.g. wrong extension or entire numbers. Other is the
Access Number might not be matched.
The second important is the relation between the certificates used for UM/ UM Service and the Lync/
Skype for Business Trusted Application Pools/ Computers. As usual, MTLS is required to configured
with the correct CN/SN and SAN if those setup is not matching, the UM will also experience
disconnection issues.
Coming back to the AA and SA numbers
As we can see in the Exchange UM Integration Utility, you can setup either AA or SA, but both need
to be associated with a E.164 phone number. You need to trace with OCSLogger calls coming in to
those numbers.

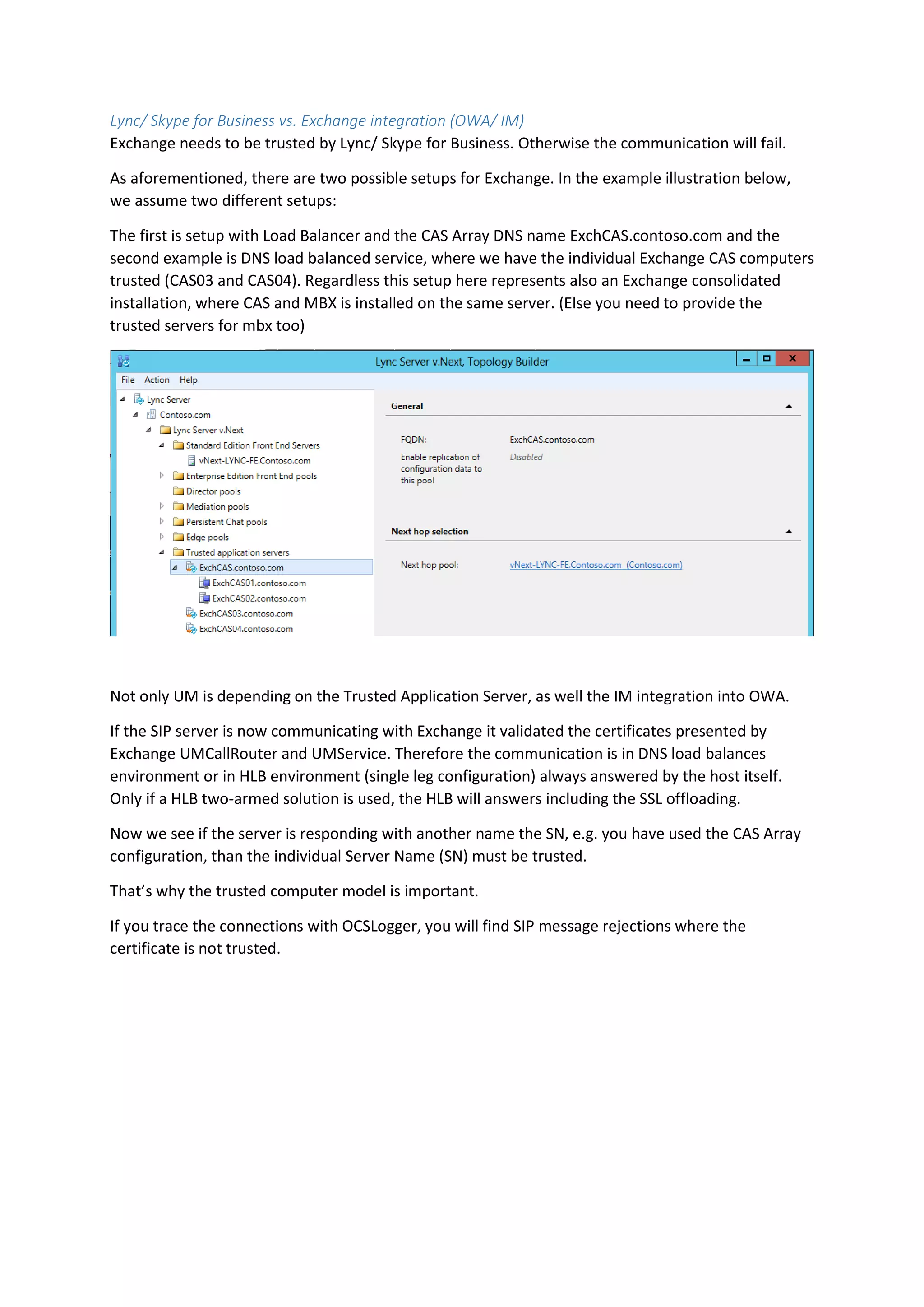

Lync/ Skype for Business vs. Exchange integration (OWA/ IM)
Exchange needs to be trusted by Lync/ Skype for Business. Otherwise the communication will fail.
As aforementioned, there are two possible setups for Exchange. In the example illustration below,
we assume two different setups:
The first is setup with Load Balancer and the CAS Array DNS name ExchCAS.contoso.com and the
second example is DNS load balanced service, where we have the individual Exchange CAS computers
trusted (CAS03 and CAS04). Regardless this setup here represents also an Exchange consolidated
installation, where CAS and MBX is installed on the same server. (Else you need to provide the
trusted servers for mbx too)
Not only UM is depending on the Trusted Application Server, as well the IM integration into OWA.
If the SIP server is now communicating with Exchange it validated the certificates presented by
Exchange UMCallRouter and UMService. Therefore the communication is in DNS load balances
environment or in HLB environment (single leg configuration) always answered by the host itself.
Only if a HLB two-armed solution is used, the HLB will answers including the SSL offloading.
Now we see if the server is responding with another name the SN, e.g. you have used the CAS Array
configuration, than the individual Server Name (SN) must be trusted.
That’s why the trusted computer model is important.
If you trace the connections with OCSLogger, you will find SIP message rejections where the
certificate is not trusted.

Troubleshooting conferences
As we all know, we can configure Lync Edge Server in several way.
1) Single Edge Server with a SINGLE IP ADDRESS
2) Single Edge Server with MULTIPLE IP ADDRESSES (3x IPs)
3) Multiple Edge Server in a Pool, with MULTIPLE IP ADDRESSES (Zx 3 IPs)
Regardless what we are going to configure, there are common / well-known TCP Port necessary making Lync
work, which are:
Access:
Port: 443 and 5061
Conferencing:
Port: 443 and (444 with single IP)
AV:
Port: 443
(I have not listed other ports, e.g. STUN or the dynamic port range. This is not required for the topic discussed
here)
Now we need having a look into the Lync Web Conferencing Service, publish via the Edge Server. Looking at the
incoming IP connection and there is a different. If you really configure Best-Practice and use three (3) public IP
addresses, everything is going to be fine. No one should experience any issue. This is due to the connection
made to e.g. conf.customer.com and it's common TCP Port 443 as for incoming.
Because this ports are always activated on every Firewall or via any Reverse Proxy.
But what happened if we are using the single IP address with single FQDN?
As you can see in the config example, we must use another TCP Port rather than 443, because with the single
IP, 443 is occupied by AV. Per default, Microsoft suggests TCP Port 444.
But regardless of this, whatever port we are going to choose, mostly the outgoing Firewalls are not open for
any for those other TCP Ports. (Seen from the prospective of a meeting participant).
This clearly means, you will experience issues with a lot of your Federation Partners and meeting participants!
NOTE:
Beware of the negative impact if you decide going for a SINGLE PUBLIC IP
ADDRESS. I do NOT recommend this configuration.

Persistent Shared Object Model (PSOM) protocol
The client communicates with the Web Conferencing service by using the Persistent Shared Object
Model (PSOM) protocol. PSOM is a custom protocol that is used for transporting web conferencing
content. PSOM is the web conferencing protocol used for exchanging data collaboration content
(white board, Pools, Q&A) and control, listed under the section of MEDIA PROTOCOLS,
There are 4 Conferencing Services:
 IM Conferencing MCU
 Application Sharing MCU
 A/V Conferencing MCU
 Web Conferencing MCU
The only MCU utilizing PSOM is the Web Conferencing service. You will find PSOM on the Edge Server too.
Reference: Conferencing Flow
Where PSOM is used in detail:
During a “Join Meeting”, the client establishes a direct connection with the conferencing service.
 If the service is an A/V Conferencing Service, the signaling protocol is SIP and the media is transported
over RTP/RTCP. If the service is the Application Sharing Conferencing service, the signaling protocol is
SIP and the media is transported over RDP encapsulated within RTP
 If the service is the Web Conferencing service, both signaling and media are sent using the PSOM
protocol.
Lync Server also supports sharing RDP wrapped in RTP PSOM side-by-side for a scenario where features such as
desktop sharing (RDP), whiteboard, and polling are used simultaneously.
- <conference-view state="full">
+ <entity-view state="full"
entity="sip:user@microsoft.com;gruu;opaque=app:conf:focus:id:K5I89BTR">
entity="sip:user@microsoft.com;gruu;opaque=app:conf:applicationsharing:id:K5I89BTR">
entity="sip:user@microsoft.com;gruu;opaque=app:conf:audio-video:id:K5I89BTR">
entity="sip:user@microsoft.com;gruu;opaque=app:conf:chat:id:K5I89BTR">
entity="sip:user@microsoft.com;gruu;opaque=app:conf:data-conf:id:K5I89BTR">

External FQDN with single IP address:
If we are going to choose a single IP address, we would have TCP Port overlapping. Therefore the only way
avoiding this is assigning another port. Additionally we will also see and are reminded that Lync highly depends
on DNS. If we have single IP, we must have use a single, unique FQDN for all services.
ACCESS:
SIP.CUSTOMER.COM PORT:5061
CONFERENCING:
AV:

External FQDN with multiple IP addresses:
In comparison, if we are choosing to make use of three individual IP addresses. We also need three different
FQDN, one for each service.
ACCESS:
CONFERENCING:
CONF.CUSTOMER.COM PORT:443
AV:
AV.CUSTOMER.COM PORT:443
If we now compare with the Microsoft provided illustration of the Edge Server related Enterprise Perimeter
Network, this TCP Port named here are for INCOMING CONNECTIONS ONLY. Now it becomes clearer what the
requirements are if an outside (remote) Lync user needs a connection to the published services.
The most common used services are:
IM, Audio/Video, Desktop or App Sharing, as well as Presence Queries.
Regardless which configuration was chosen, the single IP or triple IP configuration, those services are all
addressed via the common port of 443 and “5061”. So we can assume, those service are mostly working
independently of the chosen configuration model.

Conference INVITE and ACCESS
First access to the conferencing modalities is during the Logon process. We had learned and
understood during the login how the authentication will work. The conferencing is first initiated
during this process, where as a result the A/V Edge conferencing TCP and UPD ports are exchanged.
This exchange is initiated during the SIP SERVICE request and submitted during the 2nd
200/OK. The
service request is issued against the conferencing factory.
A/V
Edge
Local Client
Outer
Firewall
Edge
Server
Access
Edge
Inner
Firewall
Frontend
Server
MTLS
MRAS
SIP REGISTER
200 OK
Service
200 OK
<hostName>avedge.customer.com
<udpPort>3478
<tcpPort>443
<username> 77kuzt8ydfrtz4b52leOF
<password>Wnjui8udk87ahsz/FG=
<duration>480
200 OK
Allow-Events: vnd-microsoft-provisioning,vnd-
microsoft-roaming-contacts,...
xmlns="urn:ietf:params:xml:ns:cccp"
to="sip:user@domain.com;gruu;opaque=app:
conf:focusfactory"
<getConferencingCapabilities server-
mode="14"/>
SIP SERVICE
200 OK
from="sip:user@domain.com;gruu;opaque=app:
conf:focusfactory"
- <getConferencingCapabilities capability-
version="0">
1
2
3
4
5
6
7
For conferences of all modalities, the initial join process is the same as in a normal Lync session
setup. Lync Server introduced simple URLs, simplifying the URL that is used to join conferences.
These URLs, when configured for external participants, are published through a reverse proxy. The
simple URL associated with the meeting join process is the Meet Simple URL. When a conference is
generated or a scheduled conference is sent through email, the meeting join URL is shared. When a
user clicks the meeting URL or types it into a web browser, it connects to the reverse proxy over
HTTPS. The reverse proxy then proxies the web request to the configured Director or Front End pool.
Next we have a look into the process during a “join a meeting” process. During this process, one
interesting information from the client is also submitted. We know that a client has a certificate
issued from the server. This certificate is submitted again during the INFO message.
The illustration below show the progress of joining a meeting. Where we clearly see that the media
flow starts after the conferencing permission and setting are submitted to the joining user/ client.

A/V
Edge
Local Client
Outer
Firewall
Edge
Server
Access
Edge
Inner
Firewall
Frontend
Server
SIP INVITE
183 SESSION PROGRESS
100 TRYING
200 INVITE DIALOG CREATED
mscp="http://schemas ./cccpextensions"
C3PVersion="1"
to="sip:user@domain.com;gruu;opaque=app:
conf:focus:id:QVSHW1P8"
ACK and INFO
In INFO: <X509-certificate>MIIB4TCCA ..
202 ACCEPTED
INFO
<getConference>
<conference-info
entity="sip:user@domain.com;gruu;opaque=
app:conf:focus:id:QVSHW1P8"
(all permission, infos and URLs are submitted)
STUN
MEDIA
Call flow explanation to the illustration above
The Audio and Video Conferencing join experience is similar to the Application Sharing Conferencing
join in that the call flow process is nearly identical. The user sends an INVITE to the A/V Conference
Service URI, and then performs a series of ICE protocol connectivity checks. This establishes a media
path and relays media through the Audio/Video Edge service to the Audio/Video Conferencing
service that is hosted on the Front End pool or a dedicated A/V Conferencing Server. Because this
process is the same as the Application Sharing Join process, this section highlights only the relevant
differences.
The major difference between this call flow and the Application Sharing call flow is that a user sends
multiple sets of candidates both for audio and video.
In the introduction of this chapter we have understood where the conferencing data is send to. “If
the service is the Web Conferencing service, both signaling and media are sent using the PSOM
protocol.”
What we still can see is the access of the PSOM port (443 or single IP address e.g. 444). As explained,
this port, where the web conferencing is addressed with, is used for web conference and conference
controlling, where the joined client sends commands to define the conference progress.
If you joined a conference owned outside of your environment (an anonymous meeting), you
connect to the Web Conferencing Service on their Edge Server, which than is PSOM. The SIP
messages are flowing through the Web Conferencing Edge Service but do not show the TCP PORT.
This can only be traced with NETMON on the Edge server or with CLS/ OCSLogger on the
conferencing server (Frontend).

Why not Single IP on EDGE Port 444 Problem….
Beside the trace, this is also very nice example of how the Edge service is acting as an Application Proxy, you
see how the Edge receiver an internal message, will do the processing and then only it will send the message
on behalf out to the internet. I traced a problematic single IP configuration from outgoing point of view: (This
TRACE runs through the Web Conferencing Server)
This is the Edge Server:
The customer clicked an MEETING INVITE in Outlook, the Web Browser opened and was issuing the conference
back to the Lync Desktop Client
- invited user is identified as nils.caller@correct.com (aka CALLER participant at this meeting)
- internal network is 10.10.x.y with an AD FQDN INTERNAL.AD
- meeting initiator is false@singlip.com and meeting ID is V3JZ92CZ (aka ORGANIZER)
- external single IP 99.79.91.241
Edge intern NIC incoming from caller -> organizer INVITE
the Edge should initiate the outgoing meeting, seen in the message-body.
the conferencing service should add an used (caller) to the meeting
TL_INFO(TF_PROTOCOL) [0]097C.0834::07/11/2014-11:15:26.143.0000003d
(SIPStack,SIPAdminLog::ProtocolRecord::Flush:ProtocolRecord.cpp(265))[2376455152] $$begin_recordTrace-Correlation-Id:
2376455152
Instance-Id: BF9DB
Direction: incoming;source="internal edge";destination="external edge"
Peer: LYNCFEPOOL01.INTERNAL.AD:51714
Message-Type: request
Start-Line: INVITE sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
From: "Caller, Nils"<sip:nils.Caller@correct.com>;tag=e4776a37ed;epid=f5710ea2b3
To: <sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ>
Call-ID: 53fa037467934a3aa58afa7da405cffd
CSeq: 1 INVITE
Contact:< sip:nils.Caller@correct.com;opaque=user:epid:6Ng_wBKilFeryhezW1lEuAAA;gruu>
Via: SIP/2.0/TLS 10.10.10.127:51714;branch=z9hG4bKDFE93E20.E0C27AFE227343AD;branched=FALSE
Via: SIP/2.0/TLS 10.10.45.69:49360;ms-received-port=49360;ms-received-cid=2E9D600
Record-Route:< sip:LYNCFEPOOL01.INTERNAL.AD:5061;transport=tls;ms-
fe=LYNCFRCLSERV01.INTERNAL.AD;opaque=state:T;lr>;tag=0CF71FDEF89C166BEDCEB50B598409B1
Max-Forwards: 69
Message-Body:
C3PVersion="1"
to="sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ"
from="sip:nils.Caller@correct.com"
requestId="344391952">
+ <addUser>
</request>
Next the domain discovery done by the Edge Server and finding the FQDN and
IP
TL_INFO(TF_CONNECTION) [3]097C.02C0::07/11/2014-11:15:26.174.000001eb
(SIPStack,SIPAdminLog::WriteConnectionEvent:SIPAdminLog.cpp(454))[3899431948] $$begin_recordSeverity: information
Text: TLS negotiation started
Local-IP: 10.11.10.84:61621
Peer-IP: 99.79.91.241:5061
Peer: sip.singleip.com:5061
Connection-ID: 0x49E800
Transport: M-TLS

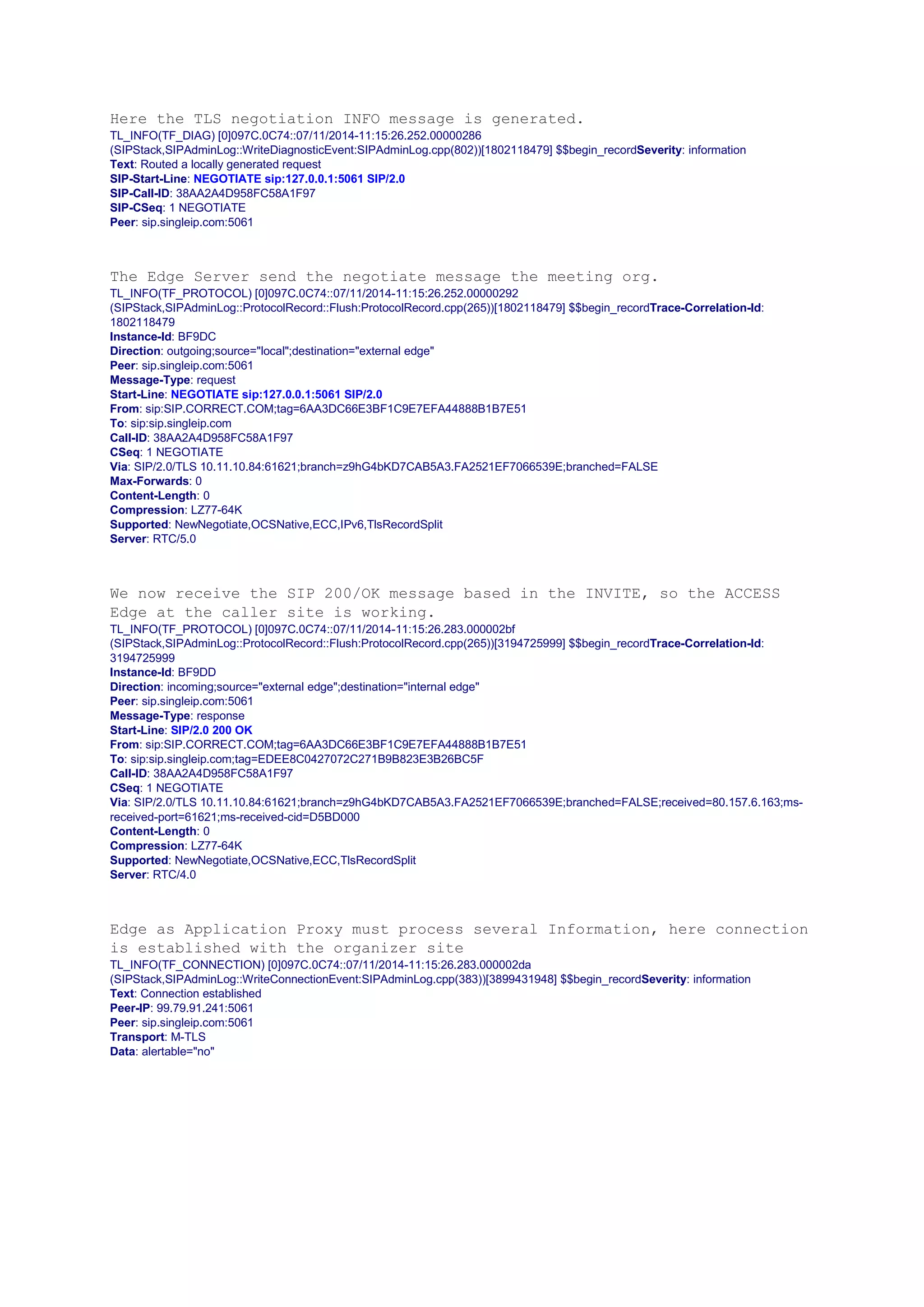

Here the TLS negotiation INFO message is generated.
TL_INFO(TF_DIAG) [0]097C.0C74::07/11/2014-11:15:26.252.00000286
(SIPStack,SIPAdminLog::WriteDiagnosticEvent:SIPAdminLog.cpp(802))[1802118479] $$begin_recordSeverity: information
Text: Routed a locally generated request
SIP-Start-Line: NEGOTIATE sip:127.0.0.1:5061 SIP/2.0
SIP-Call-ID: 38AA2A4D958FC58A1F97
SIP-CSeq: 1 NEGOTIATE
The Edge Server send the negotiate message the meeting org.
TL_INFO(TF_PROTOCOL) [0]097C.0C74::07/11/2014-11:15:26.252.00000292
1802118479
Instance-Id: BF9DC
Direction: outgoing;source="local";destination="external edge"
Start-Line: NEGOTIATE sip:127.0.0.1:5061 SIP/2.0
From: sip:SIP.CORRECT.COM;tag=6AA3DC66E3BF1C9E7EFA44888B1B7E51
To: sip:sip.singleip.com
Call-ID: 38AA2A4D958FC58A1F97
CSeq: 1 NEGOTIATE
Via: SIP/2.0/TLS 10.11.10.84:61621;branch=z9hG4bKD7CAB5A3.FA2521EF7066539E;branched=FALSE
Max-Forwards: 0
Content-Length: 0
Compression: LZ77-64K
Supported: NewNegotiate,OCSNative,ECC,IPv6,TlsRecordSplit
Server: RTC/5.0
We now receive the SIP 200/OK message based in the INVITE, so the ACCESS
Edge at the caller site is working.
TL_INFO(TF_PROTOCOL) [0]097C.0C74::07/11/2014-11:15:26.283.000002bf
3194725999
Instance-Id: BF9DD
Direction: incoming;source="external edge";destination="internal edge"
Message-Type: response
Start-Line: SIP/2.0 200 OK
From: sip:SIP.CORRECT.COM;tag=6AA3DC66E3BF1C9E7EFA44888B1B7E51
To: sip:sip.singleip.com;tag=EDEE8C0427072C271B9B823E3B26BC5F
Call-ID: 38AA2A4D958FC58A1F97
CSeq: 1 NEGOTIATE
Via: SIP/2.0/TLS 10.11.10.84:61621;branch=z9hG4bKD7CAB5A3.FA2521EF7066539E;branched=FALSE;received=80.157.6.163;ms-
received-port=61621;ms-received-cid=D5BD000
Content-Length: 0
Compression: LZ77-64K
Supported: NewNegotiate,OCSNative,ECC,TlsRecordSplit
Server: RTC/4.0
Edge as Application Proxy must process several Information, here connection
is established with the organizer site
TL_INFO(TF_CONNECTION) [0]097C.0C74::07/11/2014-11:15:26.283.000002da
Text: Connection established
Peer-IP: 99.79.91.241:5061
Transport: M-TLS
Data: alertable="no"

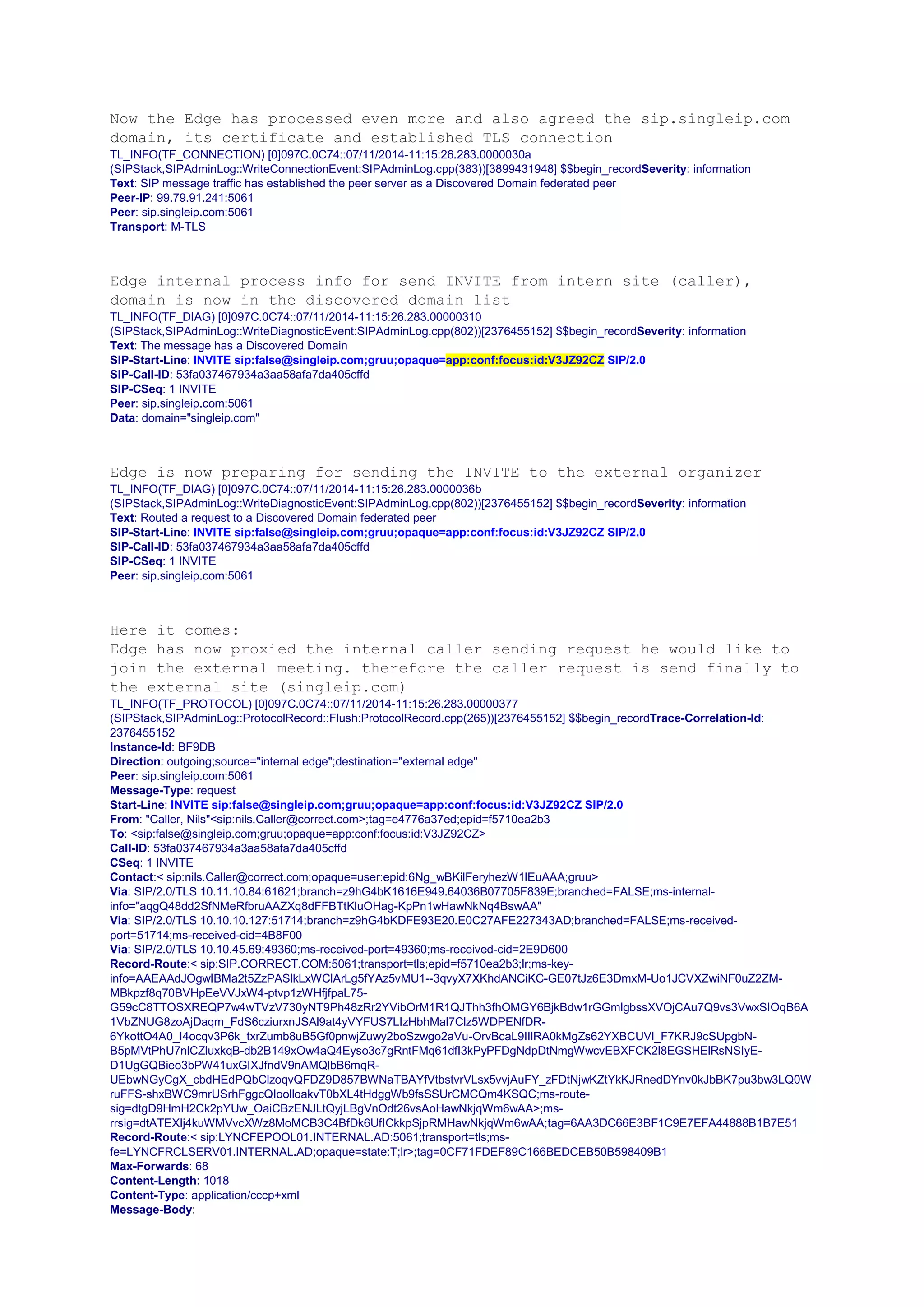

Now the Edge has processed even more and also agreed the sip.singleip.com
domain, its certificate and established TLS connection
TL_INFO(TF_CONNECTION) [0]097C.0C74::07/11/2014-11:15:26.283.0000030a
Text: SIP message traffic has established the peer server as a Discovered Domain federated peer
Peer-IP: 99.79.91.241:5061
Transport: M-TLS
Edge internal process info for send INVITE from intern site (caller),
domain is now in the discovered domain list
TL_INFO(TF_DIAG) [0]097C.0C74::07/11/2014-11:15:26.283.00000310
Text: The message has a Discovered Domain
SIP-Start-Line: INVITE sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
SIP-Call-ID: 53fa037467934a3aa58afa7da405cffd
SIP-CSeq: 1 INVITE
Data: domain="singleip.com"
Edge is now preparing for sending the INVITE to the external organizer
TL_INFO(TF_DIAG) [0]097C.0C74::07/11/2014-11:15:26.283.0000036b
Text: Routed a request to a Discovered Domain federated peer
SIP-Start-Line: INVITE sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
SIP-CSeq: 1 INVITE
Here it comes:
Edge has now proxied the internal caller sending request he would like to
join the external meeting. therefore the caller request is send finally to
the external site (singleip.com)
2376455152
Instance-Id: BF9DB
Direction: outgoing;source="internal edge";destination="external edge"
Start-Line: INVITE sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
To: <sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ>
CSeq: 1 INVITE
Contact:< sip:nils.Caller@correct.com;opaque=user:epid:6Ng_wBKilFeryhezW1lEuAAA;gruu>
Via: SIP/2.0/TLS 10.11.10.84:61621;branch=z9hG4bK1616E949.64036B07705F839E;branched=FALSE;ms-internal-
info="aqgQ48dd2SfNMeRfbruAAZXq8dFFBTtKluOHag-KpPn1wHawNkNq4BswAA"
Via: SIP/2.0/TLS 10.10.10.127:51714;branch=z9hG4bKDFE93E20.E0C27AFE227343AD;branched=FALSE;ms-received-
port=51714;ms-received-cid=4B8F00
Record-Route:< sip:SIP.CORRECT.COM:5061;transport=tls;epid=f5710ea2b3;lr;ms-key-
info=AAEAAdJOgwIBMa2t5ZzPASlkLxWClArLg5fYAz5vMU1--3qvyX7XKhdANCiKC-GE07tJz6E3DmxM-Uo1JCVXZwiNF0uZ2ZM-
MBkpzf8q70BVHpEeVVJxW4-ptvp1zWHfjfpaL75-
G59cC8TTOSXREQP7w4wTVzV730yNT9Ph48zRr2YVibOrM1R1QJThh3fhOMGY6BjkBdw1rGGmlgbssXVOjCAu7Q9vs3VwxSIOqB6A
1VbZNUG8zoAjDaqm_FdS6cziurxnJSAl9at4yVYFUS7LIzHbhMal7Clz5WDPENfDR-
6YkottO4A0_I4ocqv3P6k_txrZumb8uB5Gf0pnwjZuwy2boSzwgo2aVu-OrvBcaL9IIlRA0kMgZs62YXBCUVl_F7KRJ9cSUpgbN-
B5pMVtPhU7nlCZluxkqB-db2B149xOw4aQ4Eyso3c7gRntFMq61dfI3kPyPFDgNdpDtNmgWwcvEBXFCK2l8EGSHElRsNSIyE-
D1UgGQBieo3bPW41uxGIXJfndV9nAMQlbB6mqR-
UEbwNGyCgX_cbdHEdPQbClzoqvQFDZ9D857BWNaTBAYfVtbstvrVLsx5vvjAuFY_zFDtNjwKZtYkKJRnedDYnv0kJbBK7pu3bw3LQ0W
ruFFS-shxBWC9mrUSrhFggcQIoolloakvT0bXL4tHdggWb9fsSSUrCMCQm4KSQC;ms-route-
sig=dtgD9HmH2Ck2pYUw_OaiCBzENJLtQyjLBgVnOdt26vsAoHawNkjqWm6wAA>;ms-
rrsig=dtATEXIj4kuWMVvcXWz8MoMCB3C4BfDk6UfICkkpSjpRMHawNkjqWm6wAA;tag=6AA3DC66E3BF1C9E7EFA44888B1B7E51
Record-Route:< sip:LYNCFEPOOL01.INTERNAL.AD:5061;transport=tls;ms-
fe=LYNCFRCLSERV01.INTERNAL.AD;opaque=state:T;lr>;tag=0CF71FDEF89C166BEDCEB50B598409B1
Max-Forwards: 68
Message-Body:

C3PVersion="1"
to="sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ"
from="sip:nils.Caller@correct.com"
requestId="344391952">
+ <addUser>
</request>

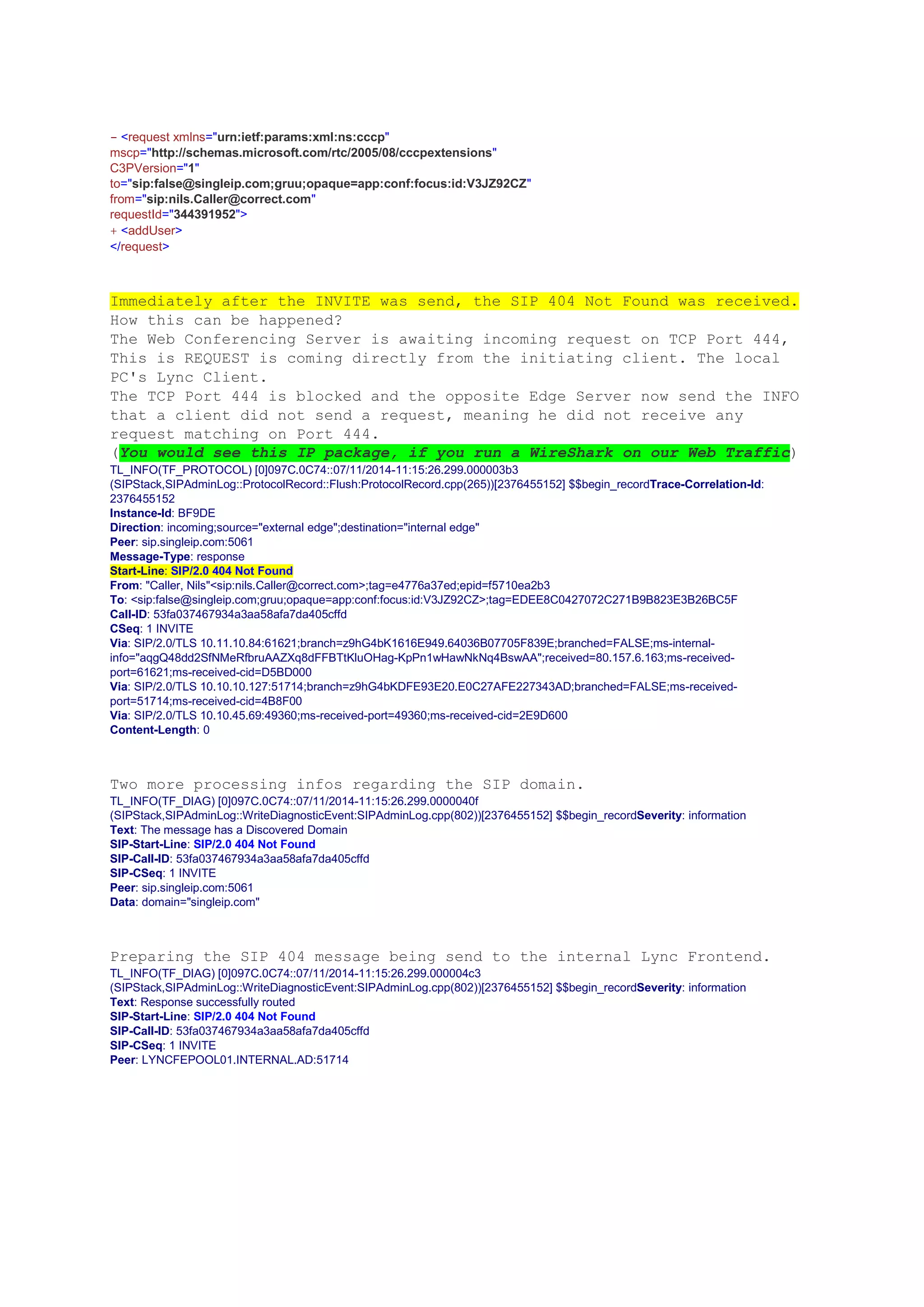

Immediately after the INVITE was send, the SIP 404 Not Found was received.
How this can be happened?
The Web Conferencing Server is awaiting incoming request on TCP Port 444,
This is REQUEST is coming directly from the initiating client. The local
PC's Lync Client.
The TCP Port 444 is blocked and the opposite Edge Server now send the INFO
that a client did not send a request, meaning he did not receive any
request matching on Port 444.
(You would see this IP package, if you run a WireShark on our Web Traffic)
TL_INFO(TF_PROTOCOL) [0]097C.0C74::07/11/2014-11:15:26.299.000003b3
2376455152
Instance-Id: BF9DE
Direction: incoming;source="external edge";destination="internal edge"
Start-Line: SIP/2.0 404 Not Found
To: <sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ>;tag=EDEE8C0427072C271B9B823E3B26BC5F
CSeq: 1 INVITE
Via: SIP/2.0/TLS 10.11.10.84:61621;branch=z9hG4bK1616E949.64036B07705F839E;branched=FALSE;ms-internal-
info="aqgQ48dd2SfNMeRfbruAAZXq8dFFBTtKluOHag-KpPn1wHawNkNq4BswAA";received=80.157.6.163;ms-received-
port=61621;ms-received-cid=D5BD000
Content-Length: 0
Two more processing infos regarding the SIP domain.
TL_INFO(TF_DIAG) [0]097C.0C74::07/11/2014-11:15:26.299.0000040f
SIP-Start-Line: SIP/2.0 404 Not Found
SIP-CSeq: 1 INVITE
Preparing the SIP 404 message being send to the internal Lync Frontend.
TL_INFO(TF_DIAG) [0]097C.0C74::07/11/2014-11:15:26.299.000004c3
Text: Response successfully routed
SIP-Start-Line: SIP/2.0 404 Not Found
SIP-CSeq: 1 INVITE

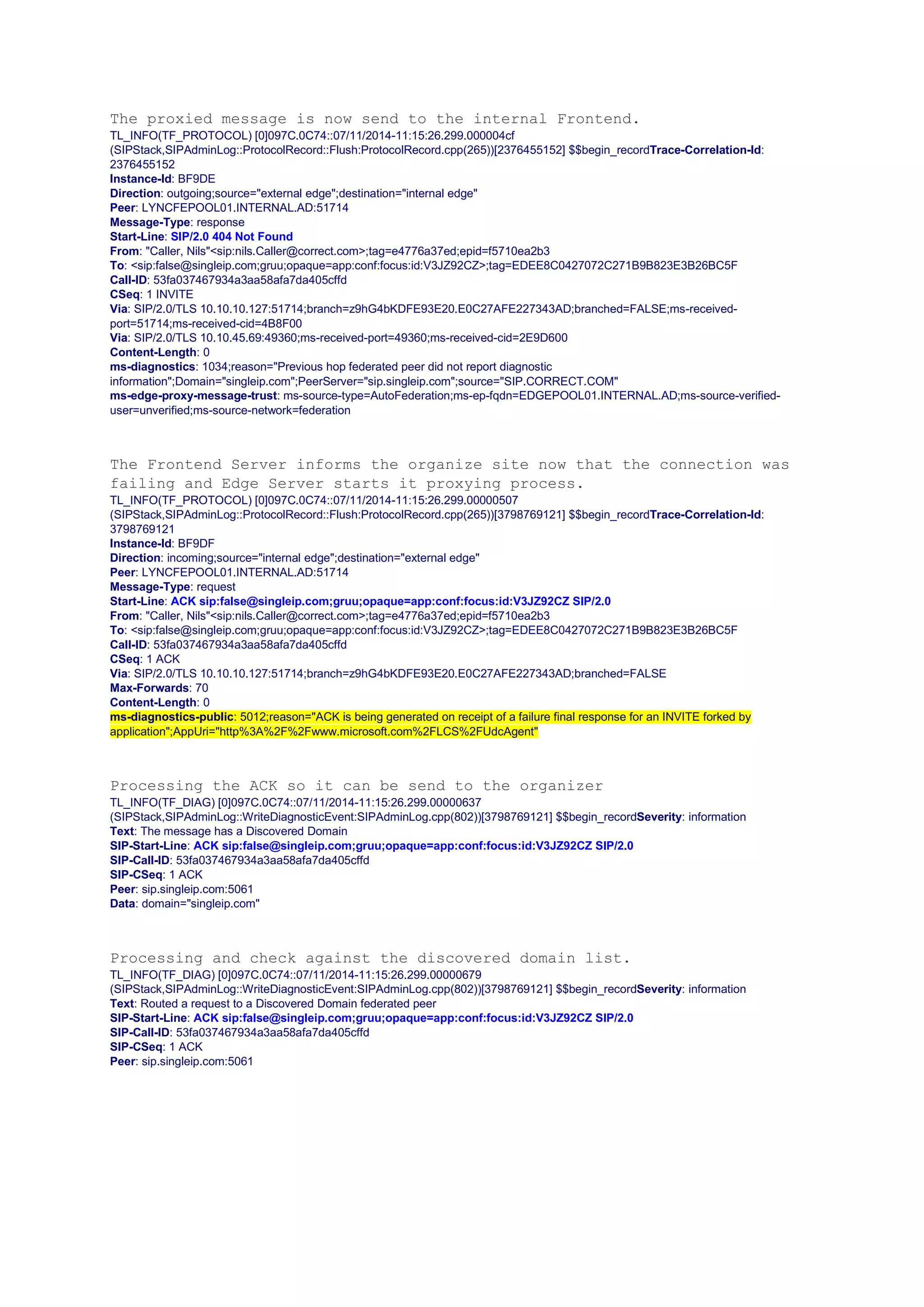

The proxied message is now send to the internal Frontend.
TL_INFO(TF_PROTOCOL) [0]097C.0C74::07/11/2014-11:15:26.299.000004cf
2376455152
Instance-Id: BF9DE
Direction: outgoing;source="external edge";destination="internal edge"
Start-Line: SIP/2.0 404 Not Found
CSeq: 1 INVITE
Content-Length: 0
ms-diagnostics: 1034;reason="Previous hop federated peer did not report diagnostic
information";Domain="singleip.com";PeerServer="sip.singleip.com";source="SIP.CORRECT.COM"
ms-edge-proxy-message-trust: ms-source-type=AutoFederation;ms-ep-fqdn=EDGEPOOL01.INTERNAL.AD;ms-source-verified-
user=unverified;ms-source-network=federation
The Frontend Server informs the organize site now that the connection was
failing and Edge Server starts it proxying process.
3798769121
Instance-Id: BF9DF
Direction: incoming;source="internal edge";destination="external edge"
Start-Line: ACK sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
CSeq: 1 ACK
Via: SIP/2.0/TLS 10.10.10.127:51714;branch=z9hG4bKDFE93E20.E0C27AFE227343AD;branched=FALSE
Max-Forwards: 70
Content-Length: 0
ms-diagnostics-public: 5012;reason="ACK is being generated on receipt of a failure final response for an INVITE forked by
application";AppUri="http%3A%2F%2Fwww.microsoft.com%2FLCS%2FUdcAgent"
Processing the ACK so it can be send to the organizer
TL_INFO(TF_DIAG) [0]097C.0C74::07/11/2014-11:15:26.299.00000637
SIP-Start-Line: ACK sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
SIP-CSeq: 1 ACK
Processing and check against the discovered domain list.
TL_INFO(TF_DIAG) [0]097C.0C74::07/11/2014-11:15:26.299.00000679
Text: Routed a request to a Discovered Domain federated peer
SIP-Start-Line: ACK sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
SIP-CSeq: 1 ACK

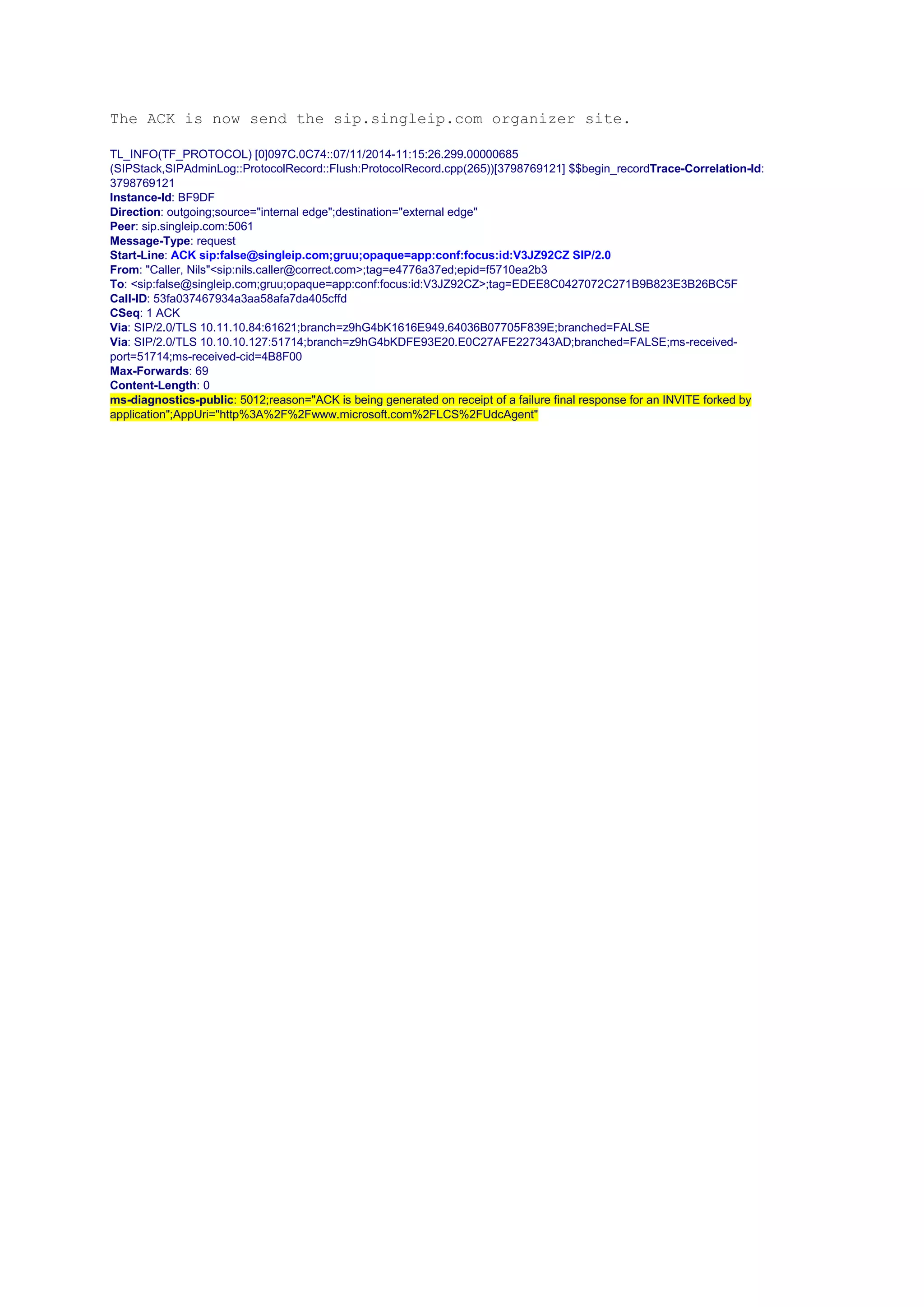

The ACK is now send the sip.singleip.com organizer site.
3798769121
Instance-Id: BF9DF
Direction: outgoing;source="internal edge";destination="external edge"
Start-Line: ACK sip:false@singleip.com;gruu;opaque=app:conf:focus:id:V3JZ92CZ SIP/2.0
From: "Caller, Nils"<sip:nils.caller@correct.com>;tag=e4776a37ed;epid=f5710ea2b3
CSeq: 1 ACK
Via: SIP/2.0/TLS 10.11.10.84:61621;branch=z9hG4bK1616E949.64036B07705F839E;branched=FALSE
Max-Forwards: 69
Content-Length: 0
ms-diagnostics-public: 5012;reason="ACK is being generated on receipt of a failure final response for an INVITE forked by
application";AppUri="http%3A%2F%2Fwww.microsoft.com%2FLCS%2FUdcAgent"

Client doesn’t open Lync when meeting link is clicked.
In some circumstance you will experience an issue join the conference with your client.
It is important verifying the file association with will open the local installed client.
Test Web App and open an Internet Explorer forcing the Conference to take place inside the browser.
Copy the Join URL from the meeting invite, and then paste it into Internet Explorer. (Warning: Don't
press Enter yet.)
Add "?sl=1" to the end of the URL, and then press Enter.

Validating Conference Settings and Expiration
Conferencing is controlled via policies and global settings. The policy will control the behavior and
the permitted features a user can use in a conference.
Set-CsConferencingConfiguration:
Beside a Content Grace Period, the time after a conference is retired when last activation occurred
(someone joint). A reoccurring meeting also follows this principle if an end date was set.
NOTE:
Some disallowance will not be proper announced to the end user/ client. Meaning if a feature is not
available, the conference will fail and the user is informed contacting her/his administrator.
You need first to validate if the user was permitted for this action or denied by an assigned policy.

Activation and Deactivation
Before a user didn’t join a conference, it is not activated. After the activation, the Focus (not MCU
factory) will check settings and permission within the backend database. From here the process
starts, where the Focus gets in touch with the MCU Factory looking for getting details of available
Conferencing Servers, than the Focus starts building those Conferencing Servers for its conference.
You can have a look into the databases as well, finding those information soon the conference is
activated, that information is placed into the RTCLocal | RTCDYN | ActiveConference database.
Thanks of Richard, here explored more database fields, so you are now enabled reading those
information and utilize the value for your support case. As well he explained perfectly the individual
components involved when a conference was started.
 ConfID: The conference ID is important to note, as it’s a primary key to other tables.
 ConfStateVersion: The ConfStateVersion is a counter of changes occurring in your meeting.
 Locked: This is a bit field and tells us if the meeting is locked (True – 1). A locked meeting will
not allow any new participants.
 AdmissionType: A TinyInt field with a few different options.
o 3 – Anyone (No Restrictions)
o 2 – Anyone from my organization or the meeting organizer.
o 1 – People I Invite
 AutoPromote: Another TinyInt field.
o 0 – People scheduled as presenters
o 1 – Anyone from my organization
o 2 – Anyone (No Restrictions)
 PstnLobbyBypass: Exactly what it sounds like. If set to True (1) than PSTN users get into
meetings directly.
 LastPartID: Not 100% sure what the role of this field is.
 LastEnterprisePartLeaveTime: Date and time of the last authenticated users to leave a
meeting. This is important later on.
 ActivationInstance: GUID used by the system.
 IsLargeMeeting: True (1) or False (0) if it’s a large meeting.
The moral of this section is. Once a meeting is joined, than we create an instance in the database for
an active conference. There are several moving parts to the creation of a conference.
Focus is a SIP endpoint that represents the actual conference in the system. It’s job is a central
gatekeeper. It’s pretty much responsible for everything for the conference. From authentication,
requesting conferencing servers, etc.
Focus Factory handles the logical creation of deletion of conferences for scheduled meetings in the
database.

Conferencing Server Factory determines the availability and health of the Conferencing Servers in the
environment. During the meeting creation process, it’s responsible for telling the Focus which
servers to place which modalities on.
Now having a look into the defined possibilities for conference deactivation.
First, deactivation and expiry are two different events. The deactivation refers to action of tearing
down a particular instance of a conference, a job for the Focus to be monitored with. The
deactivation can be either manual or automatic.
Manually, three way are existing. Either the presenter clicks the “End Meeting” action, which force
all participant to leave the meeting.
Another action can be activated by “deleting the meeting from Outlook”. Here the focus will instantly
deletes the meeting. User which were joint are disconnected. But it will not delete the users default
meeting space.
Last but not least, the user is removed from Lync/ Skype for Business. This triggers an automated
process deleting the users active conference at the same time.
Automatically, there are another three way. First, if all users have left the conference. Which is most
likely happened. For around another 20min the Conferencing Announcement Service (CAS) will stay
in this conference, so it stays in the background.
Next possible deactivation is after 90min. At this point in time, the Focus will terminate the
conference if no enterprise user joined the meeting or if all of them have left. (Federated and
PSTN/Anonymous user are not subject to count). Richard tracked the related SIP BYE message sent to
the CAS.
The last deactivation rule is after 24hrs, meaning the no one joint.

Resetting a default Conferencing ID
I urge you reading the full article from Richard related to this support topic.
http://masteringlync.com/2013/10/10/resetting-default-conference-ids/
Therefore I summarize the relevance for database information if you need supporting conference
from this prospective.
If you invite other into e meeting, you can either copy or email a link, which include a unique ID
which is used to identify the conference which should be joined. In some cases it might be required
to change or even analyze this user associated ID. This could also be happened e.g. after SIP Domain
change.
Please not, if only a small number of users need to change their conferencing ID, let them better do
so via the Dial-In web page.
Lync 2013 and Skype for Business have the conferences stored locally on the front-end servers, they
are found in the RTClocal database instance. (not on the SQL Server back-end). In this instance you
will find three database, our database from interest is the RTC, where have two tables REOURCES
and CONFERENCE. The first table contains the user loggedin to the this particular front-end server
(internal, external or even partners,…).
From here you need to find your user and the related ReferenceID. You have to use a SQL query:
SELECT * FROM resource WHERE userAtHost = ‘rbrynteson@avtex.com’
Here we can see 293 is Richards resource ID.
So now if you got to the conference table you can get back all of the conferences that are assigned to
him:

The conference with the value: TRUS in the STATIC field is the default conferencing ID. For you
support, all other conferences can be identified as FALSE.
The default Conferencing ID is e.g. used by Outlook, when creating a meeting e-mail and the meeting
plugin is communicating with the front-end server, which the starts a lookup. If the value is TRUE,
this ConferenceID will be returned to the user. If no TRUE value could be found, a new ConferenceID
is generated and marked a STATIC (default).
The next screenshots represent the process of a newly generated default ConferenceID:
Now a new ID is generated.
Richard than tested the different behavior in Outlook:
Outlook Client Open (User has not yet requested a meeting today)
The outlook client will reach into the database, find there is no static ID and returns a new static ID to
the user by generating a new record.
Outlook Client Open (User has requested a meeting today)
The outlook client will use the cached information and schedule the meeting using the old ID.

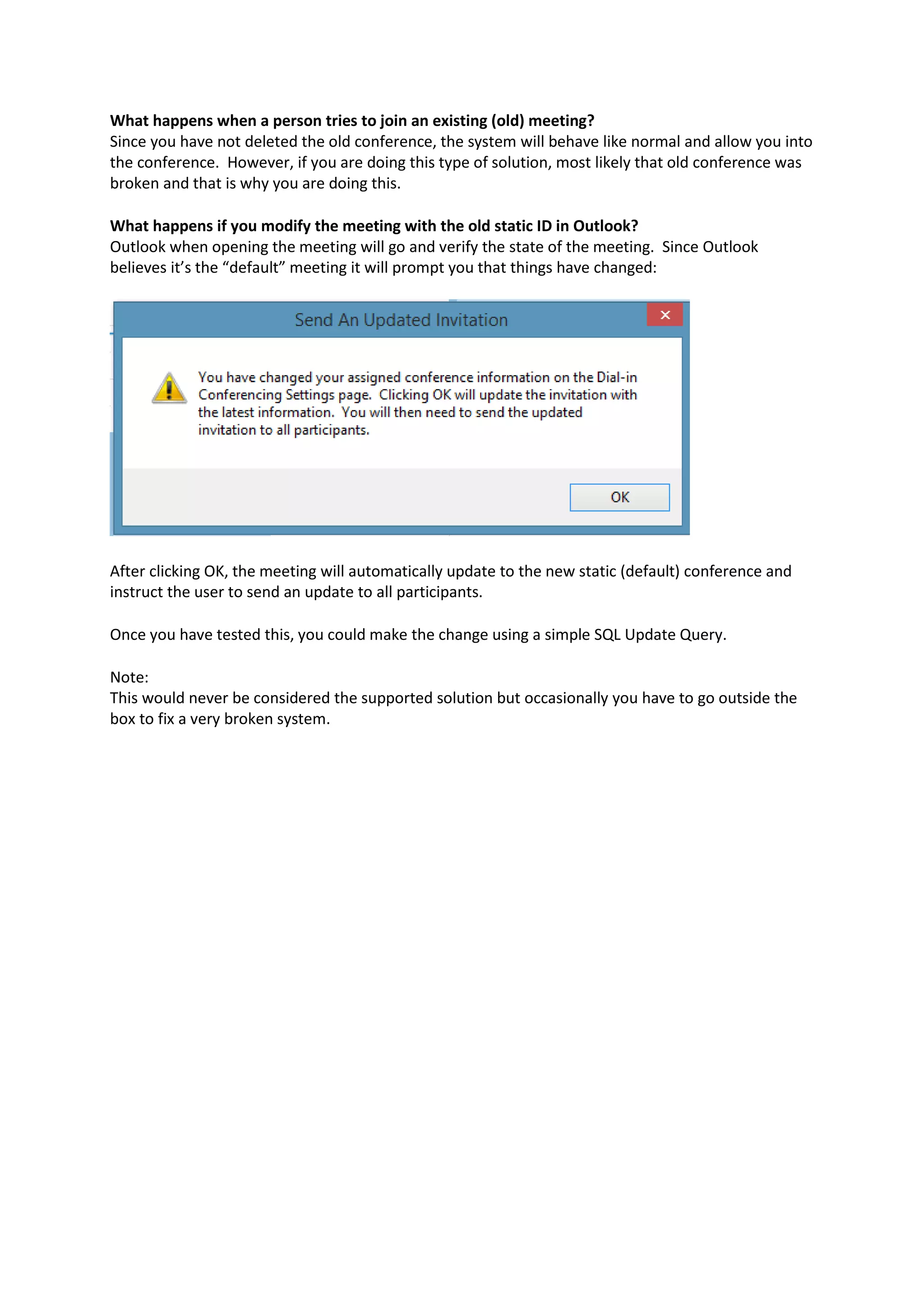

What happens when a person tries to join an existing (old) meeting?
Since you have not deleted the old conference, the system will behave like normal and allow you into
the conference. However, if you are doing this type of solution, most likely that old conference was
broken and that is why you are doing this.
What happens if you modify the meeting with the old static ID in Outlook?
Outlook when opening the meeting will go and verify the state of the meeting. Since Outlook
believes it’s the “default” meeting it will prompt you that things have changed:
After clicking OK, the meeting will automatically update to the new static (default) conference and
instruct the user to send an update to all participants.
Once you have tested this, you could make the change using a simple SQL Update Query.
Note:
This would never be considered the supported solution but occasionally you have to go outside the
box to fix a very broken system.

Troubleshooting Lync and Skype for Business Web Services
The essential security part from Lync and Skype for Business is the segregation of web services into
internal and external IIS web pages. Therefore if one service or the entire web page will be
compromised or crashed, not the entire system will run into issues. Manly on this particular service
or web site. Certificate assignment is also essential and part of the deployment wizard.
Internal and External Web Services IIS
For troubleshooting it is recommended that you have full understanding of the different types of
session establishment. The behavior for example between an IM Session and an A/V call is quite
different. In case you need to support issues, it is essential to know where to identify and where to
start with your support approach.
443
USER
SIP Proxy
(Lync Edge)
Registrar
Lync Frontend
Reverse Proxy
(e.g. IIS ARR)
Inside DMZ LANRemote/ Internet
USER
Office Web App
Server (WAS/ WAC)
In Lync and Skype for Business, several service are externally published via web services. We can
differentiate those services into two categories, client and web page.
The client handles service like address book downloads or expansion of distribution groups via the
Reverse Proxy. While the Meeting Join and Web Application are services publish to non-Lync/ Skype

for Business clients.
Isolated from those service is the publication of Power Point rendering in Web Conferences.
NOTE:
For WAC deployment refer too: http://lyncuc.blogspot.de/2013/09/deploy-office-web-apps-server-
2013-and.html
The Front-End IIS is segregated into two dedicated web sites, one for internal access (443) and one
for external requests (4443):
The IIS Web Services are listed in the picture below, each of the certificate provide several functions
and is split into the “external” and “internal” web site.
Having a look into the provided services:
 To enable users to download files from the Address Book Service
 To enable clients to obtain updates
 To enable conferencing
 To enable users to download meeting content
 To enable users to expand distribution groups
 To enable phone conferencing
 To enable response group features
 To enable mobile client features (see next chapter)
In this extract, the following virtual directories are created and should never be changed manually.
Only via the deployment wizard or management shell commands.

The web site exists with the “Internal Web Service FQDN” and an exact copy for the “External Web
Service FQDN”. On the external service the physical file location is changed to “ext” instead of “int”.
Lync Web
Service
Address Description
Address Book
Server
https://<Internal
FQDN>/ABS/int/Handler
Location of Address Book Server
download files for internal users.
Autodiscover
Service
https://<Internal FQDN>/Autodiscover Location of the Lync Server
Autodiscover Service that locates
mobility resources for internal
mobile device users.
Client updates http://<Internal FQDN>/AutoUpdate/Int Location of update files for
internal computer-based clients.
Conf http://<Internal FQDN>/Conf/Int Location of conferencing resources
for internal users.
Device updates http://<Internal
FQDN>/DeviceUpdateFiles_Int
Location of unified
communications (UC) device
update files for internal UC
devices.
Meeting http://<Internal FQDN>/etc/place/null Location of meeting content for
internal users.
Mobility Service https://<Internal FQDN>/Mcx Location of Mobility Service
resources for internal mobile
device users. (Lync 2010)
Mobility Service https://<Internal FQDN>/UCWA Location of Mobility Service
resources for internal mobile
device users. (Lync 2013 and
Skype for Business)
Group
Expansion and
Address Book
Web Query
service
http://<Internal
FQDN>/GroupExpansion/int/service.asmx
Location of the Web service that
enables group expansion for
internal users. Also, the location of
the Address Book Web Query
service that provides global
address list information to internal
Lync Mobile Microsoft Lync 2010
Mobile clients.
Phone
Conferencing
http://<Internal
FQDN>/PhoneConferencing/Int
Location of phone conferencing
data for internal users.
Device updates http://<Internal FQDN>/RequestHandler Location of the Device Update
Web service Request Handler that
enables internal UC devices to
upload logs and check for updates.
Response Group
application
http://<Internal FQDN>/RgsConfig
http://<Internal FQDN>/RgsClients
Location of Response Group
Configuration

Mobility Services (for mobile clients)
There are different scenarios where a mobile 2013/ Skype4Business client can establish its
connection. First, we are not making use of MCX (virtual Directory) anymore. The actual client use
UCWA which was introduced with Lync 2013 CU February 2013 and is still valid for Skype for
Business. Please refer to Microsoft Technet and Jeff Schertz blog.
The three possible scenarios are:
1. Internal Mobile Client establish a connection to an internal Client
2. Internal Mobile Client establish a connection to an internal Client, but cannot connect to the
internal client due to a firewall blocking. But has Internet connectivity
3. Internal Mobile Client establish a connection to an external Client (REMOTE)
This scenarios are important for troubleshooting. While you did your planning’s for Mobile Services,
you need to know how the network related setup will be.
NOTE:
Although mobile applications can also connect to other Lync Server 2013 services, the requirement
to send all mobile application web requests to the same external web fully qualified domain name
(FQDN) applies only to the Lync Server 2013 Mobility Service. Other mobility services do not require
this configuration.
Illustration about generic setup:
Lync Server 2013 Pool
INTERNAL WEB SERVICE FQDN (VIP)
EXTERNAL WEB SERVICE FQDN (VIP)
IIS (Lync Web Components)
External WebSite (4443)
Internal WebSite (443)
Mobility Service (MCX/ UCWA)
Autodiscover Service
Mobility Service (exits, but not activated)
Autodiscover Service
INTERNET DMZ INTERNAL/ LAN
SIP Domain: customer.com
DNS ZONE: customer.com
Lyncdiscover A 202.x.x.x
Extweb A 202.x.x.y
DNS ZONE: customer.com
Lyncdiscover A 10.z.z.z
Extweb A 202.x.x.y
Revers Proxy
Proxy
Listener IP:
202.x.x.x
HTTPS:// MOBILITY URL EXTERNAL WEB SERVICE FQDN
1. Query LYNCDISCOVERINTERNAL
2. Query LYNCDISCOVER
than
AutoDiscover provides
MOBILITY URL (Ext Web Service
FQDN)
HTTPS GET LYNCDISCOVERINTERNAL.customer.com
HTTPS://mobility URL, extweb.customer.com
HTTPS GET LYNCDISCOVER.customer.com
HTTPS://mobility URL,
extweb.customer.com
Having a look into the three scenarios and see where along the signaling and media path is
established. At the first very beginning of a mobile client login stands the autodiscovery. The
first DNS query is against the lyncdiscoverinternal and the second query is against the
external lyncdiscover. Via the Reverse Proxy Server, the discover XML of the “link token” will be
submitted to the mobile client. Generally the software is hardcoded and is making use of <Link
token="Ucwa". It is therefore required that a mobile client must be able to discover the correct
URL.
In your troubleshooting process, once again the validation of core network services is essential.

It needs to be understood, that Lync/ Skype for Business mobile clients make use of hard coded
virtual directories. First, Lync 2010 clients utilize the MCX directory, which can be tested with a
specific Test-CS command.
All newer clients are hard coded to the UCWA feature.
Even if we see later, that UCWA exists internally and cannot be chosen for new clients, this is a
requirement. If you would be able using the internal service provided (point the DNS internally) the
mobile device must trust the issued web certificate. Which is unlikely to be happened with BYOD
deployments and this is quite a hassle.
Now we are having a look into the dedicated scenarios first.
Scenario 1 (internal mobile/internal full client):
SIP Proxy
(Lync Edge)
Registrar
Lync Frontend
Reverse Proxy
(e.g. IIS ARR)
Inside DMZ LAN
Internal
User
LYNC
Autodiscover
Media
signalingsignaling
signaling
1 3
2
The mobile client is discovering the internal LYNCDISCOVERINTERNAL URL (1) and will make use of
the of the EXTERNAL MOBILITY URL (FQDN - “link token=UCWA”) (2). Different is the media
establishment, the client provide the candidates and are entitled for a direct peer-to-peer setup (3).
Important is the network path and it must be non NATed, a direct route.

Scenario 2 (internal mobile behind internal firewall/internal full client):
Registrar
Lync Frontend
SIP Proxy
(Lync Edge)
Reverse Proxy
(e.g. IIS ARR)
Internal
User
LYNC
Autodiscover
Media
signaling
Media
signaling
1
signaling
Media
signaling
2
3
Media
A usual deployment for mobile devices (or BYOD – Bring Your Own Device) is a deployment in a
dedicated e.g. WiFi network secured with a firewall. The autodiscovery process is identically to the
first scenario. Consider, if the network, where the device is placed, in is not able, at any point of time.
To connect to the internal services, it must be threaded as external!
If separated mobile device is in this scenario is unable to negotiate a direct media path (1), due to a
firewall, port closing or filtering, the mobile client must rely on the Edge Server and has to tunnel the
signaling/ media. The mobile device will connect to and send its media session to the external Edge
interface (2). The internal full client follows the standard connection process. In this example the full
client must connect media to Edge Server internal interface.
Scenario 3 (internal mobile/external full client):
Media
SIP Proxy
(Lync Edge)
Registrar
Lync Frontend
Reverse Proxy
(e.g. IIS ARR)
LYNC
Autodiscover
signalingsignaling
signaling
signaling
External
User
MediaMedia
Media
1
2
This scenario is identically with the scenario 2. Nevertheless, the difference is that the call to the
external full client is rerouted via Edge Server and send to the external side again. First to the
external Edge interface (1) than back through the Edge server to the remote client (2).

Having a look into the discovery and logon process:
Generally the first step is the Autodiscovery process, where a client hard coded query first the
LyncDiscoverInternal FQDN and if this fails, it queries the LyncDiscover FQDN.
Next step is to analyze the XML it provides:
What we can see here is the complete list of all URL possible for any kind of query. Every application
can now choose their own required URL. Since we are focusing on the mobility services, we have to
identify the MCX and the UCWA directories only.
The authentication requires a Web Ticket for the entire communication, it is request and
authenticated with NTLM. The Web Session Ticket is valid for 8 hrs. Authentication to Exchange
provided services require no Web Ticket and use NTLM every time a query is initiated.

Lync 2010 Mobile App:
All Lync 2010 Apps are only using the external web service FQDN connecting to the MCX mobility
services. This makes it more clear why the DNS and is related routing must be associated with the
drawing from above.
It has the exact same value:
Internal MCX service : https://lyncwebext1.xiopia.com/Mcx/McxService.svc
External MCX service : https://lyncwebext1.xiopia.com/Mcx/McxService.svc
Lync 2013/ Skype for Business Mobile App (Windows, iPhone, iPad and Android)
The actual app is a bit trickier to understand. If we have a look into the discovery URLs provided, we
will find:
Internal UCWA service :
https://lyncwebint1.xiopia.local/ucwa/v1/applications
External UCWA service :
https://lyncwebext1.xiopia.com/ucwa/v1/applications
Theoretically, we could assume that mobile clients could utilize those URLs. But indeed they aren’t
used and only reserved for future use or other 3rd
party apps. (It makes sense for those 3rd
party
apps, where those app leverage on the internal/ external FQDN).
Lync 2013 mobile client and the new Skype for Business client leverage on a THIRD URL provided:
Named UCWA. We find this URL if we switch to the Lync Connectivity Analyzer Detailed View:
There the information are more detailed:
AccessLocation="External">
<User><SipServerInternalAccess fqdn="lyncpool1.xiopia.local" port="5061" />
<SipClientInternalAccess fqdn="lyncpool1.xiopia.local" port="5061" />
<SipServerExternalAccess fqdn="sip.xiopia.com" port="5061" />
<SipClientExternalAccess fqdn="sip.xiopia.com" port="5061" />
<Link token="Internal/Autodiscover"
href="https://lyncwebint1.xiopia.local/Autodiscover/AutodiscoverService.svc/root" />
<Link token="Internal/AuthBroker" href="https://lyncwebint1.xiopia.local/Reach/sip.svc" />
<Link token="Internal/WebScheduler" href="https://lyncwebint1.xiopia.local/Scheduler" />
<Link token="Internal/CertProvisioning"
href="https://lyncwebint1.xiopia.local/CertProv/CertProvisioningService.svc" />
<Link token="External/Autodiscover"
href="https://lyncwebext1.xiopia.com/Autodiscover/AutodiscoverService.svc/root" />
<Link token="External/AuthBroker" href="https://lyncwebext1.xiopia.com/Reach/sip.svc" />
<Link token="External/WebScheduler" href="https://lyncwebext1.xiopia.com/Scheduler" />
<Link token="External/CertProvisioning"
href="https://lyncwebext1.xiopia.com/CertProv/CertProvisioningService.svc" />
<Link token="Internal/Mcx" href="https://lyncwebext1.xiopia.com/Mcx/McxService.svc" />
<Link token="External/Mcx" href="https://lyncwebext1.xiopia.com/Mcx/McxService.svc" />
<Link token="Ucwa" href="https://lyncwebext1.xiopia.com/ucwa/v1/applications" />
<Link token="Internal/Ucwa" href="https://lyncwebint1.xiopia.local/ucwa/v1/applications" />
<Link token="External/Ucwa" href="https://lyncwebext1.xiopia.com/ucwa/v1/applications" />
<Link token="External/XFrame"
href="https://lyncwebext1.xiopia.com/Autodiscover/XFrame/XFrame.html" />
<Link token="Internal/XFrame"
href="https://lyncwebint1.xiopia.local/Autodiscover/XFrame/XFrame.html" />
<Link token="XFrame" href="https://lyncwebext1.xiopia.com/Autodiscover/XFrame/XFrame.html" />
<Link token="Self"
href="https://lyncwebext1.xiopia.com/Autodiscover/AutodiscoverService.svc/root/user" />
</User></AutodiscoverResponse>

We can identify that the URL is the same as the External/UCWA. This is why the internal DNS for this
SIP Domain providing the Web Services must point with the External Web Service FQDN to the
Reverse Proxy.
Address Book Web Services for Mobile Devices
The mobile client can download only a few lists compared with the full client. The downloadable lists
are the buddy list and normalization rules (for making calls). Different from the full client is the
address book, since the AB can become quite large, the mobile client makes use of the Address Book
Web Services. This requires that for all search requests to internal Lync enabled users is made via a
web based query (ASWQ).
By default only the Lync Phone Edition, Web App, and Mobile clients will leverage ABWQ based
searches against the Lync Server’s rtcab (or rtcab1) database which stores the same address book
information that the ABS server files do.
Before I dig deeper it is important to remember once more, Lync and Skype for Business rely on
phone numbers in the E.164 format. If a user cannot be found, this is mainly due to a wrong number
format. (Where the address book is stored on the server, you will also find two additional files, one
with a normalization patter and another file listing all users which can’t be normalized and are
excluded from the AB).
You can trace the ABS activities with the OCSLogger:
Especially for mobile client the test command is essential:
Test-CsAddressBookWebQuery -TargetUri https://atl-cs-
001.litwareinc.com/groupexpansion -UserSipAddress "sip:packerman@litwareinc.com" -
TargetSipAddress sip:kenmyer@litwareinc.com -external
Important is the parameter “-external”, this enables the test against the external web services, used
by mobile clients. You might also use the Get-Credential command for authentication.

The parameter –Target Uri and TargetFqdn cannot be use simultaneously. If you test the ABWQ, the
TargetFwdn is required.
One unvalidated issue on iOS can be that the user’s mobile number was not provided and therefore
the wired behaviors are happened. Else you should check the msExchHideFromAddressLists
parameter, which also has an impact to Lync/ Skype for Business full clients.
At last, I’m often asked if you can exclude users from the address book. Well you can. You have to
use the ResKit utility ABS Configuration Tool and define an e.g. AD Attribute Name and check the
“Exclude all AD User who have…” option.
Viewing policy setting in Lync/ Skype for Business, user the following command:
Get-CsClientPolicy | Select-Object Identity,AddressBookAvailability | ft
It is providing the client setting if Web Search and or File Download is enabled. If a mobile client can
query this AB, it might also be happened the Web Search is disabled. An indicator can also be if you
don’t find or see “old” GALcontacts.db and GALcontacts.db.idx files on the full client.
Then, if you made use of the msRTCSIP-GroupingID, also grouped and therefore incorrect search
results might occur.

Troubleshooting Office Web App Server
Lync 2013 Server will identify the internal and external URL configured with the WAC Server. Now we
need a verification, that Lync 2013 Frontend has the correct setting. Filter the Lync FE EventLog for all
WAC related events: 41032 and 41034
You will find an entry similar like this:
- System
- Provider
[ Name] LS Data MCU
- EventID 41032
[ Qualifiers] 17402
Level 4
Task 1018
Keywords 0x80000000000000
- TimeCreated
[ SystemTime] 2013-09-04T11:33:32.000000000Z
EventRecordID 5473
Channel Lync Server
Computer WACinternal.domain.intern
Security
- EventData
https://WACinternal.domain.intern/m/Presenter.aspx?a=0&e=true&
https://WACinternal.domain.intern/m/ParticipantFrame.aspx?a=0&e=true&
https://webapp.extDomain.de/m/Presenter.aspx?a=0&e=true&
https://webapp.extDomain.de/m/ParticipantFrame.aspx?a=0&e=true&
If a client joined a conference and need to receive the Power Point presentation, a SERVICE SIP
messages is submitted to the client containing the reference URL to the Office Web App Server.
(“marked in red”):
09/04/2013|14:55:10.399 558:61C INFO ::
SERVICE sip:thomas.poett@domain-a.com SIP/2.0
Via: SIP/2.0/TLS 192.168.1.105:52102
Max-Forwards: 70
From: <sip:thomas.poett@domain-a.com>;tag=1216ee8c42;epid=fe5337abb5
To: <sip:thomas.poett@domain-a.com>
Call-ID: c858fcb8e8dd4390b20bd3957050e6d8
CSeq: 1 SERVICE
Contact: <sip:thomas.poett@domain-a.com;opaque=user:epid:qxOEj3bU1VaO18cHg7Lu4wAA;gruu>
opaque="0A6C31A1", targetname="lyncserverppol.domain-a.com", crand="f0cb3d02", cnum="276",
response="1ccdd5bb003db213989aeda53ed2f12c6e7d97ce"
Content-Type: application/msrtc-reporterror+xml
<reportError xmlns="http://schemas.microsoft.com/2006/09/sip/error-reporting"><error
toUri="sip:thomas.poett@domain-a.com;gruu;opaque=app:conf:focus:id:TYQF4ZHC"
callId="3a63424bce4f4542a1878cf29782fd35" fromTag="6eec3407d5" toTag="23480080"
requestType="" contentType="" responseCode="0"><diagHeader>54025;reason="A viewing URL
navigation was attempted."; ClientType=Lync;Build=15.0.4517.1004;
ContentMCU="sip:thomas.poett@domain-a.com;gruu;opaque=app:conf:data-
conf:id:TYQF4ZHC";ConferenceUri="sip:thomas.poett@domain-
a.com;gruu;opaque=app:conf:focus:id:TYQF4ZHC";LocalFqdn="lyncserver01.domain-a.com";
Url="https://webapp.domain-

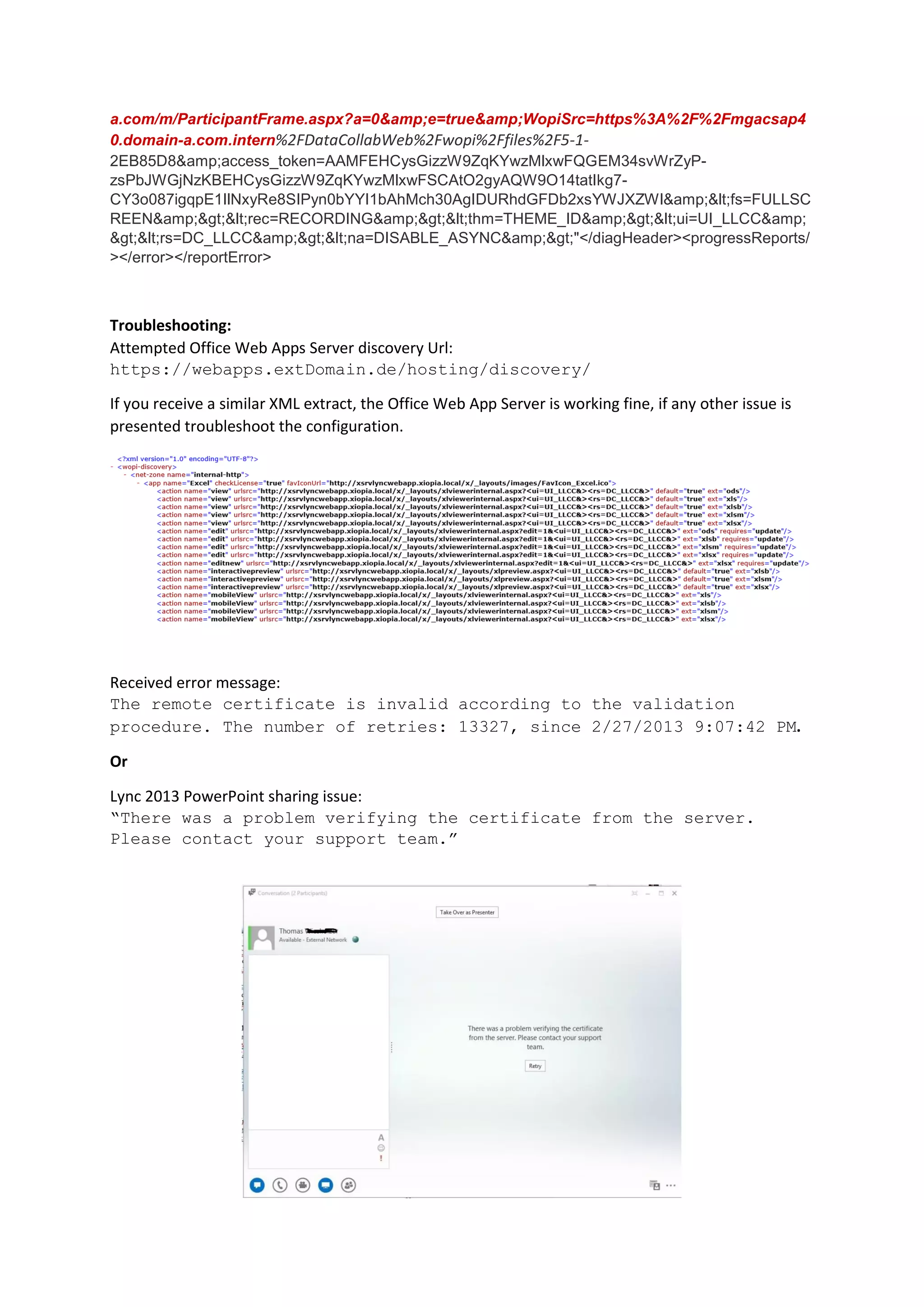

a.com/m/ParticipantFrame.aspx?a=0&e=true&WopiSrc=https%3A%2F%2Fmgacsap4
0.domain-a.com.intern%2FDataCollabWeb%2Fwopi%2Ffiles%2F5-1-
2EB85D8&access_token=AAMFEHCysGizzW9ZqKYwzMlxwFQGEM34svWrZyP-
zsPbJWGjNzKBEHCysGizzW9ZqKYwzMlxwFSCAtO2gyAQW9O14tatIkg7-
CY3o087igqpE1IlNxyRe8SIPyn0bYYI1bAhMch30AgIDURhdGFDb2xsYWJXZWI&<fs=FULLSC
REEN&><rec=RECORDING&><thm=THEME_ID&><ui=UI_LLCC&
><rs=DC_LLCC&><na=DISABLE_ASYNC&>"</diagHeader><progressReports/
></error></reportError>
Troubleshooting:
Attempted Office Web Apps Server discovery Url:
https://webapps.extDomain.de/hosting/discovery/
If you receive a similar XML extract, the Office Web App Server is working fine, if any other issue is
presented troubleshoot the configuration.
Received error message:
The remote certificate is invalid according to the validation
procedure. The number of retries: 13327, since 2/27/2013 9:07:42 PM.
Or
Lync 2013 PowerPoint sharing issue:
“There was a problem verifying the certificate from the server.
Please contact your support team.”

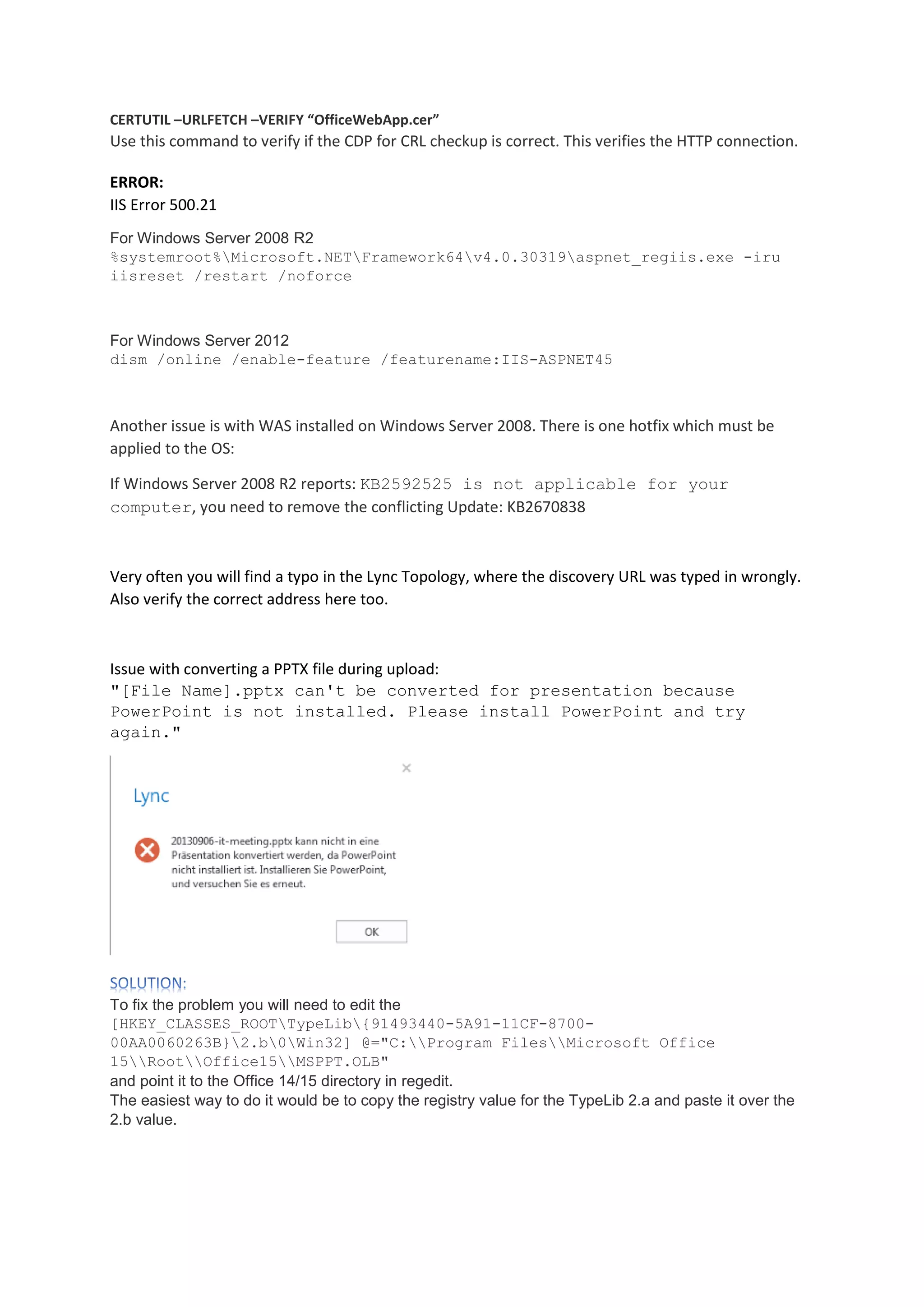

CERTUTIL –URLFETCH –VERIFY “OfficeWebApp.cer”
Use this command to verify if the CDP for CRL checkup is correct. This verifies the HTTP connection.
ERROR:
IIS Error 500.21
For Windows Server 2008 R2
%systemroot%Microsoft.NETFramework64v4.0.30319aspnet_regiis.exe -iru
iisreset /restart /noforce
For Windows Server 2012
dism /online /enable-feature /featurename:IIS-ASPNET45
Another issue is with WAS installed on Windows Server 2008. There is one hotfix which must be
applied to the OS:
If Windows Server 2008 R2 reports: KB2592525 is not applicable for your
computer, you need to remove the conflicting Update: KB2670838
Very often you will find a typo in the Lync Topology, where the discovery URL was typed in wrongly.
Also verify the correct address here too.
Issue with converting a PPTX file during upload:
"[File Name].pptx can't be converted for presentation because
PowerPoint is not installed. Please install PowerPoint and try
again."
To fix the problem you will need to edit the
[HKEY_CLASSES_ROOTTypeLib{91493440-5A91-11CF-8700-
00AA0060263B}2.b0Win32] @="C:Program FilesMicrosoft Office
15RootOffice15MSPPT.OLB"
and point it to the Office 14/15 directory in regedit.
The easiest way to do it would be to copy the registry value for the TypeLib 2.a and paste it over the
2.b value.

Enterprise Voice
The article Update Version 2.0 will contain more about Enterprise Voice.
Voice Route and Trunk parameter
With Lync 2013 the improvements regarding Enterprise Voice were driven more towards an
Enterprise capable system. Therefor it’s not surprising we see some differences in Trunk
Configurations too. I focus now only on the features visible in the Lync Control Panel (CSCP).
First we need to determine what type of Trunk Configuration we need: Pool or Site
 Pool (Site): assigned to a Lync Site defined in the Topology
 Site (Service): a service, like PstnGateway object defined in the Topology
Maximum early dialog supported: maximum count of INVITE dialog (* see detailed description)
Encryption support level : (SRTPMode) – define if media traffic is encrypted or not
Enable Media Bypass : define if the Mediation Server can be bypassed by the PSTN connection point
and the client
Centralized media processing : if the Gateway object supports an unique IP for signaling and media
traffic
Enable refer support : SIP REFER command support for Call Transfer (RFC3515)
Enable RTP latching : This parameter will enabled Media Bypass option for Client (RTP/ RTCP) located
behind NAT or Firewall. The SBC must support latching.
Enable forward call history : Call history data can be forward to the trunk.
Enable forward P-Asserted-Identity data : (P-Asserted-Identity (PAI) header can be forwarded along
the call to provide a way the caller can be identified.
Enable outbound routing failover timer : If call were not answered from the associated gateways
after 10 sec, the call will be forwarded to the next available trunk, else if no additional trunks, a call
drop occurs.
Associated PSTN Usage : As described while I explained the Voice Route, PSTN Usage records are
required to be configured with this Trunk too.
Associated translation rules: Translations rules modifying the outgoing call
Calling number translation rules : Will modify the calling number (person who called)
Called number translation rules : modify the called number (person being called)
*) See the chapter above for detailed explanation for calling vs. called

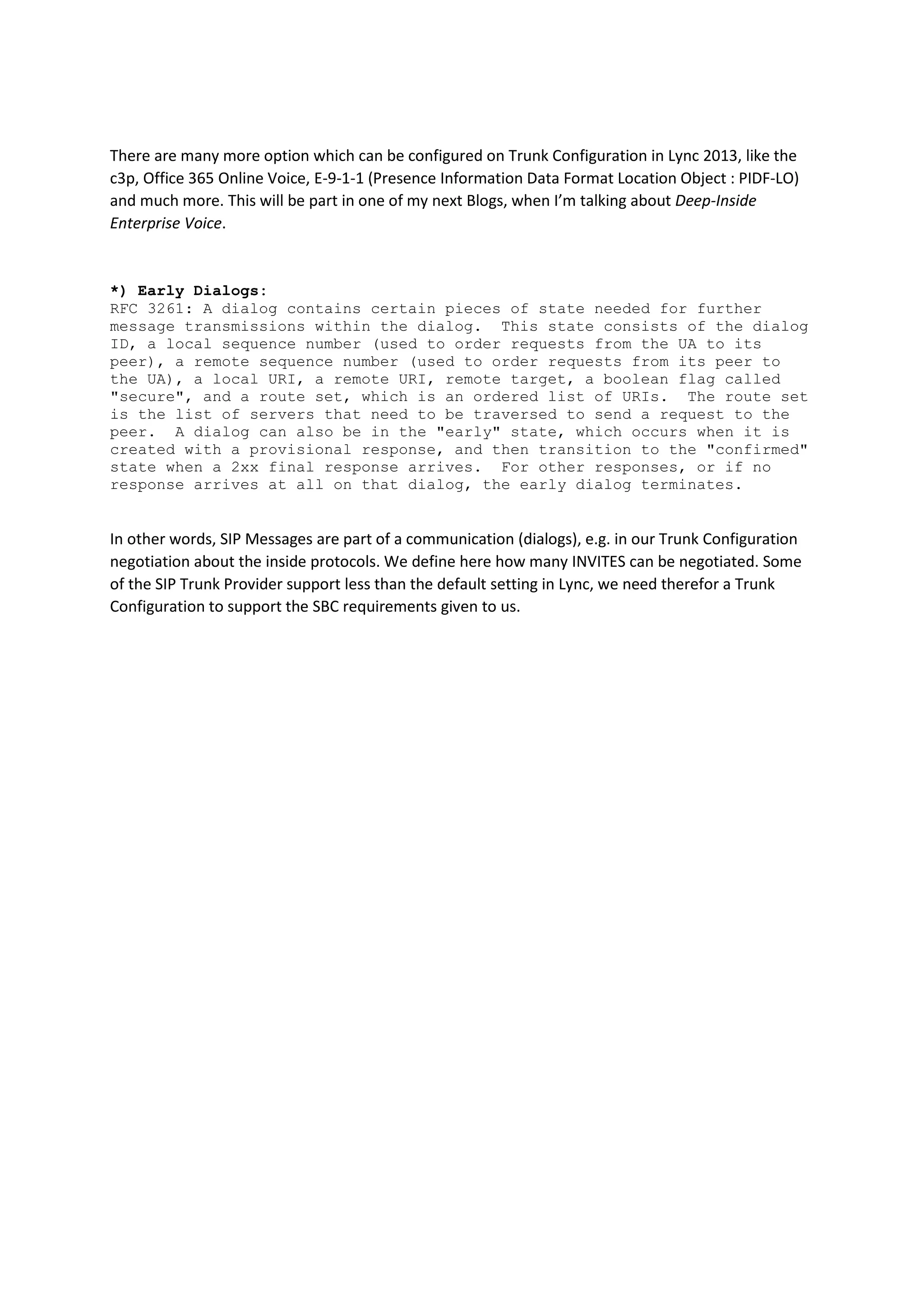

There are many more option which can be configured on Trunk Configuration in Lync 2013, like the
c3p, Office 365 Online Voice, E-9-1-1 (Presence Information Data Format Location Object : PIDF-LO)
and much more. This will be part in one of my next Blogs, when I’m talking about Deep-Inside
Enterprise Voice.
*) Early Dialogs:
RFC 3261: A dialog contains certain pieces of state needed for further
message transmissions within the dialog. This state consists of the dialog
ID, a local sequence number (used to order requests from the UA to its
peer), a remote sequence number (used to order requests from its peer to
the UA), a local URI, a remote URI, remote target, a boolean flag called
"secure", and a route set, which is an ordered list of URIs. The route set
is the list of servers that need to be traversed to send a request to the
peer. A dialog can also be in the "early" state, which occurs when it is
created with a provisional response, and then transition to the "confirmed"
state when a 2xx final response arrives. For other responses, or if no
response arrives at all on that dialog, the early dialog terminates.
In other words, SIP Messages are part of a communication (dialogs), e.g. in our Trunk Configuration
negotiation about the inside protocols. We define here how many INVITES can be negotiated. Some
of the SIP Trunk Provider support less than the default setting in Lync, we need therefor a Trunk
Configuration to support the SBC requirements given to us.

References
http://lyncuc.blogspot.de/2014/04/internal-certificate-deployment-in-lync.html
http://lyncuc.blogspot.de/2013/02/demystify-lync-enterprise-voice-phone.html
http://kemptechnologies.com/files/assets/documentation/7.1/technical-notes/Technical_Note-
MS_Lync_2013_Server_Security_Guide.pdf
http://en.wikipedia.org/wiki/Transmission_Control_Protocol
http://en.wikipedia.org/wiki/User_Datagram_Protocol
Other blogs and references:
Special thanks is going to my other fellow Lync MVPs for inspiring me writing this Troubleshooting
Guide and they provided the most valuable information’s to me, which made quite a part of this
guide.
Jeff Scherz: http://blog.schertz.name
Richard Brynteson: http://masteringlync.com
Justin Morris http://www.justin-morris.net
https://channel9.msdn.com/Events/Speakers/Thomas-Binder
https://channel9.msdn.com/Events/Speakers/Thomas-Poett
RFC’s:
SIP Protocol: https://tools.ietf.org/html/rfc3261

Skype for business and lync troubleshooting guide (Version 1.0 )

More Related Content

What's hot

Viewers also liked

Similar to Skype for business and lync troubleshooting guide (Version 1.0 )

More from Thomas Poett

Recently uploaded

Skype for business and lync troubleshooting guide (Version 1.0 )
