The document discusses a new approach to unsupervised deep learning using concepts from nonequilibrium thermodynamics. Specifically, it proposes destroying structure in data through an iterative forward diffusion process, then learning the reverse diffusion process to restore structure and act as a generative model. This approach is shown to outperform other generative models on image datasets like CIFAR-10 and is able to perform tasks like inpainting. The diffusion process is modeled using Gaussian distributions and the reverse process is learned using a deep network as an approximator.

1. Deep Unsupervised Learning using
Nonequlibrium Thermodynamics
Tran Quoc Hoan
@k09hthaduonght.wordpress.com/
14 December 2015, Paper Alert, Hasegawa lab., Tokyo
The University of Tokyo
Jascha Sohl-Dickstein, Eric A. Weiss, Niru Maheswaranathan, Surya Ganguli
Proceedings of the 32nd International Conference on Machine Learning, 2015

2. Abstract
Deep Unsupervised Learning using Nonequilibrium Thermodynamics 2
“…The essential idea, inspired by non-equilibrium statistical
physics, is to systematically and slowly destroy structure in
a data distribution through an iterative forward diffusion
process. We then learn a reverse diffusion process
that restores structure in data, yielding a highly flexible
and tractable generative model of the data…”

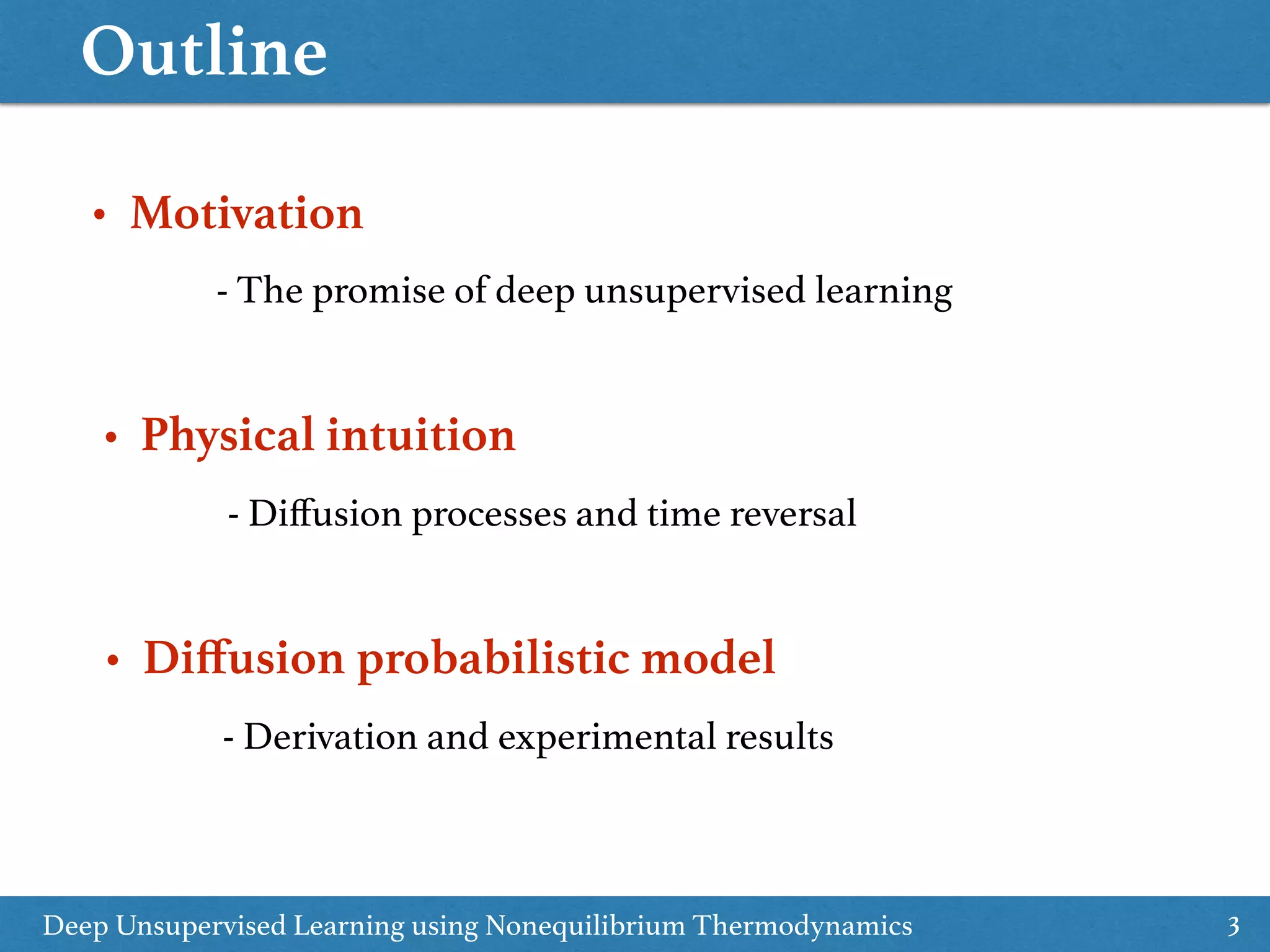

3. Outline
3
- The promise of deep unsupervised learning
• Motivation
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
- Diffusion processes and time reversal
• Physical intuition
- Derivation and experimental results
• Diffusion probabilistic model

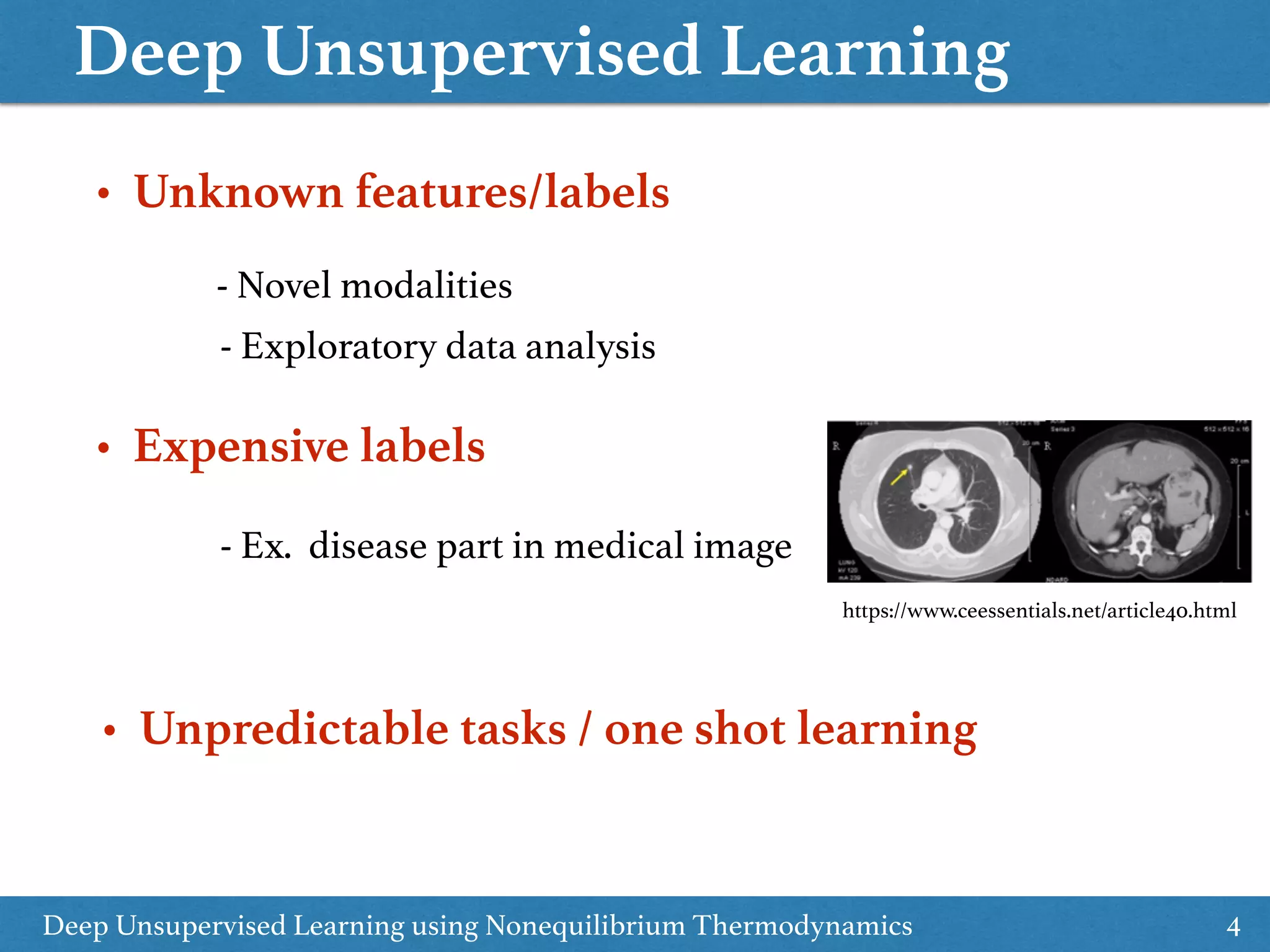

4. Deep Unsupervised Learning
4
- Novel modalities
• Unknown features/labels
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
- Ex. disease part in medical image
• Expensive labels
• Unpredictable tasks / one shot learning
- Exploratory data analysis
https://www.ceessentials.net/article40.html

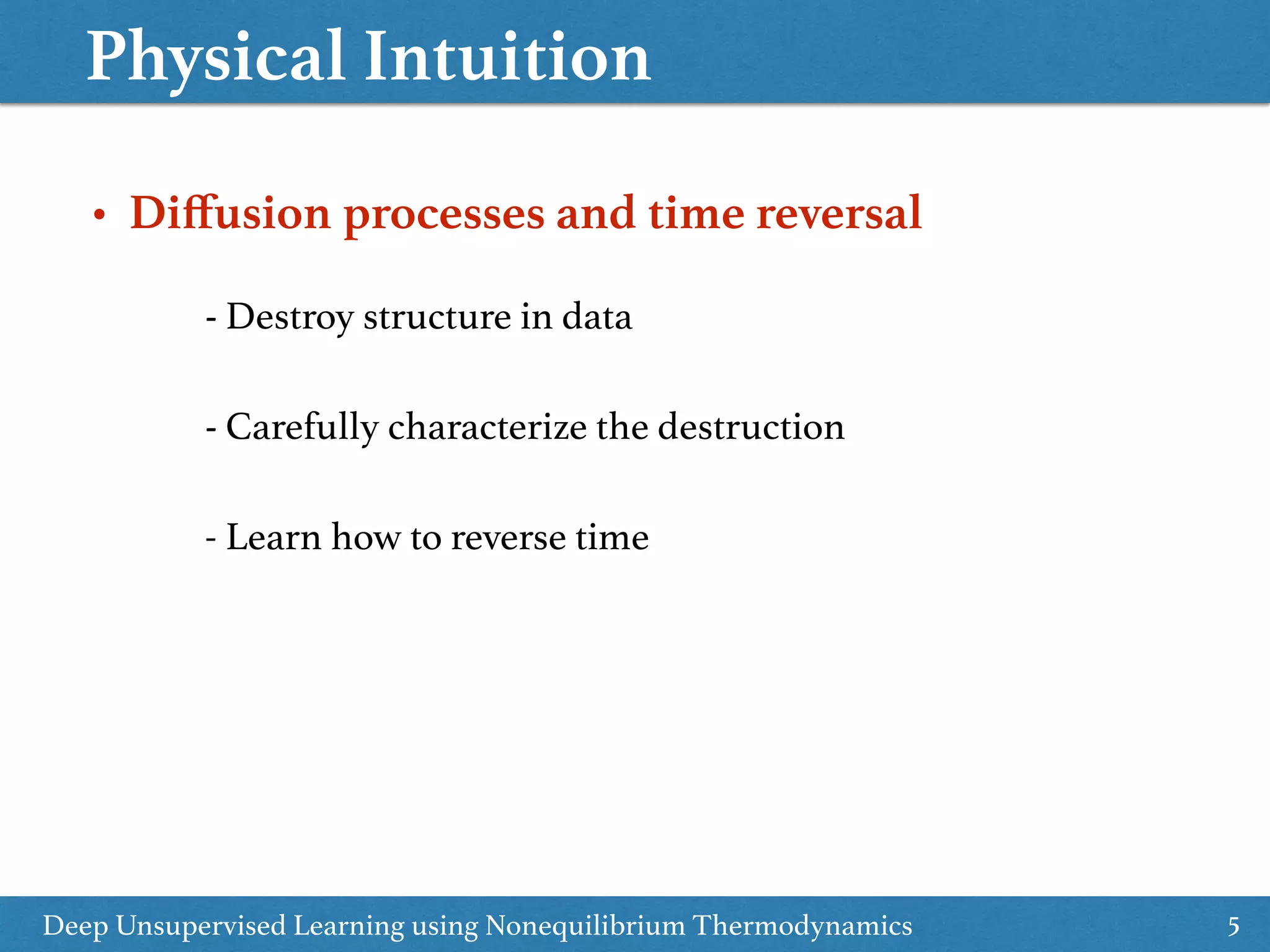

5. Physical Intuition
5
- Destroy structure in data
• Diffusion processes and time reversal
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
- Carefully characterize the destruction
- Learn how to reverse time

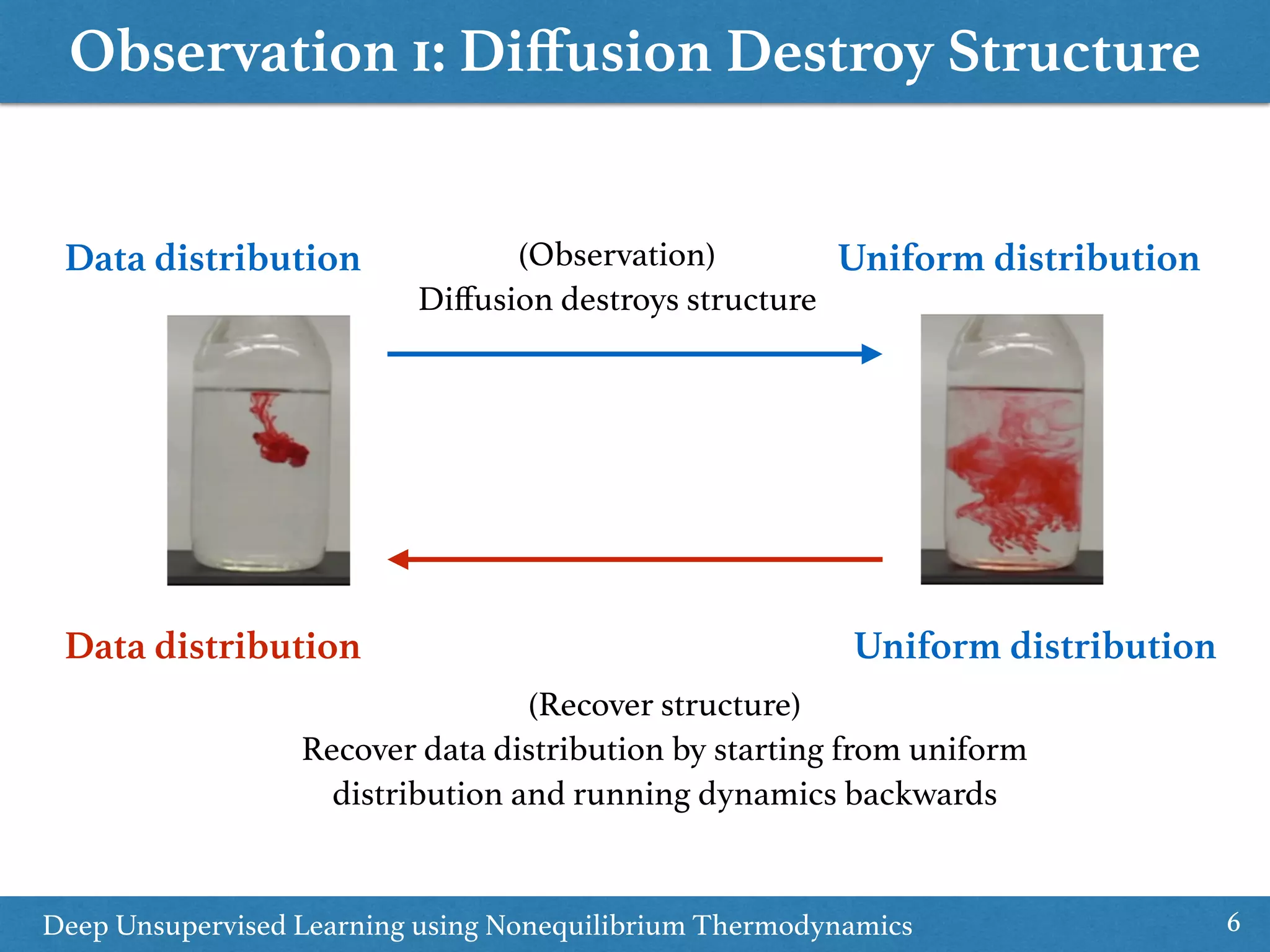

6. Observation 1: Diffusion Destroy Structure
6
Data distribution
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Uniform distribution
Uniform distributionData distribution
(Observation)
Diffusion destroys structure
(Recover structure)
Recover data distribution by starting from uniform
distribution and running dynamics backwards

7. Observation 2: Microscopic Diffusion
7
• Time reversible
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
https://www.youtube.com/watch?v=cDcprgWiQEY
• Brownian motion
• Position updates are small
Gaussians (both forwards and
backwards in time)

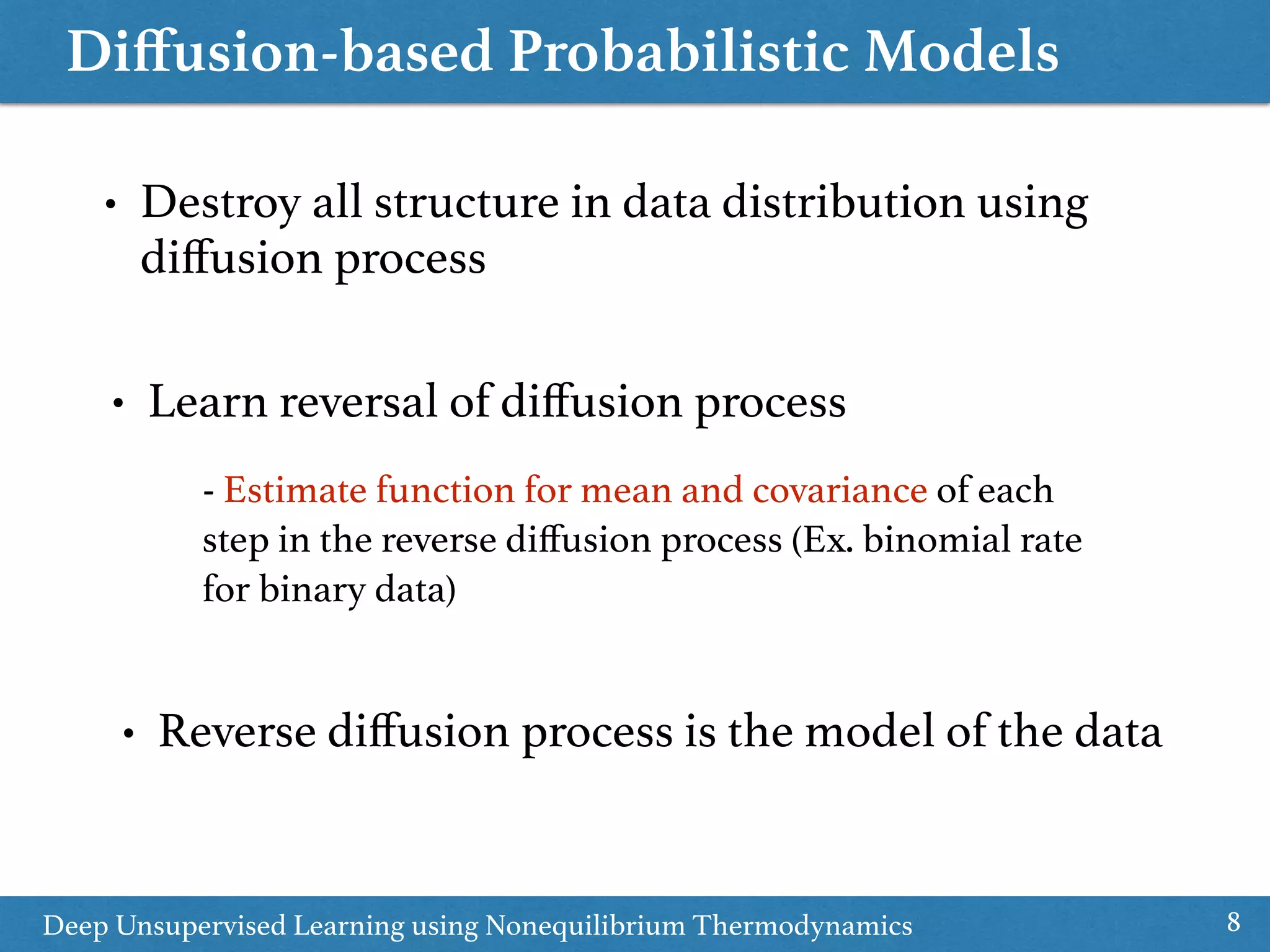

8. Diffusion-based Probabilistic Models
8
• Destroy all structure in data distribution using
diffusion process
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
• Learn reversal of diffusion process
- Estimate function for mean and covariance of each
step in the reverse diffusion process (Ex. binomial rate
for binary data)
• Reverse diffusion process is the model of the data

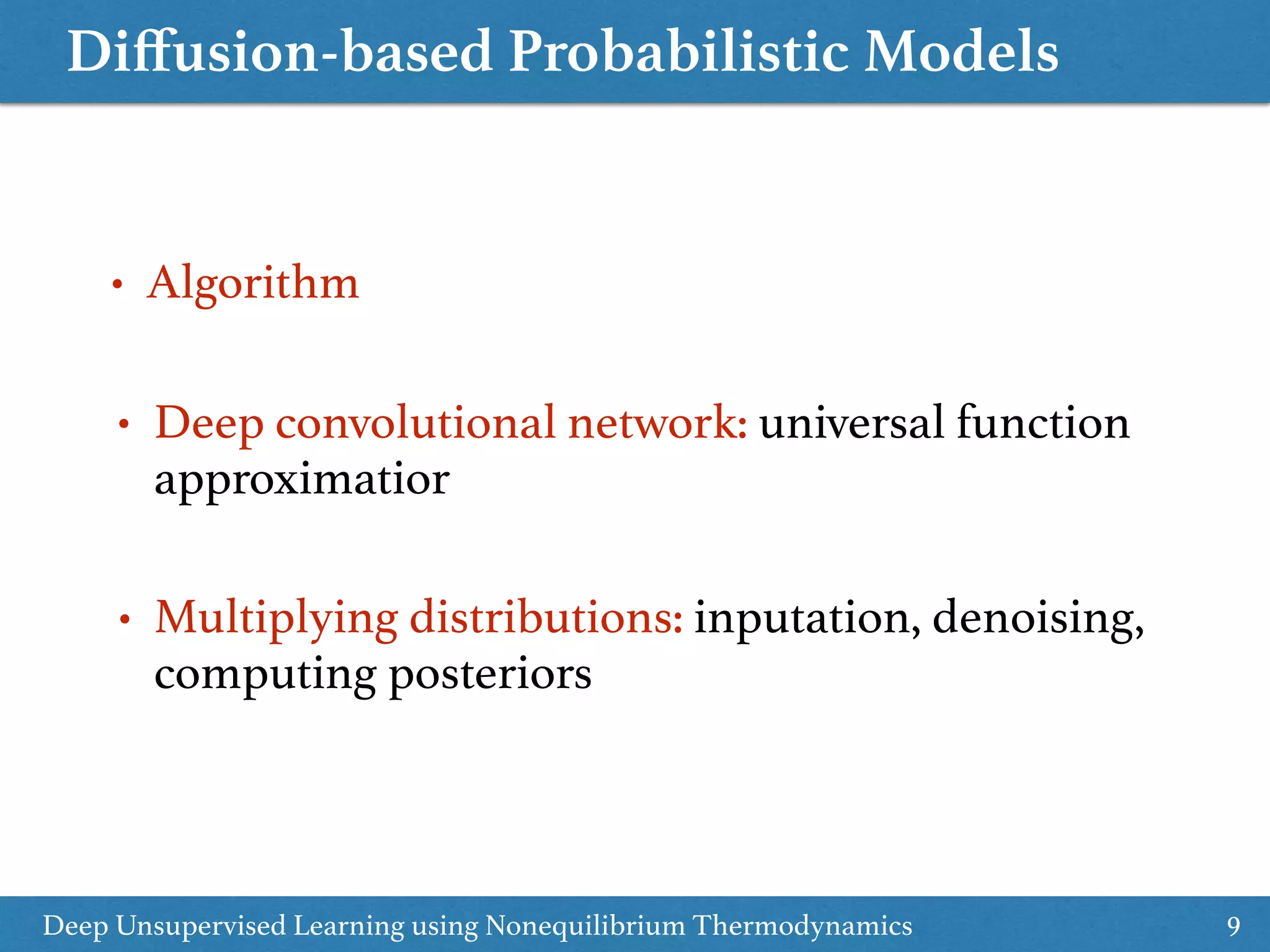

9. Diffusion-based Probabilistic Models
9
• Algorithm
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
• Deep convolutional network: universal function
approximatior
• Multiplying distributions: inputation, denoising,
computing posteriors

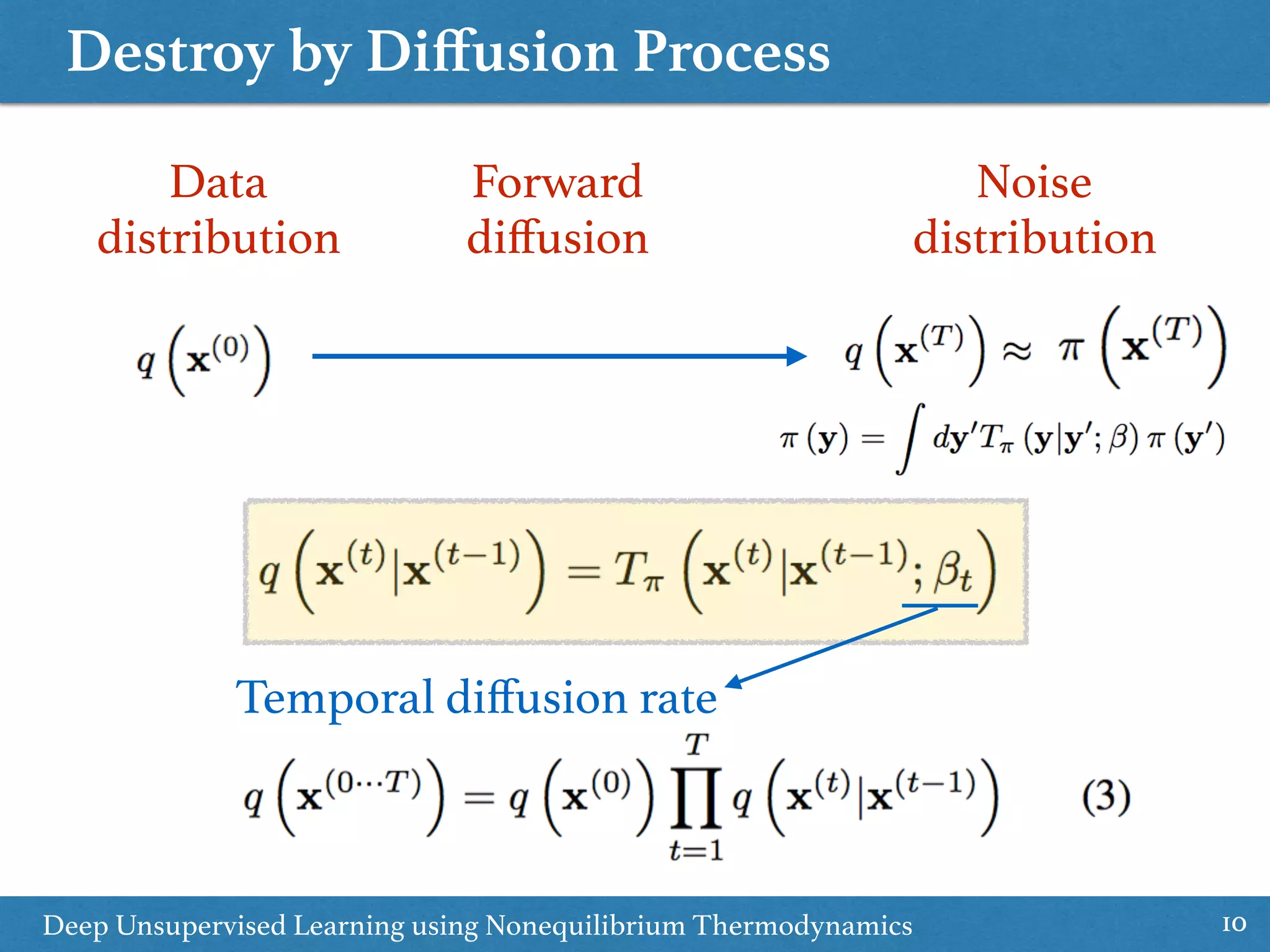

10. Destroy by Diffusion Process
10
Data
distribution
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Forward
diffusion
Noise
distribution
Temporal diffusion rate

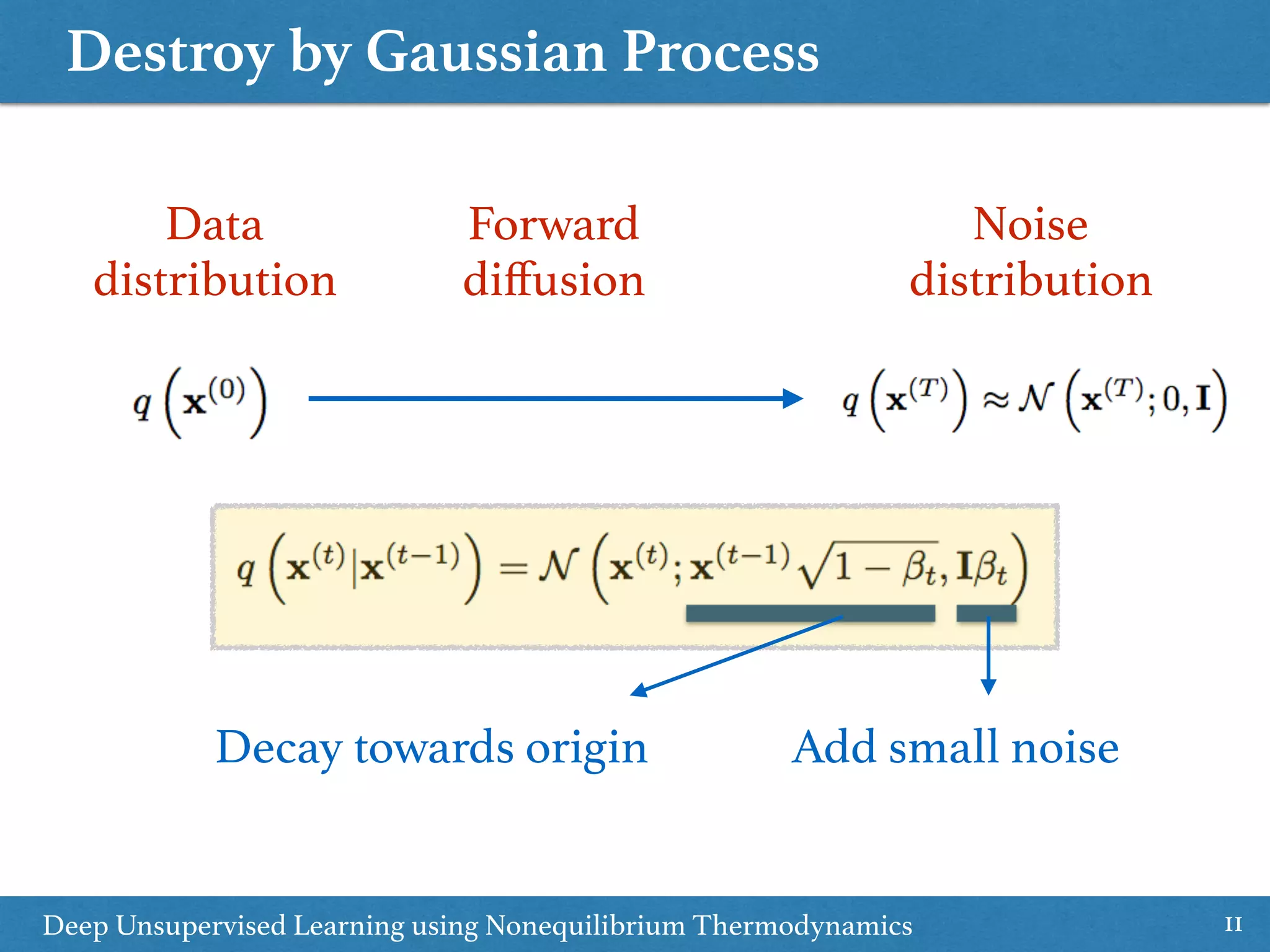

11. Destroy by Gaussian Process
11
Data
distribution
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Forward
diffusion
Noise
distribution
Decay towards origin Add small noise

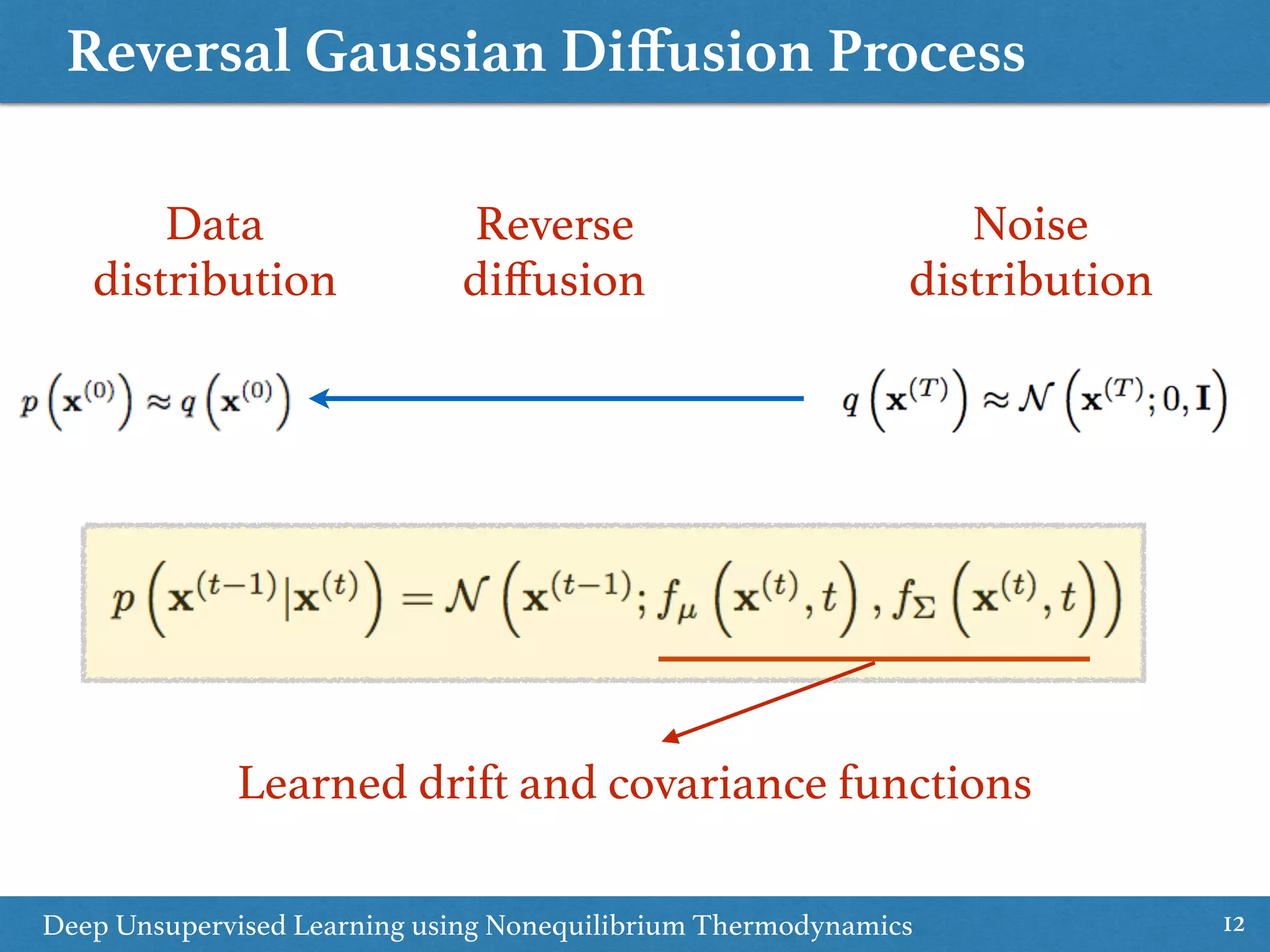

12. Reversal Gaussian Diffusion Process
12
Data
distribution
Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Reverse
diffusion
Noise
distribution
Learned drift and covariance functions

13. Case Study: Swiss Roll
13Deep Unsupervised Learning using Nonequilibrium Thermodynamics
True model
Inference model

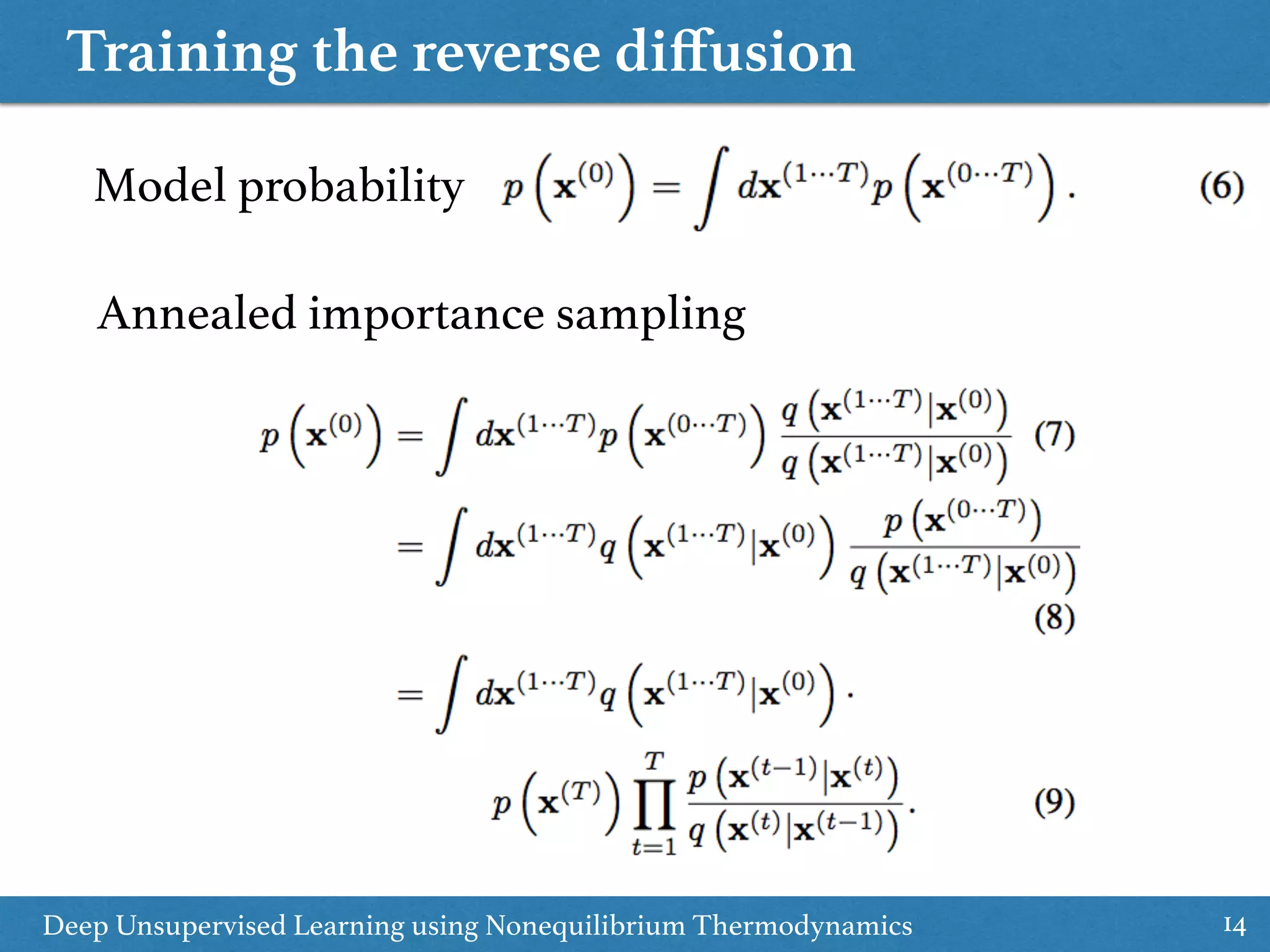

14. Training the reverse diffusion
14Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Model probability
Annealed importance sampling

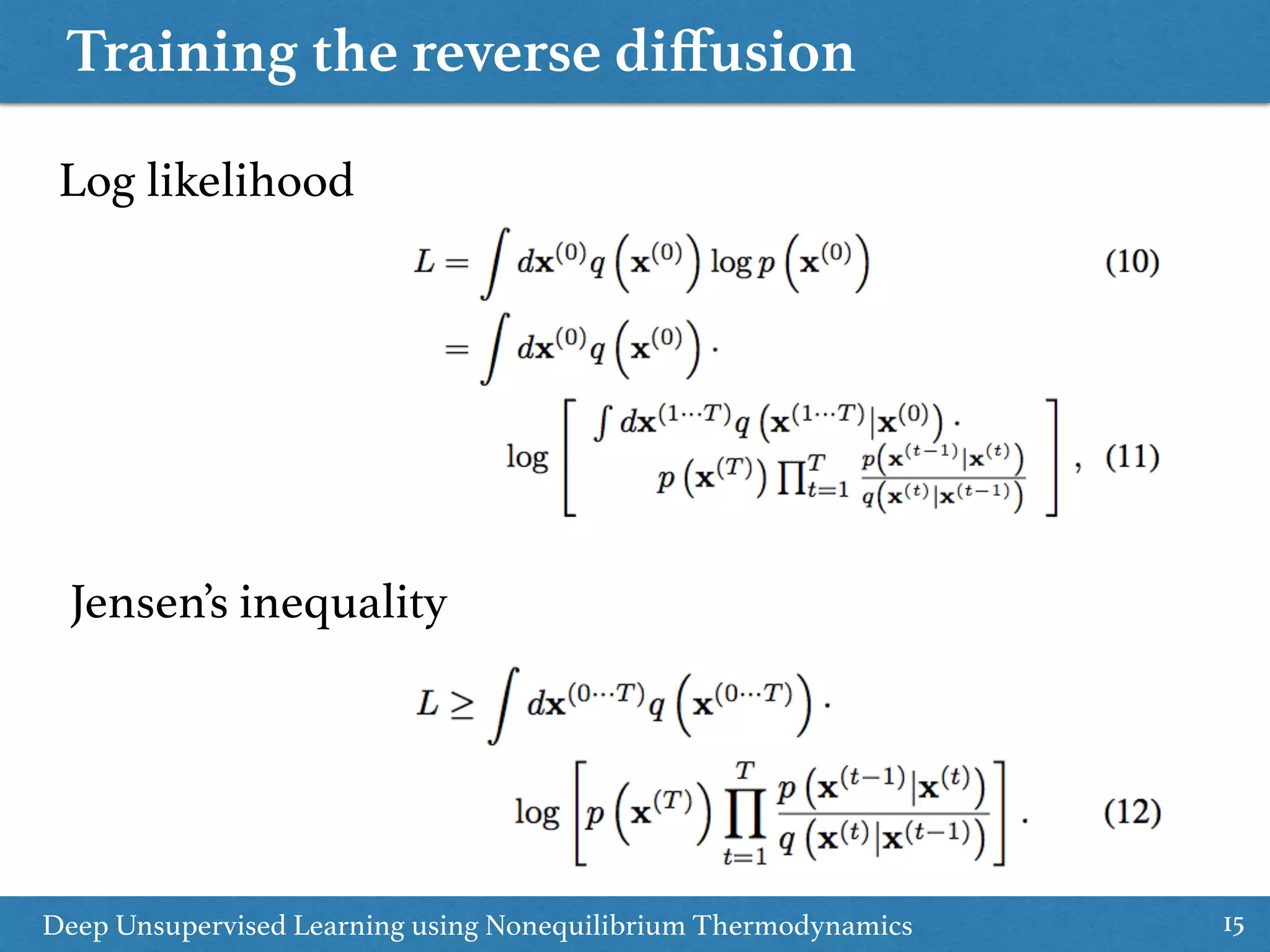

15. Training the reverse diffusion
15Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Log likelihood
Jensen’s inequality

16. Training the reverse diffusion
16Deep Unsupervised Learning using Nonequilibrium Thermodynamics
…do some algebra…

17. Training the reverse diffusion
17Deep Unsupervised Learning using Nonequilibrium Thermodynamics
…for Gaussian diffusion process…
Training
unsupervised learning becomes regression problem

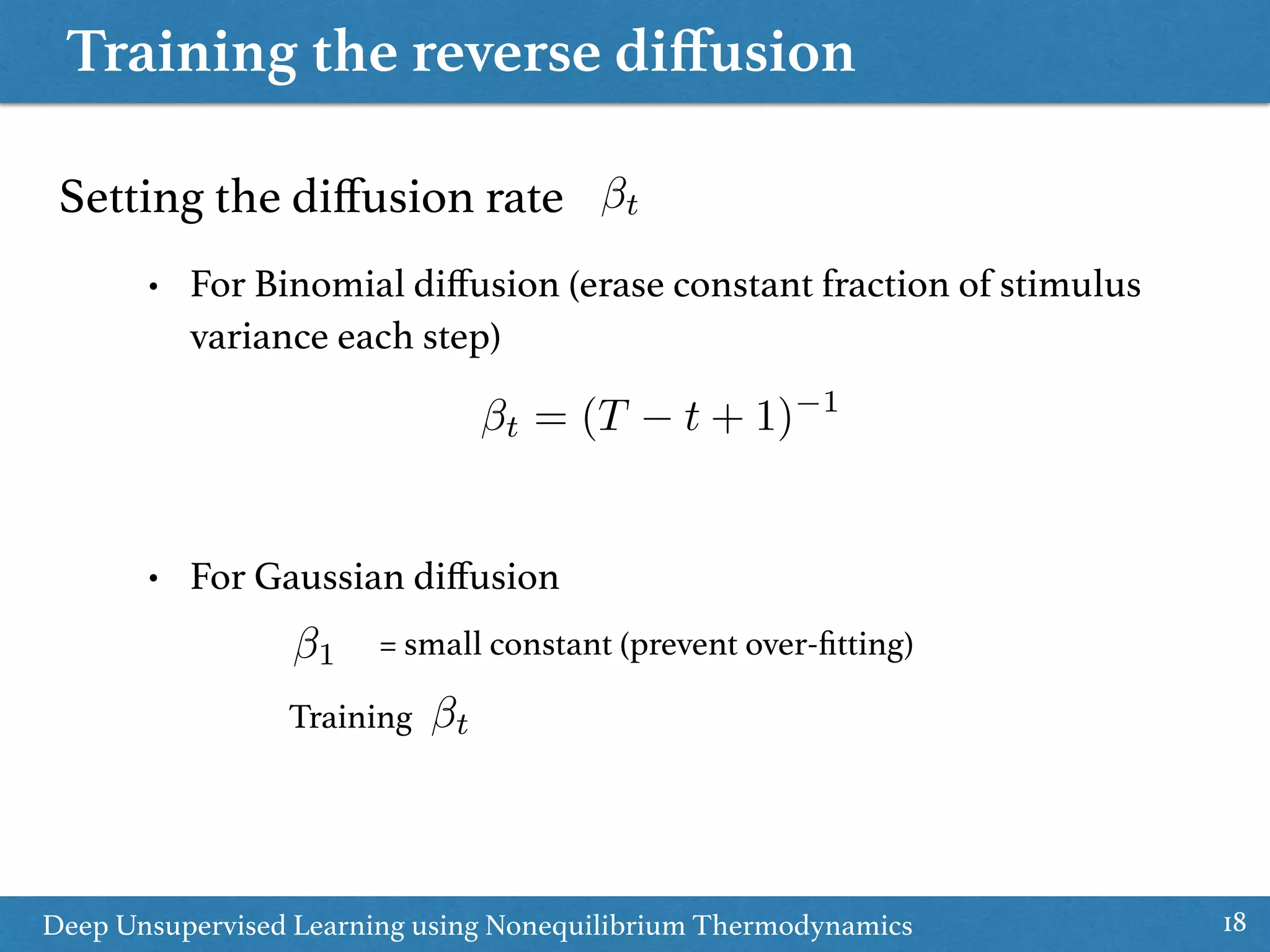

18. Training the reverse diffusion
18Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Setting the diffusion rate
• For Binomial diffusion (erase constant fraction of stimulus
variance each step)
• For Gaussian diffusion
t
1
t = (T t + 1) 1
= small constant (prevent over-fitting)
Training t

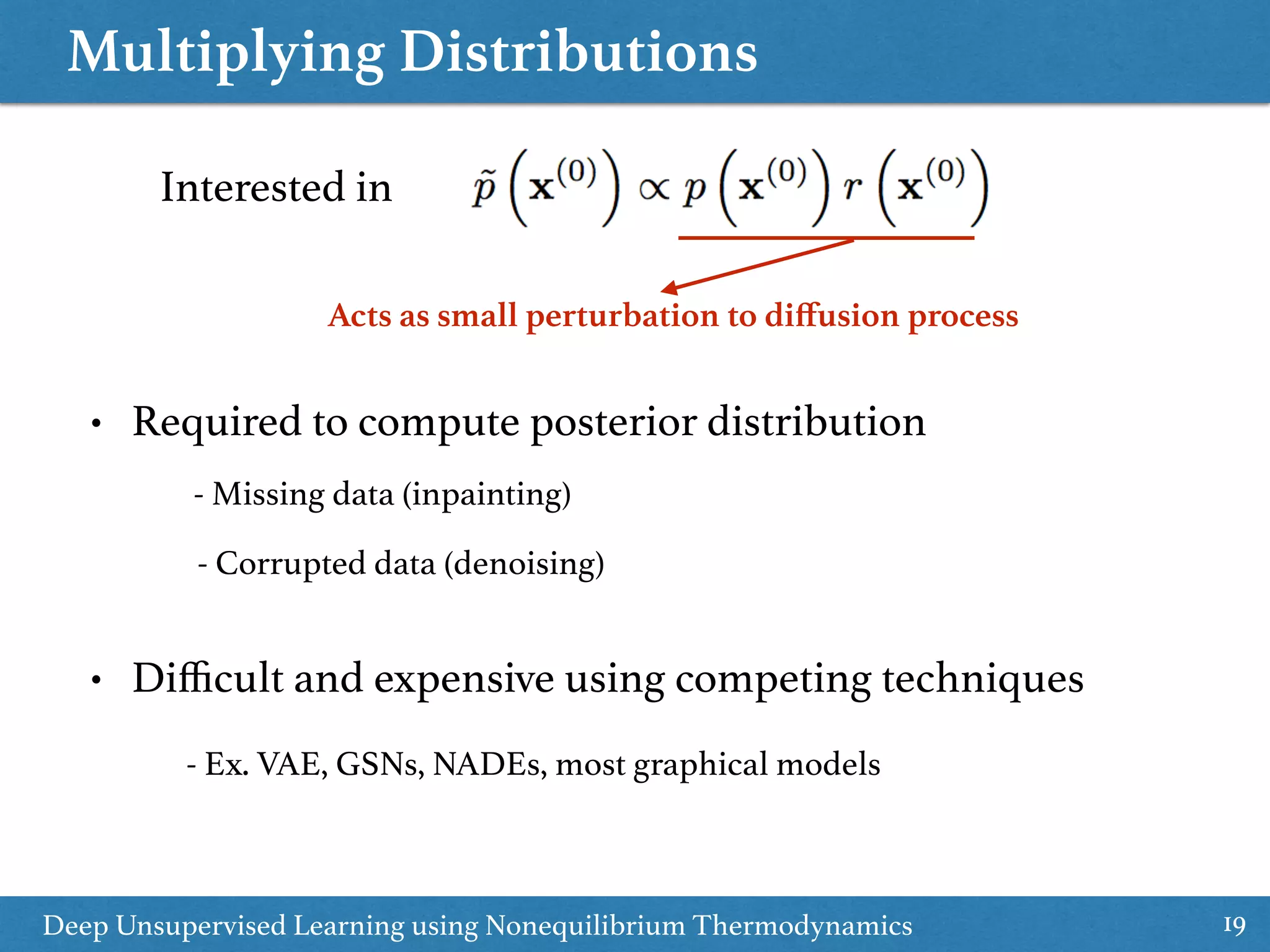

19. Multiplying Distributions
19Deep Unsupervised Learning using Nonequilibrium Thermodynamics
• Required to compute posterior distribution
- Missing data (inpainting)
- Corrupted data (denoising)
• Difficult and expensive using competing techniques
- Ex. VAE, GSNs, NADEs, most graphical models
Interested in
Acts as small perturbation to diffusion process

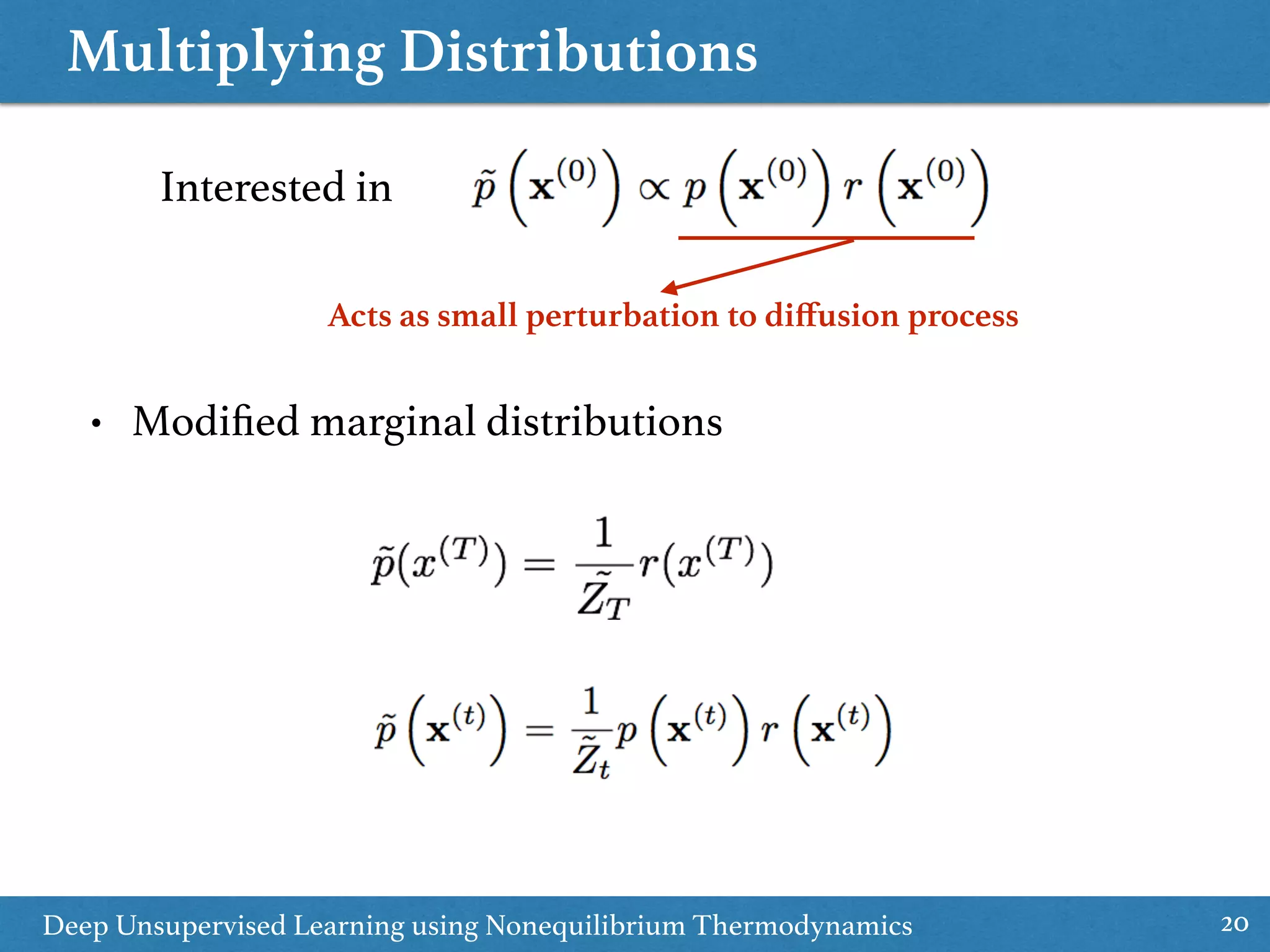

20. Multiplying Distributions
20Deep Unsupervised Learning using Nonequilibrium Thermodynamics
• Modified marginal distributions
Interested in
Acts as small perturbation to diffusion process

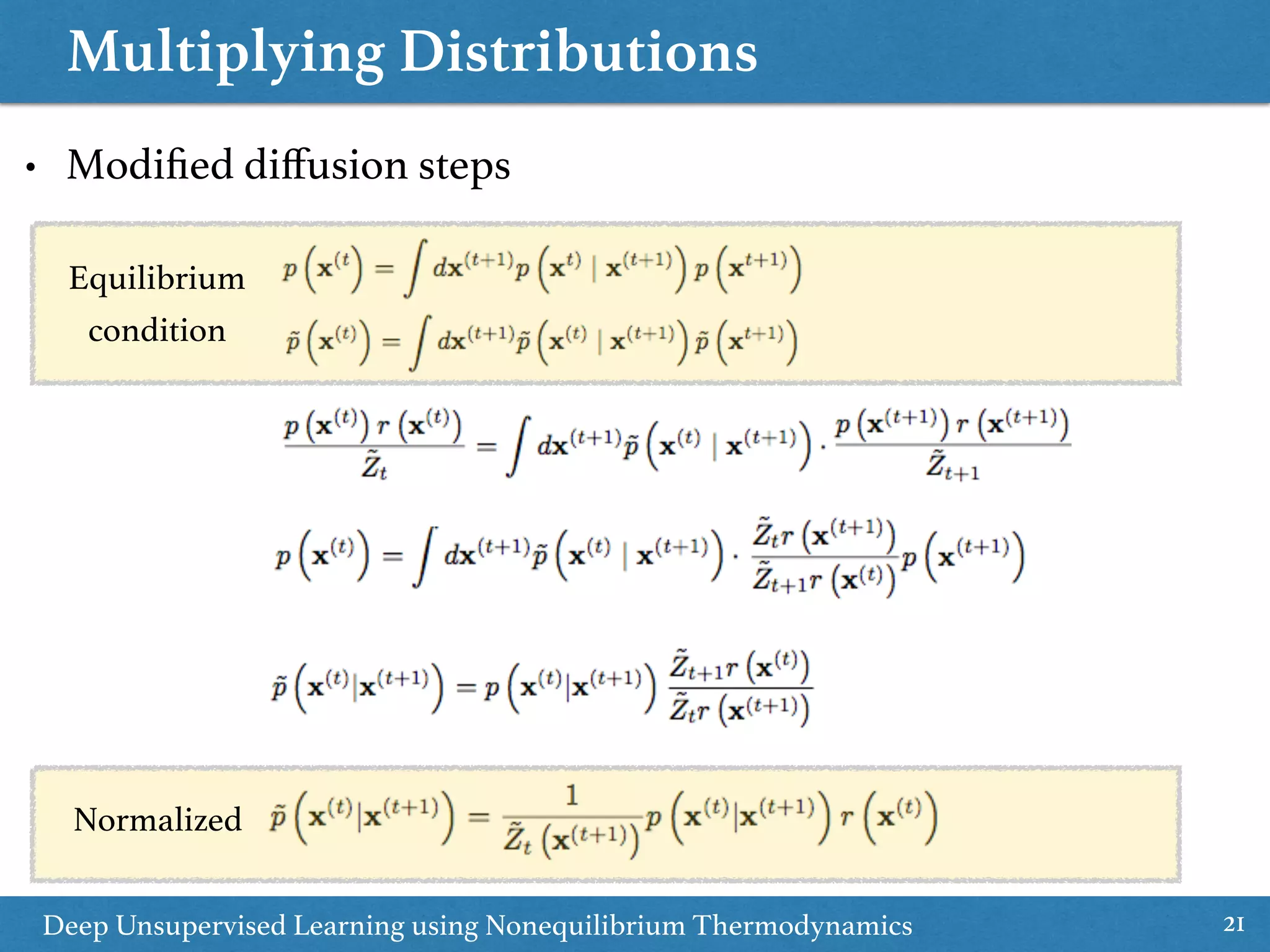

21. Multiplying Distributions
21Deep Unsupervised Learning using Nonequilibrium Thermodynamics
• Modified diffusion steps
Equilibrium
condition
Normalized

22. Multiplying Distributions
22Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Reversal gaussian Diffusion Process
Interested in
Acts as small perturbation to diffusion process
Small perturbation affects only mean

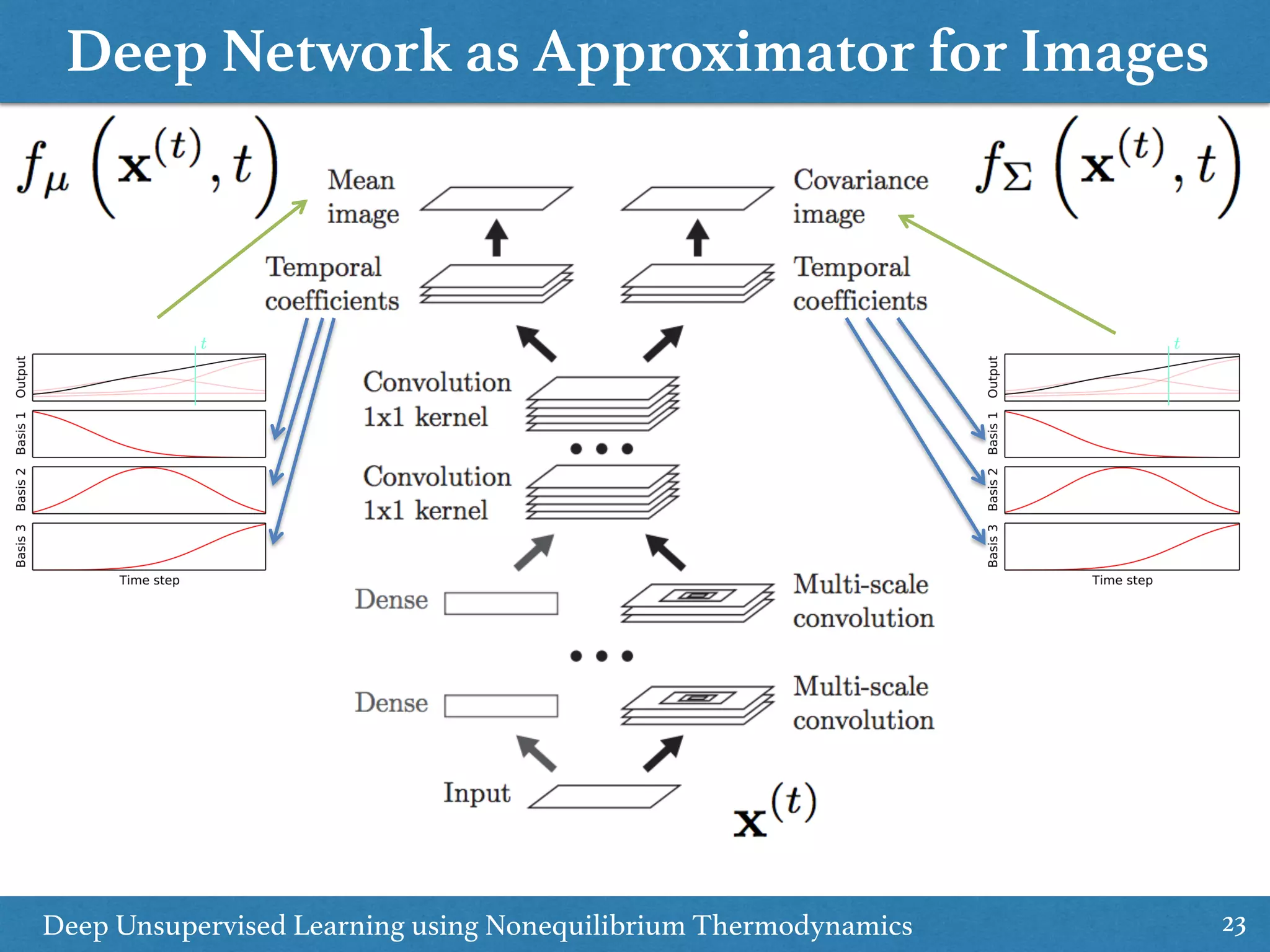

23. Deep Network as Approximator for Images
23Deep Unsupervised Learning using Nonequilibrium Thermodynamics

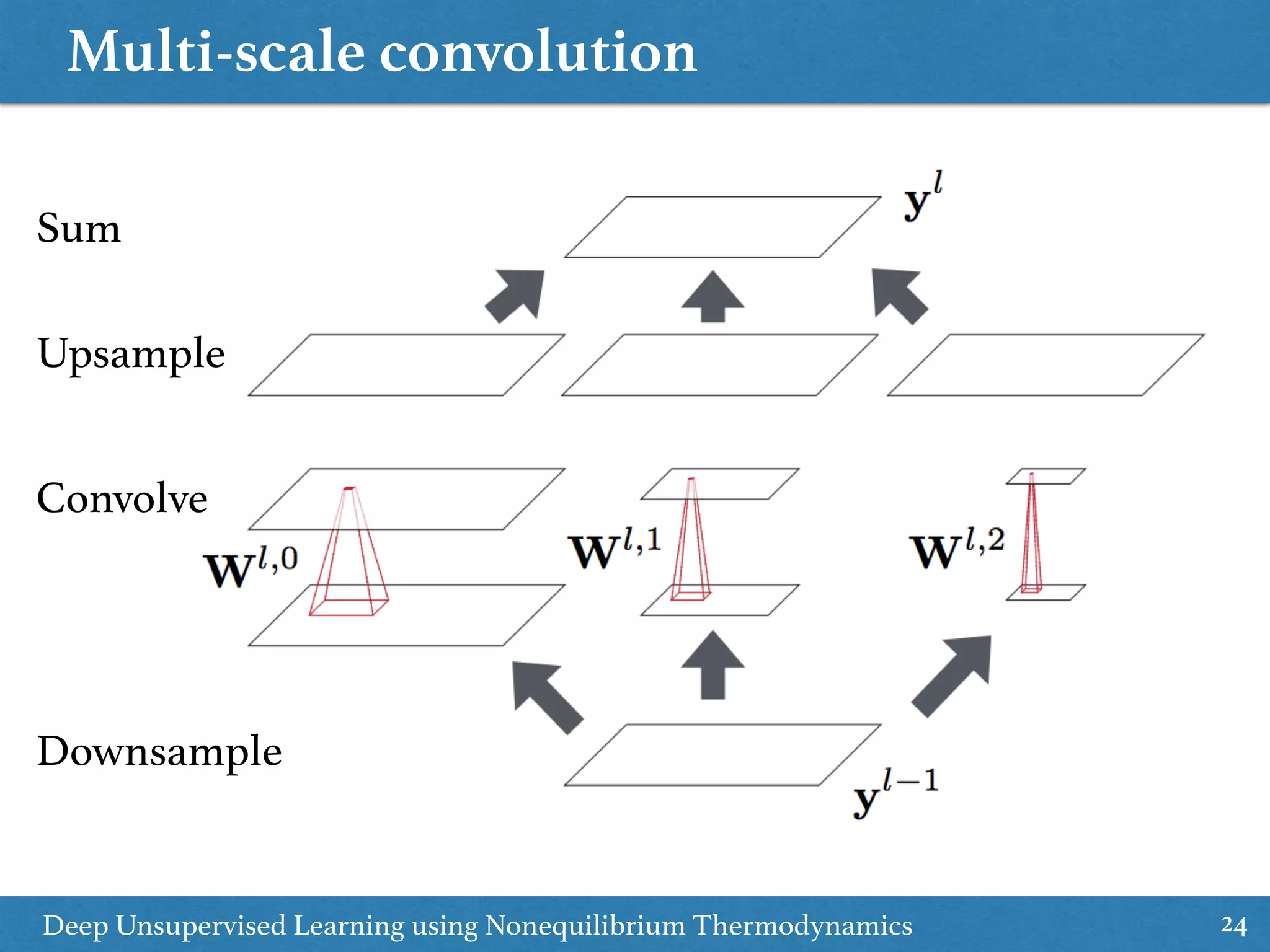

24. Multi-scale convolution
24Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Downsample
Convolve
Upsample
Sum

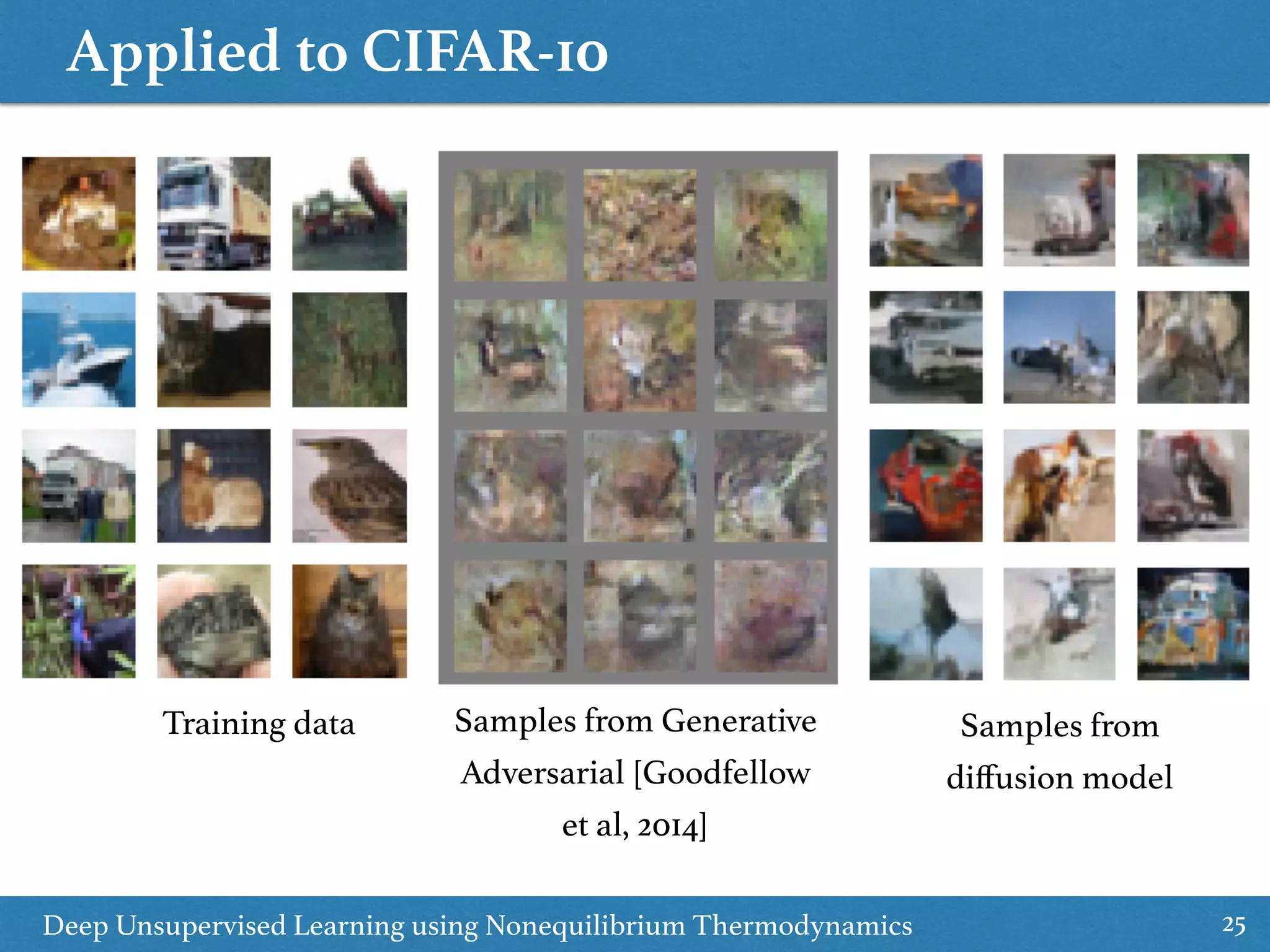

25. Applied to CIFAR-10
25Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Training data Samples from Generative
Adversarial [Goodfellow
et al, 2014]
Samples from
diffusion model

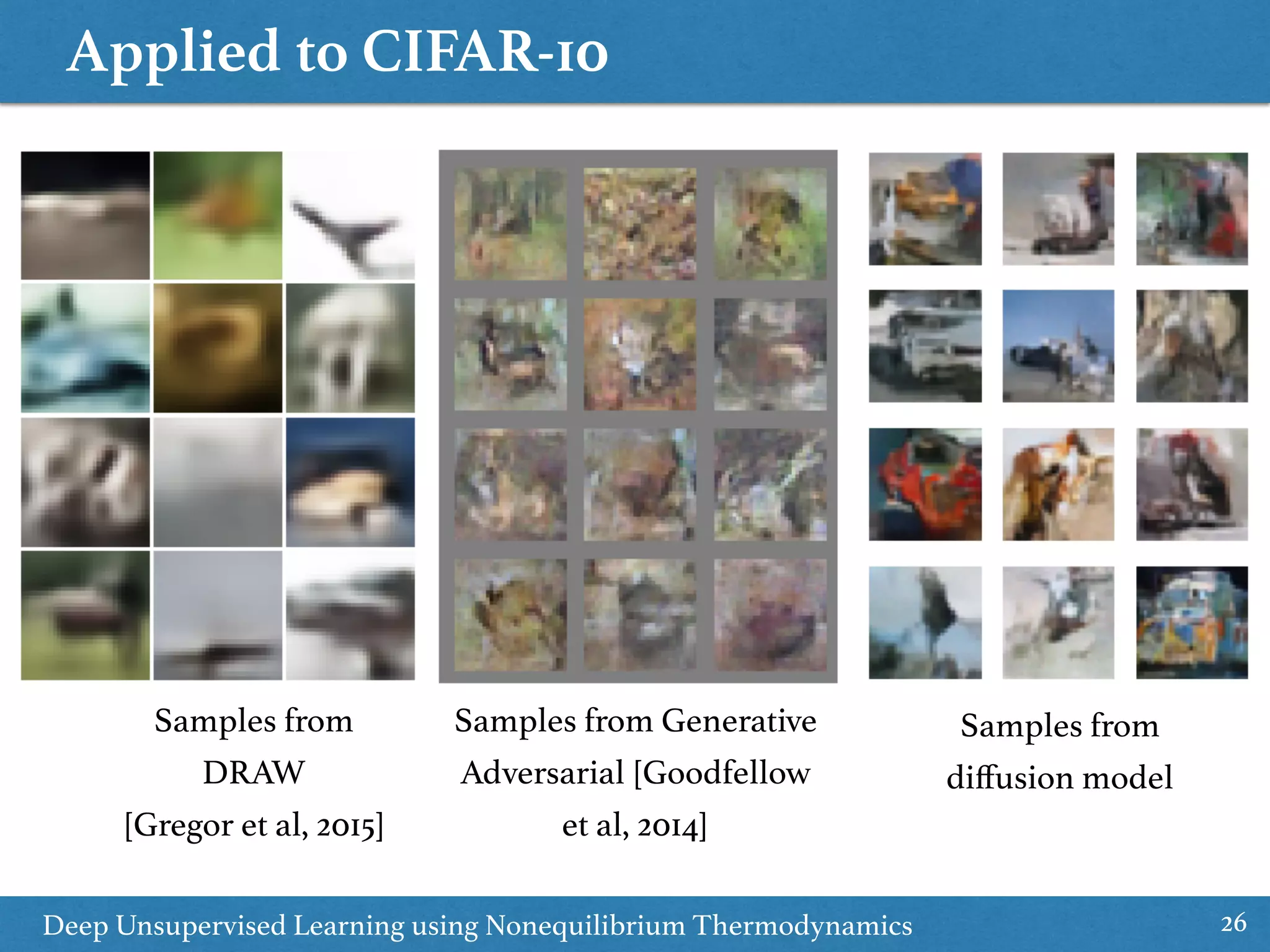

26. Applied to CIFAR-10
26Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Samples from
DRAW
[Gregor et al, 2015]
Samples from Generative
Adversarial [Goodfellow
et al, 2014]
Samples from
diffusion model

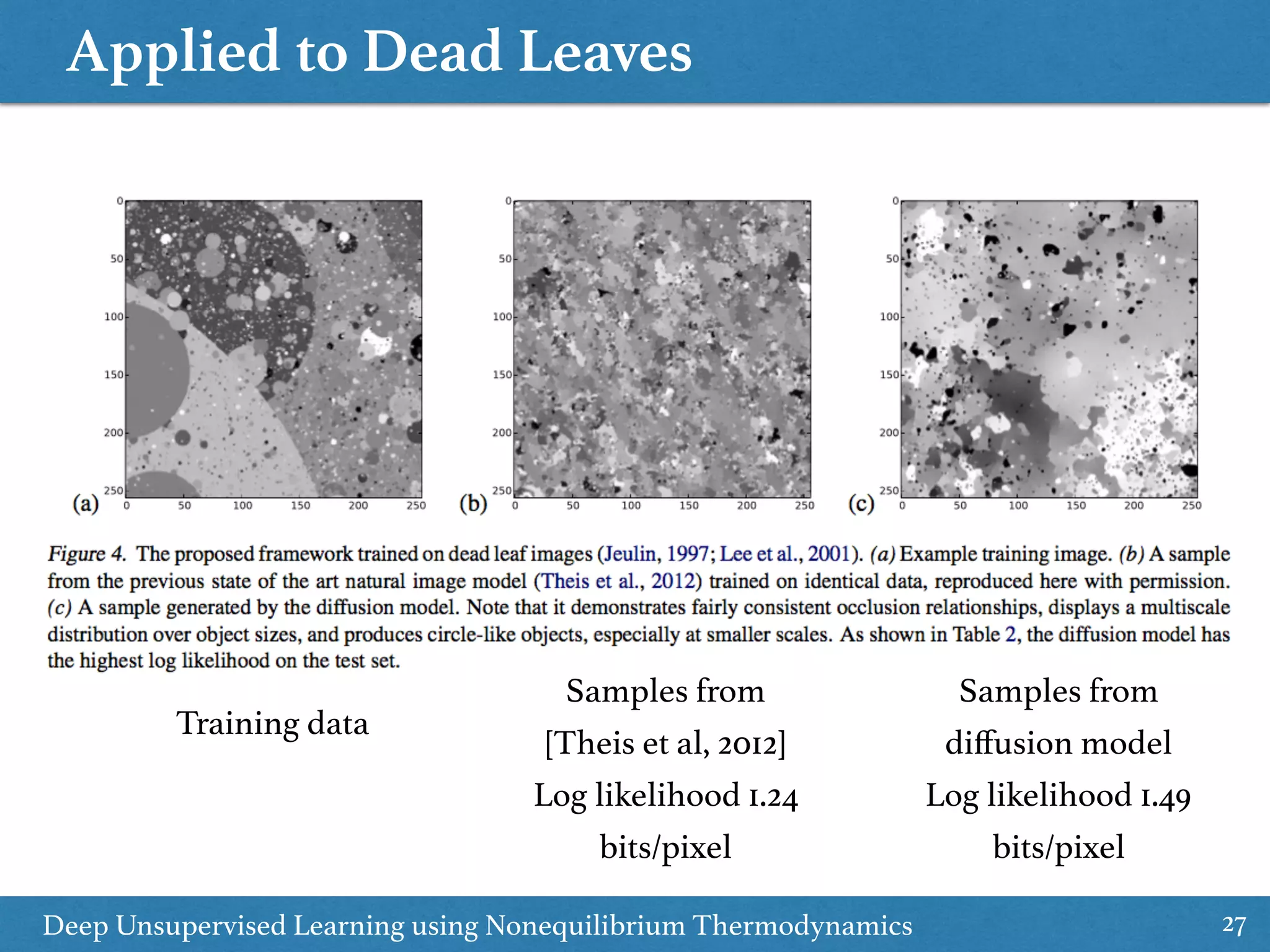

27. Applied to Dead Leaves
27Deep Unsupervised Learning using Nonequilibrium Thermodynamics
Training data
Samples from
[Theis et al, 2012]
Log likelihood 1.24
bits/pixel
Samples from
diffusion model
Log likelihood 1.49
bits/pixel

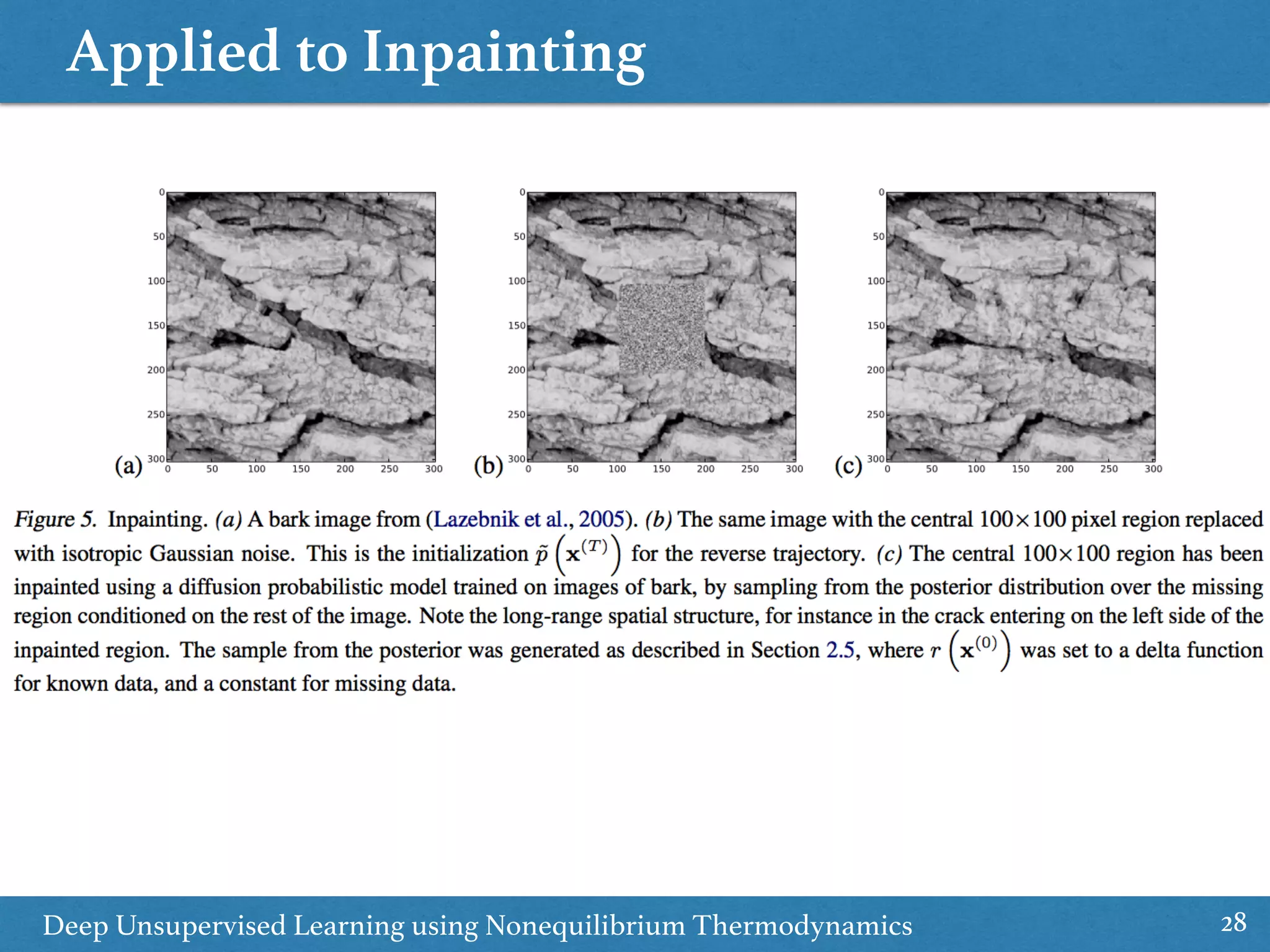

28. Applied to Inpainting
28Deep Unsupervised Learning using Nonequilibrium Thermodynamics

29. Table App.1
29Deep Unsupervised Learning using Nonequilibrium Thermodynamics

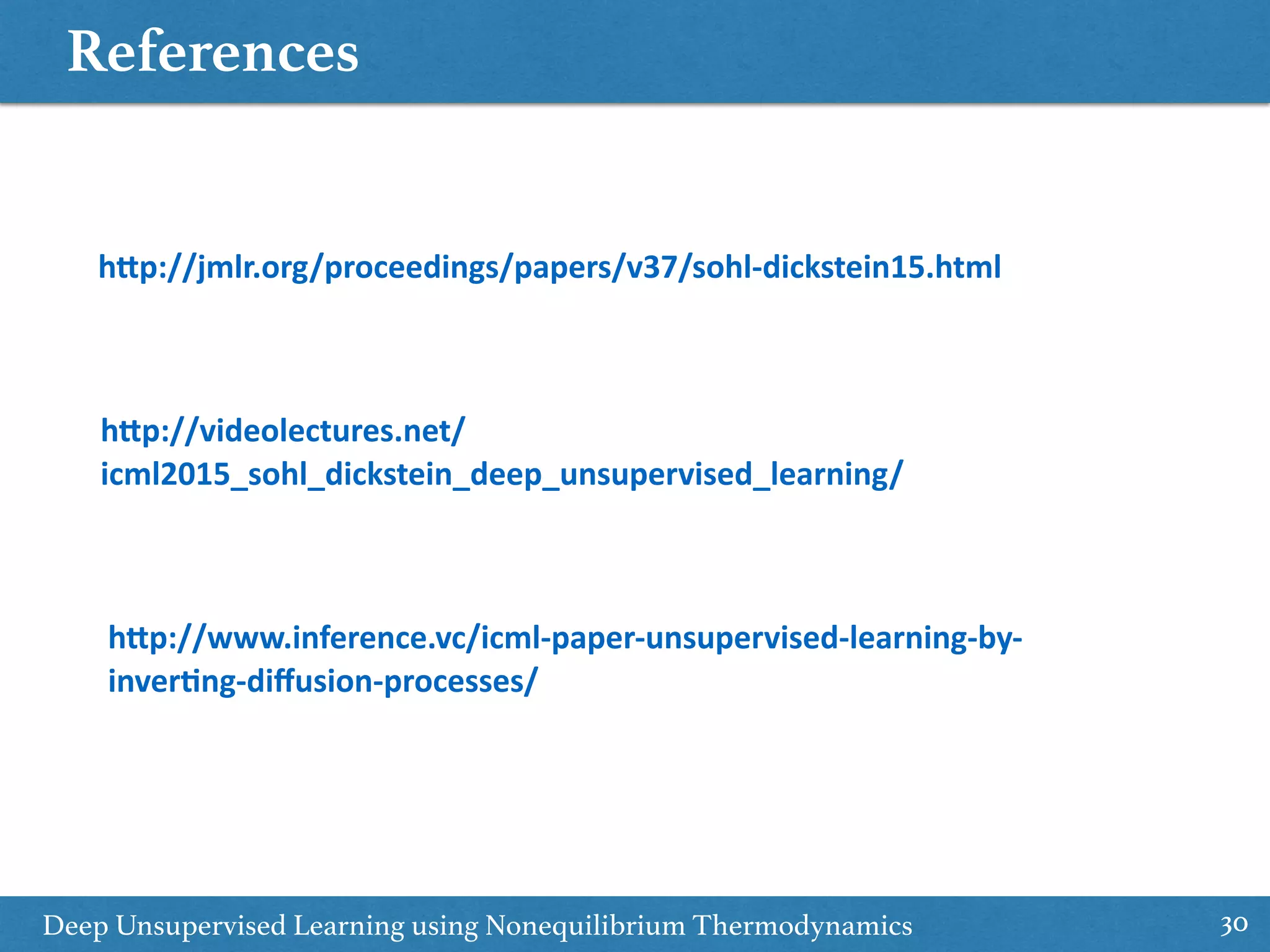

30. References
30Deep Unsupervised Learning using Nonequilibrium Thermodynamics
h"p://jmlr.org/proceedings/papers/v37/sohl-dickstein15.html
h"p://videolectures.net/
icml2015_sohl_dickstein_deep_unsupervised_learning/
h"p://www.inference.vc/icml-paper-unsupervised-learning-by-
inverEng-diffusion-processes/
