Megohmmeter
- 1. 1 Mega ohm Meter(Megger) Used for insulation testing
- 2. 2 Constructional Details DC Generator •Hand moved • Speed constant • Permanent magnet • Test voltage 500 V, 1000 V, 2500 V (selectable) • Handle, gears and centrifugally controlled switch • Brush less ac generator with rectifier also used
- 3. 3 Coils and Magnet •A permanent magnet with special design • Current coil (CC) on moving former • Two pressure coil (PC1 & PC2) on the moving element • A fixed C-shaped core • Spatial angle between CC and PC is 900 Constructional Details
- 4. 4 Constructional Details Coil connections •A pressure coil connected in series with a fixed standard resistance • Pressure coil along with fixed resistance is connected in parallel to the DC generator • Current coil in series with unknown resistance (insulation) and a fixed standard resistance •Guard rings prevents the error due to leakage currents
- 5.
- 6. 6 Constructional Details Non-linear scale •Torque produced by current coil will be in opposition to that by voltage coil • Pointer stabilizes when both torque are equal • Non-linear scale (similar to inverse Tan)
- 7.
- 8. 8 Factors Affecting InsulationResistance • Dirt, Moisture and temperature • A thumb rule – insulation resistance becomes twice for 10 0 C decrease in temperature • Naturally deteriorates with time
- 9.

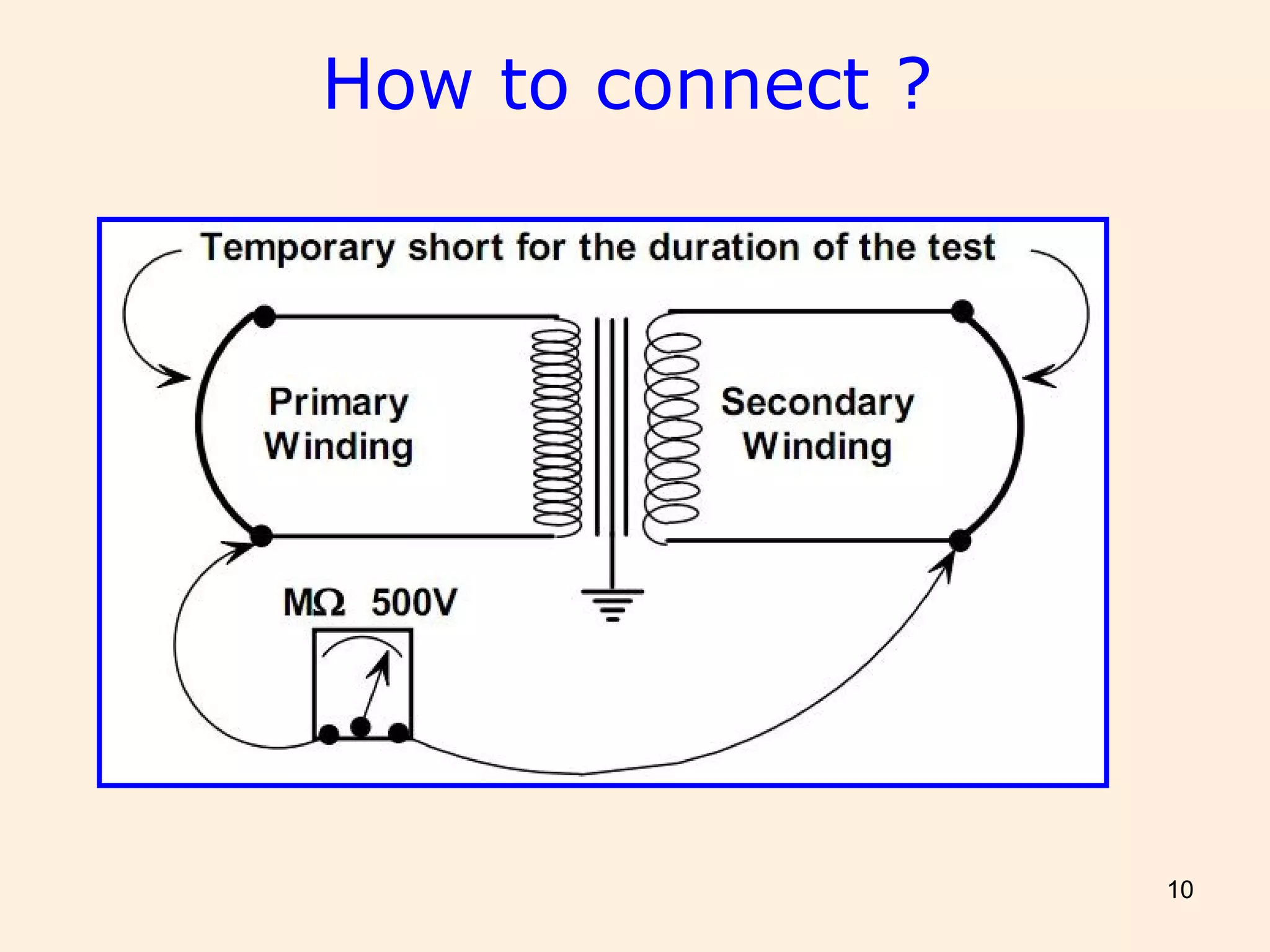

- 10.
- 11.
- 12. 12 Precautions • Instrument developshigh voltages, hence the possibility of getting shock if terminals are touched during use • A capacitive circuit should be discharge
- 13.
- 14.
- 15.
- 16.
