The document discusses permanent magnet synchronous motors, highlighting their working principle, types, advantages, and disadvantages. These motors, which use a rotor made of permanent magnets, are noted for their high efficiency, compact design, and smooth torque. However, they also face challenges such as higher cost and loss of flexibility in field flux control.

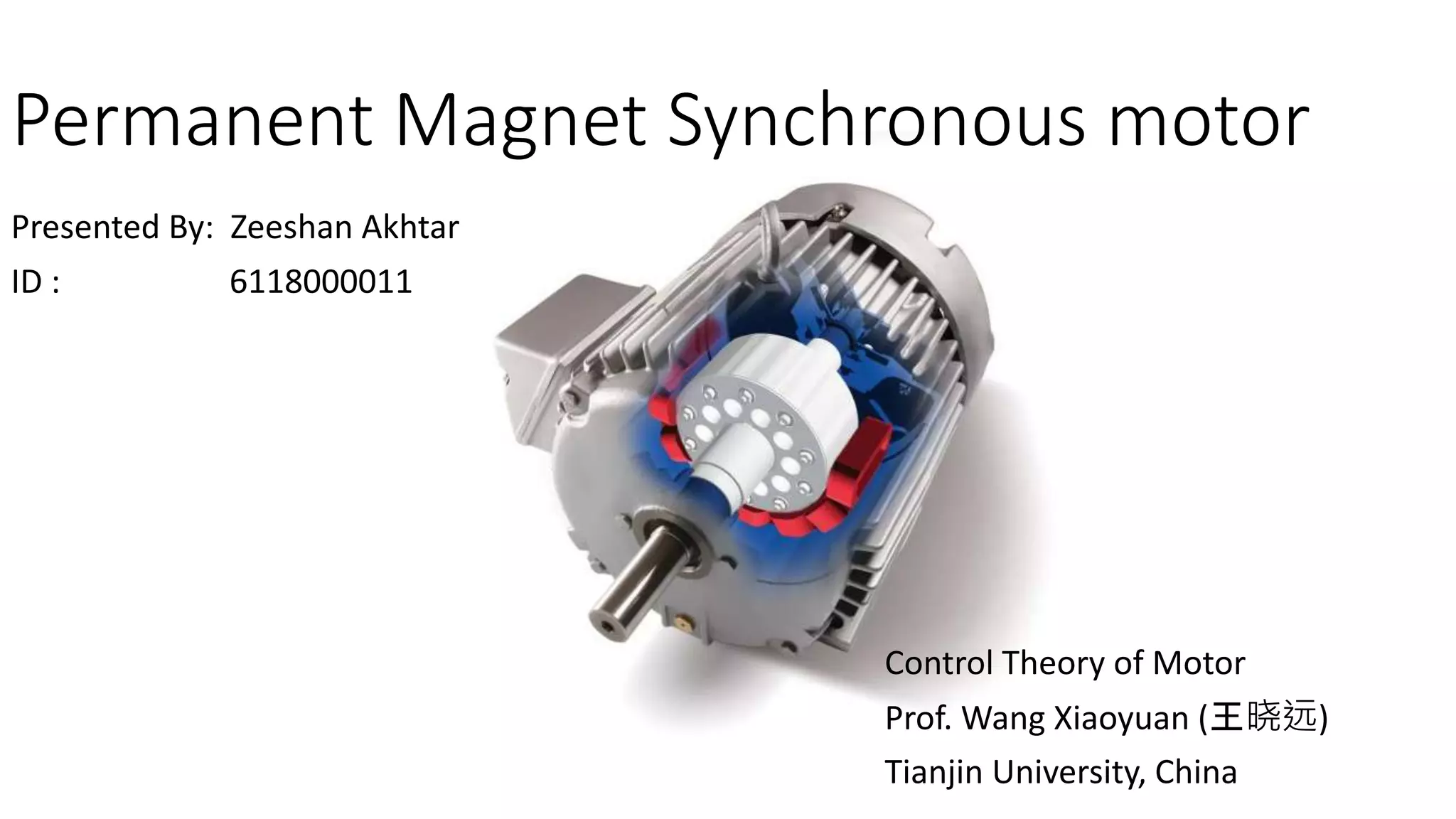

1. Permanent Magnet Synchronous motor
Presented By: Zeeshan Akhtar
ID : 6118000011
Control Theory of Motor
Prof. Wang Xiaoyuan (王晓远)
Tianjin University, China

2. Contents:
• Introduction
• Working principle

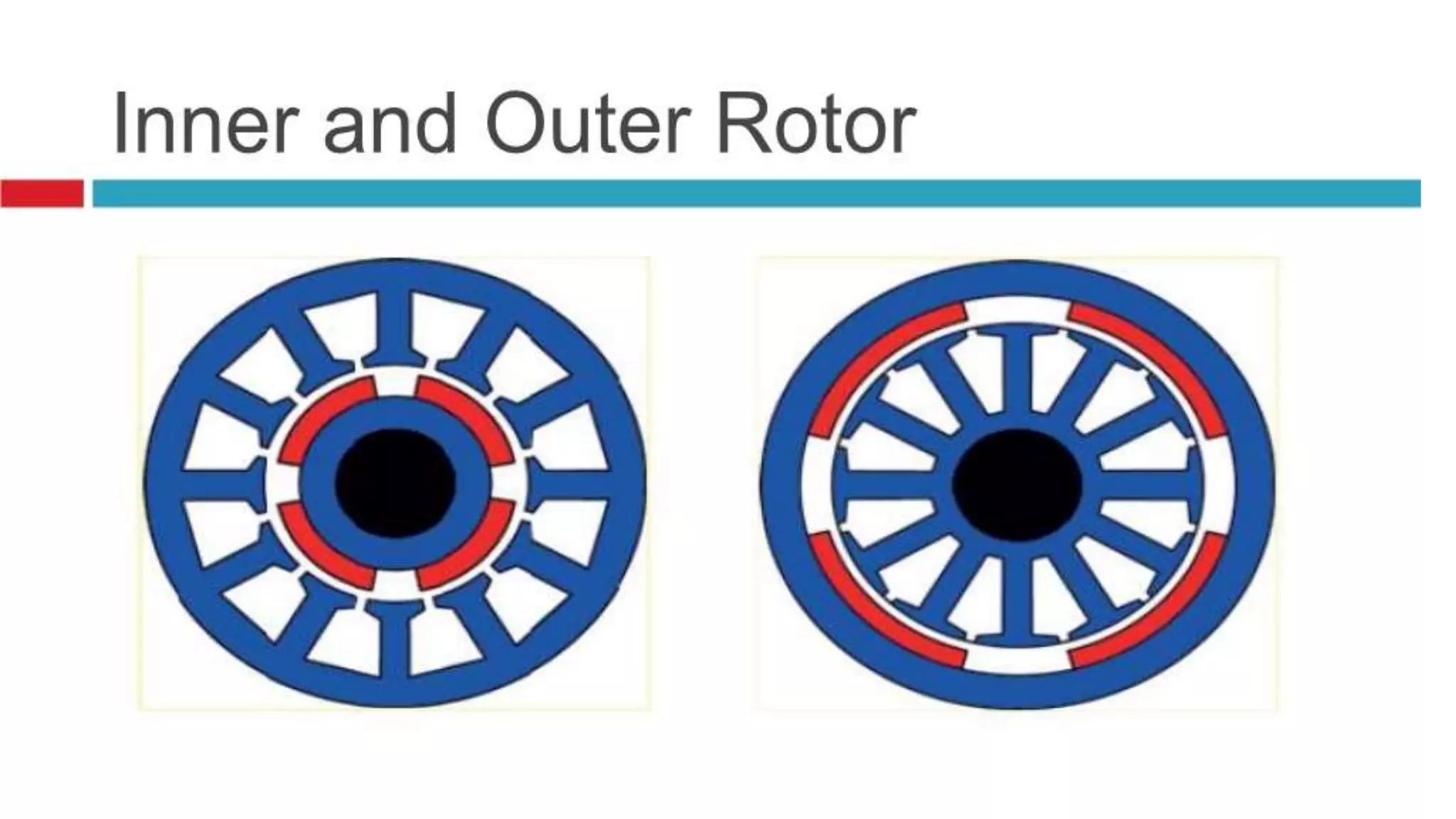

• Types

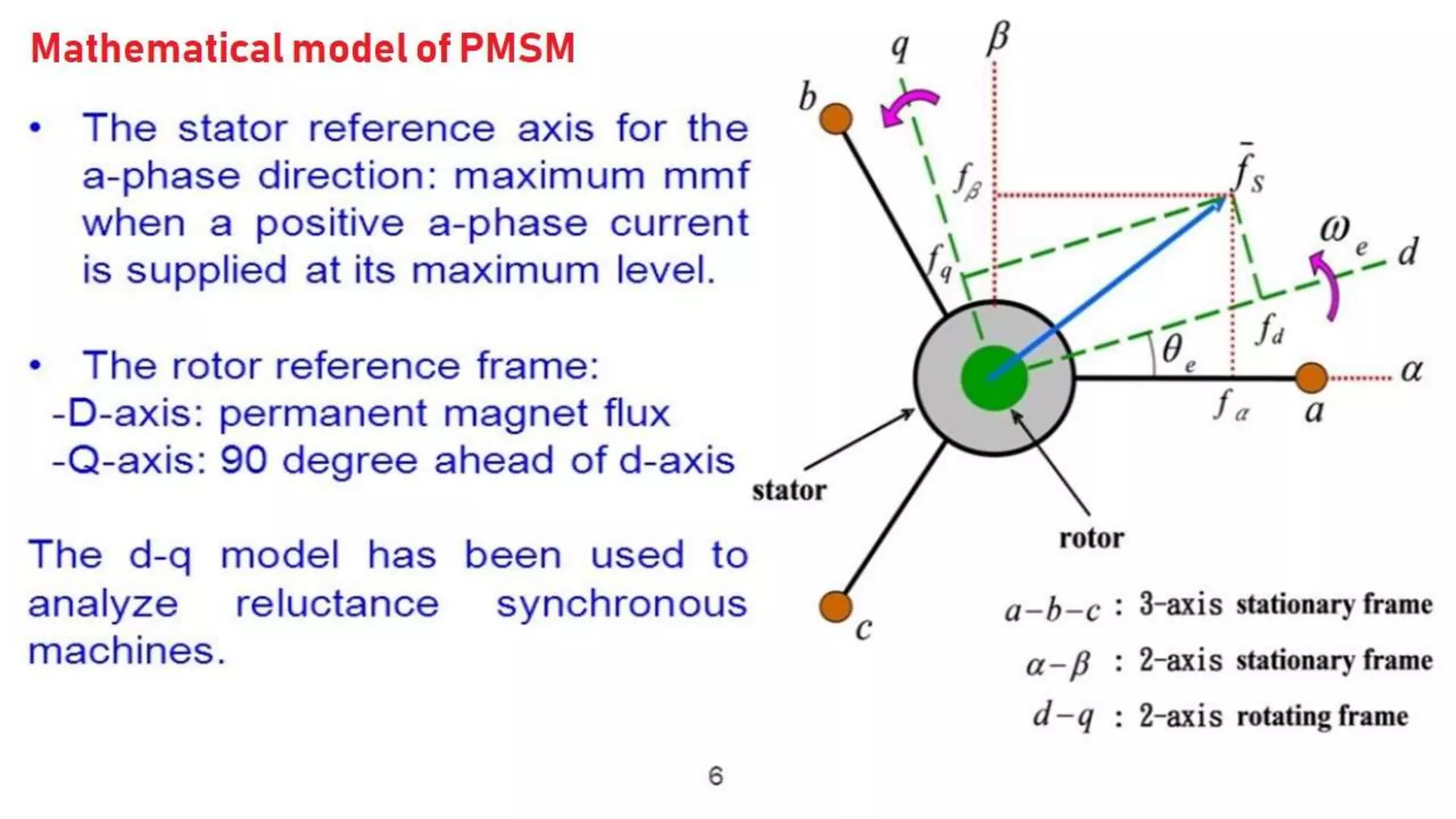

• Mathematical Model
• Advantages
• Disadvantages
• References
• Q & A Session

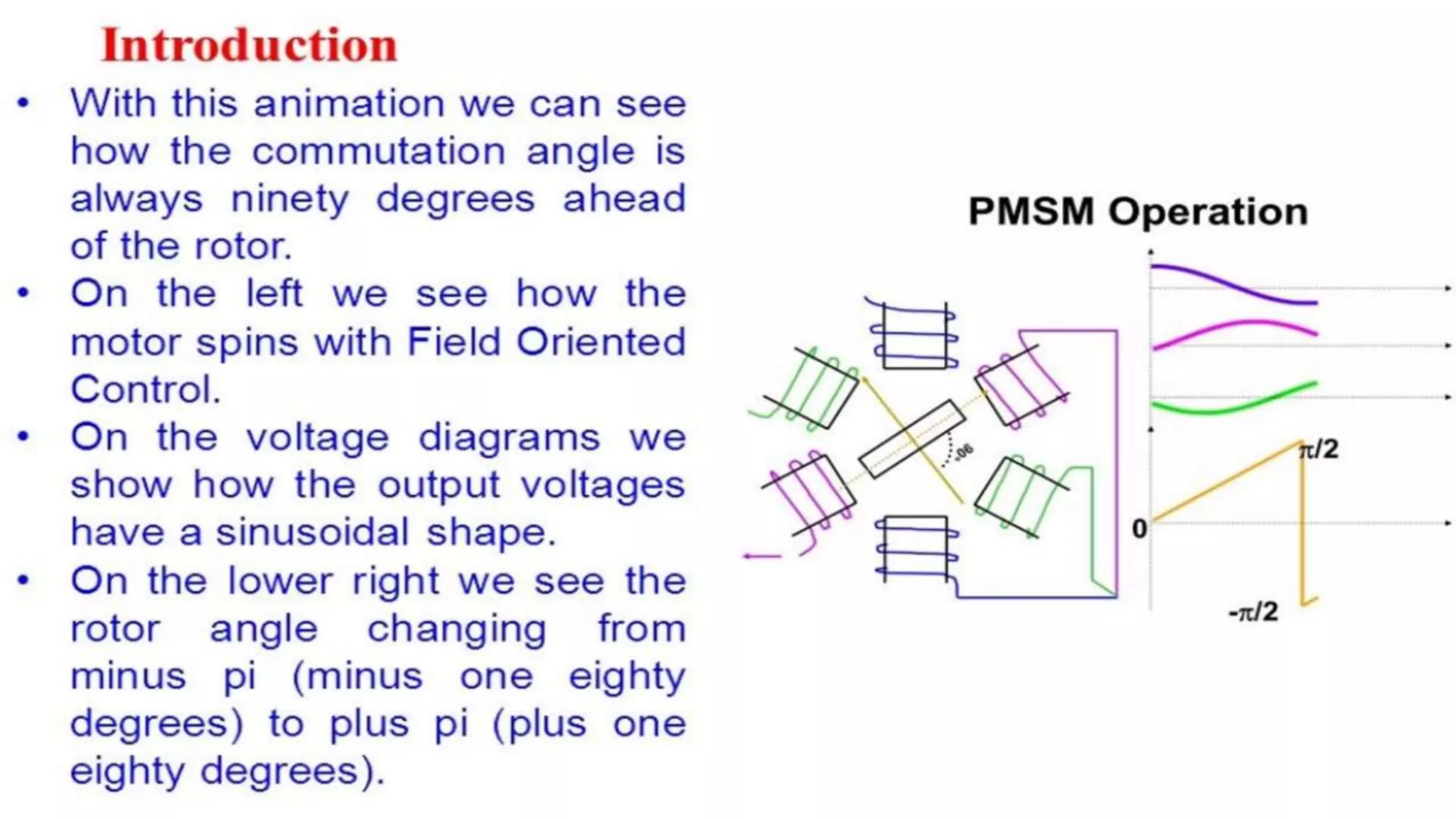

3. Introduction:
The type of synchronous motor whose rotor is made of permanent
magnet and its stator is identical to that of an induction motor. The

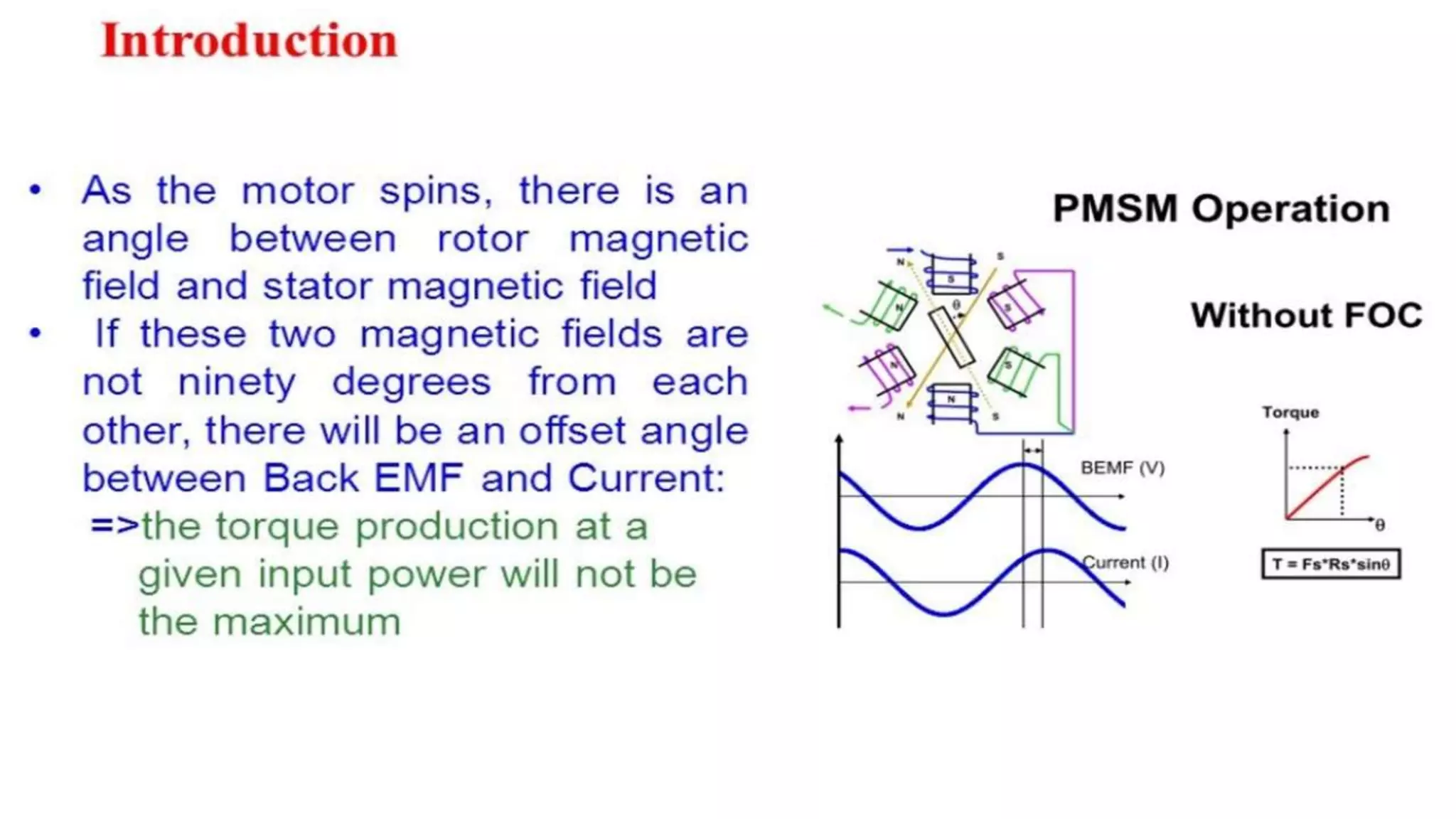

presence of magnetic field on the rotor allows rotor to move at
synchronous speed with stator field. Widely used in industry due to
its high performance characteristics:
 Compact
 High efficiency (no excitation current)
 Smooth torque
 Low acoustic noise
 Fast dynamic response (both torque and speed)
 A synchronous motor differs from an asynchronous motor in the relationship
between the mechanical speed and the electrical speed.

26. Advantages & Disadvantages
• Elimination of field copper loss.
• High power density.
• Lower rotor inertia.
• More robust construction of motor.
• Higher efficiency.
• Loss flexibility of field flux control
• Re-magnetization effect
• Higher cost

28. Reverences:
• Google
• Wikipedia
• Slideshare
• NXP Semiconductors
• Microchip
• AVID Technology
• YouTube
