1. System-on-Chip Design
Introduction to Zynq
Dr Hao Zheng
Computer Sci. & Eng.
U. of South Florida

2. • Chapter 1: Introduction
• Chapter 2: The Zynq Device (“What is it?)
• Chapter 5: Applications and Opportunities
(“What can I do with it?”)
The ZYNQ Book
Xilinx Educational Video
• Why Zynq?
http://www.xilinx.com/training/zynq/why-zynq.htm
Reading

3. Source: The Zynq Book
Traditional Architecture

4. Source: The Zynq Book
FPGA with Soft Processor Core

5. Source: The Zynq Book
Zynq Architecture

6. Source: The Zynq Book
Embedded SoC Architecture

7. Source: The Zynq Book

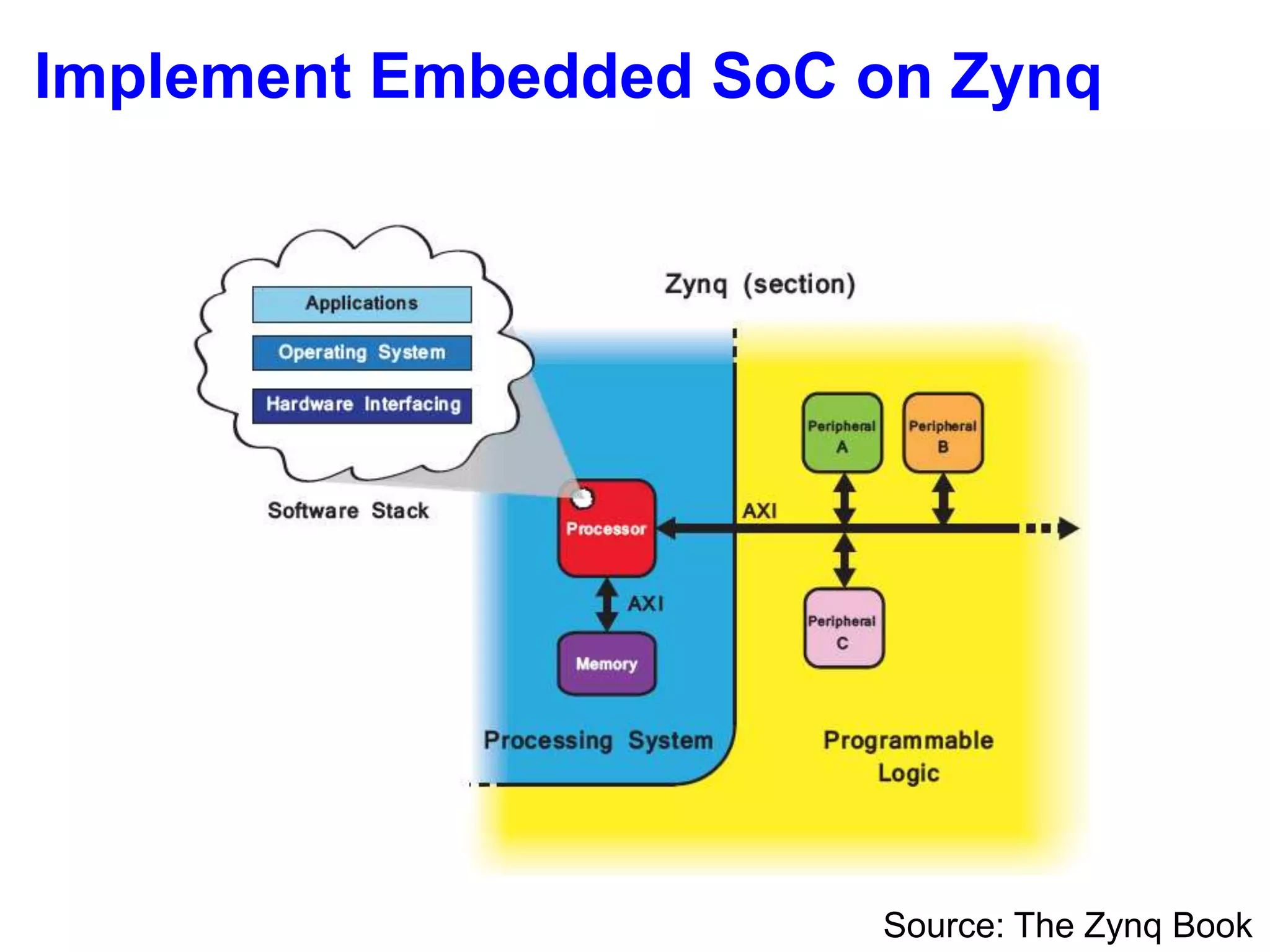

Implement Embedded SoC on Zynq

8. Source: Xilinx Video Tutorials

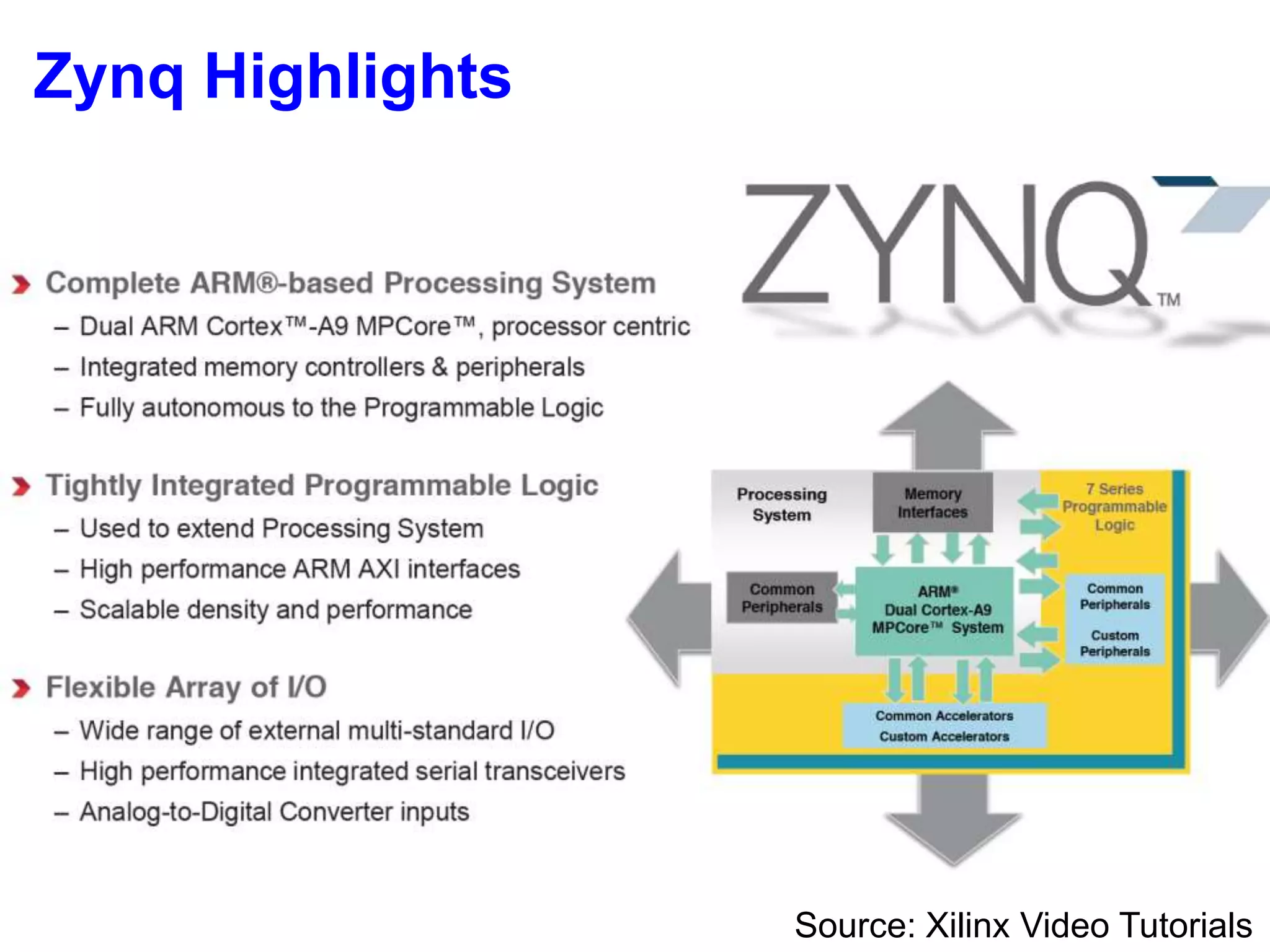

Zynq Highlights

9. ARM Processor Roadmap
Source: Xilinx White Paper: Extensible Processing Platform

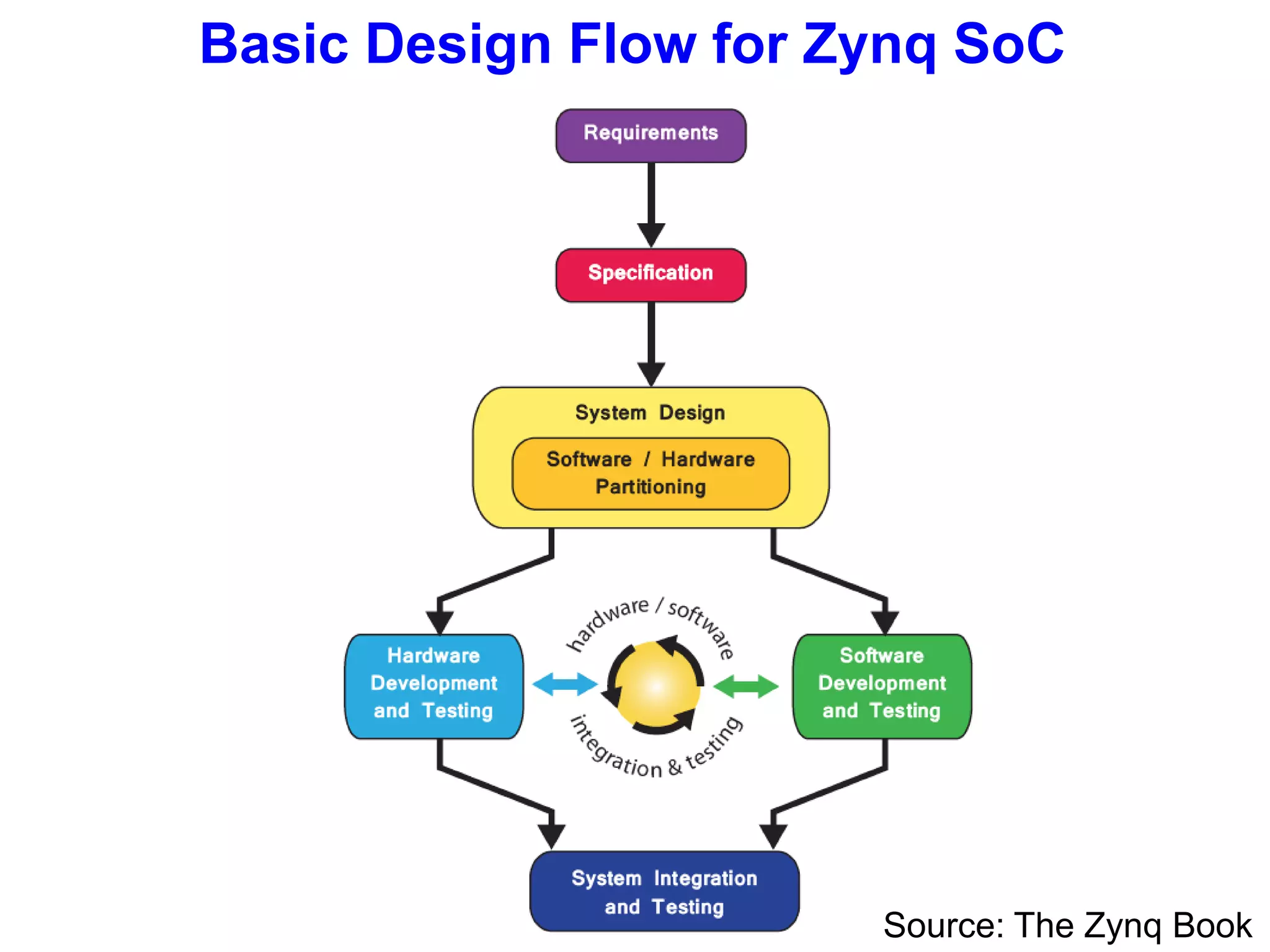

10. Basic Design Flow for Zynq SoC
Source: The Zynq Book

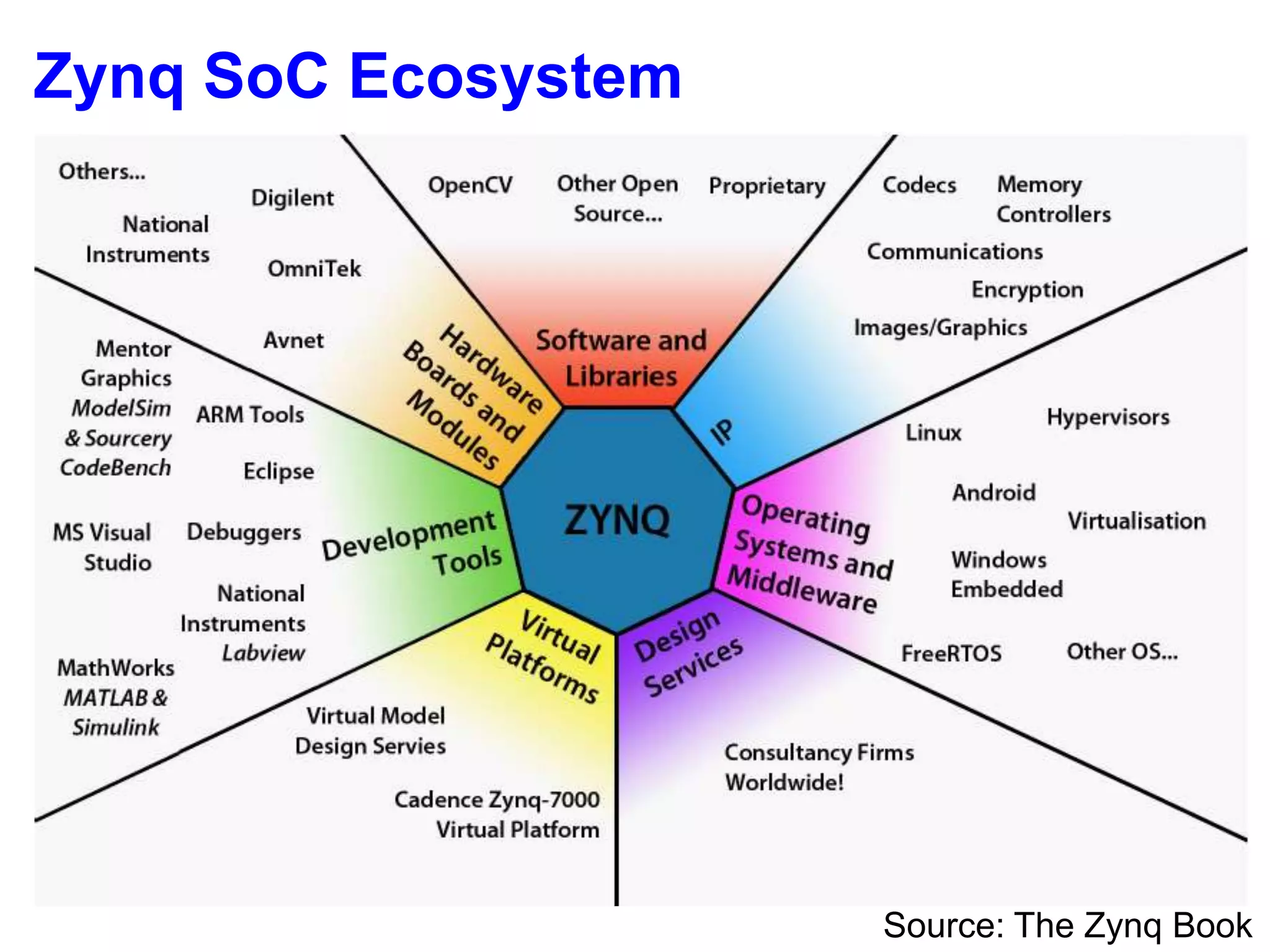

11. Zynq SoC Ecosystem

12. Source: The Zynq Book
Zynq SoC Ecosystem

13. Xilinx Zynq
Zynq-7000 All Programmable
SoCs with Cortex-A9 MPCore
Altera Arria V & Cyclone V
Hard processor system (HPS)
with Cortex-A9 MPCore
Microsemi Smartfusion2
Cortex M3
Alternative Solutions

14. Source: The Zynq Book

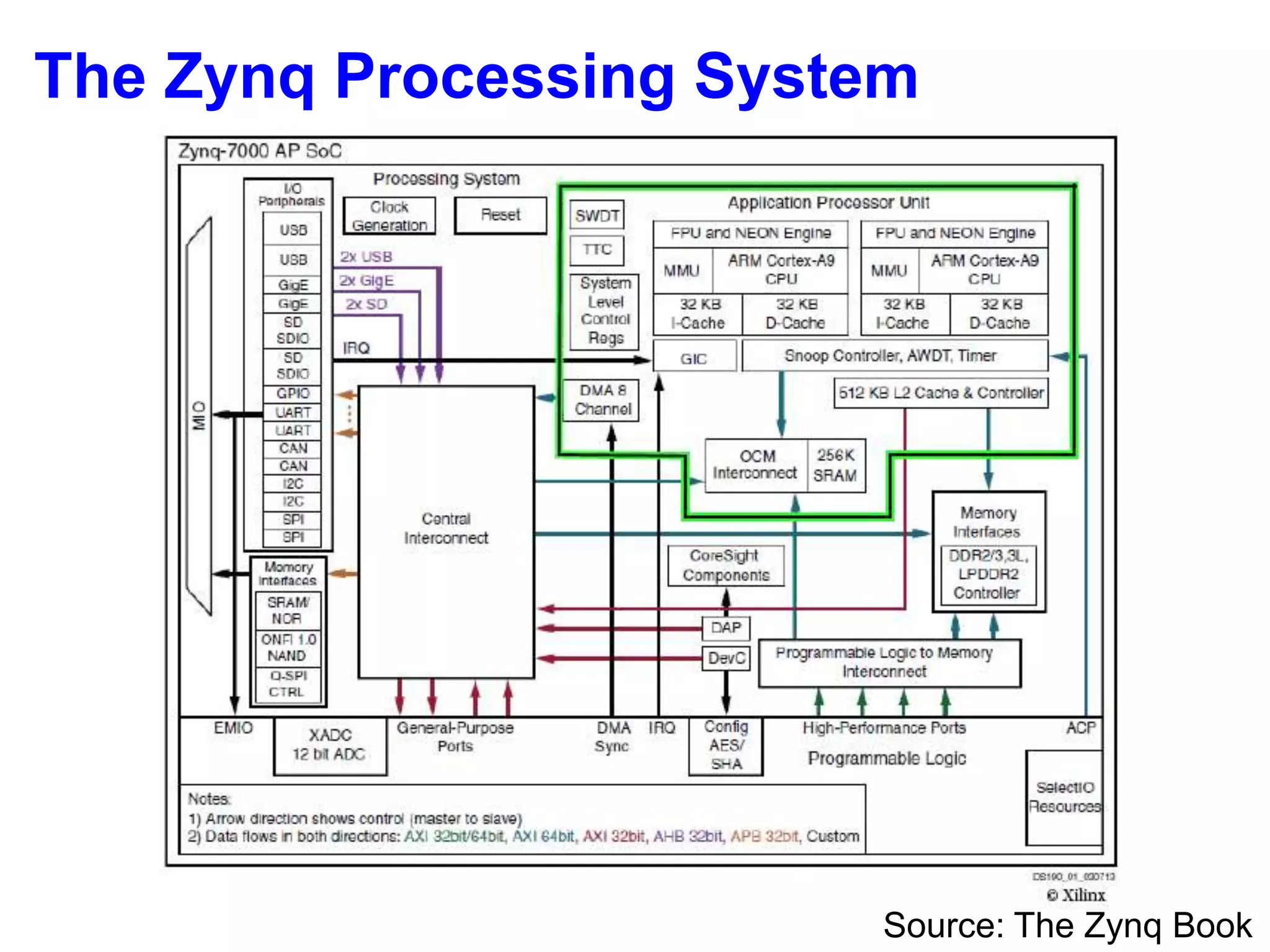

The Zynq Processing System

15. Source: The Zynq Book
Application Processing Unit (APU)
APU programming is through Xlinx SDK

16. Source: The Zynq Book
NEON Co-Processor
SIMD Execution for media and DSP applications

17. Source: The Zynq Book
PS External Interfaces: MIO

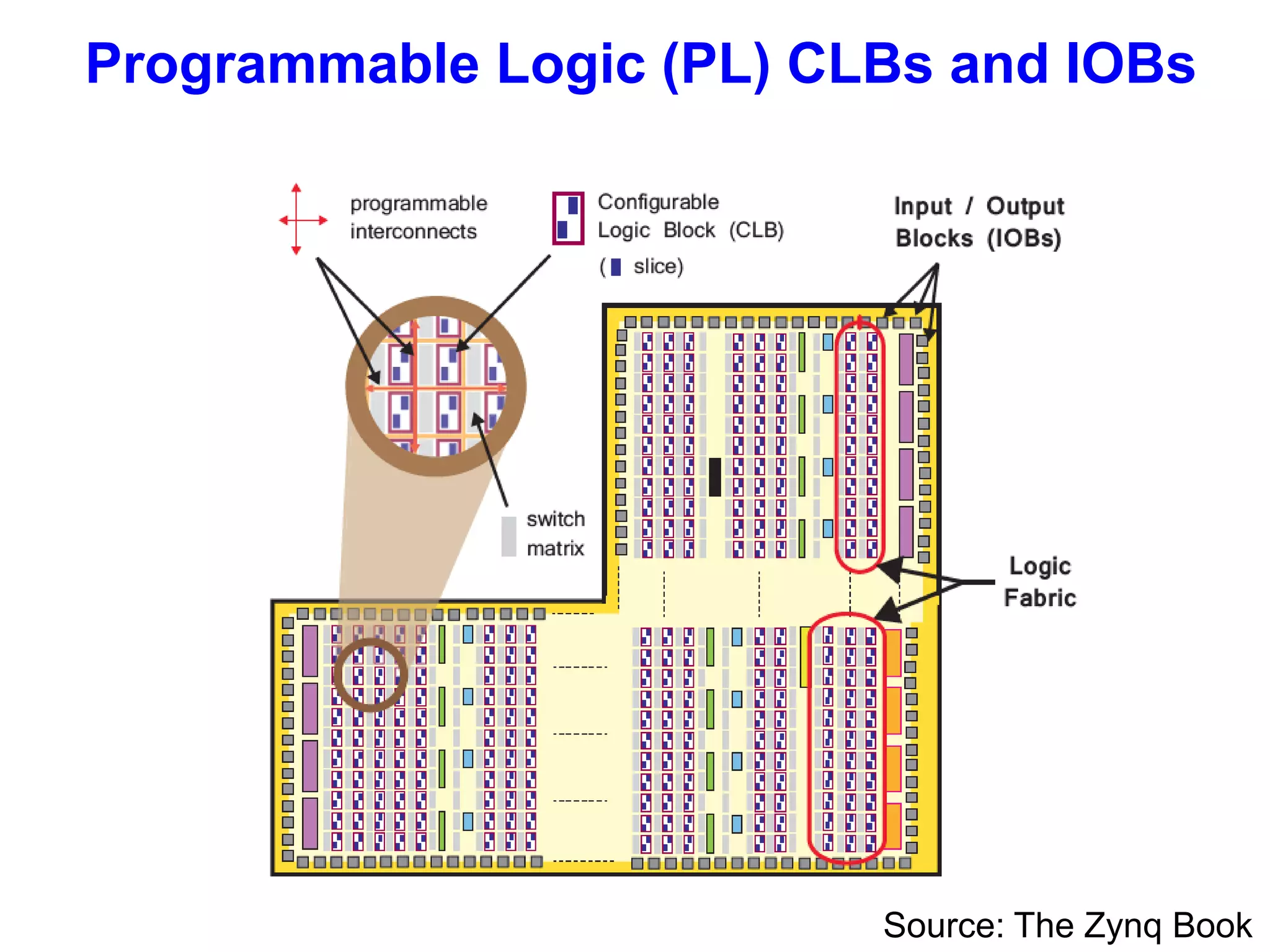

18. Programmable Logic (PL) CLBs and IOBs
Source: The Zynq Book

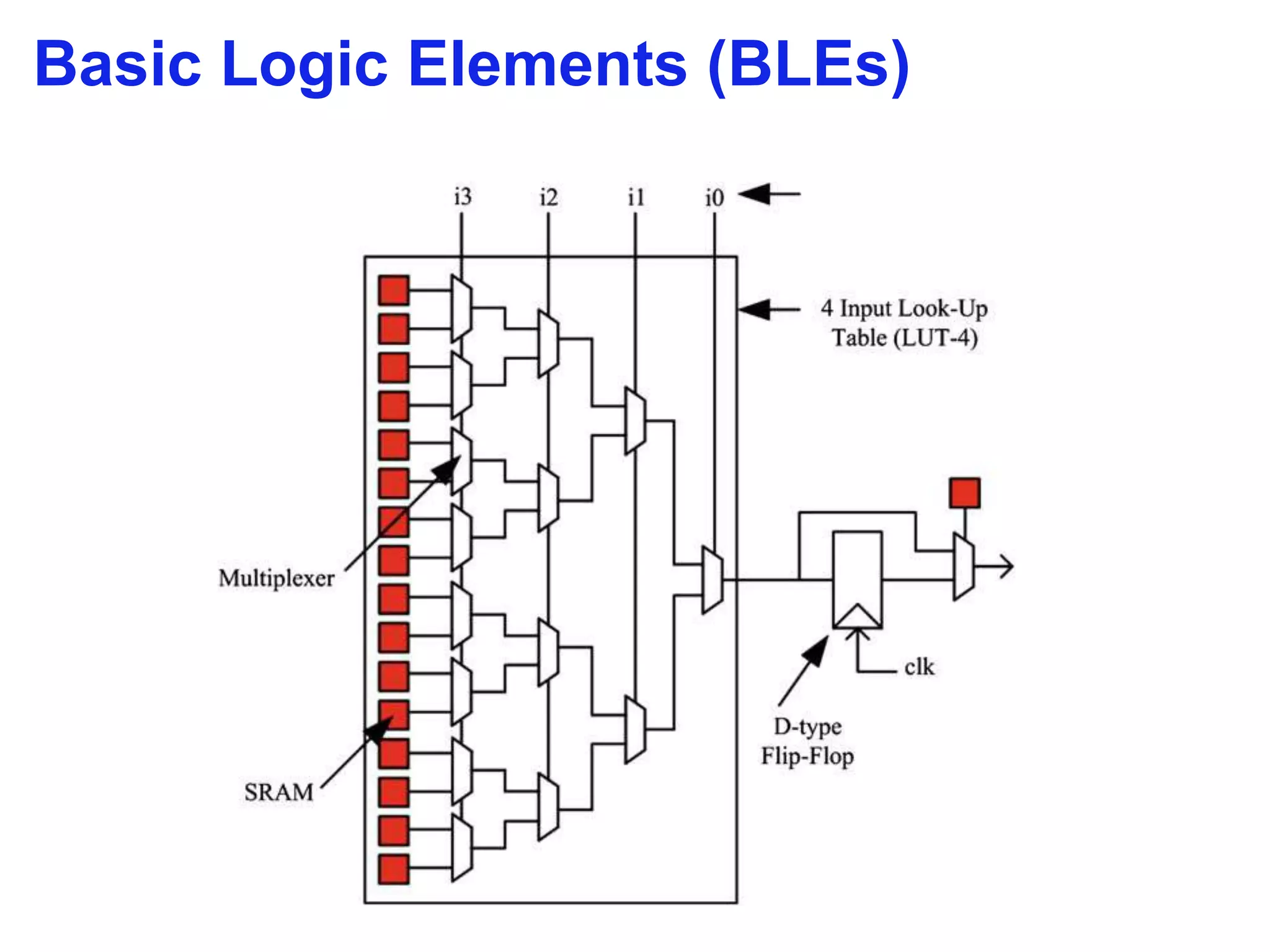

19. Basic Logic Elements (BLEs)
12 2 FPGA Architectures: An Overview

20. Switch Matrix
16 2 FPGA Architectures: An Overview

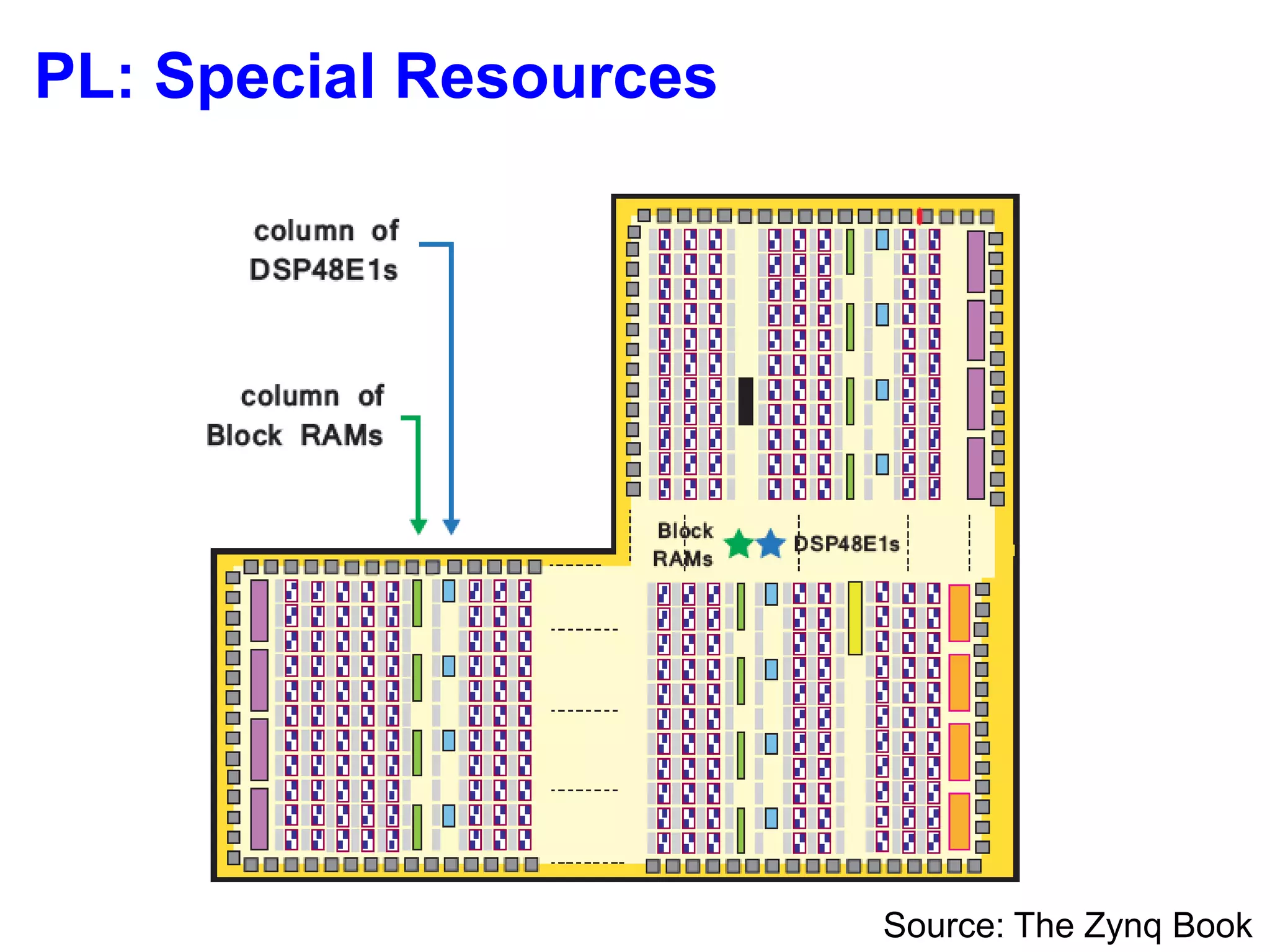

21. Source: The Zynq Book
PL: Special Resources

22. Source: The Zynq Book
AXI Interconnects and Interfaces
9 AXI interfaces
between PS and
PL.

23. Basic AXI Signaling – 5 Channels
1. Read Address Channel
2. Read Data Channel
3. Write Address Channel
4. Write Data Channel
5. Write Response Channel
Zynq Architecture 12-33 © Copyright 2012 Xilinx

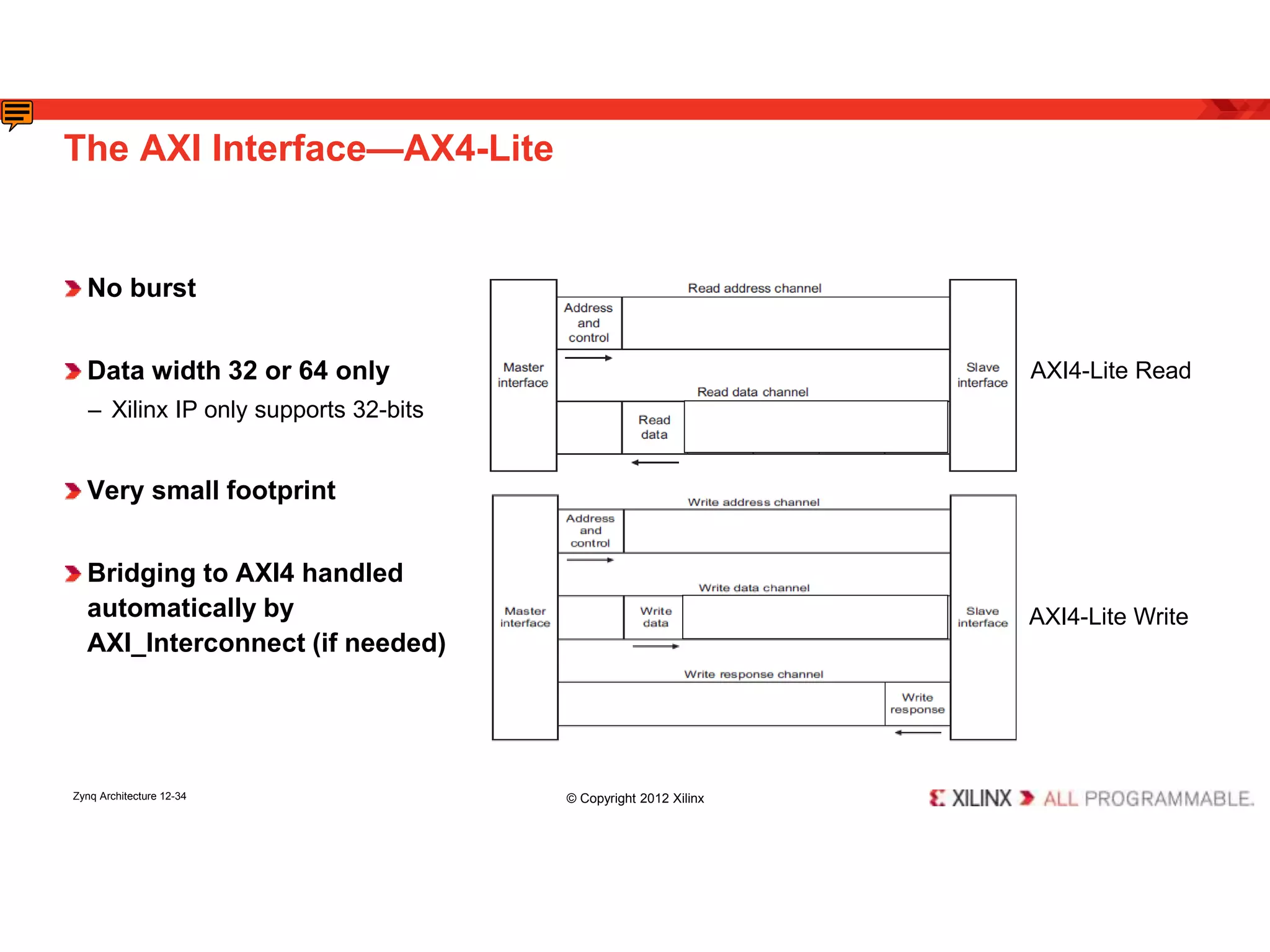

24. The AXI Interface—AX4-Lite
No burst
Data width 32 or 64 only
– Xilinx IP only supports 32-bits
Very small footprint
Bridging to AXI4 handled
automatically by
AXI_Interconnect (if needed)
AXI4-Lite Read
AXI4-Lite Write
Zynq Architecture 12-34 © Copyright 2012 Xilinx

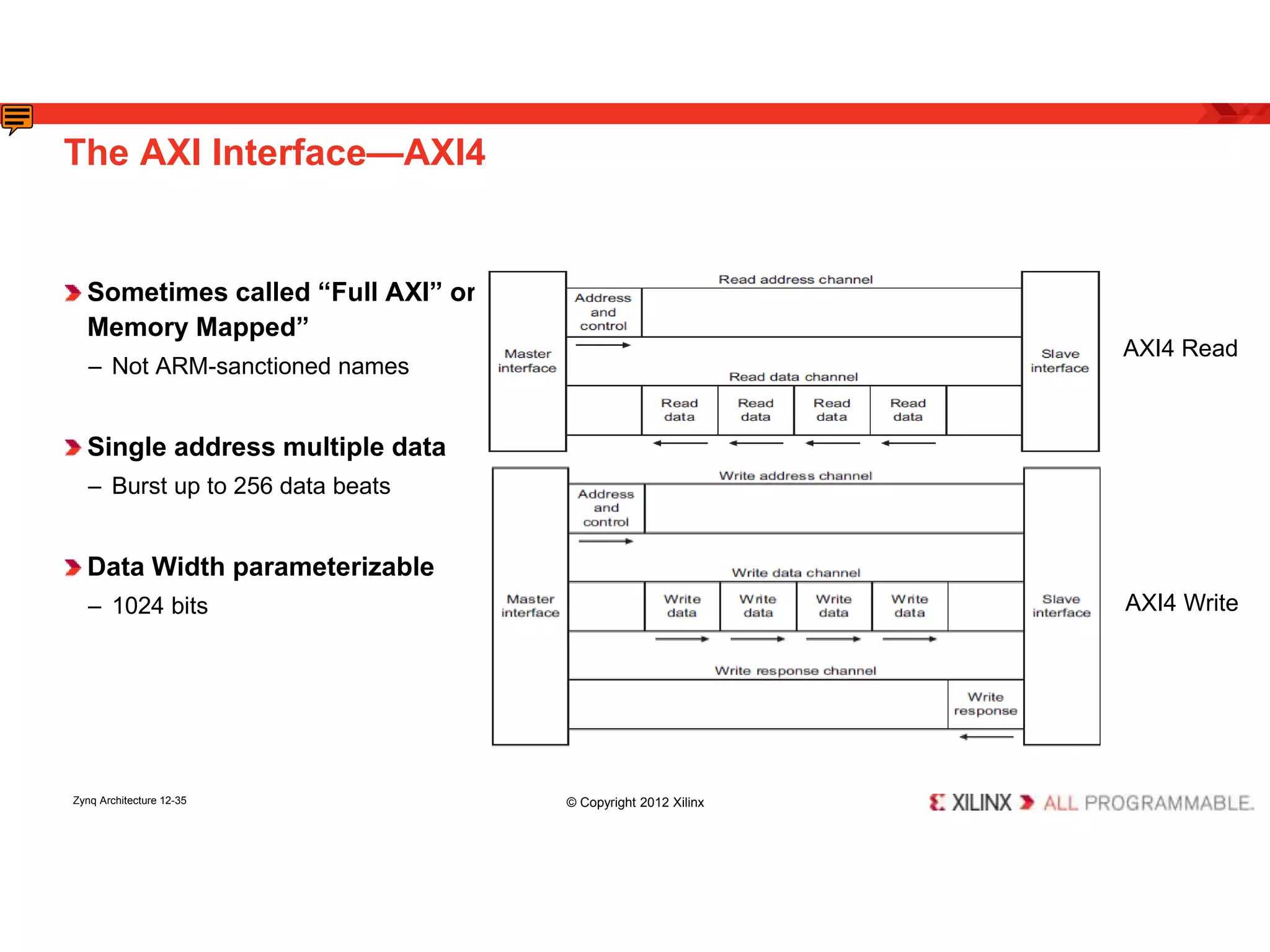

25. The AXI Interface—AXI4
Sometimes called “Full AXI” or “AXI
Memory Mapped”
– Not ARM-sanctioned names
Single address multiple data
– Burst up to 256 data beats
Data Width parameterizable
– 1024 bits
AXI4 Read
AXI4 Write
Zynq Architecture 12-35 © Copyright 2012 Xilinx

26. The AXI Interface—AXI4-Stream
No address channel, no read and write,
always just master to slave
– Effectively an AXI4 “write data” channel
Unlimited burst length
– AXI4 max 256
– AXI4-Lite does not burst
Virtually same signaling as AXI Data
Channels
– Protocol allows merging, packing, width
conversion
– Supports sparse, continuous, aligned,
unaligned streams
AXI4-Stream Transfer
Zynq Architecture 12-36 © Copyright 2012 Xilinx

27. Using Extended Multiplexed Input/Output
(EMIO) to Interface Between PS and PL
Source: The Zynq Book

30. Choice Among Various
Implementation Platforms
Source: Xcell Journal, no. 88, Q3 2014

31. Advantages of Zynq
Source: Xcell Journal, no. 88, Q3 2014

32. Academic Subjects to which Zynq is Relevant
Source: The Zynq Book

33. Zedboard
Zynq device
DDR3 mem
VGA port
Ethernet
SD card

34. Backup

35. Source: The Zynq Book
System-on-a-Board

36. Source: The Zynq Book

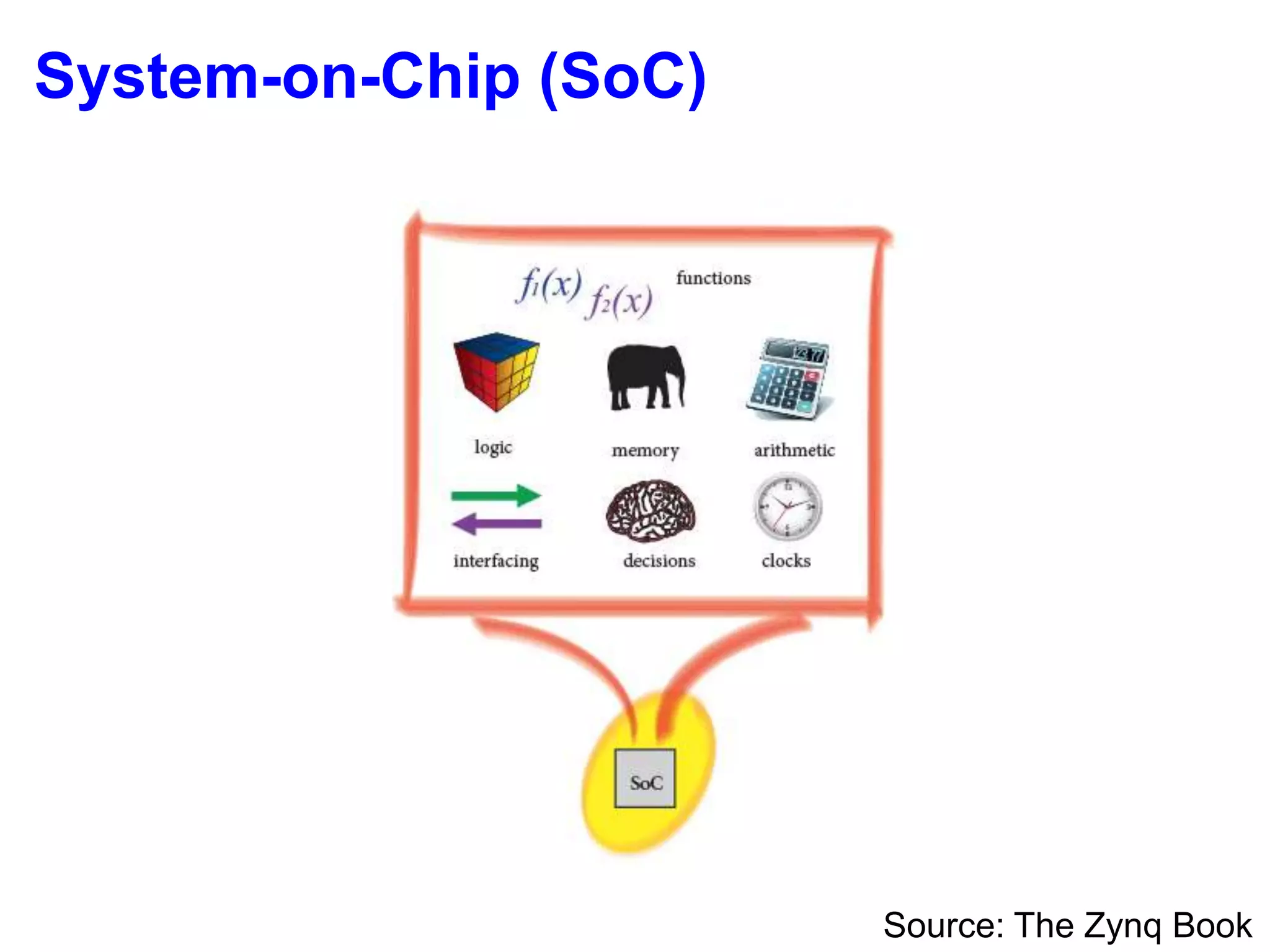

System-on-Chip (SoC)

37. Design Flow for Zynq SoC
Source: Xilinx White Paper: Extensible Processing Platform

38. Automotive Applications

39. Automotive Applications
Lane and Road Sign Recognition
Source: The Zynq Book

40. Computer Vision
Detection of Cars at a Junction
Source: The Zynq Book

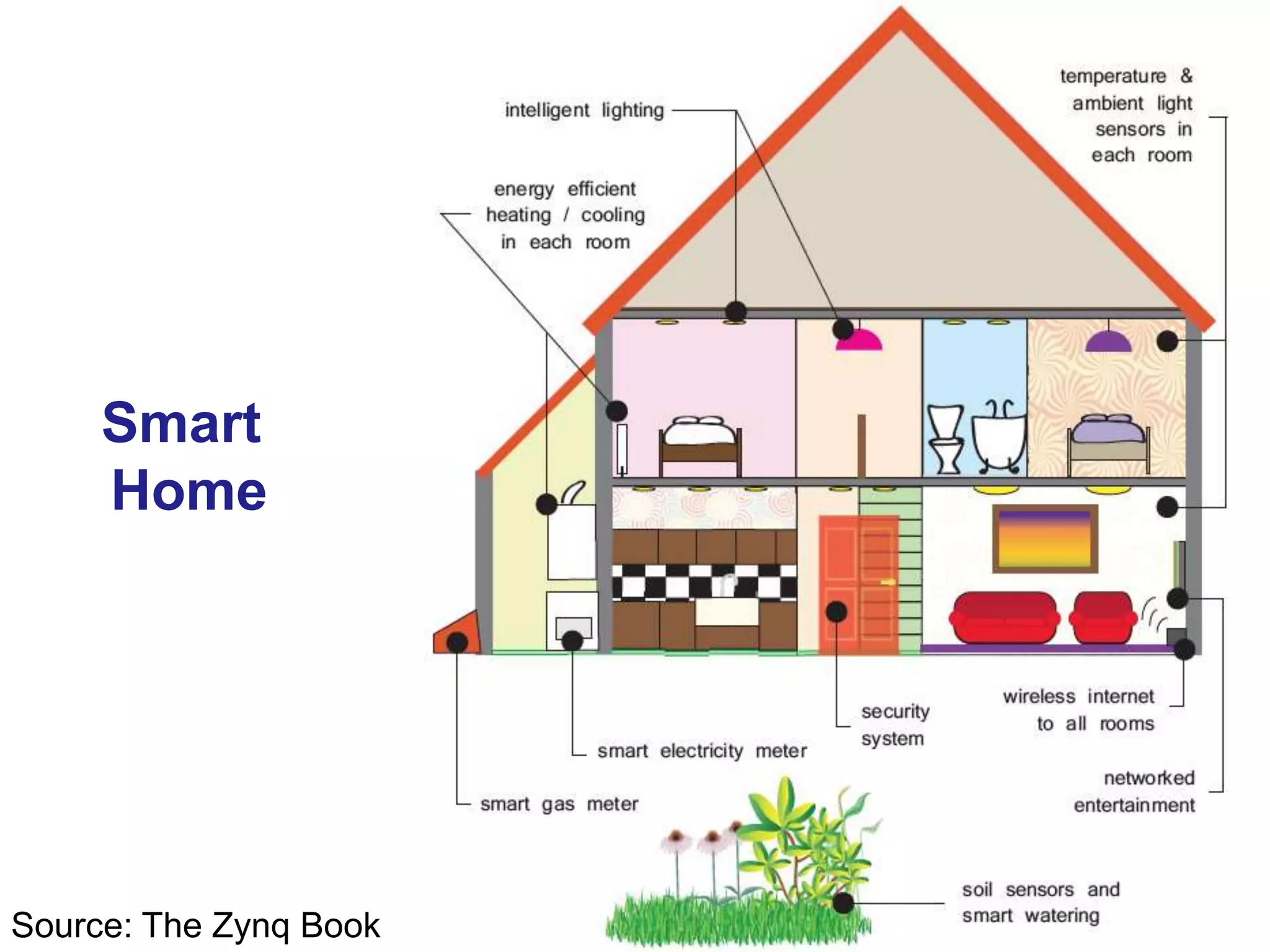

41. Smart
Home
Source: The Zynq Book

42. Communication Systems
Wireless
Basestation
Satellite
Groundstation
Wired Network
Switches
Source: The Zynq Book

43. Control and Instrumentation Systems
Industrial
Control
Room
Wind
Turbines
High Energy
Physics
Experiment
Source: The Zynq Book

44. Medical Applications
MRI Scanning Robot Assisted Surgery
Source: The Zynq Book

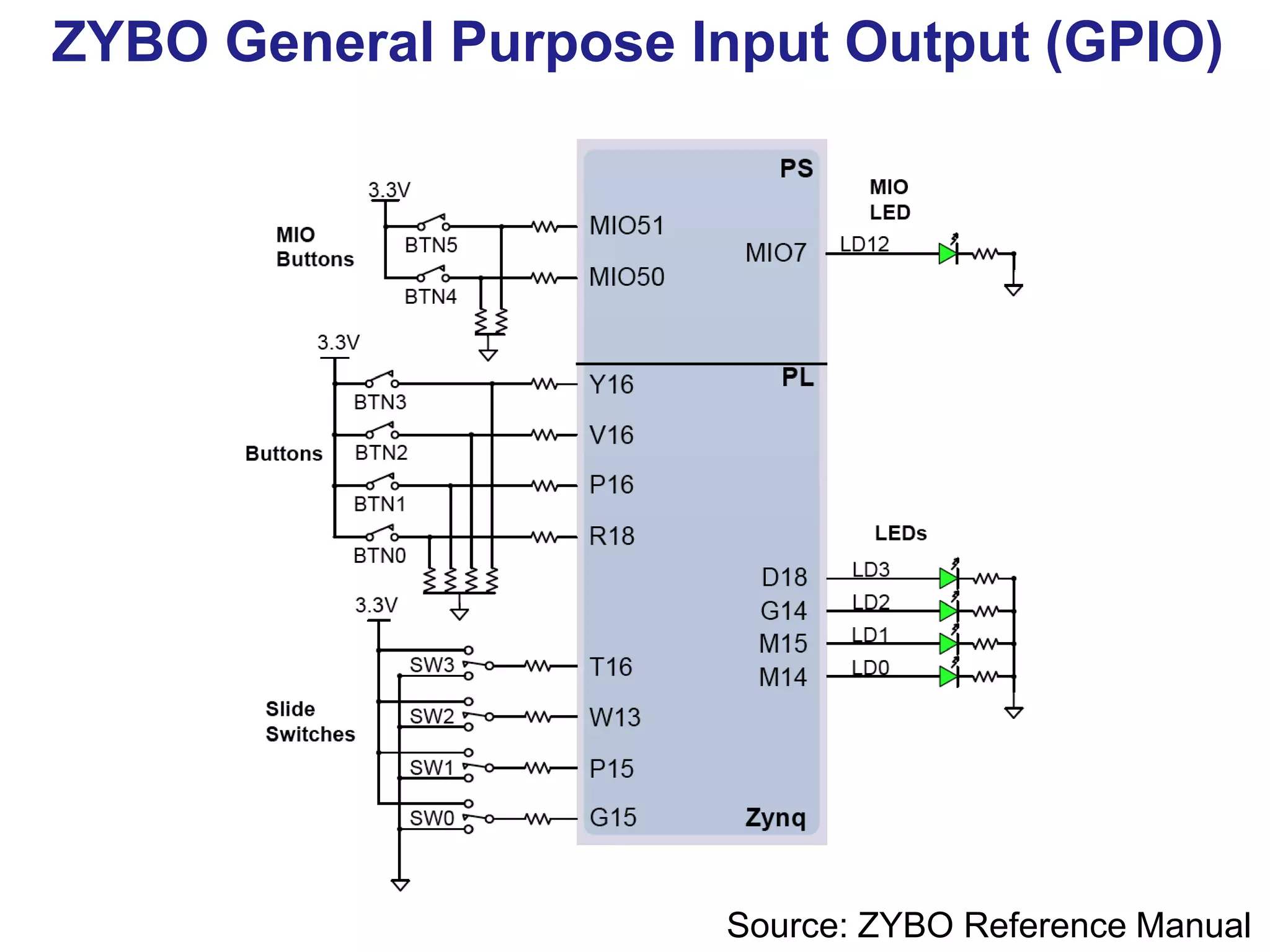

45. ZYBO General Purpose Input Output (GPIO)
Source: ZYBO Reference Manual

46. Pmod Connector
Source: ZYBO Reference Manual
