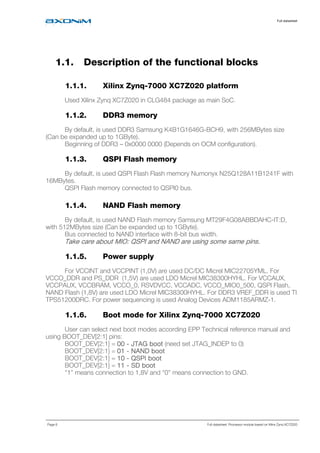

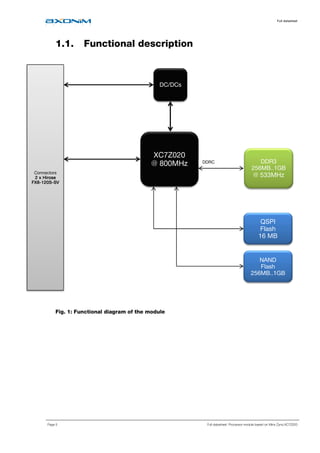

Page 6 Full datasheet: Processor module based on Xilinx Zynq XC7Z020
1.1. Description of the functional blocks
1.1.1. Xilinx Zynq-7000 XC7Z020 platform
Used Xilinx Zynq XC7Z020 in CLG484 package as main SoC.
1.1.2. DDR3 memory
By default, is used DDR3 Samsung K4B1G1646G-BCH9, with 256MBytes size
(Can be expanded up to 1GByte).
Beginning of DDR3 – 0x0000 0000 (Depends on OCM configuration).
1.1.3. QSPI Flash memory
By default, is used QSPI Flash Flash memory Numonyx N25Q128A11B1241F with
16MBytes.
QSPI Flash memory connected to QSPI0 bus.
1.1.4. NAND Flash memory
By default, is used NAND Flash memory Samsung MT29F4G08ABBDAHC-IT:D,
with 512MBytes size (Can be expanded up to 1GByte).
Bus connected to NAND interface with 8-bit bus width.
Take care about MIO: QSPI and NAND are using some same pins.Take care about MIO: QSPI and NAND are using some same pins.Take care about MIO: QSPI and NAND are using some same pins.Take care about MIO: QSPI and NAND are using some same pins.
1.1.5. Power supply
For VCCINT and VCCPINT (1,0V) are used DC/DC Micrel MIC22705YML. For
VCCO_DDR and PS_DDR (1,5V) are used LDO Micrel MIC38300HYHL. For VCCAUX,
VCCPAUX, VCCBRAM, VCCO_0, RSVDVCC, VCCADC, VCCO_MIO0_500, QSPI Flash,
NAND Flash (1,8V) are used LDO Micrel MIC38300HYHL. For DDR3 VREF_DDR is used TI
TPS51200DRC. For power sequencing is used Analog Devices ADM1185ARMZ-1.
1.1.6. Boot mode for Xilinx Zynq-7000 XC7Z020
User can select next boot modes according EPP Technical reference manual and
using BOOT_DEV[2:1] pins:
BOOT_DEV[2:1] = 00000000 ---- JTAG bootJTAG bootJTAG bootJTAG boot (need set JTAG_INDEP to 0)
BOOT_DEV[2:1] = 01010101 ---- NAND bootNAND bootNAND bootNAND boot
BOOT_DEV[2:1] = 10101010 ---- QSPI bootQSPI bootQSPI bootQSPI boot
BOOT_DEV[2:1] = 11111111 ---- SD bootSD bootSD bootSD boot
“1” means connection to 1,8V and “0” means connection to GND.](https://image.slidesharecdn.com/ax-som-xc7z020usermanualen-160329075206/85/Ax-som-xc7z020-user_manual_en-6-320.jpg)
![Full datasheet

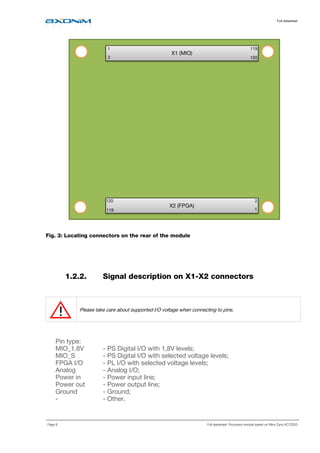

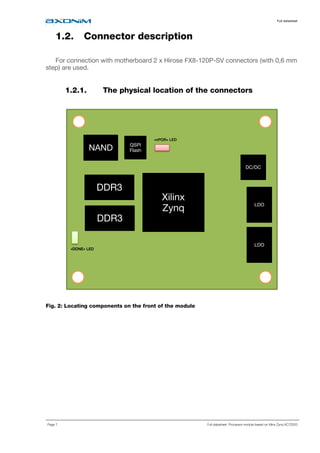

Page 9 Full datasheet: Processor module based on Xilinx Zynq XC7Z020

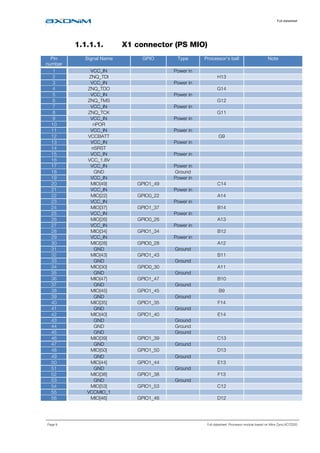

1.1.1.1. X1 connector (PS MIO)
Pin
number
Signal Name GPIO Type Processor’s ball Note
1 VCC_IN Power in
2 ZNQ_TDI H13
3 VCC_IN Power in
4 ZNQ_TDO G14
5 VCC_IN Power in
6 ZNQ_TMS G12
7 VCC_IN Power in
8 ZNQ_TCK G11
9 VCC_IN Power in
10 nPOR
11 VCC_IN Power in
12 VCCBATT G9
13 VCC_IN Power in
14 nSRST
15 VCC_IN Power in
16 VCC_1.8V
17 VCC_IN Power in
18 GND Ground
19 VCC_IN Power in
20 MIO[49] GPIO1_49 C14
21 VCC_IN Power in
22 MIO[22] GPIO0_22 A14
23 VCC_IN Power in
24 MIO[37] GPIO1_37 B14
25 VCC_IN Power in
26 MIO[26] GPIO0_26 A13
27 VCC_IN Power in
28 MIO[34] GPIO1_34 B12
29 VCC_IN Power in
30 MIO[28] GPIO0_28 A12
31 GND Ground
32 MIO[43] GPIO1_43 B11
33 GND Ground
34 MIO[30] GPIO0_30 A11
35 GND Ground
36 MIO[47] GPIO1_47 B10
37 GND Ground
38 MIO[45] GPIO1_45 B9
39 GND Ground
40 MIO[35] GPIO1_35 F14
41 GND Ground
42 MIO[40] GPIO1_40 E14
43 GND Ground
44 GND Ground
45 GND Ground
46 MIO[39] GPIO1_39 C13
47 GND Ground
48 MIO[50] GPIO1_50 D13
49 GND Ground
50 MIO[44] GPIO1_44 E13
51 GND Ground
52 MIO[38] GPIO1_38 F13
53 GND Ground
54 MIO[53] GPIO1_53 C12
55 VCCMIO_1
56 MIO[46] GPIO1_46 D12](https://image.slidesharecdn.com/ax-som-xc7z020usermanualen-160329075206/85/Ax-som-xc7z020-user_manual_en-9-320.jpg)
![Full datasheet
Page 10 Full datasheet: Processor module based on Xilinx Zynq XC7Z020
57 VCCMIO_1
58 MIO[25] GPIO0_25 F12
59 VCCMIO_1
60 MIO[33] GPIO1_33 G13
61 GND Ground
62 MIO[23] GPIO0_23 E11
63 GND Ground
64 MIO[48] GPIO1_48 D11
65 GND Ground
66 MIO[19] GPIO0_19 E10
67 VCCMIO_1_INPUT Power in
68 MIO[21] GPIO0_21 F11
69 VCCMIO_1_INPUT Power in
70 GND Ground
71 VCCMIO_1_INPUT Power in
72 MIO[51] GPIO1_51 C10
73 GND Ground
74 MIO[52] GPIO1_52 D10
75 GND Ground
76 MIO[31] GPIO0_31 F9
77 GND Ground
78 MIO[27] GPIO0_27 D7
79 GND Ground
80 MIO[32] GPIO1_32 C7
81 GND Ground
82 MIO[36] GPIO1_36 A9
83 GND Ground
84 MIO[17] GPIO0_17 E9
85 GND Ground
86 MIO[41] GPIO1_41 C8
87 GND Ground
88 MIO[42] GPIO1_42 D8
89 GND Ground
90 MIO[29] GPIO0_29 E8
91 GND Ground
92 MIO[16] GPIO0_16 D6
93 GND Ground
94 MIO[20] GPIO0_20 A8
95 GND Ground
96 GND Ground
97 GND Ground
98 MIO[24] GPIO0_24 B7
99 GND Ground
100 MIO[18] GPIO0_18 A7
101 GND Ground
102 GND Ground
103 GND Ground
104 MIO_VREF F8
105 GND Ground
106 GND Ground
107 GND Ground
108 PLL_BYP GPIO0_6 Connected via 20kOm to
A4 ball of Zynq EPP
109 GND Ground
110 JTAG_INDEP GPIO0_2 Connected via 20kOm to
A2 ball of Zynq EPP
111 GND Ground
112 BOOT_DEV[2] GPIO0_5 Connected via 20kOm to
A3 ball of Zynq EPP
113 GND Ground
114 BOOT_DEV[1] GPIO0_4 Connected via 20kOm to
E4 ball of Zynq EPP
115 GND Ground](https://image.slidesharecdn.com/ax-som-xc7z020usermanualen-160329075206/85/Ax-som-xc7z020-user_manual_en-10-320.jpg)

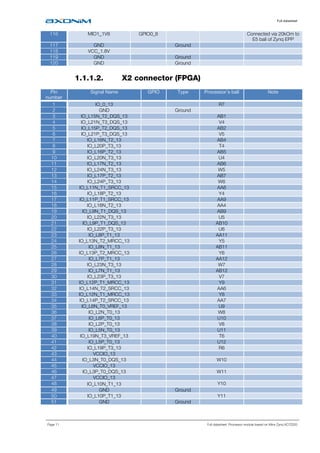

![Full datasheet

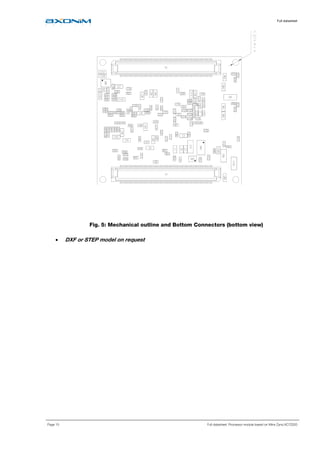

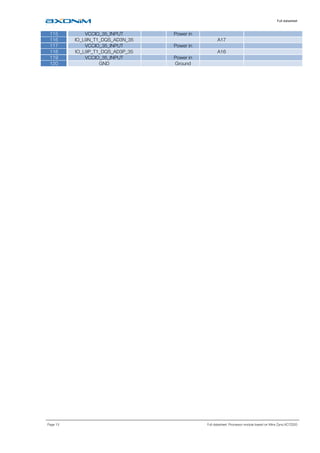

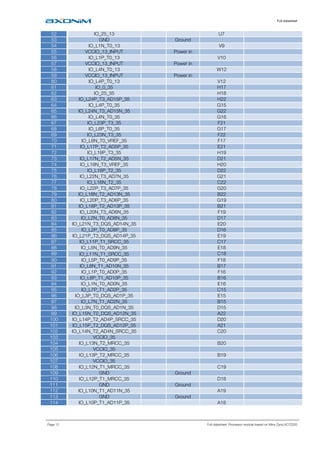

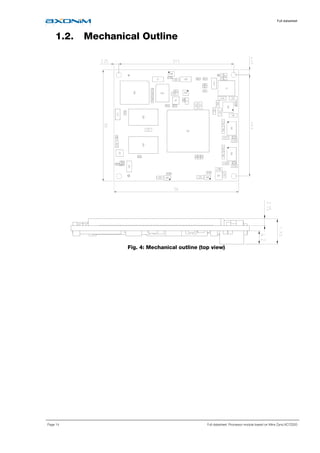

Page 16 Full datasheet: Processor module based on Xilinx Zynq XC7Z020

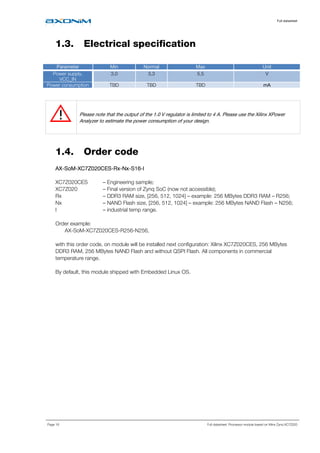

1.3. Electrical specification
Parameter Min Normal Max Unit
Power supply,
VCC_IN
3,0 3,3 5,5 V
Power consumption TBD TBD TBD mA
Please note that the output of the 1.0 V regulator is limited to 4 A. Please use the Xilinx XPower
Analyzer to estimate the power consumption of your design.
1.4. Order code
AXAXAXAX----SoMSoMSoMSoM----XC7Z020CESXC7Z020CESXC7Z020CESXC7Z020CES----RxRxRxRx----NxNxNxNx----SSSS16161616----IIII
XC7Z020CES – Engineering sample;
XC7Z020 – Final version of Zynq SoC (now not accessible);
Rx – DDR3 RAM size, [256, 512, 1024] – example: 256 MBytes DDR3 RAM – R256;
Nx – NAND Flash size, [256, 512, 1024] – example: 256 MBytes NAND Flash – N256;
I – industrial temp range.
Order example:
AX-SoM-XC7Z020CES-R256-N256,
with this order code, on module will be installed next configuration: Xilinx XC7Z020CES, 256 MBytes
DDR3 RAM, 256 MBytes NAND Flash and without QSPI Flash. All components in commercial
temperature range.
By default, this module shipped with Embedded Linux OS.](https://image.slidesharecdn.com/ax-som-xc7z020usermanualen-160329075206/85/Ax-som-xc7z020-user_manual_en-16-320.jpg)
