KATHFORD INTERNATTIONAL COLLEGE
BALKUMARI, LALITPUR
WIRELESS ELECTRONIC NOTICE BOARD
USING GSM TECHNOLOGY
Prepared by:
Bishnu lamichhane
Lokendra bdr. Jargha
Saban kumar kc
Sandesh pandit
Guided by:
Bipin Timilsina
AUGUST,2013

2. 2

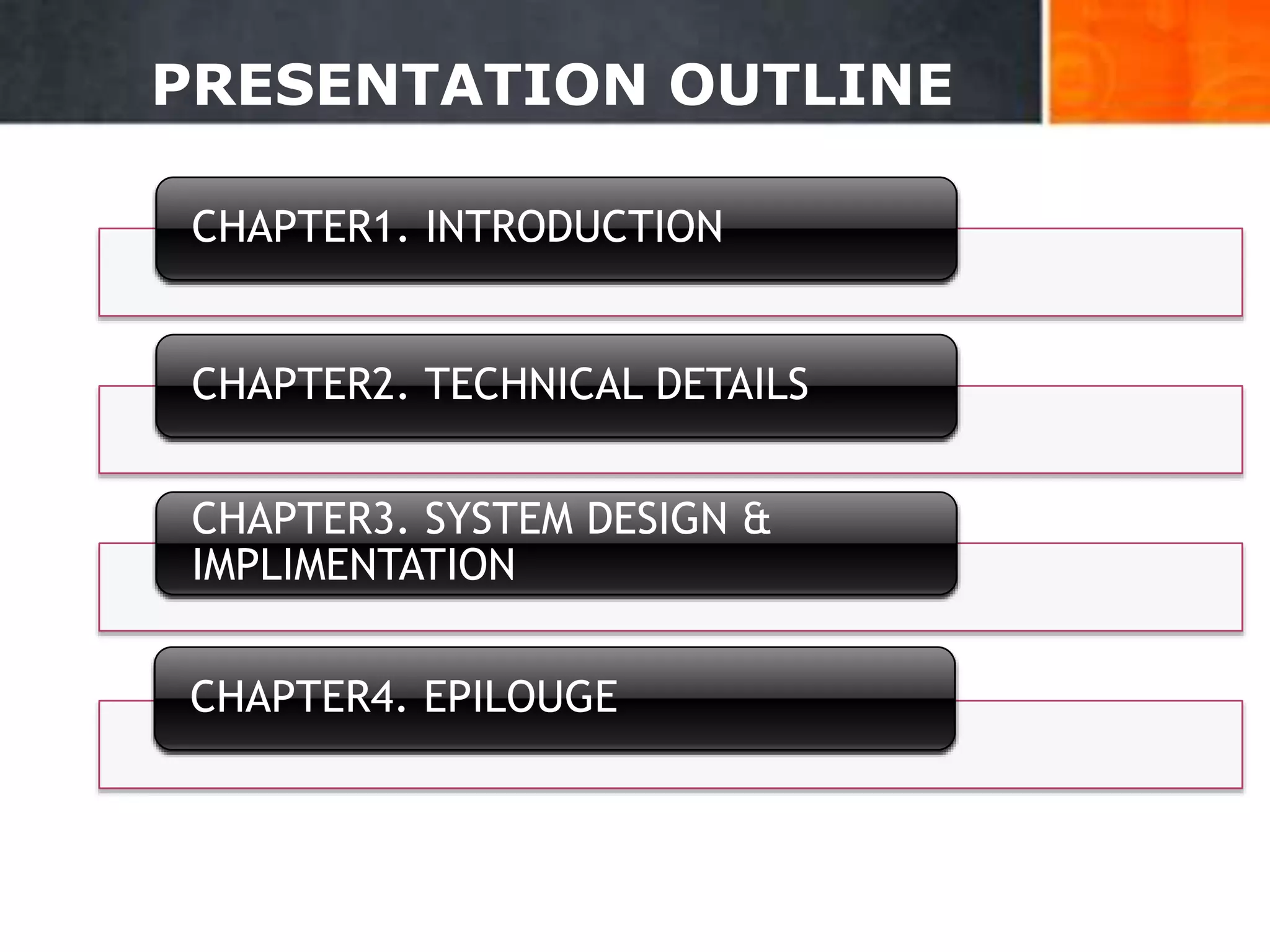

CHAPTER1. INTRODUCTION
CHAPTER2. TECHNICAL DETAILS
CHAPTER3. SYSTEM DESIGN &
IMPLIMENTATION
CHAPTER4. EPILOUGE
PRESENTATION OUTLINE

3. 3

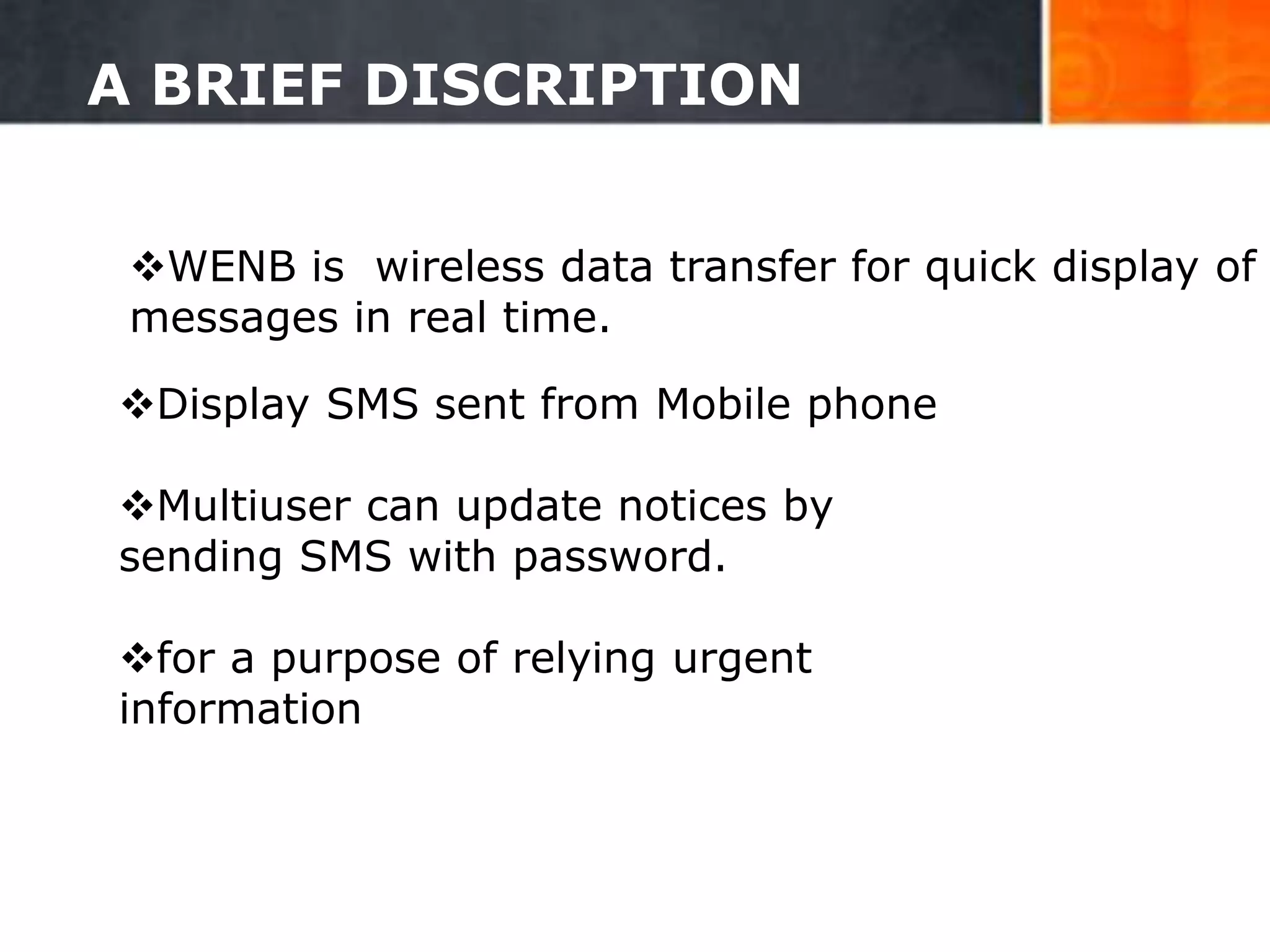

4. A BRIEF DISCRIPTION
WENB is wireless data transfer for quick display of
messages in real time.
Display SMS sent from Mobile phone
Multiuser can update notices by
sending SMS with password.
for a purpose of relying urgent
information
4

5. OBJECTIVES
To display the message on display board
through SMS.
To effectively receive and transmit data via
SMS.
To eliminate the need of being physically
present to hangout the paper notices.
To provide reliable, authenticated ,user
friendly display system.
5

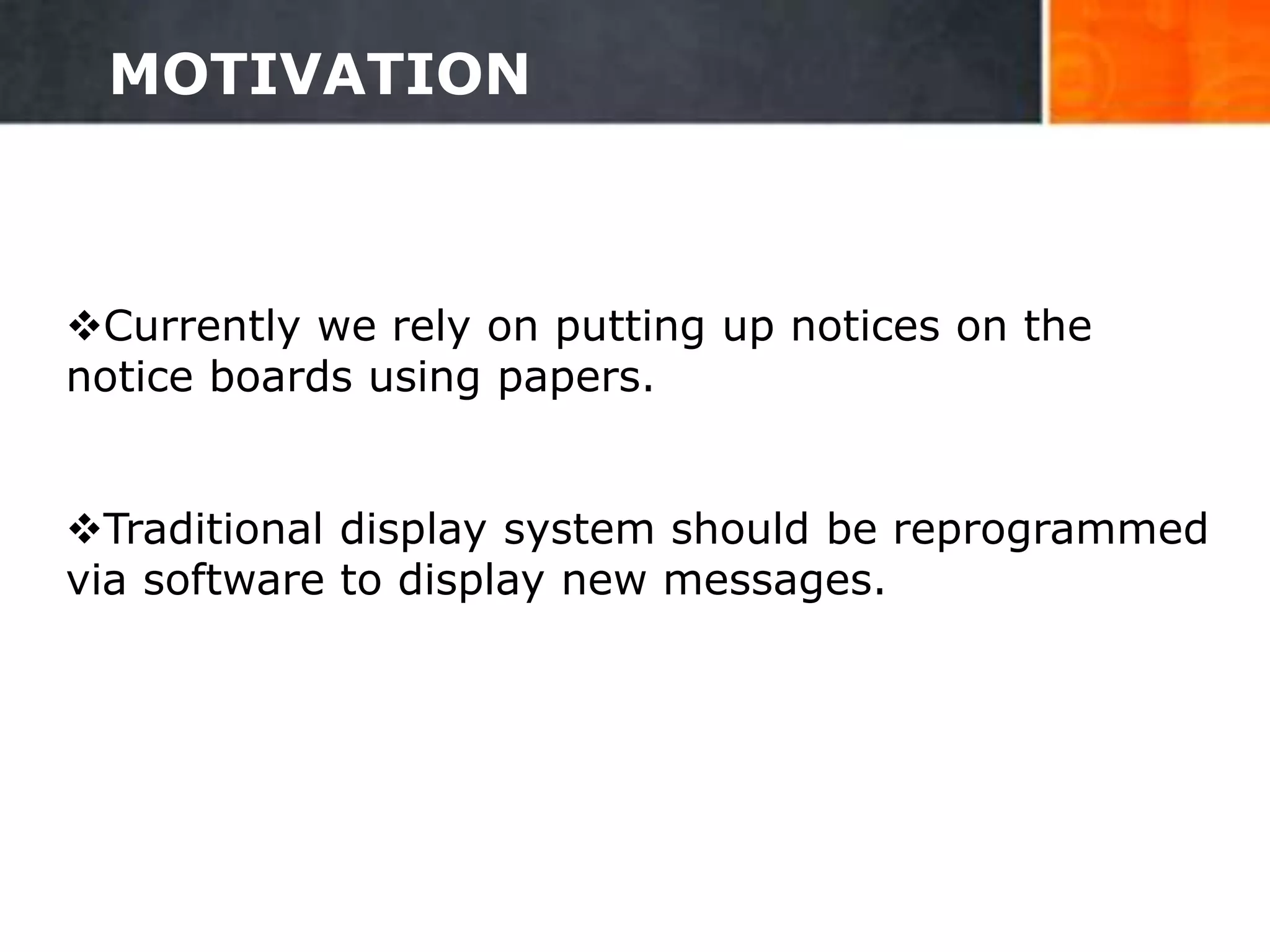

6. MOTIVATION
Currently we rely on putting up notices on the
notice boards using papers.
Traditional display system should be reprogrammed
via software to display new messages.
6

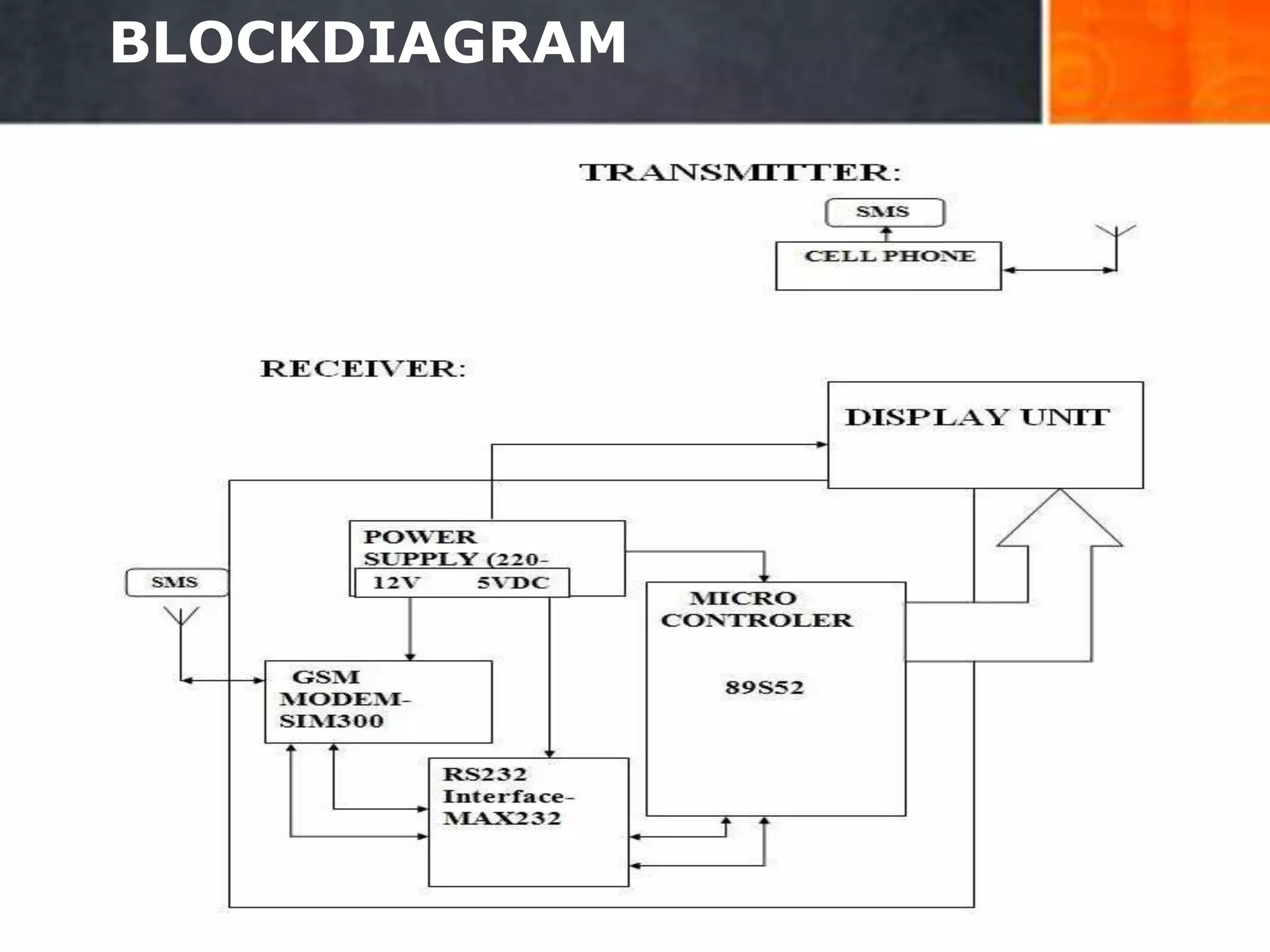

7. BLOCKDIAGRAM
7

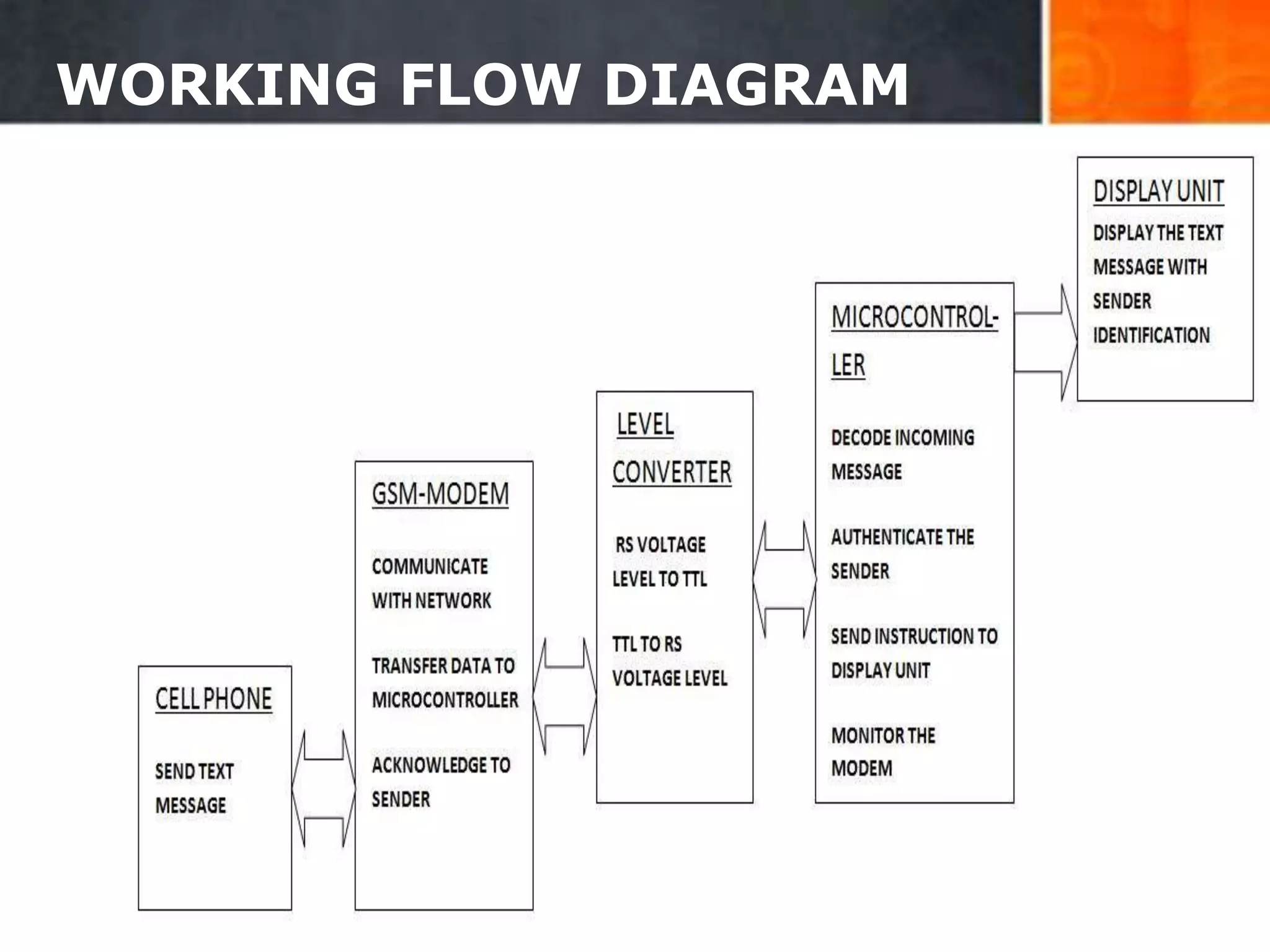

8. WORKING FLOW DIAGRAM
8

9. 9

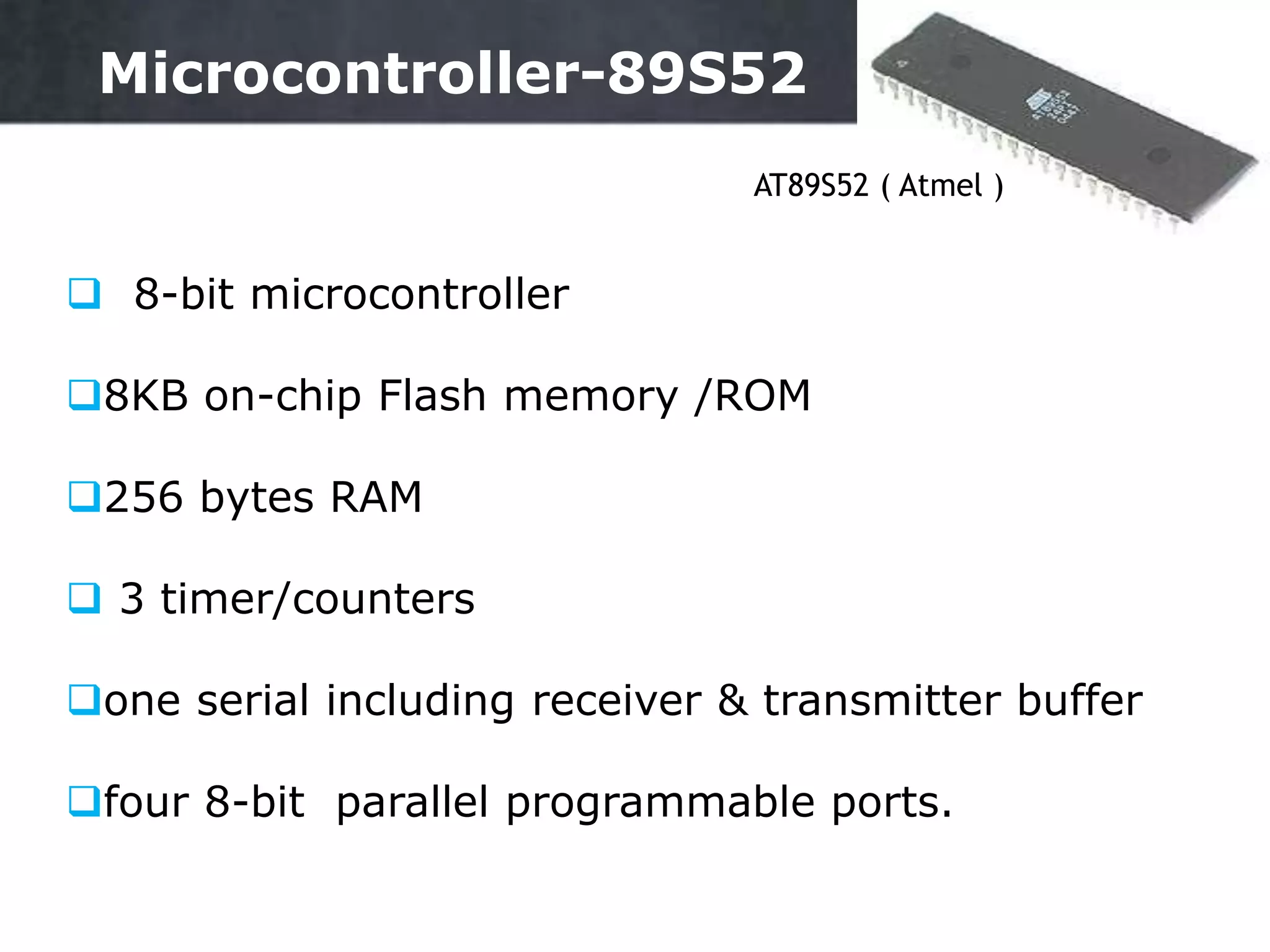

10.  8-bit microcontroller
8KB on-chip Flash memory /ROM
256 bytes RAM
 3 timer/counters
one serial including receiver & transmitter buffer
four 8-bit parallel programmable ports.
AT89S52 ( Atmel )
10
Microcontroller-89S52

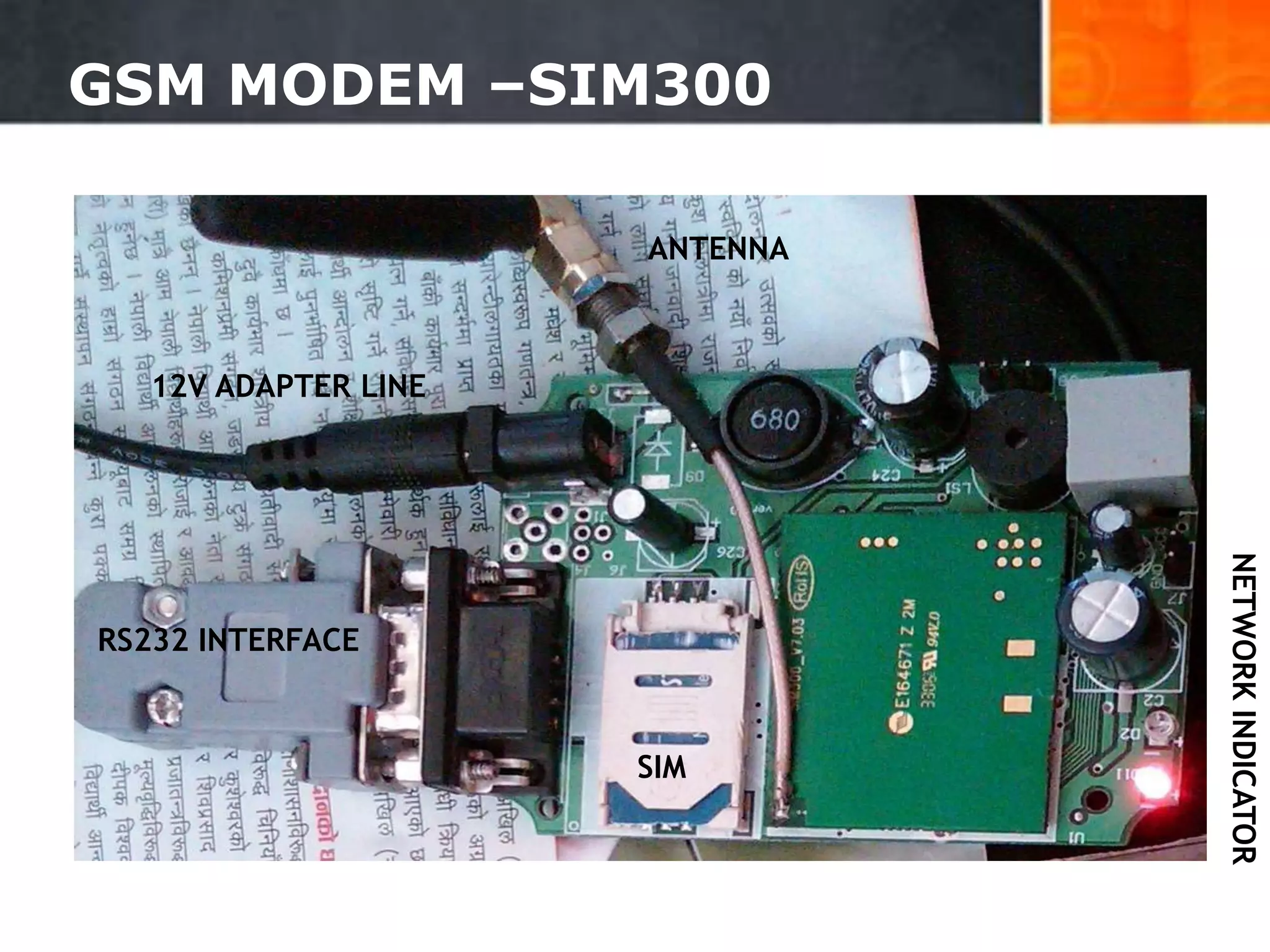

11. GSM MODEM –SIM300
11
12V ADAPTER LINE
ANTENNA
SIM
RS232 INTERFACE
NETWORKINDICATOR

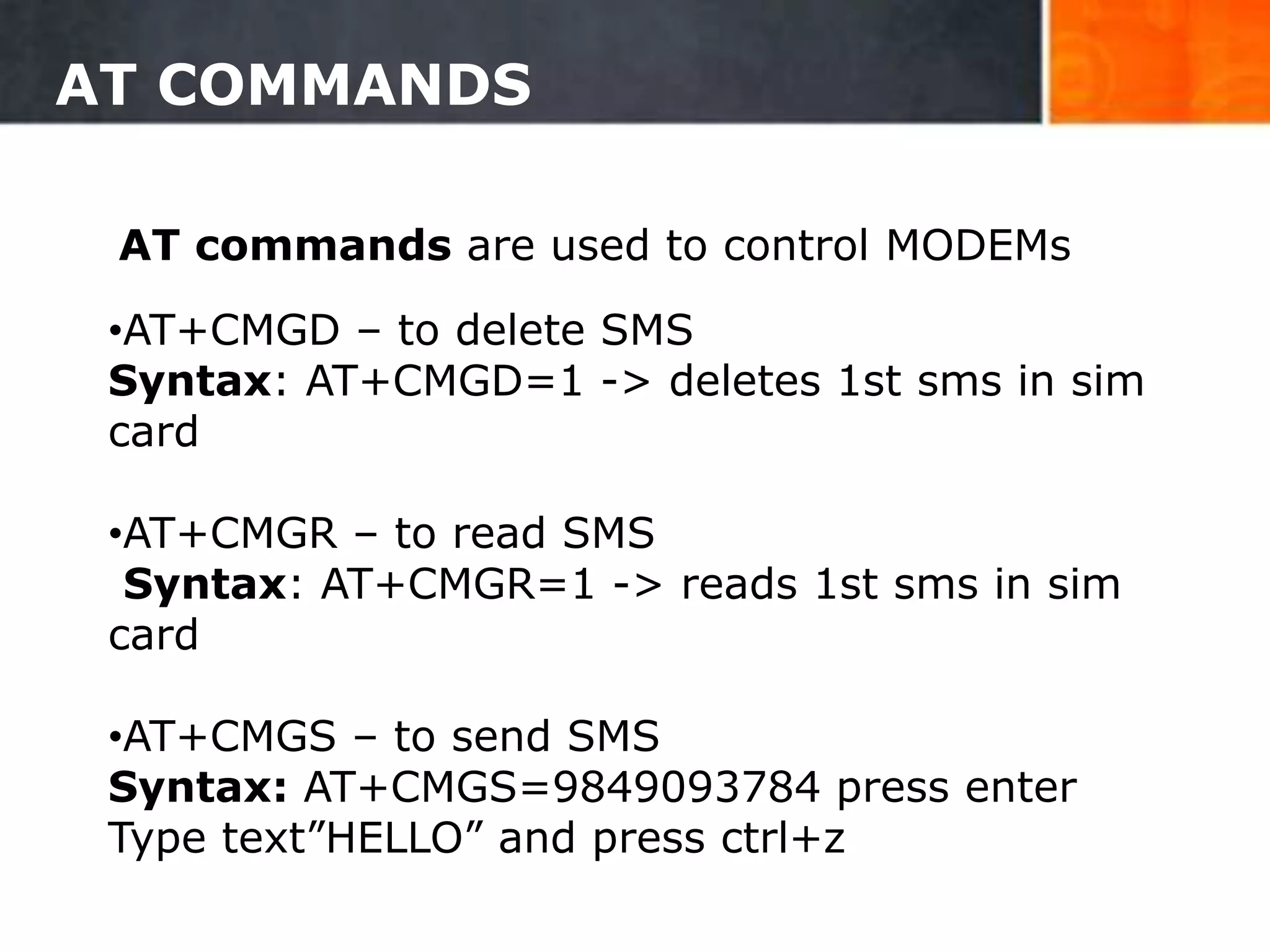

12. AT COMMANDS
12
•AT+CMGD – to delete SMS
Syntax: AT+CMGD=1 -> deletes 1st sms in sim
card
•AT+CMGR – to read SMS
Syntax: AT+CMGR=1 -> reads 1st sms in sim
card
•AT+CMGS – to send SMS
Syntax: AT+CMGS=9849093784 press enter
Type text”HELLO” and press ctrl+z
AT commands are used to control MODEMs

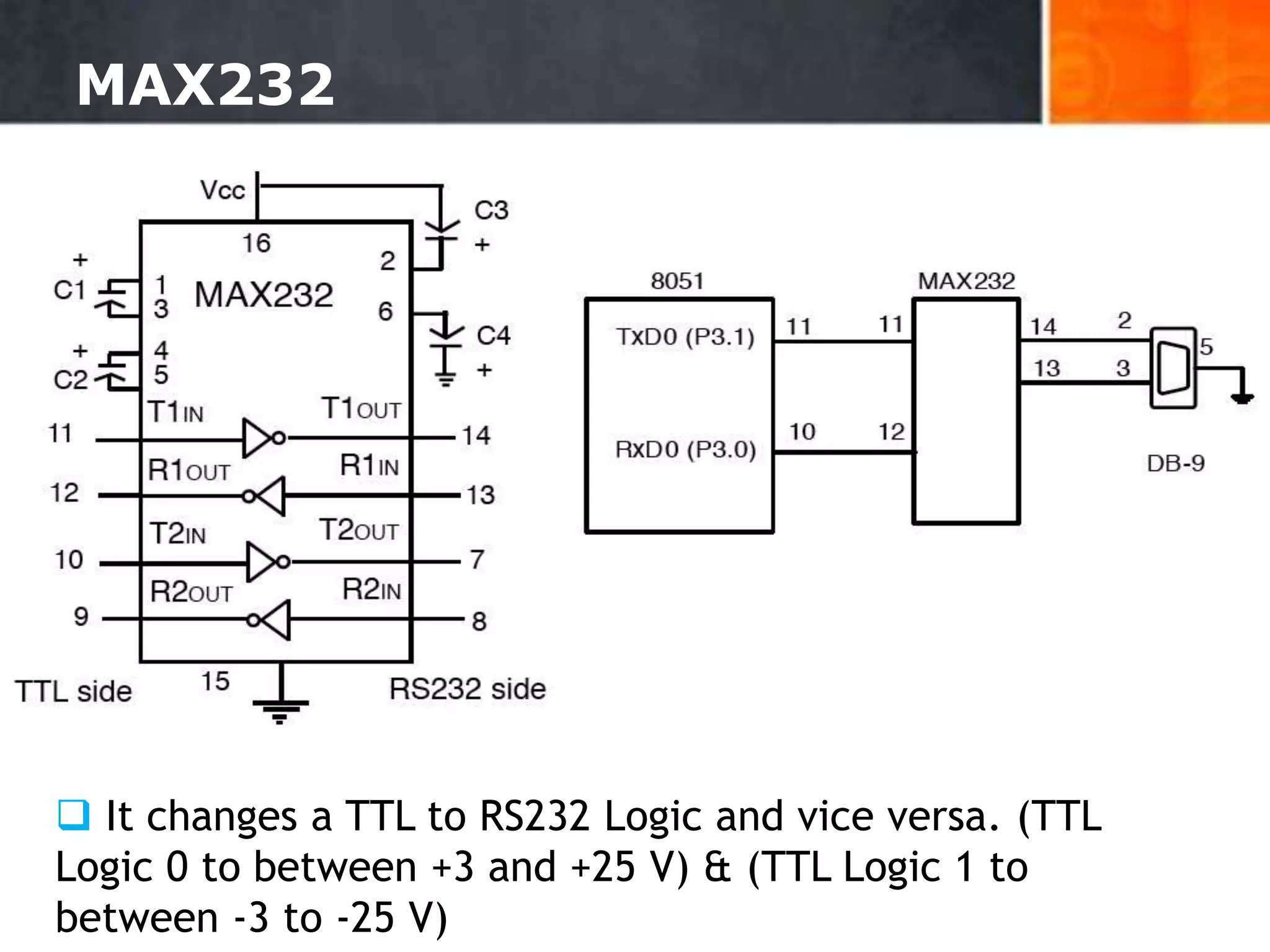

13. MAX232
 It changes a TTL to RS232 Logic and vice versa. (TTL
Logic 0 to between +3 and +25 V) & (TTL Logic 1 to
between -3 to -25 V) 13

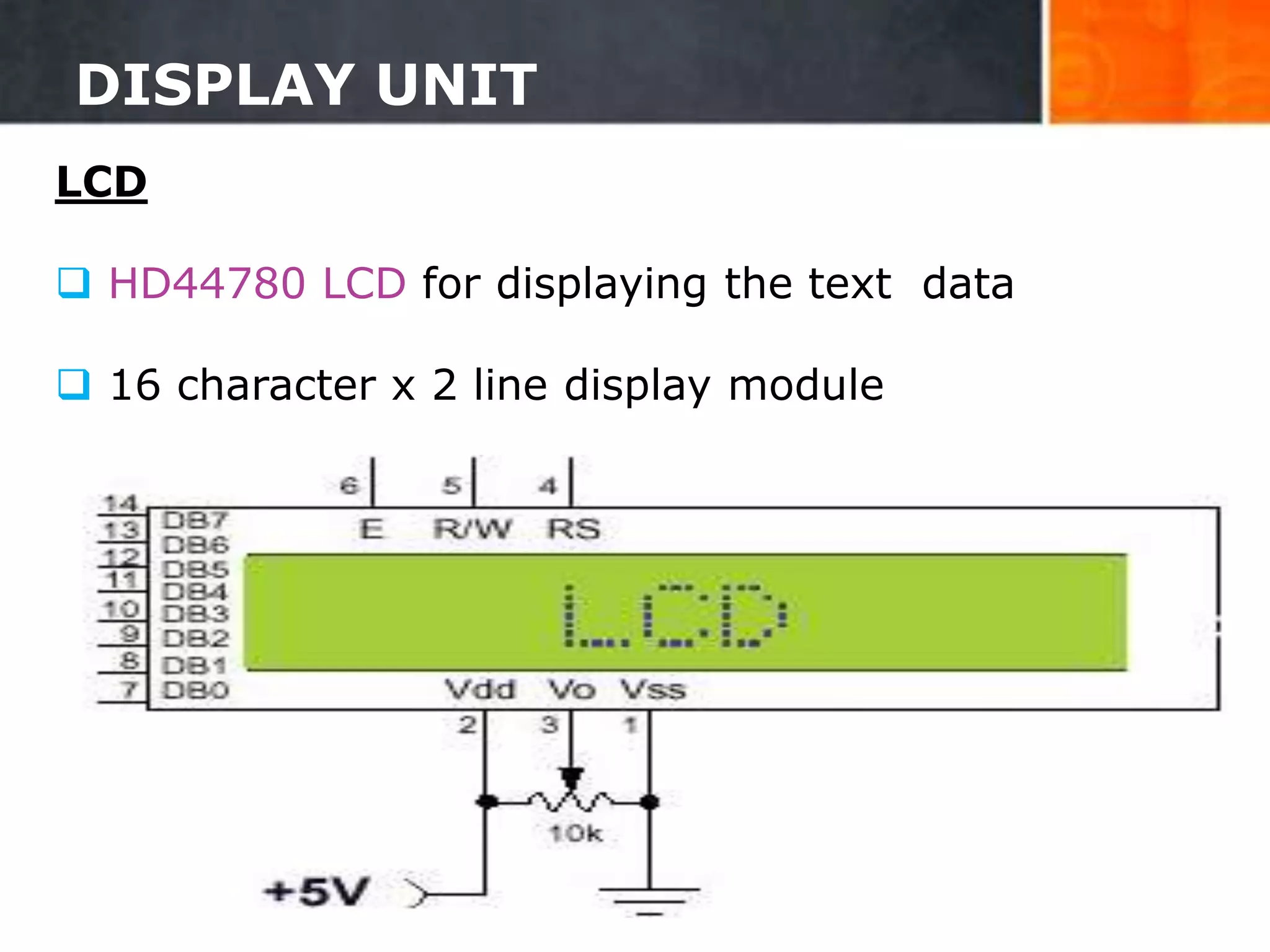

14. DISPLAY UNIT
LCD
 HD44780 LCD for displaying the text data
 16 character x 2 line display module
14

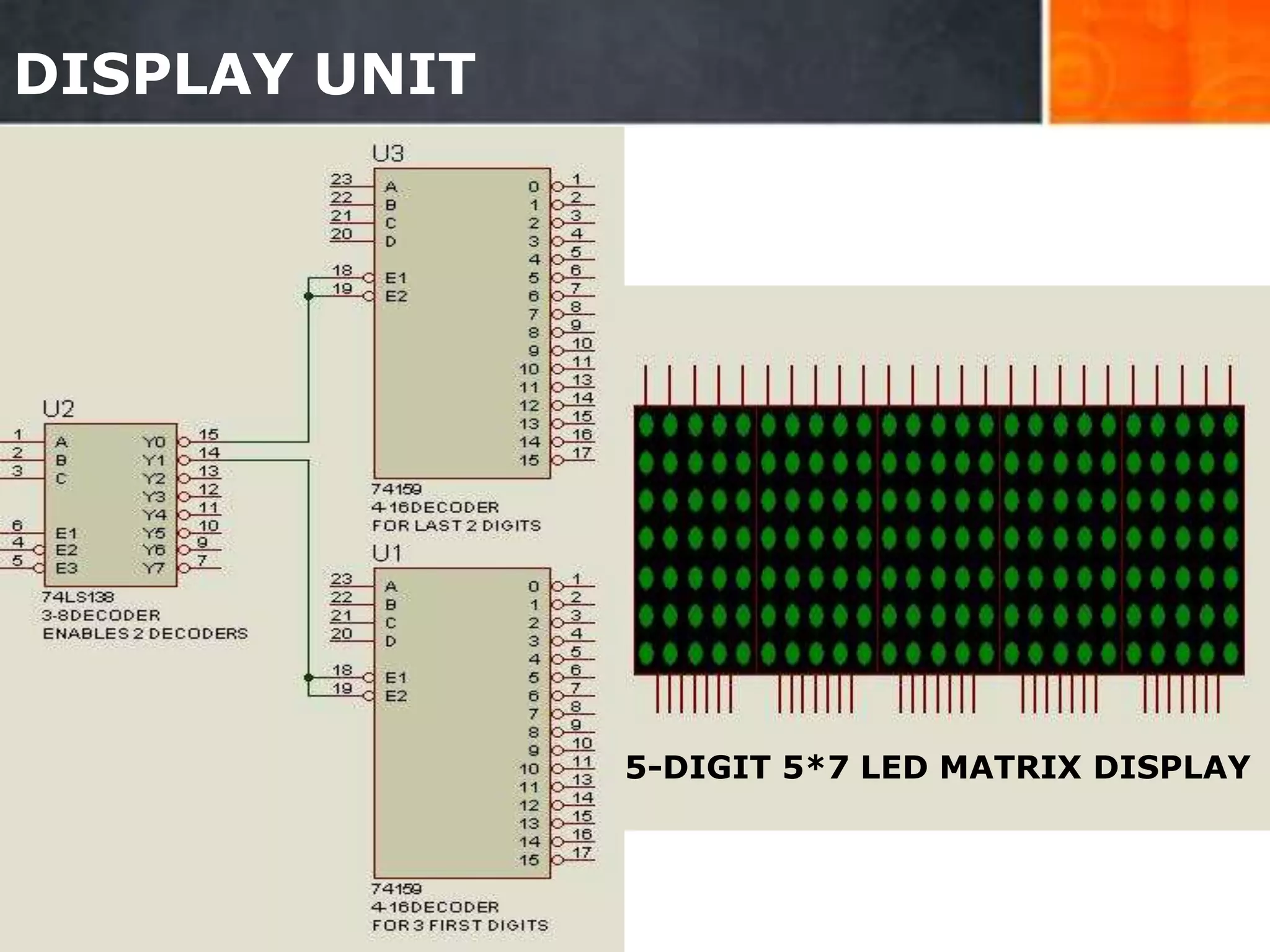

15. DISPLAY UNIT
15
5-DIGIT 5*7 LED MATRIX DISPLAY

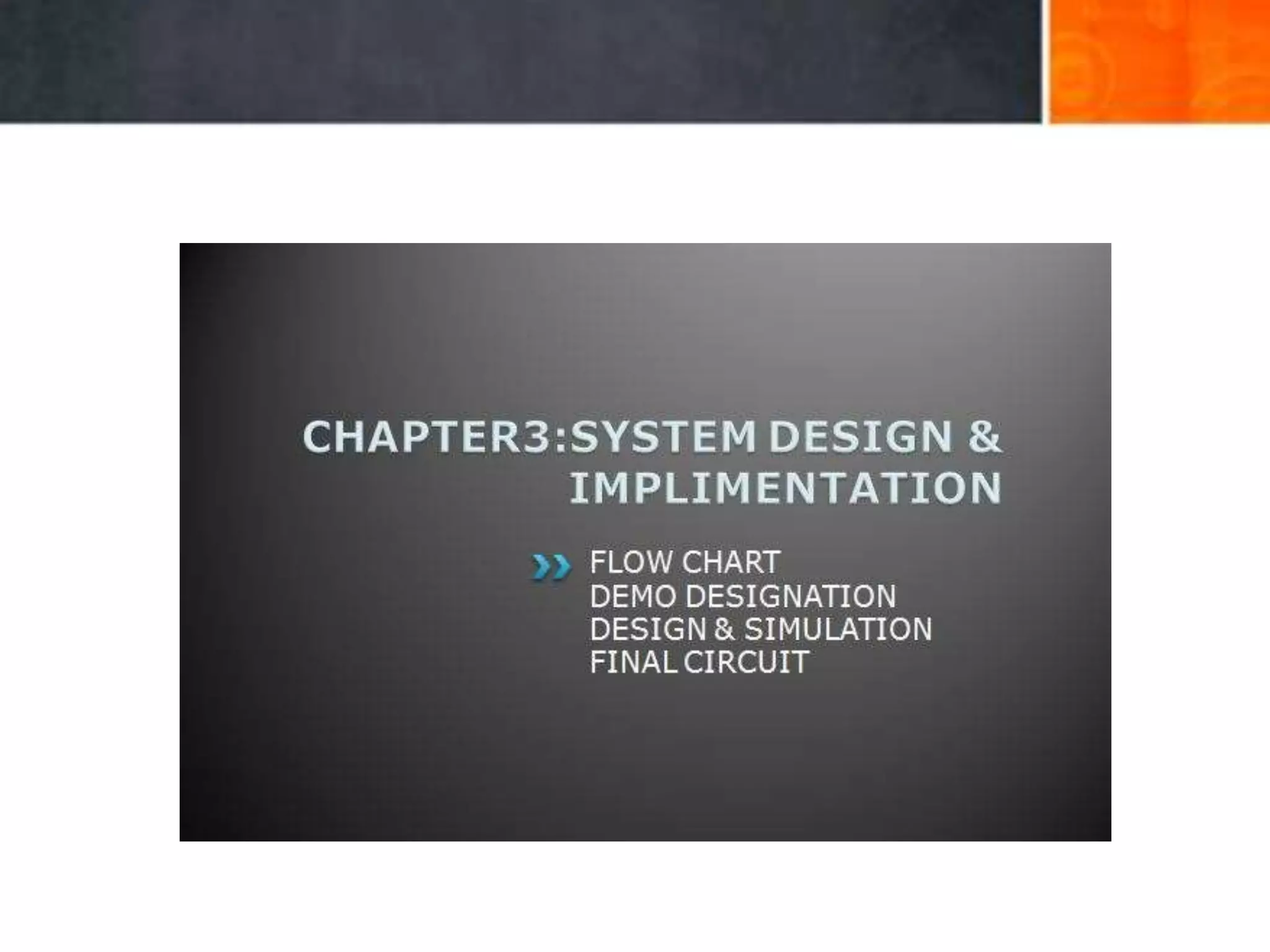

16. 16

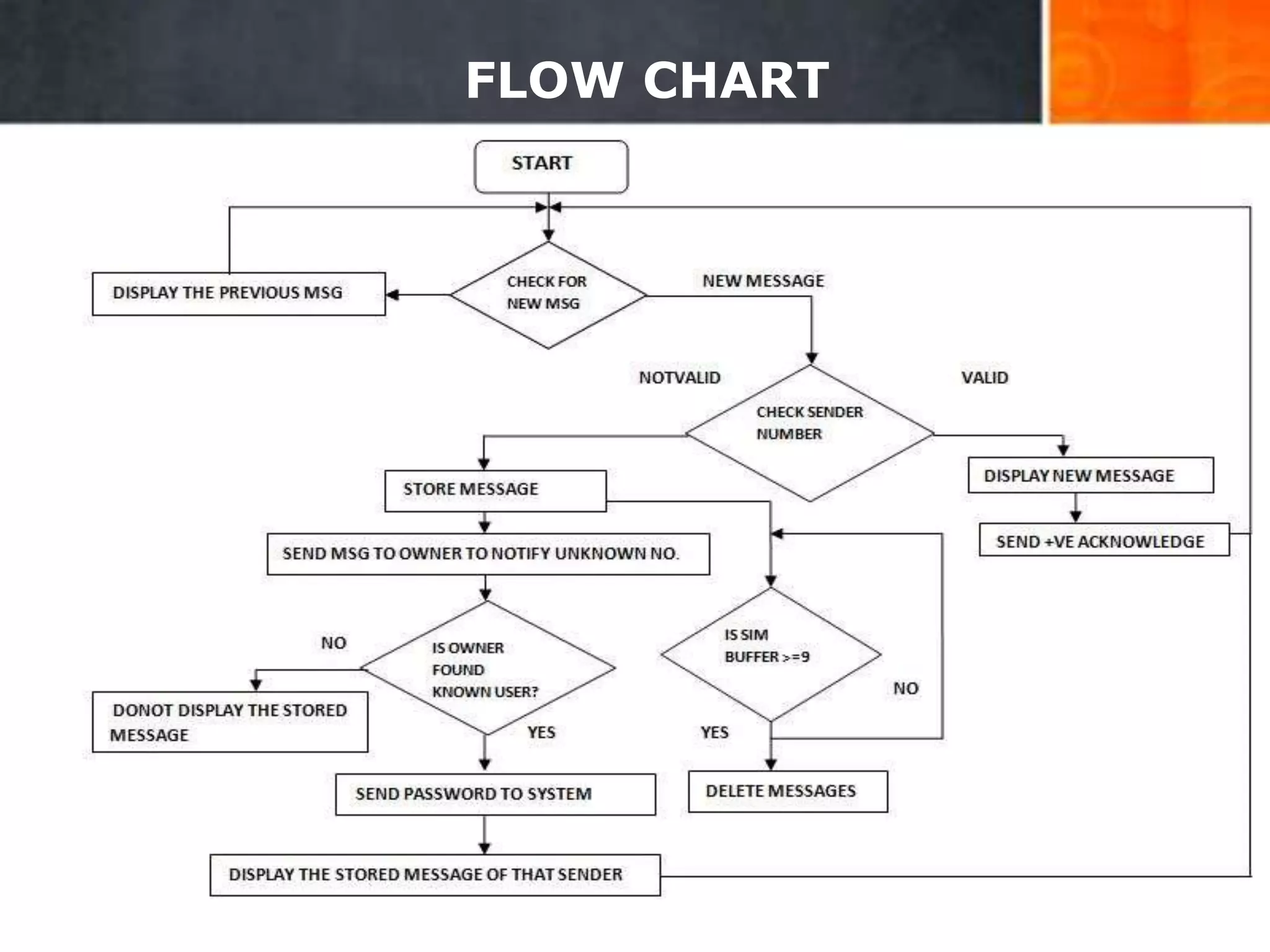

17. FLOW CHART
17

18. 18
ACEDEMIC LEVEL
DEMO DESIGNED
FOR
KATHFORD INTERNATIONAL COLLEGE

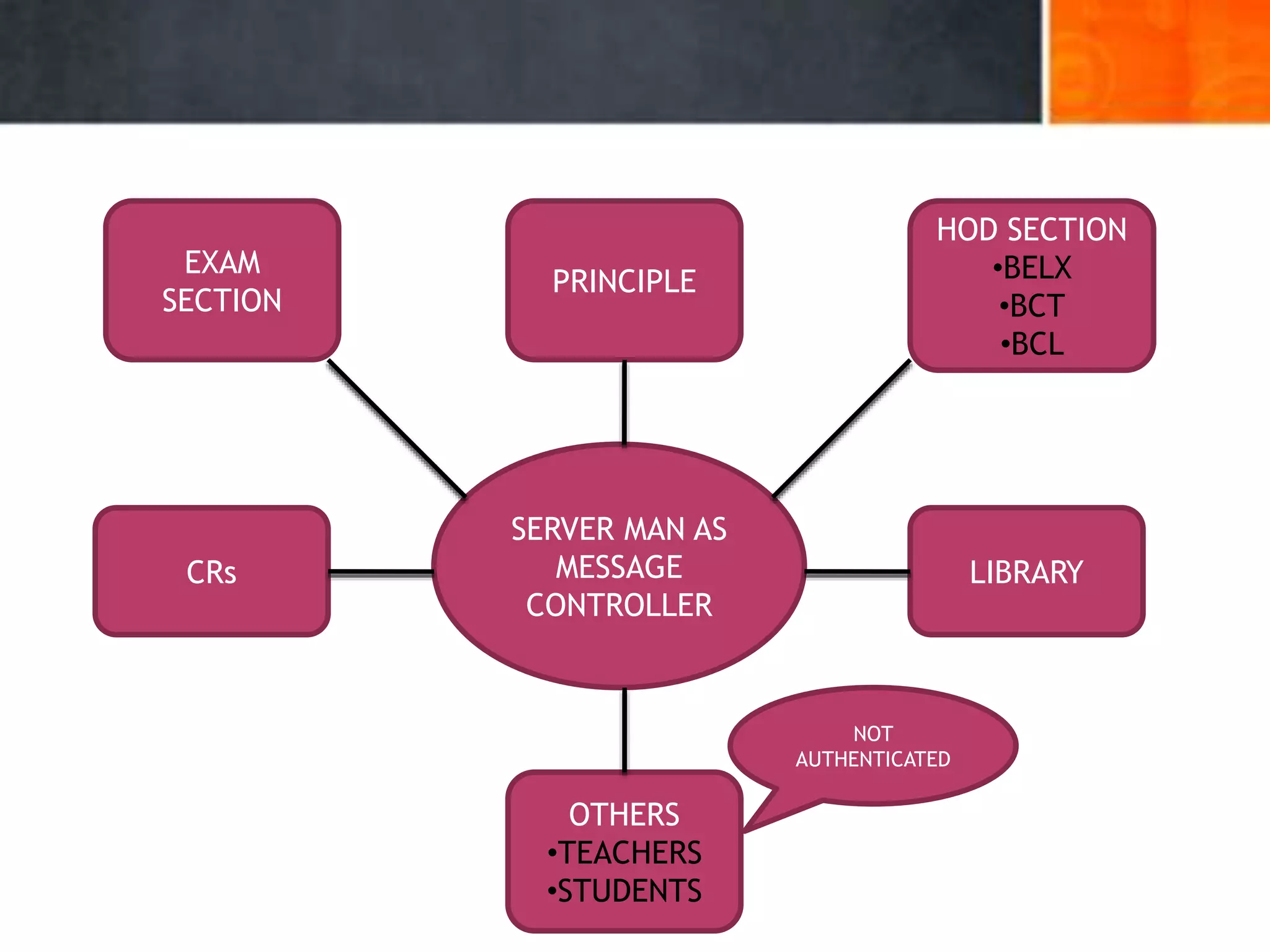

19. 19
SERVER MAN AS
MESSAGE
CONTROLLER
OTHERS
•TEACHERS
•STUDENTS
HOD SECTION
•BELX
•BCT
•BCL
PRINCIPLE
EXAM
SECTION
CRs LIBRARY
NOT
AUTHENTICATED

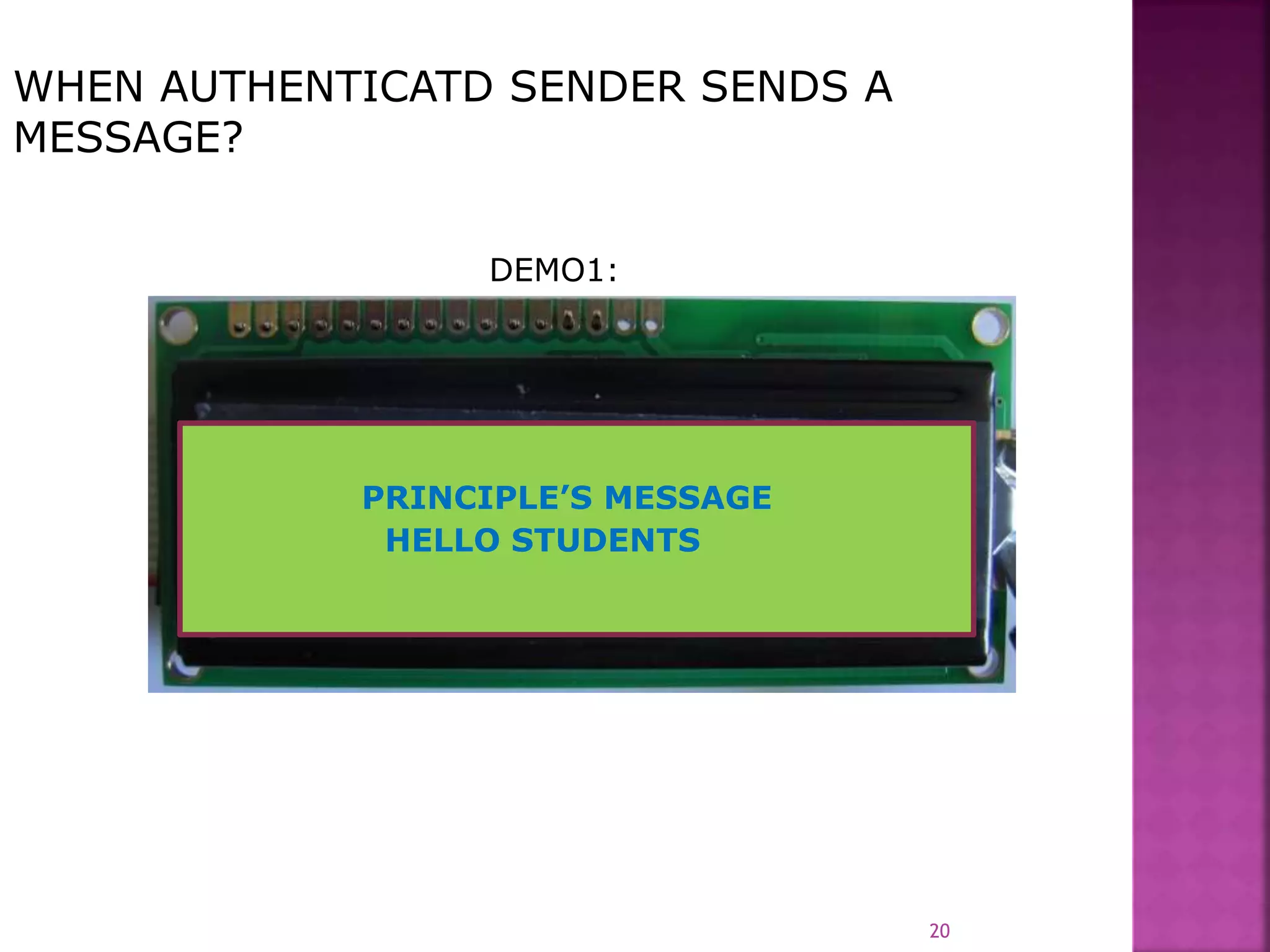

20. PRINCIPLE’S MESSAGE
HELLO STUDENTS
20
WHEN AUTHENTICATD SENDER SENDS A
MESSAGE?
DEMO1:

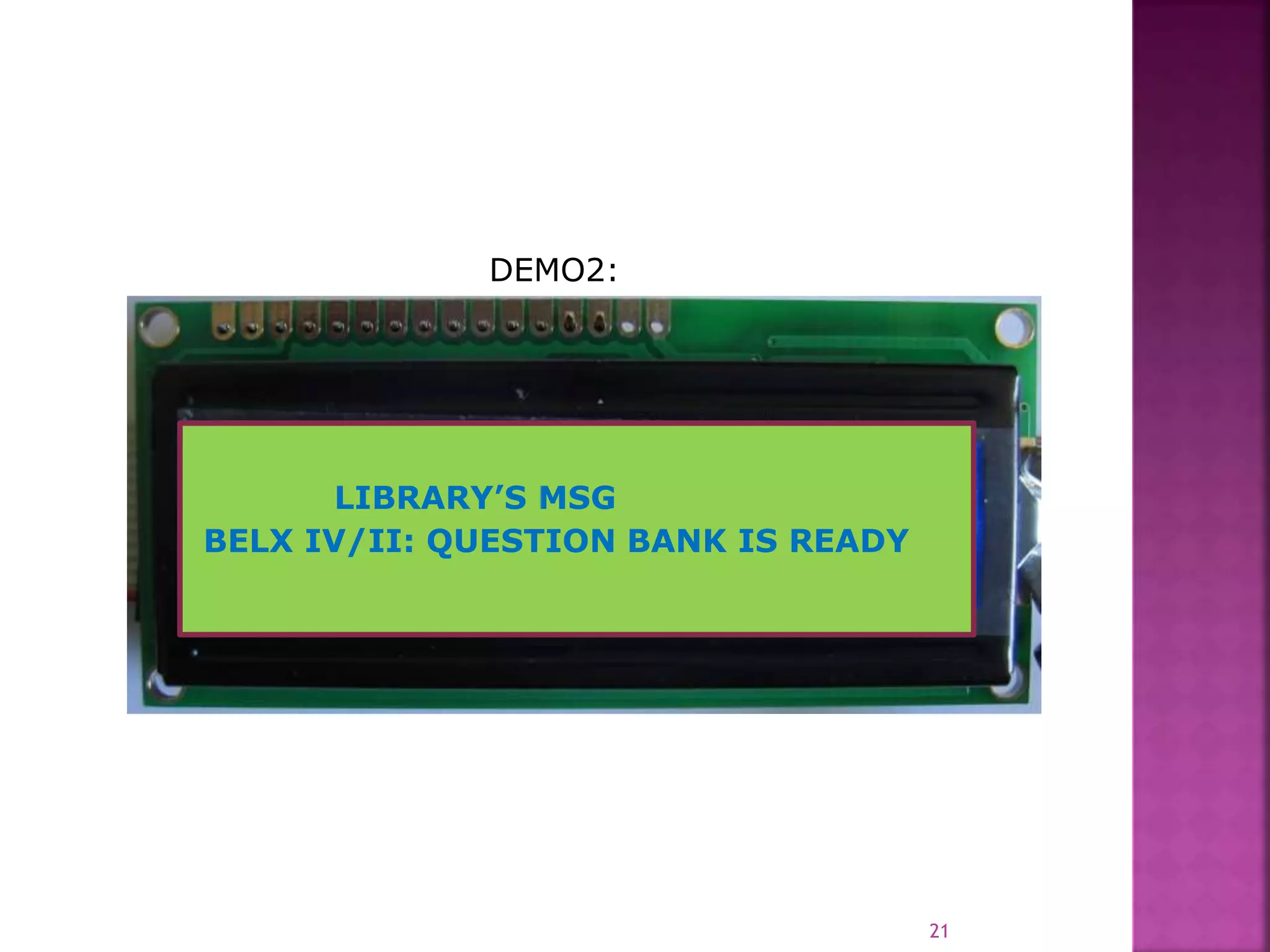

21. LIBRARY’S MSG
BELX IV/II: QUESTION BANK IS READY
21
DEMO2:

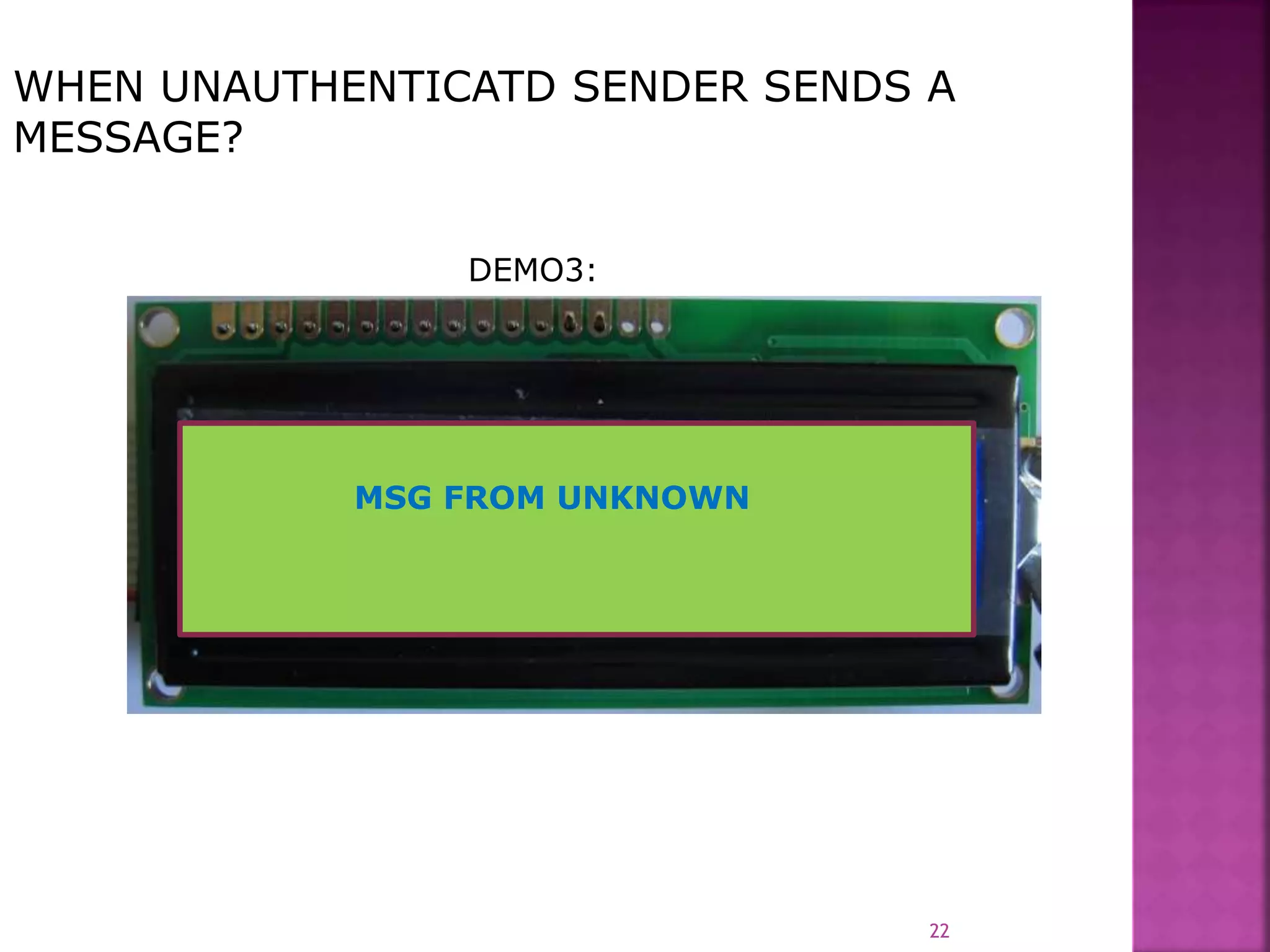

22. MSG FROM UNKNOWN
22
WHEN UNAUTHENTICATD SENDER SENDS A
MESSAGE?
DEMO3:

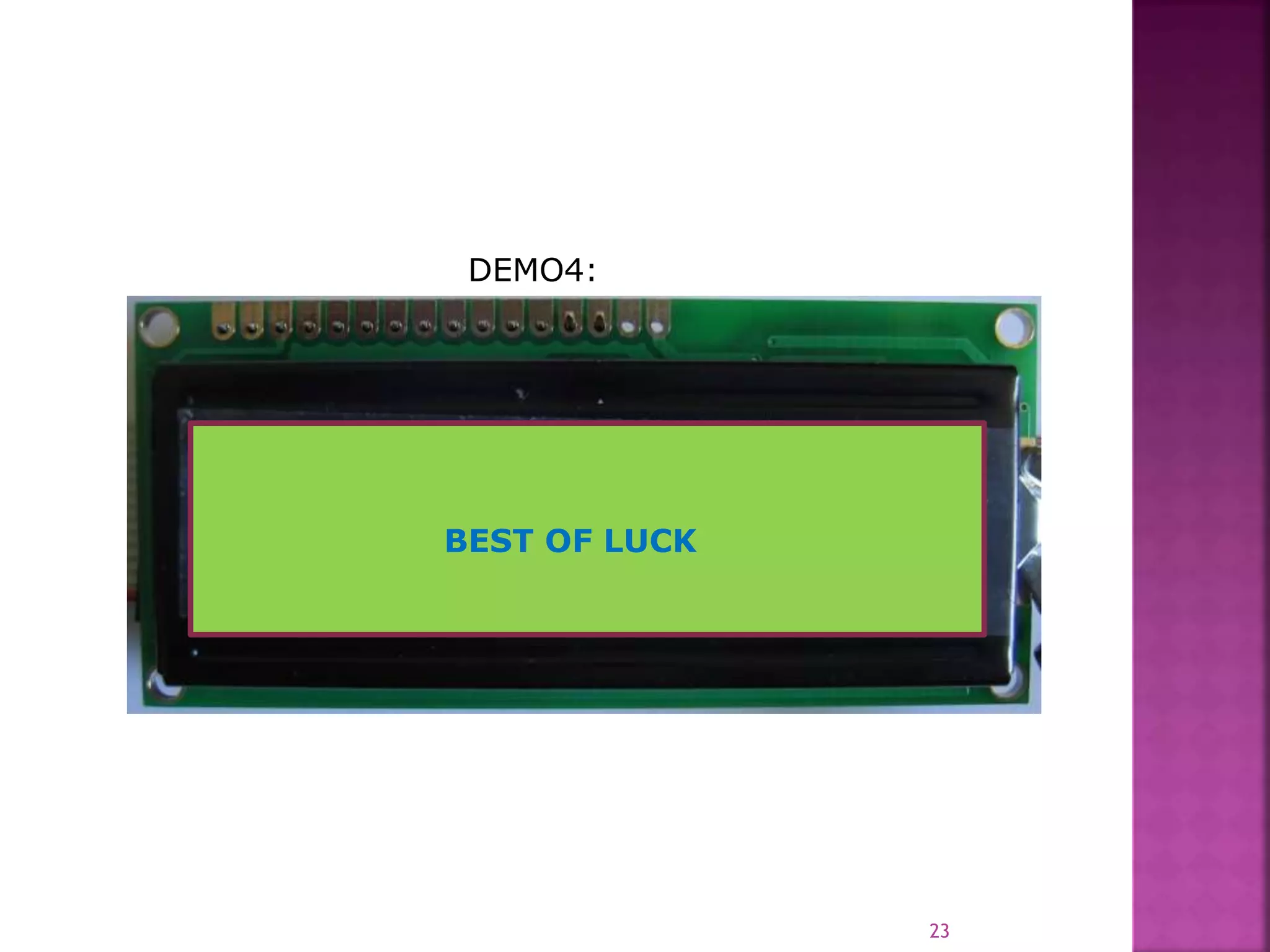

23. BEST OF LUCK
23
DEMO4:

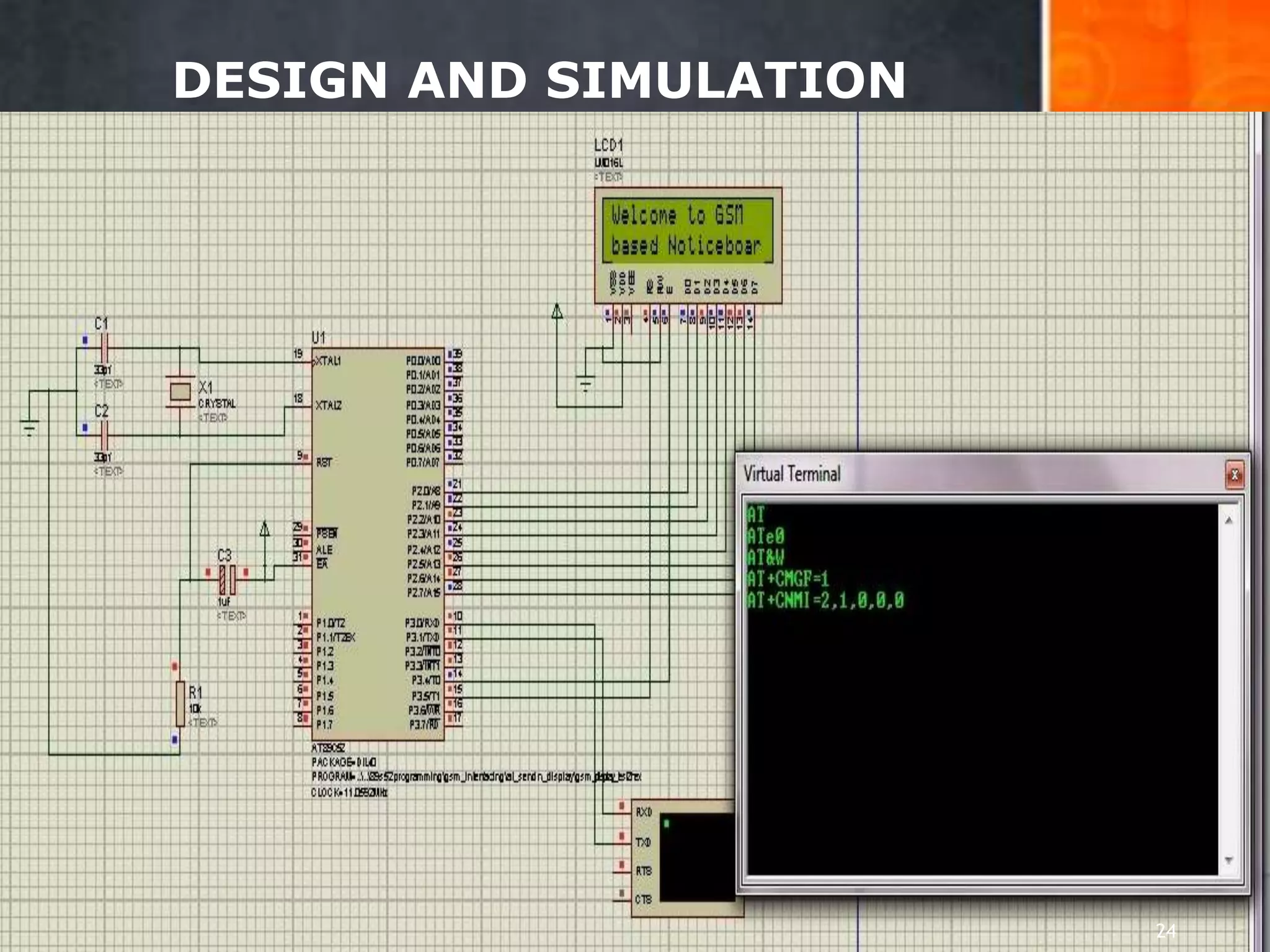

24. DESIGN AND SIMULATION
24

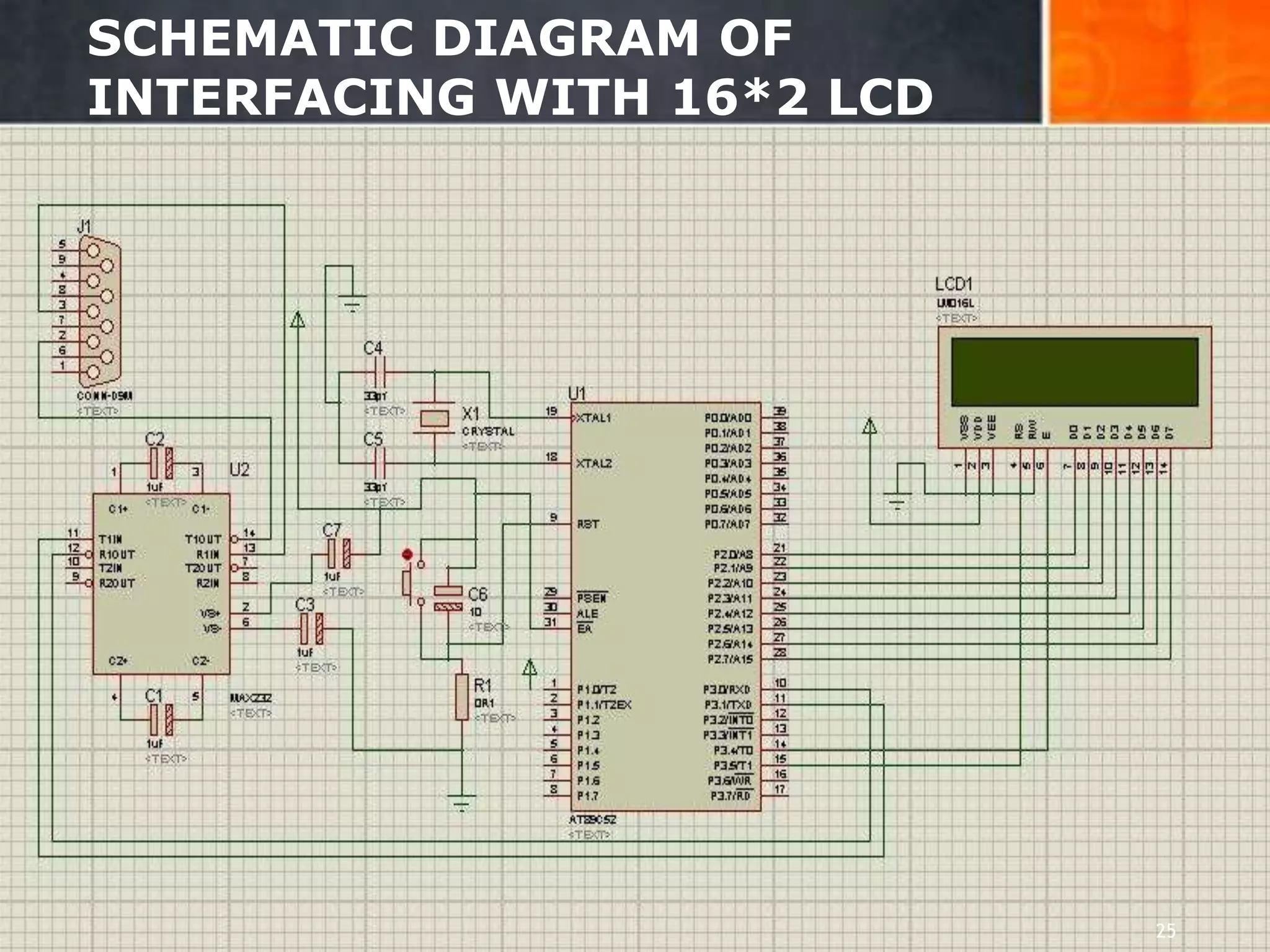

25. SCHEMATIC DIAGRAM OF
INTERFACING WITH 16*2 LCD
LCD
25

26. 26

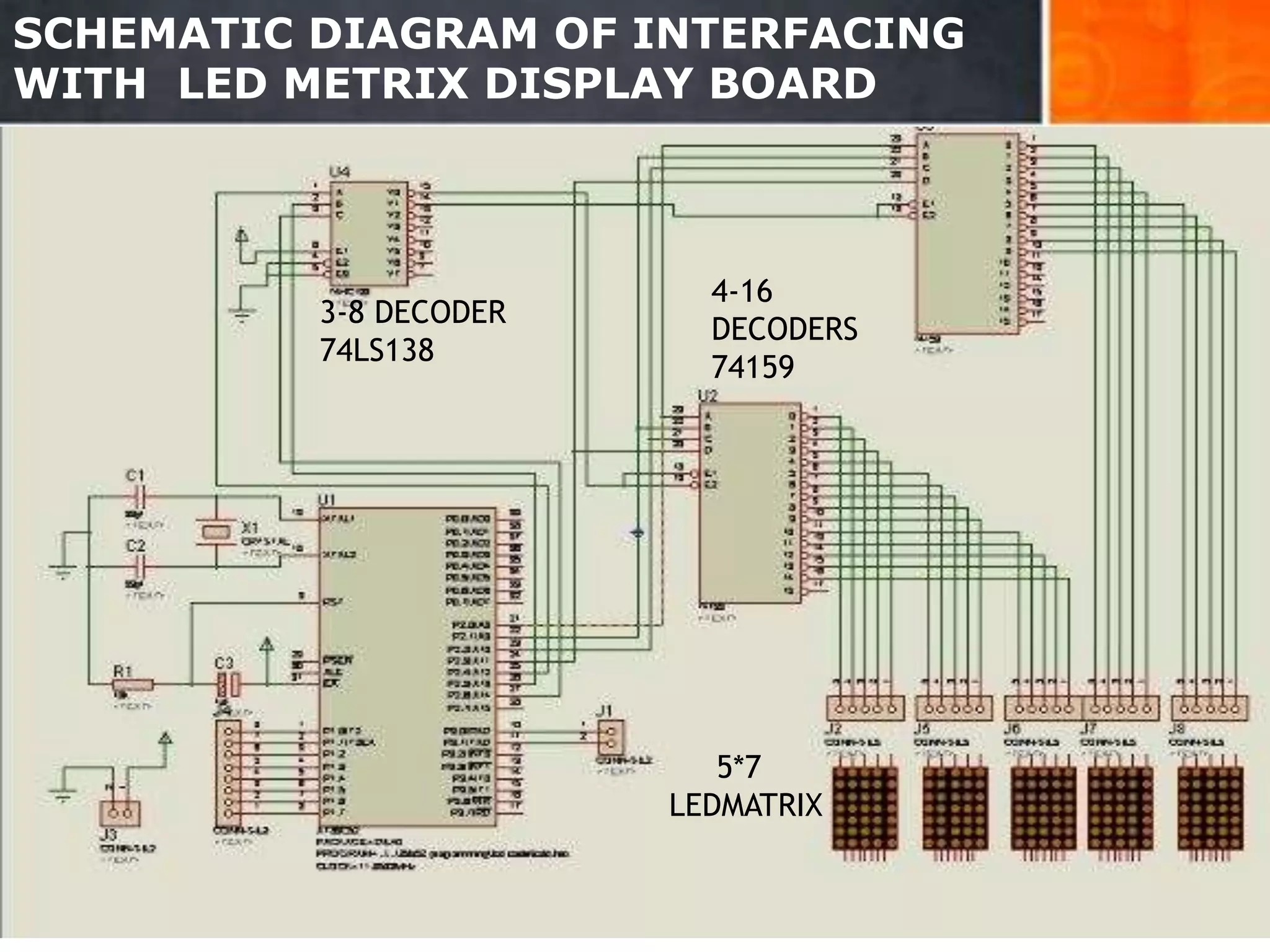

SCHEMATIC DIAGRAM OF INTERFACING
WITH LED METRIX DISPLAY BOARD
3-8 DECODER
74LS138
4-16
DECODERS
74159
5*7
LEDMATRIX

27. Call control :
Data card Control :
27

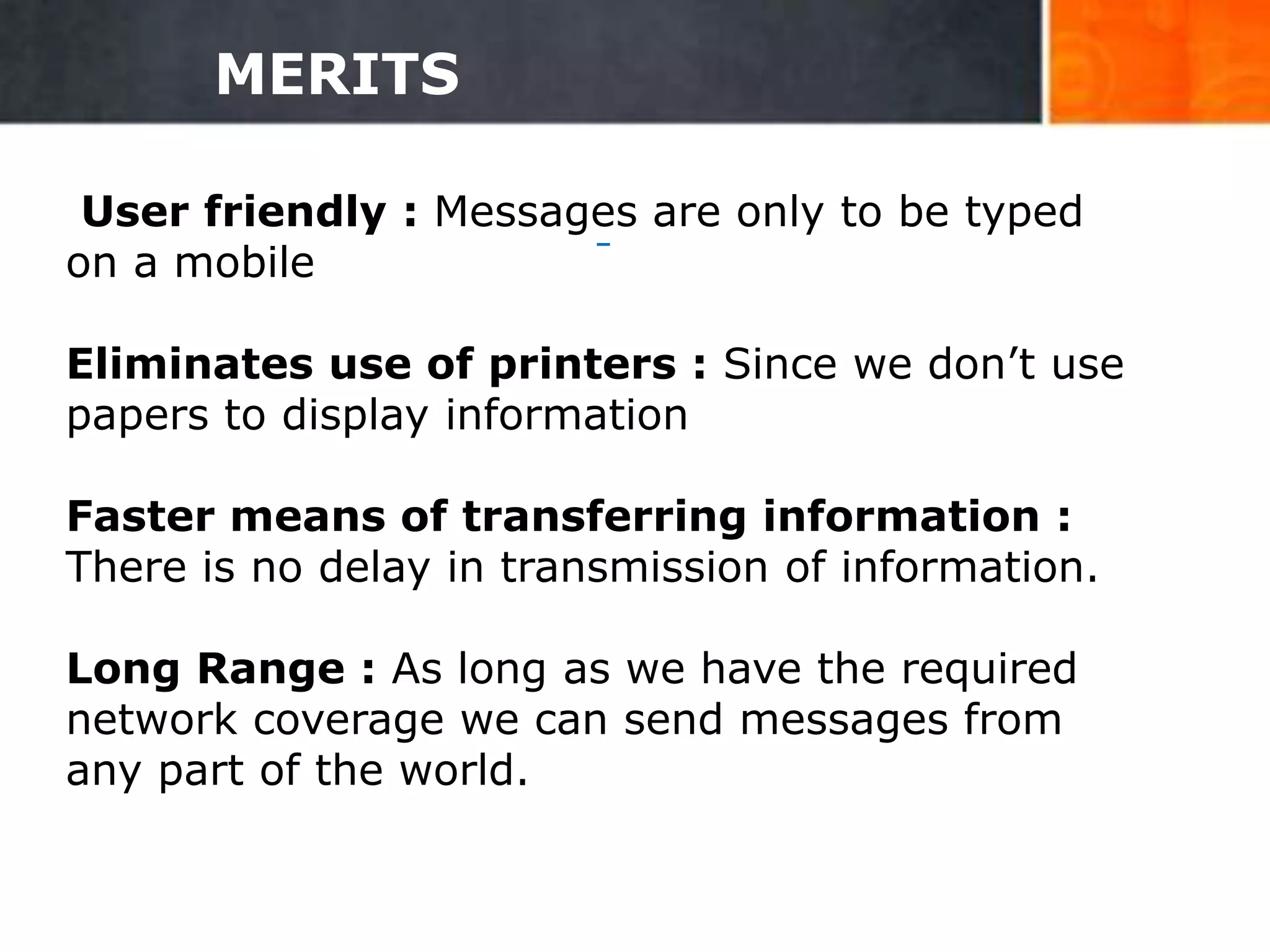

28. MERITS
User friendly : Messages are only to be typed
on a mobile
Eliminates use of printers : Since we don’t use
papers to display information
Faster means of transferring information :
There is no delay in transmission of information.
Long Range : As long as we have the required
network coverage we can send messages from
any part of the world.
28

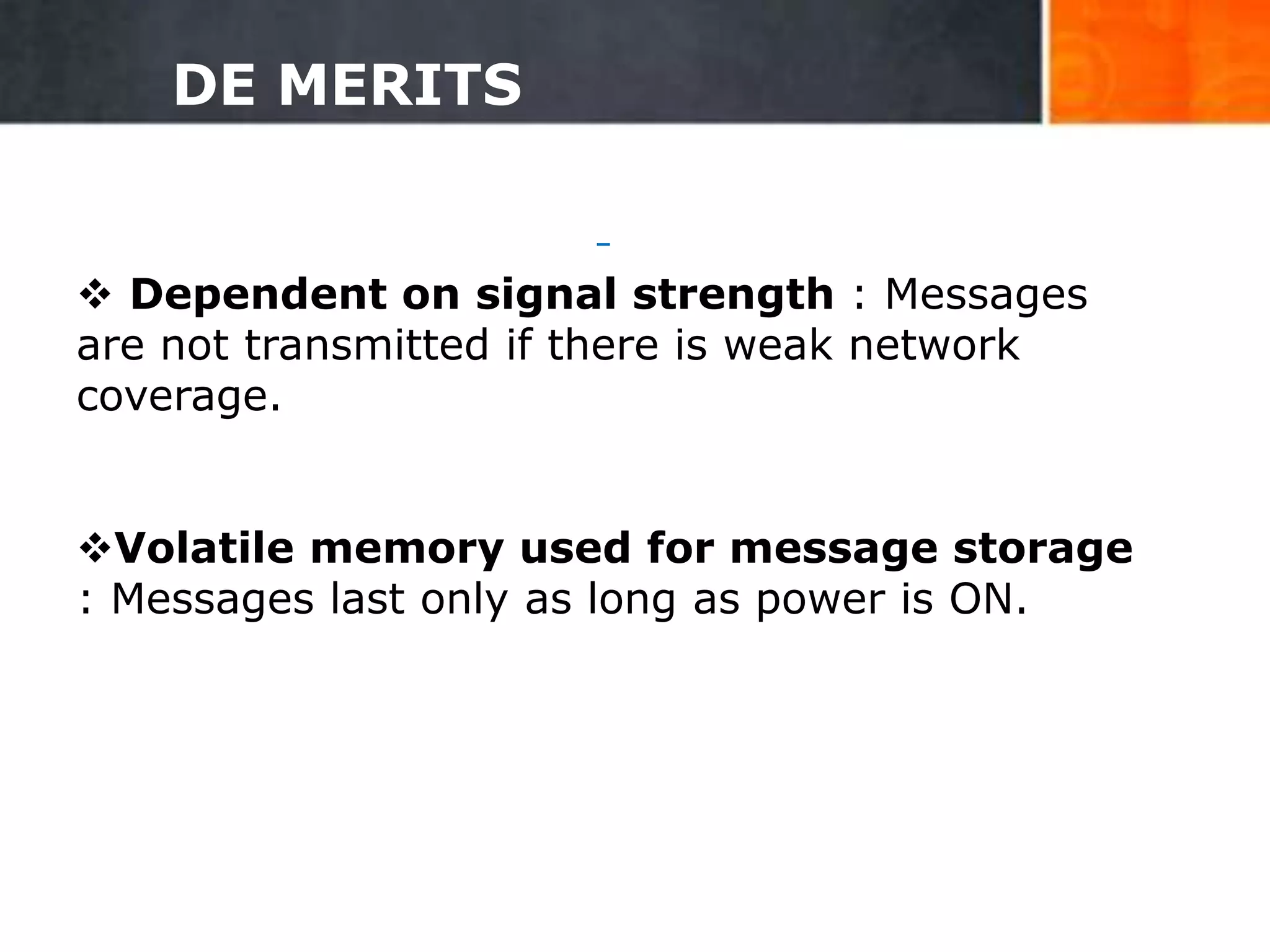

29. DE MERITS
 Dependent on signal strength : Messages
are not transmitted if there is weak network
coverage.
Volatile memory used for message storage
: Messages last only as long as power is ON.
29

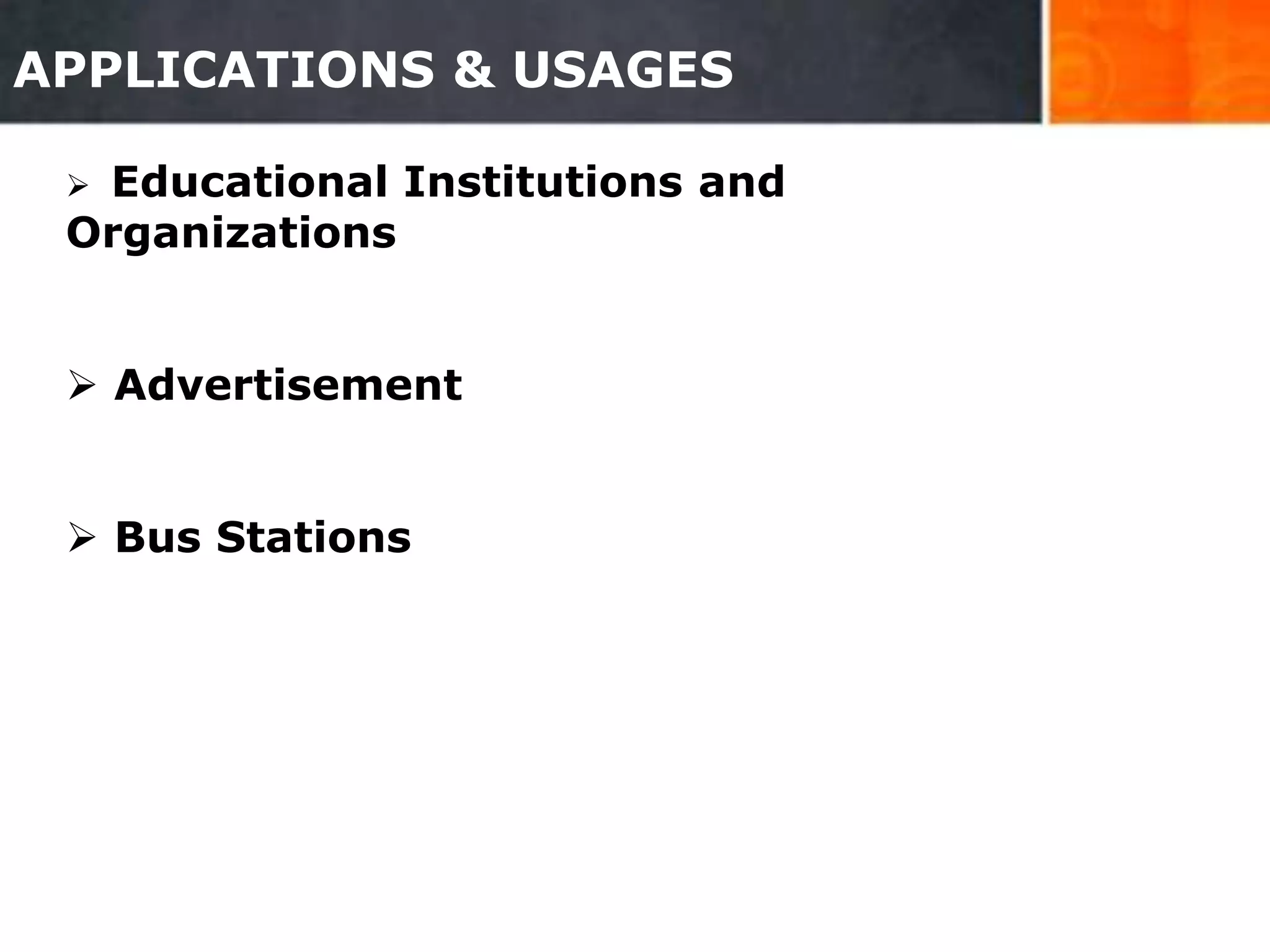

30. APPLICATIONS & USAGES
 Educational Institutions and
Organizations
 Advertisement
 Bus Stations
30

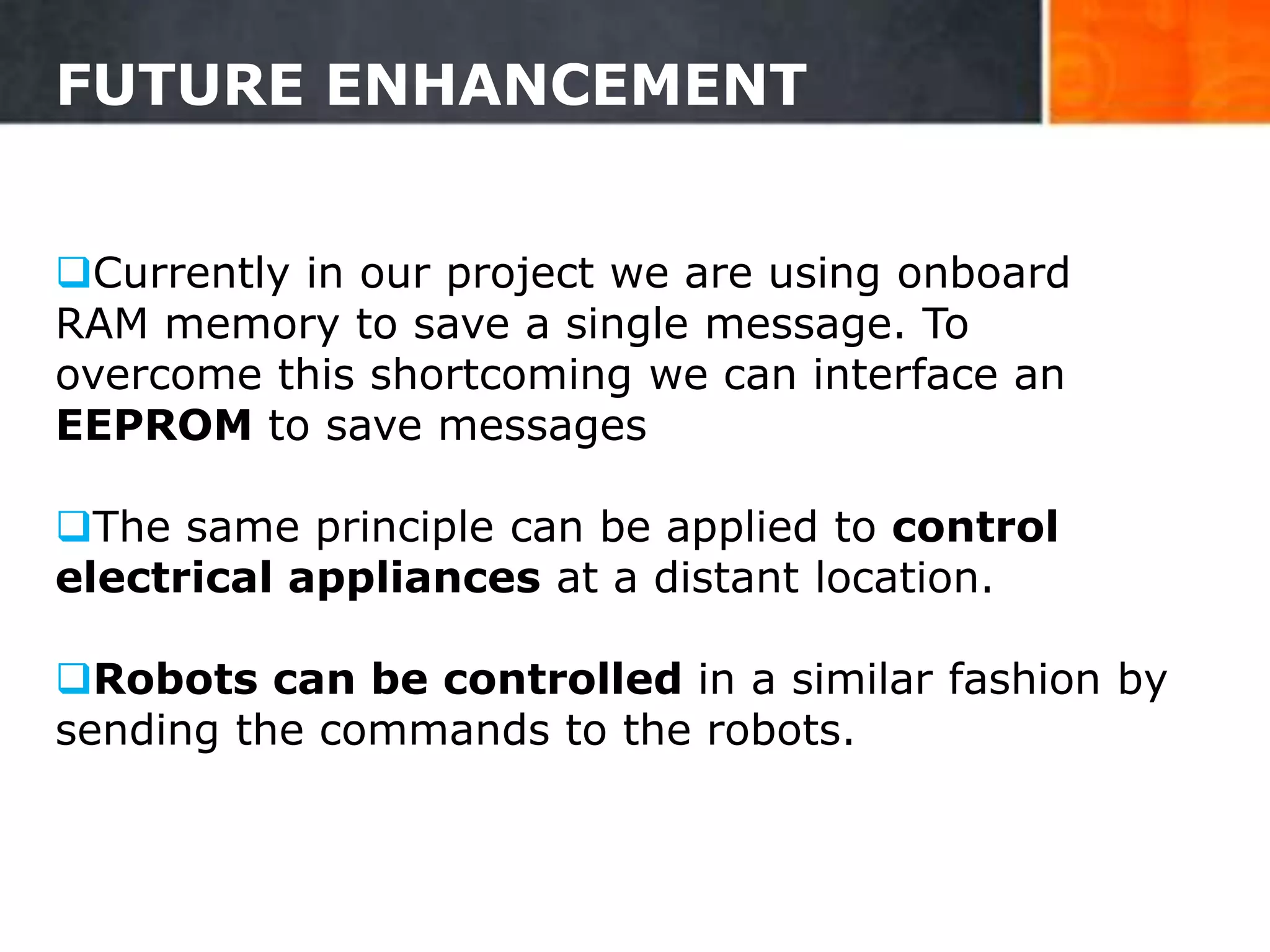

31. FUTURE ENHANCEMENT
Currently in our project we are using onboard
RAM memory to save a single message. To
overcome this shortcoming we can interface an
EEPROM to save messages
The same principle can be applied to control
electrical appliances at a distant location.
Robots can be controlled in a similar fashion by
sending the commands to the robots.
31

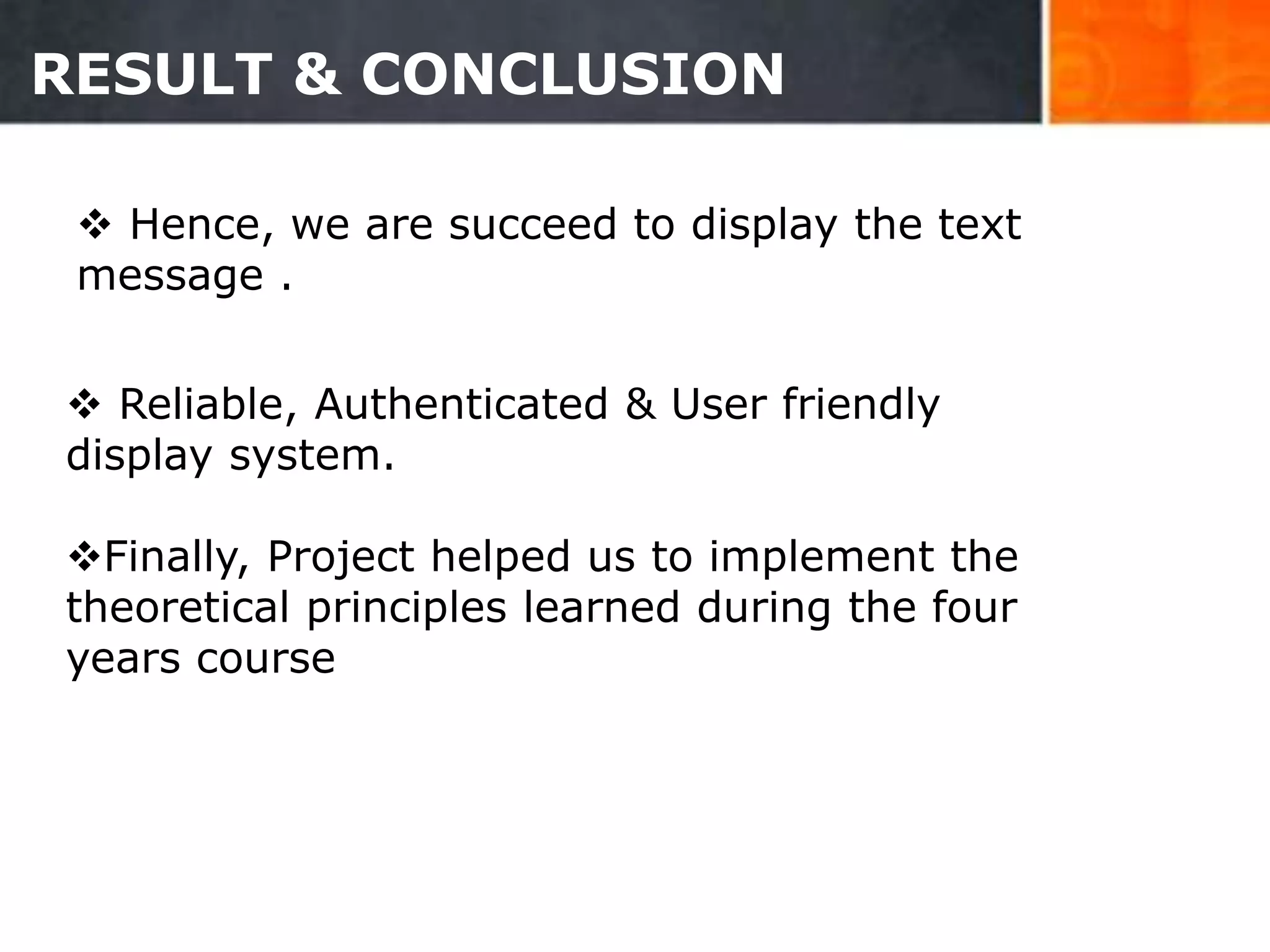

32. RESULT & CONCLUSION
 Hence, we are succeed to display the text
message .
 Reliable, Authenticated & User friendly
display system.
Finally, Project helped us to implement the
theoretical principles learned during the four
years course
32

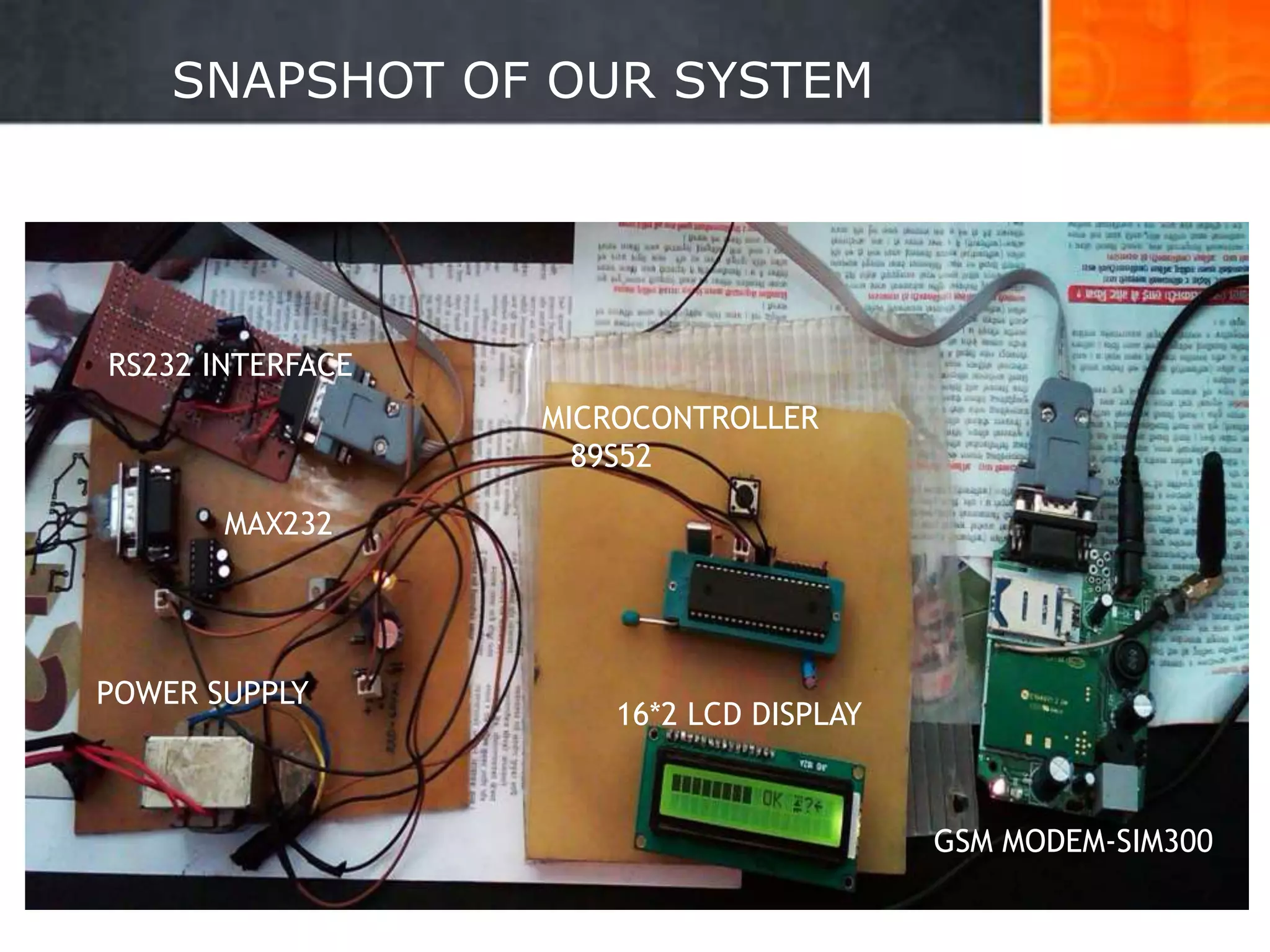

33. SNAPSHOT OF OUR SYSTEM
MICROCONTROLLER
89S52
RS232 INTERFACE
POWER SUPPLY
MAX232
GSM MODEM-SIM300
16*2 LCD DISPLAY
33

34. SNAPSHOT OF OUR SYSTEM
MICROCONTROLLER
89S52
RS232 INTERFACE
POWER SUPPLY
MAX232
GSM MODEM-SIM300
16*2 LCD DISPLAY
34

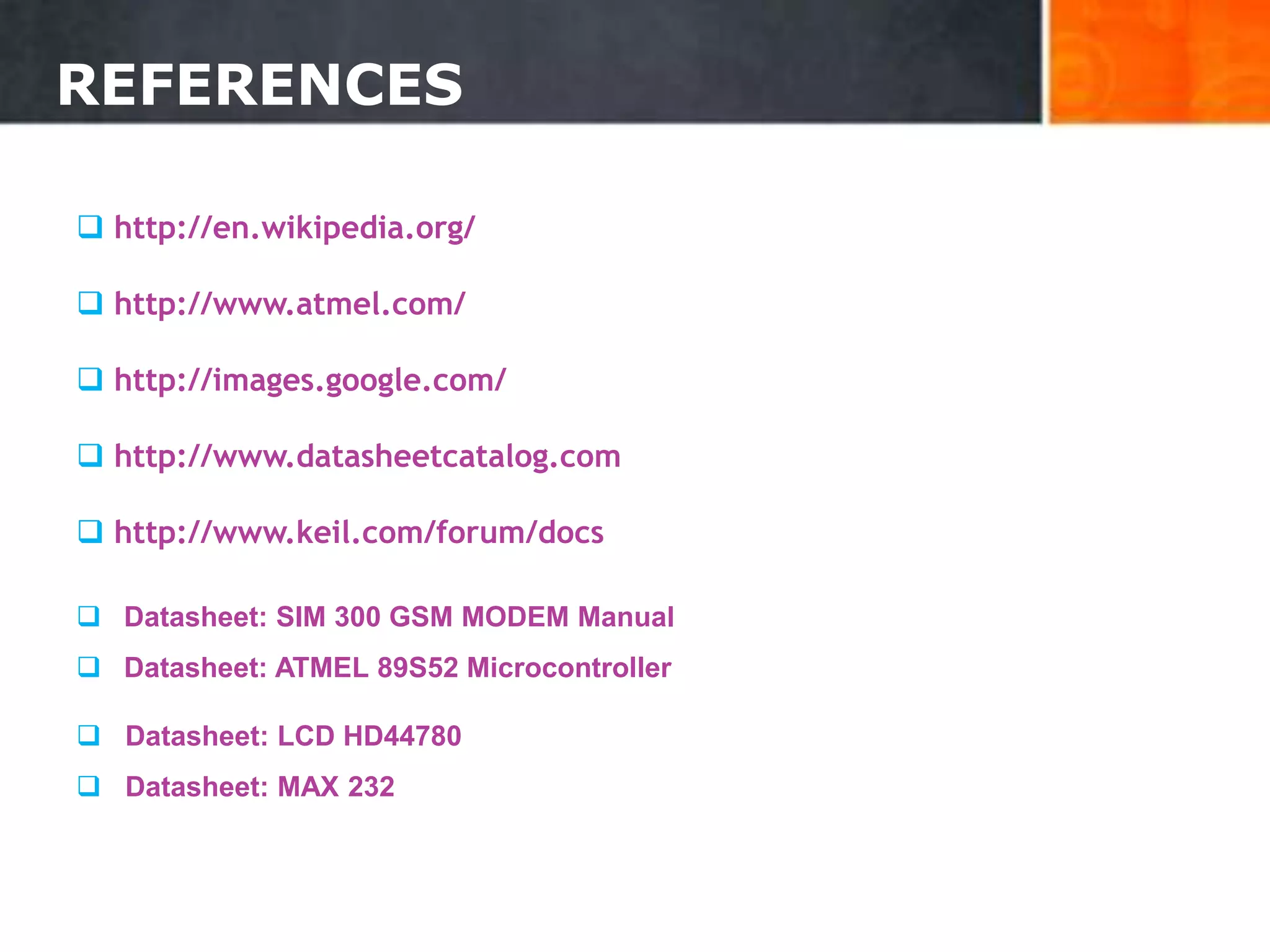

35. REFERENCES
 http://en.wikipedia.org/
 http://www.atmel.com/
 http://images.google.com/
 http://www.datasheetcatalog.com
 http://www.keil.com/forum/docs
 Datasheet: SIM 300 GSM MODEM Manual
 Datasheet: ATMEL 89S52 Microcontroller
 Datasheet: LCD HD44780
 Datasheet: MAX 232
35

36. 36
THANKYOU!
