1. Wideband-AMR
Validation and Testing over
3G Network
Dr. Ayman Elnashar
Sr. Director - Wireless Broadband & Site Sharing
Ayman.elnashar@du.ae
Dr. Mahmoud Sherif
Director – Wireless Broadband
Kassem Abdulla
Sr. Manger – Wireless Broadband
Thanks for the support of the Wireless Broadband Team

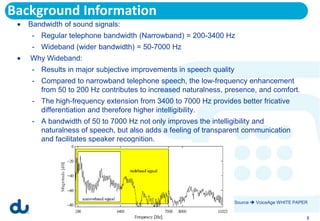

2. Background Information
Bandwidth of sound signals:
- Regular telephone bandwidth (Narrowband) = 200-3400 Hz
- Wideband (wider bandwidth) = 50-7000 Hz
Why Wideband:
- Results in major subjective improvements in speech quality
- Compared to narrowband telephone speech, the low-frequency enhancement
from 50 to 200 Hz contributes to increased naturalness, presence, and comfort.
- The high-frequency extension from 3400 to 7000 Hz provides better fricative
differentiation and therefore higher intelligibility.
- A bandwidth of 50 to 7000 Hz not only improves the intelligibility and
naturalness of speech, but also adds a feeling of transparent communication
and facilitates speaker recognition.
Source  VoiceAge WHITE PAPER
2

3. Wideband-AMR
Technical Specification: 3GPP TS 26.171 V7.0.0 (2006-09)
The AMR-WB speech coder consists of the multi-rate speech coder, a source
controlled rate scheme including a voice activity detector and a comfort noise
generation system, and an error concealment mechanism to combat the effects of
transmission errors and lost packets.
The multi-rate speech coder is a single integrated speech codec with nine source
rates from 6.60 kbit/s to 23.85 kbit/s, and a low rate background noise encoding
mode. The speech coder is capable of switching its bit-rate every 20 ms speech
frame upon command.
Codec mode Source codec bit-rate
- AMR-WB_23.85 23.85 kbit/s
- AMR-WB_23.05 23.05 kbit/s
- AMR-WB_19.85 19.85 kbit/s
- AMR-WB_18.25 18.25 kbit/s
- AMR-WB_15.85 15.85 kbit/s
- AMR-WB_14.25 14.25 kbit/s
- AMR-WB_12.65 12.65 kbit/s
- AMR-WB_8.85 8.85 kbit/s
- AMR-WB_6.60 6.60 kbit/s
3

4. Speech Quality Comparison
Speech quality of AMR-WB in the GSM FR channel compared to AMR-NB and EFR
Source  VoiceAge WHITE PAPER
4

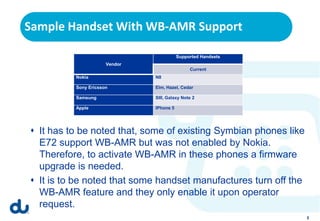

5. Sample Handset With WB-AMR Support
Supported Handsets
Vendor
Current
Nokia N8
Sony Ericsson Elm, Hazel, Cedar
Samsung SIII, Galaxy Note 2
Apple IPhone 5
 It has to be noted that, some of existing Symbian phones like
E72 support WB-AMR but was not enabled by Nokia.
Therefore, to activate WB-AMR in these phones a firmware
upgrade is needed.
 It is to be noted that some handset manufactures turn off the
WB-AMR feature and they only enable it upon operator
request.
5

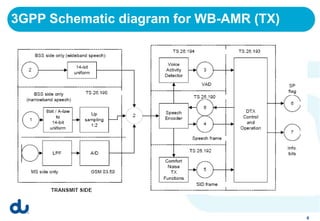

6. 3GPP Schematic diagram for WB-AMR (TX)
6

7. Wideband Versus Narrowband:
A Comparative Analysis
based on live network results
7

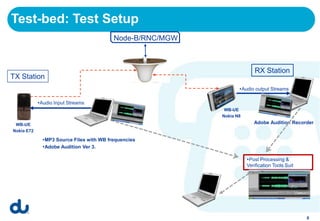

8. Test-bed: Test Setup
Node-B/RNC/MGW
RX Station
TX Station
Audio output Streams
Audio Input Streams
WB-UE
Nokia N8
WB-UE Adobe Audition Recorder
Nokia E72
MP3 Source Files with WB frequencies
Adobe Audition Ver 3.
Post Processing &
Verification Tools Suit
8

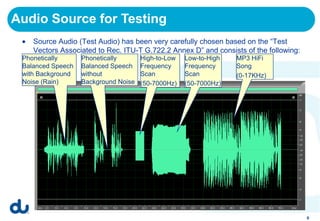

9. Audio Source for Testing
Source Audio (Test Audio) has been very carefully chosen based on the “Test
Vectors Associated to Rec. ITU-T G.722.2 Annex D” and consists of the following:
Phonetically Phonetically High-to-Low Low-to-High MP3 HiFi
Balanced Speech Balanced Speech Frequency Frequency Song
with Background without Scan Scan (0-17KHz)
Noise (Rain) Background Noise (50-7000Hz) (50-7000Hz)
9

10. Wideband versus Narrowband Real-Time Streams
High Frequency Cutoff with NB High Frequency Pass with WB
Narrow Band output
Wide Band output
10

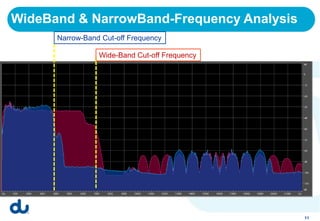

11. WideBand & NarrowBand-Frequency Analysis
Narrow-Band Cut-off Frequency
Wide-Band Cut-off Frequency
11

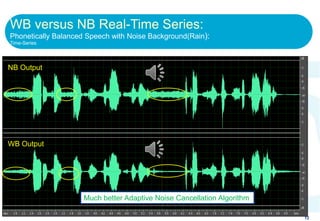

12. WB versus NB Real-Time Series:
Phonetically Balanced Speech with Noise Background(Rain):
Time-Series
NB Output
NB_Rain_MP3.mp3
WB Output
Much better Adaptive Noise Cancellation Algorithm
12

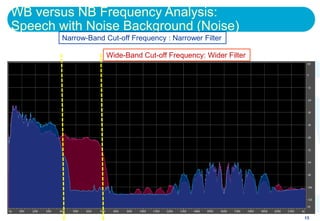

13. WB versus NB Frequency Analysis:
Speech with Noise Background (Noise)
Narrow-Band Cut-off Frequency : Narrower Filter
Wide-Band Cut-off Frequency: Wider Filter
13

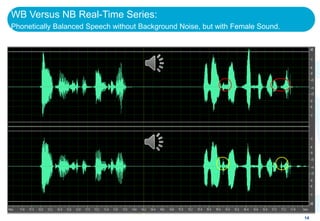

14. WB Versus NB Real-Time Series:
Phonetically Balanced Speech without Background Noise, but with Female Sound.
14

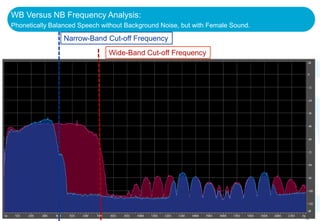

15. WB Versus NB Frequency Analysis:
Phonetically Balanced Speech without Background Noise, but with Female Sound.
Narrow-Band Cut-off Frequency
Wide-Band Cut-off Frequency
15

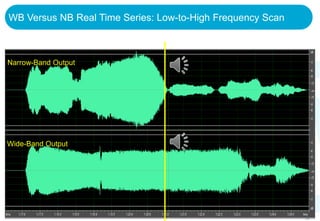

16. WB Versus NB Real Time Series: Low-to-High Frequency Scan
Narrow-Band Output
Wide-Band Output
16

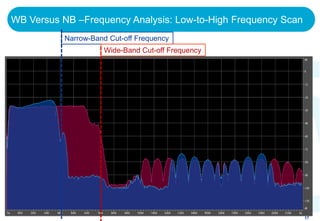

17. WB Versus NB –Frequency Analysis: Low-to-High Frequency Scan
Narrow-Band Cut-off Frequency
Wide-Band Cut-off Frequency
17

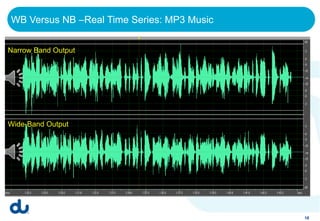

18. WB Versus NB –Real Time Series: MP3 Music
Narrow Band Output
Wide-Band Output
18

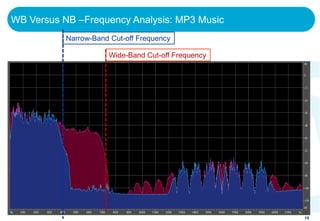

19. WB Versus NB –Frequency Analysis: MP3 Music
Narrow-Band Cut-off Frequency
Wide-Band Cut-off Frequency
19

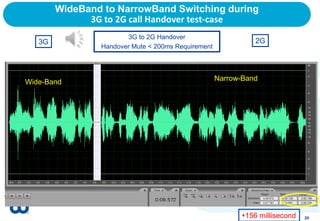

20. WideBand to NarrowBand Switching during
3G to 2G call Handover test-case
3G to 2G Handover
3G 2G
Handover Mute < 200ms Requirement
Wide-Band Narrow-Band
156 millisecond 20

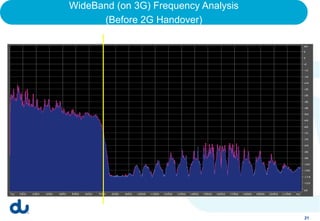

21. WideBand (on 3G) Frequency Analysis
(Before 2G Handover)
21

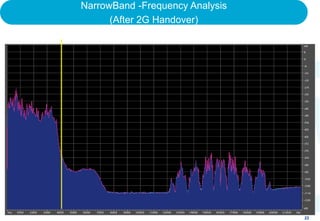

22. NarrowBand -Frequency Analysis
(After 2G Handover)
22
