Sijie Guo presented an overview of new features in Apache Pulsar 2.4.0 including key-shared subscriptions for ordered consumption across partitions, delayed and scheduled message delivery, replicated subscriptions to replicate subscription state across regions, and various other improvements and integrations. Key highlights were key-shared subscriptions for ordering messages based on keys across partitions, delayed message delivery using an in-memory queue, replicated subscriptions to maintain subscription state across regions, and the Pulsar Spark SQL connector for integrating Spark SQL with Pulsar schemas.

1. Sijie Guo (@sijieg)
What’s new in Pulsar 2.4.0

2. Who am I
❏ Pulsar PMC Member
❏ BookKeeper PMC Chair
❏ Ex-Twitter, Ex-Yahoo
❏ Interested in event streaming
technologies

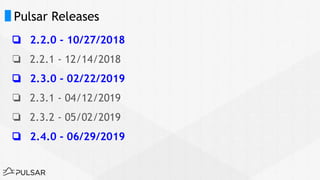

3. Pulsar Releases
❏ 2.2.0 - 10/27/2018
❏ 2.2.1 - 12/14/2018
❏ 2.3.0 - 02/22/2019
❏ 2.3.1 - 04/12/2019
❏ 2.3.2 - 05/02/2019
❏ 2.4.0 - 06/29/2019

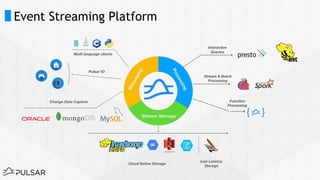

4. Event Streaming Platform

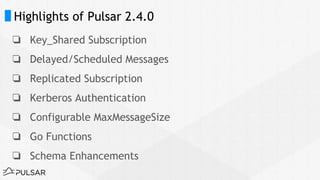

5. Highlights of Pulsar 2.4.0
❏ Key_Shared Subscription
❏ Delayed/Scheduled Messages
❏ Replicated Subscription
❏ Kerberos Authentication
❏ Configurable MaxMessageSize
❏ Go Functions
❏ Schema Enhancements

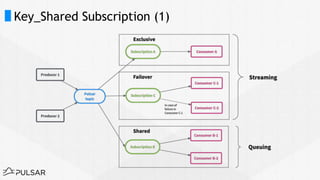

6. Key_Shared Subscription (1)

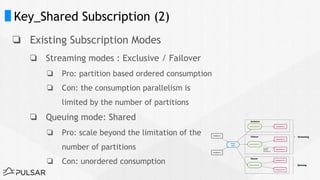

7. Key_Shared Subscription (2)
❏ Existing Subscription Modes
❏ Streaming modes : Exclusive / Failover
❏ Pro: partition based ordered consumption
❏ Con: the consumption parallelism is
limited by the number of partitions
❏ Queuing mode: Shared
❏ Pro: scale beyond the limitation of the
number of partitions
❏ Con: unordered consumption

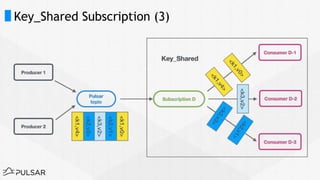

8. Key_Shared Subscription (3)

9. Key_Shared Subscription (4)
❏ Key based ordering
❏ Key can be message key or a separated *order* key
❏ HashRing based routing
❏ Key based batcher
❏ Policies for messages without *keys*
https://github.com/apache/pulsar/wiki/PIP-34:-Add-new-subscribe-type-Key_shared

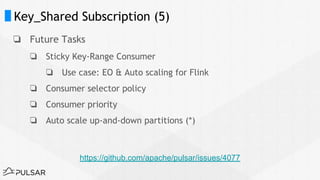

10. Key_Shared Subscription (5)
❏ Future Tasks
❏ Sticky Key-Range Consumer
❏ Use case: EO & Auto scaling for Flink
❏ Consumer selector policy
❏ Consumer priority
❏ Auto scale up-and-down partitions (*)
https://github.com/apache/pulsar/issues/4077

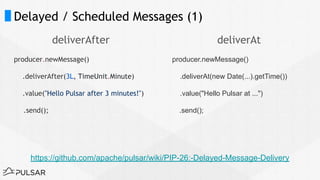

11. Delayed / Scheduled Messages (1)
deliverAfter
producer.newMessage()
.deliverAfter(3L, TimeUnit.Minute)
.value("Hello Pulsar after 3 minutes!")
.send();
deliverAt
producer.newMessage()
.deliverAt(new Date(...).getTime())
.value("Hello Pulsar at ...")
.send();
https://github.com/apache/pulsar/wiki/PIP-26:-Delayed-Message-Delivery

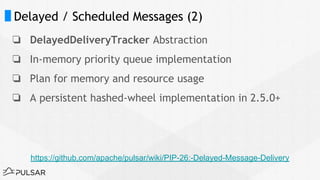

12. Delayed / Scheduled Messages (2)
❏ DelayedDeliveryTracker Abstraction
❏ In-memory priority queue implementation
❏ Plan for memory and resource usage
❏ A persistent hashed-wheel implementation in 2.5.0+
https://github.com/apache/pulsar/wiki/PIP-26:-Delayed-Message-Delivery

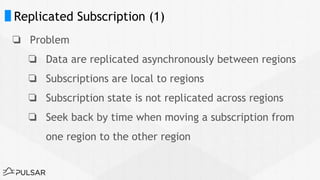

13. Replicated Subscription (1)
❏ Problem
❏ Data are replicated asynchronously between regions
❏ Subscriptions are local to regions
❏ Subscription state is not replicated across regions
❏ Seek back by time when moving a subscription from
one region to the other region

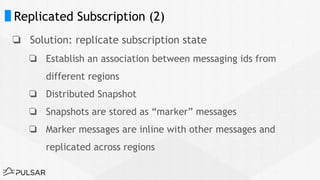

14. Replicated Subscription (2)
❏ Solution: replicate subscription state
❏ Establish an association between messaging ids from
different regions
❏ Distributed Snapshot
❏ Snapshots are stored as “marker” messages
❏ Marker messages are inline with other messages and
replicated across regions

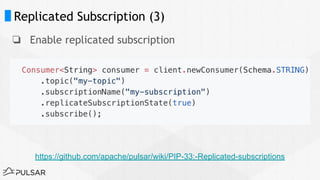

15. Replicated Subscription (3)
❏ Enable replicated subscription
https://github.com/apache/pulsar/wiki/PIP-33:-Replicated-subscriptions

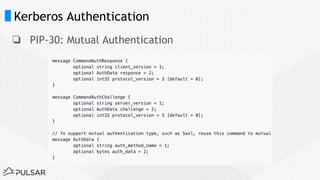

16. Kerberos Authentication
❏ PIP-30: Mutual Authentication

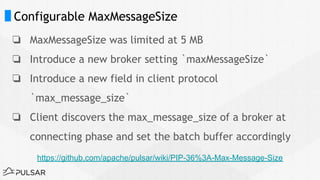

17. Configurable MaxMessageSize
❏ MaxMessageSize was limited at 5 MB
❏ Introduce a new broker setting `maxMessageSize`
❏ Introduce a new field in client protocol
`max_message_size`
❏ Client discovers the max_message_size of a broker at
connecting phase and set the batch buffer accordingly
https://github.com/apache/pulsar/wiki/PIP-36%3A-Max-Message-Size

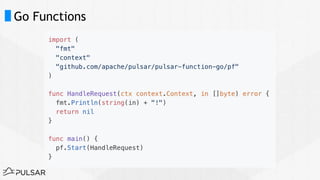

18. Go Functions

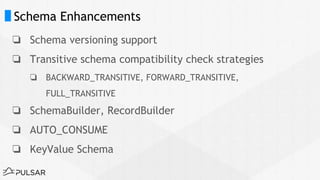

19. Schema Enhancements
❏ Schema versioning support
❏ Transitive schema compatibility check strategies
❏ BACKWARD_TRANSITIVE, FORWARD_TRANSITIVE,
FULL_TRANSITIVE
❏ SchemaBuilder, RecordBuilder
❏ AUTO_CONSUME
❏ KeyValue Schema

20. Pulsar Ecosystem
❏ Clients
❏ Connectors
❏ Pulsar UI & management tools
❏ Tracing integration
❏ Camel integration
❏ Big data ecosystem integration

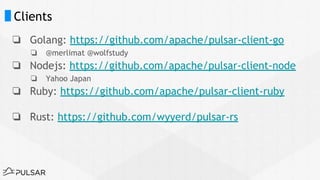

21. Clients
❏ Golang: https://github.com/apache/pulsar-client-go
❏ @merlimat @wolfstudy
❏ Nodejs: https://github.com/apache/pulsar-client-node
❏ Yahoo Japan
❏ Ruby: https://github.com/apache/pulsar-client-ruby
❏ Rust: https://github.com/wyyerd/pulsar-rs

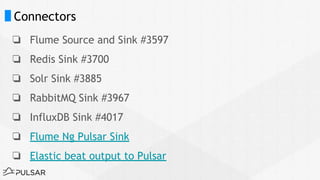

22. Connectors
❏ Flume Source and Sink #3597
❏ Redis Sink #3700
❏ Solr Sink #3885
❏ RabbitMQ Sink #3967
❏ InfluxDB Sink #4017
❏ Flume Ng Pulsar Sink
❏ Elastic beat output to Pulsar

23. Pulsar UI & management tools
❏ Pulsar Express
❏ Pulsar Web UI from Yahoo Japan
❏ Pulsar Manager

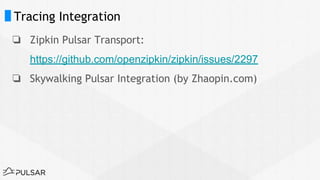

24. Tracing Integration
❏ Zipkin Pulsar Transport:
https://github.com/openzipkin/zipkin/issues/2297
❏ Skywalking Pulsar Integration (by Zhaopin.com)

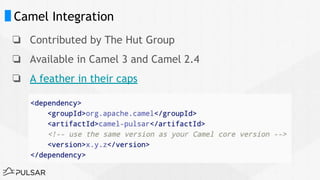

25. Camel Integration
❏ Contributed by The Hut Group
❏ Available in Camel 3 and Camel 2.4
❏ A feather in their caps

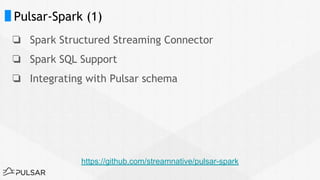

26. Pulsar-Spark (1)
❏ Spark Structured Streaming Connector
❏ Spark SQL Support
❏ Integrating with Pulsar schema
https://github.com/streamnative/pulsar-spark

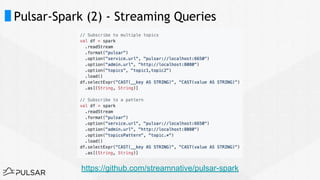

27. Pulsar-Spark (2) - Streaming Queries
https://github.com/streamnative/pulsar-spark

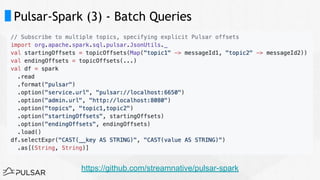

28. Pulsar-Spark (3) - Batch Queries
https://github.com/streamnative/pulsar-spark

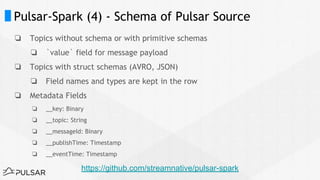

29. Pulsar-Spark (4) - Schema of Pulsar Source
https://github.com/streamnative/pulsar-spark
❏ Topics without schema or with primitive schemas
❏ `value` field for message payload
❏ Topics with struct schemas (AVRO, JSON)
❏ Field names and types are kept in the row
❏ Metadata Fields
❏ __key: Binary
❏ __topic: String
❏ __messageId: Binary
❏ __publishTime: Timestamp
❏ __eventTime: Timestamp

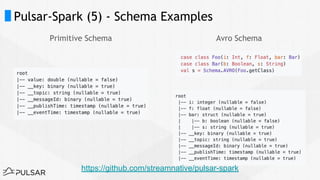

30. Pulsar-Spark (5) - Schema Examples
Primitive Schema Avro Schema
https://github.com/streamnative/pulsar-spark

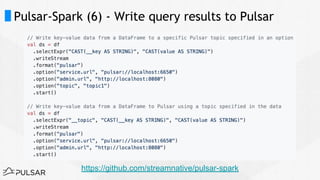

31. Pulsar-Spark (6) - Write query results to Pulsar
https://github.com/streamnative/pulsar-spark

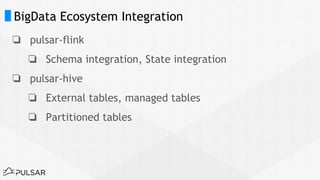

32. BigData Ecosystem Integration
❏ pulsar-flink
❏ Schema integration, State integration
❏ pulsar-hive
❏ External tables, managed tables
❏ Partitioned tables

33. Community
❏ Recurring Pulsar Meetups
❏ Conferences
❏ KubeCon Pulsar Booth from Yahoo Japan
❏ ApacheCon 2019 : 5 Pulsar talks accepted
❏ Flink Forward SF & Berlin 2019
❏ QCon, ArchSummit, …

34. 2.5.0, Ecosystem & More
❏ Transaction Support
❏ Batch receive interface
❏ HDFS Offloader
❏ Columnar Offloader
❏ Auto partition scaling up-and-down
❏ Schema & EO support in pulsar-flink integration
❏ Go Functions (metrics, secrets, …)
❏ Kafka Gateway

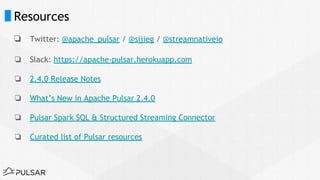

35. Resources
❏ Twitter: @apache_pulsar / @sijieg / @streamnativeio
❏ Slack: https://apache-pulsar.herokuapp.com
❏ 2.4.0 Release Notes
❏ What’s New in Apache Pulsar 2.4.0
❏ Pulsar Spark SQL & Structured Streaming Connector
❏ Curated list of Pulsar resources

36. Thanks!
