Both Apache Pulsar and Apache Flink share a similar view on how the data and the computation level of an application can be “streaming-first” with batch as a special case streaming. With Apache Pulsar’s Segmented-Stream storage and Apache Flink’s steps to unify batch and stream processing workloads under one framework, there are numerous ways of integrating the two technologies to provide elastic data processing at massive scale, and build a real streaming warehouse. In this talk, Sijie Guo from Apache Pulsar community will given an overview of Apache Pulsar and how it provides the unified data view to fully leverage Apache Flink unified computation runtime for elastic data processing. He will share the latest integrations between Apache Pulsar and Apache Flink, especially around effectively-once processing and schema integration.

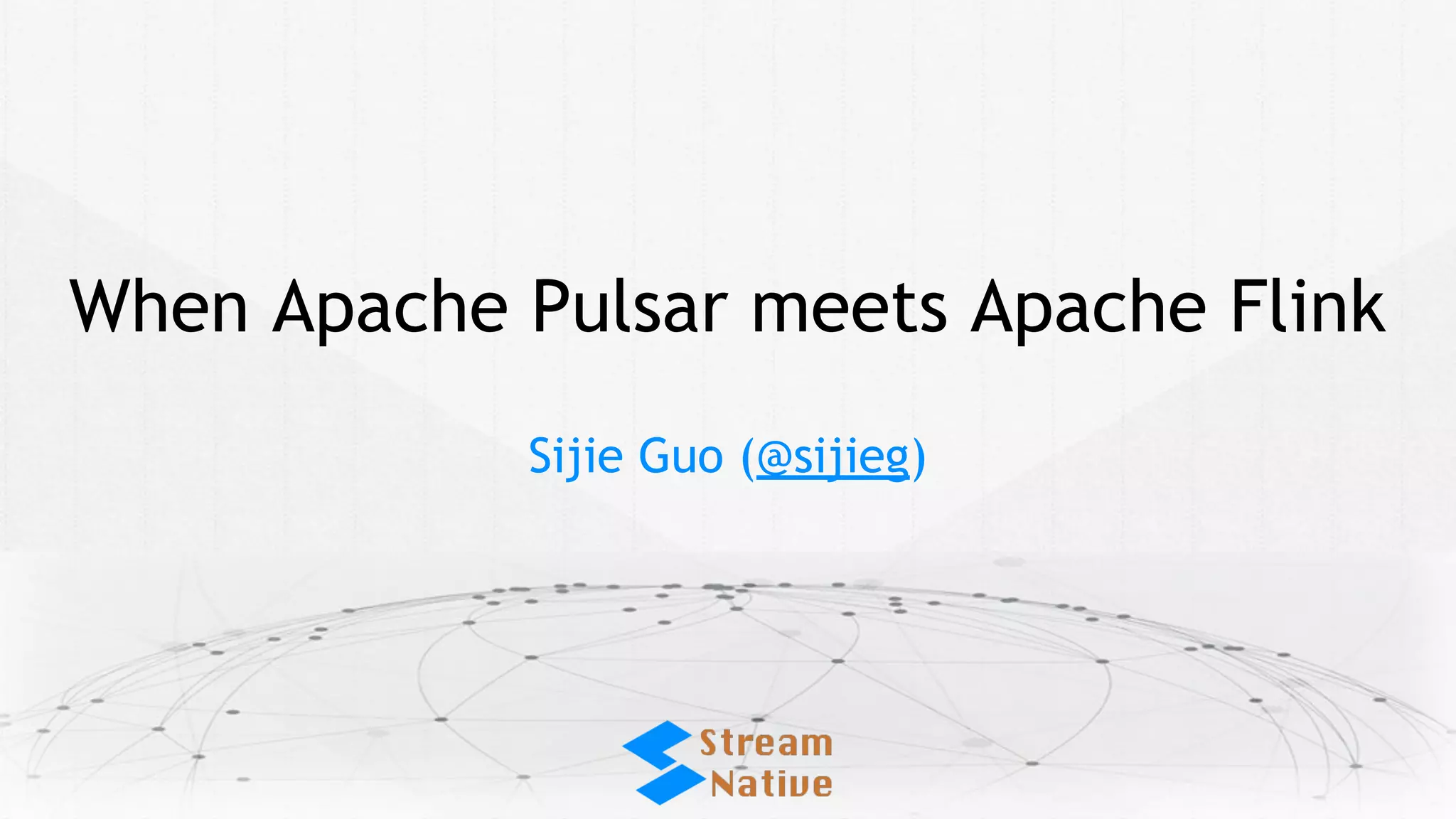

1. When Apache Pulsar meets Apache Flink
Sijie Guo (@sijieg)

2. Who am I
❏ Apache Pulsar PMC Member
❏ Apache BookKeeper PMC Chair
❏ StreamNative Founder
❏ Ex-Twitter, Ex-Yahoo
❏ Interested in event streaming
technologies

3. What is Apache Pulsar?

4. “Flexible Pub/Sub Messaging
Backed by durable log storage”

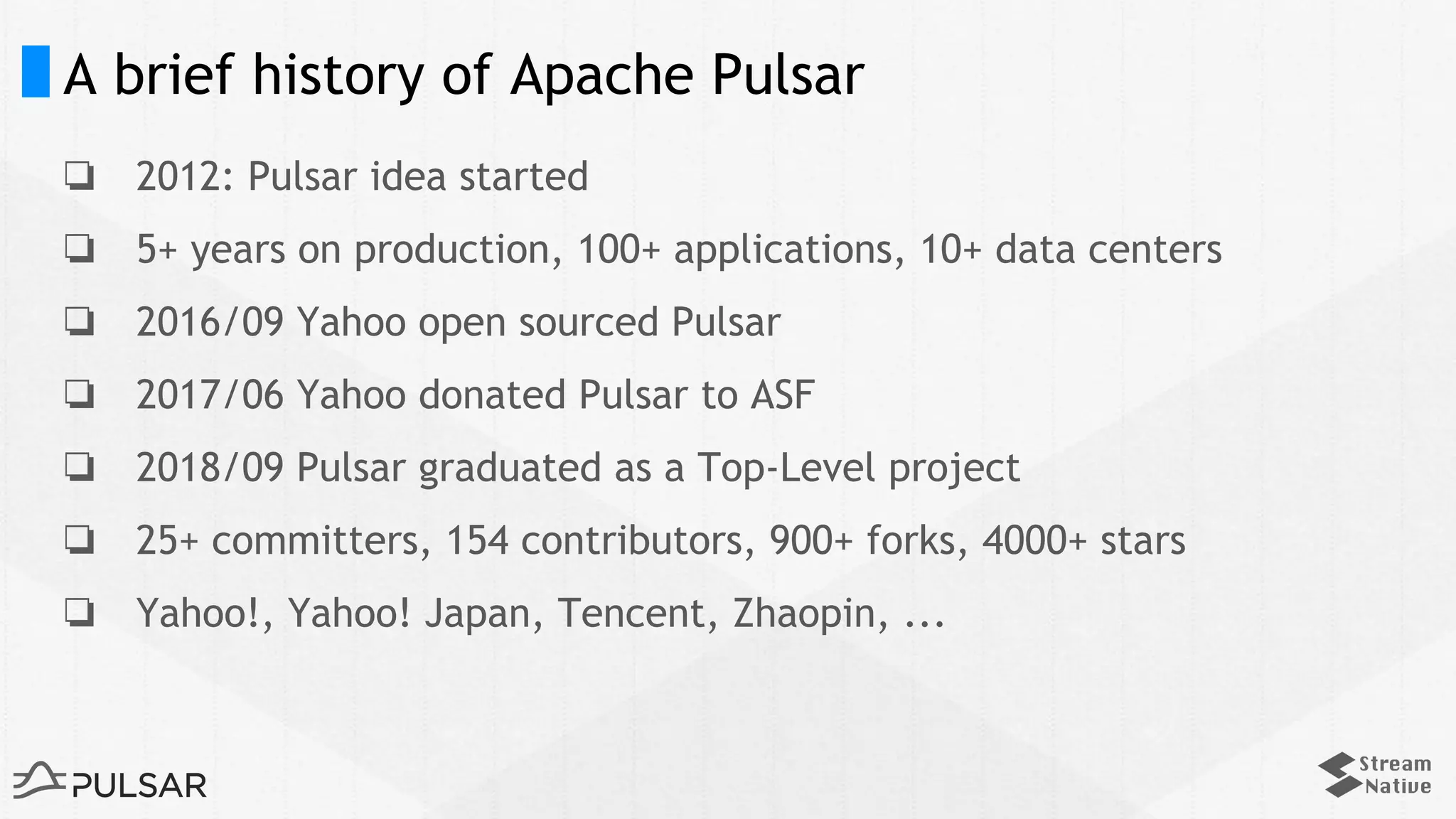

5. A brief history of Apache Pulsar
❏ 2012: Pulsar idea started
❏ 5+ years on production, 100+ applications, 10+ data centers
❏ 2016/09 Yahoo open sourced Pulsar
❏ 2017/06 Yahoo donated Pulsar to ASF
❏ 2018/09 Pulsar graduated as a Top-Level project
❏ 25+ committers, 154 contributors, 900+ forks, 4000+ stars
❏ Yahoo!, Yahoo! Japan, Tencent, Zhaopin, ...

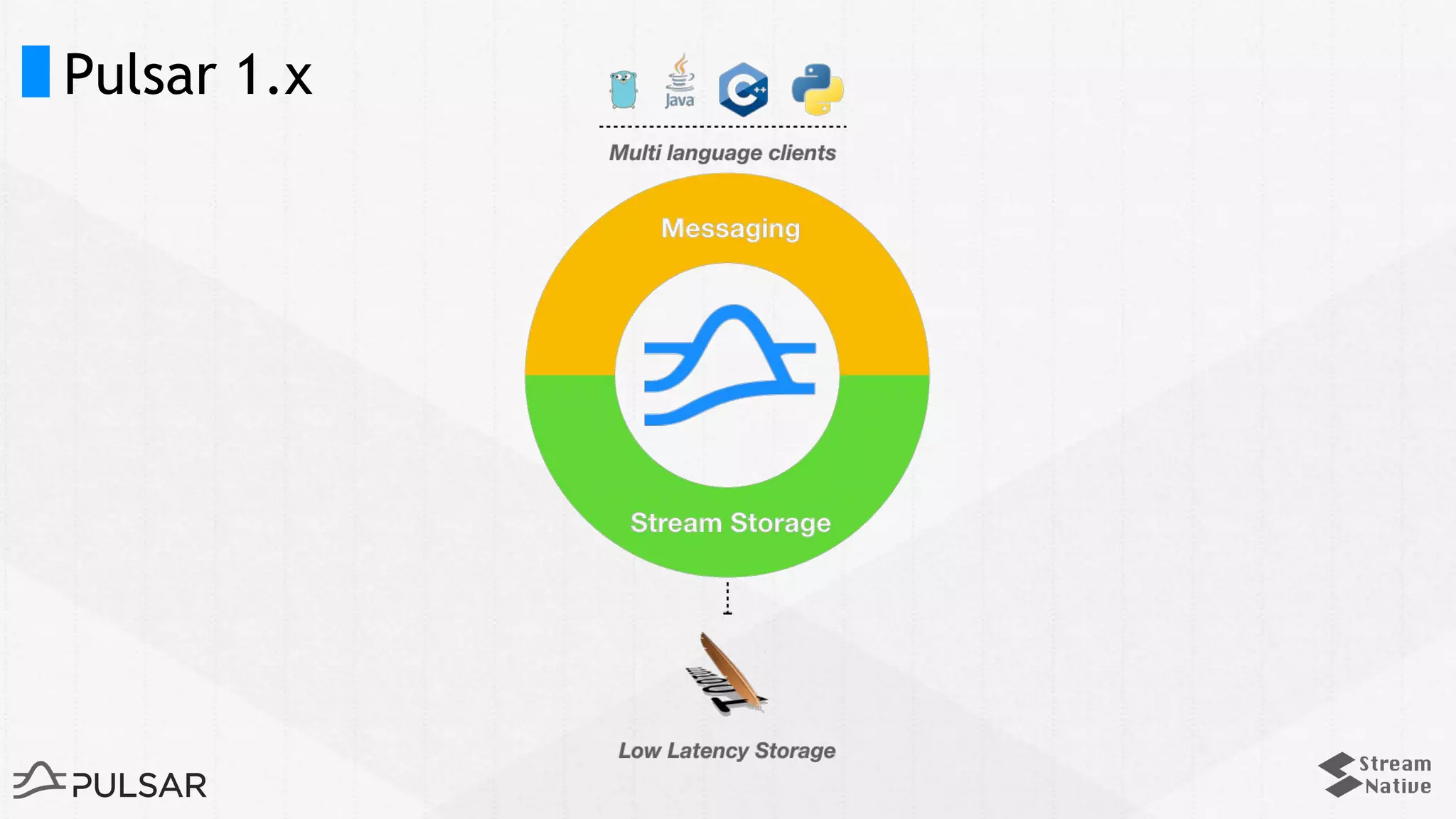

6. Pulsar 1.x

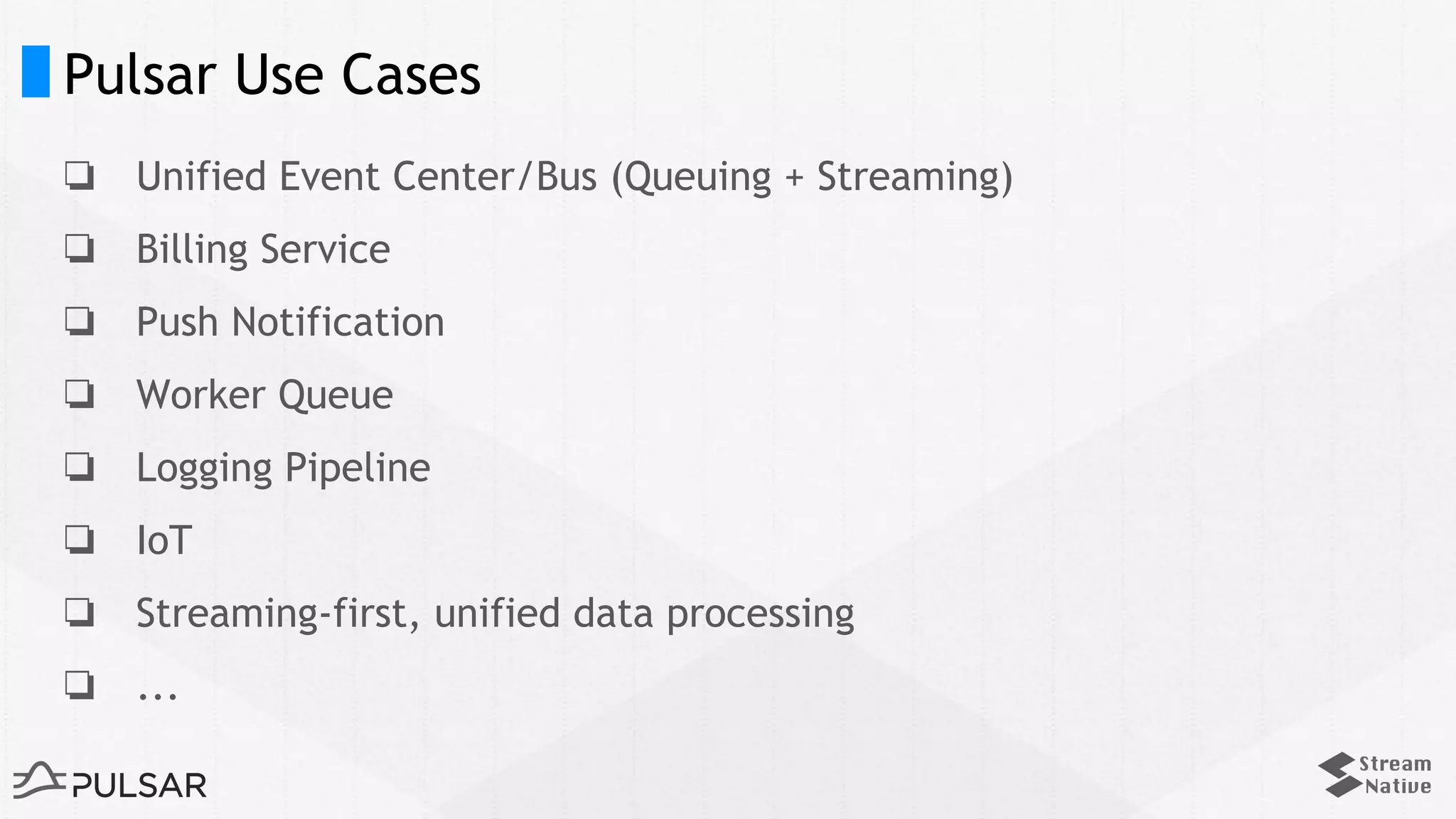

7. Pulsar Use Cases
❏ Unified Event Center/Bus (Queuing + Streaming)
❏ Billing Service
❏ Push Notification
❏ Worker Queue
❏ Logging Pipeline
❏ IoT
❏ Streaming-first, unified data processing
❏ ...

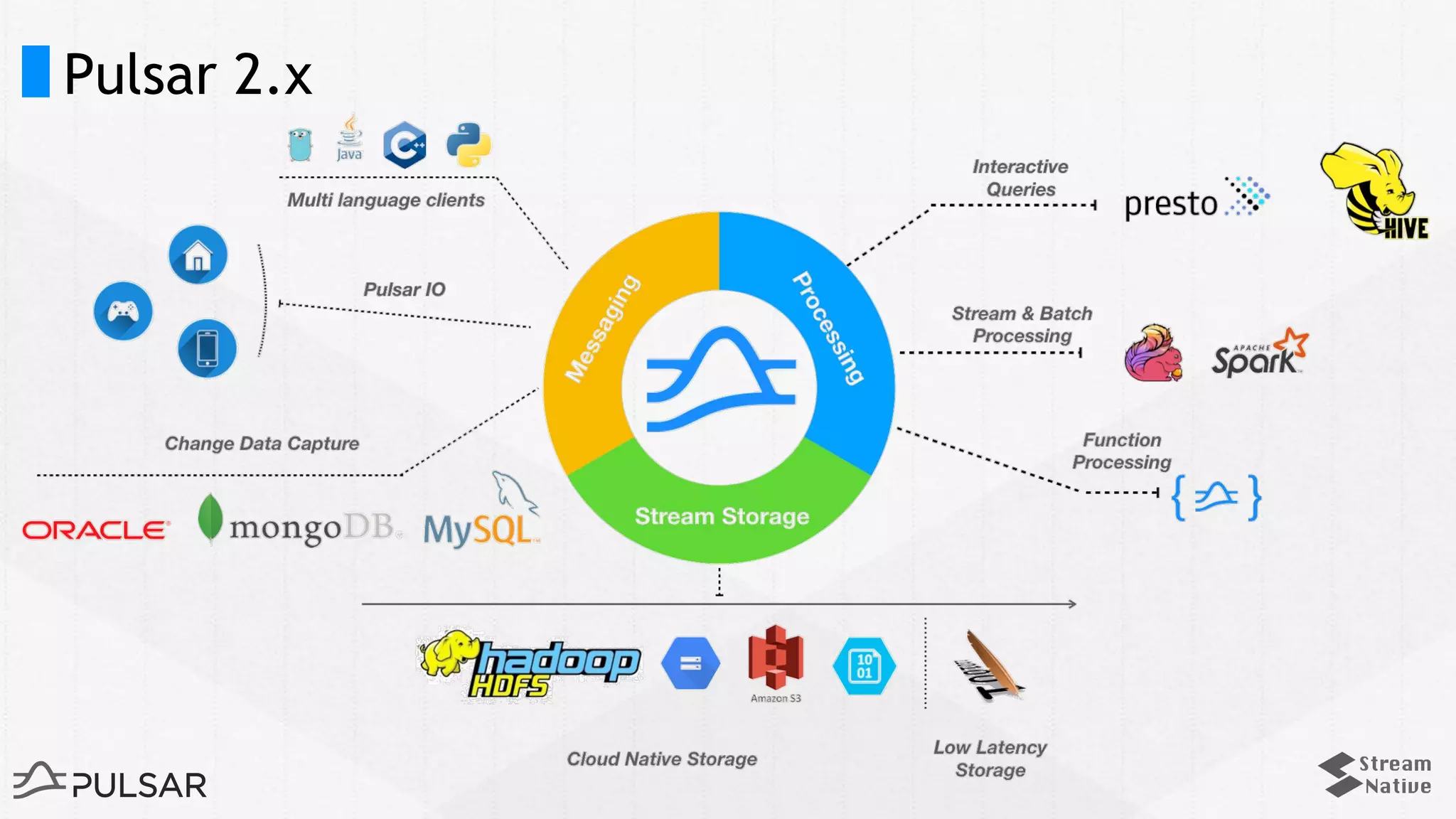

8. Pulsar 2.x

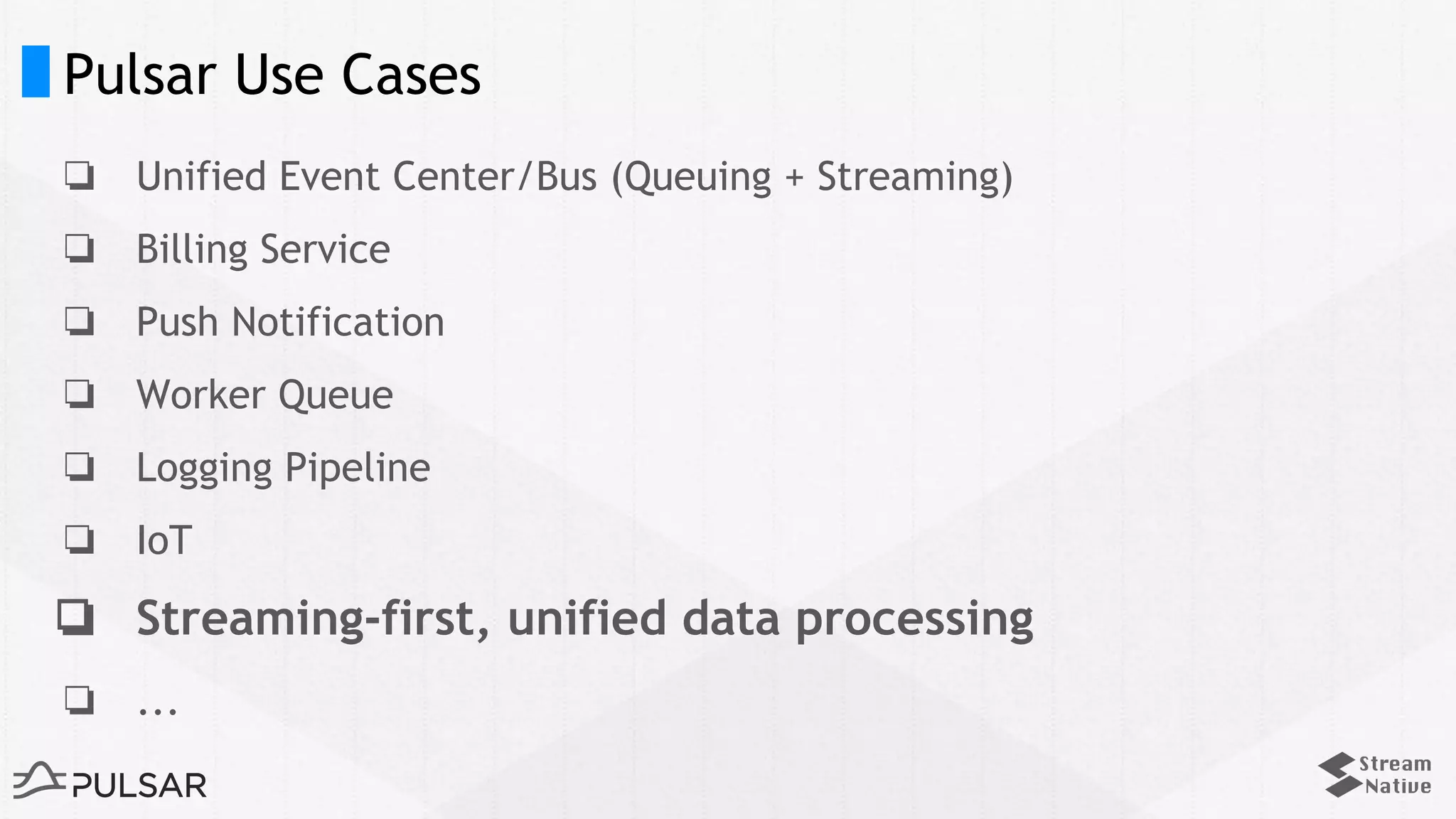

9. Pulsar Use Cases
❏ Unified Event Center/Bus (Queuing + Streaming)
❏ Billing Service
❏ Push Notification
❏ Worker Queue
❏ Logging Pipeline
❏ IoT
❏ Streaming-first, unified data processing
❏ ...

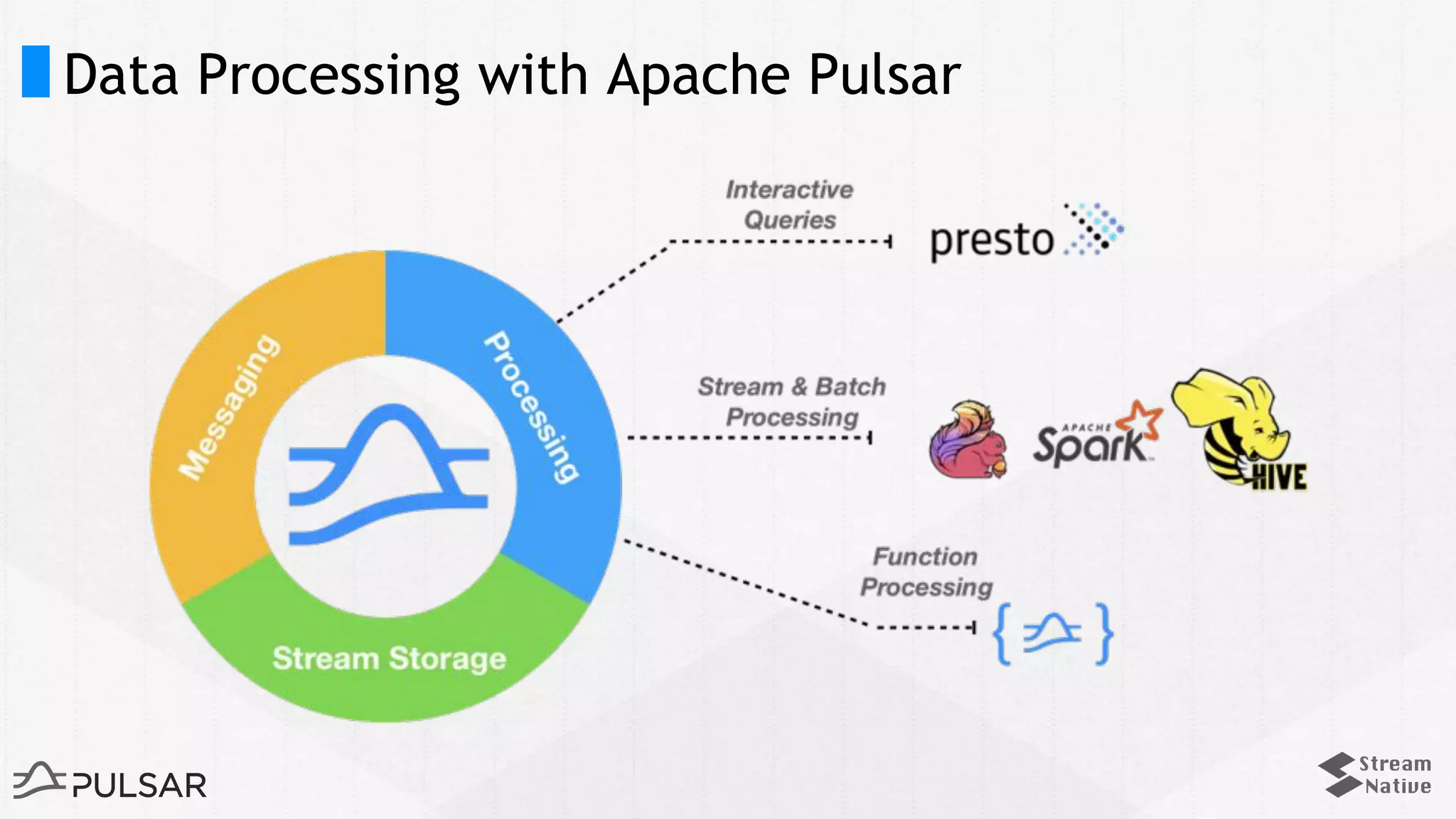

10. Data Processing with Apache Pulsar

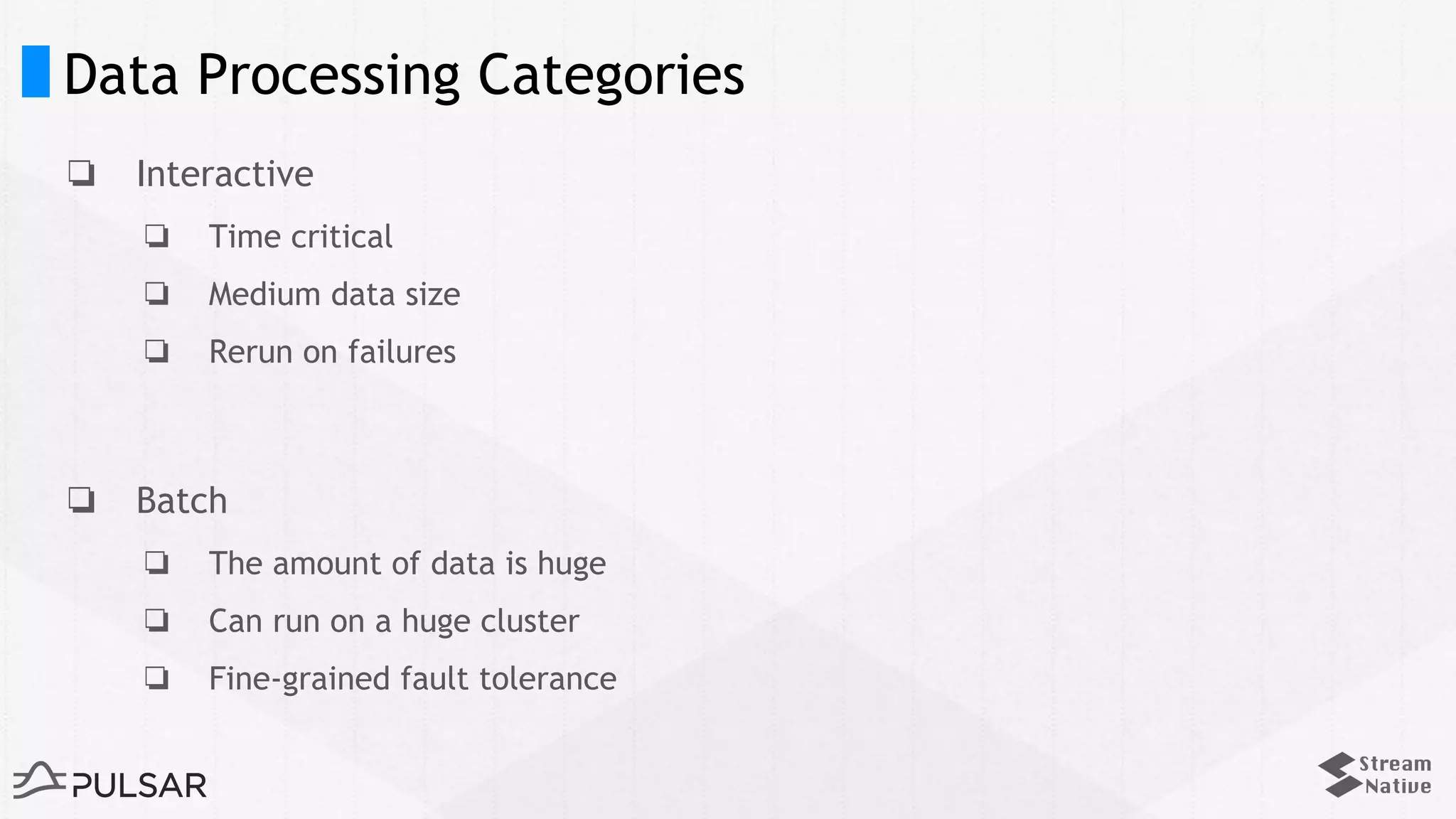

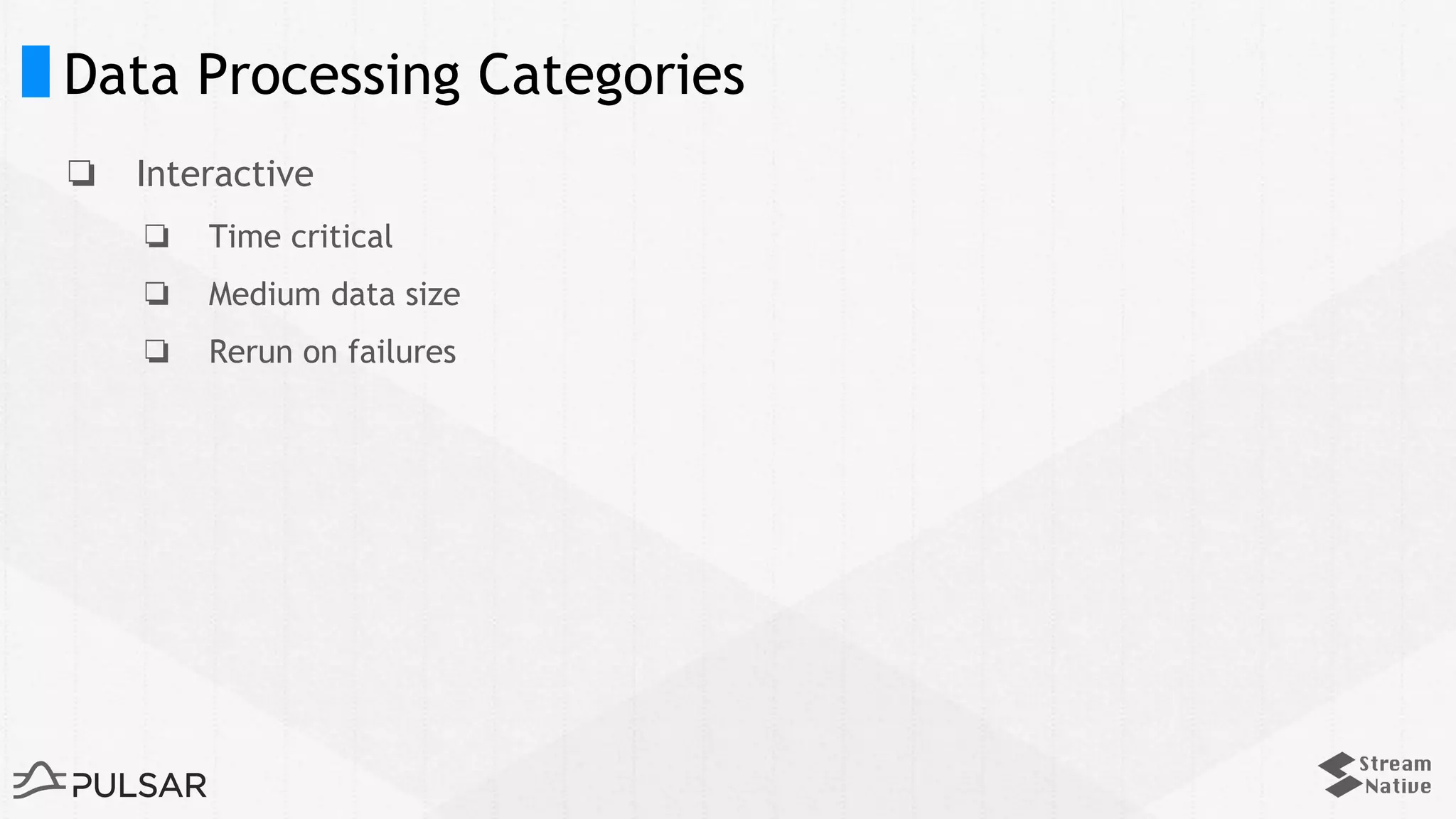

11. Data Processing Categories
❏ Interactive
❏ Time critical
❏ Medium data size
❏ Rerun on failures

12. Data Processing Categories
❏ Interactive
❏ Time critical
❏ Medium data size
❏ Rerun on failures
❏ Batch
❏ The amount of data is huge
❏ Can run on a huge cluster
❏ Fine-grained fault tolerance

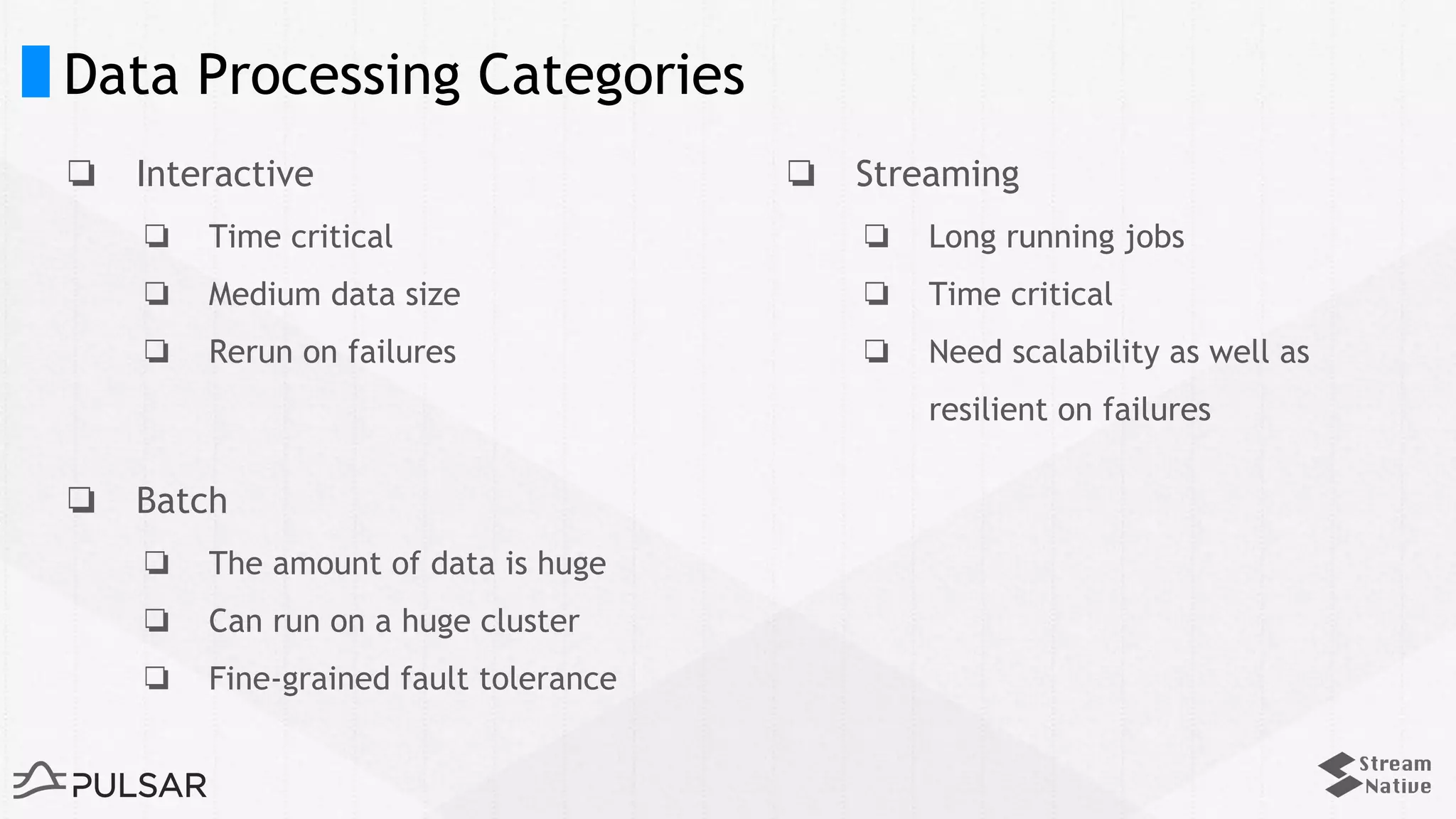

13. Data Processing Categories
❏ Interactive
❏ Time critical
❏ Medium data size
❏ Rerun on failures
❏ Batch
❏ The amount of data is huge
❏ Can run on a huge cluster
❏ Fine-grained fault tolerance
❏ Streaming
❏ Long running jobs
❏ Time critical
❏ Need scalability as well as
resilient on failures

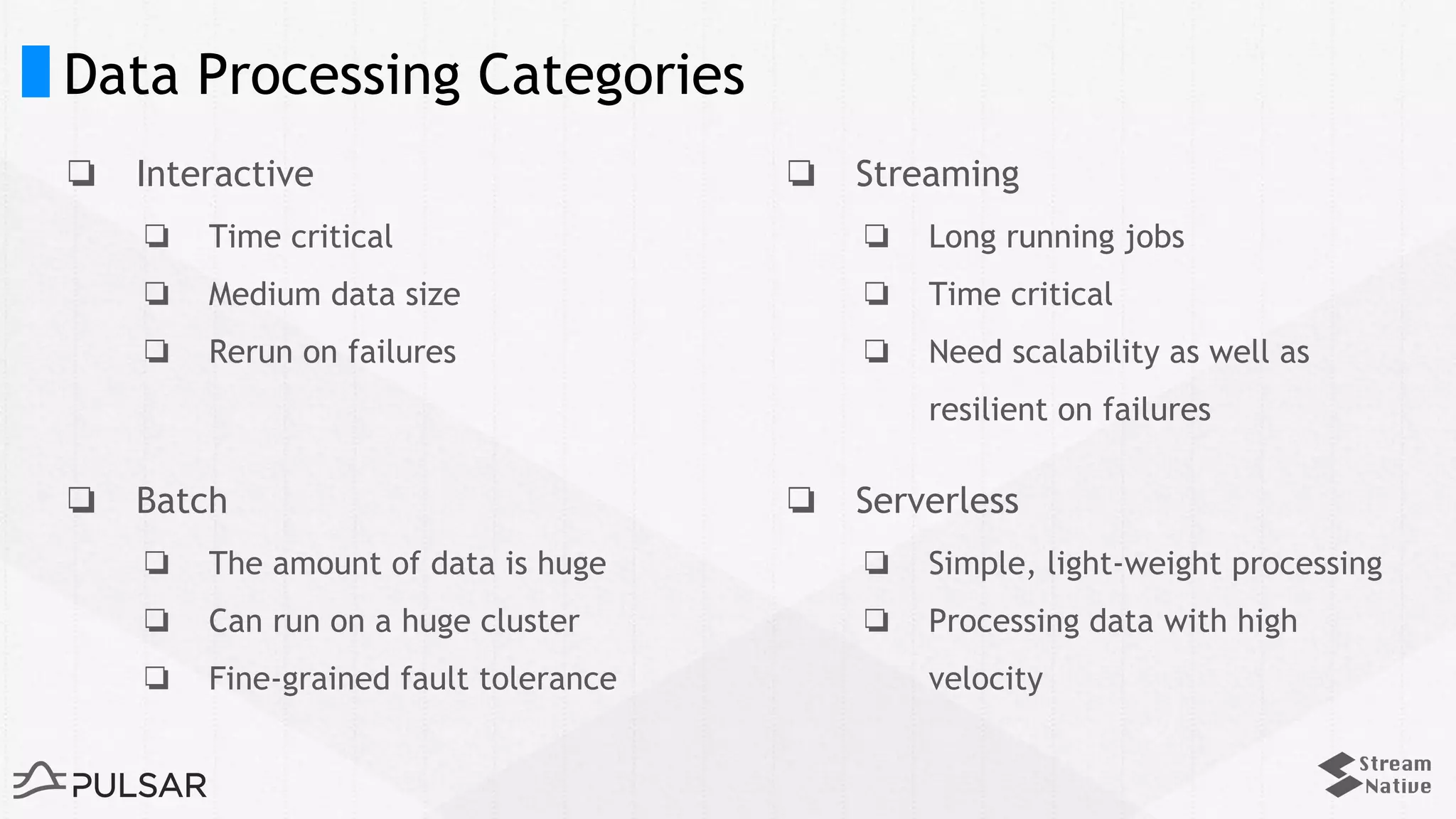

14. Data Processing Categories
❏ Interactive
❏ Time critical
❏ Medium data size
❏ Rerun on failures
❏ Batch
❏ The amount of data is huge
❏ Can run on a huge cluster
❏ Fine-grained fault tolerance
❏ Streaming
❏ Long running jobs
❏ Time critical
❏ Need scalability as well as
resilient on failures
❏ Serverless
❏ Simple, light-weight processing
❏ Processing data with high
velocity

15. Streaming-First
Batch processing is a special case of stream processing
A Flink view on computing

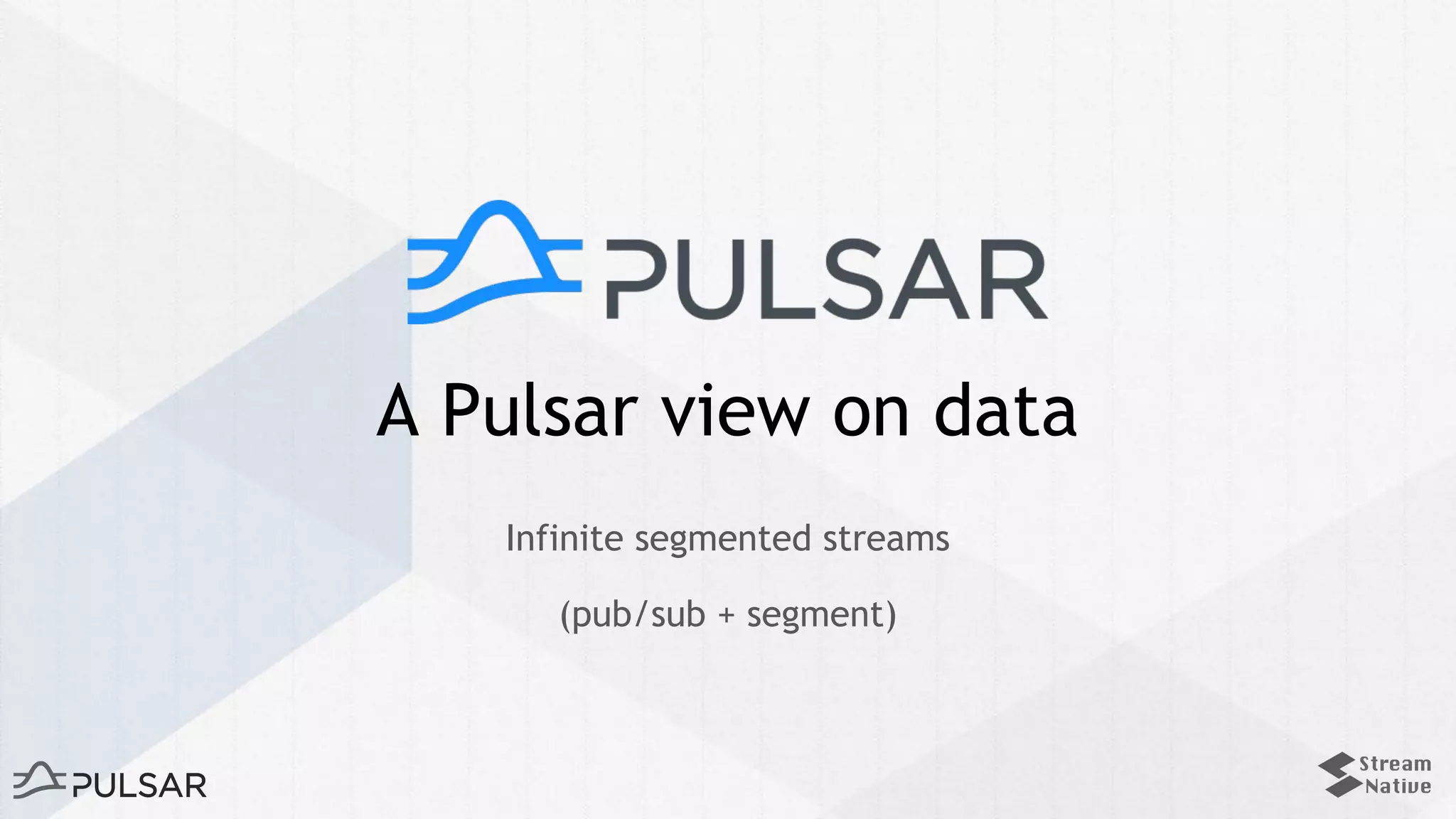

16. Infinite segmented streams
(pub/sub + segment)
A Pulsar view on data

17. +
=
Streaming-first, unified data processing

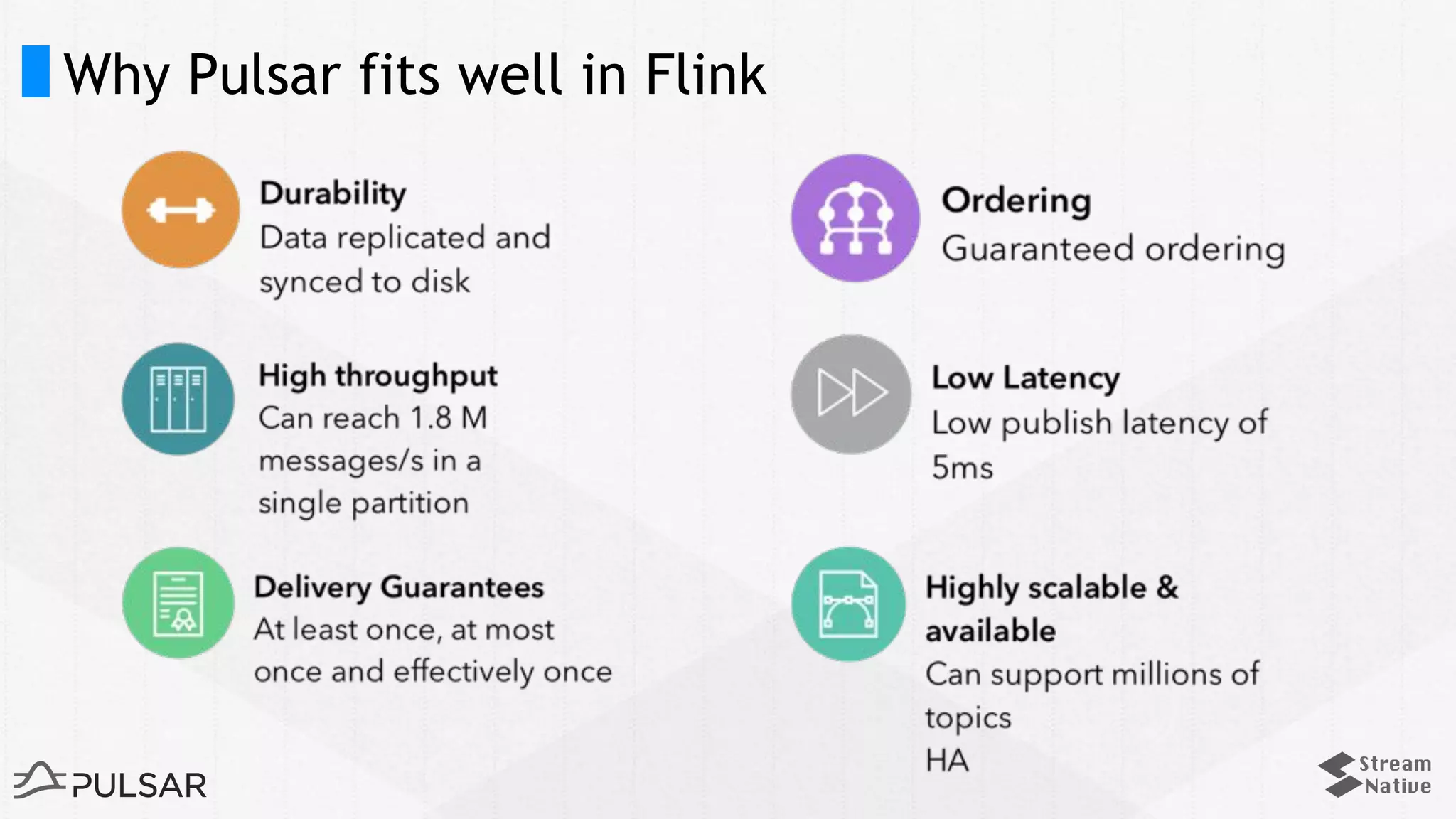

18. Why Pulsar fits well in Flink

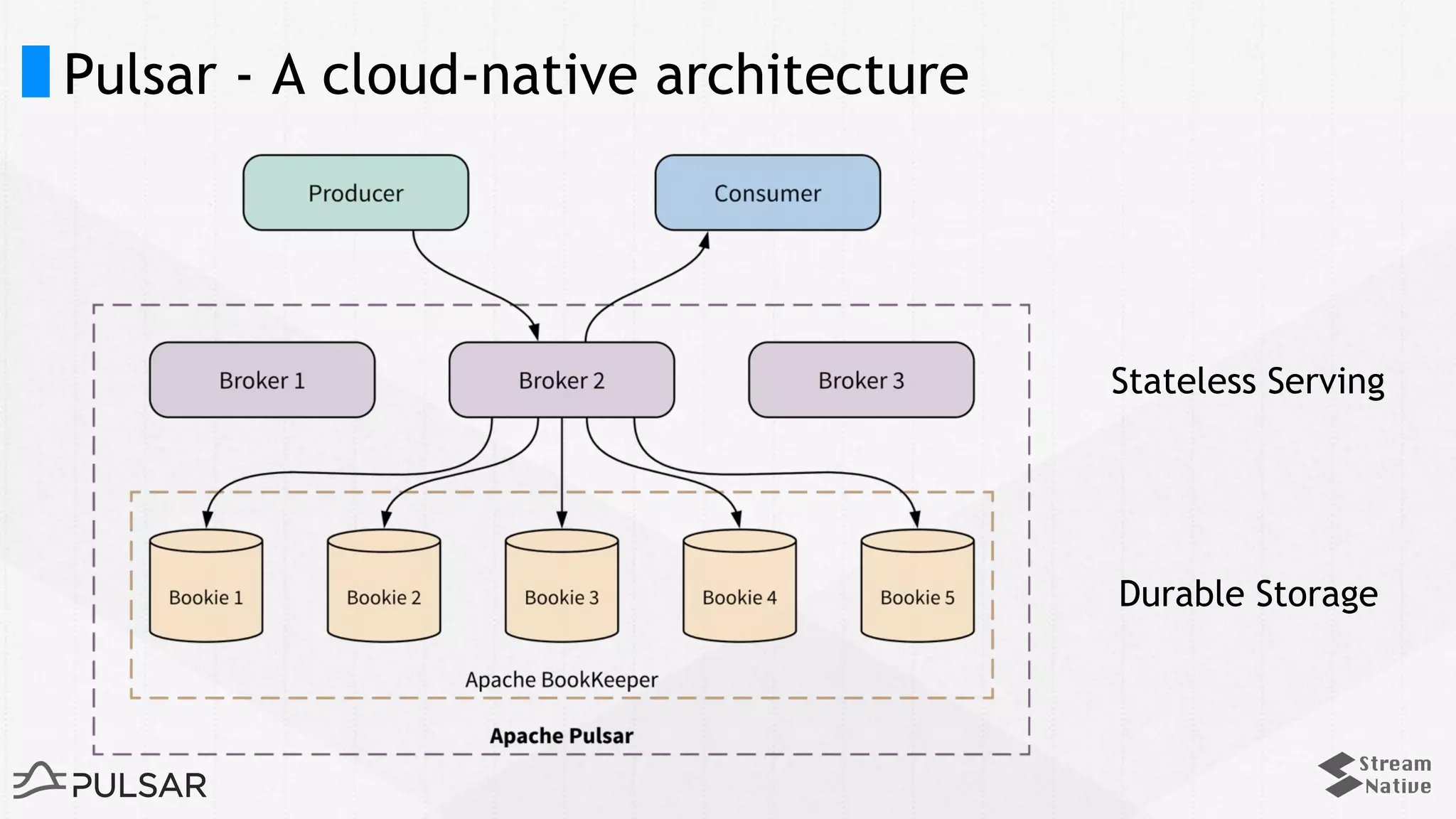

19. Pulsar - A cloud-native architecture
Stateless Serving
Durable Storage

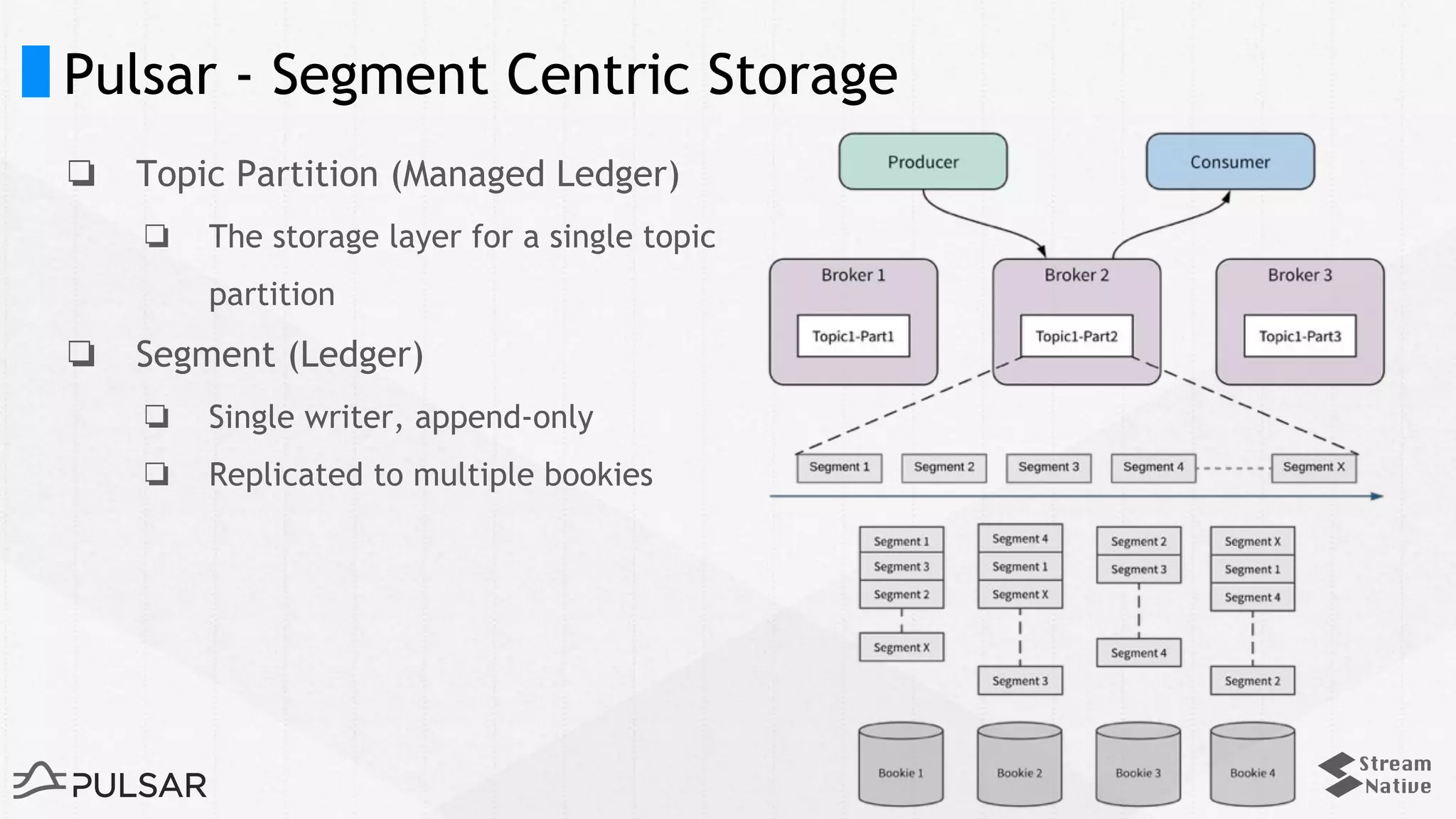

20. Pulsar - Segment Centric Storage
❏ Topic Partition (Managed Ledger)
❏ The storage layer for a single topic
partition
❏ Segment (Ledger)
❏ Single writer, append-only
❏ Replicated to multiple bookies

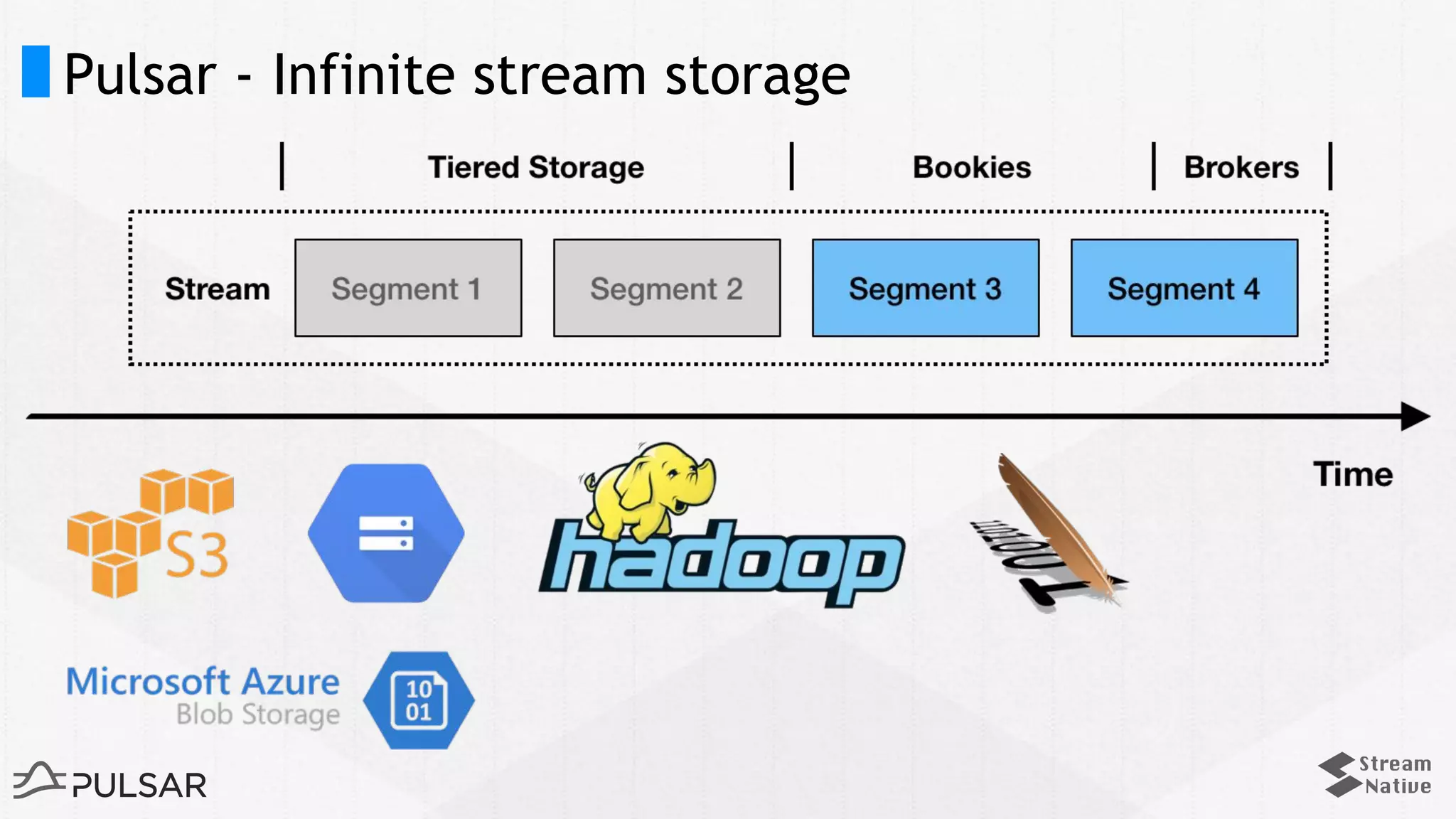

21. Pulsar - Infinite stream storage

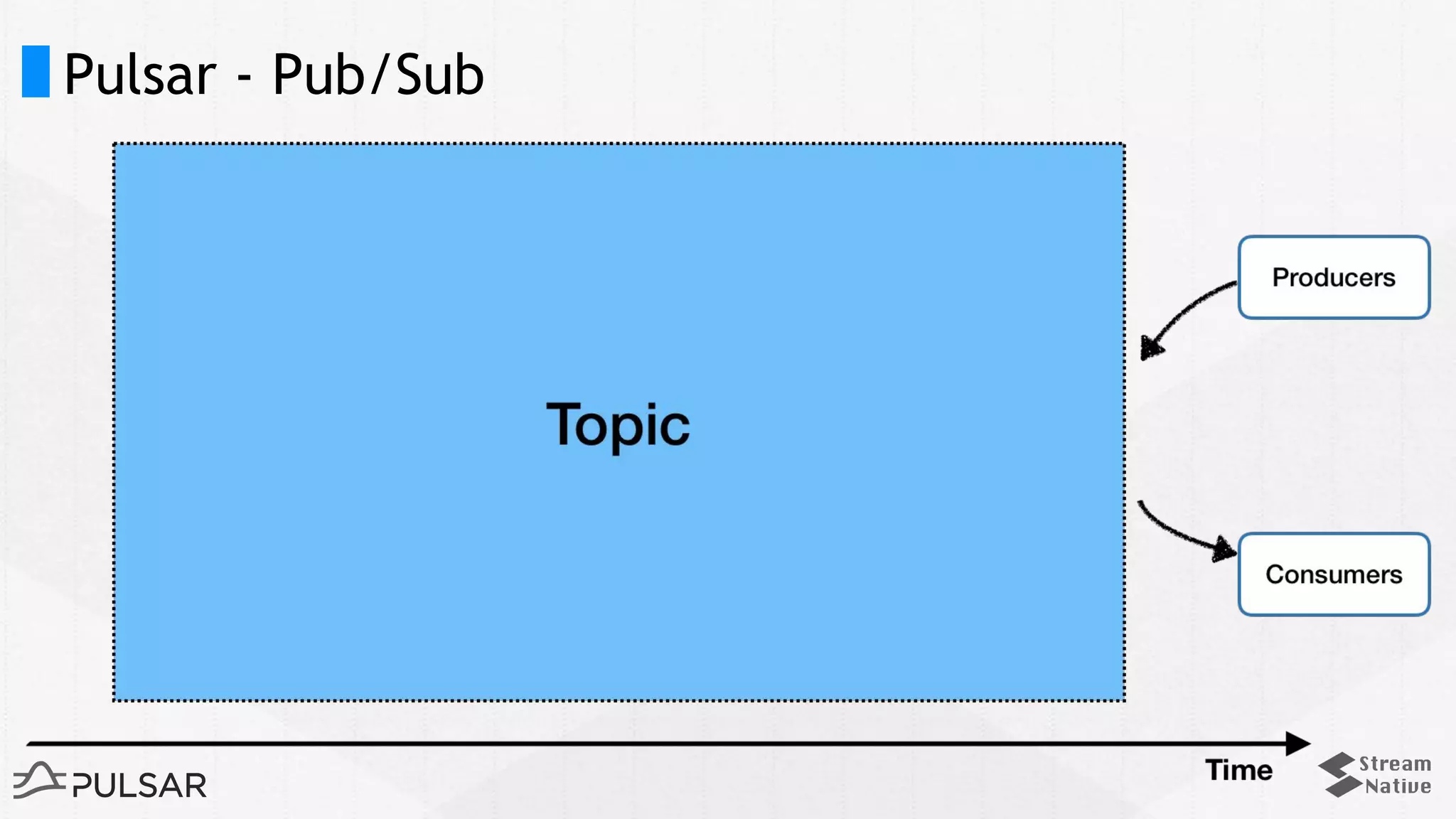

22. Pulsar - Pub/Sub

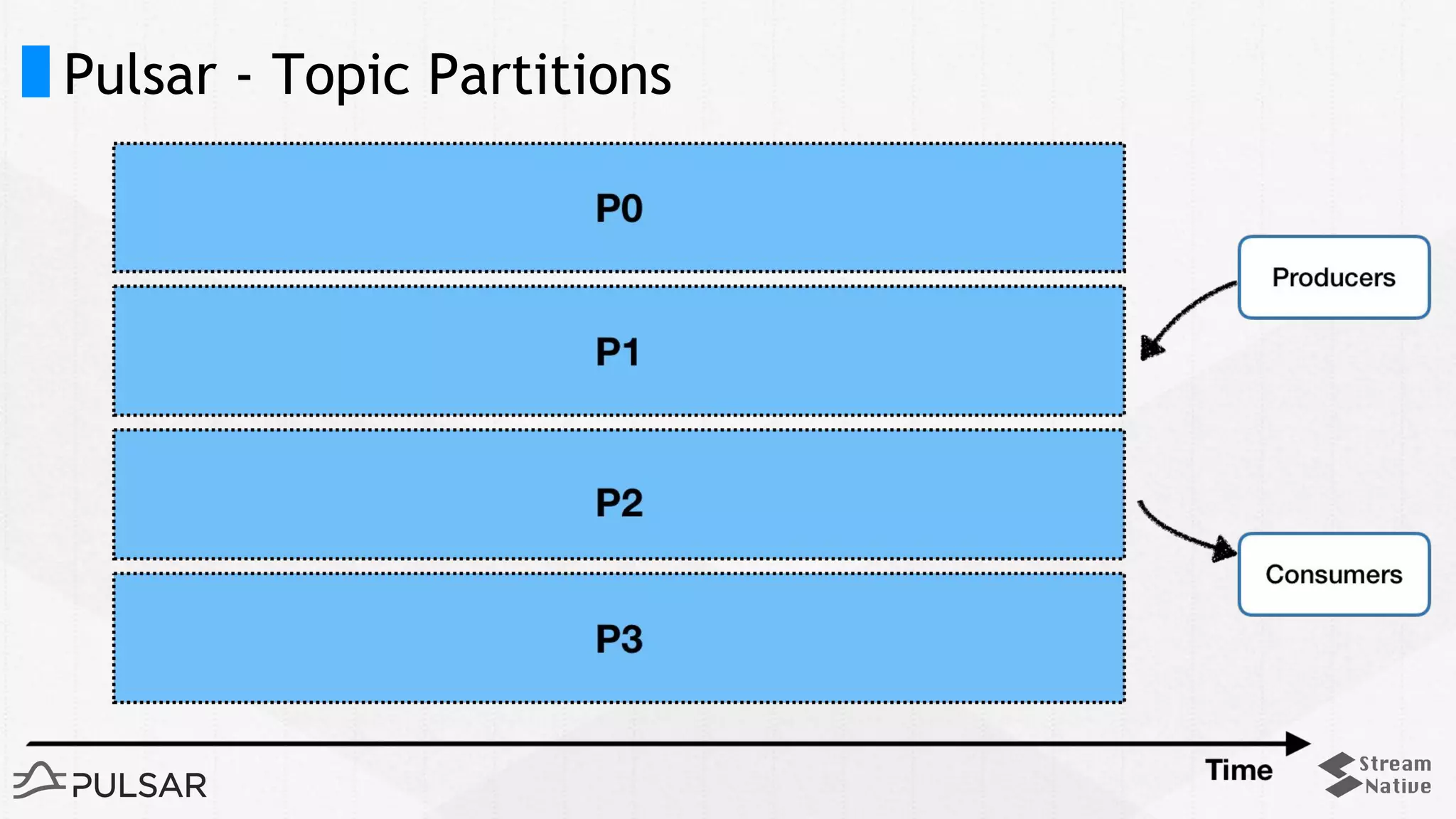

23. Pulsar - Topic Partitions

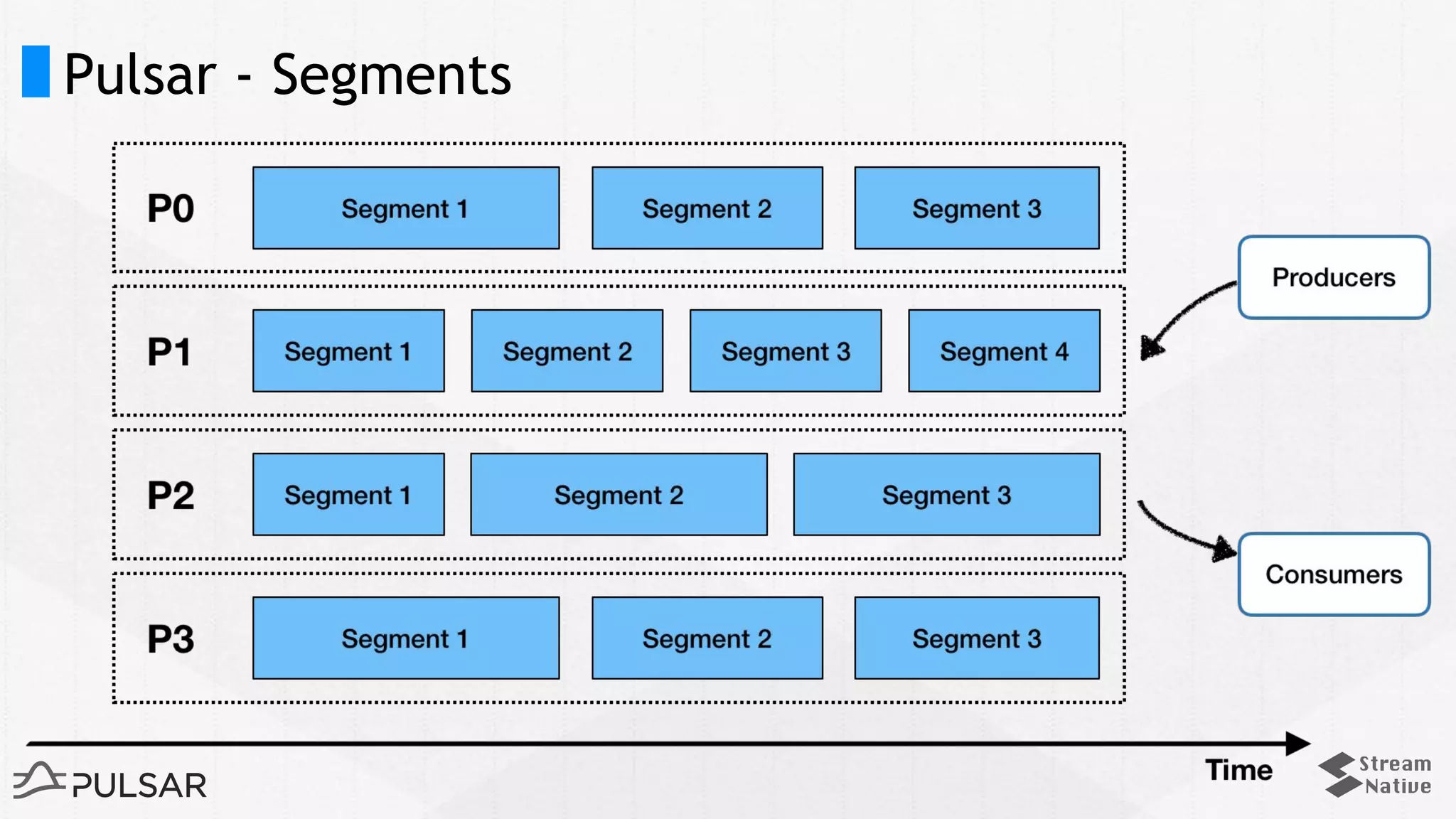

24. Pulsar - Segments

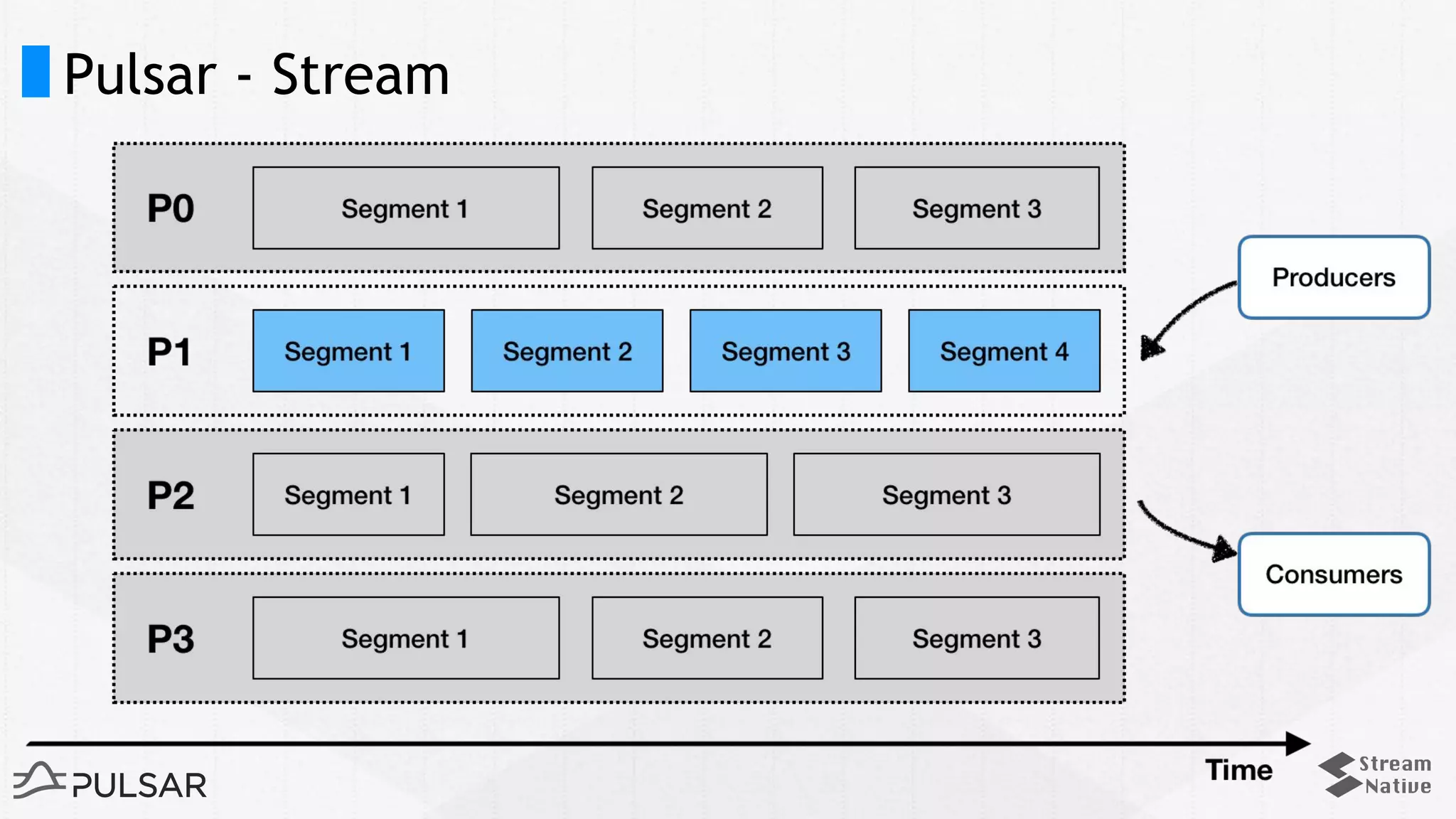

25. Pulsar - Stream

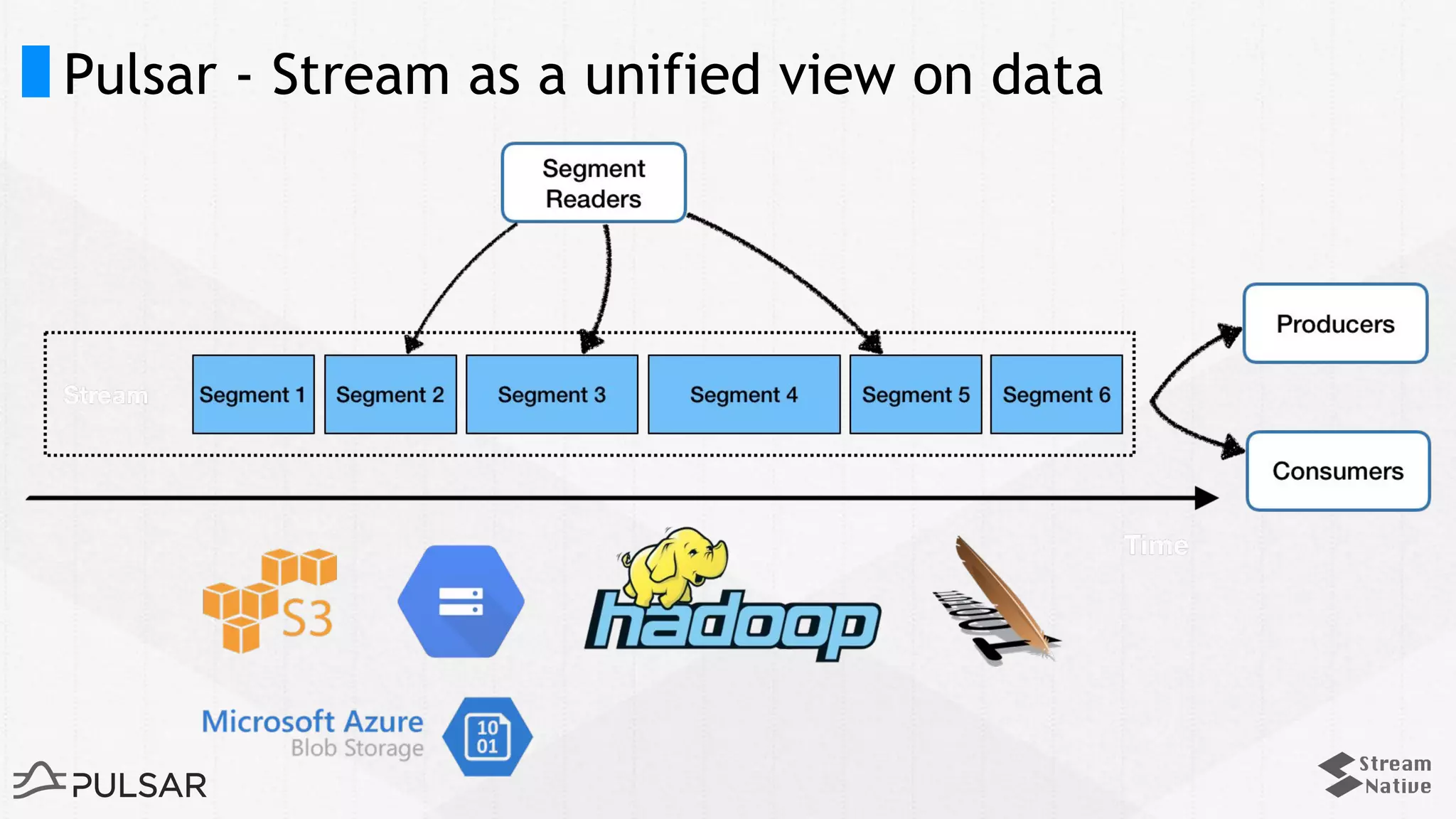

26. Pulsar - Stream as a unified view on data

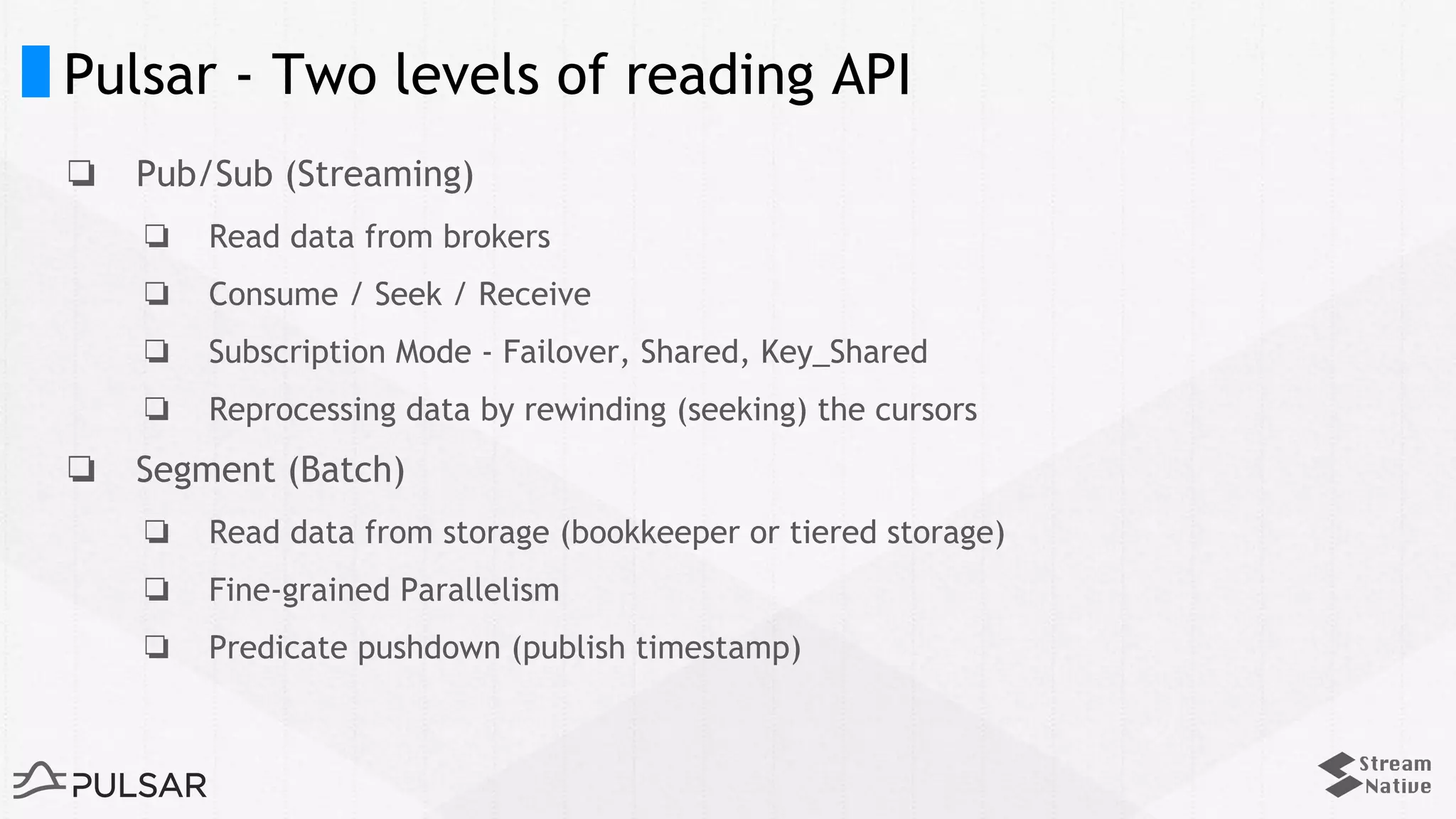

27. Pulsar - Two levels of reading API
❏ Pub/Sub (Streaming)
❏ Read data from brokers
❏ Consume / Seek / Receive
❏ Subscription Mode - Failover, Shared, Key_Shared
❏ Reprocessing data by rewinding (seeking) the cursors
❏ Segment (Batch)
❏ Read data from storage (bookkeeper or tiered storage)
❏ Fine-grained Parallelism
❏ Predicate pushdown (publish timestamp)

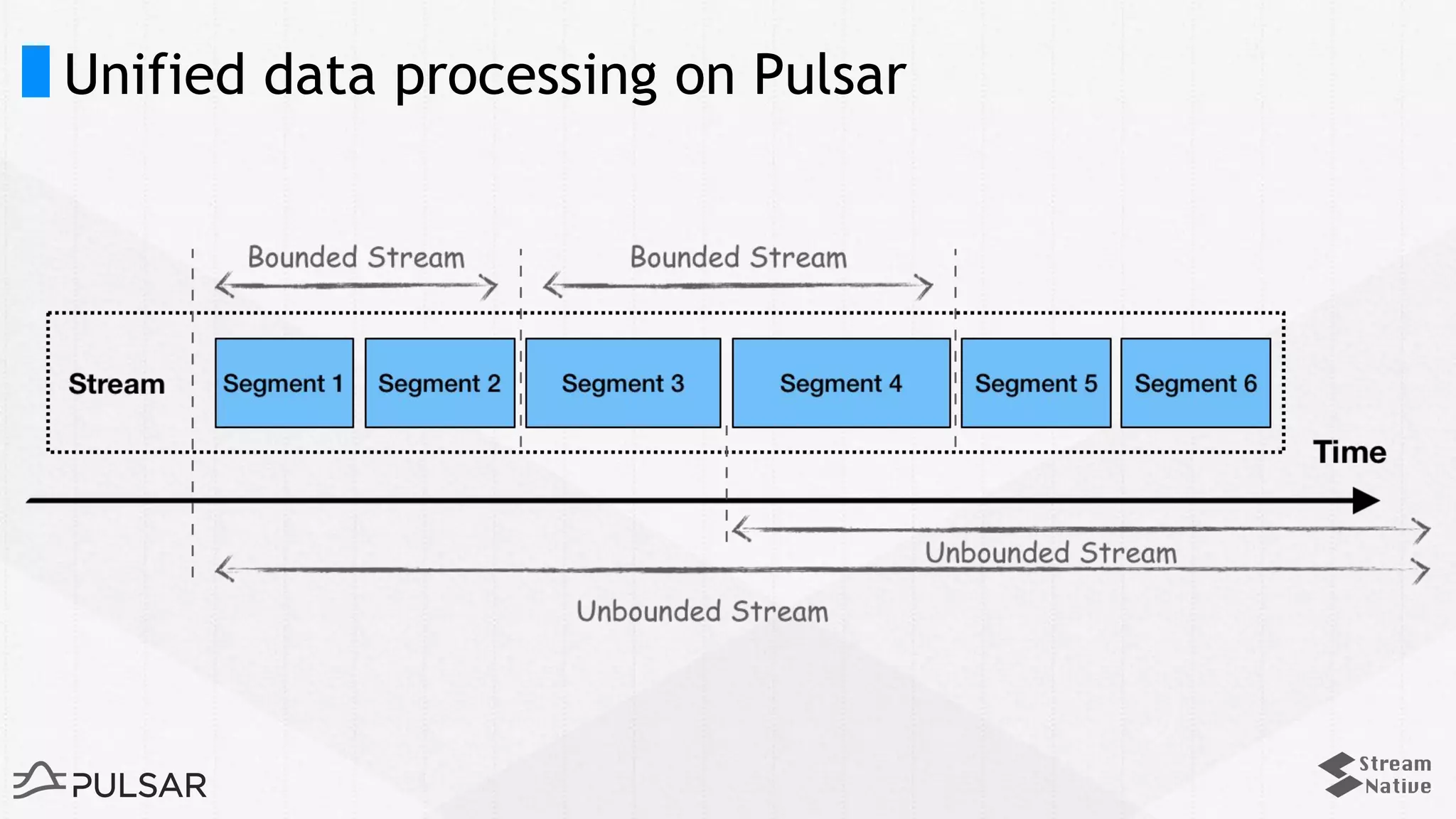

28. Unified data processing on Pulsar

29. When Meets

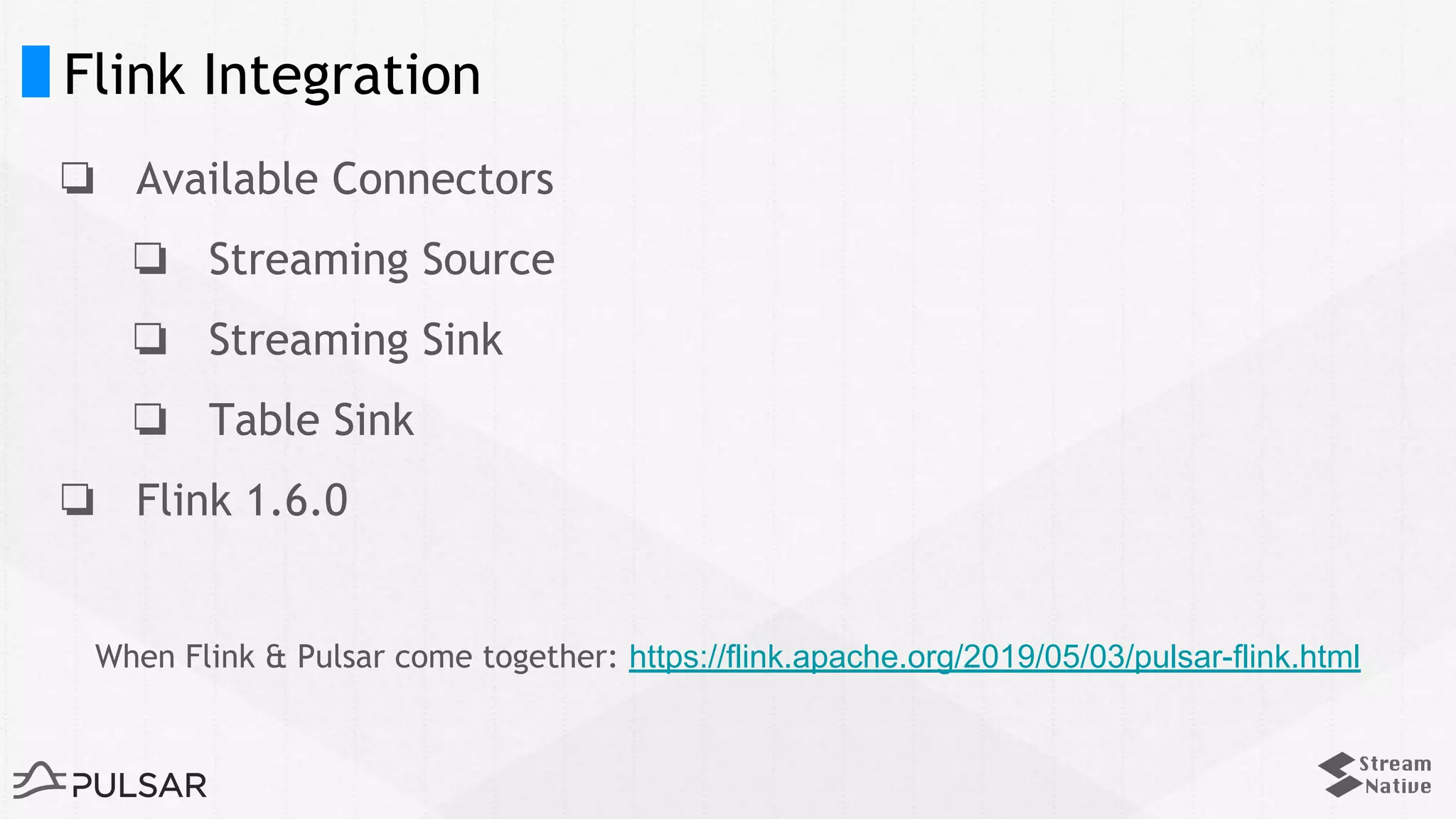

30. Flink Integration
❏ Available Connectors
❏ Streaming Source
❏ Streaming Sink
❏ Table Sink
❏ Flink 1.6.0
When Flink & Pulsar come together: https://flink.apache.org/2019/05/03/pulsar-flink.html

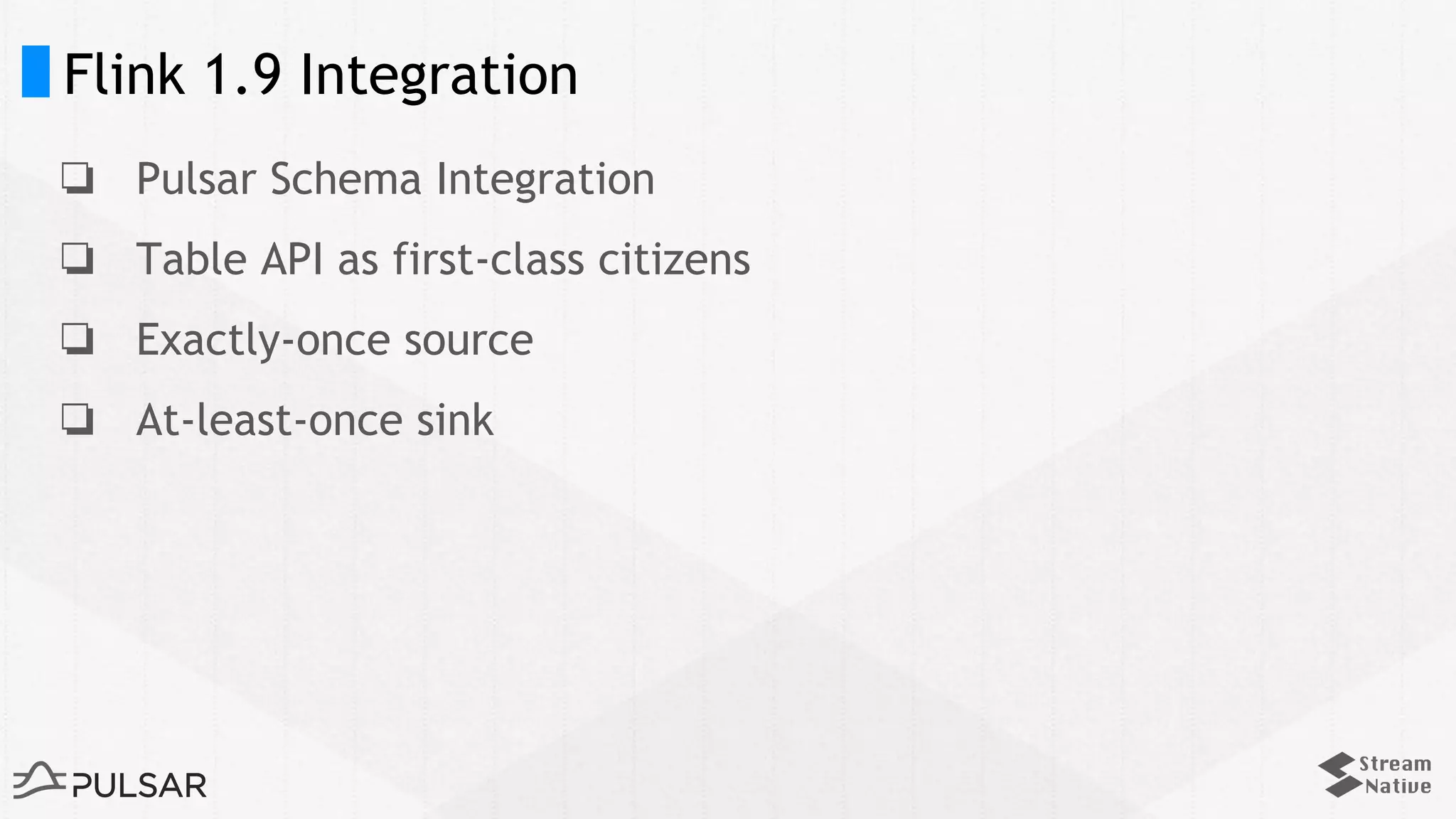

31. Flink 1.9 Integration
❏ Pulsar Schema Integration
❏ Table API as first-class citizens
❏ Exactly-once source
❏ At-least-once sink

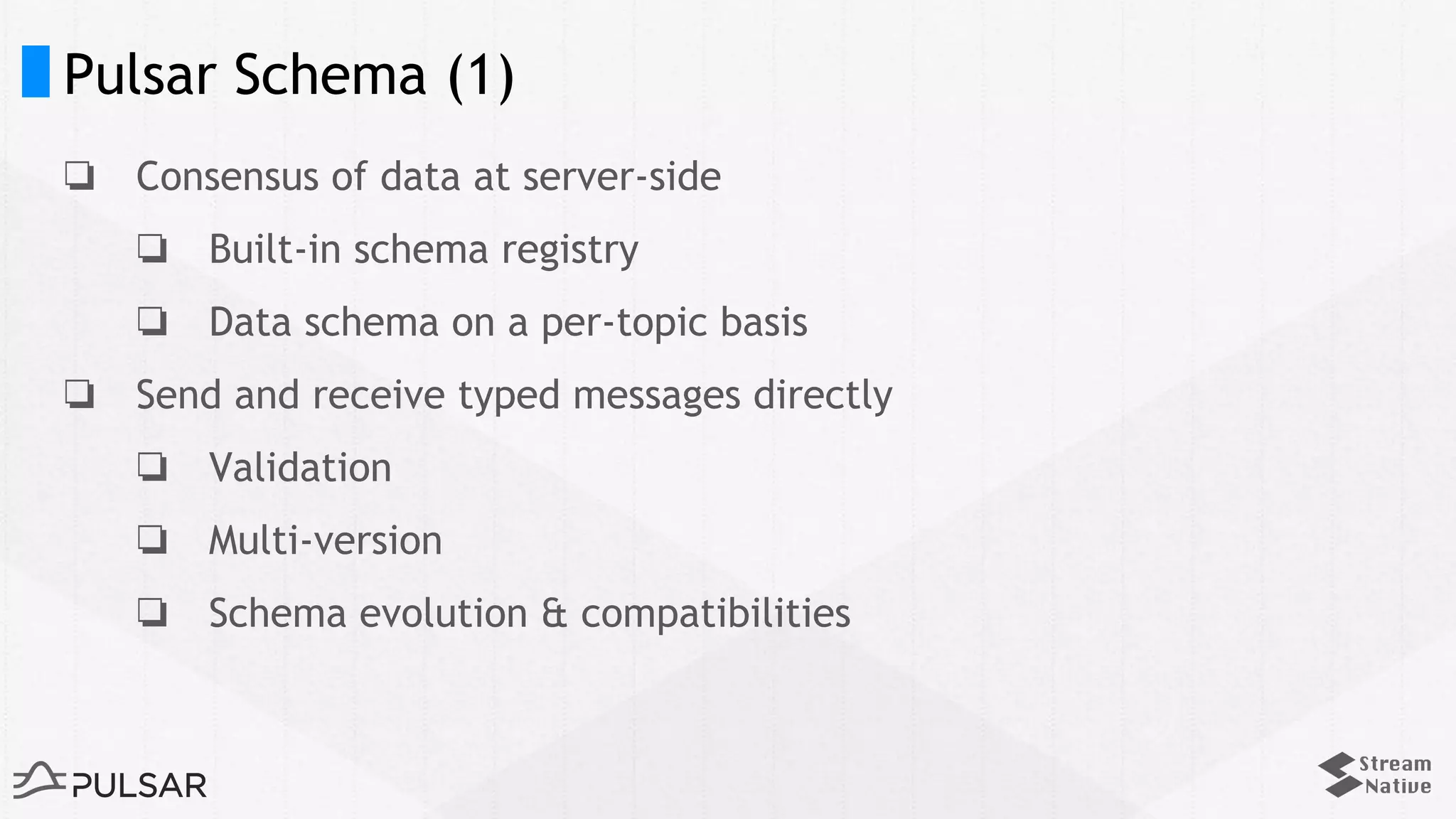

32. Pulsar Schema (1)
❏ Consensus of data at server-side
❏ Built-in schema registry
❏ Data schema on a per-topic basis
❏ Send and receive typed messages directly
❏ Validation
❏ Multi-version
❏ Schema evolution & compatibilities

33. Pulsar Schema (2)

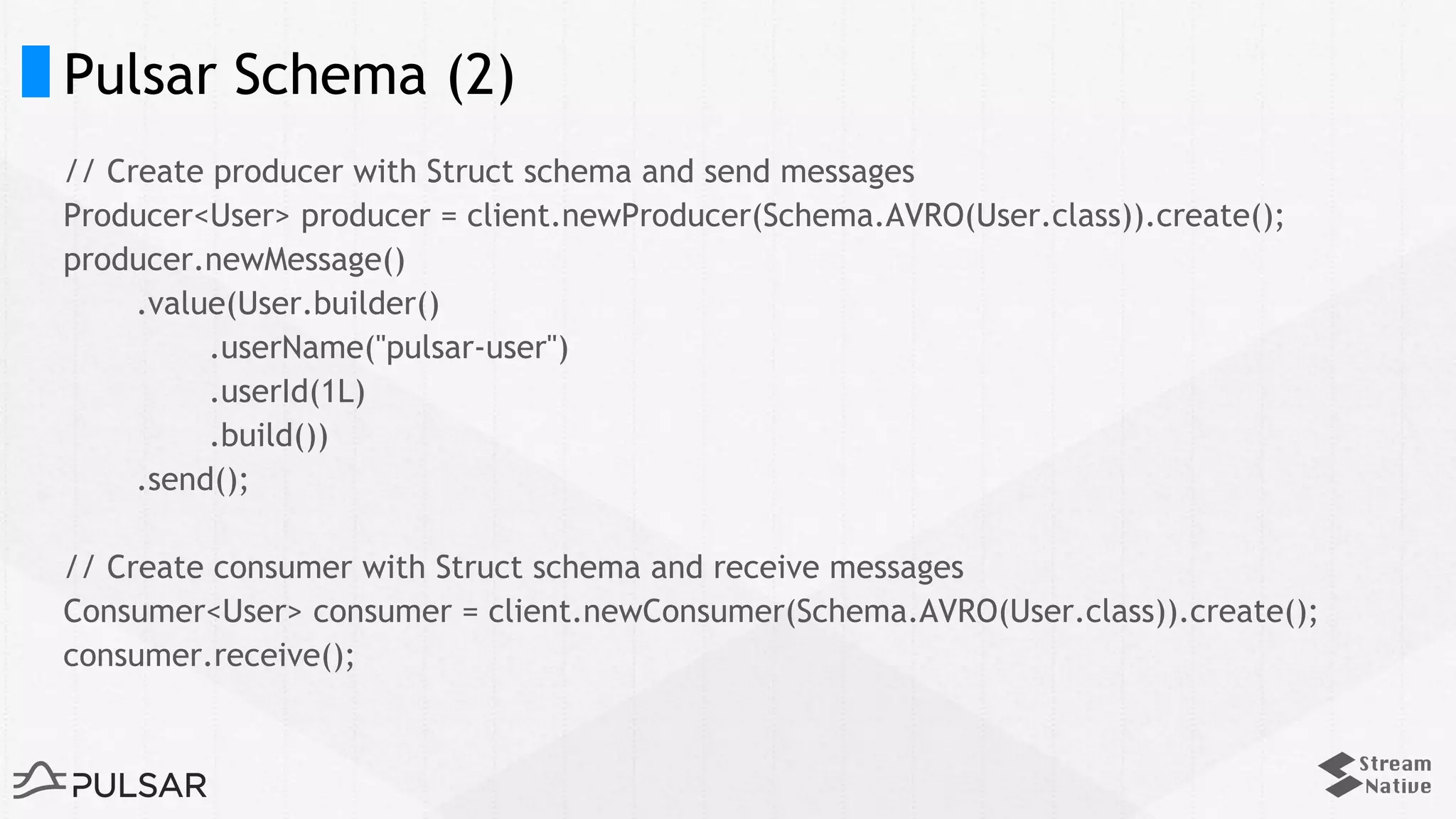

// Create producer with Struct schema and send messages
Producer<User> producer = client.newProducer(Schema.AVRO(User.class)).create();
producer.newMessage()
.value(User.builder()
.userName("pulsar-user")
.userId(1L)
.build())
.send();
// Create consumer with Struct schema and receive messages
Consumer<User> consumer = client.newConsumer(Schema.AVRO(User.class)).create();
consumer.receive();

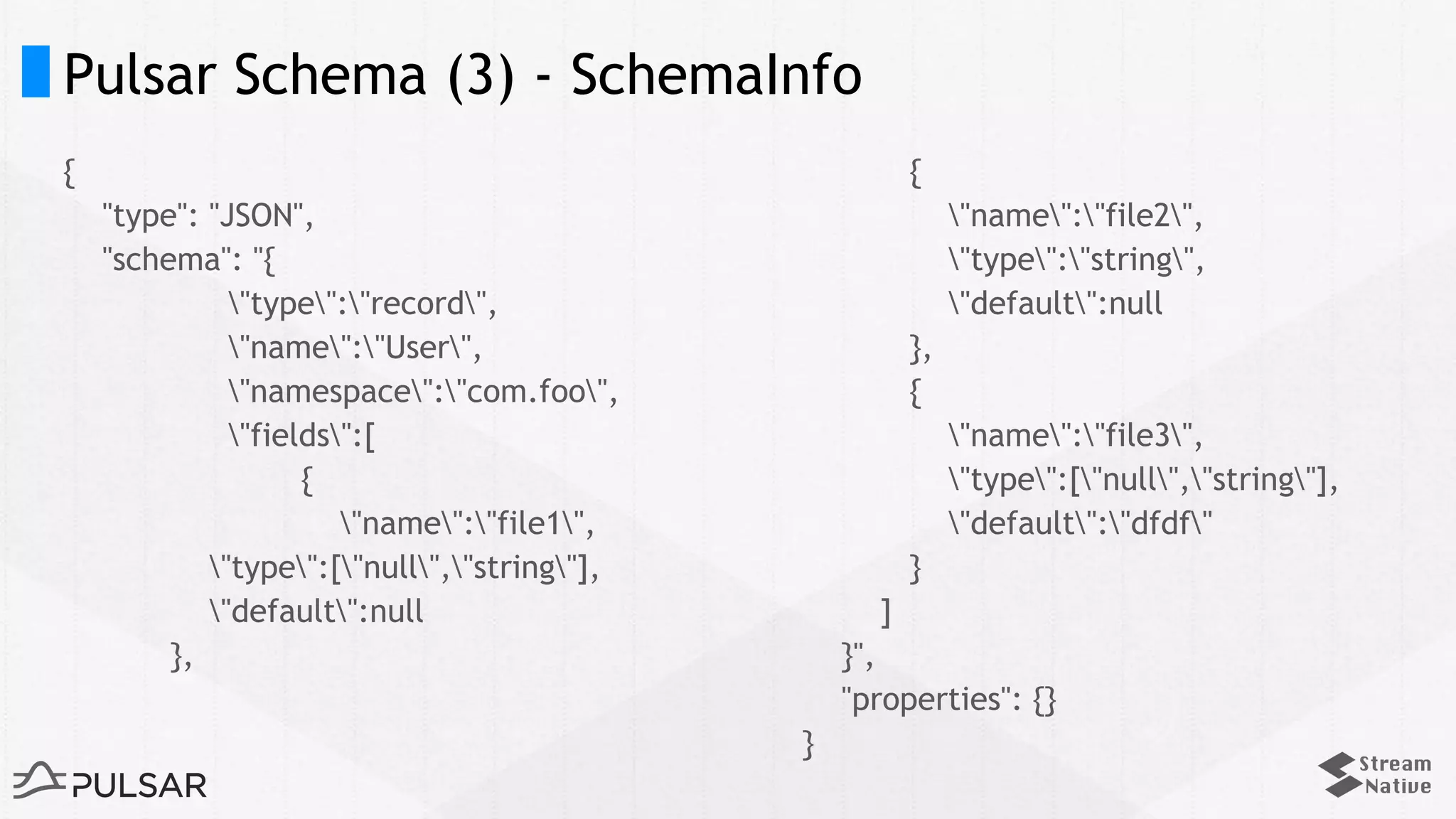

34. Pulsar Schema (3) - SchemaInfo
{
"type": "JSON",
"schema": "{
"type":"record",
"name":"User",
"namespace":"com.foo",
"fields":[
{
"name":"file1",
"type":["null","string"],
"default":null
},
{
"name":"file2",
"type":"string",
"default":null
},
{
"name":"file3",
"type":["null","string"],
"default":"dfdf"
}
]
}",
"properties": {}
}

35. Pulsar Schema (4) - Producer

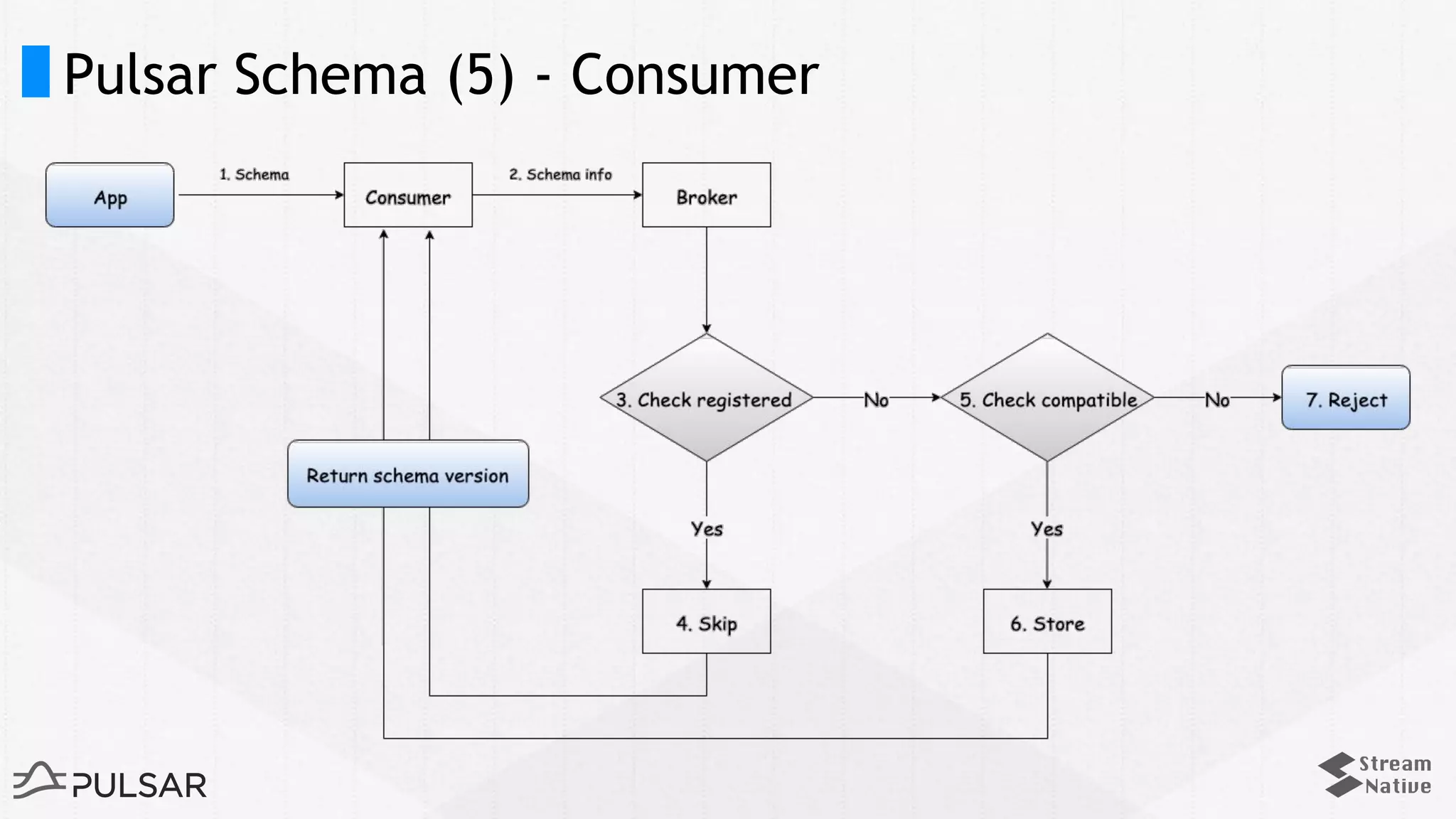

36. Pulsar Schema (5) - Consumer

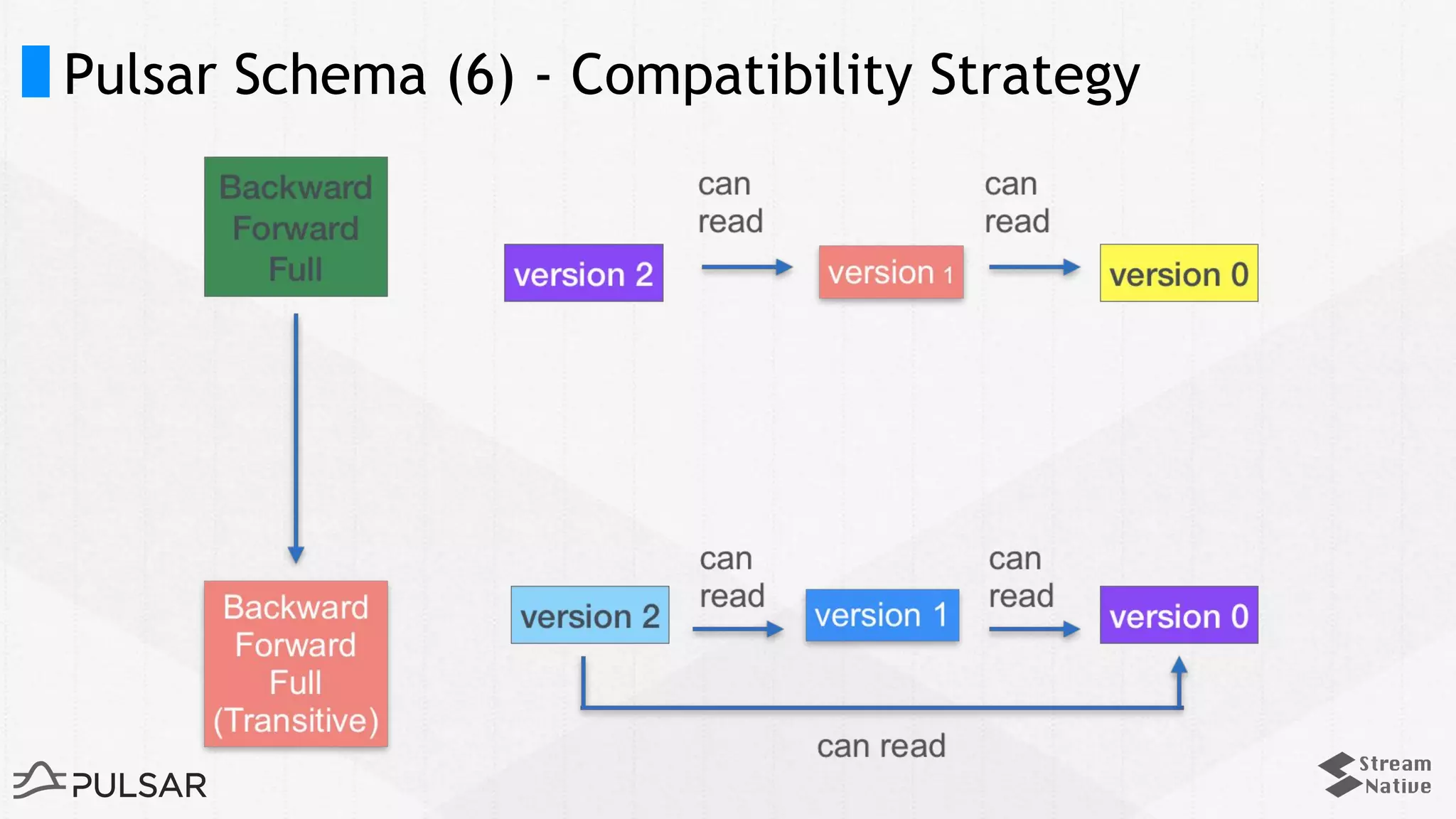

37. Pulsar Schema (6) - Compatibility Strategy

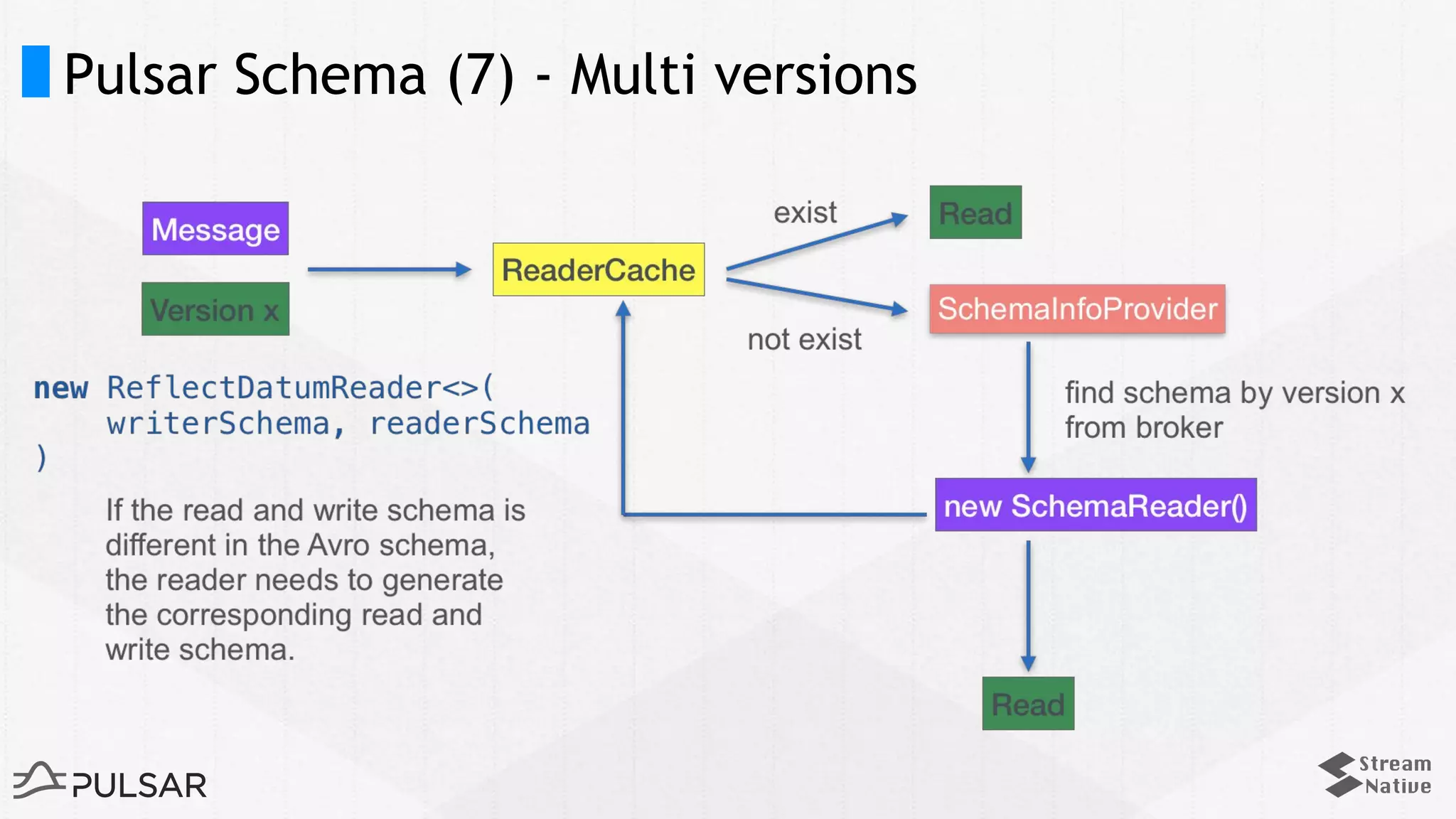

38. Pulsar Schema (7) - Multi versions

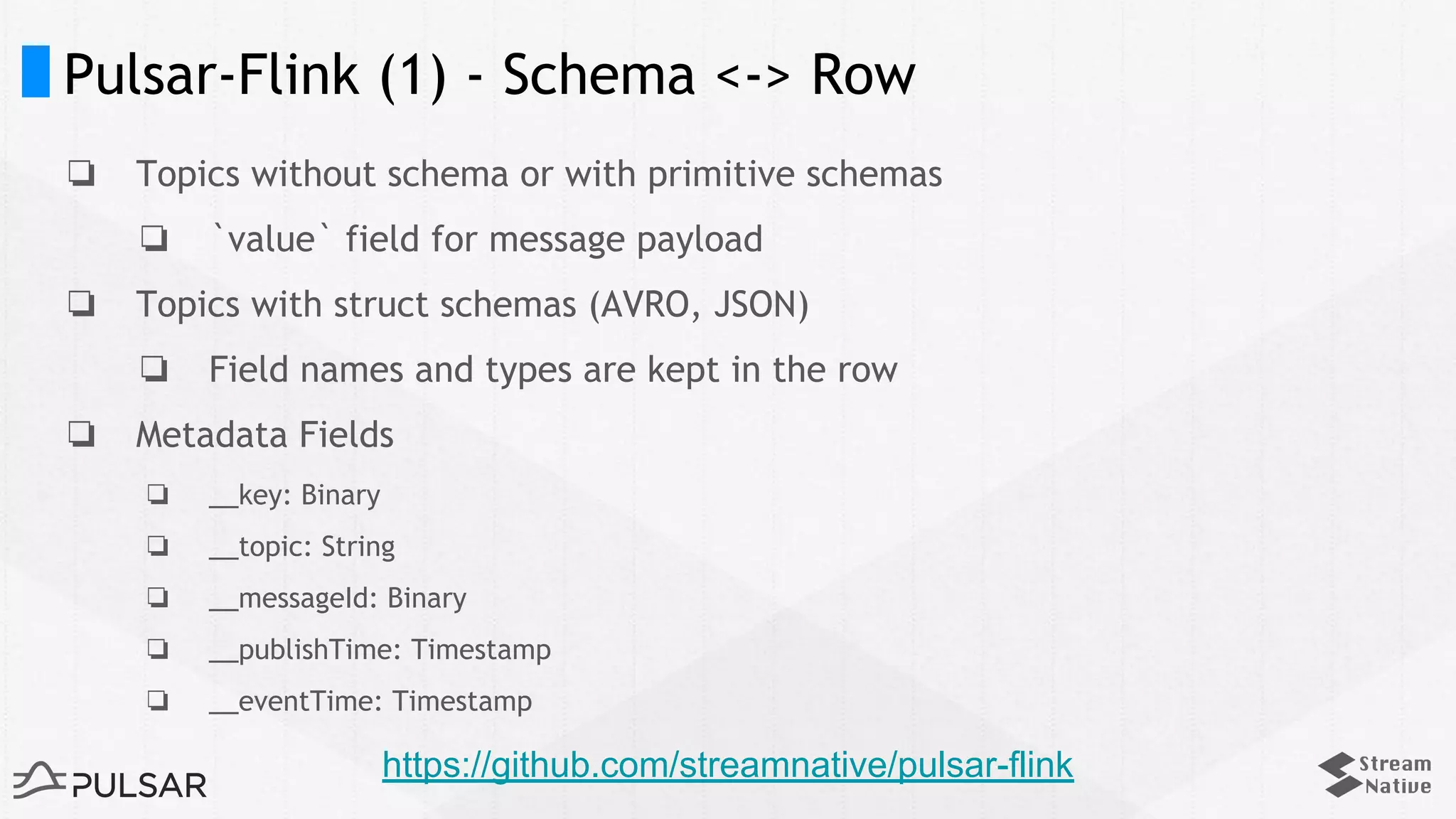

39. Pulsar-Flink (1) - Schema <-> Row
https://github.com/streamnative/pulsar-flink
❏ Topics without schema or with primitive schemas
❏ `value` field for message payload
❏ Topics with struct schemas (AVRO, JSON)
❏ Field names and types are kept in the row
❏ Metadata Fields
❏ __key: Binary
❏ __topic: String
❏ __messageId: Binary
❏ __publishTime: Timestamp
❏ __eventTime: Timestamp

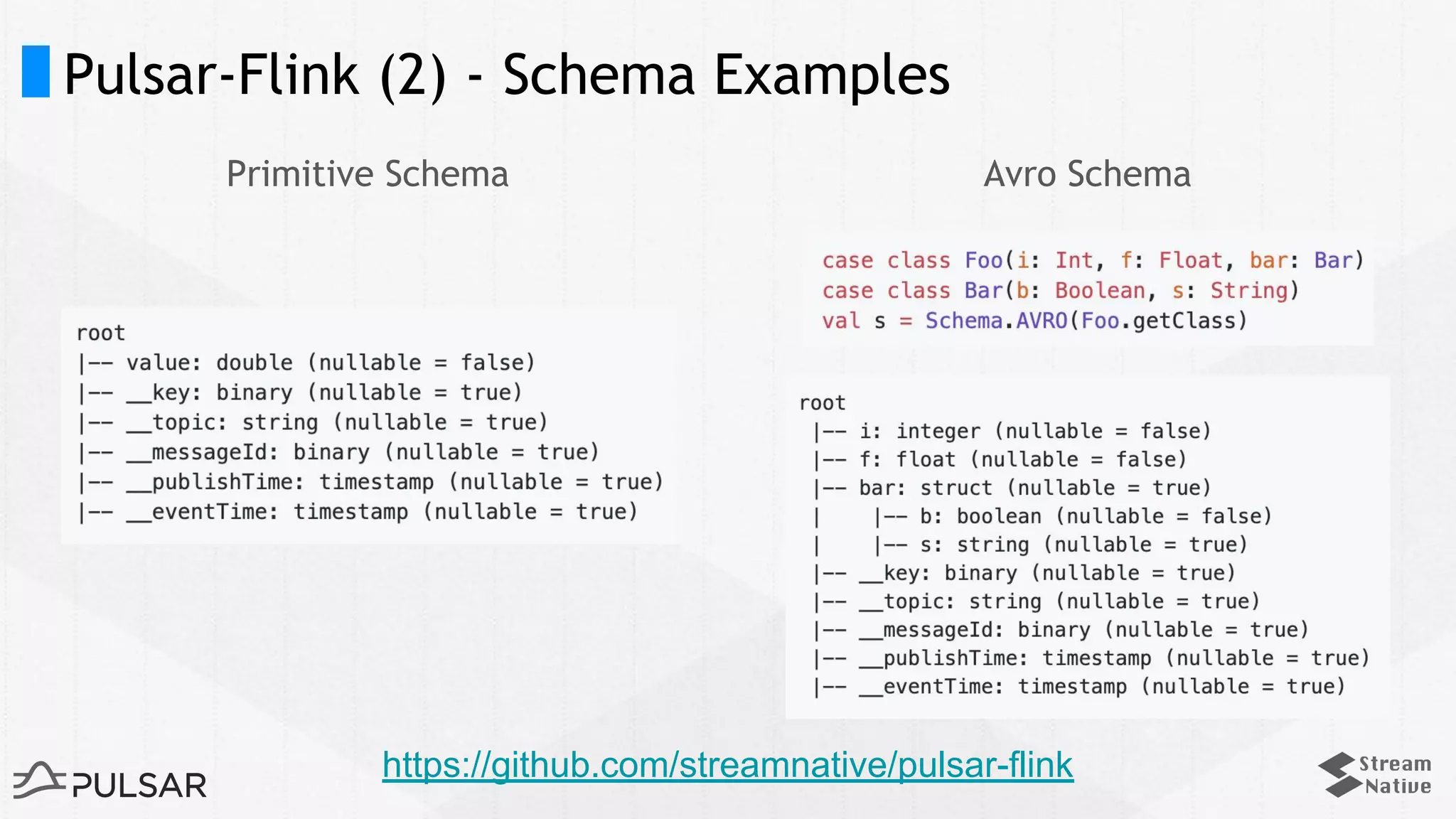

40. Pulsar-Flink (2) - Schema Examples
Primitive Schema Avro Schema
https://github.com/streamnative/pulsar-flink

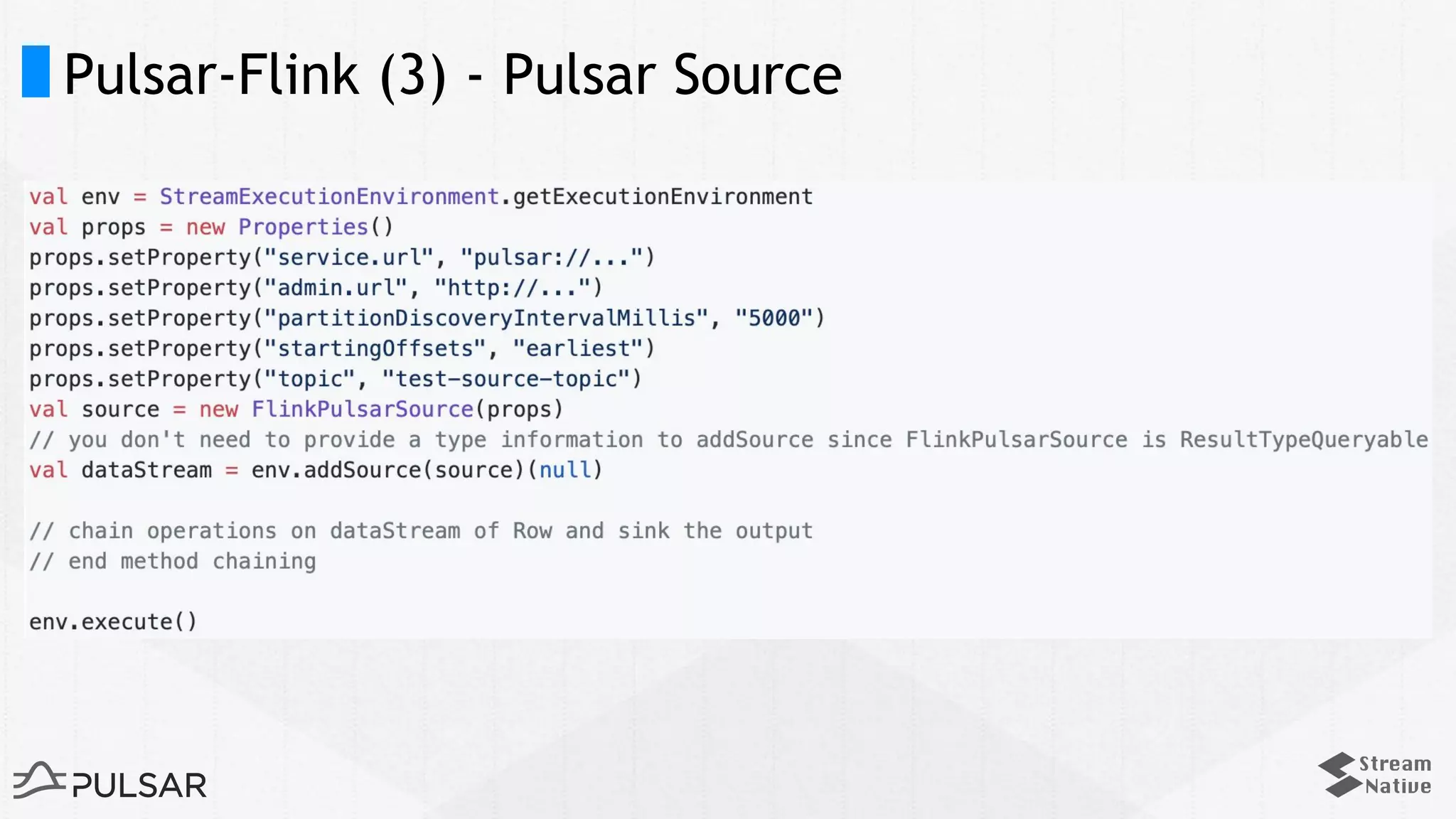

41. Pulsar-Flink (3) - Pulsar Source

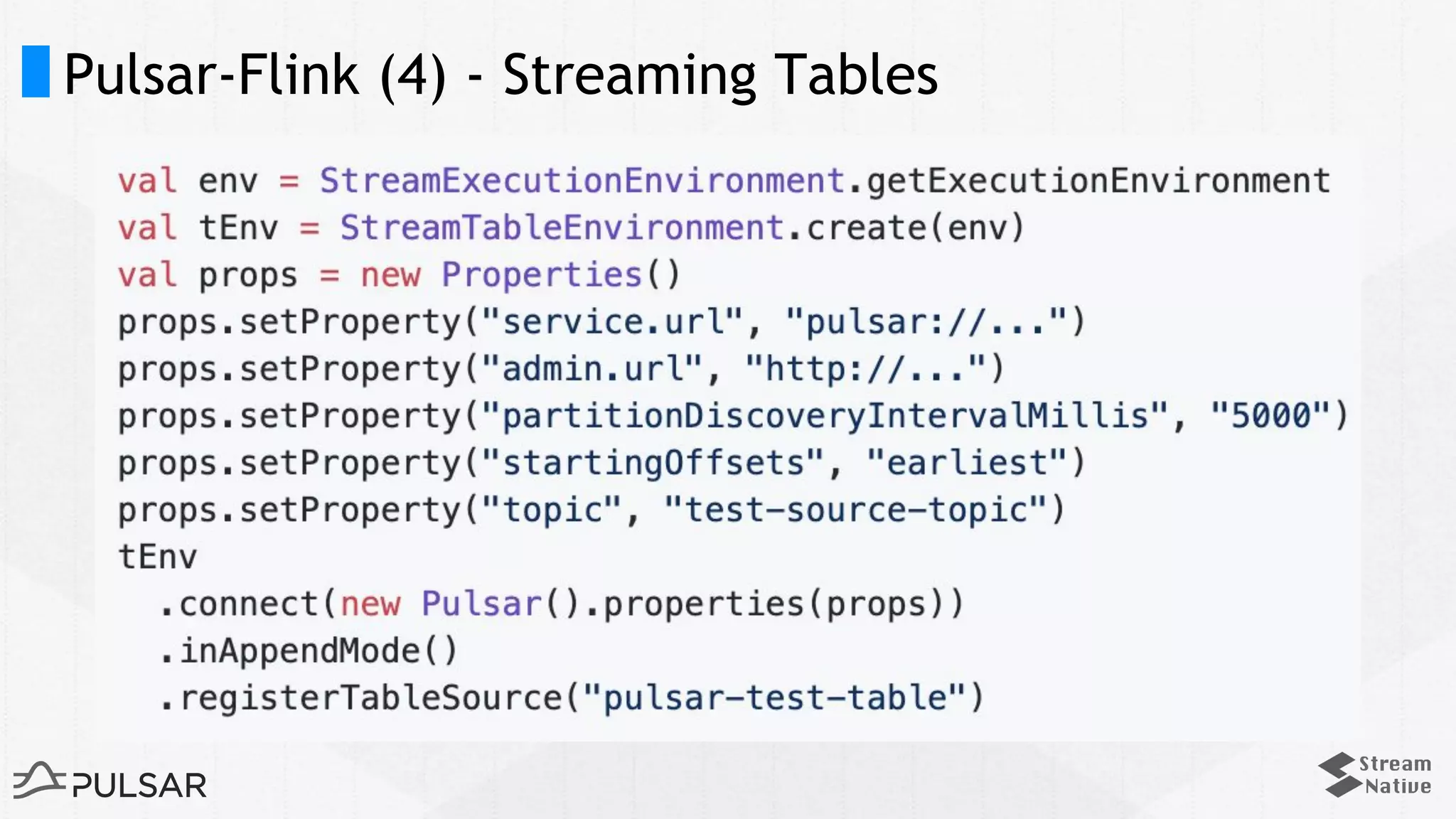

42. Pulsar-Flink (4) - Streaming Tables

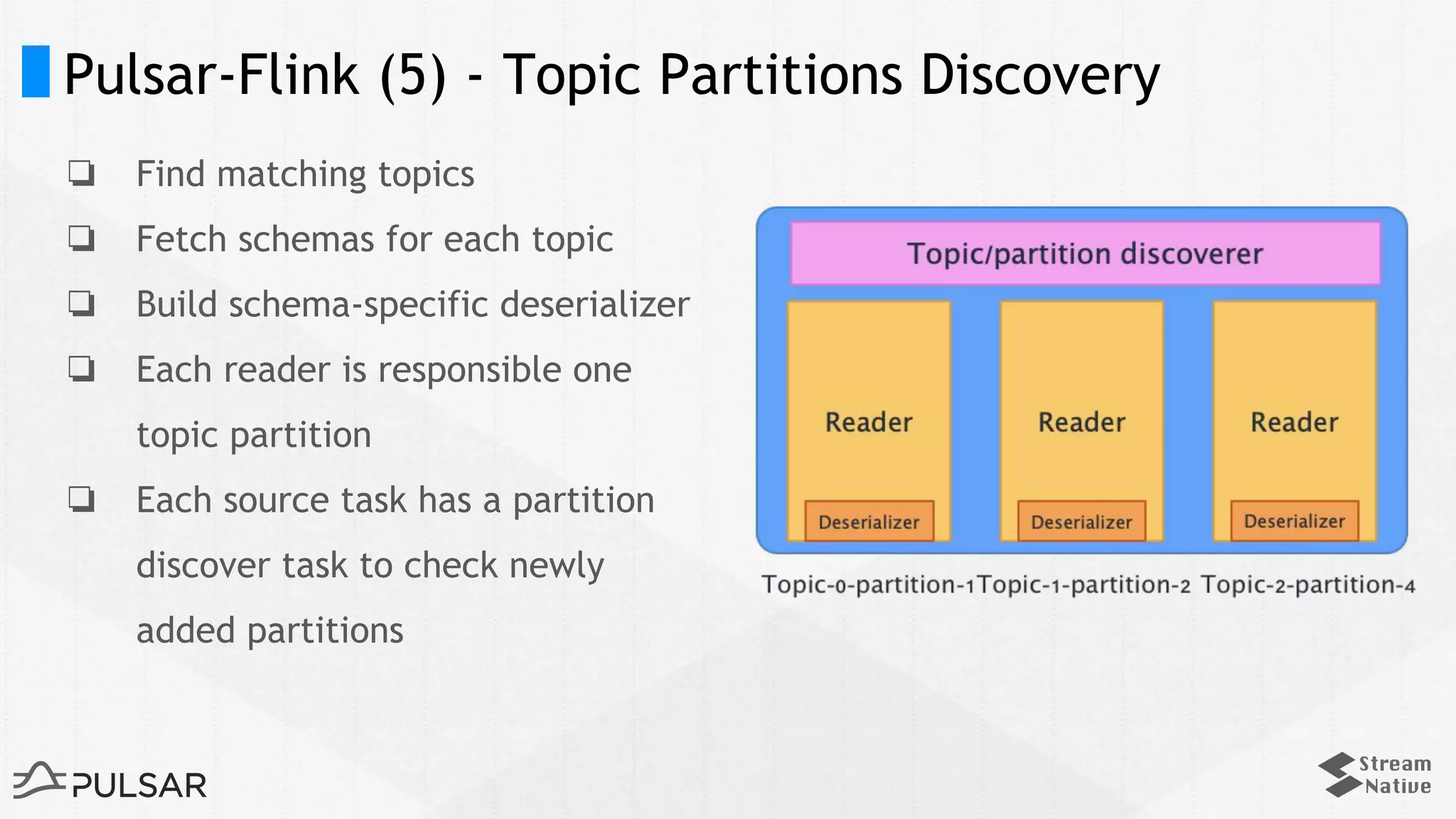

43. Pulsar-Flink (5) - Topic Partitions Discovery
❏ Find matching topics
❏ Fetch schemas for each topic
❏ Build schema-specific deserializer
❏ Each reader is responsible one
topic partition
❏ Each source task has a partition
discover task to check newly
added partitions

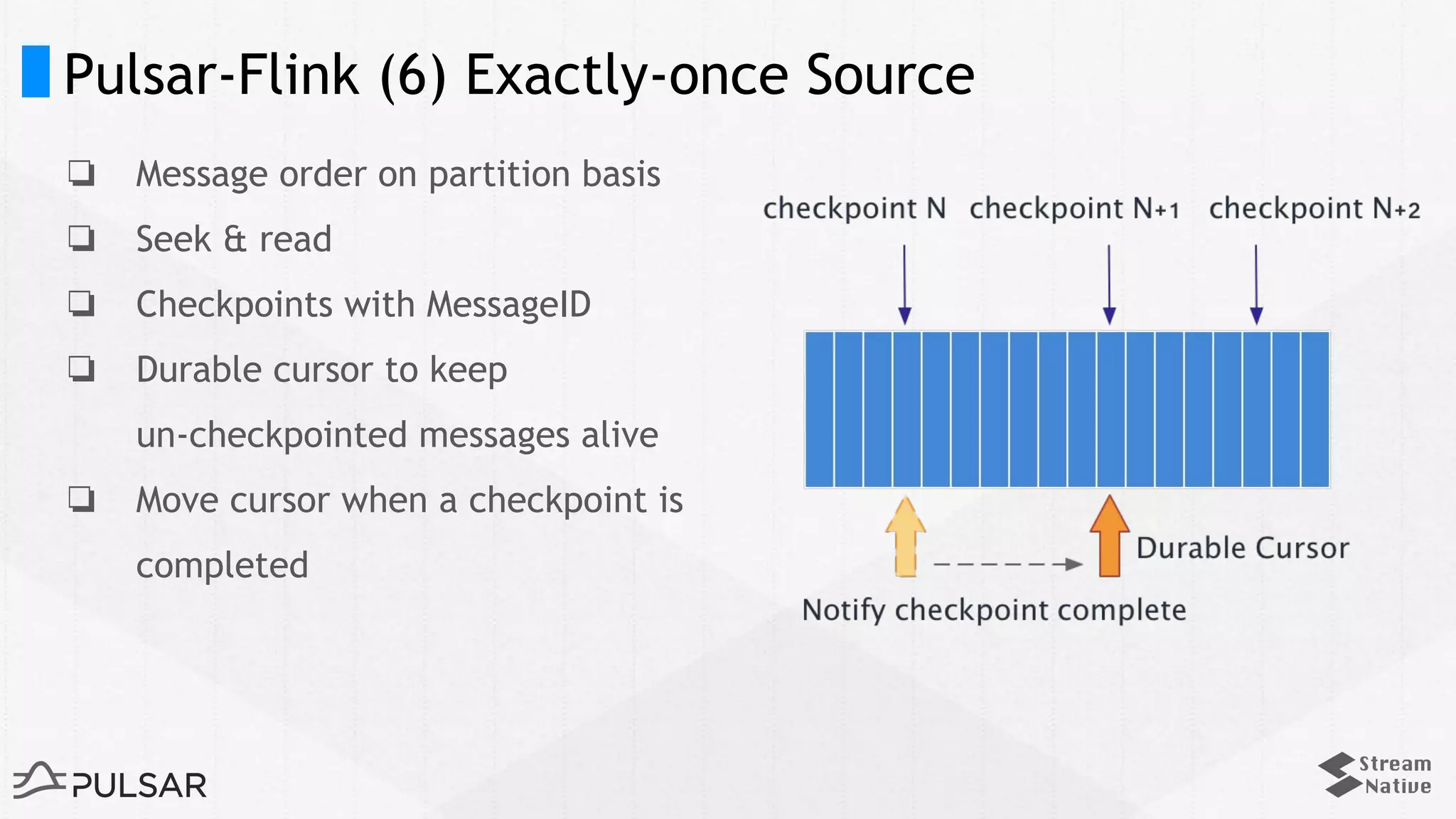

44. Pulsar-Flink (6) Exactly-once Source
❏ Message order on partition basis
❏ Seek & read
❏ Checkpoints with MessageID
❏ Durable cursor to keep
un-checkpointed messages alive
❏ Move cursor when a checkpoint is
completed

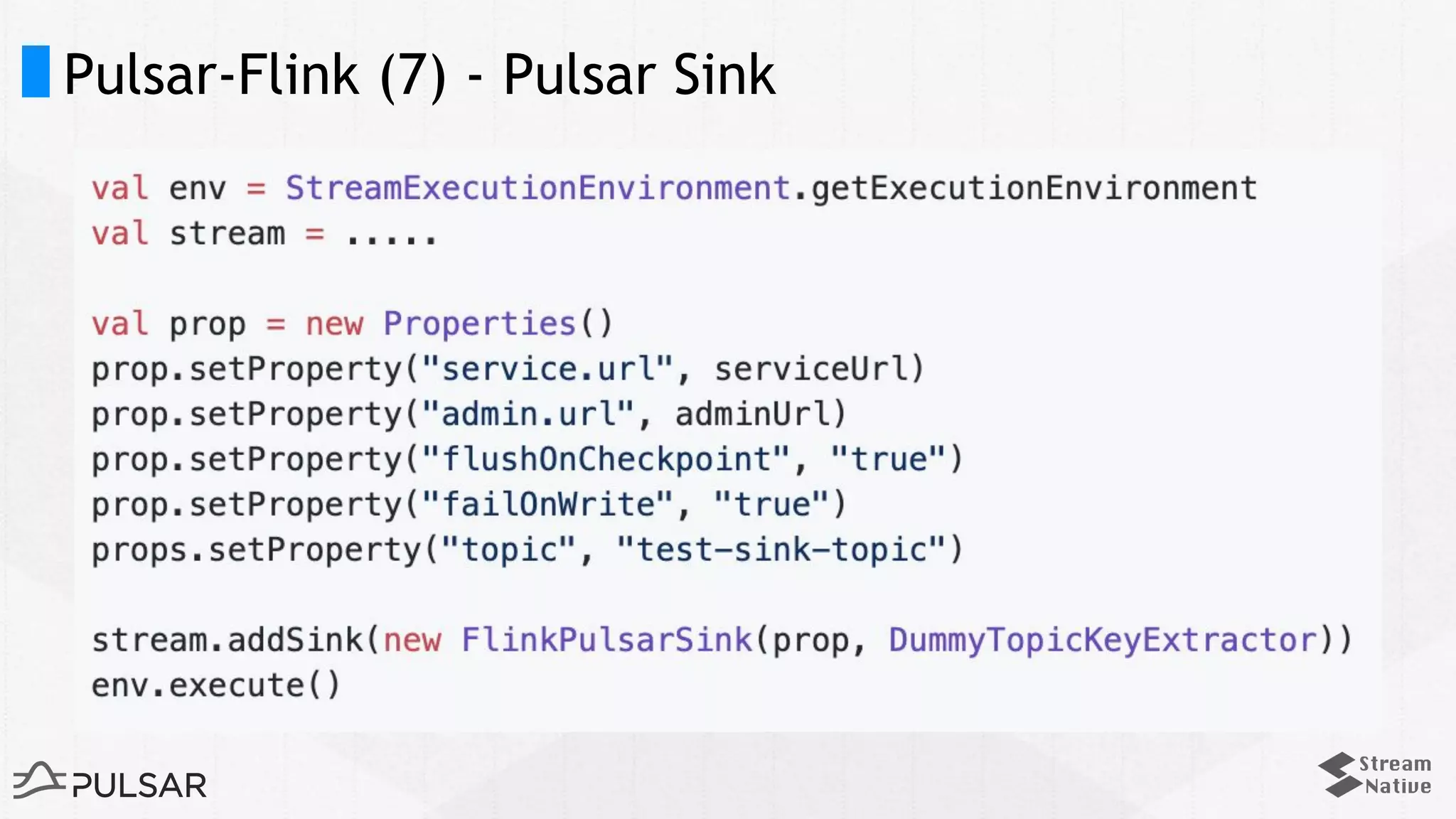

45. Pulsar-Flink (7) - Pulsar Sink

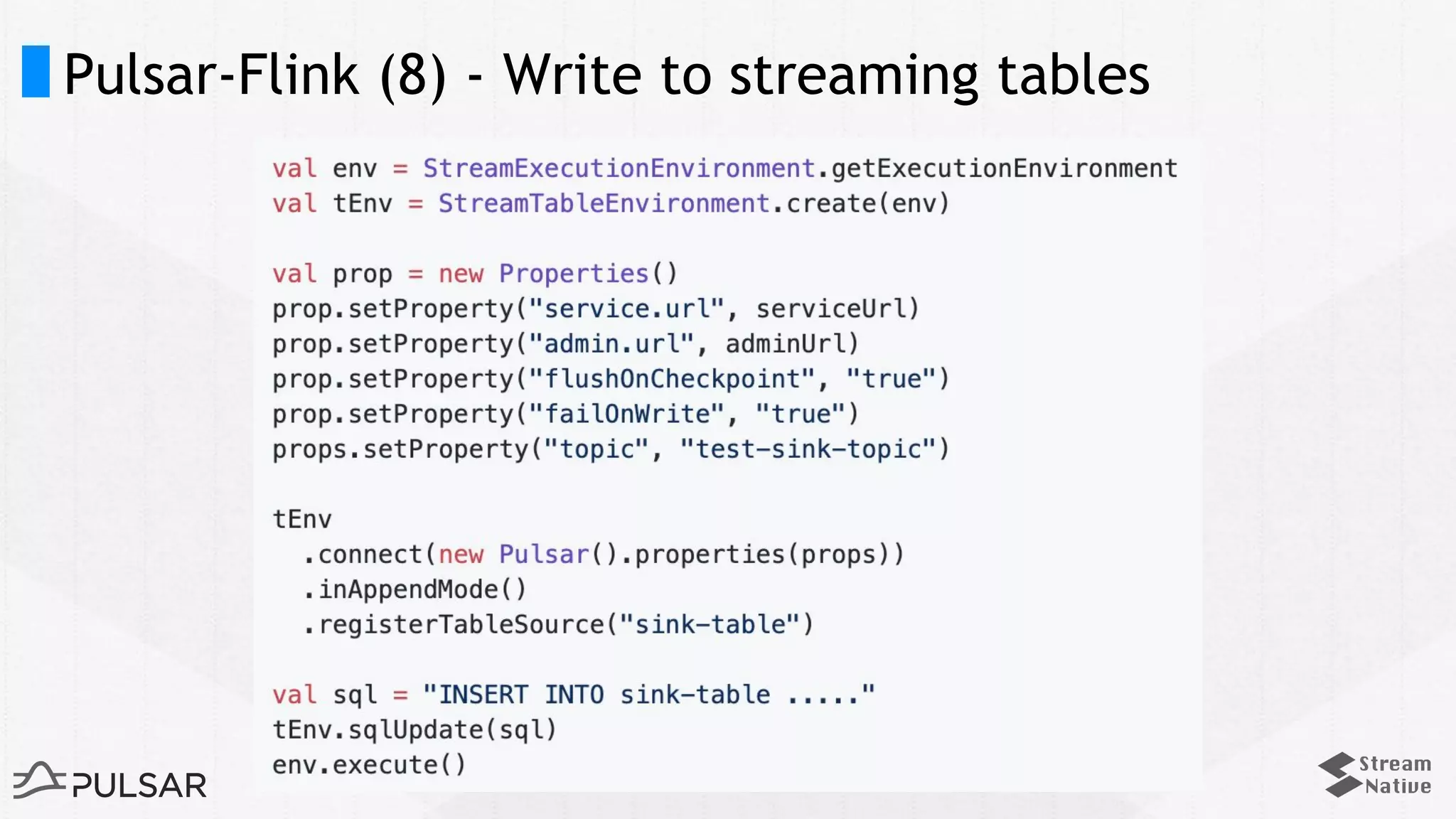

46. Pulsar-Flink (8) - Write to streaming tables

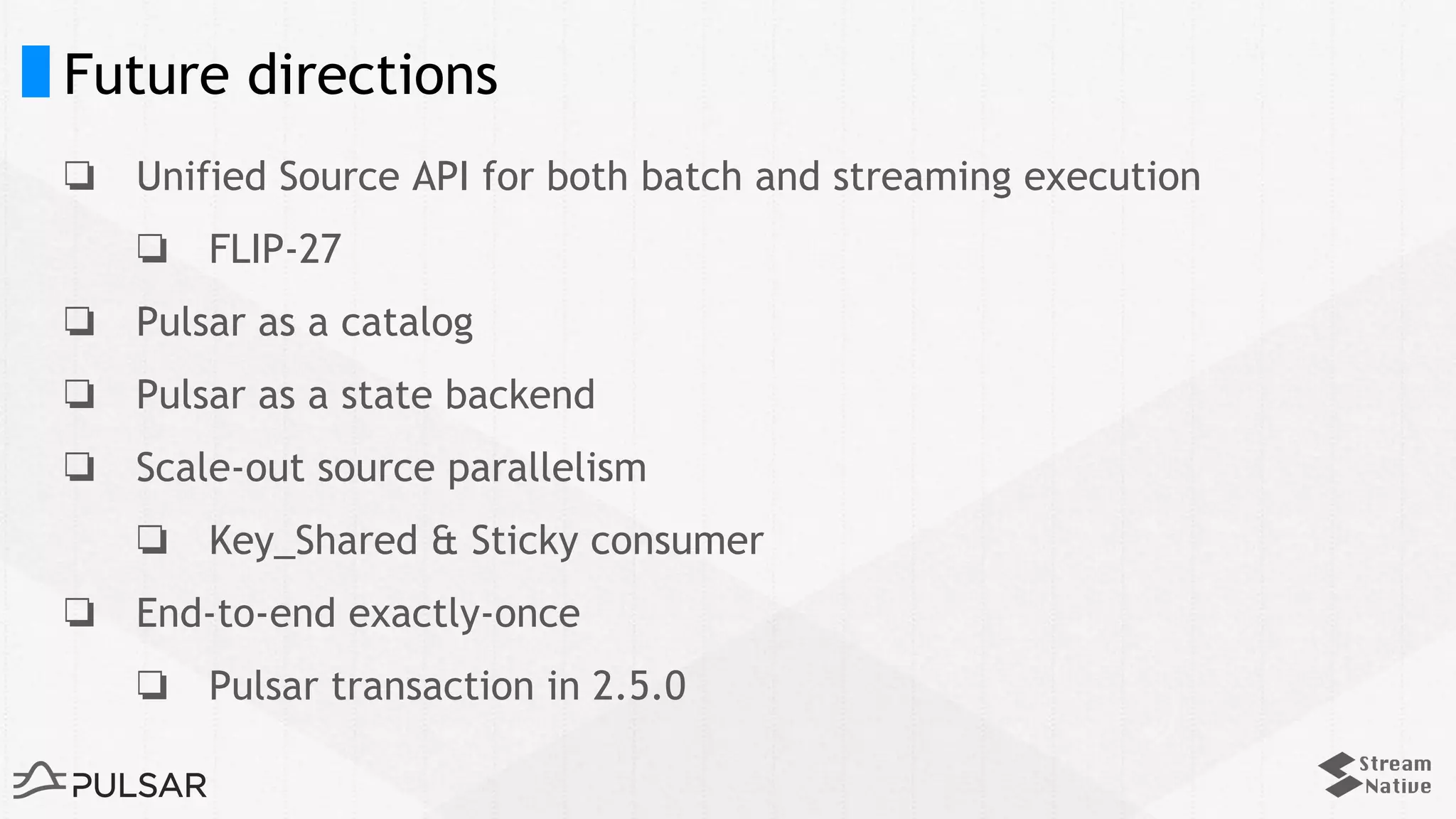

47. Future directions
❏ Unified Source API for both batch and streaming execution
❏ FLIP-27
❏ Pulsar as a catalog
❏ Pulsar as a state backend
❏ Scale-out source parallelism
❏ Key_Shared & Sticky consumer
❏ End-to-end exactly-once
❏ Pulsar transaction in 2.5.0

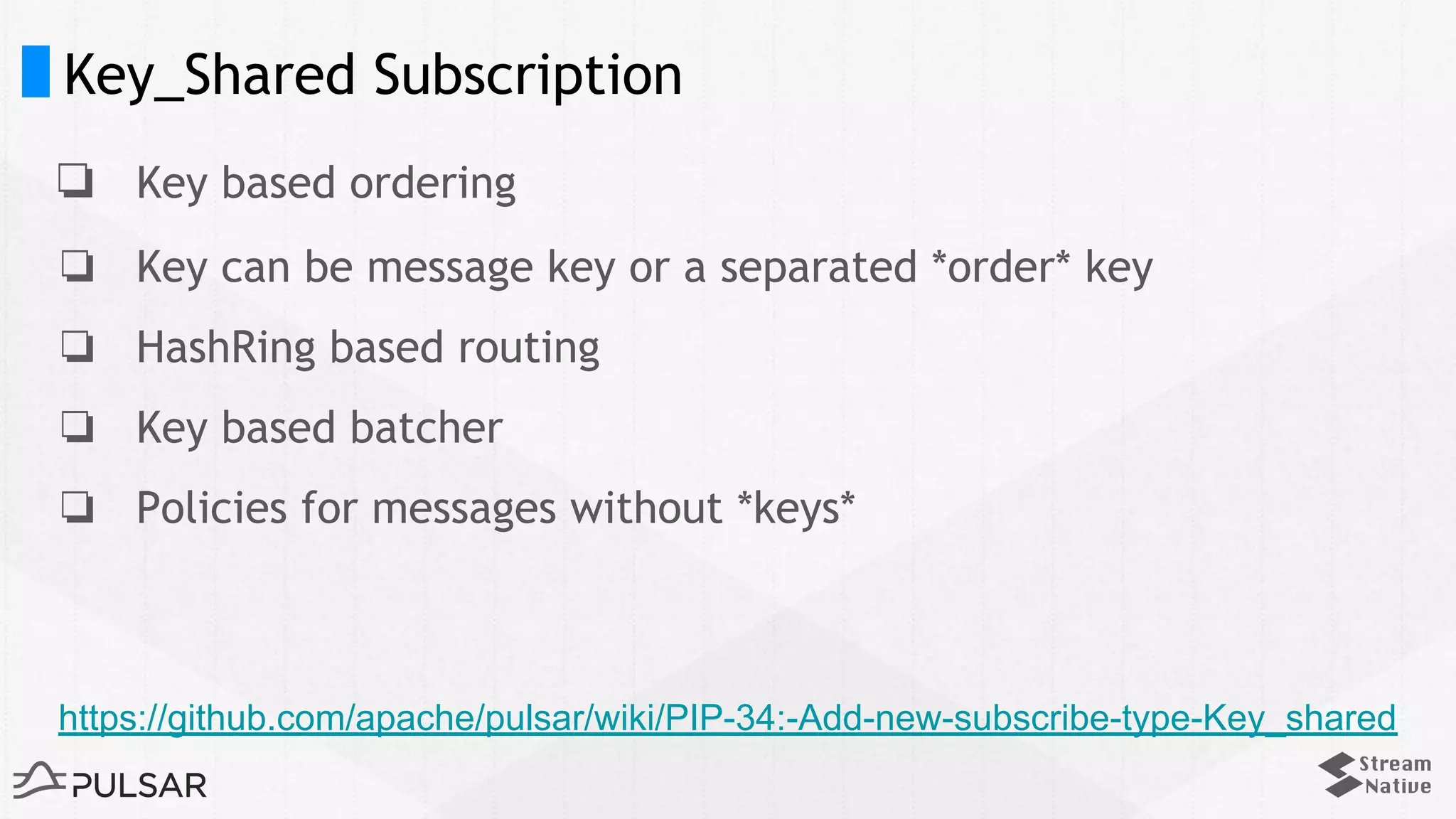

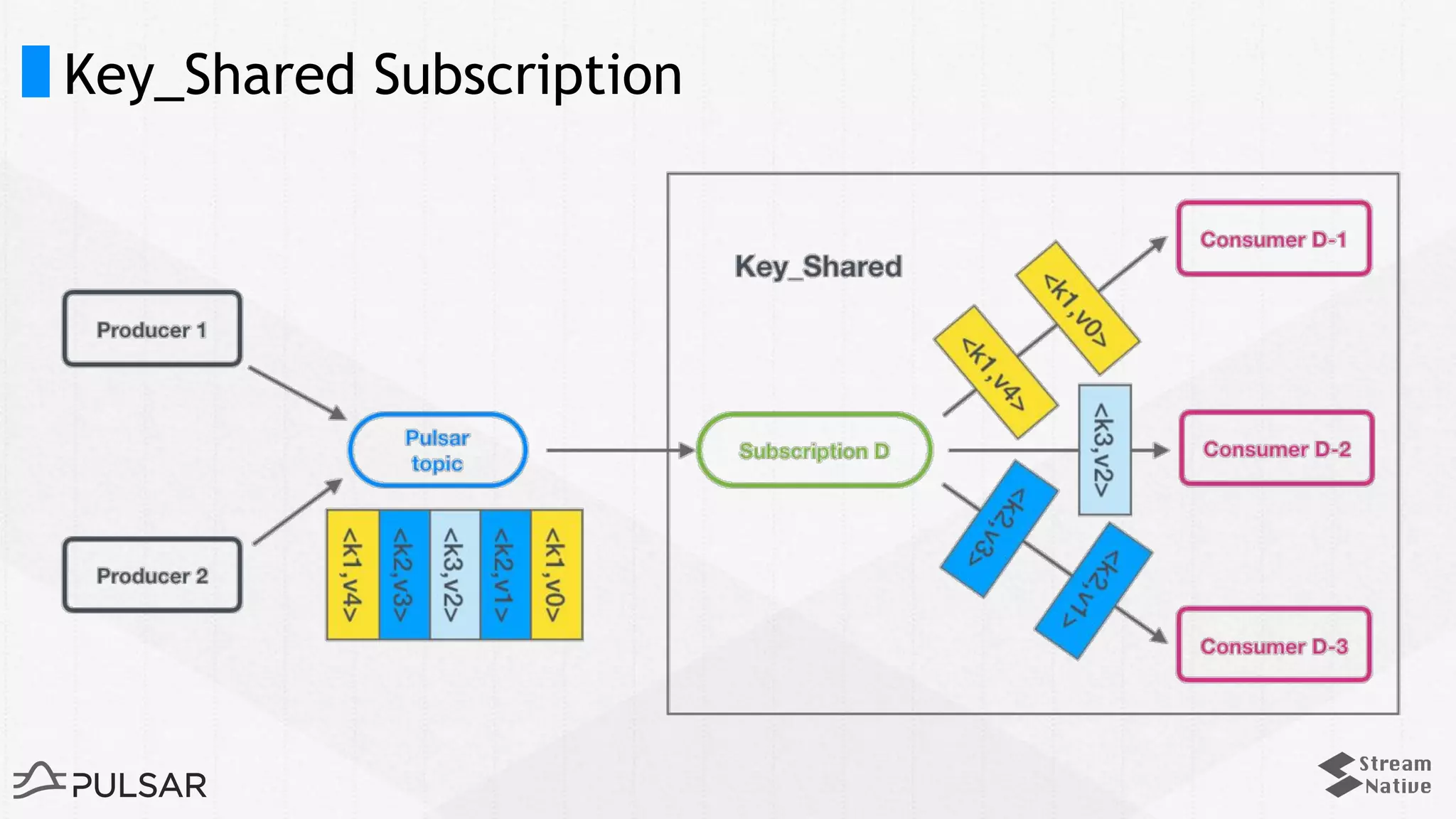

48. Key_Shared Subscription

49. Key_Shared Subscription
❏ Key based ordering
❏ Key can be message key or a separated *order* key
❏ HashRing based routing
❏ Key based batcher
❏ Policies for messages without *keys*
https://github.com/apache/pulsar/wiki/PIP-34:-Add-new-subscribe-type-Key_shared

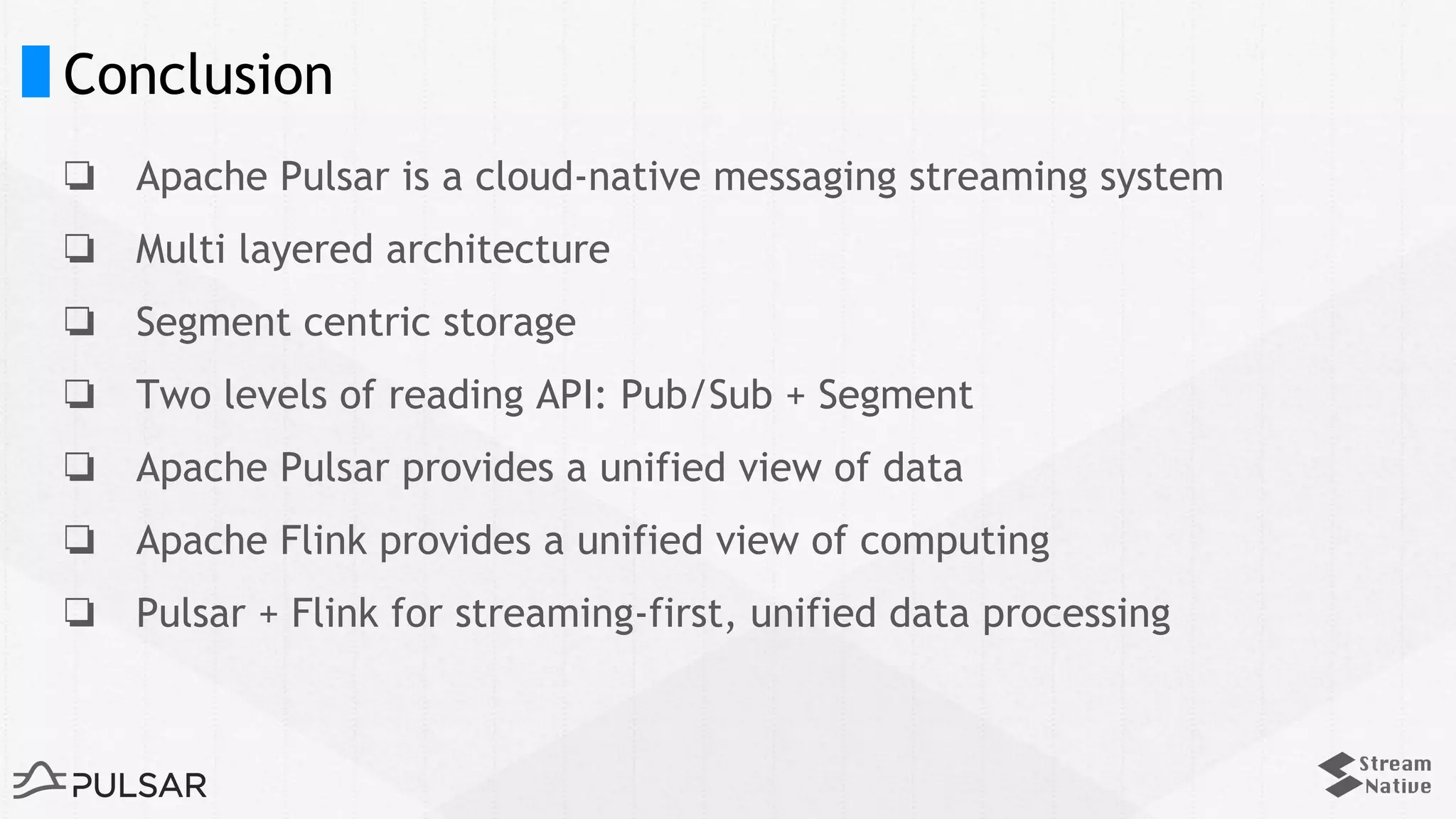

50. Conclusion
❏ Apache Pulsar is a cloud-native messaging streaming system
❏ Multi layered architecture
❏ Segment centric storage
❏ Two levels of reading API: Pub/Sub + Segment
❏ Apache Pulsar provides a unified view of data
❏ Apache Flink provides a unified view of computing
❏ Pulsar + Flink for streaming-first, unified data processing

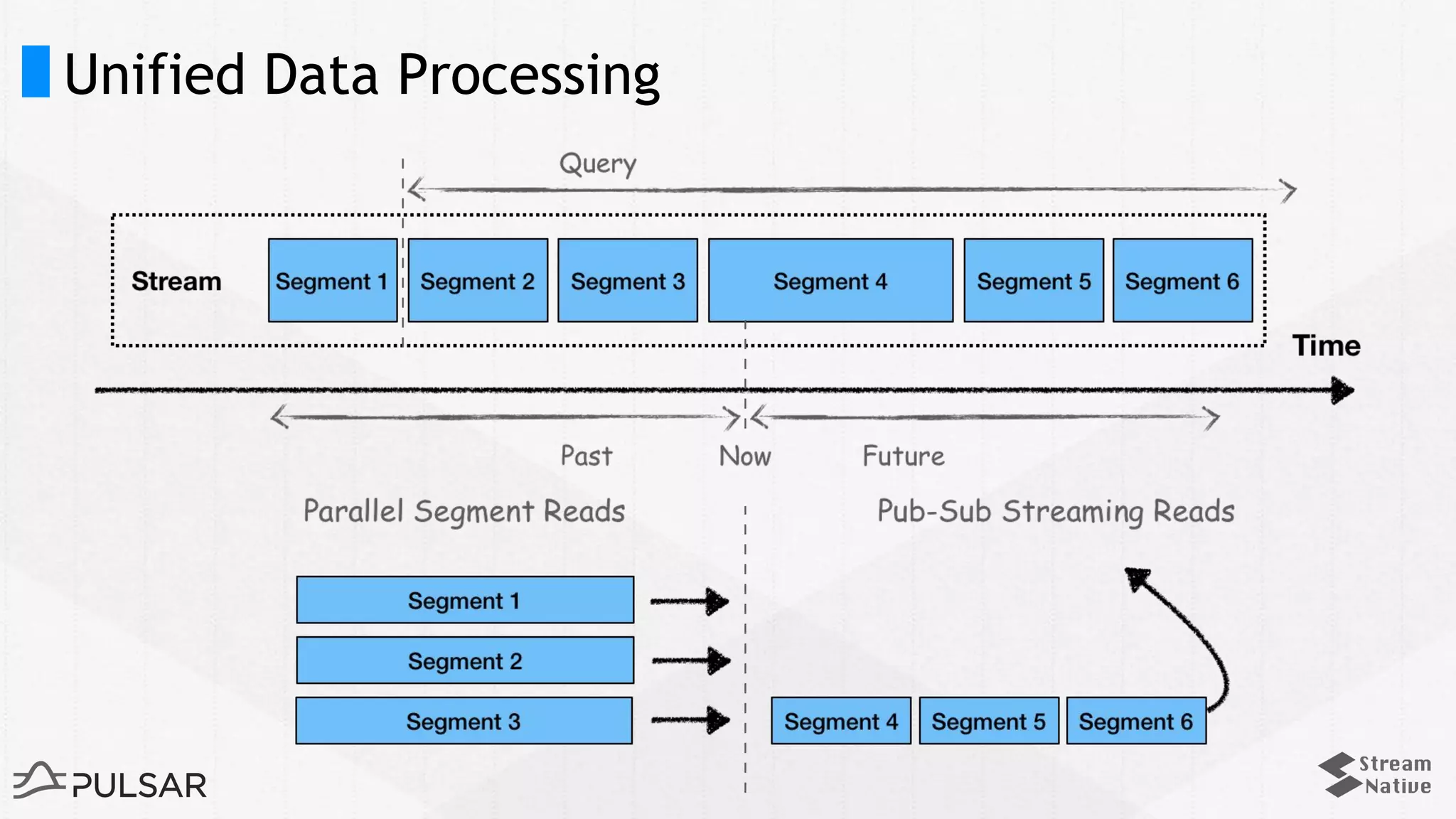

51. Unified Data Processing

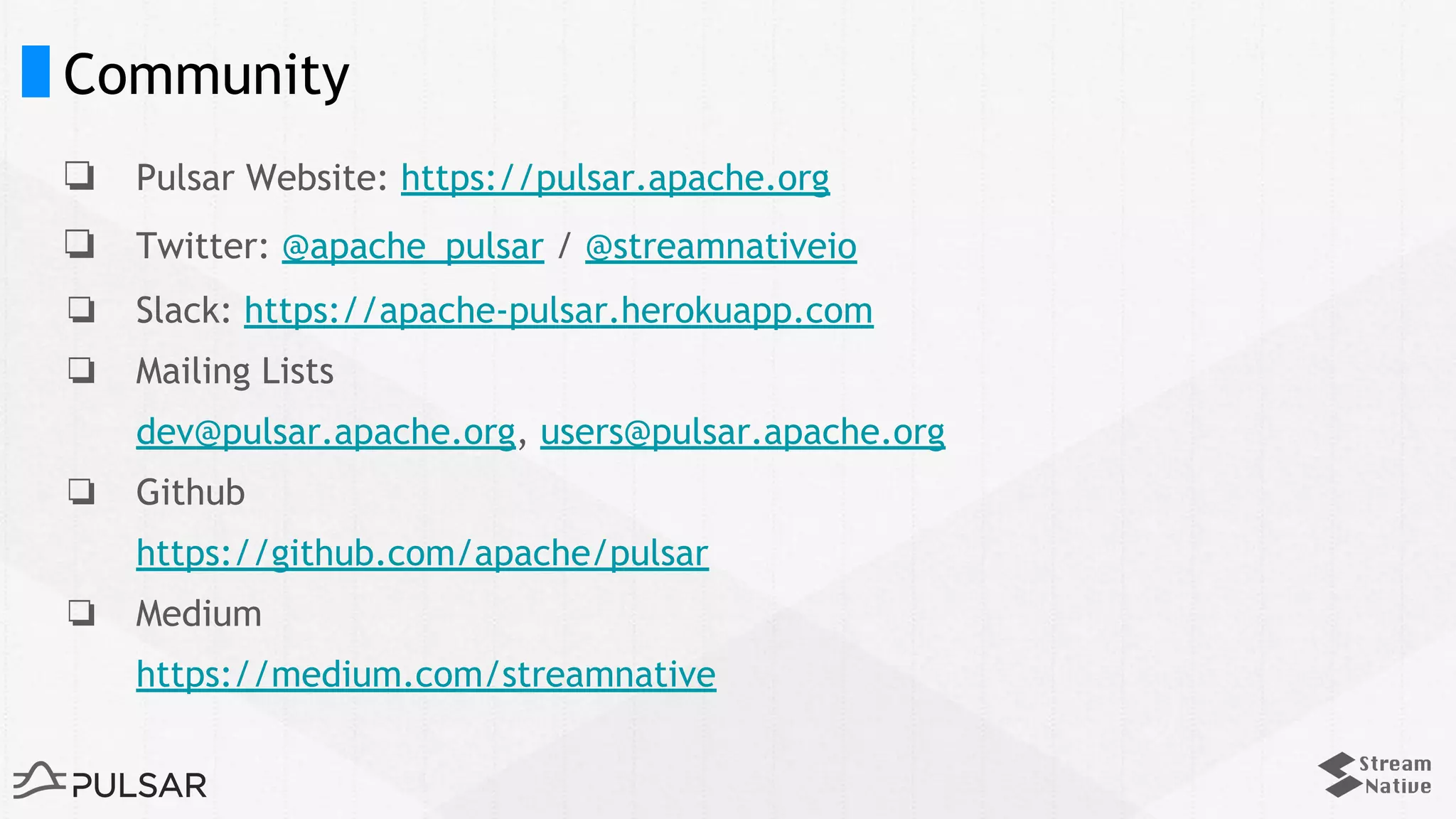

52. Community
❏ Pulsar Website: https://pulsar.apache.org
❏ Twitter: @apache_pulsar / @streamnativeio
❏ Slack: https://apache-pulsar.herokuapp.com
❏ Mailing Lists
dev@pulsar.apache.org, users@pulsar.apache.org
❏ Github
https://github.com/apache/pulsar
❏ Medium
https://medium.com/streamnative

53. Thanks!
