1. Let's Monitor The Conditions at
the Conference

2. 2

3. Tim Spann
Developer Advocate
Tim Spann, Developer Advocate at StreamNative
● FLiP(N) Stack = Flink, Pulsar and NiFI Stack
● Streaming Systems & Data Architecture Expert
● Experience:
○ 15+ years of experience with streaming technologies including Pulsar,
Flink, Kafka, Spark, NiFi, Big Data, Cloud, MXNet, IoT, Python and
more.
○ Today, he helps to grow the Pulsar community sharing rich technical
knowledge and experience at both global conferences and through
individual conversations.

4. David Kjerrumgaard
Developer Advocate
● Apache Pulsar Committer | Author of Pulsar
In Action
● Former Principal Software Engineer on
Splunk’s messaging team responsible for
Splunk’s internal Pulsar-as-a-Service
platform
● Former Director of Solution Architecture at
Streamlio
4

5. FLiP Stack Weekly
This week in Apache Flink, Apache Pulsar, Apache
NiFi, Apache Spark and open source friends.
https://bit.ly/32dAJft

6. streamnative.io
Agenda
• Collect the Data
• Stream the Data
• Store the Data
• Share the Data

7. streamnative.io
What?

8. streamnative.io
Temp, Humidity, Air Quality, Energy, …

9. streamnative.io
Is this (I)IoT?
Edge Computing?

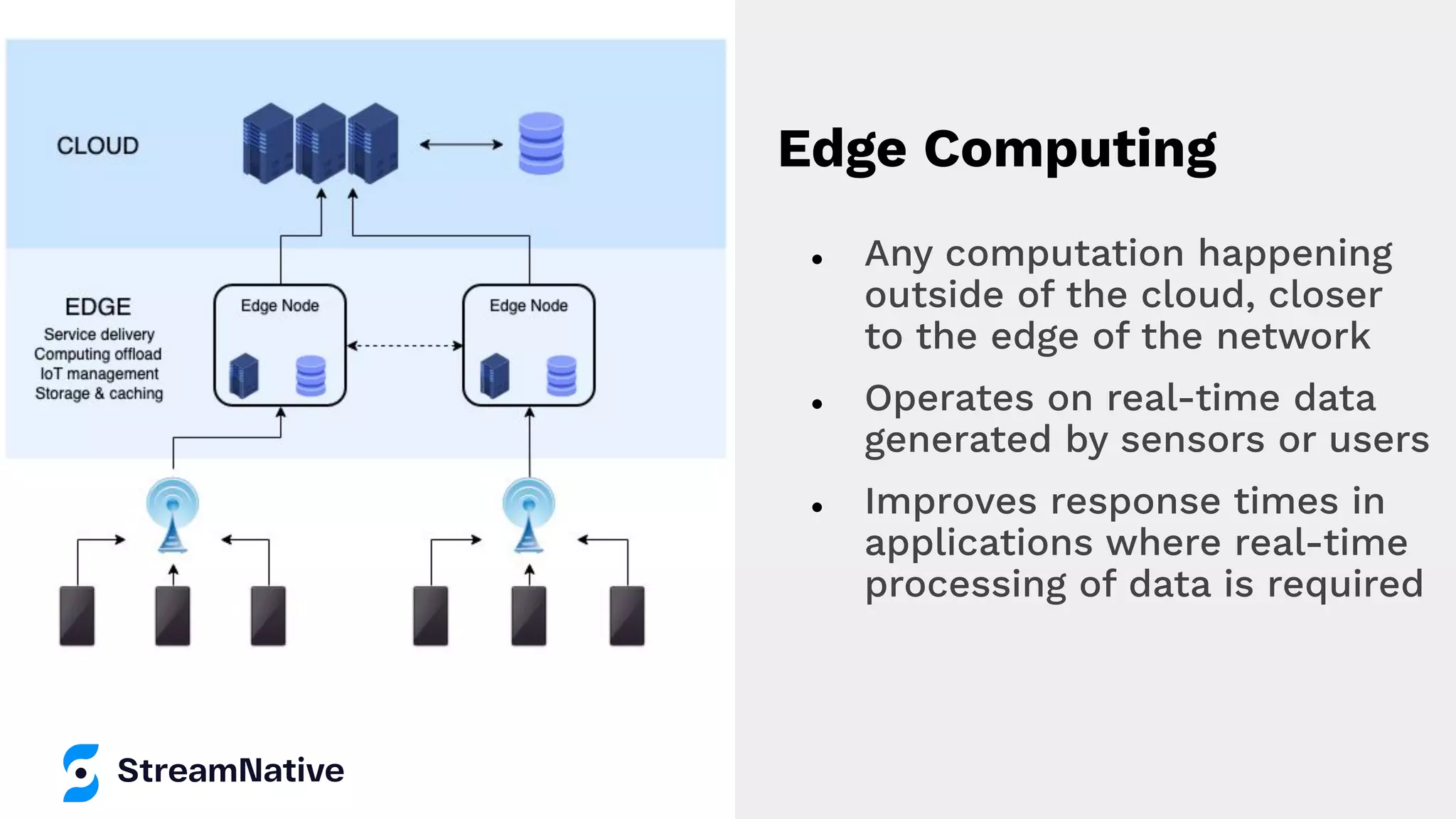

10. ● Any computation happening
outside of the cloud, closer
to the edge of the network
● Operates on real-time data
generated by sensors or users
● Improves response times in
applications where real-time
processing of data is required
Edge Computing

11. streamnative.io

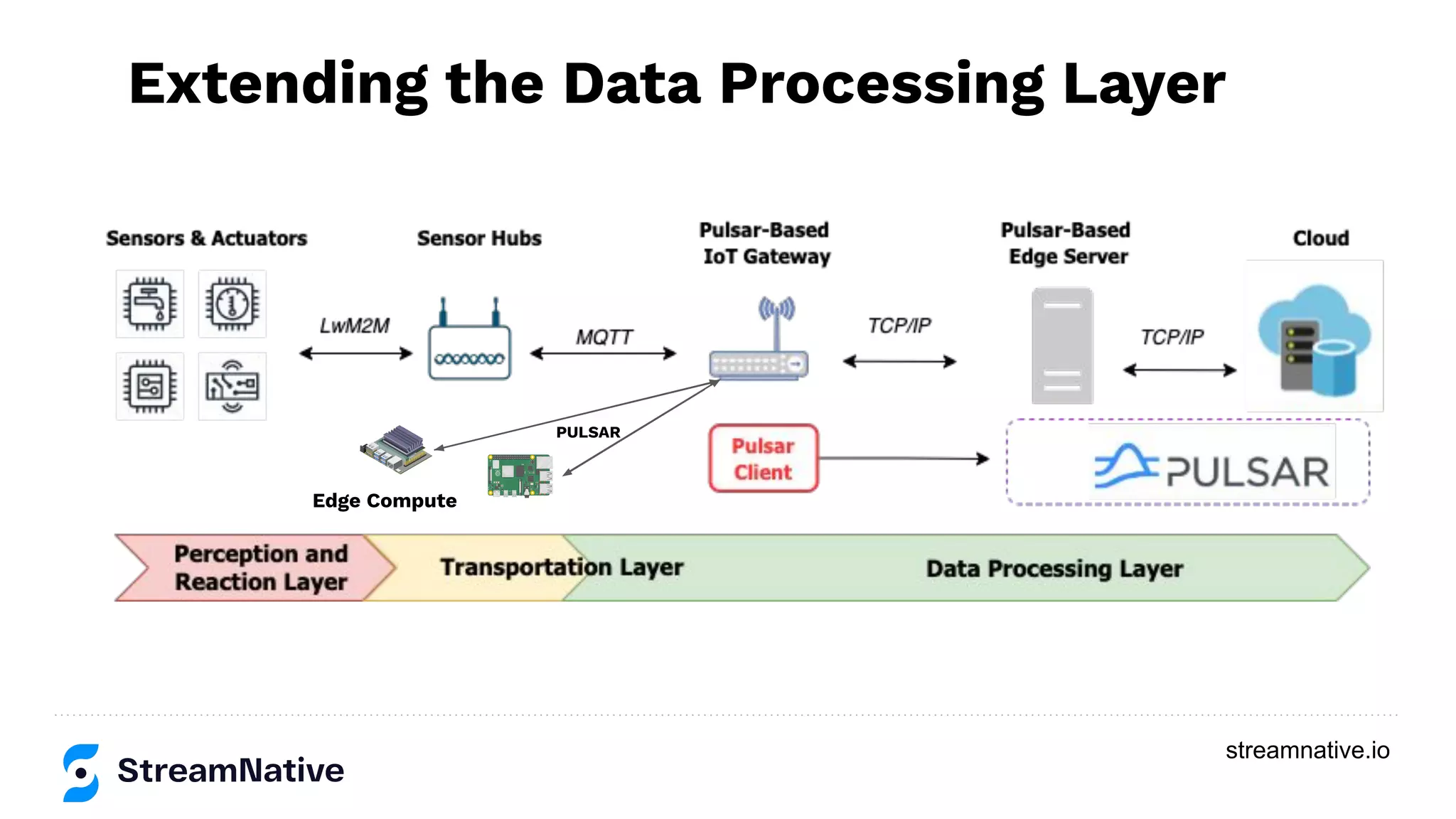

Extending the Data Processing Layer
PULSAR
Edge Compute

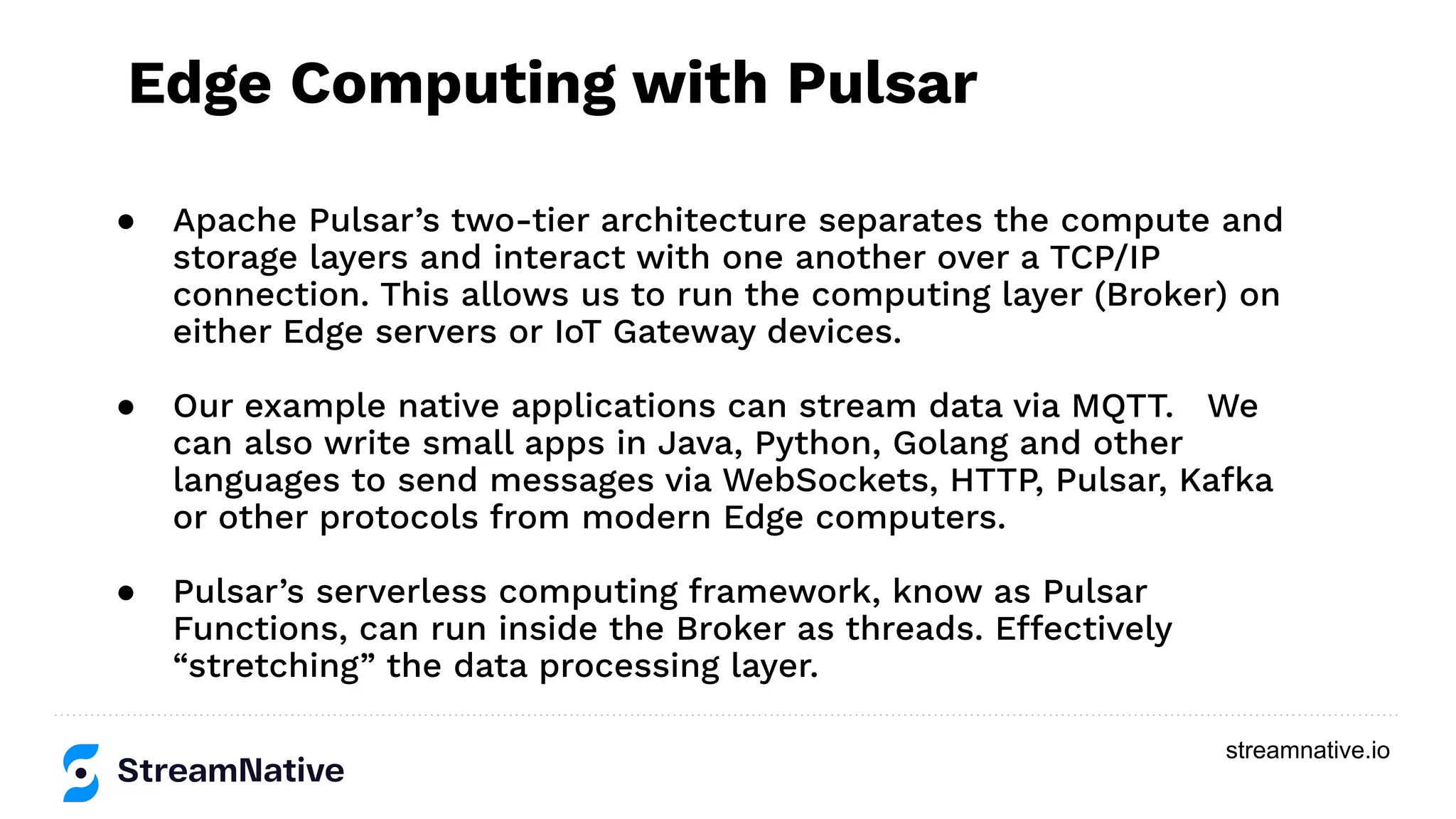

12. streamnative.io
● Apache Pulsar’s two-tier architecture separates the compute and
storage layers and interact with one another over a TCP/IP
connection. This allows us to run the computing layer (Broker) on
either Edge servers or IoT Gateway devices.
● Our example native applications can stream data via MQTT. We
can also write small apps in Java, Python, Golang and other
languages to send messages via WebSockets, HTTP, Pulsar, Kafka
or other protocols from modern Edge computers.
● Pulsar’s serverless computing framework, know as Pulsar
Functions, can run inside the Broker as threads. Effectively
“stretching” the data processing layer.
Edge Computing with Pulsar

13. streamnative.io
● Pulsar’s Serverless computing framework can run inside the Pulsar Broker
as a thread pool. This framework can be used as the execution environment
for ML models.
● The Apache Pulsar Broker supports the MQTT protocol and therefore can
directly receive incoming data from the sensor hubs and store it in a topic.

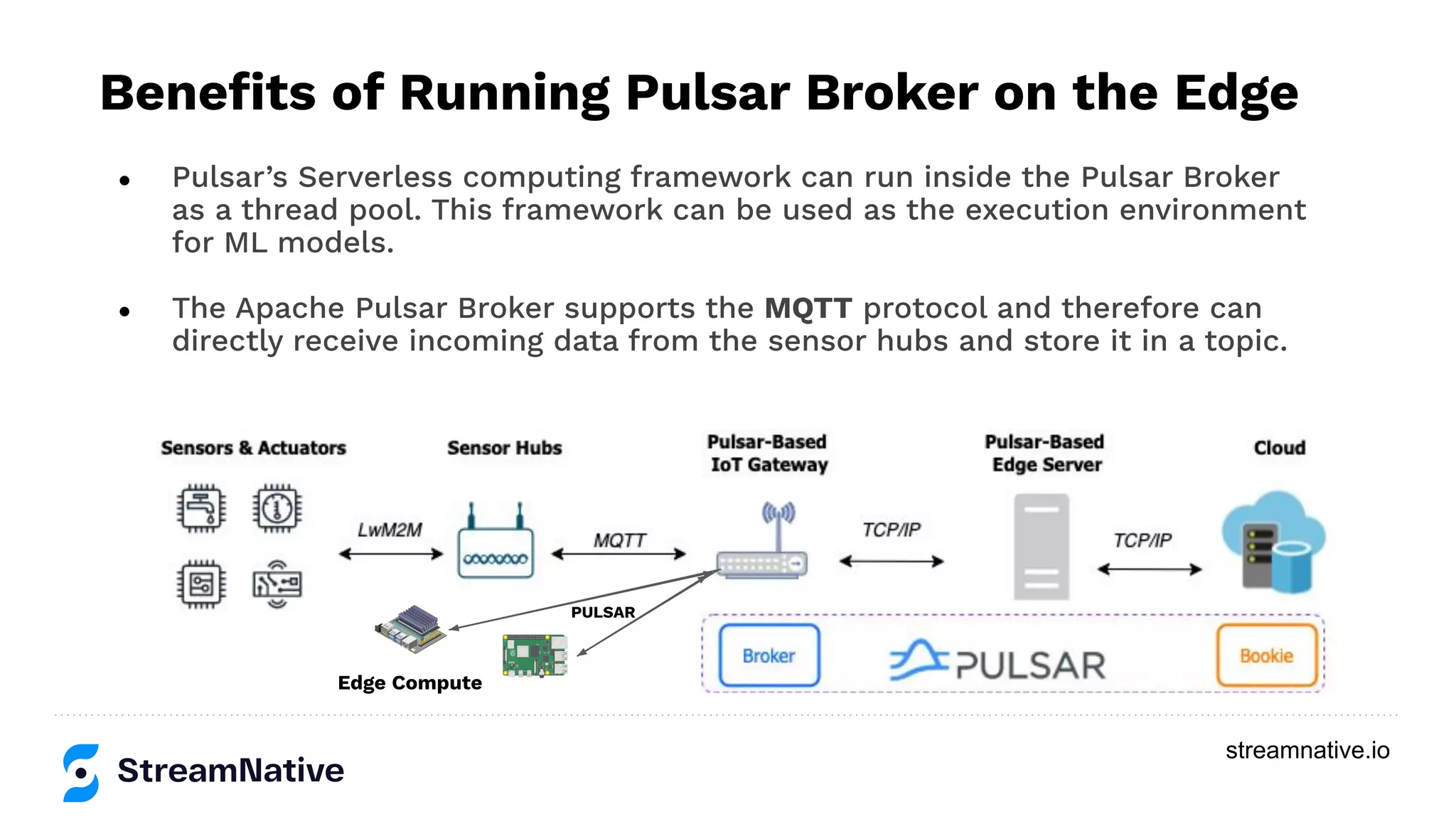

Benefits of Running Pulsar Broker on the Edge
PULSAR
Edge Compute

14. streamnative.io
● Containers
● 64 bit processors and operating systems
● 8-64 GB Modern RAM
● Fast WiFi / Bluetooth
● 300+ Core GPUs
● eMMC Fast Storage
● TBs of SSD
● Examples: NVIDIA JETSON XAVIER NX

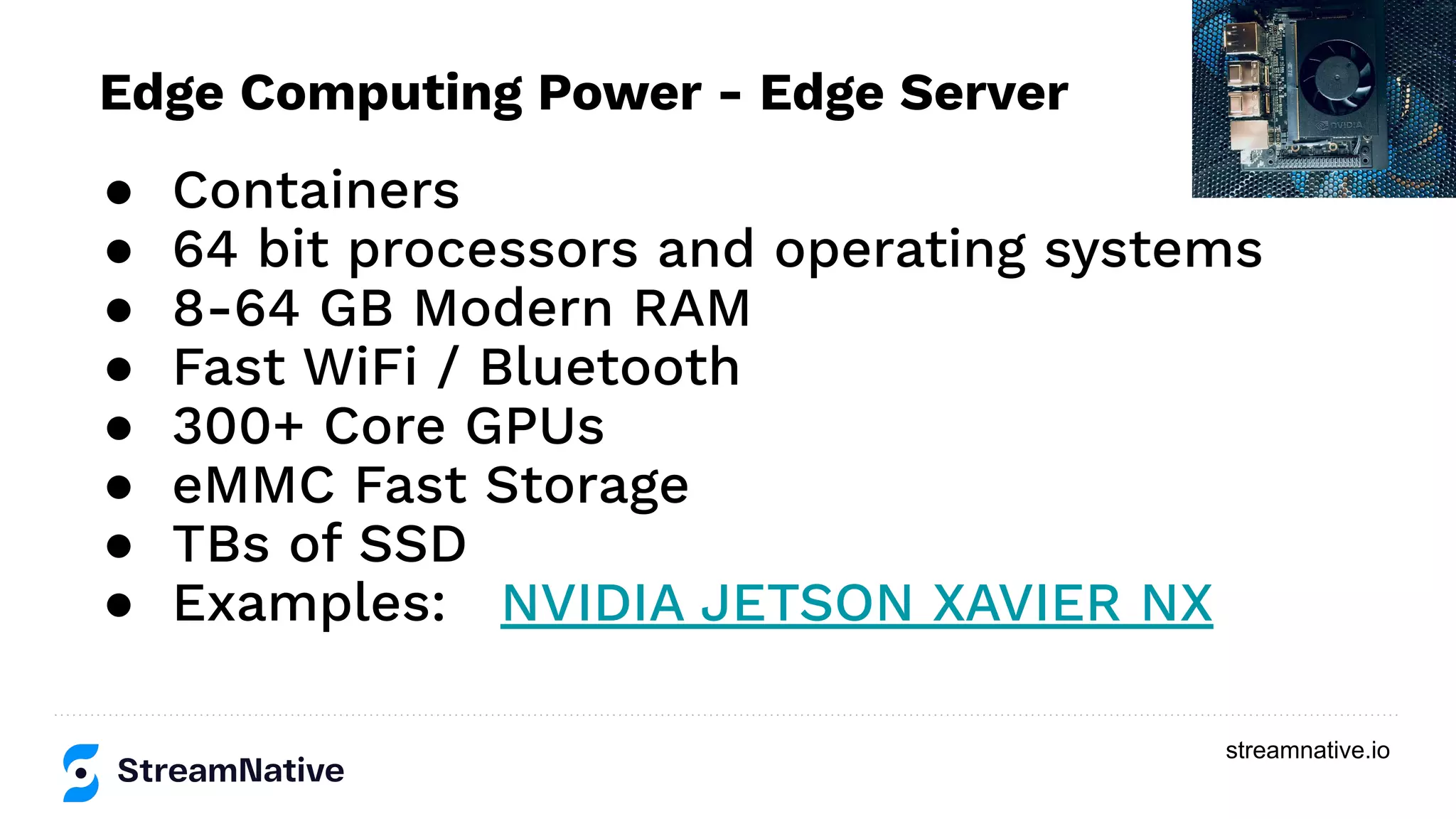

Edge Computing Power - Edge Server

15. streamnative.io

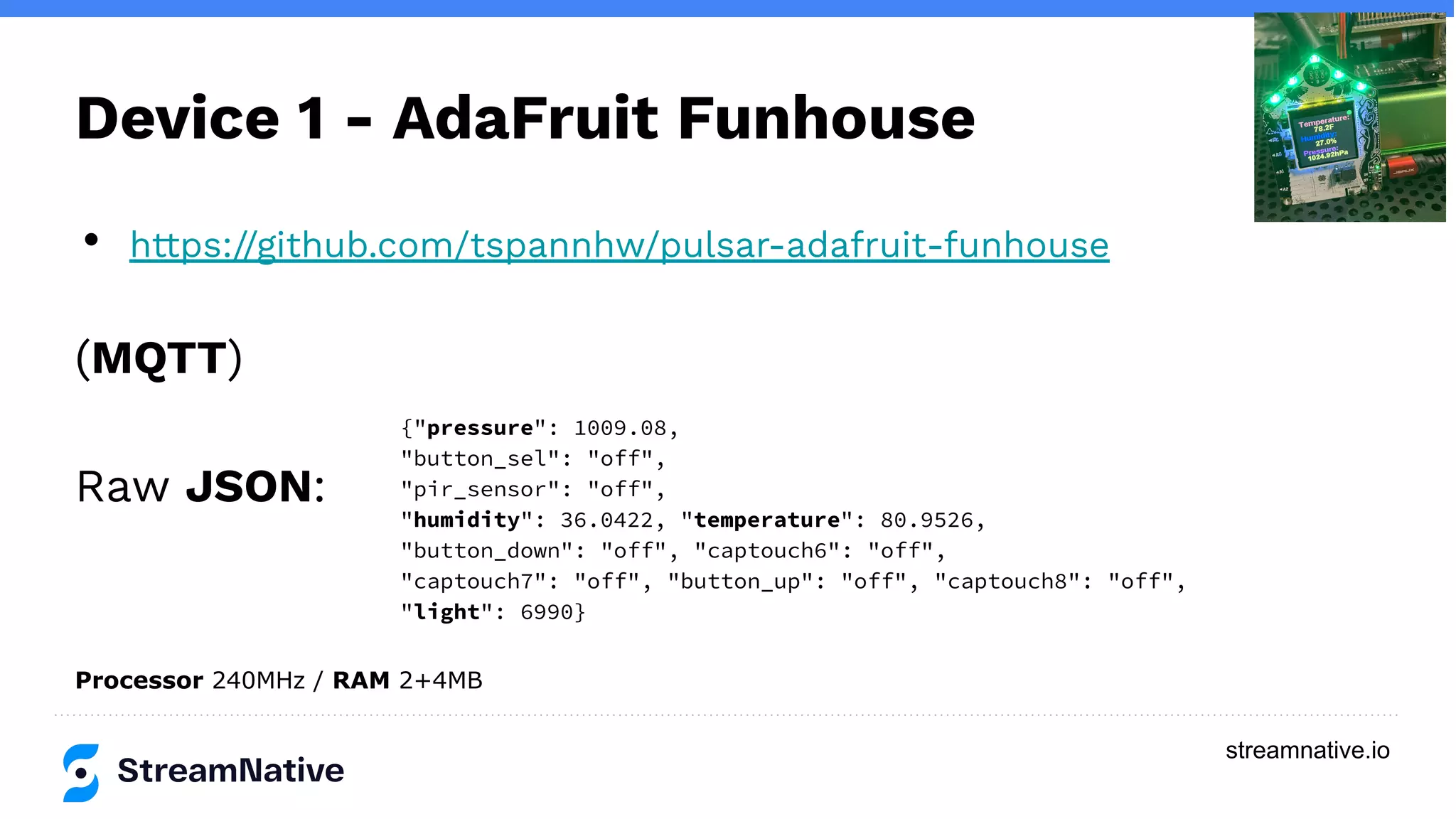

Device 1 - AdaFruit Funhouse
• https://github.com/tspannhw/pulsar-adafruit-funhouse
(MQTT)
Raw JSON:
{"pressure": 1009.08,
"button_sel": "off",
"pir_sensor": "off",
"humidity": 36.0422, "temperature": 80.9526,
"button_down": "off", "captouch6": "off",
"captouch7": "off", "button_up": "off", "captouch8": "off",
"light": 6990}
Processor 240MHz / RAM 2+4MB

16. streamnative.io

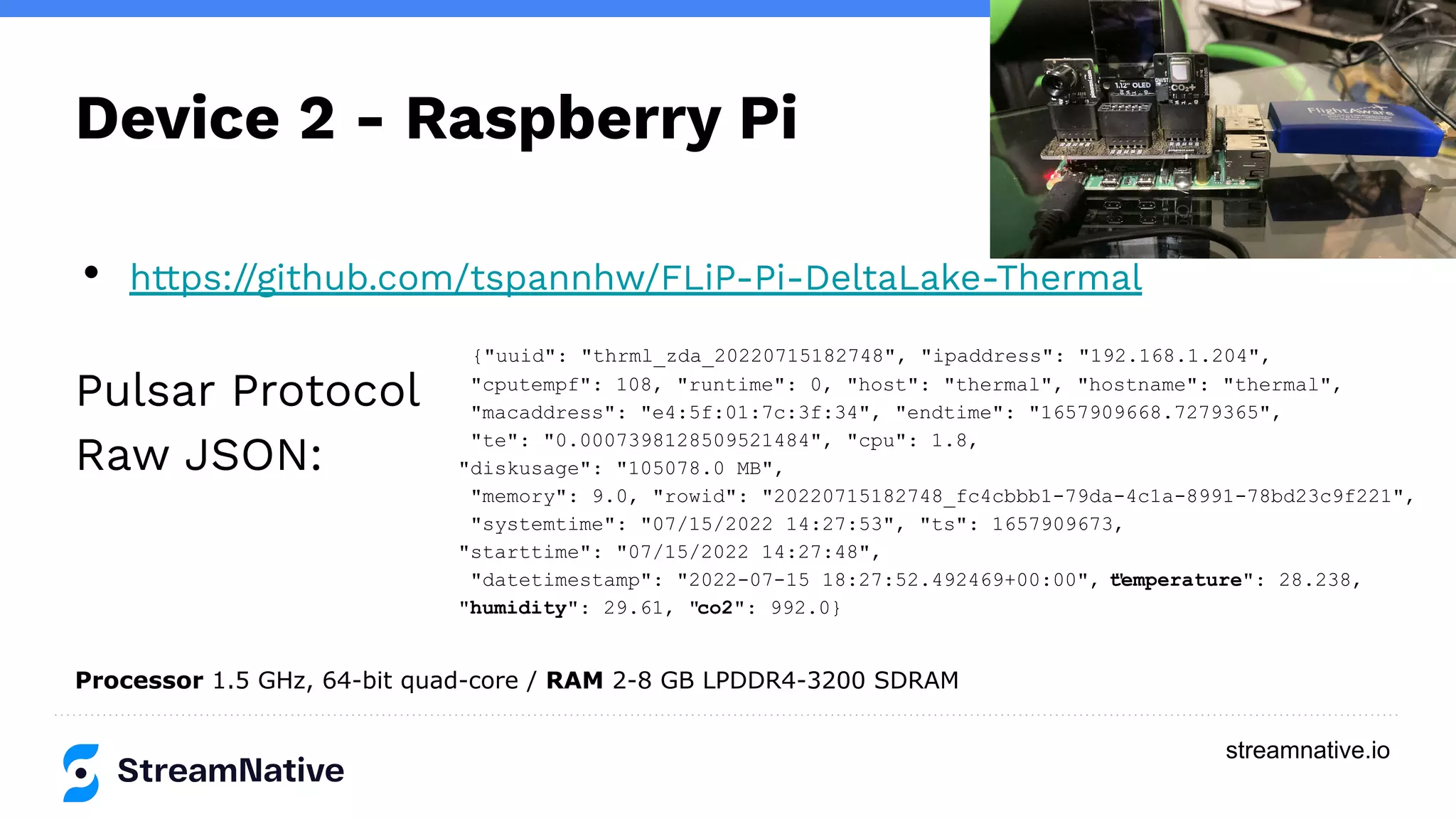

Device 2 - Raspberry Pi
• https://github.com/tspannhw/FLiP-Pi-DeltaLake-Thermal
Pulsar Protocol
Raw JSON:
Processor 1.5 GHz, 64-bit quad-core / RAM 2-8 GB LPDDR4-3200 SDRAM
{"uuid": "thrml_zda_20220715182748", "ipaddress": "192.168.1.204",
"cputempf": 108, "runtime": 0, "host": "thermal", "hostname": "thermal",
"macaddress": "e4:5f:01:7c:3f:34", "endtime": "1657909668.7279365",
"te": "0.0007398128509521484", "cpu": 1.8,
"diskusage": "105078.0 MB",
"memory": 9.0, "rowid": "20220715182748_fc4cbbb1-79da-4c1a-8991-78bd23c9f221",
"systemtime": "07/15/2022 14:27:53", "ts": 1657909673,
"starttime": "07/15/2022 14:27:48",
"datetimestamp": "2022-07-15 18:27:52.492469+00:00", "
temperature": 28.238,
"humidity": 29.61, "co2": 992.0}

17. streamnative.io

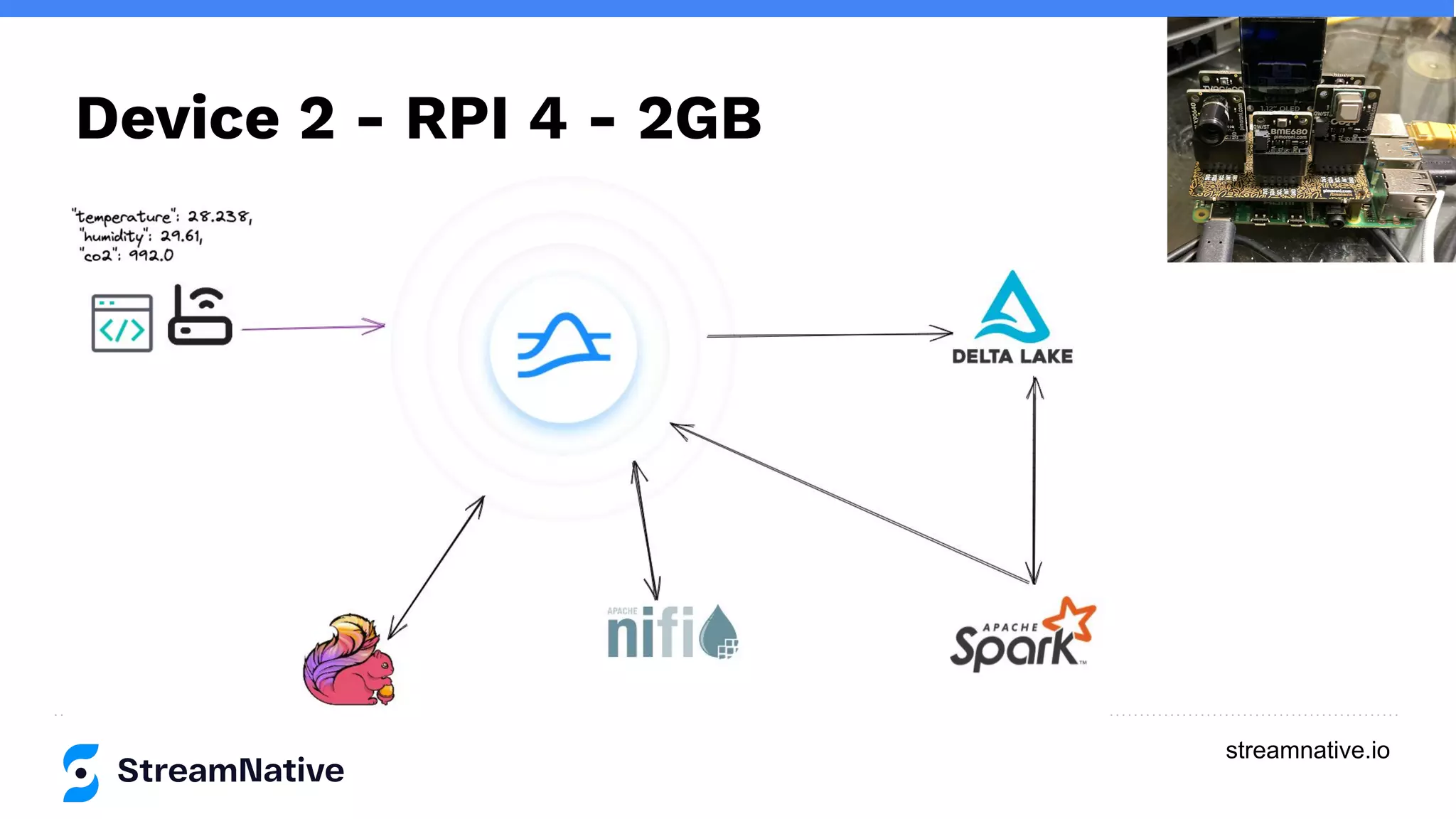

Device 2 - RPI 4 - 2GB

18. streamnative.io

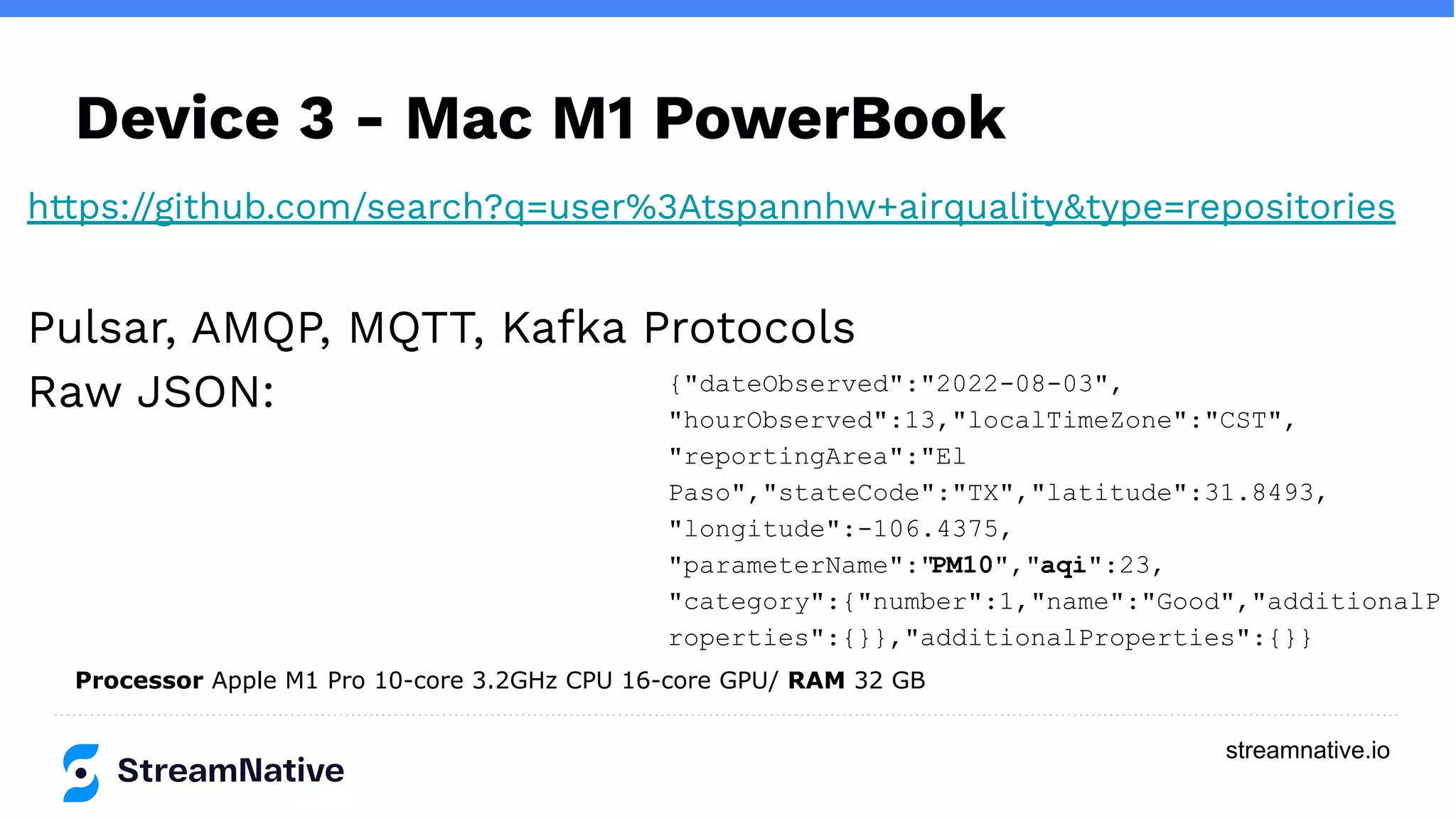

Device 3 - Mac M1 PowerBook
https://github.com/search?q=user%3Atspannhw+airquality&type=repositories
Pulsar, AMQP, MQTT, Kafka Protocols
Raw JSON: {"dateObserved":"2022-08-03",
"hourObserved":13,"localTimeZone":"CST",
"reportingArea":"El
Paso","stateCode":"TX","latitude":31.8493,
"longitude":-106.4375,
"parameterName":"PM10","aqi":23,
"category":{"number":1,"name":"Good","additionalP
roperties":{}},"additionalProperties":{}}
Processor Apple M1 Pro 10-core 3.2GHz CPU 16-core GPU/ RAM 32 GB

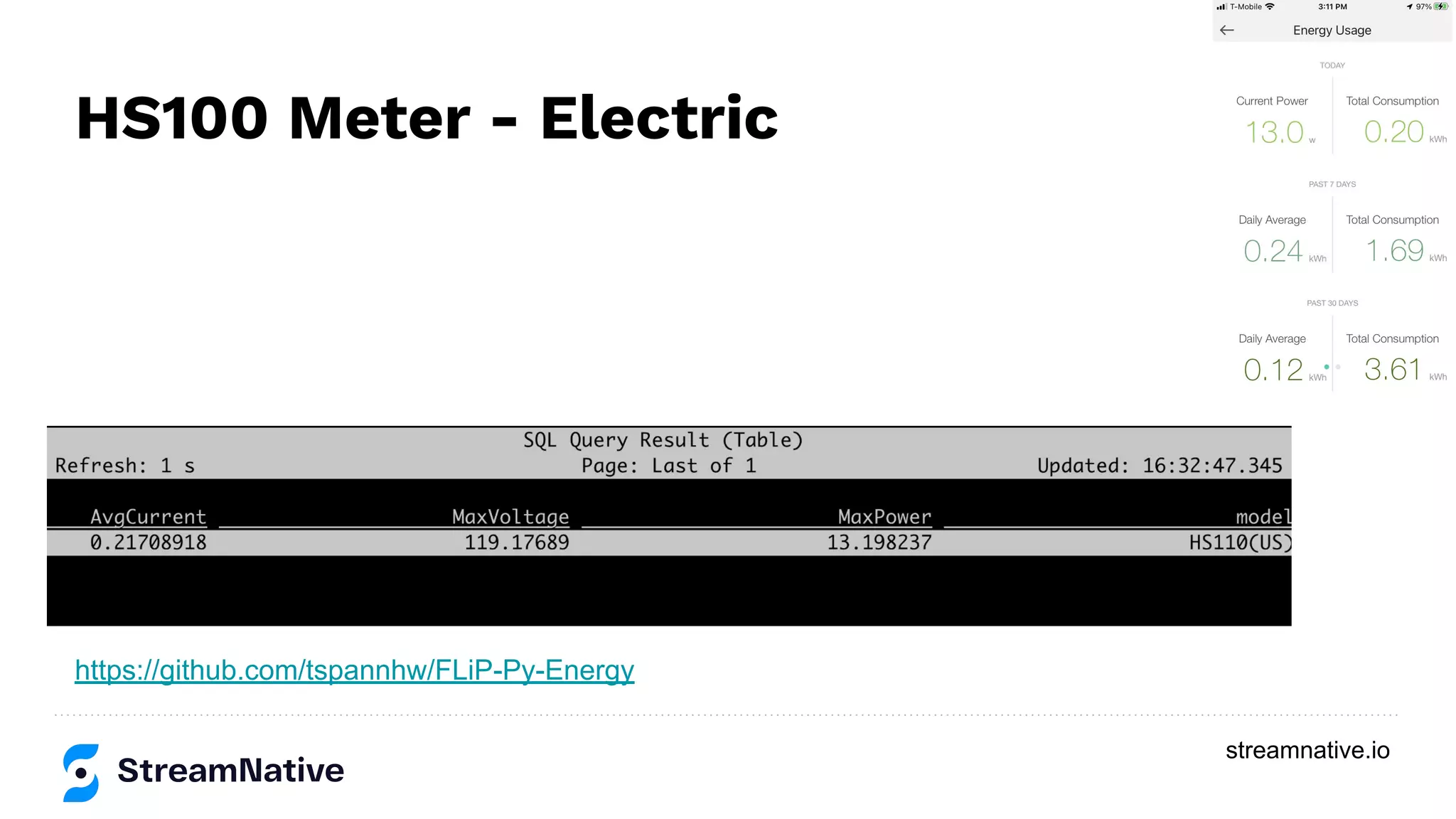

19. streamnative.io

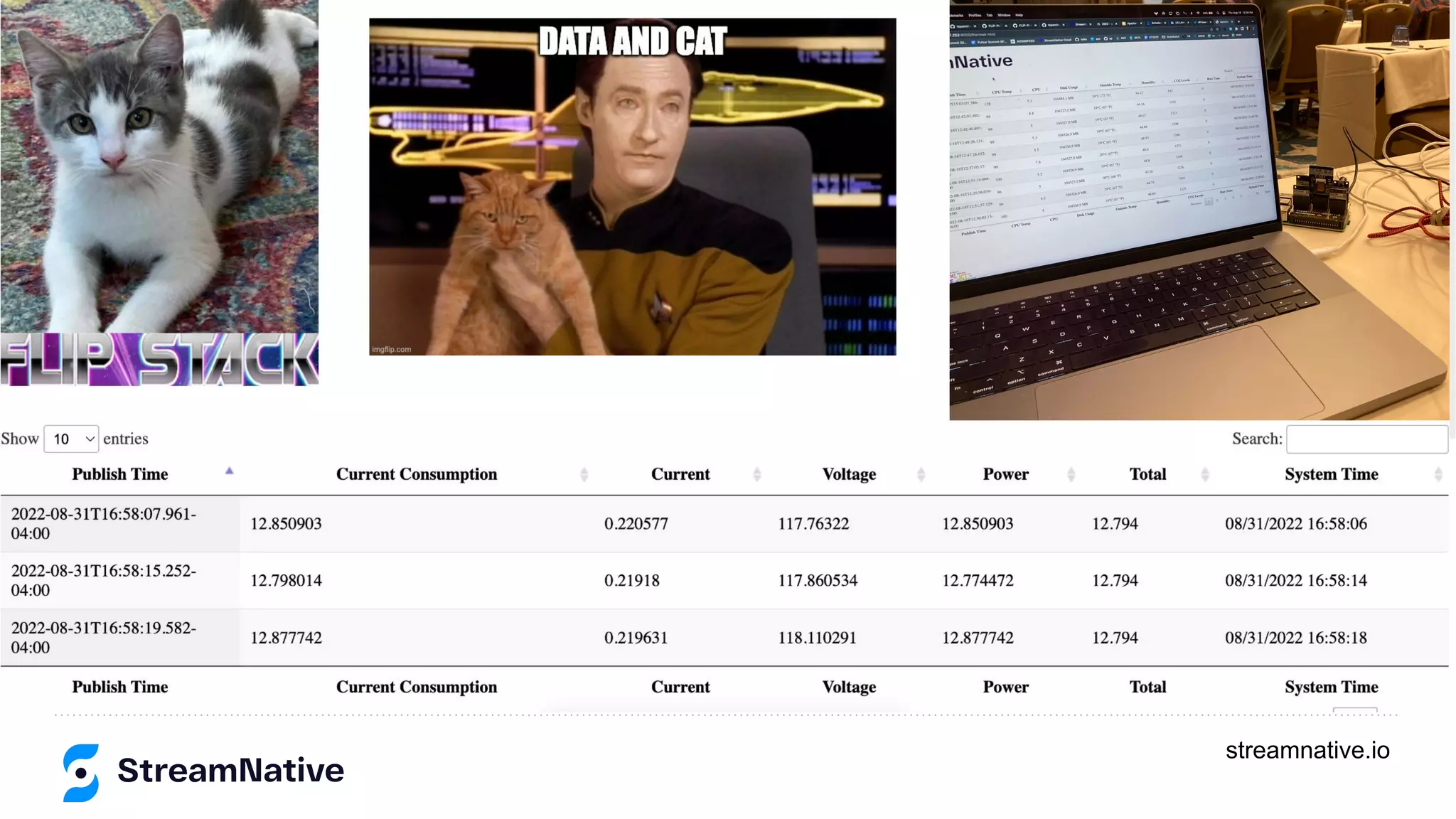

HS100 Meter - Electric
https://github.com/tspannhw/FLiP-Py-Energy

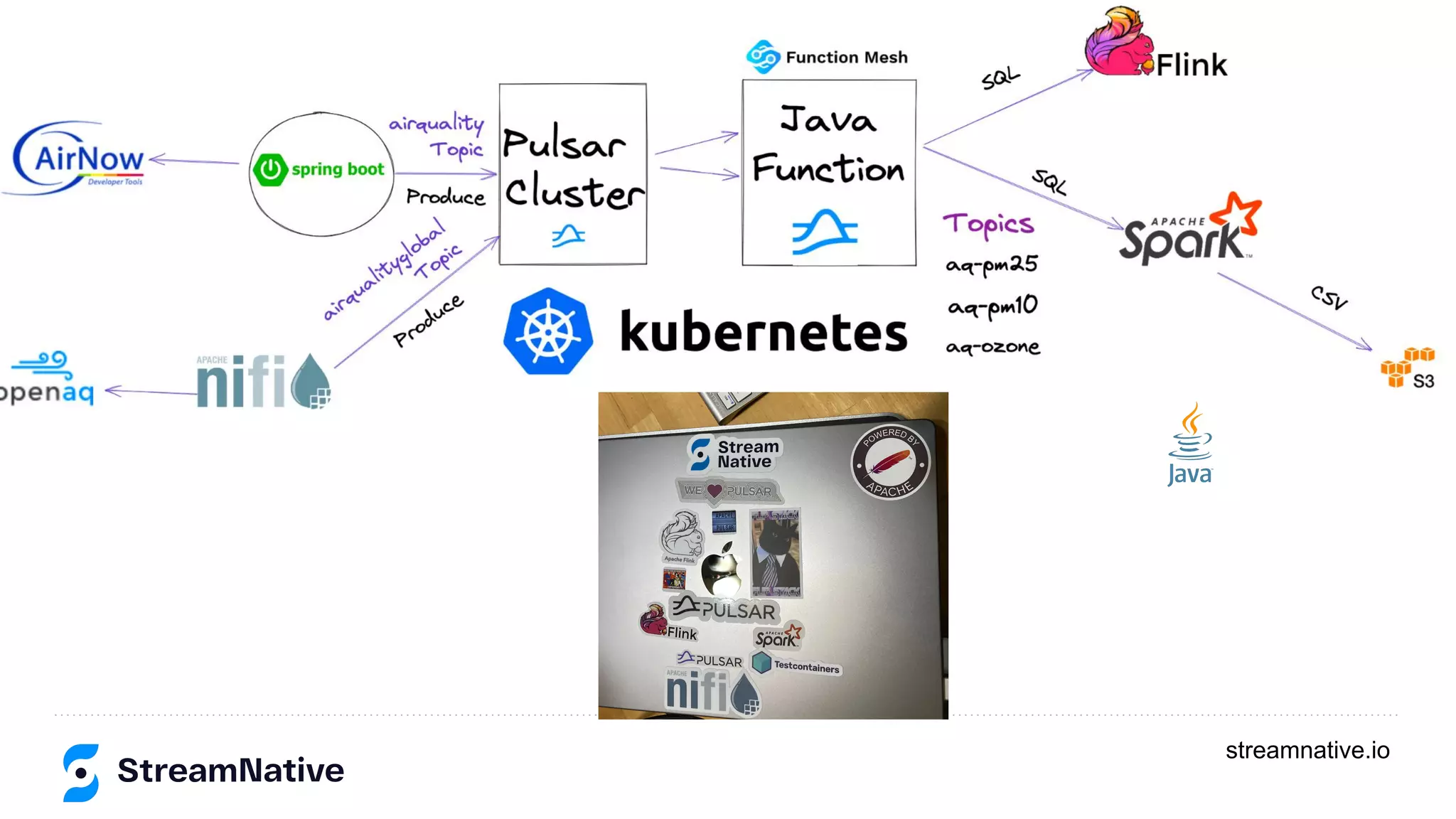

20. streamnative.io

21. streamnative.io

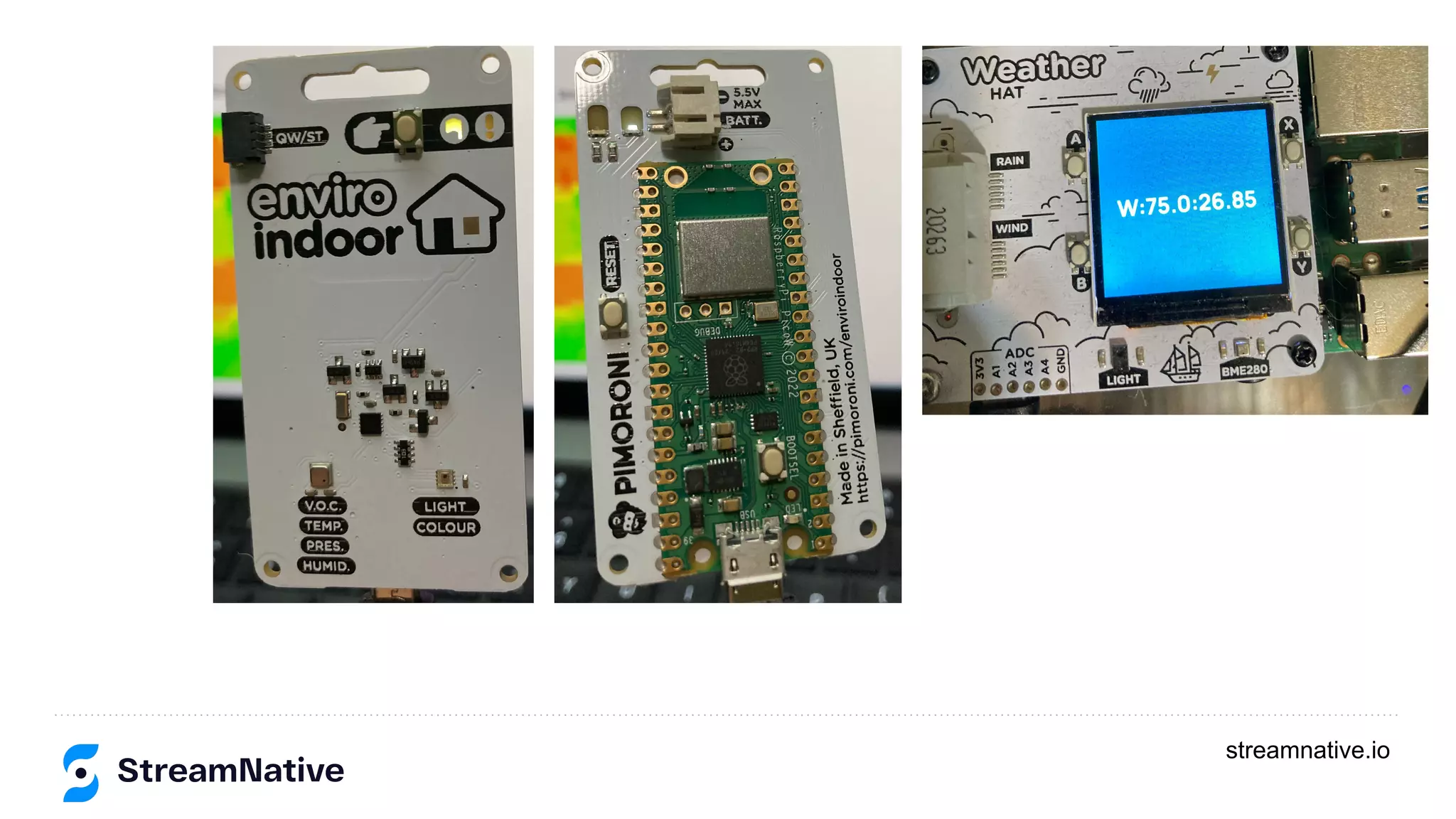

22. streamnative.io

23. Apache Pulsar is a Cloud-Native
Messaging and Event-Streaming Platform.

25. Unified Messaging Model
Simplify your data infrastructure and
enable new use cases with queuing and
streaming capabilities in one platform.
Multi-tenancy
Enable multiple user groups to share the
same cluster, either via access control, or
in entirely different namespaces.
Scalability
Decoupled data computing and storage
enable horizontal scaling to handle data
scale and management complexity.
Geo-replication
Support for multi-datacenter replication
with both asynchronous and
synchronous replication for built-in
disaster recovery.
Tiered storage
Enable historical data to be offloaded to
cloud-native storage and store event
streams for indefinite periods of time.

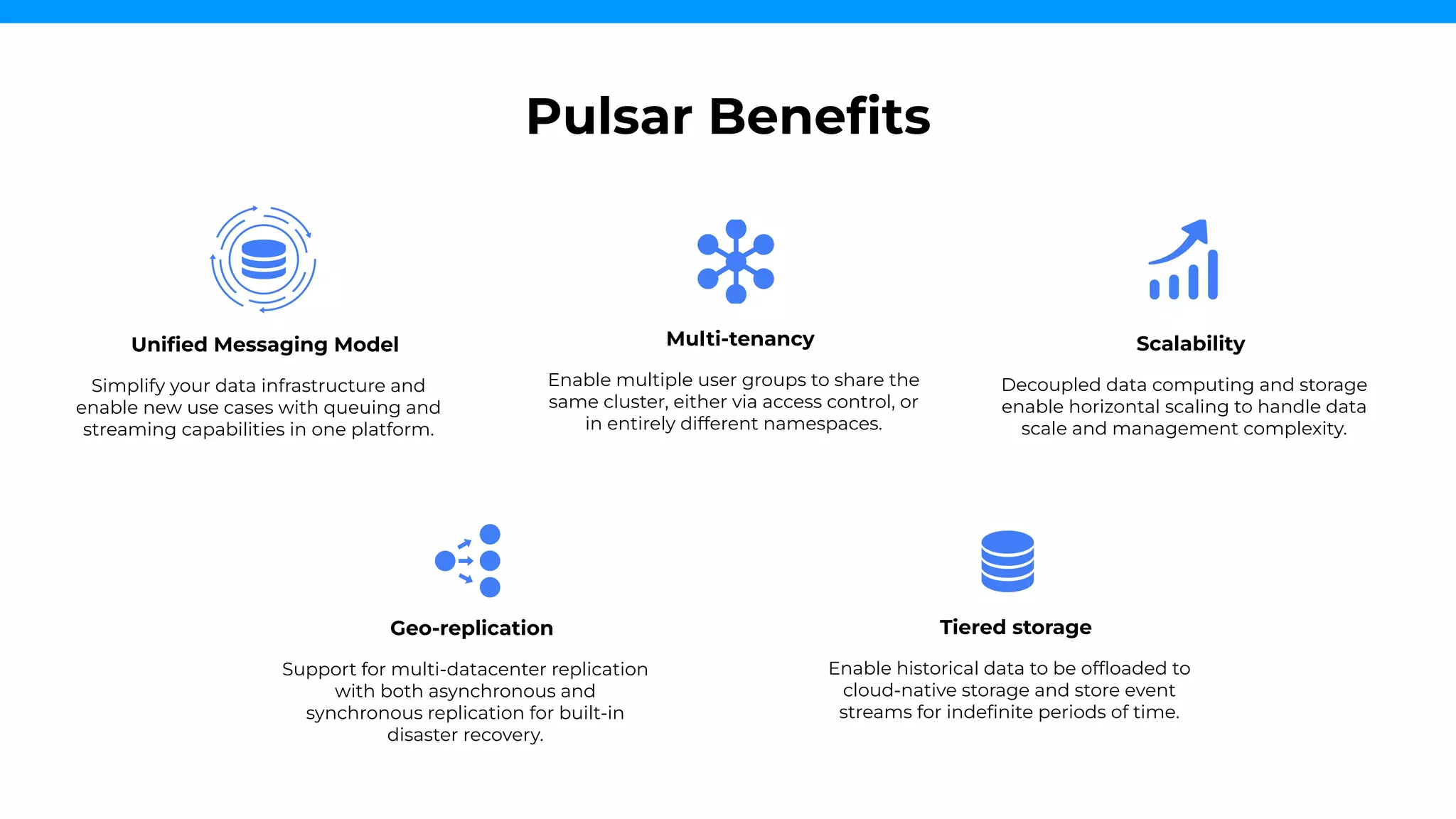

Pulsar Benefits

26. ● “Bookies”
● Stores messages and cursors
● Messages are grouped in
segments/ledgers
● A group of bookies form an
“ensemble” to store a ledger
● “Brokers”
● Handles message routing and
connections
● Stateless, but with caches
● Automatic load-balancing
● Topics are composed of
multiple segments
●
● Stores metadata for both
Pulsar and BookKeeper
● Service discovery
Store
Messages
Metadata &
Service Discovery
Metadata &
Service Discovery

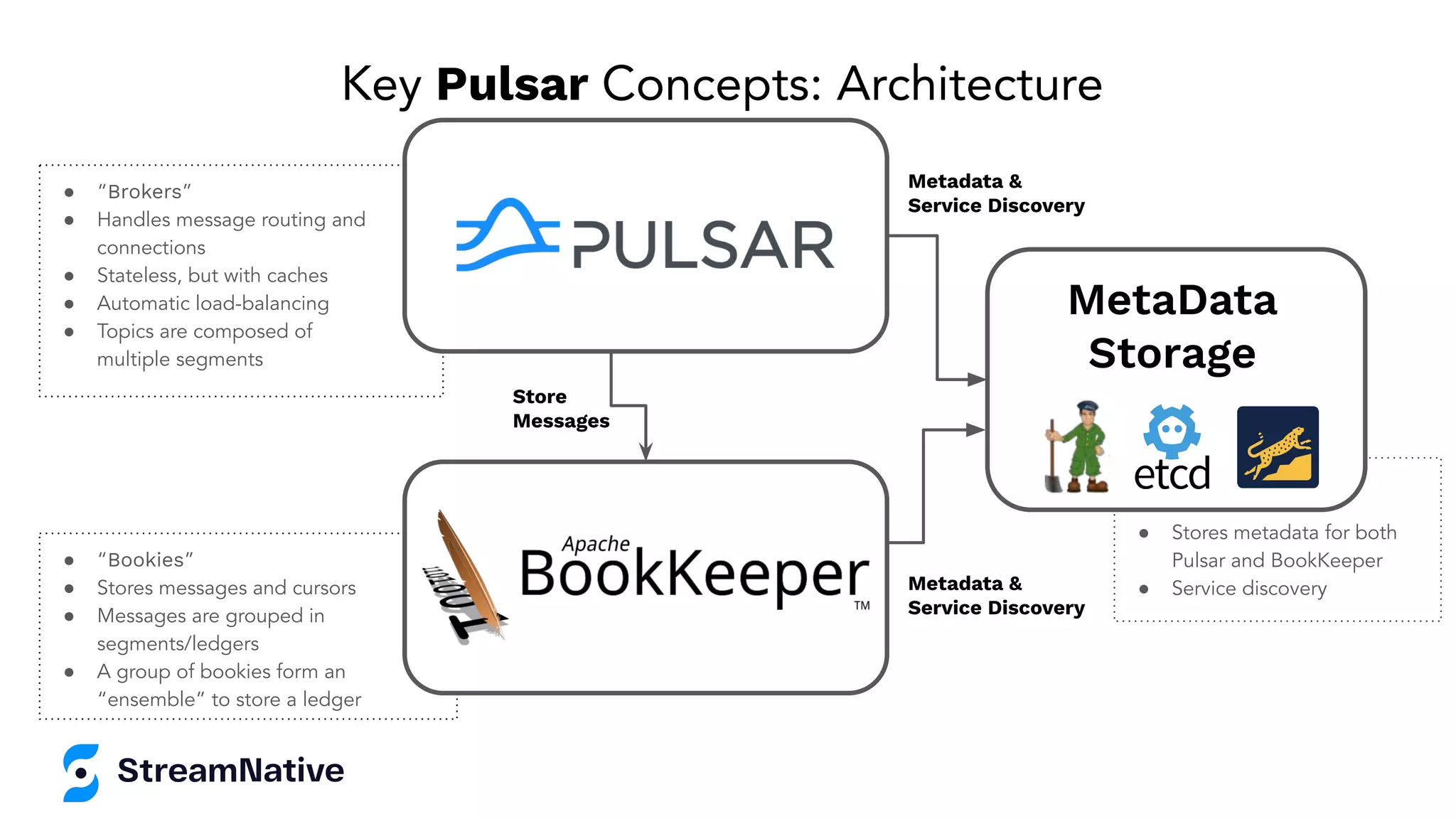

Key Pulsar Concepts: Architecture
MetaData
Storage

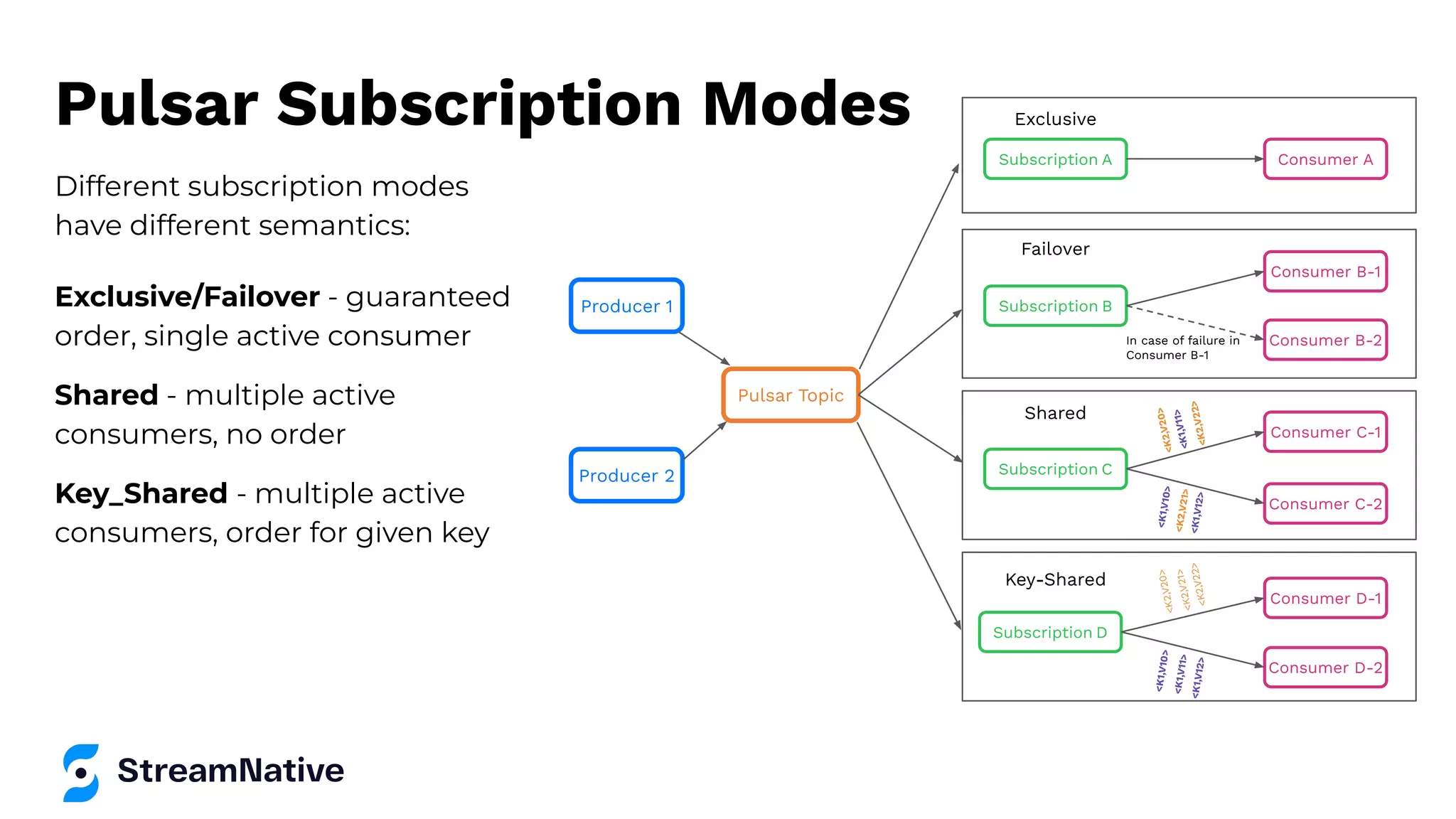

27. Pulsar Subscription Modes
Different subscription modes
have different semantics:
Exclusive/Failover - guaranteed
order, single active consumer
Shared - multiple active
consumers, no order
Key_Shared - multiple active
consumers, order for given key
Producer 1
Producer 2
Pulsar Topic
Subscription D
Consumer D-1
Consumer D-2
Key-Shared
<
K
1,
V
10
>
<
K
1,
V
11
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
2
,V
2
1>
<
K
2
,V
2
2
>
Subscription C
Consumer C-1
Consumer C-2
Shared
<
K
1,
V
10
>
<
K
2,
V
21
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
1,
V
11
>
<
K
2
,V
2
2
>
Subscription A Consumer A
Exclusive
Subscription B
Consumer B-1
Consumer B-2
In case of failure in
Consumer B-1
Failover

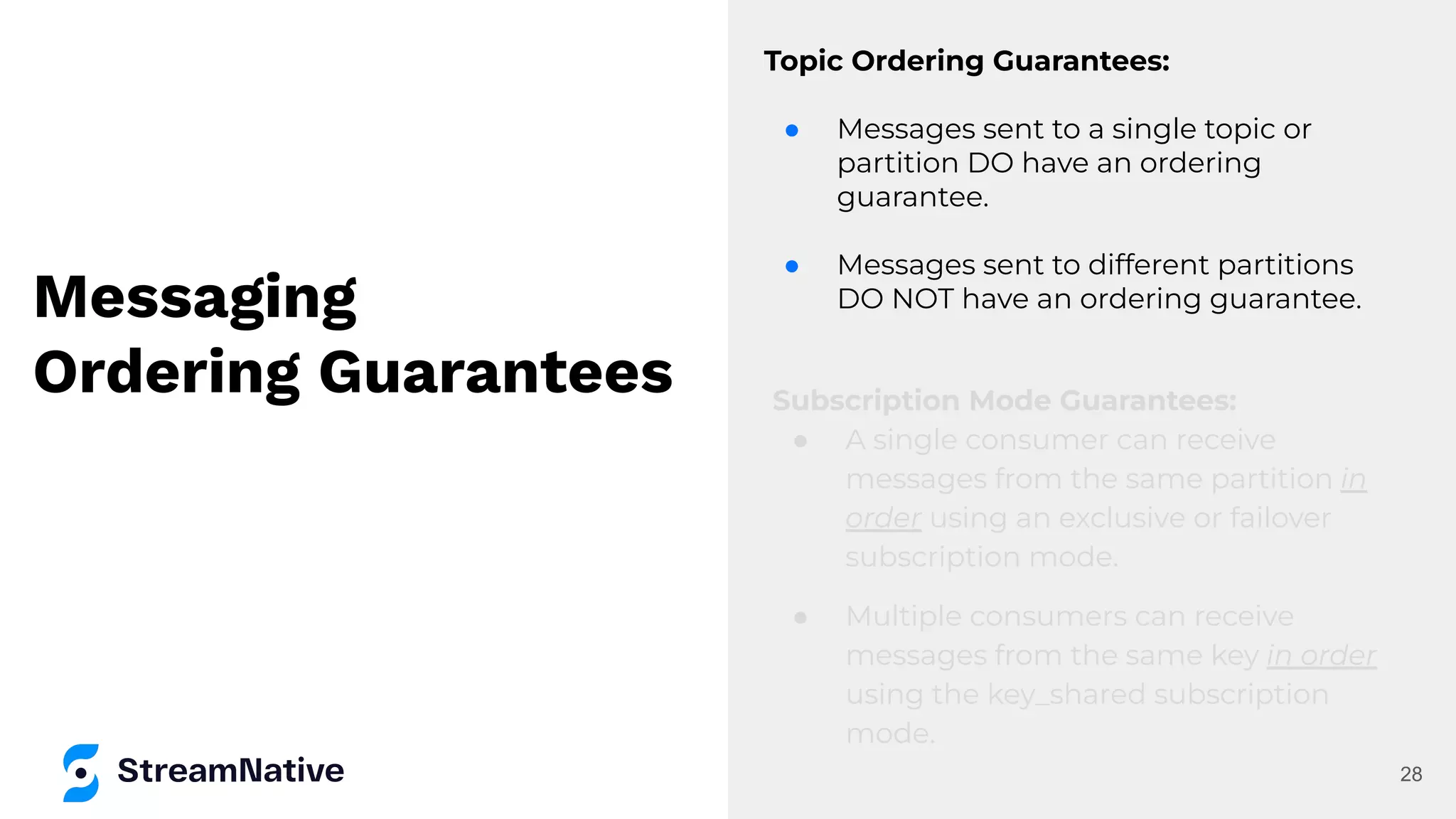

28. Messaging
Ordering Guarantees
Topic Ordering Guarantees:
● Messages sent to a single topic or
partition DO have an ordering
guarantee.
● Messages sent to different partitions
DO NOT have an ordering guarantee.
28
Subscription Mode Guarantees:
● A single consumer can receive
messages from the same partition in
order using an exclusive or failover
subscription mode.
● Multiple consumers can receive
messages from the same key in order
using the key_shared subscription
mode.

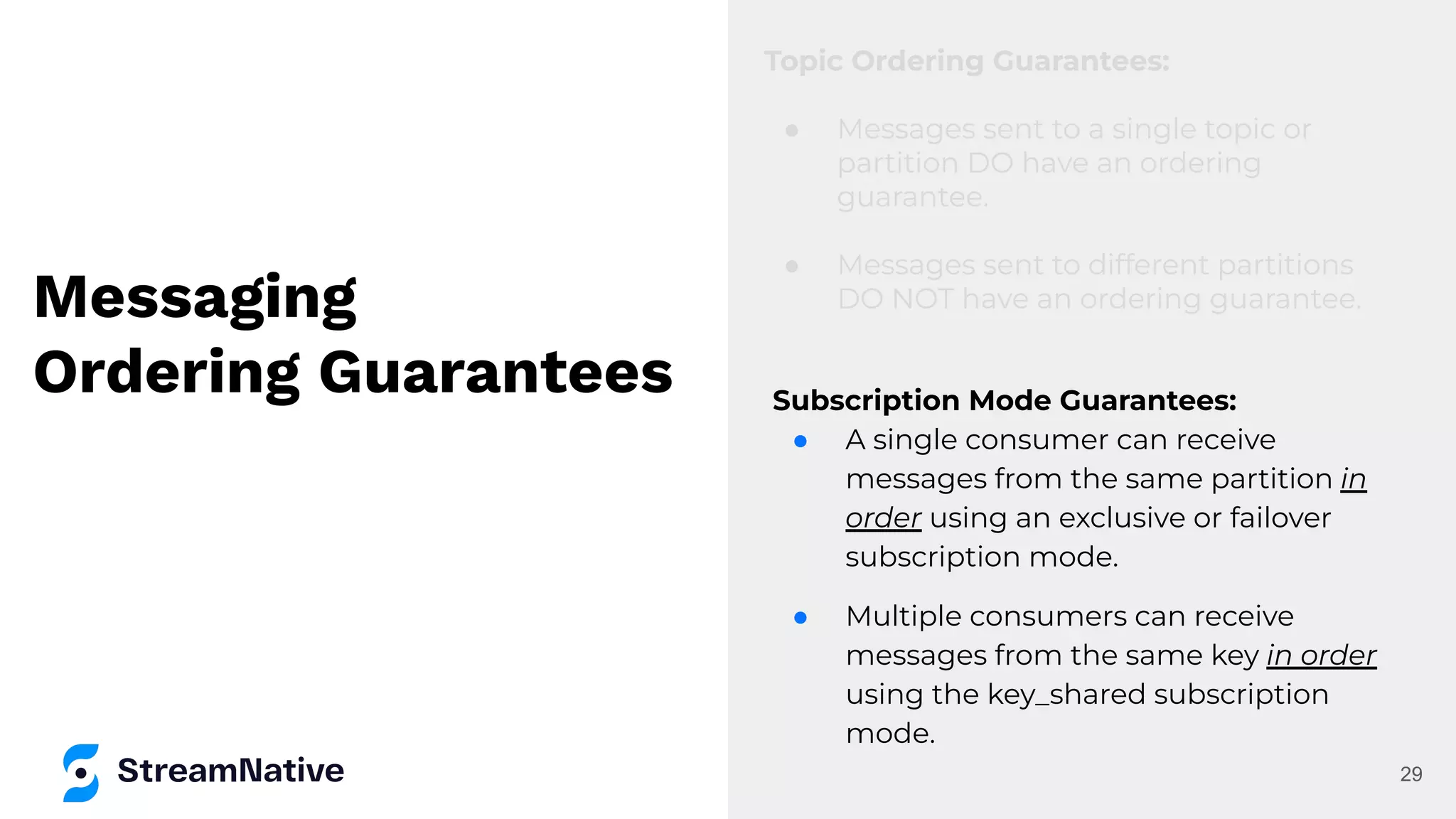

29. Messaging
Ordering Guarantees
Topic Ordering Guarantees:
● Messages sent to a single topic or
partition DO have an ordering
guarantee.
● Messages sent to different partitions
DO NOT have an ordering guarantee.
29
Subscription Mode Guarantees:
● A single consumer can receive
messages from the same partition in
order using an exclusive or failover
subscription mode.
● Multiple consumers can receive
messages from the same key in order
using the key_shared subscription
mode.

30. Streaming
Consumer
Consumer
Consumer
Subscription
Shared
Failover
Consumer
Consumer
Subscription
In case of failure in
Consumer B-0
Consumer
Consumer
Subscription
Exclusive
X
Consumer
Consumer
Key-Shared
Subscription
Pulsar
Topic/Partition
Messaging

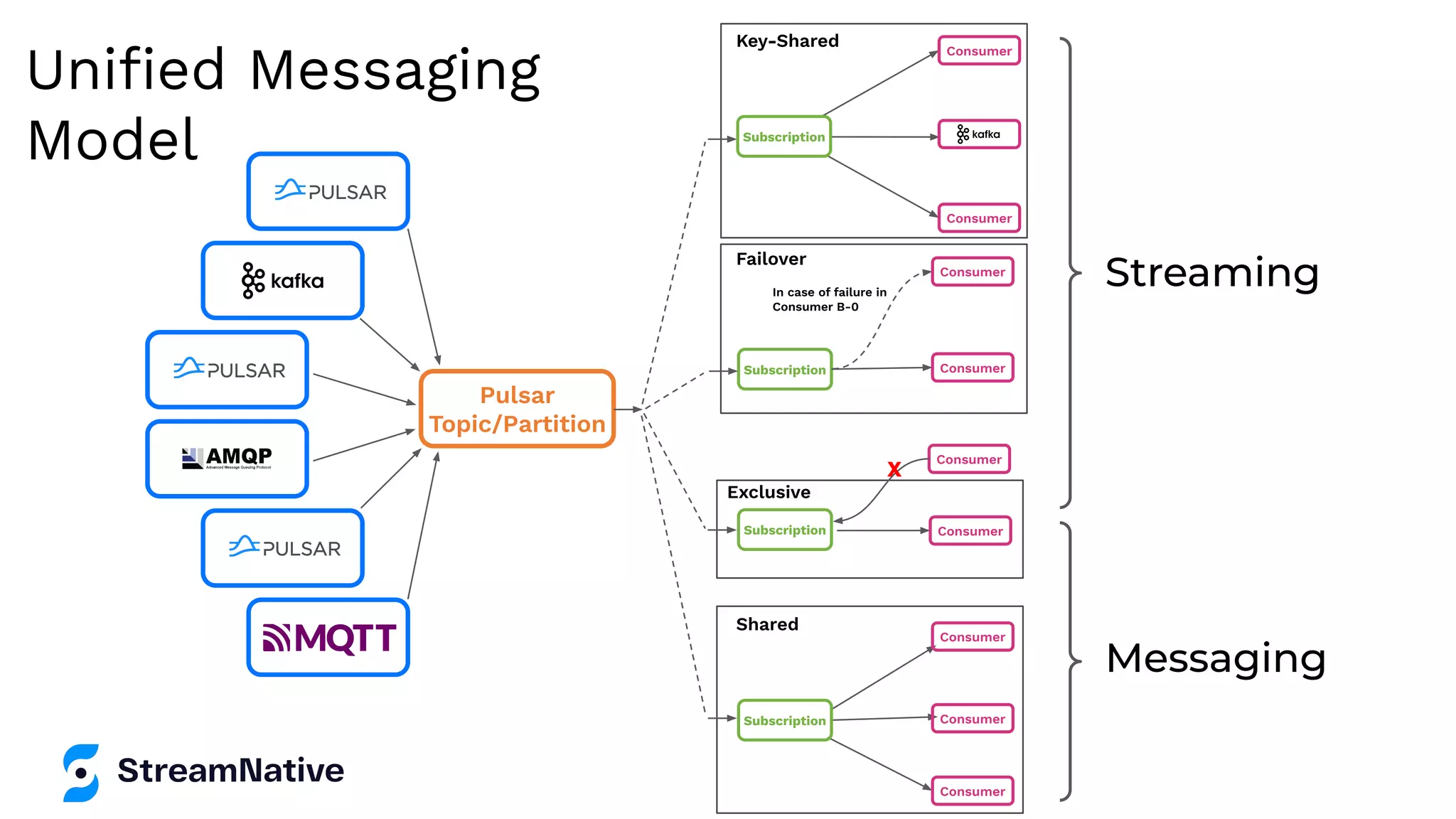

Unified Messaging
Model

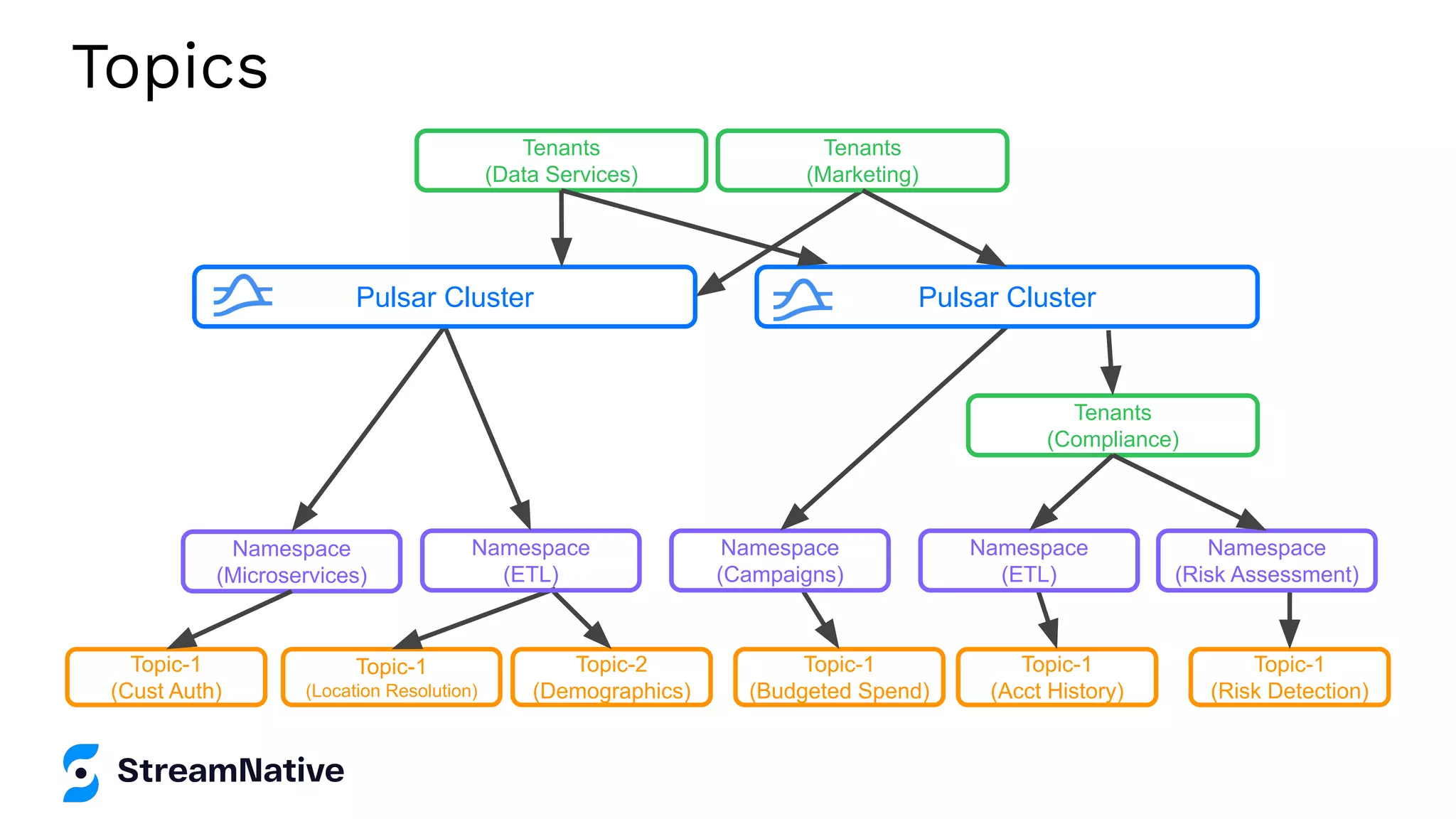

31. Topics
Tenants
(Compliance)
Tenants
(Data Services)
Namespace
(Microservices)
Topic-1
(Cust Auth)
Topic-1
(Location Resolution)
Topic-2
(Demographics)
Topic-1
(Budgeted Spend)
Topic-1
(Acct History)
Topic-1
(Risk Detection)
Namespace
(ETL)
Namespace
(Campaigns)
Namespace
(ETL)
Tenants
(Marketing)
Namespace
(Risk Assessment)
Pulsar Cluster
Pulsar Cluster

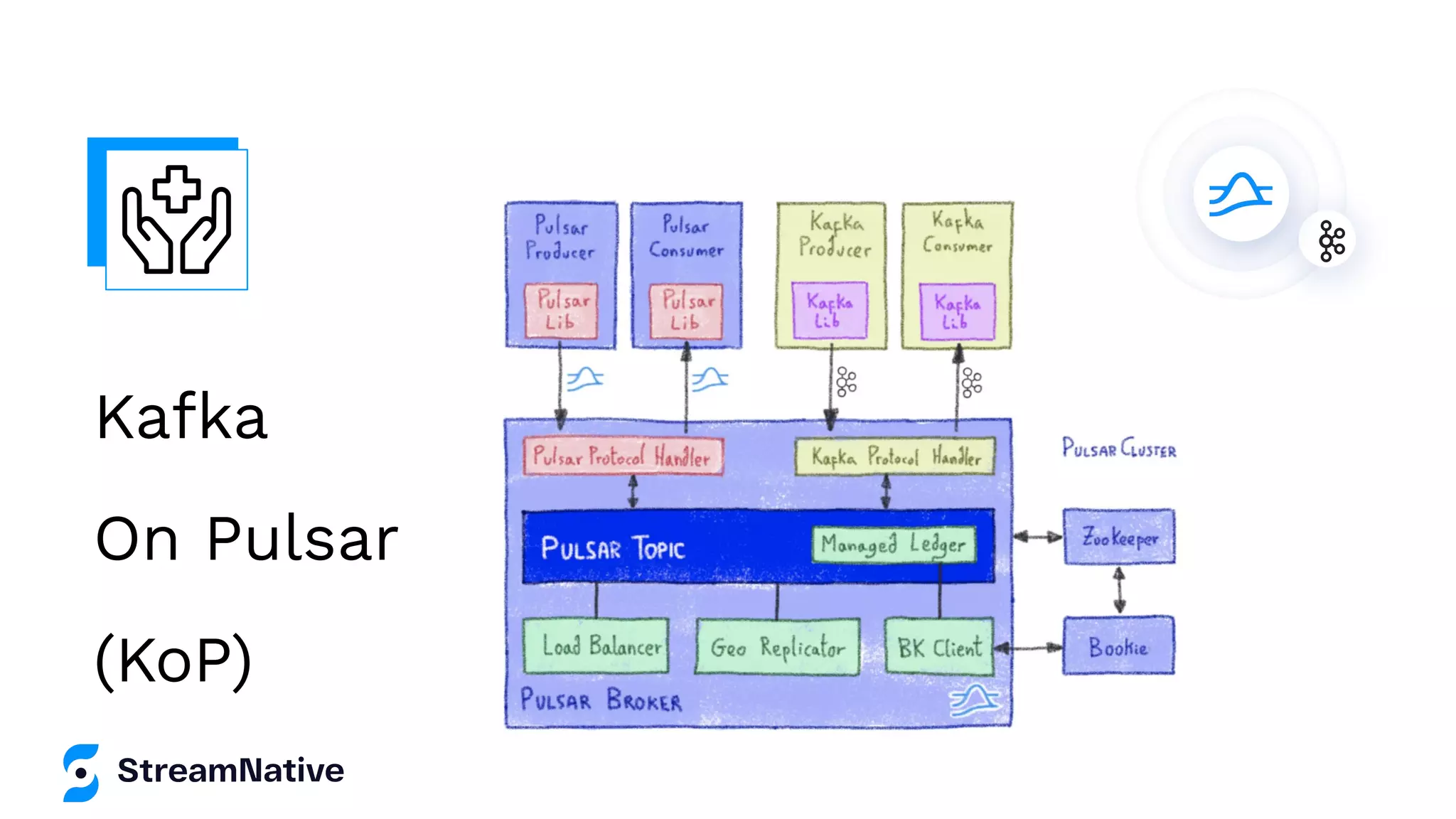

32. Kafka
On Pulsar
(KoP)

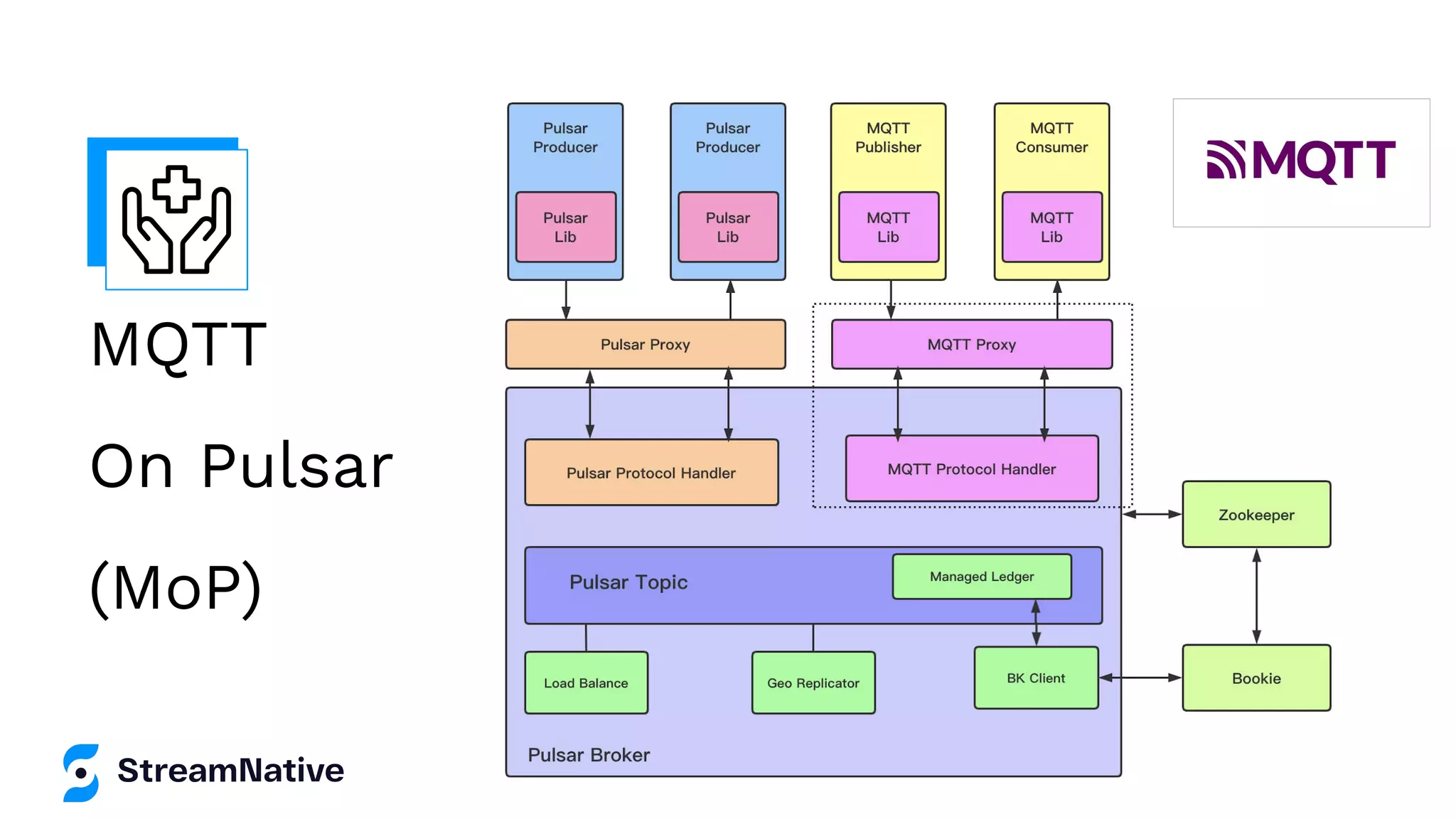

33. MQTT
On Pulsar
(MoP)

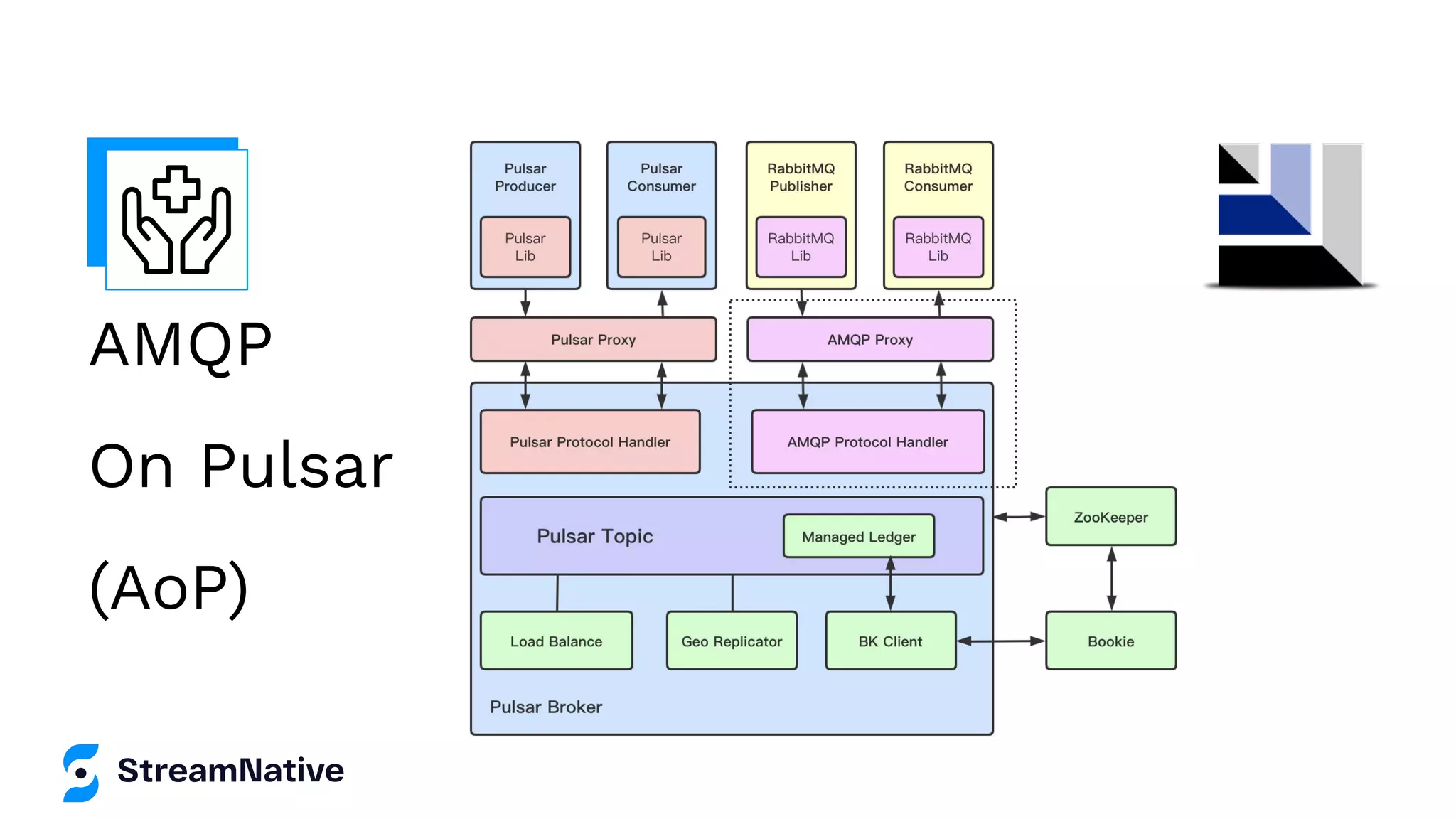

34. AMQP
On Pulsar
(AoP)

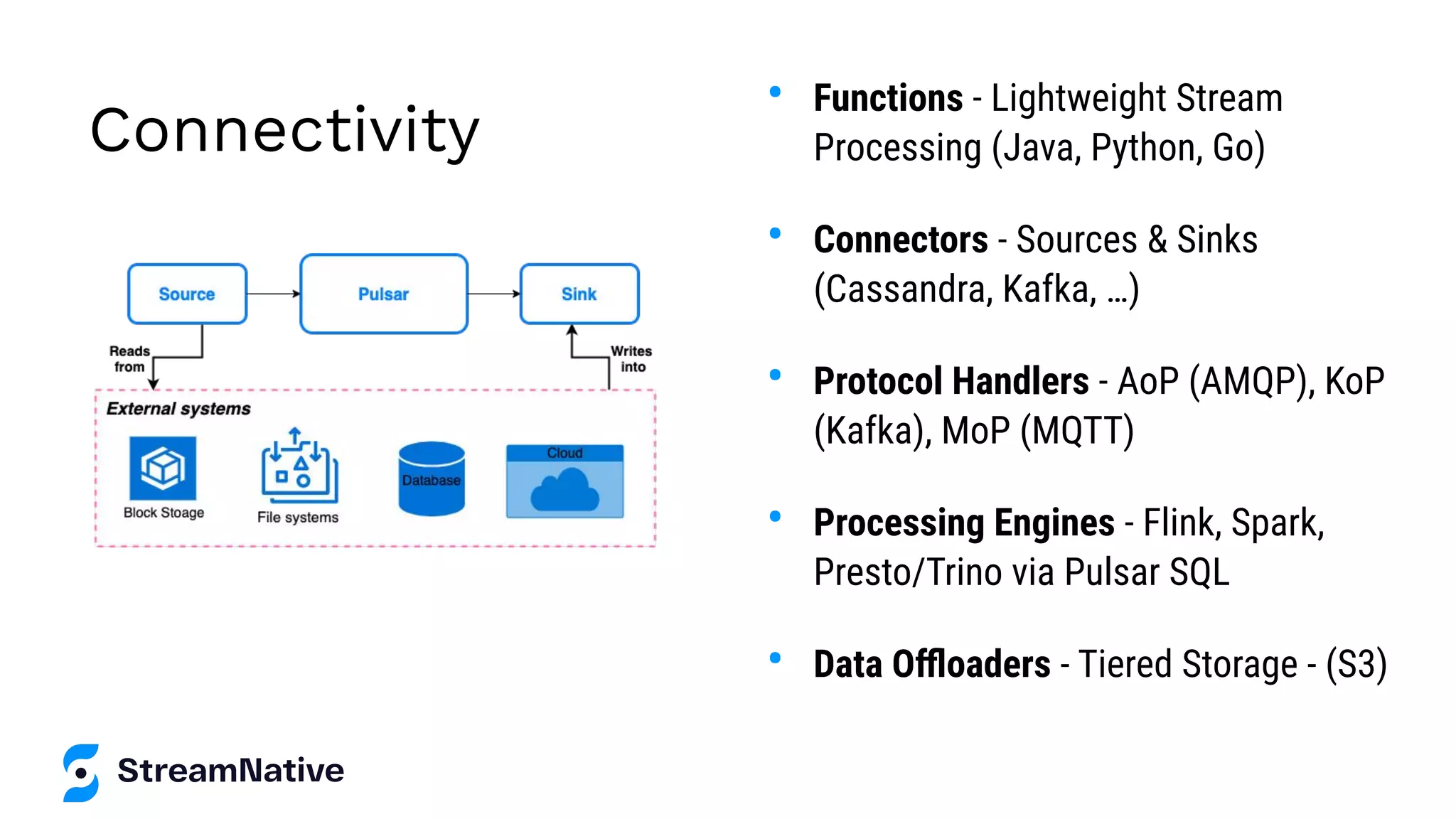

35. Connectivity
• Functions - Lightweight Stream
Processing (Java, Python, Go)

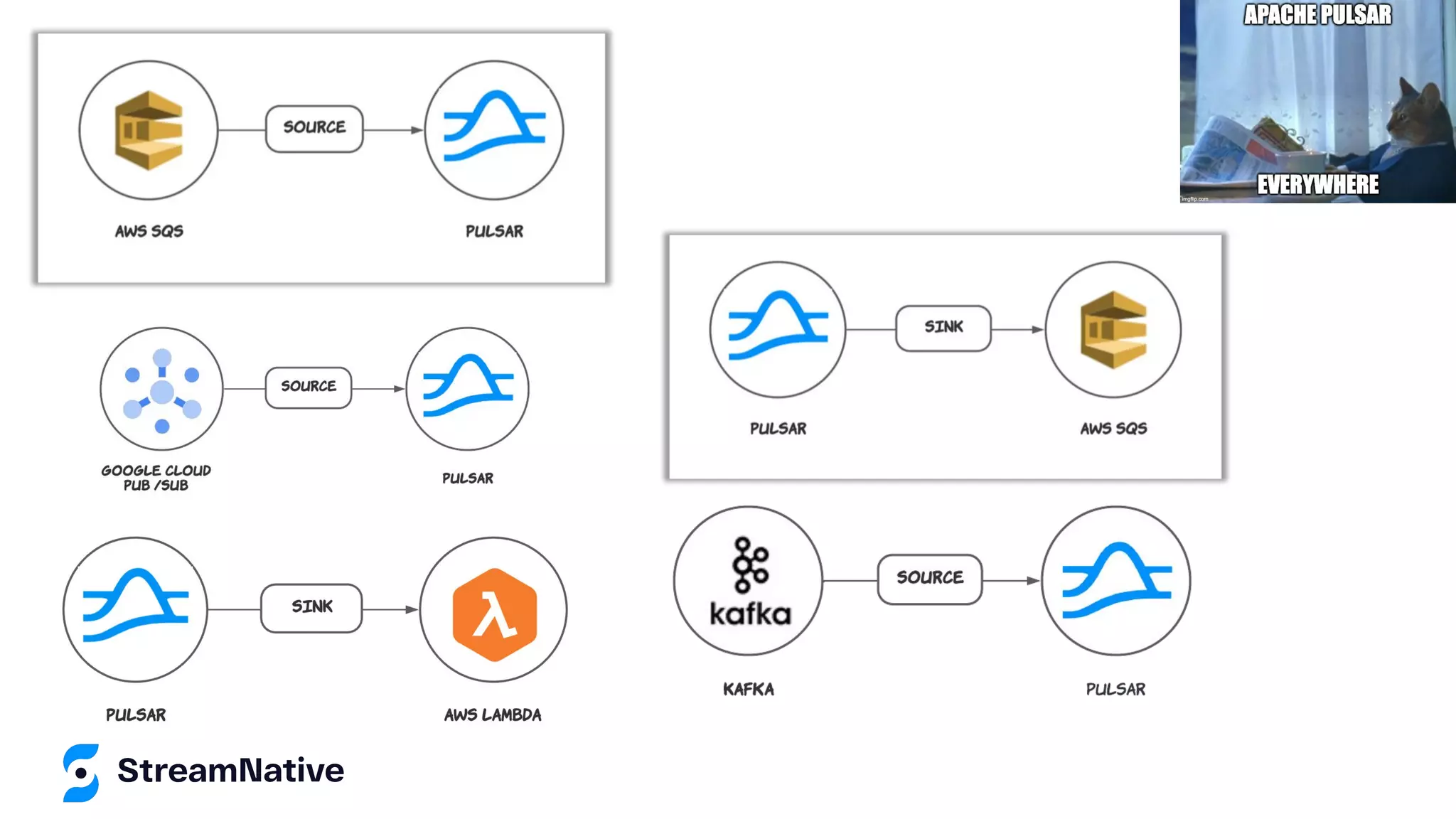

• Connectors - Sources & Sinks
(Cassandra, Kafka, …)
• Protocol Handlers - AoP (AMQP), KoP
(Kafka), MoP (MQTT)
• Processing Engines - Flink, Spark,
Presto/Trino via Pulsar SQL
• Data Offloaders - Tiered Storage - (S3)

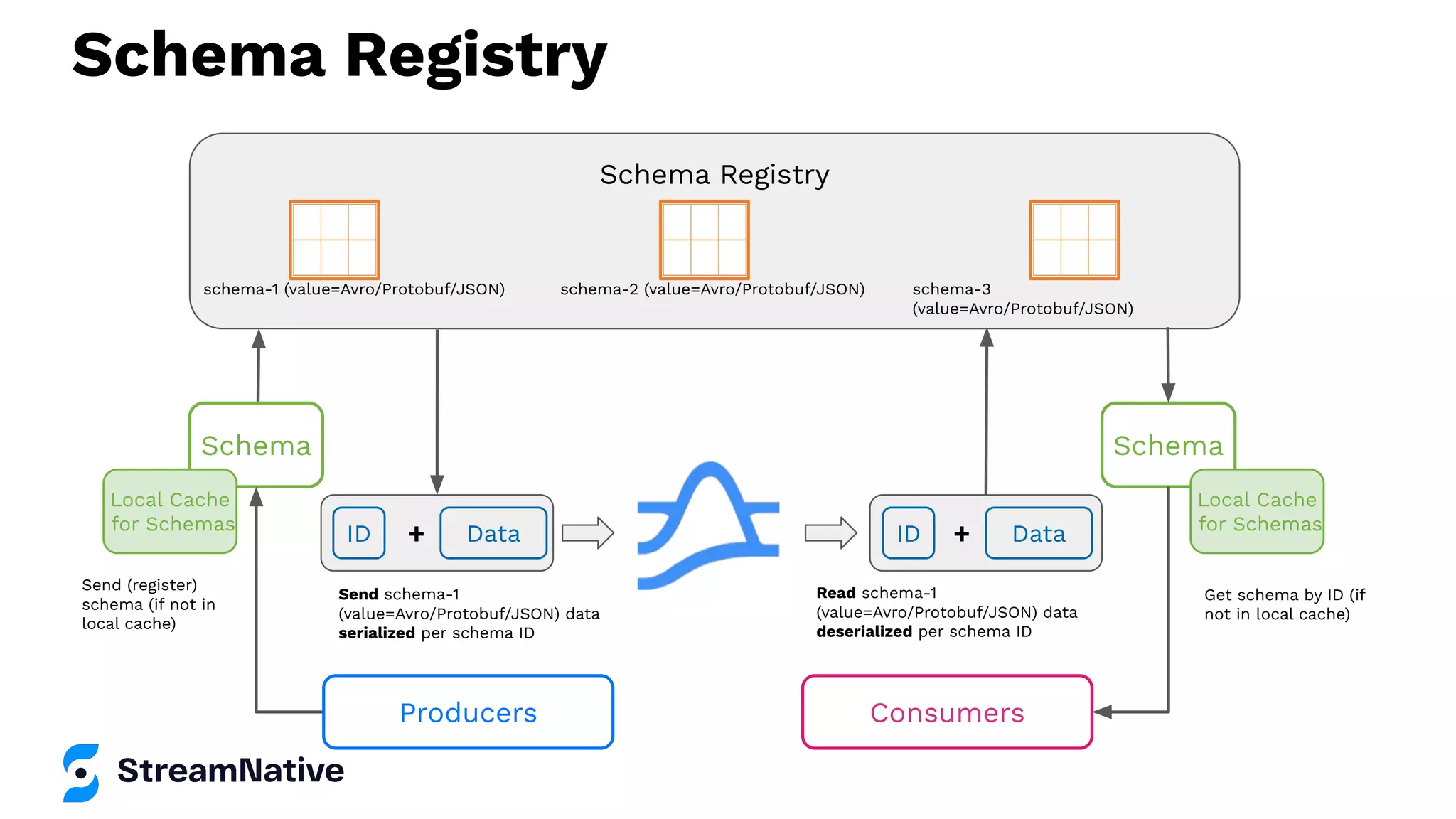

37. Schema Registry
Schema Registry
schema-1 (value=Avro/Protobuf/JSON) schema-2 (value=Avro/Protobuf/JSON) schema-3
(value=Avro/Protobuf/JSON)
Schema
Data
ID
Local Cache
for Schemas
+
Schema
Data
ID +
Local Cache
for Schemas
Send schema-1
(value=Avro/Protobuf/JSON) data
serialized per schema ID
Send (register)
schema (if not in
local cache)
Read schema-1
(value=Avro/Protobuf/JSON) data
deserialized per schema ID
Get schema by ID (if
not in local cache)
Producers Consumers

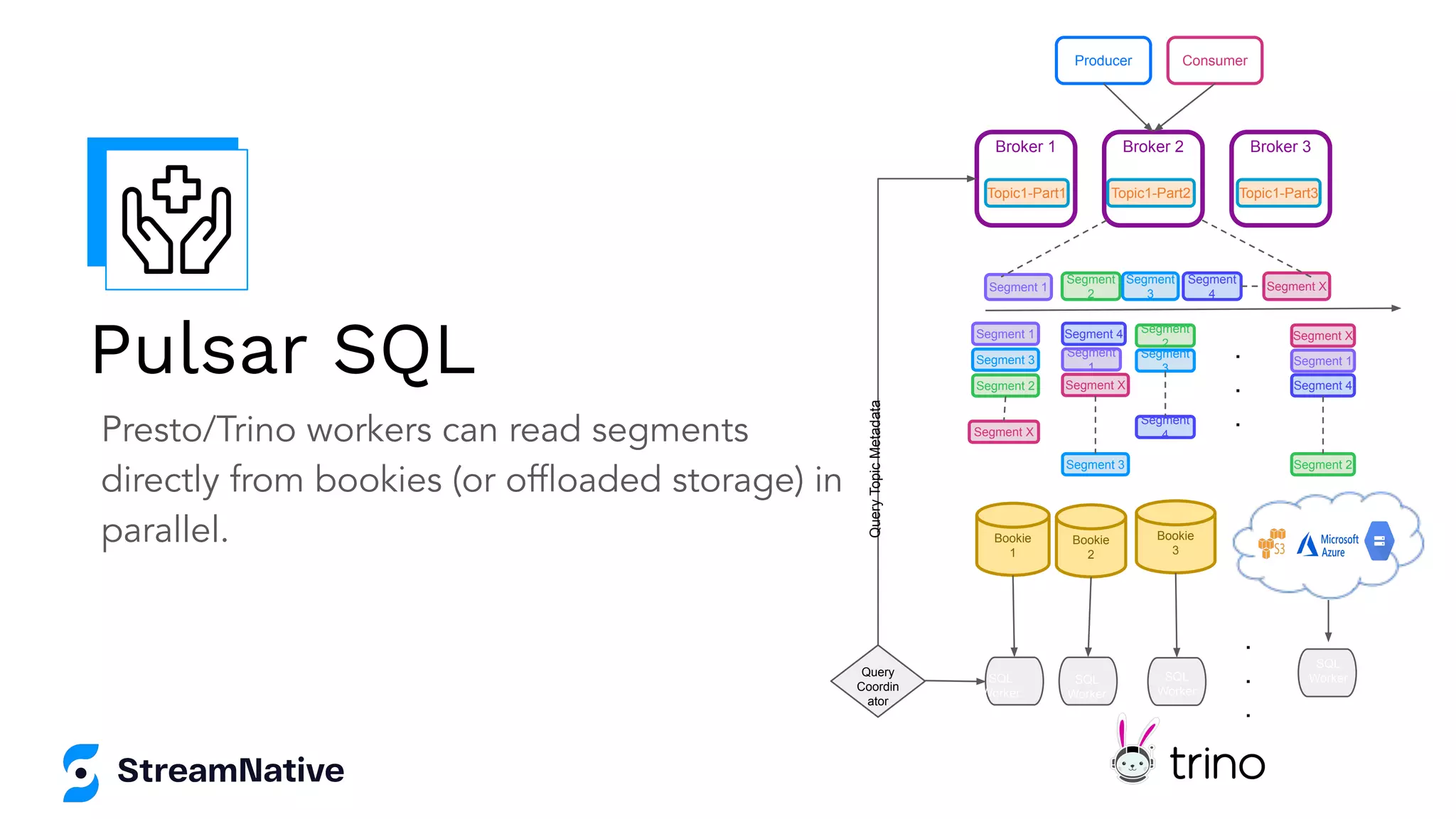

38. Presto/Trino workers can read segments
directly from bookies (or offloaded storage) in
parallel. Bookie
1
Segment 1
Producer Consumer
Broker 1
Topic1-Part1
Broker 2
Topic1-Part2
Broker 3
Topic1-Part3
Segment
2
Segment
3
Segment
4
Segment X
Segment 1
Segment
1 Segment 1
Segment 3
Segment
3
Segment 3
Segment 2
Segment
2
Segment 2
Segment 4
Segment 4
Segment
4
Segment X
Segment X
Segment X
Bookie
2
Bookie
3
Query
Coordin
ator
.
.
.
.
.
.
SQL
Worker
SQL
Worker
SQL
Worker
SQL
Worker
Query
Topic
Metadata
Pulsar SQL

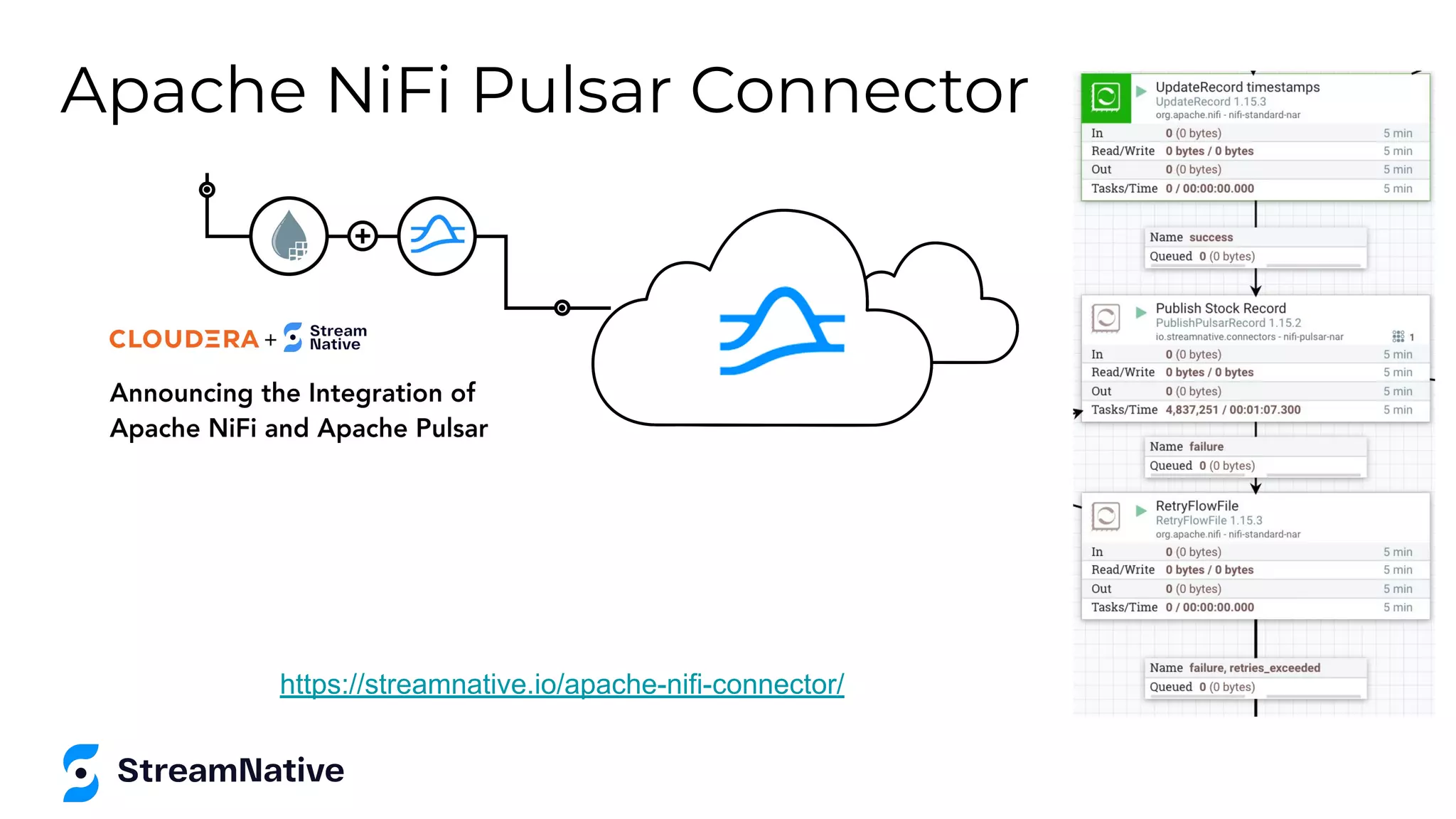

39. Apache NiFi Pulsar Connector
https://streamnative.io/apache-nifi-connector/

40. SQL

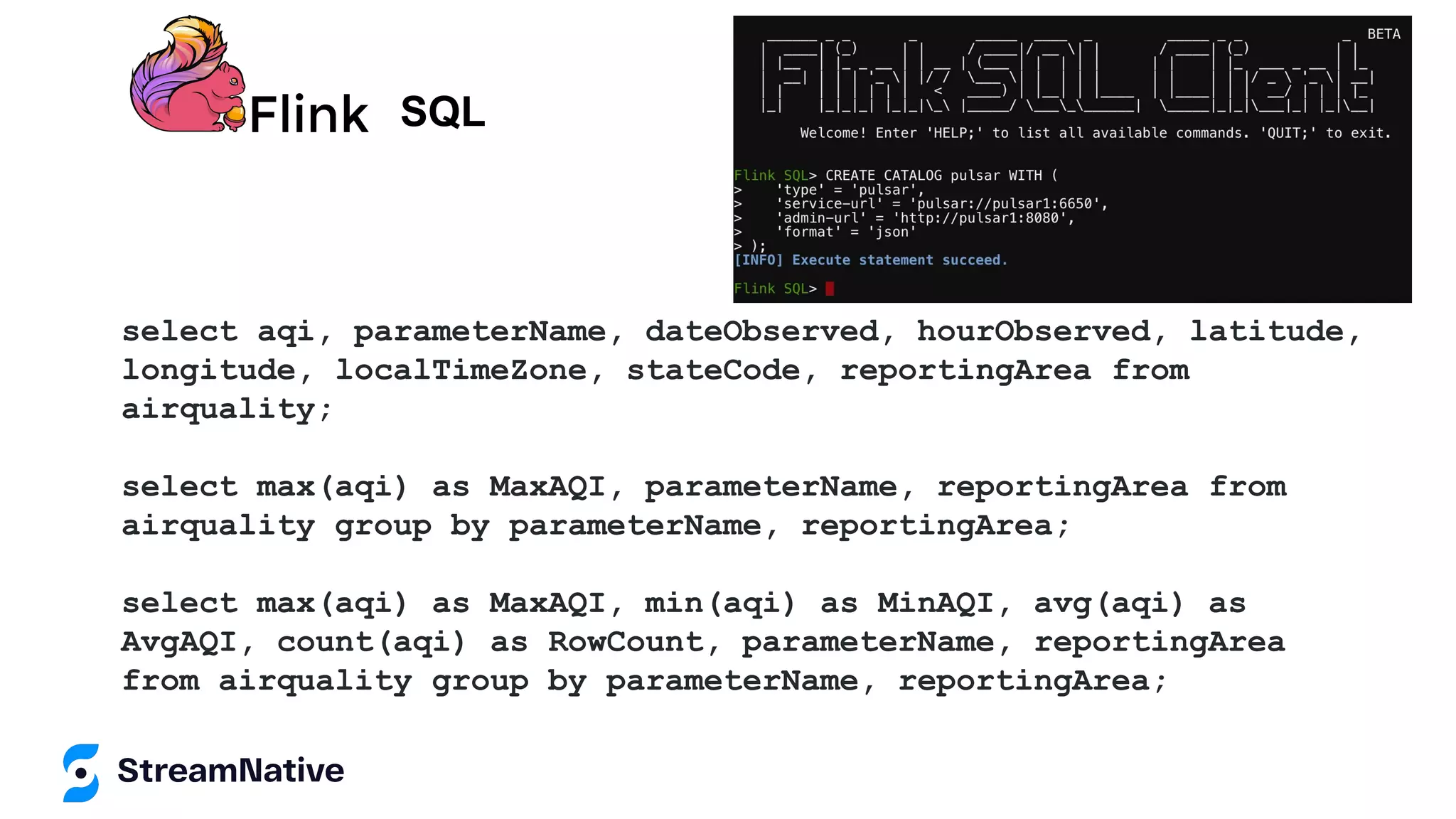

select aqi, parameterName, dateObserved, hourObserved, latitude,
longitude, localTimeZone, stateCode, reportingArea from
airquality;
select max(aqi) as MaxAQI, parameterName, reportingArea from
airquality group by parameterName, reportingArea;
select max(aqi) as MaxAQI, min(aqi) as MinAQI, avg(aqi) as
AvgAQI, count(aqi) as RowCount, parameterName, reportingArea
from airquality group by parameterName, reportingArea;

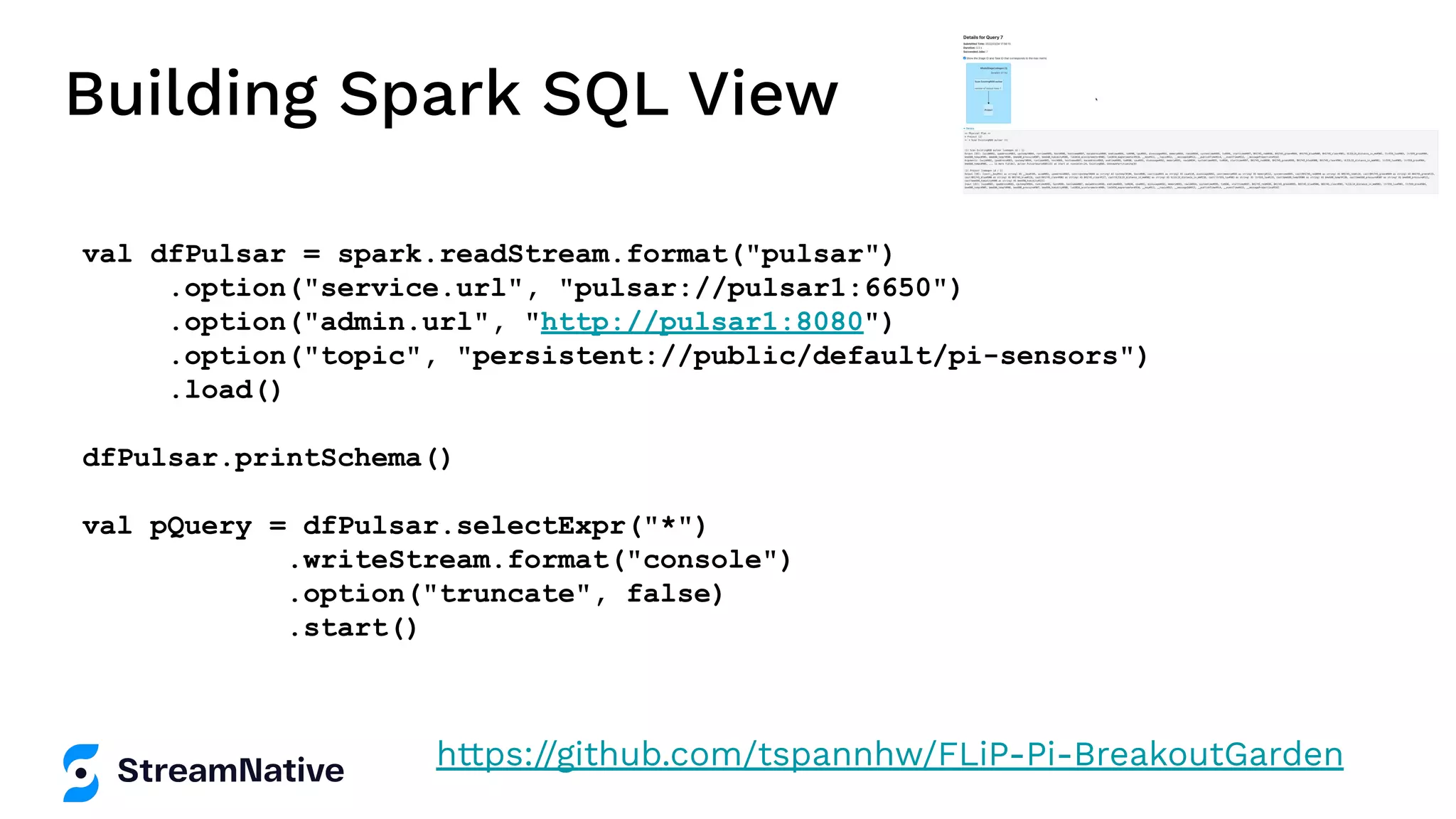

41. Building Spark SQL View
val dfPulsar = spark.readStream.format("pulsar")
.option("service.url", "pulsar://pulsar1:6650")
.option("admin.url", "http://pulsar1:8080")
.option("topic", "persistent://public/default/pi-sensors")
.load()
dfPulsar.printSchema()
val pQuery = dfPulsar.selectExpr("*")
.writeStream.format("console")
.option("truncate", false)
.start()
https://github.com/tspannhw/FLiP-Pi-BreakoutGarden

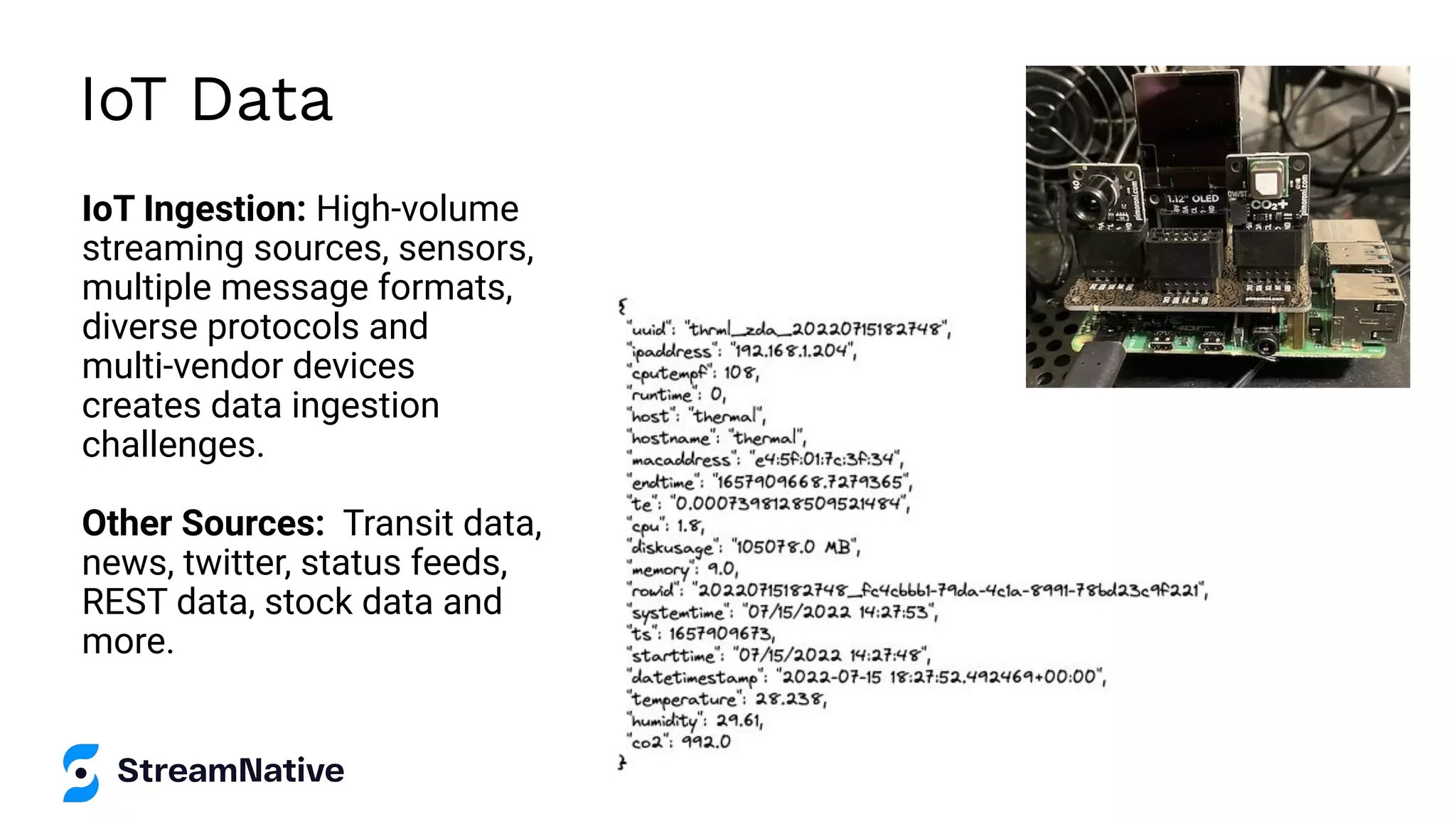

42. IoT Data
IoT Ingestion: High-volume
streaming sources, sensors,
multiple message formats,
diverse protocols and
multi-vendor devices
creates data ingestion
challenges.
Other Sources: Transit data,
news, twitter, status feeds,
REST data, stock data and
more.

43. Demo Time

44. Q&A

45. Now Available
On-Demand Pulsar
Training
Academy.StreamNative.io
45

46. Resources
● For a first look at Pulsar benchmark report, share your email in the chat
● Join the Pulsar Slack channel - Apache-Pulsar.slack.com
● Follow @streamnativeio and @apache_pulsar on Twitter
● Contact StreamNative Sales - doug@streamnative.io

47. Too Many Tim Links
● https://dzone.com/articles/five-sensors-real-time-with-pulsar-and-python-on-a
● https://github.com/tspannhw/airquality
● https://github.com/tspannhw/FLiPN-AirQuality-REST
● https://github.com/tspannhw/pulsar-airquality-function
● https://github.com/tspannhw/FLiP-Pi-BreakoutGarden
● https://github.com/tspannhw/FLiPN-DEVNEXUS-2022
● https://github.com/tspannhw/FLiP-Pi-Thermal
● https://github.com/tspannhw/FLiP-Pi-Weather
● https://github.com/tspannhw/FLiP-RP400
● https://github.com/tspannhw/FLiP-Py-Pi-GasThermal

48. StreamNative: By the Creators Of Apache Pulsar
✓ Original creators of Apache
Pulsar & BookKeeper
✓ Operated the largest
Pulsar/BookKeeper cluster
✓ Data veterans with extensive
industry experience
CONFIDENTIAL. DO NOT SHARE.
ASF Member
Pulsar/BookKeeper PMC
Founder and CEO
Sijie Guo
ASF Member
Pulsar/BookKeeper PMC
CTO
Matteo Merli
Pulsar/BookKeeper PMC
Co-Founder
Jia Zhai

49. Tim Spann
Developer Advocate
@PaaSDev
https://www.linkedin.com/in/timothyspann
https://github.com/tspannhw
