The last few years have seen the emergence of Serverless as a paradigm for event streaming. Its very simple programming model has attracted developers in droves. At the same time, its ability to elastically scale has simplified operations significantly. Combined together with the ubiquity of their presence across all cloud providers, serverless today has become the leading choice to do event processing at scale for a lot of companies. In this talk, Sijie Guo from StreamNative will explore how the serverless paradigm is applied to event streaming in Apache Pulsar, a next-generation event streaming system. Pulsar provides native support for serverless functions where the events are processed as soon as they arrive in a streaming manner and that provides flexible deployment options (thread, process, container). He will describe how these serverless functions make data engineering easier and share the real world usage of Pulsar Functions.

1. Serverless Event Streaming
with Pulsar Functions
Sijie Guo (@sijieg)
2019.06.22

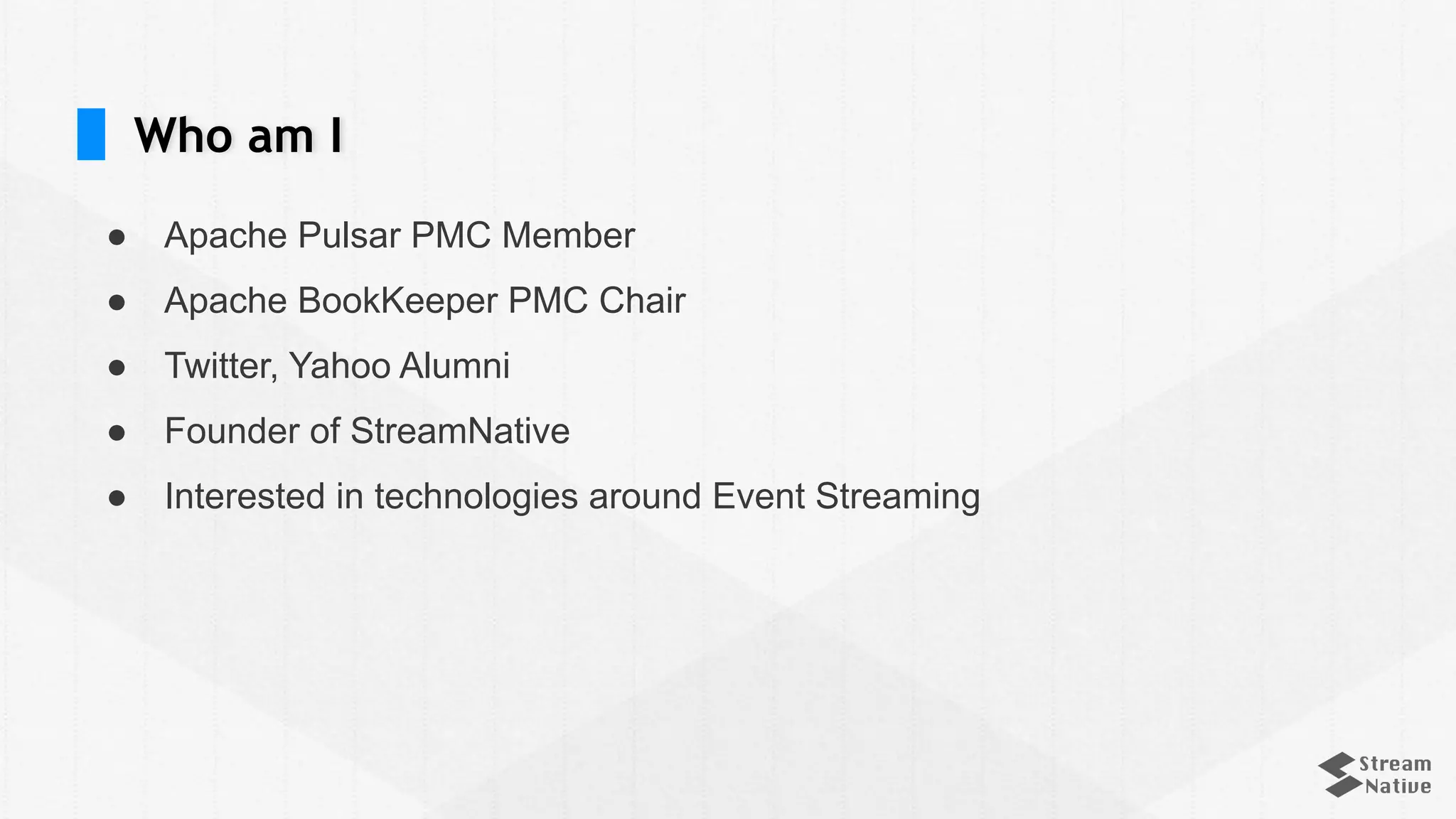

2. ● Apache Pulsar PMC Member
● Apache BookKeeper PMC Chair
● Twitter, Yahoo Alumni
● Founder of StreamNative
● Interested in technologies around Event Streaming
Who am I

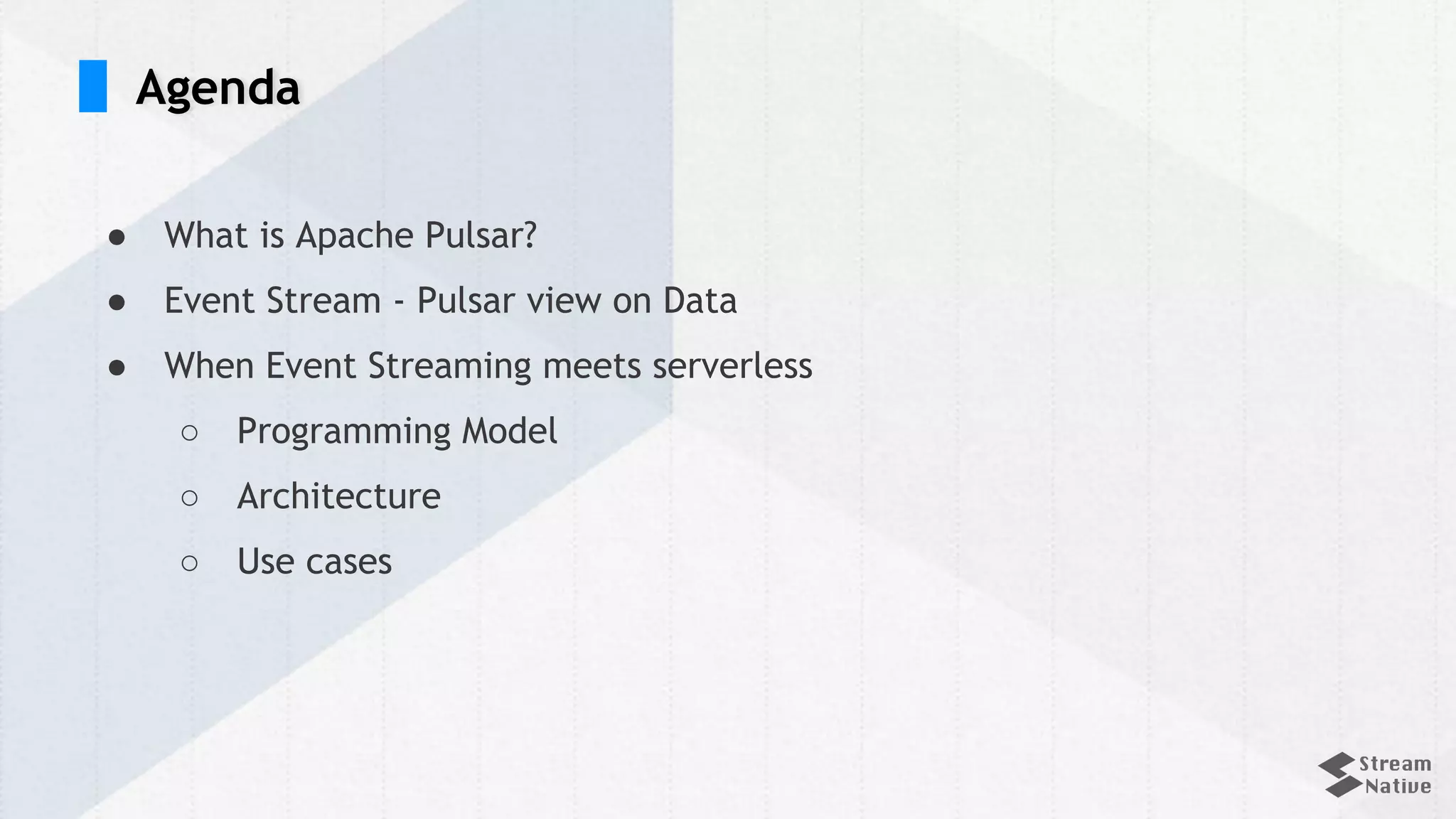

3. ● What is Apache Pulsar?
● Event Stream - Pulsar view on Data
● When Event Streaming meets serverless
○ Programming Model
○ Architecture
○ Use cases
Agenda

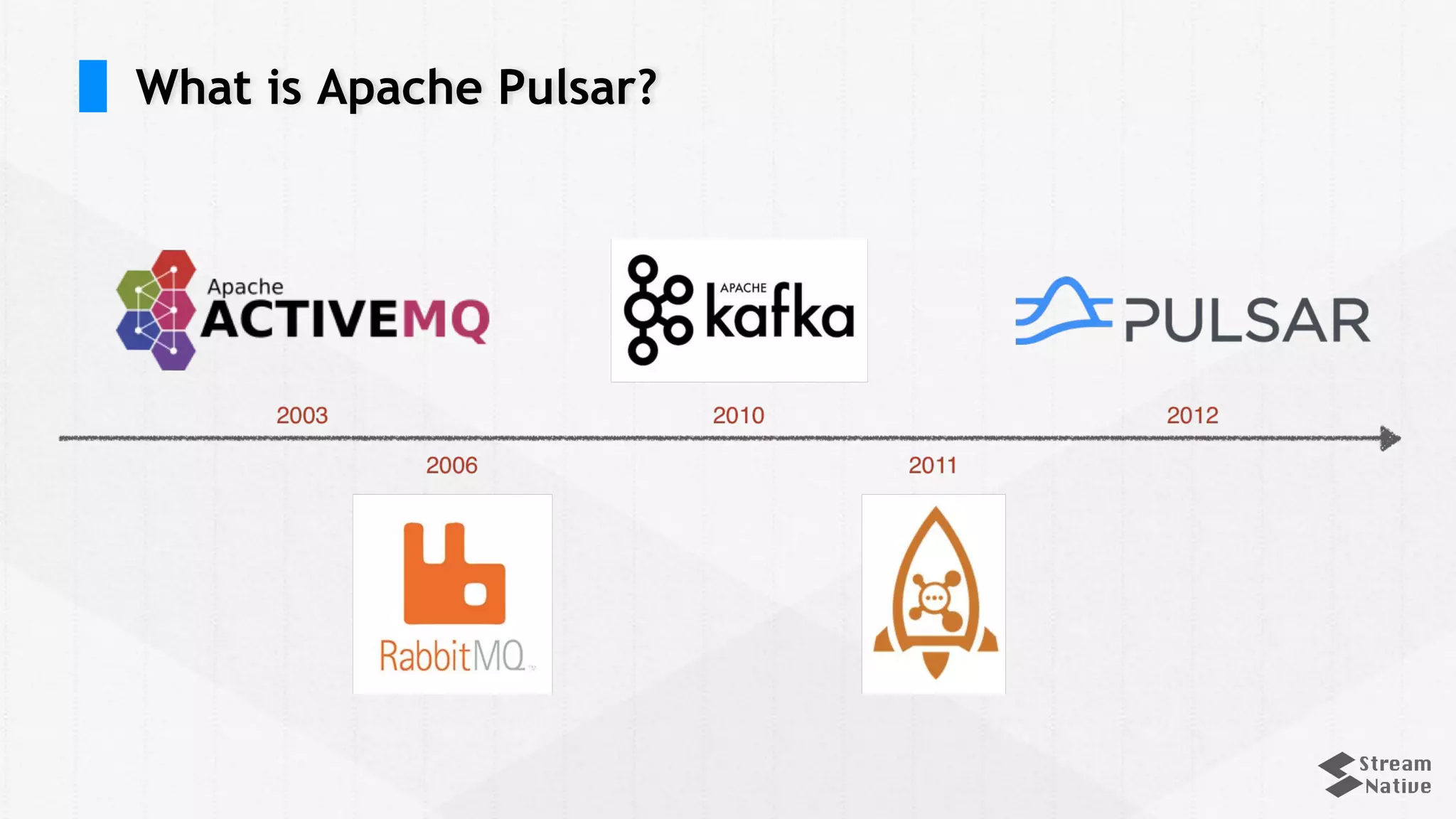

4. What is Apache Pulsar?

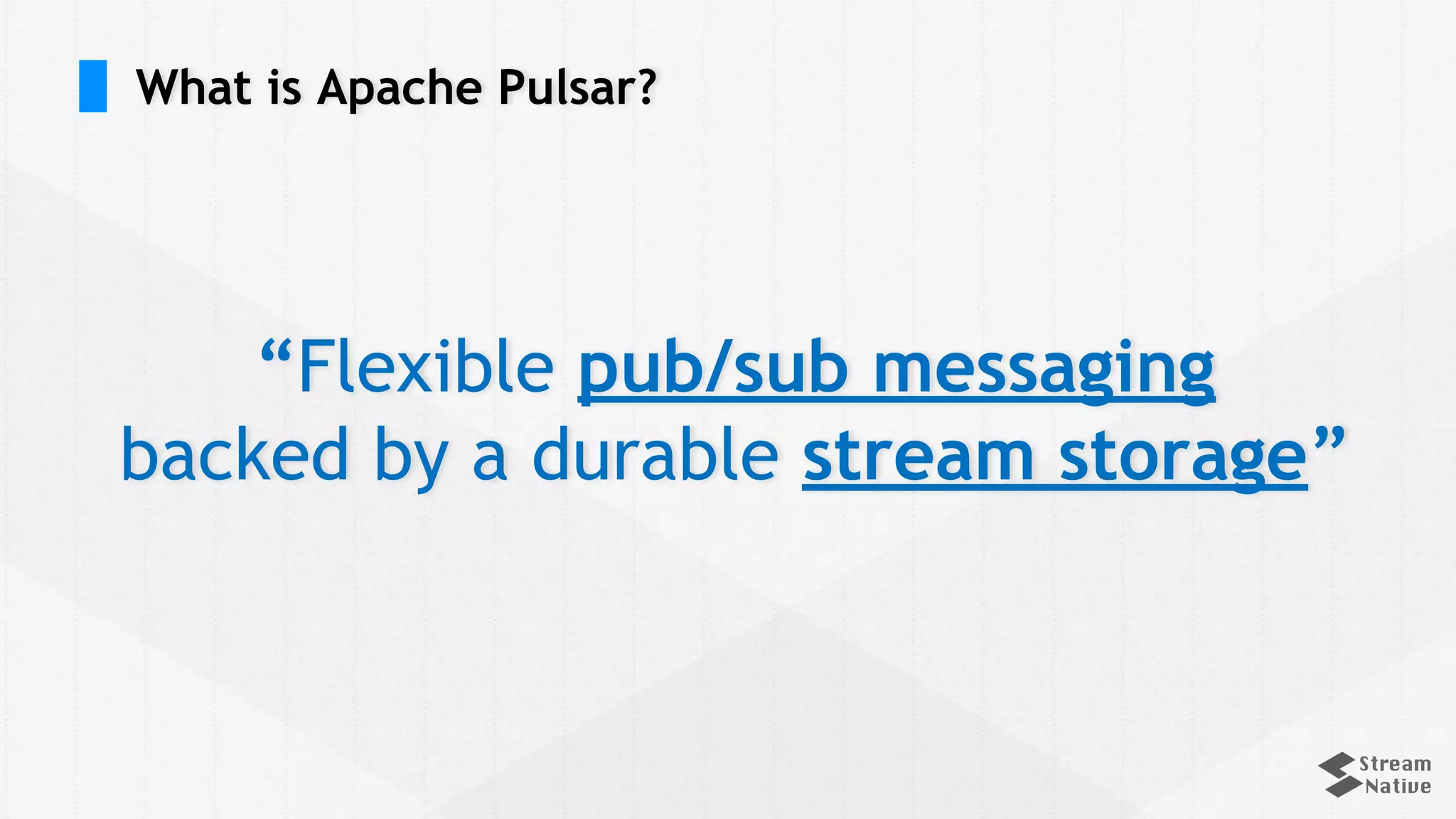

5. “Flexible pub/sub messaging
backed by a durable stream storage”
What is Apache Pulsar?

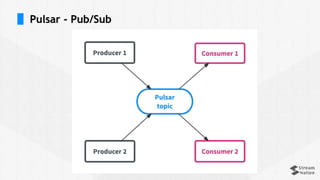

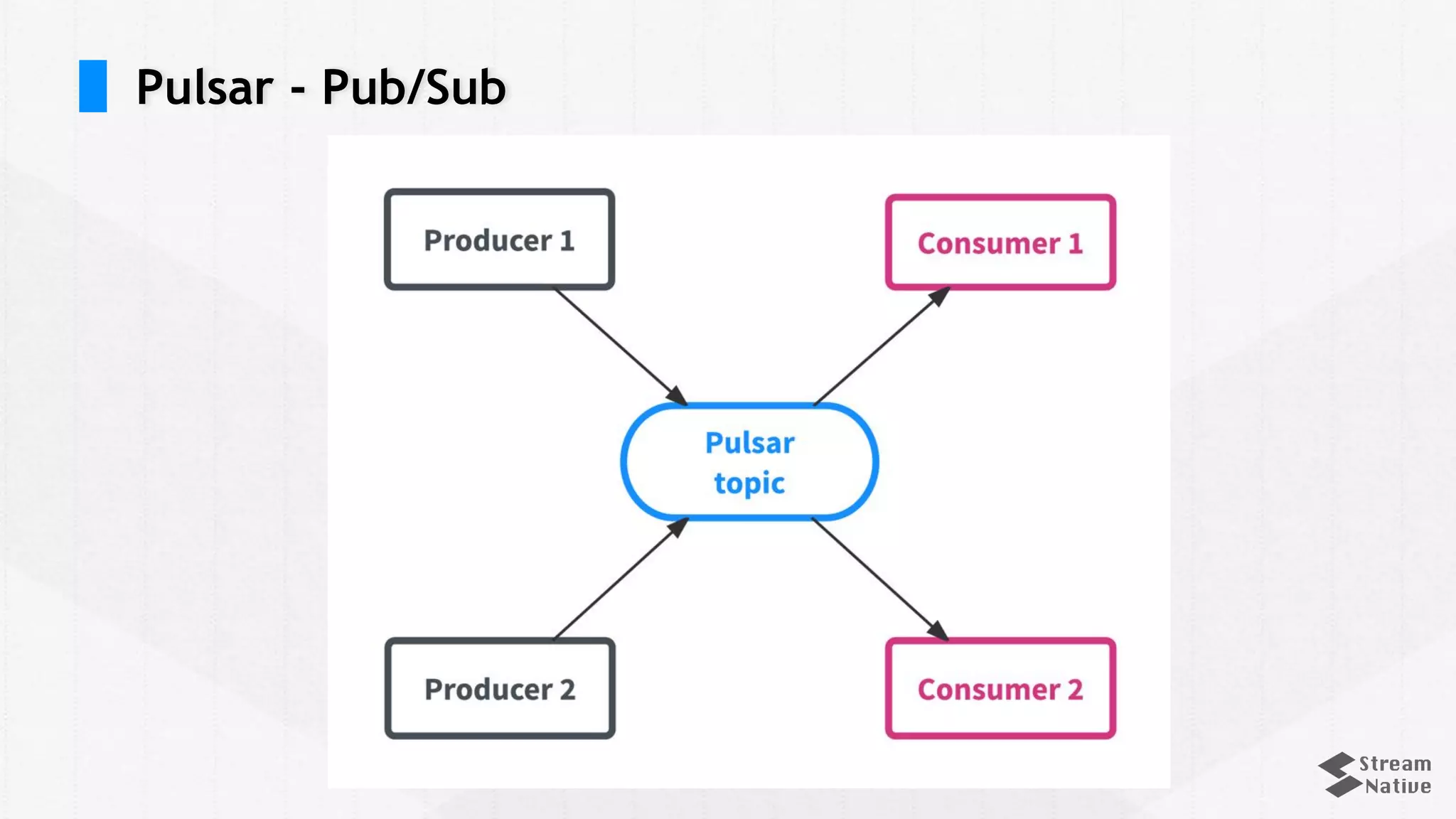

6. Pulsar - Pub/Sub

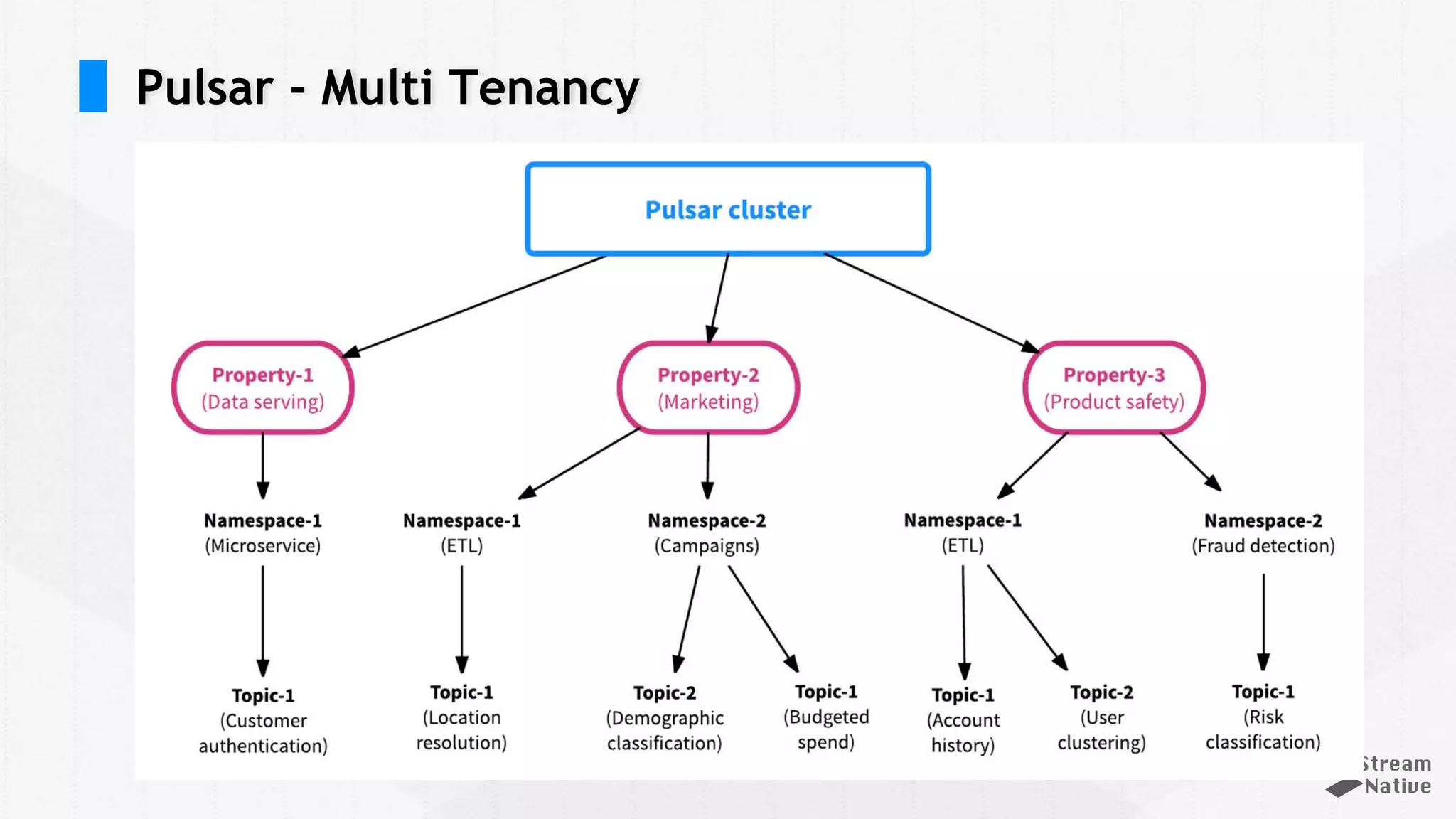

7. Pulsar - Multi Tenancy

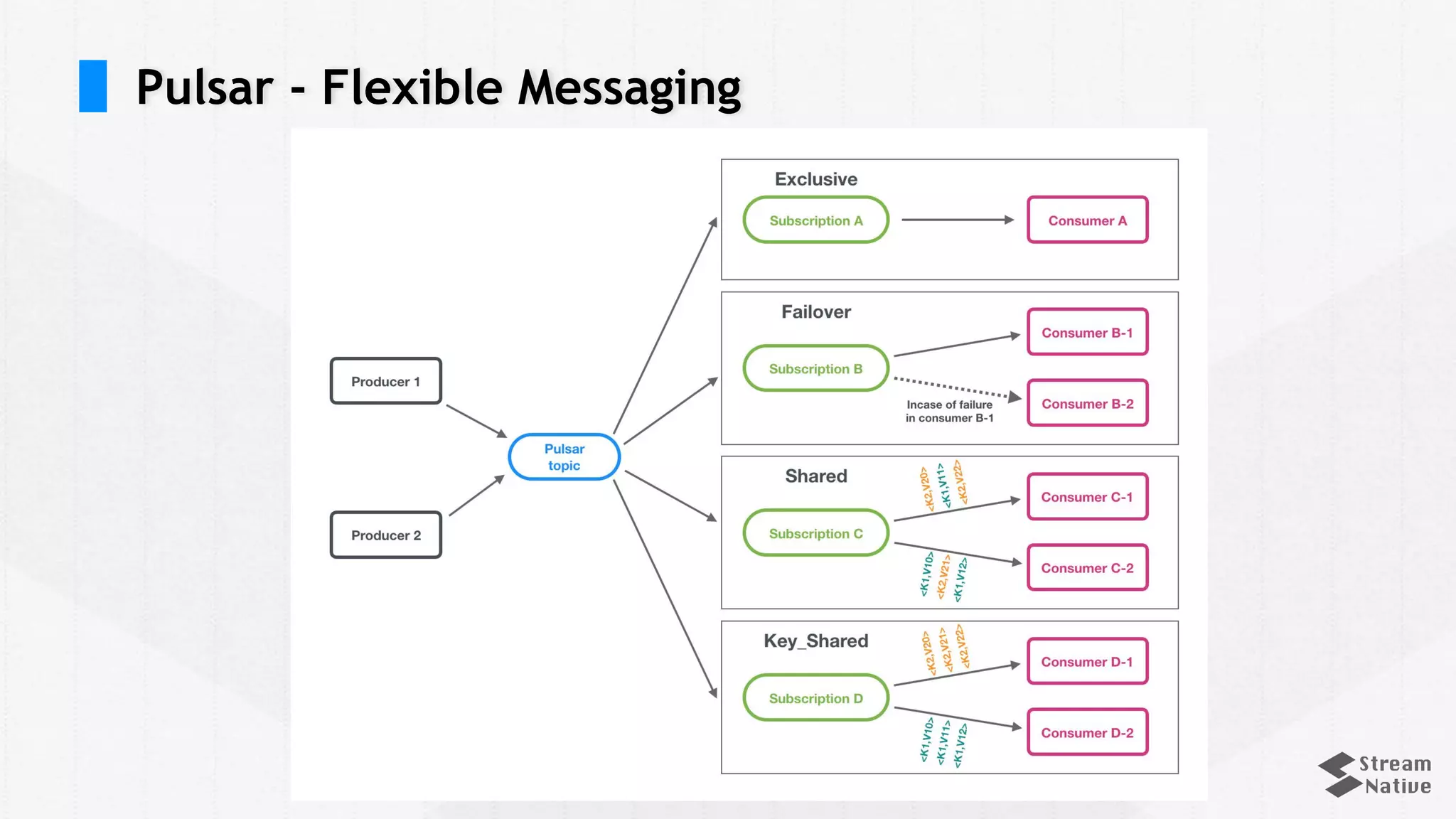

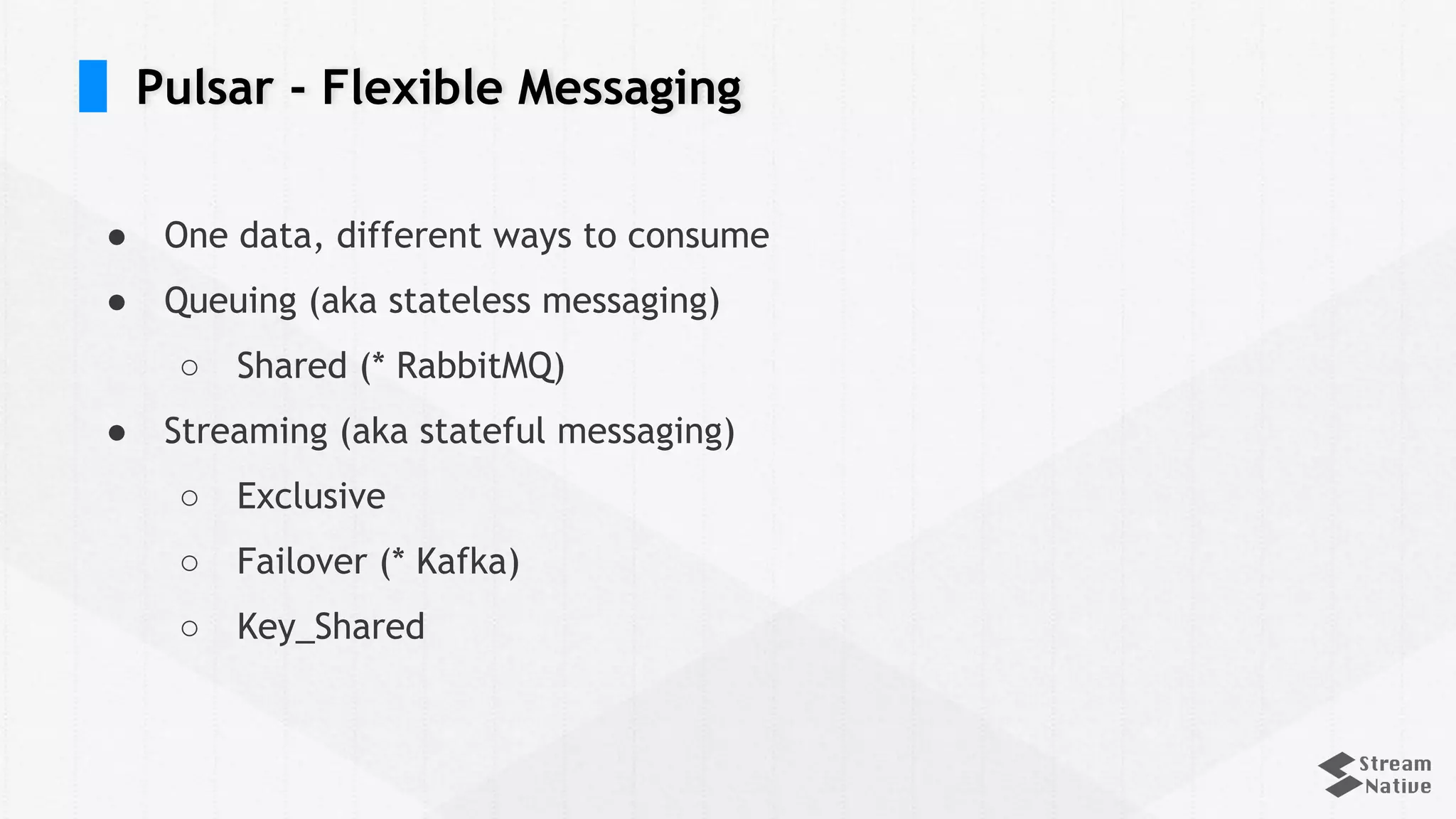

8. Pulsar - Flexible Messaging

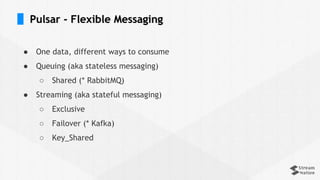

9. ● One data, different ways to consume
● Queuing (aka stateless messaging)
○ Shared (* RabbitMQ)
● Streaming (aka stateful messaging)
○ Exclusive
○ Failover (* Kafka)
○ Key_Shared
Pulsar - Flexible Messaging

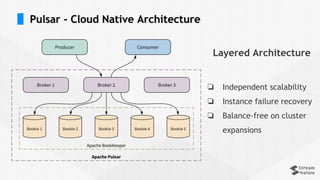

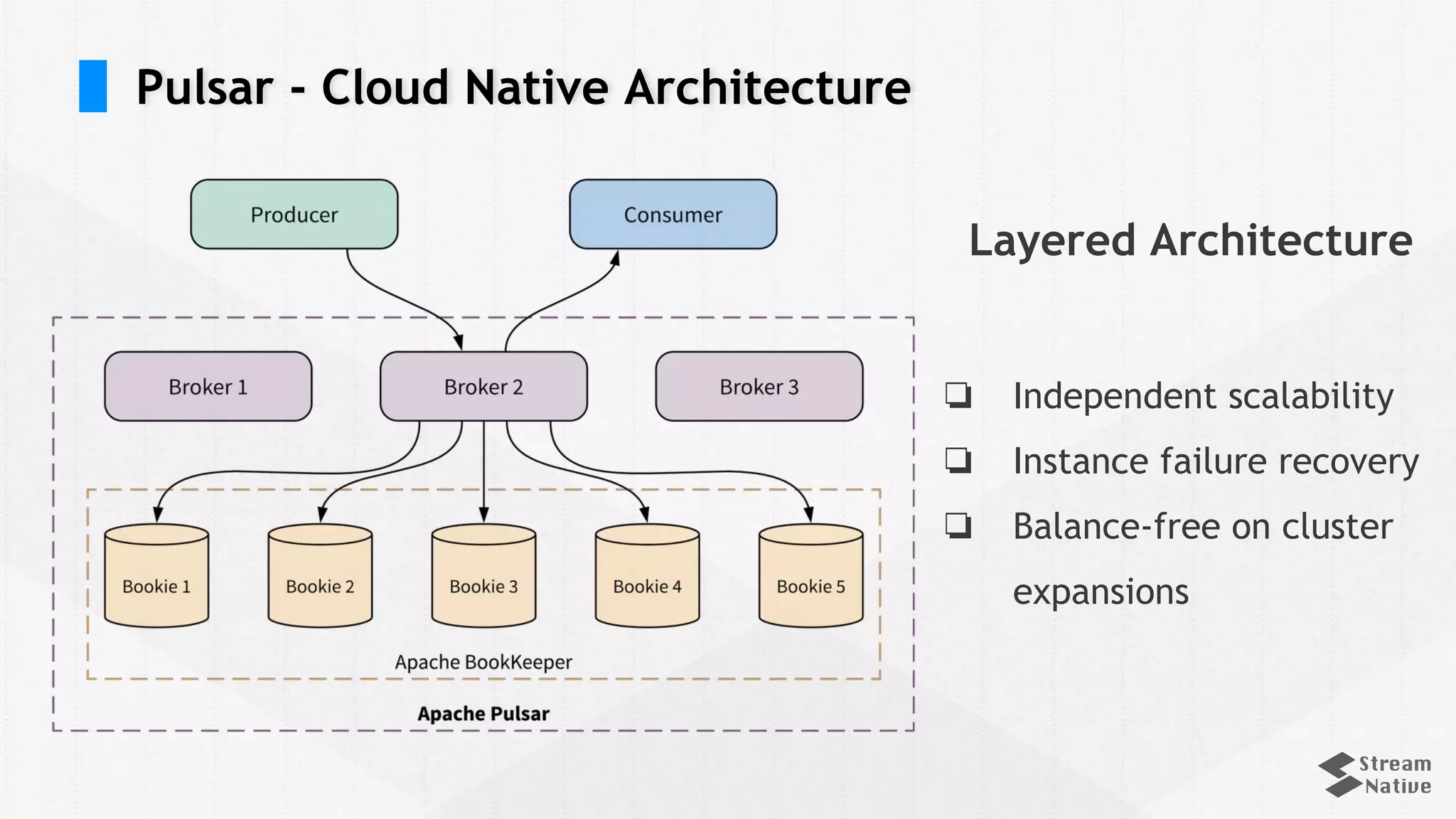

10. Pulsar - Cloud Native Architecture
Layered Architecture
❏ Independent scalability
❏ Instance failure recovery
❏ Balance-free on cluster
expansions

11. A Pulsar view on Data

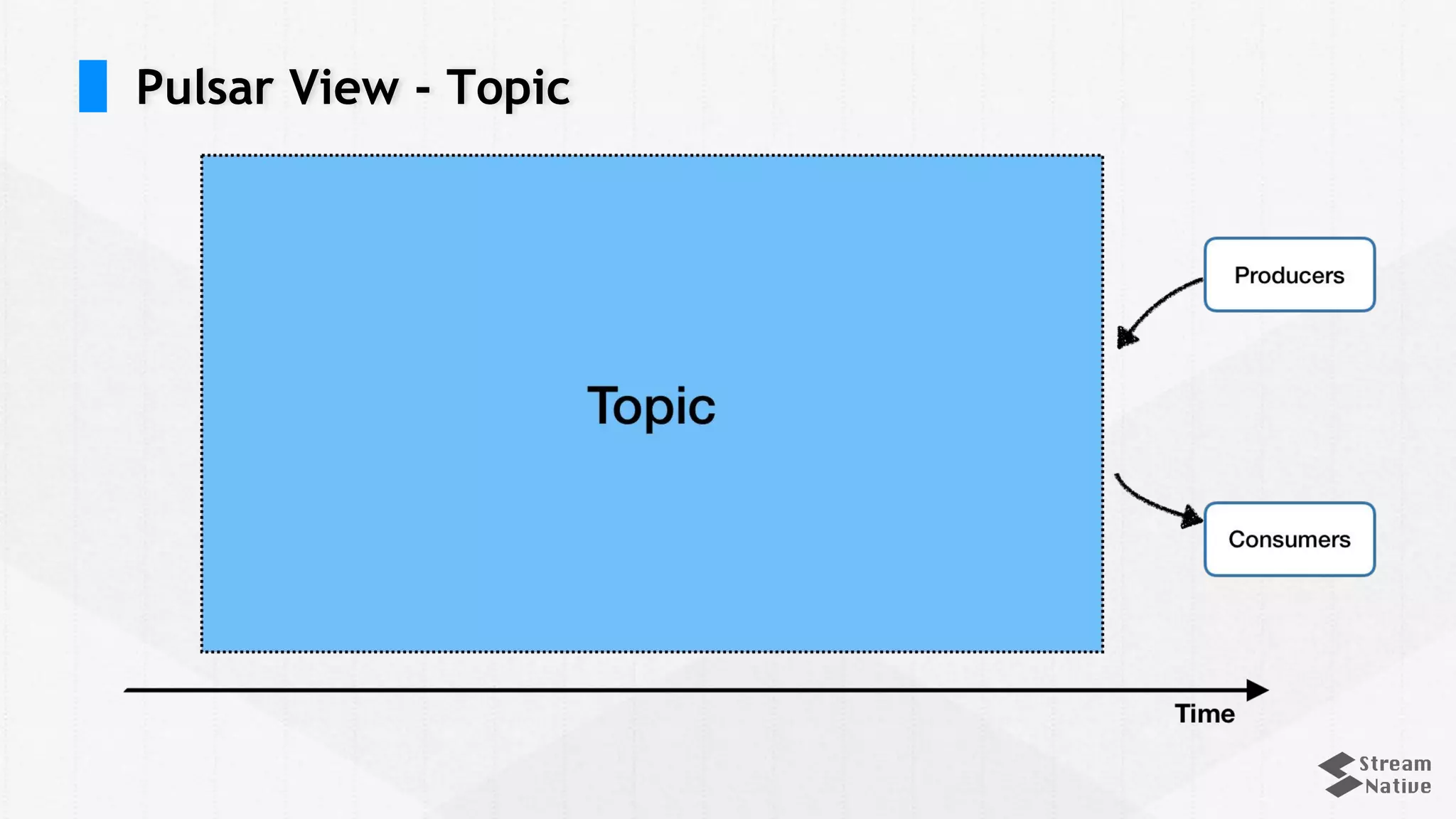

12. Pulsar View - Topic

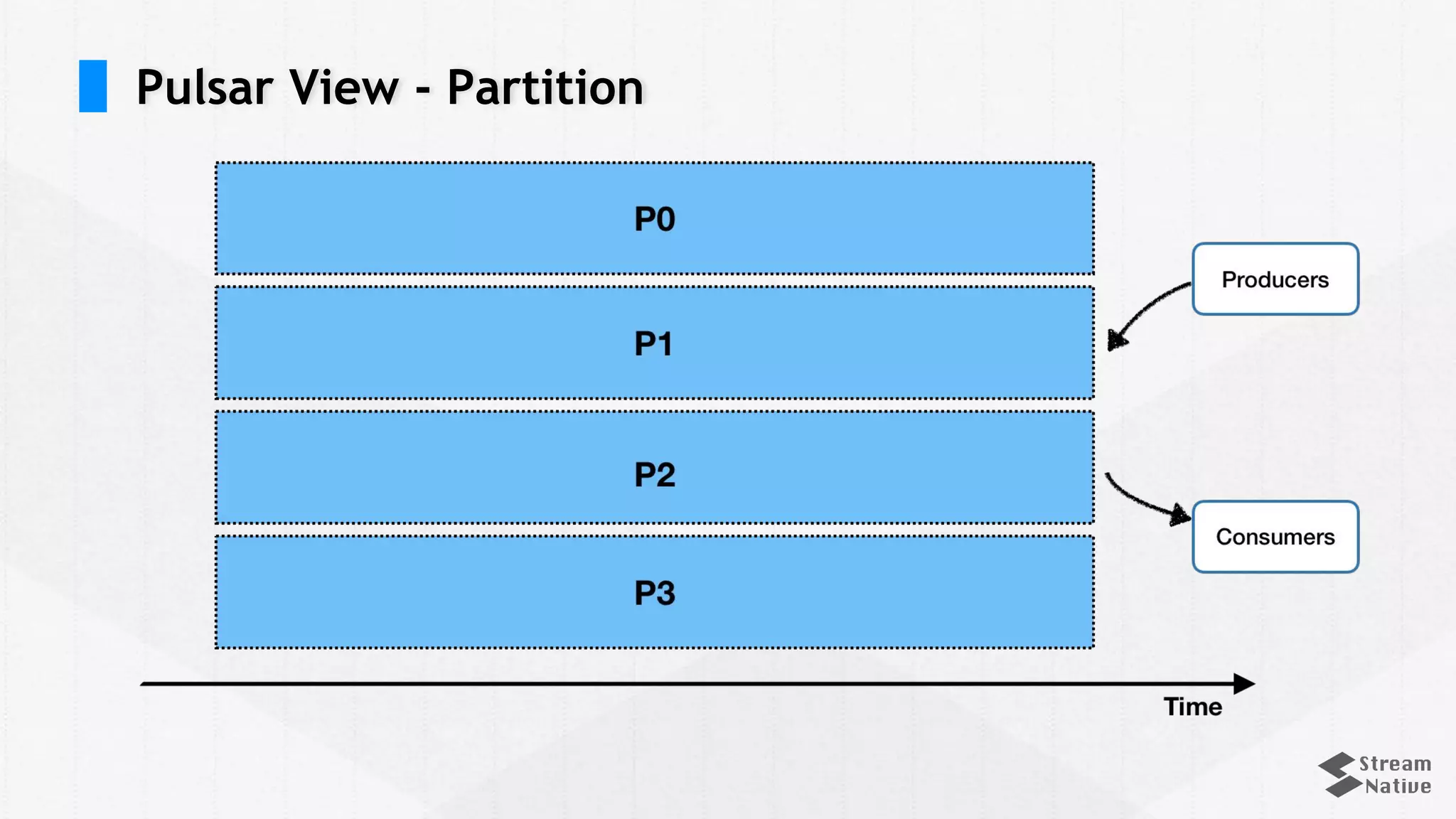

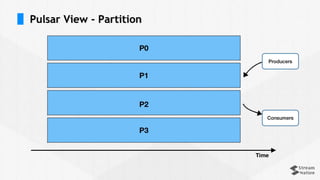

13. Pulsar View - Partition

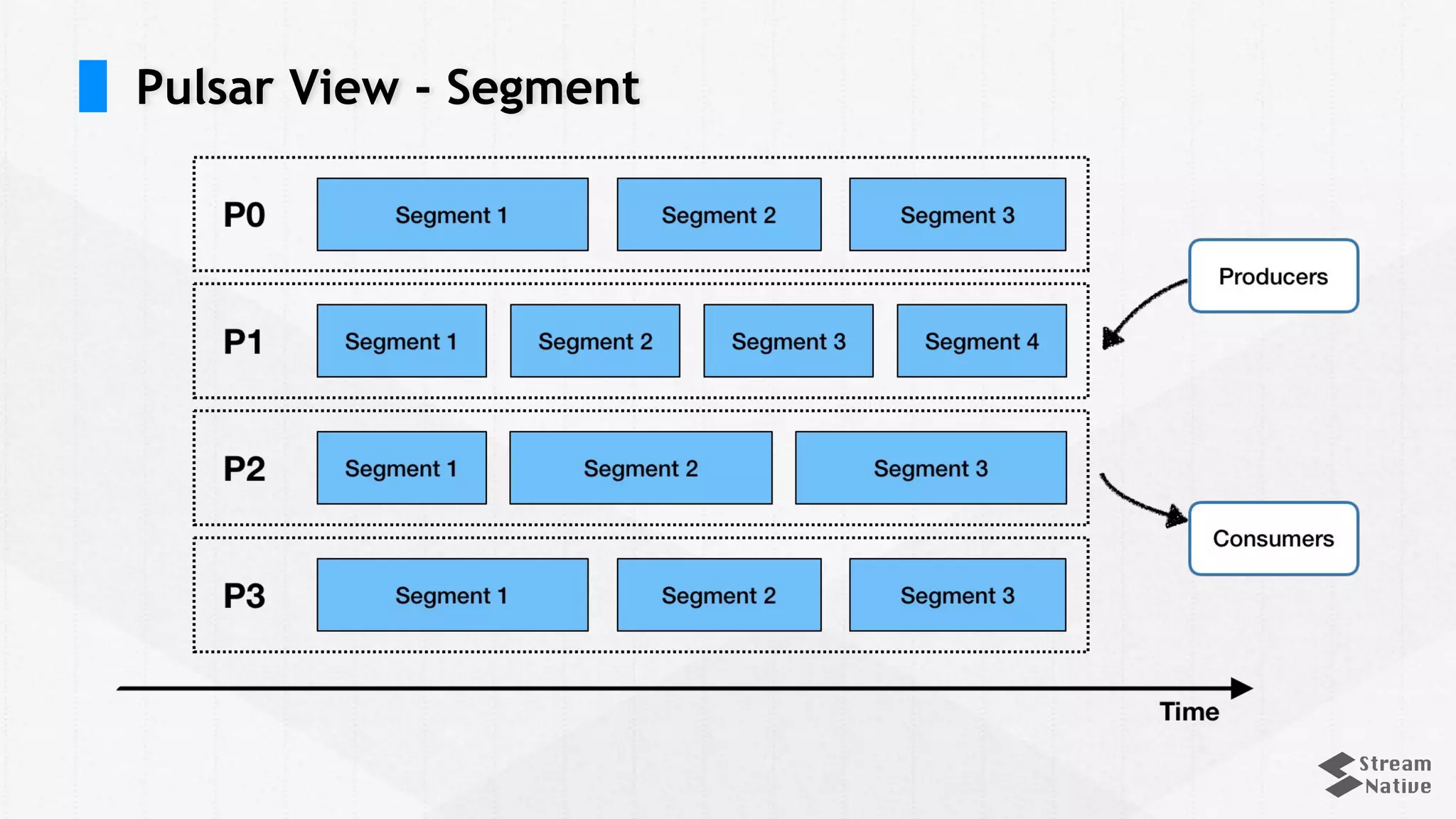

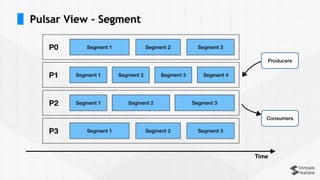

14. Pulsar View - Segment

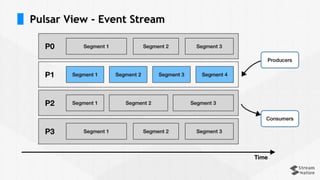

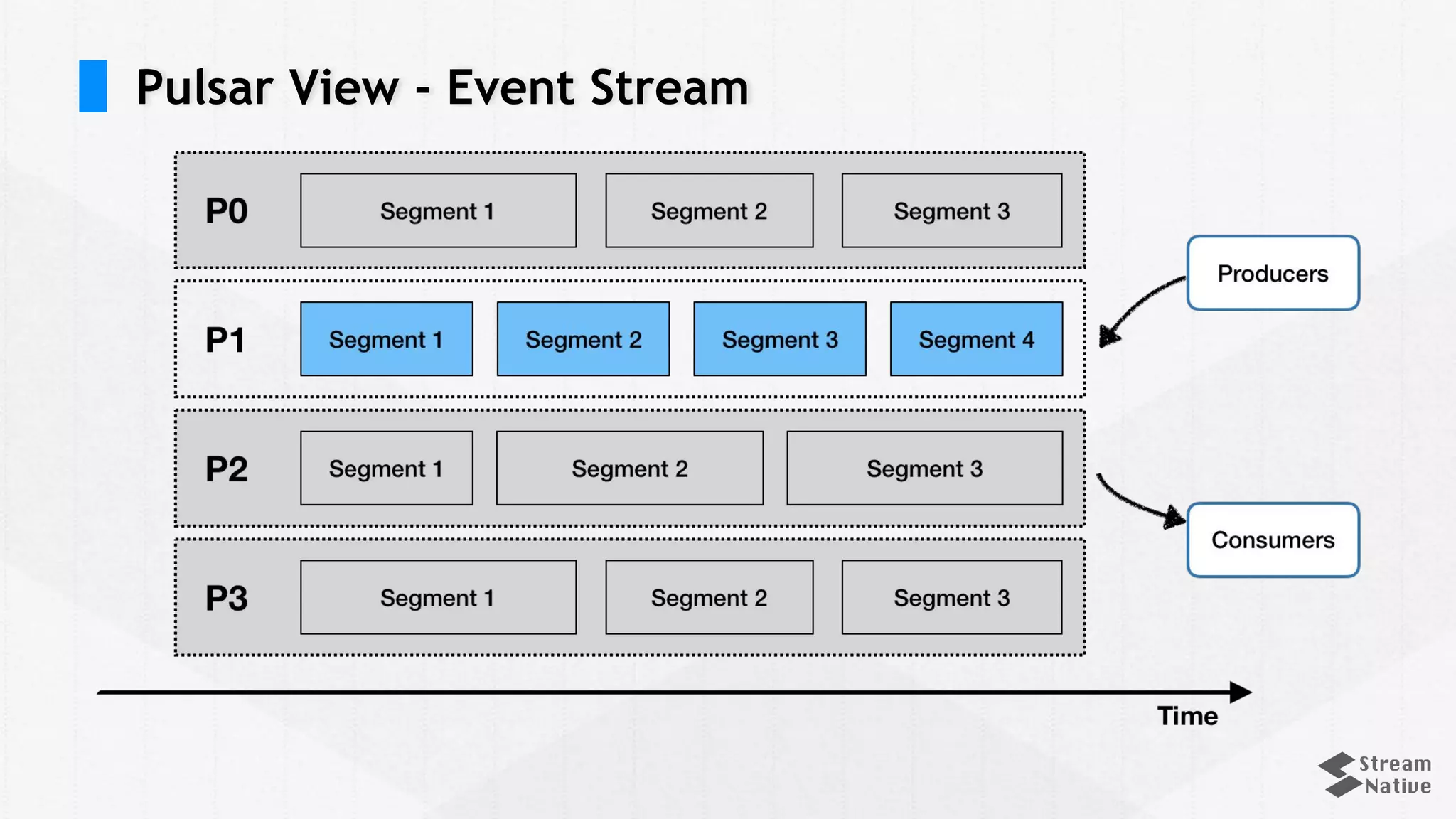

15. Pulsar View - Event Stream

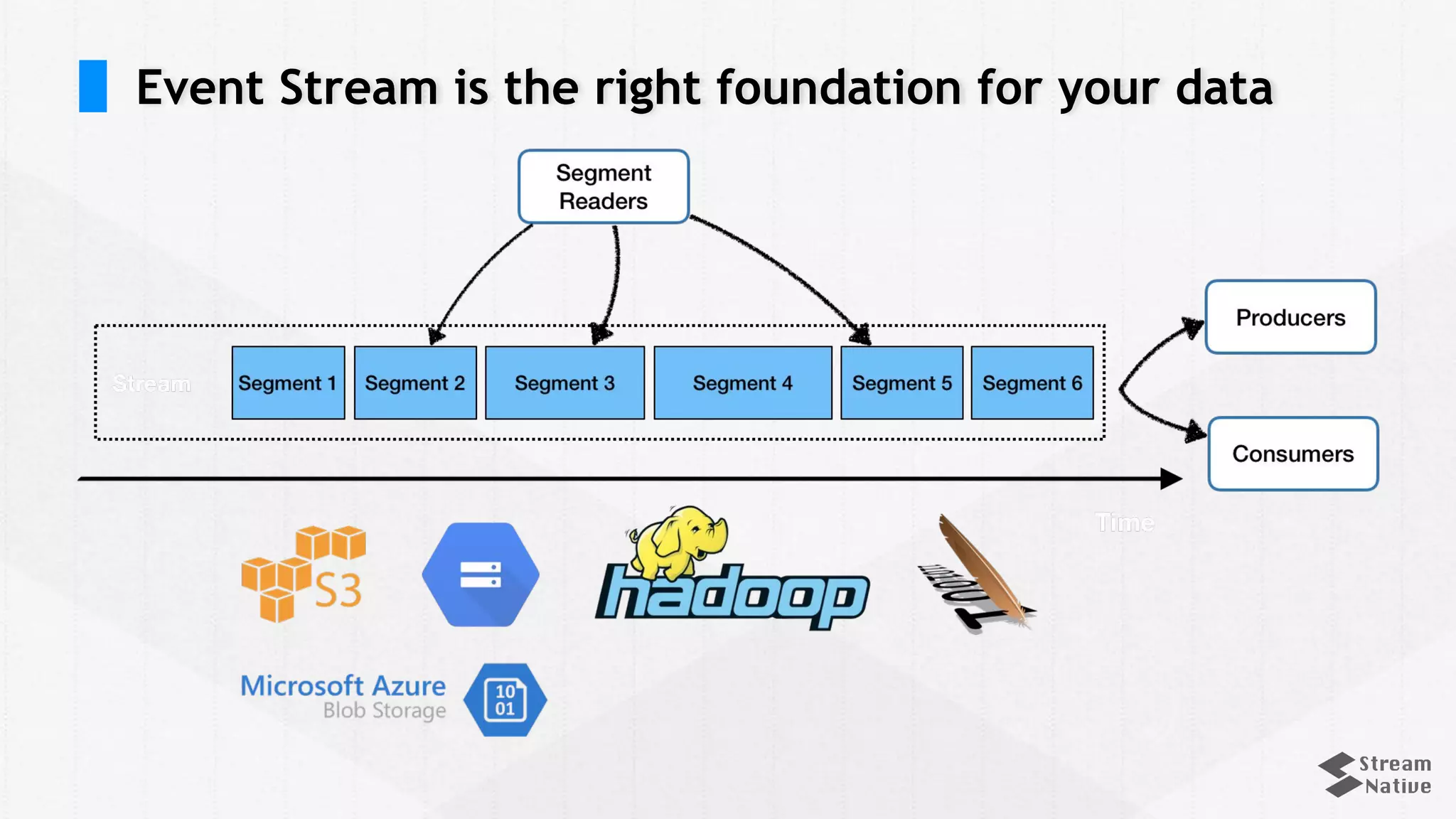

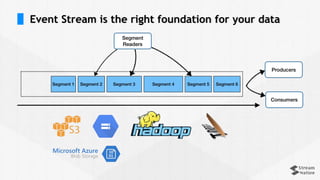

16. Event Stream is the right foundation for your data

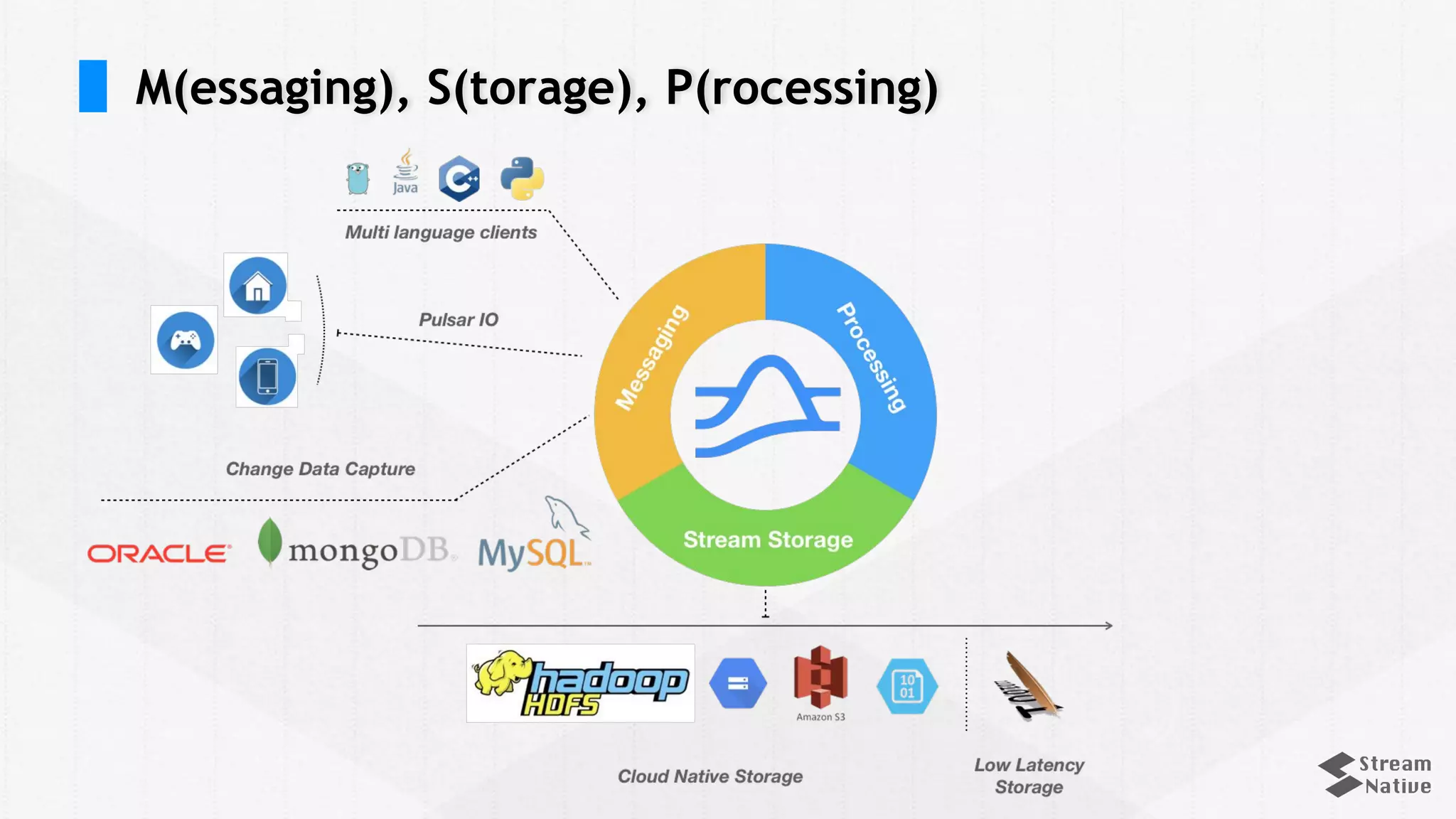

17. M(essaging), S(torage), P(rocessing)

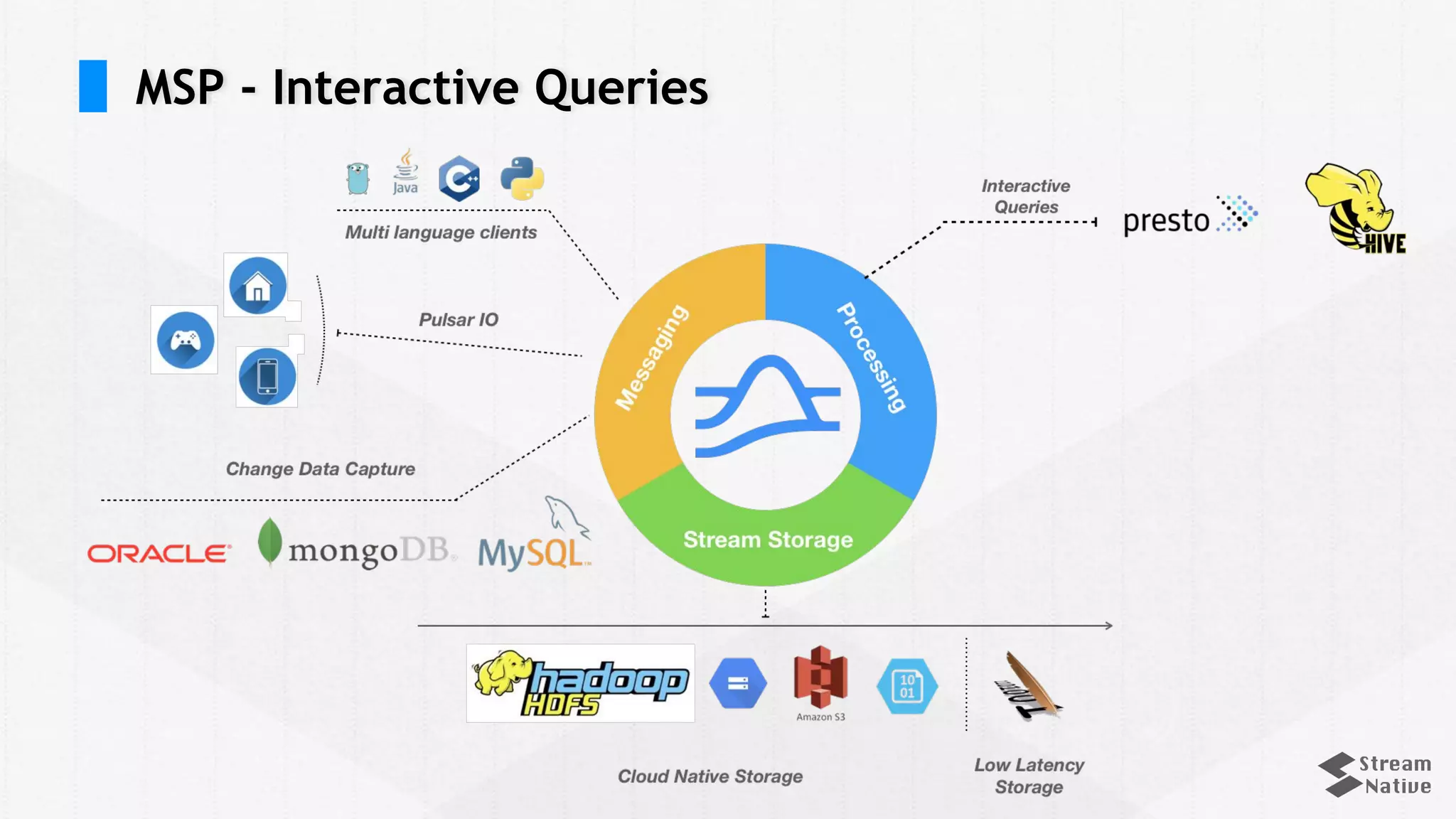

18. MSP - Interactive Queries

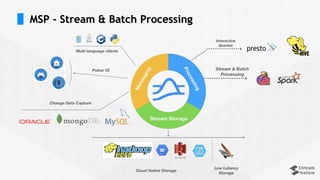

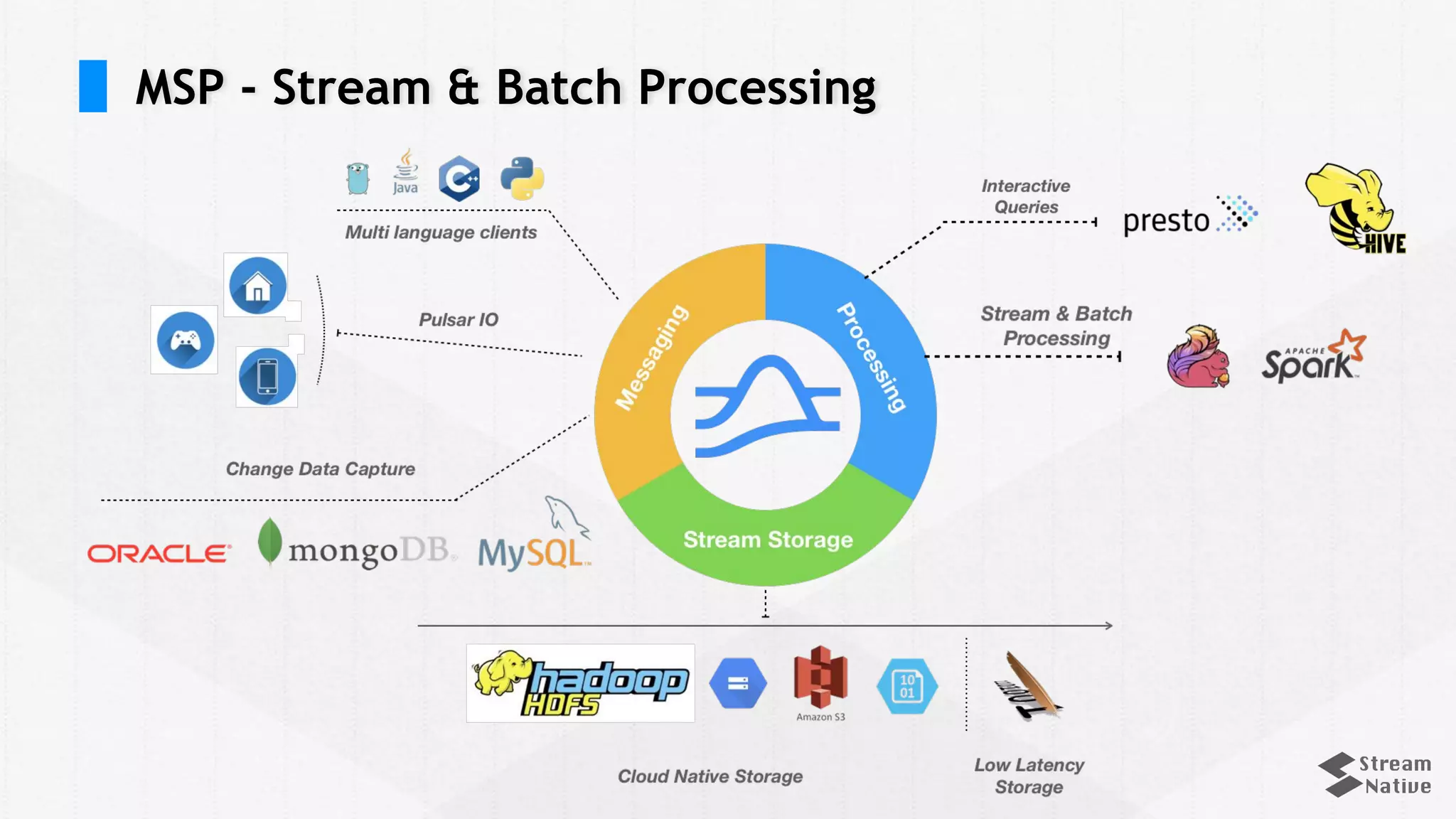

19. MSP - Stream & Batch Processing

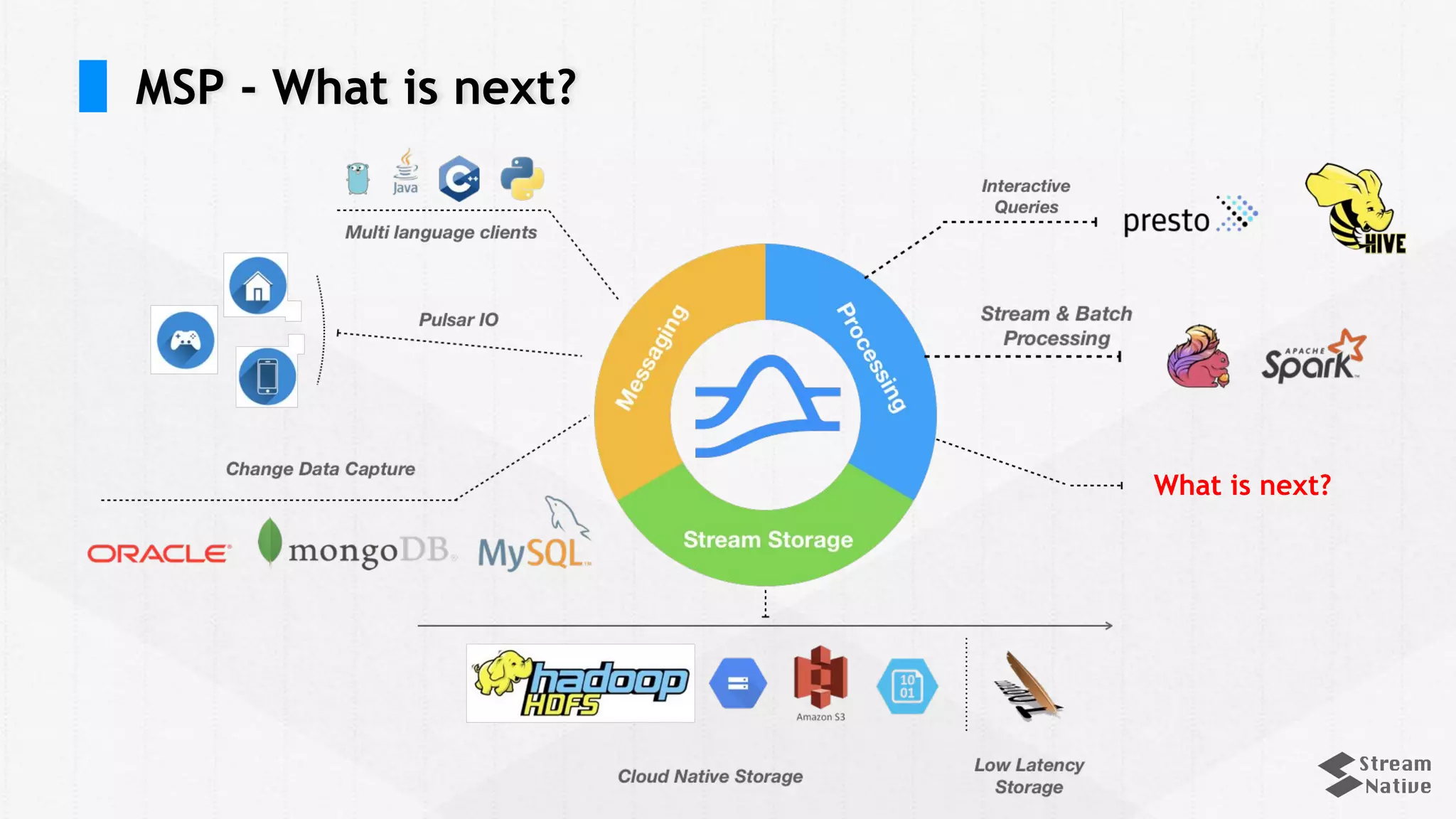

20. MSP - What is next?
What is next?

21. When Event Streaming
meets Serverless

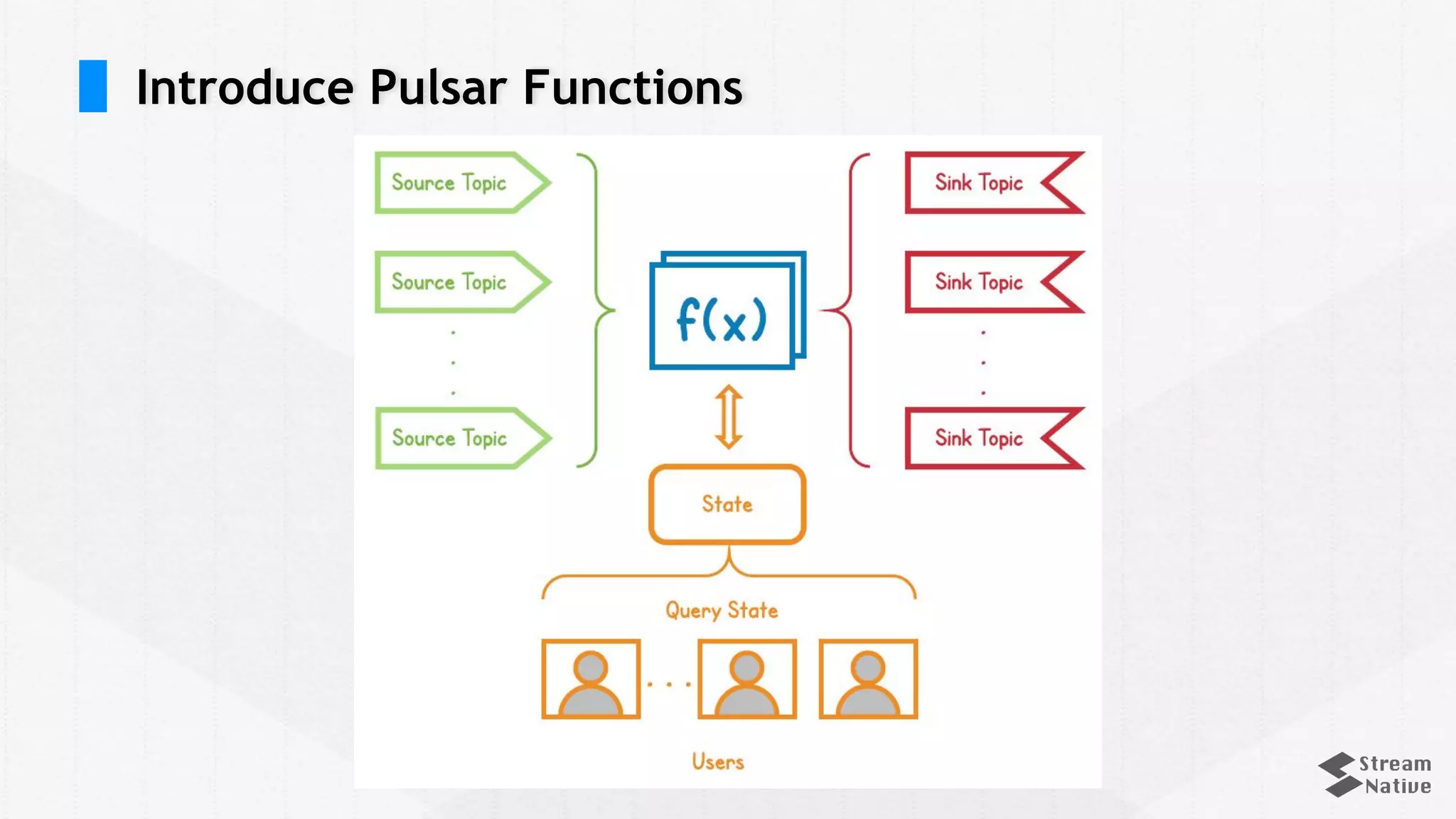

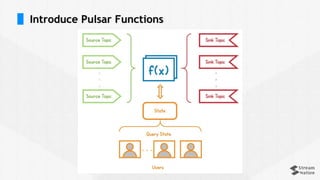

22. Introduce Pulsar Functions

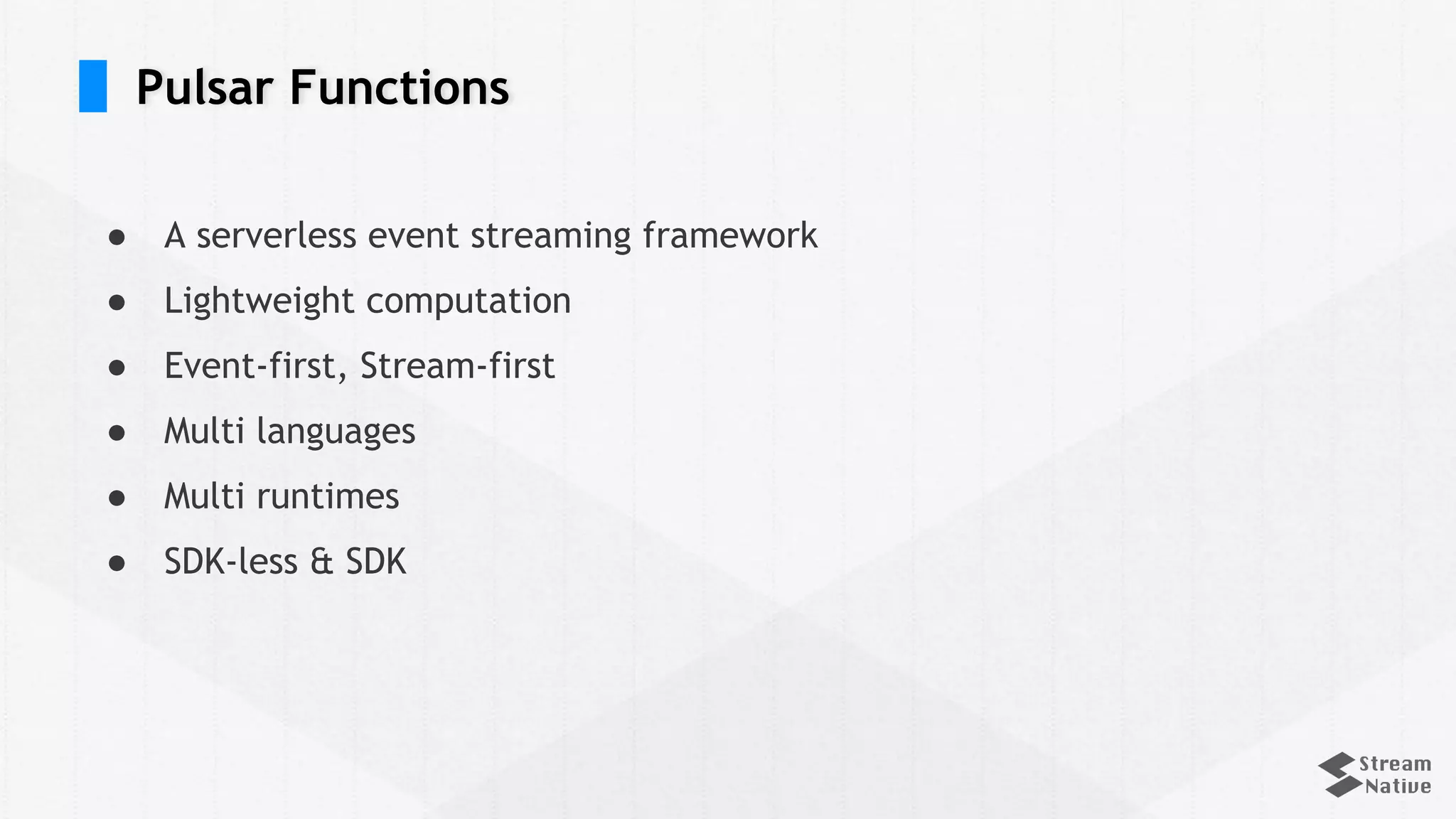

23. Pulsar Functions
● A serverless event streaming framework
● Lightweight computation
● Event-first, Stream-first
● Multi languages
● Multi runtimes
● SDK-less & SDK

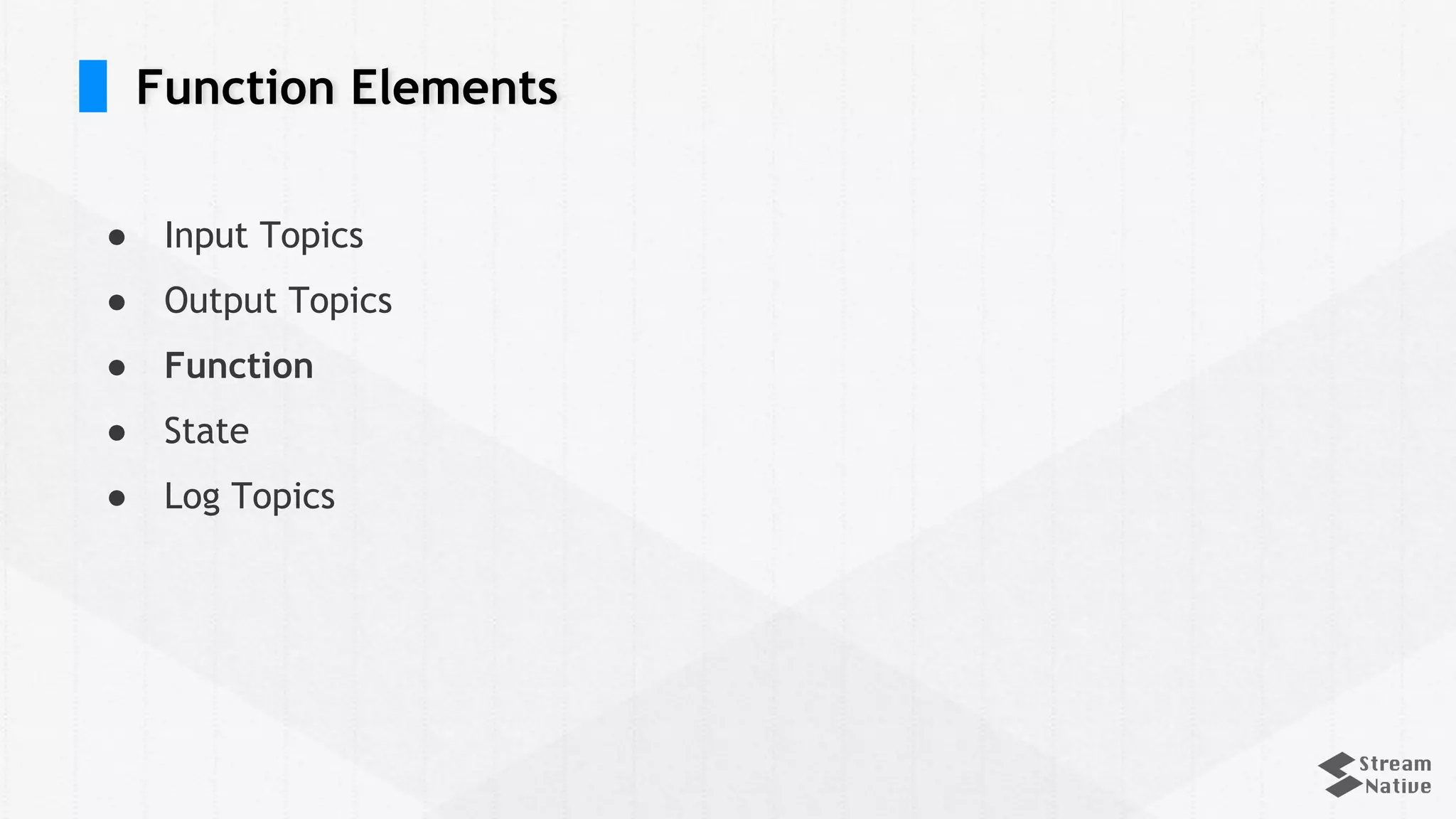

24. Function Elements
● Input Topics
● Output Topics
● Function
● State
● Log Topics

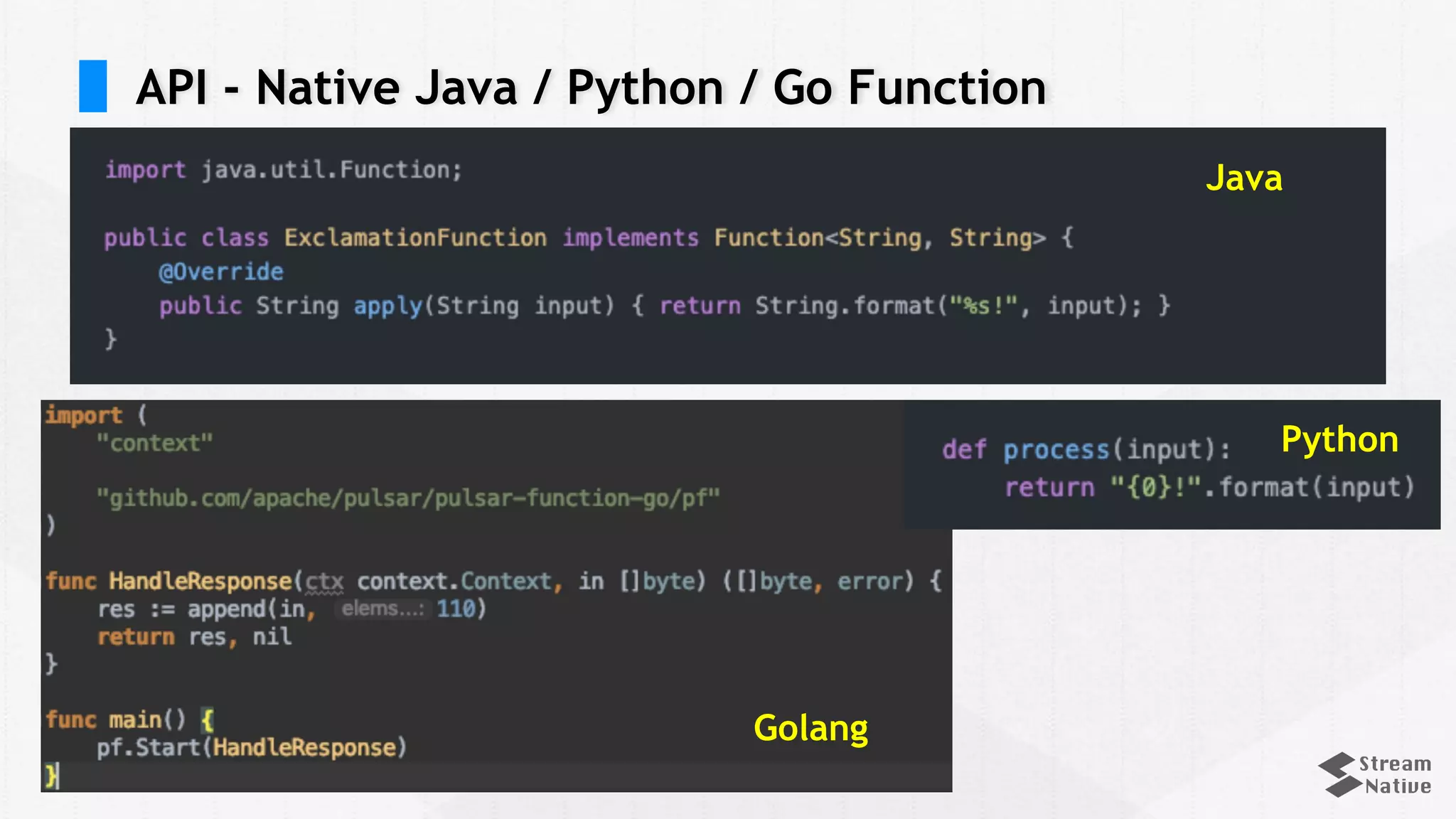

25. API - Native Java / Python / Go Function
Golang
Python
Java

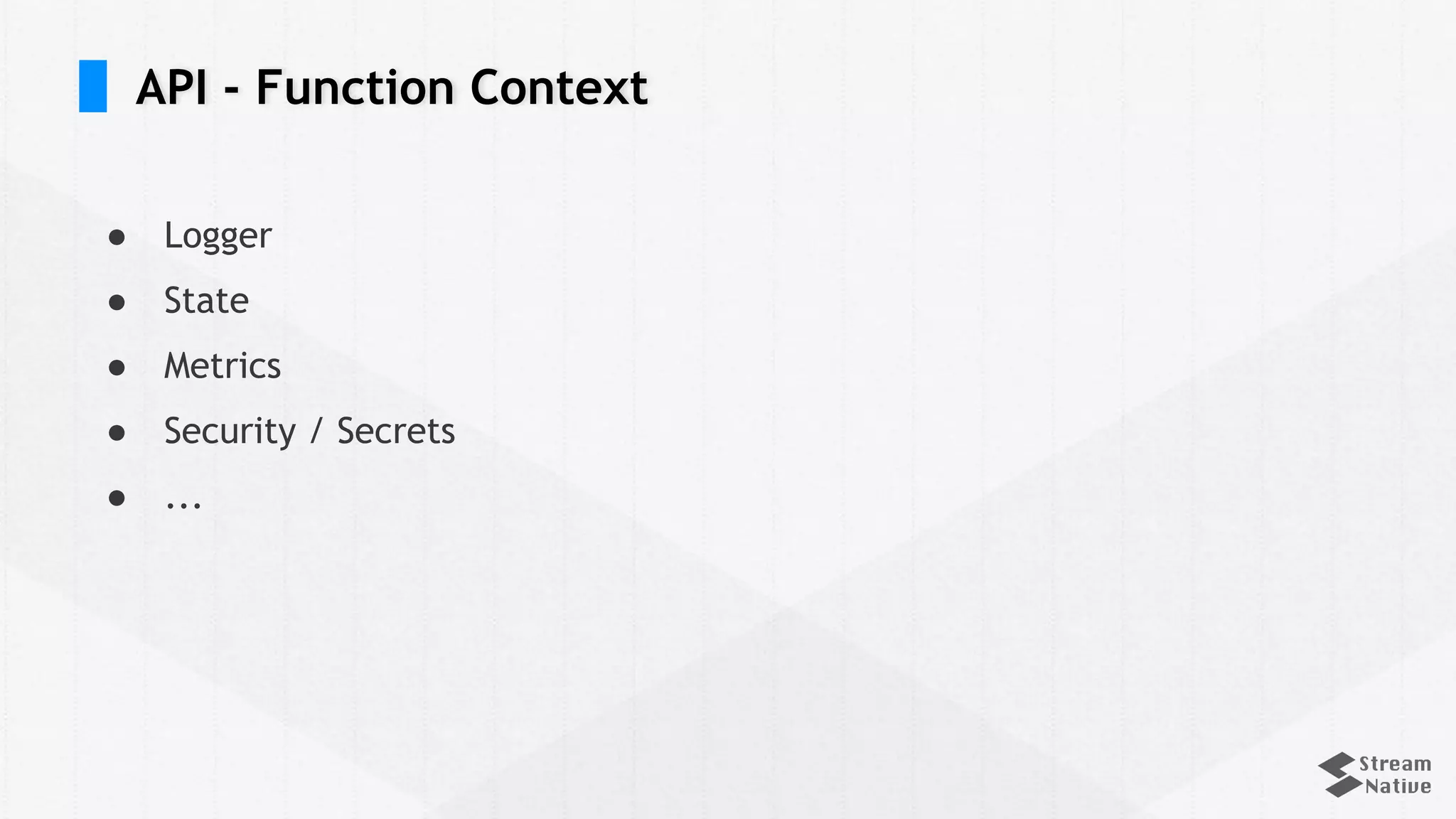

26. API - Function Context
● Logger
● State
● Metrics
● Security / Secrets
● ...

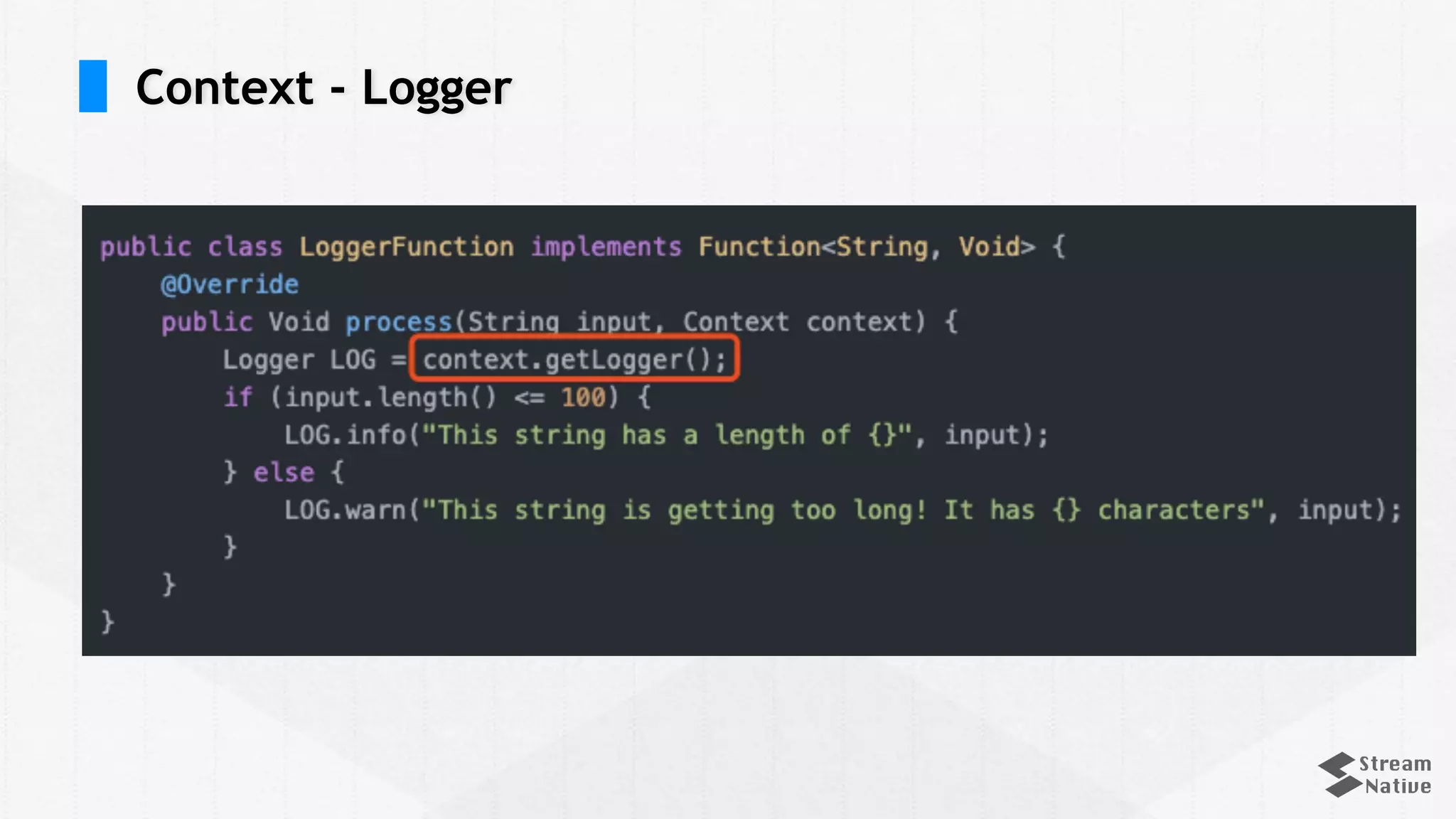

27. Context - Logger

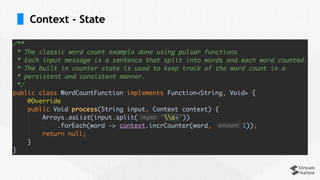

28. Context - State

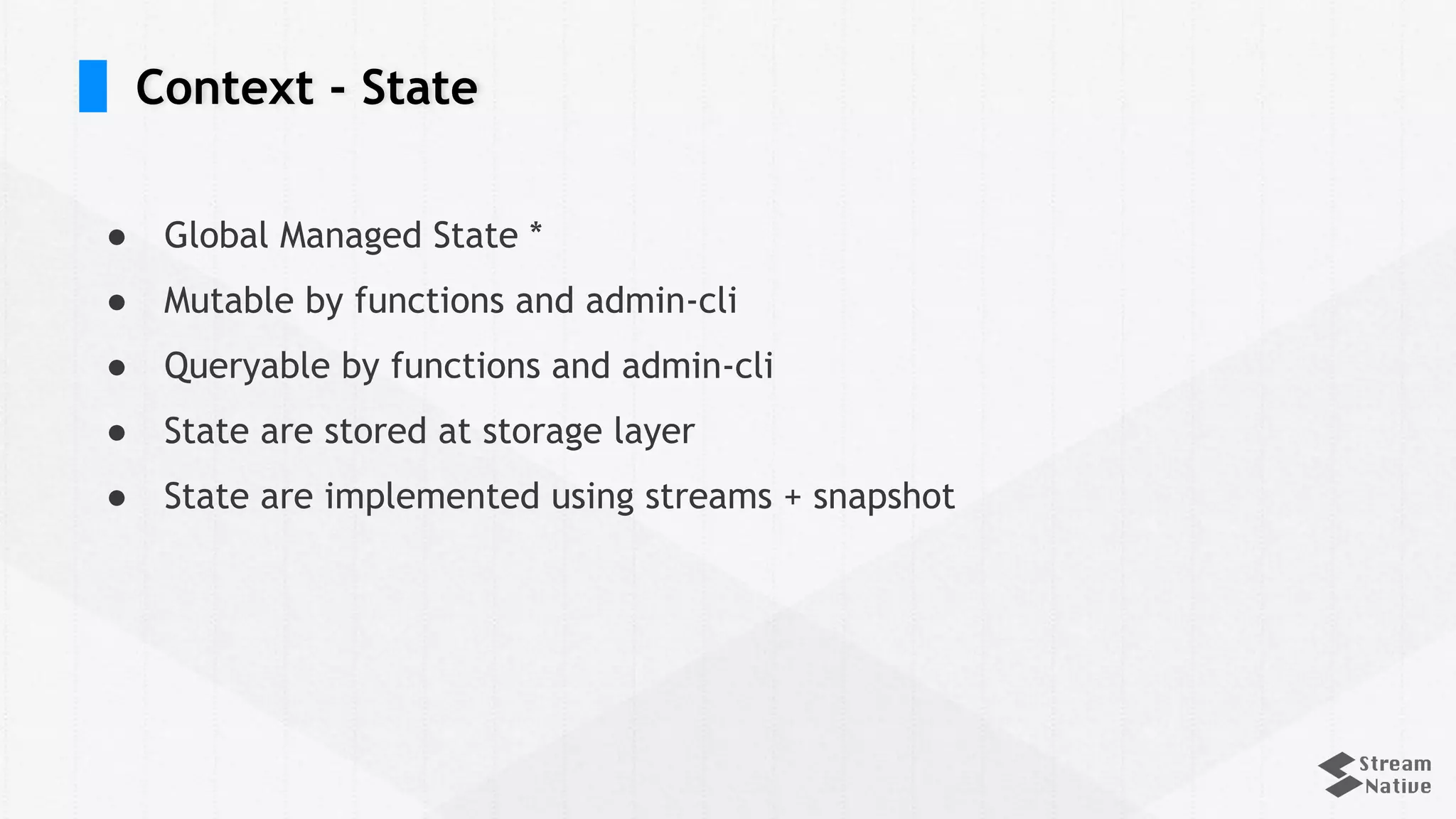

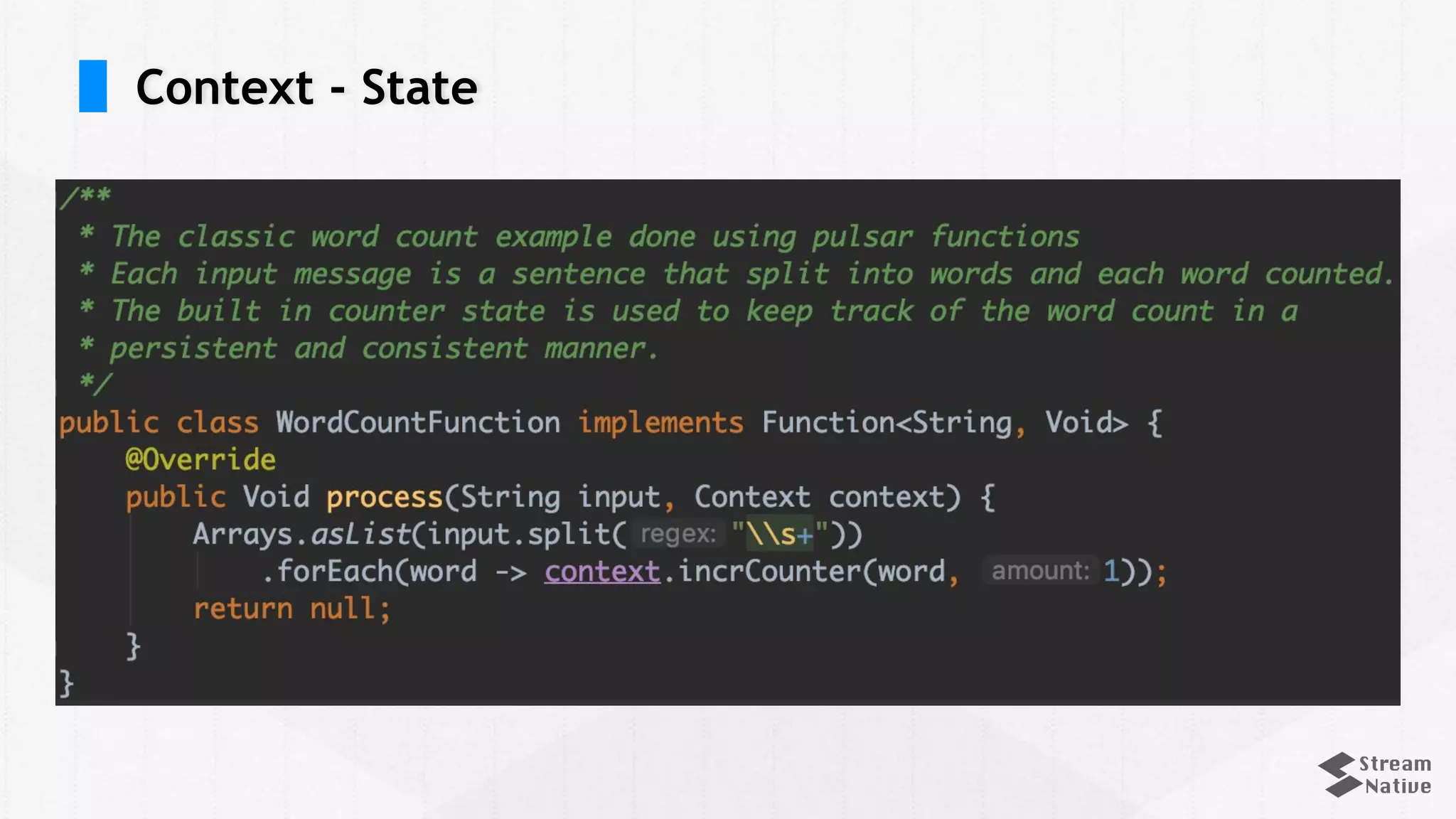

29. Context - State
● Global Managed State *
● Mutable by functions and admin-cli
● Queryable by functions and admin-cli
● State are stored at storage layer
● State are implemented using streams + snapshot

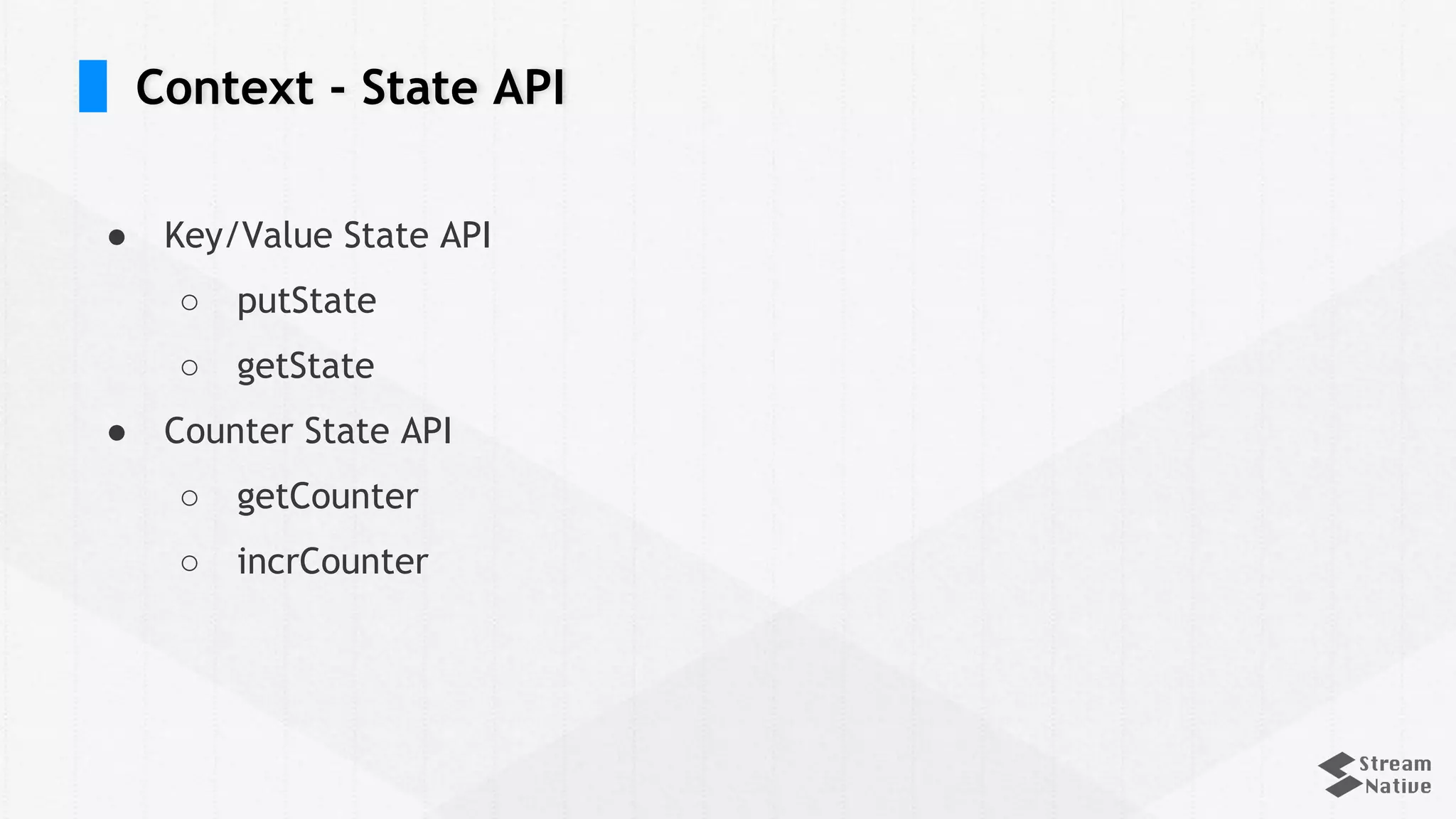

30. Context - State API
● Key/Value State API
○ putState
○ getState
● Counter State API
○ getCounter
○ incrCounter

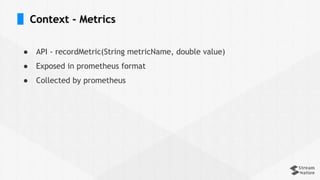

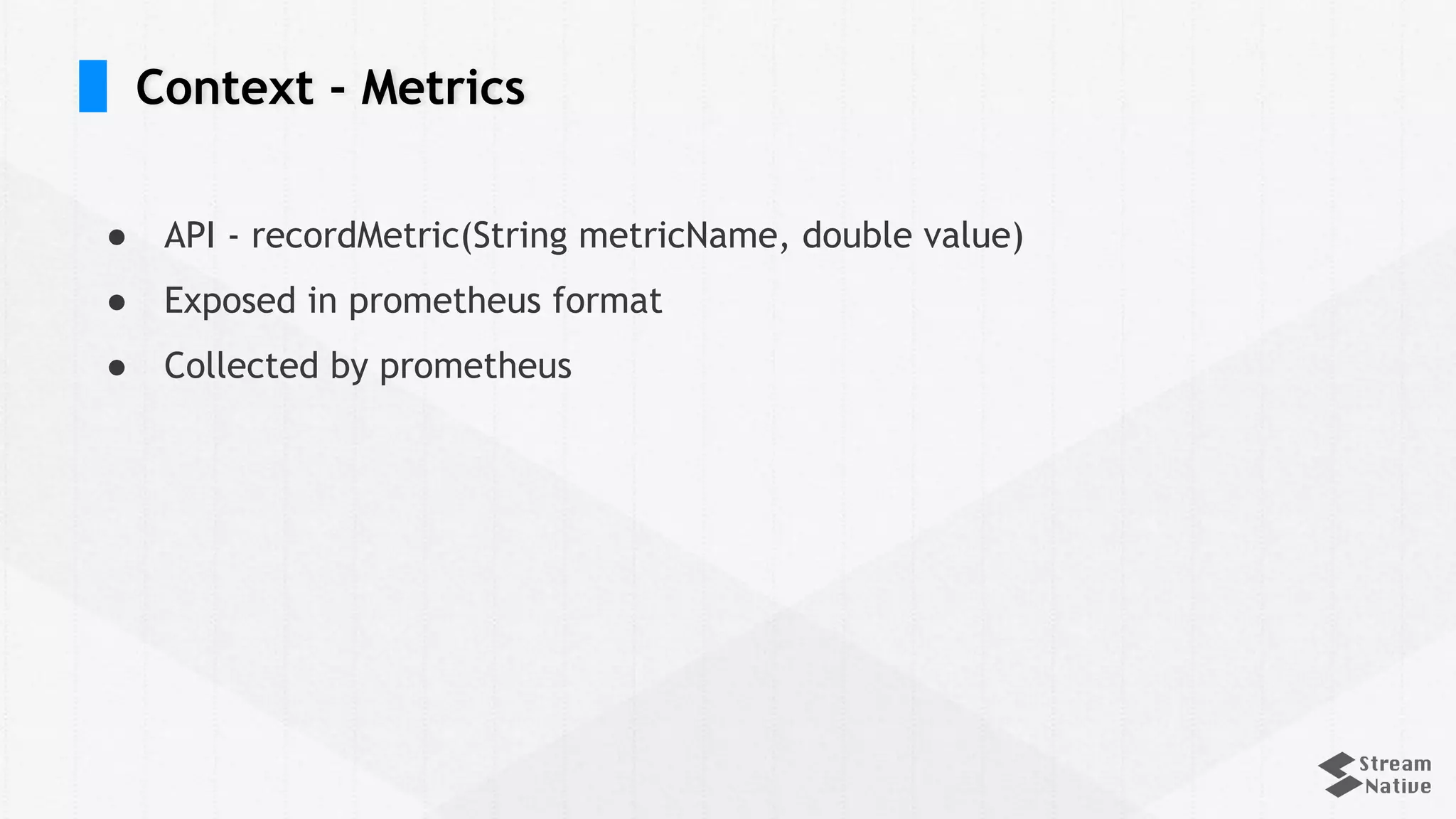

31. Context - Metrics
● API - recordMetric(String metricName, double value)
● Exposed in prometheus format
● Collected by prometheus

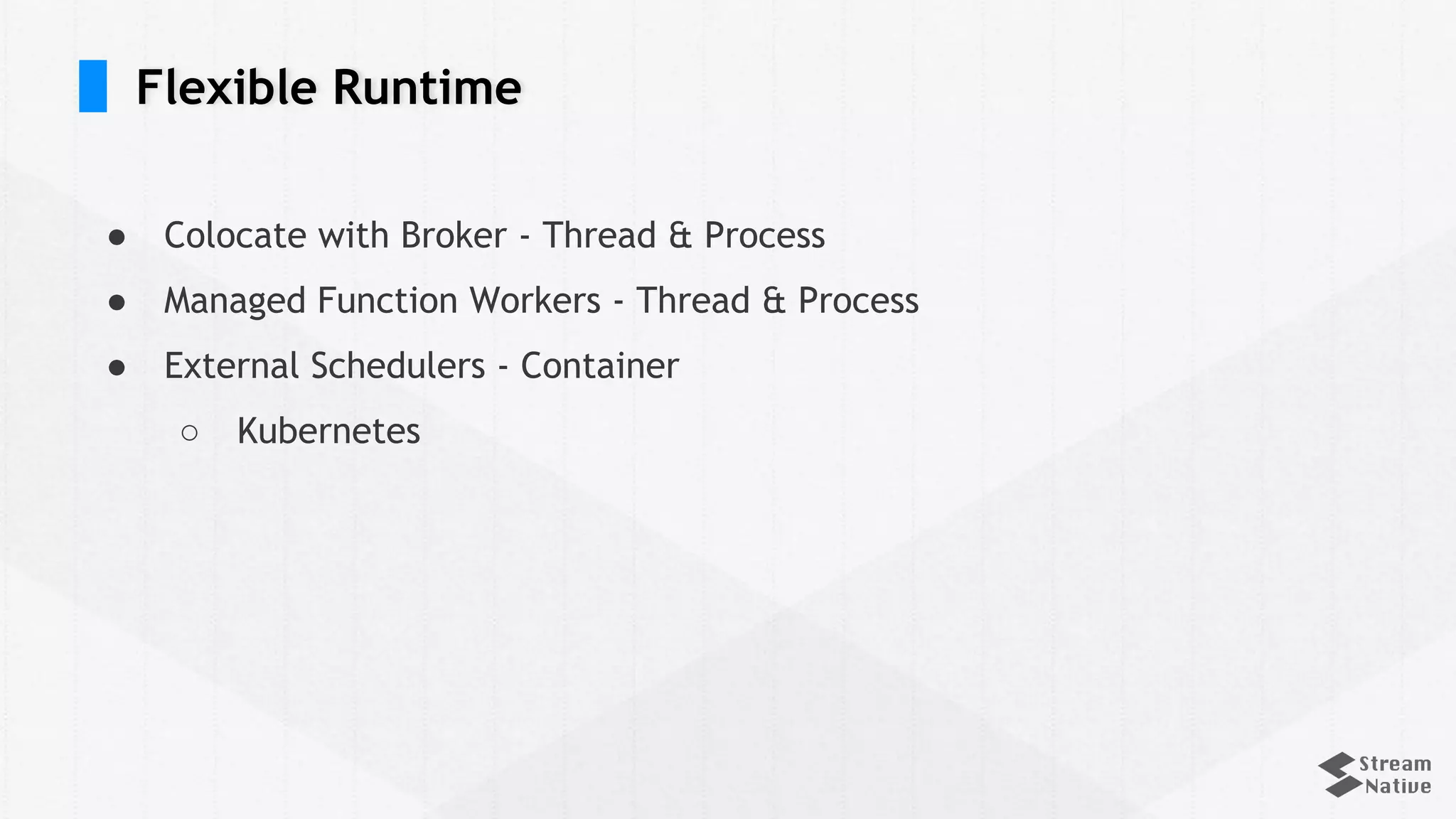

32. Flexible Runtime
● Colocate with Broker - Thread & Process
● Managed Function Workers - Thread & Process
● External Schedulers - Container
○ Kubernetes

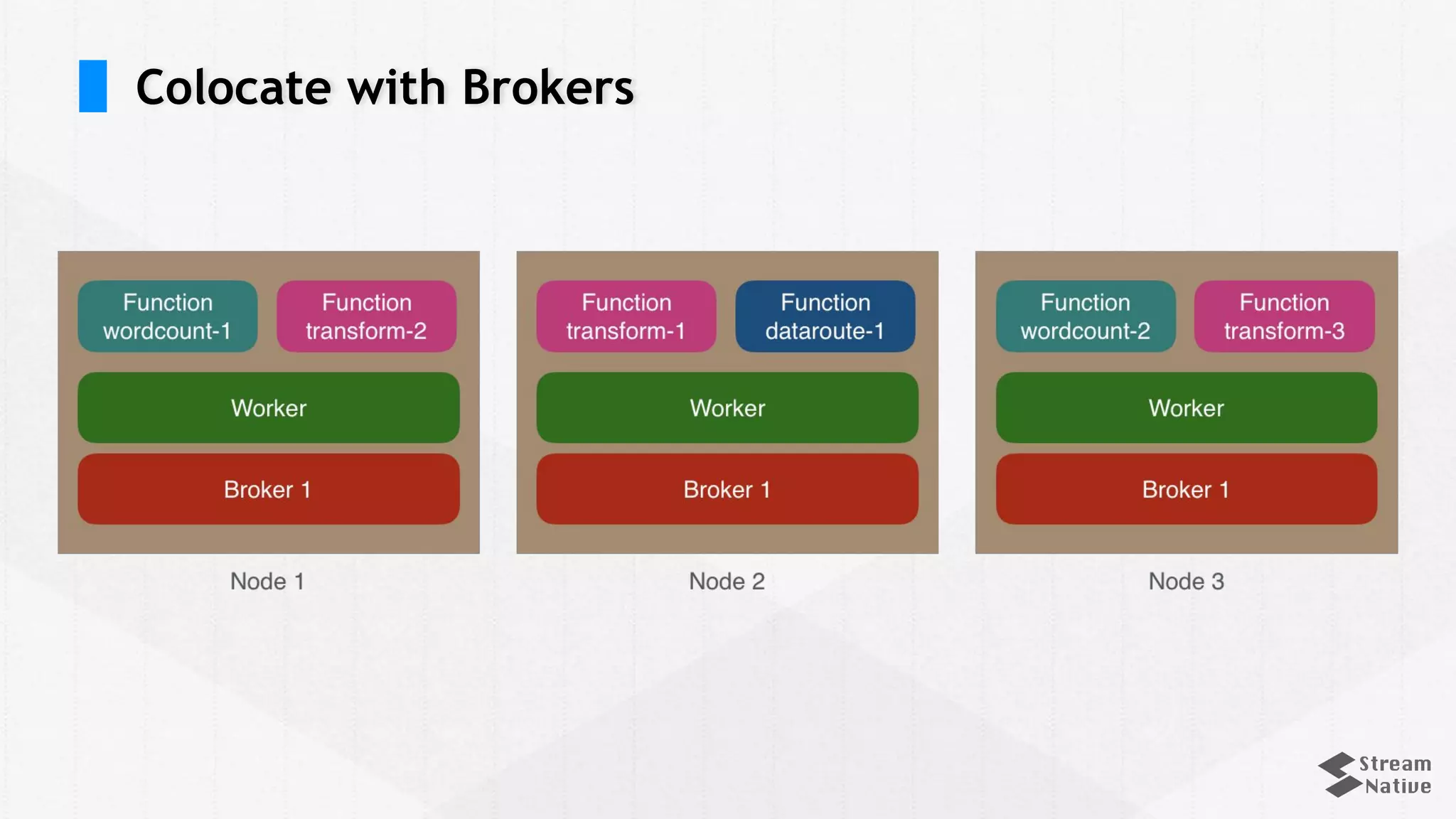

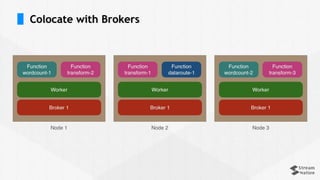

33. Colocate with Brokers

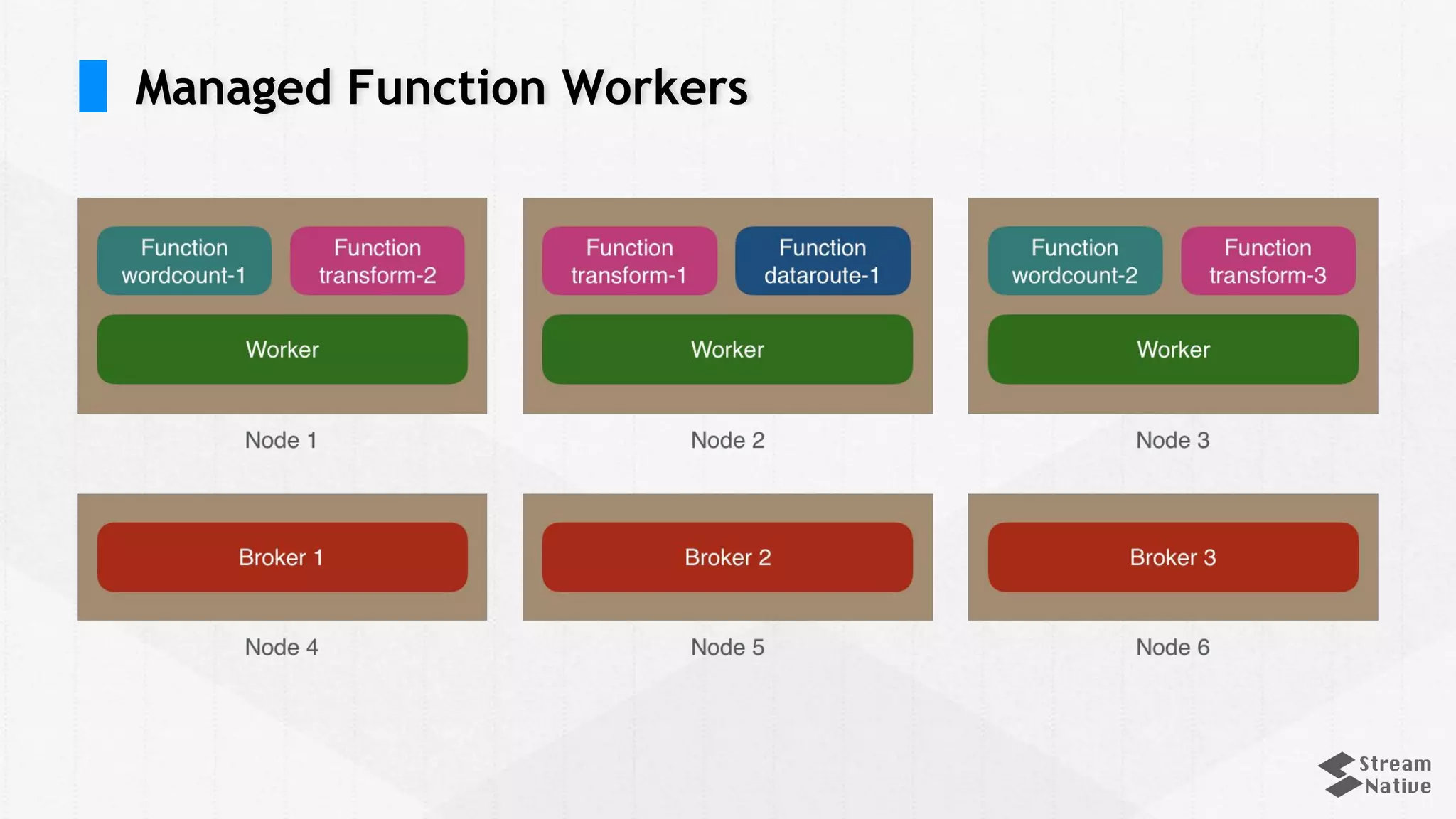

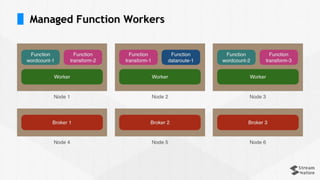

34. Managed Function Workers

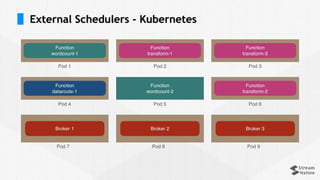

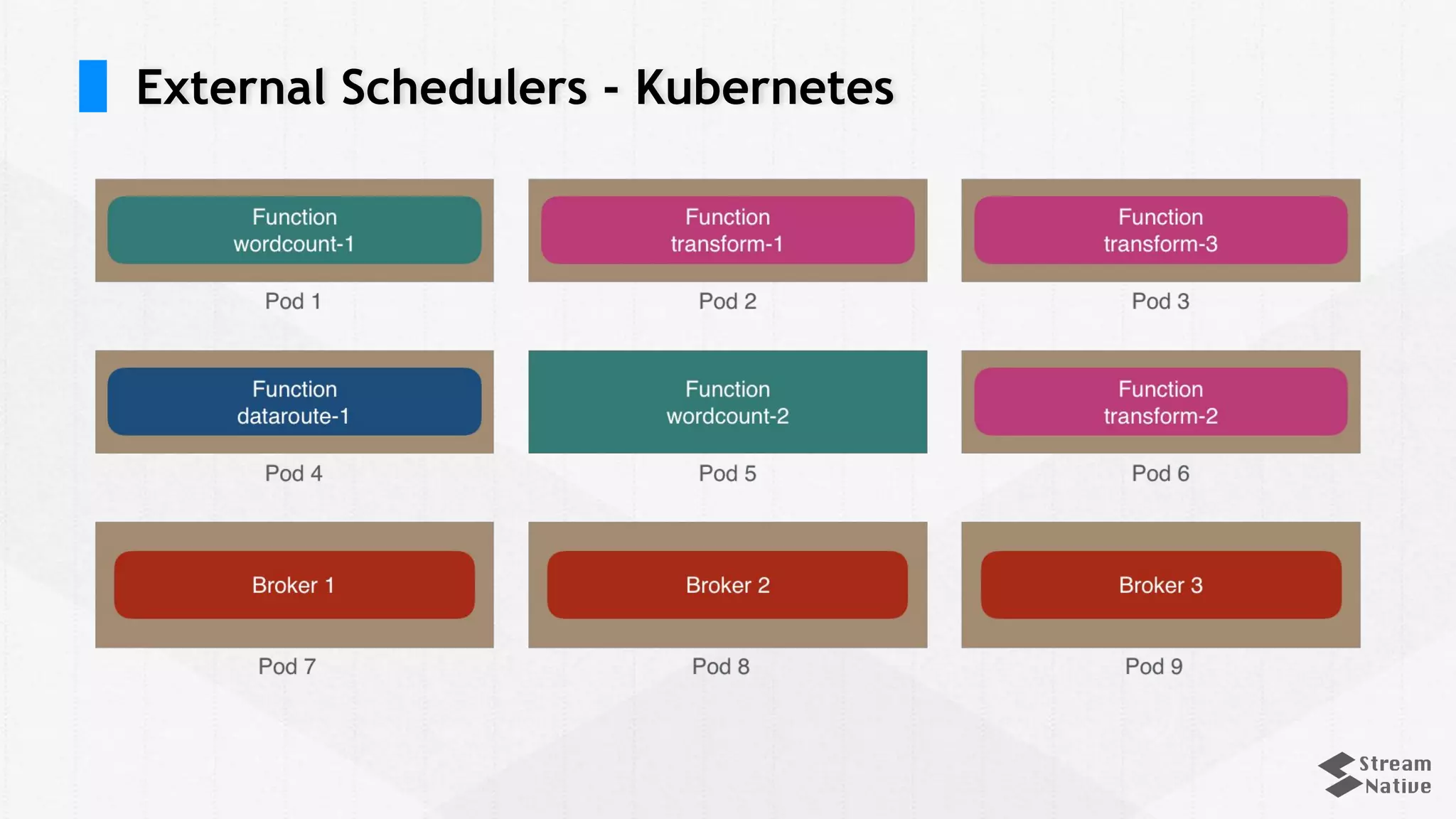

35. External Schedulers - Kubernetes

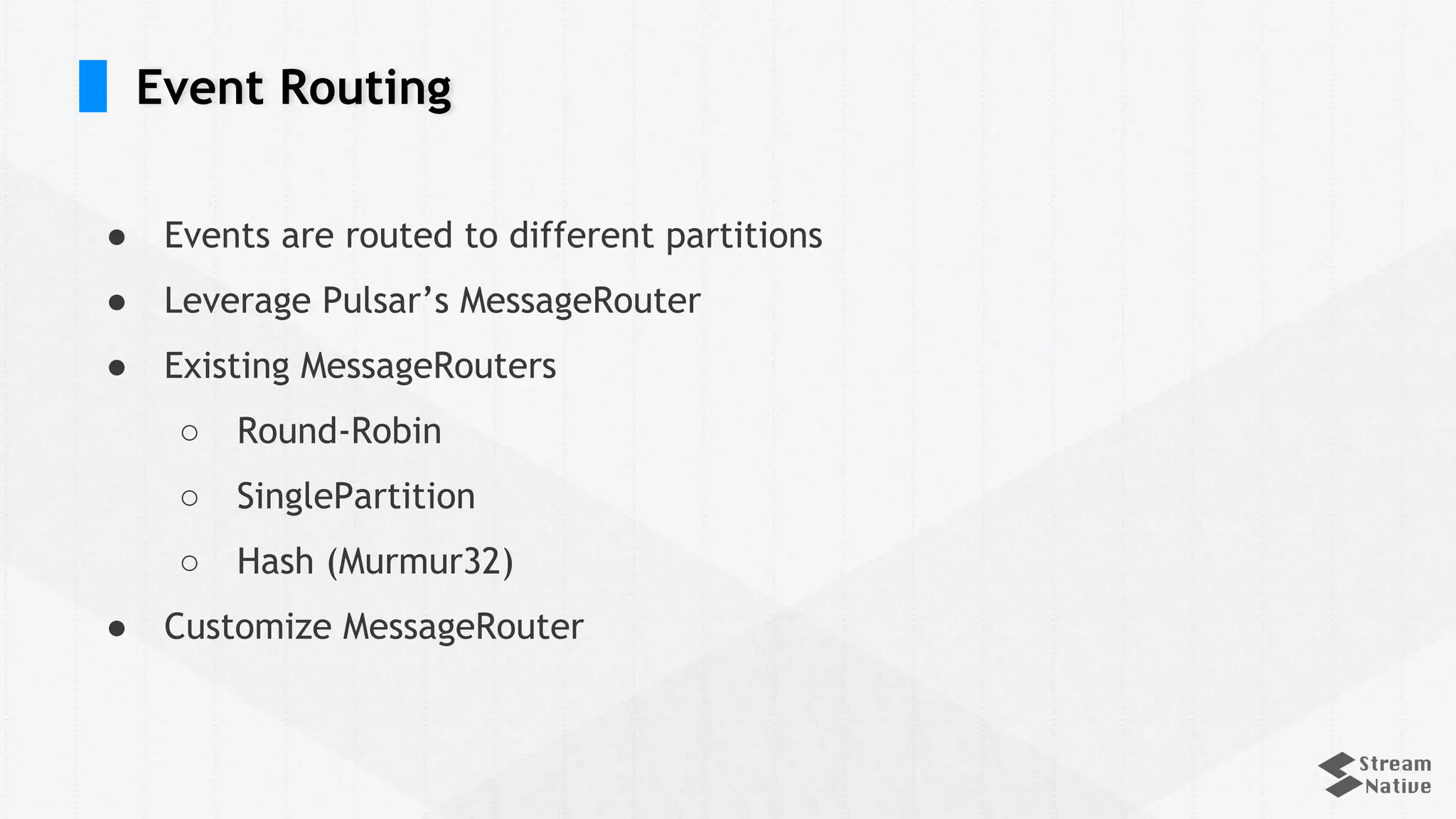

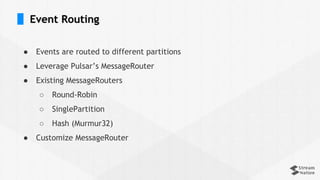

36. Event Routing
● Events are routed to different partitions
● Leverage Pulsar’s MessageRouter
● Existing MessageRouters
○ Round-Robin
○ SinglePartition
○ Hash (Murmur32)
● Customize MessageRouter

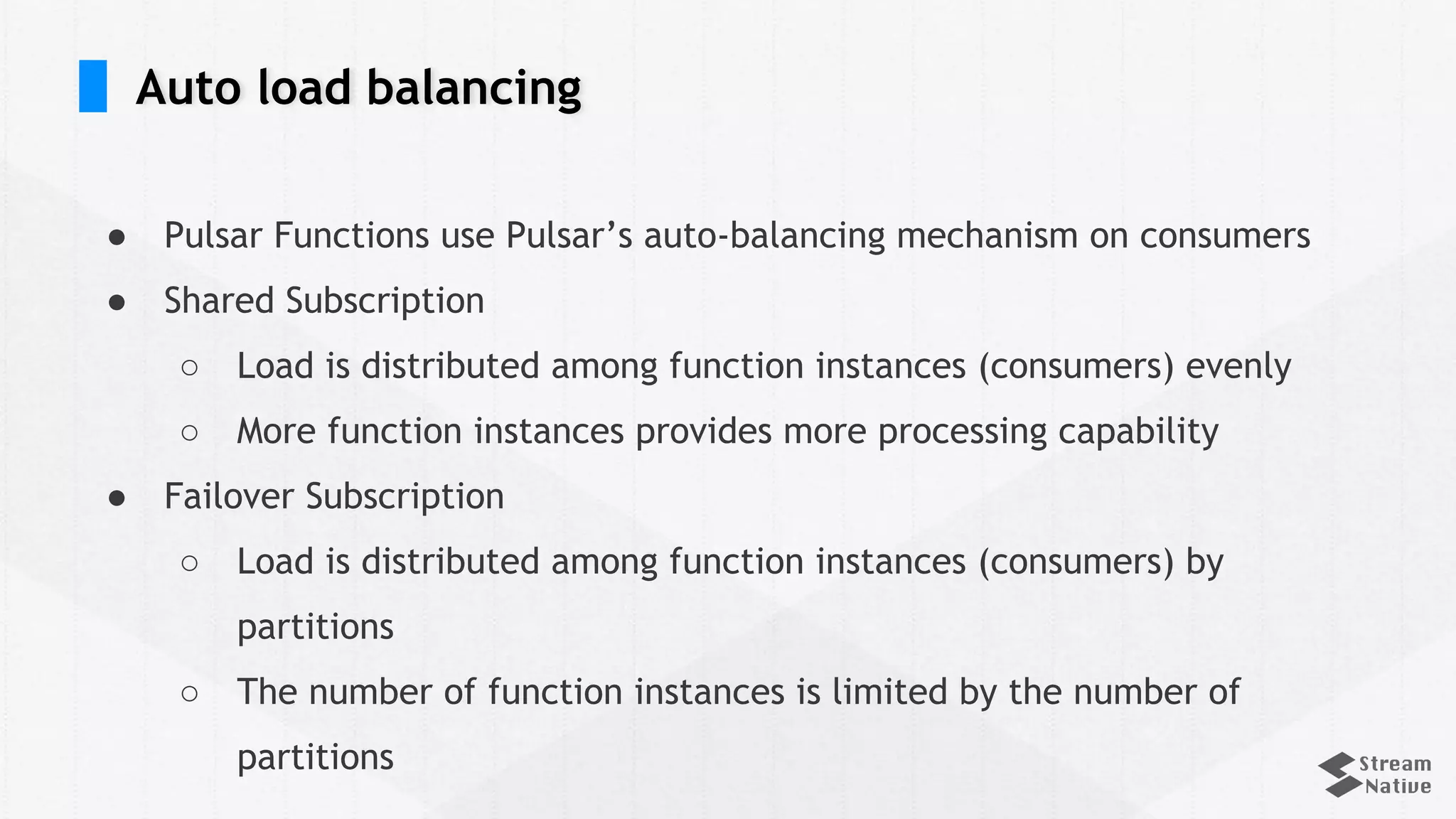

37. Auto load balancing
● Pulsar Functions use Pulsar’s auto-balancing mechanism on consumers
● Shared Subscription
○ Load is distributed among function instances (consumers) evenly
○ More function instances provides more processing capability
● Failover Subscription
○ Load is distributed among function instances (consumers) by
partitions
○ The number of function instances is limited by the number of
partitions

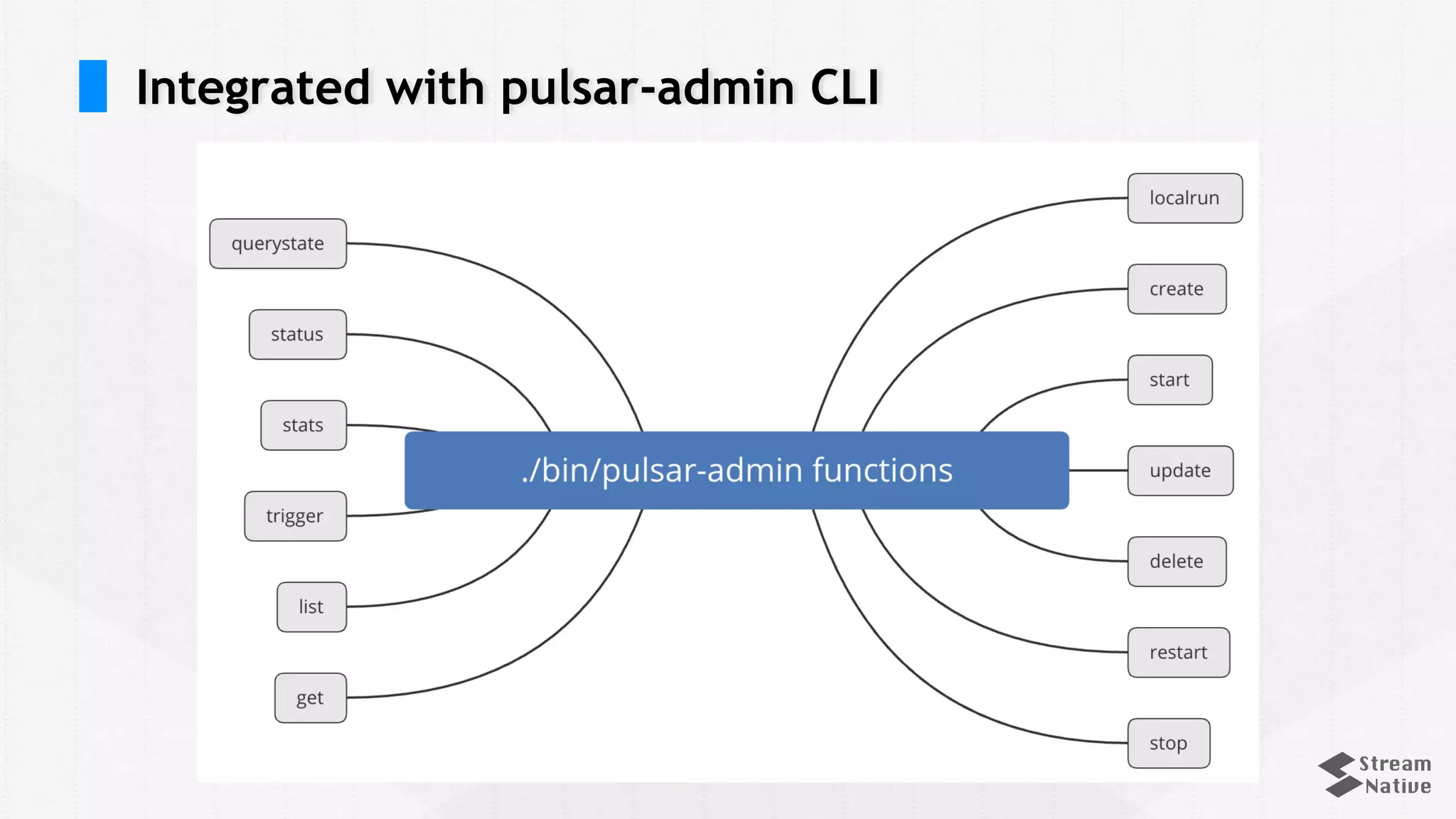

38. Integrated with pulsar-admin CLI

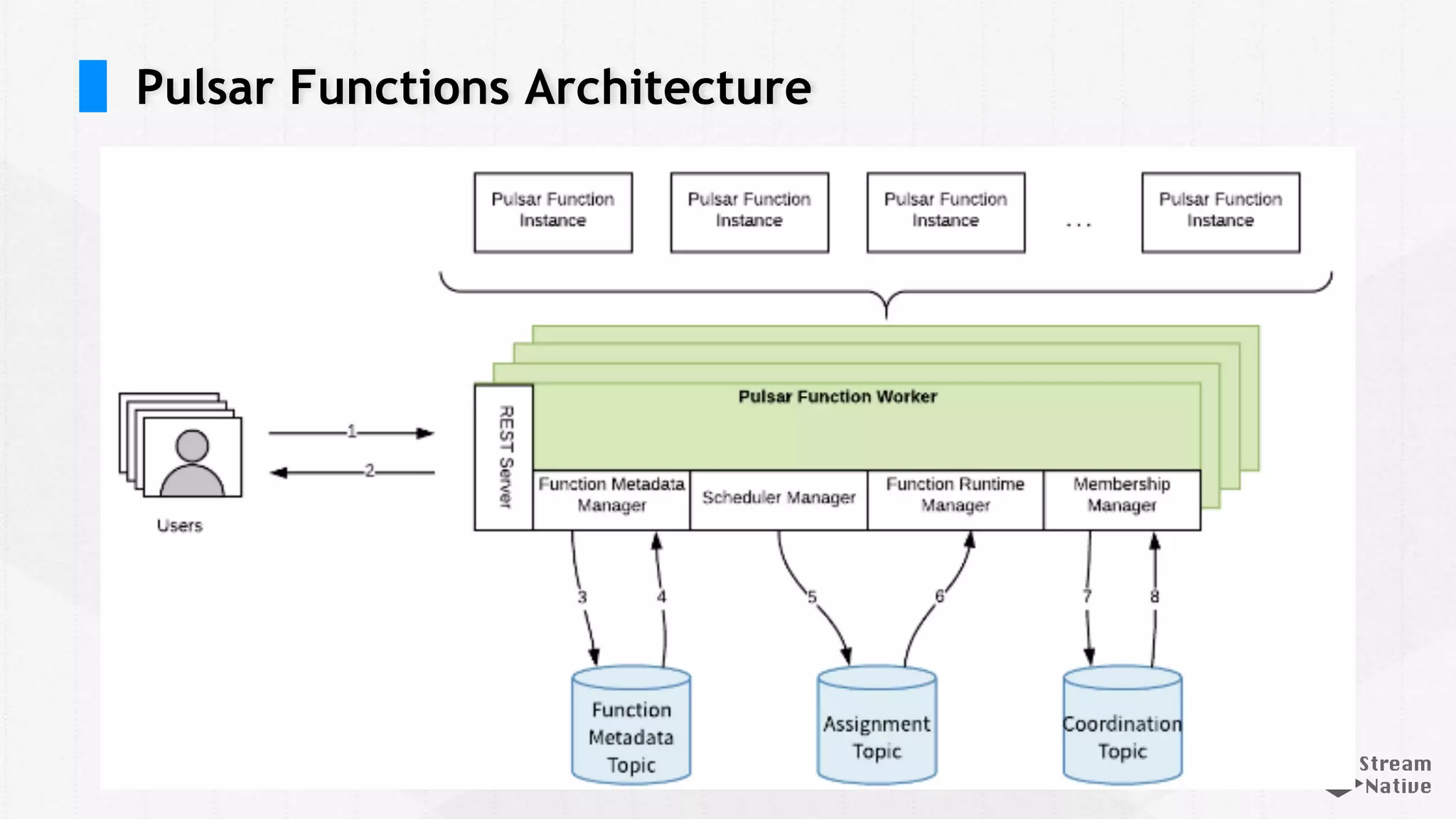

39. Pulsar Functions Architecture

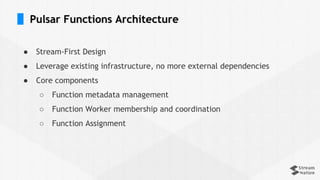

40. Pulsar Functions Architecture
● Stream-First Design
● Leverage existing infrastructure, no more external dependencies
● Core components
○ Function metadata management
○ Function Worker membership and coordination
○ Function Assignment

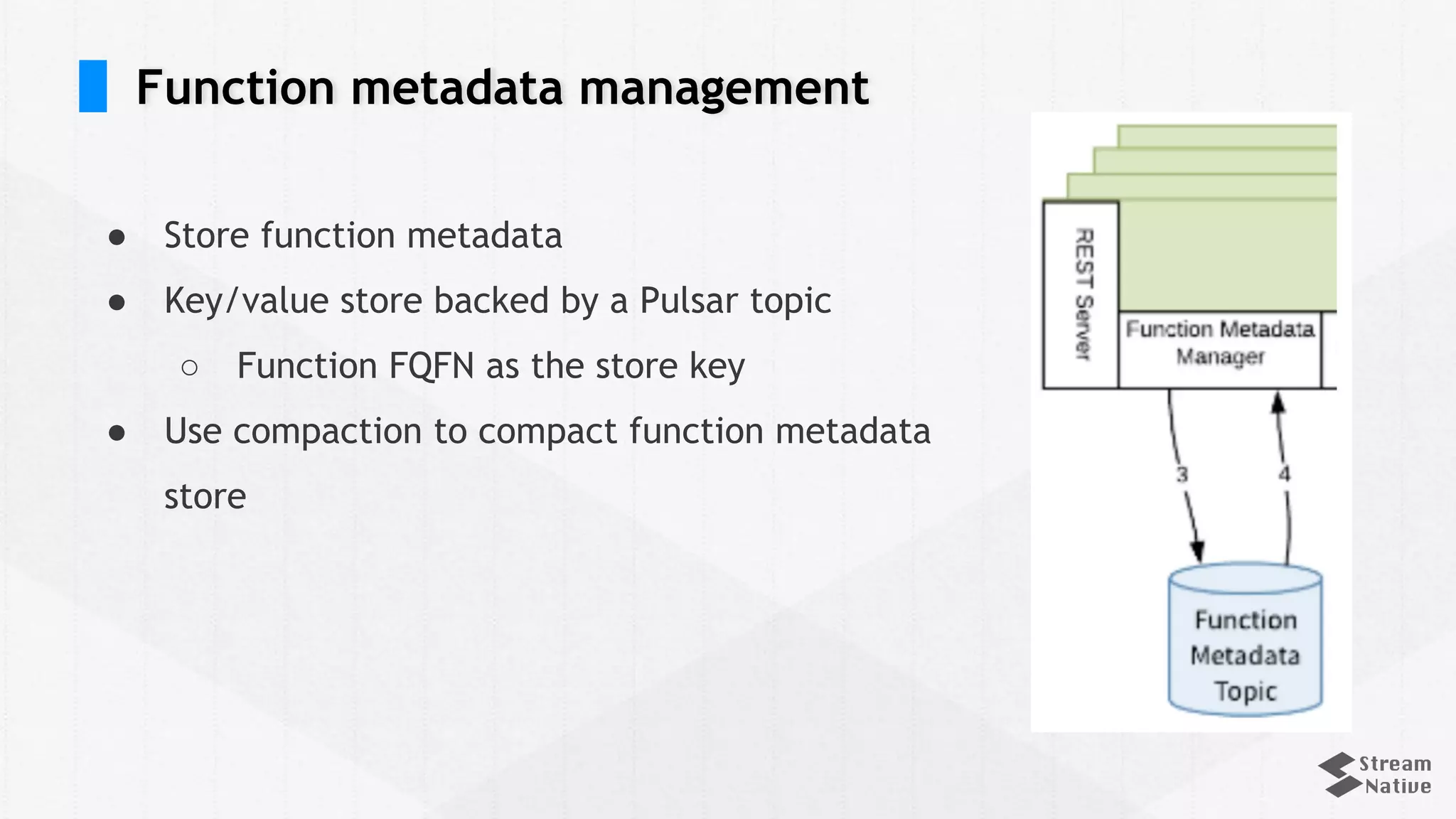

41. Function metadata management
● Store function metadata
● Key/value store backed by a Pulsar topic
○ Function FQFN as the store key
● Use compaction to compact function metadata
store

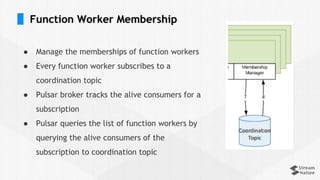

42. Function Worker Membership
● Manage the memberships of function workers
● Every function worker subscribes to a
coordination topic
● Pulsar broker tracks the alive consumers for a
subscription
● Pulsar queries the list of function workers by
querying the alive consumers of the
subscription to coordination topic

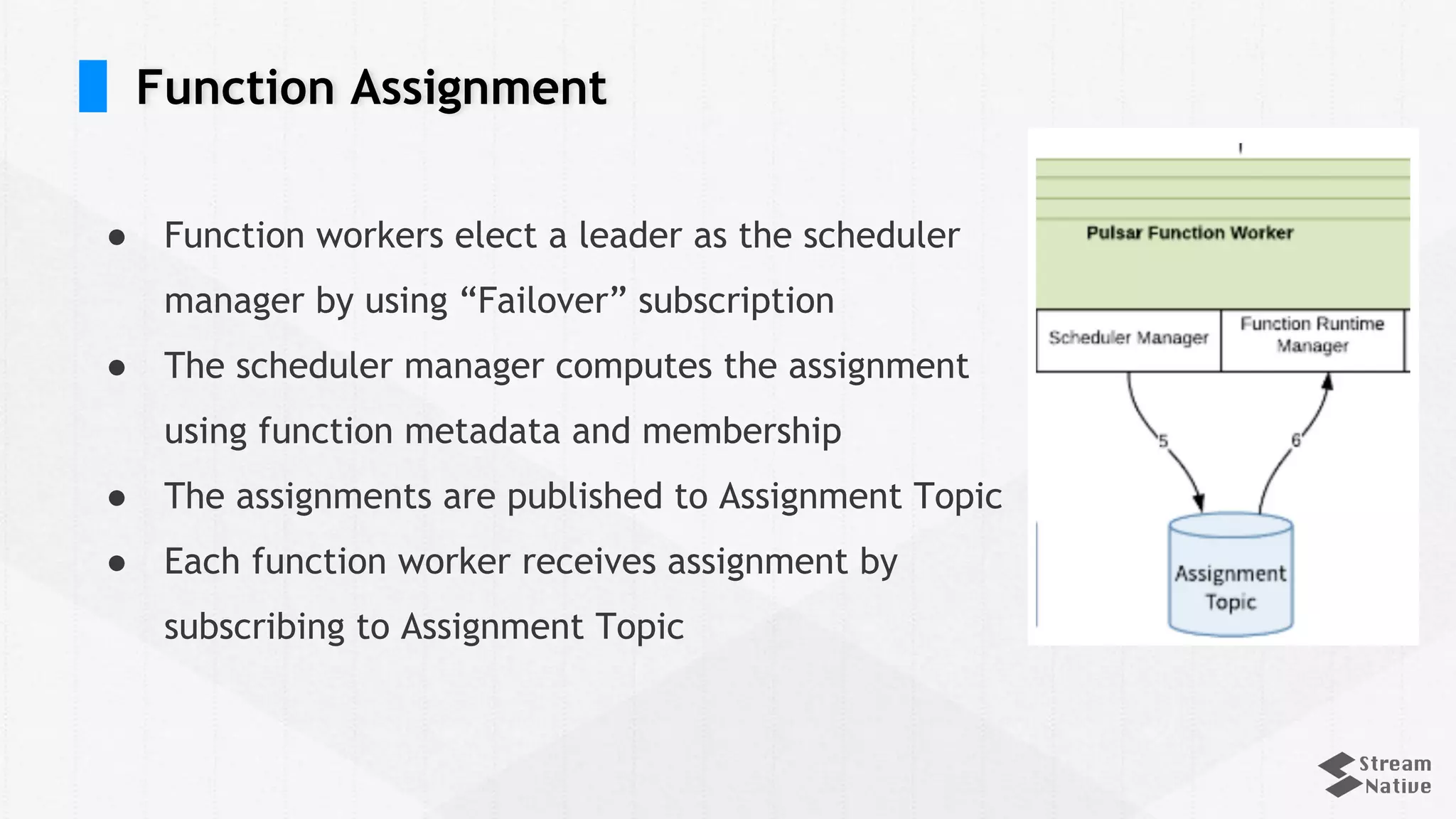

43. Function Assignment
● Function workers elect a leader as the scheduler
manager by using “Failover” subscription
● The scheduler manager computes the assignment
using function metadata and membership
● The assignments are published to Assignment Topic
● Each function worker receives assignment by
subscribing to Assignment Topic

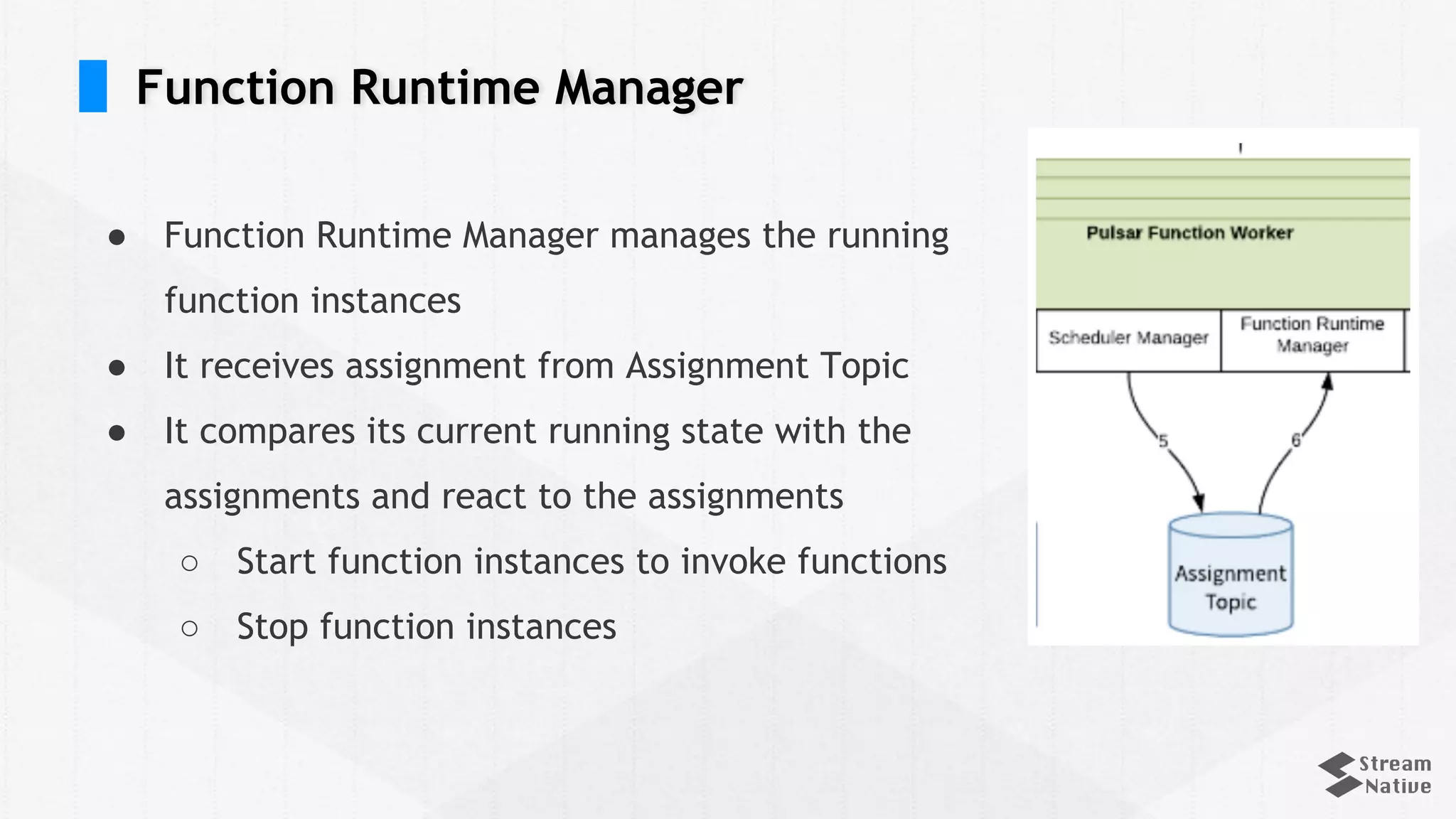

44. Function Runtime Manager
● Function Runtime Manager manages the running
function instances
● It receives assignment from Assignment Topic
● It compares its current running state with the
assignments and react to the assignments
○ Start function instances to invoke functions
○ Stop function instances

45. Use Cases

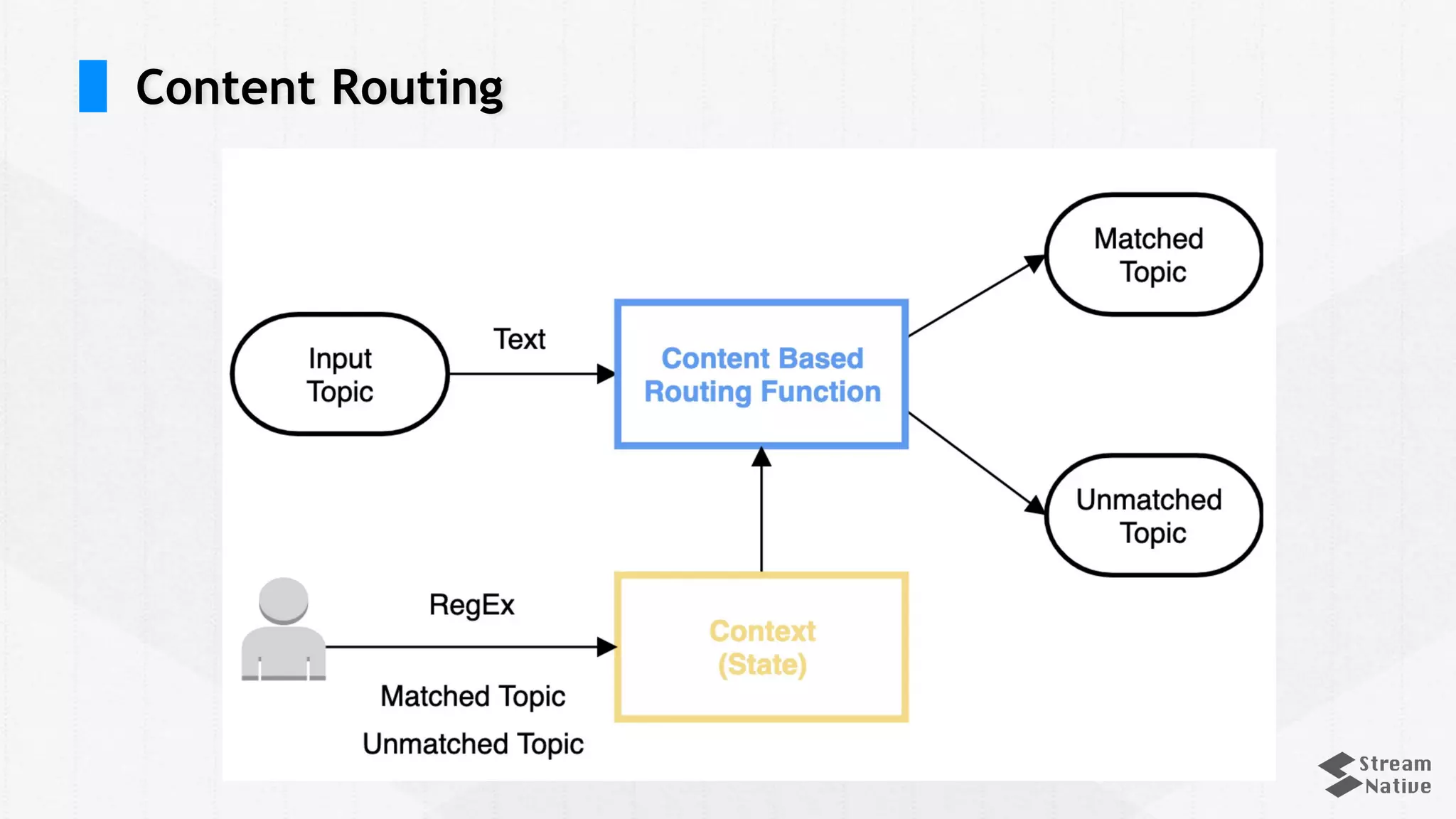

46. Content Routing

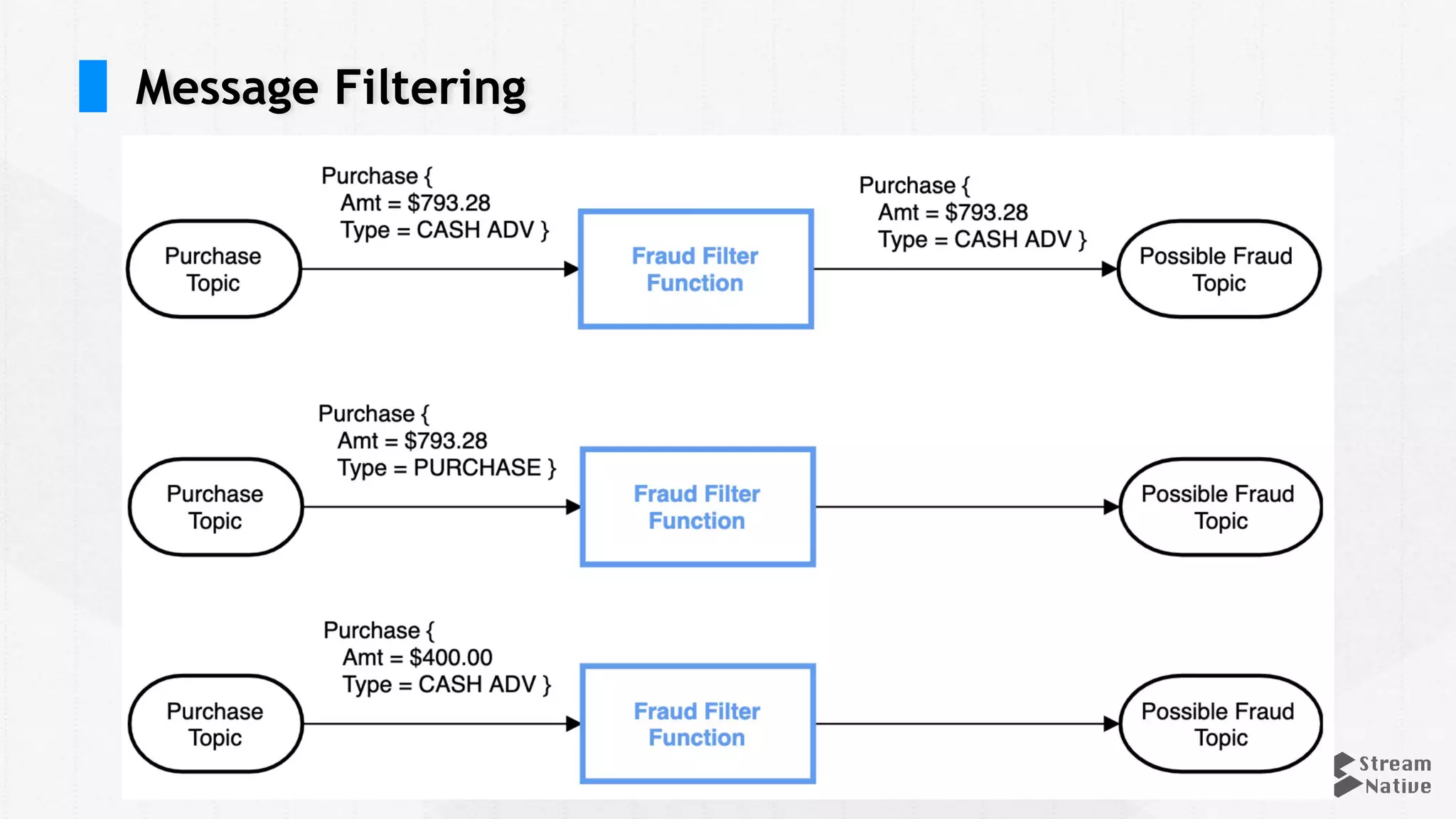

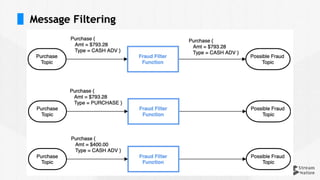

47. Message Filtering

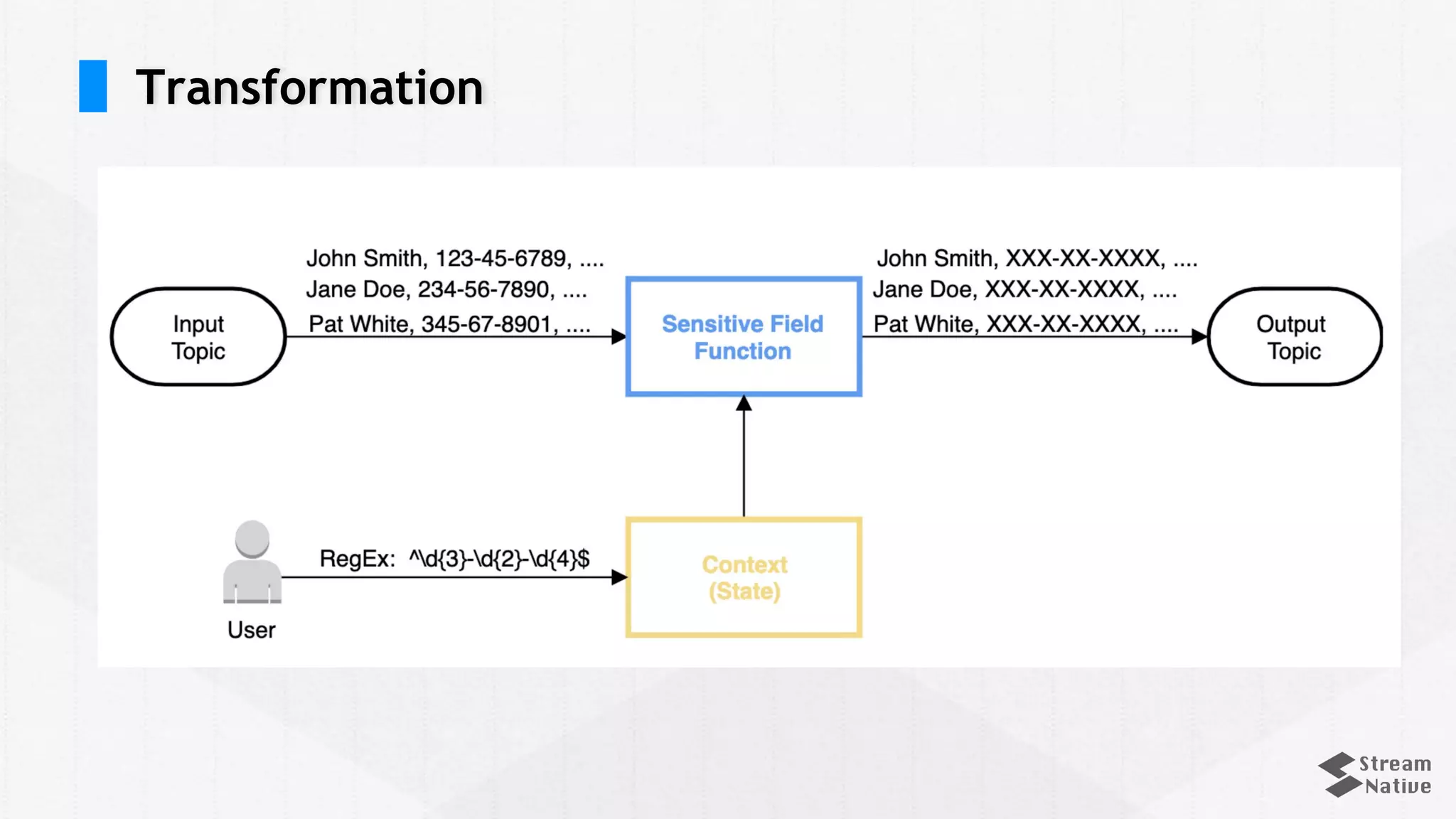

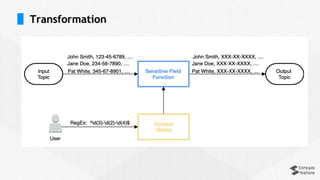

48. Transformation

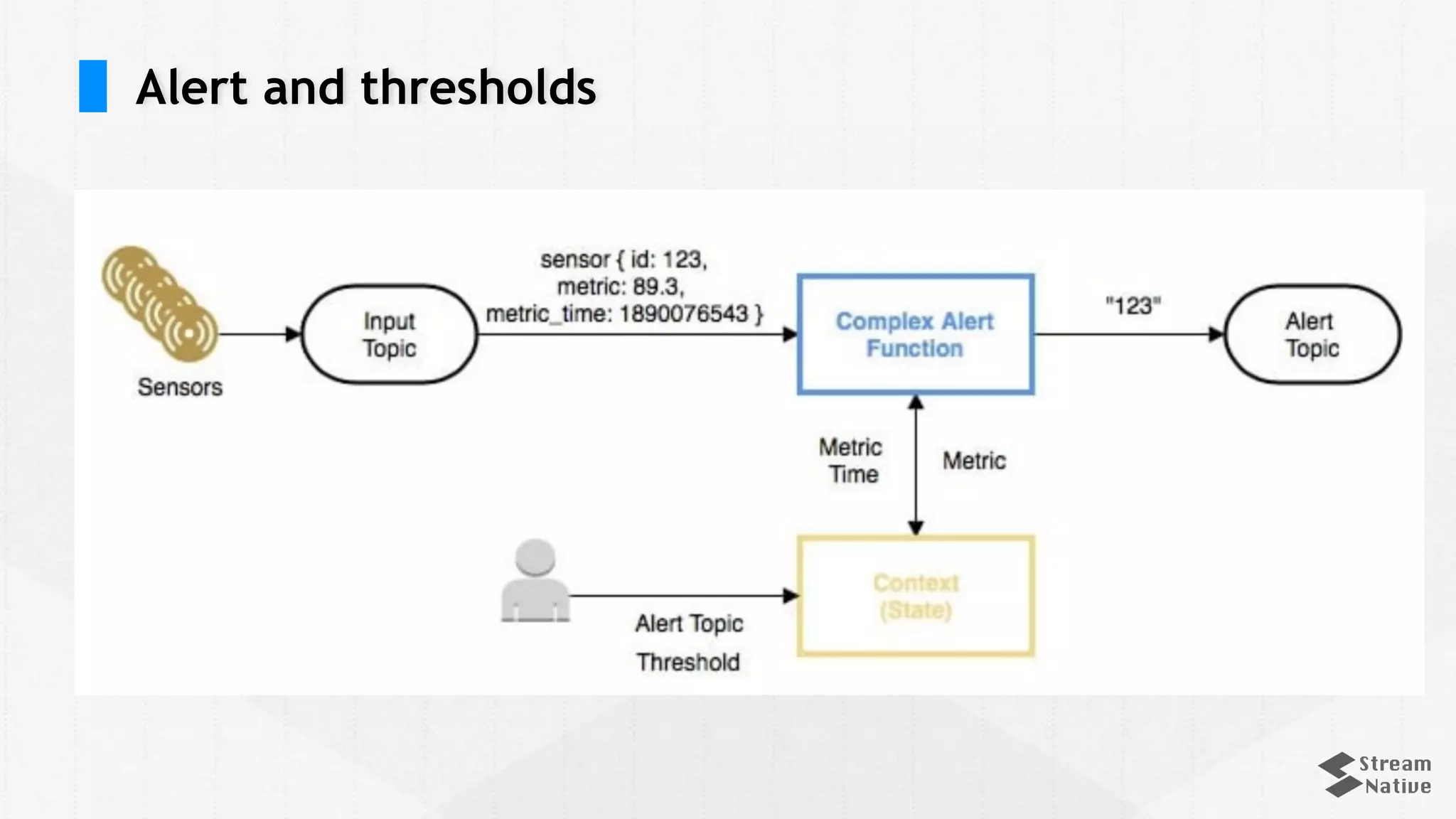

49. Alert and thresholds

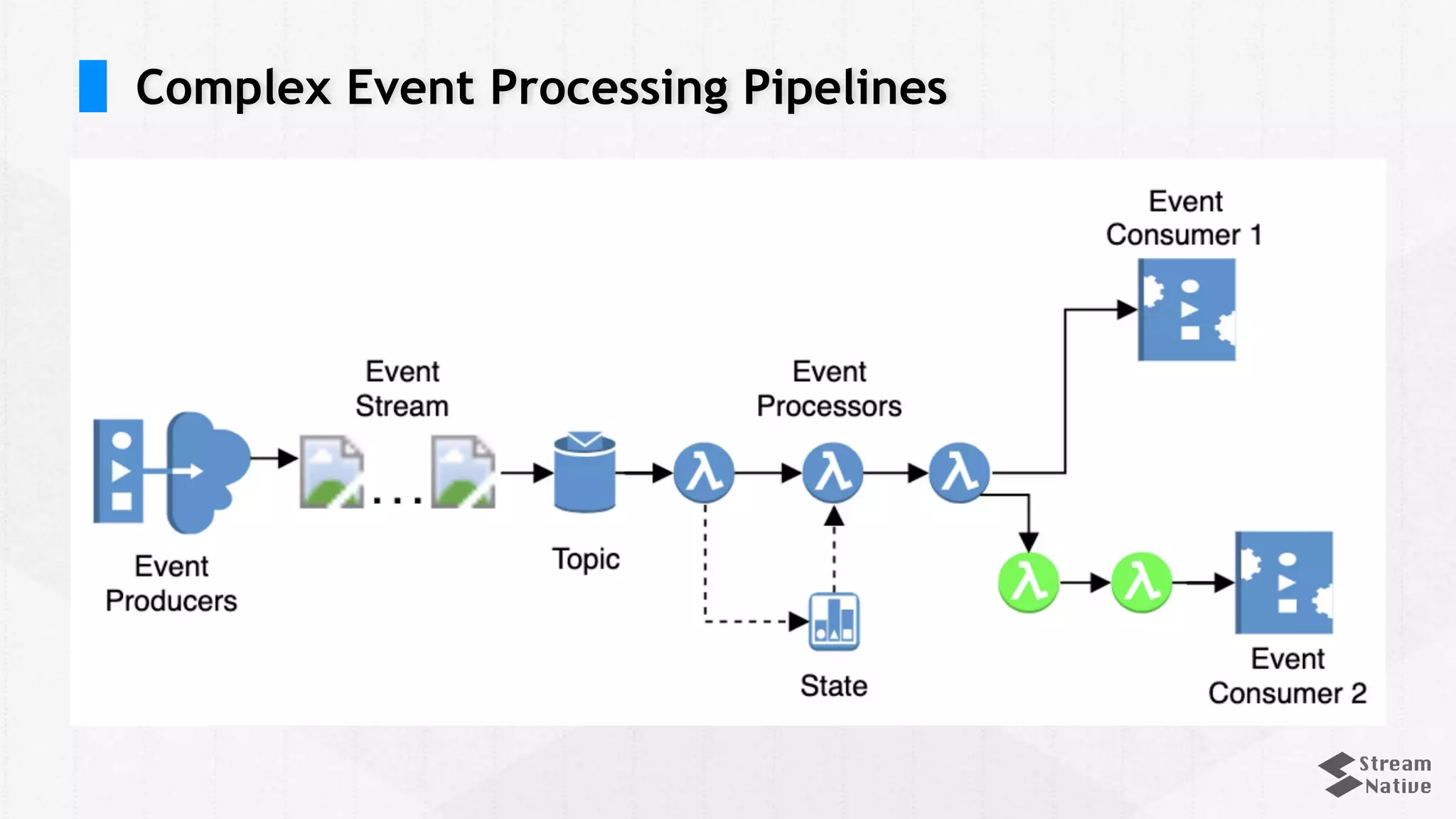

50. Complex Event Processing Pipelines

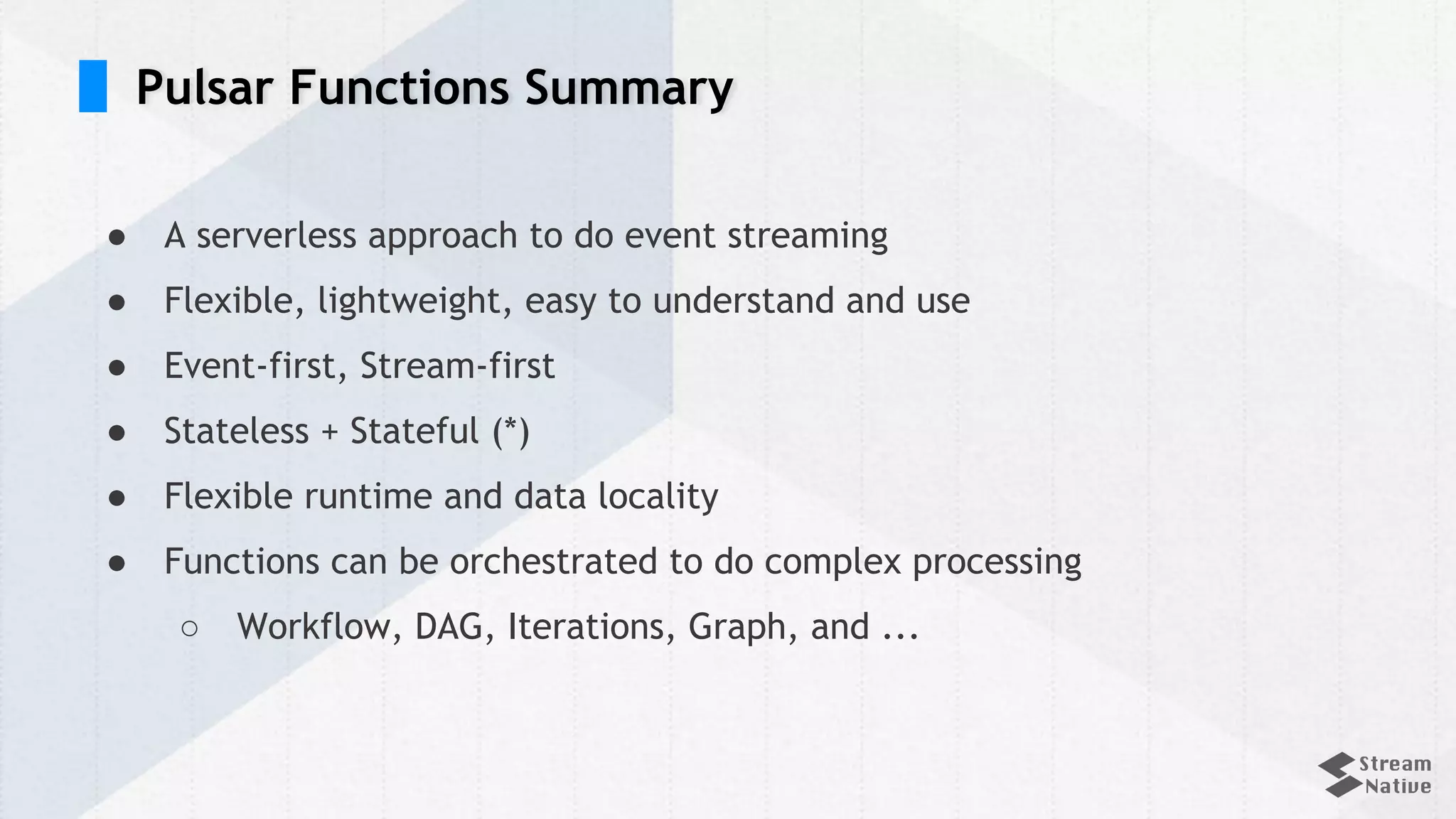

51. Pulsar Functions Summary
● A serverless approach to do event streaming
● Flexible, lightweight, easy to understand and use
● Event-first, Stream-first
● Stateless + Stateful (*)
● Flexible runtime and data locality
● Functions can be orchestrated to do complex processing
○ Workflow, DAG, Iterations, Graph, and ...

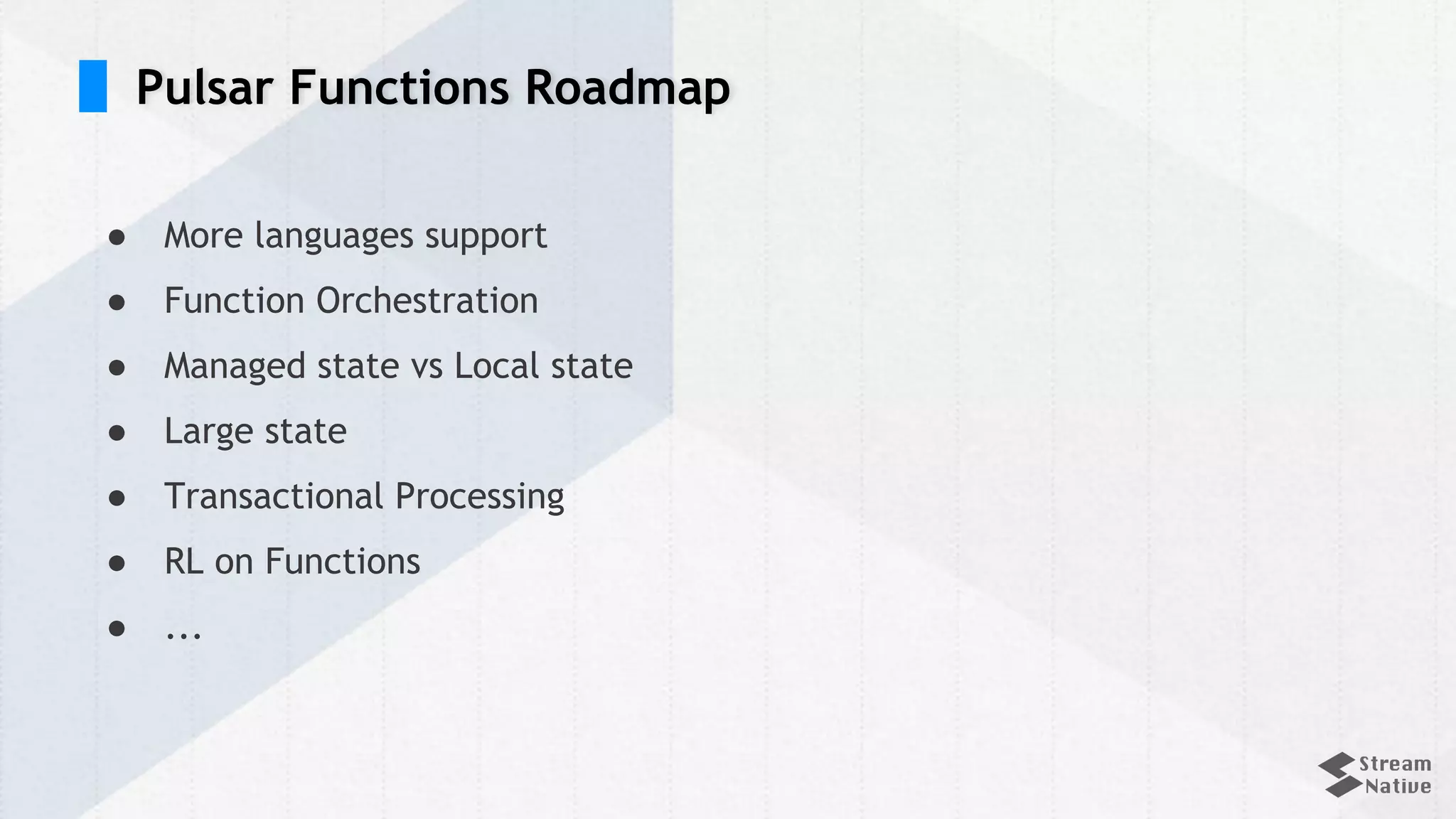

52. Pulsar Functions Roadmap
● More languages support
● Function Orchestration
● Managed state vs Local state
● Large state
● Transactional Processing
● RL on Functions
● ...

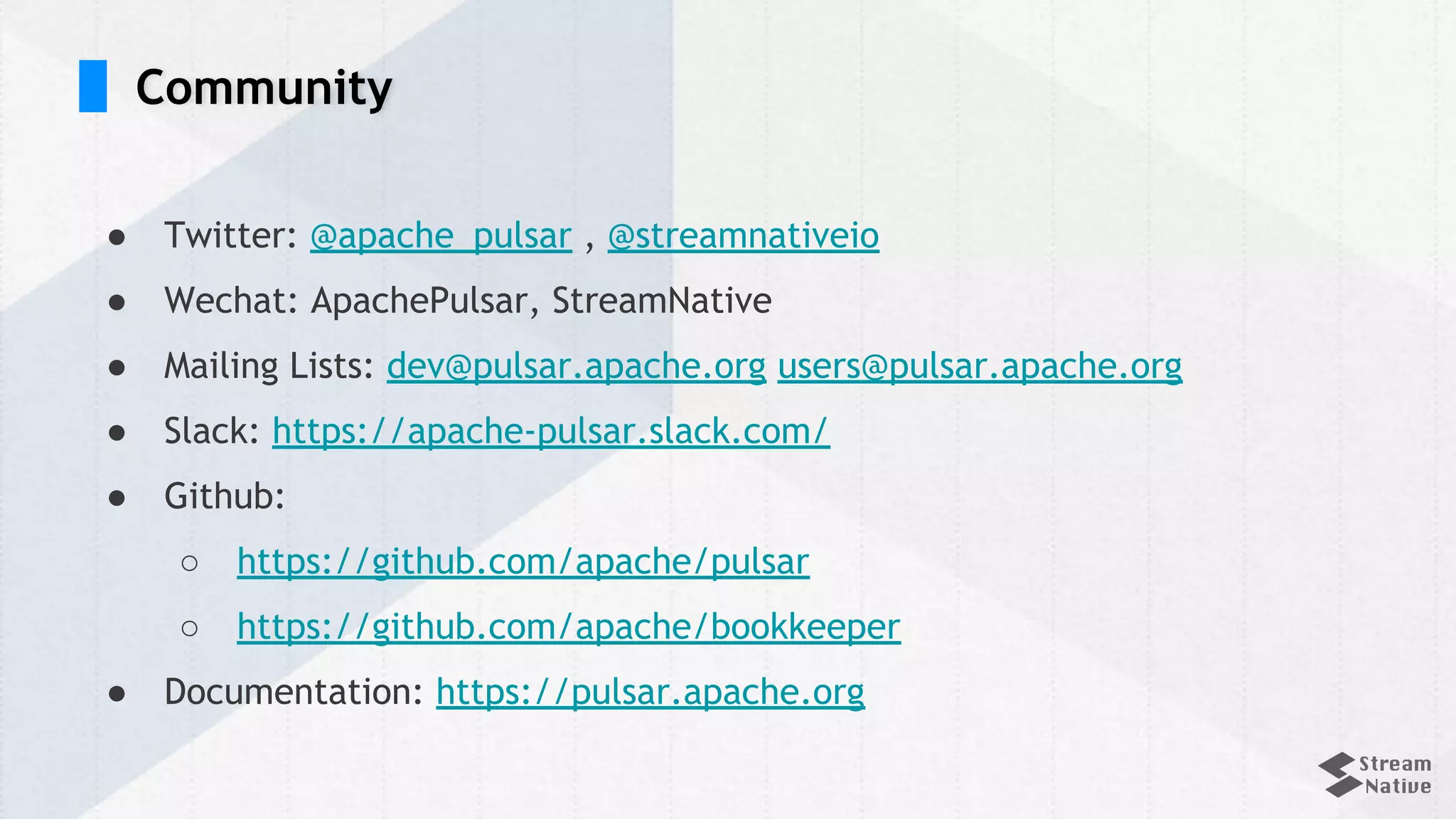

53. Community
● Twitter: @apache_pulsar , @streamnativeio
● Wechat: ApachePulsar, StreamNative
● Mailing Lists: dev@pulsar.apache.org users@pulsar.apache.org
● Slack: https://apache-pulsar.slack.com/
● Github:
○ https://github.com/apache/pulsar
○ https://github.com/apache/bookkeeper
● Documentation: https://pulsar.apache.org
