Kafka on Pulsar
- 2. Kafka on Pulsar (KoP) 翟佳
- 3. Who am I? Apache Pulsar Committer & PMC Member Apache BookKeeper Committer & PMC Member EMC -> StreamNative StreamNative Core Engineer HUST -> ICT Jia Zhai / 翟佳
- 4. What is Apache Pulsar? Flexible Pub/Sub Messaging backed by Durable log/stream Storage
- 5. Barrier for user? Unified Messaging Protocol Apps Build on old systems
- 6. How Pulsar handles it? Pulsar Kafka Wrapper on Kafka Java API https://pulsar.apache.org/docs/en/adaptors-kafka/ Pulsar IO Connect https://pulsar.apache.org/docs/en/io-overview/
- 7. Kafka on Pulsar (KoP)

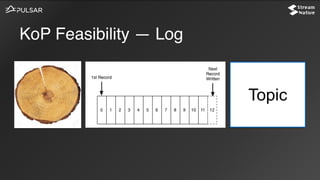

- 8. KoP Feasibility — Log Topic

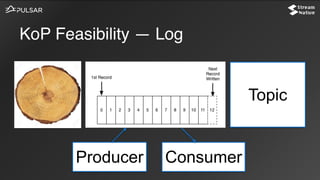

- 9. KoP Feasibility — Log Topic Producer Consumer
- 10. KoP Feasibility — Log Topic Producer Consumer Kafka
- 11. KoP Feasibility — Log Topic Producer Consumer Pulsar
- 12. KoP Feasibility — Others Producer Consumer Topic Lookup Produce Consume Offset Consumption State
- 13. KoP Overview Kafka lib Broker Pulsar Consumer Pulsar lib Load Balancer Pulsar Protocol handler Kafka Protocol handler Pulsar Producer Pulsar lib Kafka Producer Kafka lib Kafka Consumer Kafka lib Kafka Producer Managed Ledger BK Client Geo- Replicator Pulsar Topic ZooKeeper Bookie Pulsar
- 14. KoP Implementation Topic flat map: Broker sets `kafkaNamespace` Message ID and Offset: LedgerId + EntryId Message: Convert Key/value/timestamp/headers(properties) Topic Lookup: Pulsar admin topic lookup -> owner broker Produce: Convert, then call PulsarTopic.publishMessage Consume: Convert, then call non-durable-cursor.readEntries Group Coordinator: Keep in topic `public/__kafka/__offsets`
- 15. KoP Implementation — Topic Map
- 16. KoP Implementation — Offset Kafka lib Kafka Producer entryId LedgerId entryIdLedgerId Offset
- 17. KoP Implementation — Message Map
- 18. KoP Implementation — Topic Lookup
- 19. KoP Implementation — Pro/Con
- 20. KoP Implementation — Pro/Con
- 21. KoP Now Kafka lib Broker Pulsar Consumer Pulsar lib Load Balancer Pulsar Protocol handler Kafka Protocol handler Pulsar Producer Pulsar lib Kafka Producer Kafka lib Kafka Consumer Kafka lib Kafka Producer Managed Ledger BK Client Geo- Replicator Pulsar Topic ZooKeeper Bookie Pulsar
- 22. KoP Now Layered Architecture Independent Scale Instant Recovery Balance-free expand
- 23. Ordering Guaranteed ordering Multi-tenancy A single cluster can support many tenants and use cases High throughput Can reach 1.8 M messages/s in a single partition Durability Data replicated and synced to disk Geo-replication Out of box support for geographically distributed applications Unified messaging model Support both Streaming and Queuing Delivery Guarantees At least once, at most once and effectively once Low Latency Low publish latency of 5ms Highly scalable & available Can support millions of topics HA KoP Now
- 24. Demo https://kafka.apache.org/quickstart Demo1: Kafka Producer / Consumer Demo2: Kafka Connect https://archive.apache.org/dist/kafka/2.0.0/ kafka_2.12-2.0.0.tgz
- 25. Demo Kafka lib Broker Pulsar Consumer Pulsar lib Load Balancer Pulsar Protocol handler Kafka Protocol handler Pulsar Producer Pulsar lib Kafka Producer Kafka lib Kafka Consumer Kafka lib Kafka Producer Managed Ledger BK Client Geo- Replicator Pulsar Topic ZooKeeper Bookie Pulsar
- 26. Demo1: K-Producer -> K-Consumer Kafka lib Kafka Consumer Kafka libKafka lib Kafka Producer Broker Pulsar Protocol handler Kafka Protocol handler Pulsar Topic bin/kafka-console-producer.sh --broker-list localhost:9092 --topic test bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic test --from-beginning
- 27. Demo1: P-Producer -> K-Consumer Pulsar Consumer Pulsar lib Pulsar Producer Pulsar lib Kafka lib Kafka Consumer Kafka libKafka lib Kafka Producer Broker Pulsar Protocol handler Kafka Protocol handler Pulsar Topic bin/pulsar-client produce test -n 1 -m “Hello from Pulsar Producer, Message 1” bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic test --from-beginning
- 28. Demo1: P-Producer -> K-Consumer Pulsar Consumer Pulsar lib Pulsar Producer Pulsar lib Kafka lib Kafka Consumer Kafka libKafka lib Kafka Producer Broker Pulsar Protocol handler Kafka Protocol handler Pulsar Topic bin/kafka-console-producer.sh --broker-list localhost:9092 --topic test bin/pulsar-client consume -s sub-name test -n 0
- 30. Demo2: Kafka Connect Kafka lib Kafka File Source Broker Pulsar Protocol handler Kafka Protocol handler Pulsar Topic InPut File Kafka File Sink OutPut File TOPIC bin/connect-standalone.sh config/connect-standalone.properties config/connect-file-source.properties config/connect-file-sink.properties
- 32. Demo2: Pulsar Functions Kafka lib Kafka File Source Broker Pulsar Protocol handler Kafka Protocol handler Pulsar Topic InPut File Kafka File Sink OutPut File TOPIC Kafka lib Pulsar Functions OutPut Topic bin/pulsar-admin functions localrun --name pulsarExclamation --jar pulsar-functions-api-examples.jar --classname org…ExclamationFunction --inputs connect-test-partition-0 --output out-hello
- 33. Apache Pulsar & Apache Kafka
