Despite what the Ghostbusters said, we’re going to go ahead and cross (or, join) the streams. This session covers getting started with streaming data pipelines, maximizing Pulsar’s messaging system alongside one of the most flexible streaming frameworks available, Apache Flink. Specifically, we’ll demonstrate the use of Flink SQL, which provides various abstractions and allows your pipeline to be language-agnostic. So, if you want to leverage the power of a high-speed, highly customizable stream processing engine without the usual overhead and learning curves of the technologies involved (and their interconnected relationships), then this talk is for you. Watch the step-by-step demo to build a unified batch and streaming pipeline from scratch with Pulsar, via the Flink SQL client. This means you don’t need to be familiar with Flink, (or even a specific programming language). The examples provided are built for highly complex systems, but the talk itself will be accessible to any experience level.

1. Cross the Streams!
Creating Data Pipelines with Apache Flink + Pulsar
Caito Scherr – Developer Advocate – Ververica

2. Agenda
00 Who am I?
01 Intro to Flink SQL
02 Flink SQL Demo
03 Flink + Pulsar
@CAITO_200_OK

3. Who am I?
00 Caito Scherr
01 Apache Flink
02 DevRel @ Ververica
03 Portland, Oregon
@CAITO_200_OK

4. Who am I?
00 Caito Scherr
01 Apache Flink
02 DevRel @ Ververica
03 Portland, Oregon
@CAITO_200_OK

5. Who am I?
00 Caito Scherr
01 Apache Flink
02 DevRel @ Ververica
03 Portland, Oregon
@CAITO_200_OK

6. Who am I?
00 Caito Scherr
01 Apache Flink
02 DevRel @ Ververica
03 Portland, Oregon
@CAITO_200_OK

7. Intro Flink SQL

8. Stream Processing
@CAITO_200_OK

9. Stream Processing > The Challenges
@CAITO_200_OK
● You can’t pause to fix it
● Lots of data, FAST
● Ingesting multiple formats
● Failure recovery
● Needs to scale

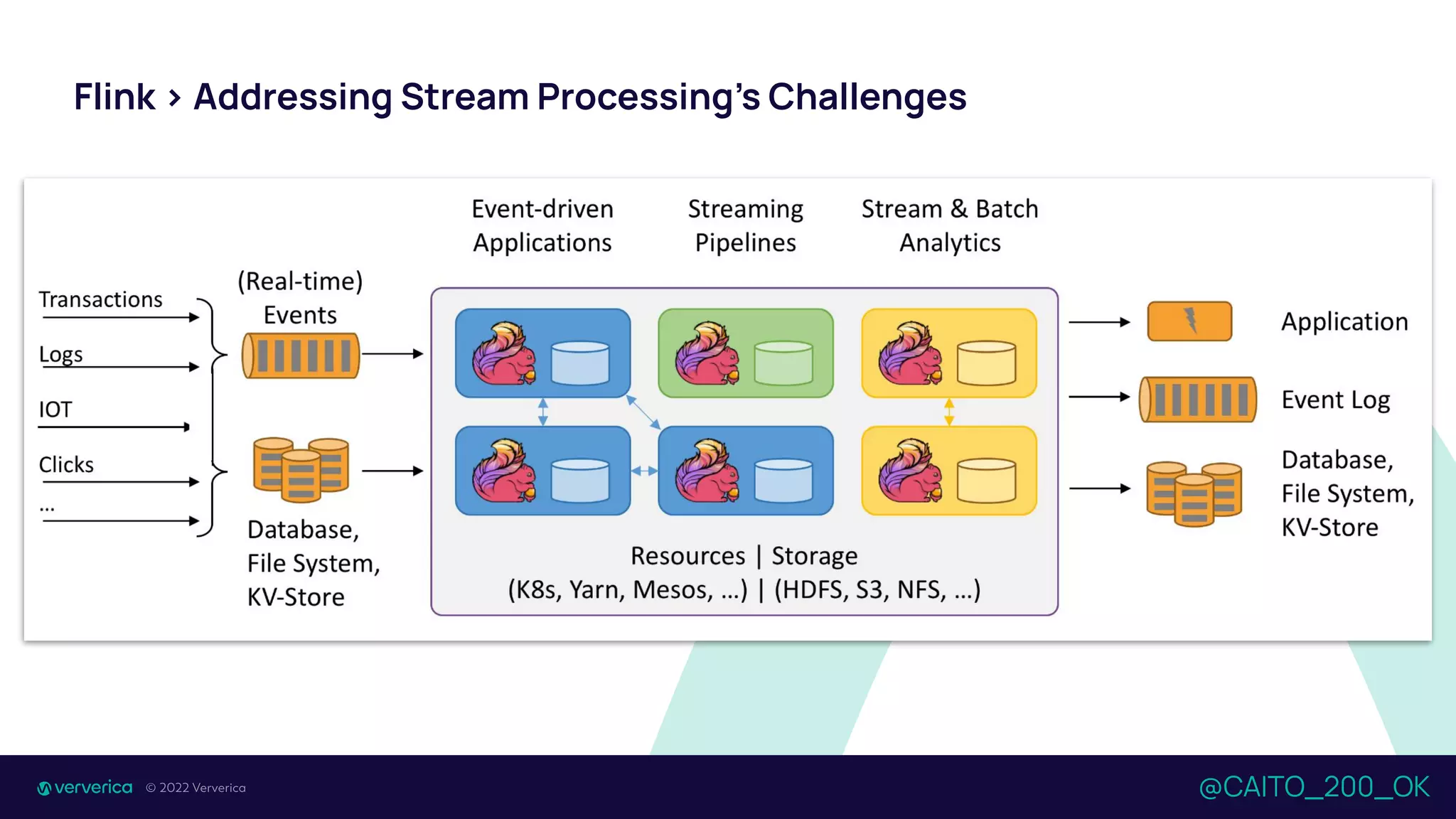

10. Flink > Addressing Stream Processing’s Challenges
@CAITO_200_OK

11. Flink > Addressing Stream Processing’s Challenges
@CAITO_200_OK

12. Flink > Basics
@CAITO_200_OK
12
Building Blocks (events, state, (event) time)
DataStream API (streams, windows)
Table API (dynamic tables)
Flink SQL
PyFlink
Ease of Use
Expressiven
ess
Streaming Analytics
& ML
Stateful Stream
Processing

13. Flink > Summary
@CAITO_200_OK
Flexible APIs
● Ease of use/Expressiveness
● Wide Range of Use Cases
High Performance
● Local State Access
● High Throughput/Low Latency
Stateful Processing
● State = First-class Citizen
● Event-time Support
Fault Tolerance
● Distributed State Snapshots
● Exactly-once Guarantees

14. Flink SQL
@CAITO_200_OK
● Stream processing: real-time processing
● Stream processing is complex
● Flink is highly performant streaming
● Flink solves many problems in streaming
● Flink is complex
● Flink SQL: access to Flink’s benefits
● Abstracts away the complexity

15. Flink SQL
@CAITO_200_OK
● Stream processing: real-time processing
● Stream processing is complex
● Flink is highly performant streaming
● Flink solves many problems in streaming
● Flink is complex
● Flink SQL: access to Flink’s benefits
● Abstracts away the complexity

16. Flink SQL
@CAITO_200_OK
● Stream processing: real-time processing
● Stream processing is complex
● Flink is highly performant streaming
● Flink solves many problems in streaming
● Flink is complex
● Flink SQL: access to Flink’s benefits
● Abstracts away the complexity

17. Flink SQL
@CAITO_200_OK
● Stream processing: real-time processing
● Stream processing is complex
● Flink is highly performant streaming
● Flink solves many problems in streaming
● Flink is complex
● Flink SQL: access to Flink’s benefits
● Abstracts away the complexity

18. Flink SQL
@CAITO_200_OK
● Stream processing: real-time processing
● Stream processing is complex
● Flink is highly performant streaming
● Flink solves many problems in streaming
● Flink is complex
● Flink SQL: access to Flink’s benefits
● Abstracts away the complexity

19. Flink SQL
@CAITO_200_OK
● Stream processing: real-time processing
● Stream processing is complex
● Flink is highly performant streaming
● Flink solves many problems in streaming
● Flink is complex
● Flink SQL: access to Flink’s benefits
● Abstracts away the complexity

20. Flink SQL
@CAITO_200_OK
● Stream processing: real-time processing
● Stream processing is complex
● Flink is highly performant streaming
● Flink solves many problems in streaming
● Flink is complex
● Flink SQL: access to Flink’s benefits
● Abstracts away the complexity

21. Flink SQL Demo
@CAITO_200_OK
● Making the complex simple
● You could start a data pipeline anywhere!
● Language agnostic
From: Free Guy movie

22. Flink SQL Demo > Regular SQL
@CAITO_200_OK
user cnt
Mary 2
Bob 1
SELECT user_id,
COUNT(url) AS cnt
FROM clicks
GROUP BY user_id;
Take a snapshot when the
query starts
A final result is
produced
A row that was added after the query
was started is not considered
user cTime url
Mary 12:00:00 https://…
Bob 12:00:00 https://…
Mary 12:00:02 https://…
Liz 12:00:03 https://…
The query
terminates
Image: Marta Paes @morsapaes

23. Flink SQL Demo > Flink SQL
@CAITO_200_OK
user cTime url
user cnt
SELECT user_id,
COUNT(url) AS cnt
FROM clicks
GROUP BY user_id;
Mary 12:00:00 https://…
Bob 12:00:00 https://…
Mary 12:00:02 https://…
Liz 12:00:03 https://…
Bob 1
Liz 1
Mary 1
Mary 2
Ingest all changes as
they happen
Continuously update the
result
The result is identical to the one-time query (at this point)
Image: Marta Paes @morsapaes

24. Flink SQL Demo
@CAITO_200_OK

25. Flink SQL Demo
@CAITO_200_OK
● Check Java version
● Download Flink Snapshot
● Un-tar it

26. 26
What Next? >> Flink SQL Cookbook

27. 27

28. 28

29. 29

30. 30

31. 31

32. Flink SQL Demo
@CAITO_200_OK
● Flink SQL + DataGen
● Same startup steps
● True stream processing example

33. © 2020 Ververica

34. © 2020 Ververica

35. Pulsar + Flink

36. Flink + Pulsar
@CAITO_200_OK
“Stream as a unified view
on data”
“Batch as a special case
of streaming”

37. Flink + Pulsar
@CAITO_200_OK
● Pub/Sub messaging layer (streaming)
● Durable storage layer (batch)

38. Flink + Pulsar > Unified Processing with Flink
@CAITO_200_OK
● Mix historic & real-time
● Reuse code & logic
● Simplify operations
now
bounded query
unbounded query
past future
bounded query
start of the stream
unbounded query

39. Flink + Pulsar > Unified data stack
@CAITO_200_OK
Unified Processing
Engine
(Batch / Streaming)
Unified Storage
(Segments / Pub/Sub)

40. Demo > Twier Firehose
@CAITO_200_OK
Demo: Marta Paes @morsapaes

41. Demo > Twier Firehose
@CAITO_200_OK
Demo: Marta Paes @morsapaes

42. Demo > Twier Firehose
@CAITO_200_OK
CREATE CATALOG pulsar WITH (
'type' = 'pulsar',
'service-url' = 'pulsar://pulsar:6650',
'admin-url' = 'http://pulsar:8080',
'format' = 'json'
);
Catalog DDL
Demo: Marta Paes @morsapaes

43. Demo > Twier Firehose
@CAITO_200_OK
Not cool. 👹
Demo: Marta Paes @morsapaes

44. Demo > Get Relevant Timestamps
@CAITO_200_OK
CREATE TABLE pulsar_tweets (
publishTime TIMESTAMP(3) METADATA,
WATERMARK FOR publishTime AS publishTime - INTERVAL '5'
SECOND
) WITH (
'connector' = 'pulsar',
'topic' = 'persistent://public/default/tweets',
'value.format' = 'json',
'service-url' = 'pulsar://pulsar:6650',
'admin-url' = 'http://pulsar:8080',
'scan.startup.mode' = 'earliest-offset'
)
LIKE tweets;
Derive schema from the original topic
Define the source connector (Pulsar)
Read and use Pulsar message metadata
Demo: Marta Paes @morsapaes

45. Demo > Windowed Aggregation
@CAITO_200_OK
CREATE TABLE pulsar_tweets_agg (
tmstmp TIMESTAMP(3),
tweet_cnt BIGINT
) WITH (
'connector'='pulsar',
'topic'='persistent://public/default/tweets_agg',
'value.format'='json',
'service-url'='pulsar://pulsar:6650',
'admin-url'='http://pulsar:8080'
);
Sink Table DDL
INSERT INTO pulsar_tweets_agg
SELECT TUMBLE_START(publishTime, INTERVAL '10'
SECOND) AS wStart,
COUNT(id) AS tweet_cnt
FROM pulsar_tweets
GROUP BY TUMBLE(publishTime, INTERVAL '10'
SECOND);
Continuous SQL Query
Demo: Marta Paes @morsapaes

46. Demo > Tweet Count in Windows
@CAITO_200_OK
Demo: Marta Paes @morsapaes

47. What’s Next?

48. What Next
@CAITO_200_OK

49. What Next
@CAITO_200_OK

50. What Next
@CAITO_200_OK

51. How to Get Involved
@CAITO_200_OK
● Geing involved page: one source for Flink
community resources
● hps://flink.apache.org/community.html

52. Contribute
@CAITO_200_OK
● Github
● Issue Tracker
● Becoming a Commier

53. @CAITO_200_OK

54. New Slack Space!
@CAITO_200_OK
● Go-to space for user troubleshooting
● 800 members in less than 2 months
● Members include most of the Flink commiers
+ PMC members

55. New Slack Space!
@CAITO_200_OK

56. Hangout With Us
@CAITO_200_OK
● Regional meetups
● Virtual and in person options
● hps://www.meetup.com/topics/apache-flink/

57. Stay Connected
@CAITO_200_OK
● Twier
● Website
● Blog - Flink
● Blog - Ververica
● Youtube

58. Thank you
info@ververica.com
www.ververica.com
@VervericaData

59. Questions?
● caito@ververica.com
● @CAITO_200_OK
info@ververica.com
www.ververica.com
@VervericaData

60. Resources
● Flink Ahead: What Comes After Batch & Streaming: https://youtu.be/h5OYmy9Yx7Y
● Apache Pulsar as one Storage System for Real Time & Historical Data Analysis:
https://medium.com/streamnative/apache-pulsar-as-one-storage-455222c59017
● Flink Table API & SQL:
https://ci.apache.org/projects/flink/flink-docs-master/dev/table/sql/queries.html#ope
rations
● Flink SQL Cookbook: https://github.com/ververica/flink-sql-cookbook
● When Flink & Pulsar Come Together:
https://flink.apache.org/2019/05/03/pulsar-flink.html
● How to Query Pulsar Streams in Flink:
https://flink.apache.org/news/2019/11/25/query-pulsar-streams-using-apache-flink.ht
ml
● What’s New in the Flink/Pulsar Connector:
● https://flink.apache.org/2021/01/07/pulsar-flink-connector-270.html
● Marta’s Demo: https://github.com/morsapaes/flink-sql-pulsar
