Visual Communication That Works! (PPT)

The document discusses the shortcomings of PowerPoint presentations, emphasizing that they often replace meaningful storytelling in presentations. It highlights the importance of visual communication and simplicity in design, illustrating how effective presentations can engage and motivate audiences. The document advocates for a blend of imagination and experience in presentation design to create impactful narratives.

Education◦Technology◦Health & Medicine◦

Visual Communication That Works! (PPT)

1.

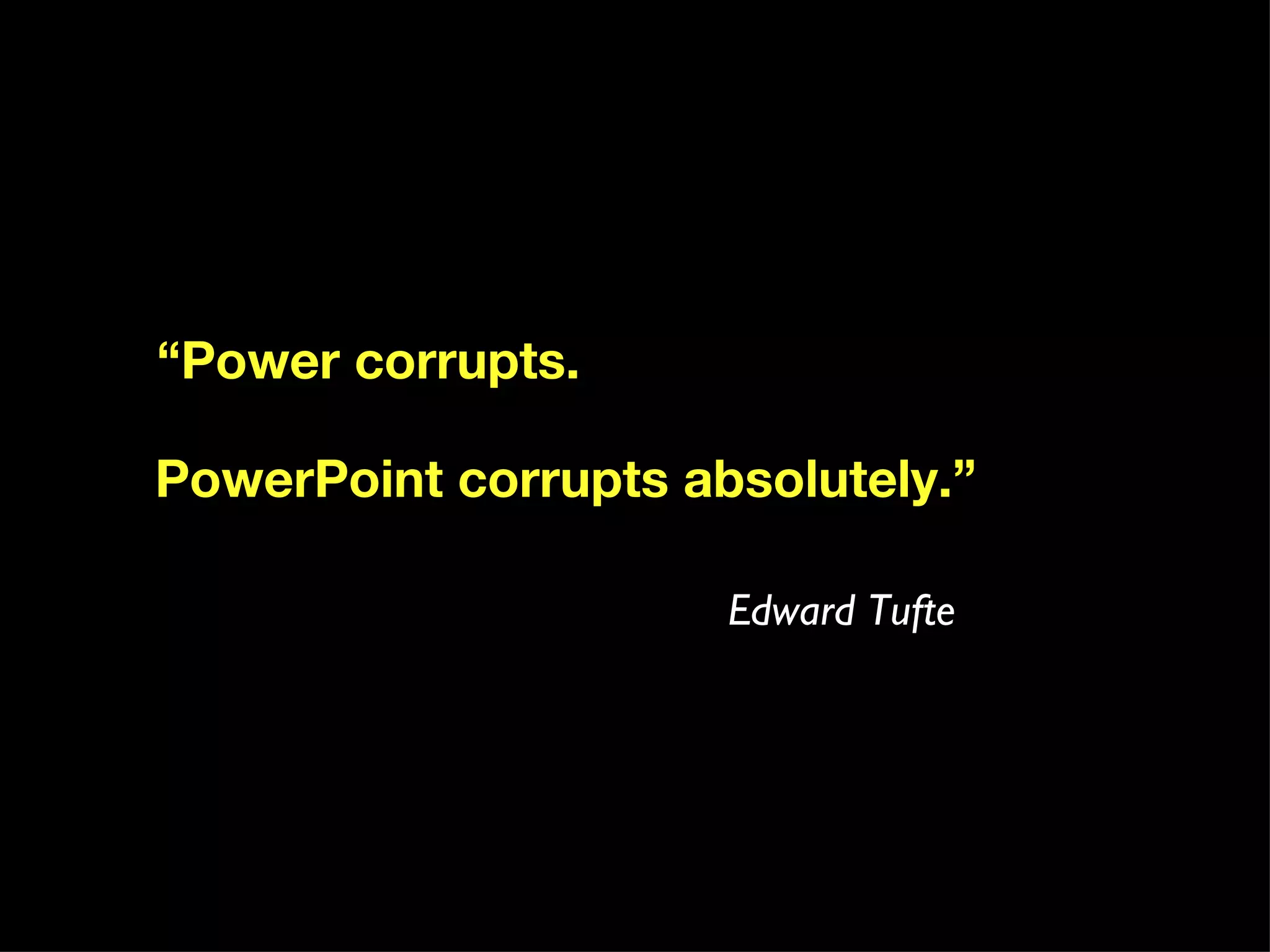

“ Power corrupts.PowerPoint corrupts absolutely.” Edward Tufte
2.

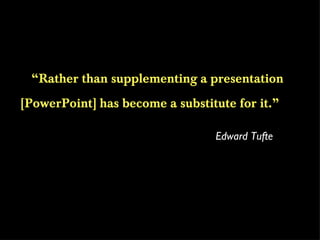

“ Rather thansupplementing a presentation [PowerPoint] has become a substitute for it.” Edward Tufte
3.

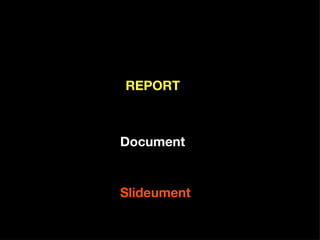

REPORT Document Slideument
4.

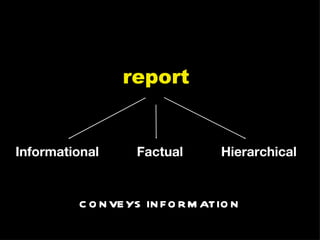

Informational Factual HierarchicalCONVEYS INFORMATION report
5.
Words Numbers Images
6.
We learn betterfrom words and pictures together than from words or pictures alone.
7.
We are hardwiredfor understanding images. Garr Reynolds
8.
The image gives rise to thought. Paul Ricoeur
9.
from thought toimage. . . .
10.
from idea tostory. . .
11.

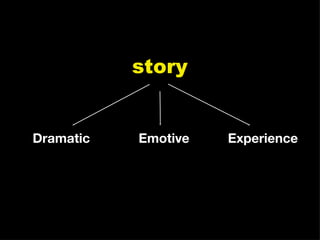

story Dramatic EmotiveExperience
12.

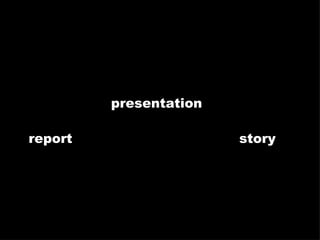

report story presentation
13.

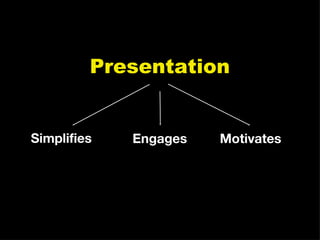

Presentation Simplifies MotivatesEngages
14.
What’s yourstory?
15.
In the handsof an honest and humble mentor a presentation can become a story that changes people and their worlds.
16.

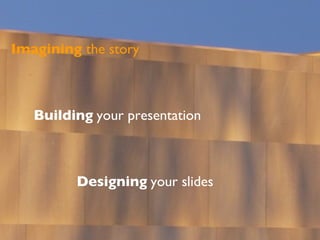

Imagining thestory Building your presentation Designing your slides
17.

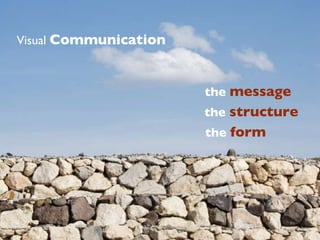

Visual Communicationthe message the form the structure
18.

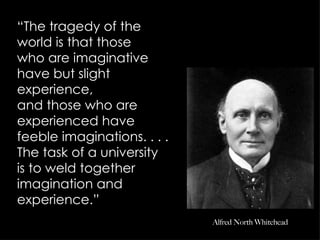

“ The tragedyof the world is that those who are imaginative have but slight experience, and those who are experienced have feeble imaginations. . . . The task of a university is to weld together imagination and experience.” Alfred North Whitehead
19.
“ Education withinert ideas is not only useless. . . . it is harmful .” Alfred North Whitehead
20.
21.
22.
23.
Lasterday
24.
25.
“ Most ideasyou can do pretty darn well with a stick in the sand.” Alan Kay
26.
27.
28.
29.
AIDA Attention InterestDesire Action
30.
Apathy Interest ChaosClarity Passivity Action
31.

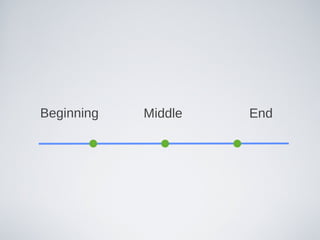

Beginning Middle End
32.
Beginning Middle Endsituation complication resolution
33.

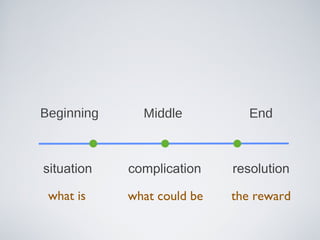

Beginning Middle Endsituation complication resolution what is what could be the reward
34.

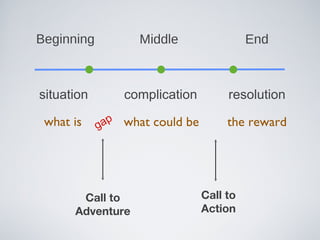

Beginning Middle Endsituation complication resolution what is what could be the reward gap Call to Adventure Call to Action
35.
ACTION
36.
Them Influence Theworld
37.

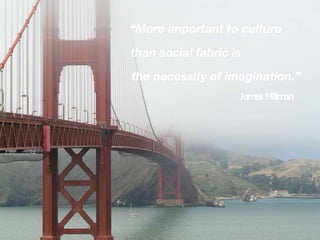

“ More importantto culture than social fabric is the necessity of imagination.” James Hillman
38.
Imagining thestory Building your presentation Designing your slides
39.
40.
41.
42.
Topical
43.
44.
Sequential
45.
Spatial
46.
47.
Climatic
48.

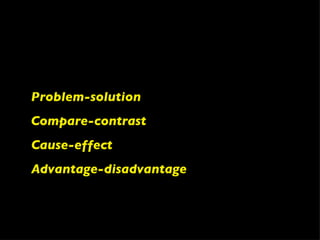

Problem-solution Compare-contrast Cause-effectAdvantage-disadvantage
49.

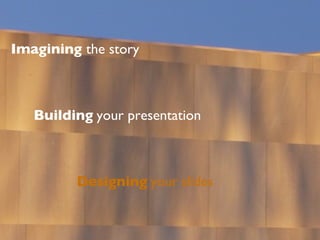

Imagining thestory Building your presentation Designing your slides
50.
Simplicity Empty SpaceContrast
51.

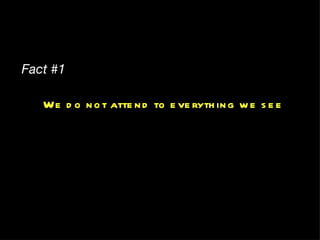

Fact #1 Wedo not attend to everything we see
52.

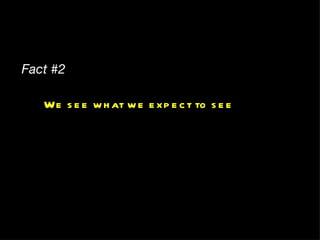

Fact #2 Wesee what we expect to see
53.
54.

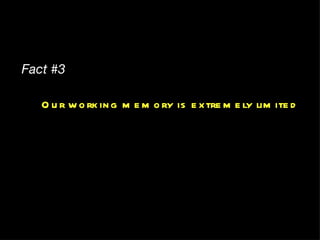

Fact #3 Ourworking memory is extremely limited
55.
WYSIWYG
56.
WYSIWYG
57.
WYSIWYG
58.
WYGIWYS
59.

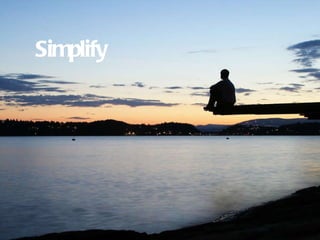

Simplify
60.
61.
High Signal-to-Noise Ratio(SNR) less noise more signal =
62.
63.

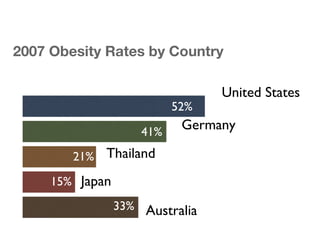

2007 Obesity Ratesby Country United States Germany Thailand Japan Australia 52% 41% 21% 15% 33%
64.

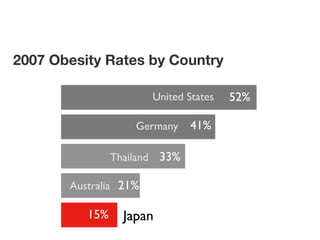

52% 41% 21%15% 33% 2007 Obesity Rates by Country Japan United States Germany Thailand Australia
65.

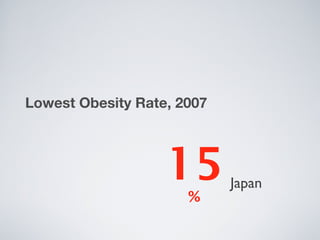

Japan 15 % Lowest Obesity Rate, 2007
66.
67.

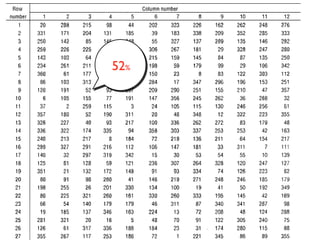

52 %
68.
52 % ofnew office buildings That’s 85 ‘ see-throughs’ in Washington, DC are empty.
69.
million $100 lostannually. . . in leases/rentals
70.

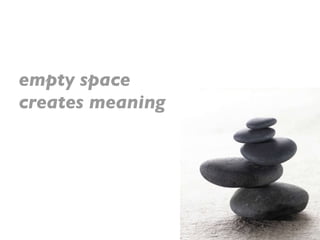

empty space creates meaning
71.
49,415 stress-related hospitalizations:Australia, 2001-2002
72.

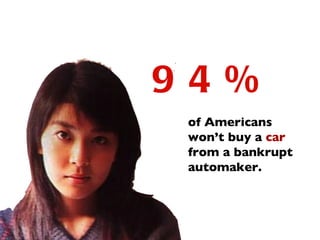

94% of Americanswon’t buy a car from a bankrupt automaker.
73.
“ It wasmade by someone capable of believing that an angel might come and sit on it.” Shaker furniture
74.
reboot yourself
75.
Simplicity Empty Space
76.

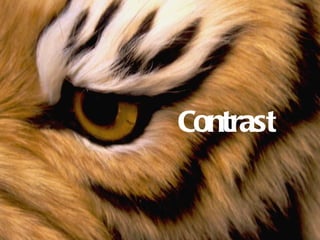

Contrast
77.

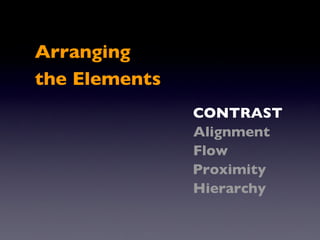

CONTRAST Flow ProximityArranging the Elements Alignment Hierarchy
78.

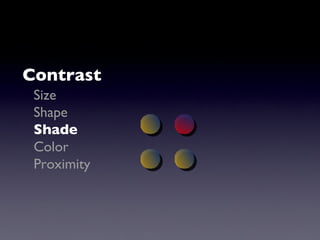

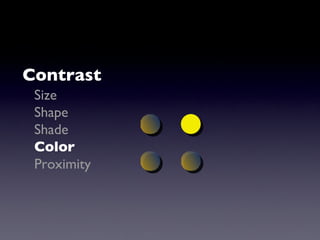

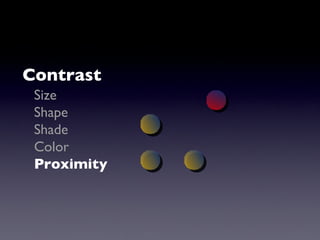

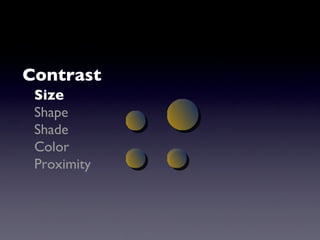

Contrast Size ShapeShade Color Proximity
79.
Contrast Size ShapeShade Color Proximity
80.
Contrast Size ShapeShade Color Proximity
81.
Contrast Size ShapeShade Color Proximity
82.
Contrast Size ShapeShade Color Proximity
83.
. . .. is an act of communication . . . . a deep understanding of the person with whom the designer is communicating . Garr Reynolds Design
84.

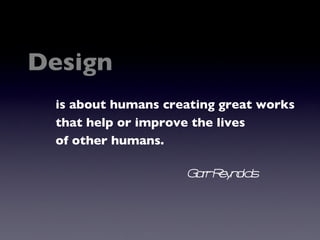

Design is abouthumans creating great works that help or improve the lives of other humans. Garr Reynolds
85.
86.
87.
88.
89.
90.
In the handsof an honest and humble mentor a presentation can become a story that changes people and their worlds.
91.
Entelechy Productions (2011)
92.

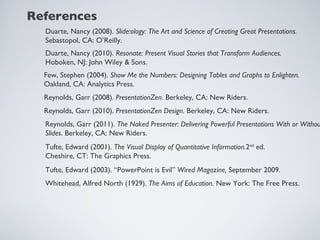

References Reynolds, Garr(2008). PresentationZen . Berkeley, CA: New Riders. Reynolds, Garr (2010). PresentationZen Design . Berkeley, CA: New Riders. Duarte, Nancy (2008). Slide:ology: The Art and Science of Creating Great Presentations. Sebastopol, CA: O’Reilly. Duarte, Nancy (2010). Resonate: Present Visual Stories that Transform Audiences. Hoboken, NJ: John Wiley & Sons. Few, Stephen (2004). Show Me the Numbers: Designing Tables and Graphs to Enlighten. Oakland, CA: Analytics Press. Reynolds, Garr (2011). The Naked Presenter: Delivering Powerful Presentations With or Without Slides . Berkeley, CA: New Riders. Tufte, Edward (2001). The Visual Display of Quantitative Information. 2 nd ed. Cheshire, CT: The Graphics Press. Tufte, Edward (2003). “PowerPoint is Evil” Wired Magazine, September 2009. Whitehead, Alfred North (1929). The Aims of Education . New York: The Free Press.
