Brief about Virtual, augmented and mixed reality technologies.

1. VIRTUAL AND
AUGMENTED
REALITY

2. What is REAL?
How do you define real?
If you’re talking about what you can feel,
what you can smell, what you can taste
and see, then REAL is simply electrical
signals interpreted by your brain.
- Morpheus, The Matrix

3. If you trick your senses by
using any technology that
blurs the line between the real
and digital world, thereby
creating a sense of Immersion

4. If you trick your senses by
using any technology that
blurs the line between the real
and digital world, thereby
creating a sense of Immersion
IMMERSION
An illusory environment
that completely surrounds
you such that you feel
that you are inside it and
part of it

5. IMMERSION
TECHNOLOGY
IN TODAY’s
WORLD

6. `1. Intro
Virtual /Augmented and
Mixed Reality Technologies provide
a gateway between physical and
virtual worlds ………
➔ What? VR/AR/MR
Technology Overview
➔ Why? Gap Analysis….
Advancements in world
➔ How? We need….
Applications

7. “There is a wonderful future
but always moving ahead of us,
just out of reach”
Michael Abrash
(Chief Scientist-Oculus Rift) Technology
Overview

8. A complete immersion
experience that shuts
out the physical
world and trickle
with ones senses
Virtual
Reality

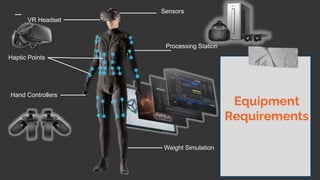

9. Equipment
Requirements
VR Headset
Haptic Points
Weight Simulation
Sensors
Processing Station
Hand Controllers

10. Health Care.
Healthcare virtual reality is a versatile
technology that can significantly impact
education and patient engagement ……

11. Education.
Virtual reality can unlock potential,
and giving students new ways to
experience learning
China – leading country in VR class
rooms.

12. Military
VIRTUAL REALITY has been
adopted by the military – this includes
all three services (army, navy and air
force) – where it is used for training
purposes.
A virtual reality simulation
enables them to do so but without the
risk of death or a serious injury.

13. VR Based Flying Training
USAF
Pilot Training Next (PTN) program
24 Weeks course (instead of 01 year)
80 flight hours
90 formal Simulator hours
13 of 30 pilots awarded Wings
Training time reduction: > 50%
Tactical / Formation flying using VR

14. A technology that
superimposes a
computer-generated
image on a user's view of
the real world, thus
providing a composite
view
Augmented
Reality

15. Equipment
Requirements
Software Development
and content generation
Environment
AR Goggles with built-in
processing system

16. Helmet Mounted
Display
Striker II – BAE Systems
It is a patented and legacy
technology of BAE but it applies the
same fundamentals of optics which are
now avaible in commercial world

17. Head Mounted
Display
Aero Glass, first to bring AR to
pilots providing an unparalleled 3D, 360°
experience in the cockpit, regardless of
the visibility.
Visualize terrain, navigation,
traffic (ADS-B), instrument, weather, and
airspace information with access to vital
safety procedures and protocols.

18. Quality Control and
Assurance
Accurate overlay enables fast
and cost-effective inspection of
components, tools and production
facilities
- Step by Step instructions
- Precautions
- Visualization of final outcome
- Remote supervision / guidance

19. Security
Positive IdentificationPositive Identification
Complete picture of Ops area
Positive Identification
Complete picture of Ops area
Sight beyond sight
Positive Identification
Complete picture of Ops area
Sight beyond sight
Visual cues
Positive Identification
Complete picture of Ops area
Sight beyond sight
Visual cues
Decision making Cue

20. Smart Logistics
AR has potential to INCREASE
PRODUCTIVITY in warehousing and
transport by optimizing processes across
the entire supply chain

21. Smart Logistics
● Live monitoring/ updating of stock
● Bin / Item identification and status
● Instantaneous update to all
stakeholders
● On-the-fly info (expiry date etc)

22. A hybrid reality that
treats digital content as
real world object
Mixed
Reality

23. Training
Training Modules based on MR are
now available allowing interaction
with digital content for better
understanding

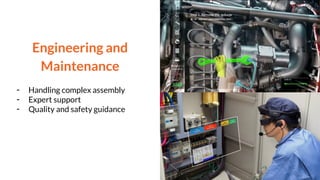

24. Engineering and
Maintenance
- Handling complex assembly
- Expert support
- Quality and safety guidance

25. NASA Mixed Reality
Application
Mixed-reality technology allows
NASA scientists to plan, design and
even walk on Mars

26. MR Based 3D
Visualization
In use with Royal Australian Air Force
for strategy, threat management and
training
Developed by Saab in collaboration
with Australian Defense Science &
Tech Group, commissioned in 2016
.

27. Established MR Program,
USAF and US Navy
- Maintenance, Ops and Training
Augmented Reality (MOTAR) – USAF
- Collaborative Augmented Reality
Maintenance Assistant (CARMA) – US
Navy

28. Aim is to revolutionize
the training and combat
jet cockpit environments
of the future
BAE Mixed
Reality Cockpit
Technology

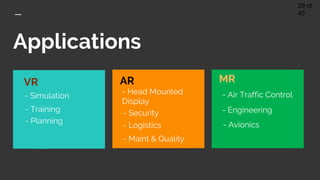

29. Applications
MRVR
- Simulation
AR
- Training
- Planning
- Head Mounted
Display
- Security
- Logistics
- Maint & Quality
- Air Traffic Control
- Engineering
- Avionics
29 of
40
