This document discusses the vernier caliper, a tool used to measure internal, external, and depth dimensions. It describes the main parts of the vernier caliper including the main scale, vernier scale, inside and outside jaws, screw clamp, and depth probe. The document explains how to properly read measurements from the vernier scale by identifying where the zero points of the main and vernier scales align. Examples are given of measuring lengths accurately to within 1/10, 1/20 and 1/50 of a millimeter. Slides provide exercises for students to practice using the vernier caliper to take measurements.

1. Measurements
vernier caliper

2. What Do You
Know About The
Measurements
Slide a ,1

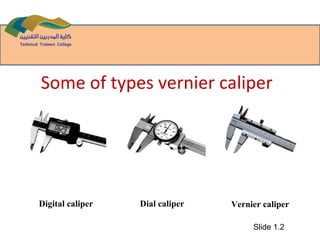

3. Digital caliper Dial caliper Vernier caliper
Some of types vernier caliper
Slide 1.2

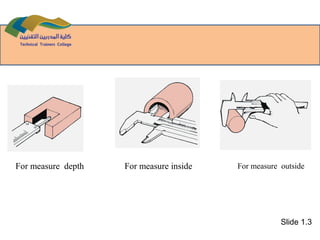

4. For measure depth For measure inside For measure outside
Slide 1.3

5. Depth
probe
Outside jaws
Inside jaws
Main scale
Screw clamp
Vernier
scale
Slide 1.1

6. Correct
wrong wrong
Slide 2.1

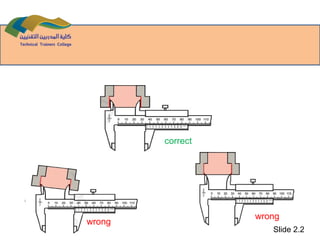

7. correct
wrong
wrong
Slide 2.2

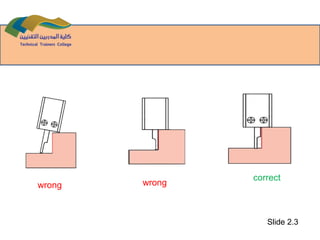

8. correct
wrong wrong
Slide 2.3

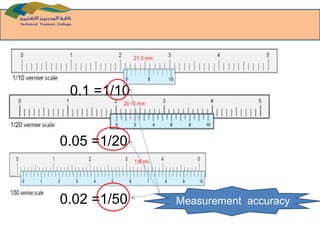

9. 1/10=0.1
1/20=0.05
1/50=0.02 Measurement accuracy

10. How to read the vernier caliper
Slide 3.1

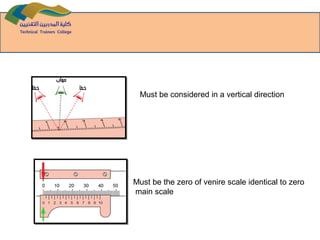

11. Must be considered in a vertical direction
Must be the zero of venire scale identical to zero
main scale

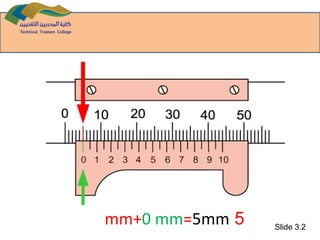

12. 5mm+0 mm=5mm Slide 3.2

13. 23mm+0.40 mm=23.40mm Slide 3.3

14. Exercise for reading vernier caliper
10.00mm
Slide 4.1

15. Exercise for reading vernier caliper
35.65mm
Slide 4.1

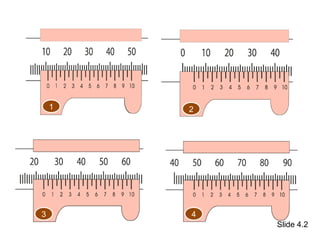

16. 1 2
43
Slide 4.2

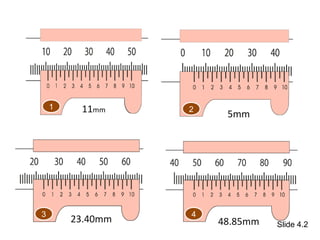

17. 1 2
43
11mm
23.40mm 48.85mm
5mm
Slide 4.2

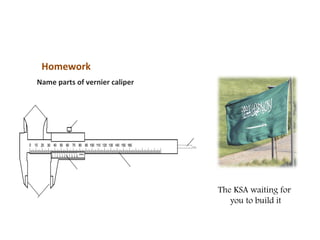

18. Homework
Name parts of vernier caliper
The KSA waiting for
you to build it

19. Behaviors
No one can get the knowledge
only after learning how to think
Respecting friends and teacher.
Cooperation with others.
Having responsibility.
Good listening and compliance.
Proper arrangement

20. Any question?
Slide
4.3
