1. INTRODUCTION
Safety precaution
Safety describes that it is the way of doing work
correctly to prevent accident.
It can be defined as the way of prevention of
accidents.
The prevention of accident concerns
The work man (operator) and his partner
The work piece
The working tool
the work shop
1
workshop
practice
2. Causes of accidents
Faulty attitude towards safety
Emotions (anger, worry, excitements…)
The other causes of accident are not to take safety as a
way of life.
General safety measures
Dress correctly (wear apron, short sleeved beltless
coats).
Remove rings, wrist watches, necklaces, bra- slates.
Protect your eyes
No horse play
No scrap materials on the flour
Take care of injuries 2
workshop
practice
3. MEASUREMENT
o Measurement is the process of determining or
finding the size, quantity or degree of something .
o The principle dimensional measurement is length;
secondary measurement is angle and curvature.
You can describe shape without describing size, but
not the reverse.
o Measurement science is vital for trade &commerce
,&the basis of modern science& technology.
3
workshop
practice
4. MEANS OF MEASUREMENT
The means of measurement could be classified as
follows:
I. Standards (reference masters or setting standards)-
these are used to reproduce one or several definite
values of a given quantity.
II. Fixed gauges-these are used to check the
dimensions, form, and position of product features.
III. Measuring instrument-these are used to determine
the values of the measured quantity.
4
workshop
practice

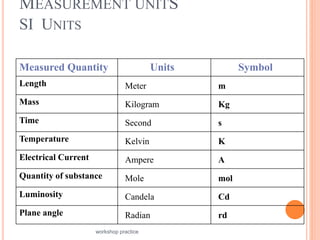

5. MEASUREMENT UNITS
SI UNITS
Symbol
Units
Measured Quantity
m
Meter
Length
Kg
Kilogram
Mass
s
Second
Time
K
Kelvin
Temperature
A
Ampere
Electrical Current
mol
Mole
Quantity of substance
Cd
Candela
Luminosity
rd
Radian
Plane angle
workshop practice 5
6. ENGLISH UNITS
Equivalent value
in SI
Value
English unit
1 mile = 1.609 km
1mile=1760yard
Miles
1yd = 91.44 cm
1 yard = 3 ft
Yard
1 ft = 30.48 cm
1 ft = 12 in
Foot
1 in = 25.4 mm
in
Inch
workshop practice 6
7. Use:- for linear measurement and
marking.
Material:- spring steel or stainless
steel.
Graduation:- in 10mm, 5mm, 1mm
and 0.5mm in metric system. The
reading accuracy of the steel rule is
0.5mm.
Size:- available in 150mm, 300mm
& 600mm.
STEEL RULE
workshop
practice
7

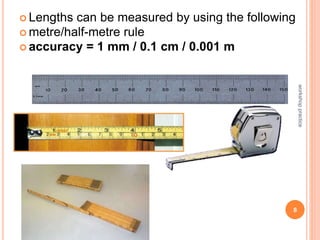

8. Lengths can be measured by using the following
metre/half-metre rule
accuracy = 1 mm / 0.1 cm / 0.001 m
8
workshop
practice
9. calipers
Calipers are the very simple tools used together with a
steel rule for the measurement or comparison of linear
dimensions
Outside caliper
Outside calipers are used for measuring external
dimensions such as the length, diameter, or even the
thickness of a solid.
9
workshop
practice

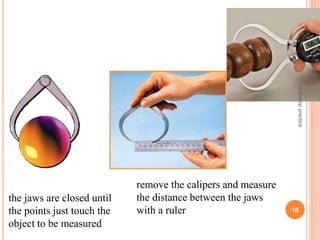

10. the jaws are closed until
the points just touch the
object to be measured
remove the calipers and measure
the distance between the jaws
with a ruler 10
workshop
practice
11. Inside caliper
Inside calipers are used for measuring internal dimensions such as
the diameter of a hole, or the width of a slot etc.
11
workshop
practice
12. workshop
practice
12
VERNIER CALIPER
Function
To measure smaller distances
Can measure up to .001 inch or .01mm.
Features
Larger, lower jaws are designed to measure outer points e.g.
diameter of a rod.
Top jaws are designed to measure inside points e.g. size of a hole.
A rod extends from the rear of the caliper and can be used to
measure the depth.
14. workshop
practice
14
STRUCTURE OF THE VERNIER CALIPER
Main Scale
Main scale is graduated in cm and mm.
Vernier Scale
It slides on the main scale.
On Vernier scale 0.9cm is divided into 10 equal parts.
Jaws
Two inside jaws (Upper)
Two outside jaws (Lower)
15. workshop
practice
15

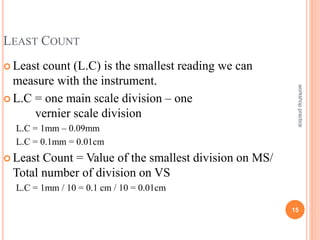

LEAST COUNT
Least count (L.C) is the smallest reading we can
measure with the instrument.
L.C = one main scale division – one
vernier scale division
L.C = 1mm – 0.09mm
L.C = 0.1mm = 0.01cm
Least Count = Value of the smallest division on MS/
Total number of division on VS
L.C = 1mm / 10 = 0.1 cm / 10 = 0.01cm
16. HOW TO USE VERNIER CALIPER?
Close the jaws
Calculate the least count
Place the object between the
two jaws
Record the position of zero
of Vernier scale on the Main
scale (3.2cm)
Notice the reading of VS
which coincides with MS
reading (3rd division in this
case)
workshop
practice
16
17. workshop
practice
17
READING OF THE INSTRUMENT
Reading of the instrument = MS div +
(coinciding VS div x L.C)
= 3.2 + (3 x 0.01)
= 3.2 + 0.03
= 3.23 cm
18. workshop
practice
18
TO MEASURE THE DEPTH
A rod extends from the rear of the caliper and can be used to
measure the depth.
Open the jaws of caliper and place the rod inside hole of the
object, such as the rod reaches the inner most portion of the
object.
Read the Vernier caliper. (same procedure as described in
previous slides)
20. MEASURING DEPTH OF A HOLE
Use the depth gauge of
the caliper as shown
20
workshop
practice
21. READING THE VERNIER SCALE
Read the “0” position of the vernier scale on the main scale to
get a rough reading. Rough reading = 18mm
21
workshop
practice
Look along the veriner
scale until one of the
veriner division
coincides with the
mail scale.
Accurate reading
=18.46mm ±0.01
22. EXAMPLE 1: The external measurement (diameter) of a round section piece of steel is
measured using a vernier caliper, metric scale.
A. The main metric scale is read first and this shows that there are 13 whole divisions
before the 0 on the hundredths scale. Therefore, the first number is 13.
B. The’ hundredths of mm’ scale is then read. Only one division on the main metric
scale lines up with a division on the hundredths scale below it, whilst others do not. In
the example below, the 41st division on the hundredths scale lines up exactly with a
division on the metric scale above.
C. This 41 is multiplied by 0.02 giving 0.82 as the answer (each division on the
hundredths scale is equivalent to 0.02mm).
D. The 13 and the 0.82 are added together to give the final measurement of 13.82mm
(the diameter of the piece of round section steel).
22
workshop
practice
26. EXERCISE
What is the reading in the caliper shown?
Please click on one of the following answer.
26
workshop
practice
A. 3.51cm
B. 3.57cm
C. 3.62cm
D. 3.642cm
E. 3.67cm
3.5
0 5 10
3 4
overlap
27. 0 5 10
3 4
overlap
SOLUTION
27
workshop
practice
Read the “0” position of the
vernier scale on the main scale
to get a rough reading.
Rough reading = 3.6cm
Look along the vernier scale
until one of the vernier division
coincides with the main scale
Accurate reading =
3.67cm±0.005cm
28. vernier depth gauge
A vernier depth gauge is
used for measuring depth
of hole, slots and
recesses.
28
workshop
practice
29. Vernier Height Gauge
A vernier height gauge is used for
measuring height of an object or
for marking lines onto an object of
given distance from a datum base.
29
workshop
practice
31. Laying out is the process of scribing lines, points and arcs on to
the metal to indicate the shape and size of the object or it is
transforming the drawing of the object to be made on to the metal.
Accuracy of a layout is very important to the accuracy of the
finished product.
Good layout will entail the proper and careful use of all layout
tools.
31
workshop
practice
32. SCRIBER
Use:- scribe lines to indicate the dimensions of the work
piece to be filed or machined.
Material:- They are made of high carbon steel.
Types:- 1. Single ended 2. Double ended
3. Knife edge 4. Off-set.
1. Single ended:- This scriber is also
known as Hand scriber. Point is
made on one side only. Knurling is
made on the body of this scriber. It
is used for general marking
purposes.
workshop
practice
32
33. Grip
Bent
Point
Straight
Point
2. Double ended:- This scriber has
one point each at both ends. One of
which is bent at 90º, another point
is kept straight. Centre portion of
body is knurled for better gripping.
This scriber is used mainly in
accordance with scribing block.
workshop
practice
33
34. 3. Knife edge:- This scriber has one
point each at both ends. One of
which is knife edge, another point
is kept straight. Centre portion of
body is knurled for better gripping.
This scriber is used mainly for
plastic and wood working
4. Off-set:- Point of this scriber is made
offset to facilitate the marking of
minimum height and to set zero when
used with Vernier Height Gauge.
workshop
practice
34
35. TRY SQUARE
Stock
Blade
90º
Use:- to check the squareness of
machined surface, flatness of
surface, make lines at 90º to the edge
of work pieces & to set work piece at
right angle on work holding device.
Material:- hardened steel.
Size:- available in 100mm, 150mm
& 200mm.
Types:- 1. Fixed try square
2. Adjustable try square
workshop
practice
35
37. DIVIDER
Use:- for scribing circles, arcs
and transferring and stepping
of distances.
Material:- tool steel or high
carbon steel.
Size:- 50mm to 200mm.
Spring
Type
Wing
Type
workshop
practice
37
38. • For the correct location and setting of the
divider legs, prick punch marks of 30º are
used.
• Both the legs of the divider should always
be of equal length.
• Dividers are specified by the type of their
joints and length.
• The divider point should be kept sharp in
order to produce fine lines. Frequent
sharpening with an oil stone is better than
sharpening by grinding. Sharpening by
grinding will make the points soft.
Firm Joint
workshop
practice
38
39. TRAMMEL
Used to scribe larger circles and arcs that are not within
the capacity of dividers
workshop
practice
39

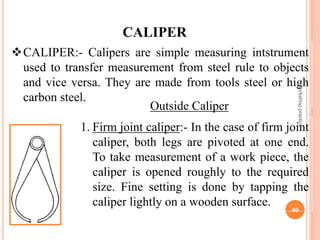

40. CALIPER:- Calipers are simple measuring intstrument
used to transfer measurement from steel rule to objects
and vice versa. They are made from tools steel or high
carbon steel.
CALIPER
1. Firm joint caliper:- In the case of firm joint
caliper, both legs are pivoted at one end.
To take measurement of a work piece, the
caliper is opened roughly to the required
size. Fine setting is done by tapping the
caliper lightly on a wooden surface.
Outside Caliper
workshop
practice
40
41. 2. Spring joint caliper:- For this type of
caliper, the legs are assembled by means of
a pivot loaded with a spring. For opening
and closing the caliper legs, a screw and nut
are provided.
Spring joint caliper have the advantage
of quick setting. The setting made will not
change unless the nut is turned. The size of
caliper is specified by its length, which is
the distance between the pivot centre and
the tip of the leg.
Spring
Pivot
Adjusting
Unit
workshop
practice
41
42. 3. Inside Caliper:- This caliper is used to measure the inside
dimensions like the width of slots, diameter of holes, etc.
Legs of this caliper are bent in outward direction as shown
in figure beside.
Inside Caliper
workshop
practice
42
43. 4. Odd leg Caliper:- This caliper is also known as Jenny
caliper or Hermaphrodite caliper or leg and point
caliper.They are used for marking lines parallel to inside
and outside edges, locating the centre of round bars,
drawing parallel lines along outer edges, scribing lines
along curved edges.
workshop
practice
43
44. Engineer’s bevel:- is a tool that is used for transferring
angles and testing angular surfaces for accuracy. This
tool not used for measuring angles.
Bevel Protractor:- is used to check the angles of
inclined surfaces, marking out, and for transferring
angles. Graduated in degrees from 0-1800
workshop
practice
44
45. Combination set:- is a versatile too used in laying out that
consists of a steel rule, square head, bevel protractor and
center head.
bevel protractor
center head
steel rule,
square head
workshop
practice
45
46. Blade
The blade is designed to allow the different heads to slide along the blade
and be clamped at any desired location. The groove in the blade is
concave to eliminate dirt buildup and permit a free and easy slide for the
heads. By removing all the heads, the blade may be used alone as a rule.
Square Head
The square head is designed with a 45° and 90° edge, which makes it
possible to be used as a try square and miter square. By extending the
blade below the square, it can be used as a depth rule. The square head
can also be used as a level.
workshop
practice
46

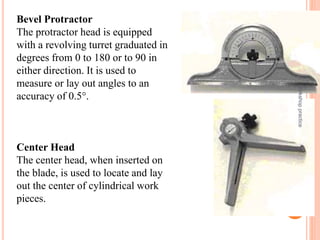

47. Bevel Protractor
The protractor head is equipped
with a revolving turret graduated in
degrees from 0 to 180 or to 90 in
either direction. It is used to
measure or lay out angles to an
accuracy of 0.5°.
Center Head
The center head, when inserted on
the blade, is used to locate and lay
out the center of cylindrical work
pieces.
workshop
practice
47

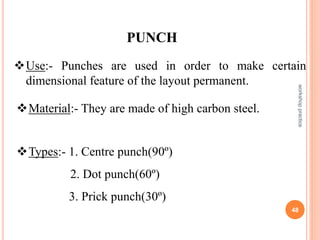

48. PUNCH
Use:- Punches are used in order to make certain
dimensional feature of the layout permanent.
Material:- They are made of high carbon steel.
Types:- 1. Centre punch(90º)
2. Dot punch(60º)
3. Prick punch(30º)
workshop
practice
48
49. 1. Centre Punch:- The angle of
the point is 90º. The punch
mark made by this is wide and
not very deep. This punch is
used for locating hole. The
wide punch mark gives a good
seating for starting the drill.
2. Dot Punch:- The angle of the
point is 60º. This punch is used
for marking witness marks.
Dot Punch
Centre Punch
workshop
practice
49
50. 3. Prick Punch:- The angle of the
point is 30º. The 30º point
punch is used for making light
punch marks needed to position
dividers. The divider leg will
get a proper seating in the
punch mark.
Prick Punch
workshop
practice
50

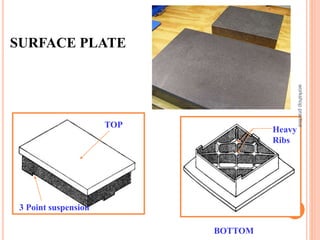

51. Use:- Surface plates are used most widely as a datum
surface in machine shop work.
SURFACE PLATE
Material:- Gray cast iron and Granite.
Specification:- Cast iron surface plates are designated by
their length, breadth, grade and the Indian Standard
number. i.e. C.I. Surface plate 2000 X 1000 Gr1. I.S.
2285.
workshop
practice
51
53. Use:- To support the job and to provide a vertical or
angular plane for marking.
Material:- Angle plates are made from Cast iron or
Steel.
Types:-
1. Solid Angle plate
2. Adjustable Angle Plate
3. Box Angle plate.
ANGLE PLATE
workshop
practice
53
54. Solid Angle Plate:- This angle
plate is most common. It has the
two plane surfaces perfectly
machined at 90º to each other.
Such angle plates are suitable for
supporting work pieces during
layout work. They are
comparatively smaller in size.
Slots are provided to clamp the
work piece and to reduce the
weight.
workshop
practice
54
55. Vee Block
Vee blocks usually in a couple are made
of cast iron or steel in case-hardening.
They are generally used for holding
circular work piece for marking out or
machining.
workshop
practice
55
