VENTILATION OF
UNDERGROUND MINE
© Hassan Harraz 2016
Hassan Z. Harraz
hharraz2006@yahoo.com
Spring, 2016

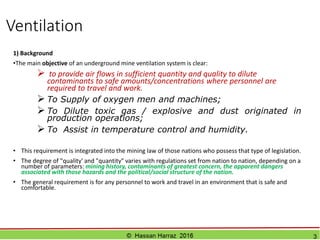

Ventilation
1) Background
•The main objective of an underground mine ventilation system is clear:
 to provide air flows in sufficient quantity and quality to dilute
contaminants to safe amounts/concentrations where personnel are
required to travel and work.
 To Supply of oxygen men and machines;
 To Dilute toxic gas / explosive and dust originated in
production operations;

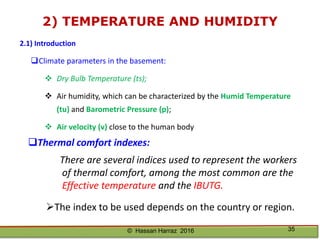

 To Assist in temperature control and humidity.
• This requirement is integrated into the mining law of those nations who possess that type of legislation.
• The degree of "quality' and "quantity" varies with regulations set from nation to nation, depending on a
number of parameters: mining history, contaminants of greatest concern, the apparent dangers
associated with those hazards and the political/social structure of the nation.
• The general requirement is for any personnel to work and travel in an environment that is safe and
comfortable.
2
OUTLİNE OF LECTURES:

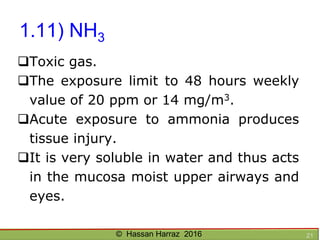

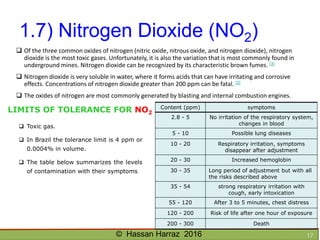

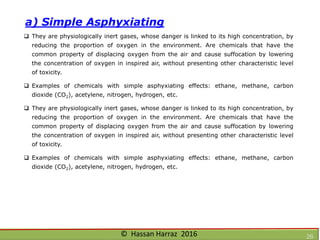

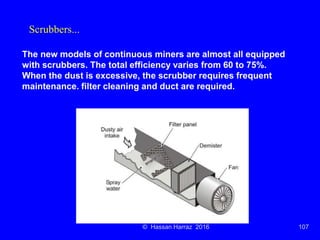

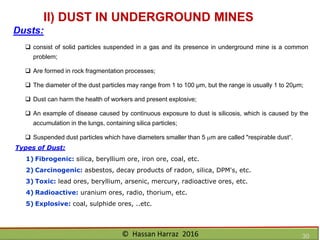

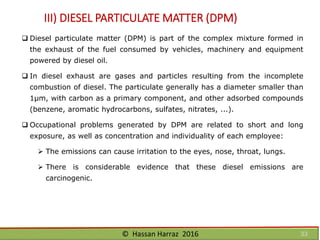

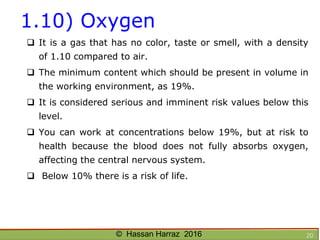

 Lecture 1 : POLLUTANT UNDERGROUND MINES
 Lecture 2: RULES FOR CALCULATION OF AIR REQUIREMENTS

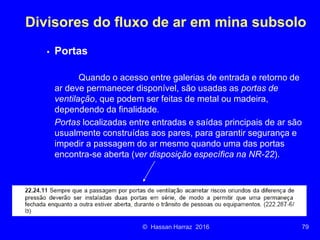

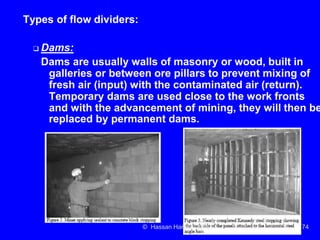

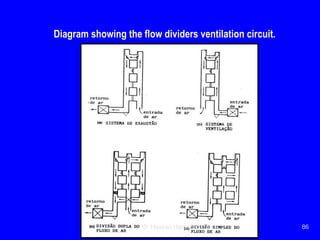

 Lecture 3: DIVIDERS AIR FLOW

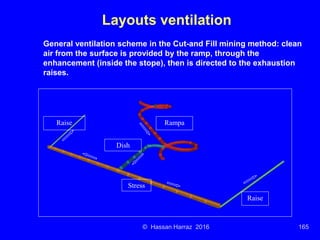

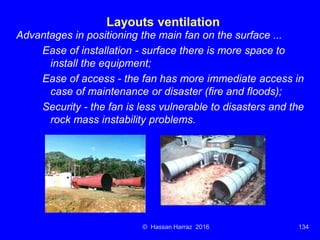

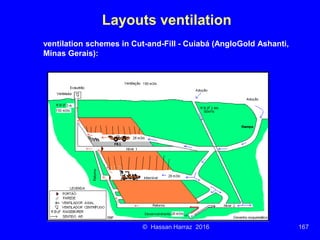

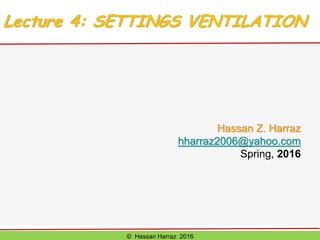

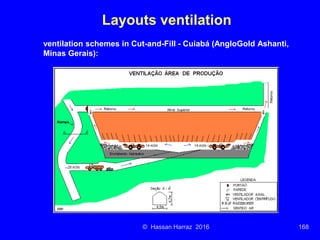

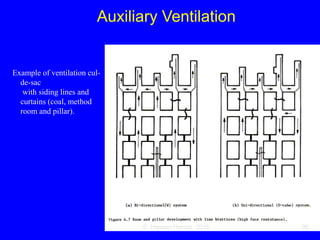

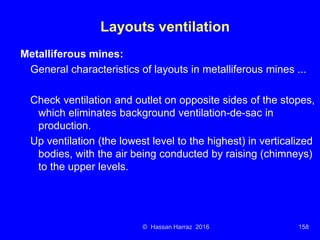

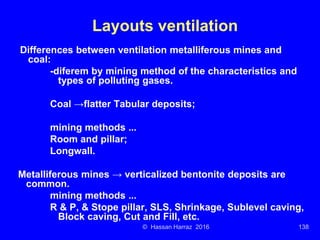

 Lecture 4: SETTINGS VENTILATION

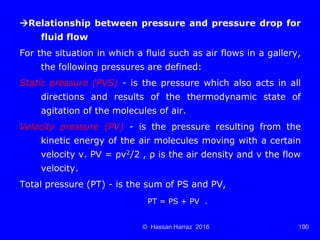

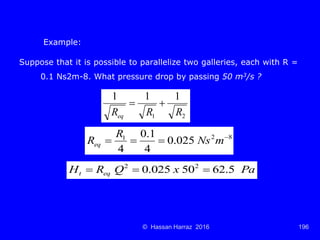

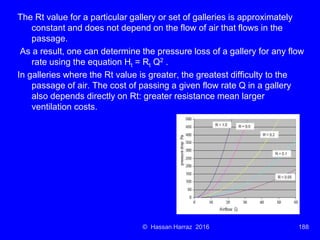

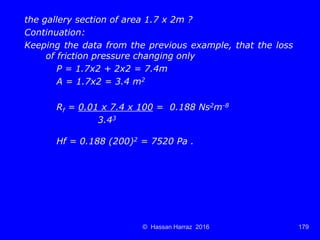

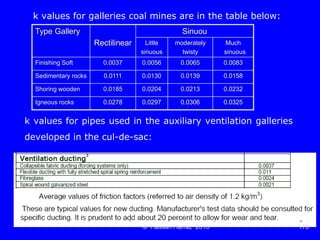

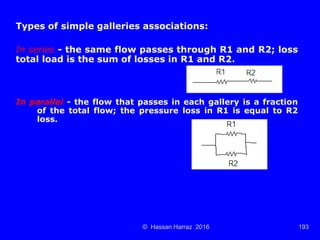

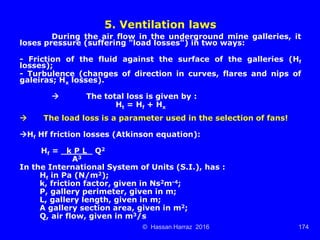

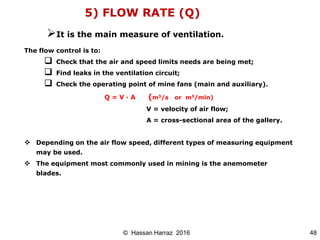

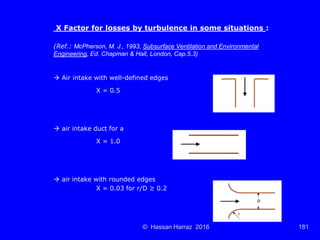

 Lecture 5: LAWS OF VENTILATION

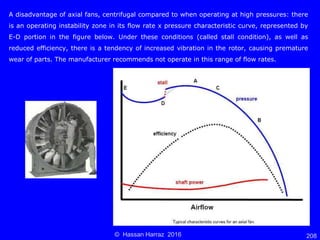

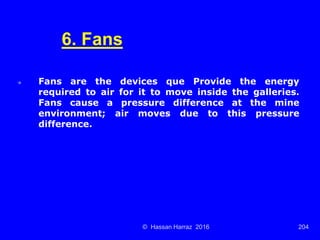

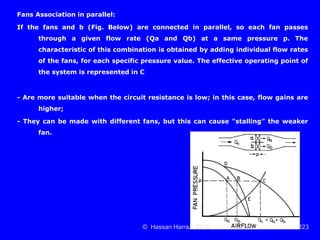

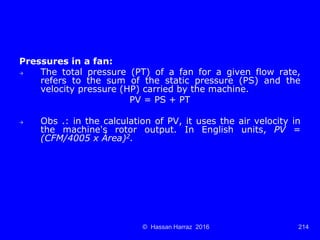

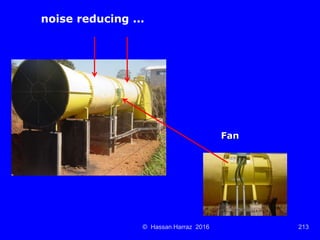

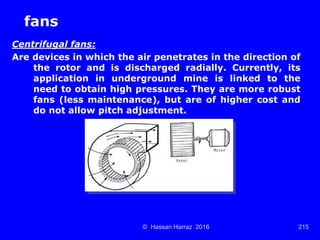

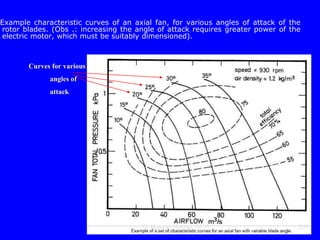

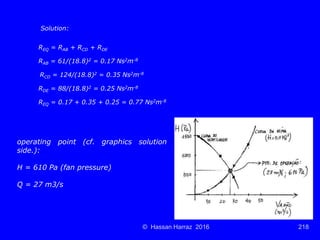

 Lecture 6: FANS

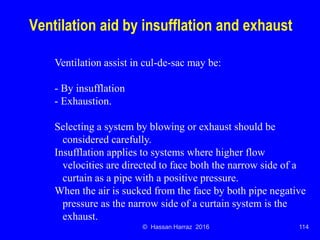

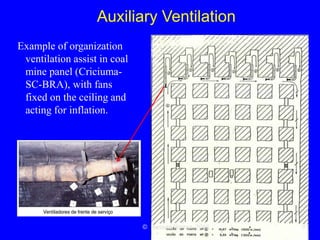

 Lecture 7: VENTILATION CONTROL
© Hassan Harraz 2016 3

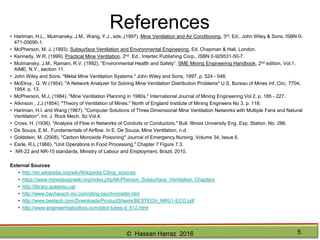

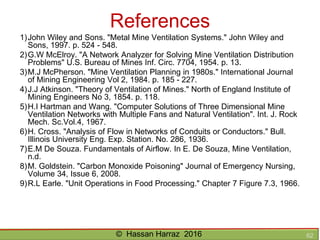

References• Hartman, H.L., Mutmansky, J.M., Wang, Y.J., eds.,(1997). Mine Ventilation and Air Conditioning, 3rd. Ed., John Wiley & Sons, ISBN 0-
471-05690-1.
• McPherson, M. J. (1993). Subsurface Ventilation and Environmental Engineering, Ed. Chapman & Hall, London.
• Kennedy, W.R. (1999). Practical Mine Ventilation, 2nd. Ed., Intertec Publishing Corp., ISBN 0-929531-50-7.
• Mutmansky, J.M., Ramani, R.V. (1992). “Environmental Health and Safety”, SME Mining Engineering Handbook, 2nd edition, Vol.1,
AIME, N.Y., section 11.
• John Wiley and Sons. "Metal Mine Ventilation Systems." John Wiley and Sons, 1997. p. 524 - 548.
• McElroy., G. W.(1954). "A Network Analyzer for Solving Mine Ventilation Distribution Problems" U.S. Bureau of Mines Inf. Circ. 7704,
1954. p. 13.
• McPherson, M.J. (1984). "Mine Ventilation Planning in 1980s." International Journal of Mining Engineering Vol 2, p. 185 - 227.
• Atkinson , J.J (1854). "Theory of Ventilation of Mines." North of England Institute of Mining Engineers No 3, p. 118.
• Hartman, H.I. and Wang (1967). "Computer Solutions of Three Dimensional Mine Ventilation Networks with Multiple Fans and Natural
Ventilation". Int. J. Rock Mech. Sc.Vol.4.
• Cross, H. (1936). "Analysis of Flow in Networks of Conduits or Conductors." Bull. Illinois University Eng. Exp. Station. No. 286.
• De Souza, E.M.. Fundamentals of Airflow. In E. De Souza, Mine Ventilation, n.d.
• Goldstein, M. (2008). "Carbon Monoxide Poisoning" Journal of Emergency Nursing, Volume 34, Issue 6.
• Earle, R.L.(1966). "Unit Operations in Food Processing." Chapter 7 Figure 7.3.
• NR-22 and NR-15 standards, Ministry of Labour and Employment, Brazil, 2010.
External Sources
• http://en.wikipedia.org/wiki/Wikipedia:Citing_sources
• https://www.minedesignwiki.org/index.php/McPherson_Subsurface_Ventilation_Chapters
• http://library.queensu.ca/
• http://www.bacharach-inc.com/sling-psychrometer.htm
• http://www.bestech.com/Downloads/ProductSheets/BESTECH_NRG1-ECO.pdf
• http://www.engineeringtoolbox.com/pitot-tubes-d_612.html
© Hassan Harraz 2016 4
Lecture 1: Pollutant underground mines
Hassan Z. Harraz
hharraz2006@yahoo.com
Spring, 2016
© Hassan Harraz 2016
Follow me on Social Media
http://facebook.com/hzharraz
http://www.slideshare.net/hzharraz
https://www.linkedin.com/in/hassan-harraz-3172b235
© Hassan Harraz 2016
Ventilation of underground mine
Ventilation of underground mine

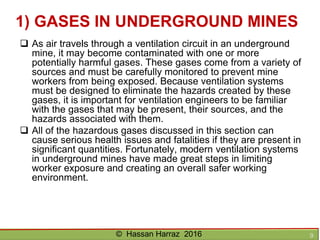

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

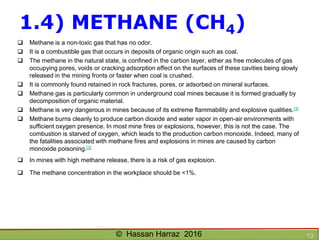

Ventilation of underground mine
Ventilation of underground mine

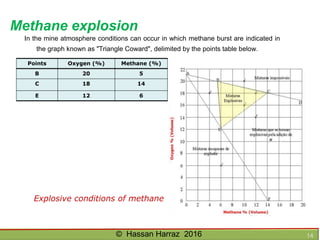

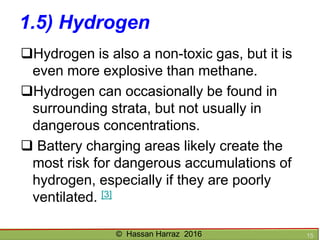

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

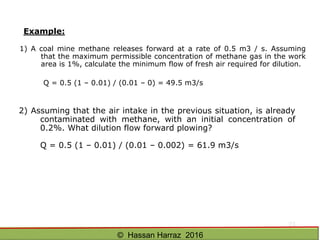

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

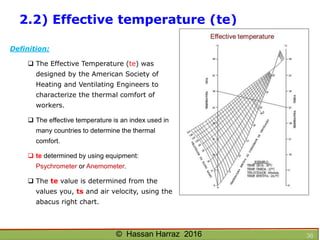

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

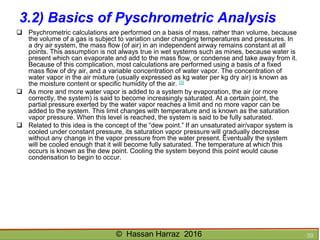

Ventilation of underground mine

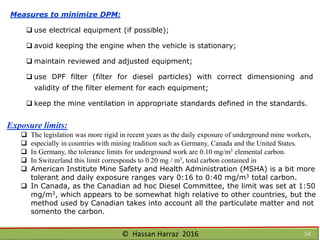

Ventilation of underground mine

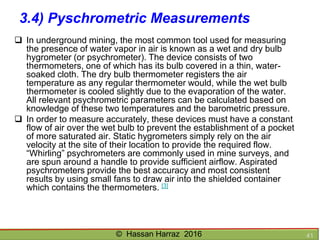

Ventilation of underground mine

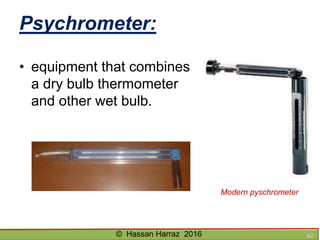

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

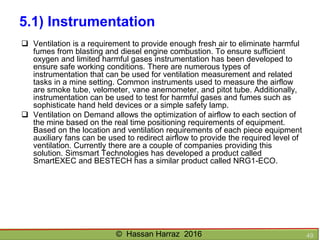

Ventilation of underground mine

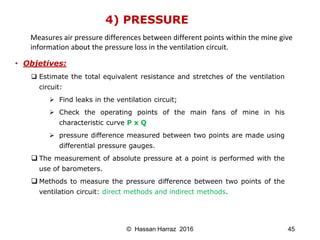

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

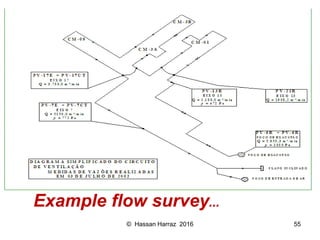

Ventilation of underground mine
Ventilation of underground mine

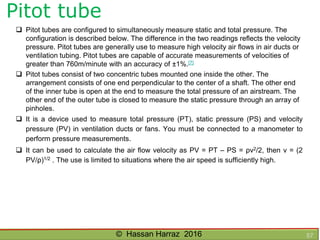

Ventilation of underground mine

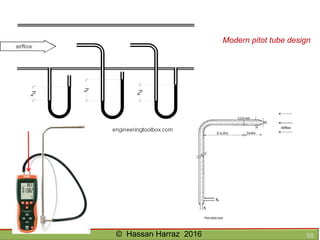

Ventilation of underground mine
Ventilation of underground mine

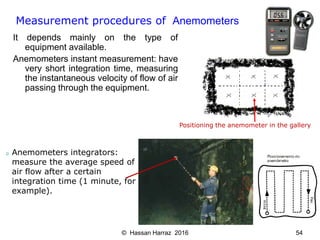

Ventilation of underground mine
Ventilation of underground mine

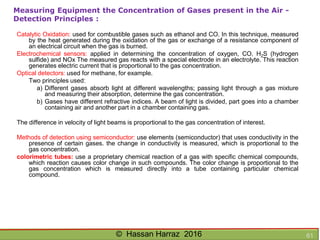

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

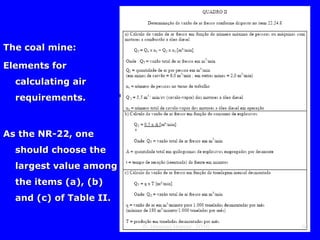

Ventilation of underground mine

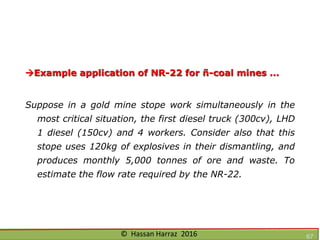

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

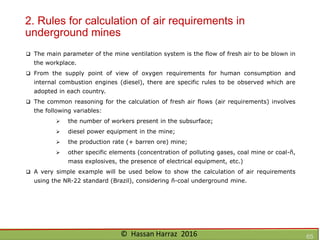

Ventilation of underground mine
Ventilation of underground mine

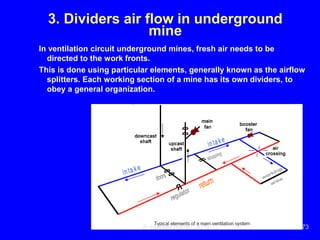

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

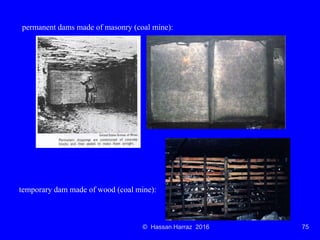

Ventilation of underground mine

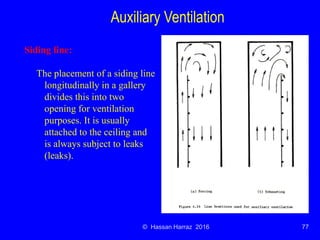

Ventilation of underground mine

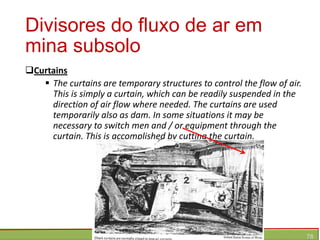

Ventilation of underground mine
Ventilation of underground mine

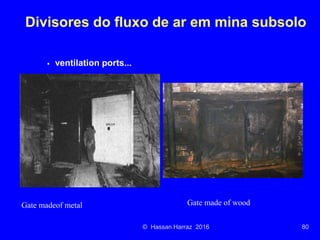

Ventilation of underground mine
Ventilation of underground mine

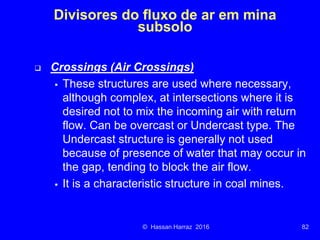

Ventilation of underground mine
Ventilation of underground mine

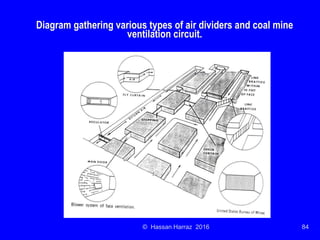

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

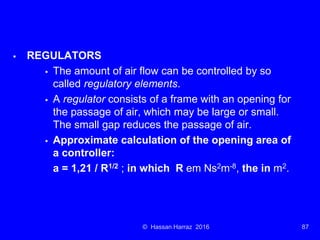

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

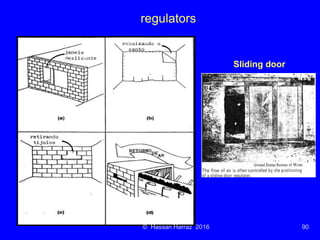

Ventilation of underground mine

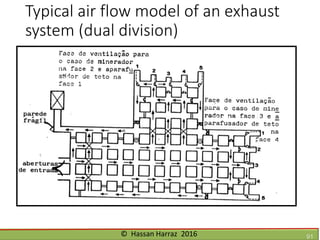

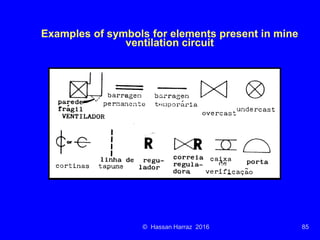

Ventilation of underground mine
Ventilation of underground mine

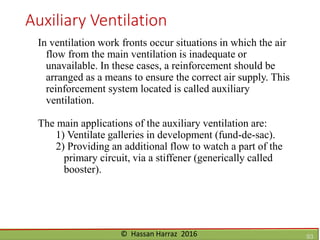

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

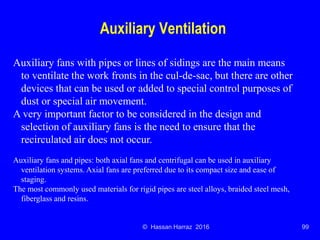

Ventilation of underground mine

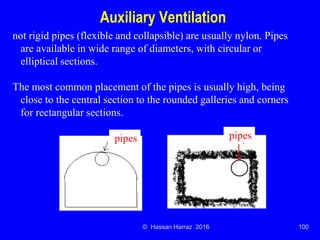

Ventilation of underground mine

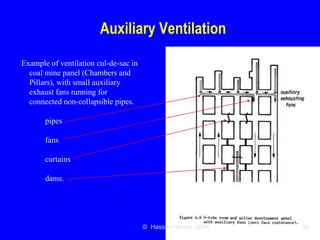

Ventilation of underground mine
Ventilation of underground mine

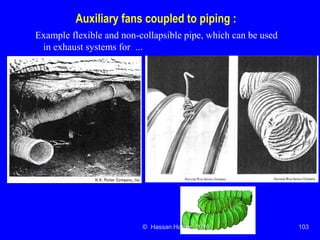

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

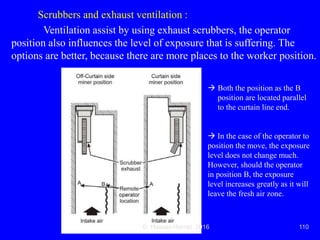

Ventilation of underground mine
Ventilation of underground mine

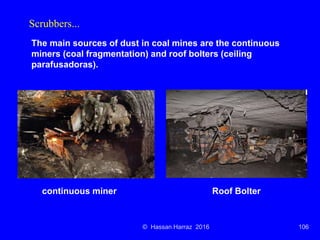

Ventilation of underground mine

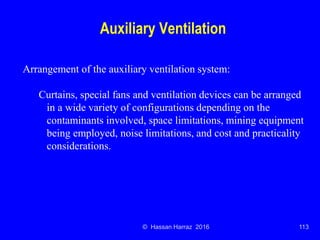

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

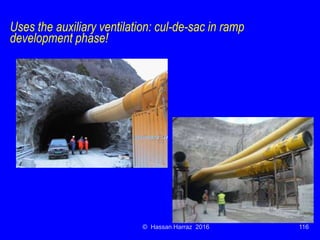

Ventilation of underground mine

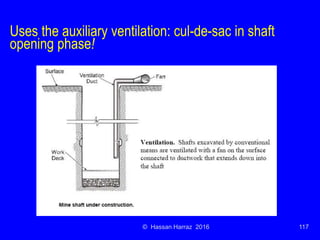

Ventilation of underground mine

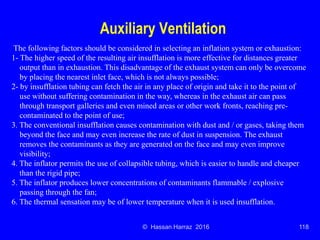

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

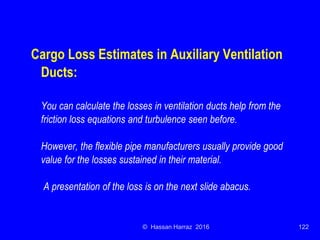

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

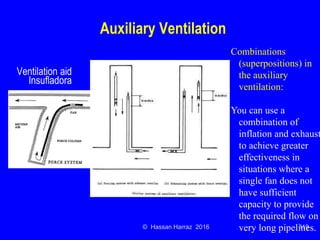

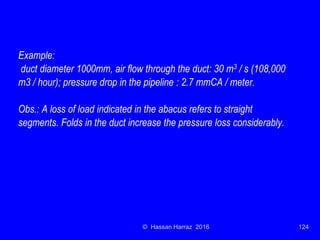

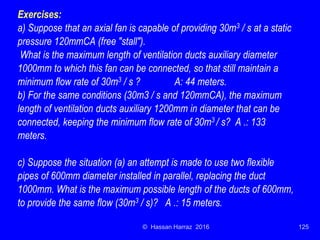

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

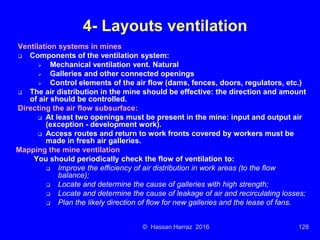

Ventilation of underground mine

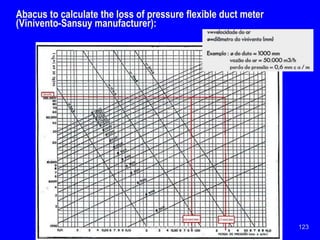

Ventilation of underground mine

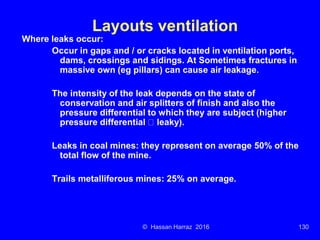

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

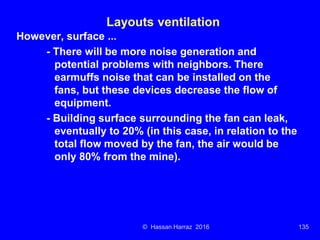

Ventilation of underground mine

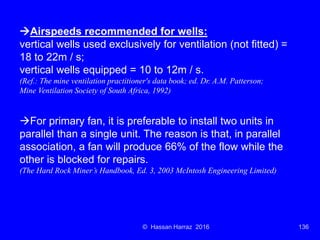

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

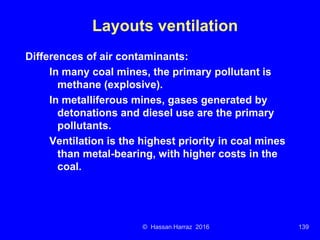

Ventilation of underground mine

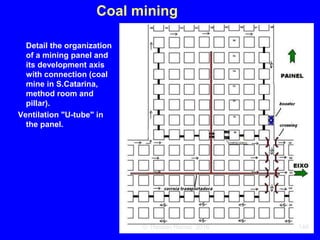

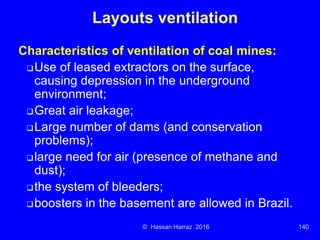

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

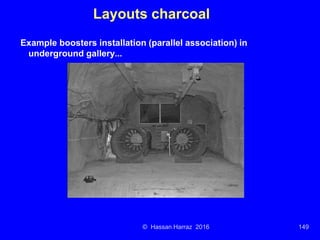

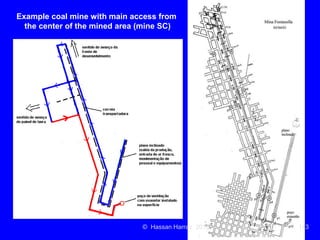

Ventilation of underground mine

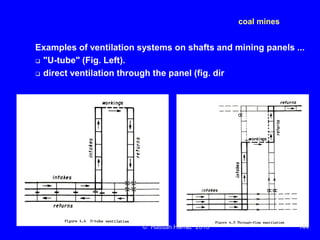

Ventilation of underground mine

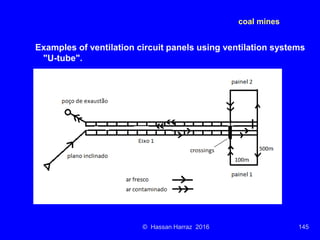

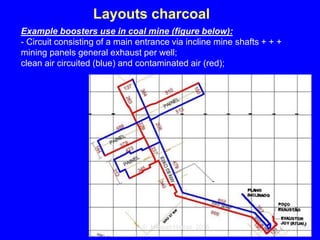

Ventilation of underground mine
Ventilation of underground mine

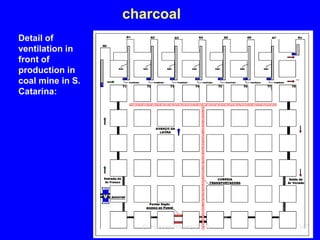

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

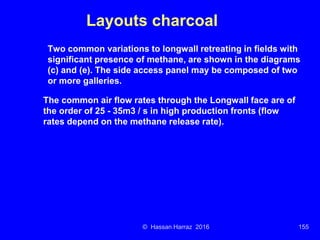

Ventilation of underground mine

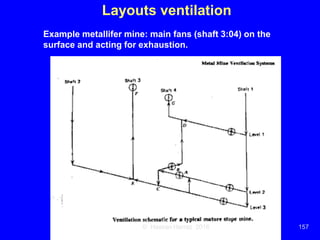

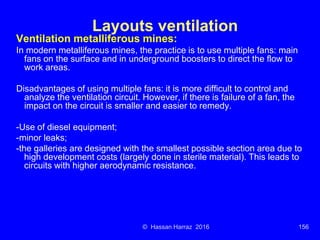

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

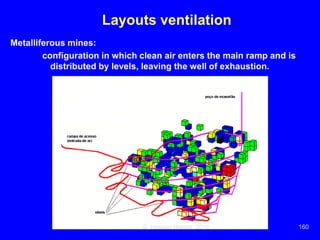

Ventilation of underground mine

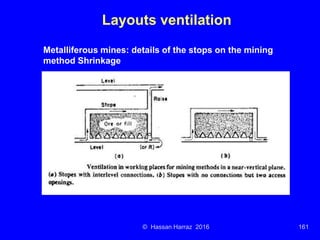

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

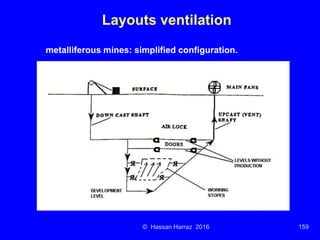

Ventilation of underground mine

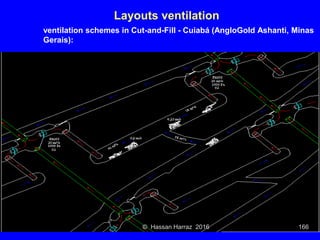

Ventilation of underground mine
Ventilation of underground mine

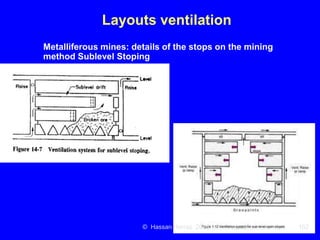

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

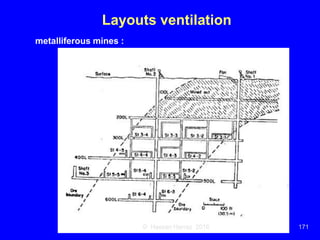

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

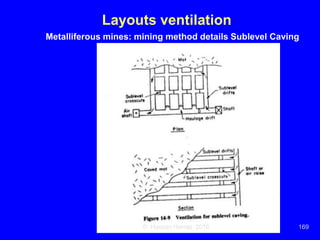

Ventilation of underground mine

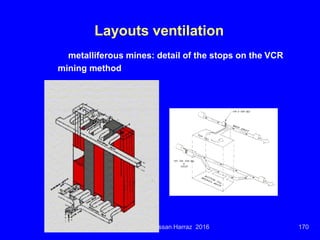

Ventilation of underground mine

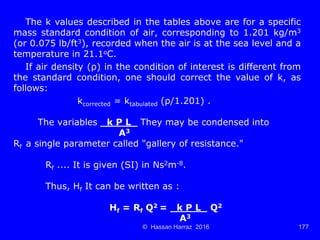

Ventilation of underground mine

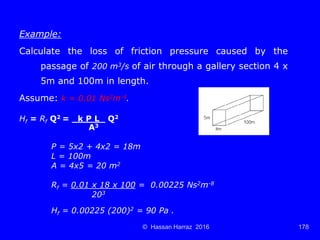

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

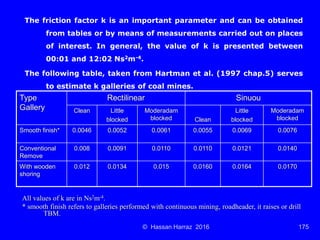

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

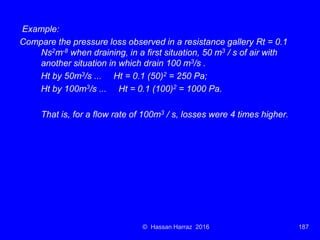

Ventilation of underground mine

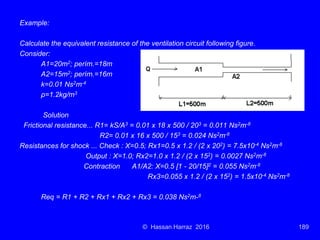

Ventilation of underground mine

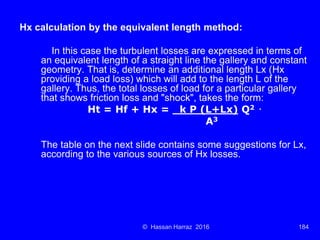

Ventilation of underground mine

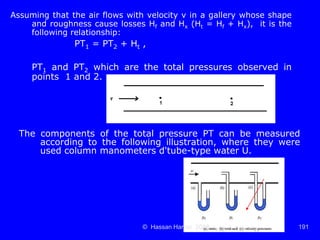

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

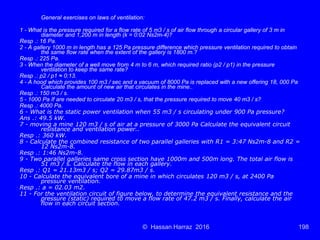

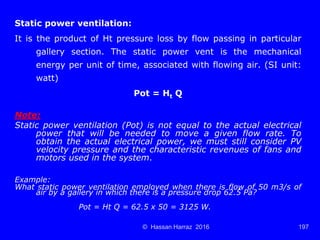

Ventilation of underground mine

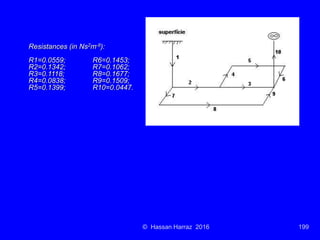

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

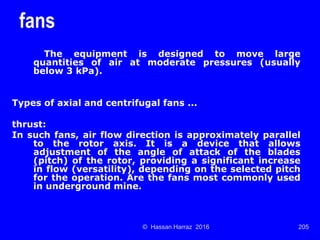

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

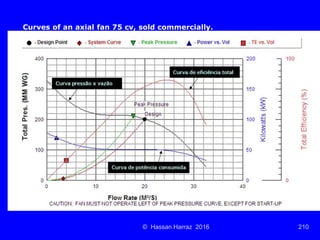

Ventilation of underground mine
Ventilation of underground mine

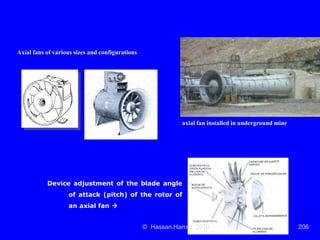

Ventilation of underground mine

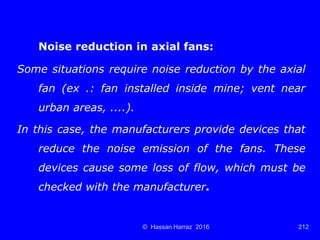

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

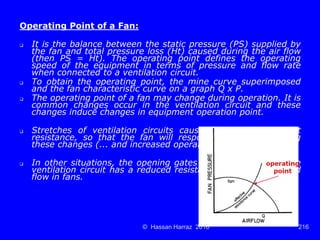

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

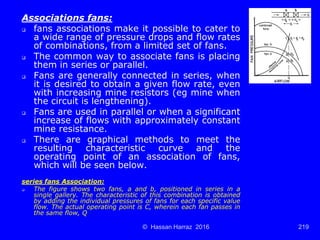

Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine
Ventilation of underground mine

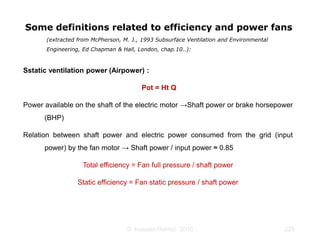

Ventilation of underground mine

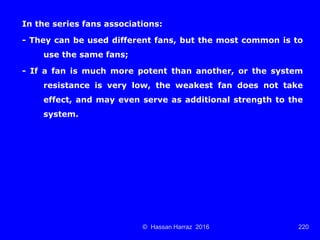

Ventilation of underground mine

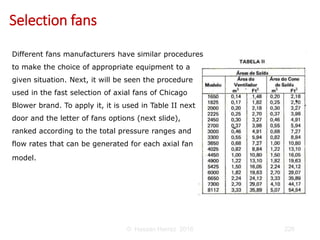

Ventilation of underground mine

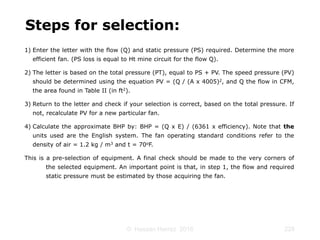

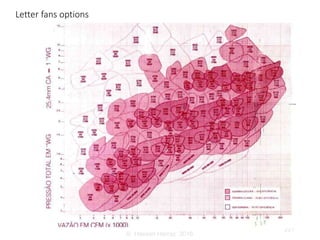

Ventilation of underground mine
Ventilation of underground mine

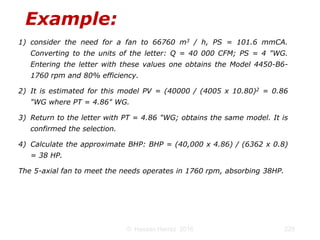

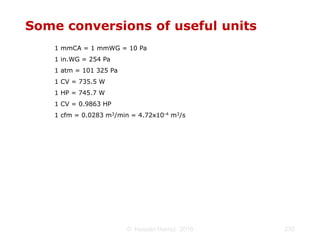

Ventilation of underground mine
Ventilation of underground mine

More Related Content

What's hot

Roof supports in coal mines
Roof supports in coal minesRoof supports in coal mines
Roof supports in coal mines
National Institute of Technology, Rourkela

Caving Underground Mining Methods (longwall, Sublevel caving, & Block caving)
Caving Underground Mining Methods (longwall, Sublevel caving, &  Block caving)Caving Underground Mining Methods (longwall, Sublevel caving, &  Block caving)
Caving Underground Mining Methods (longwall, Sublevel caving, & Block caving)
Geology Department, Faculty of Science, Tanta University

Natural ventilation
Natural ventilationNatural ventilation
Natural ventilation
Safdar Ali

Mine illumination
Mine illuminationMine illumination
Mine illumination
Pranjal Sao

Board & Pillar
Board & PillarBoard & Pillar
Board & Pillar
Chittranjan Vaishnav

Drilling and blasting
Drilling and blastingDrilling and blasting
Drilling and blasting
Jyoti Khatiwada

Development and depillaring with continuous miner
Development and depillaring with continuous minerDevelopment and depillaring with continuous miner
Development and depillaring with continuous miner
Safdar Ali

Mining Machinery Learning Material
Mining Machinery Learning MaterialMining Machinery Learning Material
Mining Machinery Learning Material
Bhaskar Naidu

Subsidence
SubsidenceSubsidence
Subsidence
Arpit Baderiya

Mine Opening and Development
Mine Opening and DevelopmentMine Opening and Development
Mine Opening and Development
Anurag Jha

Wire ropes used in mining
Wire ropes used in miningWire ropes used in mining
Wire ropes used in mining
Pankaj Kumawat

Shaft sinking
Shaft sinking Shaft sinking
Shaft sinking
OmKaitade

Cut and Fill mining
Cut and Fill miningCut and Fill mining
Pillar design in coal mines
Pillar design in coal minesPillar design in coal mines
Pillar design in coal mines
Ulimella Siva Sankar

depllaring in coal mines
depllaring in coal minesdepllaring in coal mines
depllaring in coal mines
akhilesh kumar gupta

Different Raising Techniques in mining
Different Raising Techniques in miningDifferent Raising Techniques in mining
Different Raising Techniques in mining
Rishabh Ranjan

Surface mining planning and design of open pit mining
Surface mining planning and design of open pit miningSurface mining planning and design of open pit mining
Surface mining planning and design of open pit mining
Geology Department, Faculty of Science, Tanta University

Blast design in opencast mining
Blast design in opencast miningBlast design in opencast mining
Blast design in opencast mining
gopal karmakar

Blasting Gallery Method
Blasting Gallery MethodBlasting Gallery Method
Blasting Gallery Method
PrateekVerma111

Underground mining method
Underground mining methodUnderground mining method
Underground mining method
Safdar Ali


What's hot (20)

Roof supports in coal mines
Roof supports in coal minesRoof supports in coal mines
Roof supports in coal mines

Caving Underground Mining Methods (longwall, Sublevel caving, & Block caving)
Caving Underground Mining Methods (longwall, Sublevel caving, &  Block caving)Caving Underground Mining Methods (longwall, Sublevel caving, &  Block caving)
Caving Underground Mining Methods (longwall, Sublevel caving, & Block caving)

Natural ventilation
Natural ventilationNatural ventilation
Natural ventilation

Mine illumination
Mine illuminationMine illumination
Mine illumination

Board & Pillar
Board & PillarBoard & Pillar
Board & Pillar

Drilling and blasting
Drilling and blastingDrilling and blasting
Drilling and blasting

Development and depillaring with continuous miner
Development and depillaring with continuous minerDevelopment and depillaring with continuous miner
Development and depillaring with continuous miner

Mining Machinery Learning Material
Mining Machinery Learning MaterialMining Machinery Learning Material
Mining Machinery Learning Material

Subsidence
SubsidenceSubsidence
Subsidence

Mine Opening and Development
Mine Opening and DevelopmentMine Opening and Development
Mine Opening and Development

Wire ropes used in mining
Wire ropes used in miningWire ropes used in mining
Wire ropes used in mining

Shaft sinking
Shaft sinking Shaft sinking
Shaft sinking

Cut and Fill mining
Cut and Fill miningCut and Fill mining
Cut and Fill mining

Pillar design in coal mines
Pillar design in coal minesPillar design in coal mines
Pillar design in coal mines

depllaring in coal mines
depllaring in coal minesdepllaring in coal mines
depllaring in coal mines

Different Raising Techniques in mining
Different Raising Techniques in miningDifferent Raising Techniques in mining
Different Raising Techniques in mining

Surface mining planning and design of open pit mining
Surface mining planning and design of open pit miningSurface mining planning and design of open pit mining
Surface mining planning and design of open pit mining

Blast design in opencast mining
Blast design in opencast miningBlast design in opencast mining
Blast design in opencast mining

Blasting Gallery Method
Blasting Gallery MethodBlasting Gallery Method
Blasting Gallery Method

Underground mining method
Underground mining methodUnderground mining method
Underground mining method


Similar to Ventilation of underground mine

lrdaa.pdf
lrdaa.pdflrdaa.pdf
lrdaa.pdf
BikashPatel13

Unit 7. secondary sector
Unit 7. secondary sectorUnit 7. secondary sector
Unit 7. secondary sector
Fco Javier Montaño Fdez

Intro to-nanotechnology-shrey
Intro to-nanotechnology-shreyIntro to-nanotechnology-shrey
Intro to-nanotechnology-shrey
shreyansh pandey

Societal Issues in Engineering Design
Societal Issues in Engineering DesignSocietal Issues in Engineering Design
Societal Issues in Engineering Design
Gupta Pandiri

A WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALS
A WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALSA WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALS
A WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALS
ijasuc

Storck - Not In Any Back Yard
Storck - Not In Any Back YardStorck - Not In Any Back Yard
Storck - Not In Any Back Yard
Thomas Storck

C A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docx
C A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docxC A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docx
C A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docx
clairbycraft

Air environemnt i d mall
Air environemnt i d mallAir environemnt i d mall
Air environemnt i d mall
Arvind Kumar

What does MSHA do and it's history!.pdf
What does MSHA do and it's history!.pdfWhat does MSHA do and it's history!.pdf
What does MSHA do and it's history!.pdf
Easybook Training

Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...
Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...
Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...
Manat Srivanit

SMART Seminar Series: "How resilient are our infrastructure systems?"
SMART Seminar Series: "How resilient are our infrastructure systems?"SMART Seminar Series: "How resilient are our infrastructure systems?"
SMART Seminar Series: "How resilient are our infrastructure systems?"
SMART Infrastructure Facility

Publications and Patents Albert Feuerstein PX 2016
Publications and Patents Albert Feuerstein  PX 2016Publications and Patents Albert Feuerstein  PX 2016
Publications and Patents Albert Feuerstein PX 2016
Albert Feuerstein

nanotechnology.ppt
nanotechnology.pptnanotechnology.ppt
nanotechnology.ppt
PriyankaRana171346

FIELDS OF ENGINEERING PPT.pptx
FIELDS OF ENGINEERING PPT.pptxFIELDS OF ENGINEERING PPT.pptx
FIELDS OF ENGINEERING PPT.pptx
Bismark Budu

Kilimanjaro ice core records: Evidence of holocene climate in tropical Africa
Kilimanjaro ice core records: Evidence of holocene climate in tropical AfricaKilimanjaro ice core records: Evidence of holocene climate in tropical Africa
Kilimanjaro ice core records: Evidence of holocene climate in tropical Africa
SimoneBoccuccia

Disaster management - Social Science
Disaster management - Social ScienceDisaster management - Social Science
Disaster management - Social Science
Varun

L1_BRG_Introduction to air pollution-I.pdf
L1_BRG_Introduction to air pollution-I.pdfL1_BRG_Introduction to air pollution-I.pdf
L1_BRG_Introduction to air pollution-I.pdf
BalajiM429762

הנדסת רעידות אדמה
הנדסת רעידות אדמה הנדסת רעידות אדמה
הנדסת רעידות אדמה
dikla ben-noon

HISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptx
HISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptxHISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptx
HISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptx
HassanAli875

Benjamin Warr Thalwil Presentation 2004
Benjamin Warr Thalwil Presentation 2004Benjamin Warr Thalwil Presentation 2004
Benjamin Warr Thalwil Presentation 2004
Benjamin Warr


Similar to Ventilation of underground mine (20)

lrdaa.pdf
lrdaa.pdflrdaa.pdf
lrdaa.pdf

Unit 7. secondary sector
Unit 7. secondary sectorUnit 7. secondary sector
Unit 7. secondary sector

Intro to-nanotechnology-shrey
Intro to-nanotechnology-shreyIntro to-nanotechnology-shrey
Intro to-nanotechnology-shrey

Societal Issues in Engineering Design
Societal Issues in Engineering DesignSocietal Issues in Engineering Design
Societal Issues in Engineering Design

A WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALS
A WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALSA WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALS
A WIRELESS SENSOR NETWORK FOR MONITORING ATMOSPHERIC AGGRESSIVENESS IN METALS

Storck - Not In Any Back Yard
Storck - Not In Any Back YardStorck - Not In Any Back Yard
Storck - Not In Any Back Yard

C A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docx
C A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docxC A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docx
C A S E W E S T E R N R E S E R V E LAW R E V I E W • VOLUME 6.docx

Air environemnt i d mall
Air environemnt i d mallAir environemnt i d mall
Air environemnt i d mall

What does MSHA do and it's history!.pdf
What does MSHA do and it's history!.pdfWhat does MSHA do and it's history!.pdf
What does MSHA do and it's history!.pdf

Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...
Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...
Thermal comfort conditions of urban spaces in a hot-humid climate of Chiangma...

SMART Seminar Series: "How resilient are our infrastructure systems?"
SMART Seminar Series: "How resilient are our infrastructure systems?"SMART Seminar Series: "How resilient are our infrastructure systems?"
SMART Seminar Series: "How resilient are our infrastructure systems?"

Publications and Patents Albert Feuerstein PX 2016
Publications and Patents Albert Feuerstein  PX 2016Publications and Patents Albert Feuerstein  PX 2016
Publications and Patents Albert Feuerstein PX 2016

nanotechnology.ppt
nanotechnology.pptnanotechnology.ppt
nanotechnology.ppt

FIELDS OF ENGINEERING PPT.pptx
FIELDS OF ENGINEERING PPT.pptxFIELDS OF ENGINEERING PPT.pptx
FIELDS OF ENGINEERING PPT.pptx

Kilimanjaro ice core records: Evidence of holocene climate in tropical Africa
Kilimanjaro ice core records: Evidence of holocene climate in tropical AfricaKilimanjaro ice core records: Evidence of holocene climate in tropical Africa
Kilimanjaro ice core records: Evidence of holocene climate in tropical Africa

Disaster management - Social Science
Disaster management - Social ScienceDisaster management - Social Science
Disaster management - Social Science

L1_BRG_Introduction to air pollution-I.pdf
L1_BRG_Introduction to air pollution-I.pdfL1_BRG_Introduction to air pollution-I.pdf
L1_BRG_Introduction to air pollution-I.pdf

הנדסת רעידות אדמה
הנדסת רעידות אדמה הנדסת רעידות אדמה
הנדסת רעידות אדמה

HISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptx
HISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptxHISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptx
HISTORY AND PERSPECTIVE OF INDUSTRIAL ENGINEERING.pptx

Benjamin Warr Thalwil Presentation 2004
Benjamin Warr Thalwil Presentation 2004Benjamin Warr Thalwil Presentation 2004
Benjamin Warr Thalwil Presentation 2004


More from Geology Department, Faculty of Science, Tanta University

INDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdf
INDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdfINDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdf
INDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdf
Geology Department, Faculty of Science, Tanta University

ESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdf
ESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdfESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdf
ESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdf
Geology Department, Faculty of Science, Tanta University

Minerals phase transformation by hydrogen reduction.pdf
Minerals phase transformation by hydrogen reduction.pdfMinerals phase transformation by hydrogen reduction.pdf
Minerals phase transformation by hydrogen reduction.pdf
Geology Department, Faculty of Science, Tanta University

Magnetization Roasting of Refractory Iron.pdf
Magnetization Roasting of Refractory Iron.pdfMagnetization Roasting of Refractory Iron.pdf
Magnetization Roasting of Refractory Iron.pdf
Geology Department, Faculty of Science, Tanta University

GLOBAL IRON ORE.pdf
GLOBAL IRON ORE.pdfGLOBAL IRON ORE.pdf
Ferrous Scrap FUTURE.pdf
Ferrous Scrap  FUTURE.pdfFerrous Scrap  FUTURE.pdf
Pelletizing Process.pdf
Pelletizing Process.pdfPelletizing Process.pdf
Direct Reduced Iron-Production.pdf
Direct Reduced Iron-Production.pdfDirect Reduced Iron-Production.pdf
A REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdf
A REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdfA REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdf
A REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdf
Geology Department, Faculty of Science, Tanta University

IRONWORKS.pdf
IRONWORKS.pdfIRONWORKS.pdf
ENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdf
ENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdfENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdf
ENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdf
Geology Department, Faculty of Science, Tanta University

Processes for phosphorus removal from iron ore -.pdf
Processes for phosphorus removal from iron ore -.pdfProcesses for phosphorus removal from iron ore -.pdf
Processes for phosphorus removal from iron ore -.pdf
Geology Department, Faculty of Science, Tanta University

Iron Types-HBI-DRI.pdf
Iron Types-HBI-DRI.pdfIron Types-HBI-DRI.pdf
IRON ORE DEPOSITS.pdf
IRON ORE DEPOSITS.pdfIRON ORE DEPOSITS.pdf
STEEL INDUSTRY IN EGYPT-Companies and Markets.pdf
STEEL INDUSTRY IN EGYPT-Companies and Markets.pdfSTEEL INDUSTRY IN EGYPT-Companies and Markets.pdf
STEEL INDUSTRY IN EGYPT-Companies and Markets.pdf
Geology Department, Faculty of Science, Tanta University

Cv english-harraz
Cv english-harrazCv english-harraz
Rodruin prospecting area conf
Rodruin prospecting area confRodruin prospecting area conf
Crusher; Crushing; and Classification Equipment
Crusher; Crushing; and Classification EquipmentCrusher; Crushing; and Classification Equipment
Crusher; Crushing; and Classification Equipment
Geology Department, Faculty of Science, Tanta University

The garnet group
The garnet groupThe garnet group
Hydrothermal alterations
Hydrothermal alterationsHydrothermal alterations

More from Geology Department, Faculty of Science, Tanta University (20)

INDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdf
INDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdfINDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdf
INDUSTRIAL APPLICATIONS OF MINERALS AND ROCKS.pdf

ESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdf
ESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdfESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdf
ESSENTIALS OF IRON ORE DEPOSITS and INDUSTRIES.pdf

Minerals phase transformation by hydrogen reduction.pdf
Minerals phase transformation by hydrogen reduction.pdfMinerals phase transformation by hydrogen reduction.pdf
Minerals phase transformation by hydrogen reduction.pdf

Magnetization Roasting of Refractory Iron.pdf
Magnetization Roasting of Refractory Iron.pdfMagnetization Roasting of Refractory Iron.pdf
Magnetization Roasting of Refractory Iron.pdf

GLOBAL IRON ORE.pdf
GLOBAL IRON ORE.pdfGLOBAL IRON ORE.pdf
GLOBAL IRON ORE.pdf

Ferrous Scrap FUTURE.pdf
Ferrous Scrap  FUTURE.pdfFerrous Scrap  FUTURE.pdf
Ferrous Scrap FUTURE.pdf

Pelletizing Process.pdf
Pelletizing Process.pdfPelletizing Process.pdf
Pelletizing Process.pdf

Direct Reduced Iron-Production.pdf
Direct Reduced Iron-Production.pdfDirect Reduced Iron-Production.pdf
Direct Reduced Iron-Production.pdf

A REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdf
A REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdfA REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdf
A REVIEW OF IRONMAKING BY DIRECT REDUCTION PROCESSES.pdf

IRONWORKS.pdf
IRONWORKS.pdfIRONWORKS.pdf
IRONWORKS.pdf

ENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdf
ENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdfENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdf
ENRICHMENT IRON BY REDUCTION ROASTING-MAGNETIC SEPARATION.pdf

Processes for phosphorus removal from iron ore -.pdf
Processes for phosphorus removal from iron ore -.pdfProcesses for phosphorus removal from iron ore -.pdf
Processes for phosphorus removal from iron ore -.pdf

Iron Types-HBI-DRI.pdf
Iron Types-HBI-DRI.pdfIron Types-HBI-DRI.pdf
Iron Types-HBI-DRI.pdf

IRON ORE DEPOSITS.pdf
IRON ORE DEPOSITS.pdfIRON ORE DEPOSITS.pdf
IRON ORE DEPOSITS.pdf

STEEL INDUSTRY IN EGYPT-Companies and Markets.pdf
STEEL INDUSTRY IN EGYPT-Companies and Markets.pdfSTEEL INDUSTRY IN EGYPT-Companies and Markets.pdf
STEEL INDUSTRY IN EGYPT-Companies and Markets.pdf

Cv english-harraz
Cv english-harrazCv english-harraz
Cv english-harraz

Rodruin prospecting area conf
Rodruin prospecting area confRodruin prospecting area conf
Rodruin prospecting area conf

Crusher; Crushing; and Classification Equipment
Crusher; Crushing; and Classification EquipmentCrusher; Crushing; and Classification Equipment
Crusher; Crushing; and Classification Equipment

The garnet group
The garnet groupThe garnet group
The garnet group

Hydrothermal alterations
Hydrothermal alterationsHydrothermal alterations
Hydrothermal alterations


Recently uploaded

waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdfwaterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
LengamoLAppostilic

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE
University of Maribor

The binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defectsThe binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defects
Sérgio Sacani

Topic: SICKLE CELL DISEASE IN CHILDREN-3.pdf
Topic: SICKLE CELL DISEASE IN CHILDREN-3.pdfTopic: SICKLE CELL DISEASE IN CHILDREN-3.pdf
Topic: SICKLE CELL DISEASE IN CHILDREN-3.pdf
TinyAnderson

ESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptxESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptx
PRIYANKA PATEL

Medical Orthopedic PowerPoint Templates.pptx
Medical Orthopedic PowerPoint Templates.pptxMedical Orthopedic PowerPoint Templates.pptx
Medical Orthopedic PowerPoint Templates.pptx
terusbelajar5

Eukaryotic Transcription Presentation.pptx
Eukaryotic Transcription Presentation.pptxEukaryotic Transcription Presentation.pptx
Eukaryotic Transcription Presentation.pptx
RitabrataSarkar3

Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills MN

The debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically youngThe debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically young
Sérgio Sacani

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration
Vandana Devesh Sharma

aziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobelaziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobel
İsa Badur

Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
University of Maribor

Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...
Leonel Morgado

在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样
在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样
在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样
vluwdy49

Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
AbdullaAlAsif1

The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptxThe use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
MAGOTI ERNEST

EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
Sérgio Sacani

Thornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdfThornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdf
European Sustainable Phosphorus Platform

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Leonel Morgado

Cytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptxCytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptx
Hitesh Sikarwar


Recently uploaded (20)

waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdfwaterlessdyeingtechnolgyusing carbon dioxide chemicalspdf
waterlessdyeingtechnolgyusing carbon dioxide chemicalspdf

Randomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNERandomised Optimisation Algorithms in DAPHNE
Randomised Optimisation Algorithms in DAPHNE

The binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defectsThe binding of cosmological structures by massless topological defects
The binding of cosmological structures by massless topological defects

Topic: SICKLE CELL DISEASE IN CHILDREN-3.pdf
Topic: SICKLE CELL DISEASE IN CHILDREN-3.pdfTopic: SICKLE CELL DISEASE IN CHILDREN-3.pdf
Topic: SICKLE CELL DISEASE IN CHILDREN-3.pdf

ESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptxESR spectroscopy in liquid food and beverages.pptx
ESR spectroscopy in liquid food and beverages.pptx

Medical Orthopedic PowerPoint Templates.pptx
Medical Orthopedic PowerPoint Templates.pptxMedical Orthopedic PowerPoint Templates.pptx
Medical Orthopedic PowerPoint Templates.pptx

Eukaryotic Transcription Presentation.pptx
Eukaryotic Transcription Presentation.pptxEukaryotic Transcription Presentation.pptx
Eukaryotic Transcription Presentation.pptx

Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...
Travis Hills' Endeavors in Minnesota: Fostering Environmental and Economic Pr...

The debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically youngThe debris of the ‘last major merger’ is dynamically young
The debris of the ‘last major merger’ is dynamically young

Compexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titrationCompexometric titration/Chelatorphy titration/chelating titration
Compexometric titration/Chelatorphy titration/chelating titration

aziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobelaziz sancar nobel prize winner: from mardin to nobel
aziz sancar nobel prize winner: from mardin to nobel

Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...
Remote Sensing and Computational, Evolutionary, Supercomputing, and Intellige...

Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...Authoring a personal GPT for your research and practice: How we created the Q...
Authoring a personal GPT for your research and practice: How we created the Q...

在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样
在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样
在线办理(salfor毕业证书)索尔福德大学毕业证毕业完成信一模一样

Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...
Unlocking the mysteries of reproduction: Exploring fecundity and gonadosomati...

The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptxThe use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx
The use of Nauplii and metanauplii artemia in aquaculture (brine shrimp).pptx

EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...
EWOCS-I: The catalog of X-ray sources in Westerlund 1 from the Extended Weste...

Thornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdfThornton ESPP slides UK WW Network 4_6_24.pdf
Thornton ESPP slides UK WW Network 4_6_24.pdf

Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...Describing and Interpreting an Immersive Learning Case with the Immersion Cub...
Describing and Interpreting an Immersive Learning Case with the Immersion Cub...

Cytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptxCytokines and their role in immune regulation.pptx
Cytokines and their role in immune regulation.pptx


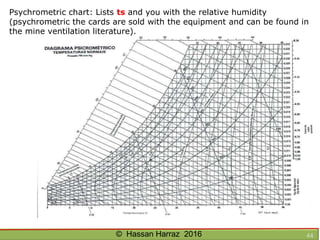

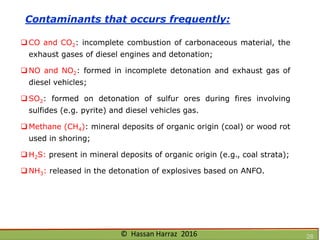

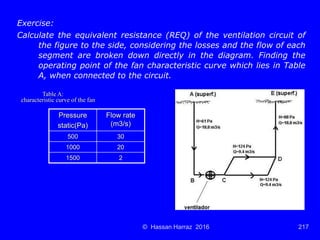

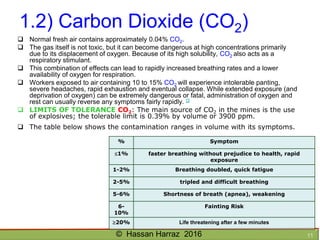

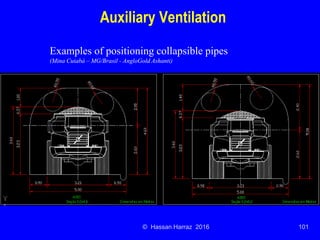

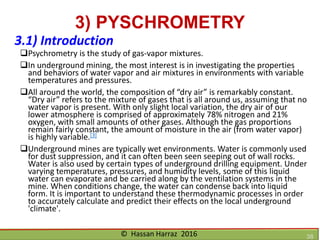

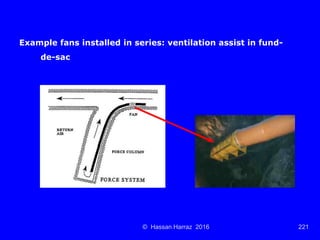

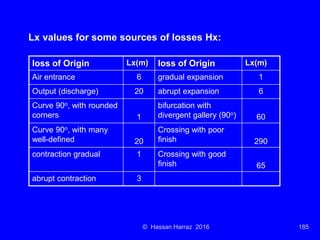

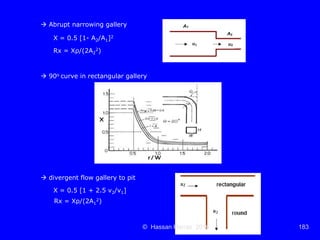

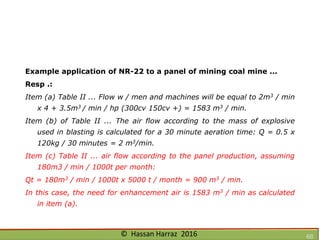

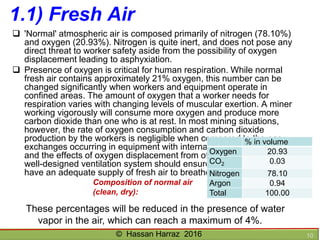

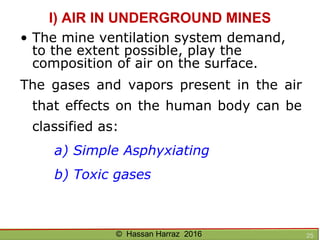

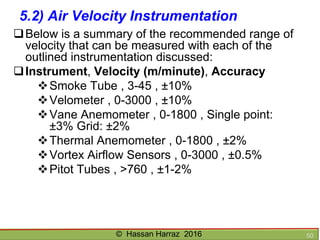

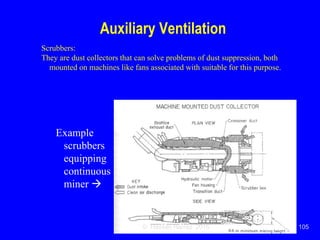

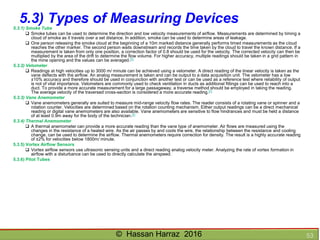

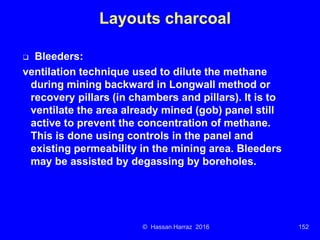

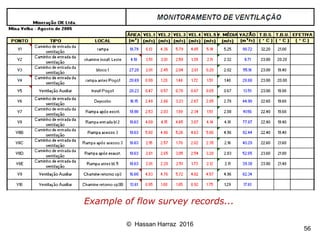

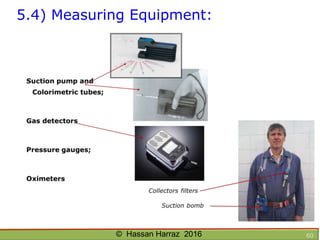

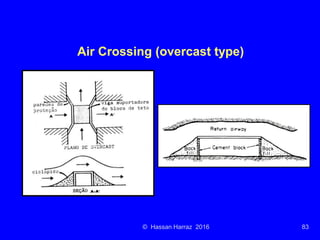

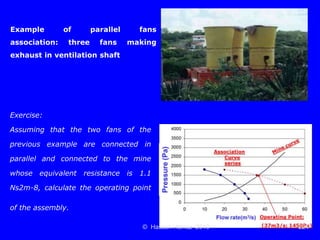

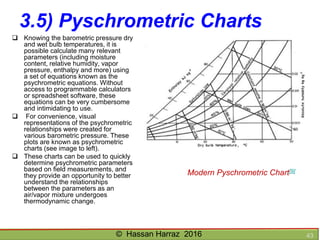

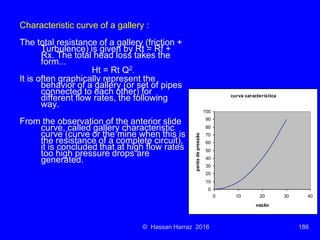

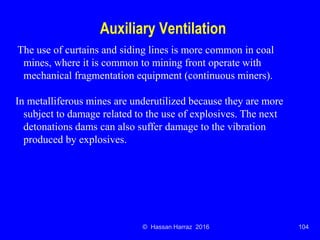

Ventilation of underground mine

  • 1. VENTILATION OF UNDERGROUND MINE © Hassan Harraz 2016 Hassan Z. Harraz hharraz2006@yahoo.com Spring, 2016
  • 2. Ventilation 1) Background •The main objective of an underground mine ventilation system is clear:  to provide air flows in sufficient quantity and quality to dilute contaminants to safe amounts/concentrations where personnel are required to travel and work.  To Supply of oxygen men and machines;  To Dilute toxic gas / explosive and dust originated in production operations;  To Assist in temperature control and humidity. • This requirement is integrated into the mining law of those nations who possess that type of legislation. • The degree of "quality' and "quantity" varies with regulations set from nation to nation, depending on a number of parameters: mining history, contaminants of greatest concern, the apparent dangers associated with those hazards and the political/social structure of the nation. • The general requirement is for any personnel to work and travel in an environment that is safe and comfortable. 2

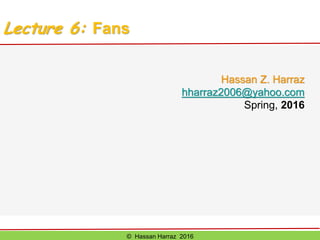

  • 3. OUTLİNE OF LECTURES:  Lecture 1 : POLLUTANT UNDERGROUND MINES  Lecture 2: RULES FOR CALCULATION OF AIR REQUIREMENTS  Lecture 3: DIVIDERS AIR FLOW  Lecture 4: SETTINGS VENTILATION  Lecture 5: LAWS OF VENTILATION  Lecture 6: FANS  Lecture 7: VENTILATION CONTROL © Hassan Harraz 2016 3
  • 4. References• Hartman, H.L., Mutmansky, J.M., Wang, Y.J., eds.,(1997). Mine Ventilation and Air Conditioning, 3rd. Ed., John Wiley & Sons, ISBN 0- 471-05690-1. • McPherson, M. J. (1993). Subsurface Ventilation and Environmental Engineering, Ed. Chapman & Hall, London. • Kennedy, W.R. (1999). Practical Mine Ventilation, 2nd. Ed., Intertec Publishing Corp., ISBN 0-929531-50-7. • Mutmansky, J.M., Ramani, R.V. (1992). “Environmental Health and Safety”, SME Mining Engineering Handbook, 2nd edition, Vol.1, AIME, N.Y., section 11. • John Wiley and Sons. "Metal Mine Ventilation Systems." John Wiley and Sons, 1997. p. 524 - 548. • McElroy., G. W.(1954). "A Network Analyzer for Solving Mine Ventilation Distribution Problems" U.S. Bureau of Mines Inf. Circ. 7704, 1954. p. 13. • McPherson, M.J. (1984). "Mine Ventilation Planning in 1980s." International Journal of Mining Engineering Vol 2, p. 185 - 227. • Atkinson , J.J (1854). "Theory of Ventilation of Mines." North of England Institute of Mining Engineers No 3, p. 118. • Hartman, H.I. and Wang (1967). "Computer Solutions of Three Dimensional Mine Ventilation Networks with Multiple Fans and Natural Ventilation". Int. J. Rock Mech. Sc.Vol.4. • Cross, H. (1936). "Analysis of Flow in Networks of Conduits or Conductors." Bull. Illinois University Eng. Exp. Station. No. 286. • De Souza, E.M.. Fundamentals of Airflow. In E. De Souza, Mine Ventilation, n.d. • Goldstein, M. (2008). "Carbon Monoxide Poisoning" Journal of Emergency Nursing, Volume 34, Issue 6. • Earle, R.L.(1966). "Unit Operations in Food Processing." Chapter 7 Figure 7.3. • NR-22 and NR-15 standards, Ministry of Labour and Employment, Brazil, 2010. External Sources • http://en.wikipedia.org/wiki/Wikipedia:Citing_sources • https://www.minedesignwiki.org/index.php/McPherson_Subsurface_Ventilation_Chapters • http://library.queensu.ca/ • http://www.bacharach-inc.com/sling-psychrometer.htm • http://www.bestech.com/Downloads/ProductSheets/BESTECH_NRG1-ECO.pdf • http://www.engineeringtoolbox.com/pitot-tubes-d_612.html © Hassan Harraz 2016 4

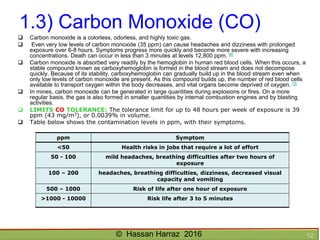

  • 5. Lecture 1: Pollutant underground mines Hassan Z. Harraz hharraz2006@yahoo.com Spring, 2016 © Hassan Harraz 2016
  • 6. Follow me on Social Media http://facebook.com/hzharraz http://www.slideshare.net/hzharraz https://www.linkedin.com/in/hassan-harraz-3172b235 © Hassan Harraz 2016
