2. CONTENT
• Introduction of ventilation.
• Purpose of ventilation.
• Components of mine ventilation.
• Ventilation design & planning.

3. INTRODUCTION OF VENTILATION
• Mine ventilation is a crucial aspect of
mining operations, aimed at providing
fresh air to miners and diluting and
removing hazardous gases, dust, and
heat from the mine. Proper ventilation
is essential for the safety, health, and
productivity of mine workers.

4. KEY COMPONENTS OF MINE VENTILATION
• 1. Airflow Management: Ensures a continuous supply of fresh air
to all working areas of the mine. This involves controlling the
direction and quantity of airflow using various systems and
equipment.
• 2. Ventilation Shafts: Vertical or inclined passages used to circulate
air through the mine. These can be intake shafts, bringing fresh air
into the mine, or exhaust shafts, removing contaminated air.
• 3. Fans and Blowers: Mechanical devices that move large volumes
of air through the mine. Main fans are typically located at the
surface, while auxiliary fans are used underground to direct airflow
to specific areas.
• 4. Monitoring and Control Systems: Advanced systems that
monitor air quality, flow rates, and environmental conditions in
real-time. These systems help ensure that the ventilation is
functioning correctly and can alert operators to potential

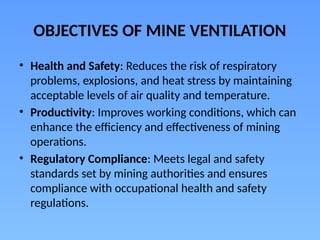

5. OBJECTIVES OF MINE VENTILATION
• Health and Safety: Reduces the risk of respiratory
problems, explosions, and heat stress by maintaining
acceptable levels of air quality and temperature.
• Productivity: Improves working conditions, which can
enhance the efficiency and effectiveness of mining
operations.
• Regulatory Compliance: Meets legal and safety
standards set by mining authorities and ensures
compliance with occupational health and safety
regulations.

6. TYPES OF VENTILATION SYSTEMS
• Natural Ventilation: Relies on natural forces
such as wind and thermal gradients to move
air through the mine. This is typically used in
small, shallow mines.
• Mechanical Ventilation: Uses fans and
blowers to control the airflow. This is essential
in larger, deeper mines where natural forces
are insufficient

7. CHALLENGES IN MINE VENTILATION
• Heat Management: Deeper mines encounter higher temperatures,
requiring advanced cooling techniques to maintain safe working
conditions.
• Gas Control: Mines can produce dangerous gases such as methane and
carbon monoxide, which need to be diluted and removed to prevent
explosions and health hazards.
• Dust Suppression: Mining activities generate dust, which must be
controlled to prevent respiratory issues and maintain visibility.
• Effective mine ventilation is a complex and vital part of mining engineering, ensuring
that miners can work safely and efficiently in challenging underground environments.

8. PURPOSE OF MINE VENTILATION
• The primary purposes of mine
ventilation are critical for ensuring a
safe and efficient mining operation.
Here's a detailed overview:

9. 1. HEALTH AND SAFETY
• Removal of Toxic Gases: Mines can produce harmful gases
such as methane, carbon monoxide, and radon.
Ventilation helps to dilute and remove these gases to safe
levels.
• Dust Control: Dust generated during mining activities can
cause respiratory issues. Proper ventilation helps to
minimize dust levels.
• Heat Reduction: Deep mines can become extremely hot.
Ventilation systems help to regulate temperatures, making
the environment safer and more comfortable for workers.

10. 2. PRODUCTIVITY
• Improved Working Conditions: Good
ventilation creates a more comfortable
environment, which can increase worker
efficiency and productivity.
• Reduced Equipment Downtime: By keeping
the air clean and cool, ventilation helps to
prolong the life of mining equipment and
reduce the need for maintenance.

11. 3. REGULATORY COMPLIANCE
• Meeting Standards: Mining operations
must adhere to strict safety and health
regulations. Proper ventilation ensures
compliance with these standards,
avoiding legal issues and fines.

12. 4. EMERGENCY PREPAREDNESS
• Fire and Explosion Prevention: Proper
ventilation reduces the risk of fires and
explosions by removing flammable gases and
controlling dust levels.
• Emergency Response: In the event of an
emergency, ventilation systems can help to
control smoke and provide fresh air for safe
evacuation

13. 5. ENVIRONMENTAL PROTECTION
• Air Quality Control: Ventilation helps to manage
air quality within the mine, ensuring that it does
not adversely affect the surrounding environment.
• In summary, mine ventilation is essential for maintaining a safe,
healthy, and efficient mining operation. It plays a crucial role in
protecting workers, ensuring regulatory compliance, and
enhancing productivity.

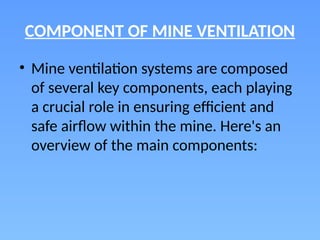

14. COMPONENT OF MINE VENTILATION
• Mine ventilation systems are composed
of several key components, each playing
a crucial role in ensuring efficient and
safe airflow within the mine. Here's an
overview of the main components:

15. 1. VENTILATION SHAFTS
• Intake Shafts: These bring fresh air into
the mine.
• Exhaust Shafts: These remove
contaminated air from the mine.

16. 2. FANS AND BLOWERS
• Main Fans: Typically located at the surface,
these fans push or pull large volumes of air
through the mine.
• Auxiliary Fans: Used underground to direct
airflow to specific areas, enhancing ventilation
where needed.

17. 3. DUCTS AND AIRWAYS
• Air Ducts: These channels distribute
air to various parts of the mine.
• Airways: Networks of tunnels and
passages that guide the flow of air.

18. 4. VENTILATION DOORS
• Regulating Doors: Control the direction and
flow of air within the mine.
• Isolation Doors: Used to close off certain
areas, preventing air from flowing into unused
or unsafe sections.

19. 6. AIRFLOW MONITORS AND SENSORS
• Gas Detectors: Monitor the levels of
hazardous gases such as methane and carbon
monoxide.
• Airflow Sensors: Measure the speed and
volume of air moving through the mine.

20. 9. EMERGENCY VENTILATION SYSTEMS
• Smoke Extractors: Used in case of fire to remove
smoke and provide clear air paths for evacuation.
• Backup Fans: Ensure continuous ventilation in
case the main fans fail.
• These components work together to create a safe and
efficient ventilation system, essential for maintaining air
quality, temperature, and overall safety in the mine

21. MINE VENTILATION DESIGN AND PLANNING
• Designing and planning a mine ventilation
system is critical to ensure the safety, health,
and efficiency of mining operations. Here’s a
comprehensive guide to the process:

22. 1. ASSESSMENT AND PLANNING
• Mine Layout Analysis: Understand the mine's
layout, including the depth, size, and location of
working areas.
• Air Quality Requirements: Determine the
required air quality standards and identify the
main contaminants (e.g., dust, gases).
• Heat Load Calculation: Assess the heat
generated by machinery and geological factors
to plan cooling need

23. 2. VENTILATION NETWORK DESIGN
• Primary Ventilation: Design the main intake
and exhaust paths that will supply fresh air to
and remove stale air from the mine.
• Secondary Ventilation: Plan auxiliary
ventilation systems to direct airflow to specific
areas, such as working faces and tunnels.

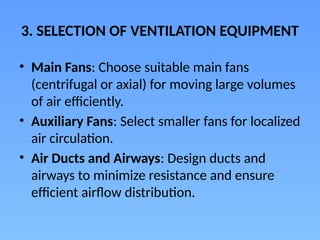

24. 3. SELECTION OF VENTILATION EQUIPMENT
• Main Fans: Choose suitable main fans
(centrifugal or axial) for moving large volumes
of air efficiently.
• Auxiliary Fans: Select smaller fans for localized
air circulation.
• Air Ducts and Airways: Design ducts and
airways to minimize resistance and ensure
efficient airflow distribution.

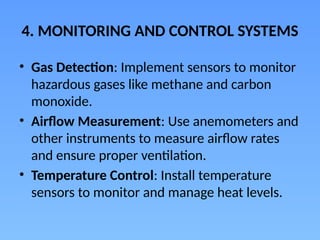

25. 4. MONITORING AND CONTROL SYSTEMS
• Gas Detection: Implement sensors to monitor
hazardous gases like methane and carbon
monoxide.
• Airflow Measurement: Use anemometers and
other instruments to measure airflow rates
and ensure proper ventilation.
• Temperature Control: Install temperature
sensors to monitor and manage heat levels.

26. 5. SAFETY FEATURES
• Emergency Ventilation: Plan for emergency
ventilation routes and backup systems to
ensure continued airflow during power
failures or emergencies.
• Fire Protection: Design ventilation systems to
help control smoke and provide clear
evacuation paths in case of fire.

27. 6. ENERGY EFFICIENCY
• Energy-Saving Fans: Use high-efficiency fans
to reduce energy consumption.
• Variable Speed Drives: Implement variable
speed drives to control fan speeds based on
real-time ventilation needs.

28. 7. COMPLIANCE AND REGULATIONS
• Health and Safety Standards: Ensure the
ventilation design meets local and
international mining safety regulations.
• Environmental Considerations: Plan for
minimal environmental impact, considering
factors like emissions and energy use.

29. 8. MAINTENANCE AND OPTIMIZATION
• Regular Inspections: Schedule regular inspections and
maintenance of ventilation equipment to ensure optimal
performance.
• Continuous Improvement: Use data from monitoring
systems to continuously improve and optimize the
ventilation system.
• By following these steps, you can design and plan an effective mine
ventilation system that ensures safety, enhances productivity, and
complies with regulations.
