1. Patrick Chanezon
@chanezon, Docker Inc.
Docker from development to production
London, October 2016

2. French
Polyglot
Platforms
Software Plumber
San Francisco
Developer Relations
@chanezon

3. 1995 2015

5. PublicHybridPrivate
Ops Devops Developers

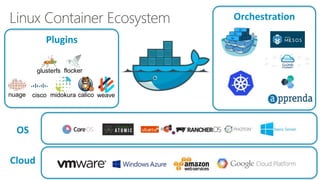

6. Linux Container Ecosystem
flockerglusterfs
weavecalicomidokuracisconuage
Cloud
OS
Plugins
Orchestration

7. Agility

10. Agile methodologies (circa 1999)

12. Low MTBIAMSH
MTBIAMSH (Mean Time Between Idea And Making Stuff Happen)

13. Agility == $$

14. Devops

15. 25
Mainframe

16. Client-Server
26

17. 27
Web

18. 28
Cloud - Devops

19. Devops
• Cultural movement
• Inspired by agile methods
• People, Processes & Tools
• Continuous delivery
• Infrastructure as code
• Cross silo collaboration
• Small iterations
• Feedback loop, measurement
Image from Patrick Debois
http://www.slideshare.net/jedi4ever/devops-the-war-is-over-if-you-want-it
http://www.slideshare.net/jedi4ever/devopsdays-downundervfinal

20. Devops: singing Kumbaya?

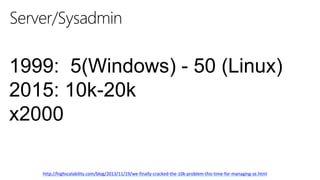

21. 28
http://highscalability.com/blog/2013/11/19/we-finally-cracked-the-10k-problem-this-time-for-managing-se.html
Server/Sysadmin
1999: 5(Windows) - 50 (Linux)
2015: 10k-20k
x2000

22. 28
https://blog.docker.com/2014/12/dockercon-europe-keynote-continuous-delivery-in-the-enterprise-by-henk-kolk-ing/
Henk Kolk, ING, DockerCon EU 2014
People, Processes, Products
deployment time: 9 months -> 15 min
1500 deployments/week

23. Docker Platform

24. The world needs
tools of mass innovation

25. A programmable Internet would be the ultimate
tool of mass innovation

26. A commercial product,
built on
a development platform,
built on
infrastructure,
built on
standards.
Docker is building a stack to program the Internet

27. Isolation using Linux kernel features
namespaces
 pid
 mnt
 net
 uts
 ipc
 user
cgroups
 memory
 cpu
 blkio
 devices

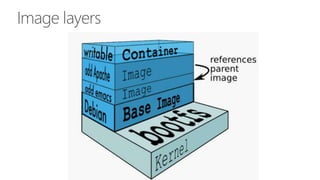

28. Image layers

29. What’s New?

30. 1.
Developer experience

31. 1. Get out of the way
The best tools…
2. Adapt to you
3. Make the
powerful simple

32. Docker for Mac Docker for Windows

33. 2.
Orchestration

34. ng the best way to orchestrate Docke
Docker 1.12: now with orchestration built-in.

35. Swarm mode
Service API
Cryptographic node identity
Built-in routing mesh
Docker 1.12: now with orchestration built-in.

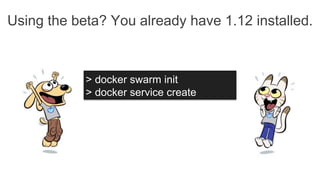

36. Using the beta? You already have 1.12 installed.
> docker swarm init
> docker service create

37. 3.
Ops experience

38. Deep integration with native load-balancers, templates,
SSH keys, ACLs, scaling groups, firewall rules…
beta.docker.com

39. Distributed Application Bundle
www.docker.com/dab
A portable format for multi-container applications

40. Docker CaaS

41. Goals
+ +
Agility Portability Control

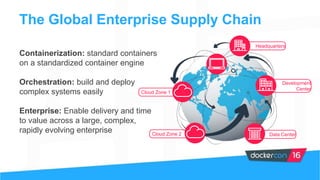

42. Cloud Zone 1
Cloud Zone 2 Data Center
Development
Center
Headquarters
Containerization: standard containers
on a standardized container engine
Orchestration: build and deploy
complex systems easily
Enterprise: Enable delivery and time
to value across a large, complex,
rapidly evolving enterprise
The Global Enterprise Supply Chain

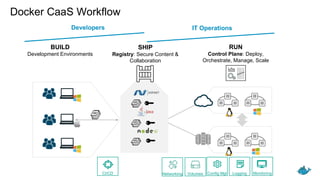

43. BUILD
Development Environments
SHIP
Registry: Secure Content &
Collaboration
RUN
Control Plane: Deploy,
Orchestrate, Manage, Scale
Networking Volumes MonitoringLoggingConfig MgtCI/CD
IT Operations
Developers IT Operations
Docker CaaS Workflow

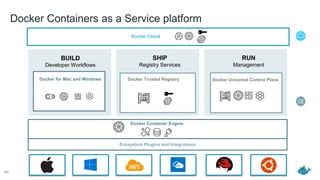

44. Docker Containers as a Service platform
44
BUILD
Developer Workflows
SHIP
Registry Services
RUN
Management
Docker for Mac and Windows Docker Trusted Registry Docker Universal Control Plane
Docker Cloud
Docker Container Engine
Ecosystem Plugins and Integrations

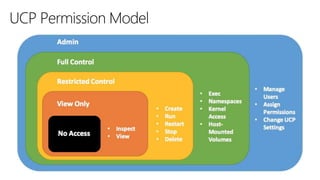

45. UCP Permission Model

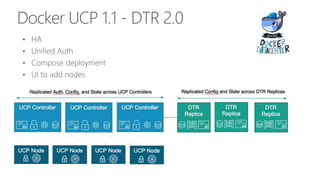

46. Docker UCP 1.1 - DTR 2.0
• HA
• Unified Auth
• Compose deployment
• UI to add nodes

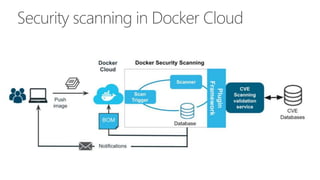

47. Security scanning in Docker Cloud

48. Plumbing

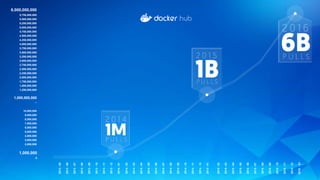

49. 2013-05
2013-06
2013-07
2013-08
2013-09
2013-10
2013-11
2013-12
2014-01
1,000,000
0
2014-02
2014-03
2014-04
2014-05
2014-06
2014-07
2014-08
2014-09
2014-10
2014-11
2014-12
2015-01
2015-02
2015-03
2015-04
2015-05
2015-06
2015-07
2015-08
2015-09
2015-10
2015-11
2015-12
2016-01
1,000,000,000
~
10,000,000
9,000,000
8,000,000
7,000,000
6,000,000
5,000,000
4,000,000
3,000,000
2,000,000
6,000,000,000
5,750,000,000
5,500,000,000
5,250,000,000
5,000,000,000
4,750,000,000
4.500,000,000
4,250,000,000
4,000,000,000
3,750,000,000
3,500,000,000
3,250,000,000
3,000,000,000
2,750,000,000
2,500,000,000
2,250,000,000
2,000,000,000
1,750,000,000
1,500,000,000
1,250,000,000

50. 2013-05
2013-06
2013-07
2013-08
2013-09
2013-10
2013-11
2013-12
2014-01
1,000,000
0
2014-02
2014-03
2014-04
2014-05
2014-06
2014-07
2014-08
2014-09
2014-10
2014-11
2014-12
2015-01
2015-02
2015-03
2015-04
2015-05
2015-06
2015-07
2015-08
2015-09
2015-10
2015-11
2015-12
2016-01
~
2016-09
1,000,000,000
~
10,000,000
9,000,000
8,000,000
7,000,000
6,000,000
5,000,000
4,000,000
3,000,000
2,000,000
6,000,000,000
5,750,000,000
5,500,000,000
5,250,000,000
5,000,000,000
4,750,000,000
4.500,000,000
4,250,000,000
4,000,000,000
3,750,000,000
3,500,000,000
3,250,000,000
3,000,000,000
2,750,000,000
2,500,000,000
2,250,000,000
2,000,000,000
1,750,000,000
1,500,000,000
1,250,000,000
Notary
runC •
containerd •
HyperKit , VPNKit, DataKit •
SwarmKit •
libcontainer •
libnetwork • • Docker 1.8 : Docker Content Trust
• Docker for Mac
Docker for Windows
• Docker 1.12
with built-in
orchestration
• Docker 0.9 : Pluggable execution
• Docker 1.7 : Multi-Host Networking
• Docker 1.11:
OCI support

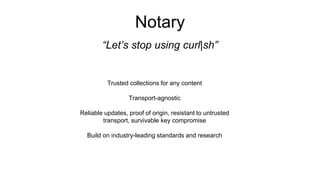

51. Notary
“Let’s stop using curl|sh”
Trusted collections for any content
Transport-agnostic
Reliable updates, proof of origin, resistant to untrusted
transport, survivable key compromise
Build on industry-leading standards and research

52. RunC
The universal container runtime
https://runc.io

53. containerd
A daemon to control runC
built for performance and density
http://containerd.tools/

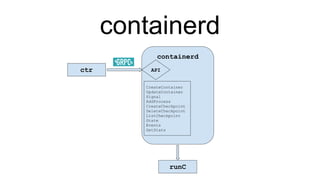

54. containerd

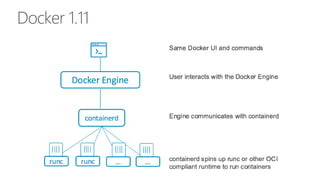

55. Docker 1.11

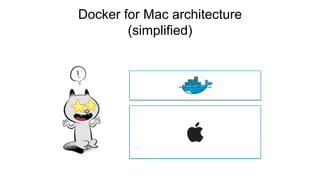

56. Docker for Mac architecture
(simplified)

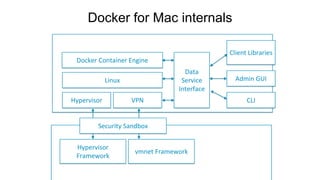

57. Hypervisor
Framework
vmnet Framework
Docker Container Engine
Hypervisor
Linux
VPN
Data
Service
Interface
Client Libraries
Admin GUI
CLI
Security Sandbox
Docker for Mac internals

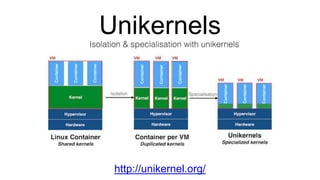

58. Unikernels
http://unikernel.org/

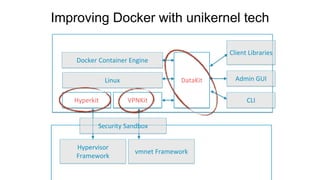

59. Hypervisor
Framework
vmnet Framework
Docker Container Engine
Hyperkit
Linux
VPNKit
DataKit
Client Libraries
Admin GUI
CLI
Security Sandbox
Improving Docker with unikernel tech

60. InfraKit

61. Problem:
Managing Docker on different infrastructure is
difficult and not portable.

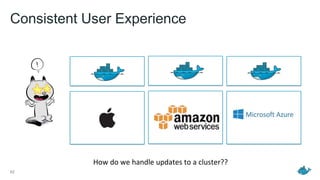

62. Consistent User Experience
62
How do we handle updates to a cluster??

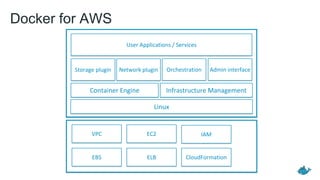

63. Docker for AWS
EBS ELB
Container Engine
Storage plugin
Infrastructure Management
Network plugin Orchestration
IAM
CloudFormation
EC2VPC
Admin interface
Linux
User Applications / Services

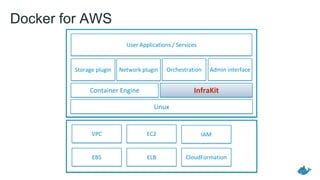

64. Docker for AWS
EBS ELB
Container Engine
Storage plugin
InfraKit
Network plugin Orchestration
IAM
CloudFormation
EC2VPC
Admin interface
Linux
User Applications / Services

65. InfraKit
A toolkit for building declarative, self-healing
infrastructure.

66. Declarative
• JSON configuration for desired infrastructure state:
• Specification of instances — vm image, instance type, etc.
• Group properties — size, logical identifiers, etc.
• Design patterns encourage
• encapsulation
• composition
• Config is input to all operations — system figures out what to do
66

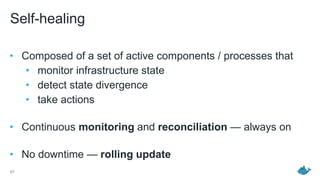

67. Self-healing
• Composed of a set of active components / processes that
• monitor infrastructure state
• detect state divergence
• take actions
• Continuous monitoring and reconciliation — always on
• No downtime — rolling update
67

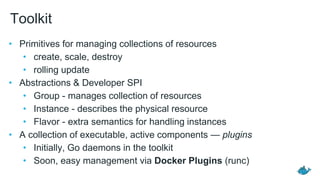

68. Toolkit
• Primitives for managing collections of resources
• create, scale, destroy
• rolling update
• Abstractions & Developer SPI
• Group - manages collection of resources
• Instance - describes the physical resource
• Flavor - extra semantics for handling instances
• A collection of executable, active components — plugins
• Initially, Go daemons in the toolkit
• Soon, easy management via Docker Plugins (runc)

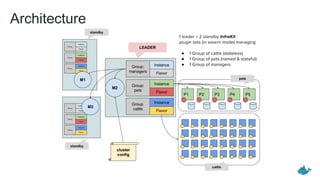

69. Architecture

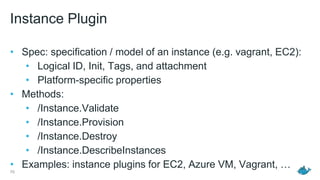

70. Instance Plugin
• Spec: specification / model of an instance (e.g. vagrant, EC2):
• Logical ID, Init, Tags, and attachment
• Platform-specific properties
• Methods:
• /Instance.Validate
• /Instance.Provision
• /Instance.Destroy
• /Instance.DescribeInstances
• Examples: instance plugins for EC2, Azure VM, Vagrant, …
70

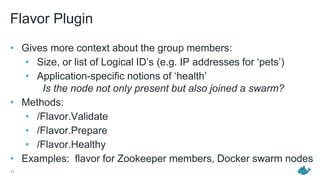

71. Flavor Plugin
• Gives more context about the group members:
• Size, or list of Logical ID’s (e.g. IP addresses for ‘pets’)
• Application-specific notions of ‘health’
Is the node not only present but also joined a swarm?
• Methods:
• /Flavor.Validate
• /Flavor.Prepare
• /Flavor.Healthy
• Examples: flavor for Zookeeper members, Docker swarm nodes
71

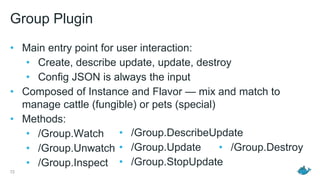

72. Group Plugin
• Main entry point for user interaction:
• Create, describe update, update, destroy
• Config JSON is always the input
• Composed of Instance and Flavor — mix and match to
manage cattle (fungible) or pets (special)
• Methods:
• /Group.Watch
• /Group.Unwatch
• /Group.Inspect
72
• /Group.DescribeUpdate
• /Group.Update
• /Group.StopUpdate
• /Group.Destroy

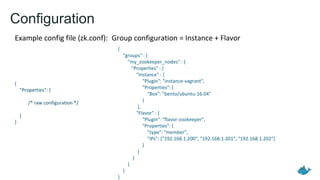

73. Configuration
Example config file (zk.conf): Group configuration = Instance + Flavor
{
"Properties": {
/* raw configuration */
}
}
{
"groups" : {
"my_zookeeper_nodes" : {
"Properties" : {
"Instance" : {
"Plugin": "instance-vagrant",
"Properties": {
"Box": "bento/ubuntu-16.04"
}
},
"Flavor" : {
"Plugin": "flavor-zookeeper",
"Properties": {
"type": "member",
"IPs": ["192.168.1.200", "192.168.1.201", "192.168.1.202"]
}
}
}
}
}
}

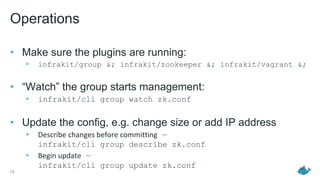

74. Operations
• Make sure the plugins are running:
• infrakit/group &; infrakit/zookeeper &; infrakit/vagrant &;
• “Watch” the group starts management:
• infrakit/cli group watch zk.conf
• Update the config, e.g. change size or add IP address
• Describe changes before committing —
infrakit/cli group describe zk.conf
• Begin update —
infrakit/cli group update zk.conf
74

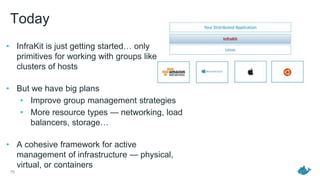

75. Today
75
• InfraKit is just getting started… only
primitives for working with groups like
clusters of hosts
• But we have big plans
• Improve group management strategies
• More resource types — networking, load
balancers, storage…
• A cohesive framework for active
management of infrastructure — physical,
virtual, or containers

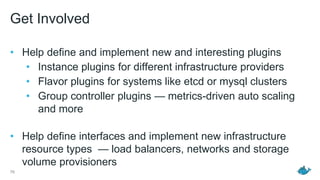

76. Get Involved
• Help define and implement new and interesting plugins
• Instance plugins for different infrastructure providers
• Flavor plugins for systems like etcd or mysql clusters
• Group controller plugins — metrics-driven auto scaling
and more
• Help define interfaces and implement new infrastructure
resource types — load balancers, networks and storage
volume provisioners
76

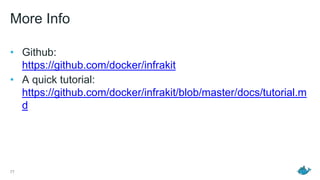

77. More Info
• Github:
https://github.com/docker/infrakit
• A quick tutorial:
https://github.com/docker/infrakit/blob/master/docs/tutorial.m
d
77

78. Demo

79. THANK YOU
