Exploring Enterprise Networks with Familiar BI Tools

2. © 2015 MapR Technologies

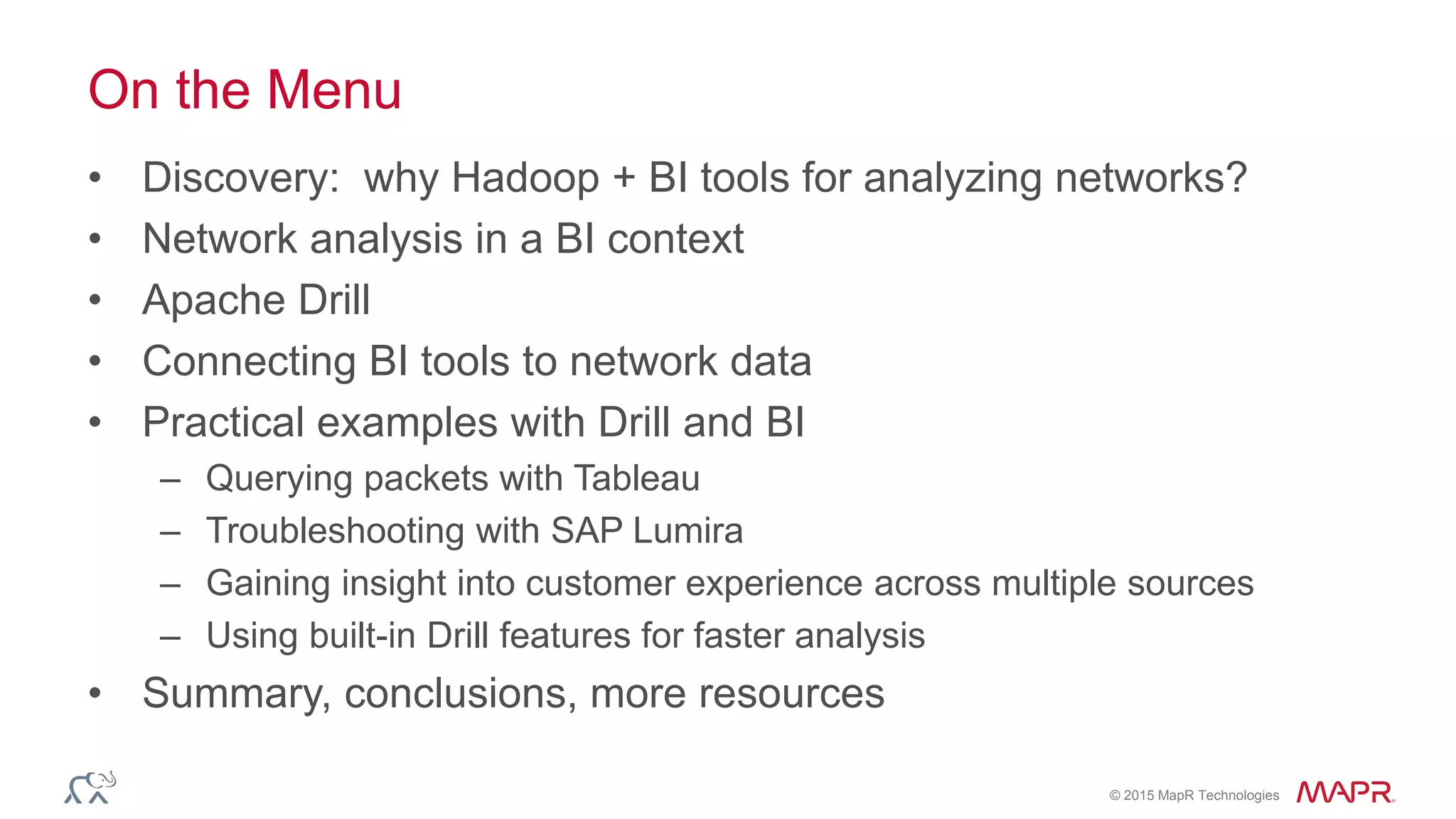

On the Menu
• Discovery: why Hadoop + BI tools for analyzing networks?
• Network analysis in a BI context
• Apache Drill
• Connecting BI tools to network data
• Practical examples with Drill and BI
– Querying packets with Tableau
– Troubleshooting with SAP Lumira
– Gaining insight into customer experience across multiple sources
– Using built-in Drill features for faster analysis
• Summary, conclusions, more resources

3. © 2015 MapR Technologies
Topics not covered in detail…
• Packet capture architectures
• Ways to capture packets effectively
• Large-scale packet processing – others have done this
• Comparison of BI tools
• Survey of the best SQL-on-Hadoop technology

4. © 2015 MapR Technologies
There’s a lot happening in your network…
• Packets, logs, interconnections
• Many layers (L1-L7), “L8”
• Network data is multi-faceted…
– It’s serialized and highly structured
– It facilitates communication between heterogeneous devices via
common protocols
– But it’s not structured to be stored and analyzed
– The application often doesn’t care
– Consequently, specialized tooling and software is required

5. © 2015 MapR Technologies
Why Hadoop + BI tools?
• What does Hadoop enable that makes it a powerful tool for
network analytics?
• What’s new that wasn’t previous possible/desirable?
• How does it augment existing solutions?
• It’s many things:
– New ways of accessing semi-structured data from the network
– Offloading of existing data warehouses and tools
– Combining, joining, blending network captures with other sources
– Many network tools cannot answer questions about your business and
customers
– You can use SQL to get a lot of the answers you need

6. © 2015 MapR Technologies
New Data Sources Unlock New Insights & Apps
Existing structured data
• Well-defined and well-
understood schema
– OLTP data
– Data warehouse data
– End user data stores (e.g.,
Excel)
New multi-structured data
• Typically un-modeled,
different in format
– Network data
– Clickstream data
– Sensor data
– Rich media (e.g., audio, video)
– Documents
… both types are needed today for deeper insights

7. © 2015 MapR Technologies
1980 2000 20101990 2020
Fixed schema
DBA controls structure
Dynamic / Flexible schema
Application controls structure
NON-RELATIONAL DATASTORESRELATIONAL DATABASES
GBs-TBs TBs-PBsVolume
Database
Network data, like other data, is increasingly Stored in Non-
Relational Datastores
Structure
Development
Structured Structured, semi-structured and unstructured
Planned (release cycle = months-years) Iterative (release cycle = days-weeks)

8. © 2015 MapR Technologies
Apache Drill Brings Flexibility & Performance
Access to any data type, any data source
• Relational
• Nested data
• Schema-less
Rapid time to insights
• Query data in-situ
• No Schemas required
• Easy to get started
Integration with existing tools
• ANSI SQL
• BI tool integration
Scale in all dimensions
• TB-PB of scale
• 1000’s of users
• 1000’s of nodes
Granular Security
• Authentication
• Row/column level controls
• De-centralized

9. © 2015 MapR Technologies
Granular security permissions through Drill views
Name City State Credit Card #
Dave San Jose CA 1374-7914-3865-4817
John Boulder CO 1374-9735-1794-9711
Raw File (/raw/cards.csv)
Owner
Admins
Permission
Admins
Business Analyst Data Scientist
Name City State Credit Card #
Dave San Jose CA 1374-1111-1111-1111
John Boulder CO 1374-1111-1111-1111
Data Scientist View (/views/maskedcards.csv)
Not a physical data copy
Name City State
Dave San Jose CA
John Boulder CO
Business Analyst View
Owner
Admins
Permission
Business
Analysts
Owner
Admins
Permission
Data
Scientists

10. © 2015 MapR Technologies
Self-Service Data Exploration
Direct access to Hadoop data from familiar BI / Analytics tools- ANSI SQL compatible
Ad-hoc
Reporting
Queries
Raw Data
Exploration
Day Zero
queries
…

11. © 2015 MapR Technologies
Drill is a Distributed SQL query engine
drillbit
DataNode/Regi
onServer
drillbit
DataNode/Regi
onServer
drillbit
DataNode/Regi
onServer
ZooKeeper
ZooKeeper
ZooKeeper
…
 Scale out
 Columnar and Vectorized execution
 Optimistic and pipelined execution (no MR, Spark, Tez)
 Late binding
 Extensible

12. © 2015 MapR Technologies
- Sub-directory
- HBase namespace
- Hive database
Run SQL on Captures Directly
SELECT * FROM dfs.router1.`captures.json`
Workspace
- Pathnames
- Hive table
- HBase table
Table
- DFS (Text, Parquet, JSON)
- HBase/MapR-DB
- Hive Metastore/HCatalog
- Easy API to go beyond Hadoop
Storage plugin instance

13. © 2015 MapR Technologies
Network Analytics in a BI Context
• Getting results from BI tools requires SQL expertise
– Analytic techniques, visualizations, dashboarding
– Proprietary information about your operations
– Making sense of sources quickly
• New SQL-on-Hadoop (like Drill) technologies enable leveraging
this:
– To find new areas to gain value from combining your own proprietary
data with network sources
– Augment the analysis you’re doing now via use cases for packet data
you’re already storing in Hadoop
– Use data in real-time that’s too large to fit into memory and/or hits BI
tool limitations for analysis directly

14. © 2015 MapR Technologies
Hadoop Packet Processing Ecosystem
• Translating to various formats
– JSON
– CSV
– Parquet, others
• Packet ingestion
– Flume tcpdump source
– Direct from hardware vendors
• Northbound APIs
– Openstack and opendaylight
• More open source tools
– Packet processing in Pig, etc.

15. © 2015 MapR Technologies
Network Data Sources
• Data sources in the network are growing, changing
– Existing: tcpdump, SPAN, pcap
– New and more: SDN, NFV, REST APIs
• Often not suitable for analysis directly
– Requires building a schema
– ETL
– Structure is changing and evolving  ongoing management
– Large size, too big for memory

16. © 2015 MapR Technologies
REST APIs and JSON
• Self-describing data is common with REST APIs
– JSON
• Northbound APIs on almost everything in the network
– Enables access to many operational views
– But requires development work to pull it together
• SQL queries directly on the data is difficult
• Requires transformations, scripting, parsing

17. © 2015 MapR Technologies
View Drillbits information
in the cluster

18. © 2015 MapR Technologies
Manage storage plugin
instances through Web UI

19. © 2015 MapR Technologies
Monitor and
manage Drill queries

20. © 2015 MapR Technologies
See details of the query

21. © 2015 MapR Technologies
SAP Lumira and Wireshark Example -- Scenario
• Overview:
– Sensor data in JSON format being gathered multiple times daily from
remote locations
– Done over an IP network, each sensor has an IP address
• Problem
– One sensor is experiencing reading failures
– Network connectivity issues are suspected
• Solution Approach
– Take packet captures where we are reading sensors (central location) –
CSV-formatted Wireshark file
– Observe whether there are many TCP retransmissions happening
between the source and destination
– Ultimately, determine if the network is the problem and take action

22. © 2015 MapR Technologies

23. © 2015 MapR Technologies
Summary
• Using Drill from SAP Lumira, and the JDBC driver
– We compared data across multiple sources
• Notice we didn’t do any ETL
– Or define any schema for the network data
• Using existing ANSI SQL knowledge to query the data without
transformations
– Not just on the network data, but combined with other sources
• Self-service

24. © 2015 MapR Technologies

25. © 2015 MapR Technologies
Network Routing, OpenStack, JSON
• Link-state routing protocols (OSPF, IS-IS, Trill)
– Each participating node knows the topology of the entire network
– A dump of the database shows all nodes and adjacencies
– Physical and logical topology
– Other information (MPLS, etc.)
• OpenStack: pull networks, subnets, ports via REST API
– Use Drill Explorer to build a view
– Combine the data with device or customer information
• Enables visualizing the entire network quickly

26. © 2015 MapR Technologies
OpenStack Networking APIs Example
• JSON formatted responses
• Run queries without any data preparation
• Use of FLATTEN() for arbitrary maps

27. © 2015 MapR Technologies
FLATTEN()
• FLATTEN() is useful for exploration of data that is repeated
• Used on arrays
• Columns are repeated as necessary to maintain association with
each element of the array
• Example:
“host routes”: [
{
“destination” : “0.0.0.0/0”,
“nexthop”: “10.10.10.1”
},
{
“destination” : “192.168.10.0/24”,
“nexthop”: “192.168.0.1”,
},
…
]

28. © 2015 MapR Technologies

29. © 2015 MapR Technologies
TCP Round-Trip Times Example
• TCP RTT can affect customer experience in many ways
– Not just loading pages
– Also interactive, AJAX, forms, etc.
• Much of this can be calculated with other tools, then visualized
– Complex to calculate on your own
• Only a part of overall performance story, but helpful
– Example: switching network providers, adding caches or optimizers

30. © 2015 MapR Technologies

31. © 2015 MapR Technologies
Summary and Conclusions
• New SQL-on-Hadoop technologies enable network analysis in a BI
context
– Less time making schema, fewer requirements
– Easily supplement existing analysis
– Less need for specialized tools
• Apache Drill reduces the time required to get answers from network
data
– JSON analysis in place – interactive
– Queries and dashboards
– Integrated with BI tools out of the box
• Tableau, MicroStrategy, Qlikview, others
• More examples on github and YouTube
– mapr-demos
