1. Practical NoSQL: Accumulo's dirlist Example
May 21, 2019
John Highcock & Henry Sowell

2. © Cloudera, Inc. All rights reserved. 2

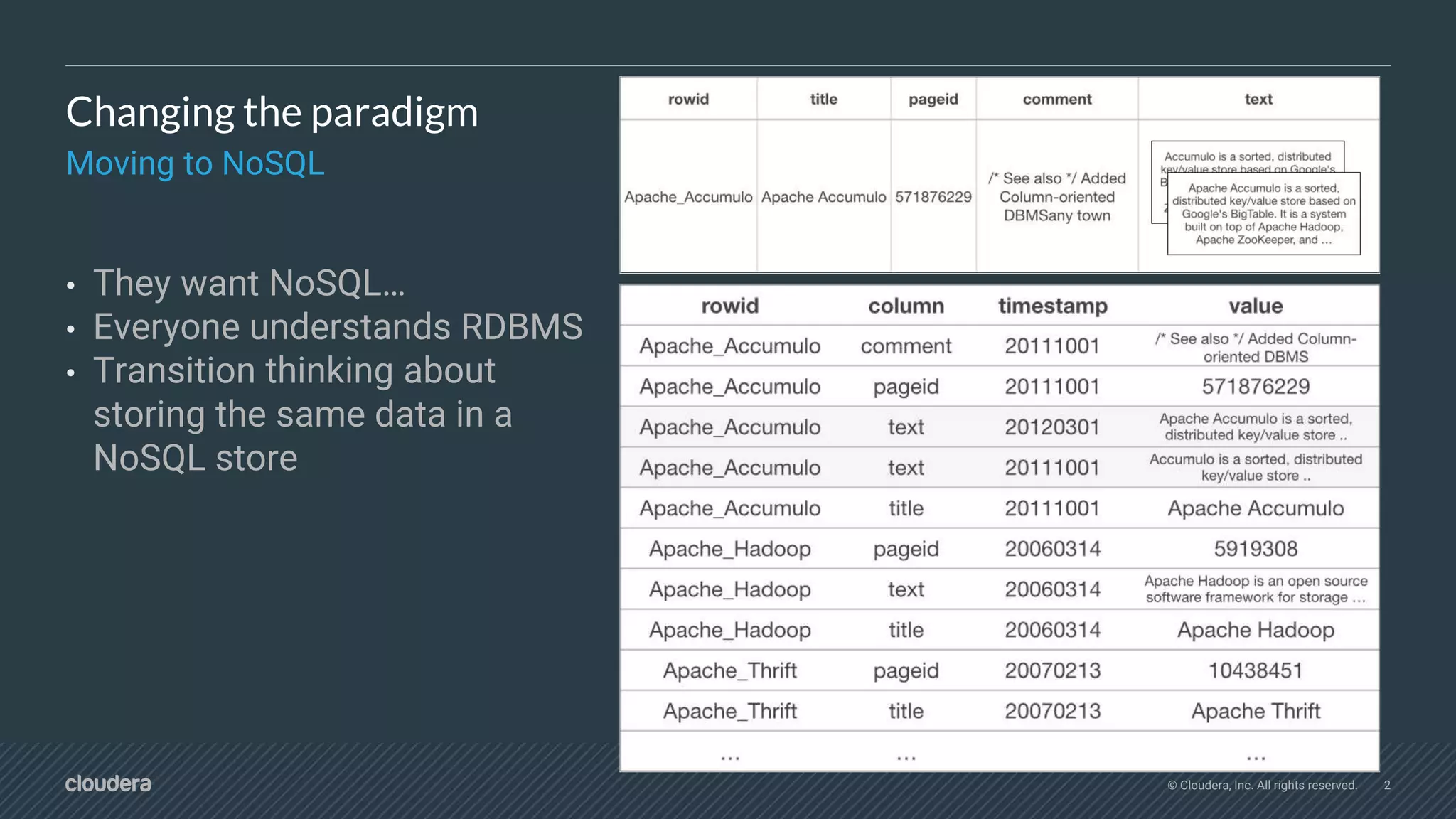

Changing the paradigm
Moving to NoSQL
• They want NoSQL…
• Everyone understands RDBMS
• Transition thinking about
storing the same data in a
NoSQL store

3. © Cloudera, Inc. All rights reserved. 3

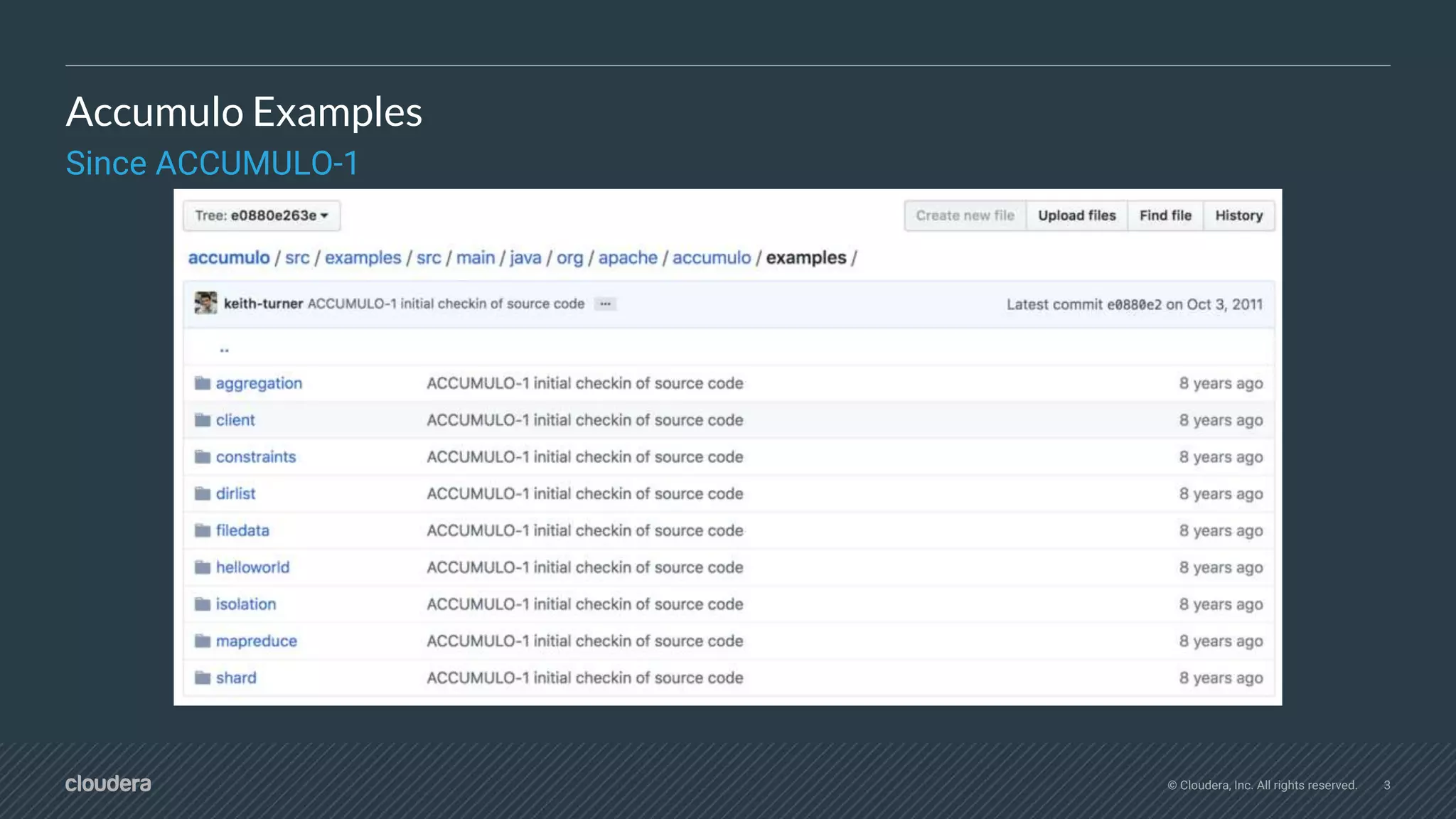

Accumulo Examples
Since ACCUMULO-1

4. © Cloudera, Inc. All rights reserved. 4

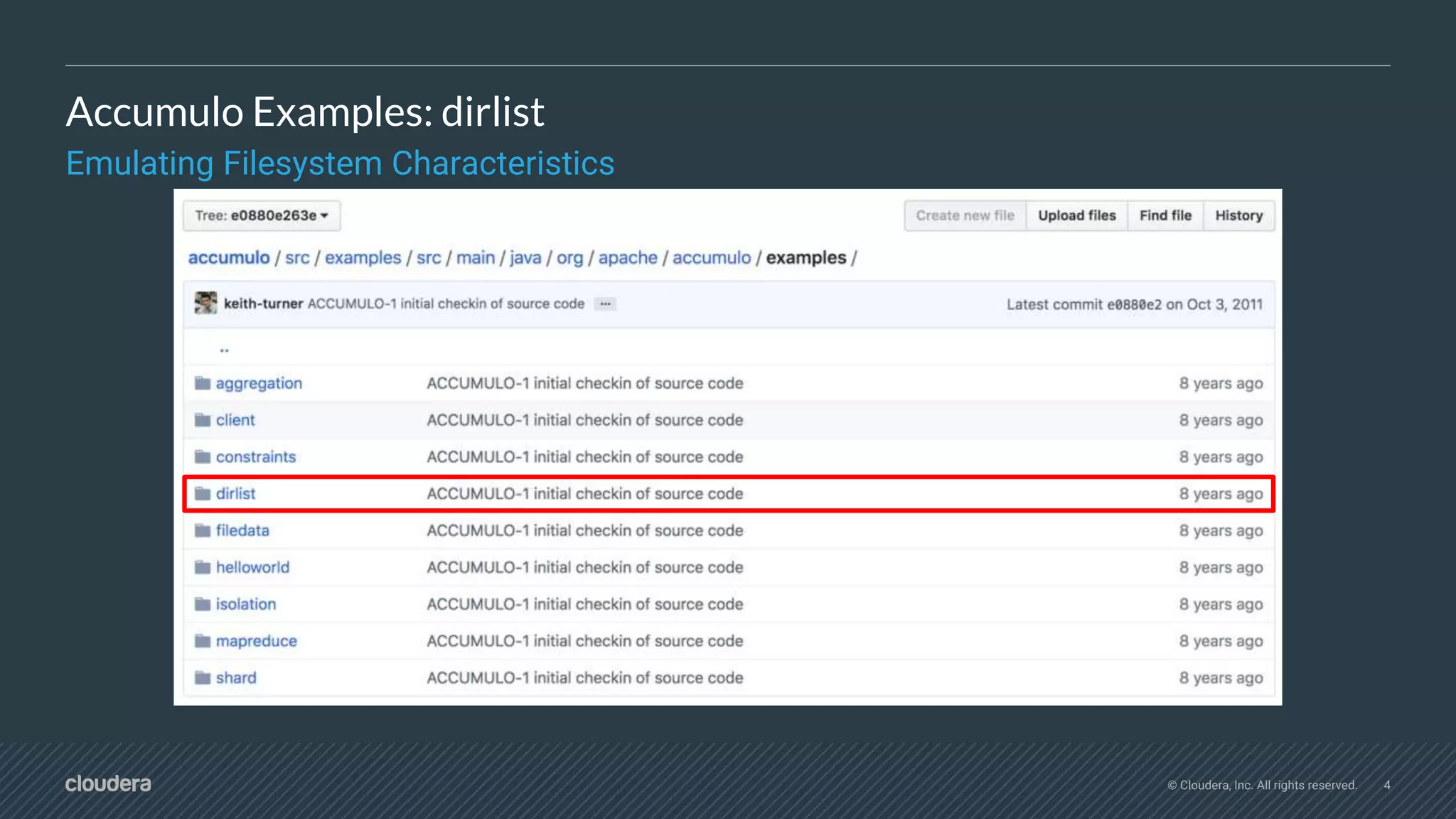

Accumulo Examples: dirlist
Emulating Filesystem Characteristics

5. © Cloudera, Inc. All rights reserved. 5

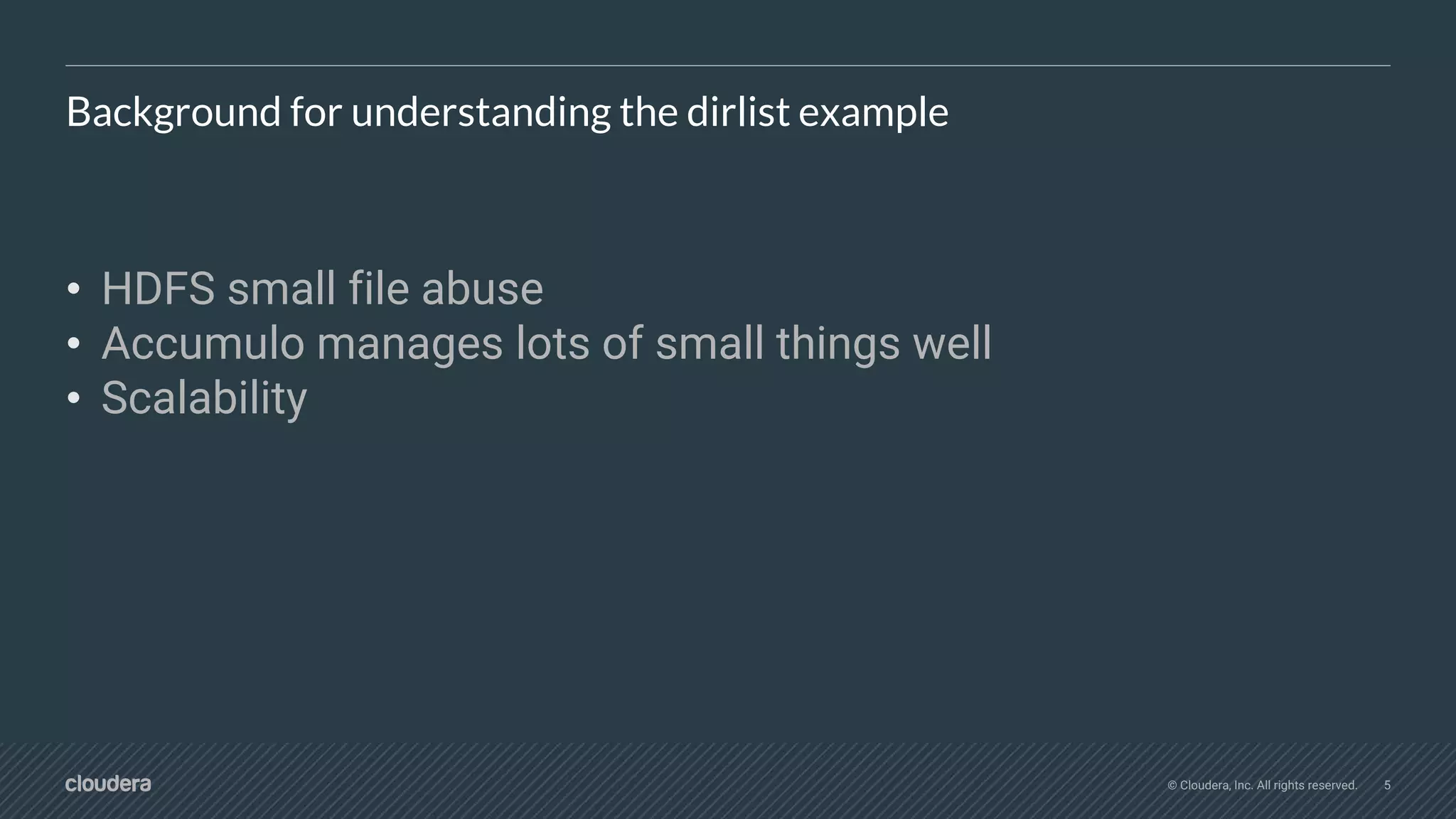

Background for understanding the dirlist example
• HDFS small file abuse
• Accumulo manages lots of small things well
• Scalability

6. © Cloudera, Inc. All rights reserved. 6

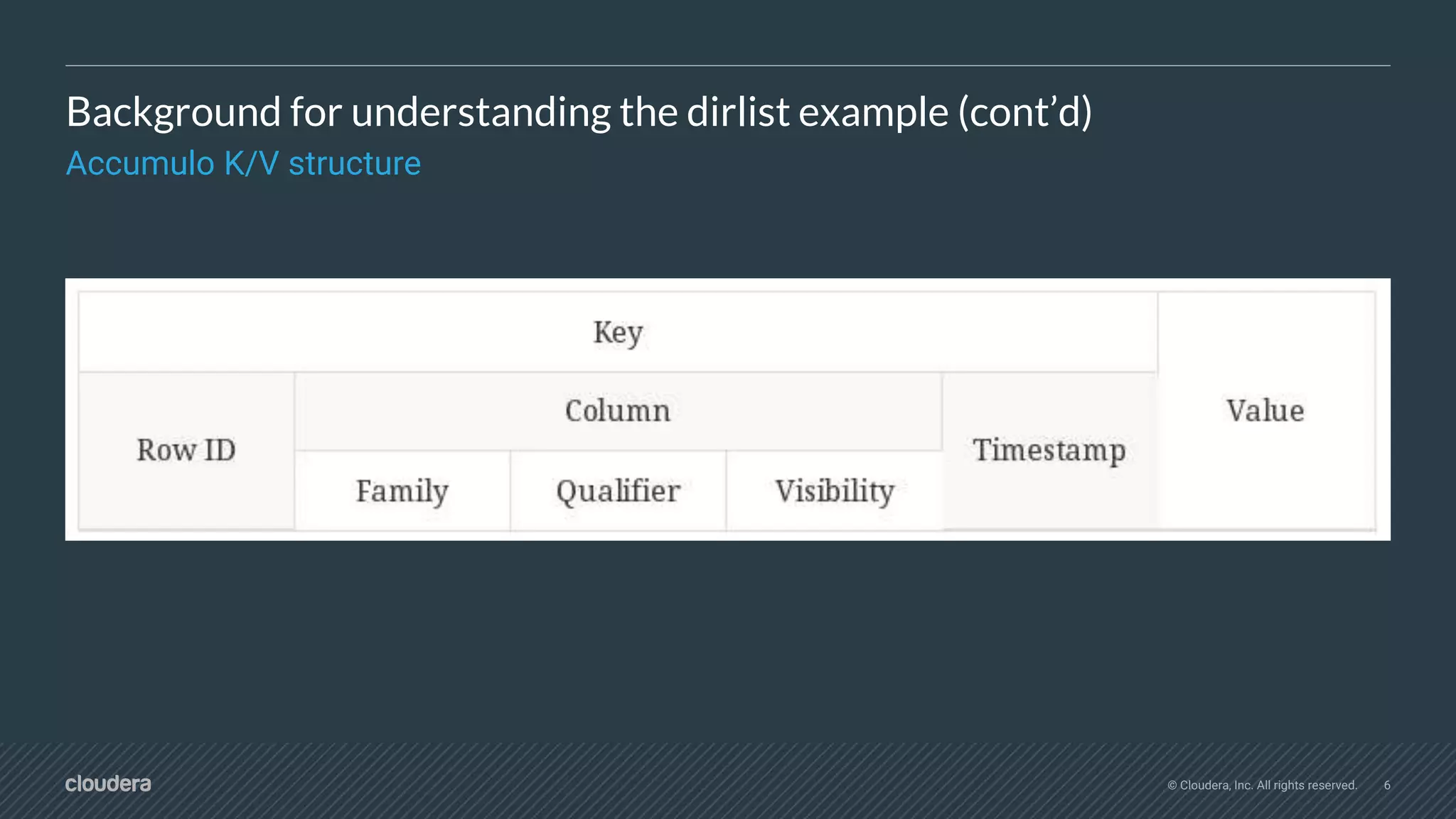

Background for understanding the dirlist example (cont’d)
Accumulo K/V structure

7. © Cloudera, Inc. All rights reserved. 7

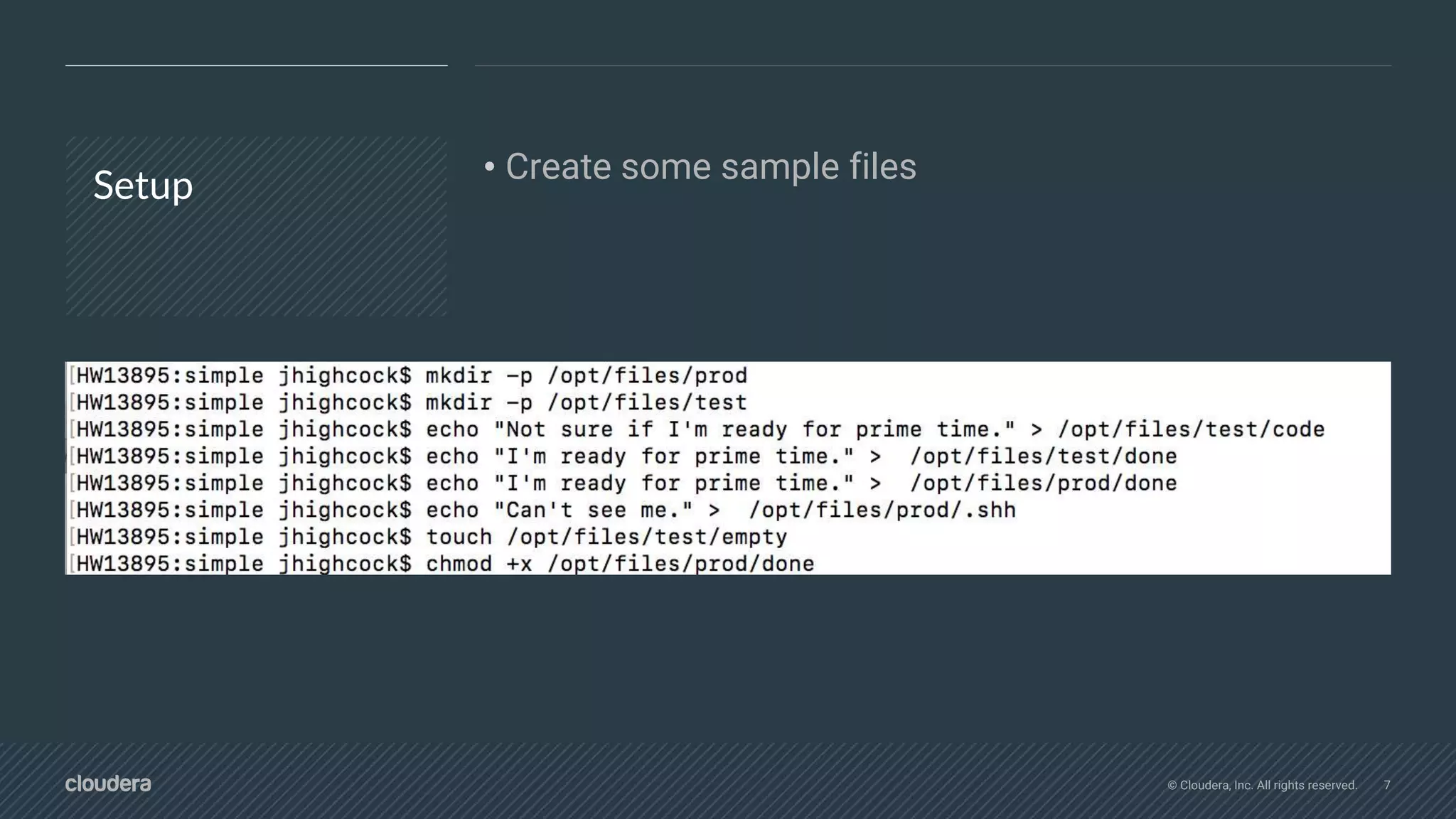

Setup
• Create some sample files

8. © Cloudera, Inc. All rights reserved. 8

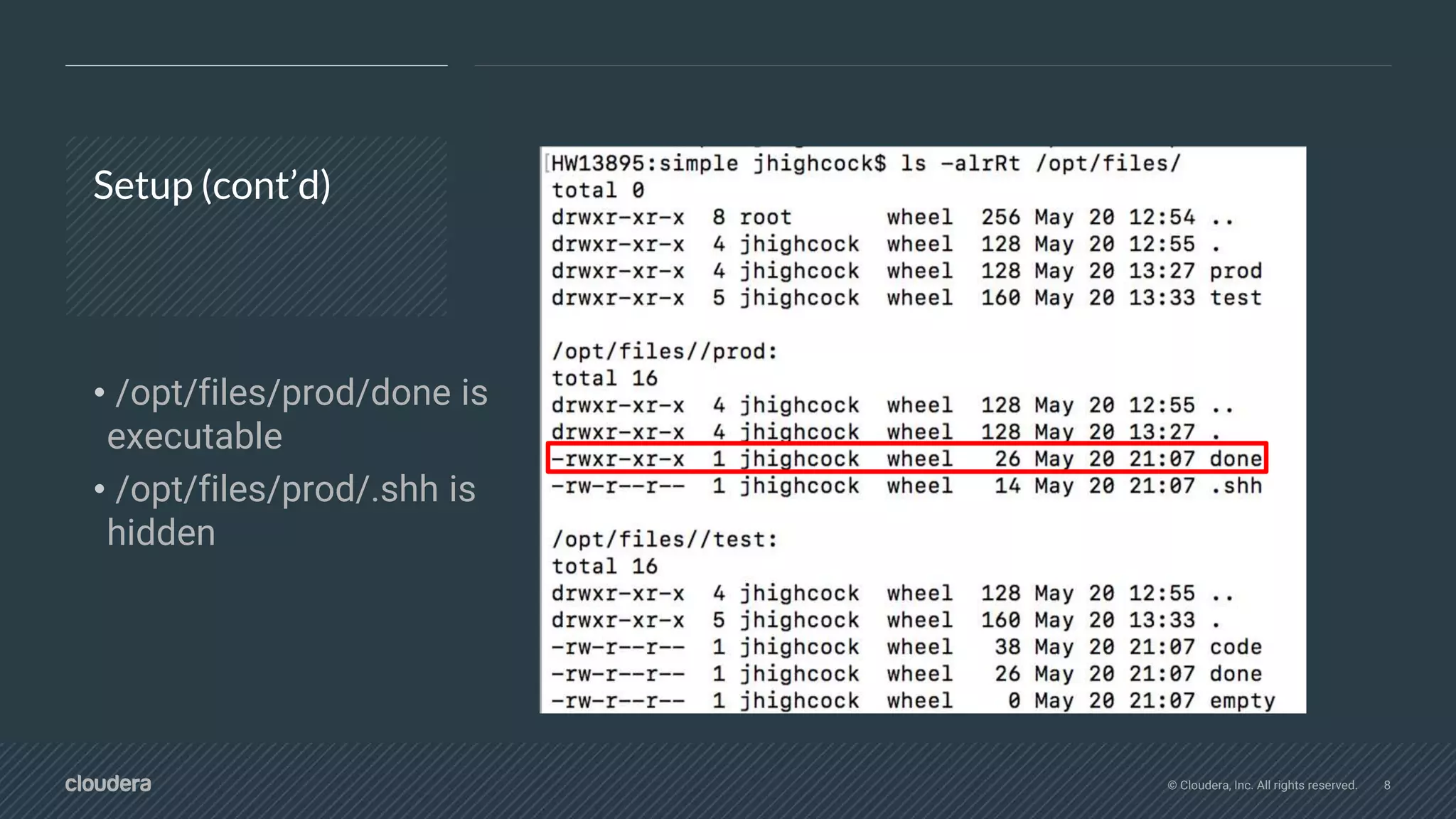

Setup (cont’d)
• /opt/files/prod/done is
executable
• /opt/files/prod/.shh is
hidden

9. © Cloudera, Inc. All rights reserved. 9

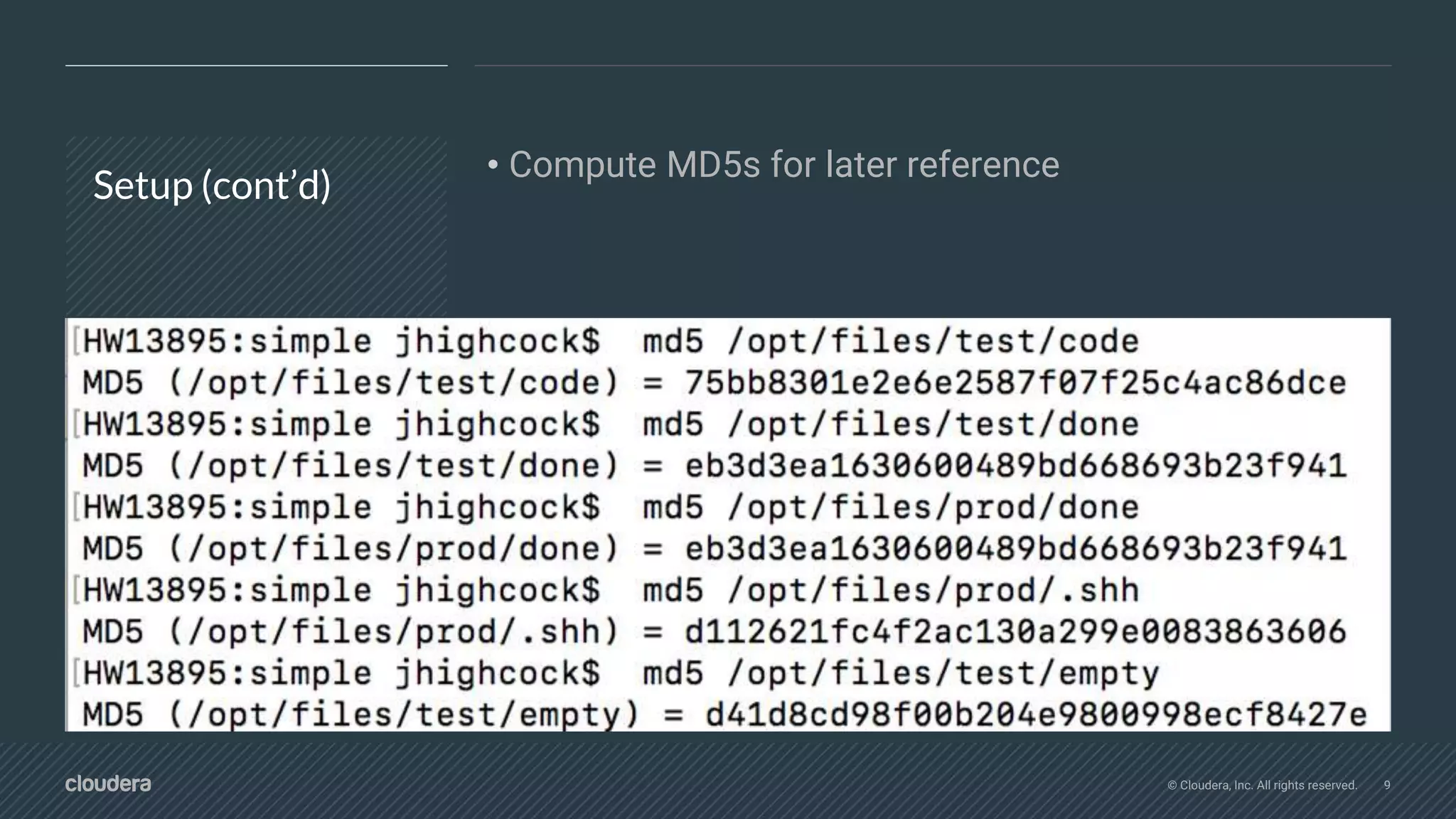

Setup (cont’d)
• Compute MD5s for later reference

10. © Cloudera, Inc. All rights reserved. 10

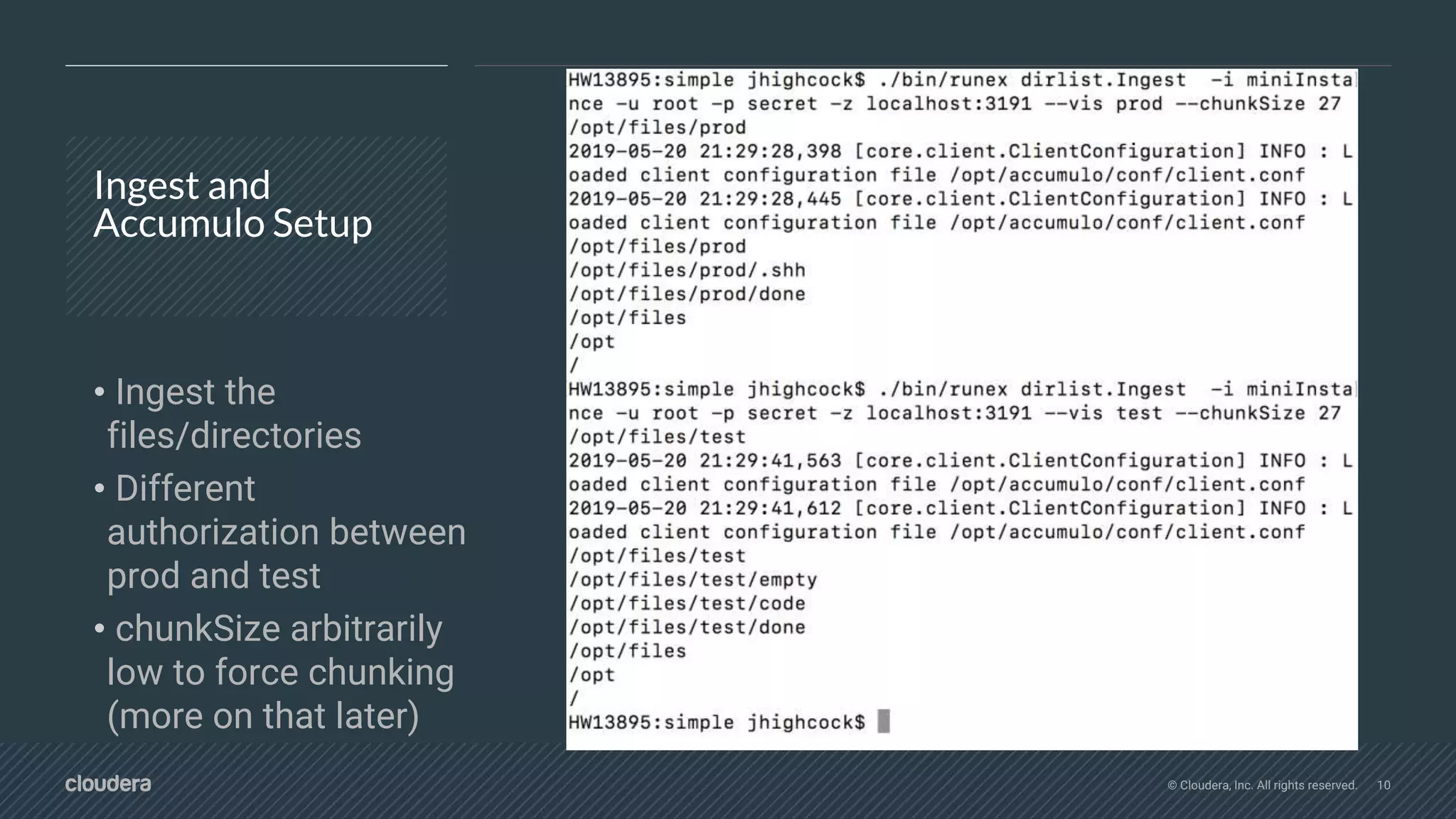

Ingest and
Accumulo Setup
• Ingest the
files/directories
• Different
authorization between
prod and test
• chunkSize arbitrarily
low to force chunking
(more on that later)

11. © Cloudera, Inc. All rights reserved. 11

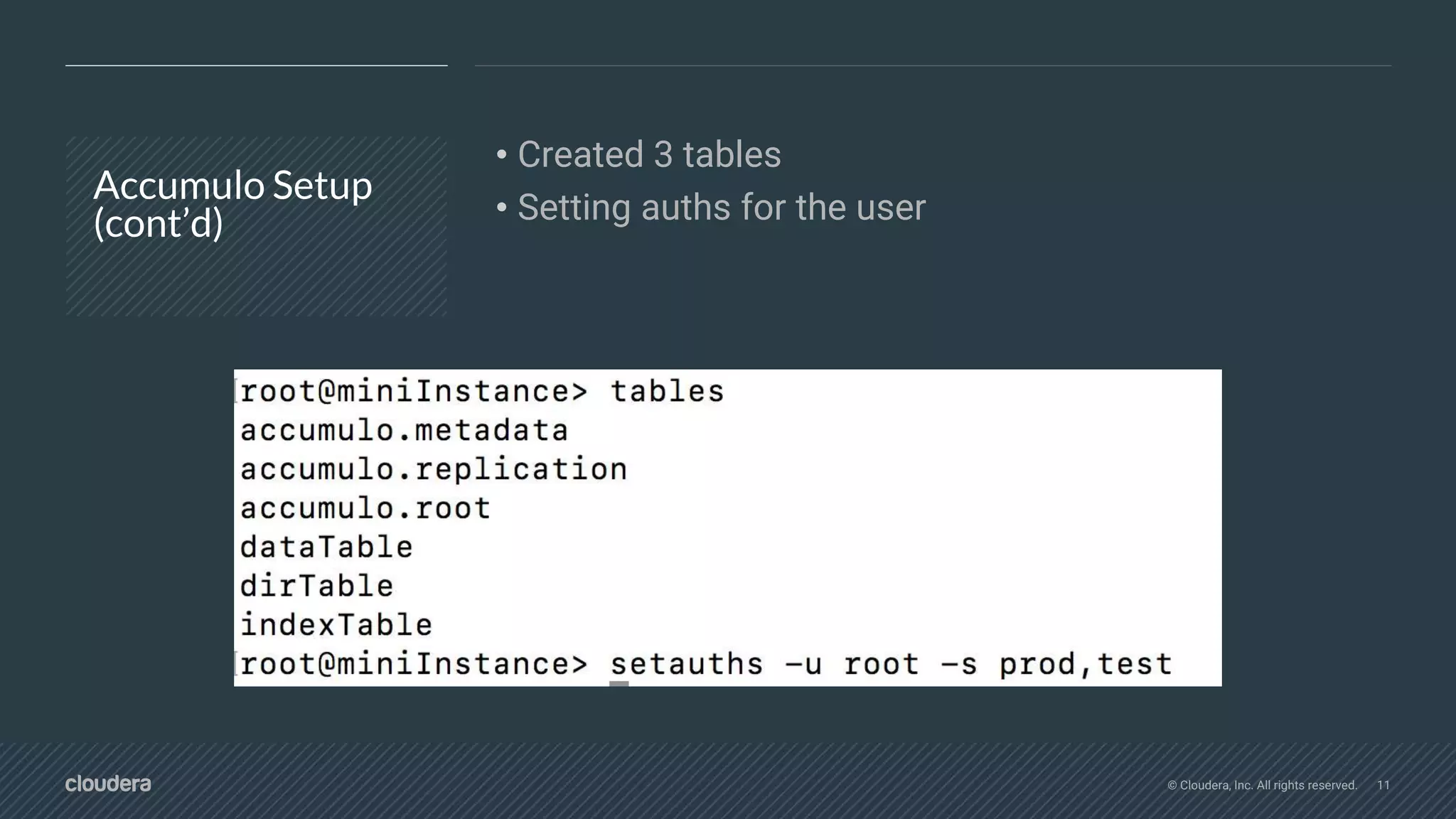

Accumulo Setup
(cont’d)
• Created 3 tables
• Setting auths for the user

12. © Cloudera, Inc. All rights reserved. 12

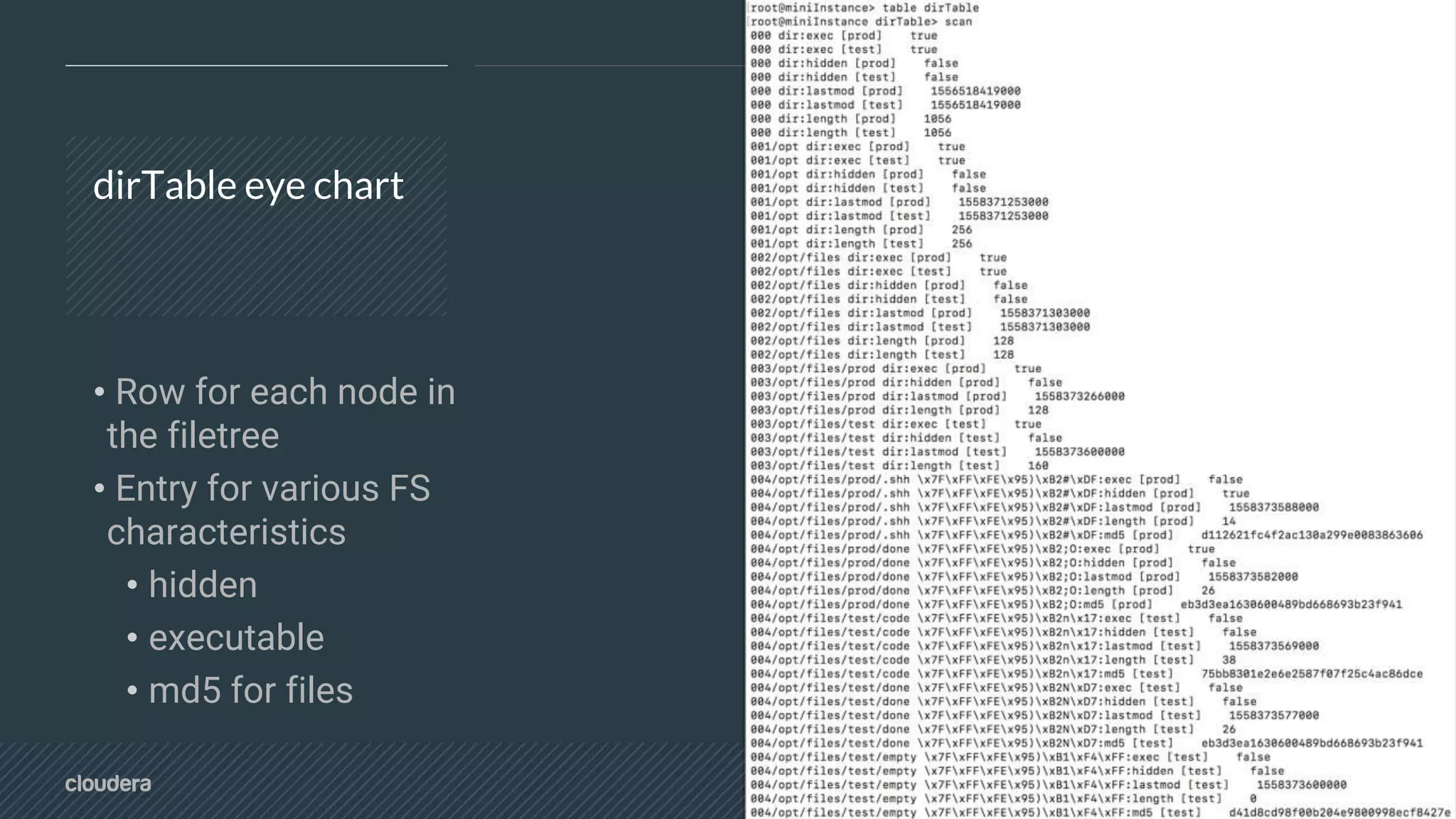

dirTable eye chart
• Row for each node in
the filetree
• Entry for various FS
characteristics
• hidden
• executable
• md5 for files

13. © Cloudera, Inc. All rights reserved. 13

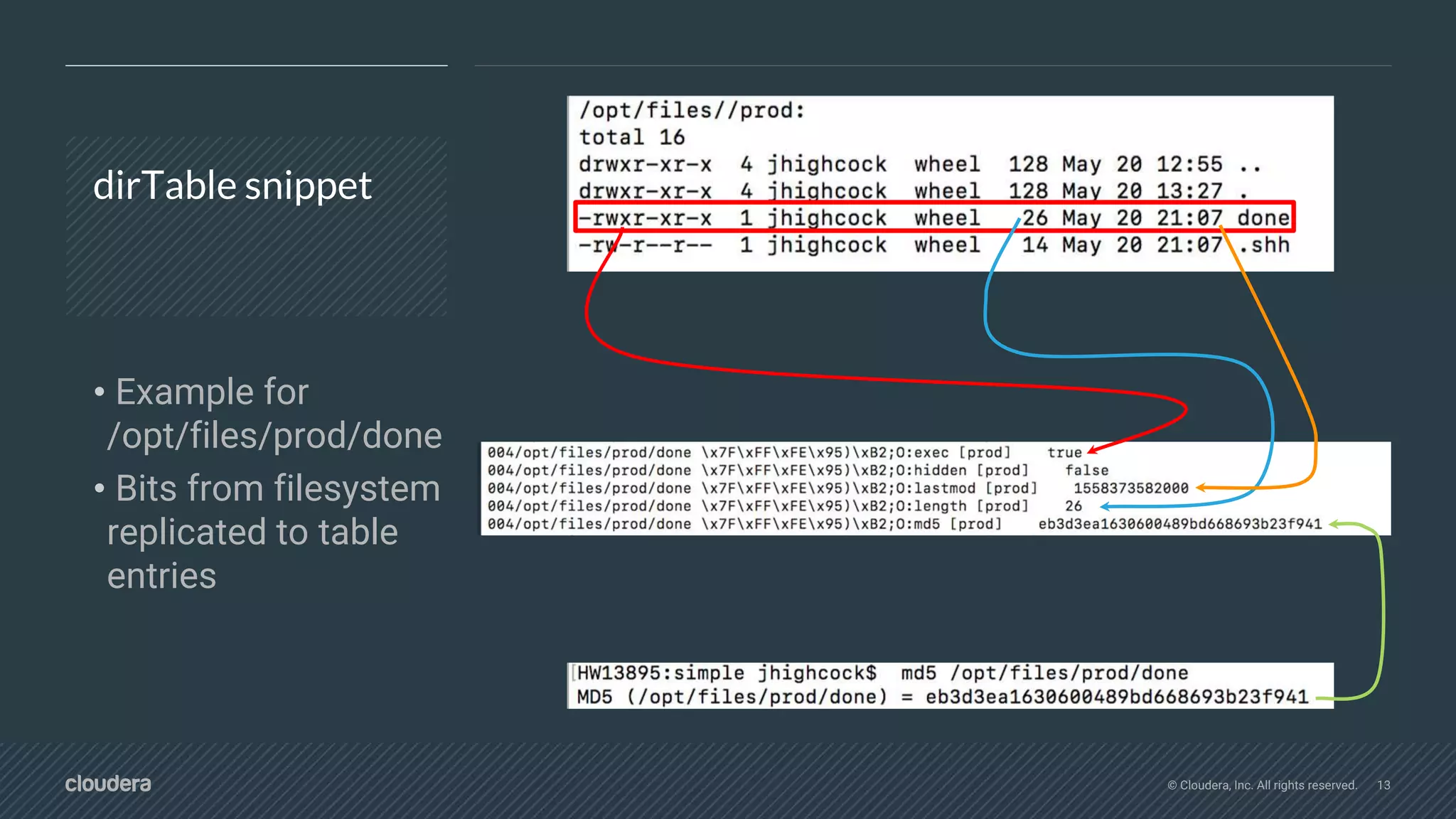

dirTable snippet
• Example for
/opt/files/prod/done
• Bits from filesystem
replicated to table
entries

14. © Cloudera, Inc. All rights reserved. 14

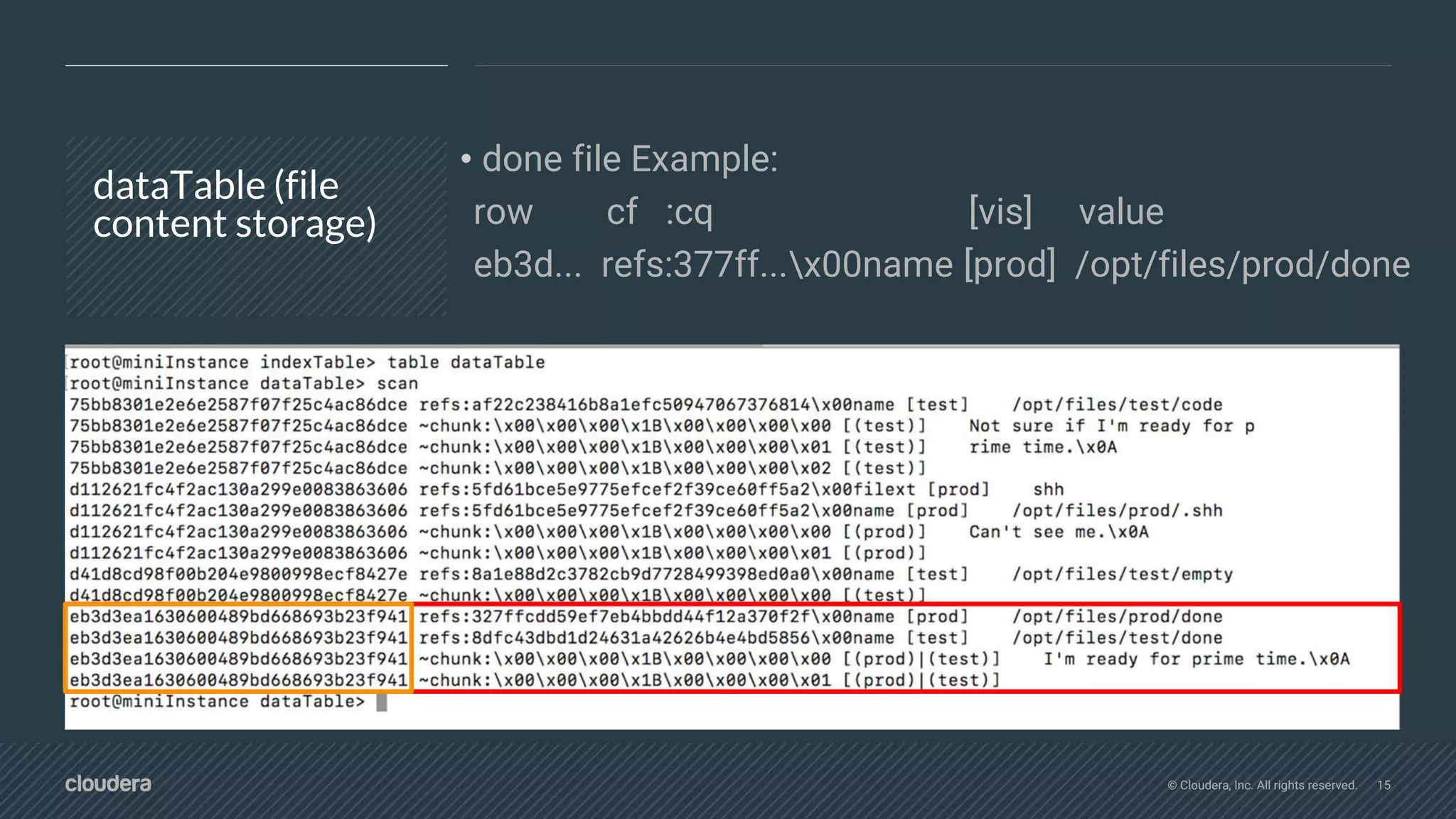

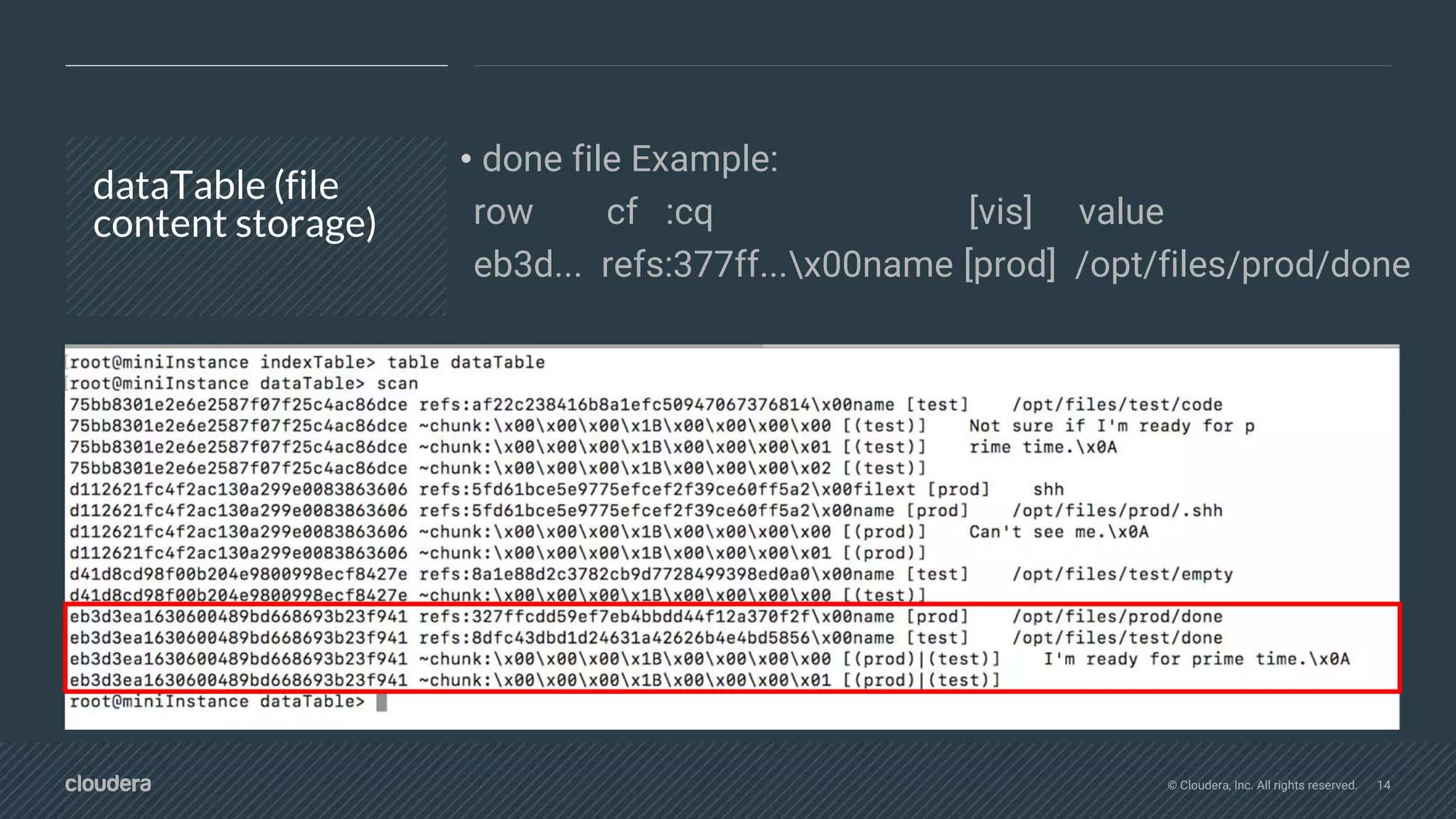

dataTable (file
content storage)
• done file Example:
row cf :cq [vis] value
eb3d... refs:377ff...x00name [prod] /opt/files/prod/done

15. © Cloudera, Inc. All rights reserved. 15

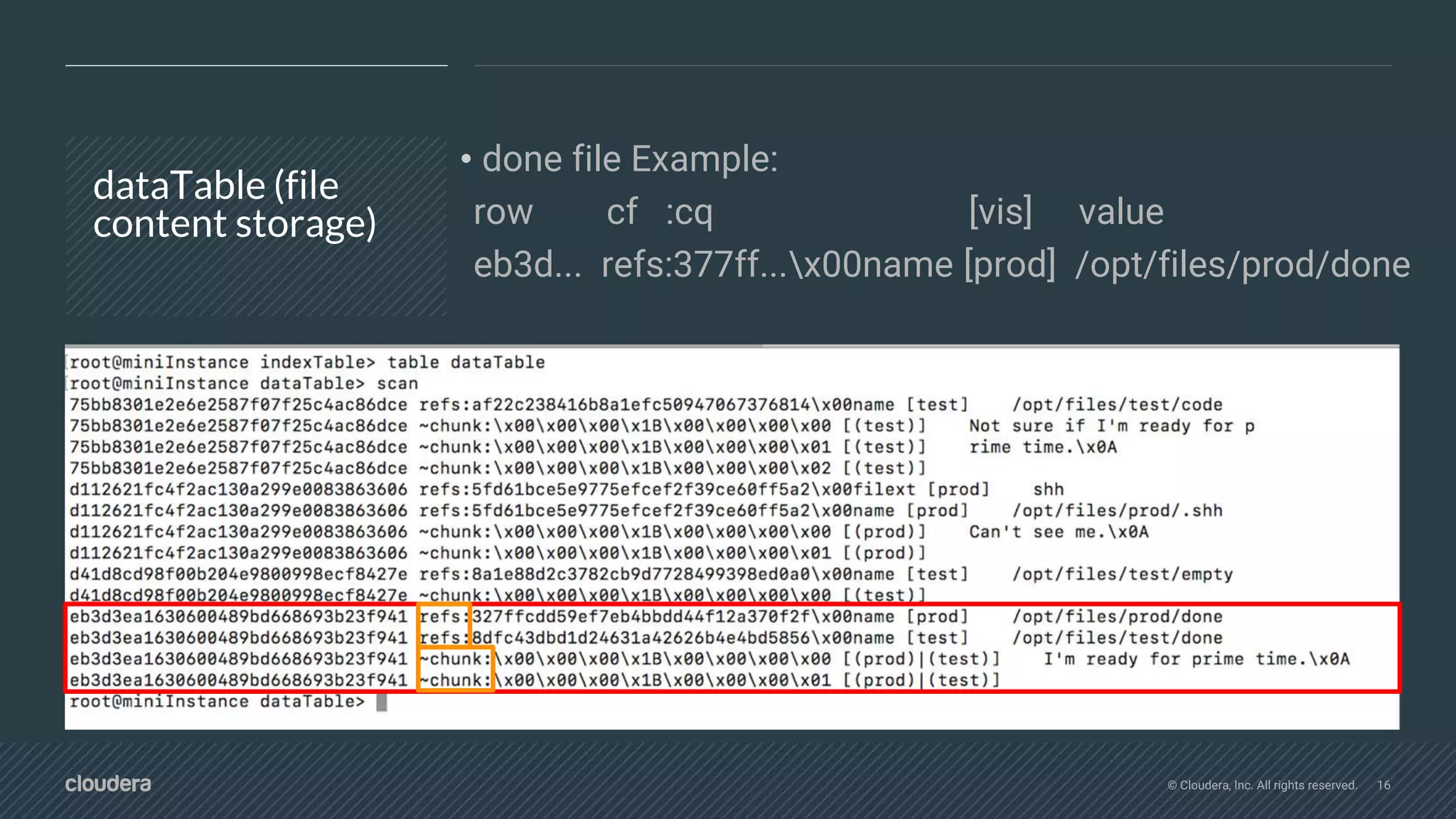

dataTable (file
content storage)
• done file Example:
row cf :cq [vis] value
eb3d... refs:377ff...x00name [prod] /opt/files/prod/done

16. © Cloudera, Inc. All rights reserved. 16
dataTable (file
content storage)
• done file Example:
row cf :cq [vis] value
eb3d... refs:377ff...x00name [prod] /opt/files/prod/done

17. © Cloudera, Inc. All rights reserved. 17
dataTable (file
content storage)
• done file Example:
row cf :cq [vis] value
eb3d... refs:377ff...x00name [prod] /opt/files/prod/done

18. © Cloudera, Inc. All rights reserved. 18

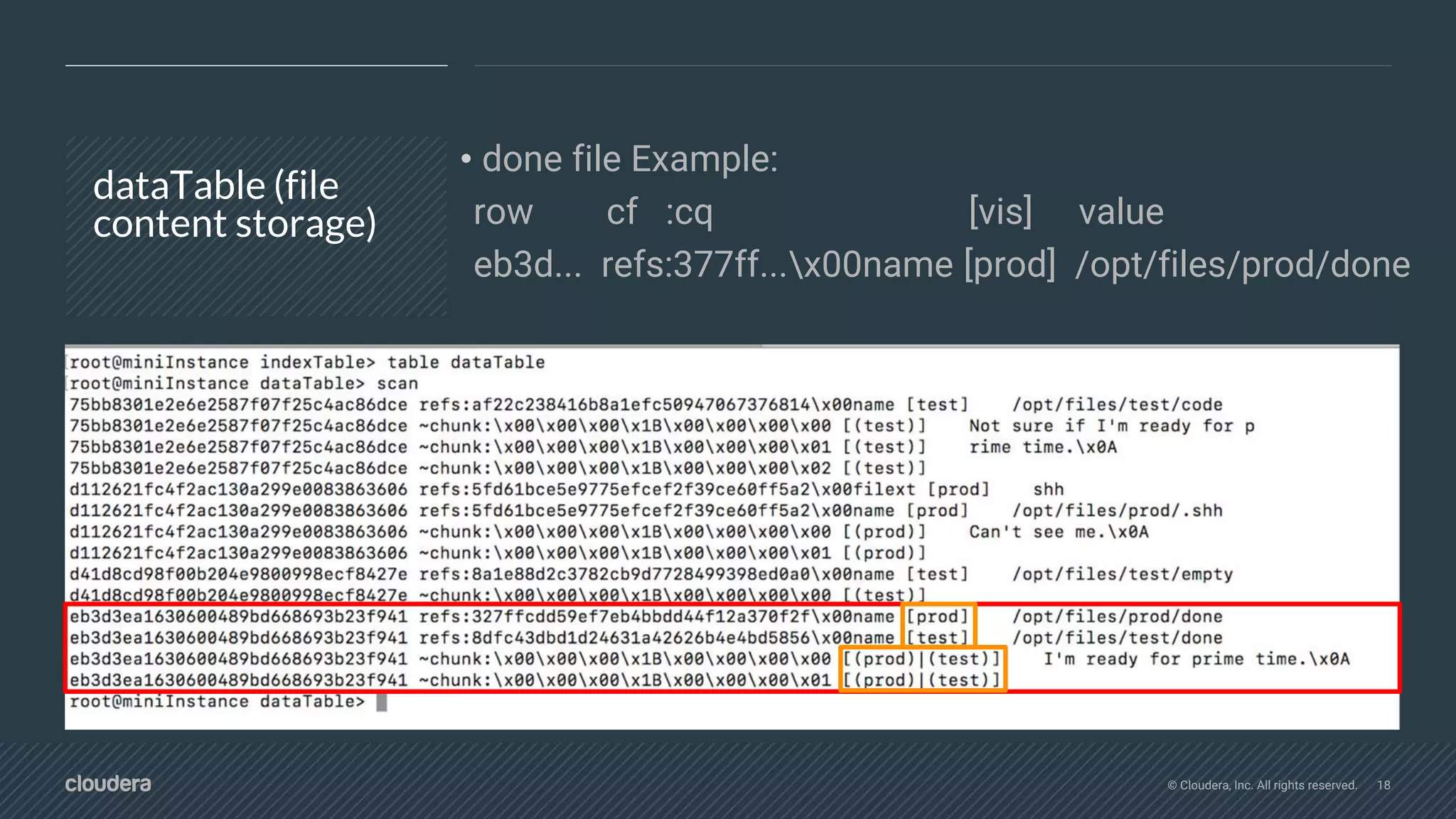

dataTable (file
content storage)
• done file Example:
row cf :cq [vis] value
eb3d... refs:377ff...x00name [prod] /opt/files/prod/done

19. © Cloudera, Inc. All rights reserved. 19

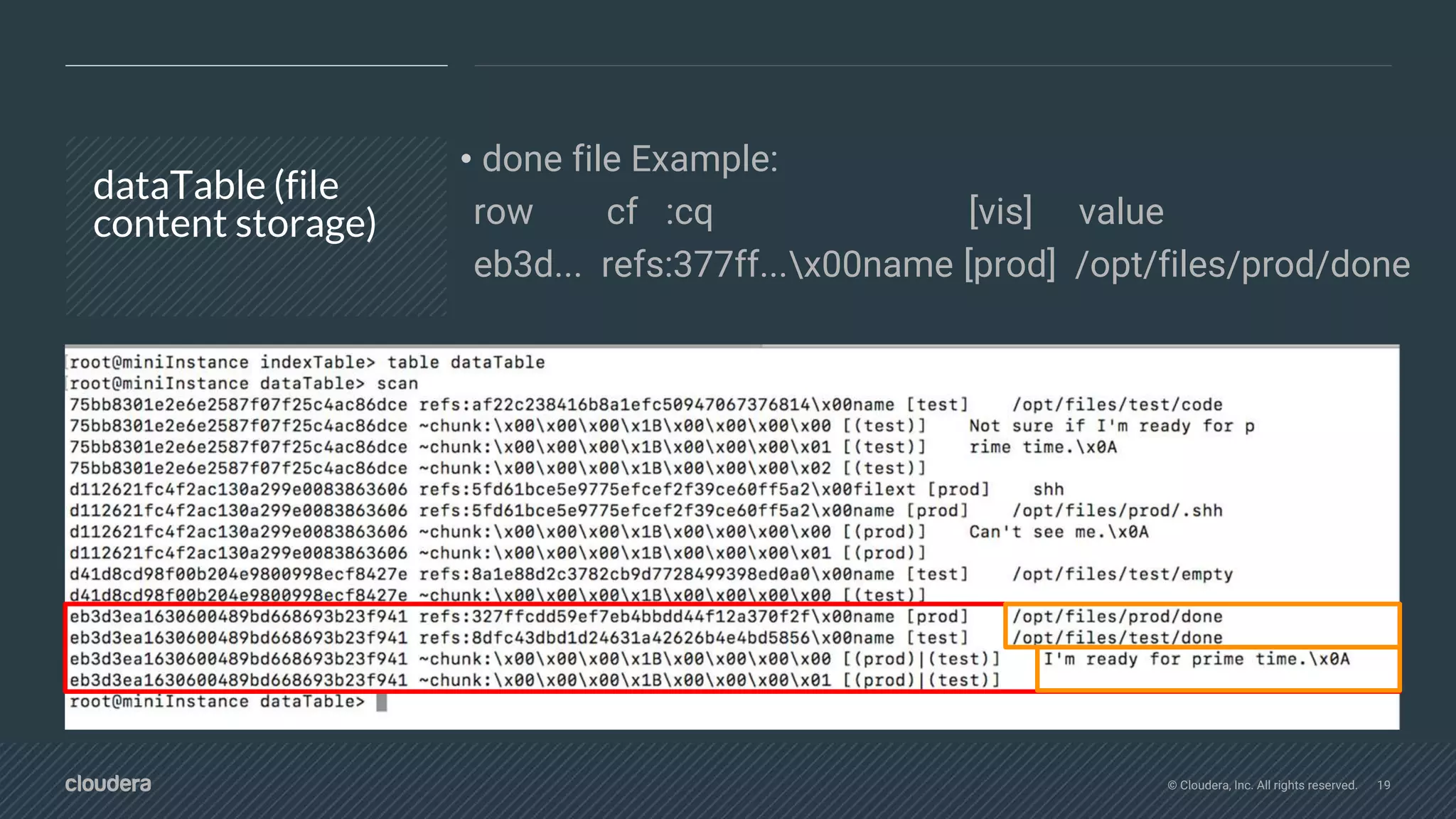

dataTable (file
content storage)
• done file Example:
row cf :cq [vis] value
eb3d... refs:377ff...x00name [prod] /opt/files/prod/done

20. © Cloudera, Inc. All rights reserved. 20

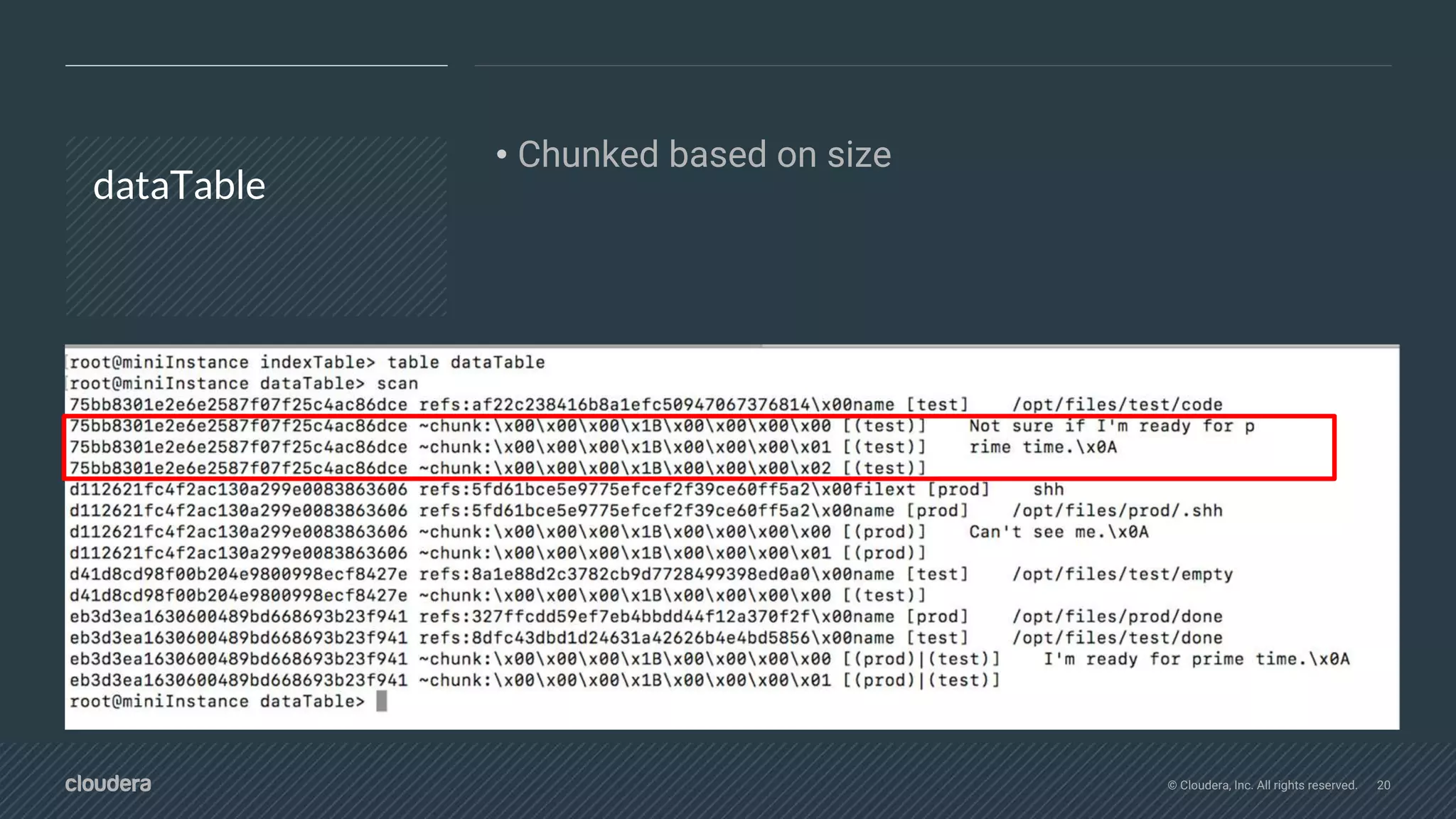

dataTable
• Chunked based on size

21. © Cloudera, Inc. All rights reserved. 21

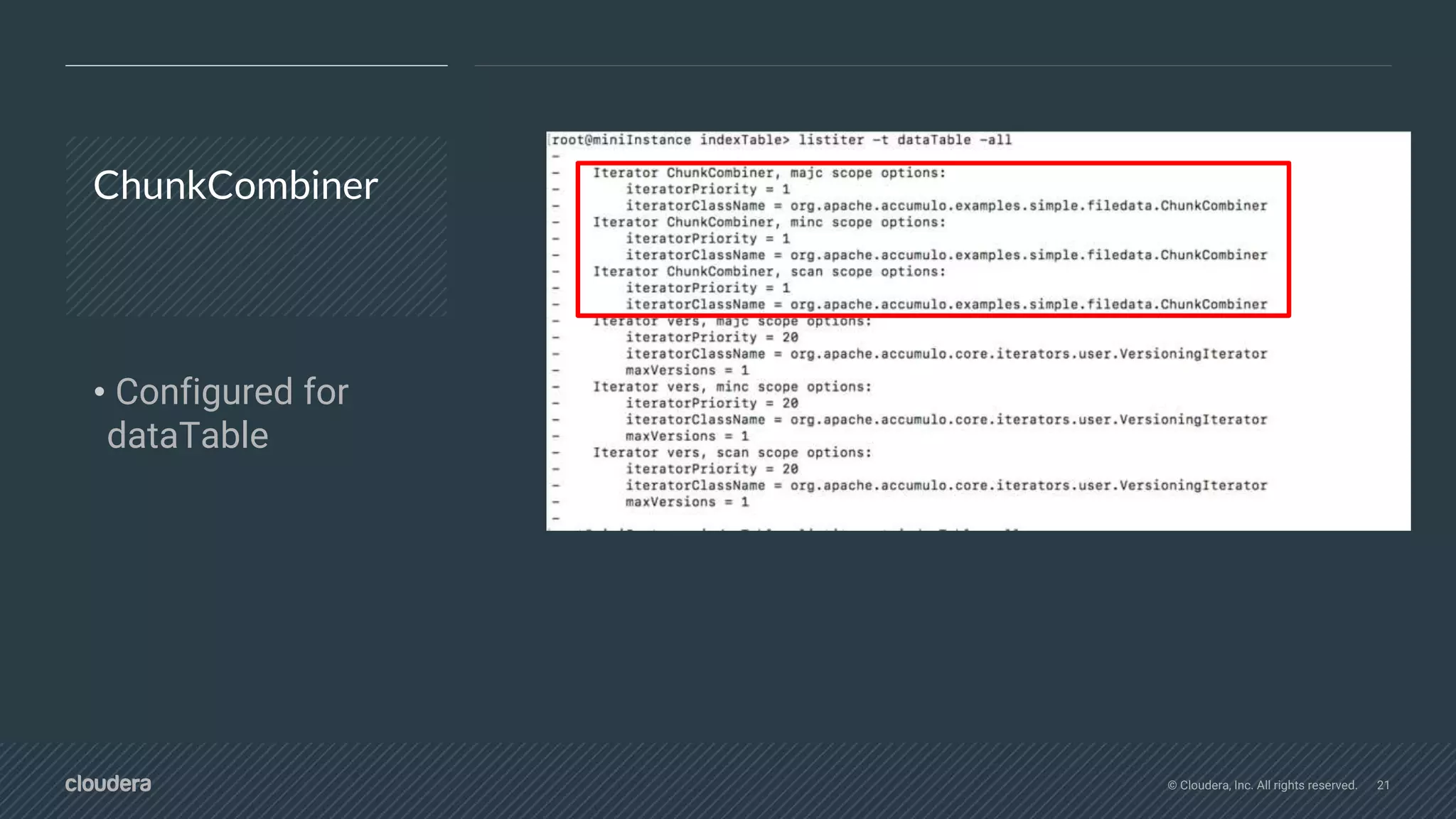

ChunkCombiner
• Configured for
dataTable

22. © Cloudera, Inc. All rights reserved. 22

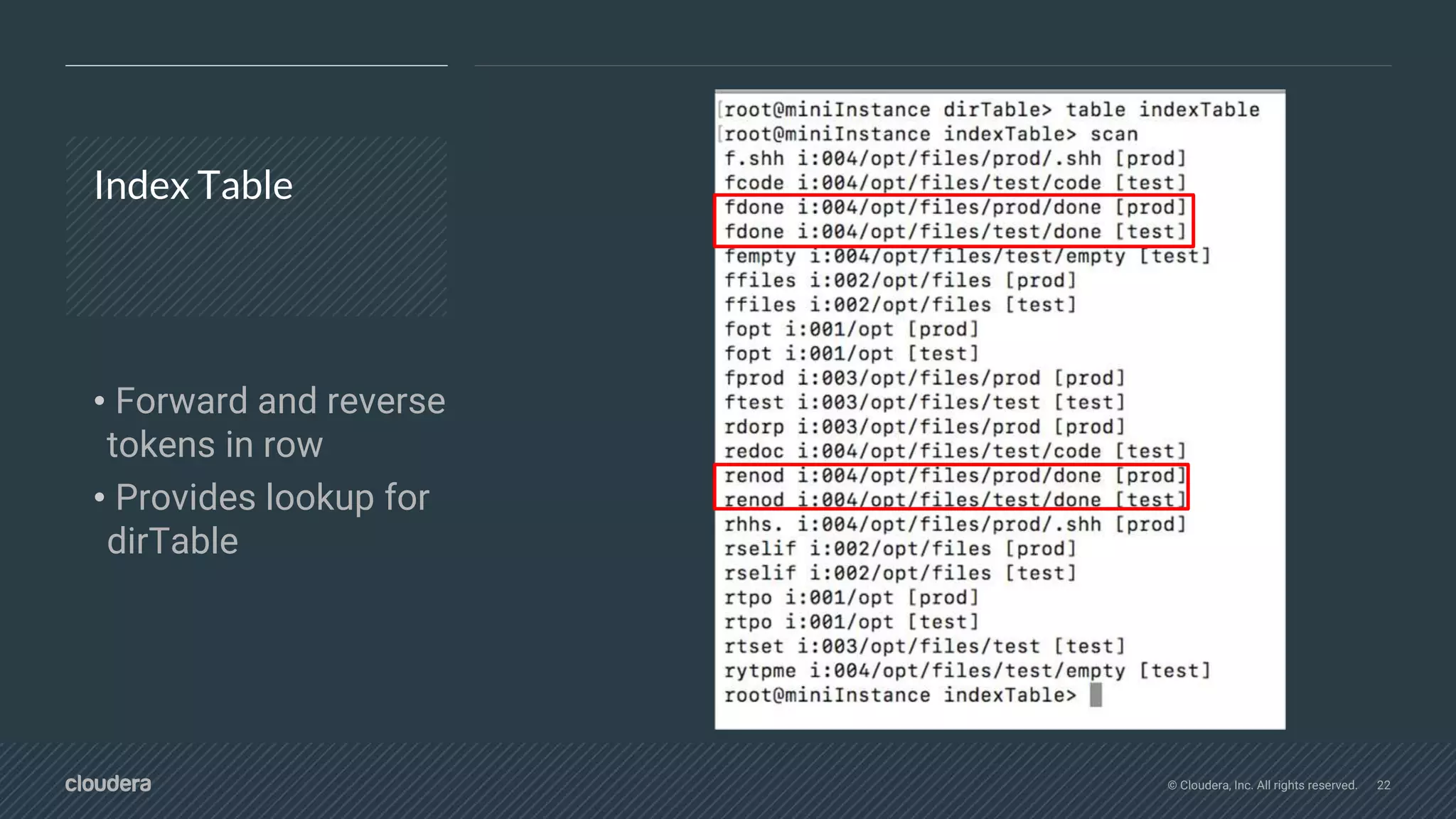

Index Table
• Forward and reverse
tokens in row
• Provides lookup for
dirTable

23. © Cloudera, Inc. All rights reserved. 23

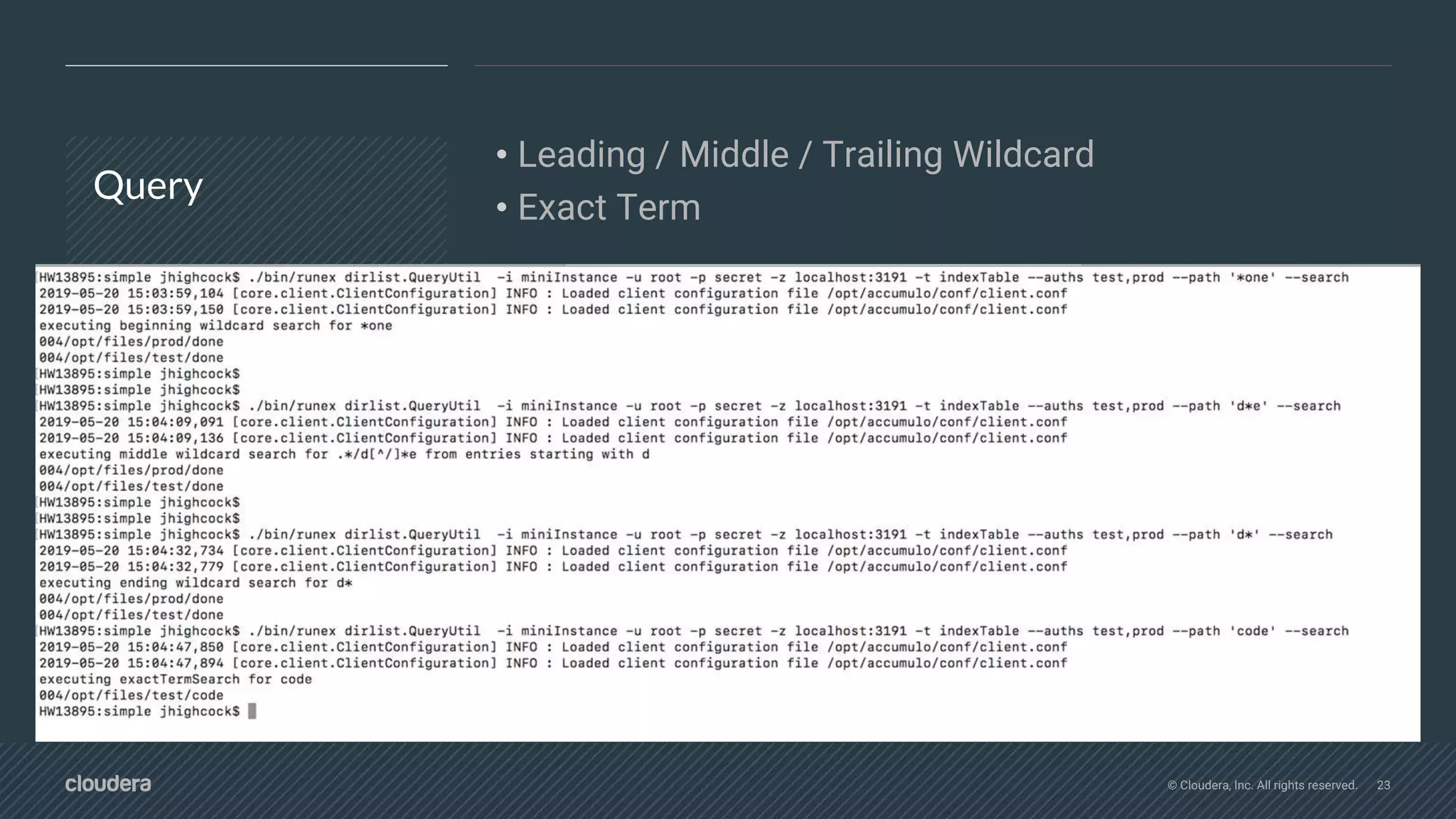

Query
• Leading / Middle / Trailing Wildcard
• Exact Term

24. © Cloudera, Inc. All rights reserved. 24

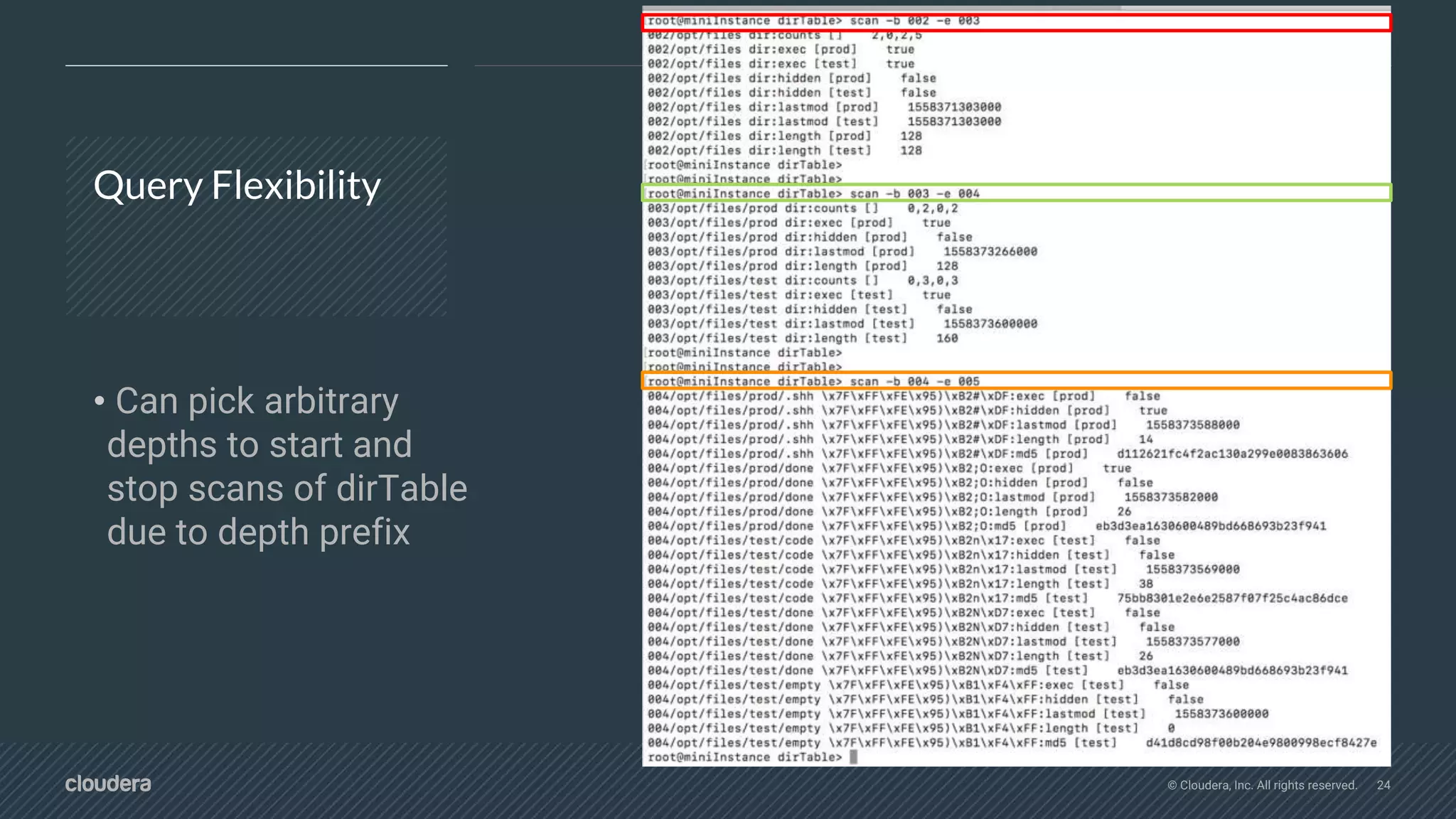

Query Flexibility
• Can pick arbitrary
depths to start and
stop scans of dirTable
due to depth prefix

25. © Cloudera, Inc. All rights reserved. 25

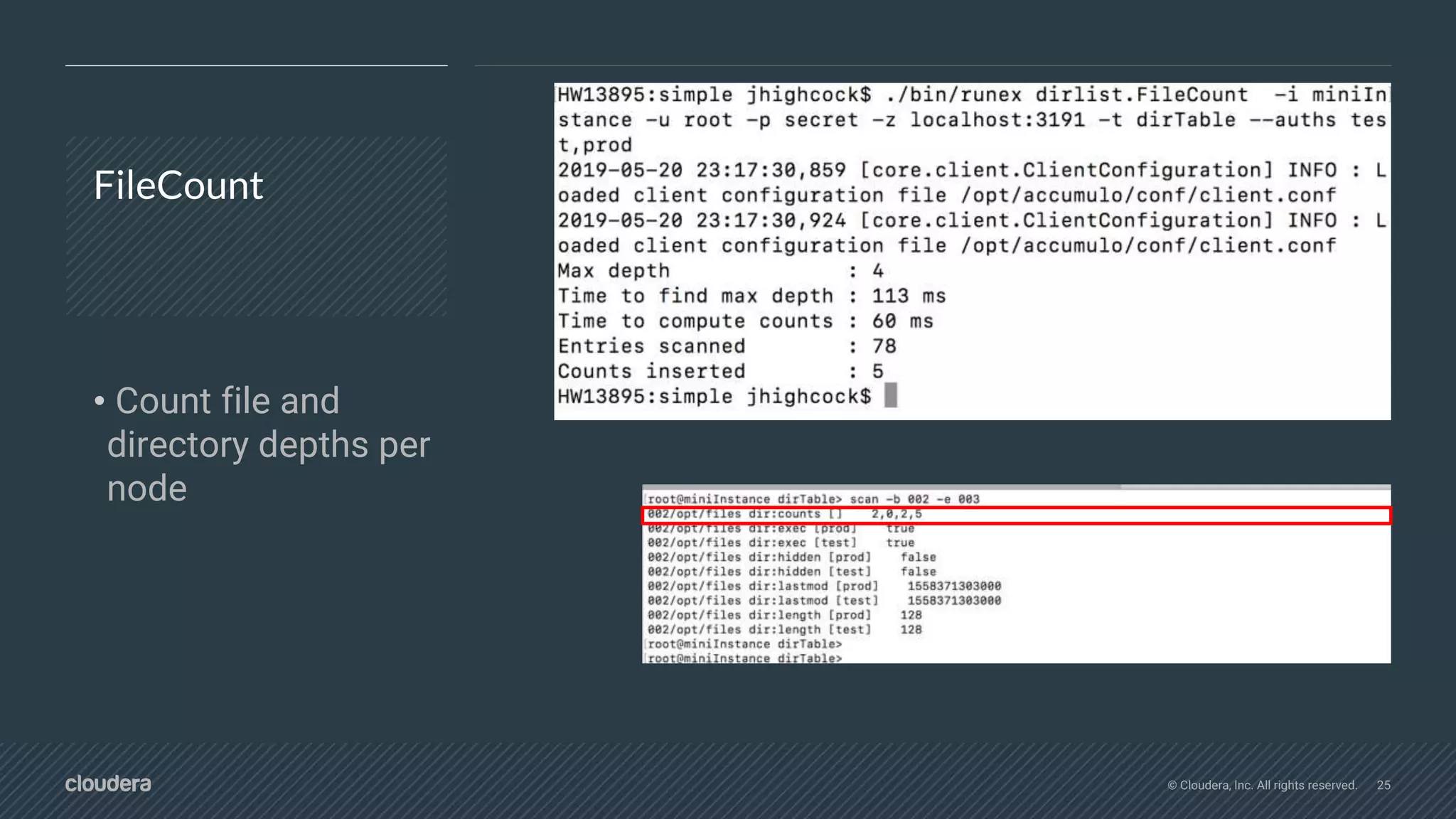

FileCount
• Count file and
directory depths per
node

26. © Cloudera, Inc. All rights reserved. 26

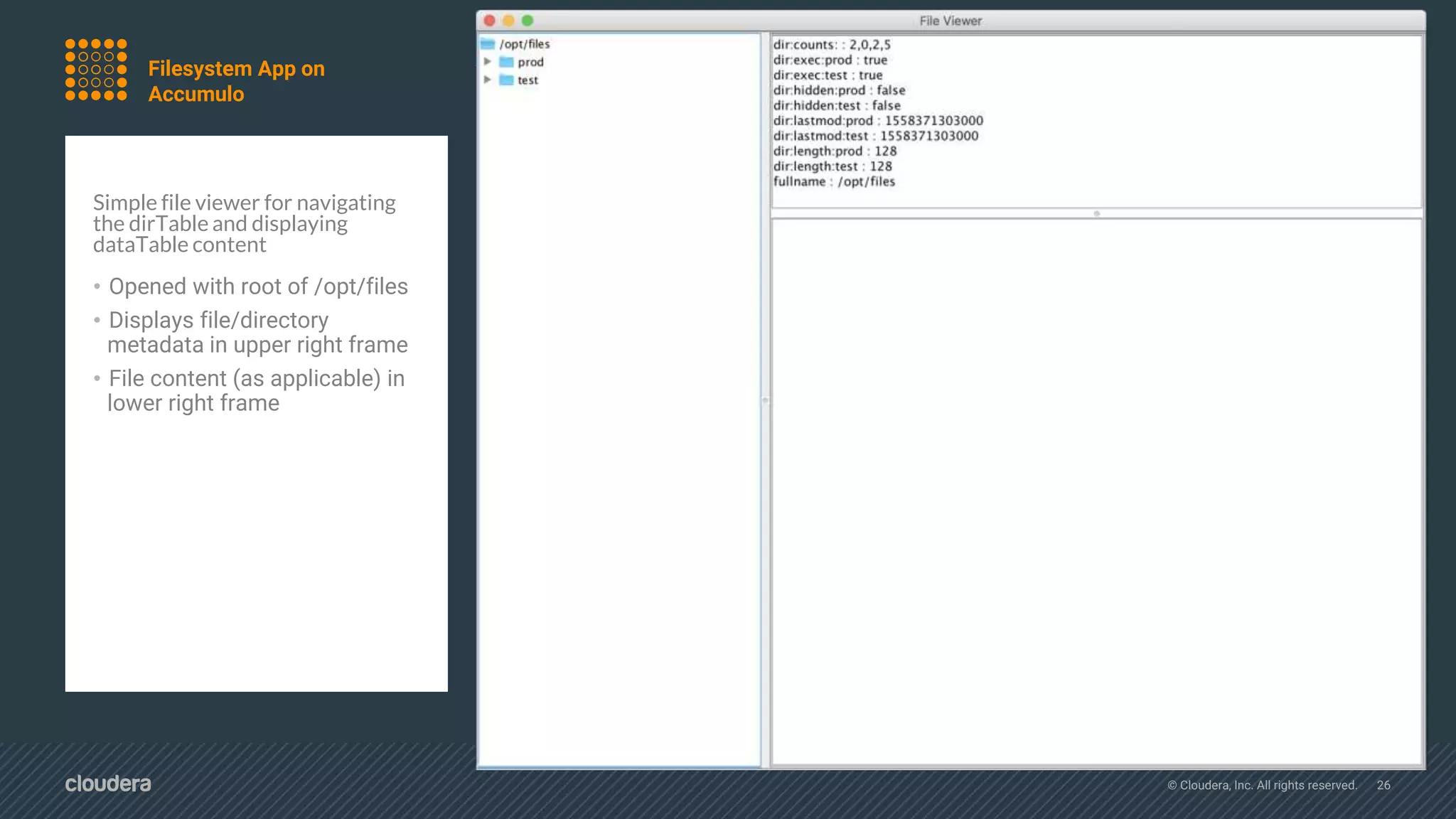

Simple file viewer for navigating
the dirTable and displaying
dataTable content
• Opened with root of /opt/files
• Displays file/directory
metadata in upper right frame
• File content (as applicable) in
lower right frame
Filesystem App on
Accumulo

27. © Cloudera, Inc. All rights reserved. 27

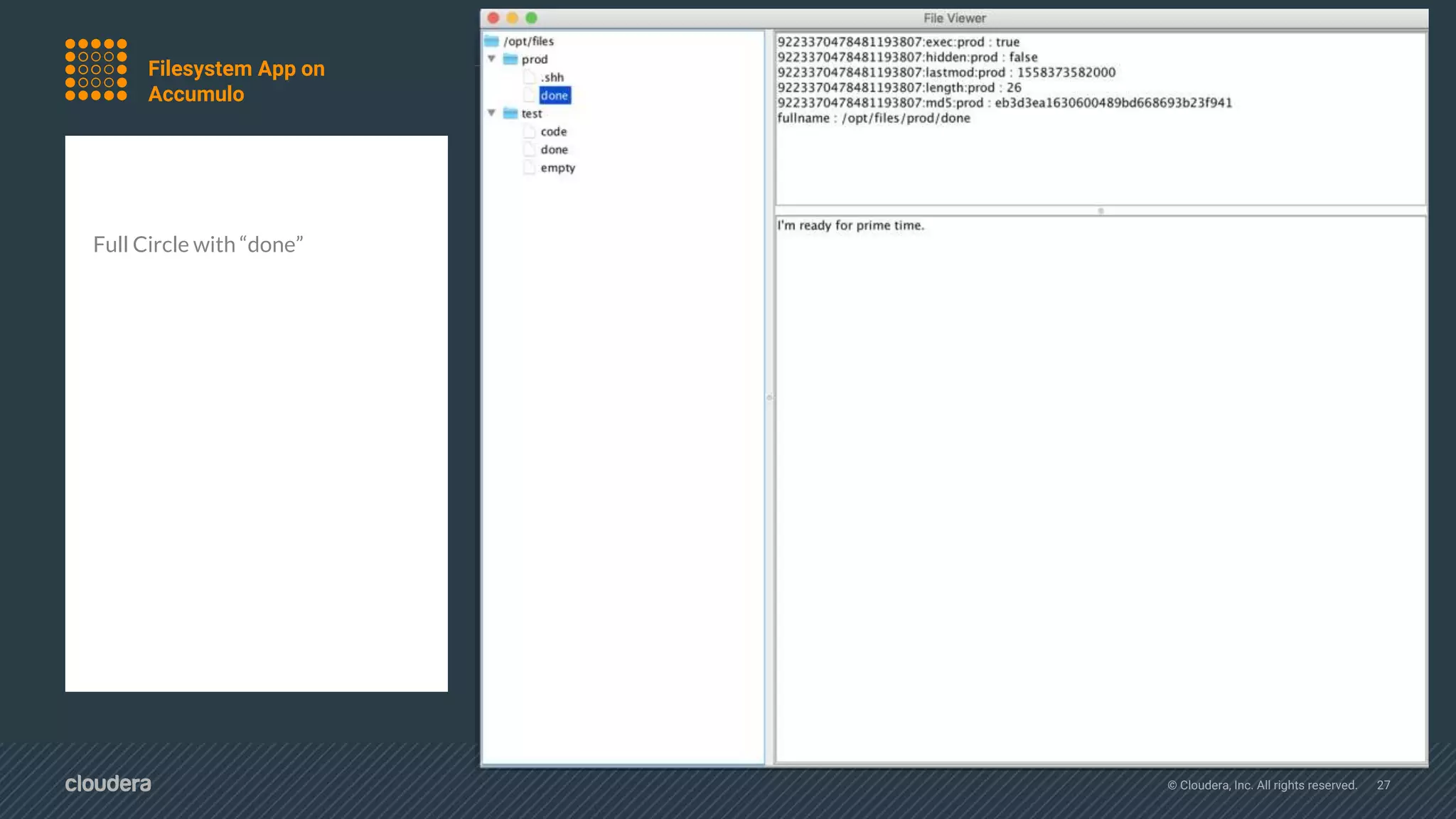

Full Circle with “done”
Filesystem App on
Accumulo

28. © Cloudera, Inc. All rights reserved. 28

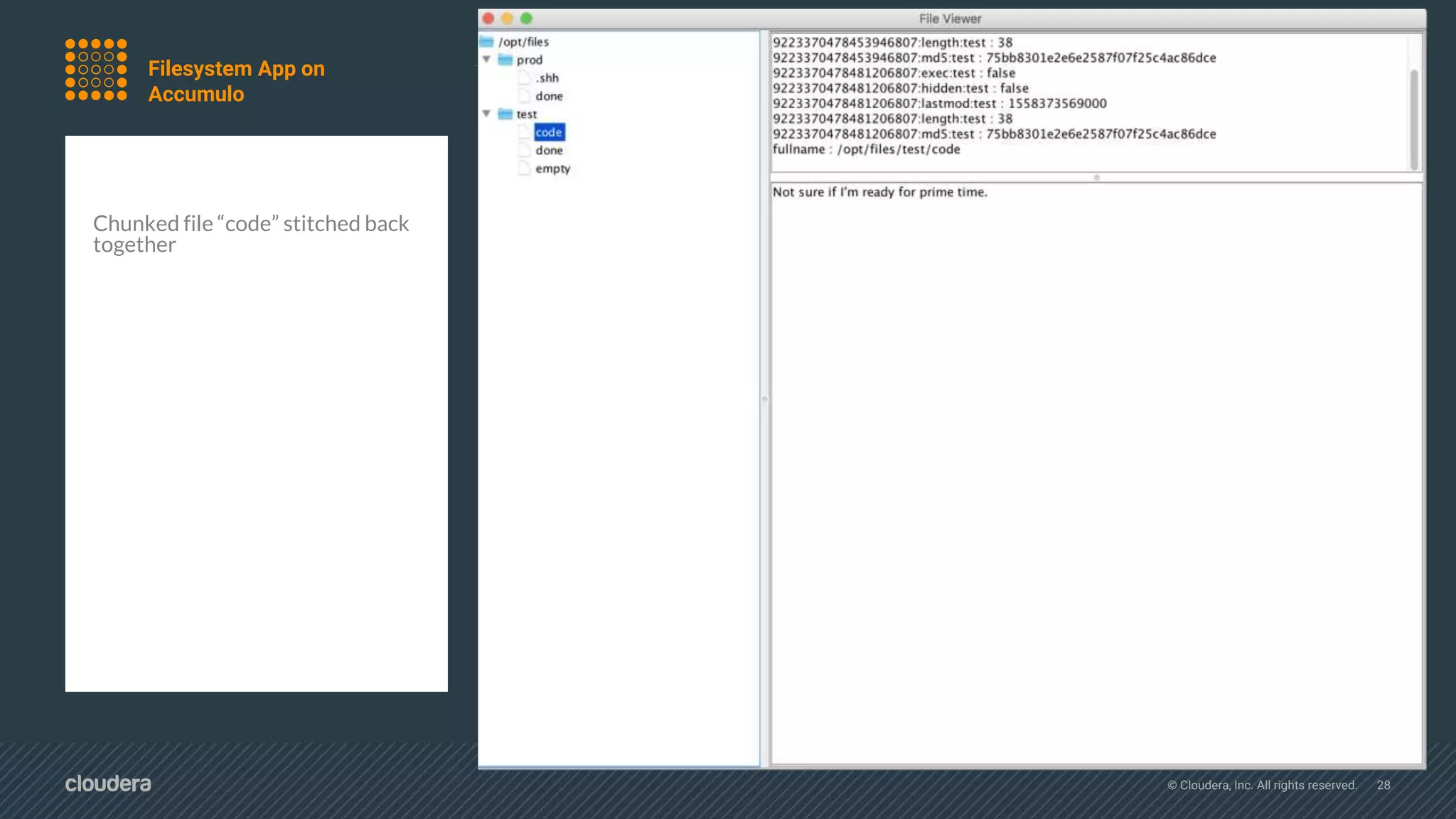

Chunked file “code” stitched back
together
Filesystem App on
Accumulo

29. © Cloudera, Inc. All rights reserved. 29

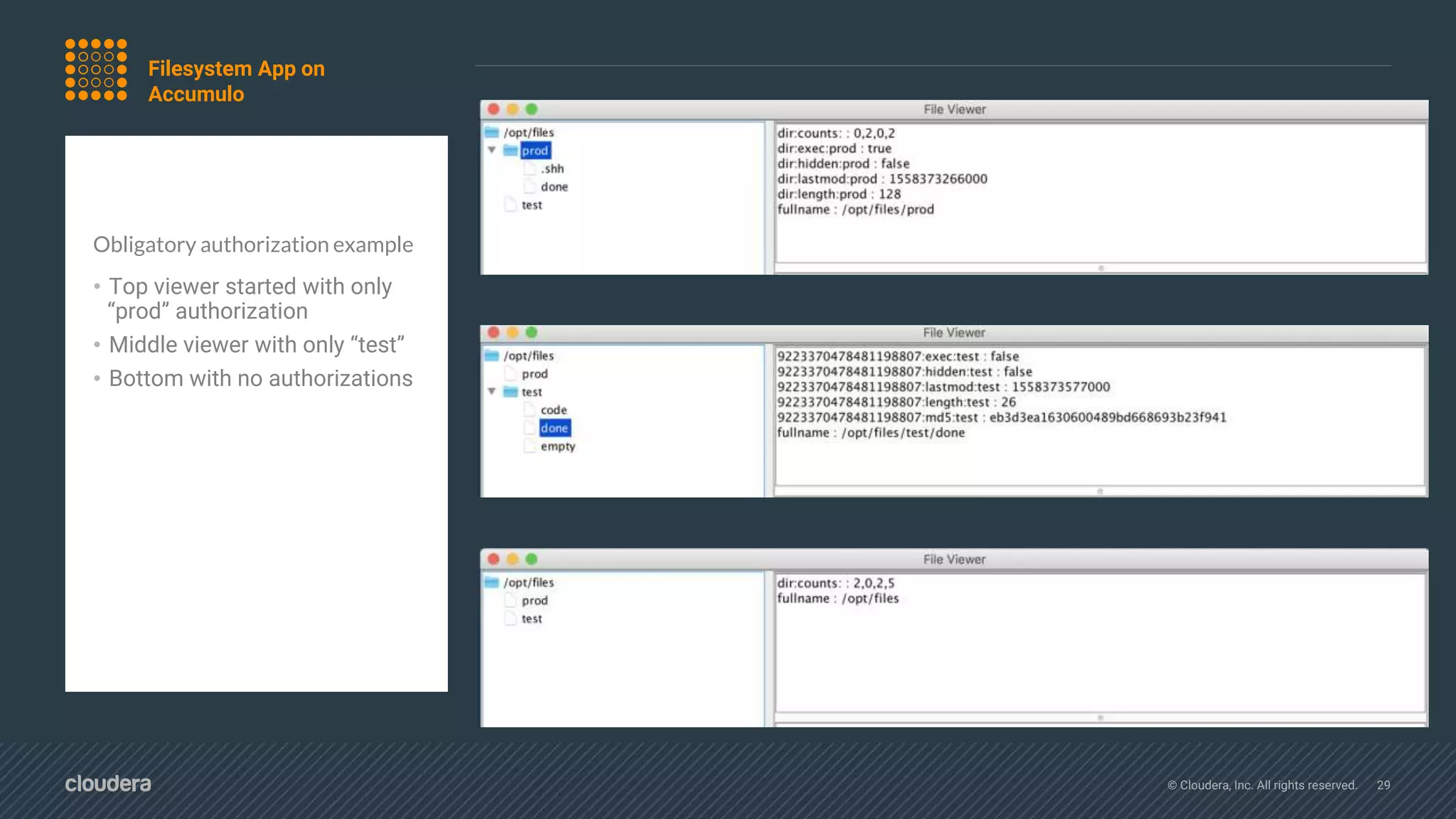

Obligatory authorization example
• Top viewer started with only
“prod” authorization
• Middle viewer with only “test”
• Bottom with no authorizations
Filesystem App on
Accumulo

30. © Cloudera, Inc. All rights reserved.
THANK YOU

31. © Cloudera, Inc. All rights reserved.
Backup

32. © Cloudera, Inc. All rights reserved. 32

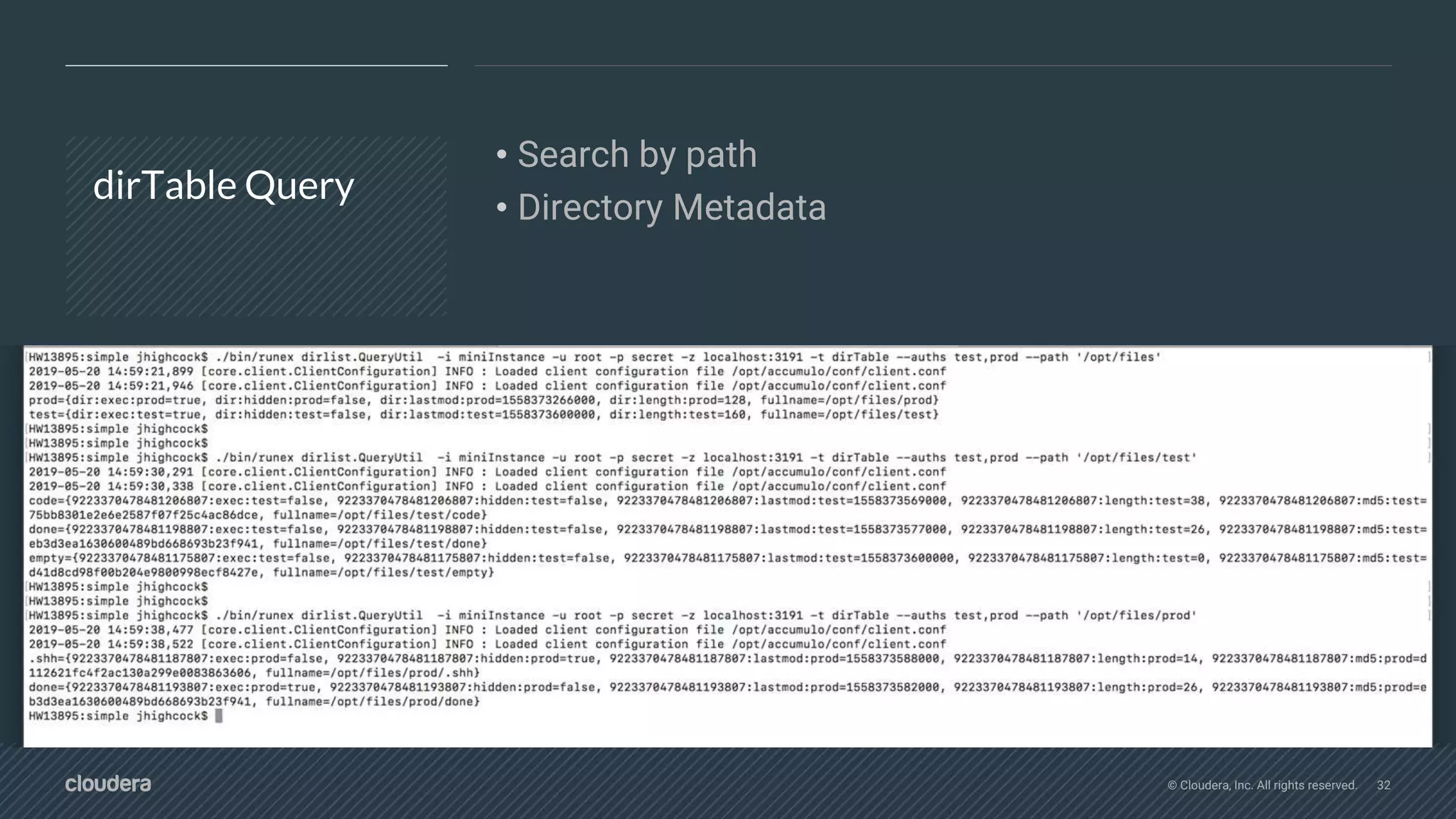

dirTable Query
• Search by path
• Directory Metadata
