2. Uniface Responsive
Development (4)
– Mobile Extensions
David Akerman – Solution Consultant

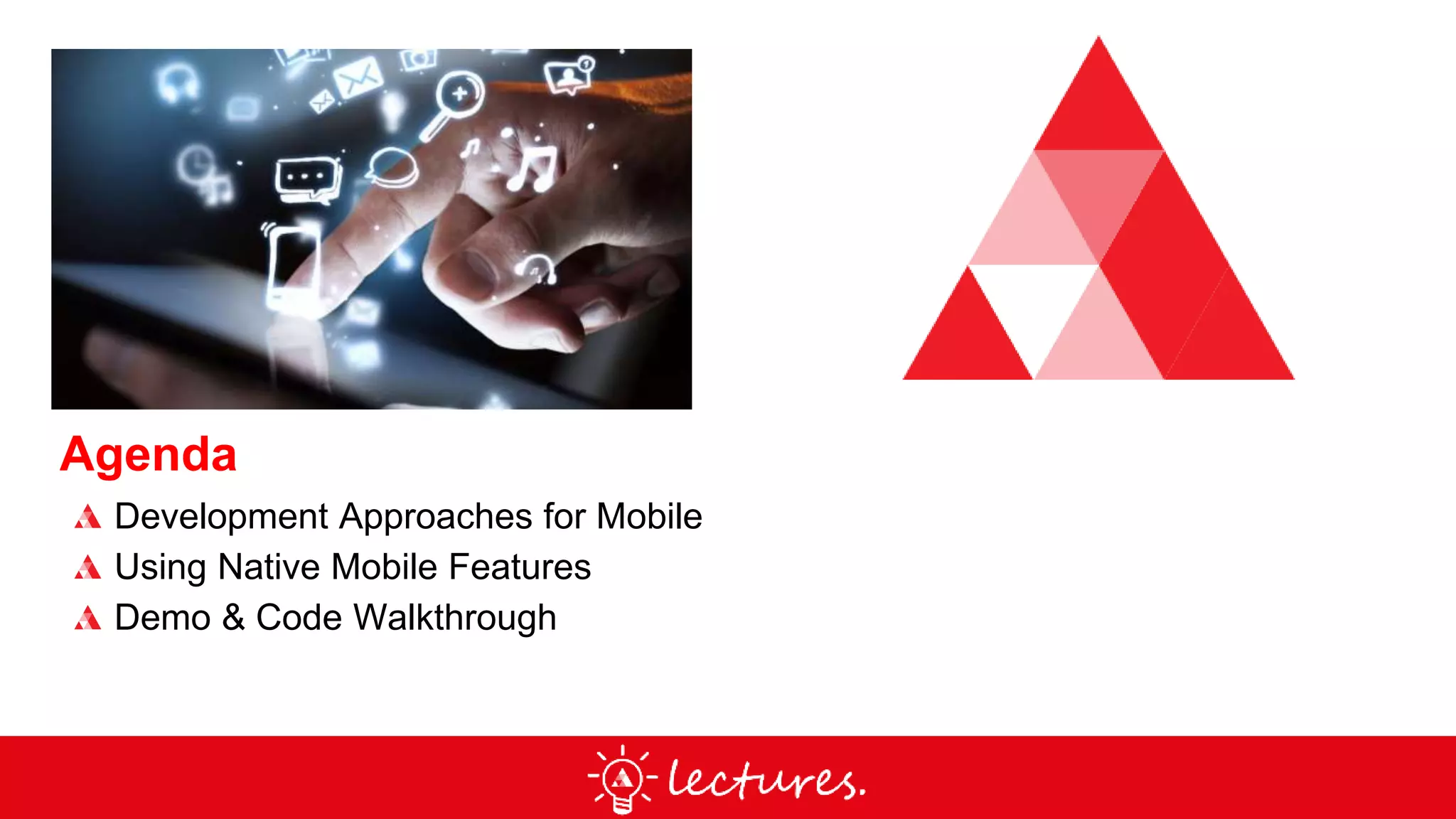

3. Agenda
Development Approaches for Mobile
Using Native Mobile Features
Demo & Code Walkthrough

4. Development
Approaches

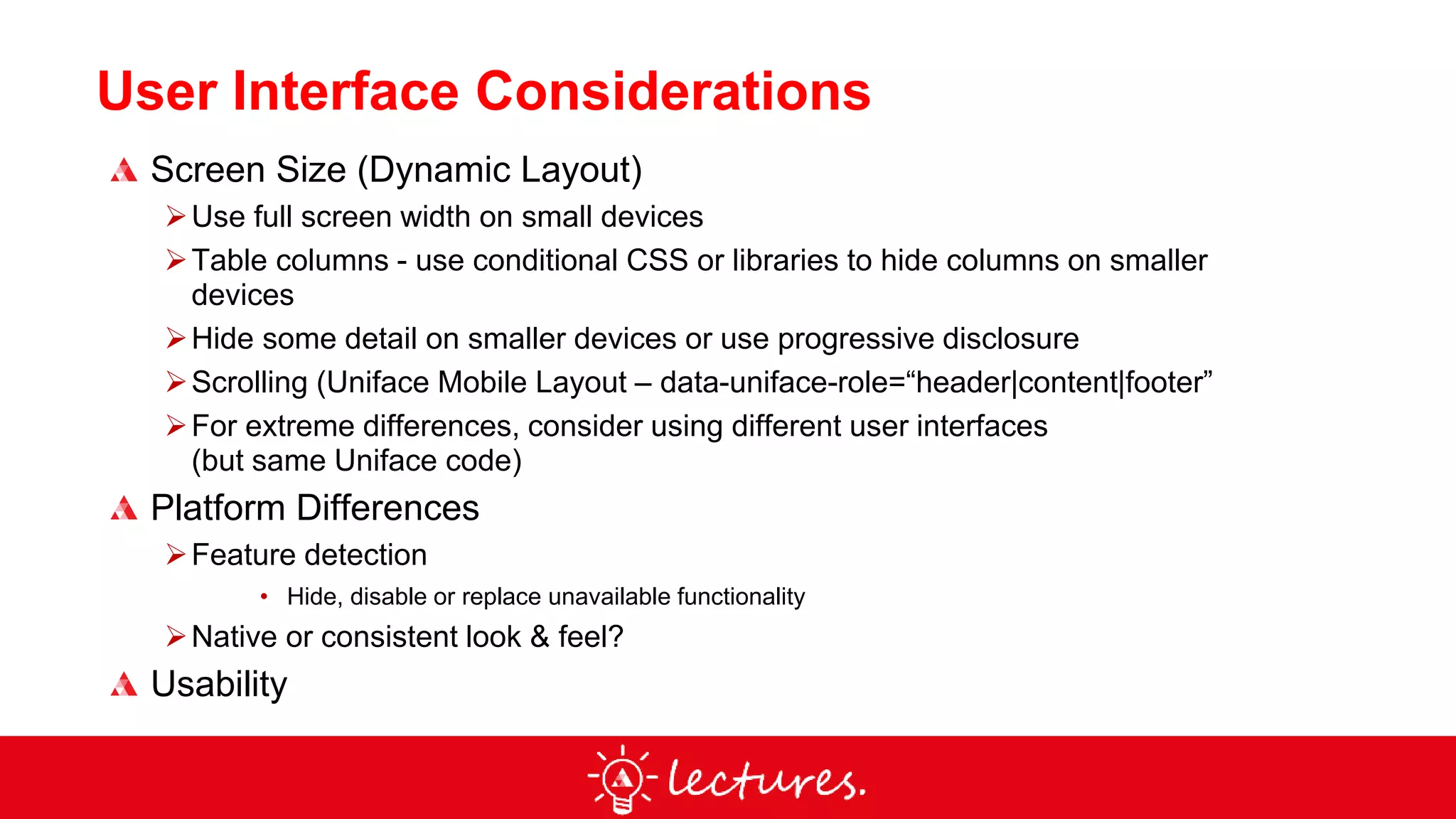

5. User Interface Considerations
Screen Size (Dynamic Layout)
Use full screen width on small devices
Table columns - use conditional CSS or libraries to hide columns on smaller
devices
Hide some detail on smaller devices or use progressive disclosure
Scrolling (Uniface Mobile Layout – data-uniface-role=“header|content|footer”
For extreme differences, consider using different user interfaces
(but same Uniface code)
Platform Differences
Feature detection
• Hide, disable or replace unavailable functionality
Native or consistent look & feel?
Usability

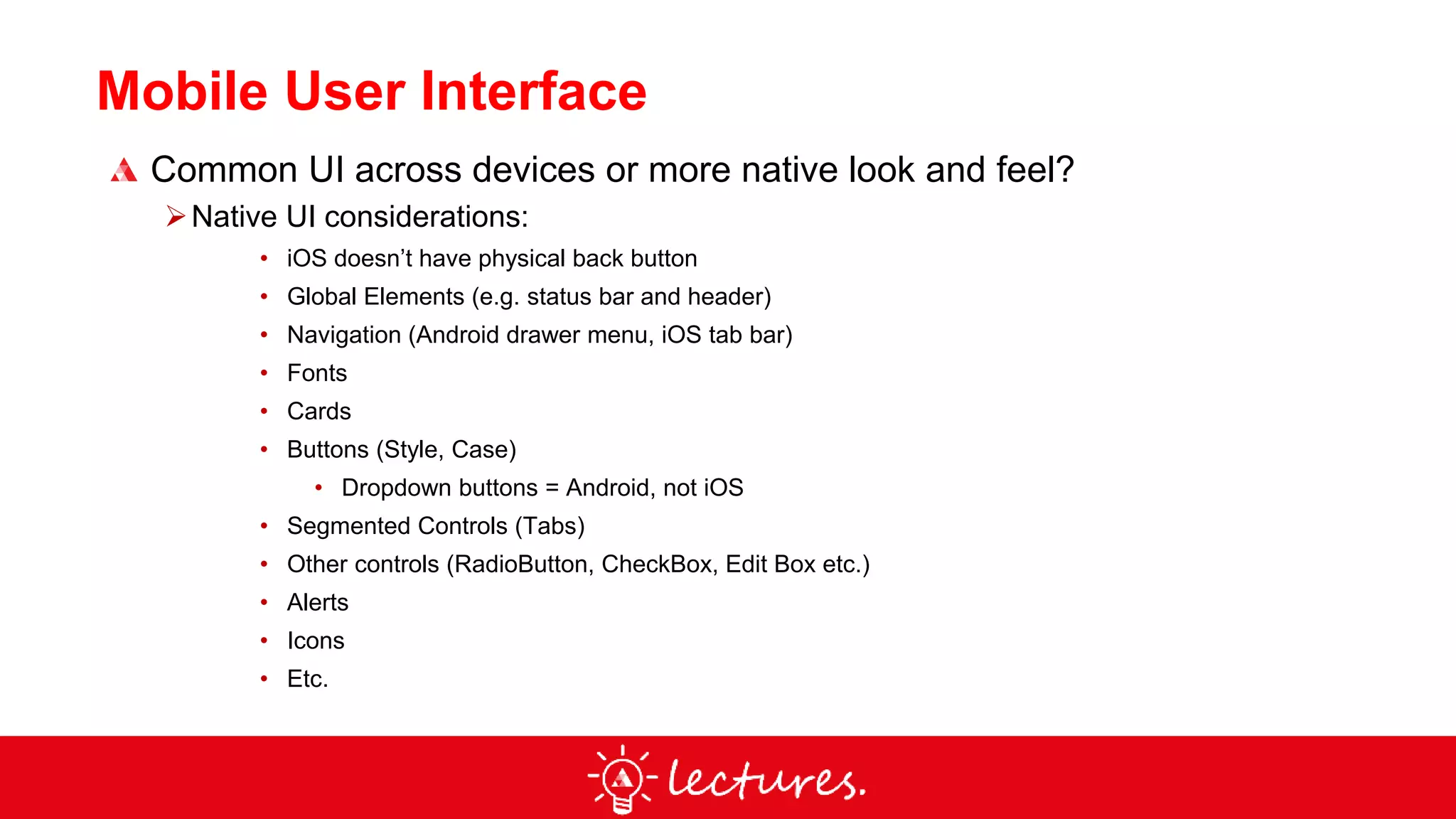

6. Mobile User Interface
Common UI across devices or more native look and feel?
Native UI considerations:
• iOS doesn’t have physical back button
• Global Elements (e.g. status bar and header)
• Navigation (Android drawer menu, iOS tab bar)
• Fonts
• Cards
• Buttons (Style, Case)
• Dropdown buttons = Android, not iOS
• Segmented Controls (Tabs)
• Other controls (RadioButton, CheckBox, Edit Box etc.)
• Alerts
• Icons
• Etc.

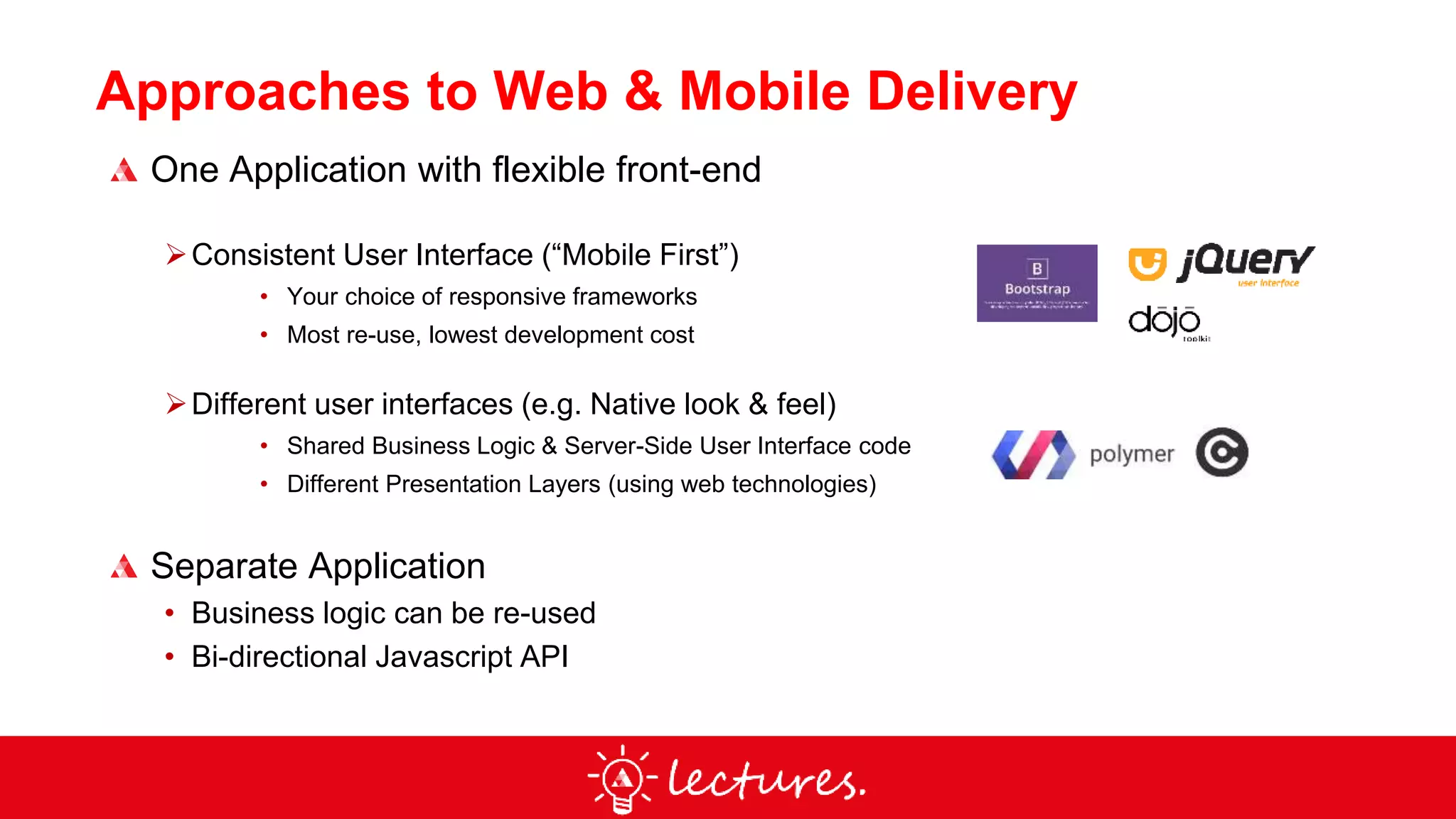

7. Approaches to Web & Mobile Delivery
One Application with flexible front-end
Consistent User Interface (“Mobile First”)
• Your choice of responsive frameworks
• Most re-use, lowest development cost
Different user interfaces (e.g. Native look & feel)
• Shared Business Logic & Server-Side User Interface code
• Different Presentation Layers (using web technologies)
Separate Application
• Business logic can be re-used
• Bi-directional Javascript API

8. Using Native
Mobile Features

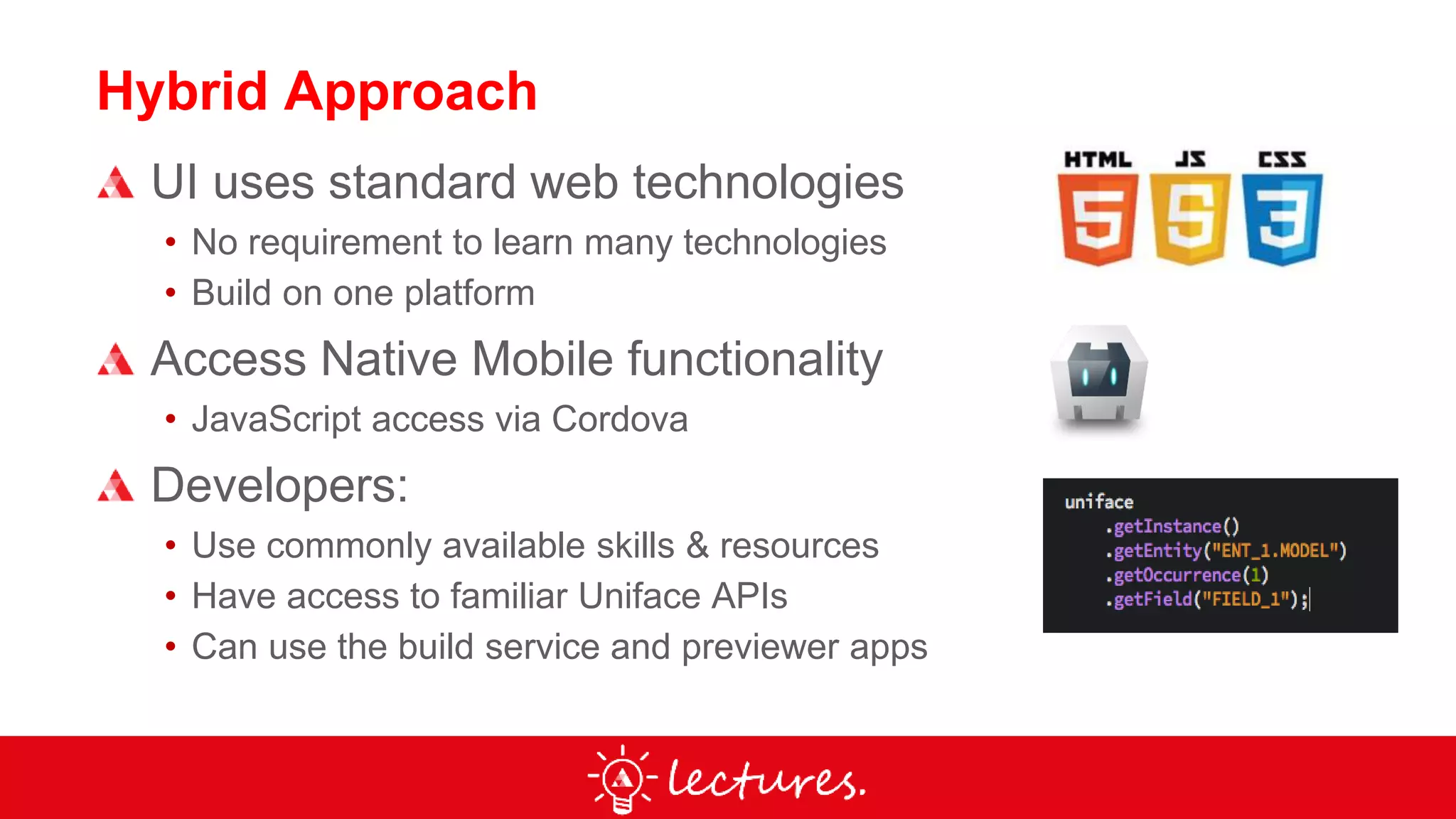

9. Hybrid Approach
UI uses standard web technologies
• No requirement to learn many technologies
• Build on one platform
Access Native Mobile functionality
• JavaScript access via Cordova
Developers:
• Use commonly available skills & resources
• Have access to familiar Uniface APIs
• Can use the build service and previewer apps

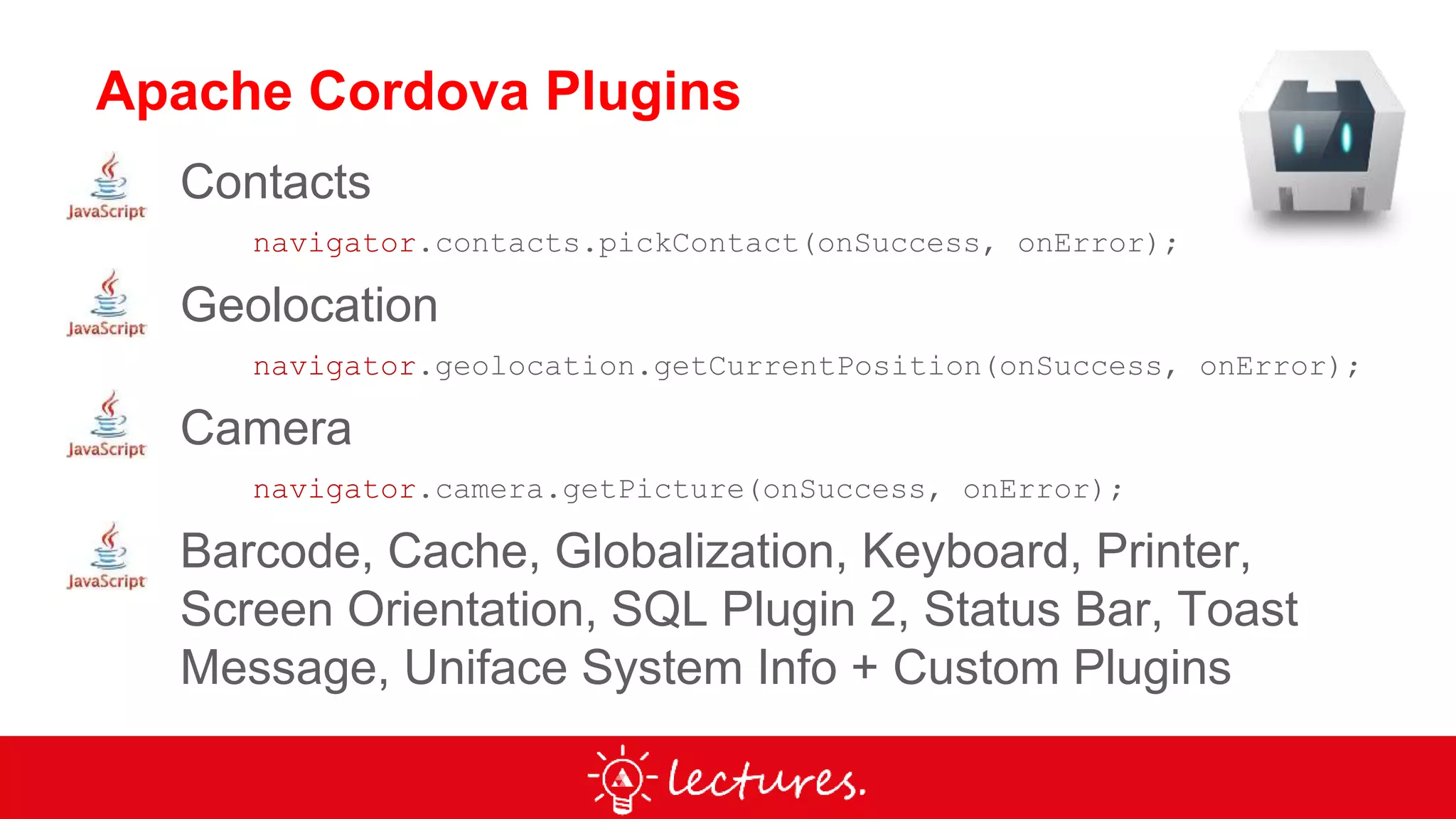

10. Apache Cordova Plugins
Contacts
navigator.contacts.pickContact(onSuccess, onError);
Geolocation
navigator.geolocation.getCurrentPosition(onSuccess, onError);
Camera
navigator.camera.getPicture(onSuccess, onError);
Barcode, Cache, Globalization, Keyboard, Printer,
Screen Orientation, SQL Plugin 2, Status Bar, Toast
Message, Uniface System Info + Custom Plugins

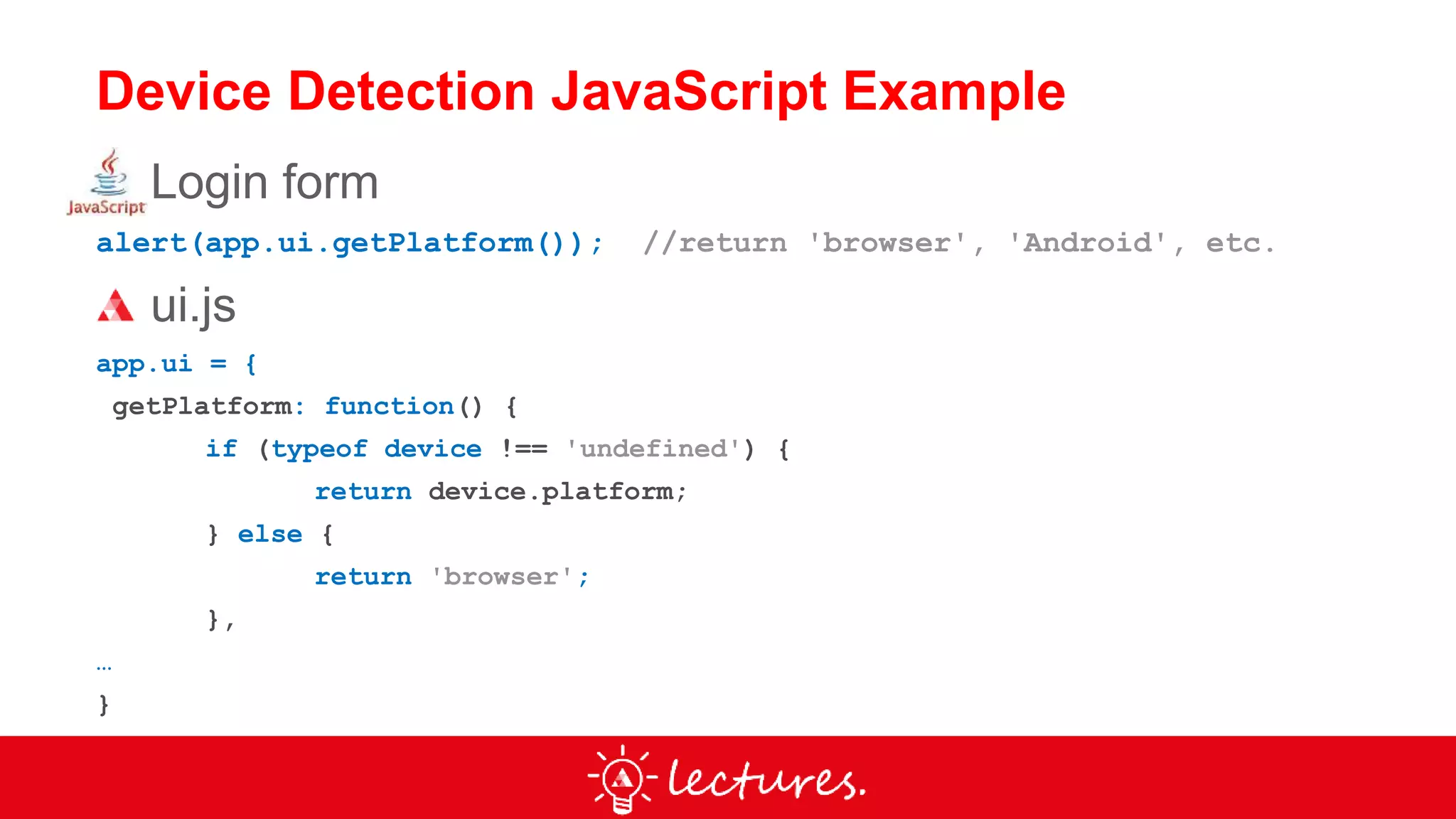

11. Device Detection JavaScript Example
Login form
alert(app.ui.getPlatform()); //return 'browser', 'Android', etc.
ui.js
app.ui = {
getPlatform: function() {
if (typeof device !== 'undefined') {
return device.platform;
} else {
return 'browser';
},
…
}

12. Walkthrough:
WebStart App
Code: github.com/uniface/webstart

13. Walkthrough:
uclaim demo
Code: github.com/uniface/mobile

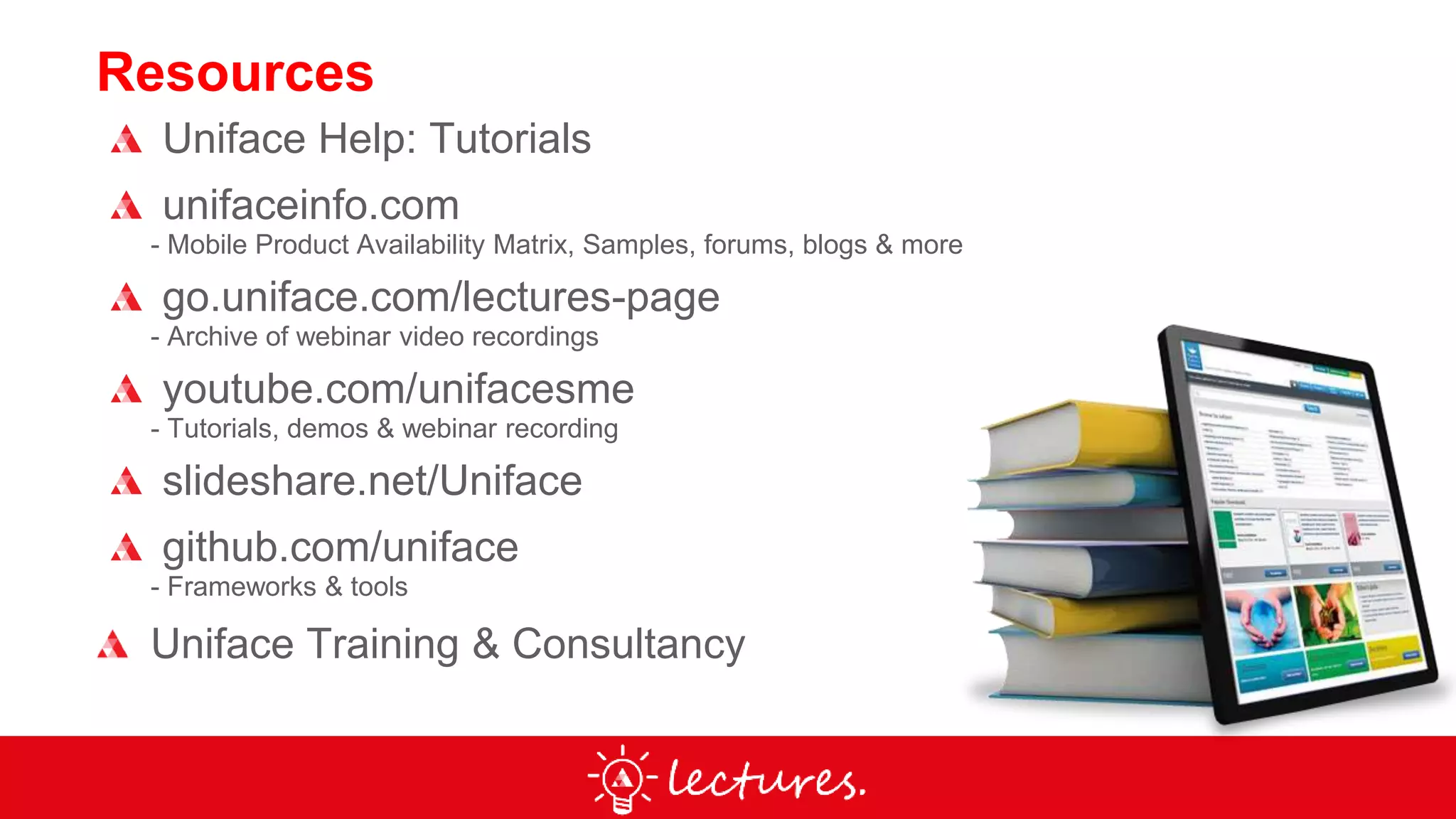

14. Resources
Uniface Help: Tutorials
unifaceinfo.com
- Mobile Product Availability Matrix, Samples, forums, blogs & more
go.uniface.com/lectures-page
- Archive of webinar video recordings
youtube.com/unifacesme
- Tutorials, demos & webinar recording
slideshare.net/Uniface
github.com/uniface
- Frameworks & tools
Uniface Training & Consultancy

15. Video recording of this & previous webinars:
go.uniface.com/lectures-page
