An ultrasonic sensor measures distance by emitting and receiving ultrasonic sound waves, generating electric pulses based on echo timings. The HC-SR04 is a popular ultrasonic sensor with specific pins for power, triggering measurements, and receiving echoes, typically used in various applications like object detection and distance measurement. Its advantages include small size, ease of integration, high sensitivity, and cost-effectiveness.

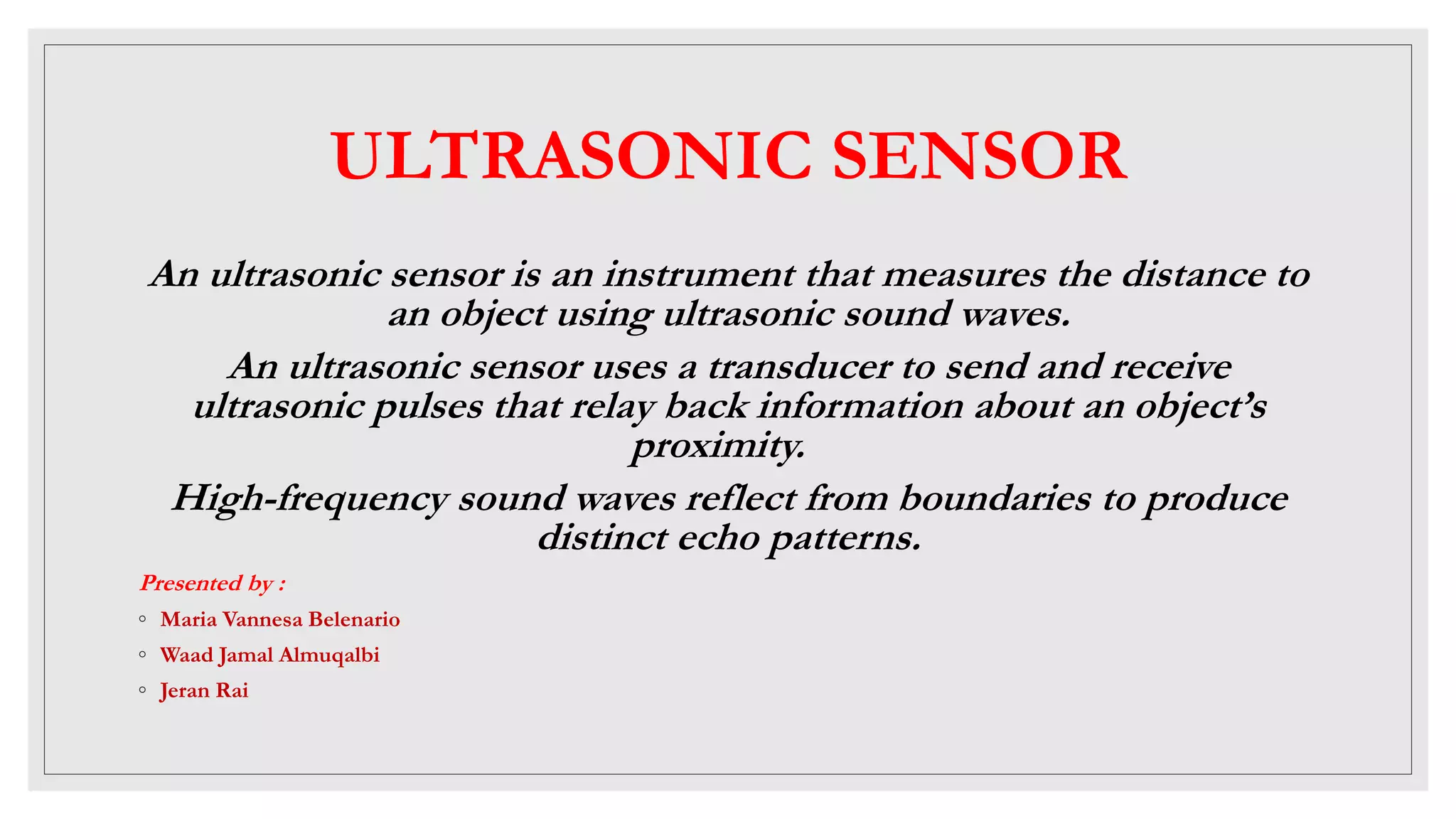

1. ULTRASONIC SENSOR
An ultrasonic sensor is an instrument that measures the distance to
an object using ultrasonic sound waves.
An ultrasonic sensor uses a transducer to send and receive
ultrasonic pulses that relay back information about an object’s
proximity.
High-frequency sound waves reflect from boundaries to produce
distinct echo patterns.
Presented by :
◦ Maria Vannesa Belenario
◦ Waad Jamal Almuqalbi
◦ Jeran Rai

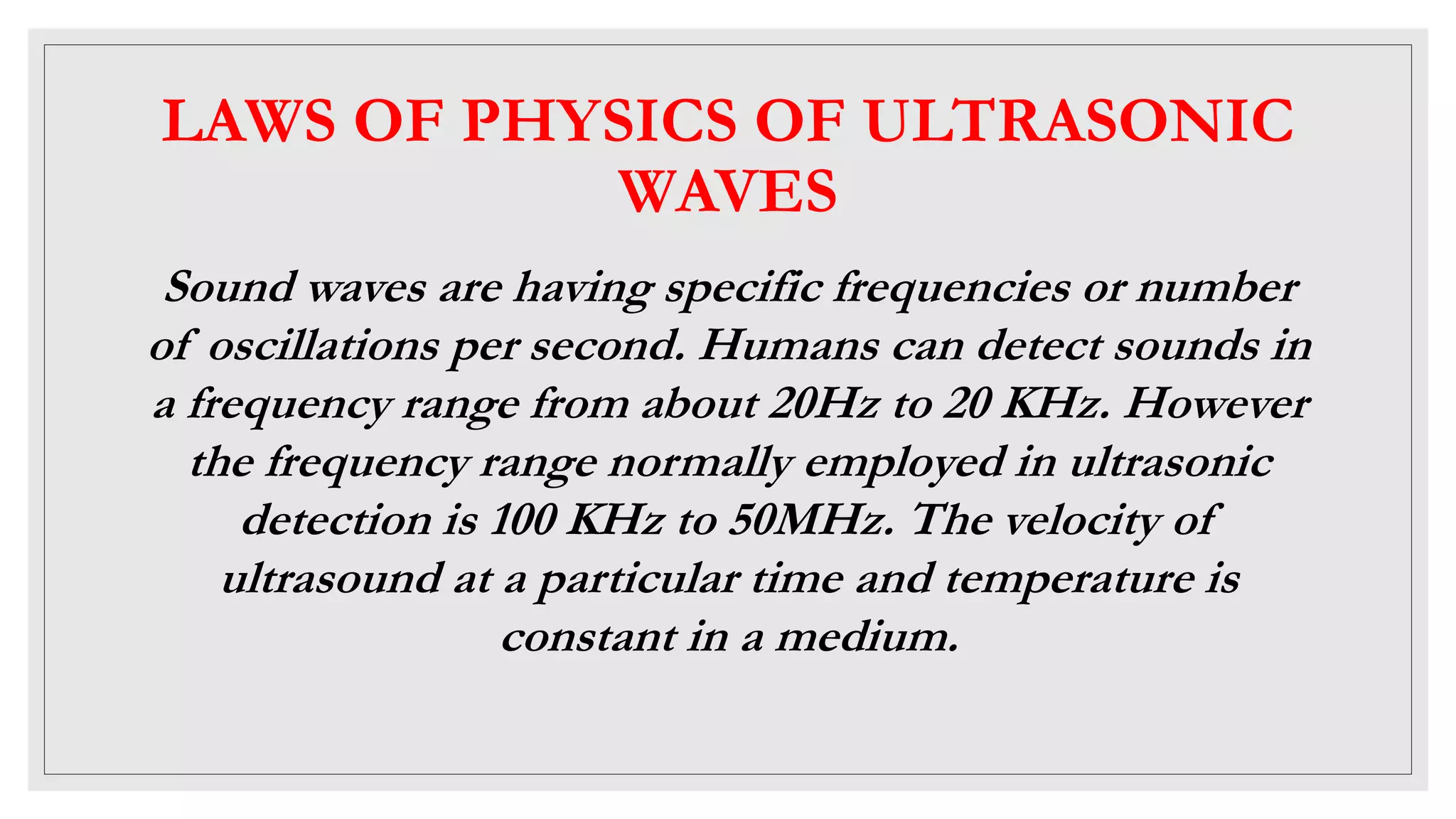

2. LAWS OF PHYSICS OF ULTRASONIC
WAVES
Sound waves are having specific frequencies or number
of oscillations per second. Humans can detect sounds in
a frequency range from about 20Hz to 20 KHz. However
the frequency range normally employed in ultrasonic
detection is 100 KHz to 50MHz. The velocity of
ultrasound at a particular time and temperature is
constant in a medium.

3. WORKING PRINCIPLE
When an electrical pulse of high voltage is applied to the
ultrasonic transducer it vibrates across a specific spectrum of
frequencies and generates a burst of sound waves. Whenever any
obstacle comes ahead of the ultrasonic sensor the sound waves
will reflect back in the form of echo and generates an electric
pulse. It calculates the time taken between sending sound waves
and receiving echo. The echo patterns will be compared with the
patterns of sound waves to determine detected signal’s
condition.

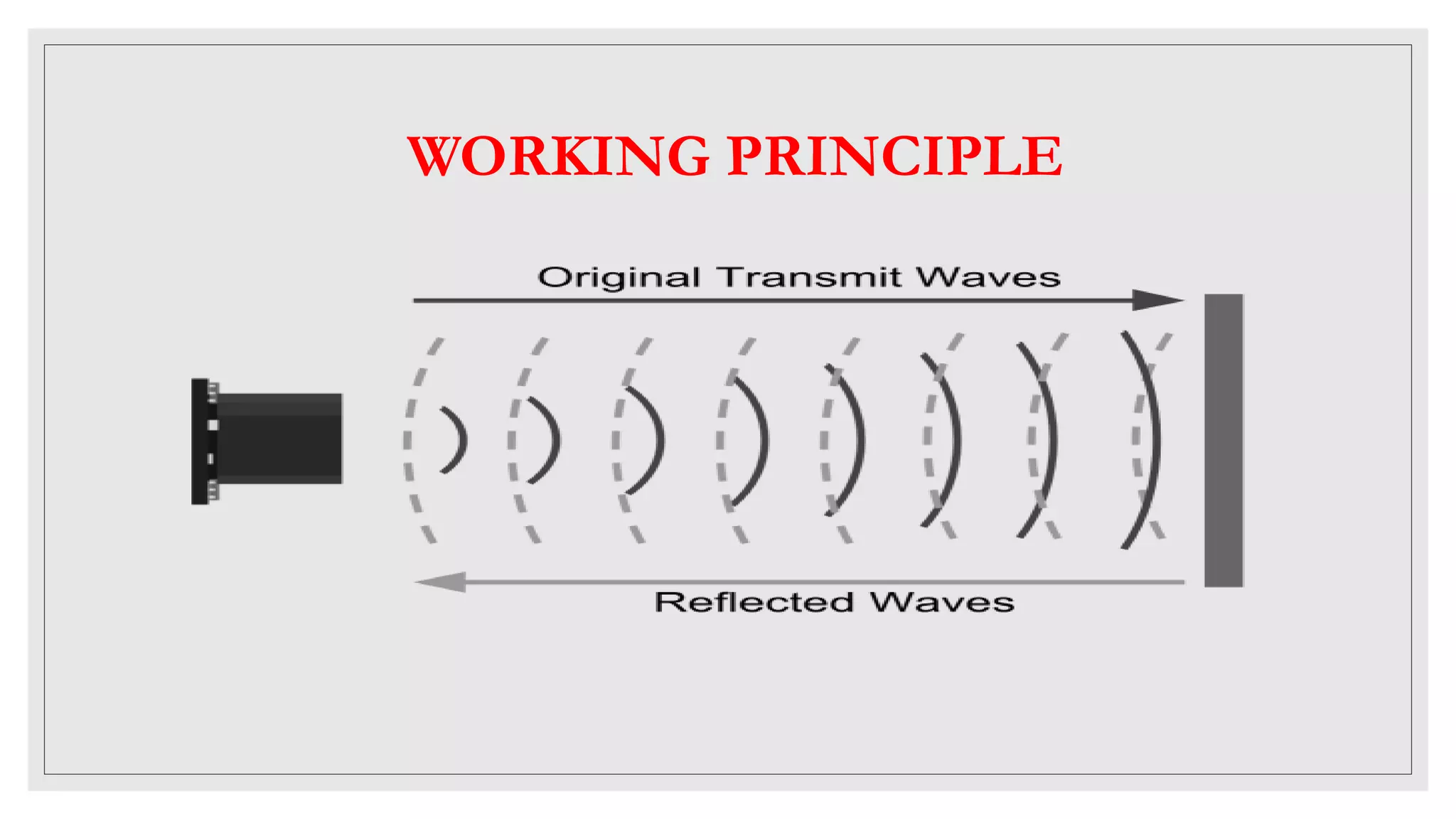

4. WORKING PRINCIPLE

5. HC-SR04 ULTRASONIC SENSOR
As shown in picture, the HC-SR04 Ultrasonic
sensor is a 4 pin module, whose pin names are Vcc,
Trigger, Echo and Ground respectively. This sensor
is a very popular sensor used in many applications
where measuring distance or sensing objects are
required. The module has two eyes like projects in
the front which forms the Ultrasonic transmitter and
Receiver.

6. HC-SR04
Pin Number Pin Name Description
1 Vcc The Vcc pin powers the sensor, typically with +5V
2 Trigger Trigger pin is an Input pin. This pin has to be kept high for
10µs to initialize measurement by sending Ultrasonic wave.
3 Echo Echo pin is an Output pin. This pin goes high for a period of
time which will be equal to the time taken for the Ultrasonic
wave to return back to the sensor.
4 Ground This pin is connected to the Ground of the system.

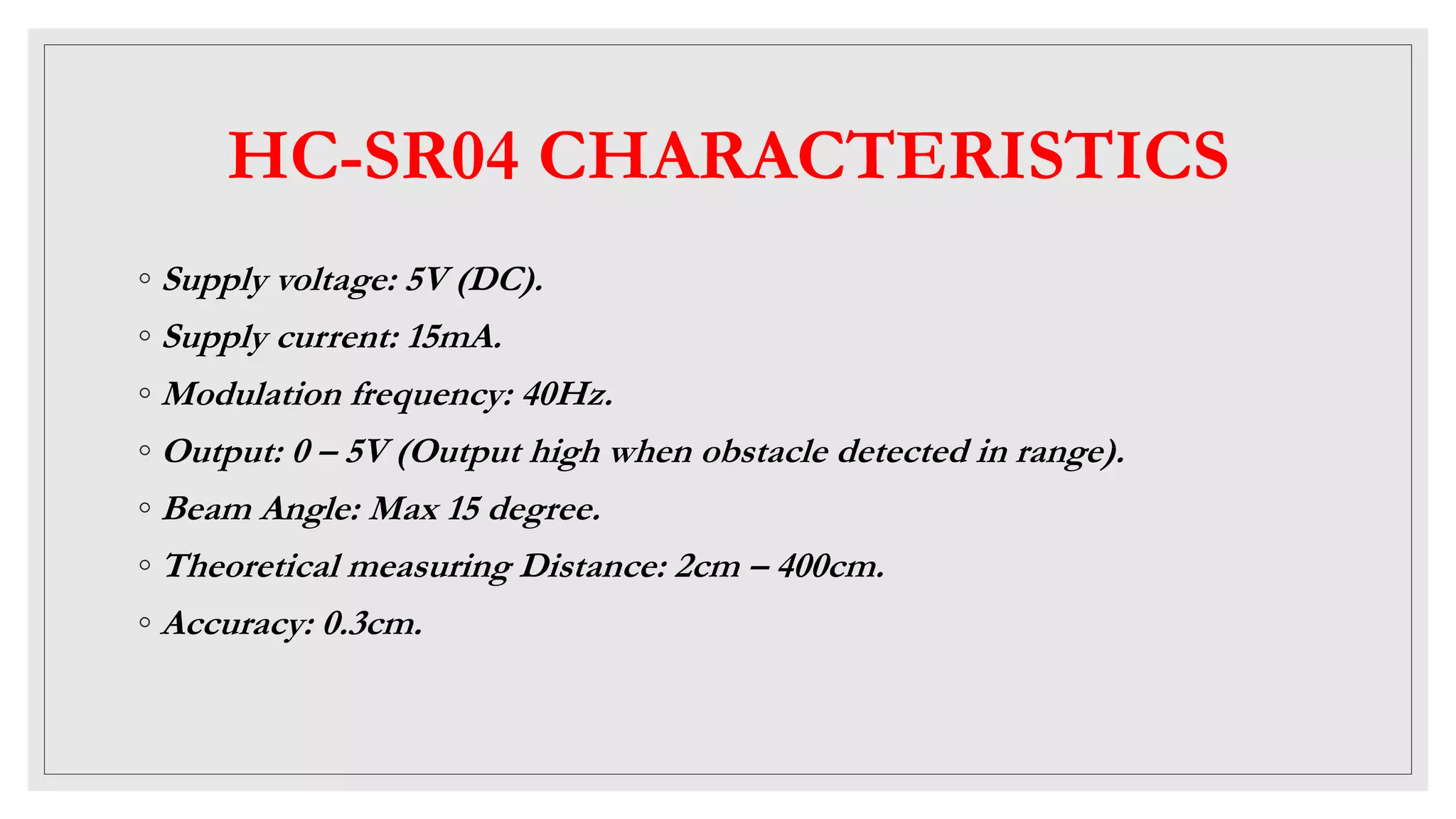

7. HC-SR04 CHARACTERISTICS
◦ Supply voltage: 5V (DC).
◦ Supply current: 15mA.
◦ Modulation frequency: 40Hz.
◦ Output: 0 – 5V (Output high when obstacle detected in range).
◦ Beam Angle: Max 15 degree.
◦ Theoretical measuring Distance: 2cm – 400cm.
◦ Accuracy: 0.3cm.

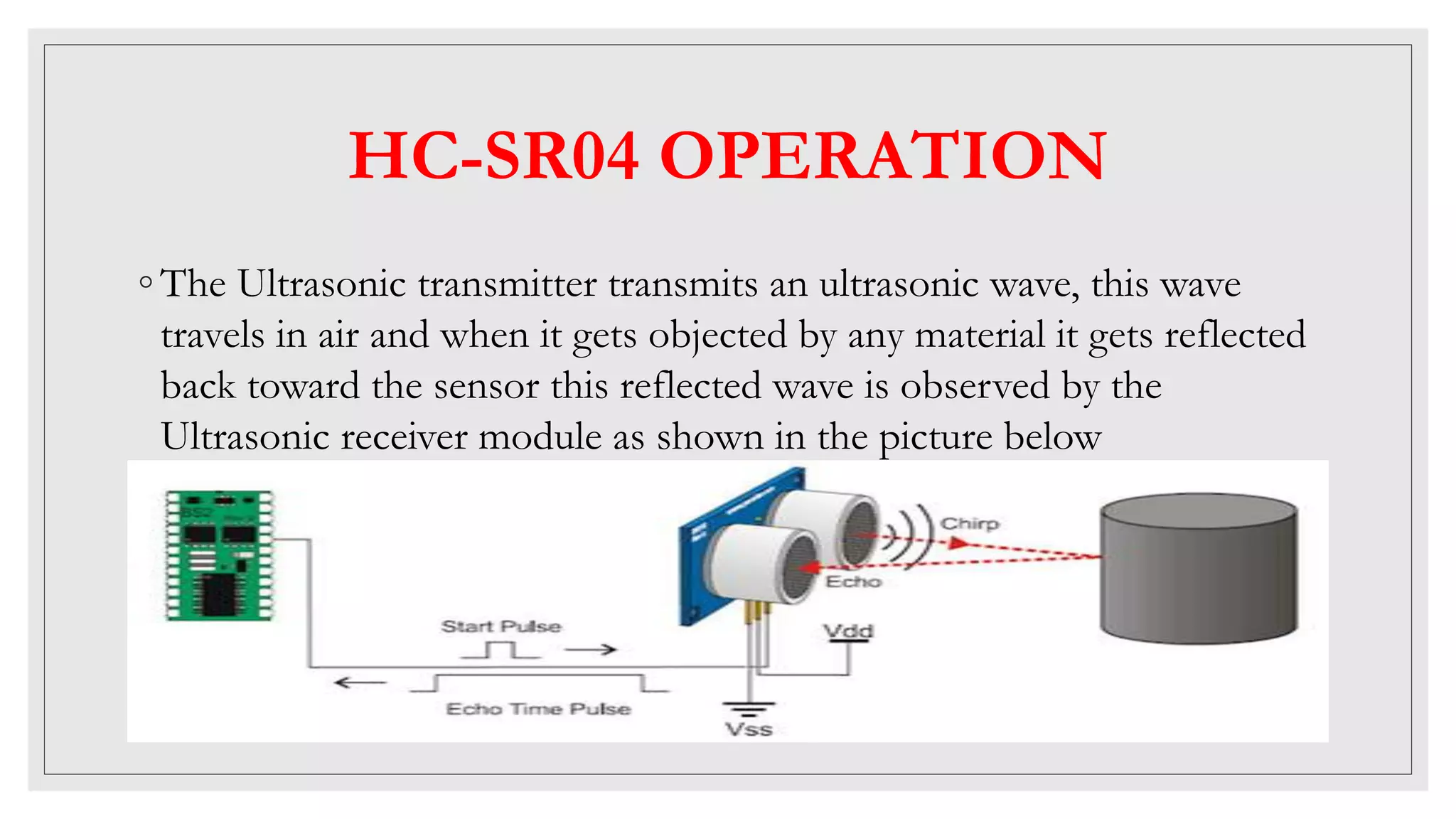

8. HC-SR04 OPERATION
◦ The Ultrasonic transmitter transmits an ultrasonic wave, this wave
travels in air and when it gets objected by any material it gets reflected
back toward the sensor this reflected wave is observed by the
Ultrasonic receiver module as shown in the picture below

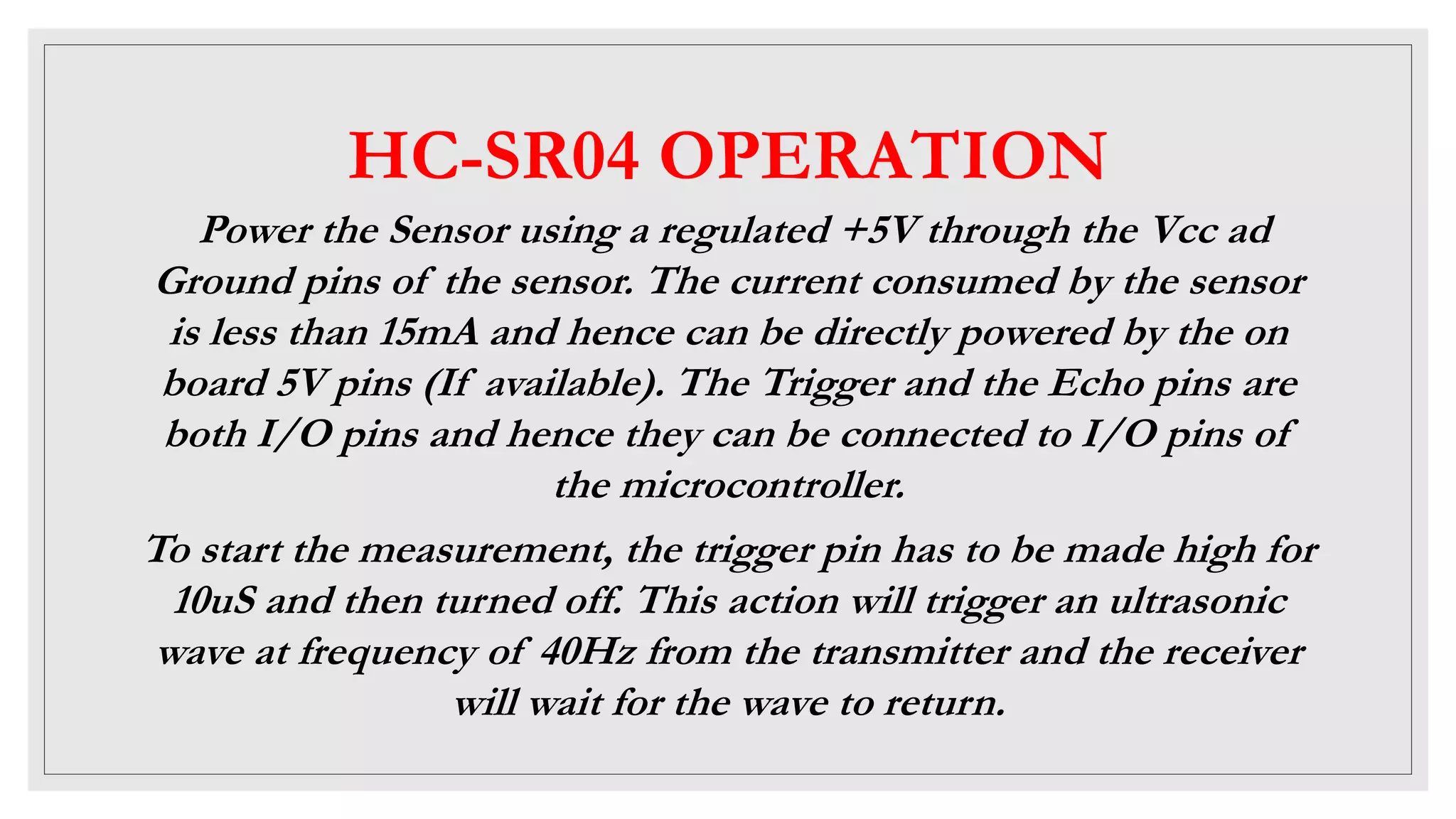

9. HC-SR04 OPERATION
Power the Sensor using a regulated +5V through the Vcc ad
Ground pins of the sensor. The current consumed by the sensor
is less than 15mA and hence can be directly powered by the on
board 5V pins (If available). The Trigger and the Echo pins are
both I/O pins and hence they can be connected to I/O pins of
the microcontroller.
To start the measurement, the trigger pin has to be made high for
10uS and then turned off. This action will trigger an ultrasonic
wave at frequency of 40Hz from the transmitter and the receiver
will wait for the wave to return.

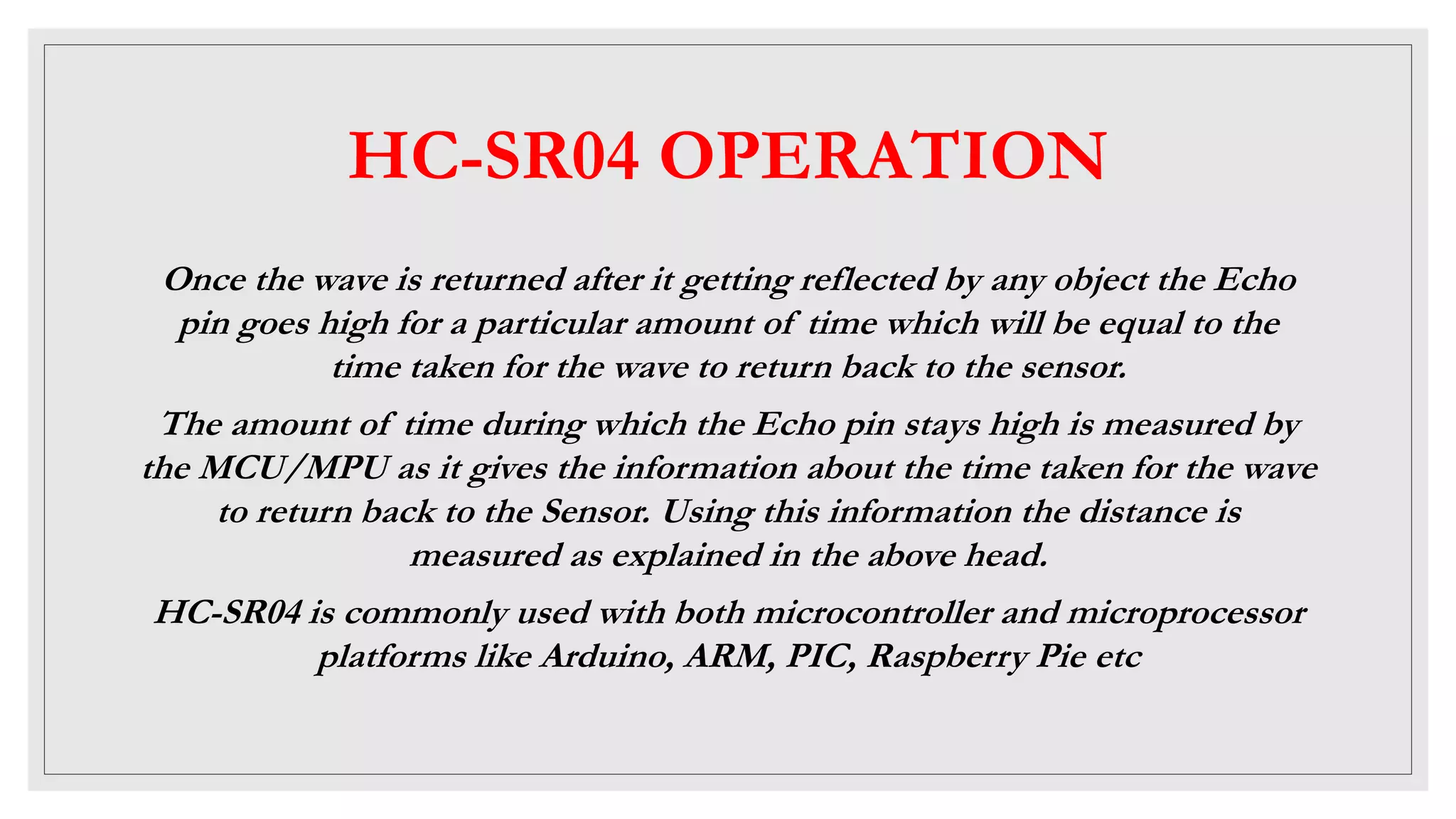

10. HC-SR04 OPERATION
Once the wave is returned after it getting reflected by any object the Echo
pin goes high for a particular amount of time which will be equal to the
time taken for the wave to return back to the sensor.
The amount of time during which the Echo pin stays high is measured by
the MCU/MPU as it gives the information about the time taken for the wave
to return back to the Sensor. Using this information the distance is
measured as explained in the above head.
HC-SR04 is commonly used with both microcontroller and microprocessor
platforms like Arduino, ARM, PIC, Raspberry Pie etc

11. SIMPLE ARDUINO C PROGRAMMING
FOR DISTANCE MEASUREMENT
1. // defines pins numbers
2. const int trigPin = 12;
3. const int echoPin = 11;
4. // defines variables
5. long duration;
6. int distance;
7. void setup() {
8. pinMode(trigPin, OUTPUT); // Sets the trigPin as an Output
9. pinMode(echoPin, INPUT); // Sets the echoPin as an Input
10. Serial.begin(9600); // Starts the serial communication
11. }

12. SIMPLE ARDUINO C PROGRAMMING
FOR DISTANCE MEASUREMENT
12. void loop() {
13. // Clears the trigPin
14. digitalWrite(trigPin, LOW);
15. delayMicroseconds(2);
16. // Sets the trigPin on HIGH state for 10 micro seconds
17. digitalWrite(trigPin, HIGH);
18. delayMicroseconds(10);
19. digitalWrite(trigPin, LOW);
20. // Reads the echoPin, returns the sound wave travel time in microseconds
21. duration = pulseIn(echoPin, HIGH);

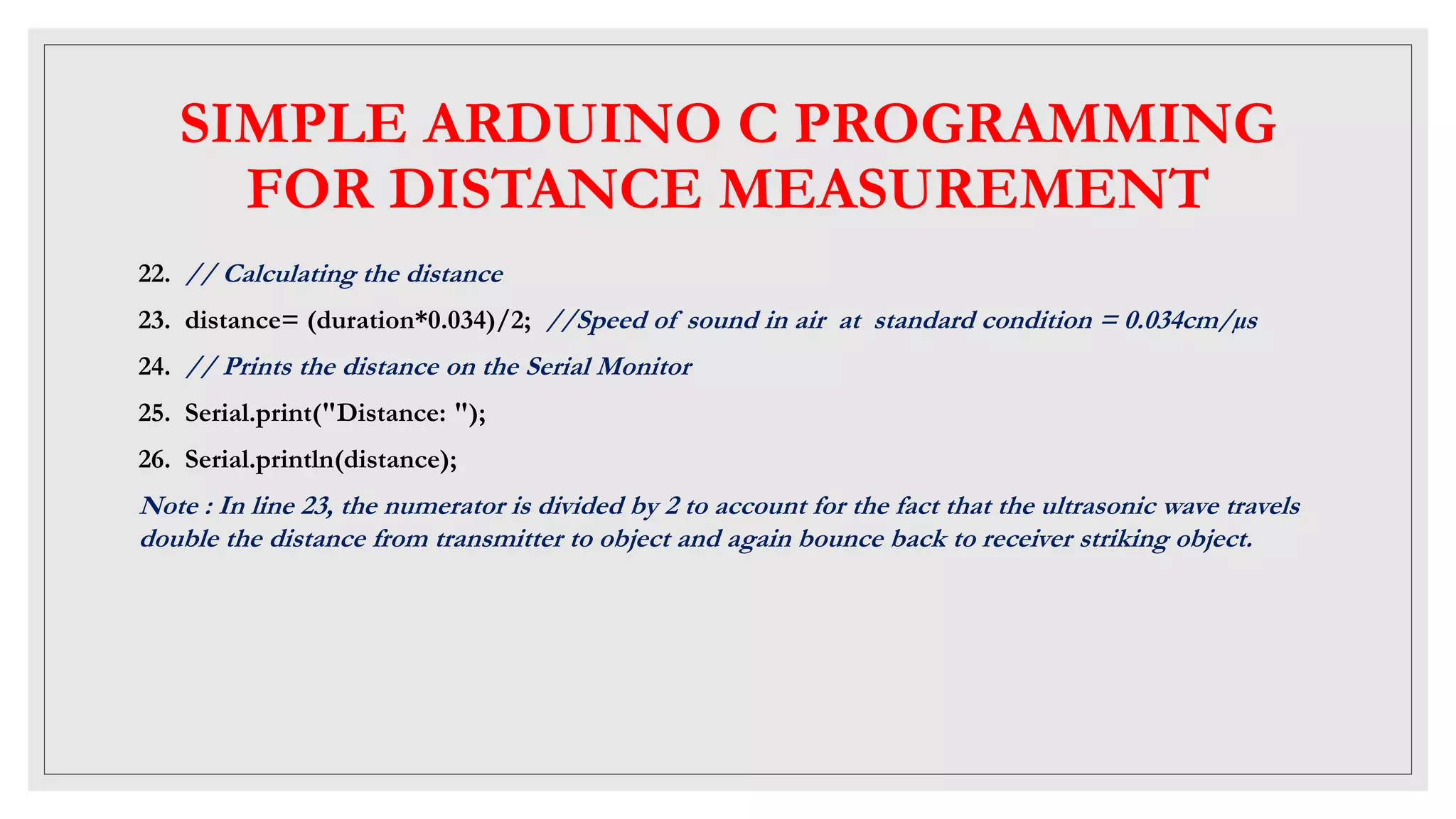

13. SIMPLE ARDUINO C PROGRAMMING
FOR DISTANCE MEASUREMENT
22. // Calculating the distance
23. distance= (duration*0.034)/2; //Speed of sound in air at standard condition = 0.034cm/µs
24. // Prints the distance on the Serial Monitor
25. Serial.print("Distance: ");
26. Serial.println(distance);
Note : In line 23, the numerator is divided by 2 to account for the fact that the ultrasonic wave travels
double the distance from transmitter to object and again bounce back to receiver striking object.

14. INTERFACING ULTRASONIC SENSOR
WITH ARDUINO
MARIA&JERAN

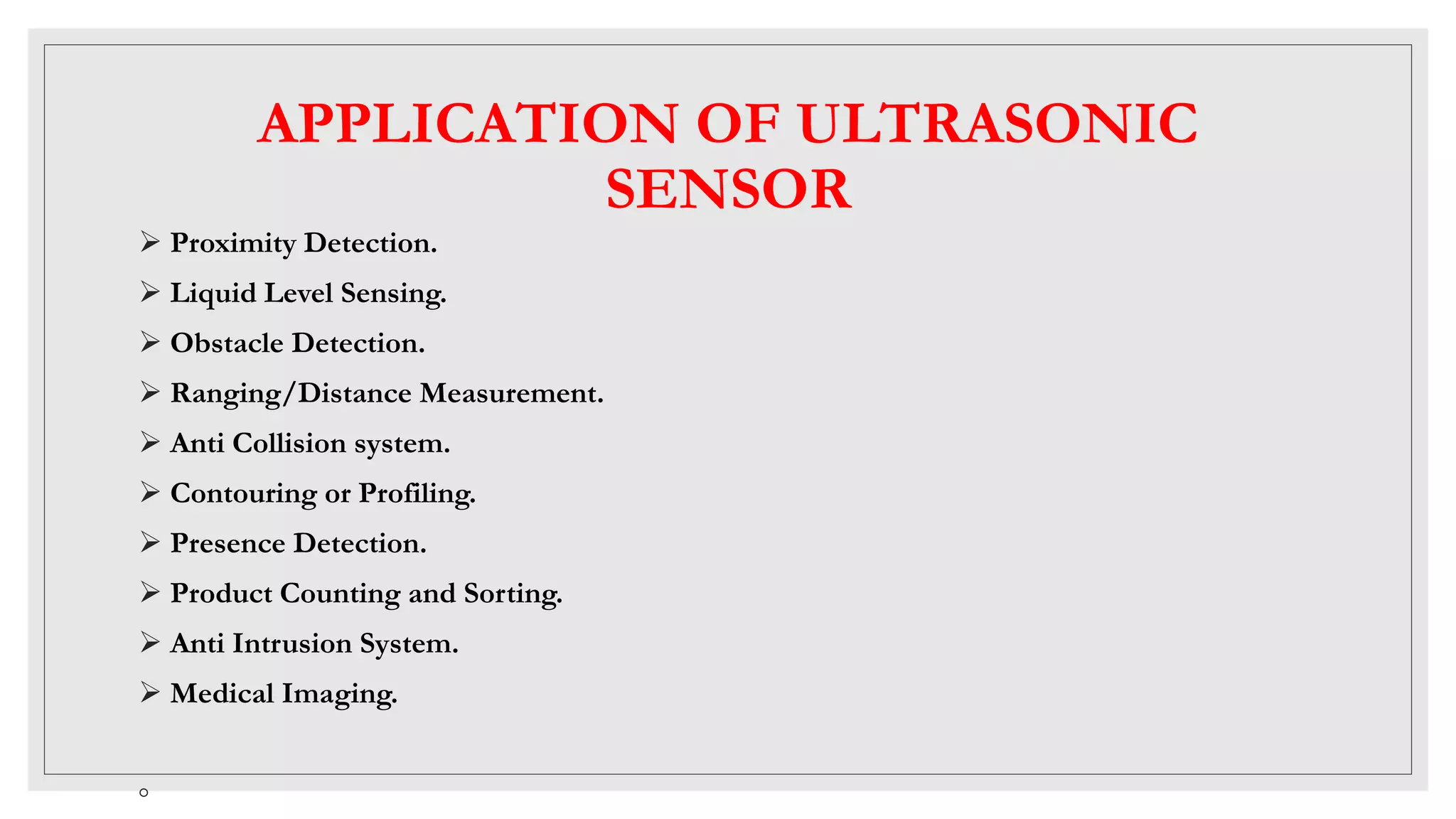

15. APPLICATION OF ULTRASONIC
SENSOR
 Proximity Detection.
 Liquid Level Sensing.
 Obstacle Detection.
 Ranging/Distance Measurement.
 Anti Collision system.
 Contouring or Profiling.
 Presence Detection.
 Product Counting and Sorting.
 Anti Intrusion System.
 Medical Imaging.
◦

16. ADVANTGES OF ULTRASONIC SENSOR
 Its small size makes it easy to integrate into projects.
 Ultrasonics can easily integrate with any type of controller.
 Its high frequency, sensitivity, and power make it easy to detect objects.
 It have greater accuracy than many other methods at measuring thickness
and depth of a parallel surface.
 Ultrasonics are easy to use and not dangerous during operation.
 An inexpensive option.
