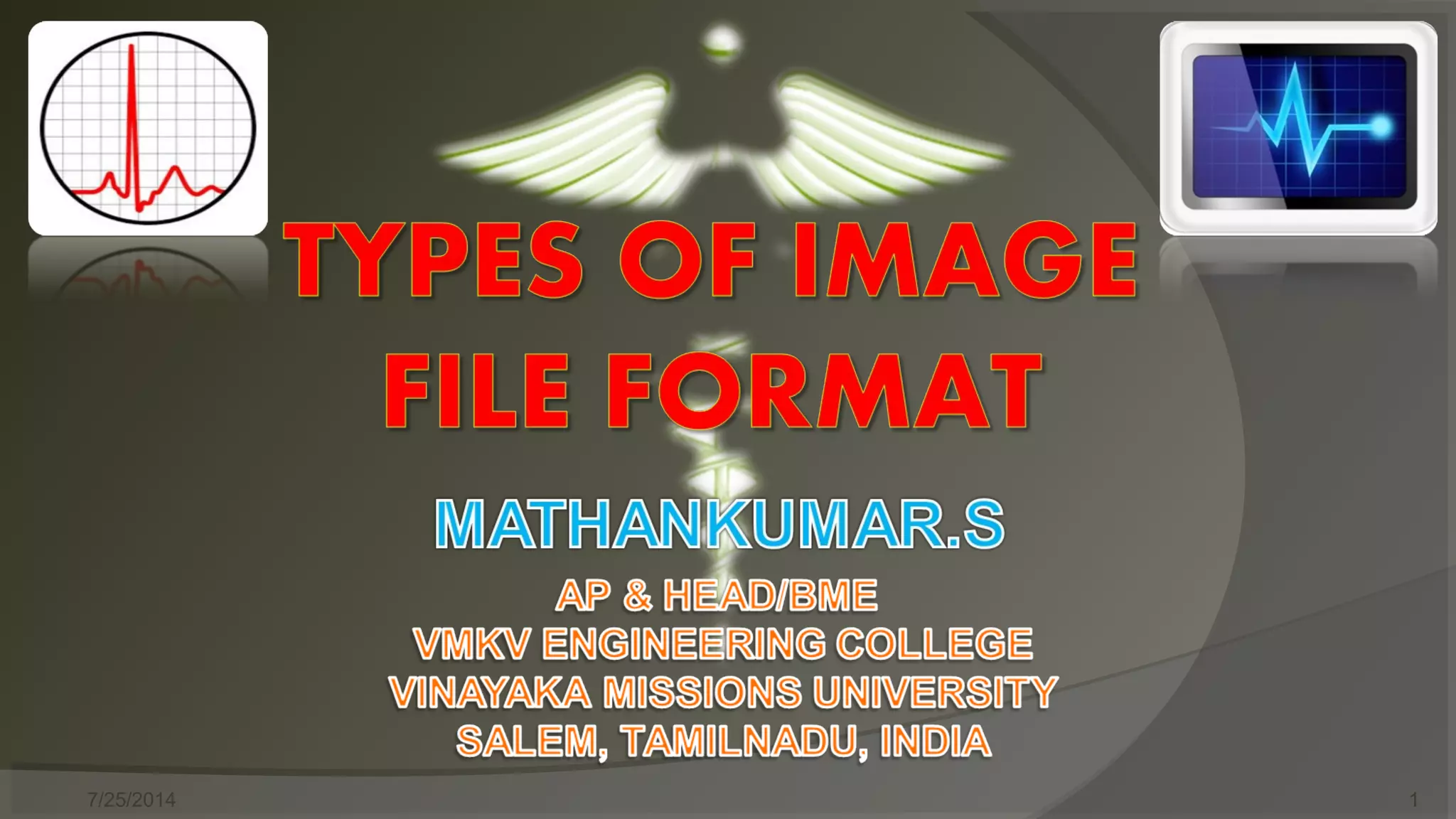

TYPES OF IMAGE FILE FORMAT (ITS INCLUDES IMAGES, TYPES OF IMAGES, IMAGE FILE FORMATS & DIGITAL IMAGING)

1. 7/25/2014 1

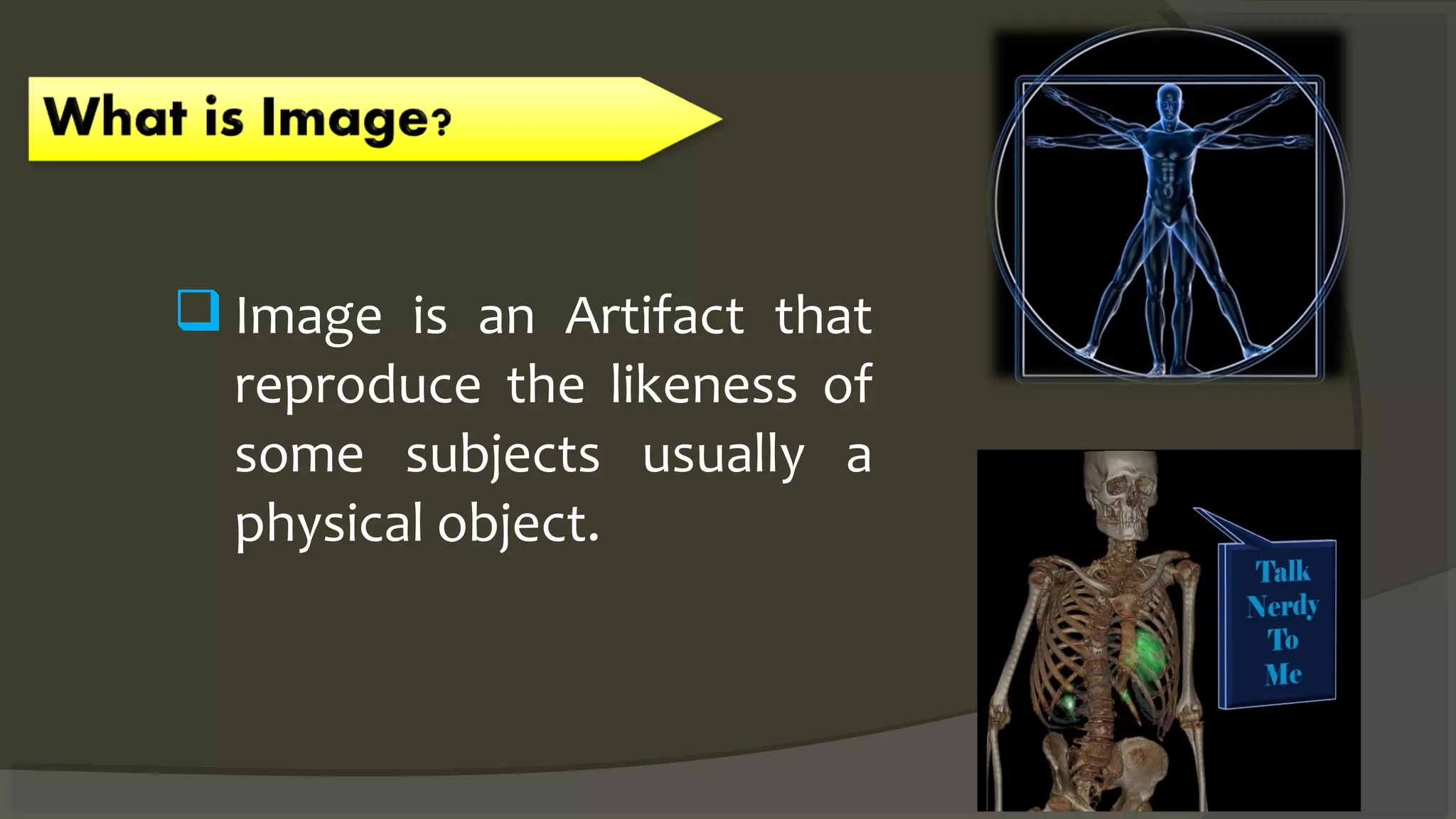

2.  Image is an Artifact that
reproduce the likeness of
some subjects usually a
physical object.

3.  Images are pictures!
A picture that represents visual
information.
 Used to save visual experiences.
 A picture is worth a 1000 words…I think
more!!!
 How are non-digital images stored?
Photographic film
Canvas/paint
Digitally

4.  Imaging is the process of acquiring images.
 Shorthand for image acquisition.
 Process of sensing our surroundings and then
representing the measurements that are made in
the form of an image.

5.  Passive imaging – employs energy sources
that are already present in the scene.
 Active imaging – involves use of artificial
energy sources to probe our surroundings.
5

6.  Passive imaging is subject to the limitations of
existing energy sources.
Passive ImagingPassive Imaging

7.  Active imaging is not restrictive in this way
but is invariably a more complicated &
expensive procedure.
 Active imaging predominates in medical field,
where precise control over radiations sources
is essential.
 Active imaging is also an important tool in
remote sensing.
7
Active ImagingActive Imaging

8.  Images stored in digital form!
Many ways of acquiring images
Scanner
Digital Camera
Others…
Many ways of storing images
Gif
Tiff
BMP
JPG
Others…

9. JPEG (Joint Photographic Experts Group)
GIF (Graphic Interchange Format)
PNG (Portable Network Graphics)
TIFF (Tagged Image File Format)
PGM (Portable Gray Map)
FITS (Flexible Image Transport System)
BMP (Bitmap Format)

10. JPEG - Joint Photographic Experts Group
 JPEG is designed with photographs in mind.
 It is capable of handling all of the colors needed.
JPEGs have a lossy way of compressing images.
 At a low compression value, this is largely not
noticeable, but at high compression, an image can
become blurry and messy. .jpg

11. JPEG cautions:
• Images with hard edges, high contrasts, angular areas, and
text suffer from JPEG compression.
• Scanned “natural” photographs do not lose much,
especially at High or Maximum quality.
• Only save finished images as JPEGs, every time you open
and save again, even if you don’t edit, you lose quality.
• Always keep the original non-JPEG version (the native .psd
format).
So why use JPEG?
• It is the best format for photographic images on the Web.
• It’s compression ability is very great.

12. 12

13. GIF - Graphics Interchange Format
GIF is the most popular on the Internet, mainly because of its
small file size. It is ideal for small navigational icons and simple
diagrams and illustrations where accuracy is required, or
graphics with large blocks of a single color. The format is loss-
less, meaning it does not get blurry or messy.
The 256 color maximum is sometimes tight, and so it has the
option to dither, which means create the needed color by
mixing two or more available colors.
GIF use a simple technique called LZW compression to reduce
the file sizes of images by finding repeated patterns, but this
compression never degrades the image quality.
.GIF

14. 14
 The GIF format is one of the most commonly used
graphic file formats, especially on the Internet.
 The GIF format is exceedingly useful in that it can
contain animations. Its internal structure is such
that it can store multiple images and the controls to
make them appear as real time animation
 animated GIF.
 The GIF format also allows a special color as to be
specified as "using the background." This results in
the image looks like transparent
 transparent GIF.

15. 15
 Portable Network Graphic (PNG) which is
pronounced as “Ping”.
 Alternative to GIF, a lossless compression
scheme is used.
 Support three image type: true color,
grayscale, palette-based (8-bit).
 JPEG supports the first 2.
 GIF supports the 3rd
one.

16. 16
 Advantages
 Better Compression
○ Deflate is an improved version of the Lempel-Ziv compression
algorithm.
 Improve Interlacing
○ Display image quicker than Interlaced GIF.
 True Color and Transparency
○ Support 16-bit (Grey scale) or 48-bit (True Color)
○ 16-bit for alpha channel (Transparency).
 Gamma storage
○ Store the gamma setting of the platform of the creator.
 Disadvantages
 Not support by old browsers (Netscape 2,3,4 and IE 2,3,4)

17. TIFF - Tagged Image File Format
 Widely used cross platform file format also designed for printing.
 A bitmap image format.
 TIFF supports lossless LZW compression which also makes it a
good archive format for Photoshop documents.

18.  A popular format for grayscale images (8 bits/pixel)
 Closely-related formats are:
 PBM (Portable Bitmap), for binary images (1 bit/pixel)
 PPM (Portable Pixelmap), for color images (24 bits/pixel)
- ASCII or binary (raw) storage

19. FITS - Flexible Image Transport System
 Format of a FITS file (http://fits.gsfc.nasa.gov)
 Primary Header: metadata describing
instrument, observation & file contents
 Primary Data Array: array of 0-999
dimensions – usually a 2D image
+ none or more Extensions:
 Array, ASCII Table or Binary Table, each with
Header
(New FITS-inspired XML format – VOTable)

20. 20
BMP - Bitmap Format
uses a pixel map which contains line by line information.
It is a very common format, as it got its start in Windows.
 This format can cause an image to be super large.
