The document discusses different types of turbines used to convert energy into rotating mechanical energy to generate electricity. It focuses on gas turbines, which have three main sections - a compressor that sucks in and compresses air, a combustor where fuel is burned using the compressed air, and a turbine where the kinetic energy of the hot gases causes the turbine blades to rotate and power the shaft. Gas turbines can be classified based on their combustion process, the path of the working substance, the direction of expanding gases, and the direction of gas flow. They have applications in jet engines, marine propulsion, supercharging, railways, power generation, and industry.

1. Turbine

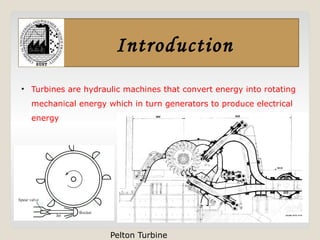

2. Introduction
• Turbines are hydraulic machines that convert energy into rotating
mechanical energy which in turn generators to produce electrical
energy
Pelton Turbine

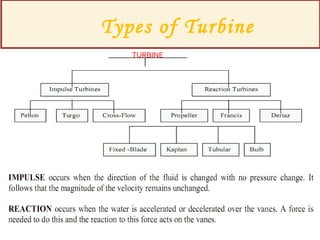

3. TURBINE
Types of Turbine

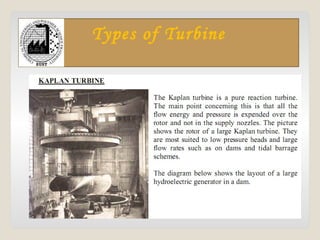

4. Types of Turbine

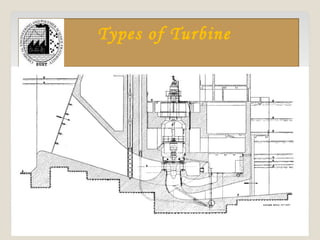

5. Types of Turbine

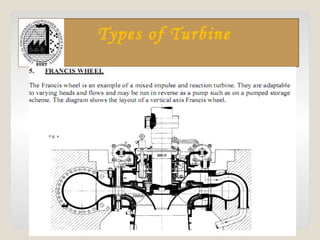

6. Types of Turbine

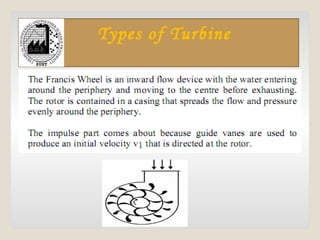

7. Types of Turbine

8. Gas Turbine
The three main sections of the Gas Turbine
1. Compressor
2. Combustor
3. Turbine

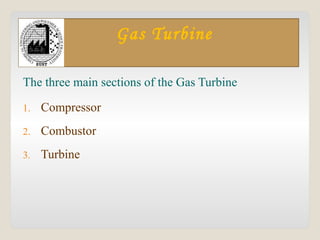

9. Gas Turbine
The three main sections of the Gas Turbine
1. Compressor
2. Combustor
3. Turbine

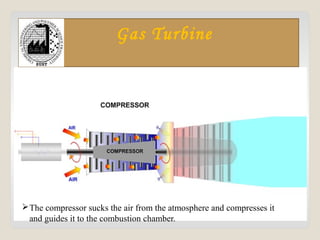

10. Gas Turbine
The compressor sucks the air from the atmosphere and compresses it
and guides it to the combustion chamber.

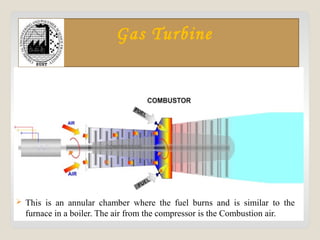

11. Gas Turbine
 This is an annular chamber where the fuel burns and is similar to the
furnace in a boiler. The air from the compressor is the Combustion air.

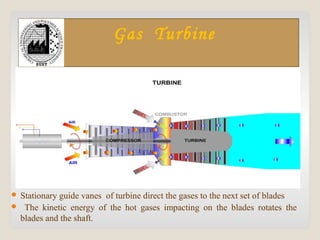

12. Gas Turbine
 Stationary guide vanes of turbine direct the gases to the next set of blades
 The kinetic energy of the hot gases impacting on the blades rotates the
blades and the shaft.

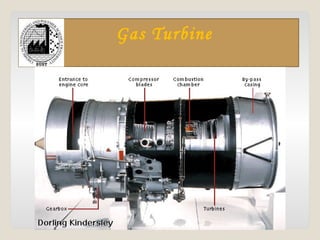

13. Gas Turbine

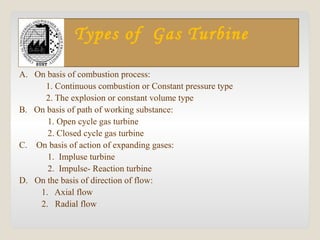

14. Types of Gas Turbine
A. On basis of combustion process:
1. Continuous combustion or Constant pressure type
2. The explosion or constant volume type
B. On basis of path of working substance:
1. Open cycle gas turbine
2. Closed cycle gas turbine
C. On basis of action of expanding gases:
1. Impluse turbine
2. Impulse- Reaction turbine
D. On the basis of direction of flow:
1. Axial flow
2. Radial flow

15. Gas Turbine

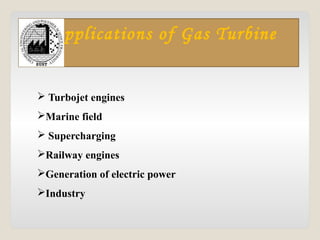

16. Applications of Gas Turbine
 Turbojet engines
Marine field
 Supercharging
Railway engines
Generation of electric power
Industry

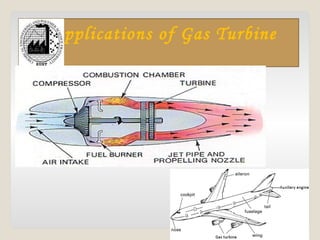

17. Applications of Gas Turbine

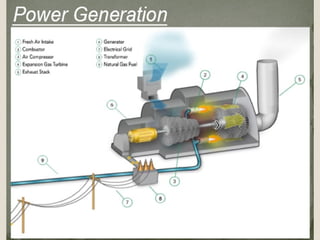

18. Applications of Gas Turbine

19. Applications of Gas Turbine
