Gas Turbine Theory - Principle of Operation and Construction
The document provides an overview of gas turbine engines, including their thermodynamic processes, basic components, and support systems. It discusses the advantages and disadvantages of gas turbine engines, the Brayton cycle, and various compressor types and functions. Additionally, it covers turbine designs, starting systems, and the power transmission systems related to gas turbine applications.
More Related Content
Similar to Gas Turbine Theory - Principle of Operation and Construction
Gas Turbine Theory - Principle of Operation and Construction
- 1. Gas Turbine Theory andConstruction
- 2. Introduction • • • Comprehend the thermodynamic processesoccurring in a gas turbine Comprehend the basic components of gas turbine engines and their basic operation Comprehend the support systems associated with gas turbine engines
- 3. Background • • Aircraft turbojet/turbofan enginesare precursors to gas turbines Installed for propulsion in: • • • • • • FFG’s DD’s DDG’s CG’s M-1 tanks Also used for electrical generation & auxiliary applications

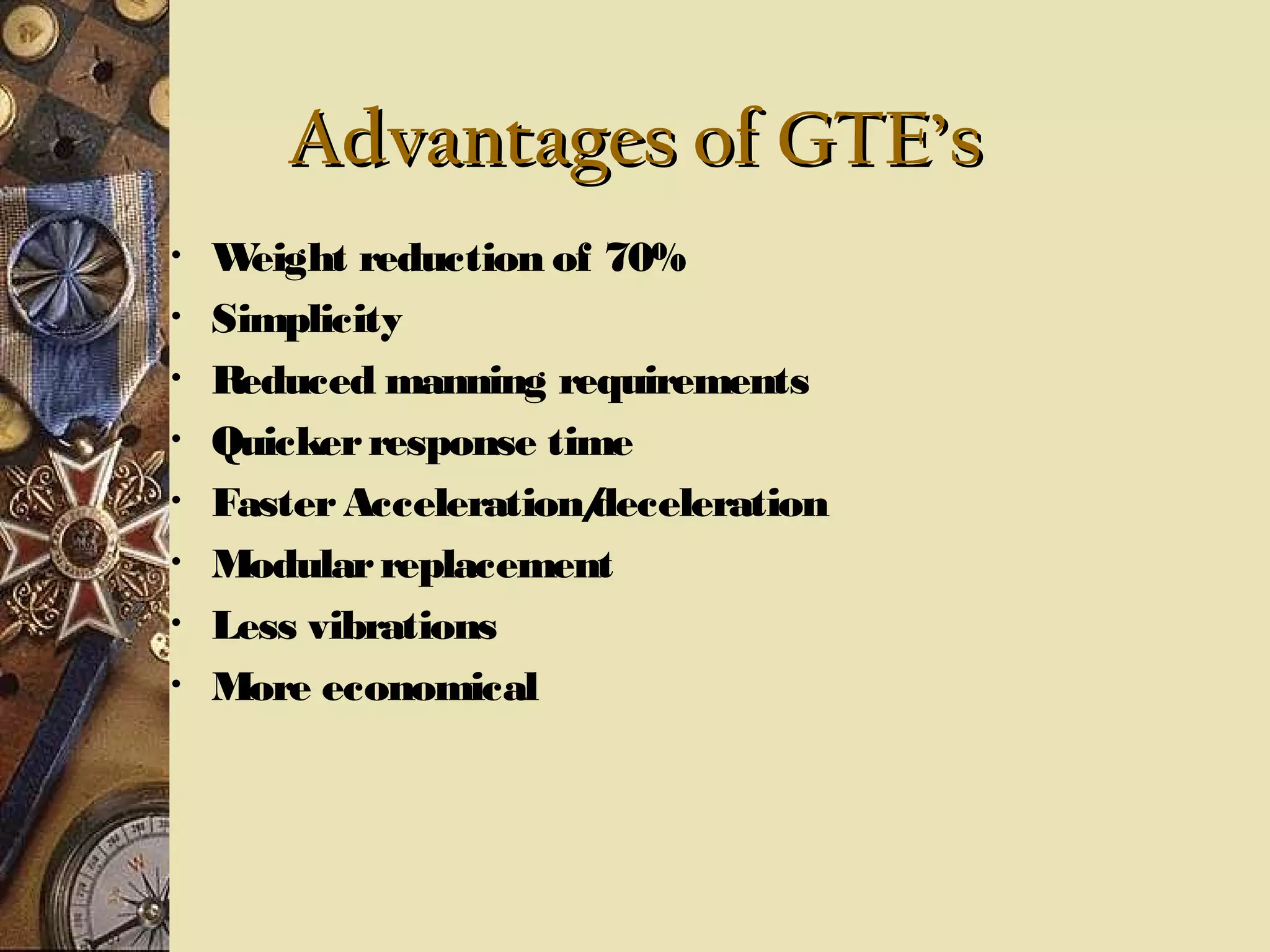

- 4. Advantages of GTE’s • • • • • • • • W eightreduction of 70% Simplicity Reduced manning requirements Quicker response time Faster Acceleration/ deceleration Modular replacement Less vibrations More economical

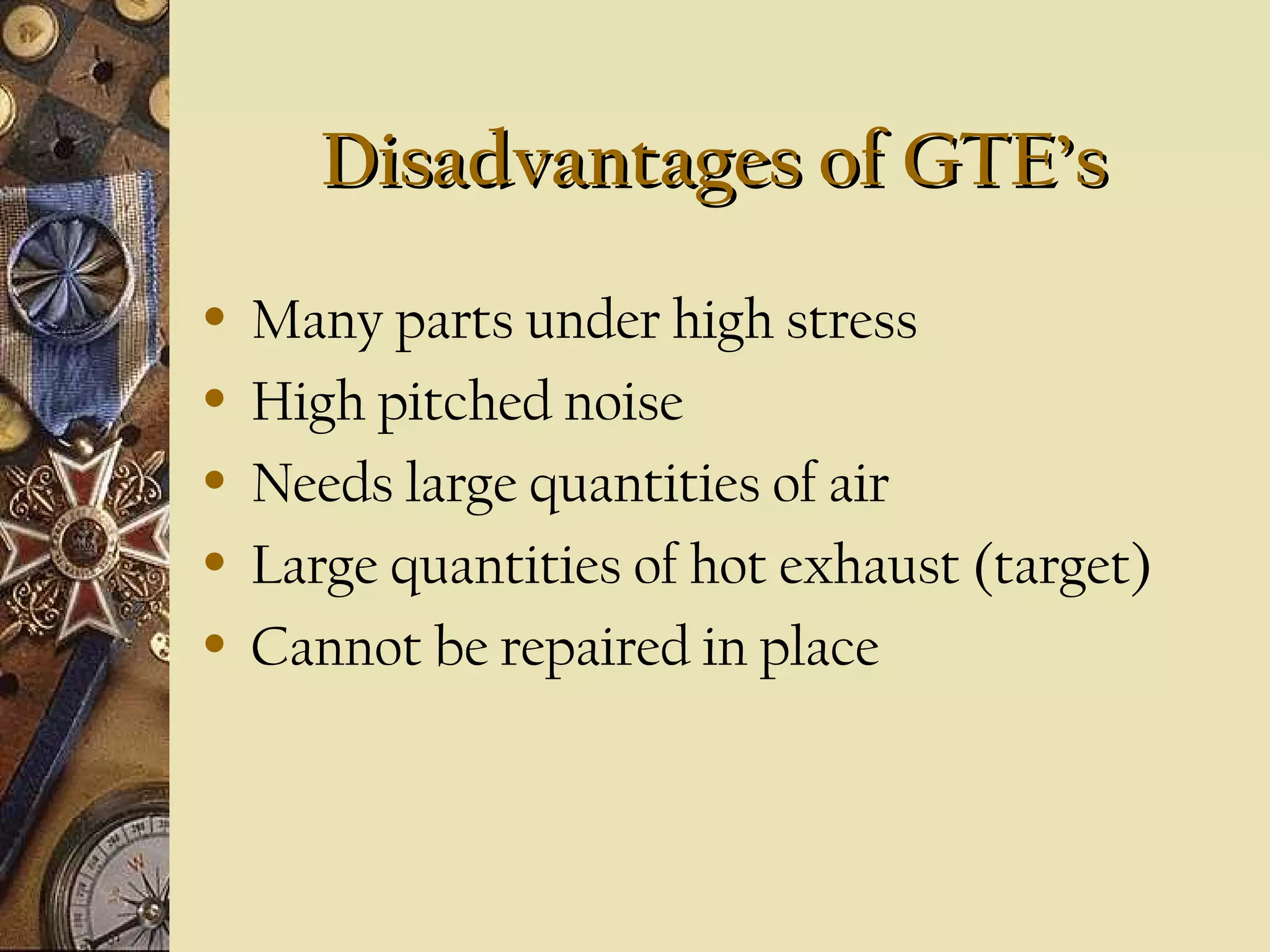

- 5. Disadvantages of GTE’s • • • • • Manyparts under high stress High pitched noise Needs large quantities of air Large quantities of hot exhaust (target) Cannot be repaired in place

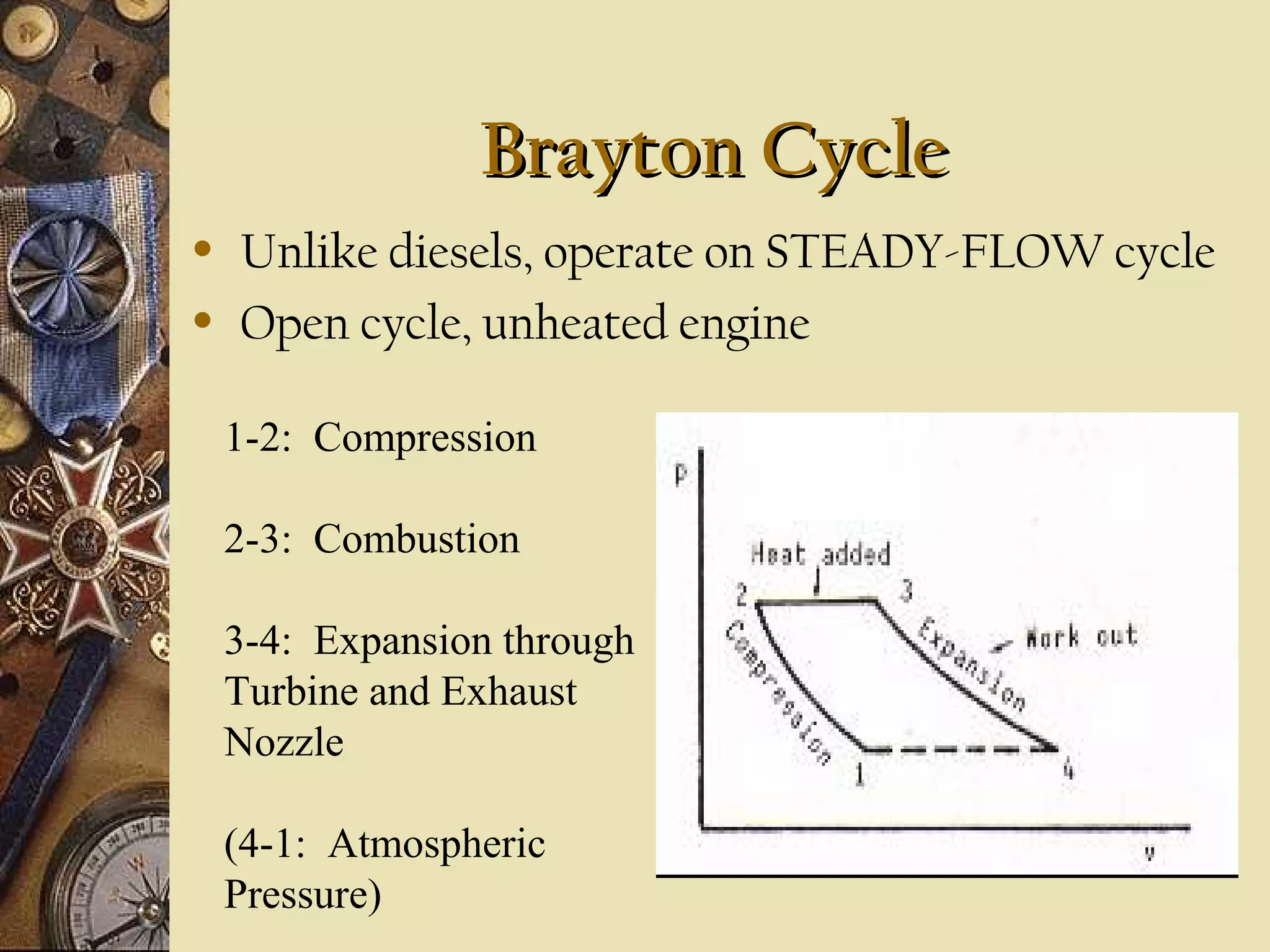

- 6. Brayton Cycle • • Unlike diesels,operate on STEADY-FLOW cycle Open cycle, unheated engine 1-2: Compression 2-3: Combustion 3-4: Expansion through Turbine and Exhaust Nozzle (4-1: Atmospheric Pressure)
- 7.
- 8.

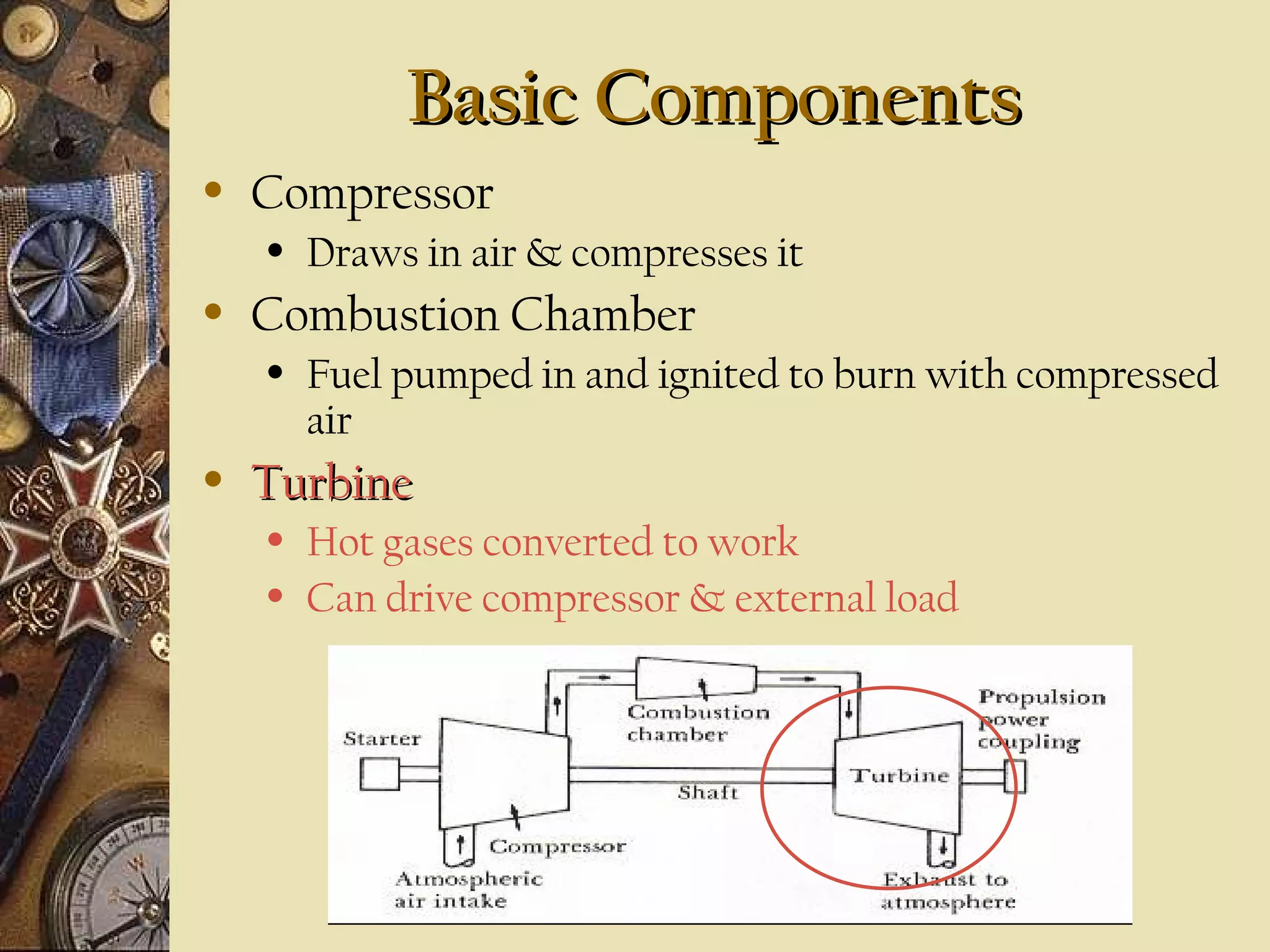

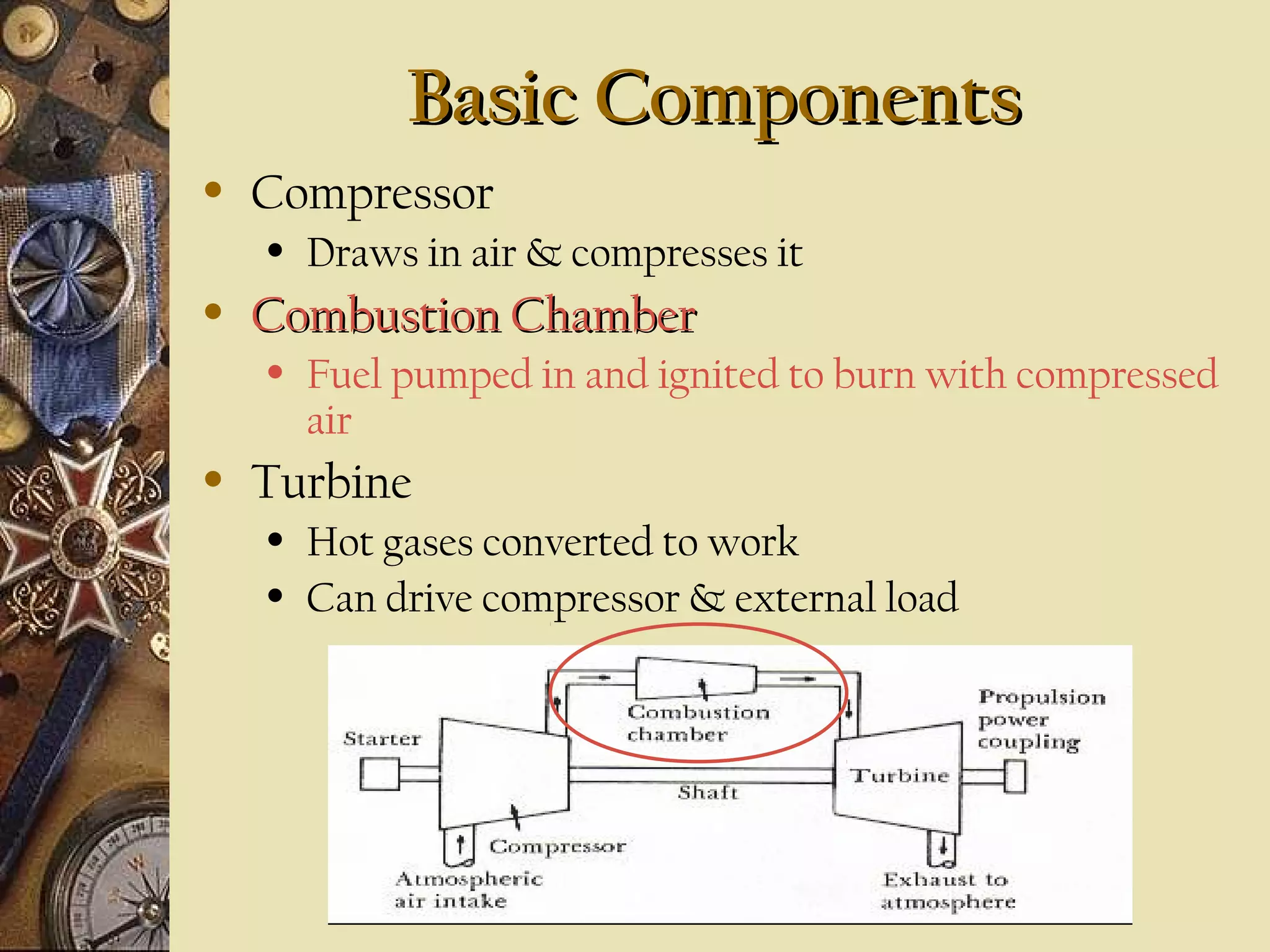

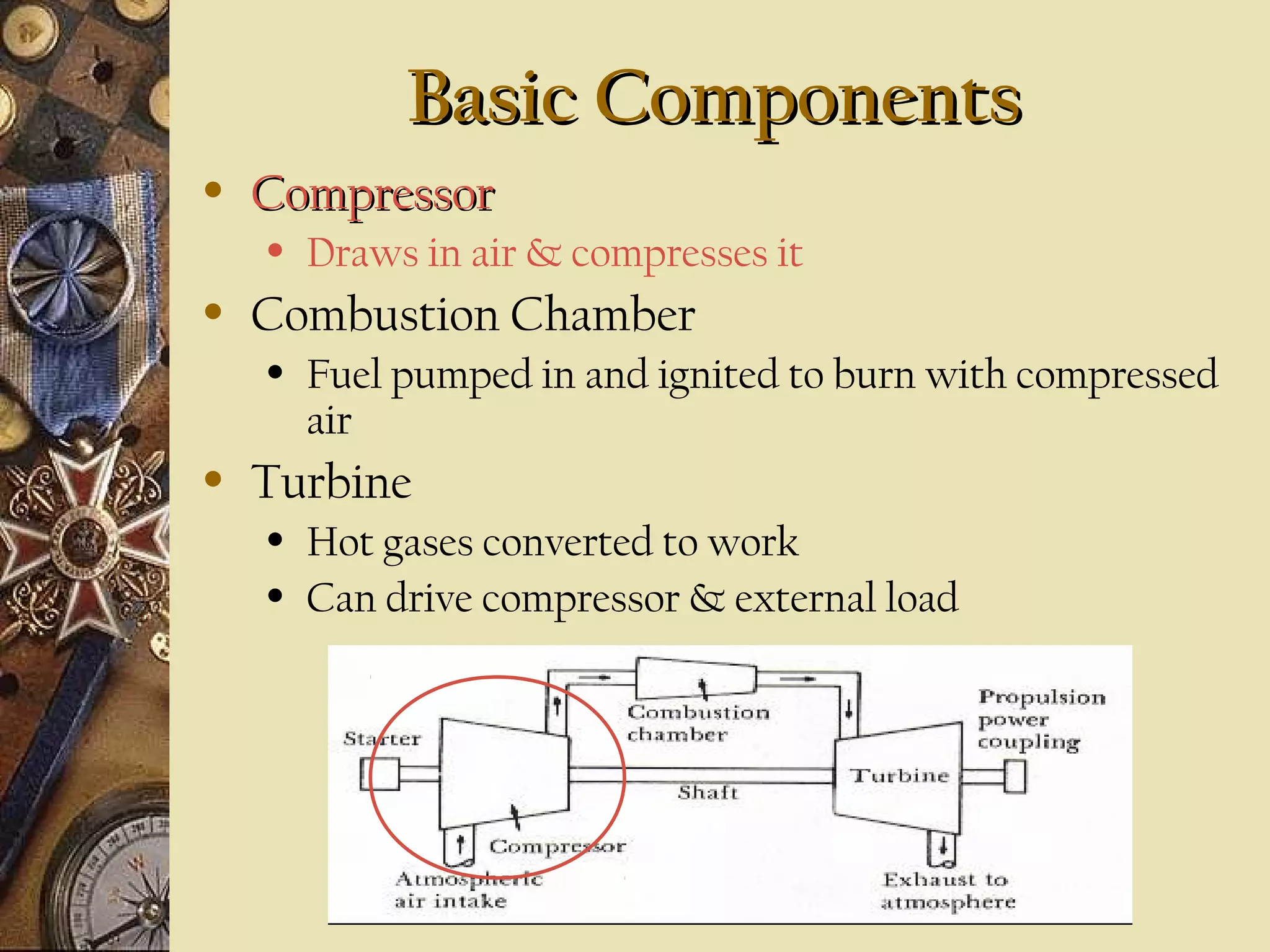

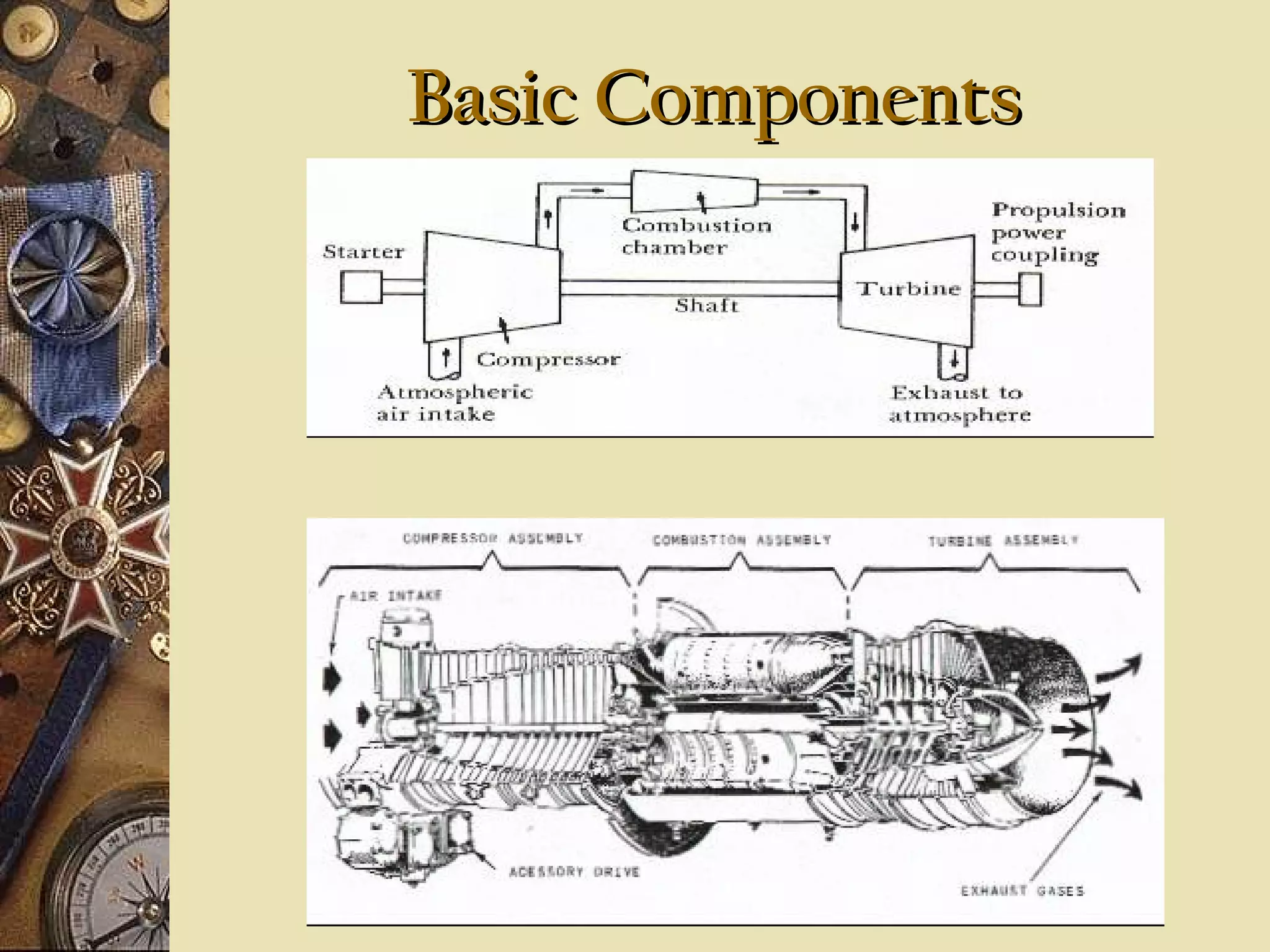

- 9. Basic Components • Compressor • • Combustion Chamber • • Drawsin air & compresses it Fuel pumped in and ignited to burn with compressed air Turbine • • Hot gases converted to work Can drive compressor & external load
- 10. Basic Components • Compressor • • Combustion Chamber • • Drawsin air & compresses it Fuel pumped in and ignited to burn with compressed air Turbine • • Hot gases converted to work Can drive compressor & external load
- 11. Basic Components • Compressor • • Combustion Chamber • • Drawsin air & compresses it Fuel pumped in and ignited to burn with compressed air Turbine • • Hot gases converted to work Can drive compressor & external load

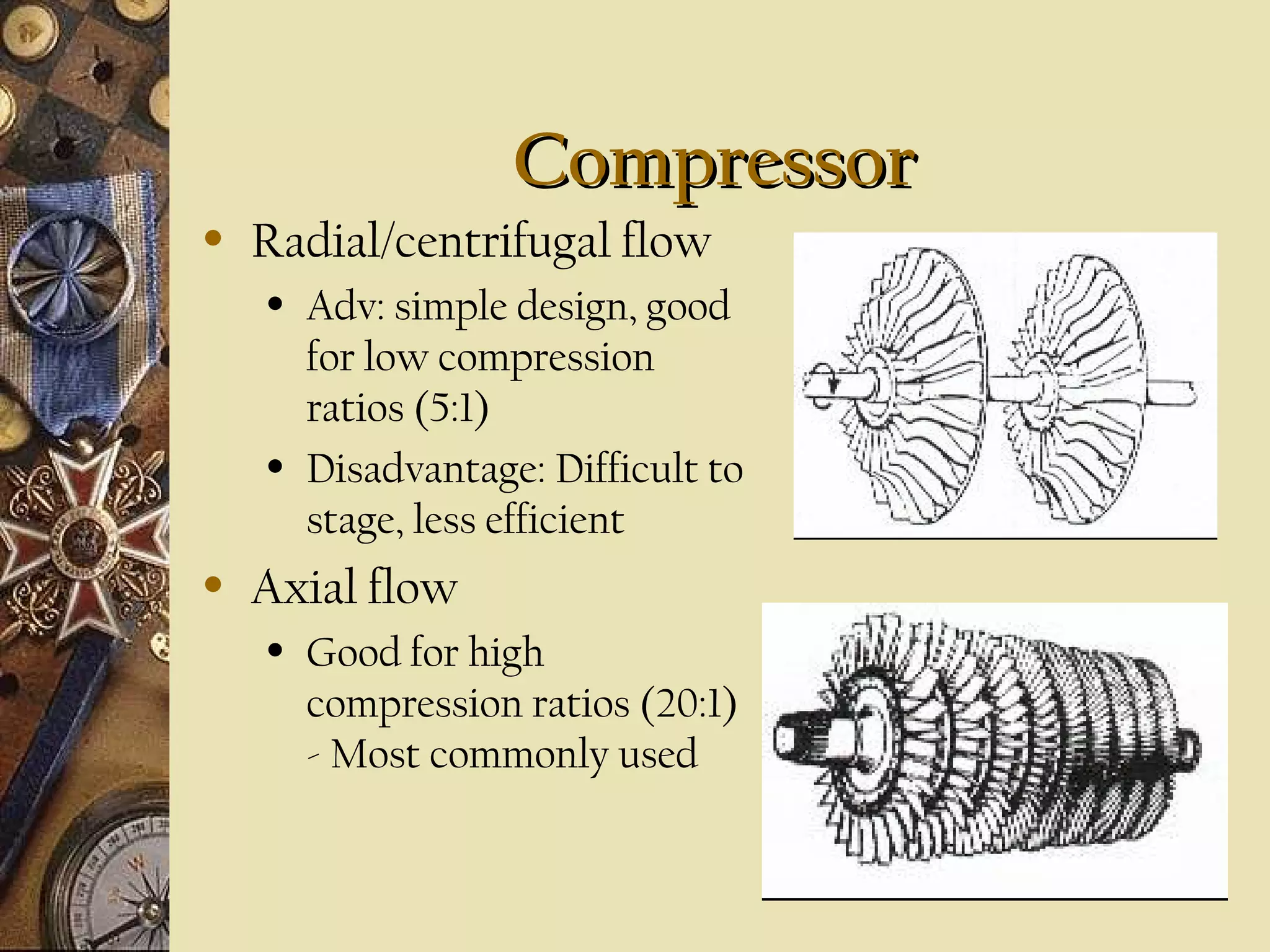

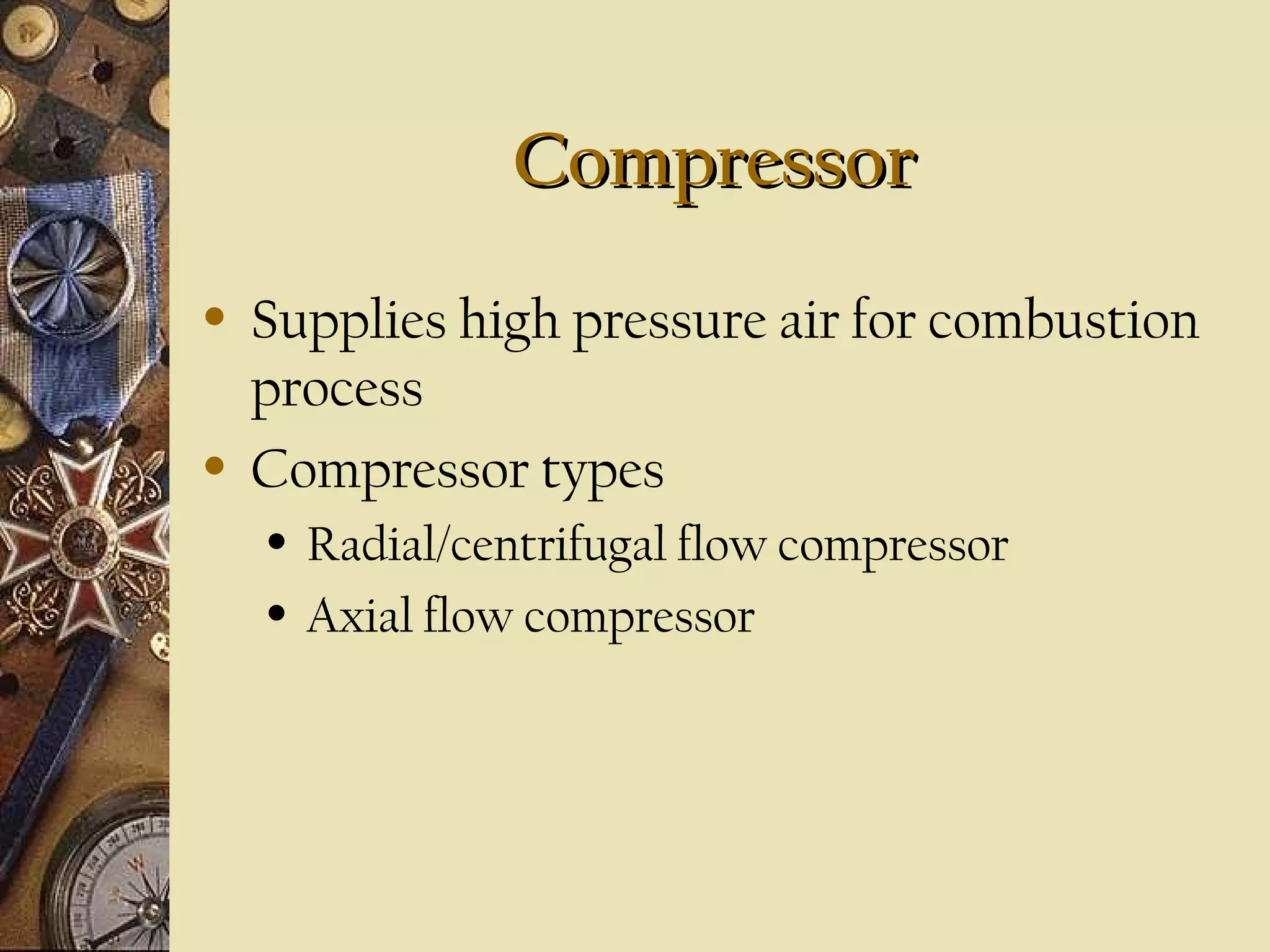

- 12. Compressor • • Supplies high pressureair for combustion process Compressor types • • Radial/centrifugal flow compressor Axial flow compressor
- 13. Compressor • Radial/centrifugal flow • • • Adv: simpledesign, good for low compression ratios (5:1) Disadvantage: Difficult to stage, less efficient Axial flow • Good for high compression ratios (20:1) - Most commonly used
- 14. Compressor • Controlling Load onCompressor • • • To ensure maximum efficiency and allow for flexibility, compressor can be split into HP & LP sections Vane control: inlet vanes/nozzle angles can be varied to control air flow Compressor Stall • Interruption of air flow due to turbulence

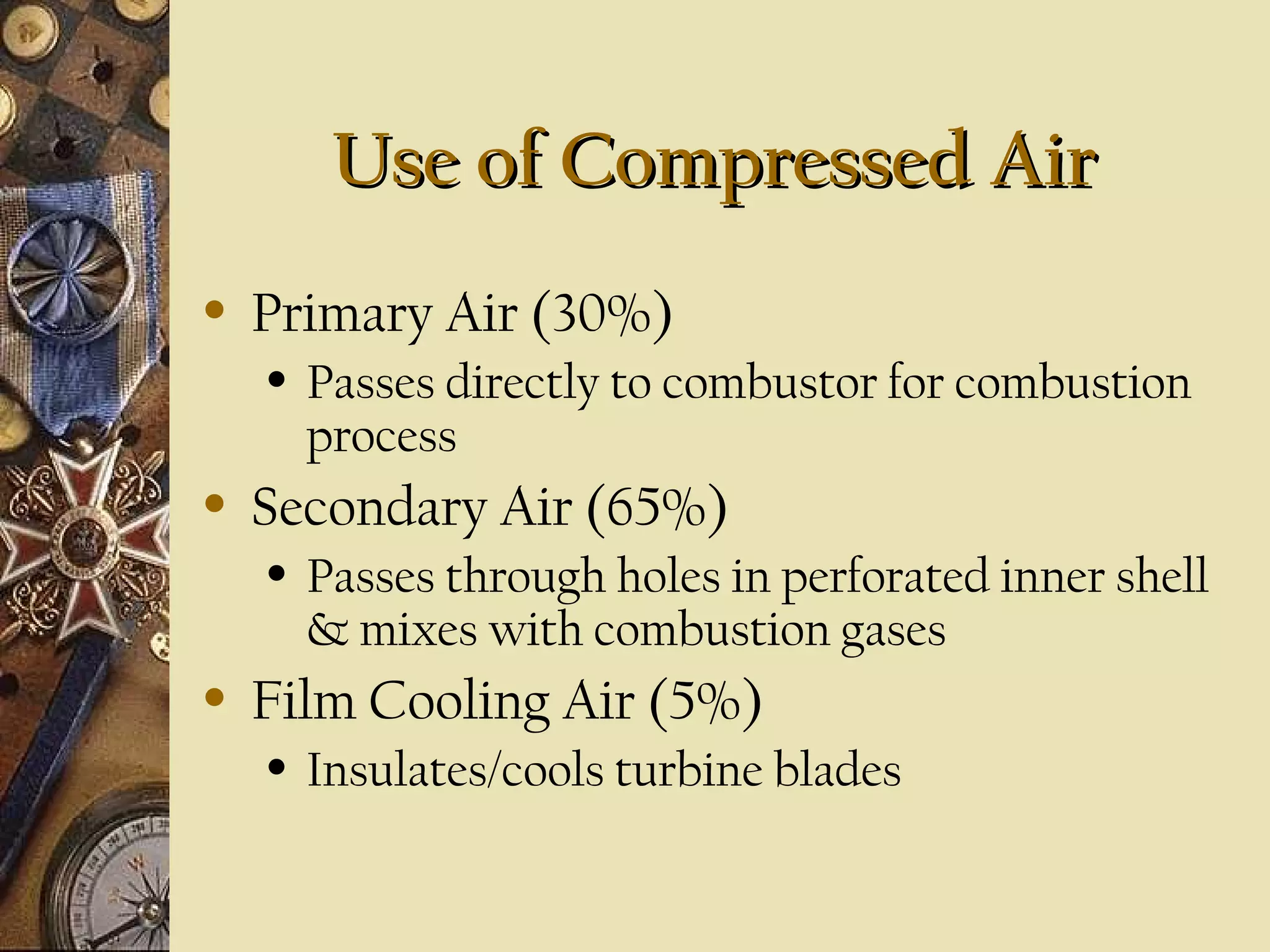

- 15. Use of CompressedAir • Primary Air (30%) • • Secondary Air (65%) • • Passes directly to combustor for combustion process Passes through holes in perforated inner shell & mixes with combustion gases Film Cooling Air (5%) • Insulates/cools turbine blades

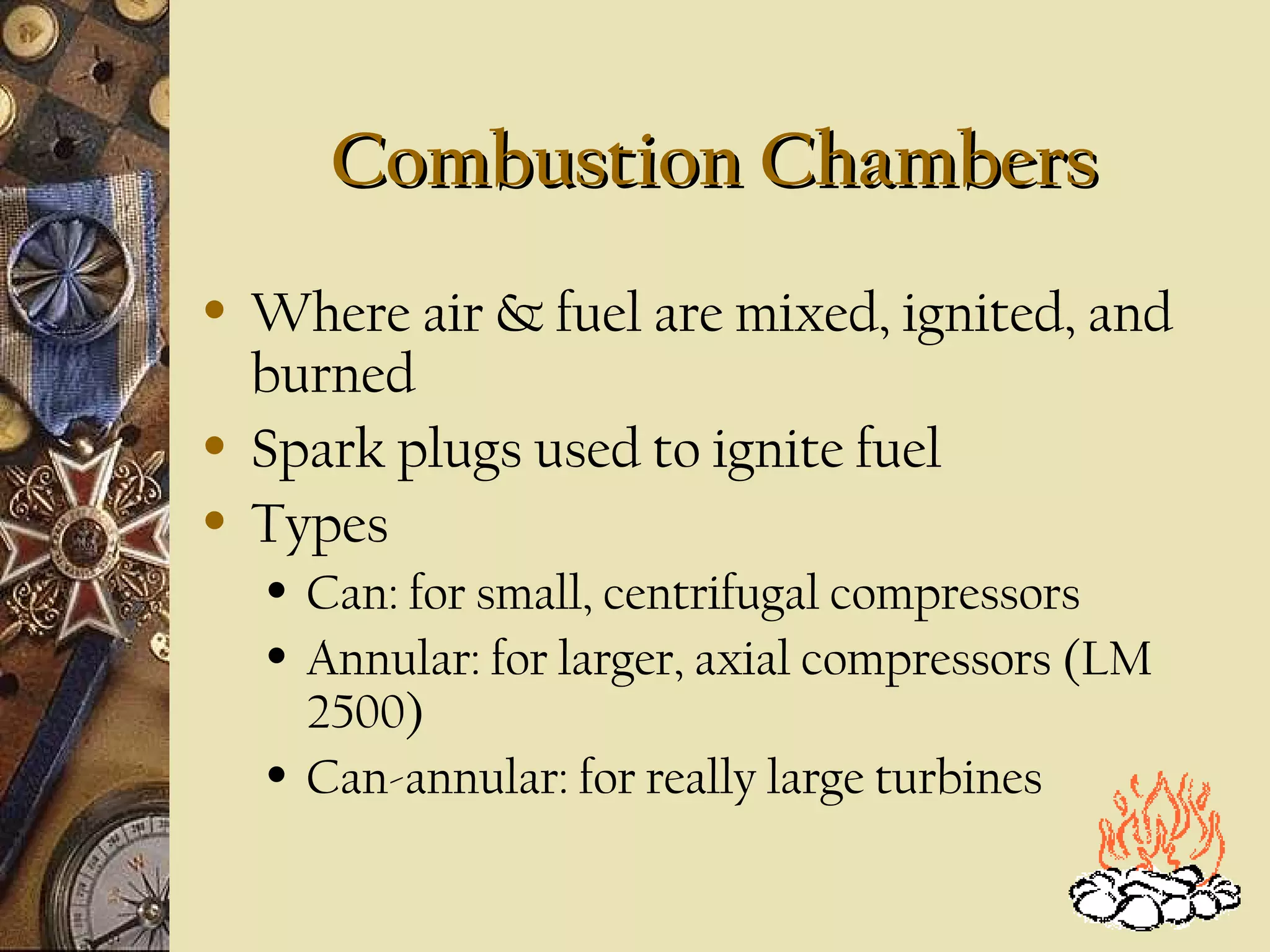

- 16. Combustion Chambers • • • Where air& fuel are mixed, ignited, and burned Spark plugs used to ignite fuel Types • • • Can: for small, centrifugal compressors Annular: for larger, axial compressors (LM 2500) Can-annular: for really large turbines
- 20. Turbines • • Consists of oneor more stages designed to develop rotational energy Uses sets of nozzles & blades

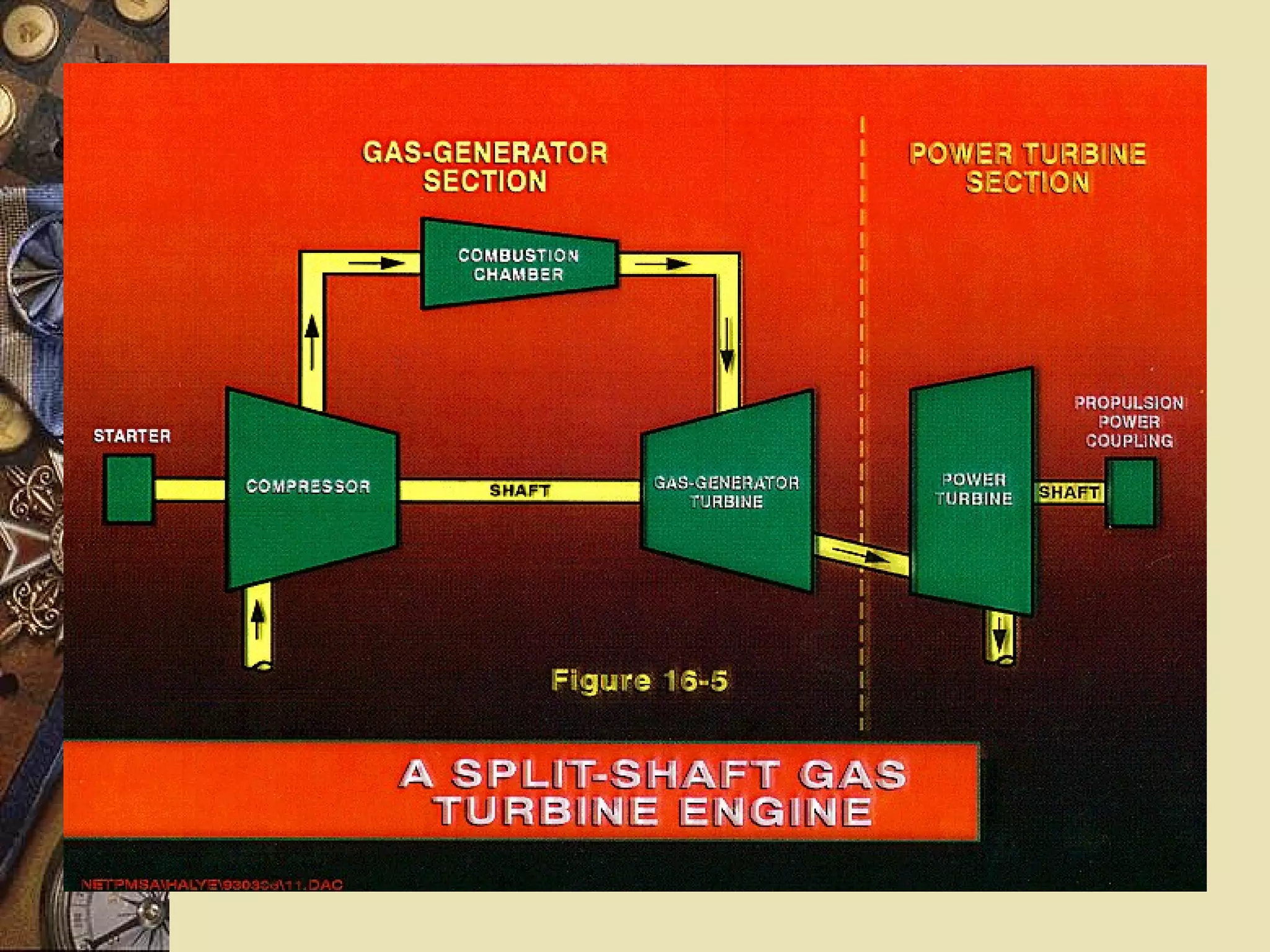

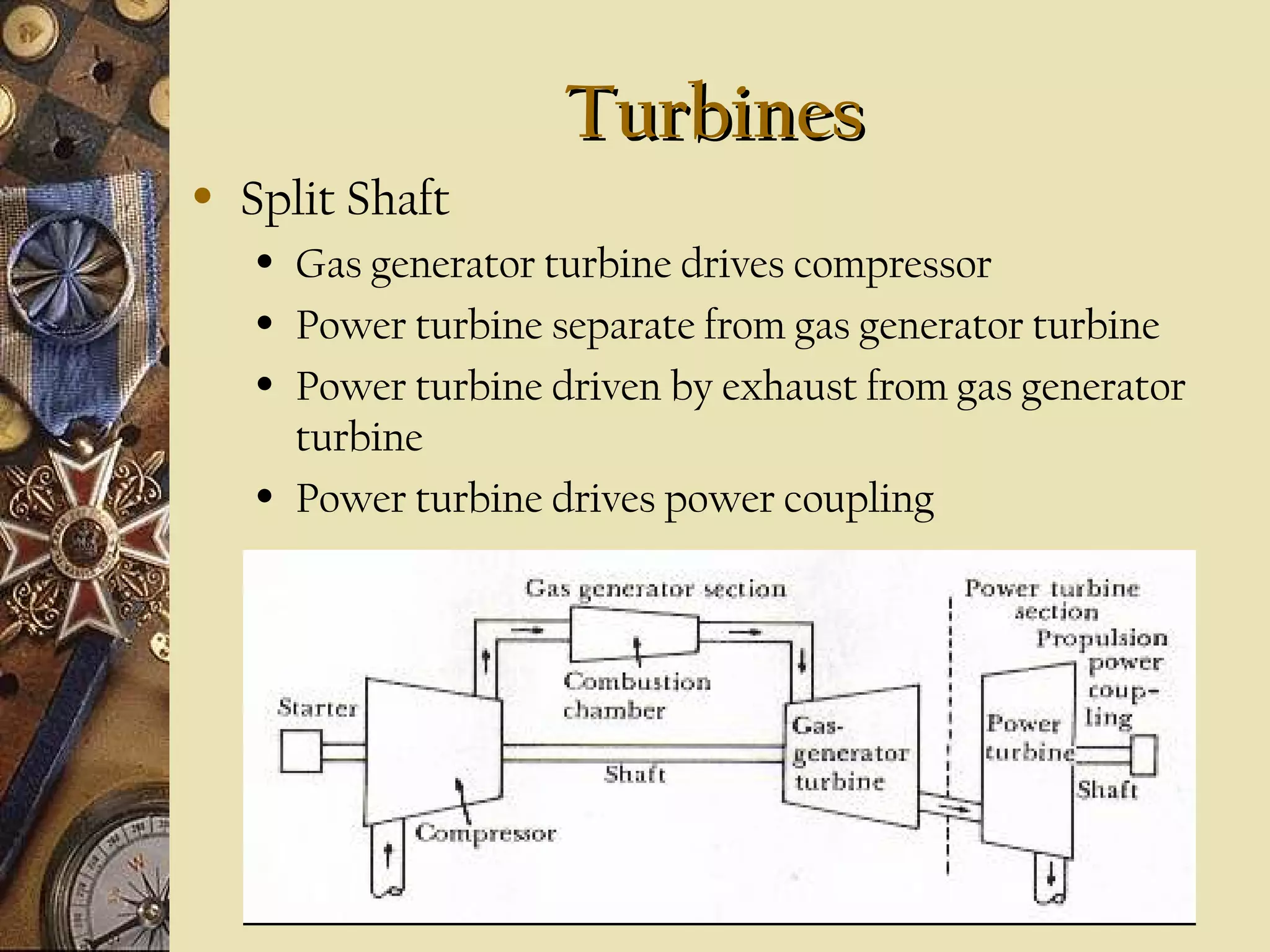

- 21. Turbines • Split Shaft • • • • Gas generatorturbine drives compressor Power turbine separate from gas generator turbine Power turbine driven by exhaust from gas generator turbine Power turbine drives power coupling

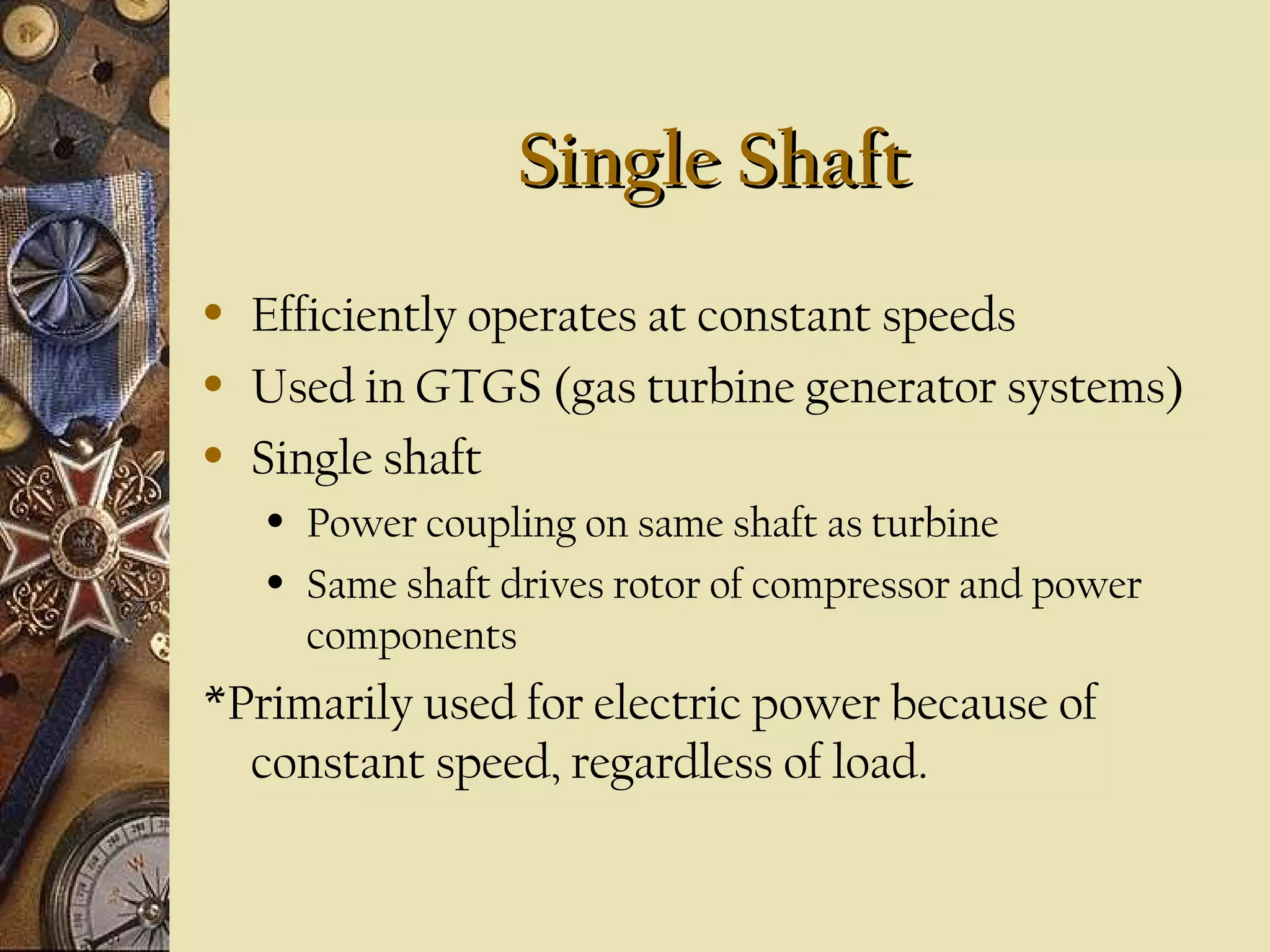

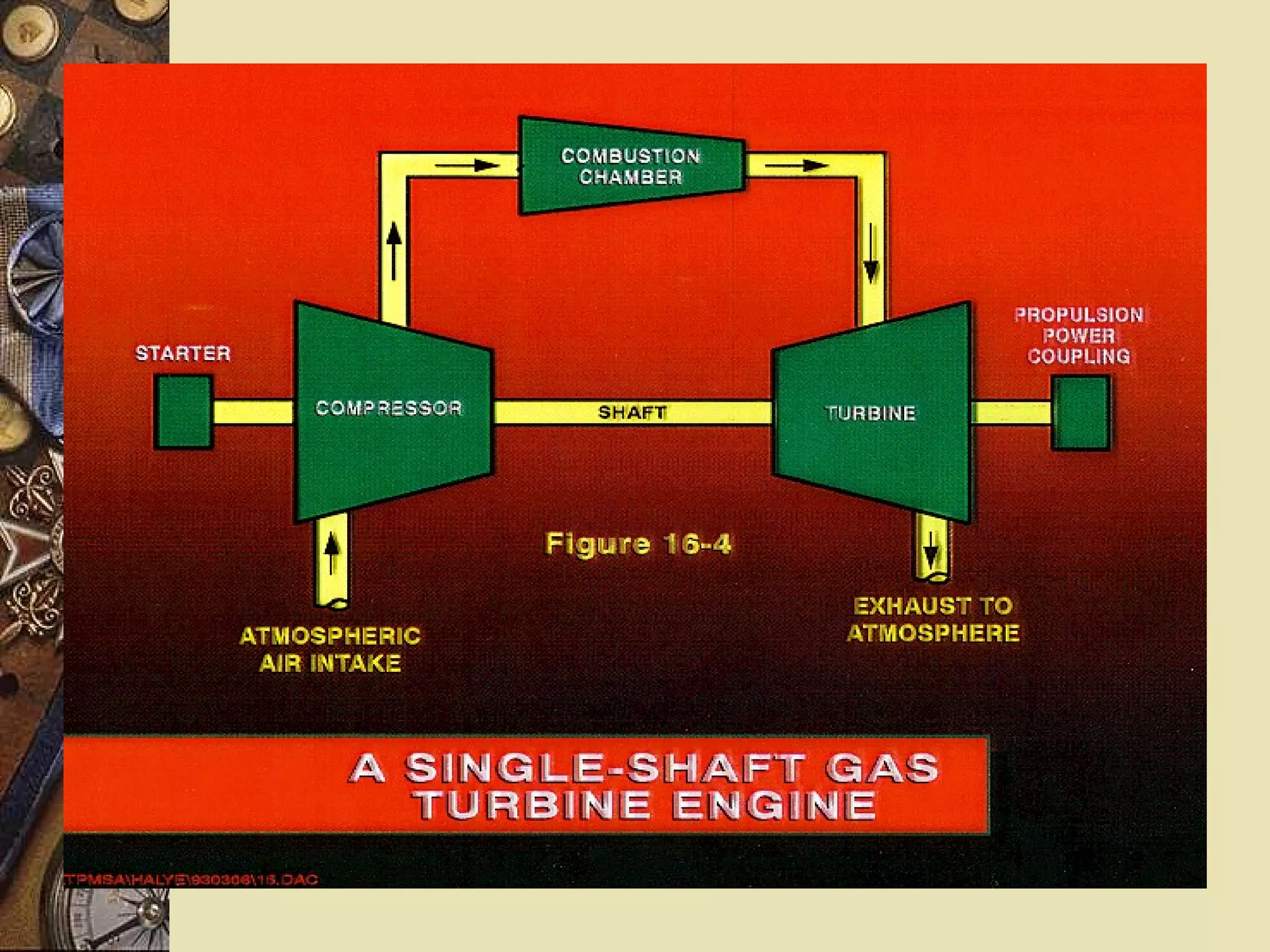

- 22. Single Shaft • • • Efficiently operatesat constant speeds Used in GTGS (gas turbine generator systems) Single shaft • • Power coupling on same shaft as turbine Same shaft drives rotor of compressor and power components *Primarily used for electric power because of constant speed, regardless of load.

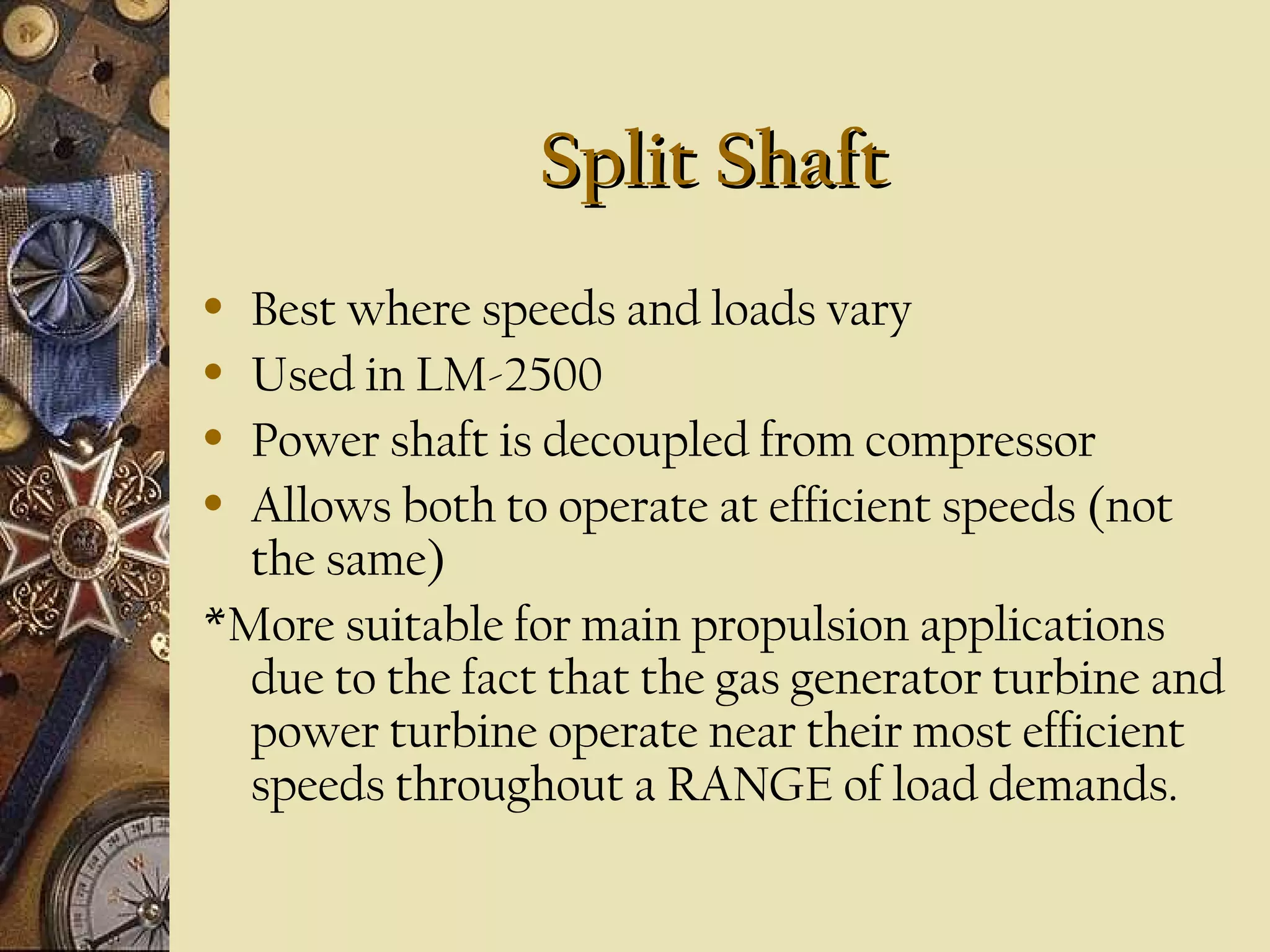

- 24. Split Shaft Best wherespeeds and loads vary • Used in LM-2500 • Power shaft is decoupled from compressor • Allows both to operate at efficient speeds (not the same) *More suitable for main propulsion applications due to the fact that the gas generator turbine and power turbine operate near their most efficient speeds throughout a RANGE of load demands. •

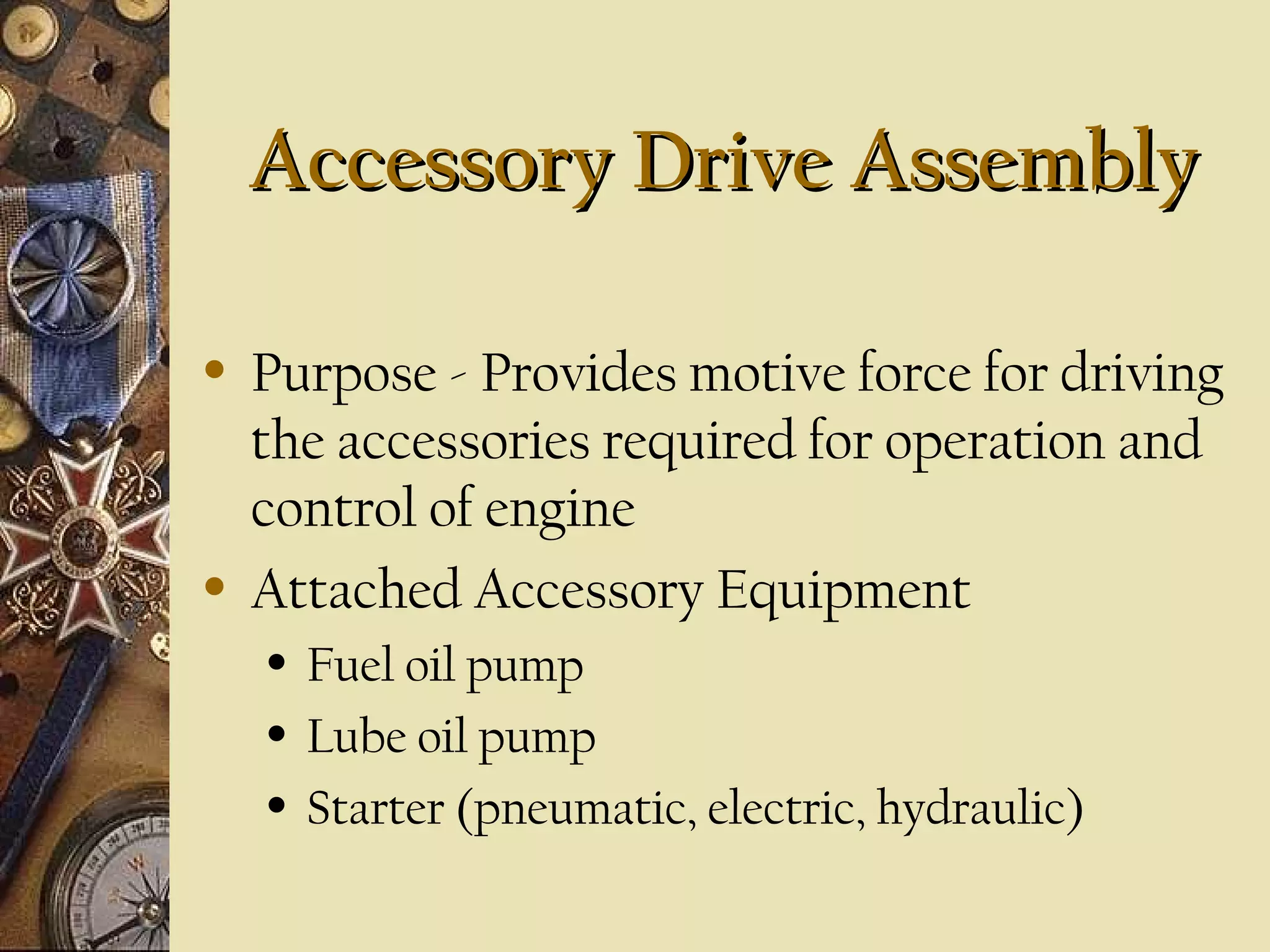

- 26. Accessory Drive Assembly • • Purpose- Provides motive force for driving the accessories required for operation and control of engine Attached Accessory Equipment • • • Fuel oil pump Lube oil pump Starter (pneumatic, electric, hydraulic)

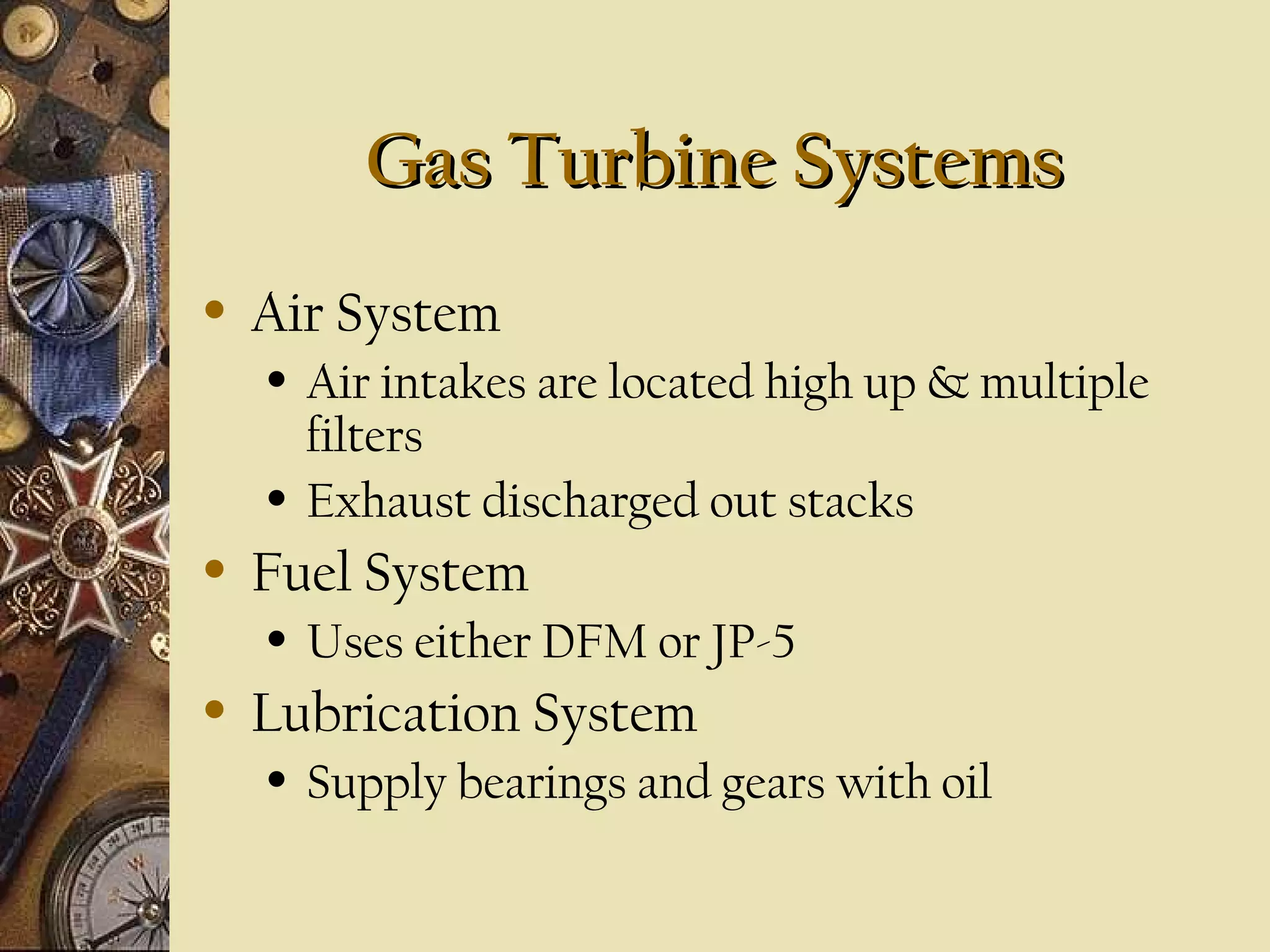

- 27. Gas Turbine Systems • AirSystem • • • Fuel System • • Air intakes are located high up & multiple filters Exhaust discharged out stacks Uses either DFM or JP-5 Lubrication System • Supply bearings and gears with oil

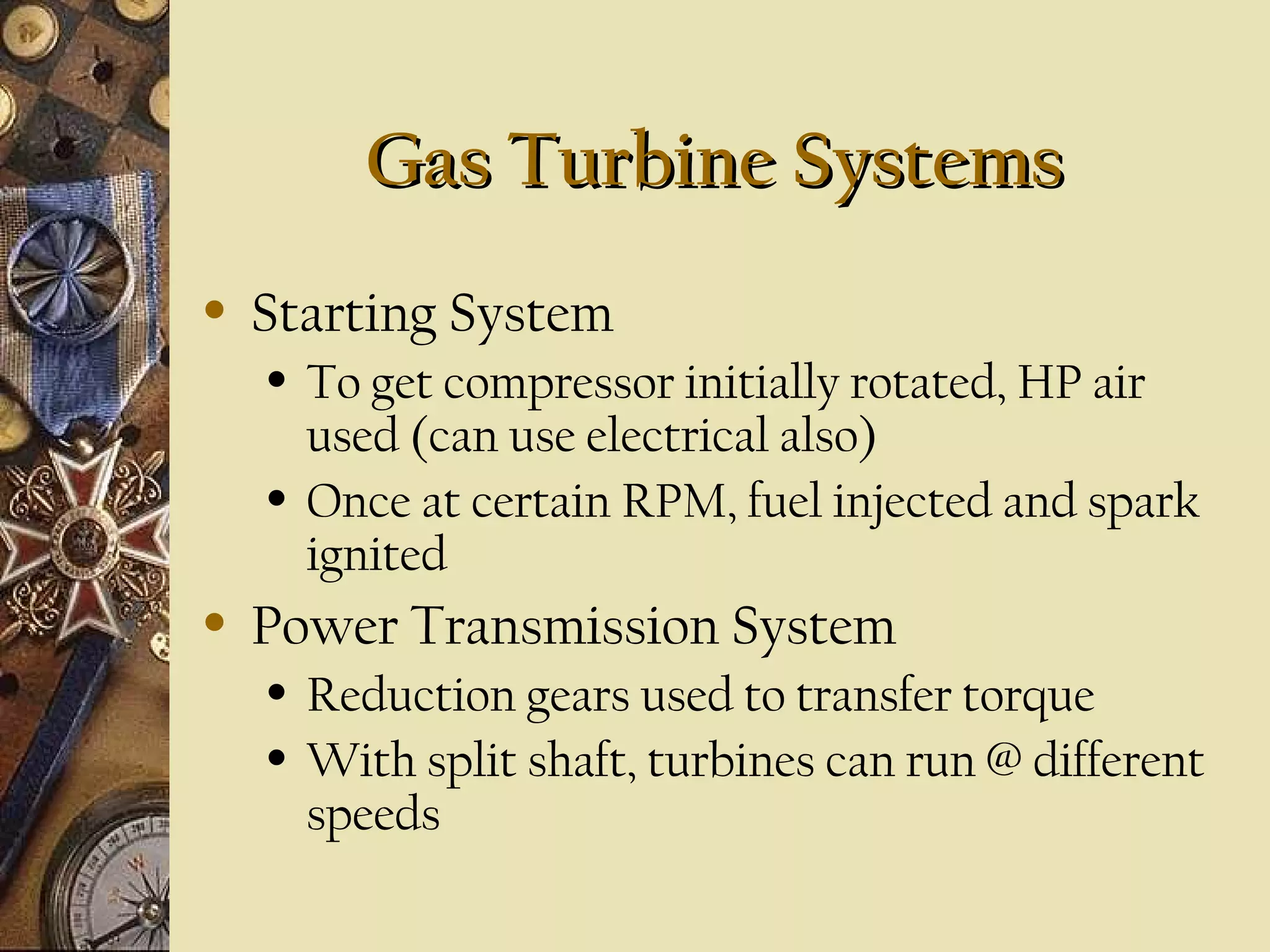

- 28. Gas Turbine Systems • StartingSystem • • • To get compressor initially rotated, HP air used (can use electrical also) Once at certain RPM, fuel injected and spark ignited Power Transmission System • • Reduction gears used to transfer torque With split shaft, turbines can run @ different speeds
- 29.
Editor's Notes
- #10 Air is drawn into the front of the compressor. Each succeeding stage is smaller increasing velocity (recall Bernoullis equation). Between each rotating stage is a stationary stage or stator. The stator partially converts the high velocity to pressure and directs the air to the next set of rotating blades. The rotor imparts velocity to the air (like a fan). Each stage consists of a rotor and stator and results in a pressure increase. Air exits the compressor and enters the diffuser. Suddenly, the air moves from a narrow passage into a wide area. By bernoulli, the air loses velocity and expands in volume and increases pressure. Now, the air is slow moving and high pressure, usually about 19:1. Fuel is injected here and the mixture is ignited by a spark. The spark causes a rapid increase in the volume of the air an combustion gases (at constant pressure). The combustion mixture goes rearward to a nozzle which directs the gas onto the turbine blades and accelerates the gases. The gases are now high velocity, high temperature, low pressure and are used to turn the turbine. The kinetic and thermal energy of the gases are transferred the turbine blades. The turbine is multistaged to remove as much of the energy from the gas as possible.
- #14 Radial flow or centrifugal compressor- compressor draws in the entering air at the hub of the impeller and accelerates it radially outward by centrifugal force through the impeller. Reasonably efficient for high pressure ratios developed in a single stage. Axial flow- Rotor has fixed blades which force the air rearward much like an aircraft propeller. The stator directs the air rearward to the next stage. Very much like a turbine used in reverse. Used in multistage arrangements and pressure ratios increase with the number of stages.

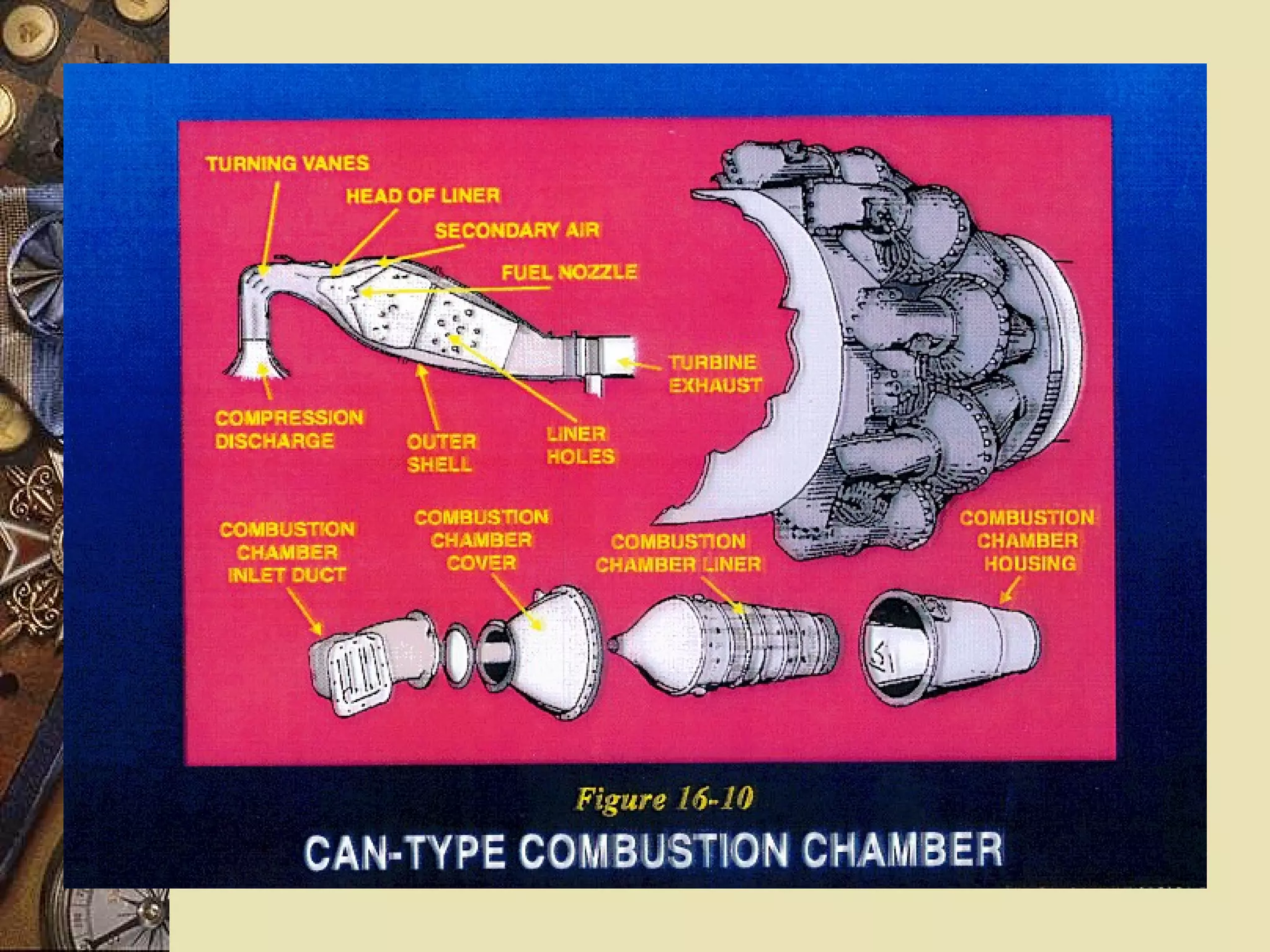

- #18 Can Type- Individual liners and cases mounted around the engine each with its own fuel nozzle.
- #19 Annular type- Liner consists of an undivided circular shroud extending all the way around the outside of the turbine shaft housing. The dome of the liner has small slots and holes to admit primary air. There are also holes in the dome for the fuel nozzles to extend through into the combustion area. The combustion space is formed by the inner and outer liners. The inner liner prevents flame from contacting the turbine shaft housing.

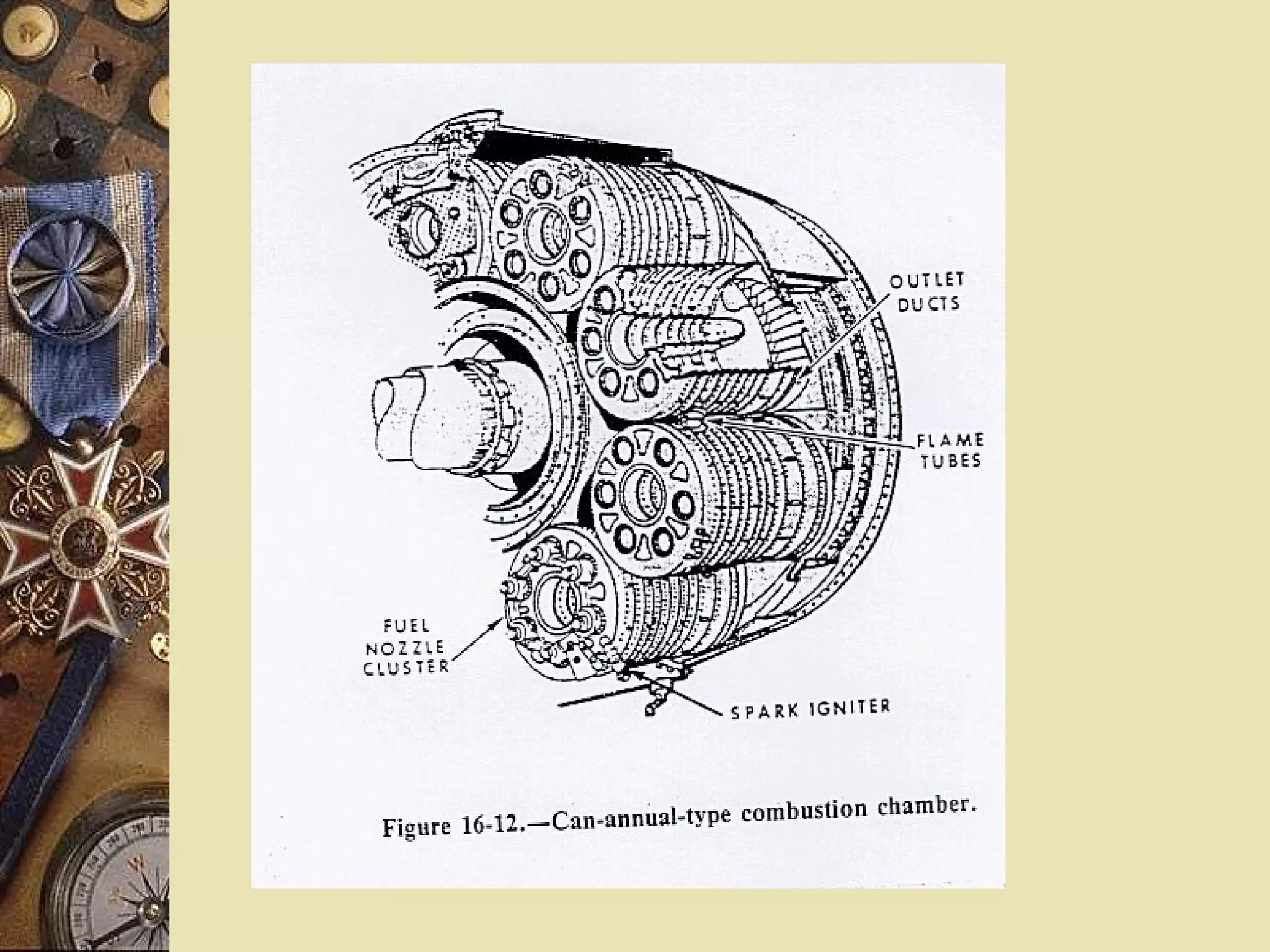

- #20 Can-annular type- Designed to deal with split spool compressor. Individual cans are placed inside an annular case. Combines the strength of annular design with the convenience of maintenance of the can. Also keeps high temperatures in the inner can.
- #21 Turbines, like compressors, consist of stator and rotor elements. Stators prepare the mass flow for harnessing of power through the turbine rotor. The nozzles take the high pressure, high-energy mixture and give it velocity for driving the rotor. Also deflects the gases to a specific angle in the direction of the turbine wheel rotation. Rotors consist of a shaft and bladed wheel. Turbine operates at high speed
- #24 Single- Aircraft and electric power- constant speed independent of load
- #26 Split- allows the compressor to run at different speed that power turbine maximizing the efficiency of operation.
- #27 Provides the space for mounting and the motive force for driving the accessories required for the operation and control of the engine Discuss the following accessory equipment attached at the assembly: Fuel oil pump Lube oil pump Starter (pneumatic, electric, hydraulic)
