- 1. © 2011 Ciscoand/or its affiliates. All rights reserved. Cisco Connect 11© 2012 Cisco and/or its affiliates. All rights reserved. Toronto, Canada May 30th, 2013 The Right Wireless Architecture for You Francis Girard Consulting Systems Engineer – Enterprise Mobility fgirard@cisco.com

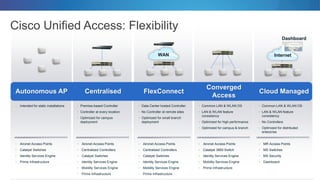

- 3. Cisco Unified Access:Flexibility Autonomous AP Centralised FlexConnect Converged Access Cloud Managed • Intended for static installations • Aironet Access Points • Catalyst Switches • Identity Services Engine • Prime Infrastructure • Premise-based Controller • Controller at every location • Optimized for campus deployment • Aironet Access Points • Centralized Controllers • Catalyst Switches • Identity Services Engine • Mobility Services Engine • Prime Infrastructure • Data Center hosted Controller • No Controller at remote sites • Optimized for small branch deployment • Aironet Access Points • Centralized Controllers • Catalyst Switches • Identity Services Engine • Mobility Services Engine • Prime Infrastructure • Common LAN & WLAN OS • LAN & WLAN feature consistency • Optimized for high performance • Optimized for campus & branch • Aironet Access Points • Catalyst 3850 Switch • Identity Services Engine • Mobility Services Engine • Prime Infrastructure • Common LAN & WLAN OS • LAN & WLAN feature consistency • No Controllers • Optimized for distributed enterprise • MR Access Points • MS Switches • MX Security • Dashboard WAN Dashboard WAN Internet
- 4. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Connect 4 Autonomous Access Points
- 5. How It Works AutonomousAccess Points • Since the beginning of times (1997) • Each AP is individually managed From AP CLI From AP GUI From Cisco Prime Infrastructure (WLSE) • AP connected to 802.1q trunk switch port • SSID = VLAN • End-user is dropped in local VLAN • End-user data traffic is locally switchedAccess Points End-User Data Traffic ISE Prime Internal Resources Campus Network Management Tools

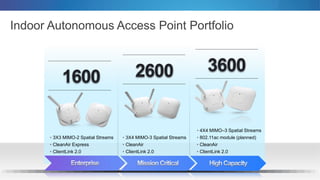

- 6. Indoor Autonomous AccessPoint Portfolio 1600 2600 3600 • 3X3 MIMO-2 Spatial Streams • CleanAir Express • ClientLink 2.0 • 3X4 MIMO-3 Spatial Streams • CleanAir • ClientLink 2.0 • 4X4 MIMO–3 Spatial Streams • 802.11ac module (planned) • CleanAir • ClientLink 2.0

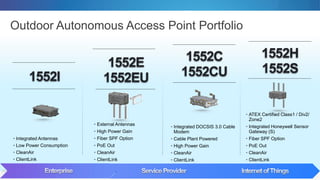

- 7. Outdoor Autonomous AccessPoint Portfolio 1552I 1552E 1552EU 1552C 1552CU • Integrated Antennas • Low Power Consumption • CleanAir • ClientLink • External Antennas • High Power Gain • Fiber SPF Option • PoE Out • CleanAir • ClientLink • Integrated DOCSIS 3.0 Cable Modem • Cable Plant Powered • High Power Gain • CleanAir • ClientLink 1552H 1552S • ATEX Certified Class1 / Div2/ Zone2 • Integrated Honeywell Sensor Gateway (S) • Fiber SPF Option • PoE Out • CleanAir • ClientLink
- 8. Benefits Autonomous Access Points •Affordable entry level solution No controllers and licensing • Supports latest Wi-Fi standards: 802.11 a/b/g/n for connectivity WPA2 for robust security • Industry best range and throughput Best of bread RF • Investment protection Can be upgraded to a controller-based architectureAccess Points End-User Data Traffic ISE Prime Internal Resources Campus Network Management Tools

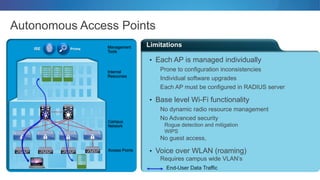

- 9. Limitations Autonomous Access Points •Each AP is managed individually Prone to configuration inconsistencies Individual software upgrades Each AP must be configured in RADIUS server • Base level Wi-Fi functionality No dynamic radio resource management No Advanced security Rogue detection and mitigation WIPS No guest access, • Voice over WLAN (roaming) Requires campus wide VLAN’s Access Points End-User Data Traffic ISE Prime Internal Resources Campus Network Management Tools

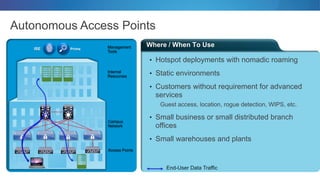

- 10. Where / WhenTo Use Autonomous Access Points • Hotspot deployments with nomadic roaming • Static environments • Customers without requirement for advanced services Guest access, location, rogue detection, WIPS, etc. • Small business or small distributed branch offices • Small warehouses and plants Access Points End-User Data Traffic ISE Prime Internal Resources Campus Network Management Tools
- 11. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Connect 11 Centralised Architecture

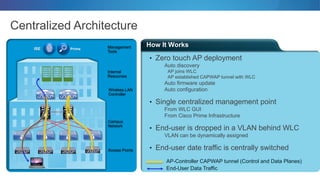

- 12. How It Works CentralizedArchitecture • Zero touch AP deployment Auto discovery AP joins WLC AP established CAPWAP tunnel with WLC Auto firmware update Auto configuration • Single centralized management point From WLC GUI From Cisco Prime Infrastructure • End-user is dropped in a VLAN behind WLC VLAN can be dynamically assigned • End-user date traffic is centrally switchedAccess Points AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources Campus Network Management Tools
- 13. Indoor Lightweight AccessPoint Portfolio 600 1600 2600 3600 • 2X2 MIMO-2 Spatial Streams • Local Ethernet Ports • 3X3 MIMO-2 Spatial Streams • CleanAir Express • ClientLink 2.0 • 3X4 MIMO-3 Spatial Streams • CleanAir • ClientLink 2.0 • 4X4 MIMO–3 Spatial Streams • 802.11ac module • Security and SI module • CleanAir • ClientLink 2.0

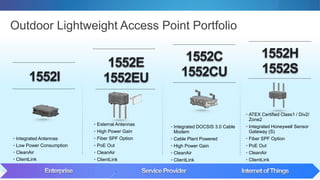

- 14. Outdoor Lightweight AccessPoint Portfolio 1552I 1552E 1552EU 1552C 1552CU • Integrated Antennas • Low Power Consumption • CleanAir • ClientLink • External Antennas • High Power Gain • Fiber SPF Option • PoE Out • CleanAir • ClientLink • Integrated DOCSIS 3.0 Cable Modem • Cable Plant Powered • High Power Gain • CleanAir • ClientLink 1552H 1552S • ATEX Certified Class1 / Div2/ Zone2 • Integrated Honeywell Sensor Gateway (S) • Fiber SPF Option • PoE Out • CleanAir • ClientLink

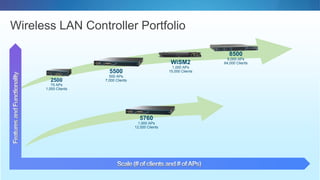

- 15. 5500 500 APs 7,000 Clients WiSM2 1,000APs 15,000 Clients 8500 6,000 APs 64,000 Clients 2500 75 APs 1,000 Clients 5760 1,000 APs 12,000 Clients Wireless LAN Controller Portfolio

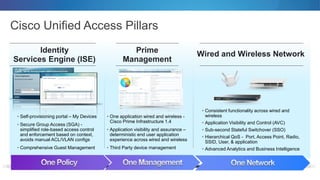

- 16. Cisco Unified AccessPillars Identity Services Engine (ISE) Prime Management Wired and Wireless Network • Self-provisioning portal – My Devices • Secure Group Access (SGA) - simplified role-based access control and enforcement based on context, avoids manual ACL/VLAN configs • Comprehensive Guest Management • Consistent functionality across wired and wireless • Application Visibility and Control (AVC) • Sub-second Stateful Switchover (SSO) • Hierarchical QoS - Port, Access Point, Radio, SSID, User, & application • Advanced Analytics and Business Intelligence • One application wired and wireless - Cisco Prime Infrastructure 1.4 • Application visibility and assurance – deterministic end user application experience across wired and wireless • Third Party device management

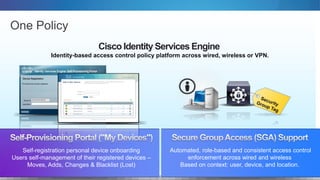

- 17. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Confidential 17 Cisco Identity Services Engine Identity-based access control policy platform across wired, wireless or VPN. Automated, role-based and consistent access control enforcement across wired and wireless Based on context: user, device, and location. Self-registration personal device onboarding Users self-management of their registered devices – Moves, Adds, Changes & Blacklist (Lost) One Policy

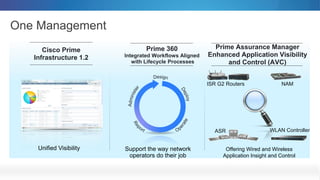

- 18. One Management Cisco Prime Infrastructure1.2 Unified Visibility Prime 360 Integrated Workflows Aligned with Lifecycle Processes Support the way network operators do their job Prime Assurance Manager Enhanced Application Visibility and Control (AVC) Offering Wired and Wireless Application Insight and Control ISR G2 Routers NAM ASR WLAN Controller

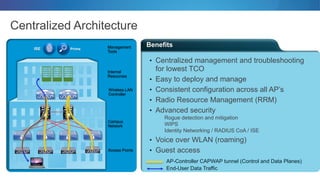

- 19. Benefits Centralized Architecture • Centralizedmanagement and troubleshooting for lowest TCO • Easy to deploy and manage • Consistent configuration across all AP’s • Radio Resource Management (RRM) • Advanced security Rogue detection and mitigation WIPS Identity Networking / RADIUS CoA / ISE • Voice over WLAN (roaming) • Guest accessAccess Points AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources Campus Network Management Tools

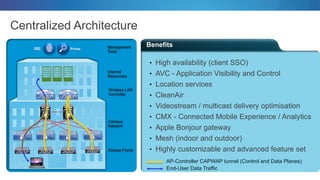

- 20. Benefits Centralized Architecture • Highavailability (client SSO) • AVC - Application Visibility and Control • Location services • CleanAir • Videostream / multicast delivery optimisation • CMX - Connected Mobile Experience / Analytics • Apple Bonjour gateway • Mesh (indoor and outdoor) • Highly customizable and advanced feature setAccess Points AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources Campus Network Management Tools

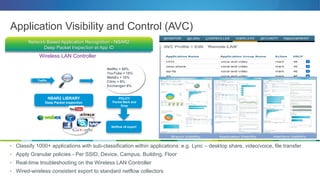

- 21. Network Based ApplicationRecognition - NBAR2 Deep Packet Inspection et App ID NBAR2 LIBRARY Deep Packet inspection Traffic POLICY Packet Mark and Drop Wireless LAN Controller Netflix = 50% YouTube = 15% WebEx = 10% Citrix = 9% Exchange= 8% Netflow v9 export • Classify 1000+ applications with sub-classification within applications: e.g. Lync – desktop share, video/voice, file transfer • Apply Granular policies - Per SSID, Device, Campus, Building, Floor • Real-time troubleshooting on the Wireless LAN Controller • Wired-wireless consistent export to standard netflow collectors Application Visibility and Control (AVC)

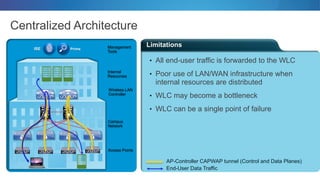

- 22. Limitations Centralized Architecture • Allend-user traffic is forwarded to the WLC • Poor use of LAN/WAN infrastructure when internal resources are distributed • WLC may become a bottleneck • WLC can be a single point of failure Access Points AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources Campus Network Management Tools

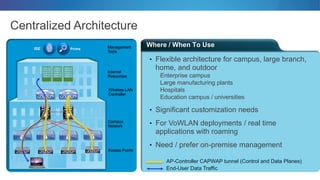

- 23. Where / WhenTo Use Centralized Architecture • Flexible architecture for campus, large branch, home, and outdoor Enterprise campus Large manufacturing plants Hospitals Education campus / universities • Significant customization needs • For VoWLAN deployments / real time applications with roaming • Need / prefer on-premise management Access Points AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources Campus Network Management Tools
- 24. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Connect 24 FlexConnect Architecture

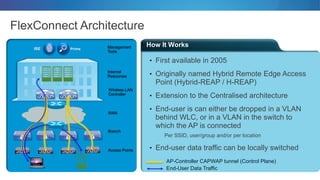

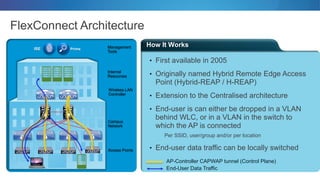

- 25. How It Works FlexConnectArchitecture • First available in 2005 • Originally named Hybrid Remote Edge Access Point (Hybrid-REAP / H-REAP) • Extension to the Centralised architecture • End-user is can either be dropped in a VLAN behind WLC, or in a VLAN in the switch to which the AP is connected Per SSID, user/group and/or per location • End-user data traffic can be locally switchedAccess Points AP-Controller CAPWAP tunnel (Control Plane) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources Campus Network Management Tools
- 26. How It Works FlexConnectArchitecture • First available in 2005 • Originally named Hybrid Remote Edge Access Point (Hybrid-REAP / H-REAP) • Extension to the Centralised architecture • End-user is can either be dropped in a VLAN behind WLC, or in a VLAN in the switch to which the AP is connected Per SSID, user/group and/or per location • End-user data traffic can be locally switchedAccess Points AP-Controller CAPWAP tunnel (Control Plane) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources WAN Management Tools Branch

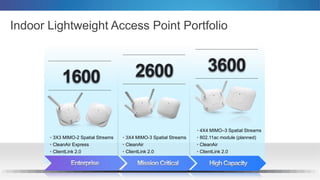

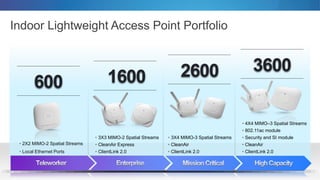

- 27. Indoor Lightweight AccessPoint Portfolio 1600 2600 3600 • 3X3 MIMO-2 Spatial Streams • CleanAir Express • ClientLink 2.0 • 3X4 MIMO-3 Spatial Streams • CleanAir • ClientLink 2.0 • 4X4 MIMO–3 Spatial Streams • 802.11ac module (planned) • CleanAir • ClientLink 2.0

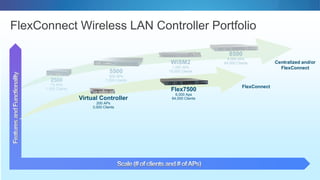

- 28. 5500 500 APs 7,000 Clients WiSM2 1,000APs 15,000 Clients 8500 6,000 APs 64,000 Clients 2500 75 APs 1,000 Clients Virtual Controller 200 APs 3,000 Clients Flex7500 6,000 Aps 64,000 Clients FlexConnect FlexConnect Wireless LAN Controller Portfolio Centralized and/or FlexConnect

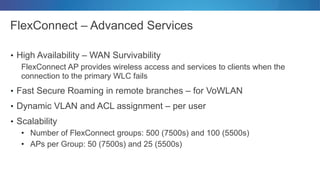

- 29. FlexConnect – AdvancedServices • High Availability – WAN Survivability FlexConnect AP provides wireless access and services to clients when the connection to the primary WLC fails • Fast Secure Roaming in remote branches – for VoWLAN • Dynamic VLAN and ACL assignment – per user • Scalability • Number of FlexConnect groups: 500 (7500s) and 100 (5500s) • APs per Group: 50 (7500s) and 25 (5500s)

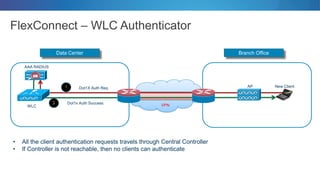

- 30. FlexConnect – WLCAuthenticator Branch OfficeData Center WLC ISR 3925 ISR 3925 VPN AP ISR 3925 ISR 3925 Dot1X Auth Req Dot1x Auth Success New Client1 2 AAA RADIUS • All the client authentication requests travels through Central Controller • If Controller is not reachable, then no clients can authenticate

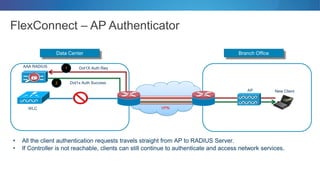

- 31. FlexConnect – APAuthenticator Branch OfficeData Center WLC ISR 3925 ISR 3925 VPN AP ISR 3925 ISR 3925 Dot1X Auth Req Dot1x Auth Success New Client • All the client authentication requests travels straight from AP to RADIUS Server. • If Controller is not reachable, clients can still continue to authenticate and access network services. 1 2 AAA RADIUS

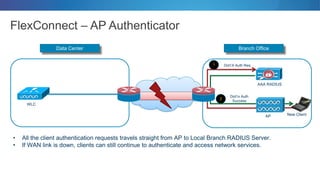

- 32. FlexConnect – APAuthenticator Branch OfficeData Center WLC ISR 3925 ISR 3925 AP ISR 3925 ISR 3925 Dot1X Auth Req Dot1x Auth Success New Client • All the client authentication requests travels straight from AP to Local Branch RADIUS Server. • If WAN link is down, clients can still continue to authenticate and access network services. 1 2 AAA RADIUS

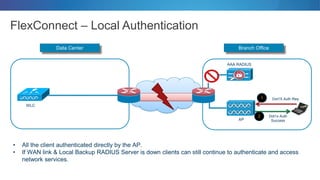

- 33. FlexConnect – LocalAuthentication Branch OfficeData Center WLC ISR 3925 ISR 3925 AP ISR 3925 ISR 3925 Dot1X Auth Req Dot1x Auth Success • All the client authenticated directly by the AP. • If WAN link & Local Backup RADIUS Server is down clients can still continue to authenticate and access network services. 1 2 AAA RADIUS

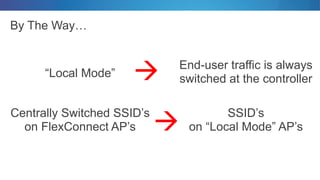

- 34. By The Way… •SSID’s on “Local Mode” AP’s • Centrally Switched SSID’s on FlexConnect AP’s • End-user traffic is always switched at the controller• “Local Mode”

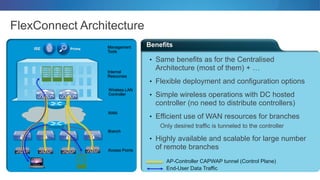

- 35. Benefits FlexConnect Architecture • Samebenefits as for the Centralised Architecture (most of them) + … • Flexible deployment and configuration options • Simple wireless operations with DC hosted controller (no need to distribute controllers) • Efficient use of WAN resources for branches Only desired traffic is tunneled to the controller • Highly available and scalable for large number of remote branchesAccess Points AP-Controller CAPWAP tunnel (Control Plane) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources WAN Management Tools Branch

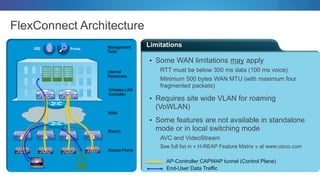

- 36. Limitations FlexConnect Architecture • SomeWAN limitations may apply RTT must be below 300 ms data (100 ms voice) Minimum 500 bytes WAN MTU (with maximum four fragmented packets) • Requires site wide VLAN for roaming (VoWLAN) • Some features are not available in standalone mode or in local switching mode AVC and VideoStream See full list in « H-REAP Feature Matrix » at www.cisco.com Access Points AP-Controller CAPWAP tunnel (Control Plane) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources WAN Management Tools Branch
- 37. Where / WhenTo Use FlexConnect Architecture • Flexible architecture for small to medium size branches (up to 50 AP’s per site) Retail stores Food / restaurant chains Small warehouses Branch offices • Significant customization needs • For VoWLAN deployments / real time applications with roaming • Need / prefer on-premise management • Excellent migration option for autonomous AP’sAccess Points AP-Controller CAPWAP tunnel (Control Plane) End-User Data Traffic ISE Prime Wireless LAN Controller Internal Resources WAN Management Tools Branch
- 38. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Connect 38 Converged Access

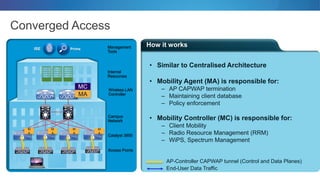

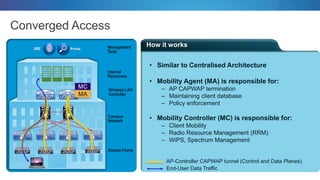

- 39. How it works ConvergedAccess • Similar to Centralised Architecture • Mobility Agent (MA) is responsible for: – AP CAPWAP termination – Maintaining client database – Policy enforcement • Mobility Controller (MC) is responsible for: – Client Mobility – Radio Resource Management (RRM) – WiPS, Spectrum Management Access Points ISE Prime MC MA Wireless LAN Controller Internal Resources Campus Network Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic
- 40. How it works ConvergedAccess • Similar to Centralised Architecture • Mobility Agent (MA) is responsible for: – AP CAPWAP termination – Maintaining client database – Policy enforcement • Mobility Controller (MC) is responsible for: – Client Mobility – Radio Resource Management (RRM) – WiPS, Spectrum Management Access Points ISE Prime MC Wireless LAN Controller Internal Resources Campus Network Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic MA M A M A M A M A Catalyst 3850

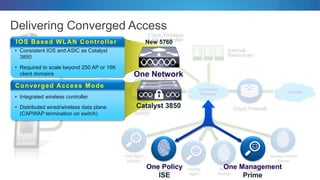

- 41. Wireless Control System Access Control Server LANMgmt Solution Identity Mgmt NAC Profiler Guest Server Cisco Wireless LAN Controller Internal Resources Cisco FirewallCisco Access Point Catalyst Switch Corporate Network Internet One Management Prime One Policy ISE Delivering Converged Access IOS Based WLAN Controller • Consistent IOS and ASIC as Catalyst 3850 • Required to scale beyond 250 AP or 16K client domains Converged Access Mode • Integrated wireless controller • Distributed wired/wireless data plane (CAPWAP termination on switch) New 5760 One Network Catalyst 3850

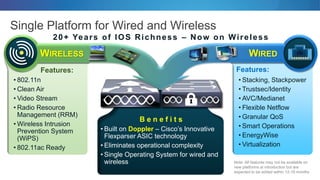

- 42. • 802.11n • CleanAir • Video Stream • Radio Resource Management (RRM) • Wireless Intrusion Prevention System (WiPS) • 802.11ac Ready Features: • Stacking, Stackpower • Trustsec/Identity • AVC/Medianet • Flexible Netflow • Granular QoS • Smart Operations • EnergyWise • Virtualization Features: B e n e f i t s • Built on Doppler – Cisco’s Innovative Flexparser ASIC technology • Eliminates operational complexity • Single Operating System for wired and wireless Single Platform for Wired and Wireless • 20+ Years of IOS Richness – Now on Wireless WIRELESS WIRED Note: All features may not be available on new platforms at introduction but are expected to be added within 12-18 months

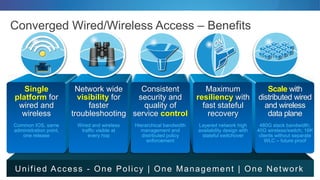

- 43. Converged Wired/Wireless Access– Benefits Scale with distributed wired and wireless data plane 480G stack bandwidth; 40G wireless/switch; 16K clients without separate WLC – future proof Maximum resiliency with fast stateful recovery Layered network high availability design with stateful switchover Single platform for wired and wireless Common IOS, same administration point, one release Unified Access - One Policy | One Management | One Network Network wide visibility for faster troubleshooting Wired and wireless traffic visible at every hop Consistent security and quality of service control Hierarchical bandwidth management and distributed policy enforcement

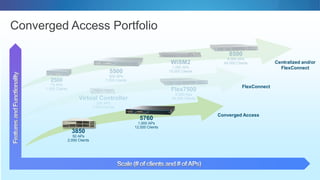

- 44. Virtual Controller 200 APs 3,000Clients Flex7500 6,000 Aps 64,000 Clients 5500 500 APs 7,000 Clients WiSM2 1,000 APs 15,000 Clients 8500 6,000 APs 64,000 Clients 2500 75 APs 1,000 Clients 3850 50 APs 2,000 Clients 5760 1,000 APs 12,000 Clients Converged Access FlexConnect Converged Access Portfolio Centralized and/or FlexConnect
- 45. How it works ConvergedAccess • Similar to Centralised Architecture • Mobility Agent (MA) is responsible for: – AP CAPWAP termination – Maintaining client database – Policy enforcement • Mobility Controller (MC) is responsible for: – Client Mobility – Radio Resource Management (RRM) – WiPS, Spectrum Management Access Points ISE Prime MC Wireless LAN Controller Internal Resources Campus Network Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic MA Catalyst 3850

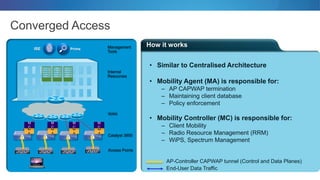

- 46. How it works ConvergedAccess • Similar to Centralised Architecture • Mobility Agent (MA) is responsible for: – AP CAPWAP termination – Maintaining client database – Policy enforcement • Mobility Controller (MC) is responsible for: – Client Mobility – Radio Resource Management (RRM) – WiPS, Spectrum Management Access Points ISE Prime Internal Resources WAN Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic M A M A M A M A Catalyst 3850 M C M C M C M C

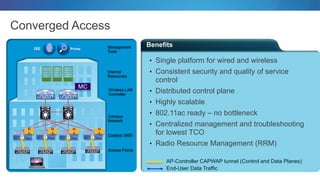

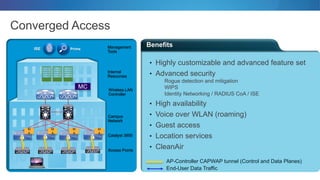

- 47. Benefits Converged Access Access Points ISEPrime MC Wireless LAN Controller Internal Resources Campus Network Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic M A M A M A M A Catalyst 3850 • Single platform for wired and wireless • Consistent security and quality of service control • Distributed control plane • Highly scalable • 802.11ac ready – no bottleneck • Centralized management and troubleshooting for lowest TCO • Radio Resource Management (RRM)
- 48. Benefits Converged Access Access Points ISEPrime MC Wireless LAN Controller Internal Resources Campus Network Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic M A M A M A M A Catalyst 3850 • Highly customizable and advanced feature set • Advanced security Rogue detection and mitigation WIPS Identity Networking / RADIUS CoA / ISE • High availability • Voice over WLAN (roaming) • Guest access • Location services • CleanAir

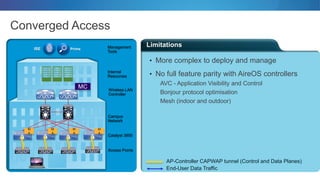

- 49. Limitations Converged Access Access Points ISEPrime MC Wireless LAN Controller Internal Resources Campus Network Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic M A M A M A M A Catalyst 3850 • More complex to deploy and manage • No full feature parity with AireOS controllers AVC - Application Visibility and Control Bonjour protocol optimisation Mesh (indoor and outdoor)
- 50. Where / Whento use Converged Access Access Points ISE Prime MC Wireless LAN Controller Internal Resources Campus Network Management Tools AP-Controller CAPWAP tunnel (Control and Data Planes) End-User Data Traffic M A M A M A M A Catalyst 3850 • Flexible architecture for campus and branches Enterprise campus Large manufacturing plants Hospitals Education campus / universities • Significant customization needs • For VoWLAN deployments / real time applications with roaming • Need / prefer on-premise management
- 51. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Connect 51 Cloud Manage
- 52. How It Works CloudManaged • Cisco acquired Meraki in December 2012 • Leader in cloud managed network solutions • AP connected to 802.1q trunk switch port • Local Authentication to RADIUS / AD • End-user is dropped in local VLAN on AP VLAN can be dynamically assigned • End-user data traffic is locally switched Access Points Internal Resources LAN Meraki Dashboard Internet AP-Cloud management tunnel (Control Plane – 1 kbps) End-User Data Traffic

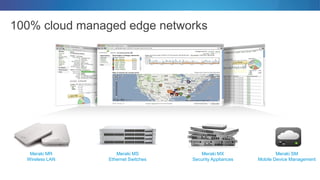

- 53. 100% cloud managededge networks Meraki MS Ethernet Switches Meraki SM Mobile Device Management Meraki MR Wireless LAN Meraki MX Security Appliances
- 54. Cisco Unified Access 100%Cloud ManagedUnparalleled Deployment Flexibility Cisco Enterprise Portfolio Cisco Cloud Managed Prime ISE Catalyst 2K/3K/4K/6K ASA - Firewall ISR - Routing MS Switch MX Series Security Appliances Aironet Access Points & Controllers Dashboard Cisco Networking Portfolio MR AP’s Systems Manager3rd Party MDM Integration
- 55. MR wireless accesspoints 55 Feature highlights 5 models including indoor/outdoor, high performance and value-priced Enterprise-class silicon including PoE, voice/video optimization Lifetime warranty on indoor APs BYOD policies Application traffic shaping Guest access Enterprise security WIDS / WIPS Mesh routing

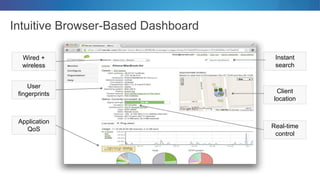

- 56. Intuitive Browser-Based Dashboard User fingerprintsClient location Application QoS Real-time control Instant search Wired + wireless

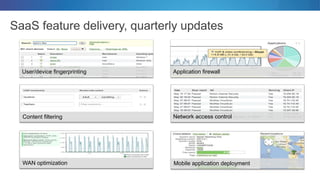

- 57. SaaS feature delivery,quarterly updates WAN optimization User/device fingerprinting Application firewall Mobile application deployment Content filtering Network access control

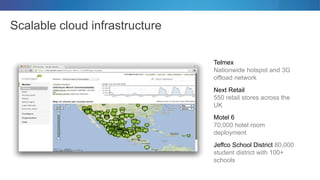

- 58. Scalable cloud infrastructure Telmex Nationwidehotspot and 3G offload network Next Retail 550 retail stores across the UK Motel 6 70,000 hotel room deployment Jeffco School District 80,000 student district with 100+ schools

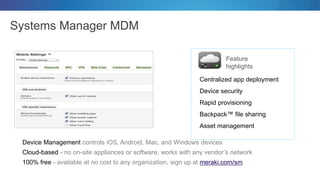

- 59. Systems Manager MDM Feature highlights DeviceManagement controls iOS, Android, Mac, and Windows devices Cloud-based - no on-site appliances or software, works with any vendor’s network 100% free - available at no cost to any organization, sign up at meraki.com/sm Centralized app deployment Device security Rapid provisioning Backpack™ file sharing Asset management
- 60. Benefits Cloud Managed • It’stoo easy!!! • Simple to buy (2 SKUs) • Easy to deploy and manage over the web Add devices or sites in minutes • Out-of-the-box optimized feature set • Ongoing upgrades and enhancements • Reliable Highly available cloud with multiple datacenters Network functions even if connection to cloud is interruptedAccess Points Internal Resources LAN Meraki Dashboard Internet AP-Cloud management tunnel (Control Plane) End-User Data Traffic
- 61. Benefits Cloud Managed • Secure Nouser traffic passes through cloud Fully HIPAA / PCI compliant (level 1 certified) 3rd party security audits, daily penetration test Reliability and security information at meraki.com/trust • No bottlenecks • And… did I say it’s easy? Access Points Internal Resources LAN Meraki Dashboard Internet AP-Cloud management tunnel (Control Plane) End-User Data Traffic

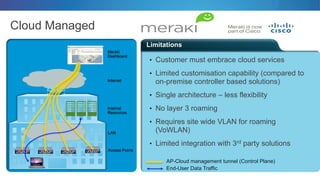

- 62. Limitations Cloud Managed • Customermust embrace cloud services • Limited customisation capability (compared to on-premise controller based solutions) • Single architecture – less flexibility • No layer 3 roaming • Requires site wide VLAN for roaming (VoWLAN) • Limited integration with 3rd party solutions Access Points Internal Resources LAN Meraki Dashboard Internet AP-Cloud management tunnel (Control Plane) End-User Data Traffic

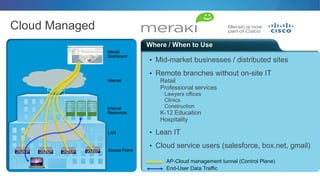

- 63. Where / Whento Use Cloud Managed • Mid-market businesses / distributed sites • Remote branches without on-site IT Retail Professional services Lawyers offices Clinics Construction K-12 Education Hospitality • Lean IT • Cloud service users (salesforce, box.net, gmail)Access Points Internal Resources LAN Meraki Dashboard Internet AP-Cloud management tunnel (Control Plane) End-User Data Traffic
- 64. © 2012 Ciscoand/or its affiliates. All rights reserved. Cisco Connect 64 Summary

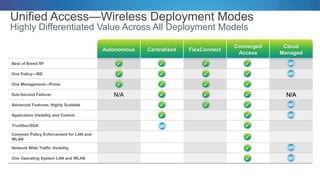

- 65. Autonomous Centralized FlexConnect Converged Access Cloud Managed Bestof Breed RF One Policy—ISE One Management—Prime Sub-Second Failover N/A N/A Advanced Features, Highly Scalable Application Visibility and Control TrustSec/SGA Common Policy Enforcement for LAN and WLAN Network Wide Traffic Visibility One Operating System LAN and WLAN Unified Access—Wireless Deployment Modes Highly Differentiated Value Across All Deployment Models

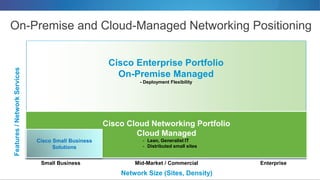

- 66. On-Premise and Cloud-ManagedNetworking Positioning EnterpriseMid-Market / Commercial Cisco Enterprise Portfolio On-Premise Managed - Deployment Flexibility Cisco Cloud Networking Portfolio Cloud Managed - Lean, Generalist IT - Distributed small sites Network Size (Sites, Density) Features/NetworkServices Small Business Cisco Small Business Solutions
- 67. Cisco Unified Access:Flexibility Autonomous AP Centralised FlexConnect Converged Access Cloud Managed • Intended for static installations • Aironet Access Points • Catalyst Switches • Identity Services Engine • Prime Infrastructure • Premise-based Controller • Controller at every location • Optimized for campus deployment • Aironet Access Points • Centralized Controllers • Catalyst Switches • Identity Services Engine • Mobility Services Engine • Prime Infrastructure • Data Center hosted Controller • No Controller at remote sites • Optimized for small branch deployment • Aironet Access Points • Centralized Controllers • Catalyst Switches • Identity Services Engine • Mobility Services Engine • Prime Infrastructure • Common LAN & WLAN OS • LAN & WLAN feature consistency • Optimized for high performance • Optimized for campus & branch • Aironet Access Points • Catalyst 3850 Switch • Identity Services Engine • Mobility Services Engine • Prime Infrastructure • Common LAN & WLAN OS • LAN & WLAN feature consistency • No Controllers • Optimized for distributed enterprise • MR Access Points • MS Switches • MX Security • Dashboard WAN Dashboard WAN Internet
