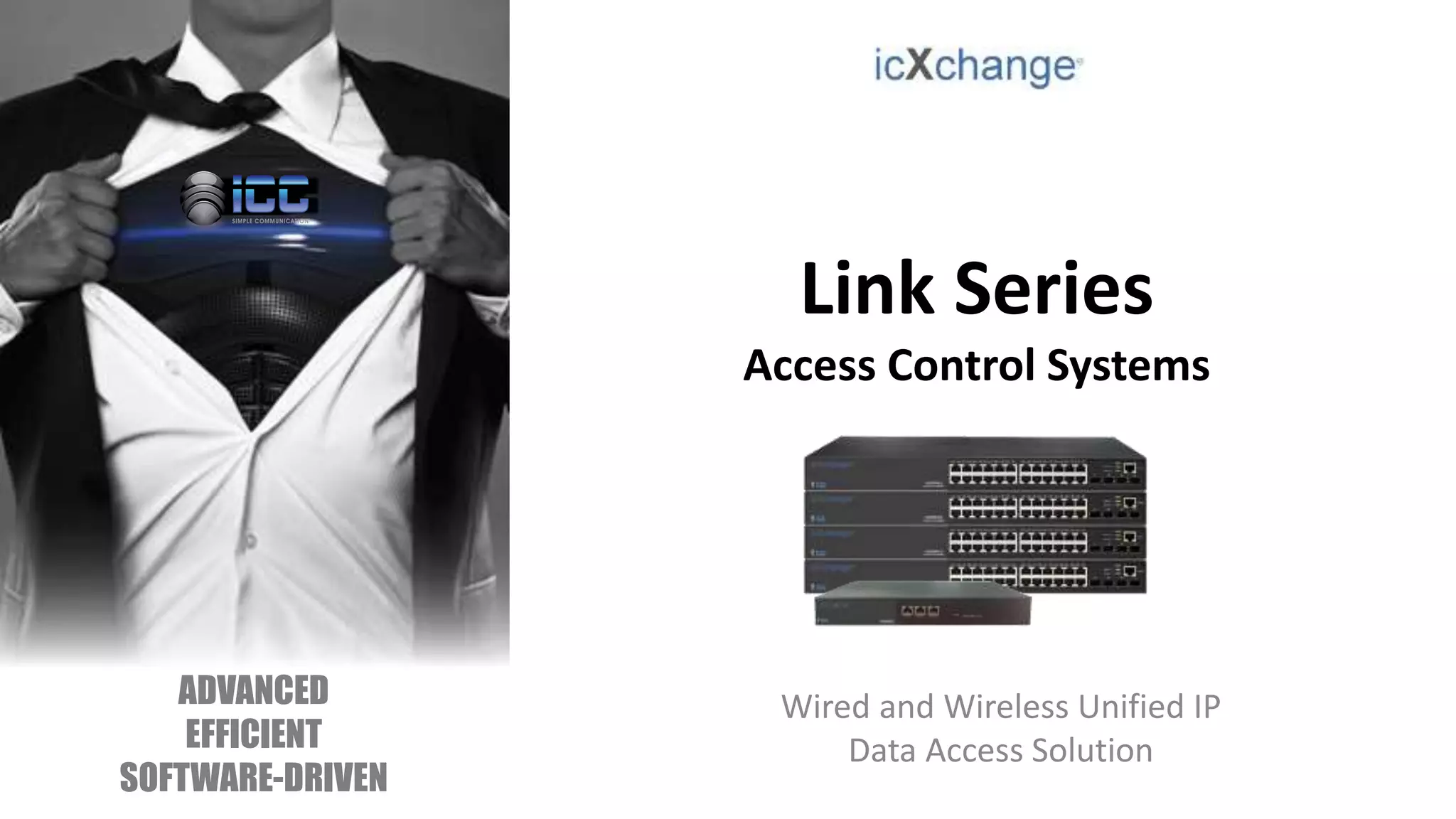

Link Series
Access Control Systems
Wired and Wireless Unified IP
Data Access Solution
ADVANCED
EFFICIENT
SOFTWARE-DRIVEN

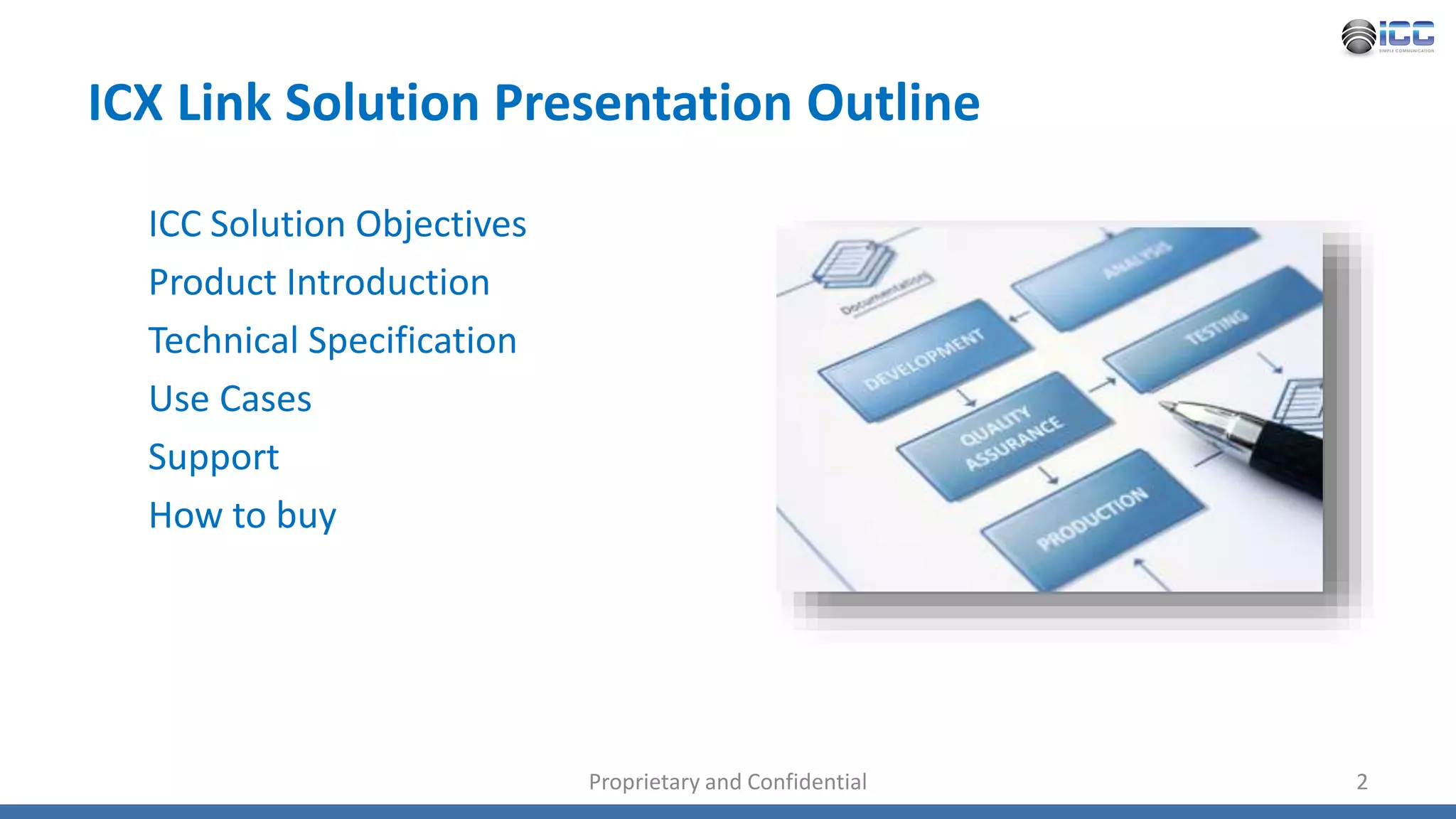

ICX Link Solution Presentation Outline
ICC Solution Objectives
Product Introduction
Technical Specification
Use Cases
Support
How to buy
2Proprietary and Confidential
3Proprietary and Confidential
ICC Solution Objectives & Product Introduction
Proprietary and Confidential 4
Customer Objectives
Ensure Declining Cost & Accessibility
Ensure IP Data solution cost continue to decline
while enabling higher Service Levels
Improve Performance & Efficiency
Spend Less Time And Money – Add More Value To
Other Parts Of The Organization
Increase Agility
Quickly Manage and Expand To Meet Changing
Customer Requirements – Premise, Cloud, IP Data
Management…
Proprietary and Confidential 5
Achieve 3x consolidation by the unification
of wired, wireless, routing, and basic
provider features like End-to-End Voice
Support and PIM
Improved performance by scaling on-
premise, cloud, and remote management
solution
Advanced Multi-Level Redundancy of 1+1, N+1, or
N+N. APs unique redundant capabilities to connect
to up to 4 different controllers to ensure
connection. Premise-Controllers or the use of
icXcloud
Simplified icXcloud management (Global-Clustering,
AP Emergency Stay Alive and Site Recovery)
Live Redundancy to enable Hosted Control maintenance,
SMNP, MIBS, and icXcloud update
Maximized overall performance by controlling type, class,
policy of content to ensure no dropped IP Packets
Availability
Performance
Consolidation Business Continuity
Load Balance
Maintenance
Application Enablement: Tools
The icXchange® Solution is designed with tools for control content
6Proprietary and Confidential
Technical Specifications & Use Cases
ICC icXchange® Link Series Access Control Systems
Unified IP Data Networking for Small and Large Ecosystems
Objective - Flexible and Smart Software-driven Ecosystem within a Unified
Architecture
• Advanced business performance unified Wired and Wireless LAN with 24 Gigabit
Ethernet Ports, full Layer 3, 32 AP licenses expandable up to 256 APs. Software-driven
and highly flexible, the Link2000ACS expands the Link Series controllers into the
enterprise. The industry’s most flexible platform architecture configures for private
or public wireless cloud management, cloud deployment of controller and/or AP, and
IP Data control to reduce contention and increase usable bandwidth.
Objective - Ensuring feature-rich software control and efficiency in the age of IOT
• Small to Medium business WLAN control system native with 2 Gigabit Ethernet Ports,
full Layer 3, and 16 Access Point licenses expandable up to 128 APs. Software-driven
with advanced features such as advanced Redundancy, WIDS, enhanced IP data
control for RF Management, Load Balancing, and QoS. Designed to recognize user
devices, type of traffic, and administrative policies, the Link1000ACS intelligently
creates efficiency by balancing these factors with a variety of tools from AP, Traffic,
Policy, RF, and strength of client device to ensure that IP data packets are not
dropped. This results in a software-driven system that creates industry-leading
efficiency, reduces contention central cause of performance delays, and increases the
number of users on a network.
Link2000ACSLink1000ACS
Link1000ACS
Performance Edge
WLAN infrastructure
Management,
Monitoring, Policy
Control, and Reporting
On-Premises
Infrastructure
Service Provider
RF Management
IP Data Control
User device Activity
Link1000ACS
ICX/ARC Series
Access Points
icXengine
Policy Manager
Link6024AS-PoE
Switch
Link2000ACS
Performance
Edge WLAN
infrastructure
Management,
Monitoring, Policy
Control, and Reporting
Cloud, Remote, or On-Premise
Infrastructure Management
Service Provider
RF Management
IP Data Control
User device Activity
Link2000ACS
ICX/ARC Series
Access Points
icXengine
Policy Manager
Link6024AS-PoE
Switch
OptionalCloud
Management
Value Benefit
Simple: Wired/Wireless networking Reduce deployment cost, management, and IP data control
Smart: Multi-personality software Dynamically change design, data forwarding, architecture, policy over NAT
Scalable: Deploy up to 10,000 devices Private or icXcloud Management, PIM, Clustering, Redundancy, and more
Performance: More people, more devices icXengine increases performance and reduces contention to lower cost
Unified Software-driven
Wired, Wireless, &PolicyServices
Link1000ACS Link2000ACS
Private Cloud
Wireless Management over NAT
Proprietary and Confidential 8
VOICE VIDEO
SIP Phone
SoftPhone
SmartPhone
3G/4G Offload
Host PBX Cases
Streaming Content Control
Social Media
Marketing
IPTV
Internet Video Use Cases
Network Access
Replication
Over WAN
Content ManagementFull Queue Control
Traffic Policing
Disaster Recovery,
Long-Term Retention
End-to-End QoS
On Premise or Private Cloud
Flow ClassificationIP Data
Controls Client Policy
Gateway
Application Enablement: Link1000ACS Advanced Content Capabilities
Cloud Managed APOn-Premise or Private Cloud
Controller Managed AP
icXcloud
icXmanager
Proprietary and Confidential 9
VOICE VIDEO
SIP Phone
SoftPhone
SmartPhone
3G/4G Offload
Host PBX Cases
Streaming Content Control
Social Media
Marketing
IPTV
Internet Video Use Cases
Network Access
Replication
Over WAN
Content ManagementFull Queue Control
Traffic Policing
Disaster Recovery,
Long-Term Retention
End-to-End QoS
On Premise or Private Cloud
Flow ClassificationIP Data
Controls Client Policy
Gateway
Application Enablement: Link2000ACS Unified IP Data Capabilities
Cloud Managed AP
On-Premise or Private Cloud
Controller Managed AP
DATA
Large file processing
Desktop SoftPhone
Integration of Services
Up to 10G
Performance icXcloud
icXmanager
Proprietary and Confidential 10
VOICE VIDEO
SIP Phone
SoftPhone
SmartPhone
3G/4G Offload
Host PBX Cases
Streaming Content Control
Social Media
Marketing
IPTV
Internet Video Use Cases
Network Access
Content ManagementFull Queue Control
Traffic PolicingEnd-to-End QoS Flow ClassificationIP Data
Controls Client Policy
Gateway
Application Enablement: Link3000SP SDN WLAN Control System
icXcloud
icXmanager
DATA
Large file processing
Desktop SoftPhone
Integration of Services
Up to 10G
Performance
Service Provider Cloud
Proprietary and Confidential 11
11N 11AC ICX Unified Access Device (UAD)
Unified IP Data Solution
Linear Scaling Of Performance And Capacity
Ideal For Cost-effective,
Large-capacity requirements
ICXCLOUD-Series
Capacity
Performance
Flexible Solution For High
Concurrent And Sequential
Throughput Applications
LINK1000-Series Layer3 Unified IP Data
Control for onsite
deployment of
Wired/Wireless Performance
LINK2000-Series
(Up to 1024)
Proprietary and Confidential 12
Features Support Real Time Content, Security, and Routing
Proprietary and Confidential 13
Dimension
328mm × 170mm × 42.2mm
12.9in x 6.6in x 1.66in
Ethernet ports
2 ports, auto MDX, auto-sensing
10/100/1000 Mbps, RJ-45
Management port
1 console port(RJ-45)
Power
100 – 240V AC Universal, IEC 320 connector
Power consumption
11W
Operating temperature
32°F (0°C) – 122°F (50°C)
-40°F (-40°C) — 158°F (+70°C)
Operating humidity
5% ~90% non-condensing
Standard features
Default Managed APs
16
Upgradable AP step
16
Max. managed APs
128
Max. controller clustering
64
Concurrent stations
5K
VLAN
4K
ACL
4K
MAC address table
32K
ARP table
8K
Roaming
Less than 30ms
IEEE standards and protocols
802.3 (10Base-T)
802.3u (100Base-TX)
802.3z (1000BASE-X)
802.3ab (1000Base-T)
802.1Q (VLAN)
802.1p (COS)
802.3x (Flow Control)
GVRP
Broadcast storm control
Routing
RIPv1/v2, OSPF, VRRP, IGMP v1/v2/v3
ARP, ARP Proxy, PBR
PIM-SM, PIM-DM, PIM-SSM
802.11
802.11a
802.11b
802.11g
802.11n
802.11d
802.11h
802.11i
802.11e
802.11k
AP Discovery & Control
Layer-2 or Layer-3
AP discovers ACS automatically
AP download firmware from ACS
AP download configuration from ACS
automatically
Roaming
Roaming within ACS
Roaming between ACSs
Key Cache roaming
IP multicasting
MLD Snooping
IGMP Snooping
IPv6
DHCPv6, DNSv6,
ICMPv6,ACLv6, TCP/UDP for IPv6, SNMP v6,
Ping /Trace, Route v6, RADIUS, Telnet/ SSH v6,
NTP v6, IPv6 MIB support for SNMP, VRRP for
IPv6,
IPv6 QoS, Static Routing, OSPFv3, IPV6 Security RA
Data forwarding
Distributed forwarding architecture
Centralized architecture
Authentication
MAC Filtering
802.1x Authentication
(EAP-TLS, EAP- TTLS, EAP-PEAP, EAP-MD5)
Captive Portal
AAA
RADIUS Client
LDAP
Local Authentication (5000 user entries)
Accounting server
802.11 security
BSSIDs (Up to 32 for dual band AP, 16 for
single band AP)
802.11i (802.1x Authentication and PSK
Authentication)
Hidden SSID
WEP (WEP64/WEP128), WPA, WPA2, TKIP, AES
WIDS
Rogue AP detection
Rogue DHCP Server detection
DoS attack prevention
DDoS
Password guessing protection
Rate limiting
Access Lists (ACLs)
Layer-2 (MAC address based ACL)
Layer-3 (IP address based ACL)
Load balance
Load balance based on sessions/flows
Load balance based on throughput
RF management
Supports country code settings
Supports RF power adjust automatically/ manually
Supports RF channel adjust
automatically/manually
Multi-Media & QoS
WMM (802.11e)
Class-of-Service: voice, video, best effort and
background
Redundancy
1+1, N+1, N+N
Management
Web user Interface
SNMP
CLI (Telnet, SSH)
HTTP/HTTPs FTP/TFTP
SNTP v4
NTP v4
Reliability
ULSM
MRPP
EMI & Safety
FCC
CE
TUV
14
SECONDARY DC SITE
PRIMARY HQ
(Global locations)
Expanding Profitability and
shifting OPEX spending to CAPEX
Associated Facilities
Management Groups
Multi-location – Satellite
Locations
Distributed Ecosystem
SECURITY
Confidential
PERFORMANCE
SITES LARGE REMOTE
OFFICE
VALUE
FEATURES
End-to-end Voice
Q-in-Q
WMM
QoS/ToS/CoS
Flexible Forwarding
Service Tagging
Auto/Real Time Configuration
AAA
LDAP
Radius (Client/Server)
Local Authentication
802.11i (802.1x)
BSSIDs
WEP/WPA/WPA2
Redundancy
RF Management
Seamless Roaming
Layer 2 Isolation
Priority Mapping
Remotely deploy AP
Manage Policy and Security
4 Levels of redundancy
Deploy at partner locations
AC/DC, 10G
64 Cluster Support, Redundancy
Software-driven end-to-end flexibility
Configurations to match IT designs while enabling more
applications
15
Layer 3 Routing and IP
ForwardingA
Application visibilityB
UADOS AP level
Bandwidth Management
C
Location, Presence, Splash
Portal and Tenant other
Service options
D
ICC icXchange® Ecosystem
Software-driven and unified IP data networking
Proprietary and Confidential 16
Content Identification, Policy Control,
Authorization, and Validation
Distributed, and Centralized IP Forwarding
to ensure shortest path
Layer 3 Routing, Content Management (QoS,
VLAN, End-to-End Voice and Video, Real Time APP
Support
Rate Limiting, Bandwidth Management,
Load Balancing
One System
Many Layers of Control
Voice Video Data Voice Video Data
Section 1 Section 2
Corporate Network
Proprietary and Confidential 17
ICC Unified Software-driven Solution vs the Competition
Ideal For Cost-effective, Large-
capacity requirement
ICXCLOUD-Series
Unified Efficient
NO
Multiple hops, not a
switched platform,
Licensing,
No IP Traffic
Optimization
Separate
Wired/Wireless
More hops, power, and
nodes to manage
Performance
Unified Efficient
Wired & Wireless
Premise & Cloud
Centralized Control
Switched Platform, IP
Traffic Control, Least
Path Routing, Packet
Control
Switched Ecosystem
Performance RF and
Power management
with standards-based
Beamforming 11ac
Performance
Logical & Virtual
Routing
Software-driven IP
control to manage the
new network issue:
The Content Flood
Traditional and
Singular value to solve
a fading issue:
Getting Connected
VS
Traditional Connection-
based Vendor
ICC icXchange® Link Series Access Control System
vs. the competition
ICC Link Series
Y
Y
Y
Y
Y
Y
Y
Y (Link2000ACS)
Y
Y
19Proprietary and Confidential
Support & How to Buy
Product Information
Proprietary and Confidential 20
Product Family: icXchange®
Model Name: Link1000ACS
Model Name: Link2000ACS
MSRP
SKU # Description Price
Link1000ACS
Small Business Unified Access Control System with both Wired/Wireless Layer3, 2 Gigabit
Ports, 16 AP licenses (up to 128 capable), and 4k VLANs $1,699.00
Link2000ACS
Enterprise Business Unified Access Control System with both Wired/Wireless Layer3, 24
Gigabit Ports (4 combo SFP with optional 10G), 32 AP licenses (up to 256), and WIDS $4,199.00
Support
Proprietary and Confidential 21
Web: www.intcomcorp.com
Phone: 844-242-9246
Where To Buy
Proprietary and Confidential 22
Web: www.intcomcorp.com
Phone: 844-242-9246
Proprietary and Confidential 23
Copyright credit
• John Gold Network World “MIT panel warns of challenges of hyper-networked world
Proprietary and Confidential 24

More Related Content

What's hot

Mimosa 2.4 Firmware Release Overview
Mimosa 2.4 Firmware Release OverviewMimosa 2.4 Firmware Release Overview
Mimosa 2.4 Firmware Release OverviewMimosa Networks

Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...
Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...
Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...Aruba, a Hewlett Packard Enterprise company

Cisco Intelligent WAN (IWAN) Solution
Cisco Intelligent WAN (IWAN) SolutionCisco Intelligent WAN (IWAN) Solution
Cisco Intelligent WAN (IWAN) SolutionCisco Russia

Cisco Intelligent WAN: Enabling the Next-Generation Branch
Cisco Intelligent WAN: Enabling the Next-Generation BranchCisco Intelligent WAN: Enabling the Next-Generation Branch
Cisco Intelligent WAN: Enabling the Next-Generation BranchCisco Canada

Alvarion Wi Mesh Wi2 Presentation
Alvarion Wi Mesh    Wi2 PresentationAlvarion Wi Mesh    Wi2 Presentation
Alvarion Wi Mesh Wi2 PresentationMonark Goel

POE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048P
POE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048PPOE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048P
POE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048Pjuet-y

Vpn security agenda by cover our privacy
Vpn security agenda by cover our privacyVpn security agenda by cover our privacy
Vpn security agenda by cover our privacyEric Fedewa


What's hot (20)

Aruba 802.11ac networks: Validated Reference Designs
Aruba 802.11ac networks: Validated Reference DesignsAruba 802.11ac networks: Validated Reference Designs
Aruba 802.11ac networks: Validated Reference Designs

Network Rightsizing Best Practices Guide
Network Rightsizing Best Practices GuideNetwork Rightsizing Best Practices Guide
Network Rightsizing Best Practices Guide

2500 controller
2500 controller2500 controller
2500 controller

Ready
ReadyReady
Ready

Mimosa 2.4 Firmware Release Overview
Mimosa 2.4 Firmware Release OverviewMimosa 2.4 Firmware Release Overview
Mimosa 2.4 Firmware Release Overview

1 voice and video over wi fi-balajee krishnamurthy
1 voice and video over wi fi-balajee krishnamurthy1 voice and video over wi fi-balajee krishnamurthy
1 voice and video over wi fi-balajee krishnamurthy

Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...
Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...
Breakout - Airheads Macau 2013 - Microsoft Lync, Unified Communications, Clou...

High-density 802.11ac Wi-Fi design and deployment for large public venues
High-density 802.11ac Wi-Fi design and deployment for large public venuesHigh-density 802.11ac Wi-Fi design and deployment for large public venues
High-density 802.11ac Wi-Fi design and deployment for large public venues

Cisco Intelligent WAN (IWAN) Solution
Cisco Intelligent WAN (IWAN) SolutionCisco Intelligent WAN (IWAN) Solution
Cisco Intelligent WAN (IWAN) Solution

EMEA Airheads – Aruba controller features used to optimize performance
EMEA Airheads – Aruba controller features used to optimize performanceEMEA Airheads – Aruba controller features used to optimize performance
EMEA Airheads – Aruba controller features used to optimize performance

Cisco Intelligent WAN: Enabling the Next-Generation Branch
Cisco Intelligent WAN: Enabling the Next-Generation BranchCisco Intelligent WAN: Enabling the Next-Generation Branch
Cisco Intelligent WAN: Enabling the Next-Generation Branch

Alvarion Wi Mesh Wi2 Presentation
Alvarion Wi Mesh    Wi2 PresentationAlvarion Wi Mesh    Wi2 Presentation
Alvarion Wi Mesh Wi2 Presentation

Next Generation Wireless Architecture for Multimedia-Grade Residence Halls
Next Generation Wireless Architecture for Multimedia-Grade Residence HallsNext Generation Wireless Architecture for Multimedia-Grade Residence Halls
Next Generation Wireless Architecture for Multimedia-Grade Residence Halls

Voice over IP (VoIP) Deployment with Aruba Mobility Access Switch
Voice over IP (VoIP) Deployment with Aruba Mobility Access SwitchVoice over IP (VoIP) Deployment with Aruba Mobility Access Switch
Voice over IP (VoIP) Deployment with Aruba Mobility Access Switch

Apple Captive Network Assistant Bypass with ClearPass Guest
Apple Captive Network Assistant Bypass with ClearPass GuestApple Captive Network Assistant Bypass with ClearPass Guest
Apple Captive Network Assistant Bypass with ClearPass Guest

POE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048P
POE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048PPOE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048P
POE+ L2 switches HPE FlexNetwork 5130 vs Dell Networking N2048P

Very High Density (vhd) 802.11ac Wireless Network Design and Deployment Basics
Very High Density (vhd) 802.11ac Wireless Network Design and Deployment BasicsVery High Density (vhd) 802.11ac Wireless Network Design and Deployment Basics
Very High Density (vhd) 802.11ac Wireless Network Design and Deployment Basics

Guest Access with ArubaOS
Guest Access with ArubaOSGuest Access with ArubaOS
Guest Access with ArubaOS

Do d directives regarding wireless lan
Do d directives regarding wireless lanDo d directives regarding wireless lan
Do d directives regarding wireless lan

Vpn security agenda by cover our privacy
Vpn security agenda by cover our privacyVpn security agenda by cover our privacy
Vpn security agenda by cover our privacy


Viewers also liked

Politiciens belges et web 2.0
Politiciens belges et web 2.0Politiciens belges et web 2.0
Politiciens belges et web 2.0Régis Vansnick

Faith jewelry photos
Faith jewelry photosFaith jewelry photos
Faith jewelry photostamhead

art%3A10.1186%2Fs13039-015-0183-y
art%3A10.1186%2Fs13039-015-0183-yart%3A10.1186%2Fs13039-015-0183-y
art%3A10.1186%2Fs13039-015-0183-yMathew Bloomfield

Microsoft Lizenztraining für Forschung & Lehre für Partner
Microsoft Lizenztraining für Forschung & Lehre für PartnerMicrosoft Lizenztraining für Forschung & Lehre für Partner
Microsoft Lizenztraining für Forschung & Lehre für PartnerMicrosoft Österreich

Dendistry brain slides
Dendistry brain slidesDendistry brain slides
Dendistry brain slidesRon Scutt

Enfermedades exantematicas de la infancia
Enfermedades exantematicas de la infanciaEnfermedades exantematicas de la infancia
Enfermedades exantematicas de la infanciaBeatriz Guerrero

Microsoft Lizenzierung – Schwerpunkt Desktopprogramme
Microsoft Lizenzierung – Schwerpunkt DesktopprogrammeMicrosoft Lizenzierung – Schwerpunkt Desktopprogramme
Microsoft Lizenzierung – Schwerpunkt DesktopprogrammeMicrosoft Österreich

Enfermedades infantiles
Enfermedades infantilesEnfermedades infantiles
Enfermedades infantilesgabrieladlc

PräSentation Schule 4,Gd
PräSentation Schule 4,GdPräSentation Schule 4,Gd
PräSentation Schule 4,GdJH4


Viewers also liked (16)

Zampetti 04.02.2015
Zampetti 04.02.2015Zampetti 04.02.2015
Zampetti 04.02.2015

Politiciens belges et web 2.0
Politiciens belges et web 2.0Politiciens belges et web 2.0
Politiciens belges et web 2.0

Faith jewelry photos
Faith jewelry photosFaith jewelry photos
Faith jewelry photos

Semana Mundial de la Lactancia Materna 2016
Semana Mundial de la Lactancia Materna 2016Semana Mundial de la Lactancia Materna 2016
Semana Mundial de la Lactancia Materna 2016

The Apex Interactive Debugger
The Apex Interactive DebuggerThe Apex Interactive Debugger
The Apex Interactive Debugger

art%3A10.1186%2Fs13039-015-0183-y
art%3A10.1186%2Fs13039-015-0183-yart%3A10.1186%2Fs13039-015-0183-y
art%3A10.1186%2Fs13039-015-0183-y

Microsoft Lizenztraining für Forschung & Lehre für Partner
Microsoft Lizenztraining für Forschung & Lehre für PartnerMicrosoft Lizenztraining für Forschung & Lehre für Partner
Microsoft Lizenztraining für Forschung & Lehre für Partner

ITStrategicPlan
ITStrategicPlanITStrategicPlan
ITStrategicPlan

Enfermedades exantematicas
Enfermedades exantematicasEnfermedades exantematicas
Enfermedades exantematicas

Dendistry brain slides
Dendistry brain slidesDendistry brain slides
Dendistry brain slides

Enfermedades exantematicas de la infancia
Enfermedades exantematicas de la infanciaEnfermedades exantematicas de la infancia
Enfermedades exantematicas de la infancia

Presentación de varicela
Presentación de varicelaPresentación de varicela
Presentación de varicela

Buku IPS kelas 8
Buku IPS kelas 8Buku IPS kelas 8
Buku IPS kelas 8

Microsoft Lizenzierung – Schwerpunkt Desktopprogramme
Microsoft Lizenzierung – Schwerpunkt DesktopprogrammeMicrosoft Lizenzierung – Schwerpunkt Desktopprogramme
Microsoft Lizenzierung – Schwerpunkt Desktopprogramme

Enfermedades infantiles
Enfermedades infantilesEnfermedades infantiles
Enfermedades infantiles

PräSentation Schule 4,Gd
PräSentation Schule 4,GdPräSentation Schule 4,Gd
PräSentation Schule 4,Gd


Similar to ICC Networking Link Series unified controller solution

14.) wireless (hyper dense wi fi)
14.) wireless (hyper dense wi fi)14.) wireless (hyper dense wi fi)
14.) wireless (hyper dense wi fi)Jeff Green

TechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless Controller
TechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless ControllerTechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless Controller
TechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless ControllerRobb Boyd

Wireless World
Wireless World Wireless World
Wireless World bhattsipl

Colubris Basic Customer Presentation
Colubris Basic Customer PresentationColubris Basic Customer Presentation
Colubris Basic Customer Presentationdaten

Aerohive AP350 802.11n Wireless Access Point
Aerohive AP350 802.11n Wireless Access PointAerohive AP350 802.11n Wireless Access Point
Aerohive AP350 802.11n Wireless Access PointAerohive Networks

Banv meetup 04162014
Banv meetup 04162014Banv meetup 04162014
Banv meetup 04162014ozkan01

Motorola Wing 5.6 specification sheet
Motorola  Wing 5.6 specification sheetMotorola  Wing 5.6 specification sheet
Motorola Wing 5.6 specification sheetAdvantec Distribution

從INTEL技術談網路卡
從INTEL技術談網路卡從INTEL技術談網路卡
從INTEL技術談網路卡zman

Rina converged network operator - etsi workshop
Rina converged network operator -  etsi workshopRina converged network operator -  etsi workshop
Rina converged network operator - etsi workshopARCFIRE ICT

OVNC 2015-Enabling Software-Defined Transformation of Service Provider Networks
OVNC 2015-Enabling Software-Defined Transformation of Service Provider NetworksOVNC 2015-Enabling Software-Defined Transformation of Service Provider Networks
OVNC 2015-Enabling Software-Defined Transformation of Service Provider NetworksNAIM Networks, Inc.

Fortinet Service specifications shortlist
Fortinet Service specifications shortlistFortinet Service specifications shortlist
Fortinet Service specifications shortlistwxi95jb74

Zcom Wireless products application overview
Zcom Wireless products application overviewZcom Wireless products application overview
Zcom Wireless products application overviewRajesh Kapoor

Cisco Unified Wireless Network and Converged access – Design session
Cisco Unified Wireless Network and Converged access – Design sessionCisco Unified Wireless Network and Converged access – Design session
Cisco Unified Wireless Network and Converged access – Design sessionCisco Russia

Sled local gov pov october 2016 v2
Sled local gov pov october 2016 v2Sled local gov pov october 2016 v2
Sled local gov pov october 2016 v2Jeff Green


Similar to ICC Networking Link Series unified controller solution (20)

ICC icXchange Solution Brochure
ICC icXchange Solution BrochureICC icXchange Solution Brochure
ICC icXchange Solution Brochure

14.) wireless (hyper dense wi fi)
14.) wireless (hyper dense wi fi)14.) wireless (hyper dense wi fi)
14.) wireless (hyper dense wi fi)

ICC Networking handles BYOD & BYOC
ICC Networking handles BYOD & BYOCICC Networking handles BYOD & BYOC
ICC Networking handles BYOD & BYOC

TechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless Controller
TechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless ControllerTechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless Controller
TechWiseTV Workshop: Cisco Catalyst 9800 Series Wireless Controller

Wireless World
Wireless World Wireless World
Wireless World

Colubris Basic Customer Presentation
Colubris Basic Customer PresentationColubris Basic Customer Presentation
Colubris Basic Customer Presentation

Aerohive AP350 802.11n Wireless Access Point
Aerohive AP350 802.11n Wireless Access PointAerohive AP350 802.11n Wireless Access Point
Aerohive AP350 802.11n Wireless Access Point

Banv meetup 04162014
Banv meetup 04162014Banv meetup 04162014
Banv meetup 04162014

Motorola Wing 5.6 specification sheet
Motorola  Wing 5.6 specification sheetMotorola  Wing 5.6 specification sheet
Motorola Wing 5.6 specification sheet

CES 2010 FemtoZone
CES 2010 FemtoZoneCES 2010 FemtoZone
CES 2010 FemtoZone

從INTEL技術談網路卡
從INTEL技術談網路卡從INTEL技術談網路卡
從INTEL技術談網路卡

Rina converged network operator - etsi workshop
Rina converged network operator -  etsi workshopRina converged network operator -  etsi workshop
Rina converged network operator - etsi workshop

OVNC 2015-Enabling Software-Defined Transformation of Service Provider Networks
OVNC 2015-Enabling Software-Defined Transformation of Service Provider NetworksOVNC 2015-Enabling Software-Defined Transformation of Service Provider Networks
OVNC 2015-Enabling Software-Defined Transformation of Service Provider Networks

ICC Networking Value Proposition
ICC Networking Value PropositionICC Networking Value Proposition
ICC Networking Value Proposition

ICC Networking Value Proposition
ICC Networking Value PropositionICC Networking Value Proposition
ICC Networking Value Proposition

Fortinet Service specifications shortlist
Fortinet Service specifications shortlistFortinet Service specifications shortlist
Fortinet Service specifications shortlist

Zcom Wireless products application overview
Zcom Wireless products application overviewZcom Wireless products application overview
Zcom Wireless products application overview

Cisco Unified Wireless Network and Converged access – Design session
Cisco Unified Wireless Network and Converged access – Design sessionCisco Unified Wireless Network and Converged access – Design session
Cisco Unified Wireless Network and Converged access – Design session

Sled local gov pov october 2016 v2
Sled local gov pov october 2016 v2Sled local gov pov october 2016 v2
Sled local gov pov october 2016 v2

Acksys bus tram_us
Acksys bus tram_usAcksys bus tram_us
Acksys bus tram_us


Recently uploaded

NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...
NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...
NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...Amil Baba Dawood bangali

NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...
NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...
NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...Amil baba

一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理cnzepoz

1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptx1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptxlouise569794

一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理cnzepoz

一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理cnzepoz

Memory compiler tutorial – TSMC 40nm technology
Memory compiler tutorial – TSMC 40nm technologyMemory compiler tutorial – TSMC 40nm technology
Memory compiler tutorial – TSMC 40nm technologyAhmed Abdelazeem

一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理cnzepoz

一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理cnzepoz

NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...
NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...
NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...Amil baba

China Die Casting Manufacturer & Supplier - Bian Diecast
China Die Casting Manufacturer & Supplier - Bian DiecastChina Die Casting Manufacturer & Supplier - Bian Diecast
China Die Casting Manufacturer & Supplier - Bian DiecastAMshares

一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理cnzepoz

一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理cnzepoz

一比一原版Otago毕业证成绩单如何办理
一比一原版Otago毕业证成绩单如何办理一比一原版Otago毕业证成绩单如何办理
一比一原版Otago毕业证成绩单如何办理cnzepoz

Abortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy Cytotec
Abortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy CytotecAbortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy Cytotec
Abortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy CytotecAbortion pills in Riyadh +966572737505 get cytotec

一比一原版SUT毕业证成绩单如何办理
一比一原版SUT毕业证成绩单如何办理一比一原版SUT毕业证成绩单如何办理
一比一原版SUT毕业证成绩单如何办理cnzepoz

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理cnzepoz

Balancing of rotating bodies questions.pptx
Balancing of rotating bodies questions.pptxBalancing of rotating bodies questions.pptx
Balancing of rotating bodies questions.pptxjoshuaclack73

一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理cnzepoz

Aluminum Die Casting Manufacturers in China - BIAN Diecast
Aluminum Die Casting Manufacturers in China - BIAN DiecastAluminum Die Casting Manufacturers in China - BIAN Diecast
Aluminum Die Casting Manufacturers in China - BIAN DiecastAMshares


Recently uploaded (20)

NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...
NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...
NO1 Pandit Black magic/kala jadu,manpasand shadi in lahore,karachi rawalpindi...

NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...
NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...
NO1 Qari Rohani Amil In Islamabad Amil Baba in Rawalpindi Kala Jadu Amil In R...

一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理一比一原版迪肯大学毕业证成绩单如何办理
一比一原版迪肯大学毕业证成绩单如何办理

1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptx1. WIX 2 PowerPoint for Work Experience.pptx
1. WIX 2 PowerPoint for Work Experience.pptx

一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理一比一原版UMich毕业证成绩单如何办理
一比一原版UMich毕业证成绩单如何办理

一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理一比一原版ArtEZ毕业证成绩单如何办理
一比一原版ArtEZ毕业证成绩单如何办理

Memory compiler tutorial – TSMC 40nm technology
Memory compiler tutorial – TSMC 40nm technologyMemory compiler tutorial – TSMC 40nm technology
Memory compiler tutorial – TSMC 40nm technology

一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理一比一原版UBC毕业证成绩单如何办理
一比一原版UBC毕业证成绩单如何办理

一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理一比一原版UC Berkeley毕业证成绩单如何办理
一比一原版UC Berkeley毕业证成绩单如何办理

NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...
NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...
NO1 Qari kala jadu karne wale ka contact number kala jadu karne wale baba kal...

China Die Casting Manufacturer & Supplier - Bian Diecast
China Die Casting Manufacturer & Supplier - Bian DiecastChina Die Casting Manufacturer & Supplier - Bian Diecast
China Die Casting Manufacturer & Supplier - Bian Diecast

一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理一比一原版UW毕业证成绩单如何办理
一比一原版UW毕业证成绩单如何办理

一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理一比一原版UCB毕业证成绩单如何办理
一比一原版UCB毕业证成绩单如何办理

一比一原版Otago毕业证成绩单如何办理
一比一原版Otago毕业证成绩单如何办理一比一原版Otago毕业证成绩单如何办理
一比一原版Otago毕业证成绩单如何办理

Abortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy Cytotec
Abortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy CytotecAbortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy Cytotec
Abortion pills in Riyadh |•••@•••| +966572737505 |•••@•••| Buy Cytotec

一比一原版SUT毕业证成绩单如何办理
一比一原版SUT毕业证成绩单如何办理一比一原版SUT毕业证成绩单如何办理
一比一原版SUT毕业证成绩单如何办理

一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理一比一原版麦考瑞大学毕业证成绩单如何办理
一比一原版麦考瑞大学毕业证成绩单如何办理

Balancing of rotating bodies questions.pptx
Balancing of rotating bodies questions.pptxBalancing of rotating bodies questions.pptx
Balancing of rotating bodies questions.pptx

一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理一比一原版UofM毕业证成绩单如何办理
一比一原版UofM毕业证成绩单如何办理

Aluminum Die Casting Manufacturers in China - BIAN Diecast
Aluminum Die Casting Manufacturers in China - BIAN DiecastAluminum Die Casting Manufacturers in China - BIAN Diecast
Aluminum Die Casting Manufacturers in China - BIAN Diecast


ICC Networking Link Series unified controller solution

  • 1. Link Series Access Control Systems Wired and Wireless Unified IP Data Access Solution ADVANCED EFFICIENT SOFTWARE-DRIVEN
  • 2. ICX Link Solution Presentation Outline ICC Solution Objectives Product Introduction Technical Specification Use Cases Support How to buy 2Proprietary and Confidential
  • 3. 3Proprietary and Confidential ICC Solution Objectives & Product Introduction
  • 4. Proprietary and Confidential 4 Customer Objectives Ensure Declining Cost & Accessibility Ensure IP Data solution cost continue to decline while enabling higher Service Levels Improve Performance & Efficiency Spend Less Time And Money – Add More Value To Other Parts Of The Organization Increase Agility Quickly Manage and Expand To Meet Changing Customer Requirements – Premise, Cloud, IP Data Management…
  • 5. Proprietary and Confidential 5 Achieve 3x consolidation by the unification of wired, wireless, routing, and basic provider features like End-to-End Voice Support and PIM Improved performance by scaling on- premise, cloud, and remote management solution Advanced Multi-Level Redundancy of 1+1, N+1, or N+N. APs unique redundant capabilities to connect to up to 4 different controllers to ensure connection. Premise-Controllers or the use of icXcloud Simplified icXcloud management (Global-Clustering, AP Emergency Stay Alive and Site Recovery) Live Redundancy to enable Hosted Control maintenance, SMNP, MIBS, and icXcloud update Maximized overall performance by controlling type, class, policy of content to ensure no dropped IP Packets Availability Performance Consolidation Business Continuity Load Balance Maintenance Application Enablement: Tools The icXchange® Solution is designed with tools for control content
  • 6. 6Proprietary and Confidential Technical Specifications & Use Cases
  • 7. ICC icXchange® Link Series Access Control Systems Unified IP Data Networking for Small and Large Ecosystems Objective - Flexible and Smart Software-driven Ecosystem within a Unified Architecture • Advanced business performance unified Wired and Wireless LAN with 24 Gigabit Ethernet Ports, full Layer 3, 32 AP licenses expandable up to 256 APs. Software-driven and highly flexible, the Link2000ACS expands the Link Series controllers into the enterprise. The industry’s most flexible platform architecture configures for private or public wireless cloud management, cloud deployment of controller and/or AP, and IP Data control to reduce contention and increase usable bandwidth. Objective - Ensuring feature-rich software control and efficiency in the age of IOT • Small to Medium business WLAN control system native with 2 Gigabit Ethernet Ports, full Layer 3, and 16 Access Point licenses expandable up to 128 APs. Software-driven with advanced features such as advanced Redundancy, WIDS, enhanced IP data control for RF Management, Load Balancing, and QoS. Designed to recognize user devices, type of traffic, and administrative policies, the Link1000ACS intelligently creates efficiency by balancing these factors with a variety of tools from AP, Traffic, Policy, RF, and strength of client device to ensure that IP data packets are not dropped. This results in a software-driven system that creates industry-leading efficiency, reduces contention central cause of performance delays, and increases the number of users on a network. Link2000ACSLink1000ACS Link1000ACS Performance Edge WLAN infrastructure Management, Monitoring, Policy Control, and Reporting On-Premises Infrastructure Service Provider RF Management IP Data Control User device Activity Link1000ACS ICX/ARC Series Access Points icXengine Policy Manager Link6024AS-PoE Switch Link2000ACS Performance Edge WLAN infrastructure Management, Monitoring, Policy Control, and Reporting Cloud, Remote, or On-Premise Infrastructure Management Service Provider RF Management IP Data Control User device Activity Link2000ACS ICX/ARC Series Access Points icXengine Policy Manager Link6024AS-PoE Switch OptionalCloud Management Value Benefit Simple: Wired/Wireless networking Reduce deployment cost, management, and IP data control Smart: Multi-personality software Dynamically change design, data forwarding, architecture, policy over NAT Scalable: Deploy up to 10,000 devices Private or icXcloud Management, PIM, Clustering, Redundancy, and more Performance: More people, more devices icXengine increases performance and reduces contention to lower cost Unified Software-driven Wired, Wireless, &PolicyServices Link1000ACS Link2000ACS Private Cloud Wireless Management over NAT
  • 8. Proprietary and Confidential 8 VOICE VIDEO SIP Phone SoftPhone SmartPhone 3G/4G Offload Host PBX Cases Streaming Content Control Social Media Marketing IPTV Internet Video Use Cases Network Access Replication Over WAN Content ManagementFull Queue Control Traffic Policing Disaster Recovery, Long-Term Retention End-to-End QoS On Premise or Private Cloud Flow ClassificationIP Data Controls Client Policy Gateway Application Enablement: Link1000ACS Advanced Content Capabilities Cloud Managed APOn-Premise or Private Cloud Controller Managed AP icXcloud icXmanager
  • 9. Proprietary and Confidential 9 VOICE VIDEO SIP Phone SoftPhone SmartPhone 3G/4G Offload Host PBX Cases Streaming Content Control Social Media Marketing IPTV Internet Video Use Cases Network Access Replication Over WAN Content ManagementFull Queue Control Traffic Policing Disaster Recovery, Long-Term Retention End-to-End QoS On Premise or Private Cloud Flow ClassificationIP Data Controls Client Policy Gateway Application Enablement: Link2000ACS Unified IP Data Capabilities Cloud Managed AP On-Premise or Private Cloud Controller Managed AP DATA Large file processing Desktop SoftPhone Integration of Services Up to 10G Performance icXcloud icXmanager
  • 10. Proprietary and Confidential 10 VOICE VIDEO SIP Phone SoftPhone SmartPhone 3G/4G Offload Host PBX Cases Streaming Content Control Social Media Marketing IPTV Internet Video Use Cases Network Access Content ManagementFull Queue Control Traffic PolicingEnd-to-End QoS Flow ClassificationIP Data Controls Client Policy Gateway Application Enablement: Link3000SP SDN WLAN Control System icXcloud icXmanager DATA Large file processing Desktop SoftPhone Integration of Services Up to 10G Performance Service Provider Cloud
  • 11. Proprietary and Confidential 11 11N 11AC ICX Unified Access Device (UAD) Unified IP Data Solution Linear Scaling Of Performance And Capacity Ideal For Cost-effective, Large-capacity requirements ICXCLOUD-Series Capacity Performance Flexible Solution For High Concurrent And Sequential Throughput Applications LINK1000-Series Layer3 Unified IP Data Control for onsite deployment of Wired/Wireless Performance LINK2000-Series
  • 12. (Up to 1024) Proprietary and Confidential 12 Features Support Real Time Content, Security, and Routing
  • 13. Proprietary and Confidential 13 Dimension 328mm × 170mm × 42.2mm 12.9in x 6.6in x 1.66in Ethernet ports 2 ports, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45 Management port 1 console port(RJ-45) Power 100 – 240V AC Universal, IEC 320 connector Power consumption 11W Operating temperature 32°F (0°C) – 122°F (50°C) -40°F (-40°C) — 158°F (+70°C) Operating humidity 5% ~90% non-condensing Standard features Default Managed APs 16 Upgradable AP step 16 Max. managed APs 128 Max. controller clustering 64 Concurrent stations 5K VLAN 4K ACL 4K MAC address table 32K ARP table 8K Roaming Less than 30ms IEEE standards and protocols 802.3 (10Base-T) 802.3u (100Base-TX) 802.3z (1000BASE-X) 802.3ab (1000Base-T) 802.1Q (VLAN) 802.1p (COS) 802.3x (Flow Control) GVRP Broadcast storm control Routing RIPv1/v2, OSPF, VRRP, IGMP v1/v2/v3 ARP, ARP Proxy, PBR PIM-SM, PIM-DM, PIM-SSM 802.11 802.11a 802.11b 802.11g 802.11n 802.11d 802.11h 802.11i 802.11e 802.11k AP Discovery & Control Layer-2 or Layer-3 AP discovers ACS automatically AP download firmware from ACS AP download configuration from ACS automatically Roaming Roaming within ACS Roaming between ACSs Key Cache roaming IP multicasting MLD Snooping IGMP Snooping IPv6 DHCPv6, DNSv6, ICMPv6,ACLv6, TCP/UDP for IPv6, SNMP v6, Ping /Trace, Route v6, RADIUS, Telnet/ SSH v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS, Static Routing, OSPFv3, IPV6 Security RA Data forwarding Distributed forwarding architecture Centralized architecture Authentication MAC Filtering 802.1x Authentication (EAP-TLS, EAP- TTLS, EAP-PEAP, EAP-MD5) Captive Portal AAA RADIUS Client LDAP Local Authentication (5000 user entries) Accounting server 802.11 security BSSIDs (Up to 32 for dual band AP, 16 for single band AP) 802.11i (802.1x Authentication and PSK Authentication) Hidden SSID WEP (WEP64/WEP128), WPA, WPA2, TKIP, AES WIDS Rogue AP detection Rogue DHCP Server detection DoS attack prevention DDoS Password guessing protection Rate limiting Access Lists (ACLs) Layer-2 (MAC address based ACL) Layer-3 (IP address based ACL) Load balance Load balance based on sessions/flows Load balance based on throughput RF management Supports country code settings Supports RF power adjust automatically/ manually Supports RF channel adjust automatically/manually Multi-Media & QoS WMM (802.11e) Class-of-Service: voice, video, best effort and background Redundancy 1+1, N+1, N+N Management Web user Interface SNMP CLI (Telnet, SSH) HTTP/HTTPs FTP/TFTP SNTP v4 NTP v4 Reliability ULSM MRPP EMI & Safety FCC CE TUV
  • 14. 14 SECONDARY DC SITE PRIMARY HQ (Global locations) Expanding Profitability and shifting OPEX spending to CAPEX Associated Facilities Management Groups Multi-location – Satellite Locations Distributed Ecosystem SECURITY Confidential PERFORMANCE SITES LARGE REMOTE OFFICE VALUE FEATURES End-to-end Voice Q-in-Q WMM QoS/ToS/CoS Flexible Forwarding Service Tagging Auto/Real Time Configuration AAA LDAP Radius (Client/Server) Local Authentication 802.11i (802.1x) BSSIDs WEP/WPA/WPA2 Redundancy RF Management Seamless Roaming Layer 2 Isolation Priority Mapping Remotely deploy AP Manage Policy and Security 4 Levels of redundancy Deploy at partner locations AC/DC, 10G 64 Cluster Support, Redundancy Software-driven end-to-end flexibility Configurations to match IT designs while enabling more applications
  • 15. 15 Layer 3 Routing and IP ForwardingA Application visibilityB UADOS AP level Bandwidth Management C Location, Presence, Splash Portal and Tenant other Service options D ICC icXchange® Ecosystem Software-driven and unified IP data networking
  • 16. Proprietary and Confidential 16 Content Identification, Policy Control, Authorization, and Validation Distributed, and Centralized IP Forwarding to ensure shortest path Layer 3 Routing, Content Management (QoS, VLAN, End-to-End Voice and Video, Real Time APP Support Rate Limiting, Bandwidth Management, Load Balancing One System Many Layers of Control Voice Video Data Voice Video Data Section 1 Section 2 Corporate Network
  • 17. Proprietary and Confidential 17 ICC Unified Software-driven Solution vs the Competition Ideal For Cost-effective, Large- capacity requirement ICXCLOUD-Series Unified Efficient NO Multiple hops, not a switched platform, Licensing, No IP Traffic Optimization Separate Wired/Wireless More hops, power, and nodes to manage Performance Unified Efficient Wired & Wireless Premise & Cloud Centralized Control Switched Platform, IP Traffic Control, Least Path Routing, Packet Control Switched Ecosystem Performance RF and Power management with standards-based Beamforming 11ac Performance Logical & Virtual Routing Software-driven IP control to manage the new network issue: The Content Flood Traditional and Singular value to solve a fading issue: Getting Connected VS Traditional Connection- based Vendor
  • 18. ICC icXchange® Link Series Access Control System vs. the competition ICC Link Series Y Y Y Y Y Y Y Y (Link2000ACS) Y Y
  • 20. Product Information Proprietary and Confidential 20 Product Family: icXchange® Model Name: Link1000ACS Model Name: Link2000ACS MSRP SKU # Description Price Link1000ACS Small Business Unified Access Control System with both Wired/Wireless Layer3, 2 Gigabit Ports, 16 AP licenses (up to 128 capable), and 4k VLANs $1,699.00 Link2000ACS Enterprise Business Unified Access Control System with both Wired/Wireless Layer3, 24 Gigabit Ports (4 combo SFP with optional 10G), 32 AP licenses (up to 256), and WIDS $4,199.00
  • 21. Support Proprietary and Confidential 21 Web: www.intcomcorp.com Phone: 844-242-9246
  • 22. Where To Buy Proprietary and Confidential 22 Web: www.intcomcorp.com Phone: 844-242-9246
  • 24. Copyright credit • John Gold Network World “MIT panel warns of challenges of hyper-networked world Proprietary and Confidential 24
