1. Cisco Connect Montréal
2018
Vision mondiale.
Analyse locale.

2. Simon Bellemare
Simon Vaillancourt
Data Center – Centre de donnée
L’avantage MultiCloud
Architecte de solutions, Centre de données
Spécialiste, Centre de données
20 novembre 2018

3. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

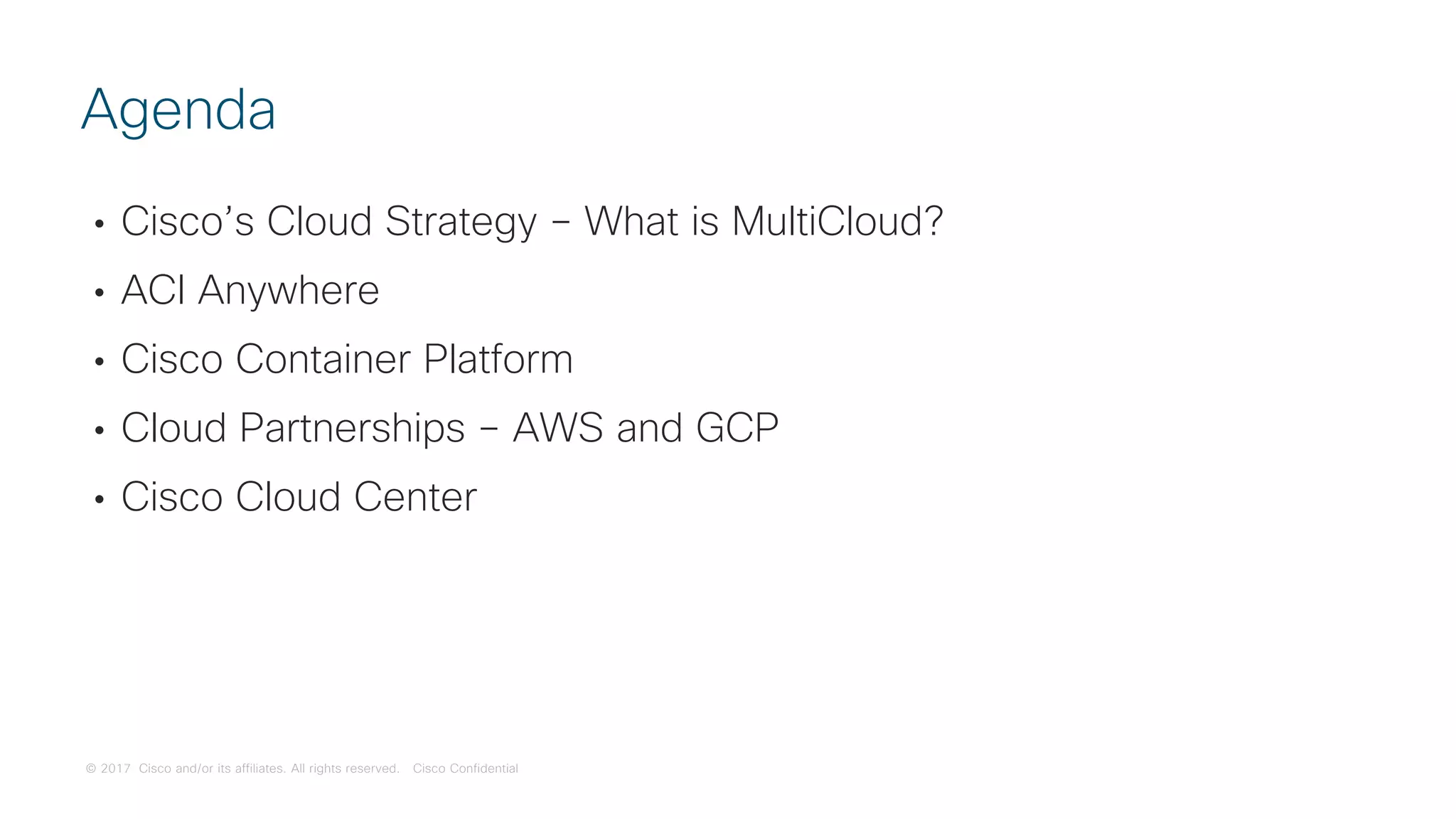

• Cisco’s Cloud Strategy – What is MultiCloud?
• ACI Anywhere
• Cisco Container Platform
• Cloud Partnerships – AWS and GCP
• Cisco Cloud Center
Agenda

4. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

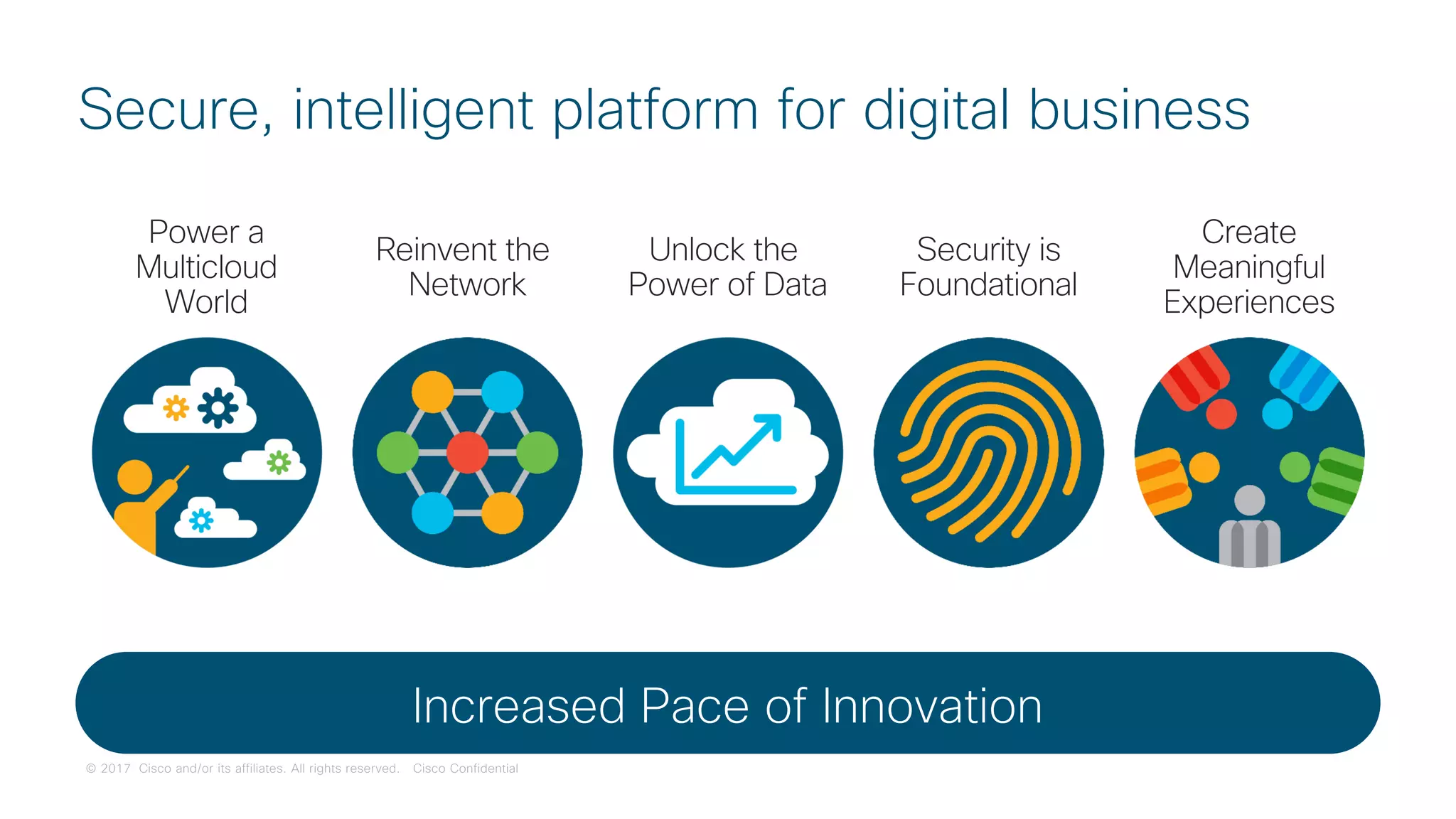

Secure, intelligent platform for digital business
Power a
Multicloud
World
Increased Pace of Innovation
Create
Meaningful
Experiences
Reinvent the
Network
Security is
Foundational
Unlock the
Power of Data

5. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
MULTICLOUD

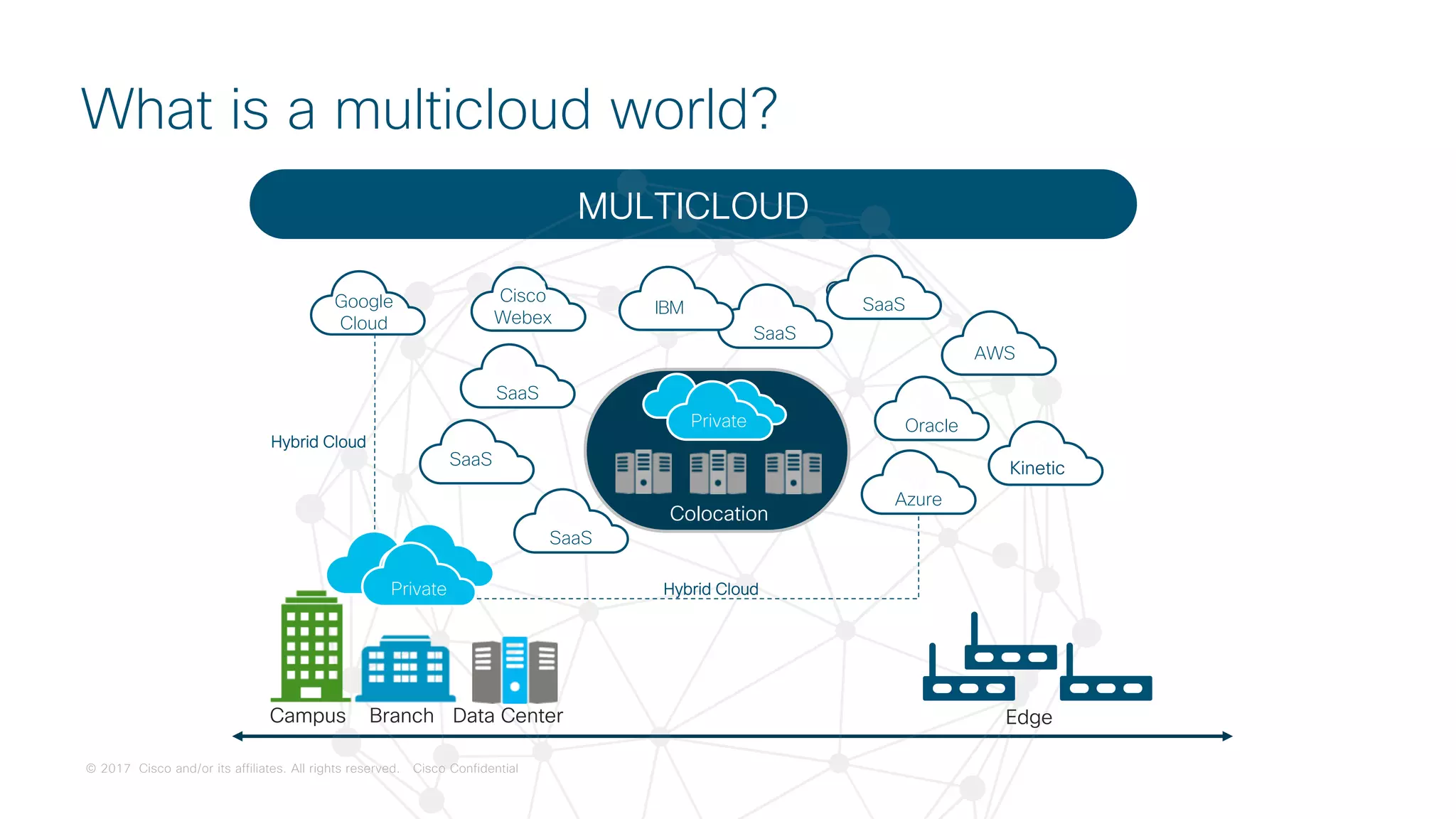

What is a multicloud world?
SaaS
Azure
Edge
Kinetic
IBM
Cisco
Webex
Campus Branch Data Center
Hybrid Cloud
Google
Cloud
SaaS
Private
SaaS
SaaS
Oracle
SaaS
AWSAWS
Colocation
Private
Hybrid Cloud

6. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Innovation Speed
Why multicloud?

7. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

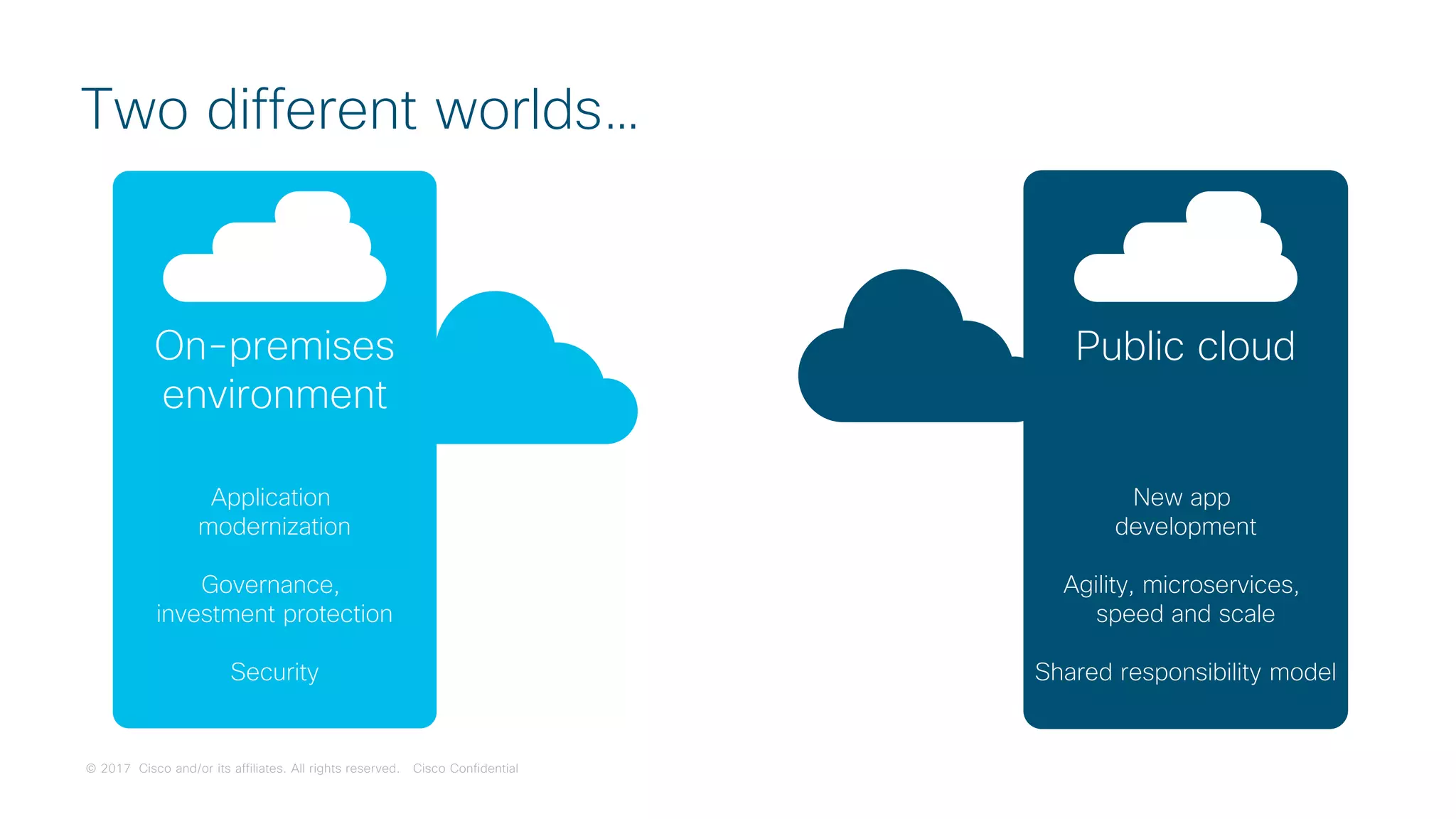

Two different worlds…
Public cloud
New app
development
Agility, microservices,
speed and scale
Shared responsibility model
On-premises
environment
Application
modernization
Governance,
investment protection
Security

8. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

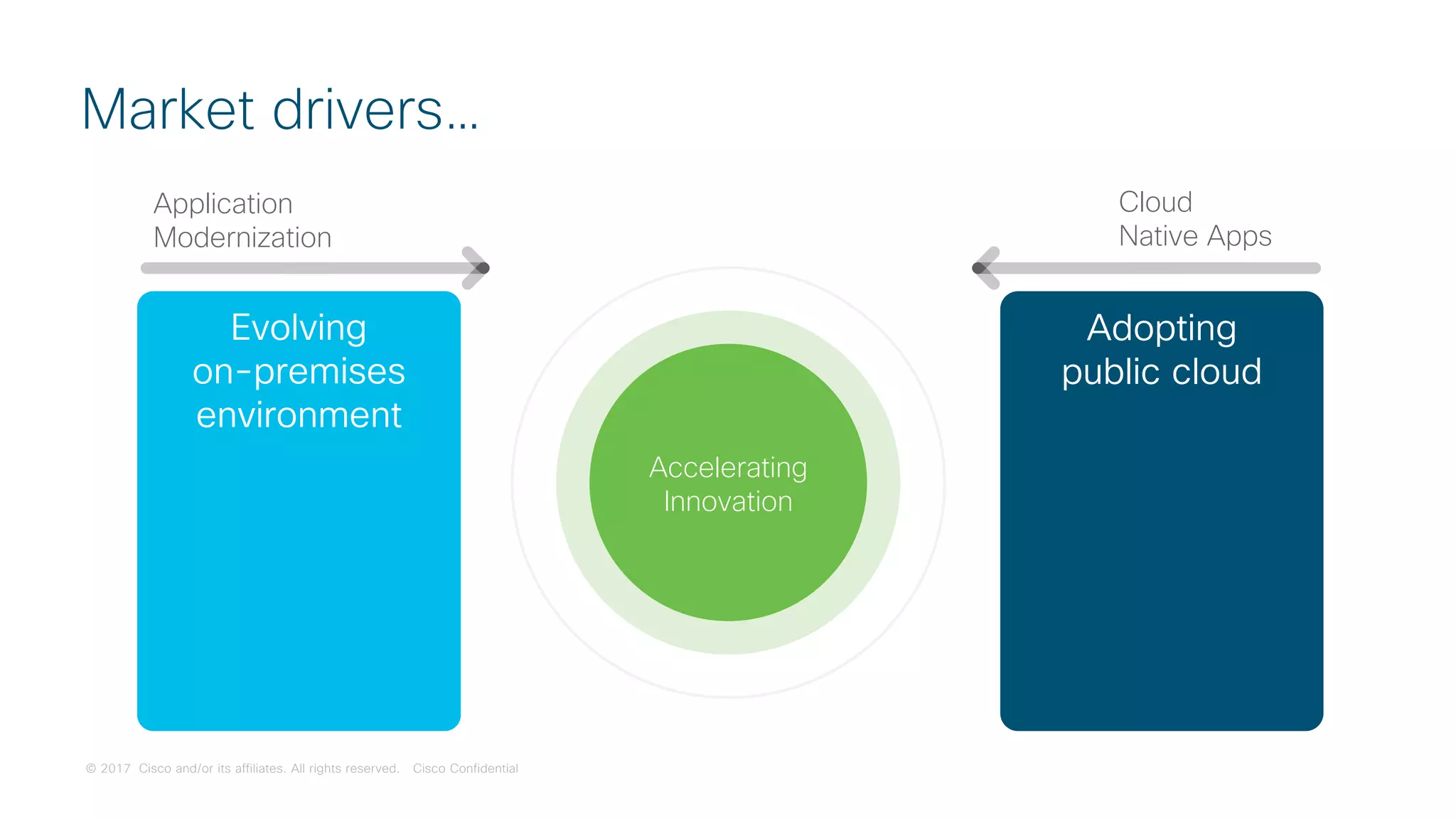

Market drivers…
Accelerating
Innovation
Evolving
on-premises
environment
Adopting
public cloud
Cloud
Native Apps
Application
Modernization

9. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

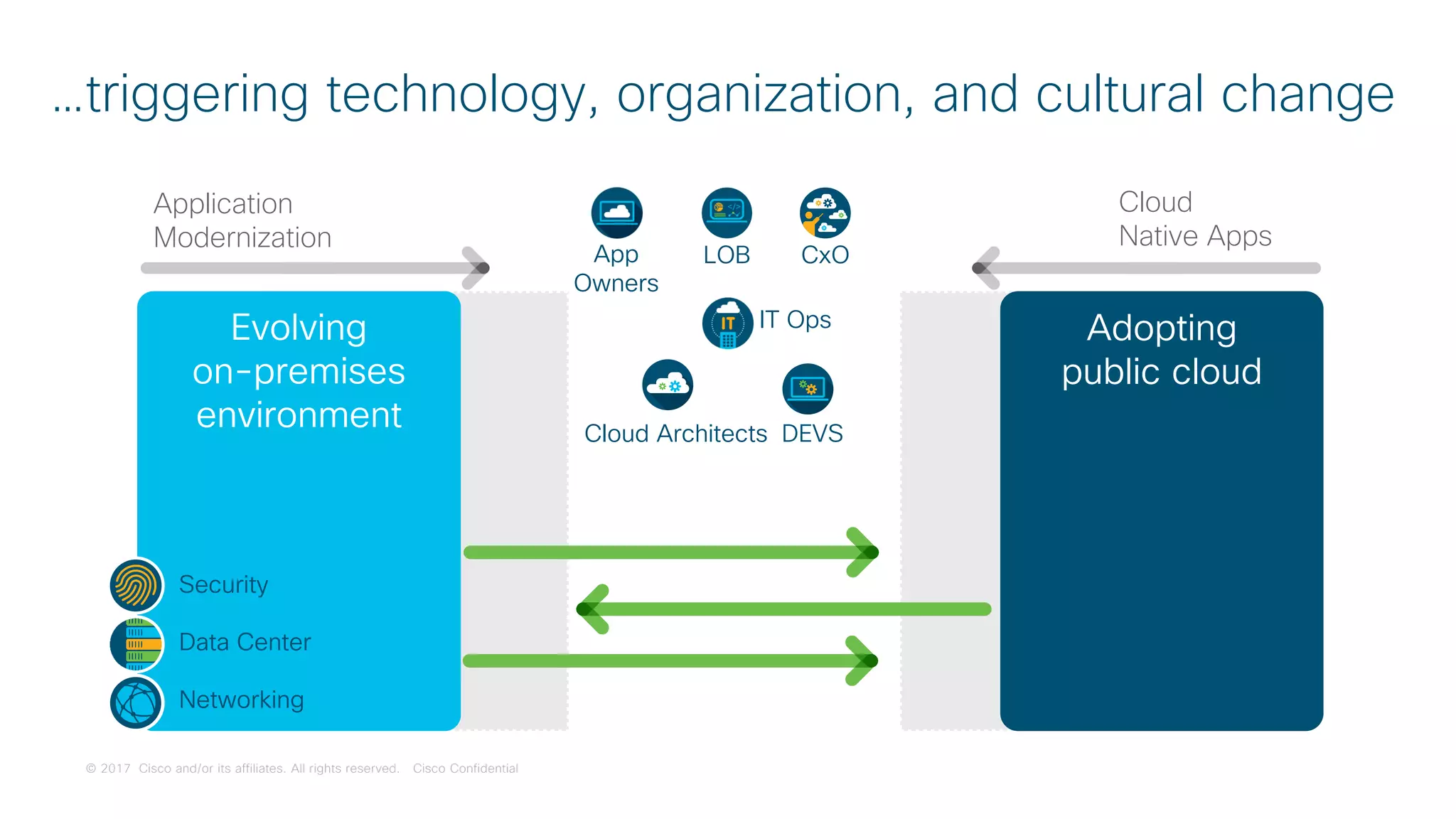

…triggering technology, organization, and cultural change
Adopting
public cloud
Evolving
on-premises
environment
Cloud
Native Apps
Networking
Security
Data Center
Application
Modernization
App
Owners
IT Ops
DEVSCloud Architects
LOB CxO

10. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
But change isn’t easy
“…I’m worried about
management and
control in multiple
environments”
“…I can’t afford to
leave my existing
infrastructure and
applications behind”
“…I feel limited
to specific
development tools
and technologies”
“…I can’t easily
develop and deploy
where I want”
“…I am concerned
about securing
everything inside and
outside my firewall”
“…I need a consistent
application experience
across all my
environments”

11. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
if multicloud was simpler
IMAGINE

12. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

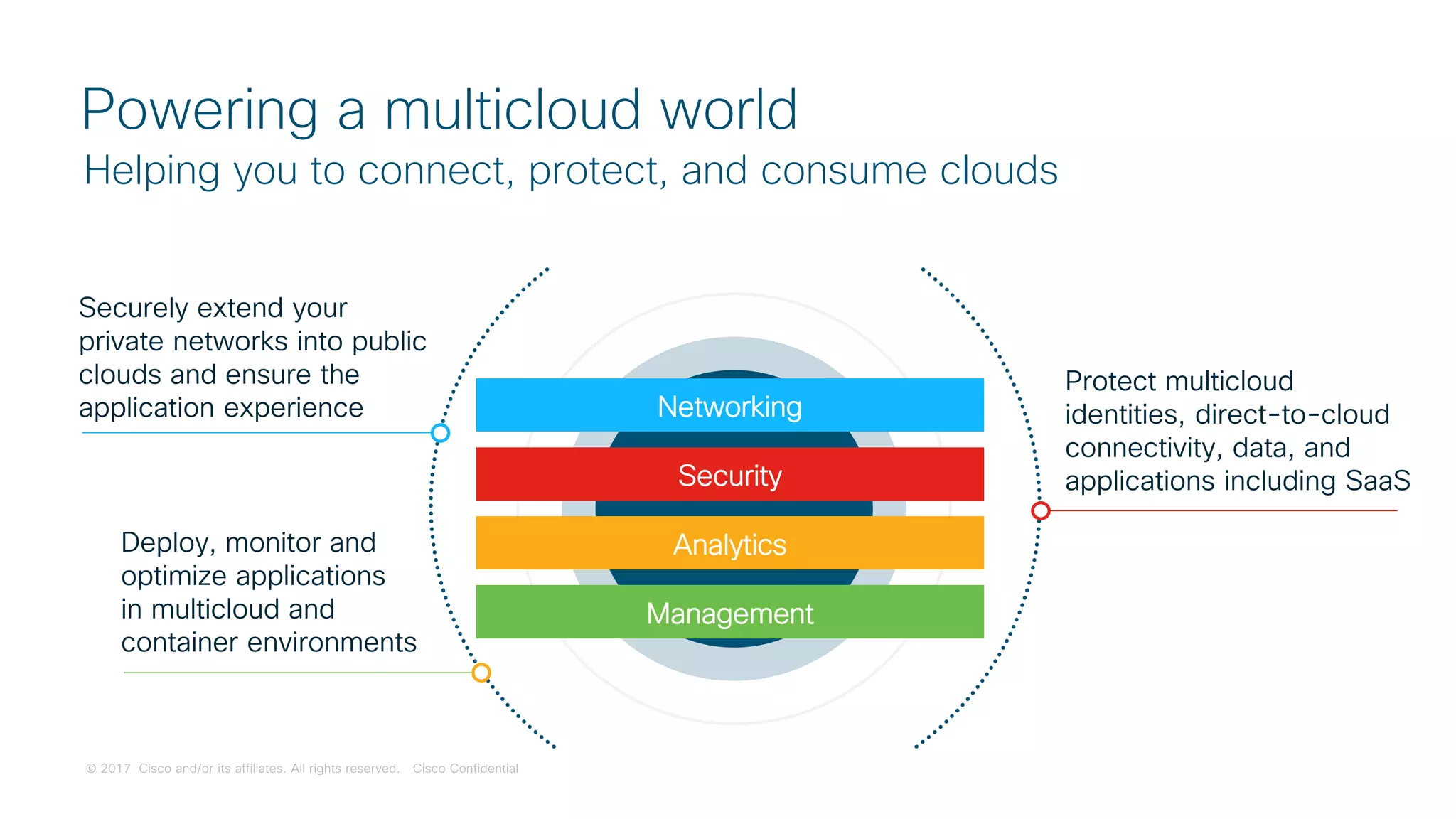

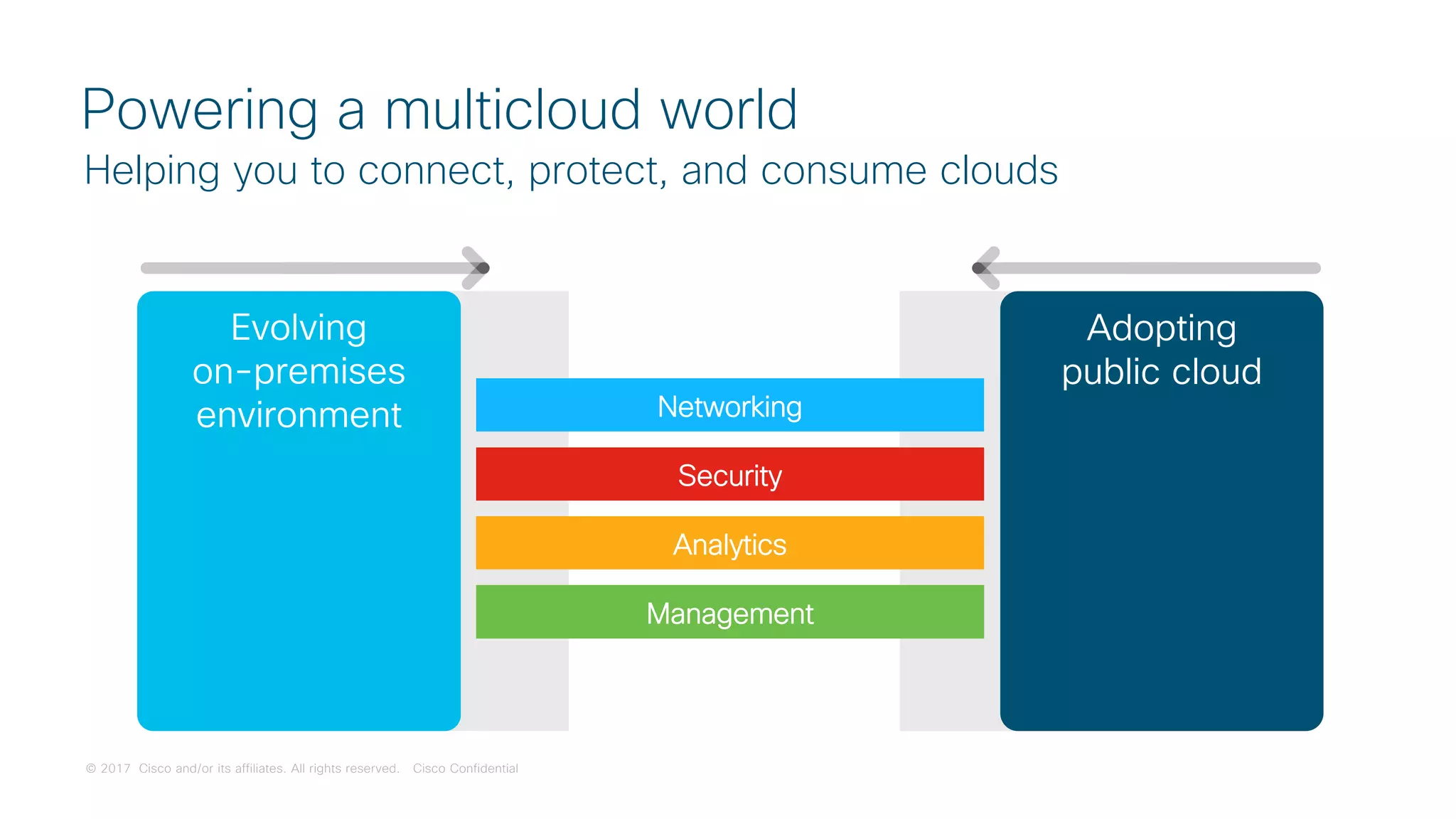

Powering a multicloud world
Adopting
public cloud
Evolving
on-premises
environment
Helping you to connect, protect, and consume clouds
Networking
Analytics
Management
Security

13. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Securely extend your
private networks into public
clouds and ensure the
application experience
Protect multicloud
identities, direct-to-cloud
connectivity, data, and
applications including SaaS
Deploy, monitor and
optimize applications
in multicloud and
container environments
Powering a multicloud world
Helping you to connect, protect, and consume clouds
Networking
Analytics
Management
Security

14. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

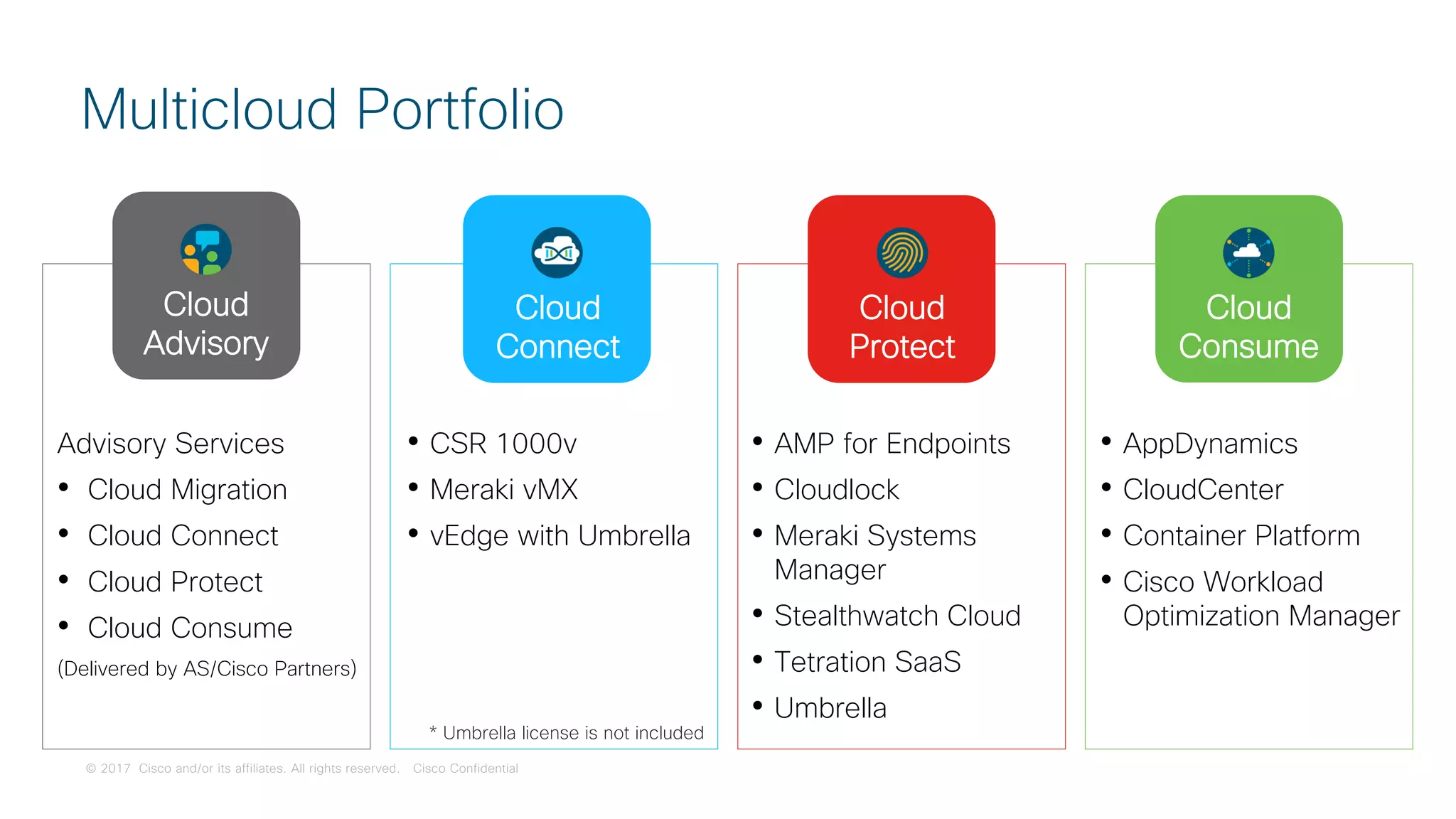

Multicloud Portfolio
Helping customers to connect, protect, and consume their clouds
Adopting
public cloud
Evolving
on-premises
environment
Multicloud
Portfolio
Cloud
Connect
Cloud
Protect
Cloud
Advisory
Cloud
Consume

15. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Multicloud Portfolio
Advisory Services
• Cloud Migration
• Cloud Connect
• Cloud Protect
• Cloud Consume
(Delivered by AS/Cisco Partners)
• AppDynamics
• CloudCenter
• Container Platform
• Cisco Workload
Optimization Manager
Cloud
Consume
Cloud
Advisory
• CSR 1000v
• Meraki vMX
• vEdge with Umbrella
• AMP for Endpoints
• Cloudlock
• Meraki Systems
Manager
• Stealthwatch Cloud
• Tetration SaaS
• Umbrella
Cloud
Connect
Cloud
Protect

16. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
ACI Anywhere

17. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Remote Leaf / Virtual PoD APIC / Multi-Site Multi-Cloud Extensions
ACI Anywhere - Vision
Any Workload, Any Location, Any Cloud
ACI Anywhere
IP
WAN
IP
WAN
Remote Location Public CloudOn Premise
Security Everywhere Policy EverywhereAnalytics Everywhere

18. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Inter-Pod IP Network

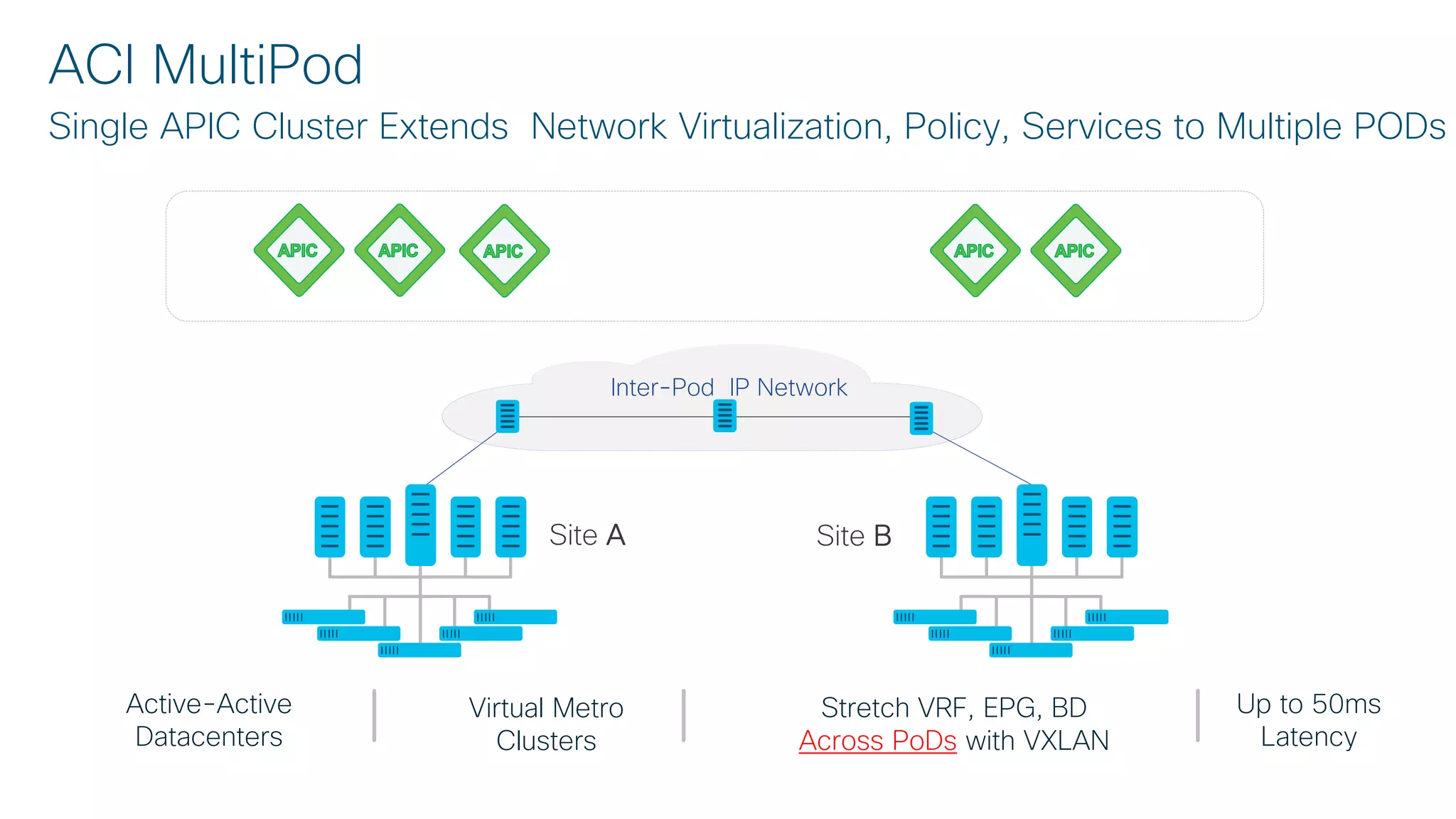

ACI MultiPod
Single APIC Cluster Extends Network Virtualization, Policy, Services to Multiple PODs
Site A Site B
Active-Active
Datacenters
Virtual Metro
Clusters
Stretch VRF, EPG, BD
Across PoDs with VXLAN
Up to 50ms
Latency

19. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
VMVMVM
Site A
Site B
Site C
Site D
VMVMVM
ACI Multi-Site Multi-Site
Consistent Policy across sites
Single Point of Orchestration
Fault Isolation
Scale
VMVMVM
VMVMVM
Geographically Dispersed
Active/Active Data Centers
Active/Standby Data Centers
For Disaster Recovery
Stretch VRF, EPG, BD
Across Sites with VXLAN
Up to One sec
Latency

20. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
IP Network
ACI: Physical Remote Leaf
Extend ACI to Satellite Data Centers
Site A Remote
Location
Zero Touch Auto Discovery
of Remote Leaf
Two Remote Leafs
Up To 20 Remote Locations
Stretch EPG, BD, VRF,
Tenant, Contract
Health Scores,
EPG Stats
VMVMVM VMVMVMVM
VMVMVM VMVMVMVM

21. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
vSpine
vLeafvLeaf
ACI Virtual Edge
IP Network
ACI: Virtual PoD
Extend ACI To Bare-metal Cloud
On-Premise
Remote
Location
Bare Metal Clouds
(IBM BlueMix, AWS Elastic Metal etc.)
Remote Data Centers Colo Facilities
(Equinix, CoreSite etc.)
BrownField
Deployments
VMVMVM VMVMVMVMVMVMVM VMVMVMVM
Virtual Pod
Hypervisor
Logical Connection To Spine
(BGP-EVPN/ VXLAN)

22. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
VMVMVM
Site A
Site B
Site C
Site D
VMVMVM

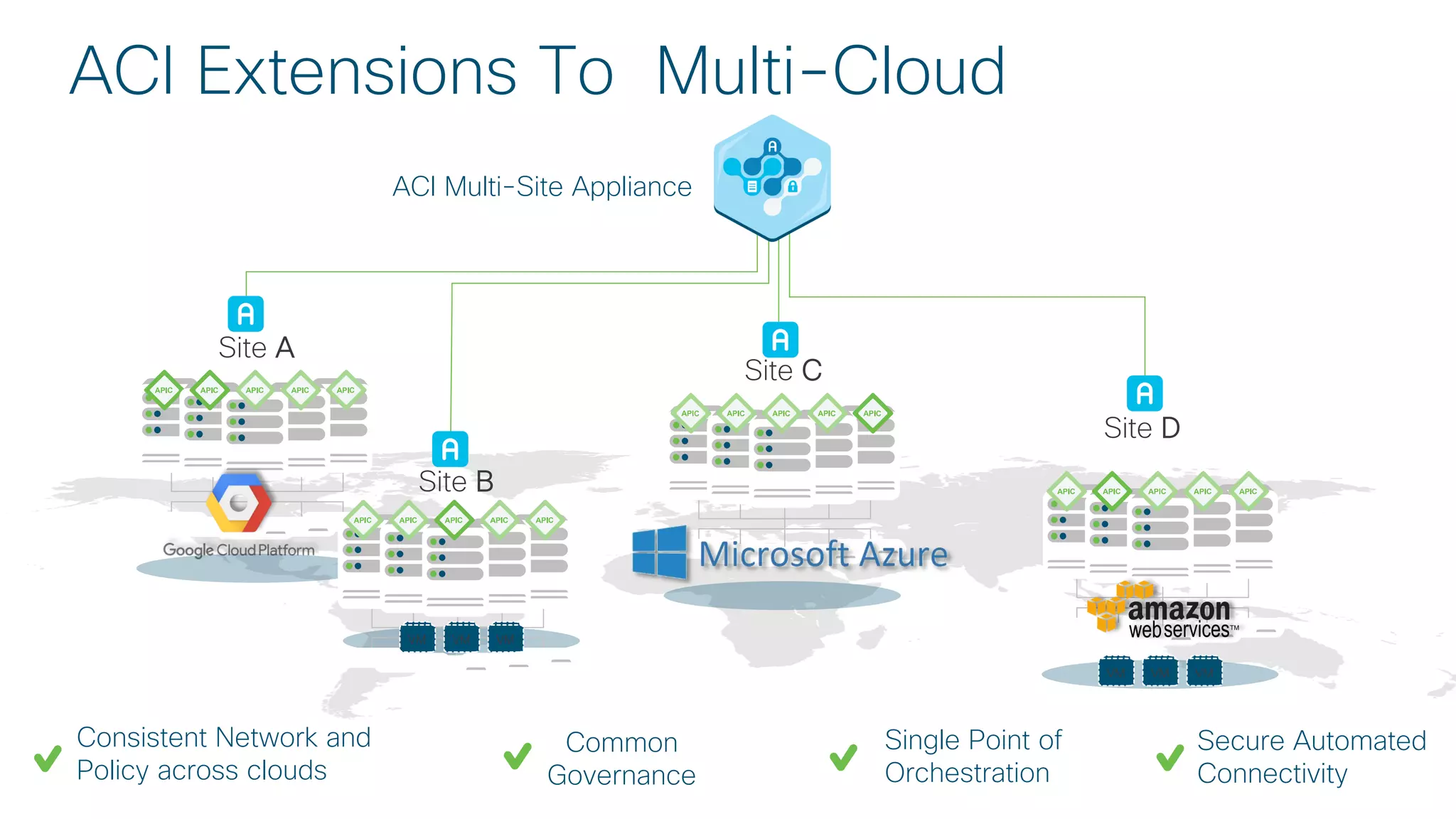

ACI Extensions To Multi-Cloud
ACI Multi-Site Appliance
Consistent Network and
Policy across clouds
Common
Governance
Single Point of
Orchestration
Secure Automated
Connectivity

23. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
ACI 4.1
ACI Extensions to AWS
IP
Network
AWS Region
EPG
Web
EPG
APP
Contract Contract
EPG
DB
SG
Web
SG
APP
SG Rule SG Rule
SG
DB
On-Premise
VMVMVM
Public CloudSite A Site B
Monitoring &
Troubleshooting
Automated
Connectivity
Common
Governance
Single Point
Of Orchestration
Discovery
& Visibility
Policy
Translation
Multi-Site

24. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential AWS Region
On-Premises
VMVMVM
Public CloudSite A Site B
Multi-Site
Infra VPC
L3 Out +
Golf
AWS Direct
Connect
Routers
CSR1000V
DX Location
Colocation
Customer
Router
Amazon
VGW
Customer
Premise
Router
User VPC-1
AWS Instances
CSR1000V
User VPC-2
AWS Instances
CSR1000V
BGP EVPN Control Plane
VXLAN TUNNEL (DATA PLANE)
OVERLAY

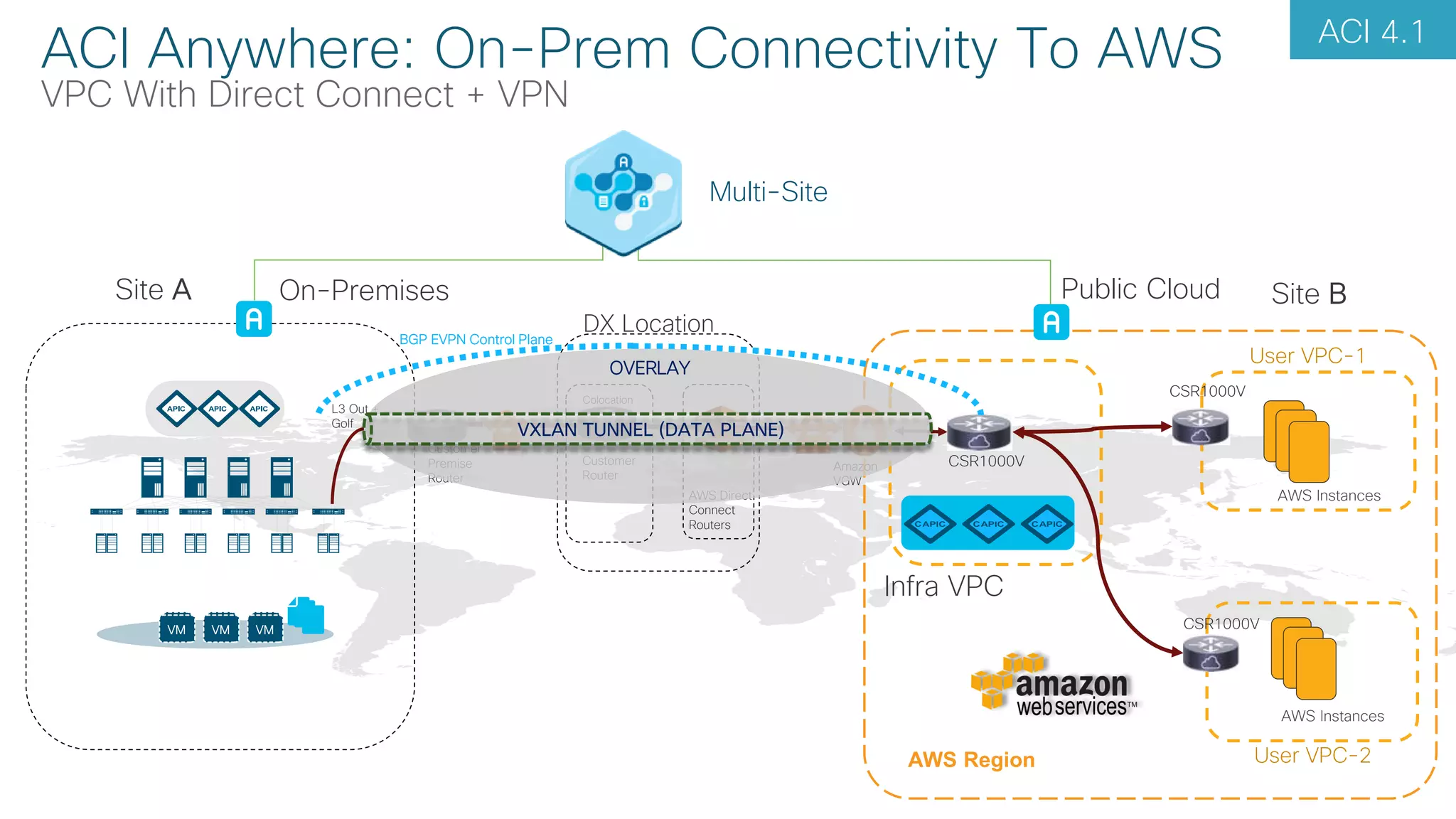

ACI Anywhere: On-Prem Connectivity To AWS
VPC With Direct Connect + VPN
ACI 4.1

25. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Security Group
Virtual Private Network
Security Group Rule
Outbound rule
Inbound rule
User Account
Source/Destination: Subnet or IP or Any or ‘Internet’
Protocol
Port
Network Adapter
Tenant
VRF
BD Subnet
EPG
EPG Contracts
Consumed contracts
Provided contracts
EC2 Instance
VPC subnet
Contracts

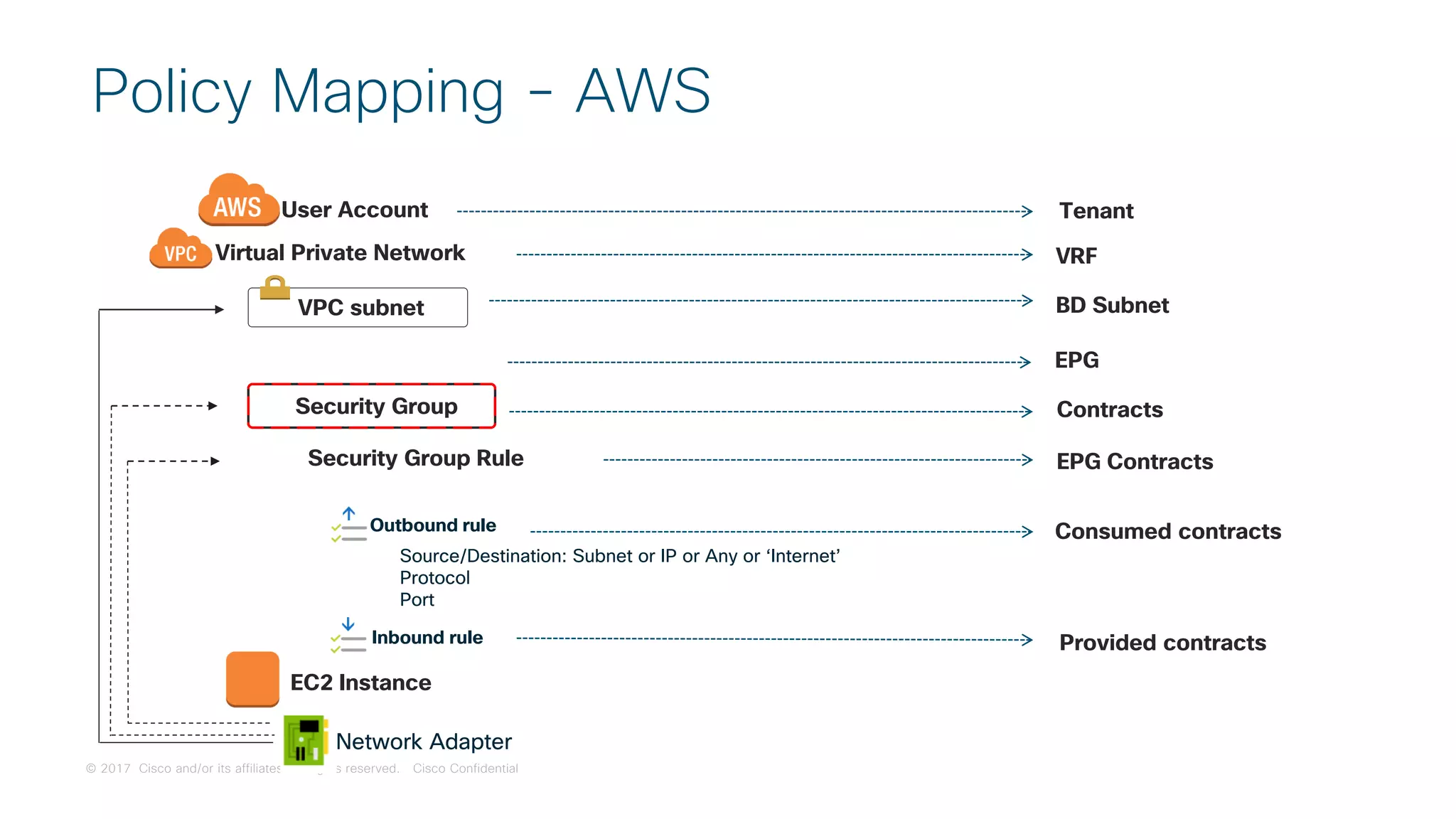

Policy Mapping - AWS

26. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Démo

27. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Optimize Your
Network
Protect Your
Business
Integrate
Hybrid IT
With Cisco ACI,
you can build a
better network…
anywhere.

28. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Cisco Container Platform
(CCP)

29. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

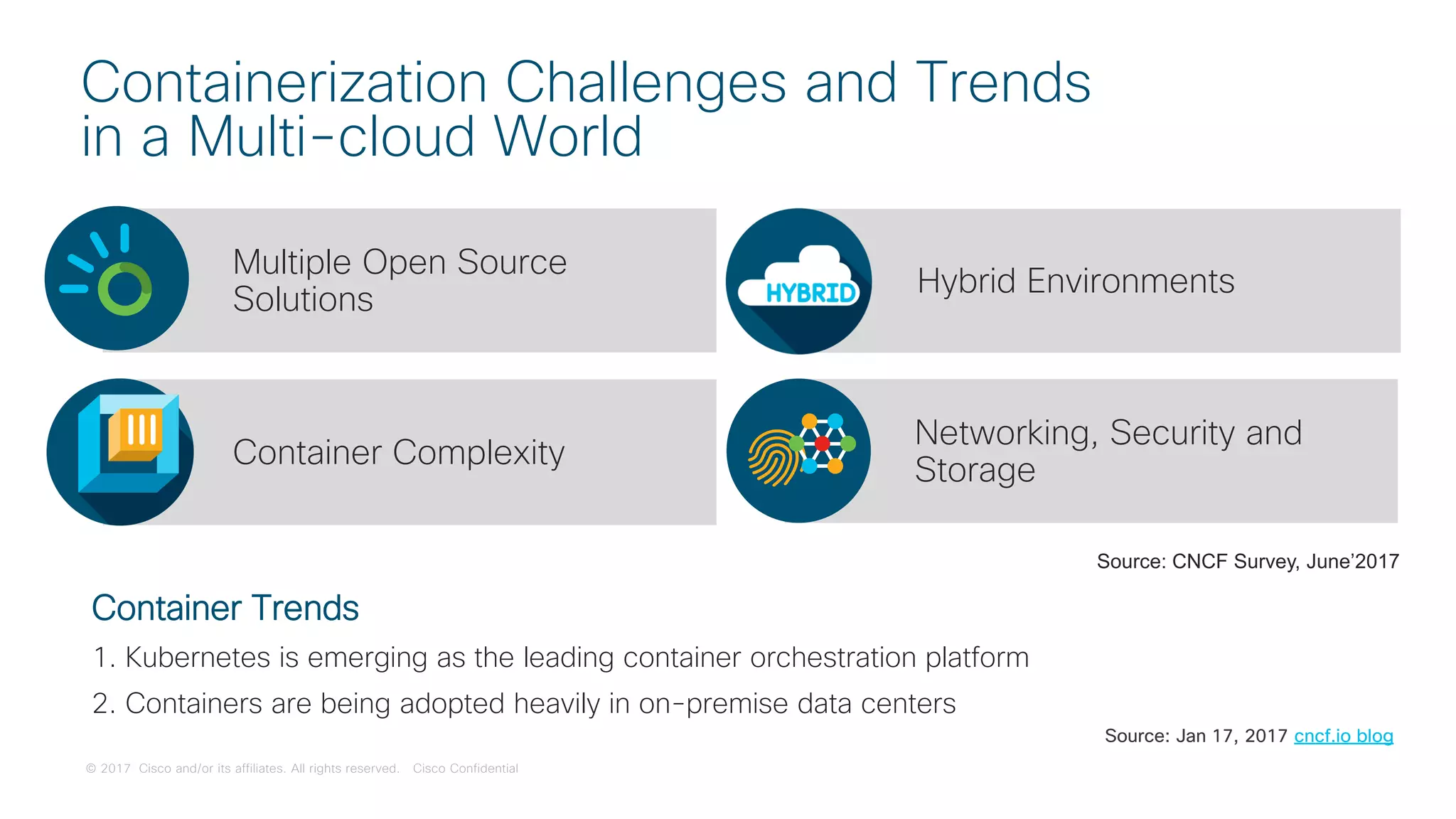

Containerization Challenges and Trends
in a Multi-cloud World
Multiple Open Source
Solutions
Hybrid Environments
Container Complexity
Networking, Security and
Storage
Source: CNCF Survey, June’2017
Container Trends
1. Kubernetes is emerging as the leading container orchestration platform
2. Containers are being adopted heavily in on-premise data centers
Source: Jan 17, 2017 cncf.io blog

30. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Automates deploying, running, scaling, and operating
containers on physical or virtual machines. Incl.
Scheduling, Load balancing, Rolling updates
Kubernetes Goals
• API and implementation 100% open
• Modular and replaceable
• Don’t force apps to know about
concepts that are
• Cloud Provider Specific
• Kubernetes Specific
Enable Users To
• Write once, run anywhere
• Avoid vendor lock-in
• Avoid coupling app to infrastructure
What Kubernetes provides

31. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
• Inside: Container Runtime and Workloads
• Above: Management, Services and Tools
• Logging + Monitoring
• Kubernetes Stack Lifecycle Management, Patches, Upgrades
• CI/CD
• PaaS
• Workflow Orchestration
• Data processing
• OTS applications:
• Middleware + Storage + Databases + …
• Below: Diverse Infra Environments
• Container Storage, Container Network
• Image registry
• Cloud provider
• Cluster + host lifecycle management
• Identity and secret management

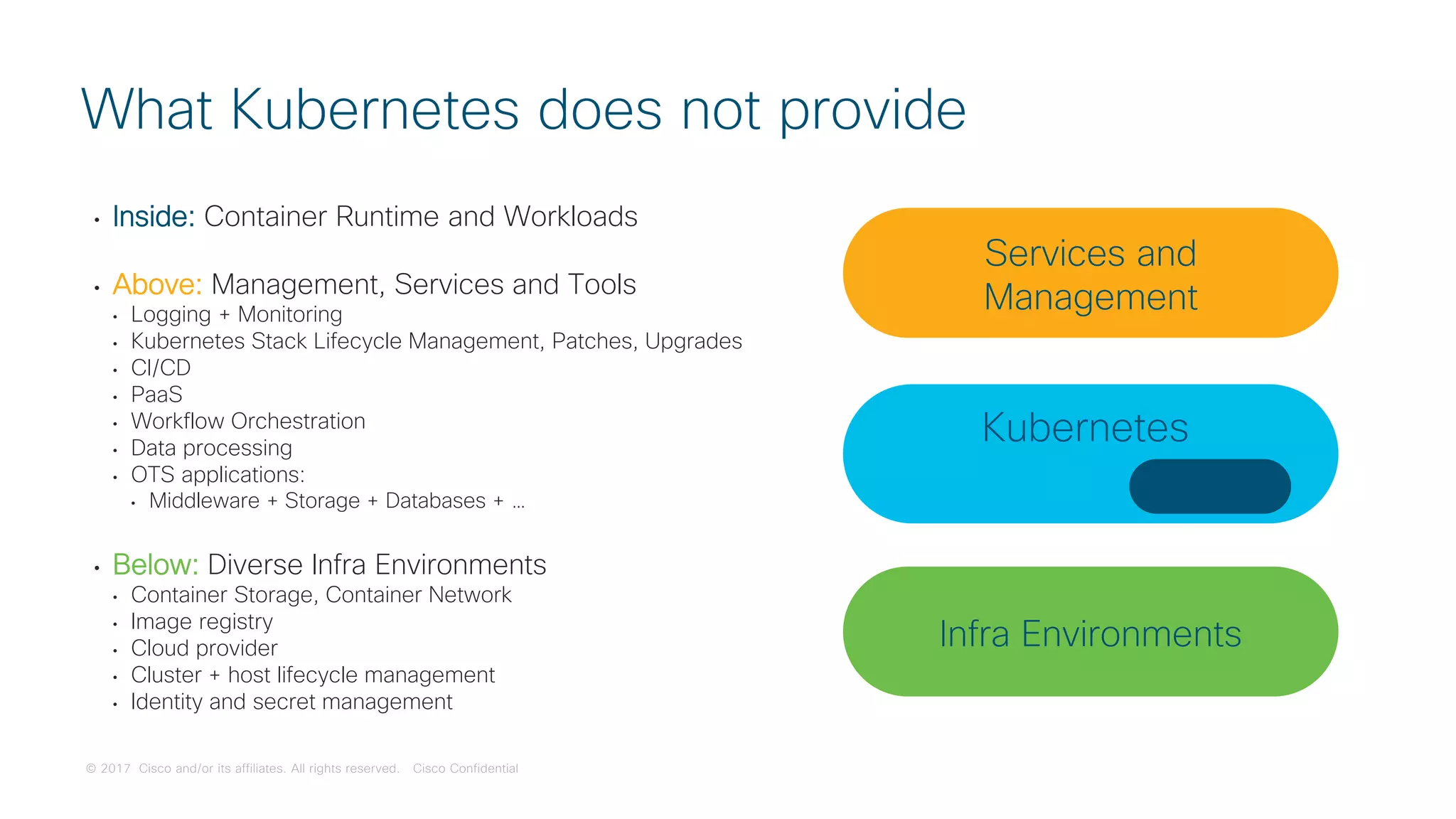

What Kubernetes does not provide
Kubernetes
Docker
Infra Environments
Services and
Management

32. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

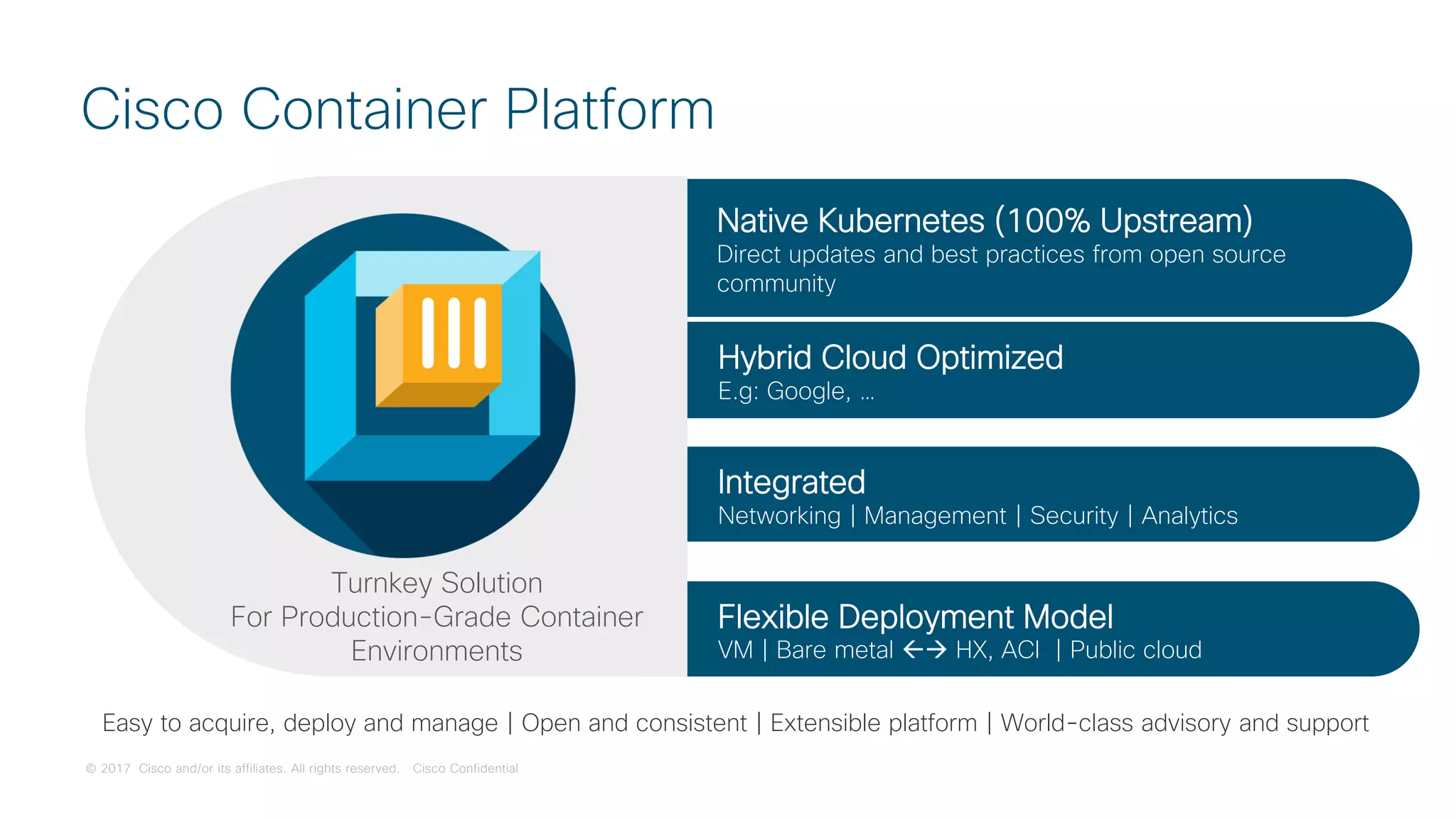

Cisco Container Platform
Hybrid Cloud Optimized
E.g: Google, …
Flexible Deployment Model
VM | Bare metal  HX, ACI | Public cloud
Integrated
Networking | Management | Security | Analytics
Native Kubernetes (100% Upstream)
Direct updates and best practices from open source
community
Turnkey Solution
For Production-Grade Container
Environments
Easy to acquire, deploy and manage | Open and consistent | Extensible platform | World-class advisory and support

33. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

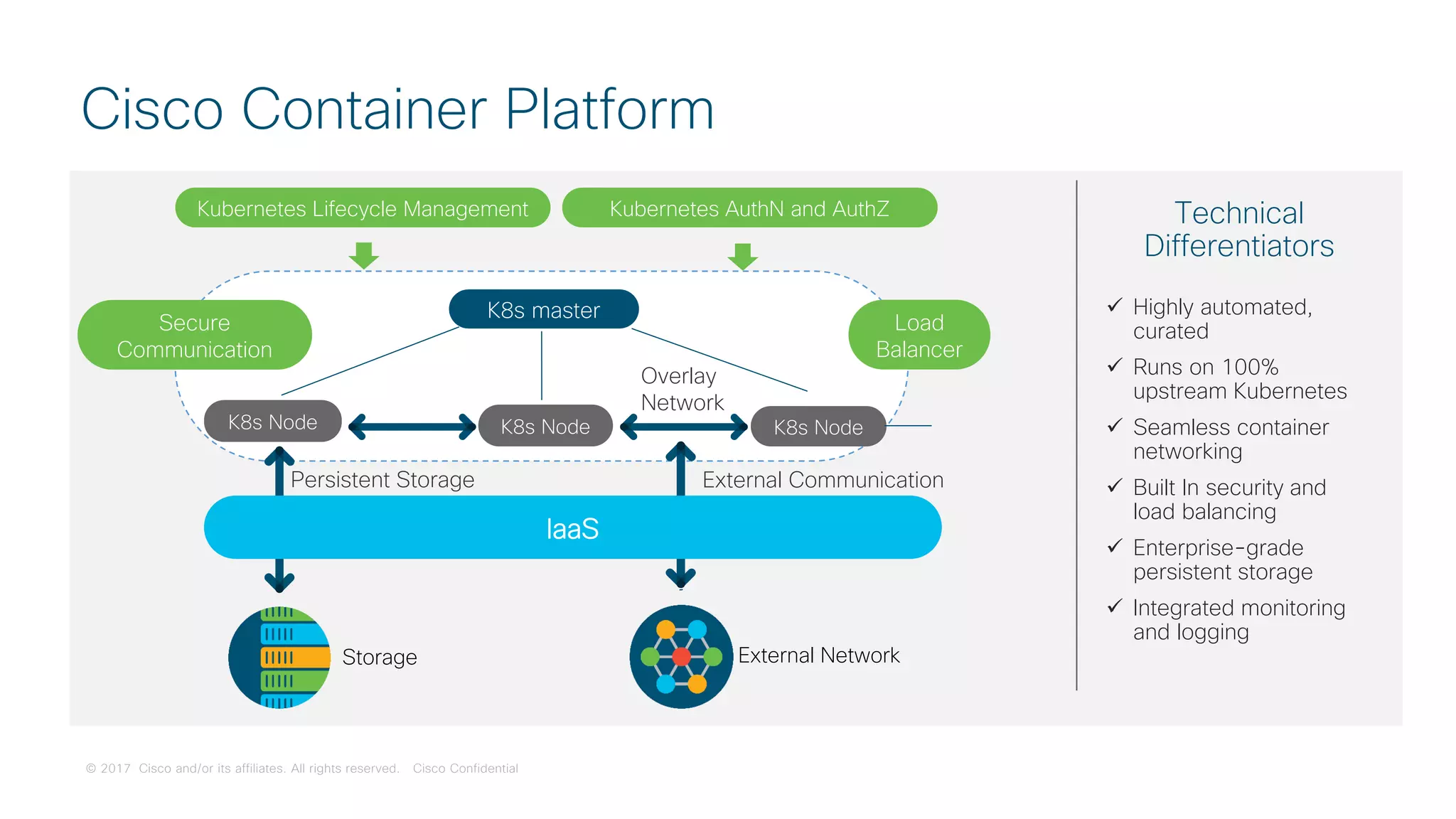

Cisco Container Platform
K8s master
K8s Node K8s Node K8s Node
Persistent Storage
Overlay
Network
Load
Balancer
Storage
External Communication
External Network
 Highly automated,
curated
 Runs on 100%
upstream Kubernetes
 Seamless container
networking
 Built In security and
load balancing
 Enterprise-grade
persistent storage
 Integrated monitoring
and logging
Technical
Differentiators
IaaS
Kubernetes Lifecycle Management Kubernetes AuthN and AuthZ
Secure
Communication

34. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

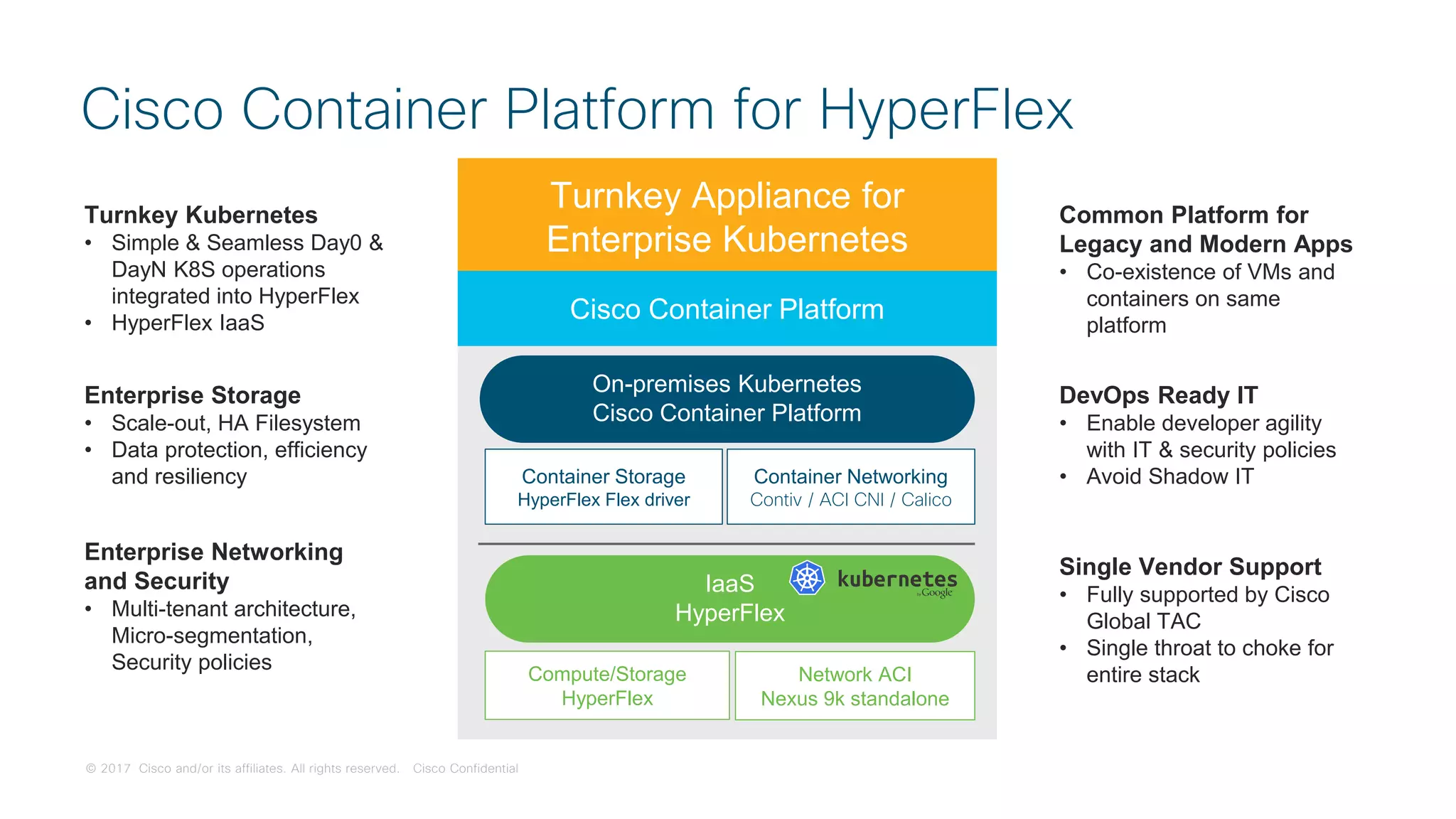

Cisco Container Platform for HyperFlex
IaaS
HyperFlex
Compute/Storage
HyperFlex
Network ACI
Nexus 9k standalone
On-premises Kubernetes
Cisco Container Platform
Container Networking
Contiv / ACI CNI / Calico
Container Storage
HyperFlex Flex driver
Turnkey Kubernetes
• Simple & Seamless Day0 &
DayN K8S operations
integrated into HyperFlex
• HyperFlex IaaS
Enterprise Storage
• Scale-out, HA Filesystem
• Data protection, efficiency
and resiliency
Enterprise Networking
and Security
• Multi-tenant architecture,
Micro-segmentation,
Security policies
Common Platform for
Legacy and Modern Apps
• Co-existence of VMs and
containers on same
platform
DevOps Ready IT
• Enable developer agility
with IT & security policies
• Avoid Shadow IT
Turnkey Appliance for
Enterprise Kubernetes
Cisco Container Platform
Single Vendor Support
• Fully supported by Cisco
Global TAC
• Single throat to choke for
entire stack

35. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Control Plane Data Plane
VM VM
Control Plane Kubernetes
Automation
Orchestration
Operations
HX Connect
Cluster/
Machine
Controllers
VM VM VM
Cluster 1 Kubernetes
Cluster1
Workloads
Cluster1
Ops
Pod
Pod
Pod
VM VM VM
Cluster 2 Kubernetes
Cluster2
Workloads
Cluster2
Ops
Pod
Pod
Pod
Kubernetes Fluentd Prometheus Kibana Hyperflex Contiv
Storage (HyperFlex)
Networking (Nexus 9K)
Compute Hardware (UCS)
Hypervisor Layer (HyperFlex / VMware)

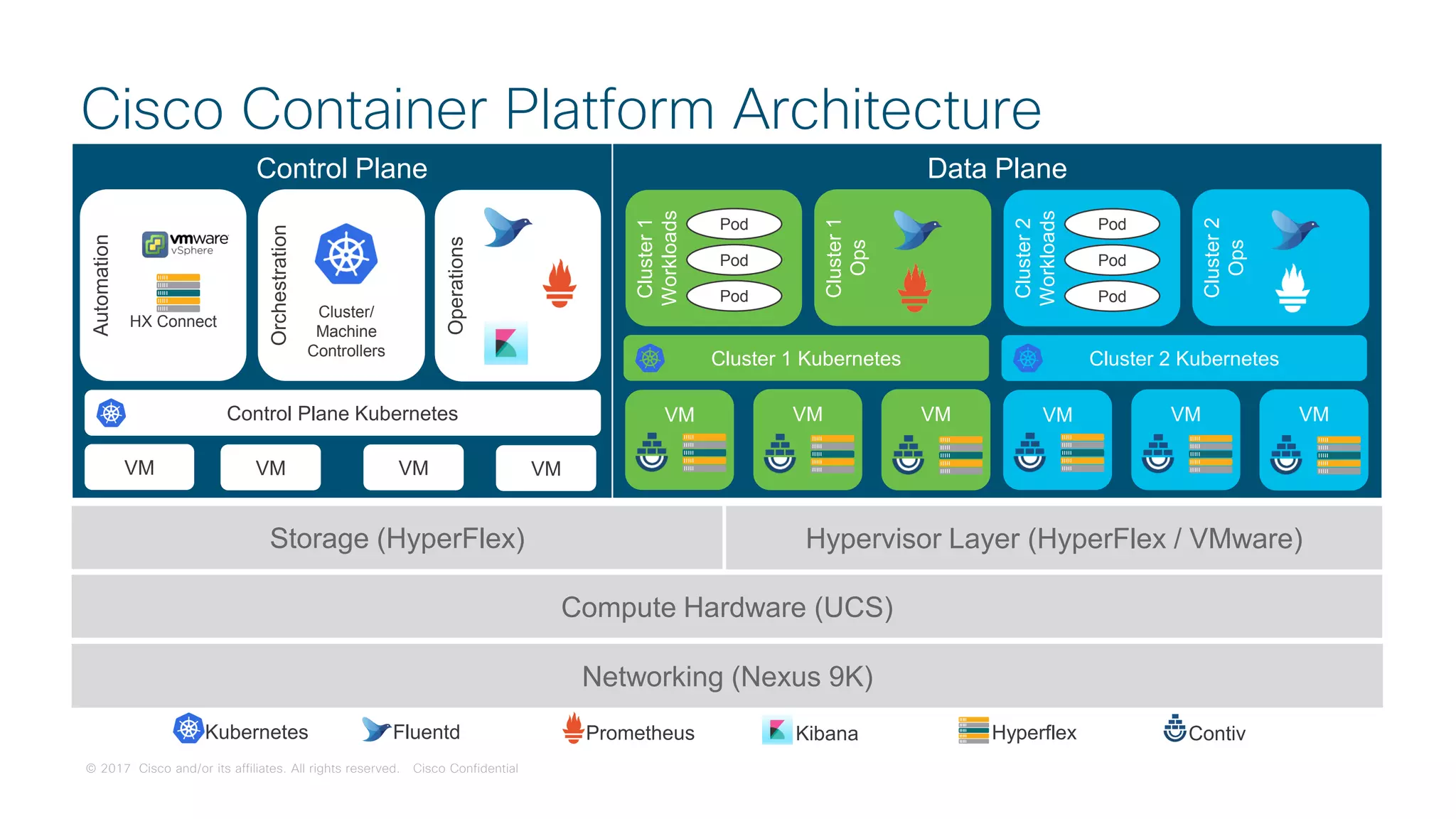

Cisco Container Platform Architecture
VM VM

36. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

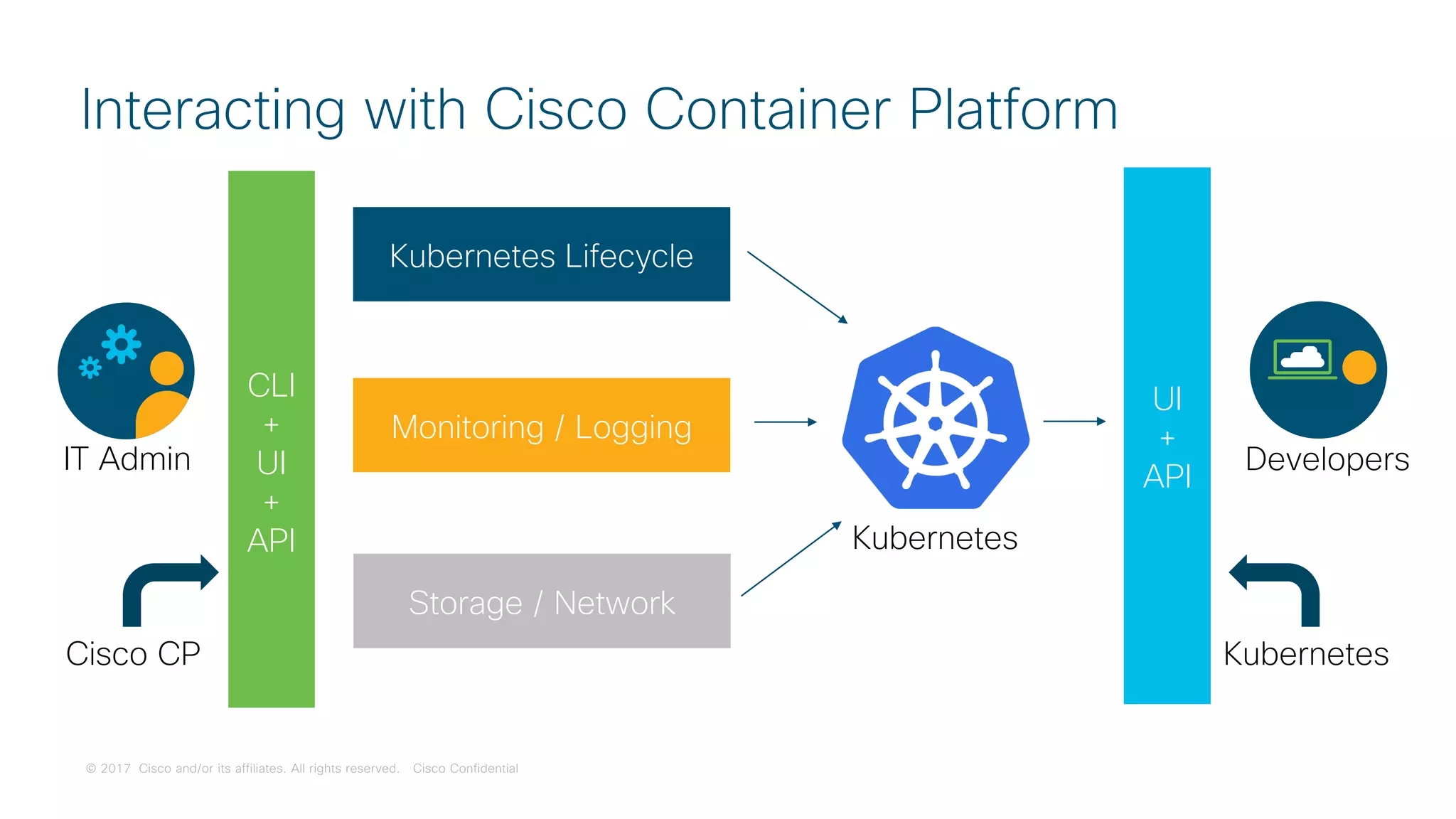

Interacting with Cisco Container Platform
Kubernetes
Kubernetes Lifecycle
IT Admin
UI
+
API
CLI
+
UI
+
API
Monitoring / Logging
Storage / Network
Developers
KubernetesCisco CP

37. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Cloud Partnerships

38. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Extensible
Existing
applications
Hybrid
Production
Grade
APP APP
VM
Bare
Metal
Deploy
Secure
Connect
Monitor
Introducing:
Cisco Hybrid Solution for Kubernetes on AWS
Secure and production-grade to accelerate innovation

39. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
On-premises
environment
Management
Security
Monitoring
Networking
Consistent, production-grade
environment
Identity
Cisco Hybrid Solution for Kubernetes on AWS

40. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

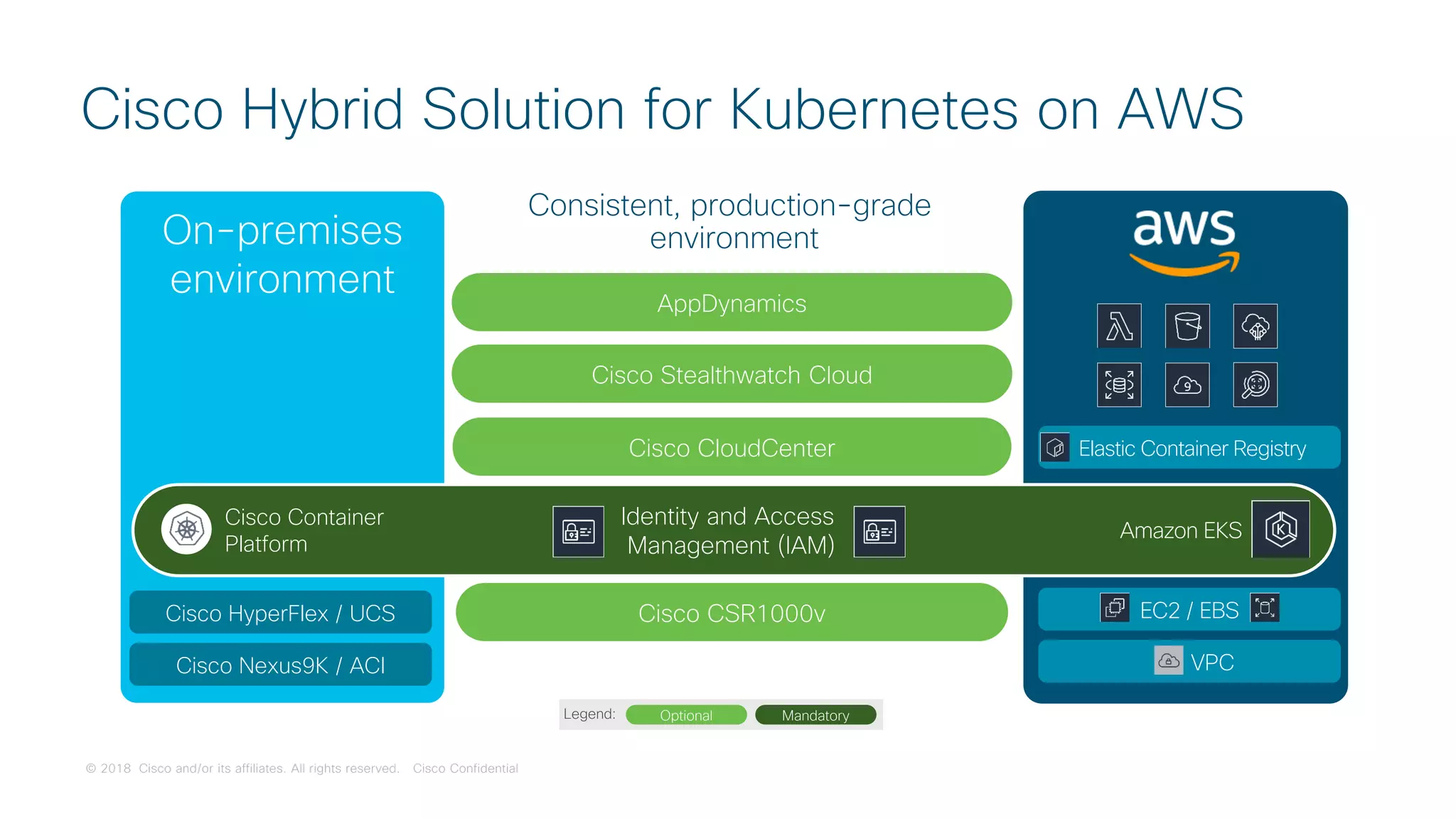

Cisco Hybrid Solution for Kubernetes on AWS
On-premises
environment
Cisco Nexus9K / ACI
Cisco HyperFlex / UCS
VPC
EC2 / EBS
Elastic Container Registry
Identity and Access
Management (IAM)
Cisco CloudCenter
Cisco Stealthwatch Cloud
AppDynamics
Optional Mandatory
Cisco CSR1000v
Cisco Container
Platform
Amazon EKS
Legend:
Consistent, production-grade
environment

41. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

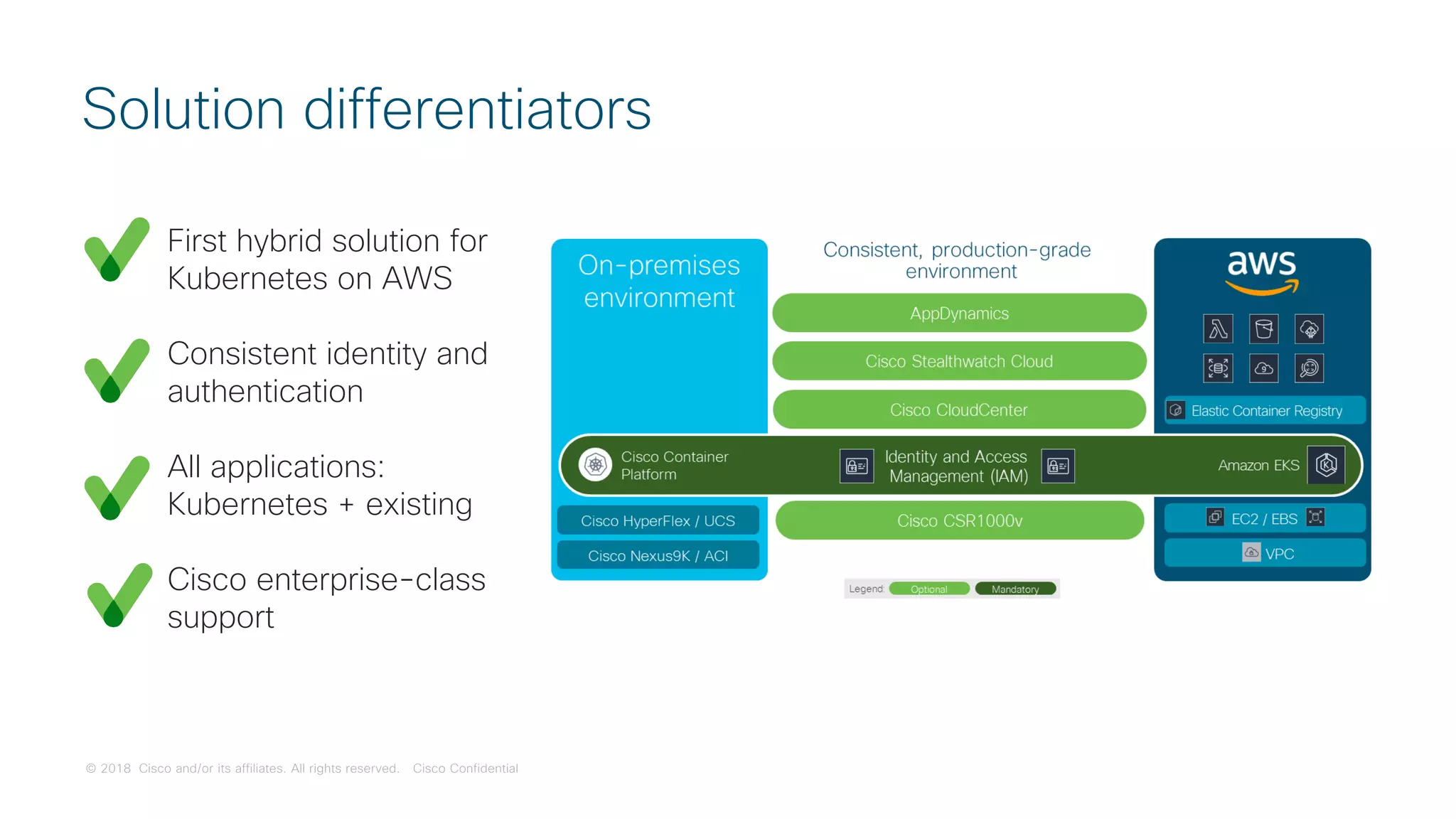

Solution differentiators
First hybrid solution for
Kubernetes on AWS
Consistent identity and
authentication
All applications:
Kubernetes + existing
Cisco enterprise-class
support

42. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
On-premises
environment
Google
Kubernetes Engine
Existing
services
apps | data
Cisco Hybrid Cloud Platform for Google Cloud
Cisco HyperFlex
Cisco Nexus9K / ACI
Cisco CSR1000v
Cisco Stealthwatch Cloud
Cisco Container
Platform
Consistent environment
Google Apigee
Cisco CloudCenter
Istio
BigQuery
Cloud SQL
Pub/Sub
Big Table
Cloud Storage
Cloud Spanner
Open Service Broker

43. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Benefits for the organization
Accelerate innovation
Reduce time-to-
market with faster
adoption
of AWS services
Production-grade
Securely deploy,
connect, manage,
and monitor with
enterprise-class
solution and support
Reduce risk
Integrated security
with end-to-end
protection and
common identity and
authentication

44. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

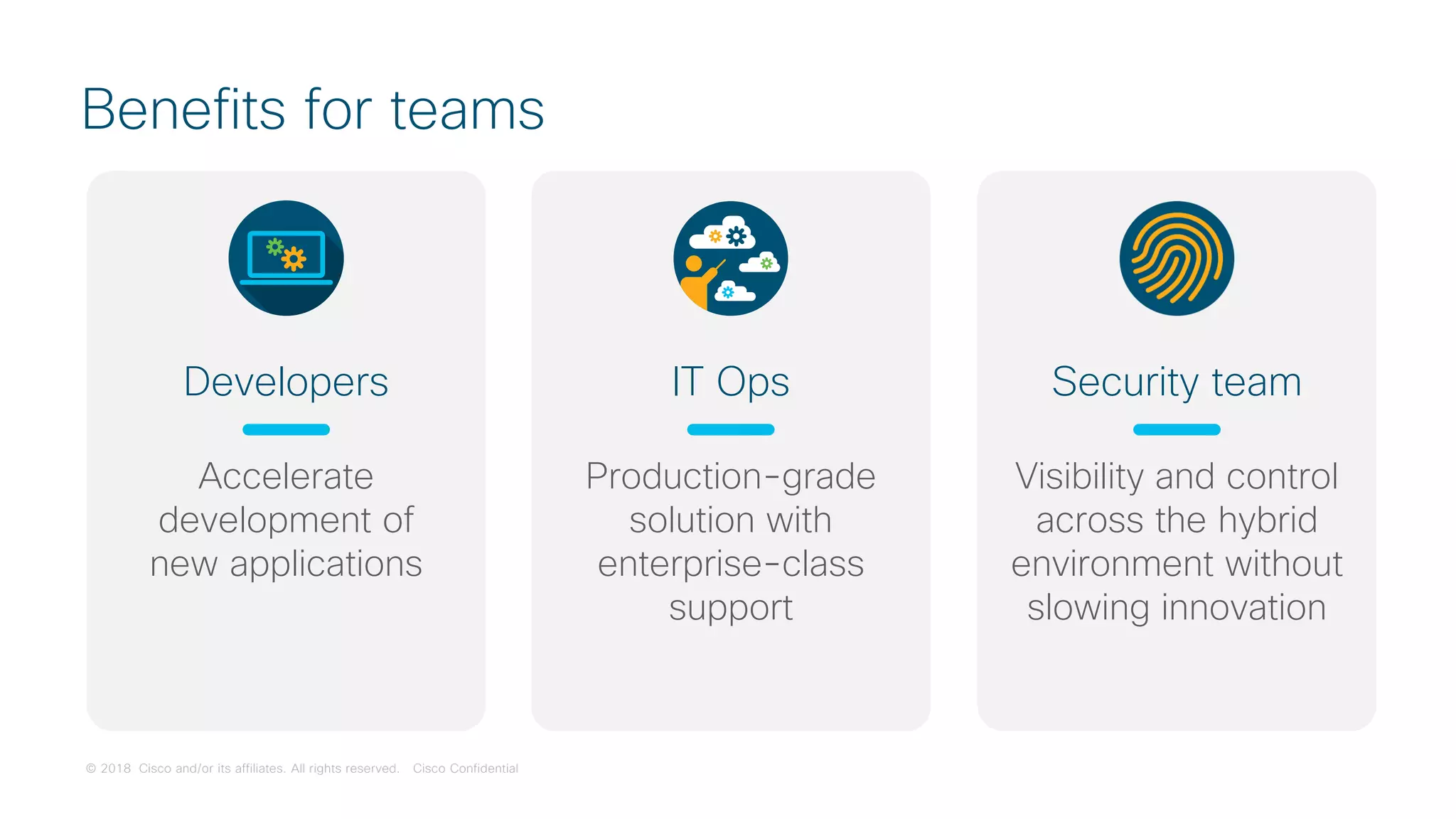

Benefits for teams
Developers
Accelerate
development of
new applications
IT Ops
Production-grade
solution with
enterprise-class
support
Security team
Visibility and control
across the hybrid
environment without
slowing innovation

45. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Cisco Cloud Center

46. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

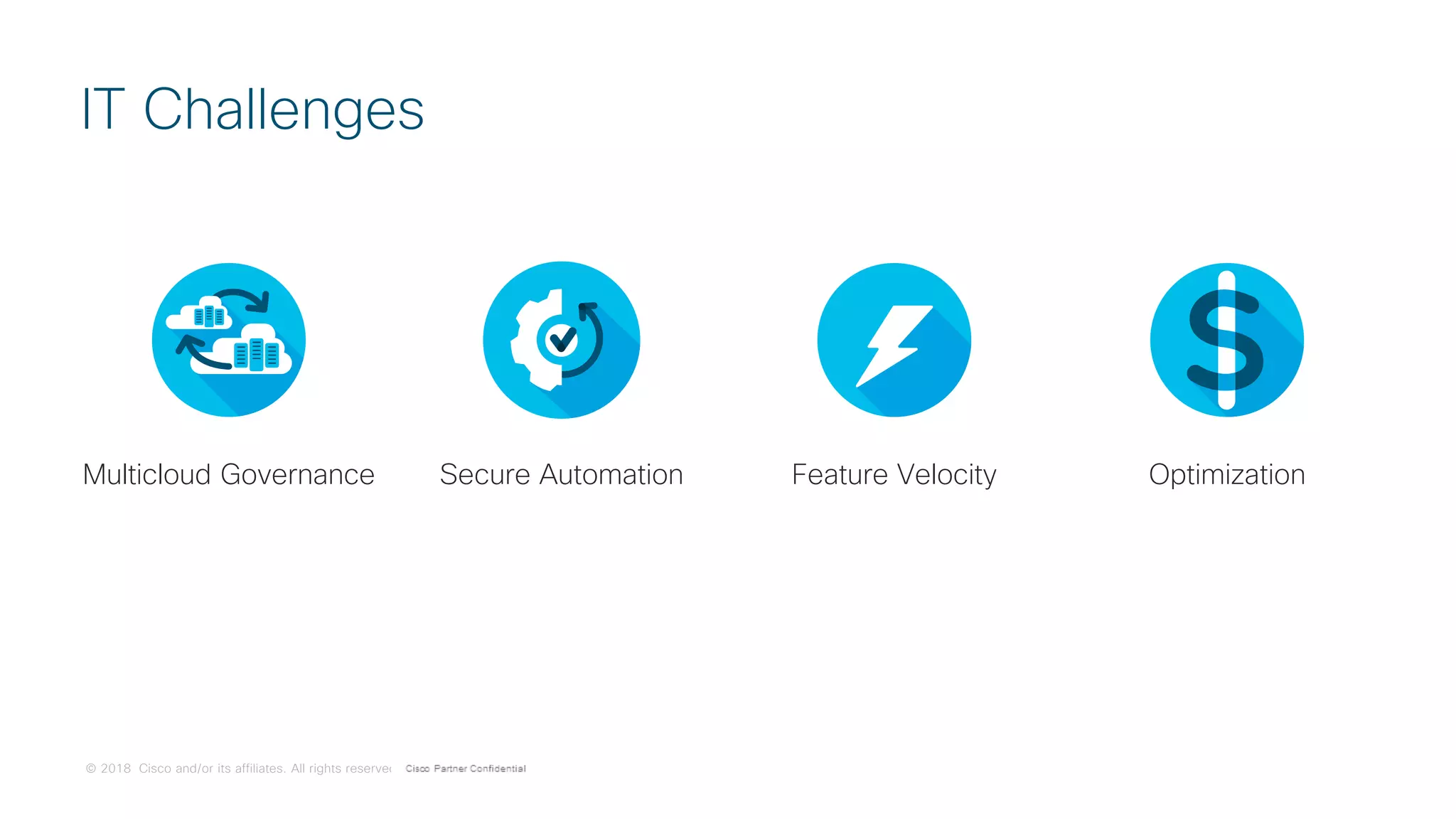

IT Challenges
Feature Velocity OptimizationMulticloud Governance Secure Automation

47. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
IT Benefit
Decreased end user wait
time by 99% while
removing 100% manual
admin work
Decreased time for new
product release by
nearly 20%
Optimizing cloud
instance sizing and type
reduced cloud bill by
over 40%
IT Support 6 clouds
and 24 regions without
increasing staff
Feature Velocity OptimizationMulticloud Governance Secure Automation

48. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Data Center Private Cloud
Public Cloud
Container as
a Service

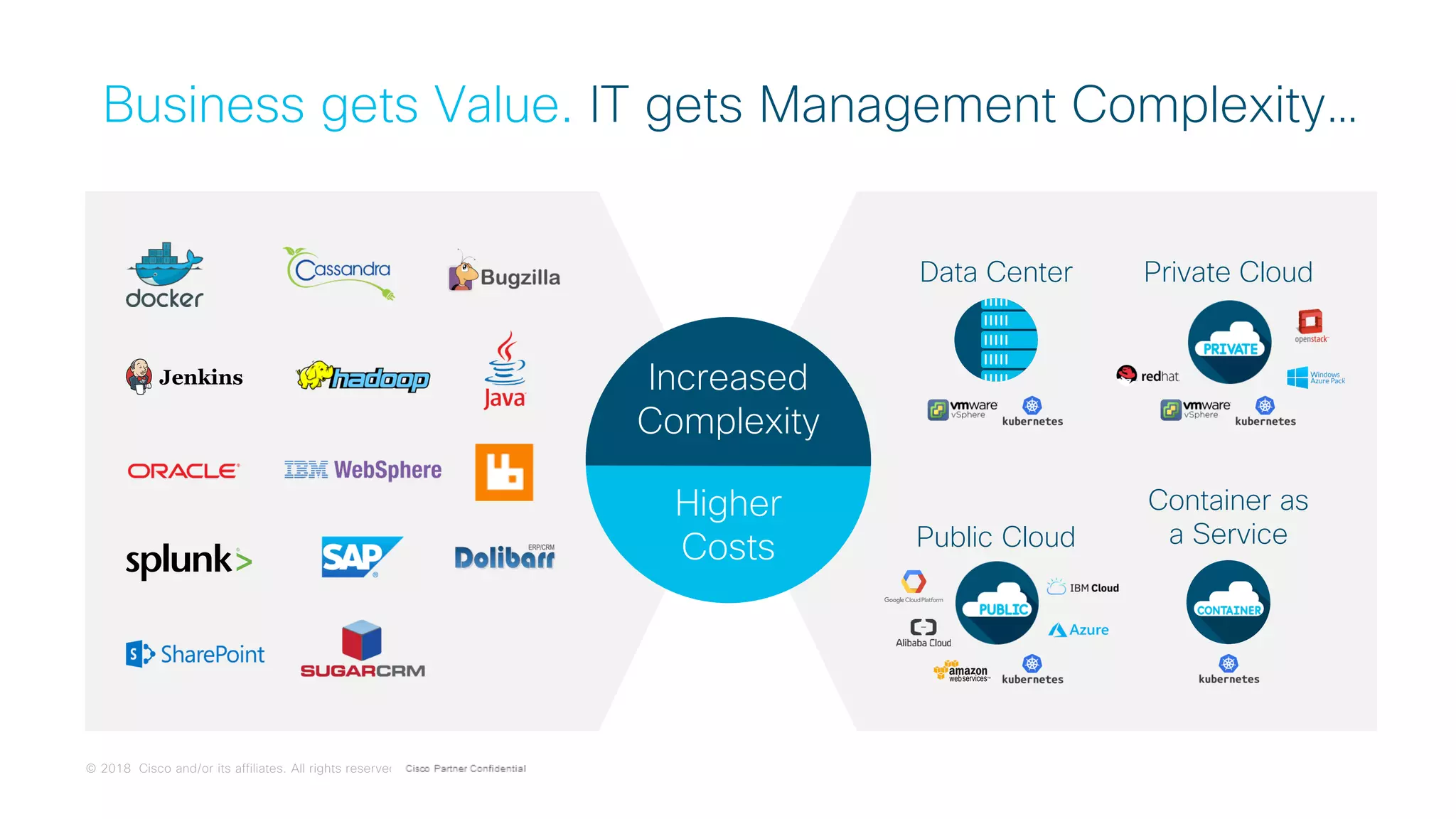

Business gets Value. IT gets Management Complexity…
Higher
Costs
Increased
Complexity

49. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
15 years ago…
Application
RHEL
CPUs:1
Memory: 4GB
Storage: 0GB

50. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
10 years ago…
Application Data CenterA Data Center B
App1A
Script
App2A
Script
App3A
Script
App1B
Script
App2B
Script
App3B
Script
RHEL
CPUs:1
Memory: 4GB
Storage: 0GB

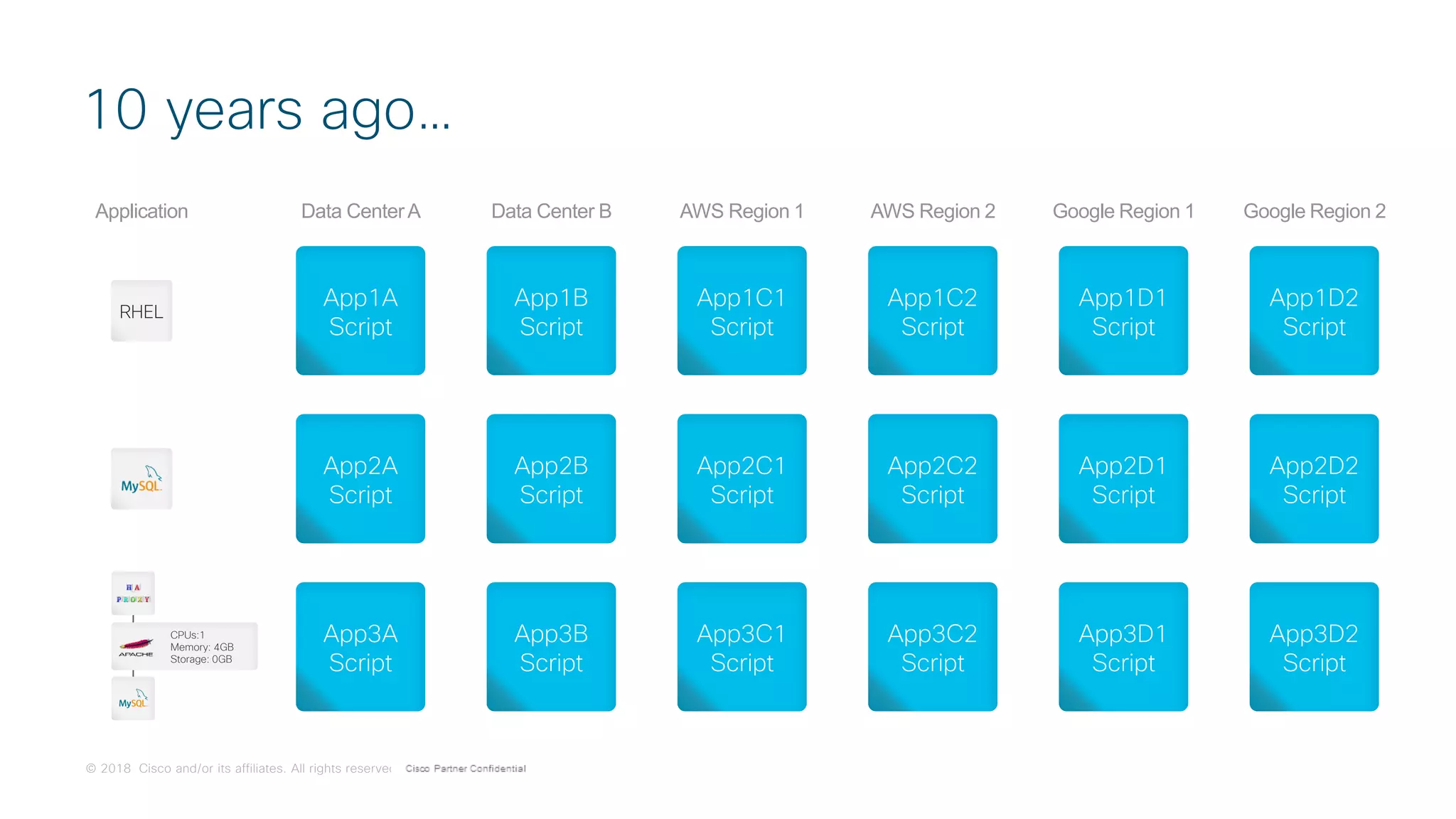

51. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
10 years ago…
Application Data CenterA Data Center B AWS Region 1 AWS Region 2
App1A
Script
App2A
Script
App3A
Script
App1B
Script
App2B
Script
App3B
Script
App1C1
Script
App2C1
Script
App3C1
Script
App1C2
Script
App2C2
Script
App3C2
Script
RHEL
Google Region 1 Google Region 2
App1D1
Script
App2D1
Script
App3D1
Script
App1D2
Script
App2D2
Script
App3D2
Script
CPUs:1
Memory: 4GB
Storage: 0GB

52. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

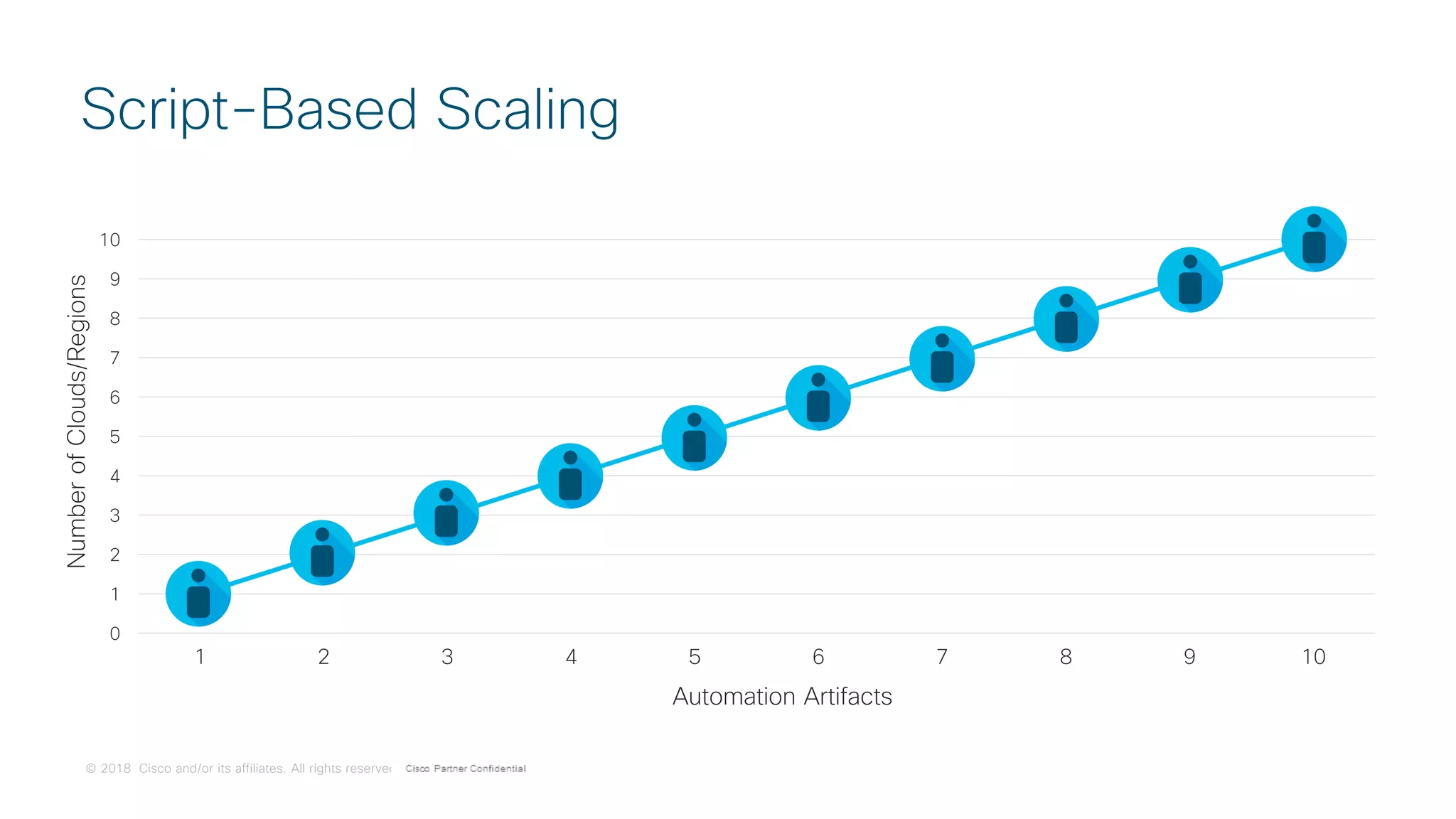

Script-Based Scaling
0
1
2
3
4
5
6
7
8
9
10
1 2 3 4 5 6 7 8 9 10
Automation Artifacts
NumberofClouds/Regions

53. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
What is CloudCenter?

54. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
CloudCenter – Multicloud Management Platform
Securely Model, Deploy, and Manage Anywhere.
One Integrated
Platform
End to End
Lifecycle
New and Existing
Applications
Deploy
Manage
Model
Container
as Service
Public
Cloud
Data
Center
Private
Cloud

55. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

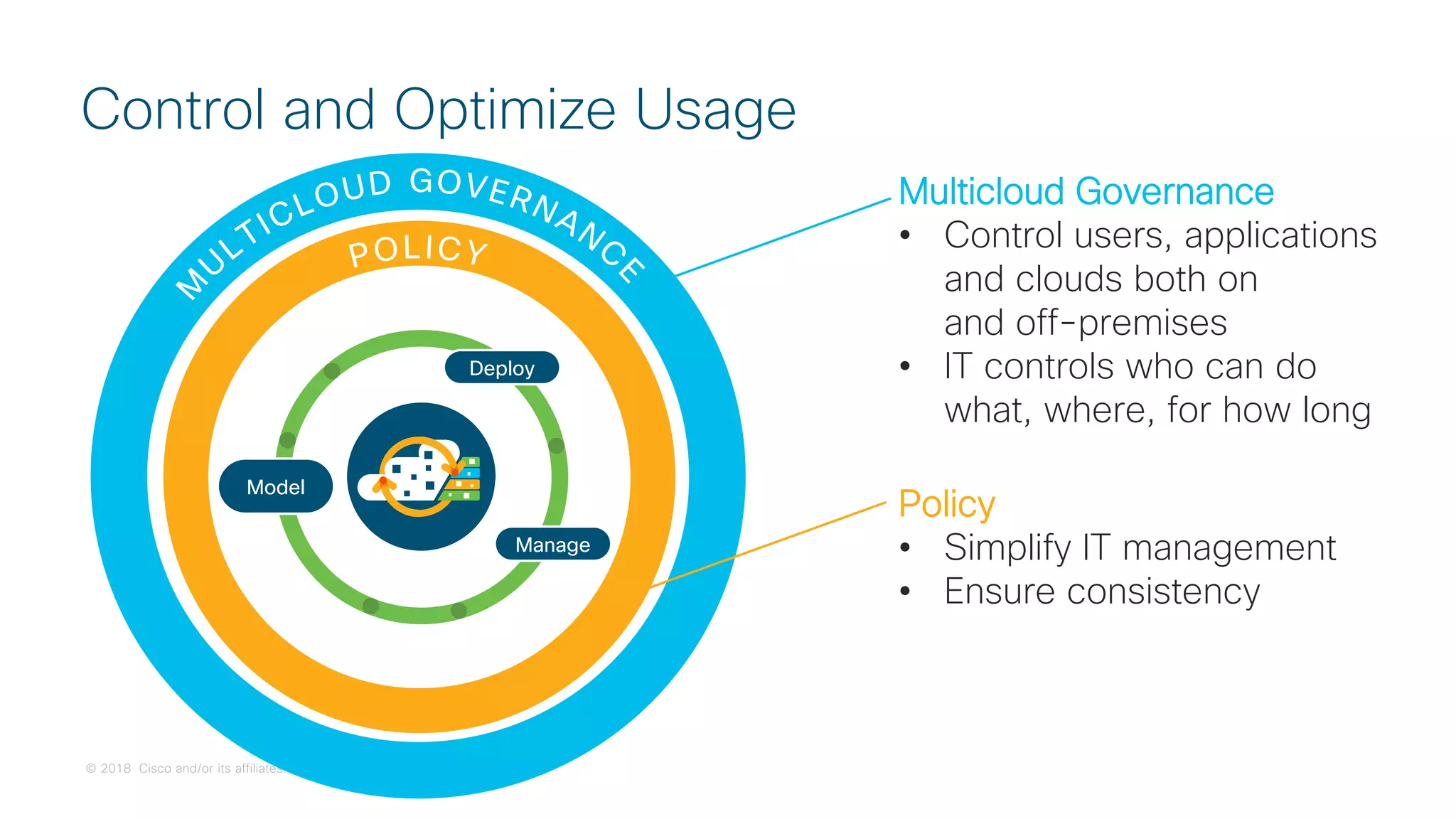

Control and Optimize Usage
Multicloud Governance
• Control users, applications
and clouds both on
and off-premises
• IT controls who can do
what, where, for how long
Policy
• Simplify IT management
• Ensure consistency
Deploy
Manage
Model

56. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
How CloudCenter Works

57. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

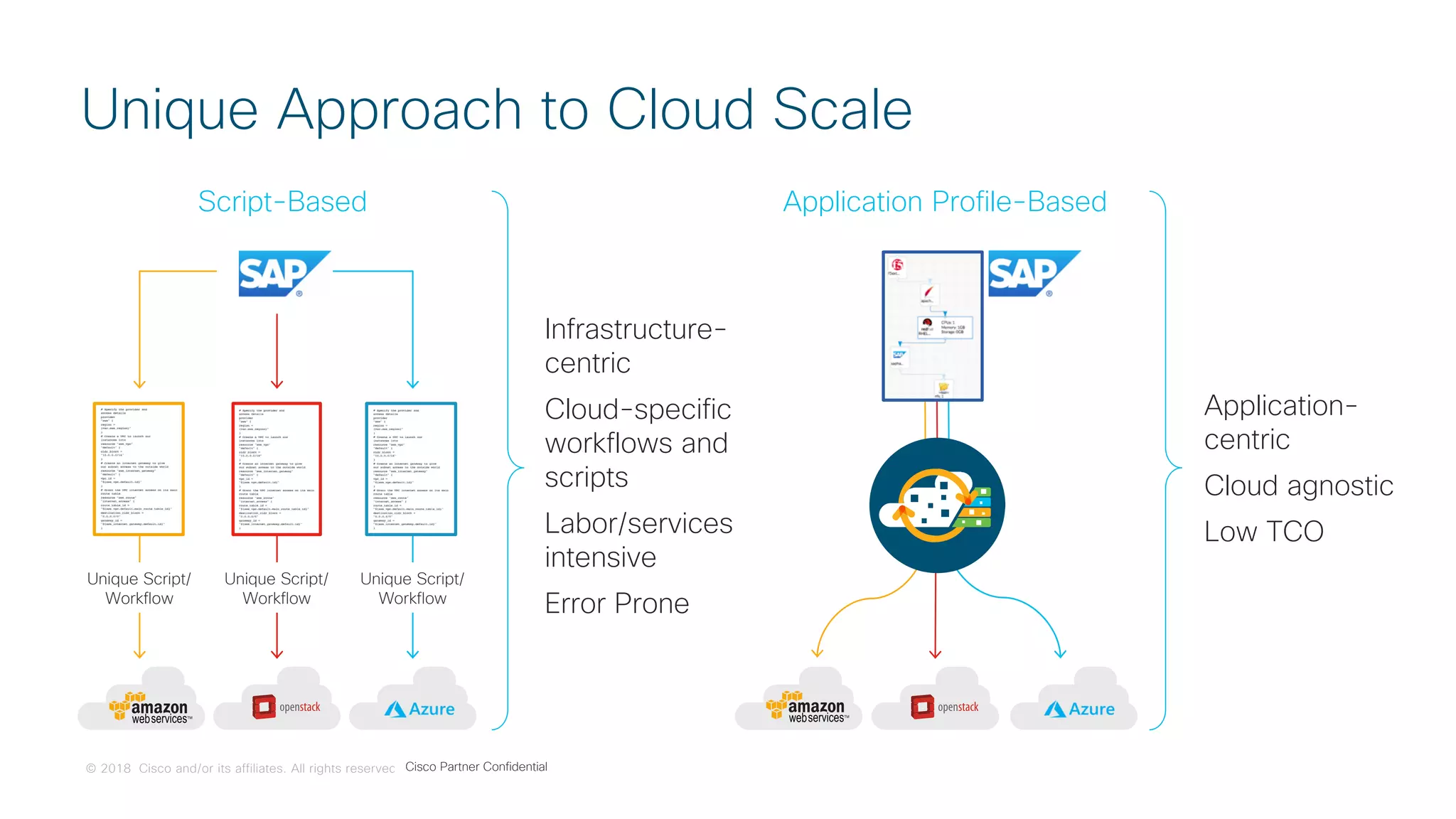

Unique Approach to Cloud Scale
Infrastructure-
centric
Cloud-specific
workflows and
scripts
Labor/services
intensive
Error Prone
Unique Script/
Workflow
Script-Based
Unique Script/
Workflow
Unique Script/
Workflow
Application Profile-Based
Application-
centric
Cloud agnostic
Low TCO
Cisco Partner Confidential

58. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

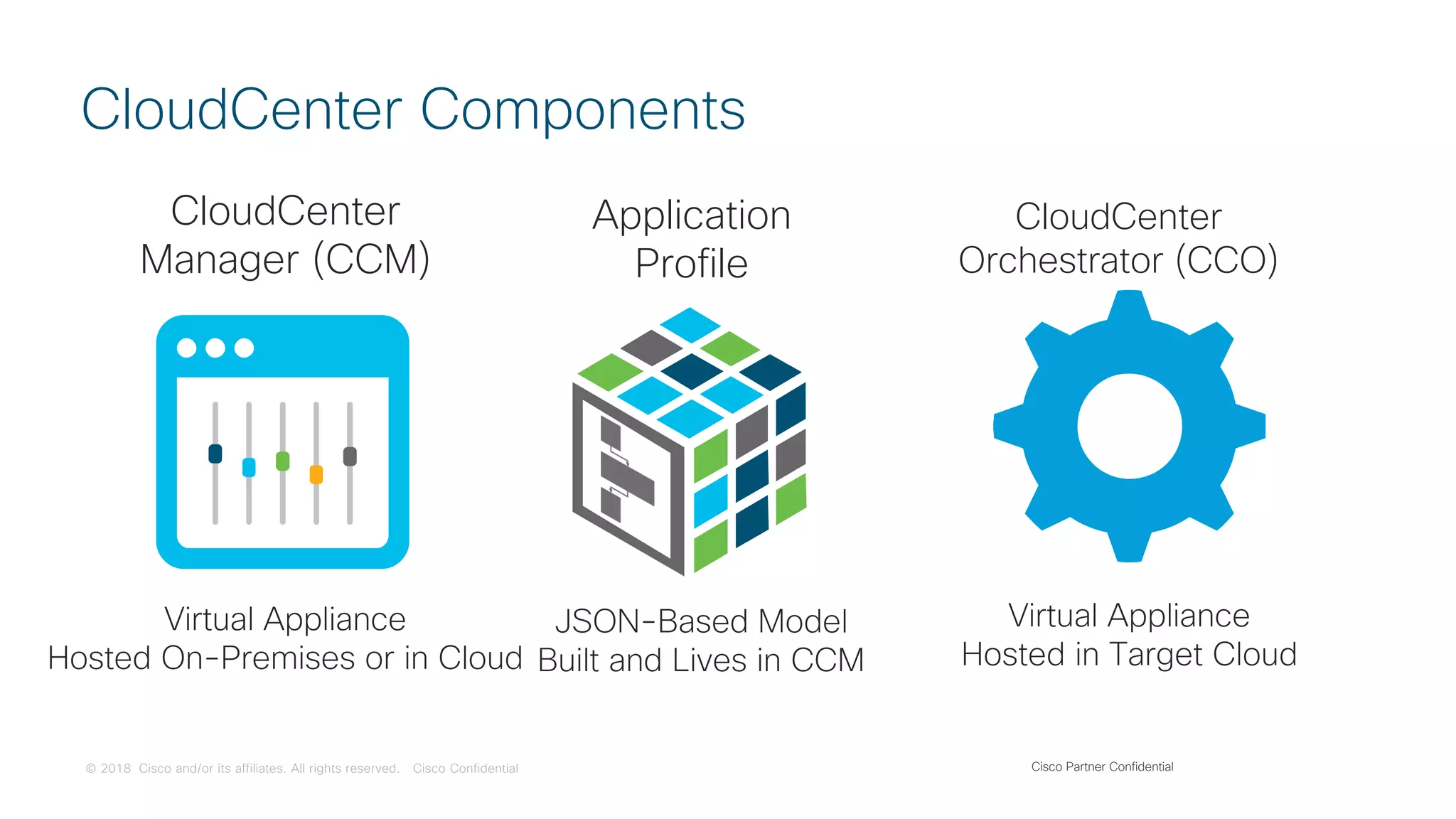

CloudCenter Components
CloudCenter
Manager (CCM)
Application
Profile
CloudCenter
Orchestrator (CCO)
Virtual Appliance
Hosted On-Premises or in Cloud
JSON-Based Model
Built and Lives in CCM
Virtual Appliance
Hosted in Target Cloud
Cisco Partner Confidential

59. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
CloudCenter Components
VM
CO
NTA
INE
R
Cisco Partner Confidential

60. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
CloudCenter Manager Capabilities
CloudCenter
Manager (CCM) Provides:
• UI/API
• Self-Service Catalog
• Role-based access control (RBAC)
• Modeling Tool
• Governance
• Policy Enforcement
• Object Management
Virtual Appliance
Hosted On-Premises or in Cloud
Cisco Partner Confidential

61. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential

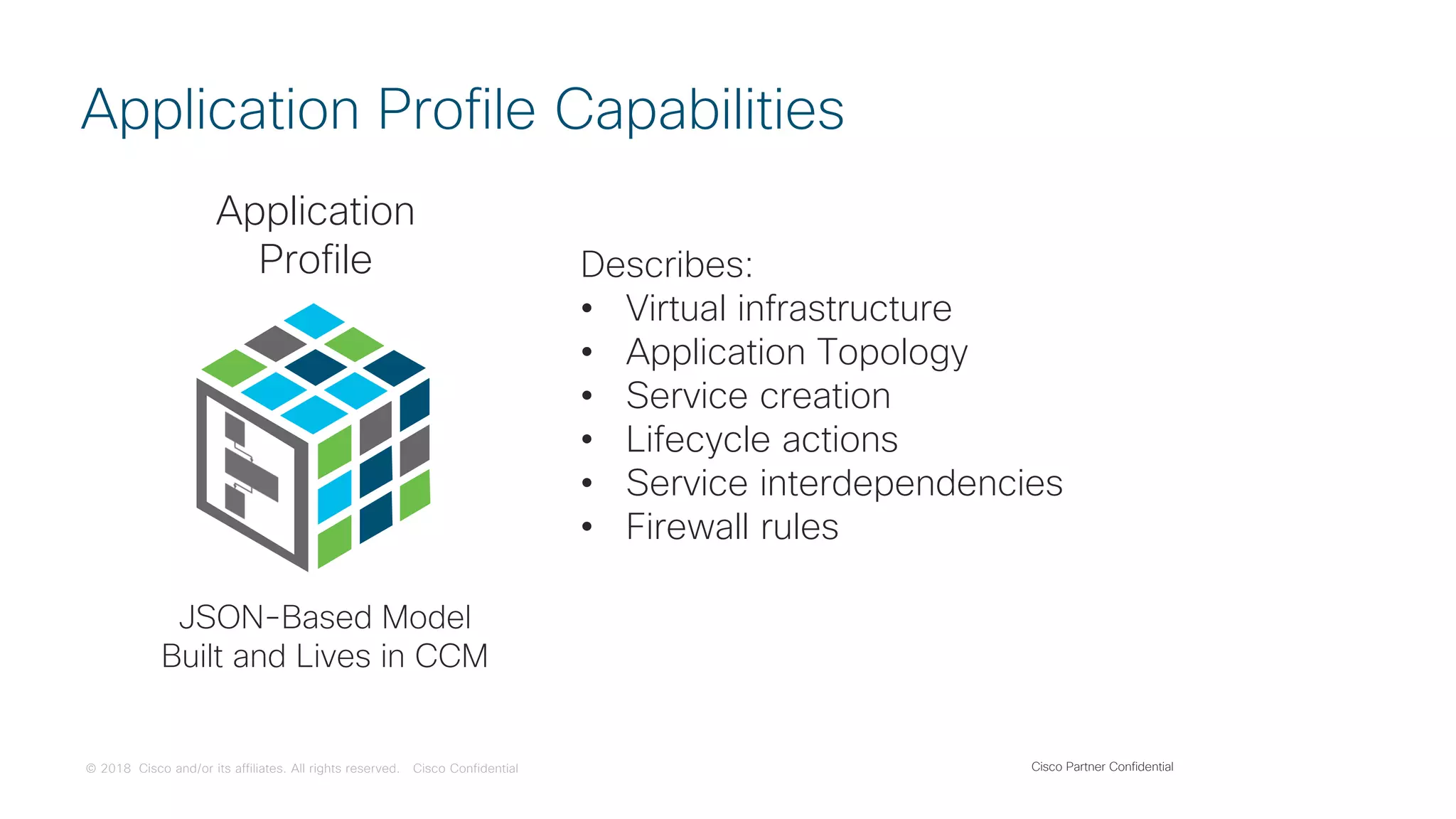

Application Profile Capabilities
Describes:
• Virtual infrastructure
• Application Topology
• Service creation
• Lifecycle actions
• Service interdependencies
• Firewall rules
Application
Profile
JSON-Based Model
Built and Lives in CCM
Cisco Partner Confidential

62. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
Application Profile Capabilities
Executes:
• Translation from Application profile to API
• Virtual infrastructure instantiation
• Cloud-specific objects and security
• Calls to 3rd party tools
• Dynamic agent Installation
CloudCenter
Orchestrator (CCO)
Virtual Appliance
Hosted in Target Cloud
Cisco Partner Confidential

63. © 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential© 2017 Cisco and/or its affiliates. All rights reserved. Cisco Confidential
How CloudCenter is
Different

64. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Public

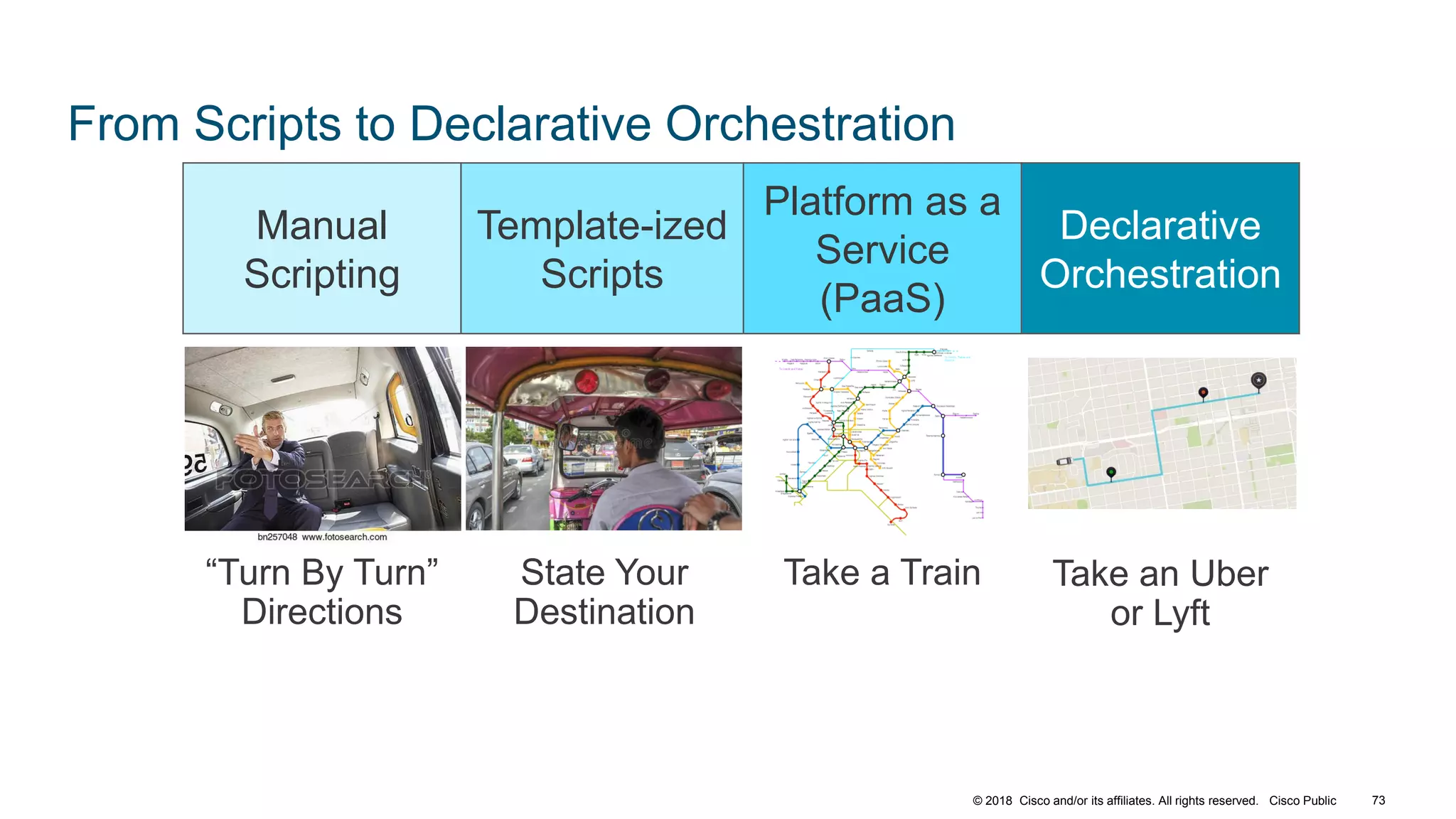

From Scripts to Declarative Orchestration
70
“Turn By Turn”
Directions
Manual
Scripting

65. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Public

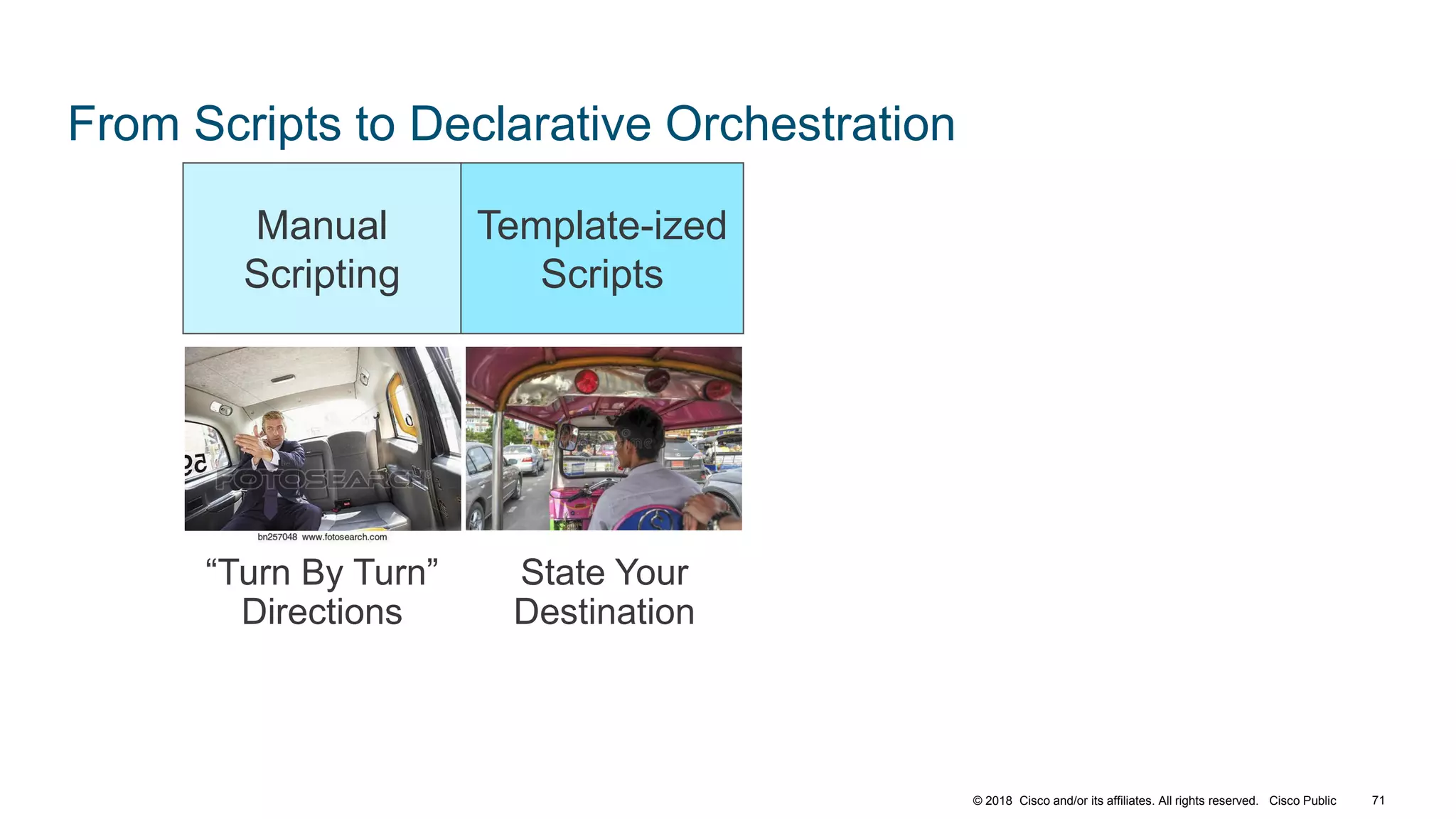

From Scripts to Declarative Orchestration
71
“Turn By Turn”
Directions
State Your
Destination
Manual
Scripting
Template-ized
Scripts

66. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Public
From Scripts to Declarative Orchestration
72
“Turn By Turn”
Directions
State Your
Destination
Take a Train
Manual
Scripting
Template-ized
Scripts
Platform as a
Service
(PaaS)

67. © 2018 Cisco and/or its affiliates. All rights reserved. Cisco Public
From Scripts to Declarative Orchestration
73
“Turn By Turn”
Directions
State Your
Destination
Take a Train Take an Uber
or Lyft
Manual
Scripting
Template-ized
Scripts
Platform as a
Service
(PaaS)
Declarative
Orchestration
