Here is a circuit through which the
speed of a fan can be linearly controlled
automatically, depending
on the room temperature. The circuit is
highly efficient as it uses thyristors for
power control. Alternatively, the same
circuit can be used for automatic temperature
controlled AC power control.
In this circuit, the temperature sensor
used is an NTC thermistor, i.e. one having
a negative temperature coefficient. The
value of thermistor resistance at 25°C is
about 1 kilo-ohm.
Op-amp A1 essentially works as
I to V (current-to-voltage) converter
and converts temperature variations
into voltage variations. To amplify
the change in voltage due to change in
temperature, instrumentation amplifier
formed by op-amps A2, A3 and A4
is used. Resistor R2 and zener diode
D1 combination is used for generating
reference voltage as we want to amplify
only change in voltage due to the
change in temperature.
Op-amp μA741 (IC2) works as a
comparator. One input to the comparator
is the output from the instrumentation
amplifier while the other input
is the stepped down, rectified and
suitably attenuated sample of AC voltage.
This is a negative going pulsating
DC voltage. It will be observed that
with increase in temperature, pin 2 of
IC2 goes more and more negative and
hence the width of the positive going
output pulses (at pin 6) increases linearly
with the temperature. Thus IC2
functions as a pulse width modulator
in this circuit. The output from the
comparator is coupled to an optocoupler,
which in turn controls the AC
power delivered to fan (load).
The circuit has a high sensitivity and
the output RMS voltage (across load) can
be varied from 120V to 230V (for a temp.
range of 22°C to 36°C), and hence wide
variations in speed are available. Also
note that speed varies linearly and not
in steps. Besides, since an optocoupler is
used, the control circuit is fully isolated
from power circuit, thus providing added
safety. Note that for any given temperature
the speed of fan (i.e. voltage across
load) can be adjusted to a desired value
by adjusting potmeters VR1 and VR2
appropriately.
Potmeter VR1 should he initially kept
in its mid position to realise a gain of approximately
40 from the instrumentation
amplifier. It may be subsequently trimmed
slightly to obtain linear variation of the
fan speed.
DESIGN OF TEMPERATURE BASED FAN SPEED CONTROL and MONITORING USING ARDUINORatnesh Kumar chaurasia
This practical temperature controller controls the temperature of any device according to its requirement for any industrial application, it also has a feature of remote speed control.
Temperature based fan speed control & monitoring usingJagannath Dutta
Our object of making this project is for reducing the power consumption. And also to assist people who are disabled and are unable to control the speed of fan.
This paper presents an innovative prototype design of electric fan with smart characteristics. This electric fan uses a microcontroller to produce an automation function. It also has a unique double feature designs, such as using 2 fans, 2 Light Emitting Diodes (LED) and 2 sensors. This is to ensure the cooling process operates more efficiently and effectively, especially for a large space application and in hot weather due to global warming. By applying the circuit, it offers a better life for human. It is really practical for senior citizens to make their life simpler. The circuit is also suitable for disabled people who have difficulty to switch on the fan manually. Lastly, the circuit can be manipulated by diversifying its function as a detector, where it can produce an alarm signal when emergency case occurs such as the house or premise is on fire.
Patient Health Monitoring System Using Arduino & ESP8266Rishav Pandey
Sometimes it happens when patients struggles to find hospital beds but due to high number of covid patients they are forced to stay at home and aren't monitored by any doctor. This Health Monitoring System designed with the help of Arduino UNO board and ESP8266 wifi microchip helps the doctor to monitor the patient remotely (connected via an IoT based platform ThingSpeak). ESP8266 wi-fi microchip is used to provide internet connectivity to our project (or we can connect our project to any wifi using same). The system consists of a pulse sensor and and an LM35 temperature sensor which measures the patient's heart beats per minute and body temperature respectively. The Arduino reads the sensor data, converts them into string, passes them to the IoT platform (ThingSpeak) and also displays the BPM and body temperature on LCD display.
In this way a doctor can remotely monitor the patients and take appropriate actions when required.
Arduino based automatic temperature controlled fan speed regulatorEdgefxkits & Solutions
Using an analog temperature LM35 interfaced to the built in ADC of a programmed Arduino to develop varying duty cycle of PWM output for a driver IC to run a DC motor automatically according to the sensed temperature at different speed based on the temperature sensed.
Here is a circuit through which the
speed of a fan can be linearly controlled
automatically, depending
on the room temperature. The circuit is
highly efficient as it uses thyristors for
power control. Alternatively, the same
circuit can be used for automatic temperature
controlled AC power control.
In this circuit, the temperature sensor
used is an NTC thermistor, i.e. one having
a negative temperature coefficient. The
value of thermistor resistance at 25°C is
about 1 kilo-ohm.
Op-amp A1 essentially works as
I to V (current-to-voltage) converter
and converts temperature variations
into voltage variations. To amplify
the change in voltage due to change in
temperature, instrumentation amplifier
formed by op-amps A2, A3 and A4
is used. Resistor R2 and zener diode
D1 combination is used for generating
reference voltage as we want to amplify
only change in voltage due to the
change in temperature.
Op-amp μA741 (IC2) works as a
comparator. One input to the comparator
is the output from the instrumentation
amplifier while the other input
is the stepped down, rectified and
suitably attenuated sample of AC voltage.
This is a negative going pulsating
DC voltage. It will be observed that
with increase in temperature, pin 2 of
IC2 goes more and more negative and
hence the width of the positive going
output pulses (at pin 6) increases linearly
with the temperature. Thus IC2
functions as a pulse width modulator
in this circuit. The output from the
comparator is coupled to an optocoupler,
which in turn controls the AC
power delivered to fan (load).
The circuit has a high sensitivity and
the output RMS voltage (across load) can
be varied from 120V to 230V (for a temp.
range of 22°C to 36°C), and hence wide
variations in speed are available. Also
note that speed varies linearly and not
in steps. Besides, since an optocoupler is
used, the control circuit is fully isolated
from power circuit, thus providing added
safety. Note that for any given temperature
the speed of fan (i.e. voltage across
load) can be adjusted to a desired value
by adjusting potmeters VR1 and VR2
appropriately.
Potmeter VR1 should he initially kept
in its mid position to realise a gain of approximately
40 from the instrumentation
amplifier. It may be subsequently trimmed
slightly to obtain linear variation of the
fan speed.
DESIGN OF TEMPERATURE BASED FAN SPEED CONTROL and MONITORING USING ARDUINORatnesh Kumar chaurasia
This practical temperature controller controls the temperature of any device according to its requirement for any industrial application, it also has a feature of remote speed control.
Temperature based fan speed control & monitoring usingJagannath Dutta
Our object of making this project is for reducing the power consumption. And also to assist people who are disabled and are unable to control the speed of fan.
This paper presents an innovative prototype design of electric fan with smart characteristics. This electric fan uses a microcontroller to produce an automation function. It also has a unique double feature designs, such as using 2 fans, 2 Light Emitting Diodes (LED) and 2 sensors. This is to ensure the cooling process operates more efficiently and effectively, especially for a large space application and in hot weather due to global warming. By applying the circuit, it offers a better life for human. It is really practical for senior citizens to make their life simpler. The circuit is also suitable for disabled people who have difficulty to switch on the fan manually. Lastly, the circuit can be manipulated by diversifying its function as a detector, where it can produce an alarm signal when emergency case occurs such as the house or premise is on fire.
Patient Health Monitoring System Using Arduino & ESP8266Rishav Pandey
Sometimes it happens when patients struggles to find hospital beds but due to high number of covid patients they are forced to stay at home and aren't monitored by any doctor. This Health Monitoring System designed with the help of Arduino UNO board and ESP8266 wifi microchip helps the doctor to monitor the patient remotely (connected via an IoT based platform ThingSpeak). ESP8266 wi-fi microchip is used to provide internet connectivity to our project (or we can connect our project to any wifi using same). The system consists of a pulse sensor and and an LM35 temperature sensor which measures the patient's heart beats per minute and body temperature respectively. The Arduino reads the sensor data, converts them into string, passes them to the IoT platform (ThingSpeak) and also displays the BPM and body temperature on LCD display.
In this way a doctor can remotely monitor the patients and take appropriate actions when required.
Arduino based automatic temperature controlled fan speed regulatorEdgefxkits & Solutions
Using an analog temperature LM35 interfaced to the built in ADC of a programmed Arduino to develop varying duty cycle of PWM output for a driver IC to run a DC motor automatically according to the sensed temperature at different speed based on the temperature sensed.
Automation becomes a very basic need in any industry. Every available sensors are used to detect desired physical quantity and it must be control. In this presentation, how the temperature is measured using sensor and control using micro controller is described.
Parameter controlling of boiler in power plants using fuzzy logic controllereSAT Journals
Abstract Boilers are used industrially both for electric power generation and for supplying process stream in thermal power plants and its control is very important in many field applications. In some situation conventional PID control technique is being used for control purpose. These conventional controllers are not well suitable for some unusual conditions like load disturbances. Fuzzy logic control technique is being used to overcome these problems. A closed loop control system incorporating fuzzy logic has been developed for a class of industrial control systems. A unique fuzzy logic controller (FLC) structured with an efficient realization and a small rule base that can be easily implemented in existing industrial controllers. Fuzzy logic control system is much closer to human thinking and natural language than traditional control systems. This paper describes a fuzzy control technique and its implementation in boiler controls. Here a PIC microcontroller is being used where fuzzy control algorithm is implemented. Keywords: Fuzzy logic control, fuzzy logic controller, boiler controls, PIC microcontroller
Job Seeker - a database for applications being made by students on an online portal where jobs from various companies have been posted. Implemented using HTML, CSS, PHP and SQL.
Final Semester project on Leveraging Data Analysis for Sales Department using prescriptive and predictive analytics. Predictive analytics using Neural Network and Logistic Regression in R language.
Analyzing Nike's products and promotional strategies.
The presentation can be viewed with audio on Youtube. https://www.youtube.com/watch?v=vKVO8P7x7Bc
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Forklift Classes Overview by Intella PartsIntella Parts
Discover the different forklift classes and their specific applications. Learn how to choose the right forklift for your needs to ensure safety, efficiency, and compliance in your operations.
For more technical information, visit our website https://intellaparts.com
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSEDuvanRamosGarzon1
AIRCRAFT GENERAL
The Single Aisle is the most advanced family aircraft in service today, with fly-by-wire flight controls.
The A318, A319, A320 and A321 are twin-engine subsonic medium range aircraft.
The family offers a choice of engines
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfKamal Acharya
The College Bus Management system is completely developed by Visual Basic .NET Version. The application is connect with most secured database language MS SQL Server. The application is develop by using best combination of front-end and back-end languages. The application is totally design like flat user interface. This flat user interface is more attractive user interface in 2017. The application is gives more important to the system functionality. The application is to manage the student’s details, driver’s details, bus details, bus route details, bus fees details and more. The application has only one unit for admin. The admin can manage the entire application. The admin can login into the application by using username and password of the admin. The application is develop for big and small colleges. It is more user friendly for non-computer person. Even they can easily learn how to manage the application within hours. The application is more secure by the admin. The system will give an effective output for the VB.Net and SQL Server given as input to the system. The compiled java program given as input to the system, after scanning the program will generate different reports. The application generates the report for users. The admin can view and download the report of the data. The application deliver the excel format reports. Because, excel formatted reports is very easy to understand the income and expense of the college bus. This application is mainly develop for windows operating system users. In 2017, 73% of people enterprises are using windows operating system. So the application will easily install for all the windows operating system users. The application-developed size is very low. The application consumes very low space in disk. Therefore, the user can allocate very minimum local disk space for this application.
Vaccine management system project report documentation..pdfKamal Acharya
The Division of Vaccine and Immunization is facing increasing difficulty monitoring vaccines and other commodities distribution once they have been distributed from the national stores. With the introduction of new vaccines, more challenges have been anticipated with this additions posing serious threat to the already over strained vaccine supply chain system in Kenya.
Quality defects in TMT Bars, Possible causes and Potential Solutions.PrashantGoswami42
Maintaining high-quality standards in the production of TMT bars is crucial for ensuring structural integrity in construction. Addressing common defects through careful monitoring, standardized processes, and advanced technology can significantly improve the quality of TMT bars. Continuous training and adherence to quality control measures will also play a pivotal role in minimizing these defects.
4. The proposed system i.e. temperature controlled fan
using microcontroller will be used to control the
speed of the fan according to the temperature and
specify the temperature in the display.
AIM
5. • Domain: Embedded Systems
• Application Area: Automation
• Purpose of Work: Conversion of a manual fan to
an automatic speed controlled fan according to the
temperature
7. Required Components
• ATmega8
• Temperature sensor (LM35)
• L293D motor driver
• Crystal Oscillator
• DC motor/fan
• LCD
• Power supply

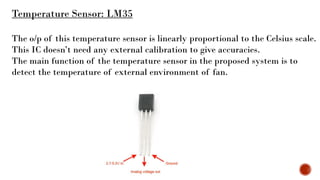

8. Temperature Sensor: LM35
The o/p of this temperature sensor is linearly proportional to the Celsius scale.
This IC doesn’t need any external calibration to give accuracies.
The main function of the temperature sensor in the proposed system is to
detect the temperature of external environment of fan.
9. ATmega8
ATmega8 microcontroller has 23 programmable input/output (I/O) pins which can be used
for interfacing with external world. It is possible to configure them as input or output by
setting a particular register value through programming. This IC comes in 3 different
packages, but we are using the popular 28-Pin PDIP package (Atmega8-16PU). The 23
I/O ports of ATmega8 are organised into 3 groups: Port B (PB0 to PB7) Port C (PC0 to
PC6) Port D (PD0 to PD7).

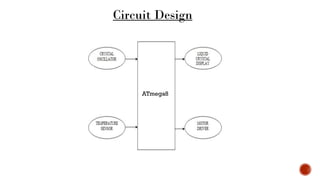

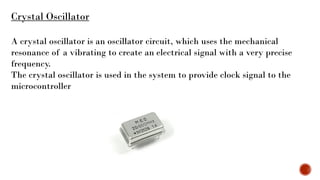

11. Crystal Oscillator
A crystal oscillator is an oscillator circuit, which uses the mechanical
resonance of a vibrating to create an electrical signal with a very precise
frequency.
The crystal oscillator is used in the system to provide clock signal to the
microcontroller

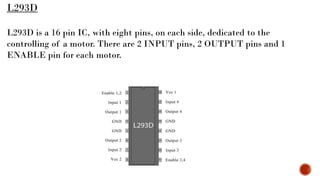

12. L293D
L293D is a 16 pin IC, with eight pins, on each side, dedicated to the
controlling of a motor. There are 2 INPUT pins, 2 OUTPUT pins and 1
ENABLE pin for each motor.

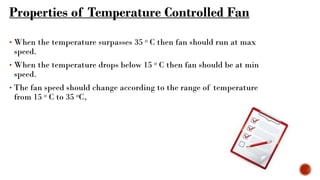

13. Properties of Temperature Controlled Fan
• When the temperature surpasses 35 ᵒ C then fan should run at max
speed.
• When the temperature drops below 15 ᵒ C then fan should be at min
speed.
• The fan speed should change according to the range of temperature
from 15 ᵒ C to 35 ᵒC,
15. • Replace the manually operated fans by automatic temperature
sensor fans
• The applications of the temperature controlled fan includes where
the consumption of power has to be controlled such as firms,
institutes, organizations, home appliance, in computers to cool
the processor.
• Furthermore this project can be enhanced by interfacing it with
air conditioners.
