This document discusses task allocation and scheduling in a multi-processor environment. It describes generating synthetic tasks and assigning them priorities using static and dynamic scheduling algorithms like Rate Monotonic and Earliest Deadline First. It then covers allocating tasks to processors using algorithms like Next Fit and Bin Packing to optimize processor utilization. The goal is to schedule tasks dynamically in a multi-processor system to improve performance over uniprocessor scheduling.

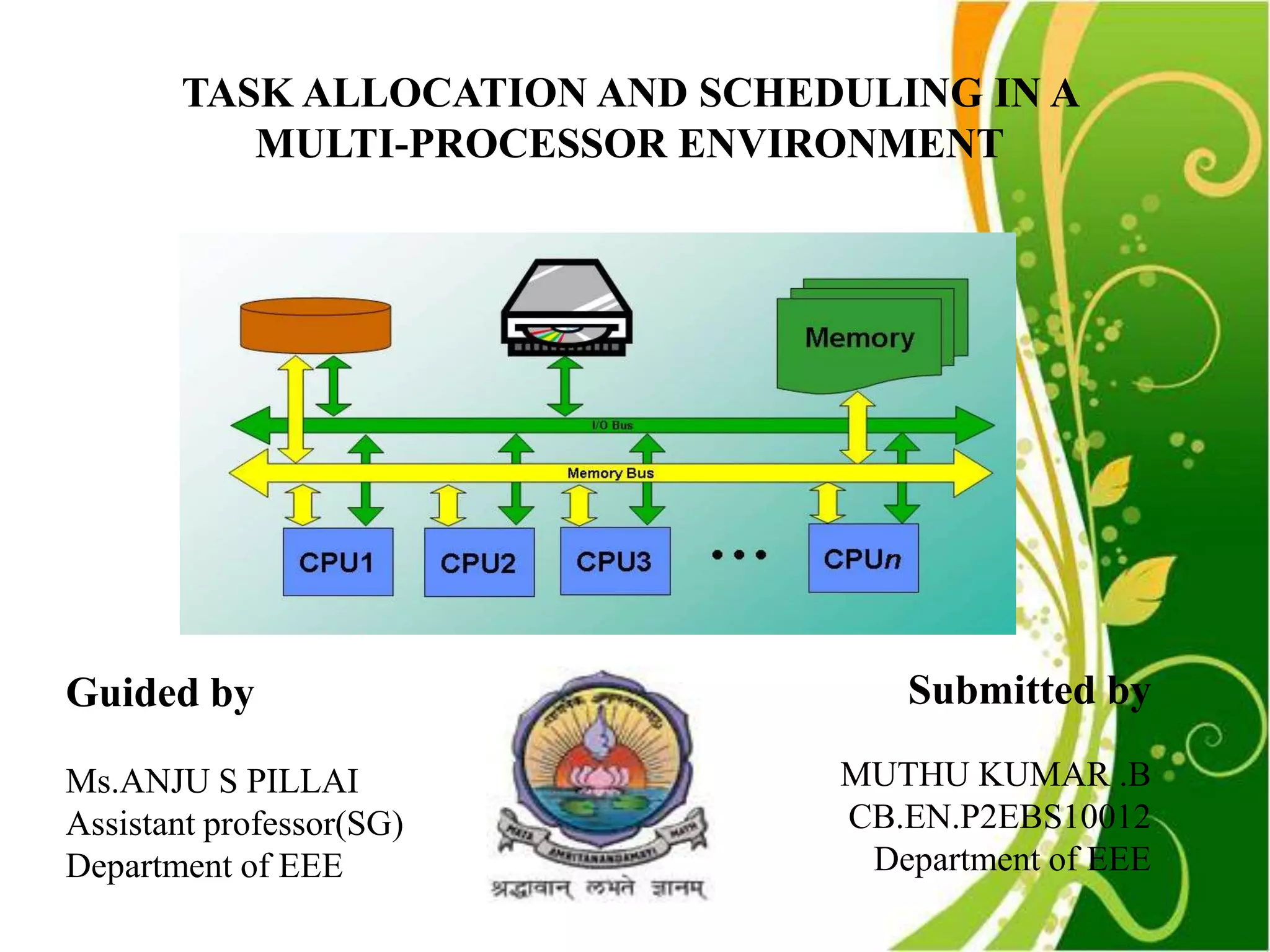

1. TASK ALLOCATION AND SCHEDULING IN A
MULTI-PROCESSOR ENVIRONMENT
Guided by Submitted by
Ms.ANJU S PILLAI MUTHU KUMAR .B
Assistant professor(SG) CB.EN.P2EBS10012
Department of EEE Department of EEE

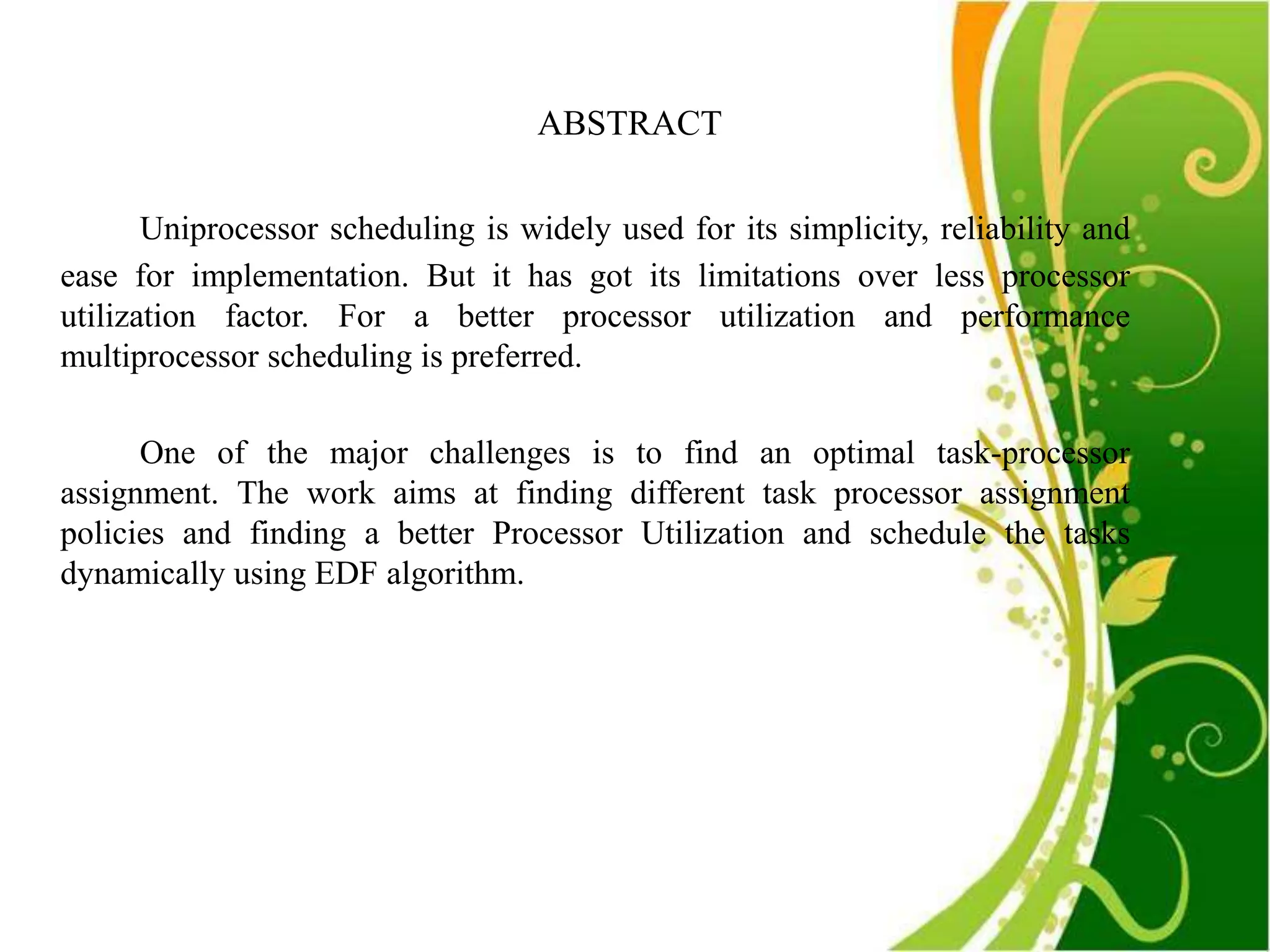

2. ABSTRACT
Uniprocessor scheduling is widely used for its simplicity, reliability and
ease for implementation. But it has got its limitations over less processor
utilization factor. For a better processor utilization and performance
multiprocessor scheduling is preferred.
One of the major challenges is to find an optimal task-processor
assignment. The work aims at finding different task processor assignment
policies and finding a better Processor Utilization and schedule the tasks
dynamically using EDF algorithm.

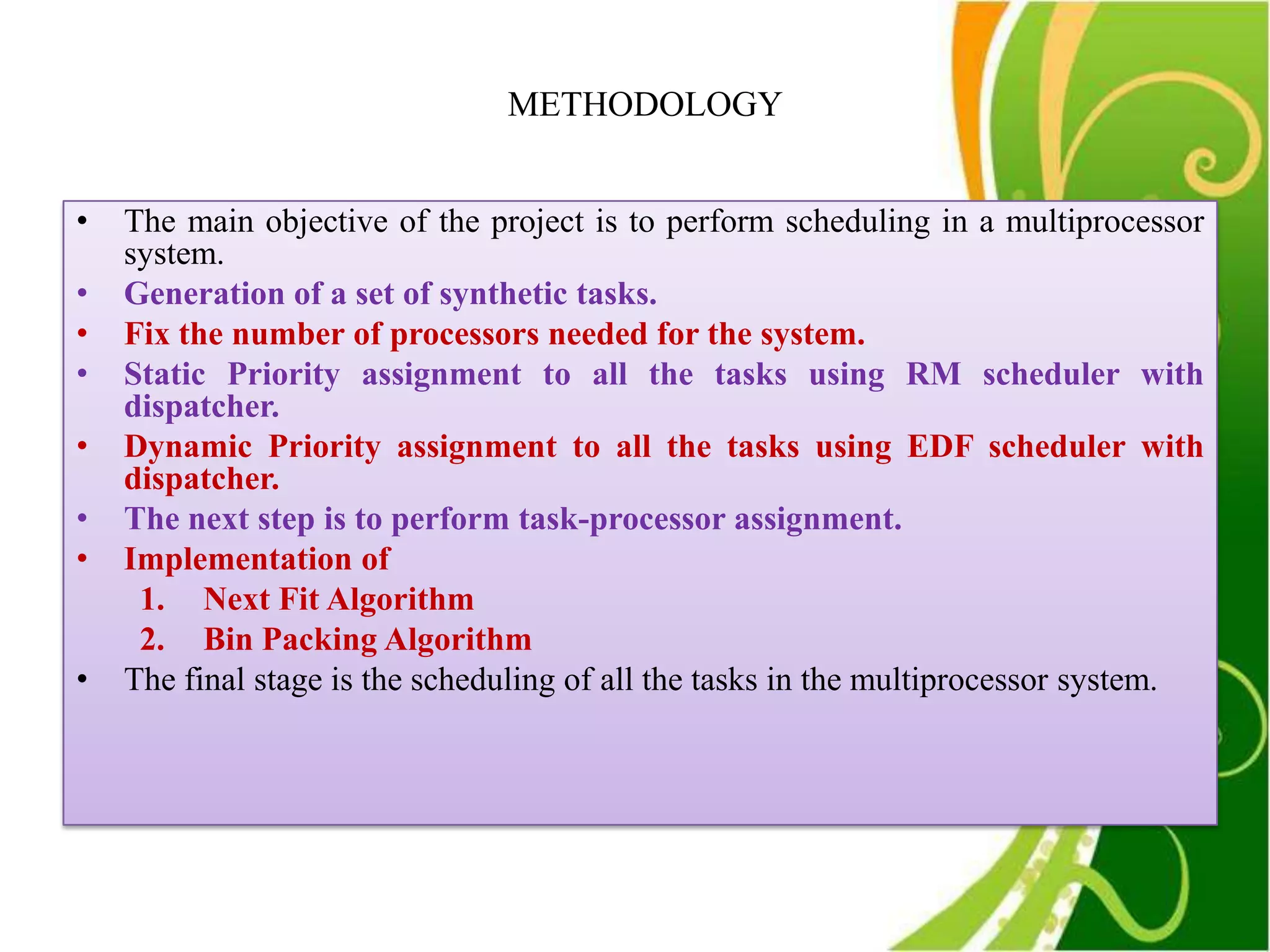

3. METHODOLOGY
• The main objective of the project is to perform scheduling in a multiprocessor
system.
• Generation of a set of synthetic tasks.
• Fix the number of processors needed for the system.
• Static Priority assignment to all the tasks using RM scheduler with
dispatcher.
• Dynamic Priority assignment to all the tasks using EDF scheduler with
dispatcher.
• The next step is to perform task-processor assignment.
• Implementation of
1. Next Fit Algorithm
2. Bin Packing Algorithm
• The final stage is the scheduling of all the tasks in the multiprocessor system.

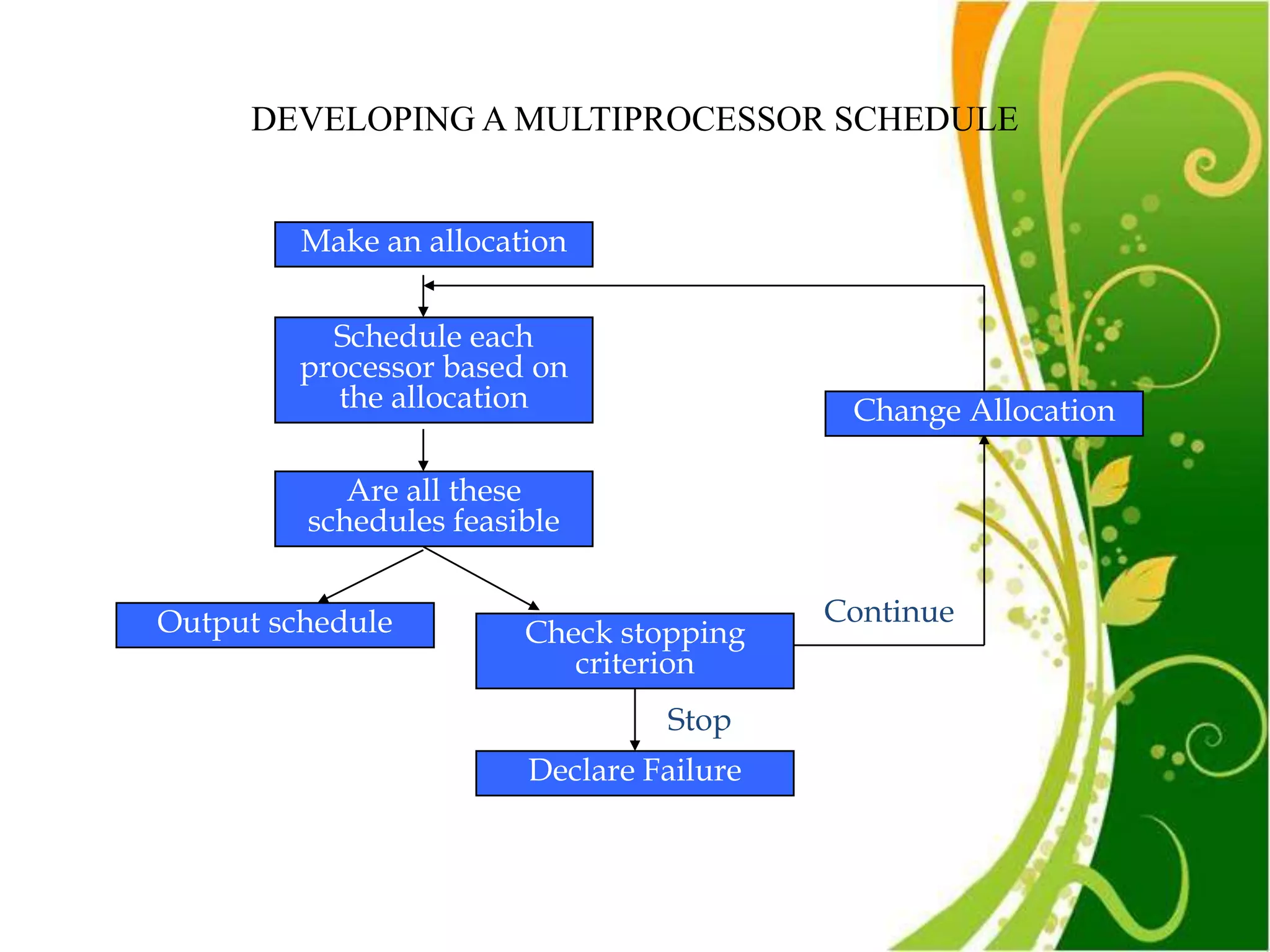

4. DEVELOPING A MULTIPROCESSOR SCHEDULE
Make an allocation
Schedule each
processor based on
the allocation Change Allocation
Are all these
schedules feasible
Output schedule Continue
Check stopping
criterion
Stop
Declare Failure

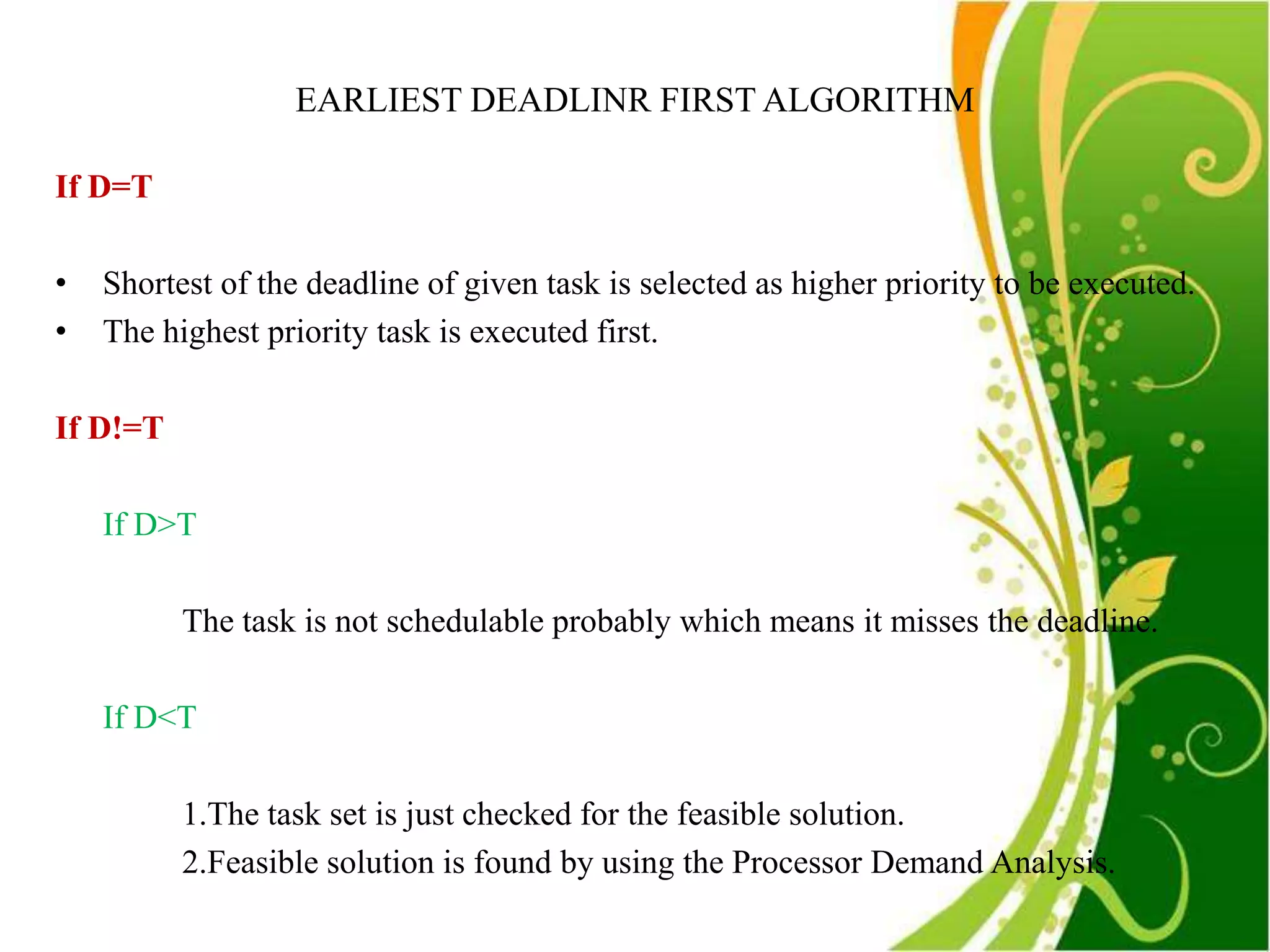

5. EARLIEST DEADLINR FIRST ALGORITHM
If D=T
• Shortest of the deadline of given task is selected as higher priority to be executed.
• The highest priority task is executed first.
If D!=T
If D>T
The task is not schedulable probably which means it misses the deadline.
If D<T
1.The task set is just checked for the feasible solution.
2.Feasible solution is found by using the Processor Demand Analysis.

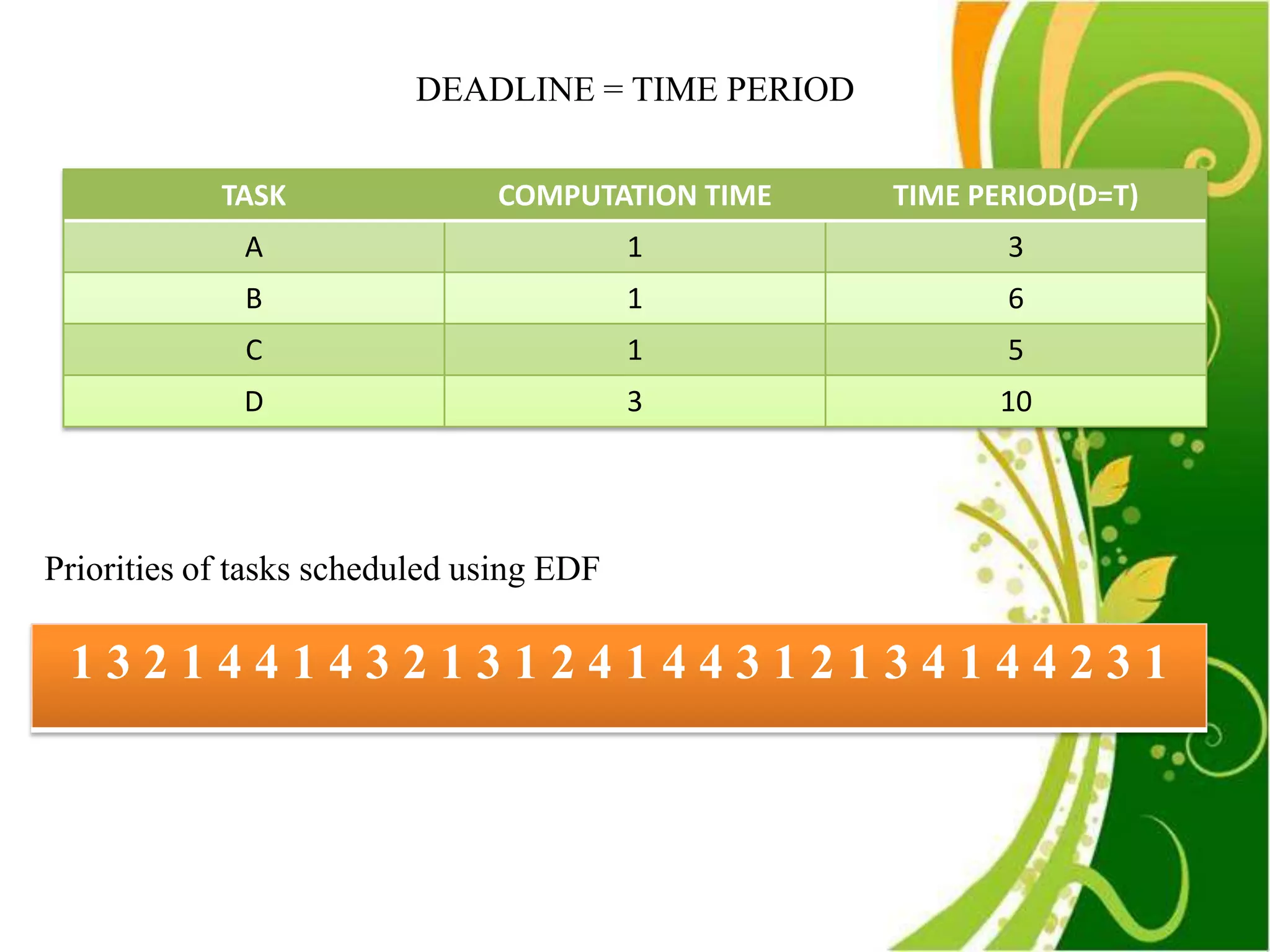

6. DEADLINE = TIME PERIOD
TASK COMPUTATION TIME TIME PERIOD(D=T)
A 1 3
B 1 6
C 1 5
D 3 10
Priorities of tasks scheduled using EDF
132144143213124144312134144231

7. EARLIEST DEADLINE FIRST ALGORITHM ( EDF )

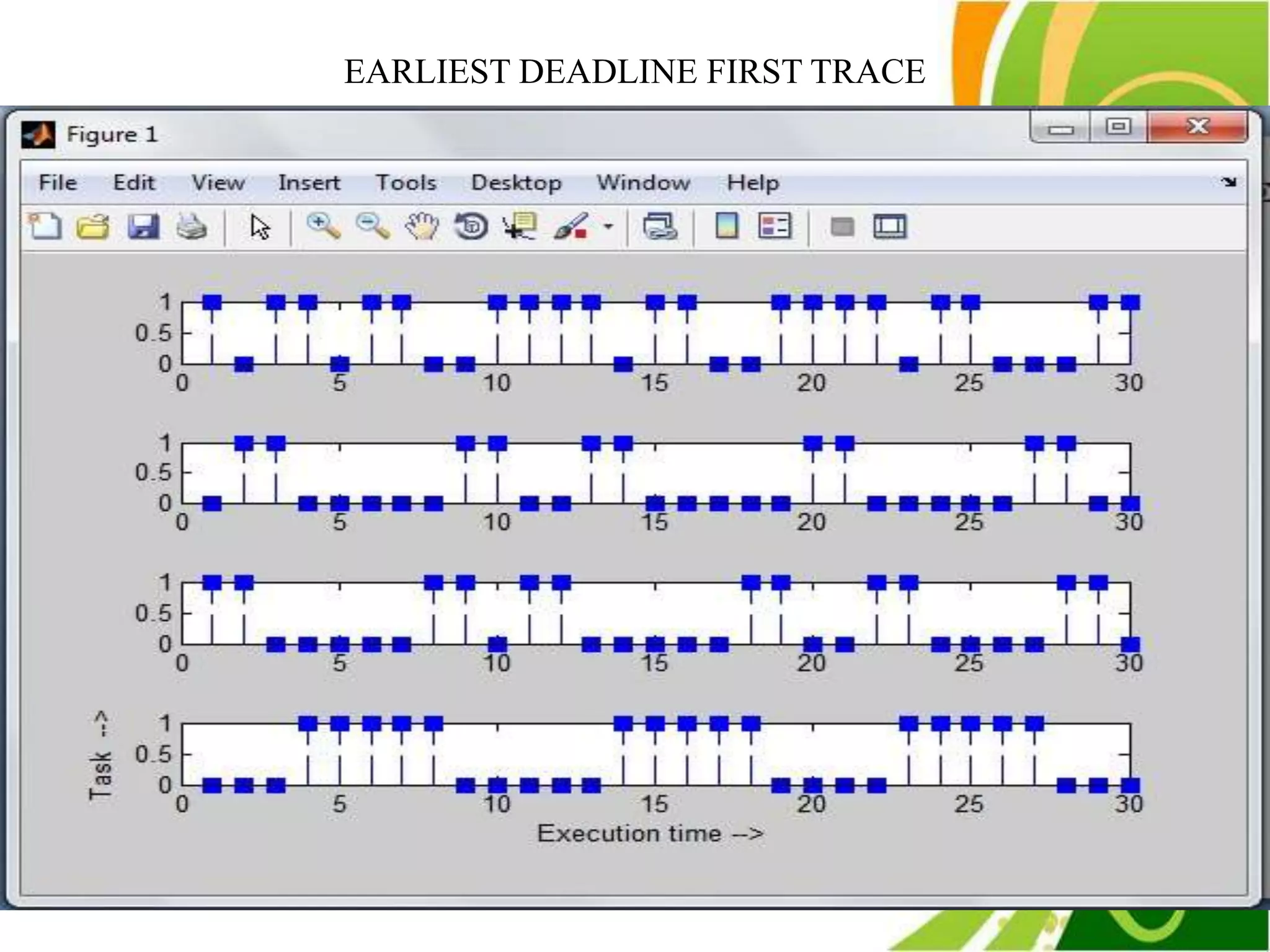

9. EARLIEST DEADLINE FIRST TRACE

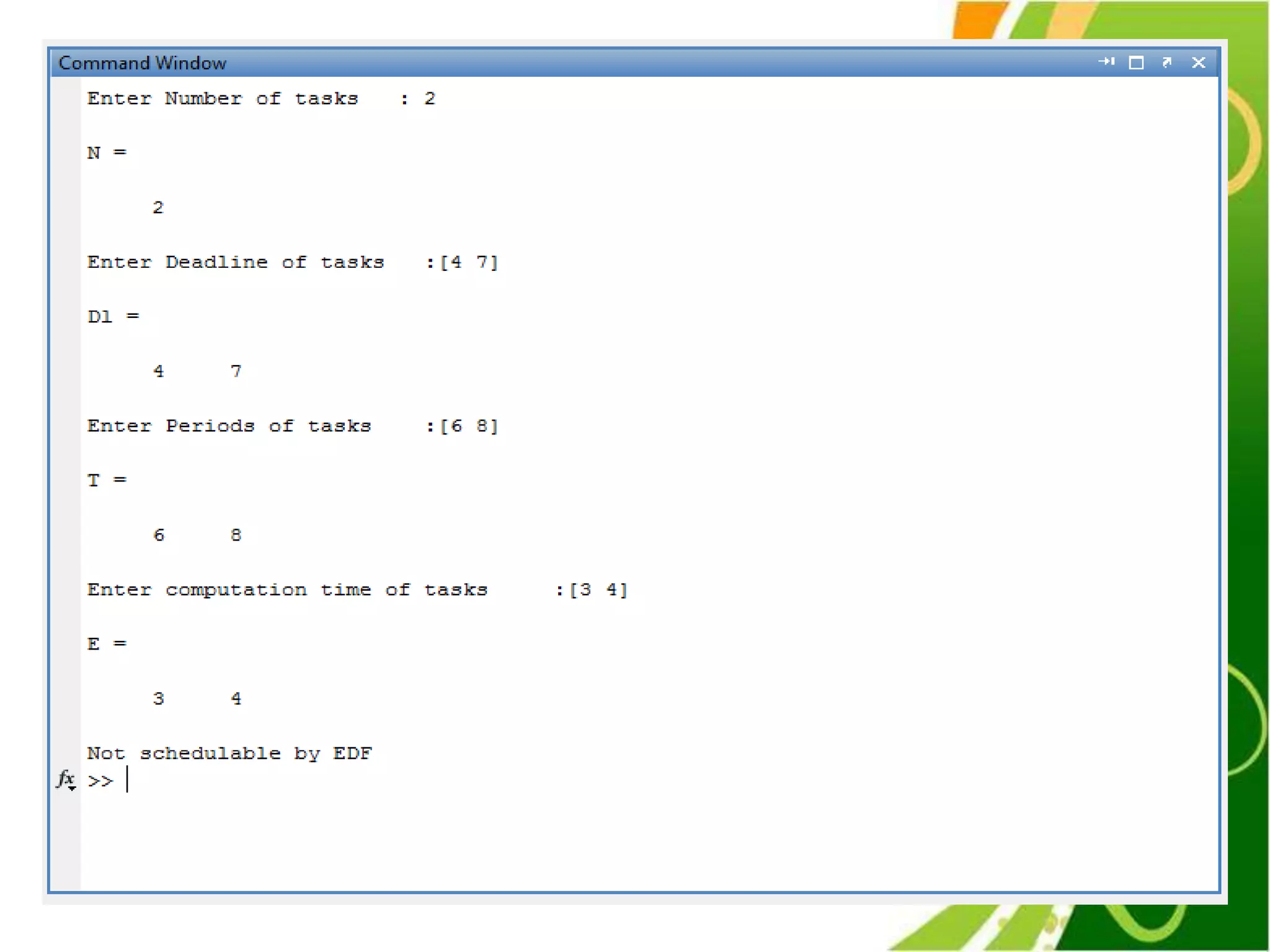

10. DEADLINE < TIME PERIOD
TASK COMPUTATION DEADLINE TIME PERIOD(D=T)
TIME
A 3 4 6
B 4 7 8
Priorities of tasks scheduled using EDF
Deadline Miss !
1 2 1 2 …..
Hence not schedulable.

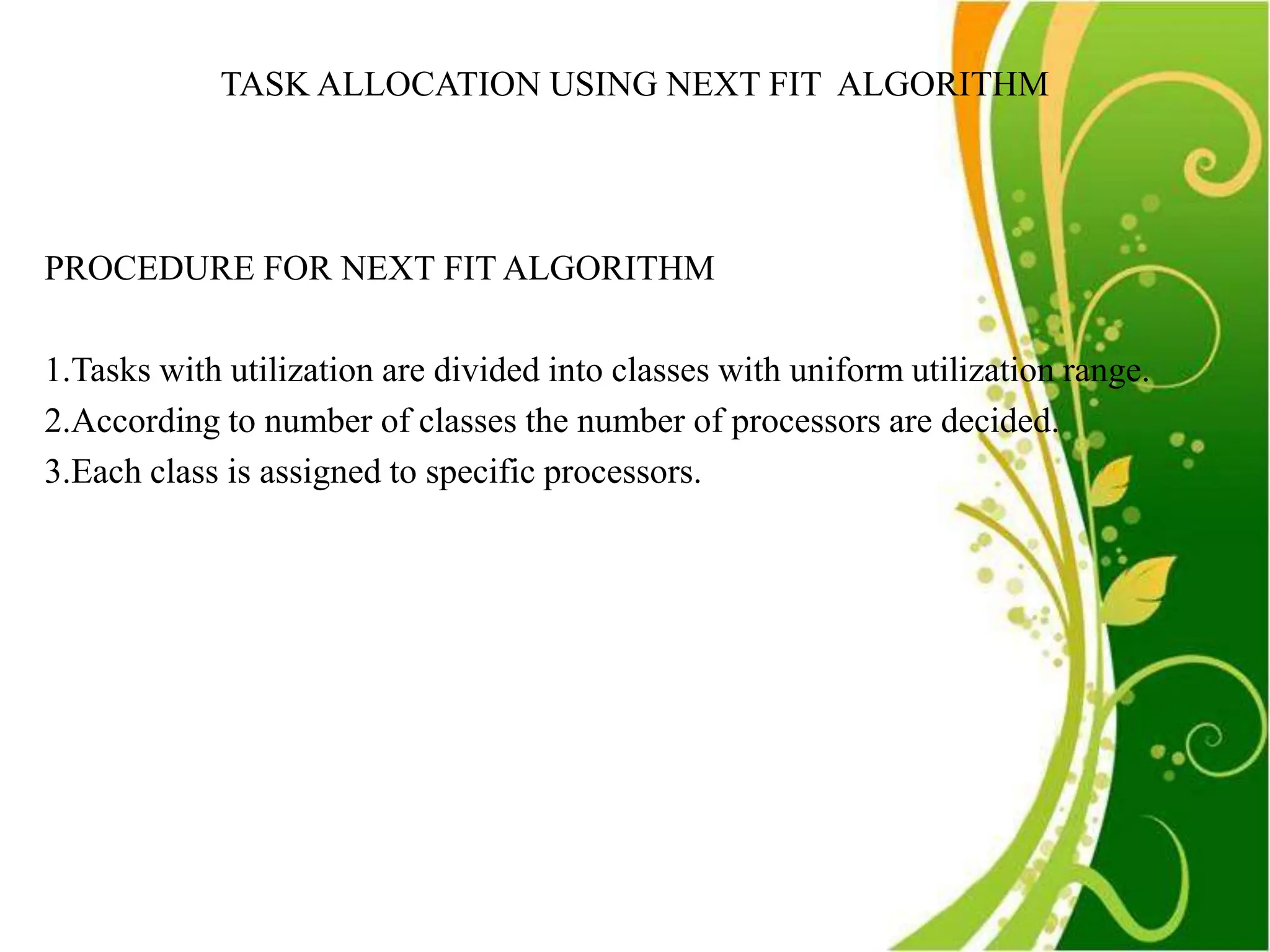

12. TASK ALLOCATION USING NEXT FIT ALGORITHM
PROCEDURE FOR NEXT FIT ALGORITHM
1.Tasks with utilization are divided into classes with uniform utilization range.
2.According to number of classes the number of processors are decided.
3.Each class is assigned to specific processors.

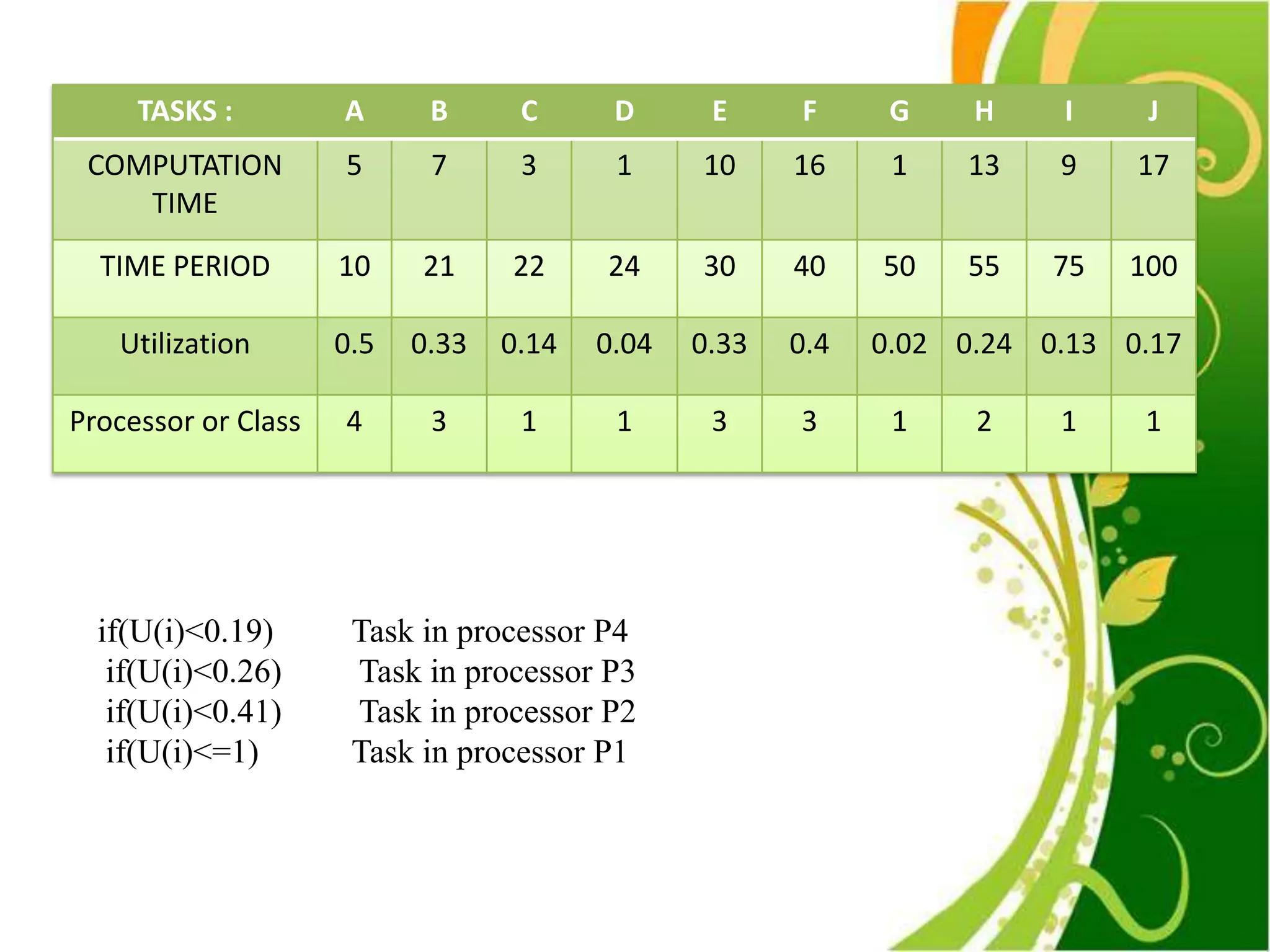

13. TASKS : A B C D E F G H I J
COMPUTATION 5 7 3 1 10 16 1 13 9 17
TIME
TIME PERIOD 10 21 22 24 30 40 50 55 75 100
Utilization 0.5 0.33 0.14 0.04 0.33 0.4 0.02 0.24 0.13 0.17
Processor or Class 4 3 1 1 3 3 1 2 1 1
if(U(i)<0.19) Task in processor P4
if(U(i)<0.26) Task in processor P3
if(U(i)<0.41) Task in processor P2
if(U(i)<=1) Task in processor P1

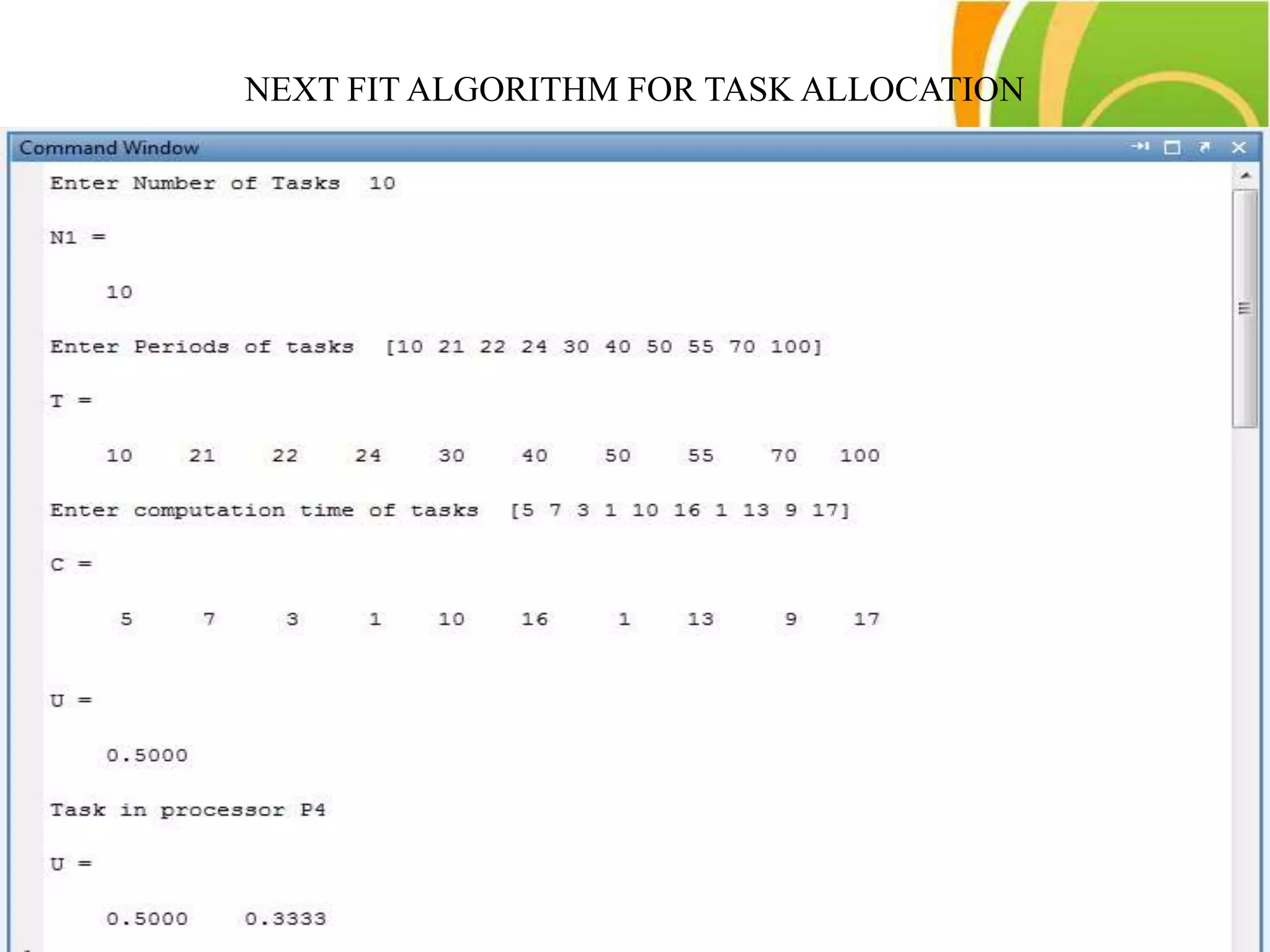

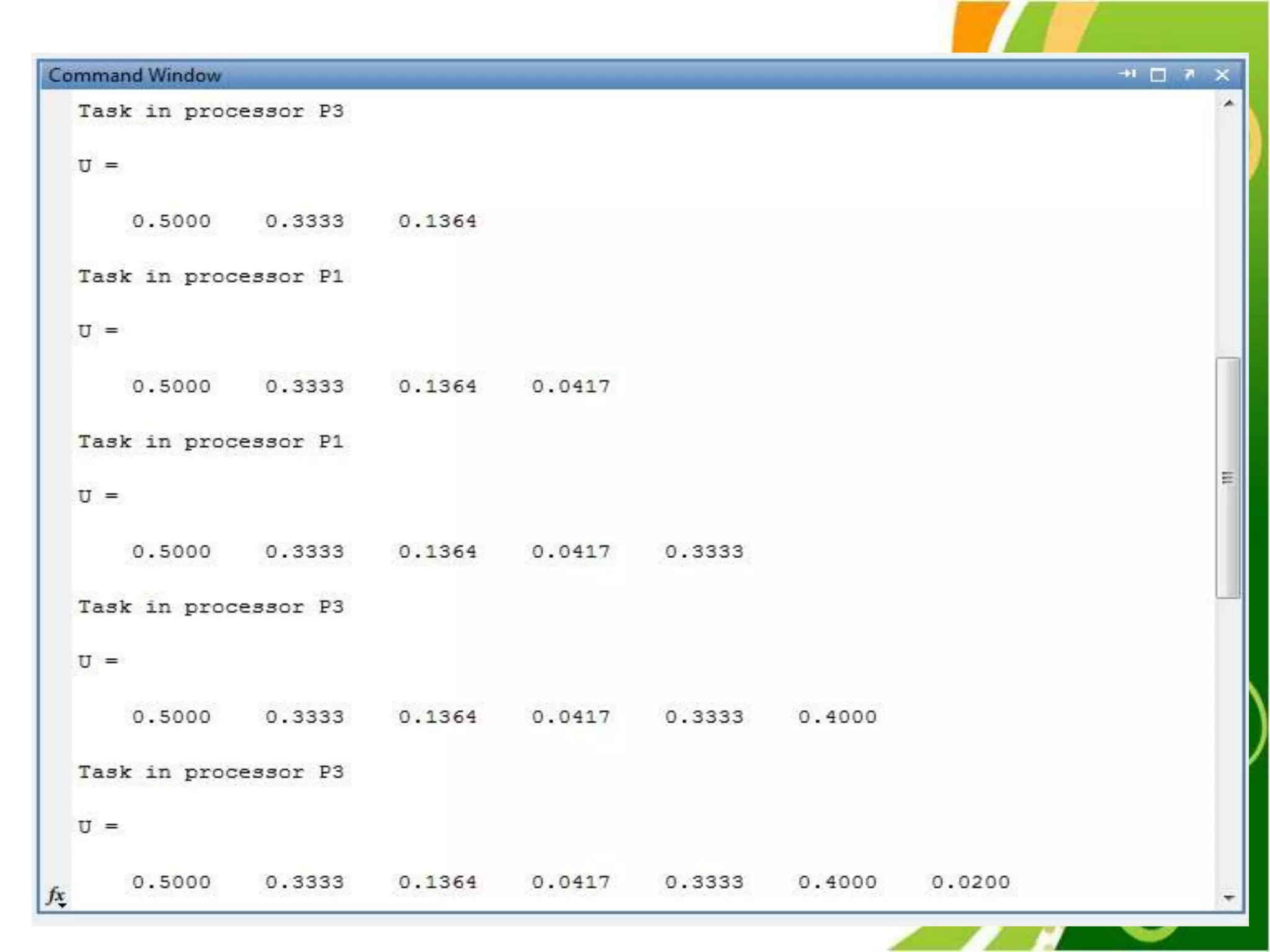

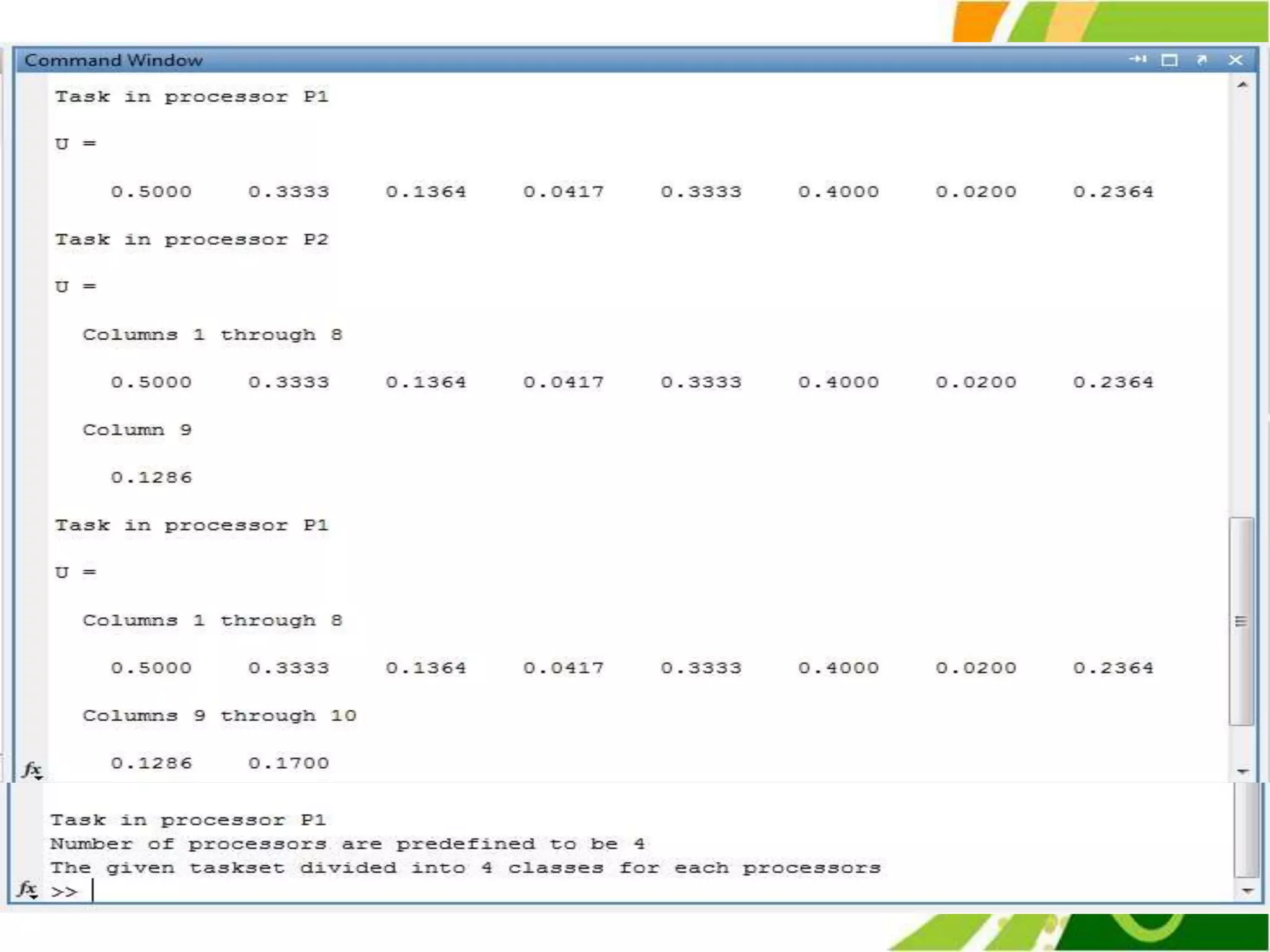

14. NEXT FIT ALGORITHM FOR TASK ALLOCATION

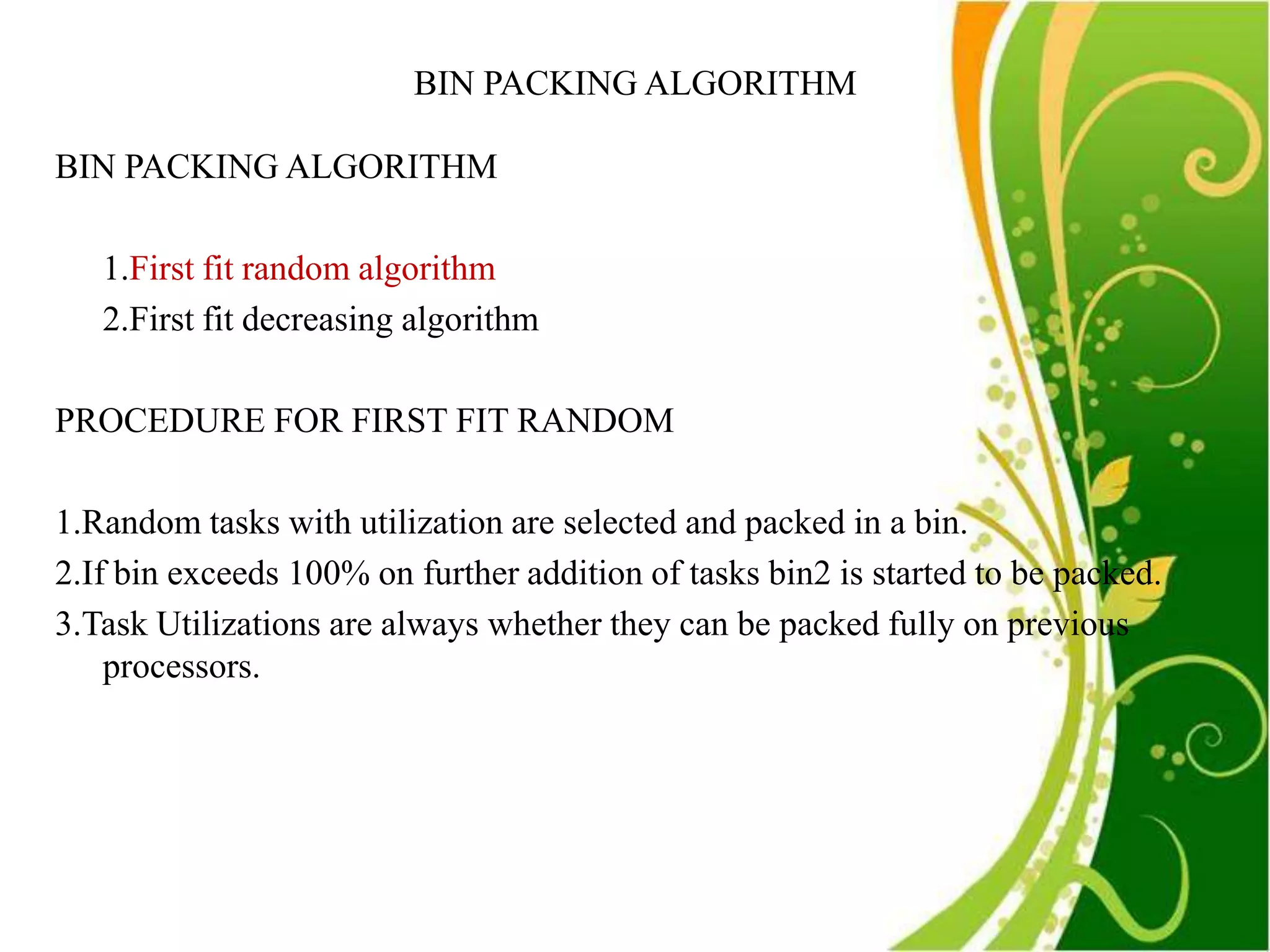

17. BIN PACKING ALGORITHM
BIN PACKING ALGORITHM
1.First fit random algorithm
2.First fit decreasing algorithm
PROCEDURE FOR FIRST FIT RANDOM
1.Random tasks with utilization are selected and packed in a bin.
2.If bin exceeds 100% on further addition of tasks bin2 is started to be packed.
3.Task Utilizations are always whether they can be packed fully on previous
processors.

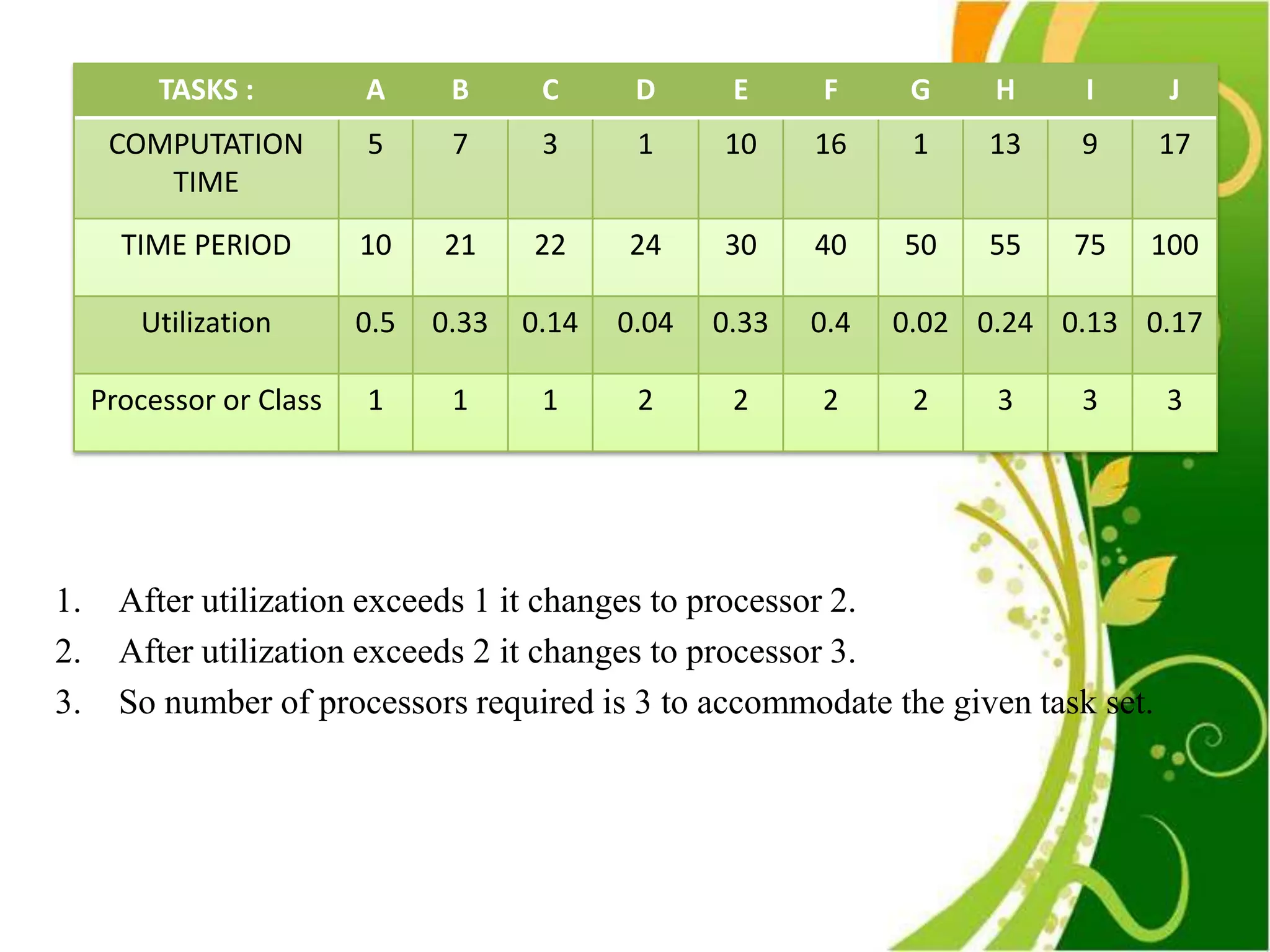

18. TASKS : A B C D E F G H I J
COMPUTATION 5 7 3 1 10 16 1 13 9 17
TIME
TIME PERIOD 10 21 22 24 30 40 50 55 75 100
Utilization 0.5 0.33 0.14 0.04 0.33 0.4 0.02 0.24 0.13 0.17
Processor or Class 1 1 1 2 2 2 2 3 3 3
1. After utilization exceeds 1 it changes to processor 2.
2. After utilization exceeds 2 it changes to processor 3.
3. So number of processors required is 3 to accommodate the given task set.

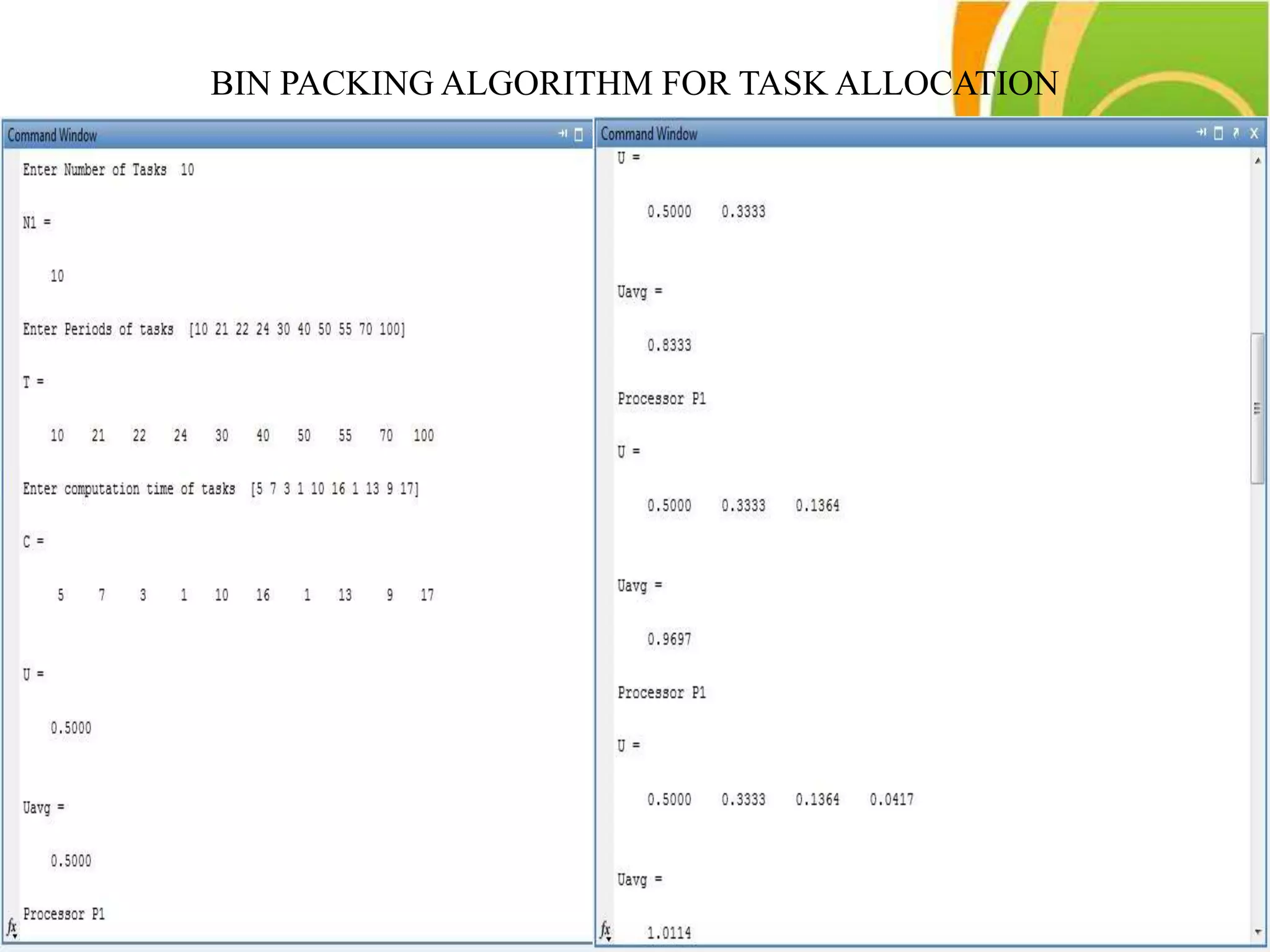

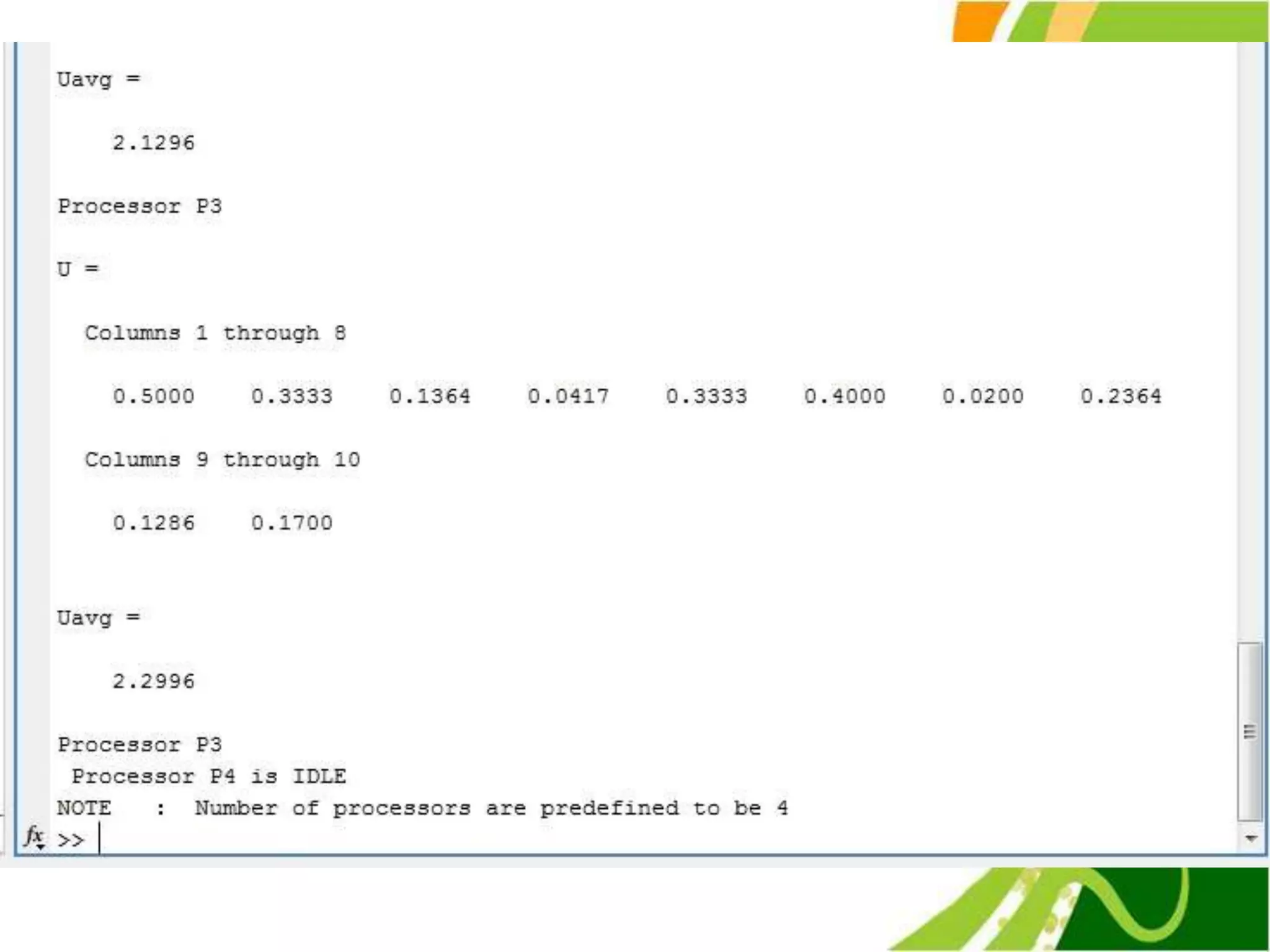

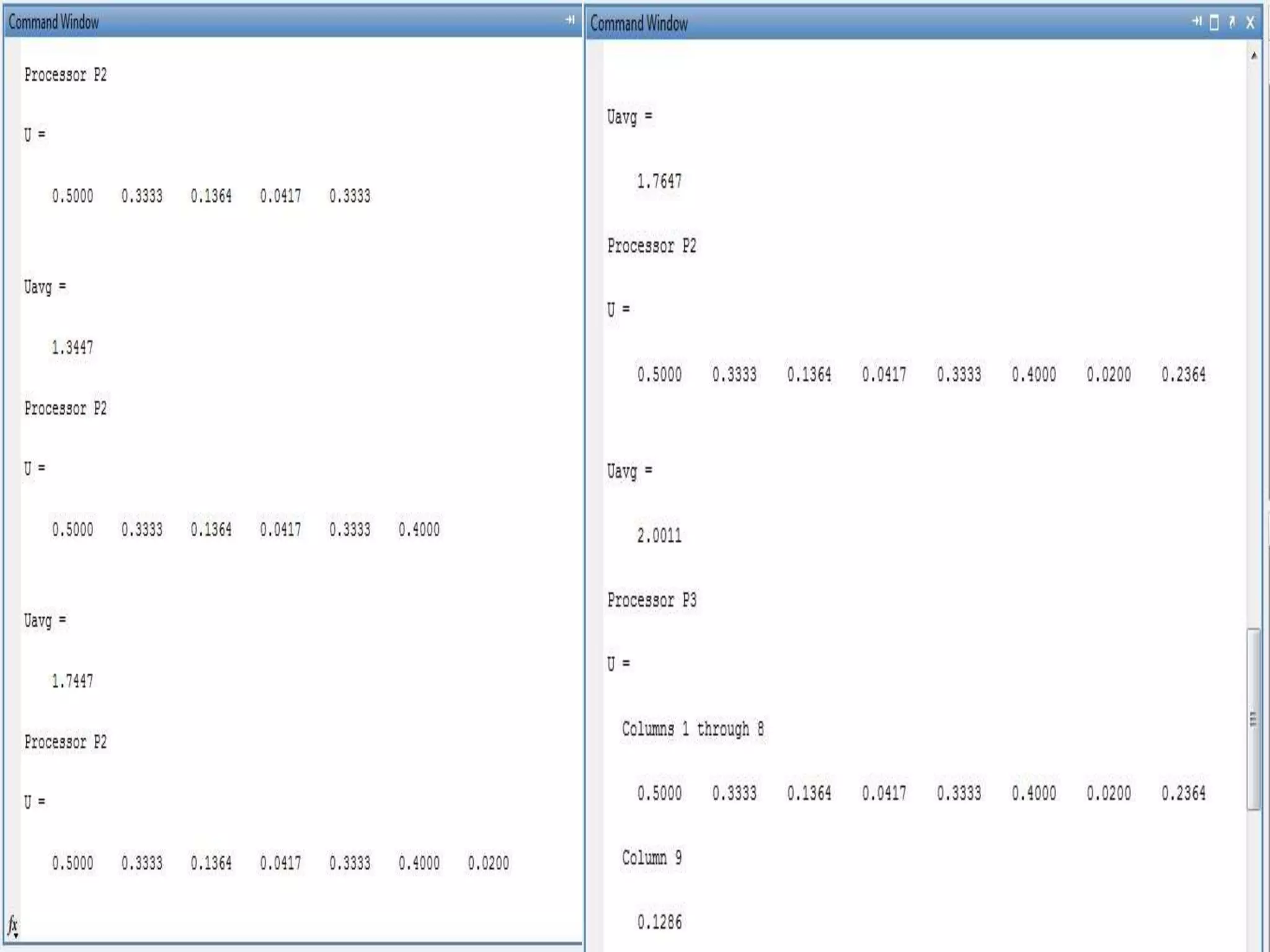

19. BIN PACKING ALGORITHM FOR TASK ALLOCATION

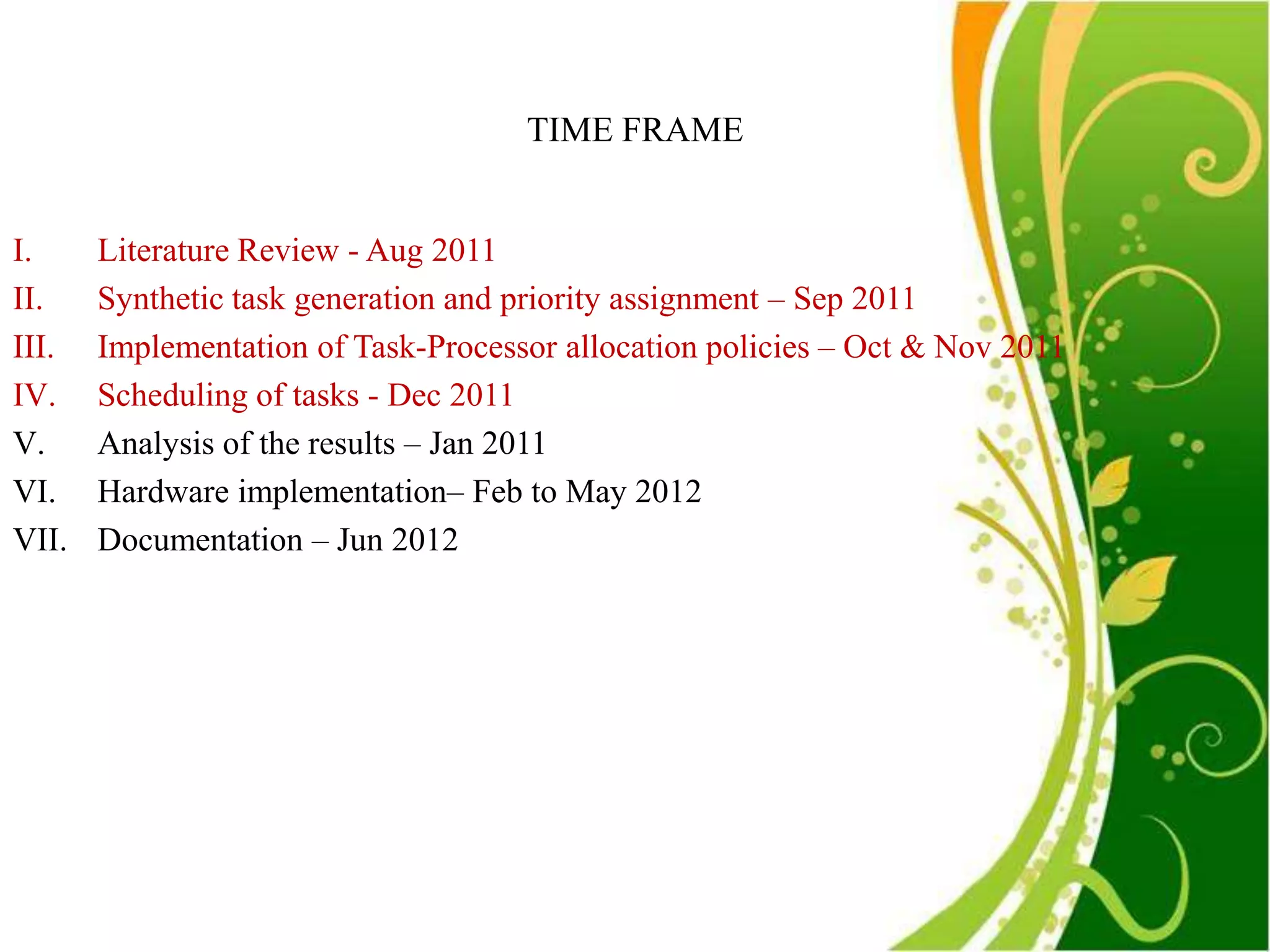

22. TIME FRAME
I. Literature Review - Aug 2011
II. Synthetic task generation and priority assignment – Sep 2011
III. Implementation of Task-Processor allocation policies – Oct & Nov 2011
IV. Scheduling of tasks - Dec 2011
V. Analysis of the results – Jan 2011
VI. Hardware implementation– Feb to May 2012
VII. Documentation – Jun 2012

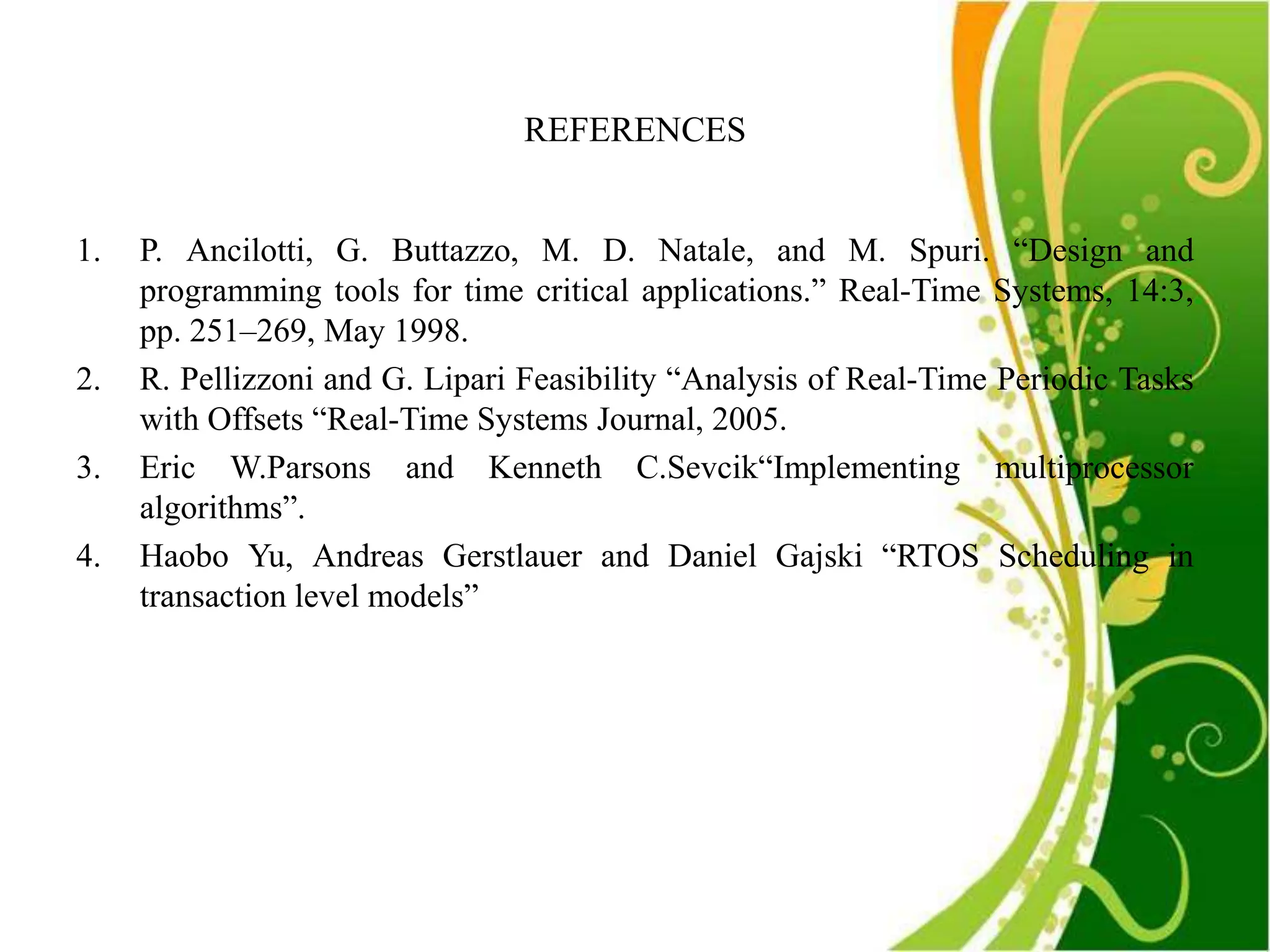

23. REFERENCES
