![A Multiple Query Optimization Scheme
for Change Point Detection
[POSITION PAPER]
Masahiro Oke, Hideyuki Kawashima
University of Tsukuba, Japan](https://image.slidesharecdn.com/birte13-talk-upload-130826073654-phpapp02/85/BIRTE-13-Kawashima-1-320.jpg)
![SELECT COUNT(*)
FROM eth0[TIME 1 MIN]
WHERE port = 80
How many packets are
arrived for port 80
in a minute ?
SPS
Relation
eth0
・Destination IP
・Source IP
・Destination Port
・Source Port
・Interface (e.g. eth0)
・Length
・Version （e.g. IPV4 ）
・Payload
Relational schema
20
Quick Review
Data Stream Management System (DSMS)
Q1](https://image.slidesharecdn.com/birte13-talk-upload-130826073654-phpapp02/85/BIRTE-13-Kawashima-3-320.jpg)
![• SQL is translated to operator tree.
• On arrival of data, tree is evaluated.
• Operators are based on relational database
– w(Window)： Cutting off relations from a
stream
– σ (Selection)： Filter
– α (Aggregation)： such as AVG, MIN, MAX
Query
Result
Users/Apps.
w σ αInput
adapter
Output
adapter
SPS
Data
SELECT COUNT(*)
FROM eth0[TIME 1 MIN]
WHERE port = 80](https://image.slidesharecdn.com/birte13-talk-upload-130826073654-phpapp02/85/BIRTE-13-Kawashima-4-320.jpg)
![Our Target Application: Malware Detection
• Real datasets
– Real trace logs of malware activities
• NICTER
– Keeps about 160,000 unused ip addresses (DARK NET)
• Packets to dark net are considered as attacks.
– Uses CPD (Change Point Detection) [1]) to detect
attacks such as DoS (denial of services).
[1] Daisuke Inoue, K. Yoshioka, M. Eto, Masaya Yamagata, Eisuke Nishino, Jun-ichi Takeuchi,
Kazuya Ohkouchi, Koji Nakao: An Incident Analysis System NICTER and Its Analysis Engines Based
on Data Mining Techniques. ICONIP (1) 2008: 579-586
[2] J. Takeuchi and K. Yamanishi, “A Unifying Framework for Detecting Outliers and Change
Points from Time Series,” IEEE TKDE, pp.482-492, 2006.](https://image.slidesharecdn.com/birte13-talk-upload-130826073654-phpapp02/85/BIRTE-13-Kawashima-5-320.jpg)
![Example Query on Falcon (1/2)
• #Access for each port ? [1]
• Group by aggregates
SELECT dst_port,
COUNT(dst_port)
FROM pkt[1 sec]
GROUP BY dst_port
g-pkt
src_ip
dst_ip
src_port
dst_port
seq_no
packet_size
timestamp
protocol
ack
fin
syn
urg
push
reset
content
22: 2
80: 2
15: 1
22
N
I
C
80 15 80 22
1 second
[1] “Enabling Real Time Data Analysis”, Divesh
Srivastava (AT&T Labs), et, al. Keynote talk, VLDB
2010. (a similar query is found in pp.15 of talk slide)](https://image.slidesharecdn.com/birte13-talk-upload-130826073654-phpapp02/85/BIRTE-13-Kawashima-8-320.jpg)

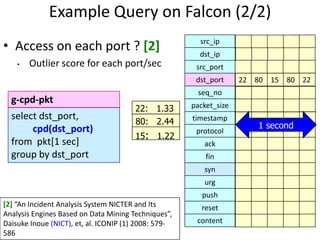

![Example Query on Falcon (2/2)
• Access on each port ? [2]
• Outlier score for each port/sec
select dst_port,
cpd(dst_port)
from pkt[1 sec]
group by dst_port
g-cpd-pkt
src_ip
dst_ip
src_port
dst_port
seq_no
packet_size
timestamp
protocol
ack
fin
syn
urg
push
reset
content
22: 1.33
80: 2.44
15: 1.22
22
N
I
C
80 15 80 22
1 second
[2] “An Incident Analysis System NICTER and Its
Analysis Engines Based on Data Mining Techniques”,
Daisuke Inoue (NICT), et, al. ICONIP (1) 2008: 579-
586](https://image.slidesharecdn.com/birte13-talk-upload-130826073654-phpapp02/85/BIRTE-13-Kawashima-9-320.jpg)
![Time
Change Point Detection(CPD)
• Outlier detection technique over time series data
– 2 stage learning based on autoregressive (AR) model
– Apps: traffic analysis, stock price analysis
Apply CPD !
[1] Jun-ichi Takeuchi and Kenji Yamanishi, “A Unifying Framework for Detecting Outliers and
Change Points from Time Series,” IEEE transactions on Knowledge and Data Engineering, pp.482-
492, 2006.
11](https://image.slidesharecdn.com/birte13-talk-upload-130826073654-phpapp02/85/BIRTE-13-Kawashima-11-320.jpg)
Uploaded byHideyuki Kawashima
BIRTE-13-Kawashima
This paper proposes a multiple query optimization (MQO) scheme for change point detection (CPD) that can significantly reduce the number of operators needed. CPD is used to detect anomalies in time series data but requires tuning parameters, which leads to running multiple CPDs with different parameters. The paper identifies four patterns for sharing CPD operators between queries based on whether parameter values are the same. Experiments show the proposed MQO approach reduces the number of operators by up to 80% compared to running each CPD independently, thus improving performance. Integrating MQO with hardware accelerators is suggested as future work.
