The Sukhoi Su-35 is a heavily upgraded Russian multirole fighter jet based on the Su-27 Flanker design. It has enhanced avionics, radar, weapons, and engine capabilities that allow it to detect and engage multiple aerial targets simultaneously out to ranges of 400km. The Su-35 carries a large payload of air-to-air and air-to-ground weapons on 14 external hardpoints and has an internal 30mm cannon. It is powered by two upgraded AL-41F1S turbofan engines with thrust-vectoring capabilities.

1. SUKHOI Su-35
SHIVAJI CHOUDHURY

2. Sukhoi Su-35
 The Sukhoi Su-35 (Russian: Сухой Су-35;
NATO reporting name: Flanker-E) is a
designation for two separate, heavily
upgraded derivatives of the Su-27 'Flanker'
jet plane.
 They are single-seat, twin engine,
supermaneuverable multirole fighters,
designed by Sukhoi and built by
Komsomolsk-on-Amur Aircraft Production
Association (KnAAPO), Russia.

3. Sukhoi Su- 35
 The Sukhoi-35 is
designed on the
base of the
engineering
solutions applied
for creation of the
fifth generation
aircraft .

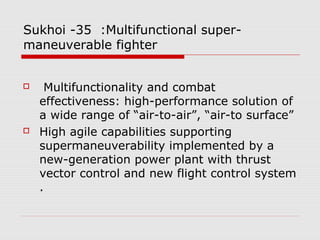

4. Sukhoi -35 :Multifunctional super-
maneuverable fighter
 Multifunctionality and combat
effectiveness: high-performance solution of
a wide range of “air-to-air”, “air-to surface”
 High agile capabilities supporting
supermaneuverability implemented by a
new-generation power plant with thrust
vector control and new flight control system
.

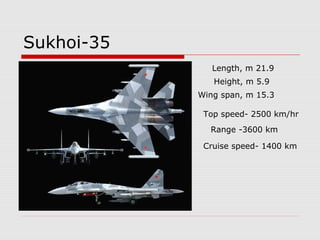

5. Sukhoi-35
Length, m 21.9
Height, m 5.9
Wing span, m 15.3
Top speed- 2500 km/hr
Range -3600 km
Cruise speed- 1400 km

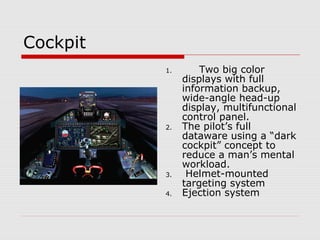

6. Cockpit
1. Two big color
displays with full
information backup,
wide-angle head-up
display, multifunctional
control panel.
2. The pilot’s full
dataware using a “dark
cockpit” concept to
reduce a man’s mental
workload.
3. Helmet-mounted
targeting system
4. Ejection system

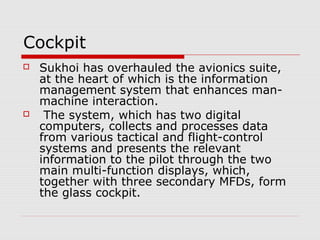

7. Cockpit
 Sukhoi has overhauled the avionics suite,
at the heart of which is the information
management system that enhances man-
machine interaction.
 The system, which has two digital
computers, collects and processes data
from various tactical and flight-control
systems and presents the relevant
information to the pilot through the two
main multi-function displays, which,
together with three secondary MFDs, form
the glass cockpit.

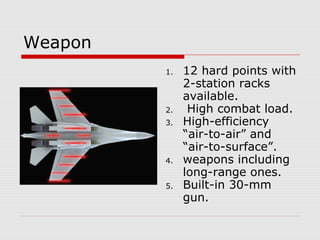

8. Weapon
1. 12 hard points with
2-station racks
available.
2. High combat load.
3. High-efficiency
“air-to-air” and
“air-to-surface”.
4. weapons including
long-range ones.
5. Built-in 30-mm
gun.

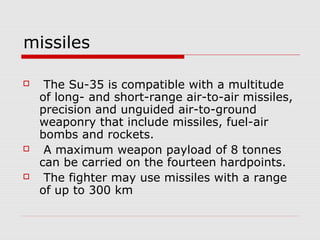

9. missiles
 The Su-35 is compatible with a multitude
of long- and short-range air-to-air missiles,
precision and unguided air-to-ground
weaponry that include missiles, fuel-air
bombs and rockets.
 A maximum weapon payload of 8 tonnes
can be carried on the fourteen hardpoints.
 The fighter may use missiles with a range
of up to 300 km

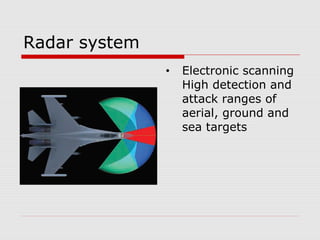

10. Radar system
• Electronic scanning
High detection and
attack ranges of
aerial, ground and
sea targets

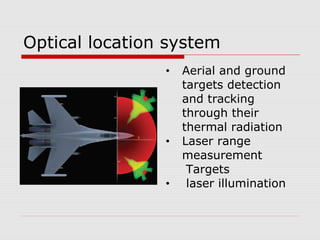

11. Optical location system
• Aerial and ground
targets detection
and tracking
through their
thermal radiation
• Laser range
measurement
Targets
• laser illumination

12. Radar system
 The Su-35 employs an Irbis-E passive electronically
scanned arrar radar that constitutes an essential
component of the aircraft's fire-control system.
 The radar is capable of detecting a 3-square-metre
(32 sq ft) aerial target at a distance of 400 km
(250 mi), and can track 30 airborne targets and
engage eight of them at the same time.
 The radar can also map the ground using a variety of
modes, including the synthetic aperture mode. The
Irbis-E is complemented by an OLS-35 optoelectronic
targeting system that provides TV, Infra-red search
and track (IRST) functionality.

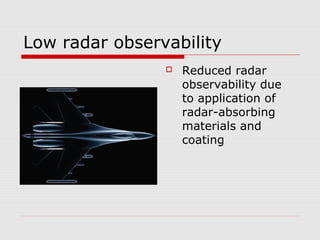

13. Low radar observability
 Reduced radar
observability due
to application of
radar-absorbing
materials and
coating

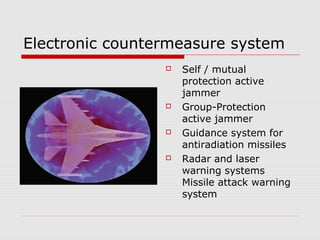

14. Electronic countermeasure system
 Self / mutual
protection active
jammer
 Group-Protection
active jammer
 Guidance system for
antiradiation missiles
 Radar and laser
warning systems
Missile attack warning
system

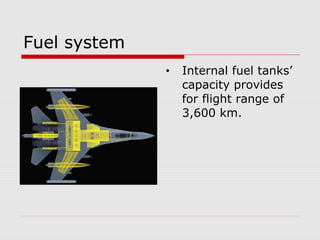

15. Fuel system
• Internal fuel tanks’
capacity provides
for flight range of
3,600 km.

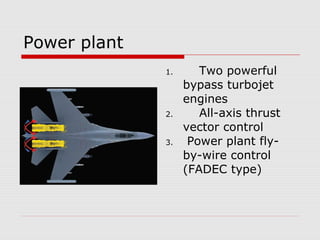

16. Power plant
1. Two powerful
bypass turbojet
engines
2. All-axis thrust
vector control
3. Power plant fly-
by-wire control
(FADEC type)

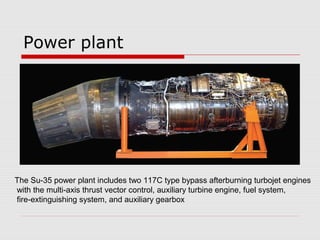

17. Power plant
The Su-35 power plant includes two 117C type bypass afterburning turbojet engines
with the multi-axis thrust vector control, auxiliary turbine engine, fuel system,
fire-extinguishing system, and auxiliary gearbox

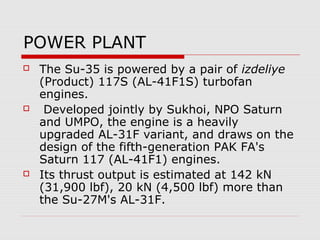

18. POWER PLANT
 The Su-35 is powered by a pair of izdeliye
(Product) 117S (AL-41F1S) turbofan
engines.
 Developed jointly by Sukhoi, NPO Saturn
and UMPO, the engine is a heavily
upgraded AL-31F variant, and draws on the
design of the fifth-generation PAK FA's
Saturn 117 (AL-41F1) engines.
 Its thrust output is estimated at 142 kN
(31,900 lbf), 20 kN (4,500 lbf) more than
the Su-27M's AL-31F.

19. Attack range
 The Su-35 sighting
system and weapon
allows to detect and
destroy long-range
aerial, ground and sea
targets by guided and
unguided missiles at
day and night and in
all weather conditions

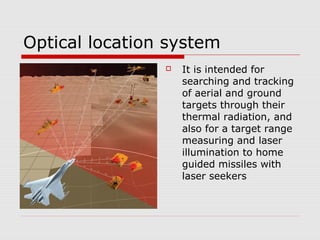

20. Optical location system
 It is intended for
searching and tracking
of aerial and ground
targets through their
thermal radiation, and
also for a target range
measuring and laser
illumination to home
guided missiles with
laser seekers
