Stack and Queue data structures are described. A Stack follows LIFO (last-in, first-out) where elements can only be inserted and removed from one end. Common stack operations are push, pop, and peek. A Queue follows FIFO (first-in, first-out) where elements can only be inserted at the rear and removed from the front. Common queue operations are enqueue and dequeue. Both can be implemented using arrays or linked lists. A circular array implementation improves the efficiency of dequeuing from a queue.

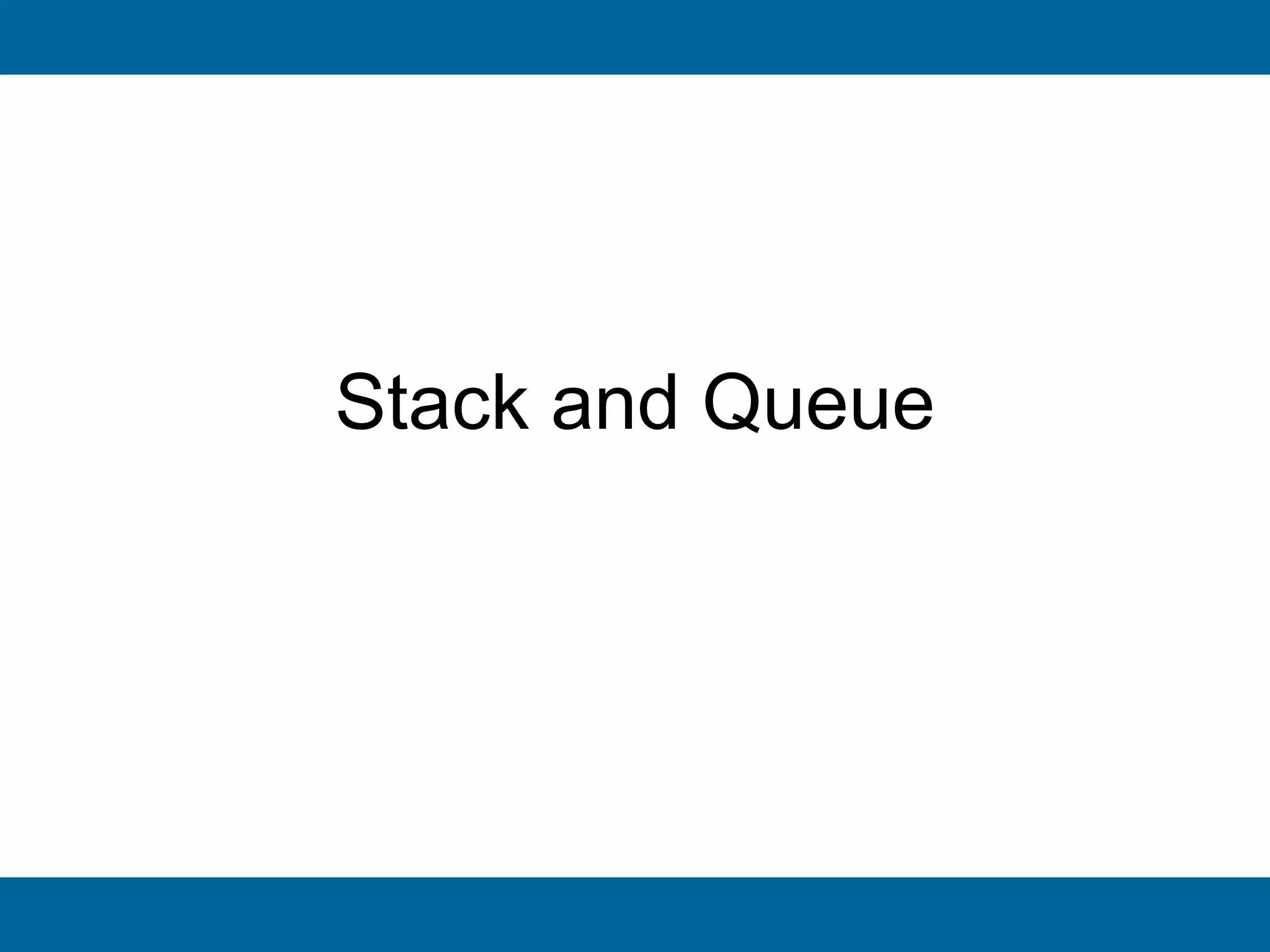

1. Stack and Queue

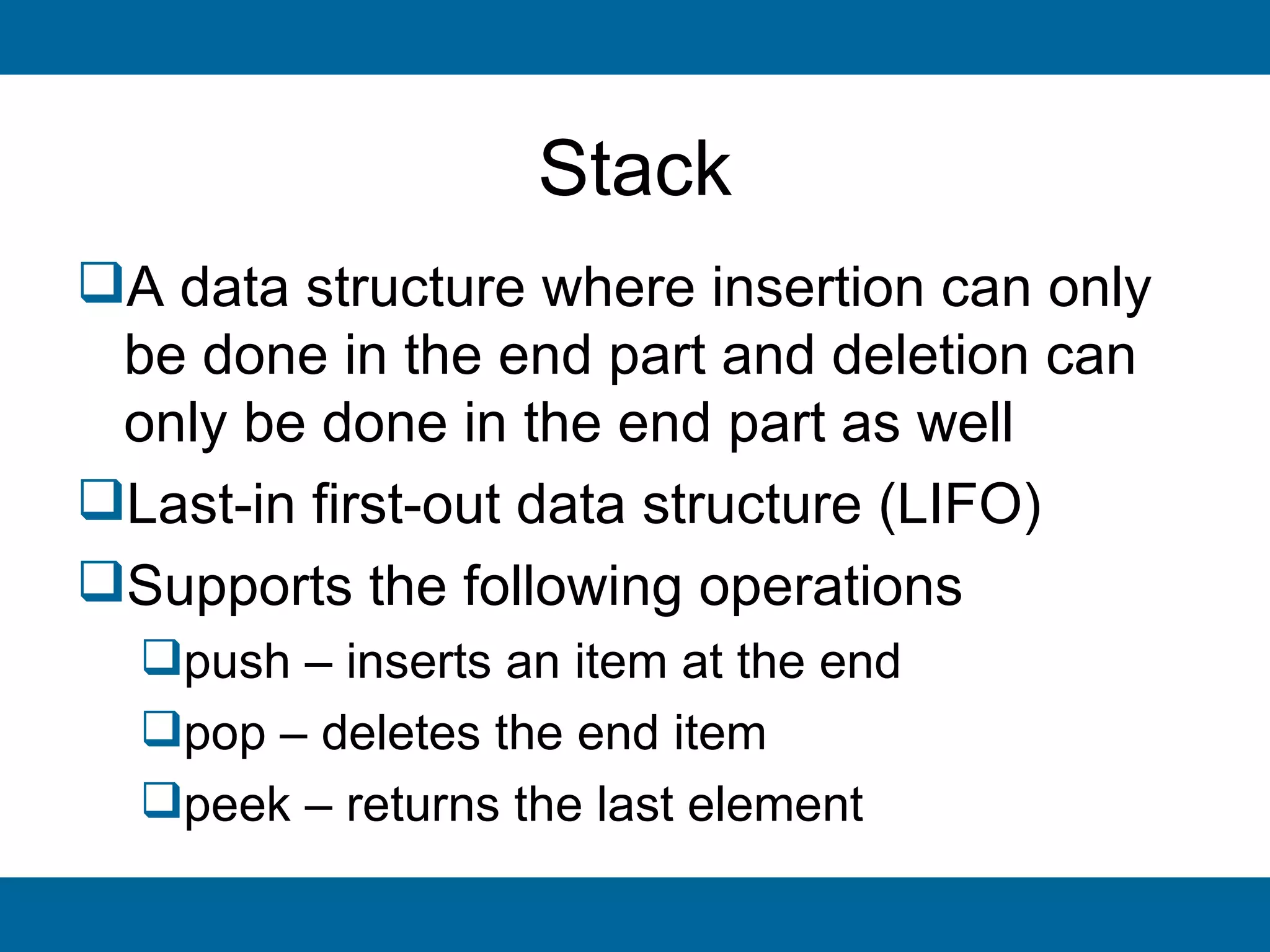

2. Stack
A data structure where insertion can only
be done in the end part and deletion can
only be done in the end part as well
Last-in first-out data structure (LIFO)
Supports the following operations
push – inserts an item at the end
pop – deletes the end item
peek – returns the last element

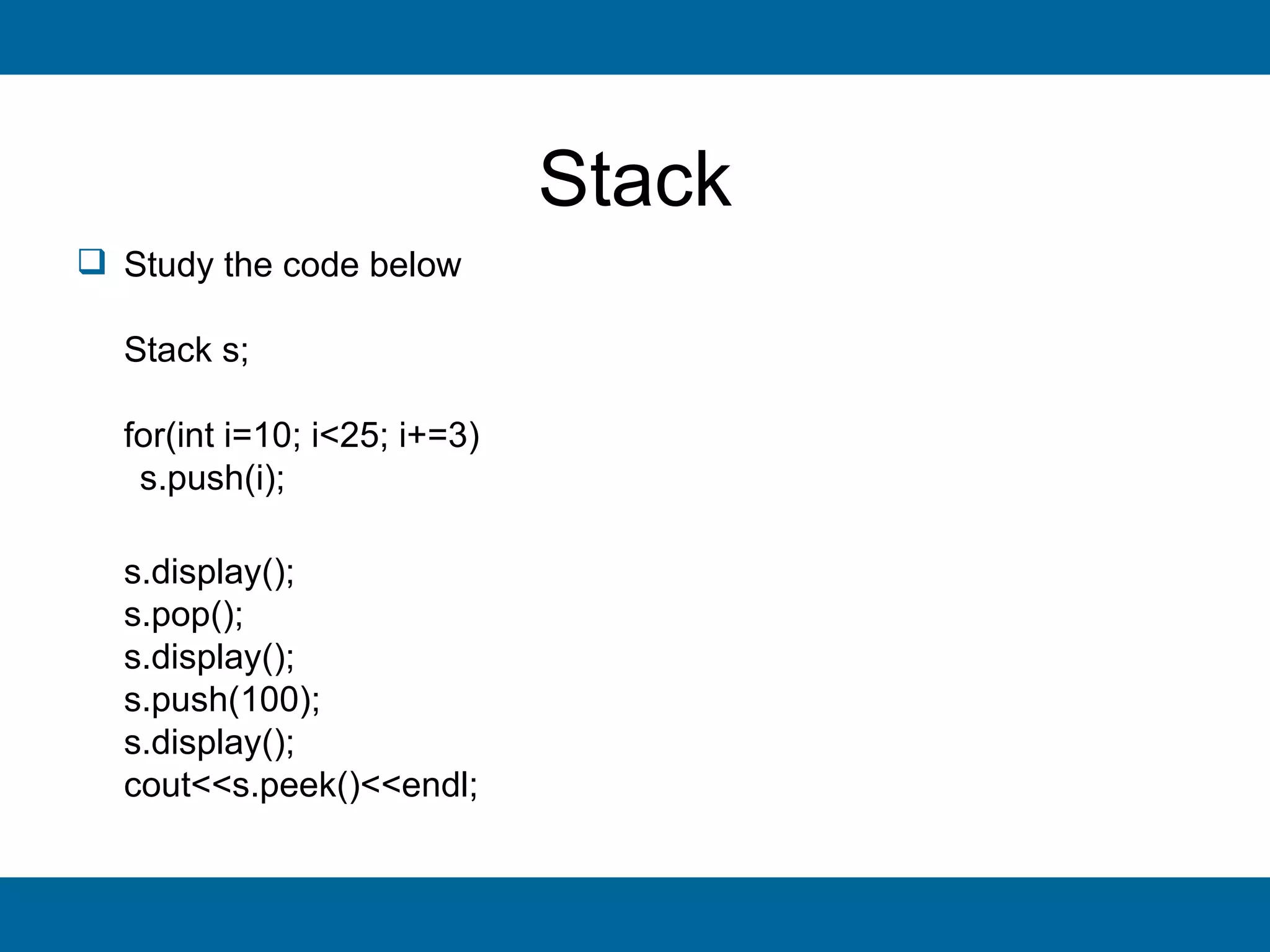

3. Stack
 Study the code below
Stack s;
for(int i=10; i<25; i+=3)
s.push(i);
s.display();
s.pop();
s.display();
s.push(100);
s.display();
cout<<s.peek()<<endl;

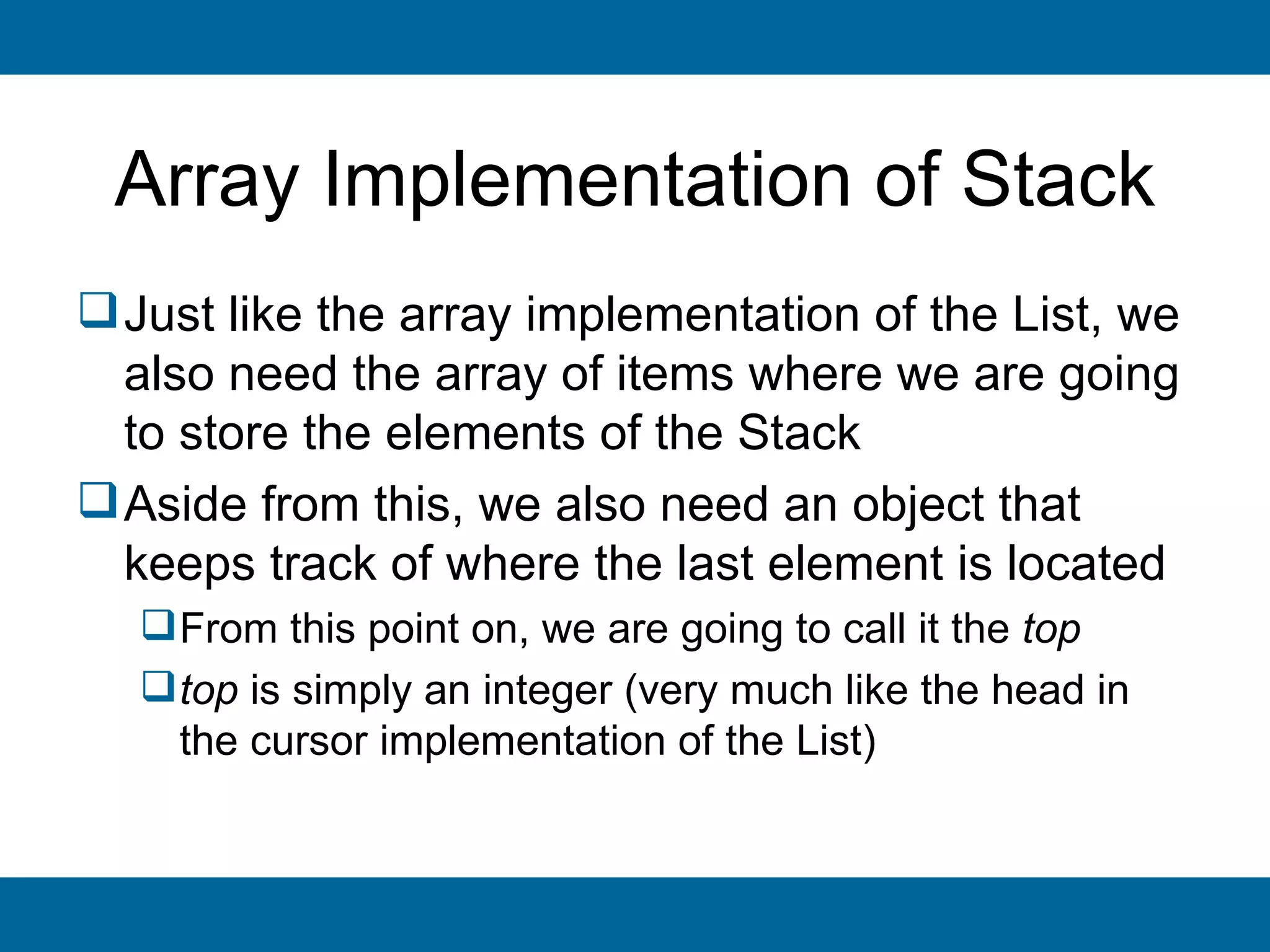

4. Array Implementation of Stack
 Just like the array implementation of the List, we
also need the array of items where we are going
to store the elements of the Stack
 Aside from this, we also need an object that
keeps track of where the last element is located
 From this point on, we are going to call it the top
 top is simply an integer (very much like the head in
the cursor implementation of the List)

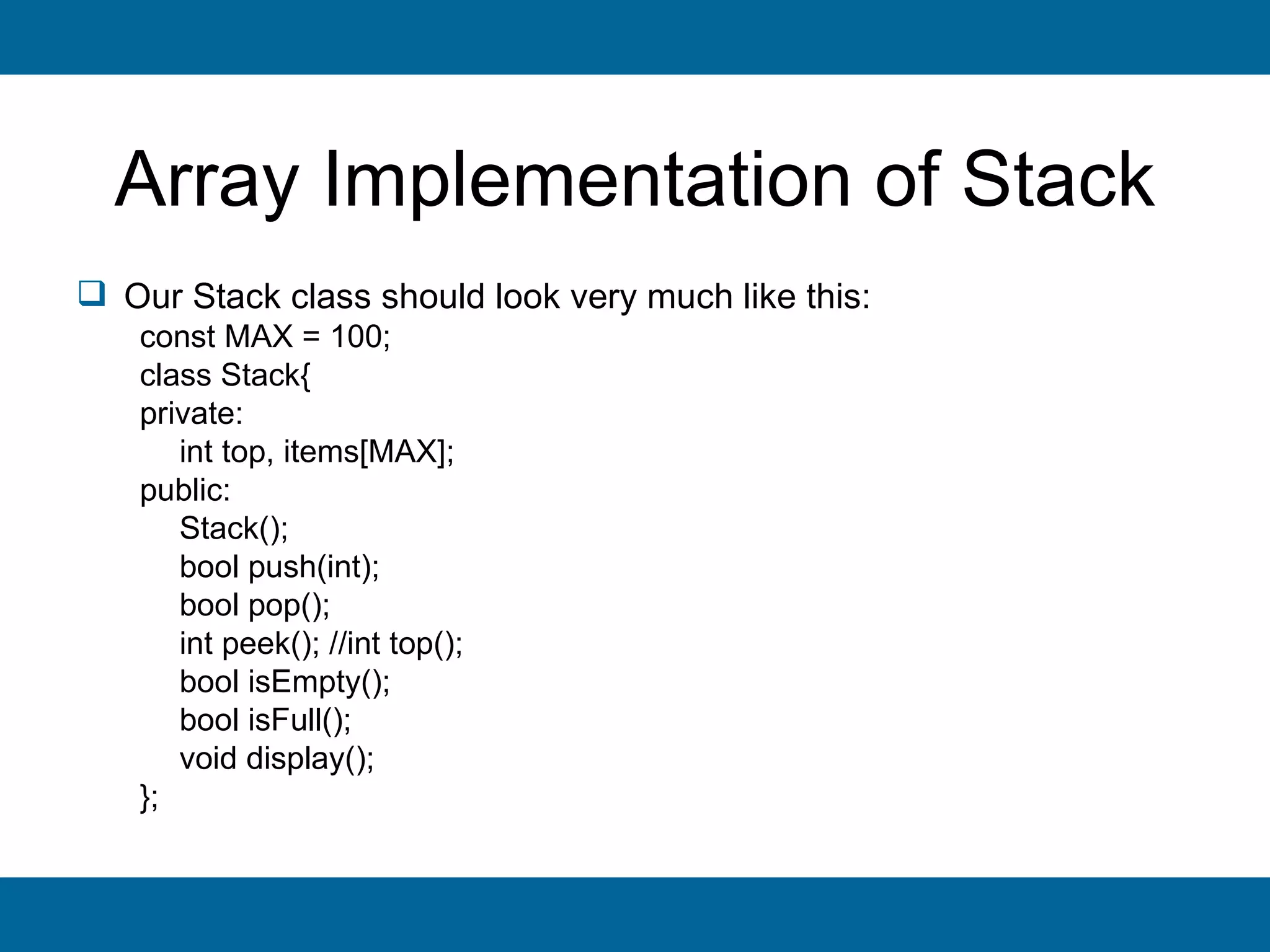

5. Array Implementation of Stack
 Our Stack class should look very much like this:
const MAX = 100;
class Stack{
private:
int top, items[MAX];
public:
Stack();
bool push(int);
bool pop();
int peek(); //int top();
bool isEmpty();
bool isFull();
void display();
};

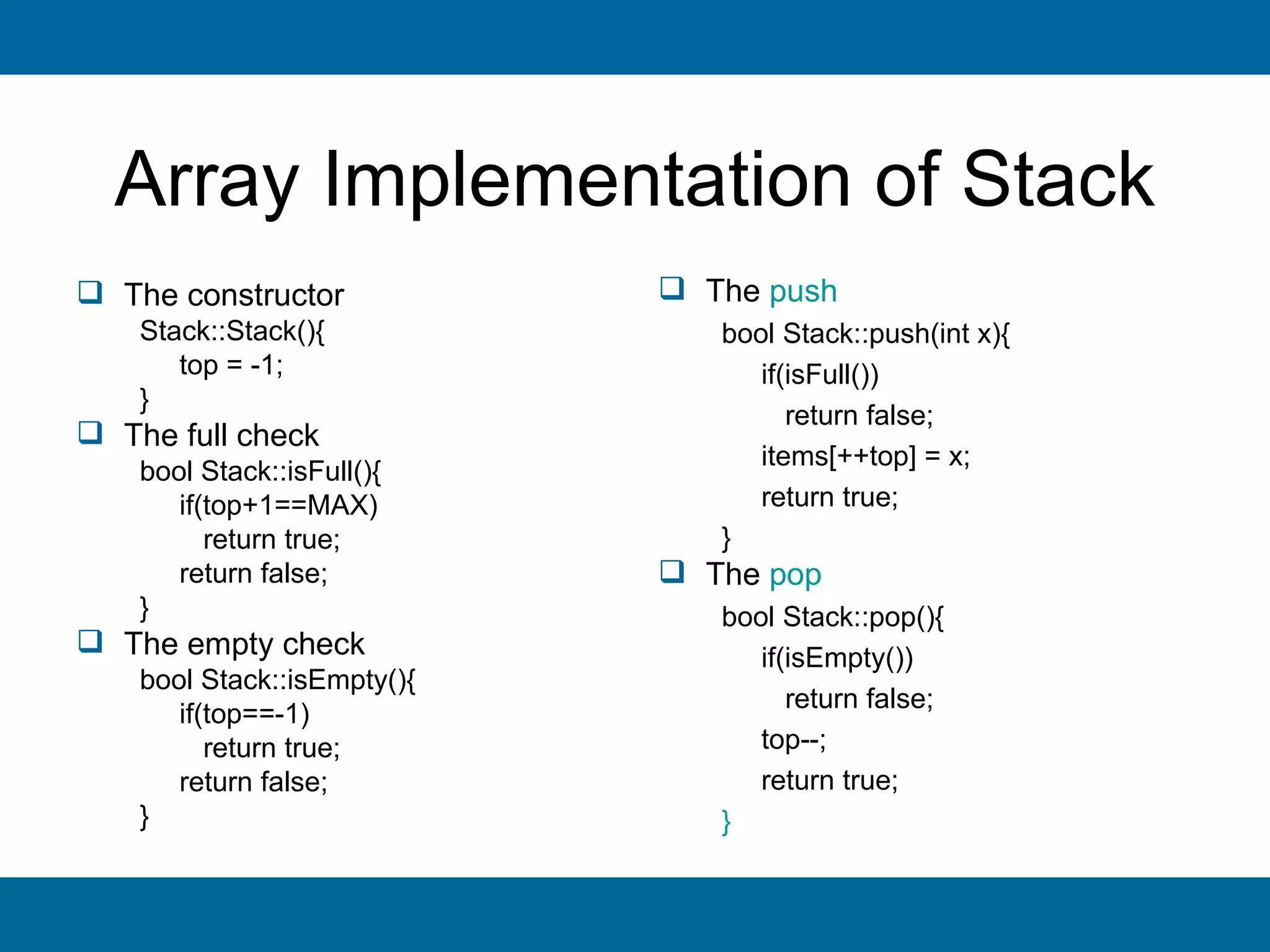

6. Array Implementation of Stack
 The constructor  The push
Stack::Stack(){ bool Stack::push(int x){
top = -1; if(isFull())
}
return false;
 The full check
items[++top] = x;
bool Stack::isFull(){
if(top+1==MAX) return true;
return true; }
return false;  The pop
} bool Stack::pop(){
 The empty check if(isEmpty())
bool Stack::isEmpty(){
return false;
if(top==-1)
return true; top--;
return false; return true;
} }

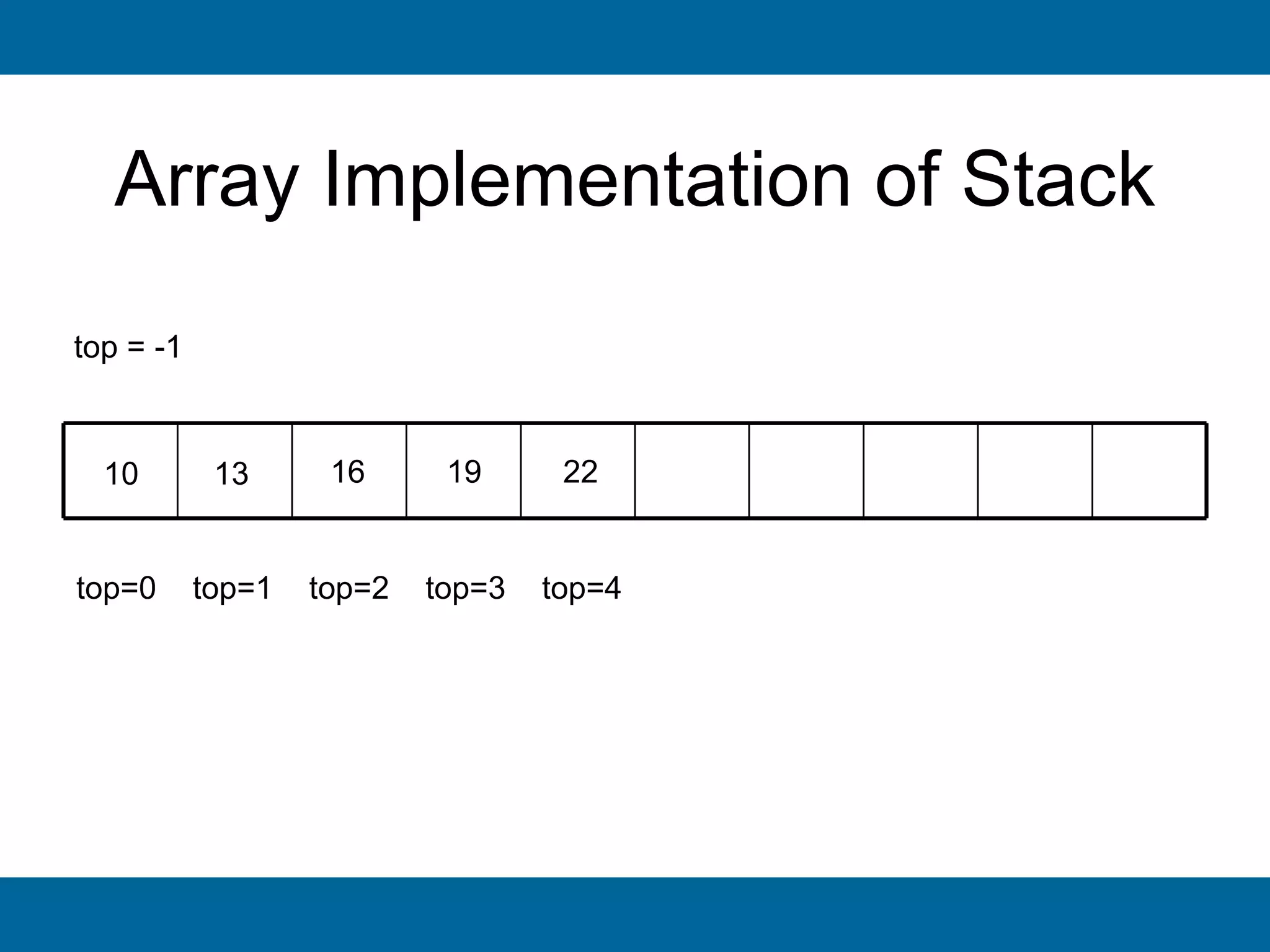

7. Array Implementation of Stack
top = -1
10 13 16 19 22
top=0 top=1 top=2 top=3 top=4

8. Array Implementation of Stack
10 13 43
16 19
107 22
top=0 top=1 top=2 top=3 top=4

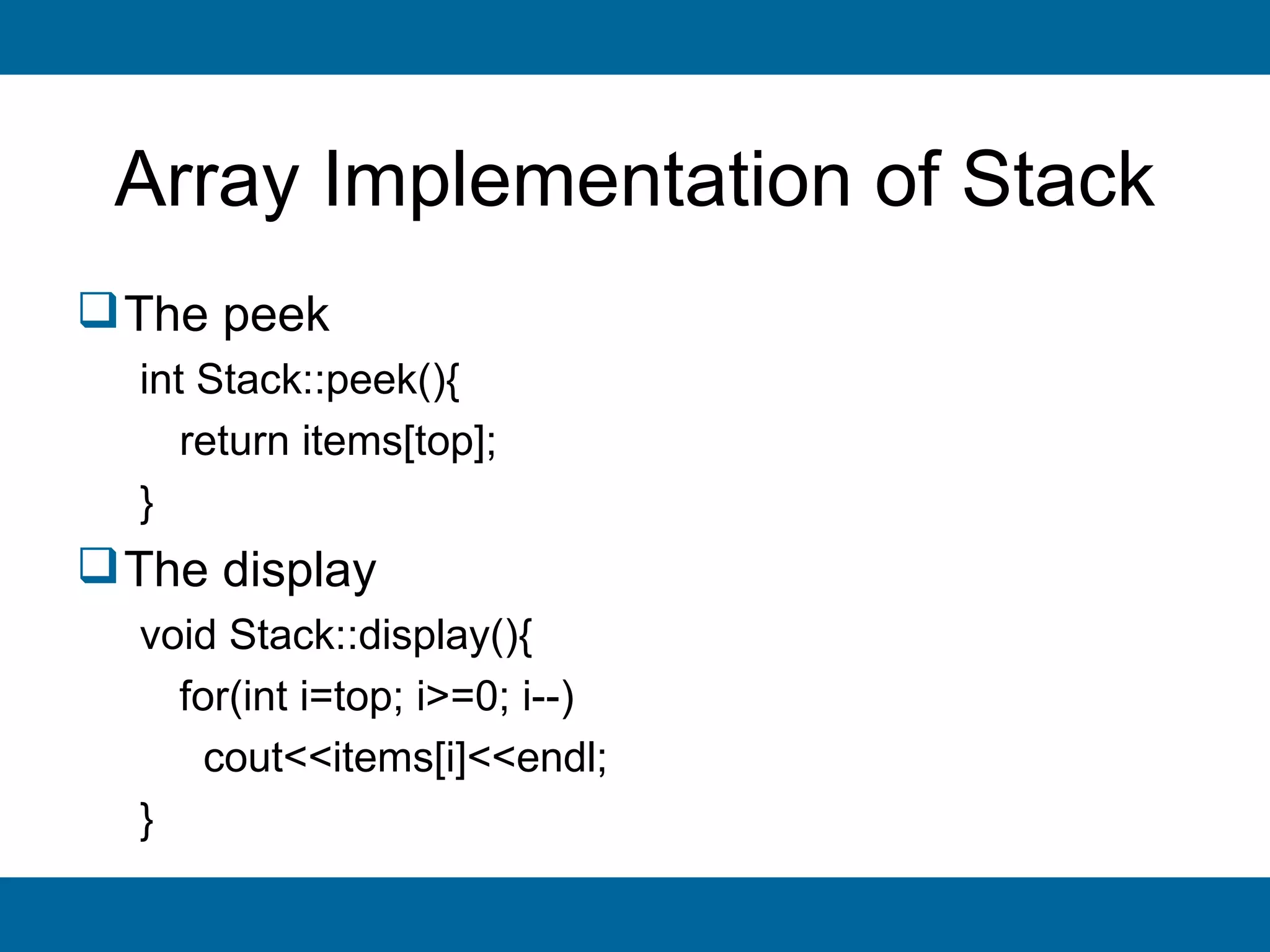

9. Array Implementation of Stack
 The peek
int Stack::peek(){
return items[top];
}
 The display
void Stack::display(){
for(int i=top; i>=0; i--)
cout<<items[i]<<endl;
}

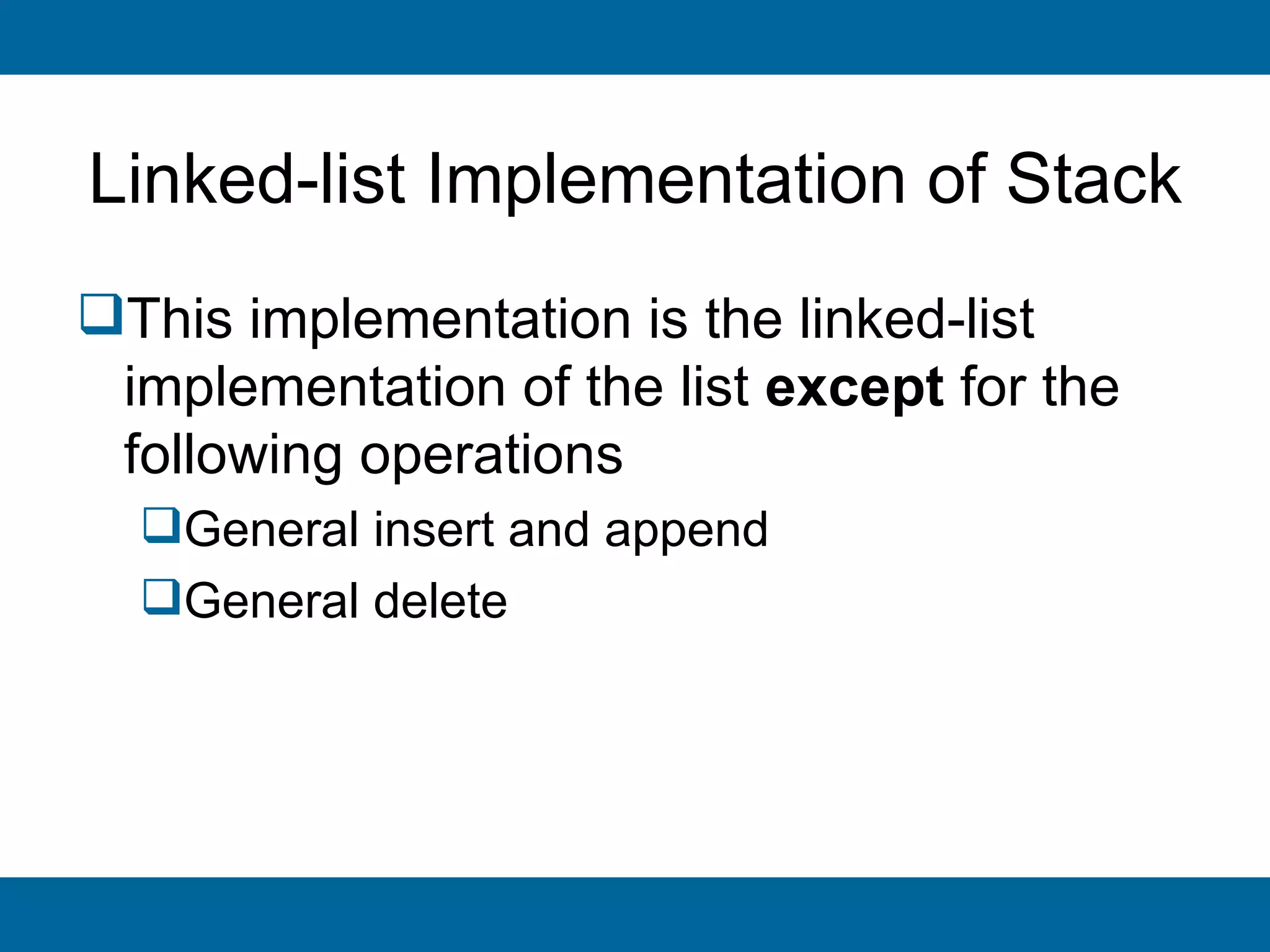

11. Linked-list Implementation of Stack
This implementation is the linked-list
implementation of the list except for the
following operations
General insert and append
General delete

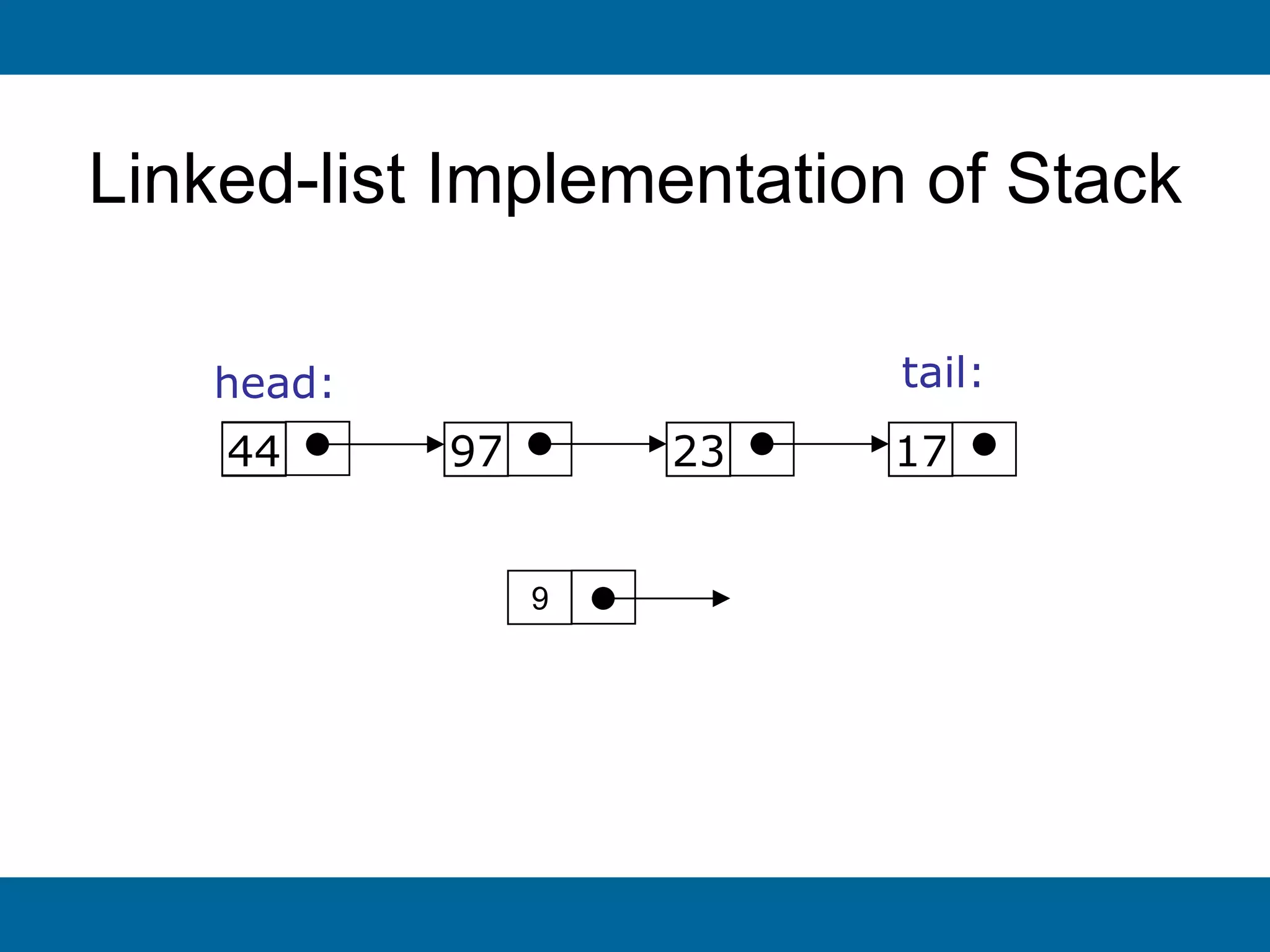

12. Linked-list Implementation of Stack
head: tail:
44 97 23 17
9

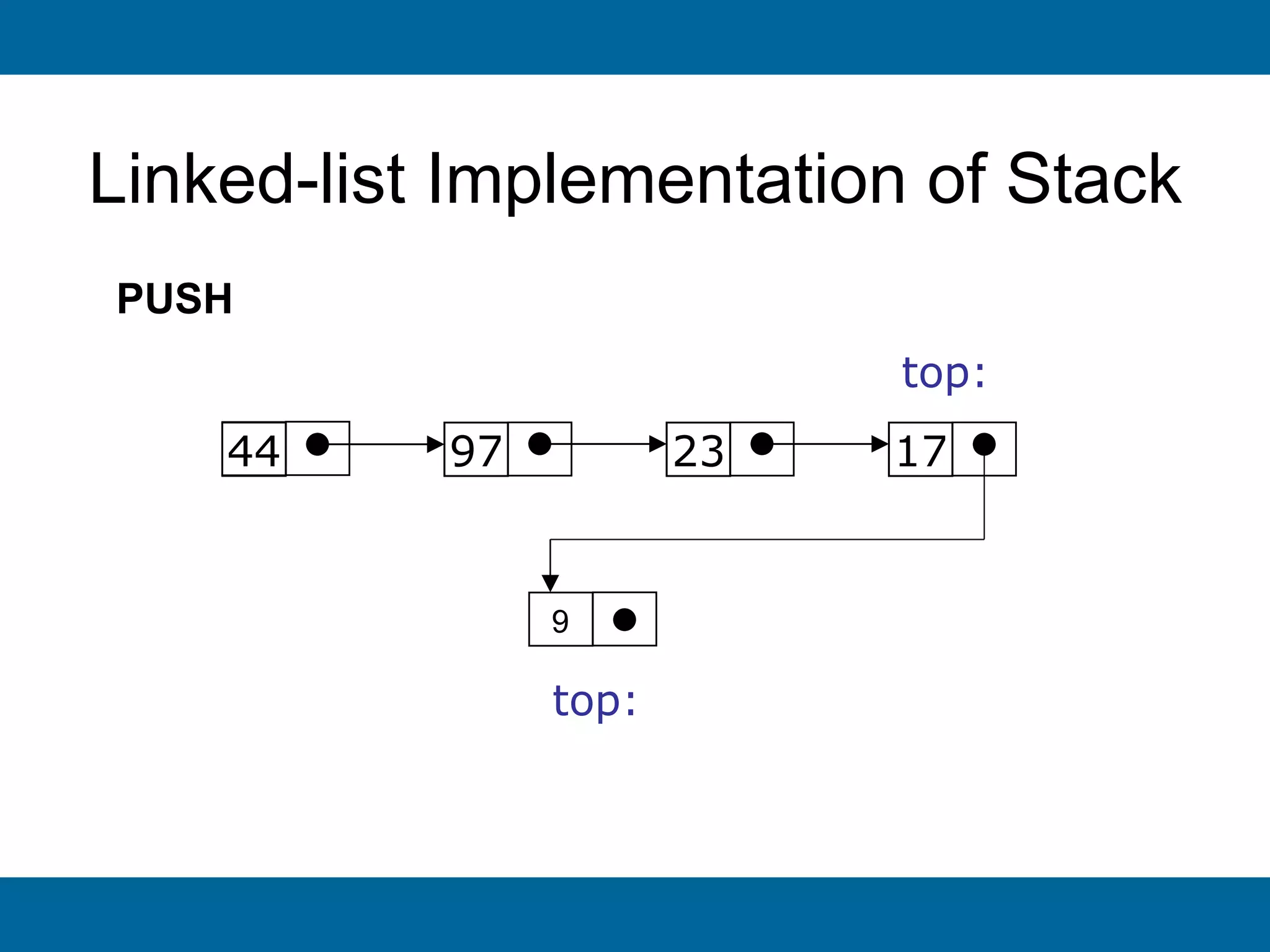

13. Linked-list Implementation of Stack
PUSH
top:
44 97 23 17
9
top:

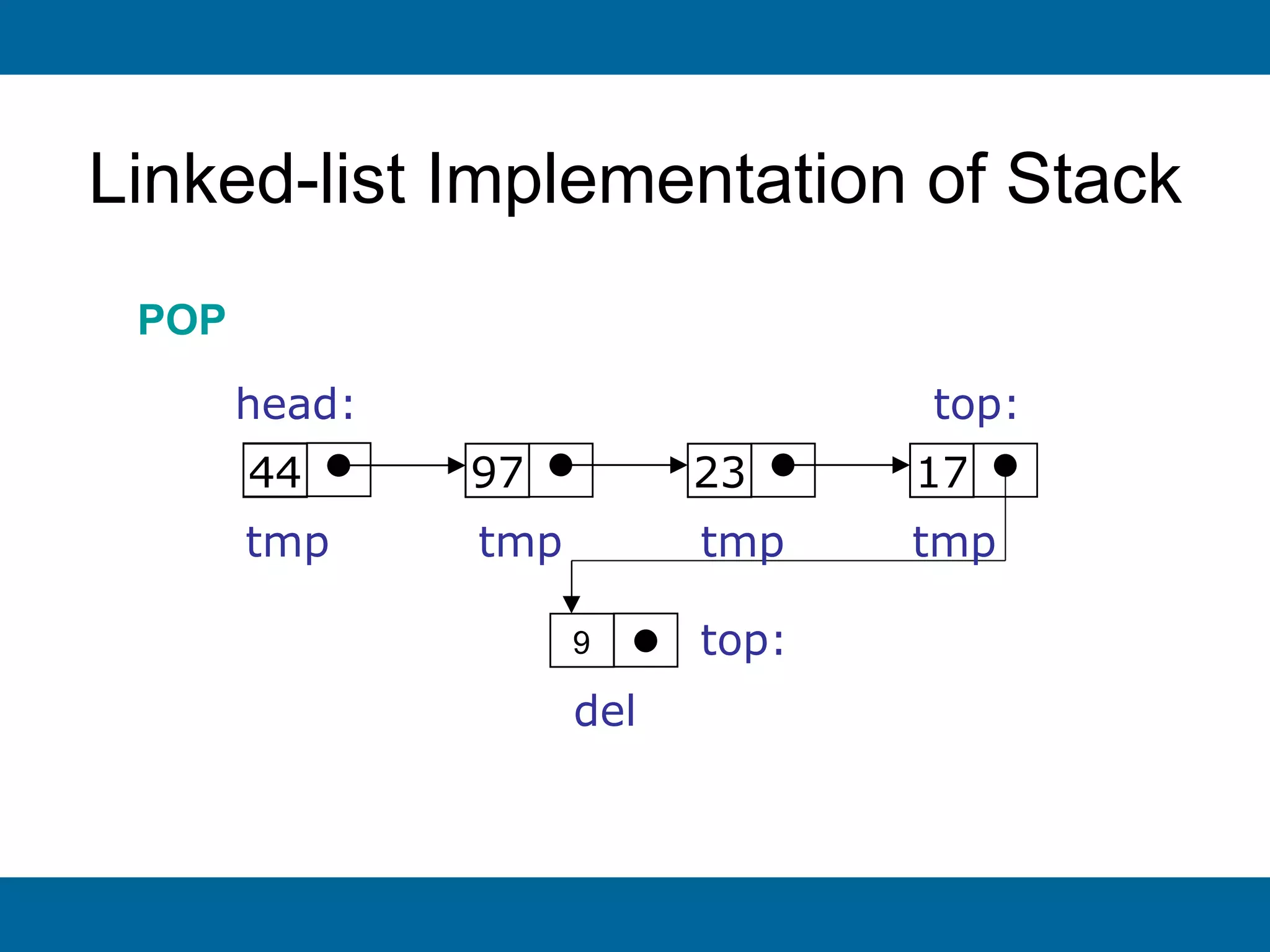

14. Linked-list Implementation of Stack
POP
head: top:
44 97 23 17
tmp tmp tmp tmp
9 top:
del

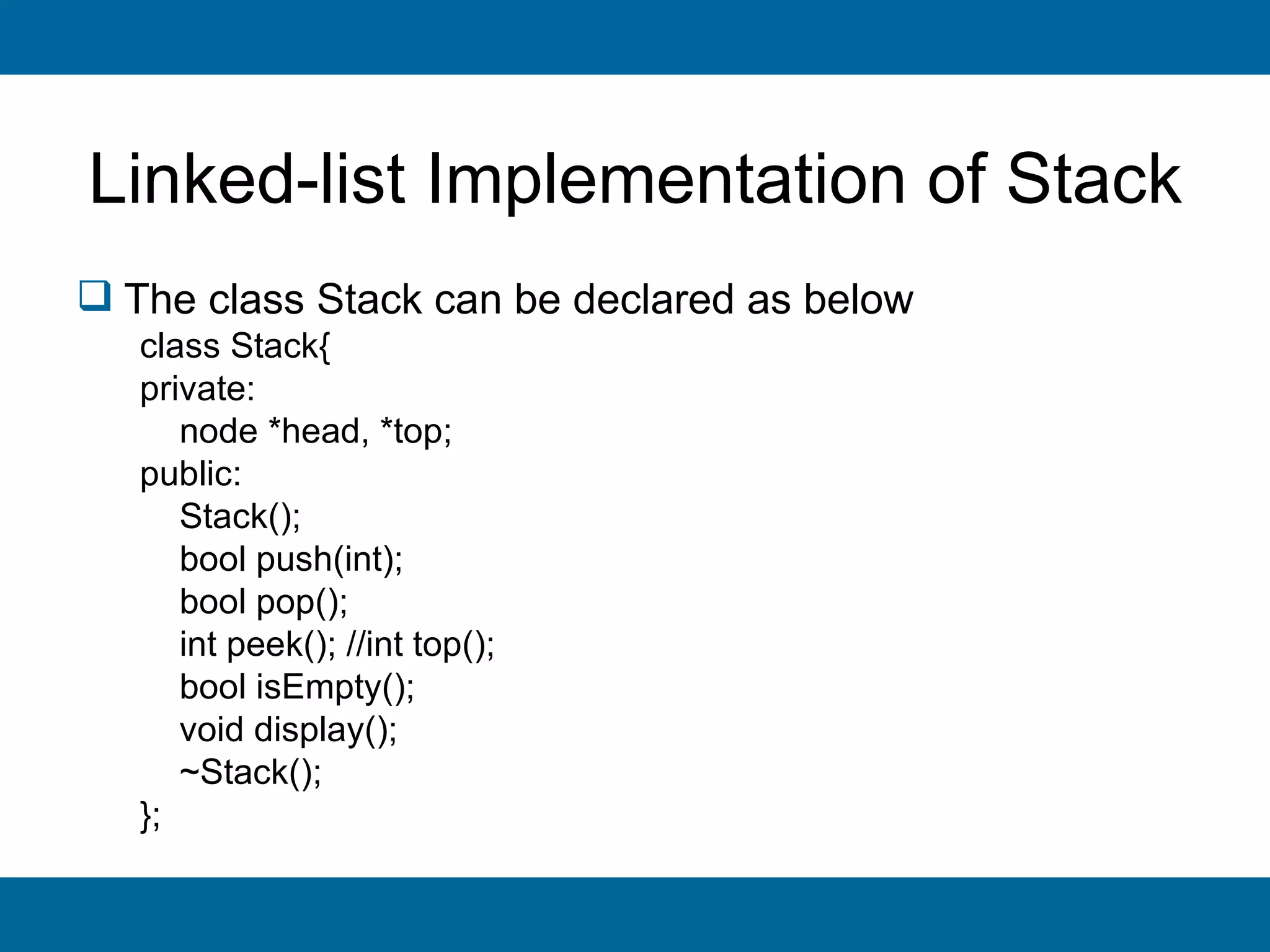

15. Linked-list Implementation of Stack
 The class Stack can be declared as below
class Stack{
private:
node *head, *top;
public:
Stack();
bool push(int);
bool pop();
int peek(); //int top();
bool isEmpty();
void display();
~Stack();
};

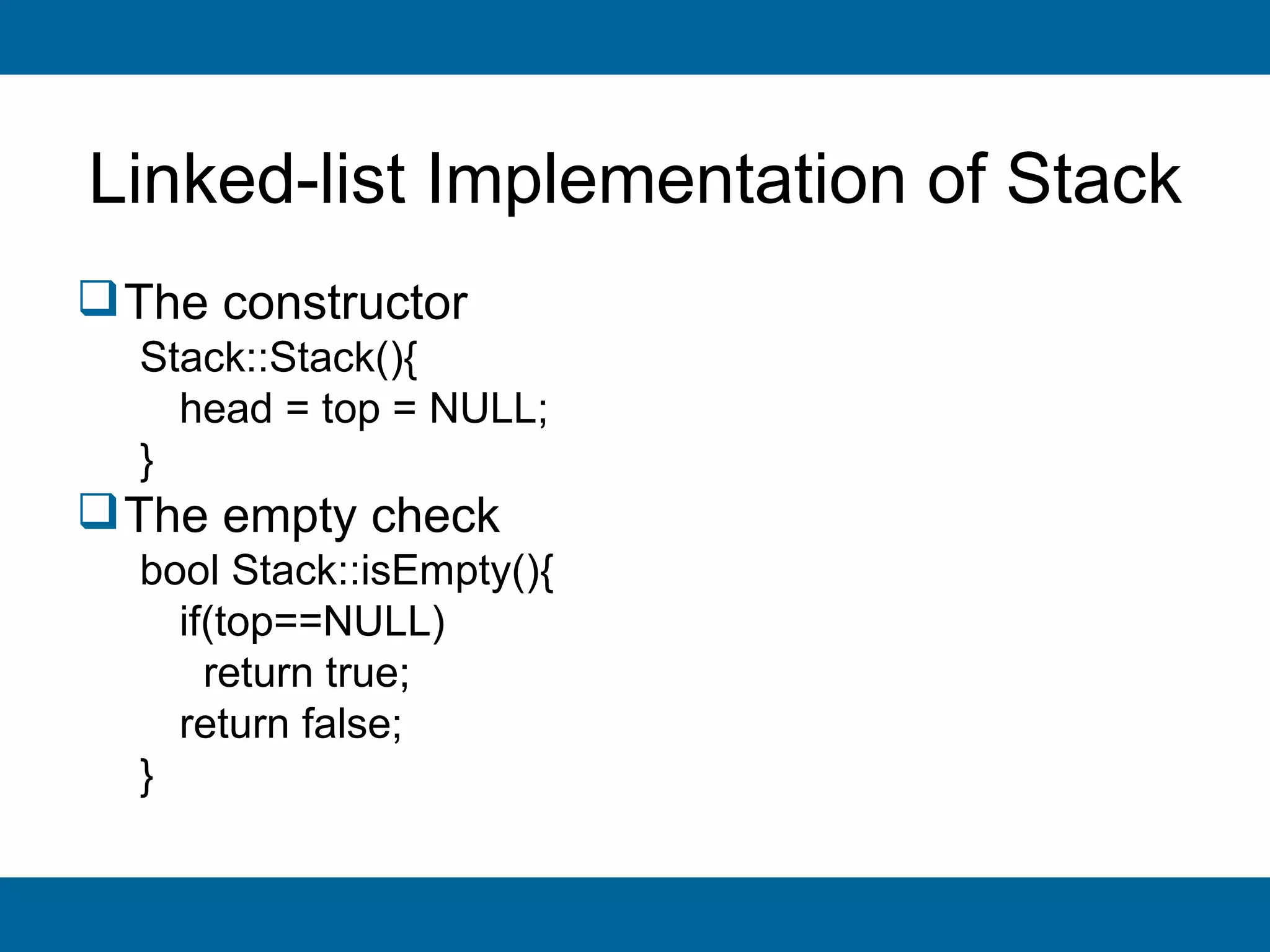

16. Linked-list Implementation of Stack
 The constructor
Stack::Stack(){
head = top = NULL;
}
 The empty check
bool Stack::isEmpty(){
if(top==NULL)
return true;
return false;
}

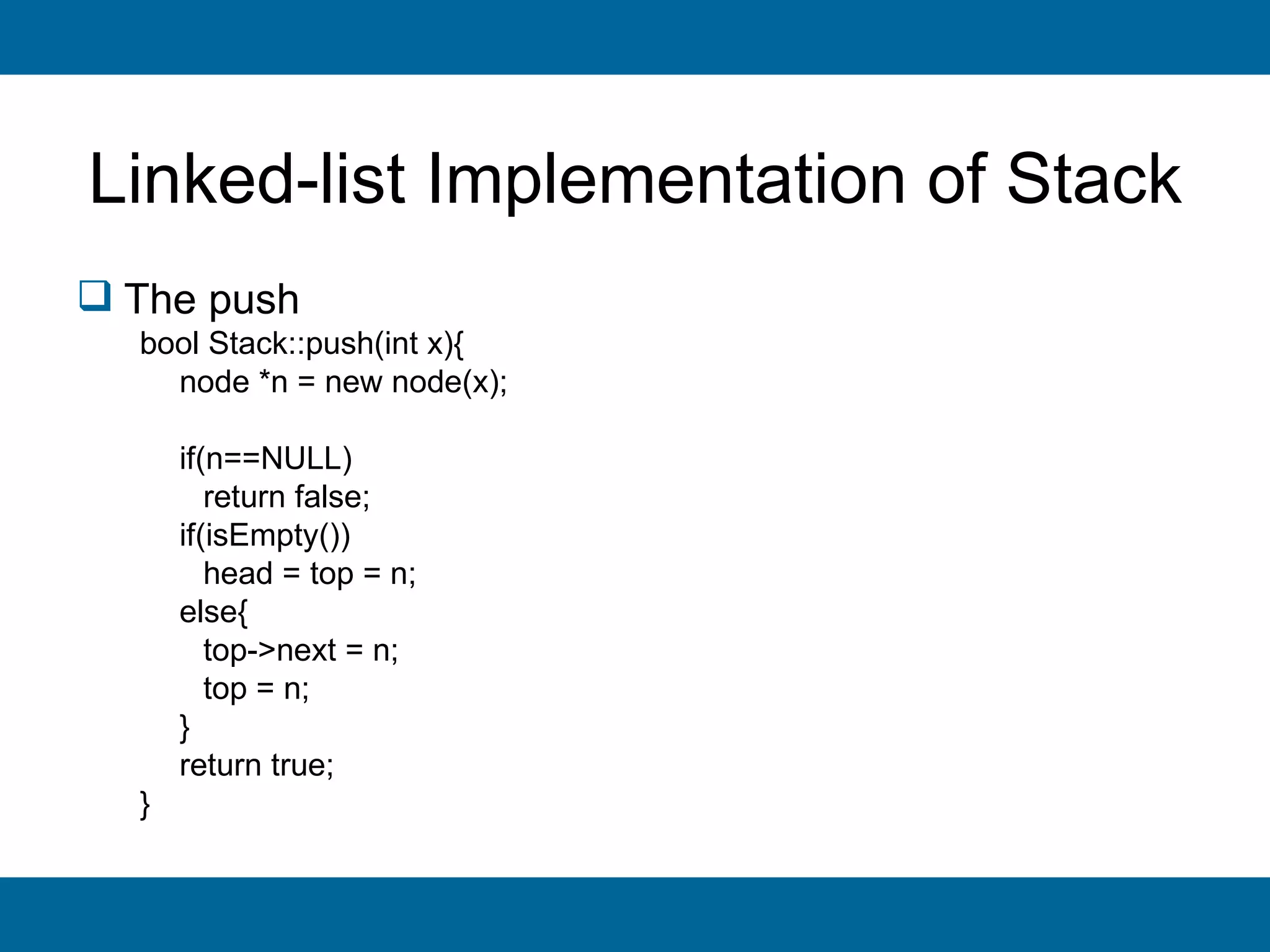

17. Linked-list Implementation of Stack
 The push
bool Stack::push(int x){
node *n = new node(x);
if(n==NULL)
return false;
if(isEmpty())
head = top = n;
else{
top->next = n;
top = n;
}
return true;
}

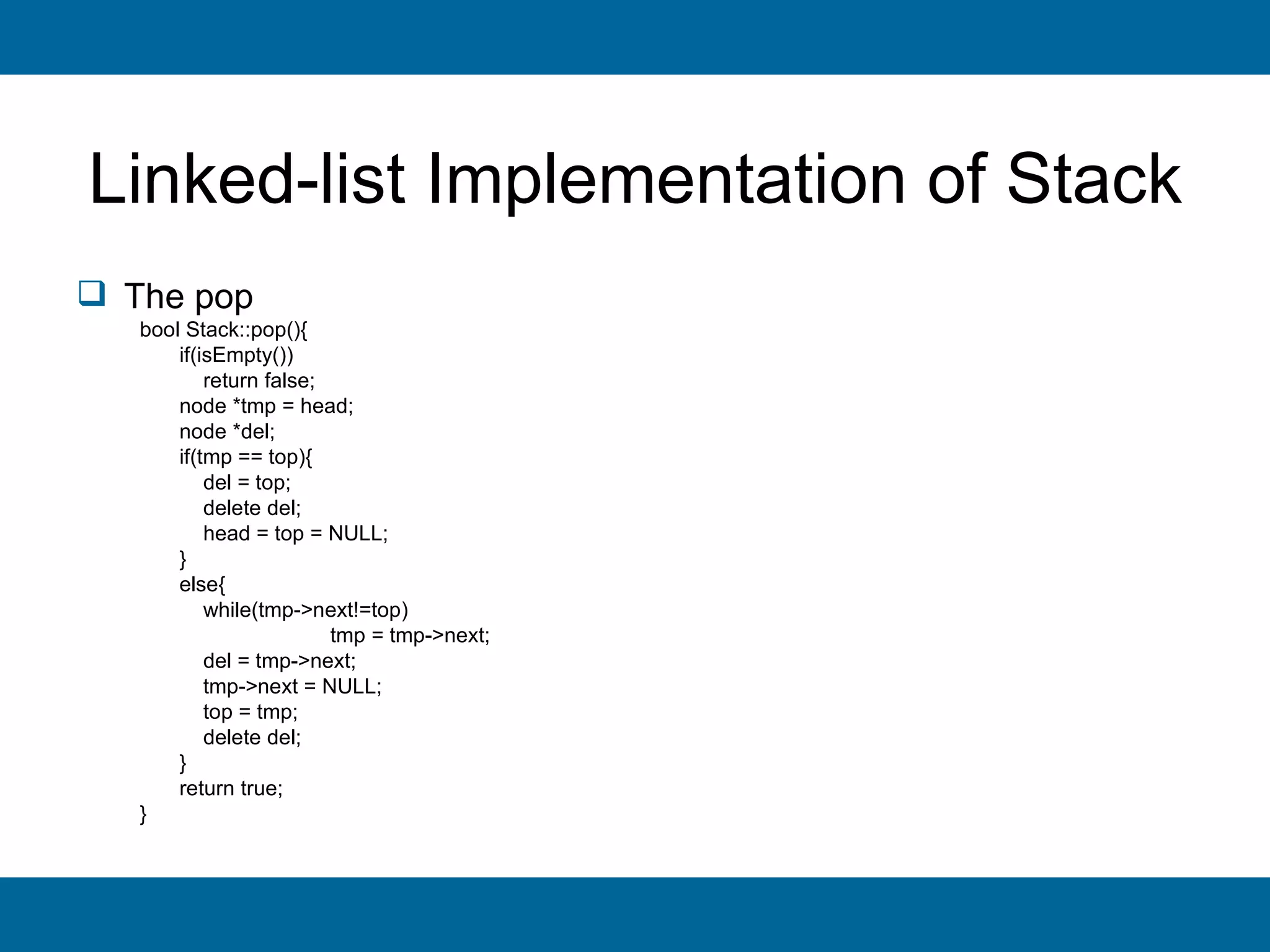

18. Linked-list Implementation of Stack
 The pop
bool Stack::pop(){
if(isEmpty())
return false;
node *tmp = head;
node *del;
if(tmp == top){
del = top;
delete del;
head = top = NULL;
}
else{
while(tmp->next!=top)
tmp = tmp->next;
del = tmp->next;
tmp->next = NULL;
top = tmp;
delete del;
}
return true;
}

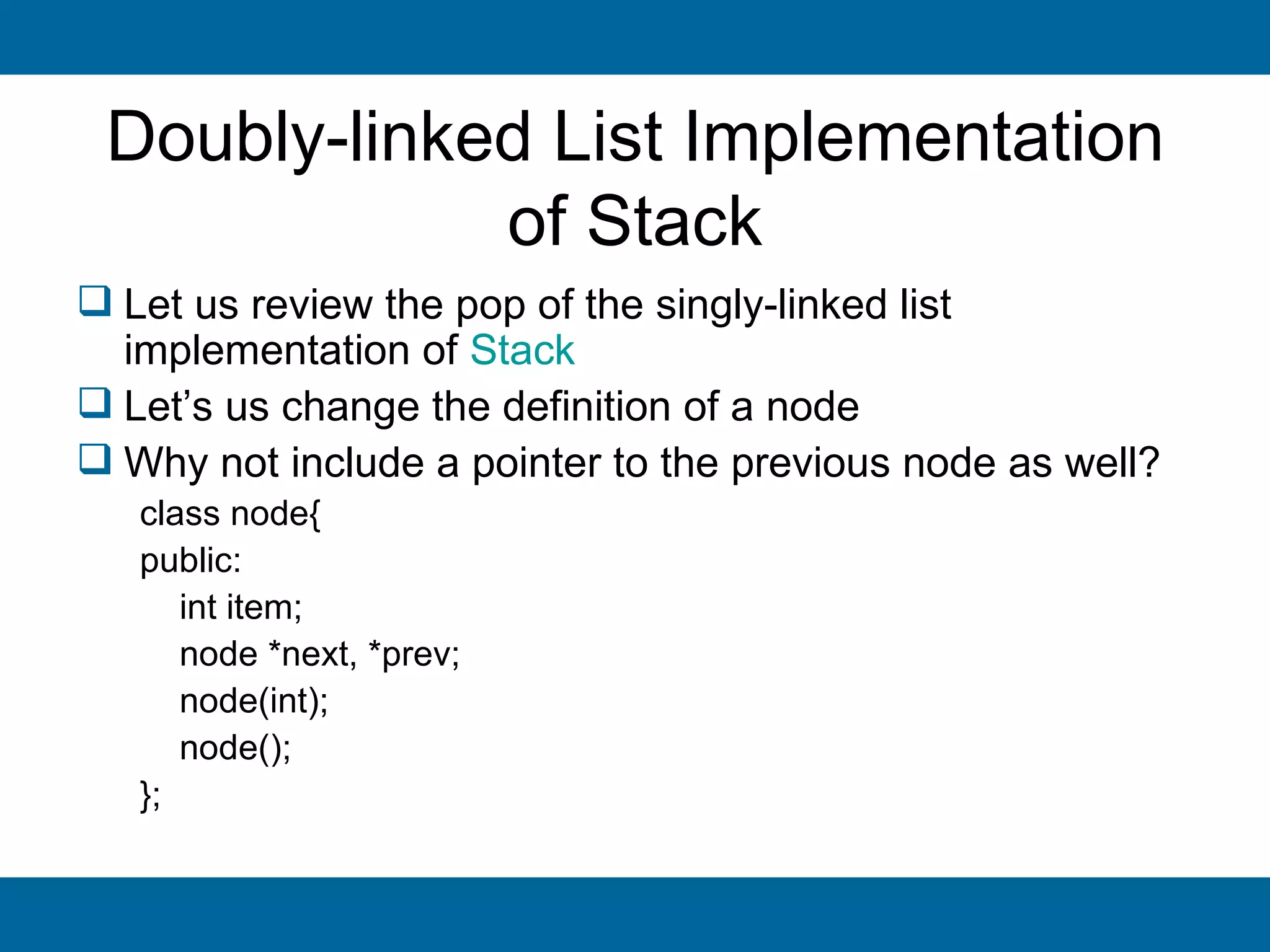

19. Doubly-linked List Implementation
of Stack
 Let us review the pop of the singly-linked list
implementation of Stack
 Let’s us change the definition of a node
 Why not include a pointer to the previous node as well?
class node{
public:
int item;
node *next, *prev;
node(int);
node();
};

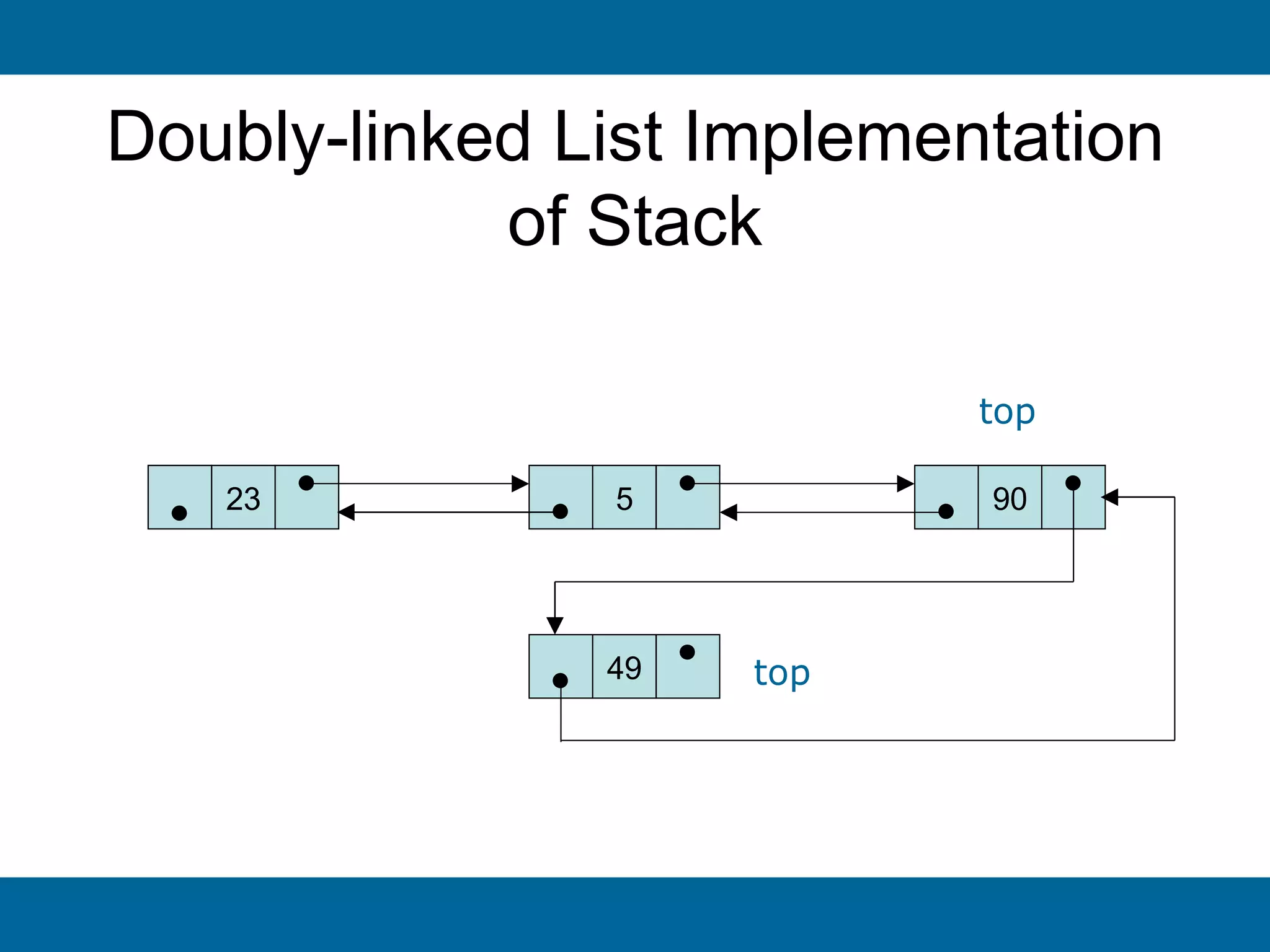

20. Doubly-linked List Implementation
of Stack
top
23 5 90
49 top

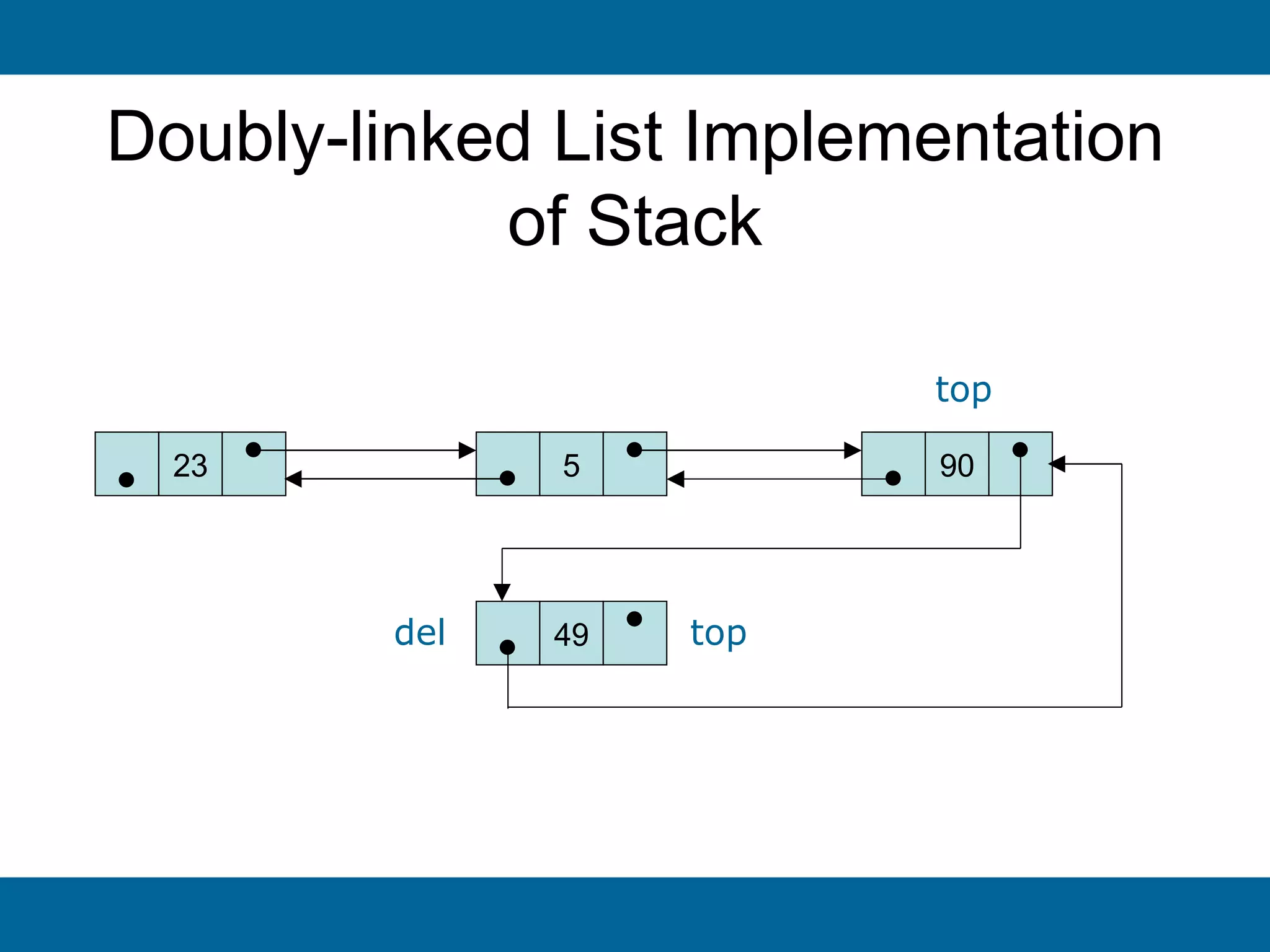

21. Doubly-linked List Implementation
of Stack
top
23 5 90
del 49 top

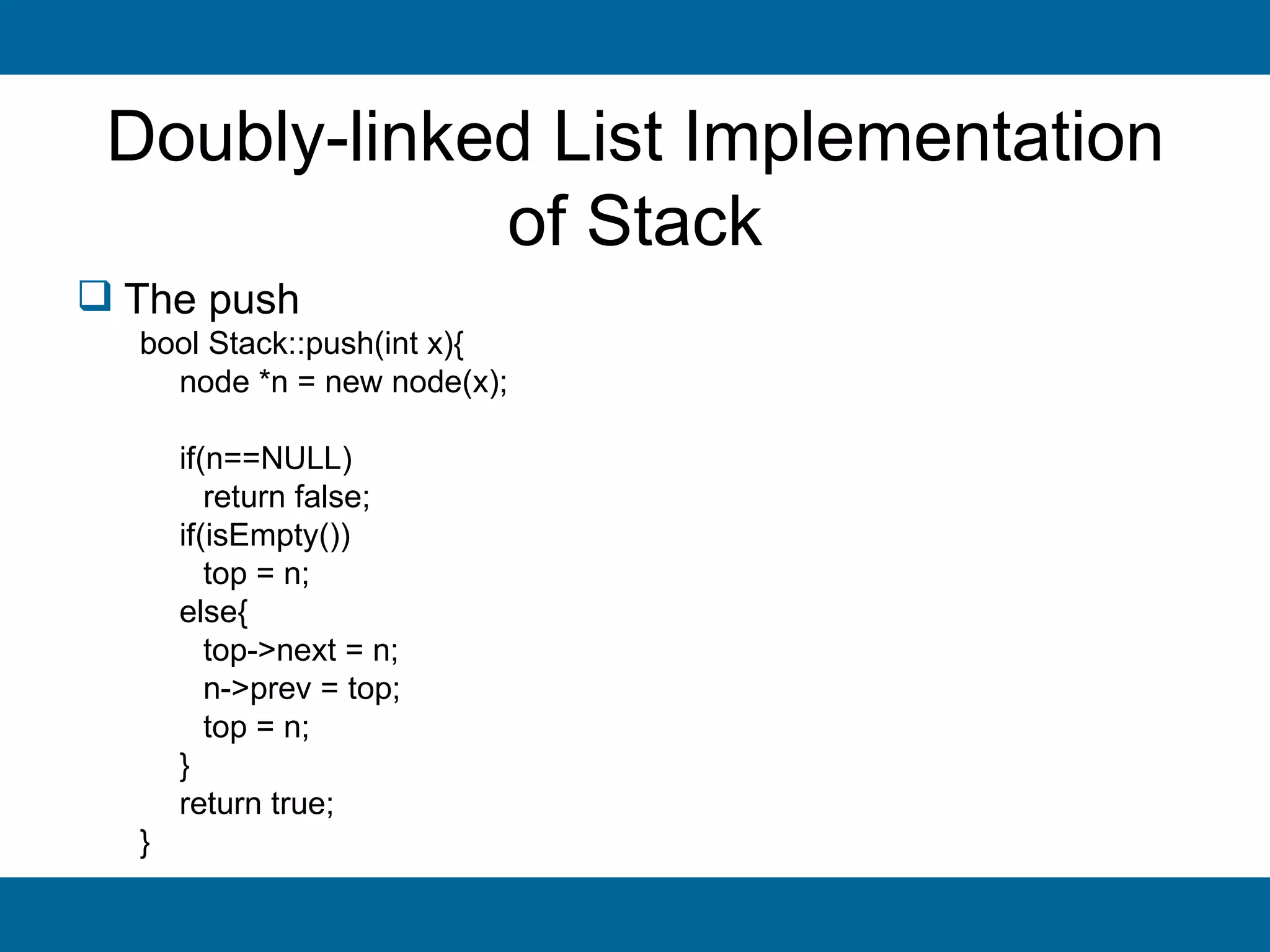

22. Doubly-linked List Implementation
of Stack
 The push
bool Stack::push(int x){
node *n = new node(x);
if(n==NULL)
return false;
if(isEmpty())
top = n;
else{
top->next = n;
n->prev = top;
top = n;
}
return true;
}

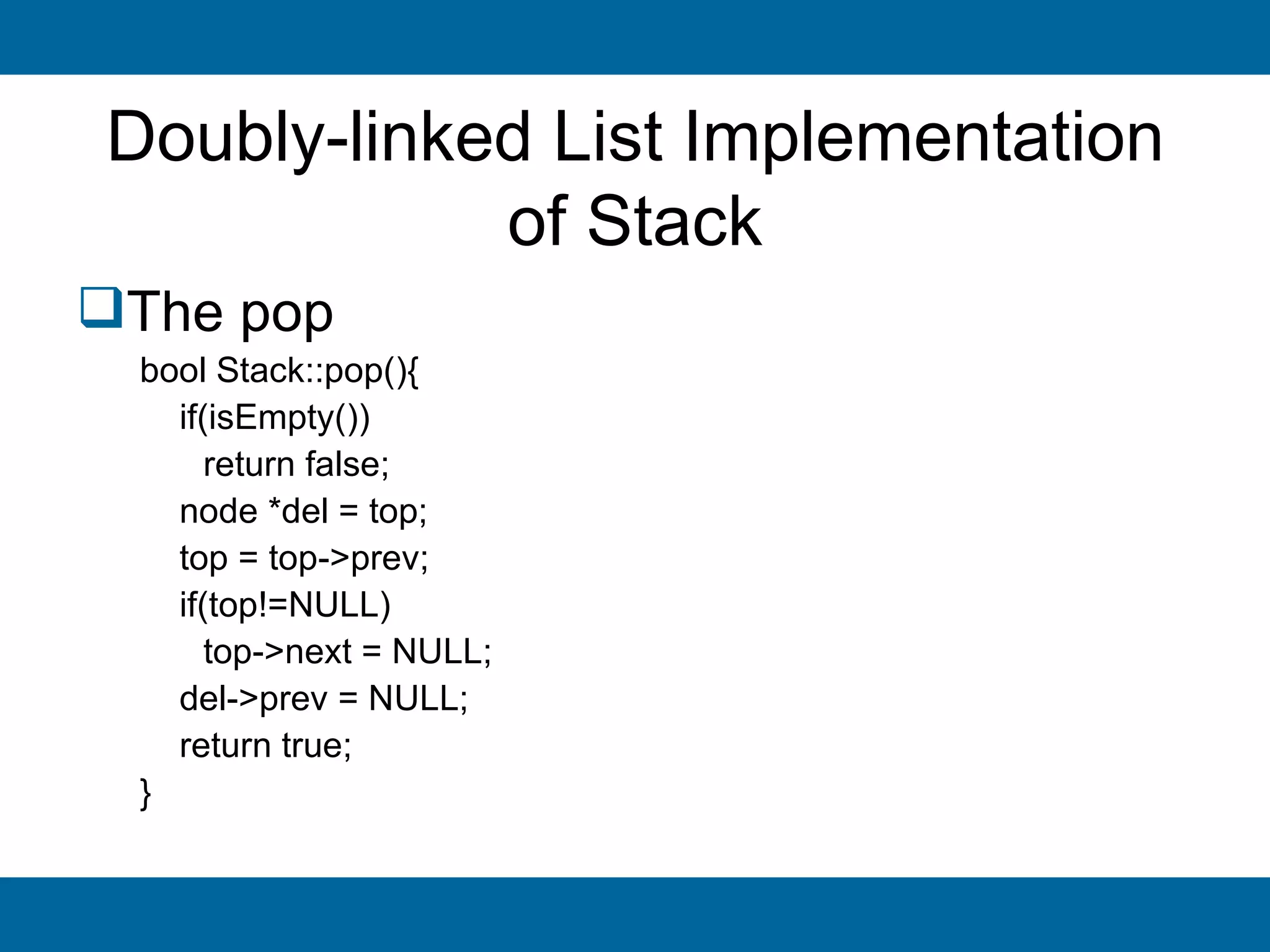

23. Doubly-linked List Implementation
of Stack
The pop
bool Stack::pop(){
if(isEmpty())
return false;
node *del = top;
top = top->prev;
if(top!=NULL)
top->next = NULL;
del->prev = NULL;
return true;
}

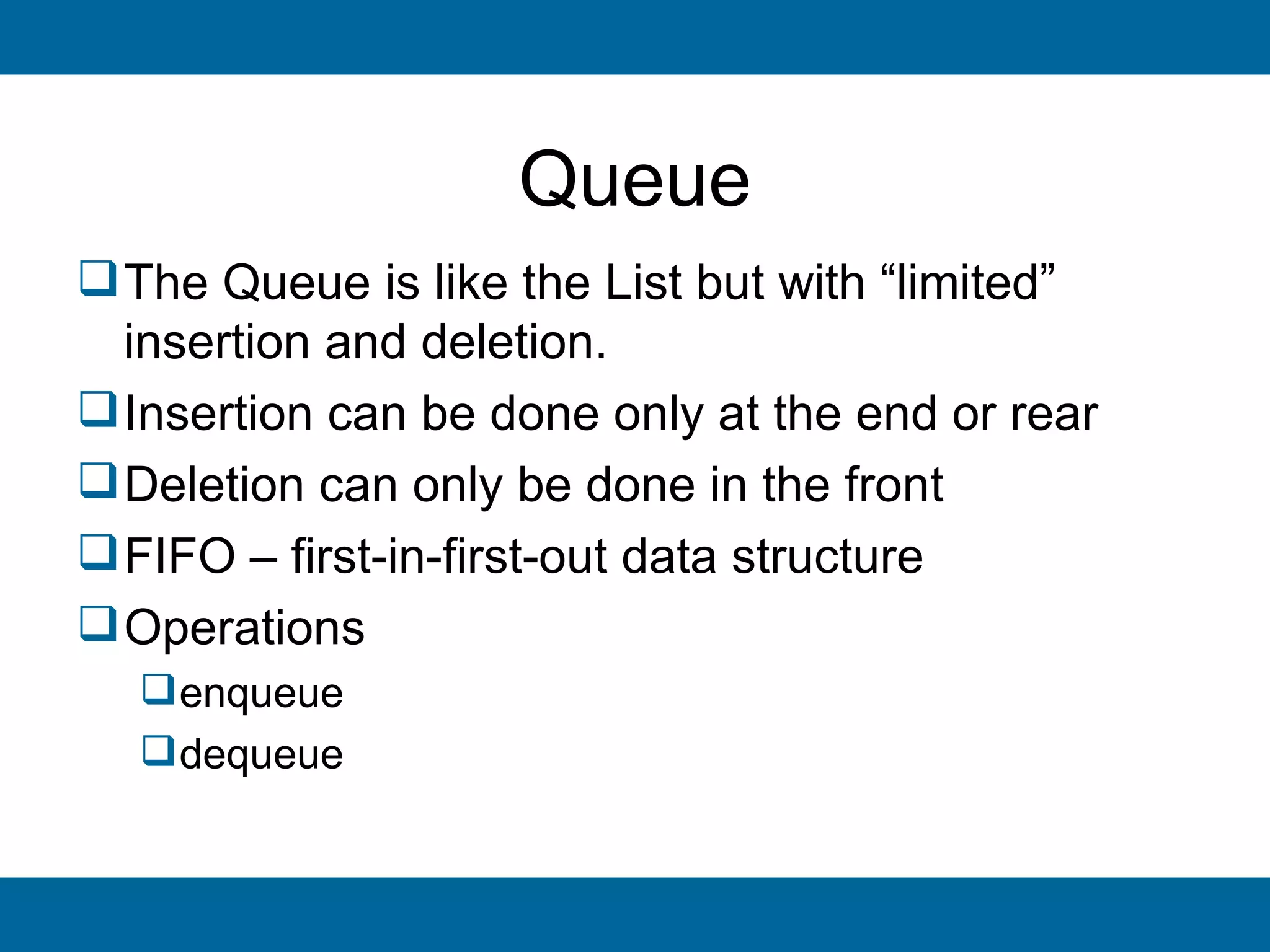

24. Queue
 The Queue is like the List but with “limited”
insertion and deletion.
 Insertion can be done only at the end or rear
 Deletion can only be done in the front
 FIFO – first-in-first-out data structure
 Operations
 enqueue
 dequeue

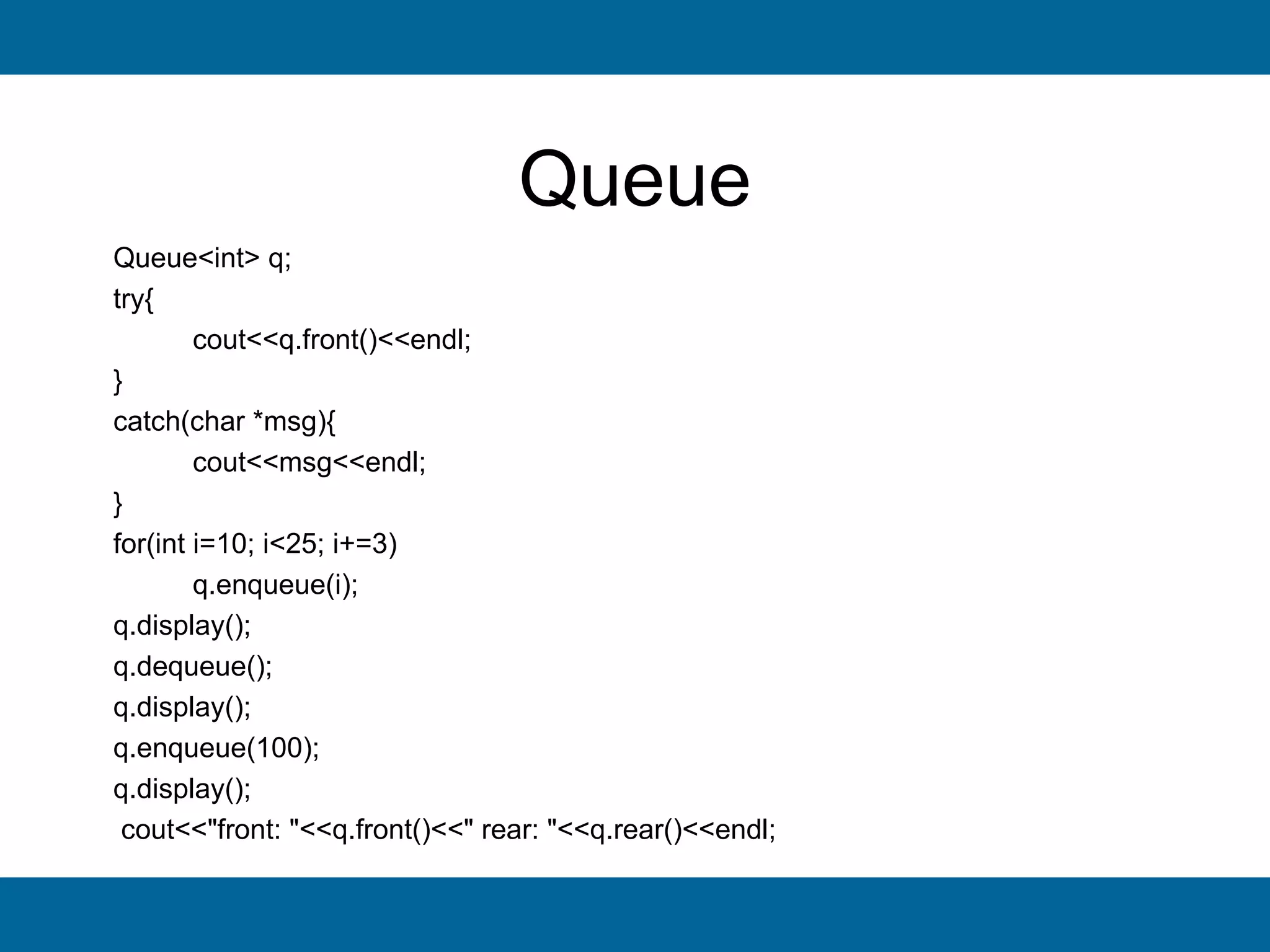

25. Queue
Queue<int> q;
try{
cout<<q.front()<<endl;
}
catch(char *msg){
cout<<msg<<endl;
}
for(int i=10; i<25; i+=3)
q.enqueue(i);
q.display();
q.dequeue();
q.display();
q.enqueue(100);
q.display();
cout<<"front: "<<q.front()<<" rear: "<<q.rear()<<endl;

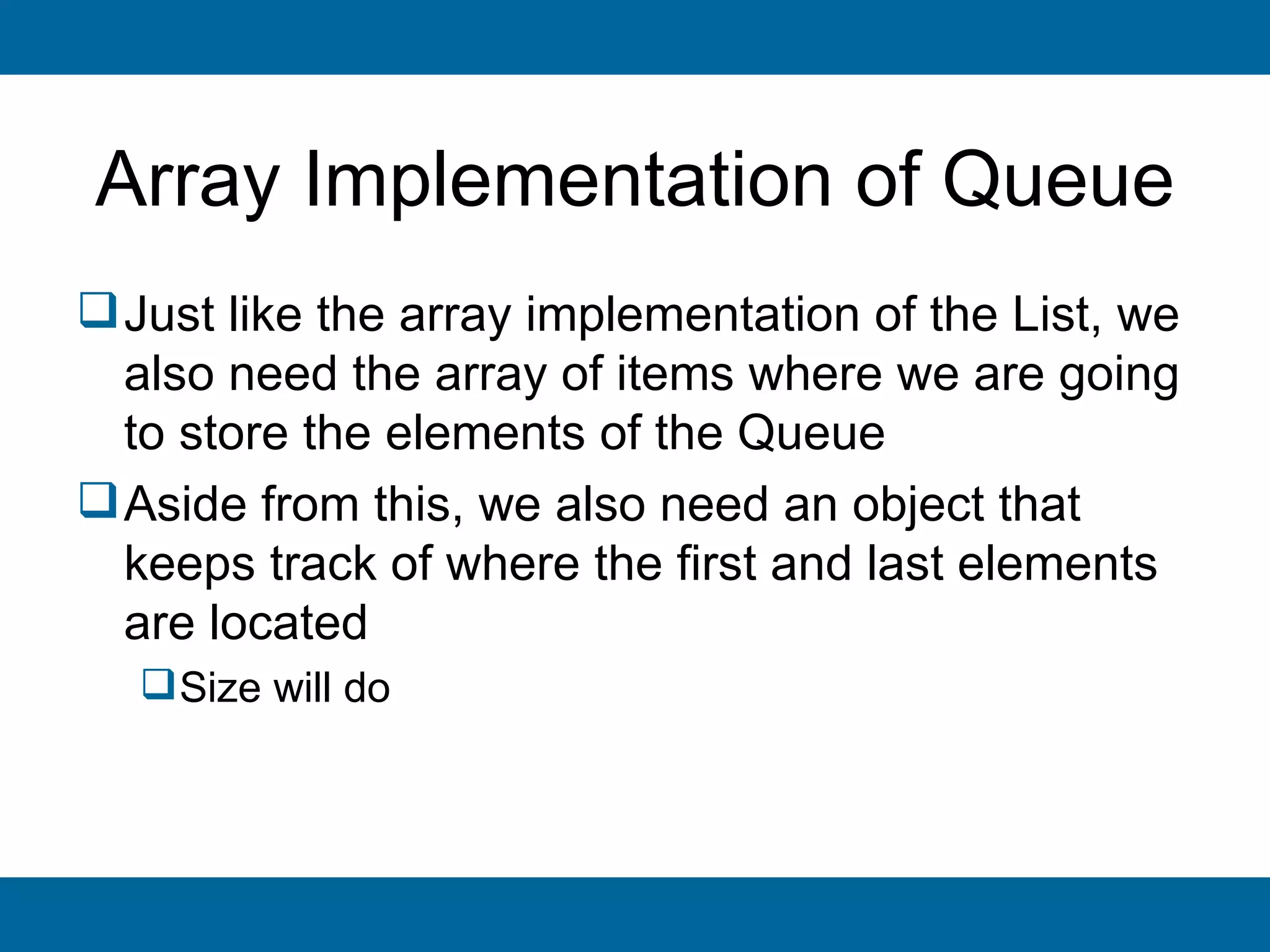

26. Array Implementation of Queue
 Just like the array implementation of the List, we
also need the array of items where we are going
to store the elements of the Queue
 Aside from this, we also need an object that
keeps track of where the first and last elements
are located
 Size will do

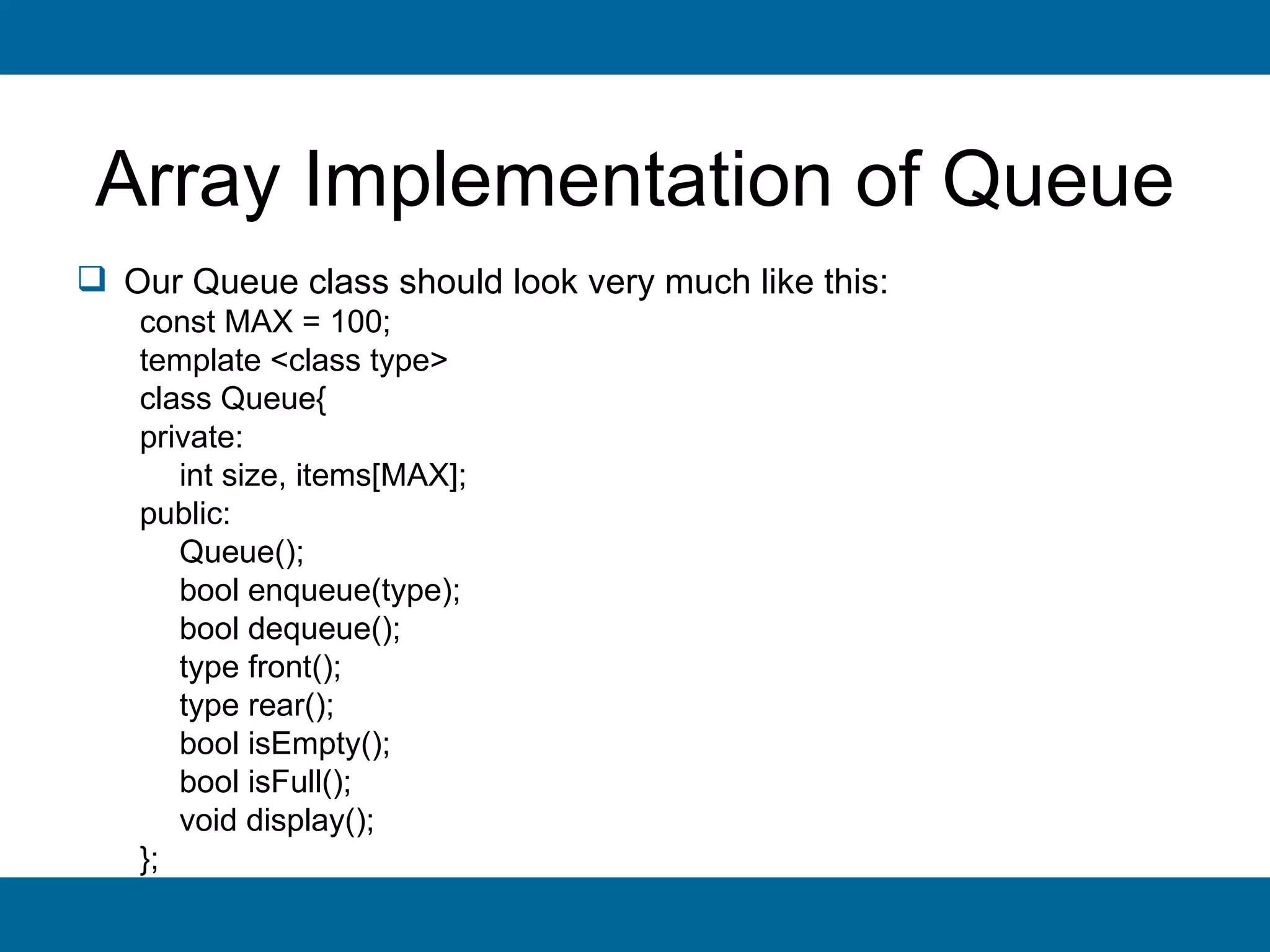

27. Array Implementation of Queue
 Our Queue class should look very much like this:
const MAX = 100;
template <class type>
class Queue{
private:
int size, items[MAX];
public:
Queue();
bool enqueue(type);
bool dequeue();
type front();
type rear();
bool isEmpty();
bool isFull();
void display();
};

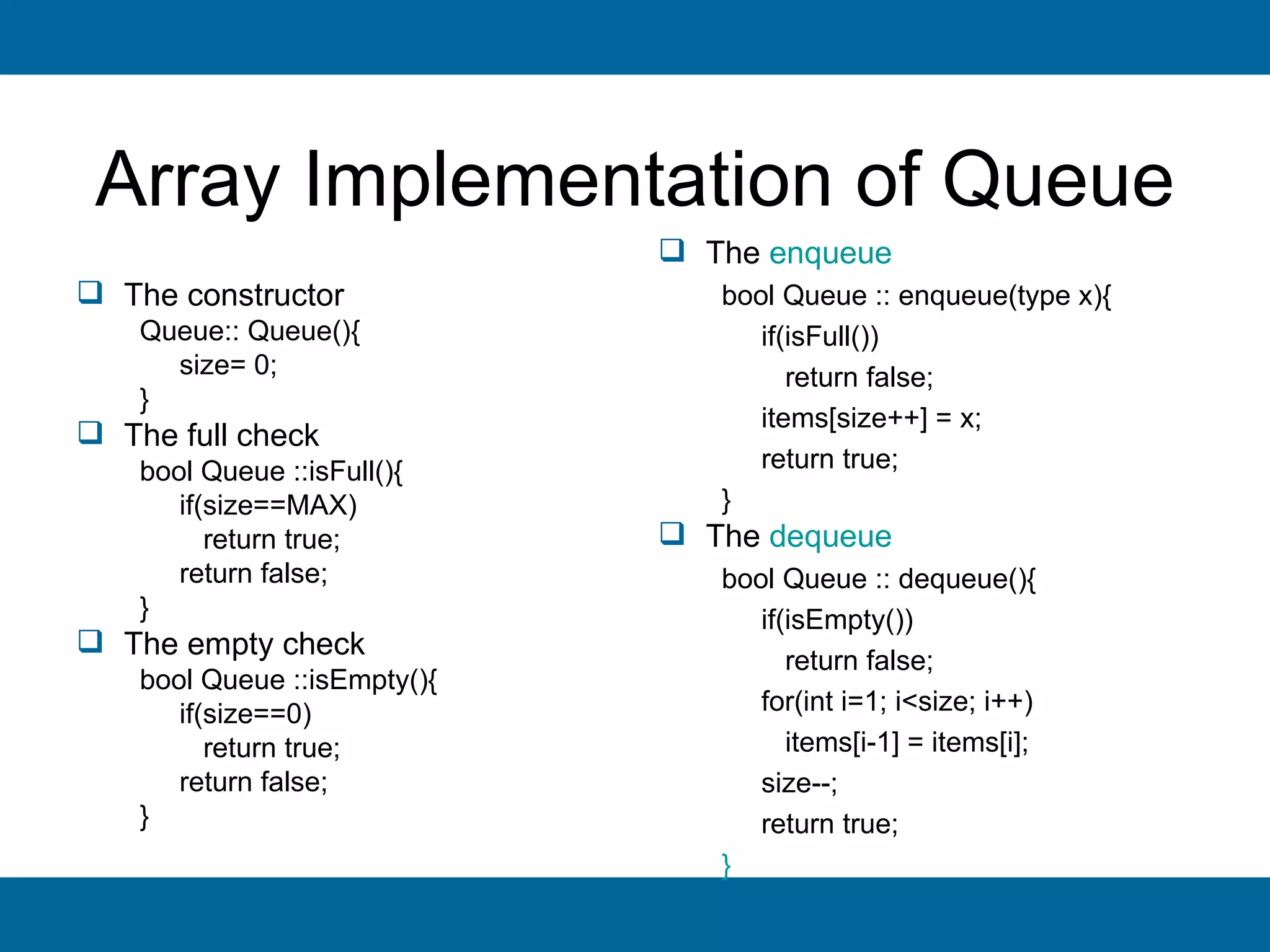

28. Array Implementation of Queue
 The enqueue
 The constructor bool Queue :: enqueue(type x){
Queue:: Queue(){ if(isFull())
size= 0; return false;
}
items[size++] = x;
 The full check
bool Queue ::isFull(){ return true;
if(size==MAX) }
return true;  The dequeue
return false; bool Queue :: dequeue(){
} if(isEmpty())
 The empty check
return false;
bool Queue ::isEmpty(){
if(size==0) for(int i=1; i<size; i++)
return true; items[i-1] = items[i];
return false; size--;
} return true;
}

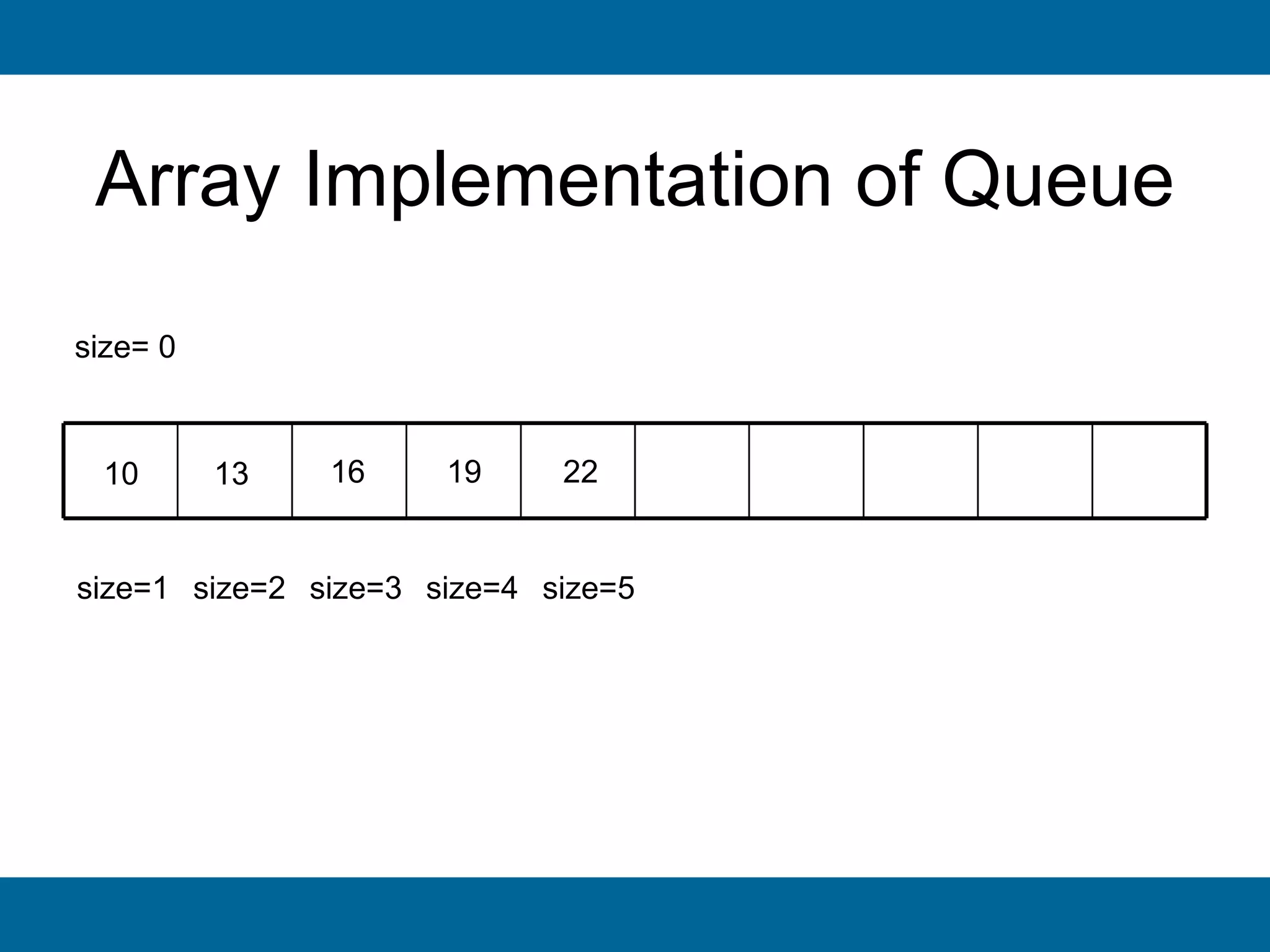

29. Array Implementation of Queue
size= 0
10 13 16 19 22
size=1 size=2 size=3 size=4 size=5

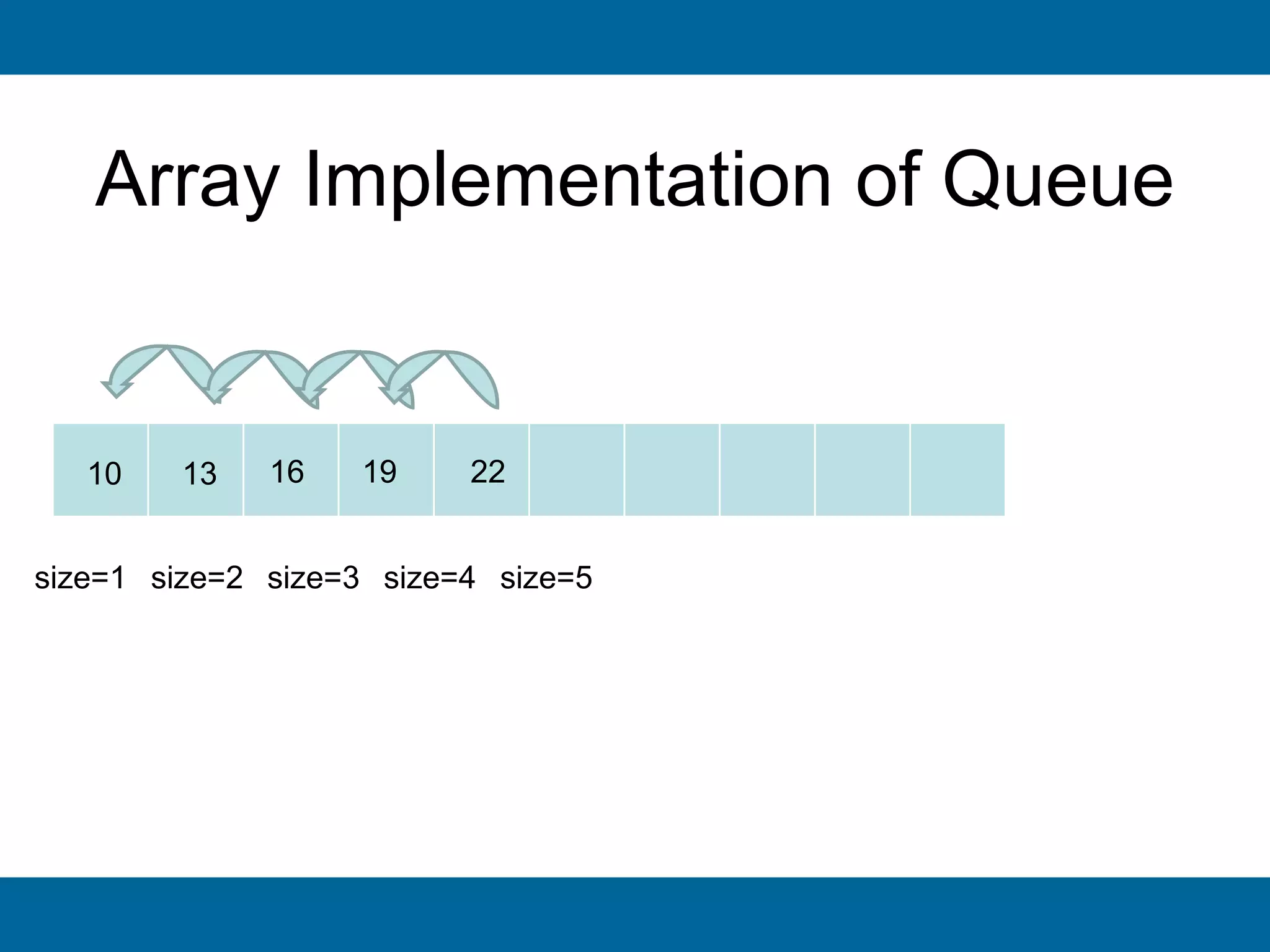

30. Array Implementation of Queue
10 13 16 19 22
size=1 size=2 size=3 size=4 size=5

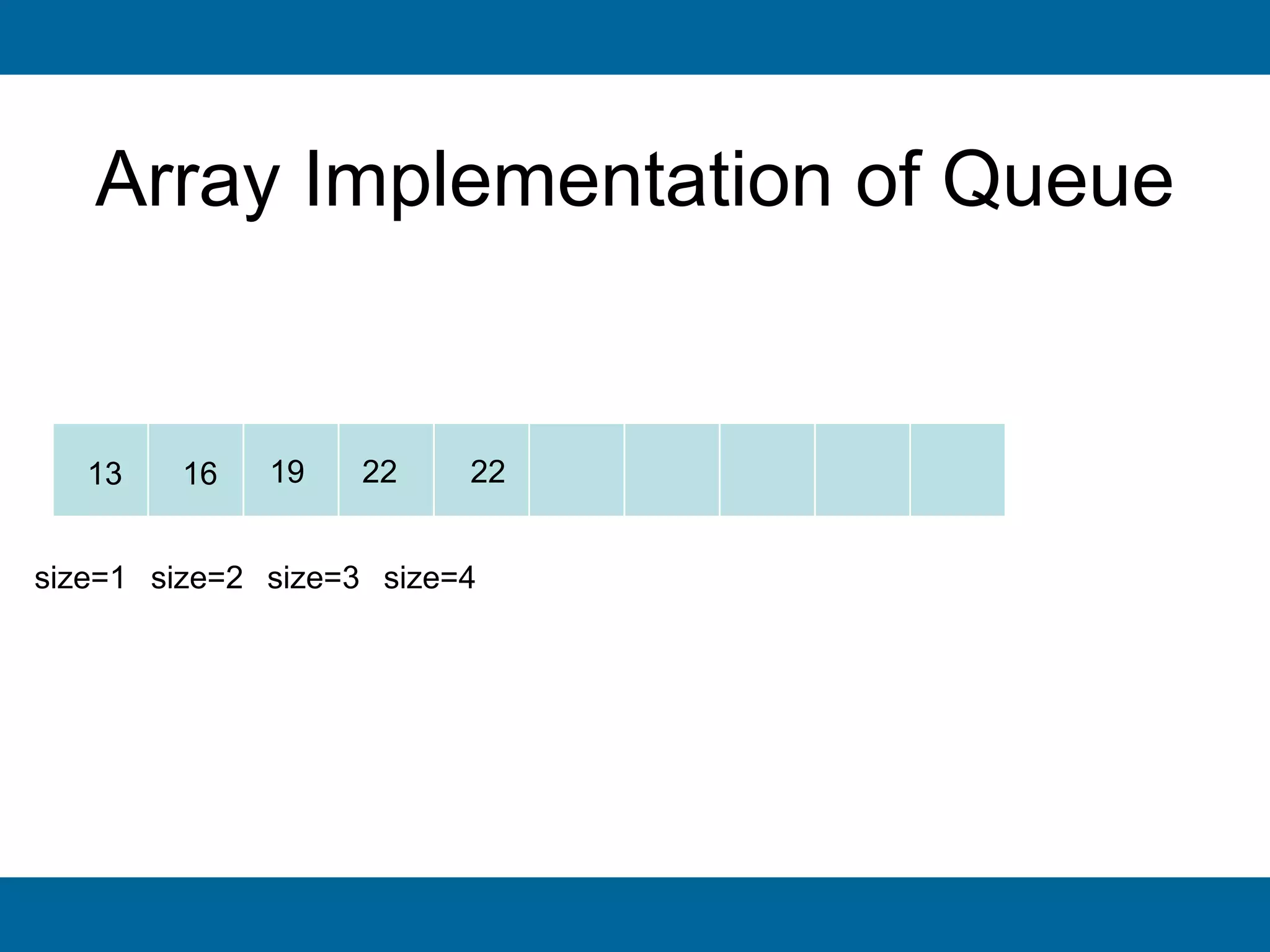

31. Array Implementation of Queue
13 16 19 22 22
size=1 size=2 size=3 size=4

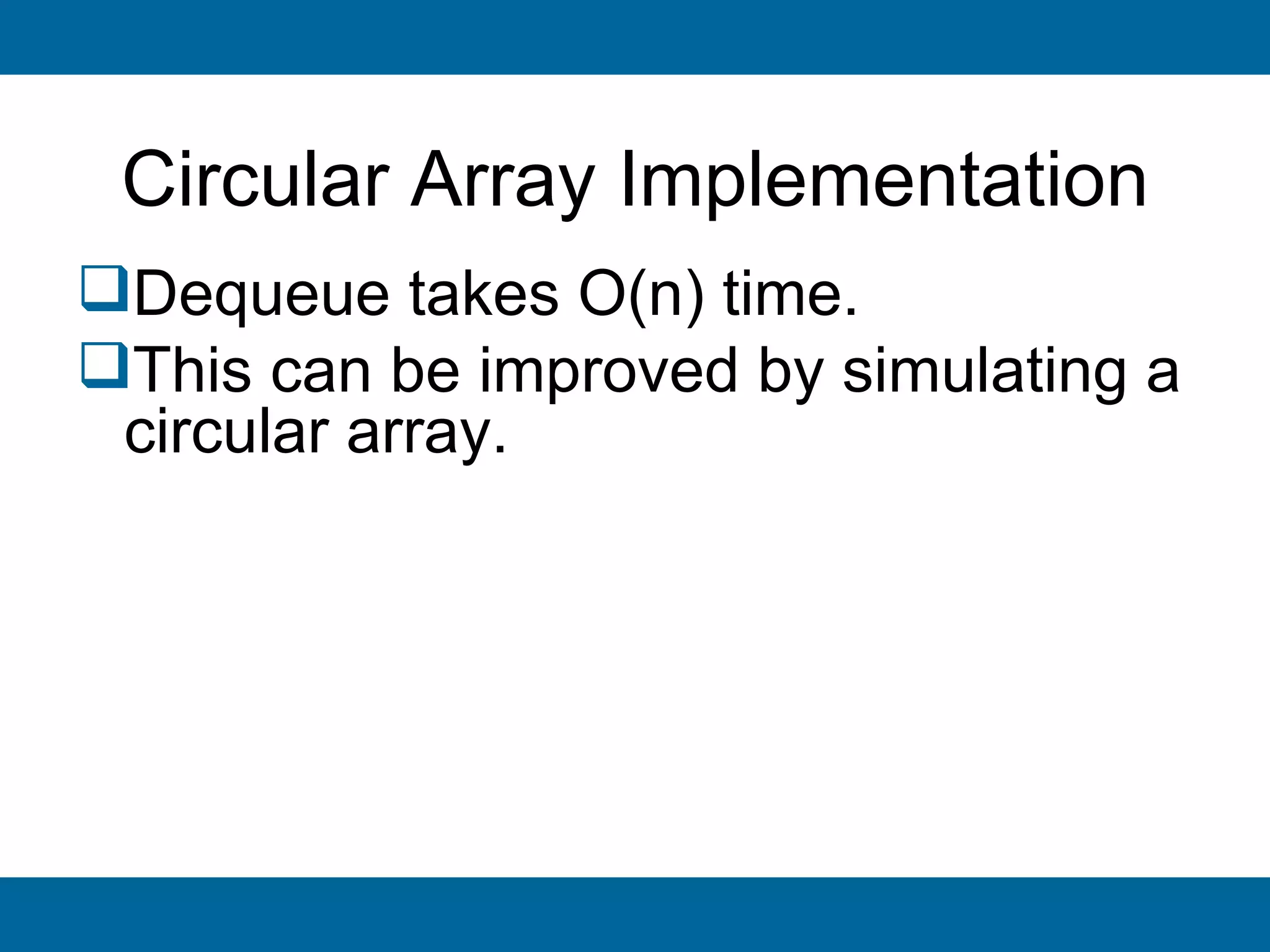

32. Circular Array Implementation
Dequeue takes O(n) time.
This can be improved by simulating a
circular array.

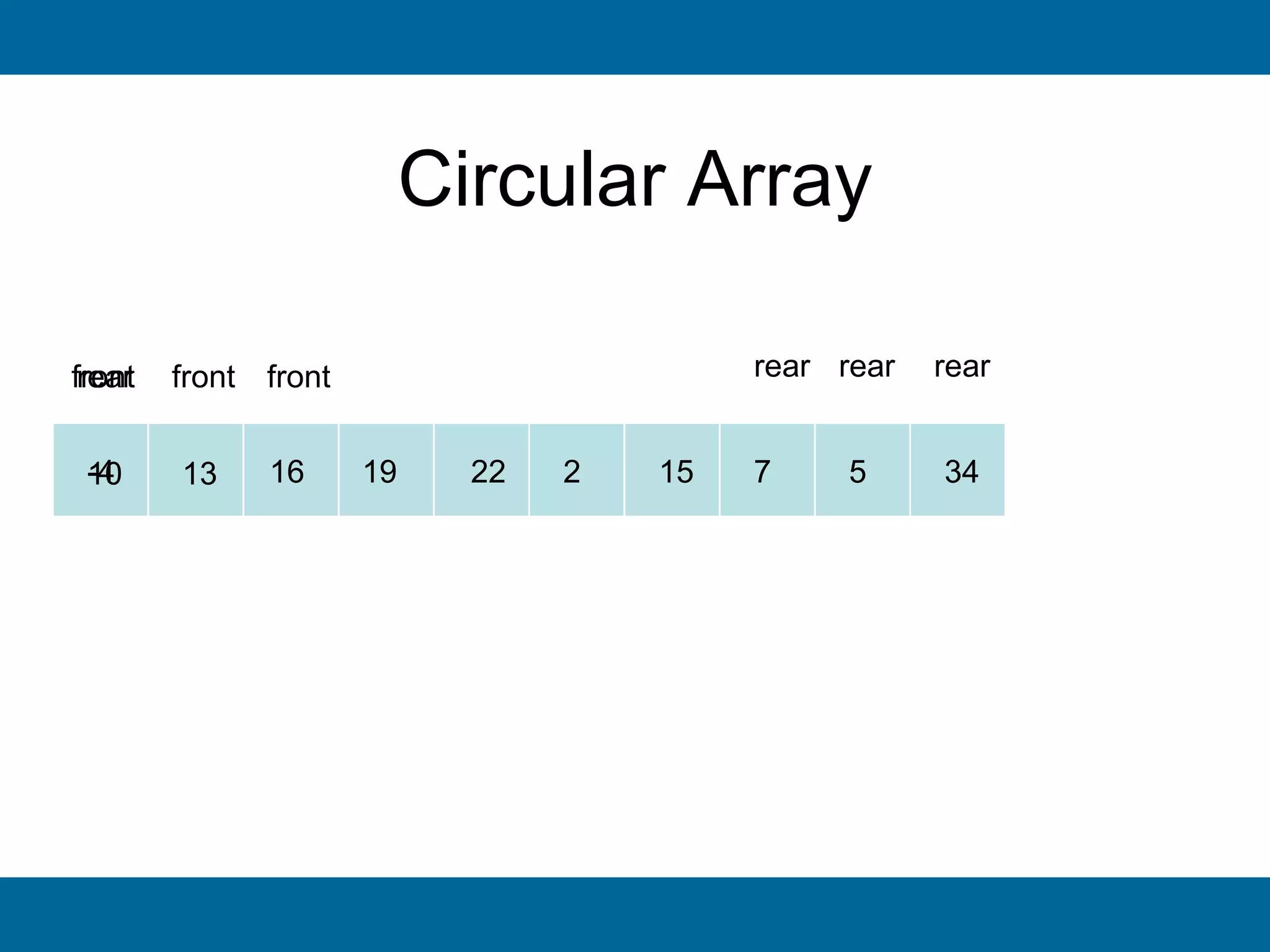

33. Circular Array
front
rear front front rear rear rear
-4
10 13 16 19 22 2 15 7 5 34

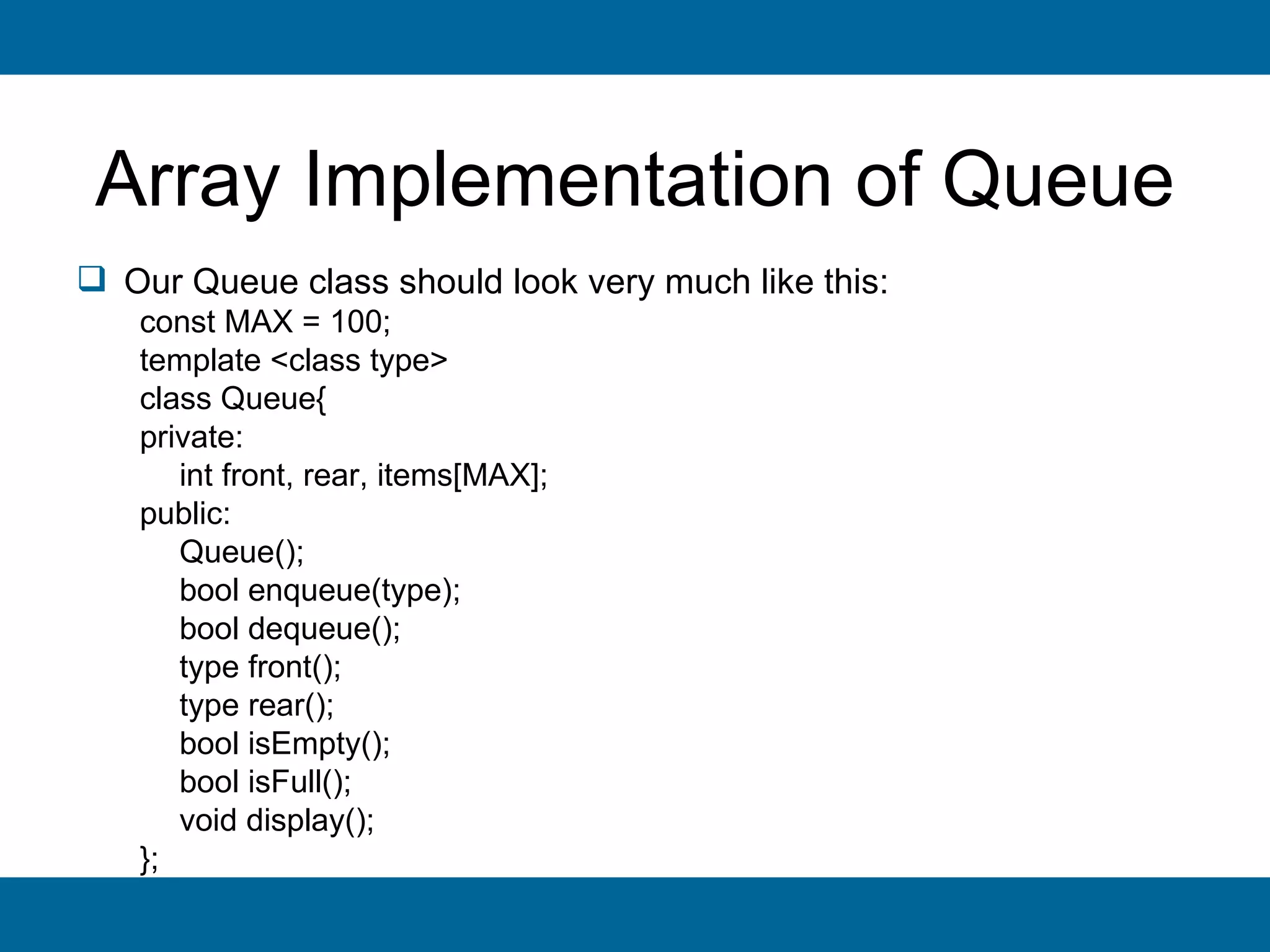

34. Array Implementation of Queue
 Our Queue class should look very much like this:
const MAX = 100;
template <class type>
class Queue{
private:
int front, rear, items[MAX];
public:
Queue();
bool enqueue(type);
bool dequeue();
type front();
type rear();
bool isEmpty();
bool isFull();
void display();
};

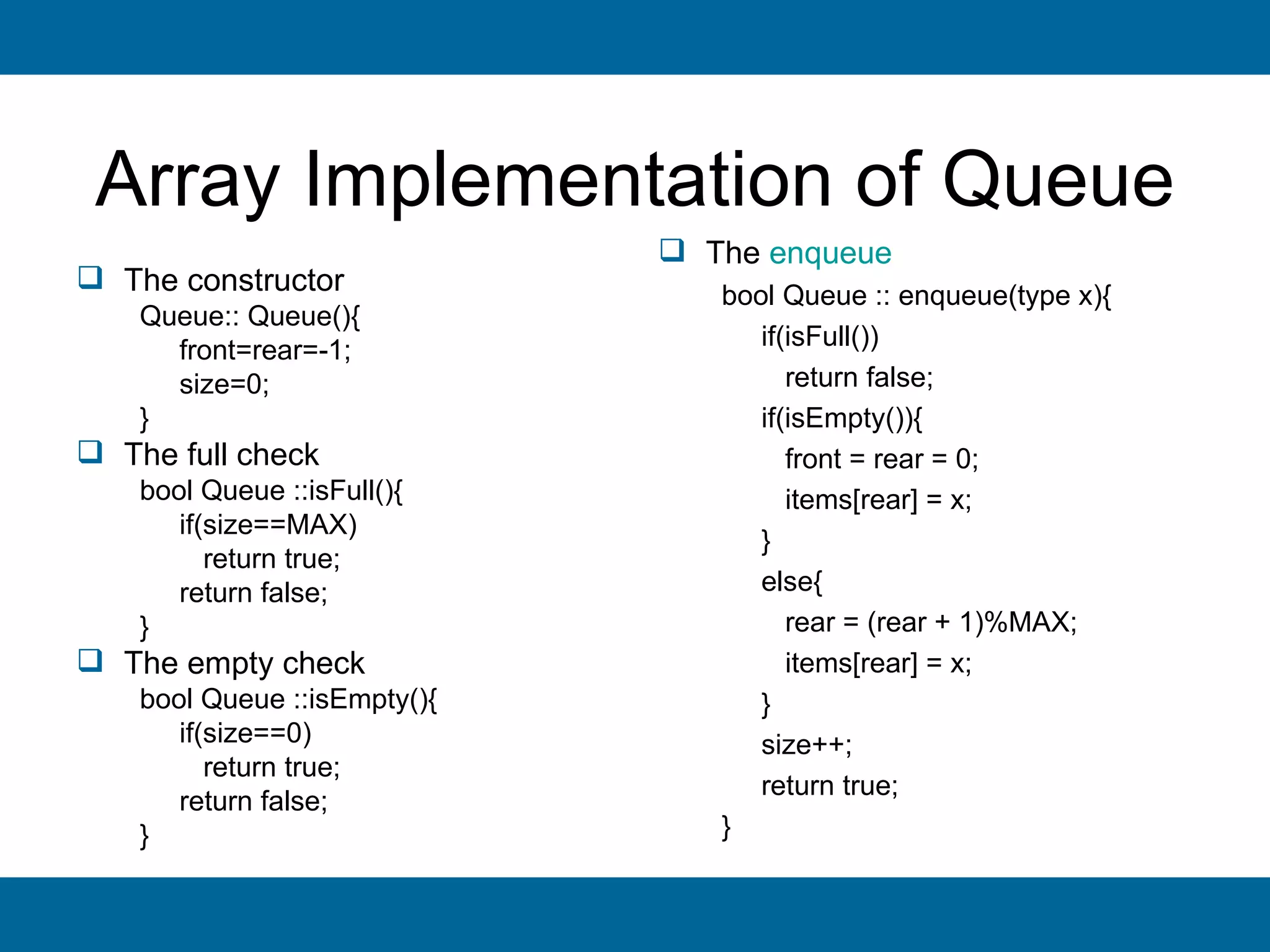

35. Array Implementation of Queue
 The enqueue
 The constructor bool Queue :: enqueue(type x){
Queue:: Queue(){
front=rear=-1; if(isFull())
size=0; return false;
} if(isEmpty()){
 The full check front = rear = 0;
bool Queue ::isFull(){ items[rear] = x;
if(size==MAX)
}
return true;
return false; else{
} rear = (rear + 1)%MAX;
 The empty check items[rear] = x;
bool Queue ::isEmpty(){ }
if(size==0) size++;
return true;
return true;
return false;
} }

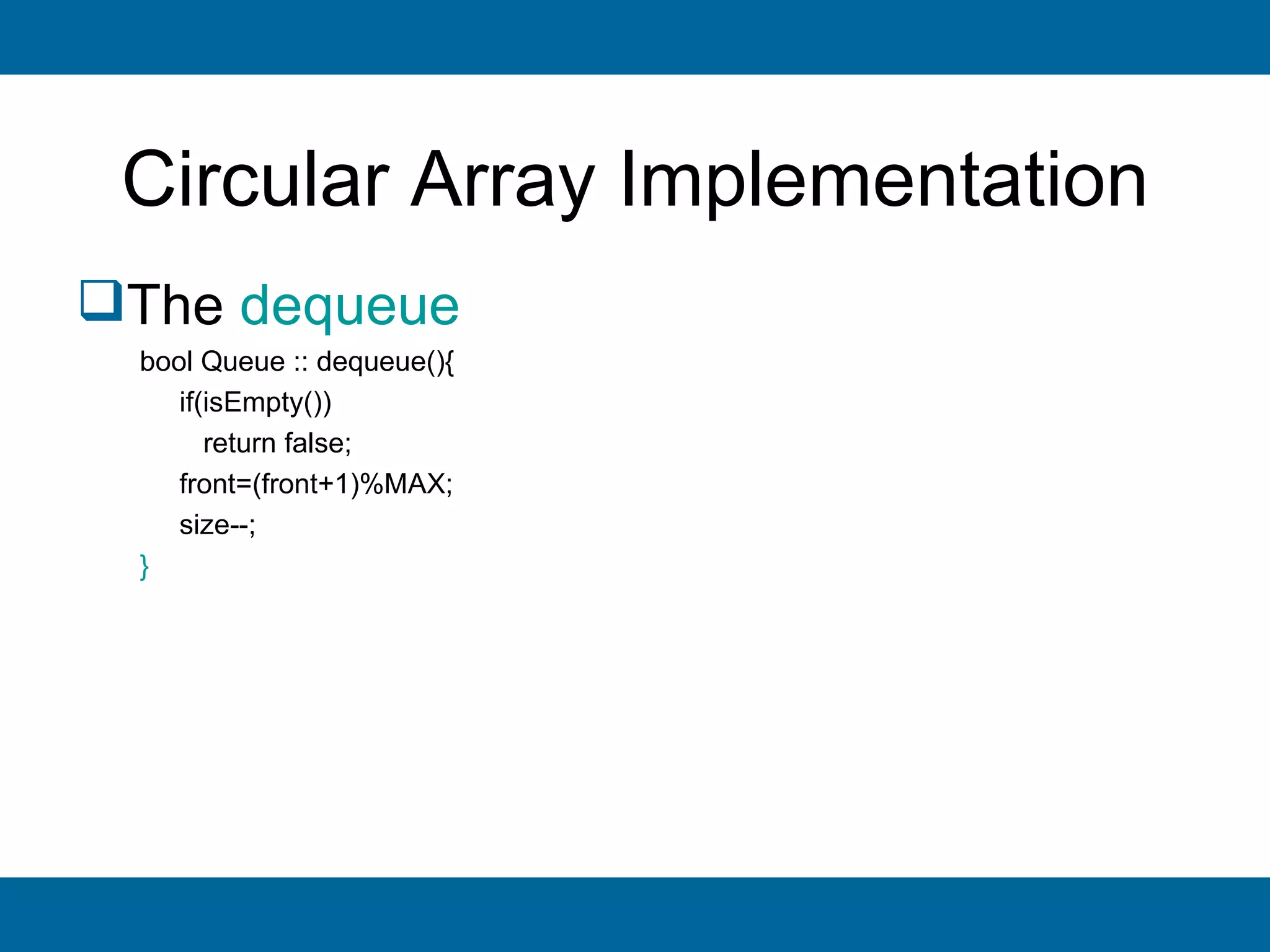

36. Circular Array Implementation
The dequeue
bool Queue :: dequeue(){
if(isEmpty())
return false;
front=(front+1)%MAX;
size--;
}
