1. DATA STRUCTURE
ASSIGNMENT - I
SINGLE LINKED LIST
IMPLEMENTATION
-BY
B.ABDUL KALAM ASHAD
B.ANISH KUMAR
MOHAN RAJ
D.SAPTHAGIRINATHAN
SUDHARSHAN
2. SINGLE LINKED LIST
Linked list is a collection of similar elements.
Each elements points to the next element.
Linked list is a linear list of specially designed
nodes, where each node divided into two parts.
INFO FIELD NEXT FIELD

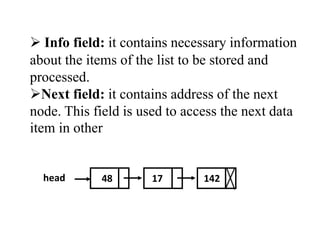

3. Info field: it contains necessary information
about the items of the list to be stored and
processed.
Next field: it contains address of the next
node. This field is used to access the next data
item in other
head 48 17 142
4. REPRESENTATION OF LINKED LIST
1. Static or sequential or array representation.
The linked list will be maintained or represented by two
parallel arrays of same sizes. One array for the actual data item
is called info field of the node and the other array for the
address called the next field of the nodes.
Info Next
28
1
8
2
24
-1
28 8 24

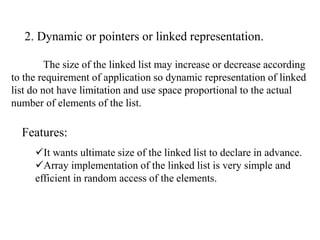

5. 2. Dynamic or pointers or linked representation.
The size of the linked list may increase or decrease according
to the requirement of application so dynamic representation of linked
list do not have limitation and use space proportional to the actual
number of elements of the list.
Features:
It wants ultimate size of the linked list to declare in advance.
Array implementation of the linked list is very simple and
efficient in random access of the elements.
6. OPERATION ON SINGLE LINKED LIST
Creating linked list:
To create a linked list we have to maintain the list of free
nodes in array implementation.
Initially all the nodes are empty and link to one another in
sequence.
The next field of the last node contains -1 to indicate the end
of the list.
Example:
Free=0;
For(i=0;i<size;i++)
List [i].next=i+1;
list[i].next= -1;
7. Traversing a linked list:
This operation is used to visit each one of the list exactly
once in order to access the info stored in nodes.
Algorithm:
1: if start=null
a: print “list is empty”
b: exit
End if.
2: Set ptr = start
3: Repeat steps 4 and 5 until ptr! =null
4: access and apply ptr info.
5: set ptr= ptr next
End repeat
6: Exit
8. Insertion of an element into the linked list at various positions:
Insertion of node into a linked list requires a free node in
which the information can be inserted and then the node can be
inserted into the linked list.
Before header or at beginning.
At the end of list.
At the specified position.

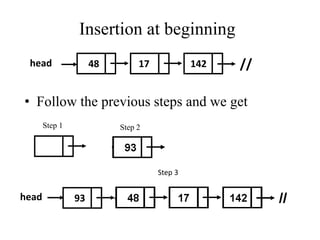

9. Insertion at beginning
head 48 17 142 //
• Follow the previous steps and we get
Step 1 Step 2
head 93
Step 3

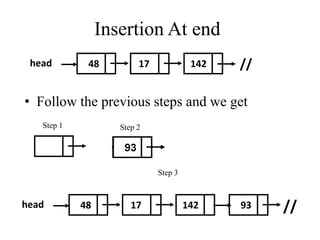

10. Insertion At end
head 48 17 142 //
• Follow the previous steps and we get
93
Step 1 Step 2
Step 3
head 48 17 142 //

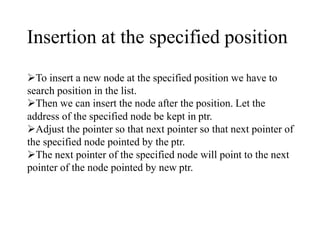

11. Insertion at the specified position
To insert a new node at the specified position we have to
search position in the list.
Then we can insert the node after the position. Let the
address of the specified node be kept in ptr.
Adjust the pointer so that next pointer so that next pointer of
the specified node pointed by the ptr.
The next pointer of the specified node will point to the next
pointer of the node pointed by new ptr.
12. Insertion at the specified position
head 48 17 142 //
• Follow the previous steps and we get
Step 1 Step 2
head 48 17 142 //

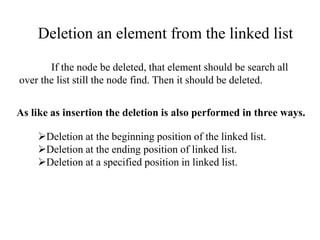

13. Deletion an element from the linked list
If the node be deleted, that element should be search all
over the list still the node find. Then it should be deleted.
As like as insertion the deletion is also performed in three ways.
Deletion at the beginning position of the linked list.
Deletion at the ending position of linked list.
Deletion at a specified position in linked list.
14. Deletion at beginning
head 93
• Follow the steps and we get
Step 1
Step 2
head 48 17 142 //

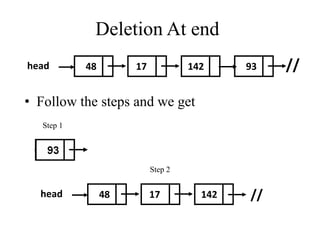

15. Deletion At end
head 48 17 142 //
• Follow the steps and we get
93
Step 1
Step 2
head 48 17 142 //

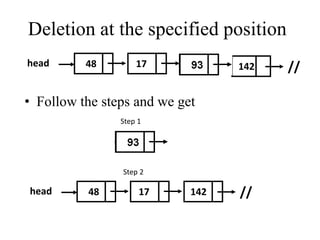

16. Deletion at the specified position
head 48 17 142 //
• Follow the steps and we get
Step 1
Step 2
head 48 17 142 //
17. ALGORITHM
1. If start =NULL
2. Print”over flow”
3. Return
4. End if
5. Set ptr=start
6. Assign value=startinfo
7. Set start=startnext(second node becomes the first node).
8. Release the node pointed by ptr to the memory heap.
9. Exit.
