Data Structures and Agorithm: DS 06 Stack.pptx

1. Data Structure
Lecture No. 6
Stack
Engr. Rashid Farid Chishti
http://youtube.com/rfchishti
http://sites.google.com/site/chishti
International Islamic University H-10, Islamabad, Pakistan
Video Lecture

2.  Stacks in real life: stack of books, stack of plates
 Add new items at the top
 Remove an item at the top
 Stack data structure similar to real life: collection of elements arranged in a
linear order.
 Can only access element at the top
Stack Operations
 Push(X) – insert X as the top element of the stack
 Pop() – remove the top element of the stack and return it.
 Top() – return the top element without removing it from the stack.
Stacks

3. Stacks Operations
push(2)
top 2
push(5)
2
5
push(7)
top
2
5
7
push(1)
top
2
5
7
1
1 pop()
top
2
5
7
push(21)
top
2
5
7
21
21 pop()
top
2
5
7
7 pop()
2
5
top
5 pop()
2
top
top
top

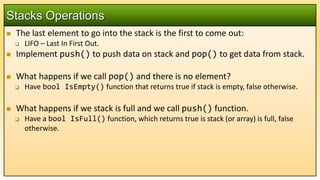

4.  The last element to go into the stack is the first to come out:
 LIFO – Last In First Out.
 Implement push() to push data on stack and pop() to get data from stack.
 What happens if we call pop() and there is no element?
 Have bool IsEmpty() function that returns true if stack is empty, false otherwise.
 What happens if we stack is full and we call push() function.
 Have a bool IsFull() function, which returns true is stack (or array) is full, false
otherwise.
Stacks Operations

5. #include <iostream>
using namespace std;
class Stack{
private :
enum { MAX = 3 };
int arr[MAX];
int top;
public :
Stack() { top = -1; }
int Top() { return arr[top]; }
bool IsEmpty(){ return top == -1 ;}
bool IsFull() { return top == MAX-1 ;}
int Pop(){
if(IsEmpty()){
cout << "Error: Stack is Emptyn";
return -1;
}
else
5
Example 1: Stack Using Array
return arr[top--];
}
void Push(int x){
if ( IsFull() )
cout << "Error: Stack is Fulln";
else{
arr[++top] = x;
}
}
};
int main( ){
Stack S; S.Push(11); S.Push(22);
S.Push(33); S.Push(44);
cout << S.Pop() << endl;
cout << S.Pop() << endl;
cout << S.Pop() << endl;
cout << S.Pop() << endl;
system("PAUSE"); return 0; }
1 2

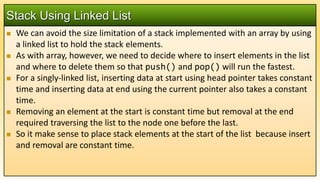

6.  We can avoid the size limitation of a stack implemented with an array by using
a linked list to hold the stack elements.
 As with array, however, we need to decide where to insert elements in the list
and where to delete them so that push() and pop() will run the fastest.
 For a singly-linked list, inserting data at start using head pointer takes constant
time and inserting data at end using the current pointer also takes a constant
time.
 Removing an element at the start is constant time but removal at the end
required traversing the list to the node one before the last.
 So it make sense to place stack elements at the start of the list because insert
and removal are constant time.
Stack Using Linked List

7. Stack using an array. Stack using a Linked List.
Stack Using Linked List
top
2
5
7
1
1 7 5 2
head

8. int pop(){
current = head ;
Data = current -> data ;
head = head -> next ;
delete current ;
return Data ;
}
void Push ( int Data ) {
node *newNode = new node ;
newNode -> data = Data ;
newNode -> next = head ;
head = newNode ;
}
Stack Operations
1 7 5 2
head
9 5 2
head
push(9)
newNode 7
current
Data = 1

9. #include <iostream>
using namespace std;
typedef int Type;
struct Node{
Type data ;
Node * next ;
};
class Stack{
private :
Node* head;
public :
Stack( );
bool Is_Empty();
Type Top();
void Push ( Type Data );
Type Pop ( );
~Stack( ) ;
};
9
Example 2: Stack Using Linked List
Stack::Stack( ){
head = NULL;
}
bool Stack::Is_Empty() {
return head == NULL;
}
Type Stack::Top() {
if ( !Is_Empty() )
return head->data;
return -1;
}
void Stack :: Push ( Type Data ) {
Node *newNode ;
newNode = new Node ;
if ( newNode == NULL ){
cout << endl << "Stack is full" ;
return;
}
1 2

10. newNode -> data = Data ;
newNode -> next = head ;
head = newNode ;
}
Type Stack :: Pop( ) {
if ( Is_Empty() ){
cout << "Stack is empty " ;
return -1 ;
}
Node *current ;
Type Data ;
current = head ;
Data = current -> data ;
head = head -> next ;
delete current ;
return Data ;
}
10
Example 2: Stack Using Linked List
Stack :: ~Stack( ){
Node *current ;
while ( head != NULL ){
current = head ;
head = head -> next ;
delete current ;
}
}
int main( ){
Stack s ;
s.Push (11); s.Push (22); s.Push (33);
cout << s.Pop() << endl;
cout << s.Pop() << endl;
cout << s.Pop() << endl;
cout << s.Pop() << endl;
system("PAUSE");
return 0;
}
3 4

11.  Since both implementations support stack operations in constant time, any
reason to choose one over the other?
 Allocating and deallocating memory for list nodes does take more time than
pre-allocated array.
 Linked List uses only as much memory as required by the nodes; array requires
allocation ahead of time.
 Linked List Pointers (head, next) require extra memory.
 Array has an upper limit; List is limited by dynamic memory allocation.
Stack: Array or List Linked List

12.  Infix expression into its postfix equivalent, or prefix equivalent so that We do
not need to maintain operator ordering, and parenthesis.
 After converting into prefix or postfix notations, we have to evaluate the
expression using stack to get the result.
 When we make a call from one function to the another function. The address
of the calling function gets stored in the Stack.
 Stack can be used for parenthesis checking in our code.
 Stack can be used to reverse a string by pushing all letters on stack and then
popping them out.
 We need stack in Backtracking algorithms so that we come back to the
previous state and go into some other paths.
 Page-visited history in a Web browser
 Undo sequence in a text editor
Applications of Stack
