The document discusses earthquake-resistant building design and rehabilitation methods, focusing on factors that influence structural damage and ideal qualities of resilient buildings. It outlines techniques for strengthening existing structures, such as crack treatment, external surface treatments, and confinement techniques. Recommendations for housing construction in Kurdistan emphasize the importance of robust foundations, symmetrical planning, and the use of reinforced masonry.

1. Darbandyxan Earthquake
Dr Mohamed Raouf Abdulkadir
Consultant Structural Engineer
Professor at Civil Engineering Department
College of Engineering- University of Sulaimani
‫دەربەندیخان‬ ‫لەرزەی‬ ‫زەمین‬
–
‫چارەسەرەکان‬ ‫و‬ ‫زیانەکانی‬
10/12/2017
1
Dr Mohamed Raouf

2. *Content:
Introduction
Factors affecting structural damage.
Building behavior under lateral loading.
Ideal earthquake resistant building.
Rehabilitation and strengthening.
10/12/2017
Dr Mohamed Raouf 2

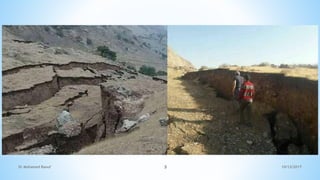

3. 10/12/2017
Dr Mohamed Raouf 3

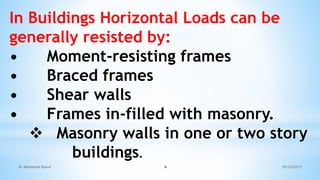

4. In Buildings Horizontal Loads can be
generally resisted by:
• Moment-resisting frames
• Braced frames
• Shear walls

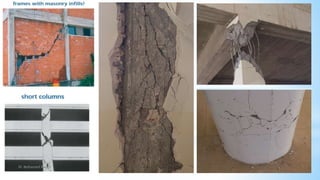

• Frames in-filled with masonry.
 Masonry walls in one or two story
buildings.
10/12/2017
Dr Mohamed Raouf 4

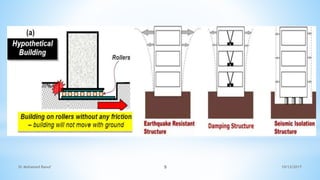

5. 10/12/2017
Dr Mohamed Raouf 5

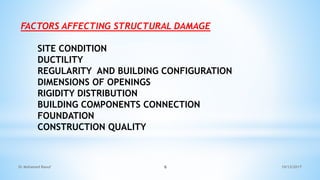

6. FACTORS AFFECTING STRUCTURAL DAMAGE
SITE CONDITION
DUCTILITY
REGULARITY AND BUILDING CONFIGURATION
DIMENSIONS OF OPENINGS
RIGIDITY DISTRIBUTION
BUILDING COMPONENTS CONNECTION
FOUNDATION
CONSTRUCTION QUALITY
10/12/2017
Dr Mohamed Raouf 6

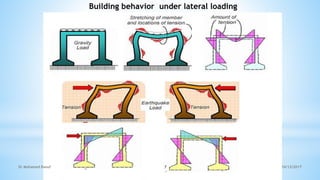

7. Building behavior under lateral loading
10/12/2017
Dr Mohamed Raouf 7

8. 10/12/2017
Dr Mohamed Raouf 8

9. 10/12/2017
Dr Mohamed Raouf 9

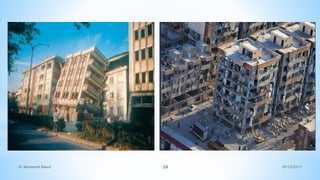

10. 10/12/2017
Dr Mohamed Raouf 10

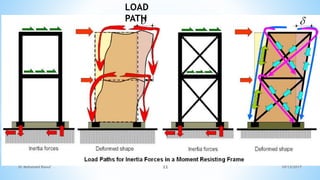

11. 10/12/2017
Dr Mohamed Raouf 11
LOAD
PATH

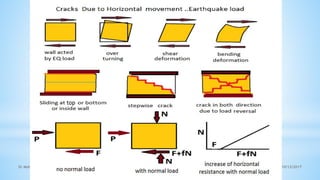

12. 10/12/2017
Dr Mohamed Raouf 12

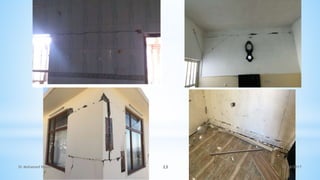

13. 10/12/2017
Dr Mohamed Raouf 13

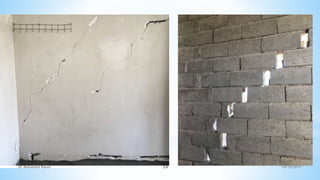

14. 10/12/2017
Dr Mohamed Raouf 14

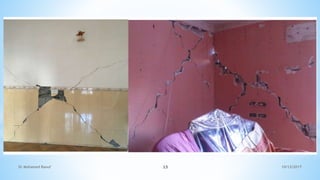

15. 10/12/2017
Dr Mohamed Raouf 15

16. 10/12/2017
Dr Mohamed Raouf 16
Ideal EQ resisting building:
1. Small mass.
2. Low height to base ratio.
3. Low center of mass.
4. Balanced lateral resistance.
5. Direct load path.

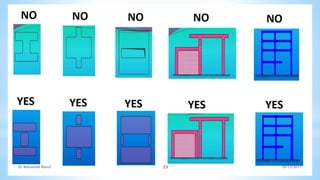

6. Symmetrical plan.
7. Uniform section and elevation.
8. Uniform floor height.
9. Maximum rotational resistance.
10. Short span.

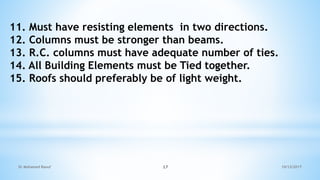

17. 11. Must have resisting elements in two directions.
12. Columns must be stronger than beams.

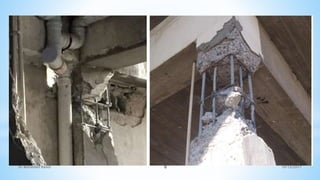

13. R.C. columns must have adequate number of ties.
14. All Building Elements must be Tied together.
15. Roofs should preferably be of light weight.
10/12/2017
Dr Mohamed Raouf 17

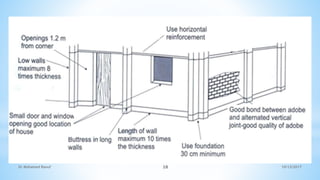

18. 10/12/2017
Dr Mohamed Raouf 18

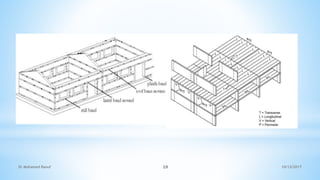

19. 10/12/2017
Dr Mohamed Raouf 19

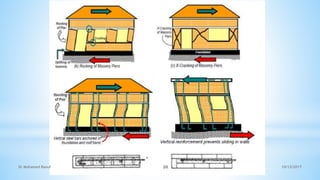

20. 10/12/2017
Dr Mohamed Raouf 20

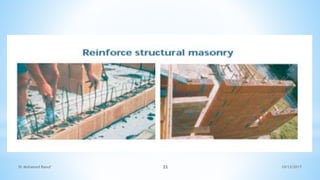

21. 10/12/2017
Dr Mohamed Raouf 21

22. 10/12/2017
Dr Mohamed Raouf 22

23. 10/12/2017
Dr Mohamed Raouf 23

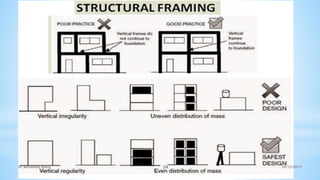

24. 10/12/2017
Dr Mohamed Raouf 24

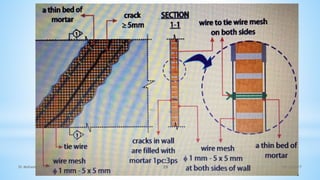

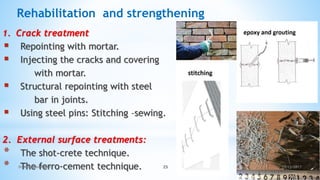

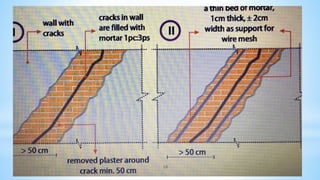

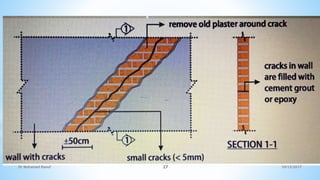

25. 1. Crack treatment
 Repointing with mortar.
 Injecting the cracks and covering
with mortar.
 Structural repointing with steel
bar in joints.
 Using steel pins: Stitching –sewing.
2. External surface treatments:
* The shot-crete technique.
* The ferro-cement technique.
Rehabilitation and strengthening
10/12/2017
Dr Mohamed Raouf 25

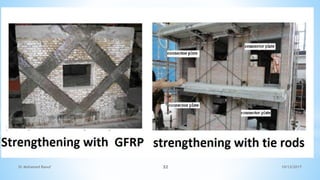

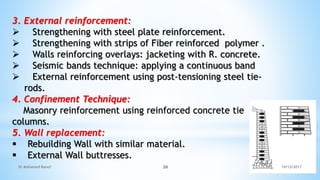

26. 3. External reinforcement:
 Strengthening with steel plate reinforcement.

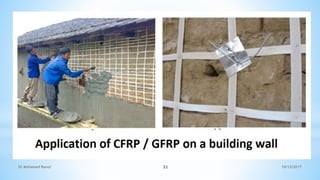

 Strengthening with strips of Fiber reinforced polymer .
 Walls reinforcing overlays: jacketing with R. concrete.
 Seismic bands technique: applying a continuous band
 External reinforcement using post-tensioning steel tie-
rods.
4. Confinement Technique:
Masonry reinforcement using reinforced concrete tie
columns.
5. Wall replacement:
 Rebuilding Wall with similar material.
 External Wall buttresses.
10/12/2017
Dr Mohamed Raouf 26

27. 10/12/2017
Dr Mohamed Raouf 27

28. 10/12/2017
Dr Mohamed Raouf 28

29. 10/12/2017
Dr Mohamed Raouf 29

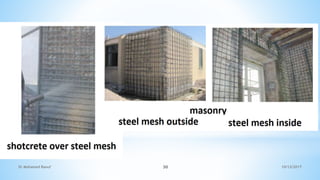

30. 10/12/2017
Dr Mohamed Raouf 30

31. 10/12/2017
Dr Mohamed Raouf 31

32. 10/12/2017
Dr Mohamed Raouf 32

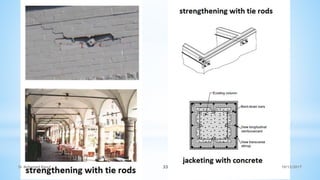

33. 10/12/2017
Dr Mohamed Raouf 33

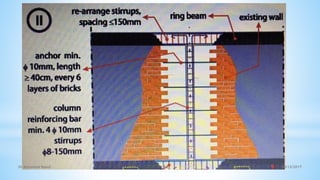

34. 10/12/2017
Dr Mohamed Raouf 34

35. 10/12/2017
Dr Mohamed Raouf 35

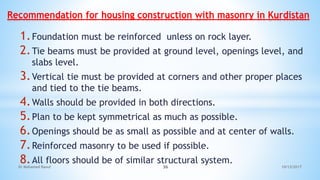

36. 1.Foundation must be reinforced unless on rock layer.
2.Tie beams must be provided at ground level, openings level, and
slabs level.
3.Vertical tie must be provided at corners and other proper places
and tied to the tie beams.
4.Walls should be provided in both directions.
5.Plan to be kept symmetrical as much as possible.
6.Openings should be as small as possible and at center of walls.
7.Reinforced masonry to be used if possible.
8.All floors should be of similar structural system.
Recommendation for housing construction with masonry in Kurdistan
10/12/2017
Dr Mohamed Raouf 36

37. How good is your house against Earthquake?
10/12/2017
Dr Mohamed Raouf 37

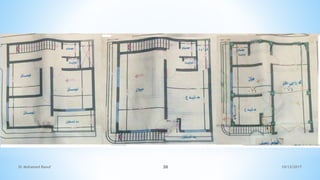

38. 10/12/2017
Dr Mohamed Raouf 38

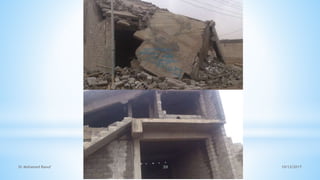

39. 10/12/2017
Dr Mohamed Raouf 39

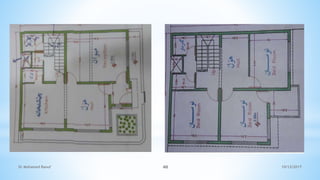

40. 10/12/2017
Dr Mohamed Raouf 40

41. 10/12/2017
Dr Mohamed Raouf 41

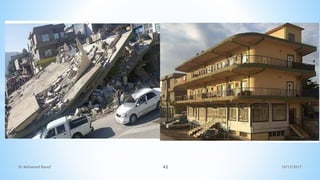

42. 10/12/2017
Dr Mohamed Raouf 42

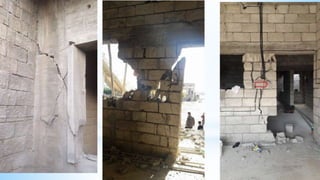

43. 10/12/2017
Dr Mohamed Raouf 43

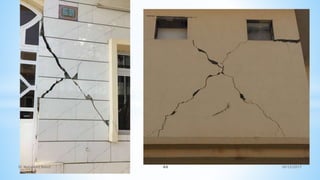

44. 10/12/2017
Dr Mohamed Raouf 44

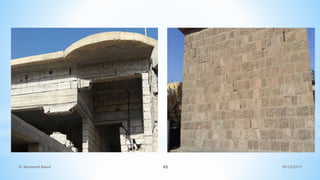

45. 10/12/2017
Dr Mohamed Raouf 45

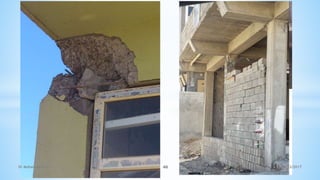

46. 10/12/2017
Dr Mohamed Raouf 46

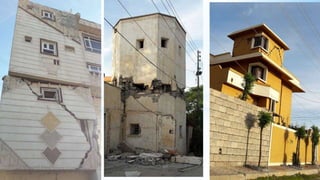

47. 10/12/2017
Dr Mohamed Raouf 47

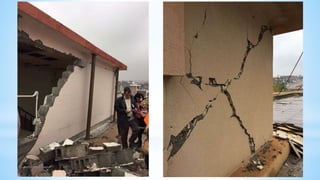

48. 10/12/2017
Dr Mohamed Raouf 48

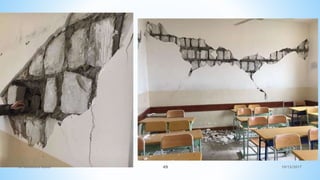

49. 10/12/2017
Dr Mohamed Raouf 49

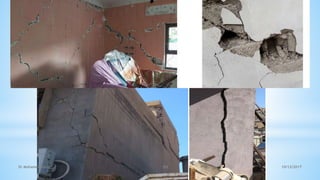

50. 10/12/2017
Dr Mohamed Raouf 50

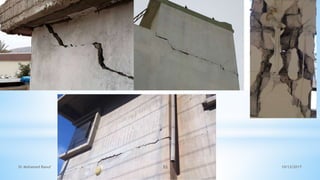

51. 10/12/2017
Dr Mohamed Raouf 51

52. 10/12/2017
Dr Mohamed Raouf 52

53. Any Questions Please
